Product Type	Drink Cooler / Beverage Chiller
Brand	Guzzanti
Model	GZ 0824
Capacity	21 liters (0.74 cu ft)
Bottle Capacity	8 standard 750ml bottles
Temperature Range	8°C to 18°C (46°F to 64°F)
Cooling System	Thermoelectric with automatic defrost
Voltage	100-240V AC
Frequency	50/60 Hz
Rated Power	65 W
Dimensions (W × D × H)	265 × 510 × 475 mm
Net Weight	11.3 kg
Gross Weight	13.0 kg
Shelves	3 wire shelves (adjustable)
Interior Light	LED, auto-off after 10 minutes
Control Panel	Touch buttons, LED display, auto-lock after 20 seconds
Ventilation Requirements	Min 200 cm³ opening; side gap ≥20 mm, rear gap ≥50 mm
Refrigerant Foam	Cyclopentane (flammable)
Approvals	CE, CB
Intended Use	Household, offices, hotels, catering (non-retail)
Not Suitable For	Freezing foodstuffs

Frequently Asked Questions - GZ 0824 Guzzanti

How do I set the temperature?

Press the OK button on the control panel. Each press increases the set temperature by 1°C; press and hold to decrease by 1°C. The display shows the current set temperature.

How should I clean the cooler?

Unplug the unit. Use a soft cloth and mild detergent to clean interior surfaces. Rinse and dry thoroughly. Avoid abrasive cleaners or solvents. Clean the condenser ventilation area regularly with a vacuum brush.

Can I store beer or wine?

Yes, this cooler is designed for chilling beverages, including beer, wine, soft drinks, and water. It holds up to 8 standard 750ml wine bottles.

Why is my cooler not cooling?

Check that the unit is plugged in and the socket is powered. Ensure the ventilation openings are unobstructed. Verify the door seal is intact. If still not cooling, the thermoelectric module or fan may need service.

How do I turn on the interior light?

Press the button marked with the light icon once. The light turns on and will automatically turn off after 10 minutes of inactivity. Press again to reactivate.

What ambient temperature is recommended?

For optimal performance, place the cooler in a room with ambient temperature between 16°C and 32°C (61°F-90°F). Avoid extreme heat or cold.

Does the cooler need defrosting?

No, this model features an automatic defrosting system. Frost is removed automatically during the cooling cycle. If excessive frost appears, let the unit run with the door open for an hour to defrost manually.

How many bottles can I store?

The cooler can hold up to 8 standard 750ml wine bottles. Actual capacity may vary with bottle shape and size. Shelves can be removed for bulk storage.

Is the door reversible?

The manual does not specify door reversibility. The standard configuration has the hinge on the right. Contact support if you need to change the door swing.

What should I do if the cooler is noisy?

Noise may come from the fan or thermoelectric module. Clean any dust buildup on the fan blades with a soft brush. Ensure the unit is level using the adjustable legs. If noise persists, the fan may need replacement.

USER MANUAL GZ 0824 Guzzanti

Line drawing of a rectangular kitchen appliance with a lid and ventilation slots (no text or symbols)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

REGULACE TEPLOTY

Line drawing of an open oven with internal compartments (no text or symbols)

Technical line drawing of an open industrial oven with internal cooling fans and ventilation ducts (no text or labels)

TECHNICKÉ ÚDAJE

Symbol of a trash bin crossed with no visible text or labels

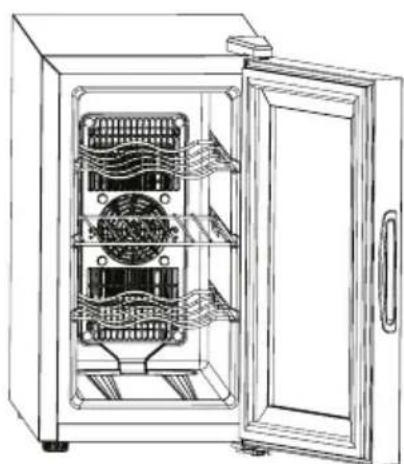

REGULÁCIA TEPLOTY

Line drawing of an open oven with internal compartments and ventilation slots (no text or symbols)

Line drawing of an open oven with internal components (no text or symbols)

TECHNICKÉ ÚDAJE

Symbol of a trash bin crossed with no visible text or labels

Pure graphical icons including gear, sun, and checkmark on black background (no text or symbols)

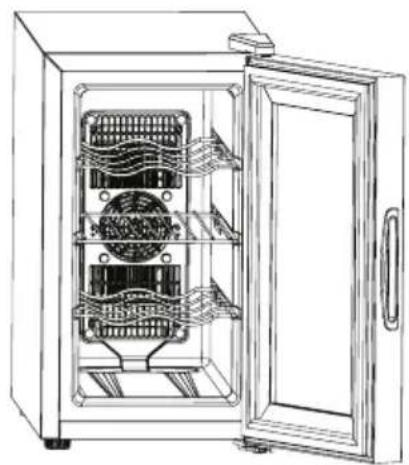

KONTROLA TEMPERATURY

Line drawing of an open fire extinguisher with internal cooling fans and ventilation slots (no text or symbols)

Technical line drawing of an open industrial oven with internal components (no text or symbols)

DANE TECHNICZNE

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

Line drawing of an open oven with internal compartments and ventilation slots (no text or symbols)

8 palack borhoz

Line drawing of an open oven with internal compartments and ventilation slots (no text or symbols)

MÜSZAKI ADATOK

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Pure graphical icons for weather, temperature, and directional symbols without any text or labels

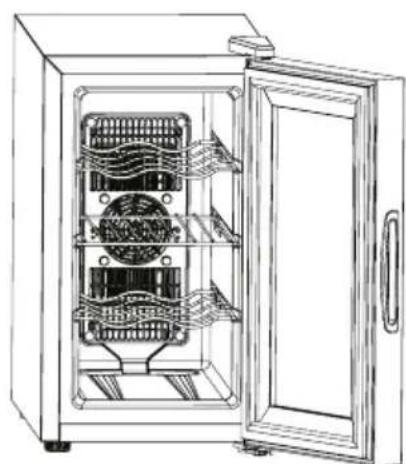

NADZOR TEMPERATURE

Line drawing of an open oven with internal compartments and ventilation slots (no text or symbols)

Za 8 steklenic vina

Line drawing of an open oven with internal components (no text or symbols)

TEHNIČNI PODATKI

Model št. GZ-0824
Neto prostornina (litri) 21 l
Napetost (V) 100 - 240 V
Frekvenca (Hz) 50/60 Hz
Nazivna moč (W) 65 W
Mere (mm) 265 x 510 x 475
Mere embaliranega aparata (mm) 305 x 555 x 510
Neto teža (kg) 11,3
Bruto teža (kg) 13,0
Odobritev CE/CB

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of an open industrial oven with internal fan compartments (no text or symbols)

Für 8 Flaschen Wein

Technical line drawing of an open industrial oven with internal components (no text or symbols)

TECHNISCHE DATEN

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Thank you very much for buying this product. Before using your new cooler, please read this operation manual to ensure that you gain the maximum benefit from it.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

9. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

10. Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

11. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
12. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
13. This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

1. To avoid contamination of drink, please respect the following instructions:

2. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

3. Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
4. Clean water tanks if they have not been used for 48 h, flush the water system connected to a water supply if water has not been drawn for 5 days.
5. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note:

This appliance contains flammable foaming agent cyclopentane. Please avoid contact fire when you transport and use it. Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal station when you discard it.

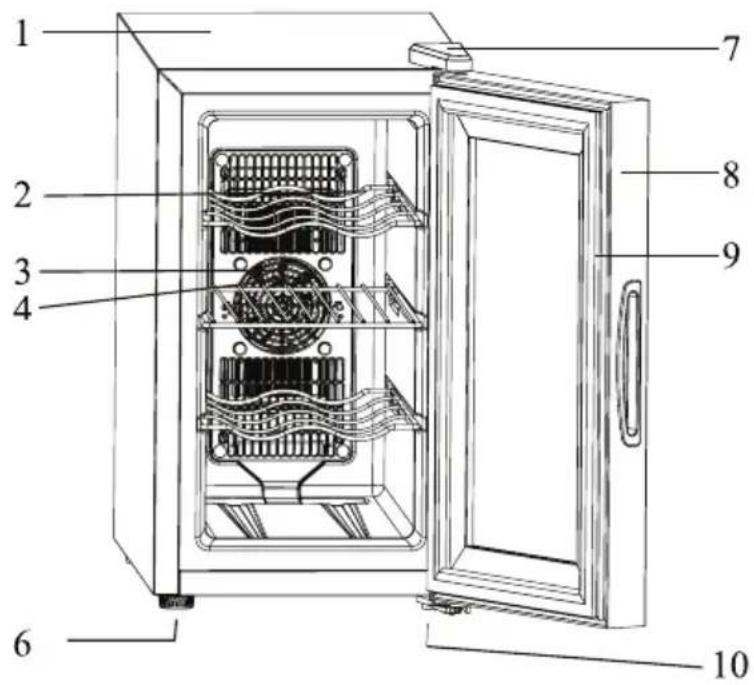

1. Cabinet
2. Shelf (Total 3)
3. Cold sink fan
4. Cold sink Fan Cover
5. Ventilation Holes
6. Leveling legs
7. Upper Door Hinge w/ Cover
8. Door
9. Gasket
10. Bottom hinge

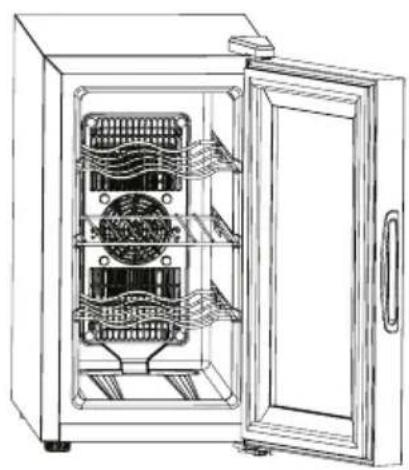

TEMPERATURE CONTROL

It is recommended you install the Chiller in a place where the ambient temperature is between 16^-32^/61^-90^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of (8-18^/46-64^) may not be reached.

Temperature Ranges For Your Cooler

Temperature Range 8-18°C 46-64°F

CONTROL PANEL

You can select temperature display setting from Fahrenheit to Celsius degree by pushing this button for two seconds. Fahrenheit or Celsius degrees indicator will appear in white color in the LED temperature display window with blue background.

CONTROL PANEL

• You can turn the interior light ON or OFF by pushing the button once.
The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button again and the light will turn back on.
- You can select temperature display setting from Celsius to Fahrenheit degree by pushing the button for 2 seconds.

1. Your Cooler has been equipped with an "automatic1 control panel lock, that will activate 20 seconds after the last time a button has been touched.
   Push the button for 2 seconds to unlock the control panel. You will hear a "BEEP" sound to alert you that the control is now active.

2. You can set the temperature as you desire by pushing the OK button on the control panel. The temperature that you desire to set will increase 1 °C if you push the button once, on the contrary the temperature will decrease 1°C if you push the button once.

NOTE:

When you use the cooler for the first time or restart the cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the cooler is running for a few hours everything will be back to normal.

Storage Capacity

NOTE: You can place 8 standard bottles in model.

Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage.

Interior Light

You can turn the interior light ON or OFF by pushing the button marked with the "Light" symbol 🙏The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button marked with the "Light" symbol 🙏 again and the light will turn back on.

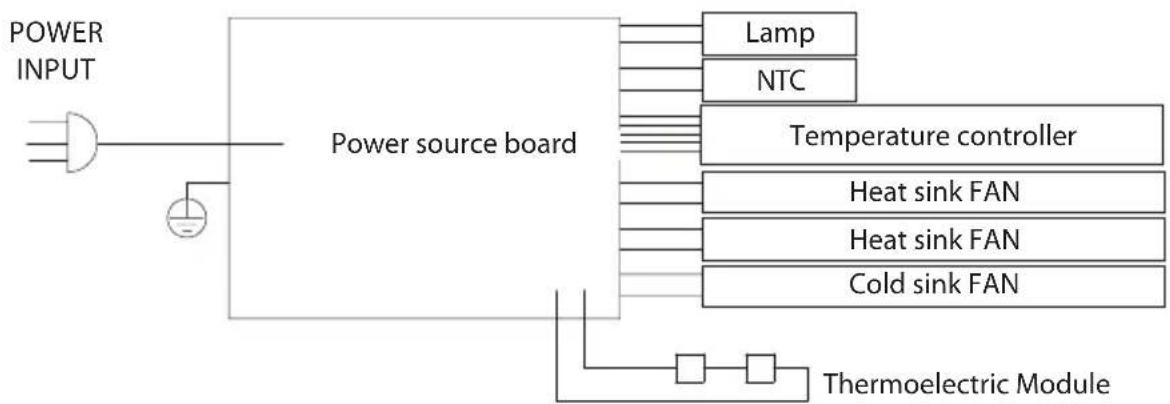

ELECTRIC DIAGRAM

INSTRUCTION FOR USES

1. Note

1.1: Position your cooler so that the plug is accessible.
1.2: Keep your cooler out of direct sunlight.
1.3: Do not place next to heat generating appliance.
1,4: Do not place directly on the ground. Provide suitable stand.

2. Very important:

2.1: The cooler will have better performance at ambient of 16-32 degree; We suggest the cooler be powered off if the ambient temperature is lower than 10 degree.
2.2: After plugging the appliance, allow the unit to cool down for 2-3 hours before placing beverage into the cooler compartment.
2.3: Ventilation is very important for this kind thermoelectric cooler; The inside PCB will be broken easily if the ventilation is bad; It will also reduce the life of the cooler.
2.4: These models use a thermoelectric cooling system with automatic defrosting system, so there is no need to defrost it manually.

3. Power supply:

3.1: The cooler must be connected to a properly earthed socket in line with relevant valid country regulations before operating;
3.2: Check the data label (which is on the side of the cooler) for voltage and frequency corresponds to your local one; If not, don't plug your cable into the socket;

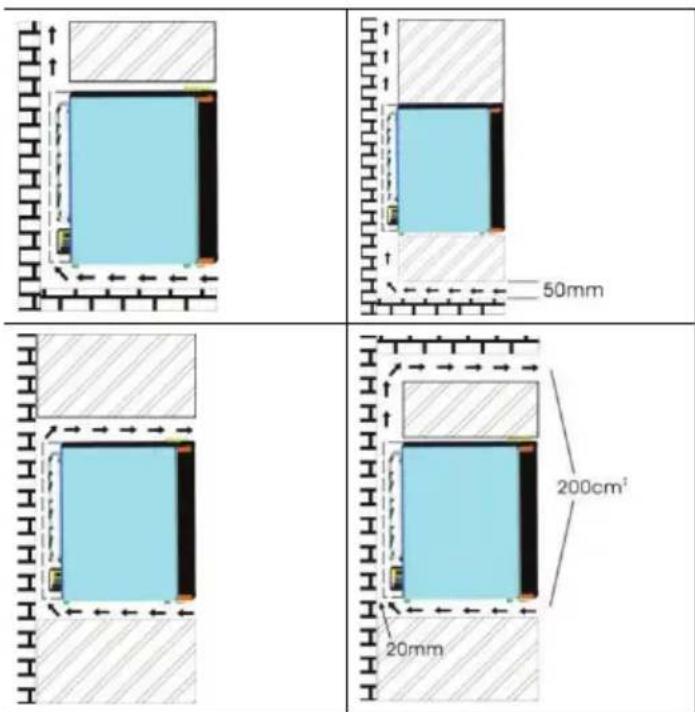

VENTILATION

When putting a TE cooler, ventilation should be considered seriously, please refer to the following:

1. there should be left at least 200 cm ^3 for ventilation
2. the distance between wall and cooler side should be at least 20mm
3. the back should be left at least 50mm for air flowing
4. air passing through must not be preheated
5. entire cooling system should be considered in the ventilation

TROUBLE SHOOTING GUILDS

Failure: no cooling

Possible reason Action
No power Check the electricity supply, or change a new plug
PCB broken Replace a new PCB
Fan broken Replace a new fan
Leakage Replace a new heat pump
Cooling module broken Replace a new cooling module with silicone

Failure: poor cooling performance

Possible reason Action
High ambient temperature The room temperature is hotter than normal
Poor instruction The door is opened too often
Poor ventilation Install cooler according to our ventilation instruction
Poor gasket Replace a new door gaske
Poor silicone Change the silicone on the surface of the cooling module

Failure: noisy

Possible reason Action
Dust Clean the dust from the fan
Fan broken Change to a new fan
Poor heat pump	Replace a new heat pump

Failure: frost or ice inside minibar

Possible reason Action
No defrost	Stop working for at least one hour, then restart it
Low ambient temperature	Adjust the air-conditioner to be around 25 degree

PRODUCT FUNCTION DESCRIPTION

1. It is intended to be used exclusively for the pantry.
2. This refrigerating appliance is not suitable for the freezing foodstuffs.
3. The pantry is recommended to be designed at 17 C.

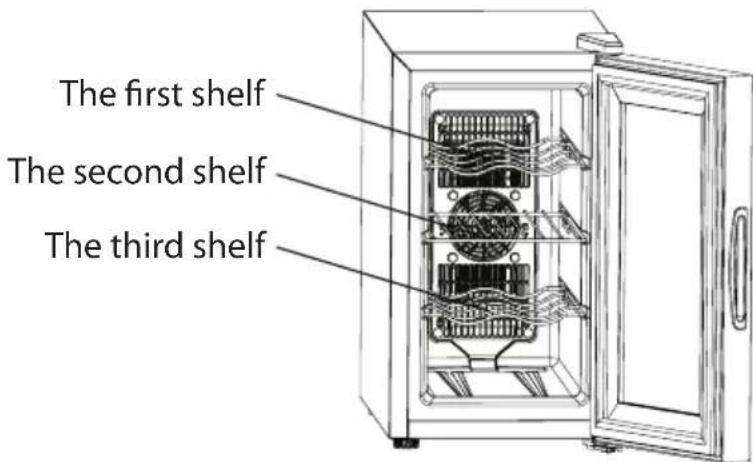

4. The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.
5. The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

1. When the surrounding temperature is 25C and the pantry has no load, it will take around 3.5 hours to decrease the pantry's temperature from 25C to 17C.
2. The pantry is recommended to be designed at 17C. The energy consumption is 0.233 kWh/24h. If the setting temperature is higher than 17C, the energy consumption will be lower. If the setting temperature is lower than 17C, the energy consumption will be higher.

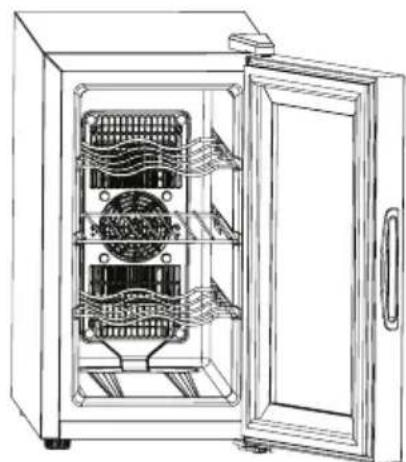

For 2 champagne bottles and 4 wine bottles

Line drawing of an open oven with internal compartments and ventilation slots (no text or symbols)

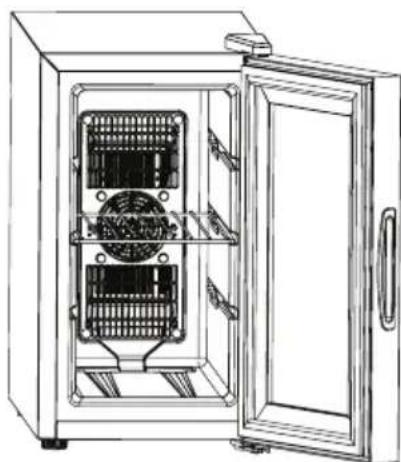

For 8 wine bottles

Line drawing of an open oven with internal compartments and fan structure (no text or symbols)

TECHNICAL DATA

Model No. GZ-0824
Net Capacity (liters) 21L
Voltage (V) 100-240V
Frequency (Hz) 50/60Hz
Rated Power (W) 65W
Dimension (mm) 265 x 510 x 475
Packing (mm) 305 x 555 x 510
Net Weight (kg) 11.3
Gross Weight (kg) 13.0
Approval CE/CB

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
