Product Type	Drink Cooler
Brand	Guzzanti
Model	GZ 44L
Capacity	44 liters
Net Weight	15 kg (approx.)
Dimensions (W x D x H)	45 x 45 x 50 cm (approx.)
Power Supply	220-240 V ~ 50 Hz
Power Consumption	90 W (approx.)
Temperature Range	2°C to 10°C
Cooling Type	Compressor
Refrigerant	R600a
Noise Level	42 dB (approx.)
Energy Class	G (EU 2019)
Adjustable Shelves	Yes, 2 wire shelves
Interior Light	LED
Door Type	Solid, reversible
Lock	Yes, with key
Thermostat Control	Mechanical dial
Defrosting	Manual
Cleaning	Unplug, wipe interior with damp cloth
Spare Parts Availability	Contact Guzzanti support

Frequently Asked Questions - GZ 44L Guzzanti

How do I set the temperature on the GZ 44L?

Use the mechanical dial inside the cooler. Turn it to the desired setting: 1 for warmest, 7 for coldest. Allow 24 hours to stabilize.

What is the capacity of the Guzzanti GZ 44L?

It has a capacity of 44 liters, suitable for storing up to approximately 60 standard cans.

How do I clean the drink cooler?

Unplug the cooler. Remove all items and shelves. Wipe the interior with a soft cloth dampened with warm water and mild detergent. Dry thoroughly. Do not use abrasive cleaners.

Does the cooler have a lock?

Yes, the door is equipped with a lock and key to secure your beverages.

How do I reverse the door swing?

Refer to the manual for step-by-step instructions. Typically, you need to remove the top hinge, bottom hinge, and door, then reattach on the opposite side. Tools required: screwdriver and possibly a spanner.

Why is my cooler making noise?

Some noise is normal due to the compressor and refrigerant flow. Ensure the cooler is level and not touching walls or cabinets. If noise is excessive, check for loose parts.

What is the energy efficiency class?

The energy class is G on the EU energy label (2019 scale). Actual consumption depends on usage and ambient temperature.

Can I use the cooler outdoors?

It is designed for indoor use only. Do not expose to rain or direct sunlight. Ambient temperature should be between 10°C and 38°C.

How do I defrost the cooler?

Turn off and unplug. Remove all items and leave the door open. Place towels to absorb melting water. Do not use sharp objects to scrape ice. Defrosting may take several hours.

Where can I find spare parts?

Contact Guzzanti customer service or authorized dealers. Have your model and serial number ready. Some parts may be available online.

USER MANUAL GZ 44L Guzzanti

Simple line drawing of a cabinet or enclosure with vertical divisions and a horizontal top bar (no text or symbols)

Simple line drawing of a rectangular enclosure with vertical supports and horizontal slats (no text or symbols)

Návod k obsluze

Návod na obsluhu

Instrukcja obsługi

Használati útmutató

Navodila za uporabo

Instruction manual

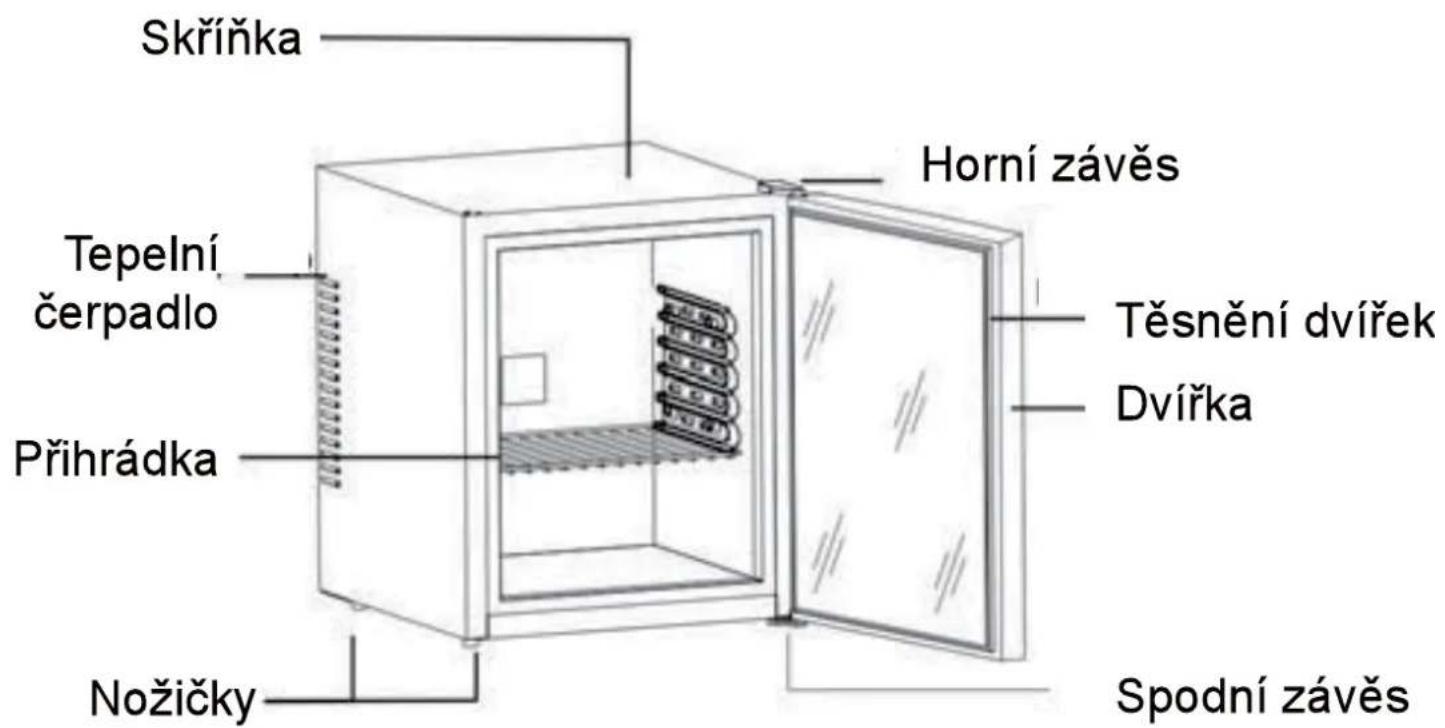

Popis částí

Minibar 28

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Uporaba regulatorja temperature

• Vaša naprava ima samo en gumb za nastavitev temperature. Regulator temperature se nahaja v zadnjem delu hladilnika.
• Za nastavitev notranje temperature prilagodite regulator glede na temperaturo okolice ali predvideno uporabo.
• Razpon nastavitve temperature je od položaja „HI“ (visoka) do „LO“ (nizka).

Navodila za uporabo

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Setting the Temperature Control

• Your refrigerator has only one control for regulating the temperature. The temperature control is located at the rear of the refrigerator..
  • To control the internal temperature, adjust the control knob according to the ambient temperature or purpose of use.
• The range of the temperature control is from position „HI“ to “LO”.

Instruction for use

- Position your refrigerator so that the plug is accessible.

- Keep your refrigerator out of direct sunlight.

- Do not place next to heat generating appliance.

- Do not place directly on the ground. Provide suitable stand.

Very important

- The refrigerator will have better performance at ambient of 20-25 degree; We suggest the refrigerator be ambient temperature is lower than 10 degree.

• After plugging the appliance, allow the unit to cool down for 2-3 hours before placing beverage into the refrigerator compartment.

- Ventilation is very important for this kind thermoelectric refrigerator; The inside PCB will be broken easily if the ventilation is bad; It will also reduce the life of the refrigerator.

- If leakage occurs (which can be easily detected due to the unpleasant smell), please

A: Switch off the refrigerator immediately

B: Ventilate the room thoroughly

C: Call for after sales service department

- The refrigerator applies automatic defrosting system, so there is no need to defrost it manually.

Power supply

- The refrigerator must be connected to a properly earthed socket in line with relevant valid country regulations before operating;

- Check the data label (which is on the side of the refrigerator) for voltage and frequency corresponds to your local one; If not, don't plug your cable into the socket;

Installation instructions

When install a Heat pipe Refrigerator, ventilation should be considered seriously, please refer to the following:

• There should be left at least 200~cm^3 for ventilation
  • The distance between wall and refrigerator side should be at least 20 mm.
• The bottom should be left at least 50 mm for air flowing air passing through must not be preheated.
• Entire cooling system should be considered in the ventilation.

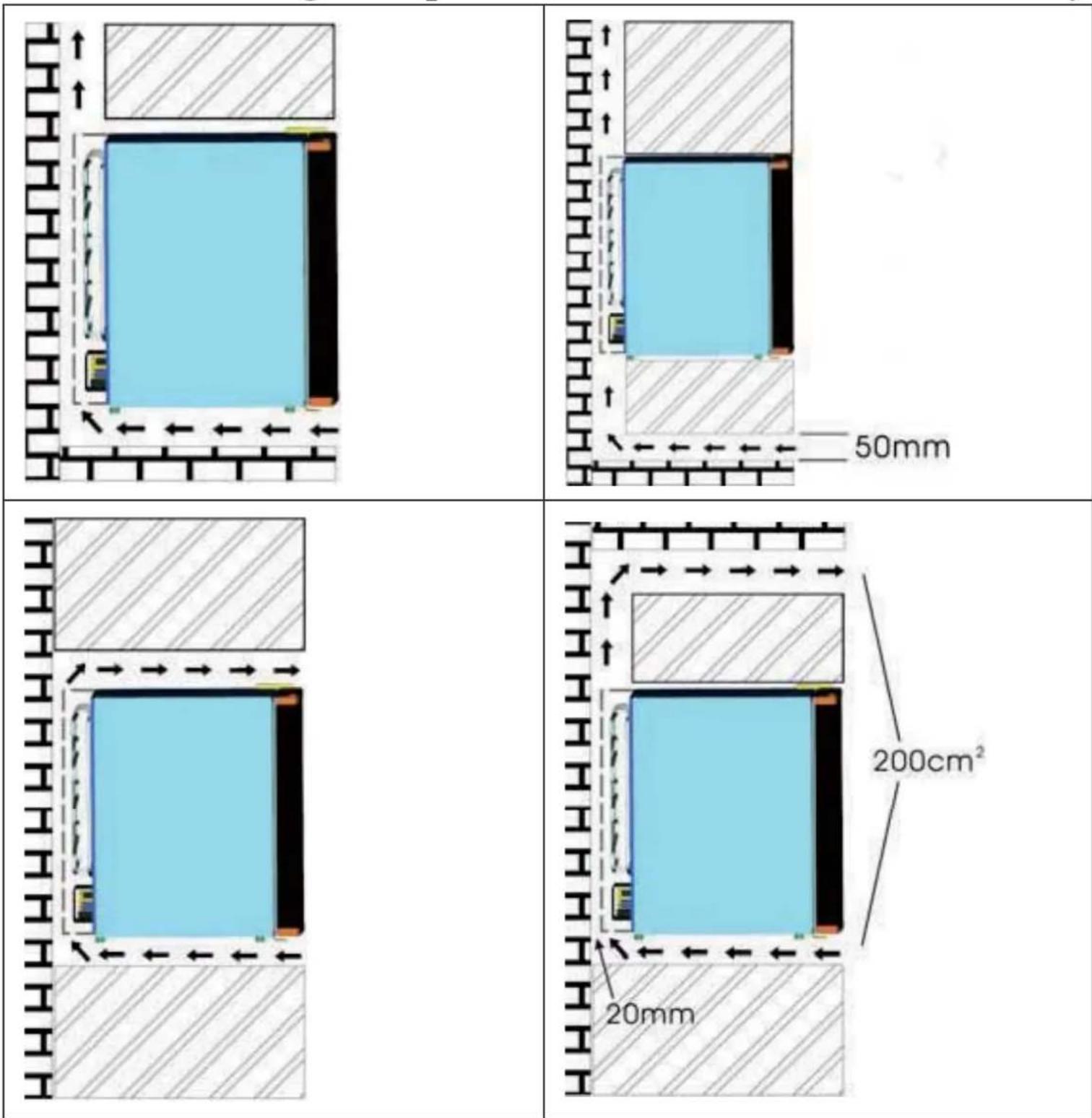

• The following four pictures show four installation ways:

Changing the Swing Hinge

This refrigerator has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow below instructions.

All the hinge can be used for left or right swing, except for model MINIBAR 28 and MINIBAR 40, please find an additional left upper hinge in the bag of the user manual for installation as bellow.

• Pull out the three screws from right hinge.
- Remove the hinge (upper and lower) away.
• Install the door in suitable position with hinges, use three self-screws to fix them.

Trouble Shooting Guide

PROBLEM	POSSIBLE CAUSE
Refrigerator does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Refrigerator is not cold enough.	The room temperature is hotter than normal.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in. The circuit breaker tripped or a blown fuse. The LED light has burned out.
Vibrations.	Check to assure that the refrigerator is level.
The door will not close properly.	The refrigerator is not level.The door was reversed and not properly installed. The gasket is dirty.The shelves, bins, or baskets are out of position.

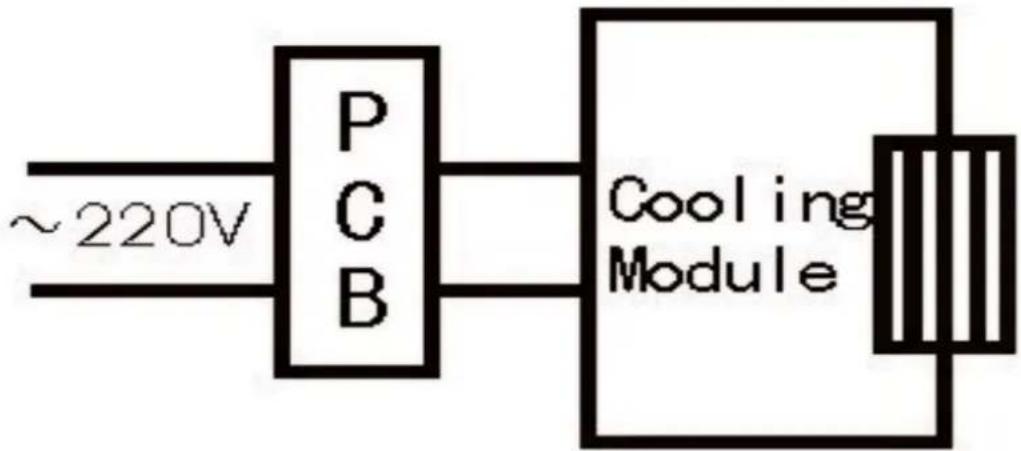

Electric Diagram

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
  • Overloading the refrigerator forces the thermoelectric cooling system to run longer.
• Reduce door openings and extended searches, remove as many item as needed at one time, and close the door as soon as possible.
• One characteristic of heat-pipe units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for the type of unit.
• Heat-pipe technology costs just pennies to operate. It is environmentally friendly due to the lack of CFC's.

Specification Table

Net Capacity (liters)	MINIBAR 28	MINIBAR 40
Voltage (V)	220-240 / 120
Frequency (Hz)	50-60
Rated Power (W)	65	65
Dimension (mm)	380 x 380 x 470	435 x 403 x 545
Packing (mm)	460 x 430 x 520	495 x 455 x 590
Net Weight (kg)	10.5	12
Gross Weight (kg)	12.5	14
Approval	CCC/CB/CE/EMC & LVD

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no visible text or numbers, accompanied by a black rectangular block below (no text or symbols present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
