ZeFit 3 - Sports Watch MYKRONOZ - Free user manual and instructions

Product type	Sports watch / Connected bracelet
Brand	MyKronoz
Model	ZeFit 3
Dimensions (L x W x H)	47.5 x 20 x 9 mm
Wrist circumference	Min 159 mm, Max 194 mm
Weight	18 g
Battery	Rechargeable lithium-ion 80 mAh
Battery life	Up to 5 days
Charging time	1 to 2 hours
Screen	Color TFT touchscreen, 160 x 64 pixels
Connectivity	Bluetooth 4.0 BLE, range up to 5 m
Sensors	Triaxial accelerometer
Water resistance	IP67 (immersion up to 1 m, 30 min)
Compatibility	iOS 8+, Android 4.3+, Windows Phone 8.1+
Main functions	Pedometer, distance, calories, sleep, goals, notifications, photo trigger, music control, phone locator, stopwatch, watch faces, vibrator
Maintenance	Clean with a soft, dry cloth; avoid chemicals
Warranty	1 year international

Frequently Asked Questions - ZeFit 3 MYKRONOZ

How to charge the ZeFit 3?

Place the watch on its magnetic charging dock, aligning the contacts. Plug the provided USB cable into a power source. A full charge takes about 1h30. The battery indicator appears on the screen.

How to pair the ZeFit 3 with my smartphone?

Download the ZeFit 3 app from the App Store, Google Play, or Windows Phone Store. Turn on Bluetooth on your phone, open the app, and create an account or log in. Follow the instructions to pair the watch (accept pairing requests on both devices). Pairing is one-time.

How to wear the ZeFit 3 correctly?

Insert the unit into the strap, place it around your non-dominant wrist, and tighten the clasp. Wear it snugly to optimize data accuracy.

How to view my activity on the ZeFit 3?

Swipe your finger on the screen from right to left or top to bottom to display step count, distance, and calories. The data resets at midnight.

How to set up sleep tracking?

On the watch, go to Applications > Sleep and long-press to activate sleep mode. You can also set preset times in the app (Settings > Advanced Settings > Preset Sleep). Manually add data if you forget to activate the mode.

How to set daily goals?

In the ZeFit 3 app, select the Goals tab to set your goals for steps, distance, calories, and sleep duration. The watch displays a progress bar under step count. A vibrator alerts you when you reach a goal.

How to use the photo trigger?

Make sure the watch is connected via Bluetooth. In the app, go to Settings > Camera. Enable the function. On the watch, open the Photo Trigger app and tap the camera icon to take a remote photo.

What to do if pairing fails?

Repeat the pairing steps. Make sure the watch is near the phone and Bluetooth is on. If the issue persists, disconnect the watch from the current account via the app (Settings > Connect ZeFit 3 > Disconnect) and then reconfigure.

What is the battery life?

Battery life is approximately 5 days with normal use. A 1h30 charge is enough for a full battery. A low battery indicator appears on the screen.

Is the ZeFit 3 waterproof?

Yes, it has an IP67 certification: it withstands immersion up to 1 meter for 30 minutes. However, avoid exposure to water jets or chemicals.

USER MANUAL ZeFit 3 MYKRONOZ

CHARGING TERMINALS

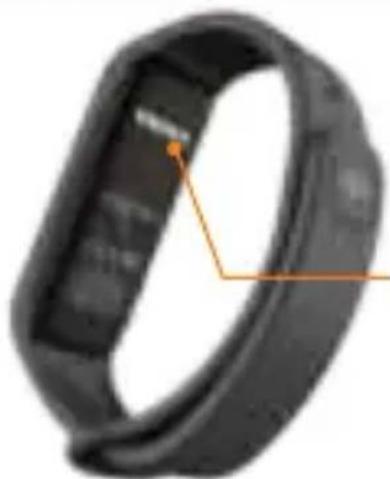

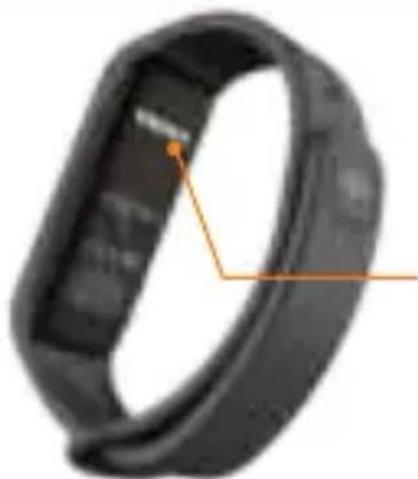

WAKE THE DEVICE

Double tap the touchscreen
■ZeFit ³ screen turns off when not use

EXIT A MENU

Double tap the touchscreen

MOVE BETWEEN SCREENS

Swipe left or right (horizontal mode) up or down (vertical mode)

l

To ensure ZeFitis responding accurately to your taps, we recommend using your fingertip and not your nail.

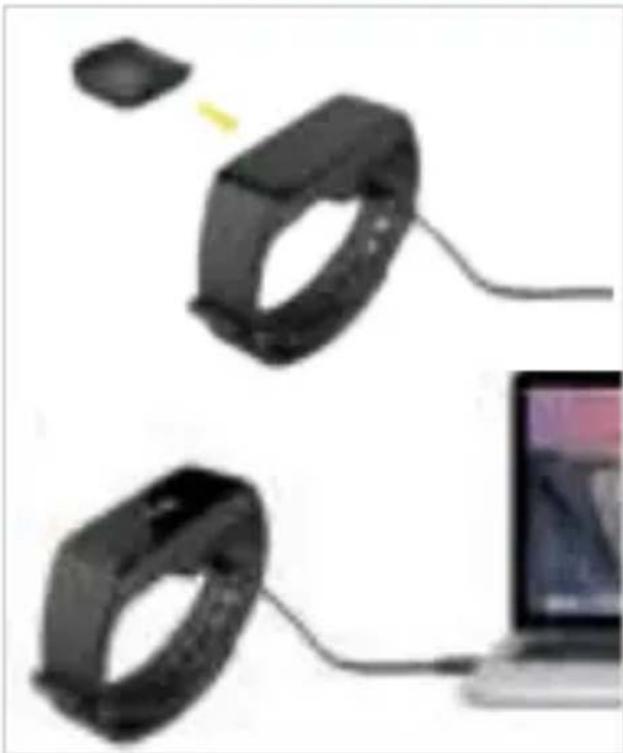

1. CHARGING

Charge ZeFit ³ for two hours before your first use.

1. Put ZeFit ³ on the magnetic charging dock
2. Make sure the pin on the charging dock fit correctly onto the charging terminals on the back of ZeFit ³
3. Plug the small end of the USB cable provided into the charging's dock USB port
4. Plug the big end of the USB cable into a power source
5. A battery indicator will fill to indicate charging is in progress. Once ZeFit ³ is charged, the battery indicator will be full

i

A full charge takes 1:30 hour. When the battery level gets low, a battery indicator will appear.

2. PAIRING

The first time you use ZeFit ³ , a SET UP message will prompt you to set up your ZeFit ³ using a mobile device.

GET ZeFit ³ APP

To set up yourZeFit ³ using your mobile device, you first need to get ZeFit ³ App. Search for ZeFit ³ App in the App store, Google Play or Windows Phone store, download and install the App on your mobile device.

System Requirements

iOS Android

iOS 8+ devices with Bluetooth 4.0 BLE iPhone 4s, 5, 5c, 5s, 6, 6 Plus, 7 and newer, iPad (3 ^rd , 4 ^th and 5 ^th gen) iPad Mini, iPod touch (5 ^th gen)

Select Android 4.3 + devices that support Bluetooth 4.0 BLE

Windows Phone 8.1+

Select Windows Phone 8.1+ that support Bluetooth 4.0 BLE

Visit www.mykronoz.com to get the latest compatibility list

1. Enable Bluetooth on your mobile device
2. Open ZeFit ³ App on your mobile device. Sign up if you are a new member or Log in with your existing account. After entering your personal information, tap Set up
3. Make sure ZeFit ³ is nearby and select ZeFit ³ in the list of devices
4. You will receive a pairing request on your mobile device. Press Pair to accept it
5. Then, a pairing request will appear on your ZeFit ³ display
   Tap on your ZeFit ³ to accept the pairing
6. When ZeFit ³ is successfully paired, you will be notified on ZeFit ³ and on your mobile device's screen

If pairing fails, repeat the same steps. Pairing is a one-time process. If you want to pair ZeFit ³ with another account, you first need to unpair it from the current one. Open ZeFit ³ App, go to Settings > Connect ZeFit ³ > Unpair ZeFit ³ . Tap Connect ZeFit ³ to pair a new device

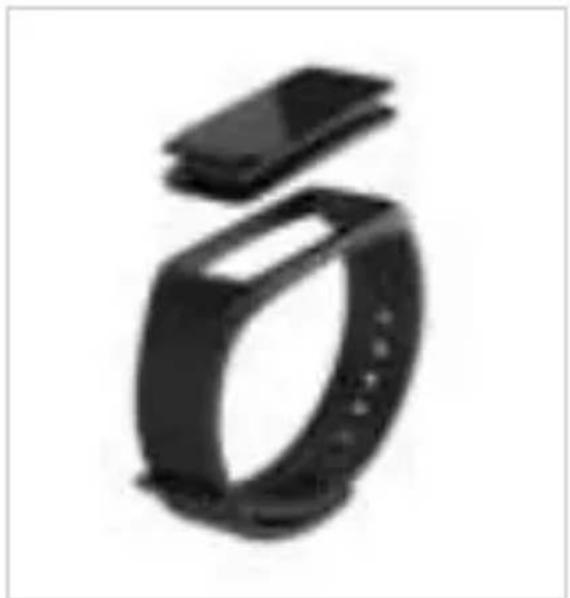

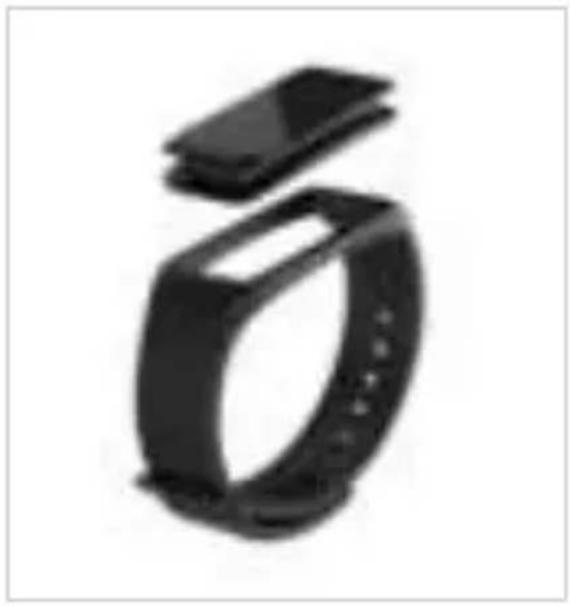

3. WEARING

ZeFit ³ has a removable wristband and is adjustable to fit different wrist sizes.

1. Pop ZeFit ³ tracker unit into the wristband
2. Place ZeFit ³ around your wrist and put the clasp pin inside the hole
3. Press a few times to ensure the pin is fully inserted and that ZeFit ⁴ is securely fastened

i

To get the most accurate data, we recommend wearing ZeFit ³ on your non-dominant hand and not too loose.

4. DISPLAY

Homepage 24h

Successful pairing

Sleep mode Activity mode Full memory

Homepage 12h Pairing request

Syncing Upgrading

Incoming call Anti-lost alert Low power

i

ZeFit ³ App will automatically sync the time and date of your paired mobile device. You can set your preferred time and date format manually in the Settings tab of ZeFit ³ App. Make sure you keep the device charged to avoid the time being reset

5. ACTIVITY

ZeFit ³ tracks the number of steps taken, distance travelled and calories burned throughout the day. You can view your daily activity in real-time on ZeFit ³ by swiping left or right (horizontal mode) up or down (vertical mode) on the touchscreen.

STEPS DISTANCE CALORIES

You can also monitor your activity data and history from the Activity tab of ZeFit ³ . On the main activity screen, you can check your performance level against your daily goals. Click on any activity bar to get a detailed graph of your daily, weekly and monthly performance.

i

ZeFit ³ shows daily data. The activity tracker resets at midnight. To upload your latest activity data, go to the Activity tab and slide your finger down the screen.

6. SLEEP

ZeFit ³ tracks the hours slept and the quality of your sleep (light sleep, deep sleep, awake times)

■ START / EXIT SLEEP MODE

From the device, enter the Apps menu and tap on the Sleep icon. To enable sleep mode from the sleep interface, long press the display until ZeFit ³ gently vibrates and a sleep icon appears. To exit sleep mode and switch to activity mode, repeat the same steps.

PRESET SLEEP

Open ZeFit ³ App > Go to Settings > Advanced Settings > Click on Preset sleep to enter your desired bed and wake up times. By default, ZeFit ³ will track your sleep from 11pm until 7am.

i

If you forgot to activate sleep mode, you can manually add sleep logs in ZeFit® App. Open ZeFit® App, tap on the bottom purple sleep bar, click on "..." at the top > Add sleep.

7. GOALS

Tap the Goals tab of ZeFit ³ App to set daily goals for steps taken, distance travelled, calories burned and hours slept. On the Steps screen of your ZeFit ³ , a progress bar will show how close you are to your daily goal.

Once you hit one of your daily goal, ZeFit ³ will gently vibrate and display a Goal achieved icon

8. REMINDERS

Tap the Reminders tab of ZeFit ³ App to add daily life reminders. You can set up to 6 daily reminders, and choose the type of reminder and preferred time and day. ZeFit ³ will gently vibrate and display the corresponding reminder icon to alert you. A single tap on your ZeFit ³ can dismiss the reminder. If not dismissed, the same alert will repeat after two minutes.

9. NOTIFICATIONS

ZeFit ³ shows notifications of incoming and missed calls, SMS, email, social media activity, calendar events and anti-lost alert*. Open ZeFit ³ App, tap Settings > Notifications to select the notifications you want to receive onto your ZeFit ³ . If you wish to disable certain notifications, swipe the selection button to the left. A single tap on your ZeFit ³ can dismiss the notification. If not dismissed, the notification will reappear next time you wake up the screen.

Setting up notifications for iOS users:

• Go to "Settings" of your iOS device
  Tap "Notification Center"
  Select which type of notifications you wish to receive on ZeFit ⁴
  Enable "Show in Notification Center" to receive the notification on ZeFit ⁴

i

Caller ID supports latin character only. For more languages support, please visit www.mykronoz.com/support/. *Windows Phones may not support those features, please visit www.mykronoz.com/support/ for more information.

10. APPS

Several applications can be found in this menu:

(1) Camera remote: To enjoy this feature, first, make sure ZeFit ³ is connected to your smartphone via Bluetooth. Then, open ZeFit ³ mobile app, click on the Settings tab > tap Camera to launch your smartphone's camera. Enabling Camera Remote function will let you take pictures remotely from your ZeFit ³ by a single tap on the camera icon.
(2) Music control: To enjoy this feature, make sure ZeF ³ itis connected to your smartphone via Bluetooth. Enabling Music control will let you play / pause the current song streamed on your smartphone, choose the previous or next song.
(3) Sleep: see Sleep section of this user manual
(4) Watch faces: Swipe left or right (horizontal mode) up or down (vertical mode) to go through the different watch faces available and tap on the one you want to select and use;
(5) Find my phone: To enjoy this feature, make sure ZeFit ³ is connected to your smartphone via Bluetooth. Enabling Find my phone function will make your phone ring and help you find it.
(6) Timer: From the timer interface, single press to start the timer, double tap to stop.

11. SETTINGS

Several applications can be found in this menu:

(1) Screen orientation: select either vertical or horizontal display
(2) Vibration
(3) Brightness
(4) Watch info
(5) Bluetooth
(6) Battery level

12. TECH SPECS

Size & Circumference 47.5 x 20 x 9 mm

Min: 159 mm

Max: 194 mm

Weight 18 g

Bluetooth 4.0 BLE

Bluetooth operating range Up to 5 meters

Battery type Li-ion 80mAh

Battery life Up to 5 days

Charging time 1 to 2 hours

Memory 5 days of activity

Display TFT color touchscreen 1.06 inches/ 160*64 pixels

Sensor 3-axis accelerometer

Operating temperature -20°C to +40°C

Water resistance IP67

International warranty 1 year

ZeFit ³

— FRANÇAIS —

Charge....19

Configuration ..... 20

Comment la porter . 22

Affichages ...... 23

Activités ...... 24

Sommeil......25

Objectifs......26

Rappels......26

Notifications......27

Applications ..... 28

Paramètres ...... 29

Caractéristiques

techniques......30

PRÉSENTATION

CONTACTS DE CHARGE

ACTIVATION DE L'ÉCRAN

Configurations requises

iOS Android

TERMINALES DE CARGA

TERMINALI DI RICARICA

PER RIATTIVARE IL DISPOSITIVO

LADEANSCHLUSS

DAS GERÄT AKTIVIEREN

Systemanforderungen

iOS Android

OPLAADKLEMMEN

APPARAAT ACTIVEREN

Systeemvereisten

iOS Android

iOS 8+ apparaten met Bluetooth 4.0 BLE iPhone 4s, 5, 5c, 5s, 6, 6 Plus,7 en nieuwer, iPad (3 ^rd , 4 ^e en 5 ^e gen) iPad Mini, iPod touch (5 ^e gen)

Selecteer Android 4.3 + Ondersteunende apparaten Bluetooth 4.0 BLE

Windows Phone 8.1+

Selecteer Windows Phone 8.1+ die Bluetooth 4.0 BLE ondersteunt

Requisitos do Sistema

iOS Android

Dispositivos iOS 8+ com Bluetooth 4.0 BLE iPhone 4s, 5, 5c, 5s, 6, 6 Plus, 7 e mais recentes, iPad (3 ^a , 4 ^a e 5 ^a ger.) iPad Mini, iPod touch (5 ^a ger.)

Selezione dispositivos Android 4.3 + que suportem Bluetooth 4.0 BLE

Windows Phone 8.1+

STYKI ŁADOWANIA

WYBUDZENIE URZĄDZENIA

Wymagania systemowe

iOS Android

ЗАРЯДНЫЕ КЛЕММЫ

Open ZeFit App > Go to Settings > Advanced Settings > Click on Preset sleep to enter your desired bed and wake up times. By default, ZeFit will track your sleep from 11pm until 7am.

i

i

2.

iOS Android

Windows Phone 8.1+

i

i

i

i

11. SETTINGS

12.

ZeFit ³

1.

i

2.

iOS Android

Windows Phone 8.1+

i

i

i

i

i

12.

47.5 × 20 × 9 mm

ZeFit ³

— ภาษาไทย —

การซาร์JOไฟ....159

เปิดใช้งานอุปกรณ์

ความตองการของระบบ

iOS Android

i

iOS Android

Windows Phone 8.1+

i

i

i

iOS

i

10. APPS

11. SETTINGS

WARNING

I Connecting the charging cable improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. Unplug the cable after ZeFit Pulse is fully charged.

I ZeFit ³ Pulse unit and charging dock contains strong magnets that may interfere with pacemakers, credit cards, watches and other magnet-sensitive objects. If you use a pacemaker or any other electronic medical device, please consult your physician before wearing or handling ZeFit ² Pulse

This product is not a medical device and should not be used to diagnose or treat any medical condition.

This product is in compliance with the IP rating IP67. IP67 indicates that the product is resistant again dust ingress and water ingress up to 1 meter of submersion in still tap water at room temperature, for a maximum duration of 30 minutes

ABOUT THIS MANUAL

The features of ZeFi ^® Pulse and the contents of the user manual are subject to change. To get the latest instructions on how to use this product, please refer to the online user manual available on www.mykronoz.com

SUPPORT

If you have any question or require assistance regarding our product, please visit www.mykronoz.com/support/ or email us at [e-mail]

SAFETY INSTRUCTIONS

Before using the device, read these instructions carefully.

■ ZeFit ³ has one built-in battery. Do not disassemble the battery on your own. KRONOZ LLC is not responsible for any damage or personnel injury caused by the removal of the battery or any component.
This device is not waterproof so keep it away from all sources of heat or humidity. Do not use it near sink or other wet areas. Do not immerse the product in any liquid other than water. Do not immerse the product in salt water. Do not swim wearing this product. Do not use the product underwater.
- Charge the battery in a cool, ventilated room. Excessive temperature during charging could cause heat, smoke, fir or deformation of the battery or even explosion.
Avoid excessive temperatures. Do not expose this device to excessive smoke, dust sand, or direct sunlight for an extended period of time.
Do not open, crush, bend, deform, puncture or shred secondary cells or batteries. In the event of a battery break or leak, prevent battery liquid contact with skin or eyes. If this happens, immediately flush the areas with water (do not rub the eye) or seek medical help.

Do not short-circuit. Short-circuiting can occur when a metallic object, such as coins, causes direct connection of positive and negative terminals of the battery. Short-circuiting may damage the battery.
Do not use batteries that have been damaged or have been exhausted.
Keep the batteries out of children's reach and in a safe place to prevent danger.
Do not dispose of batteries in fire as they may cause explosion. Dispose of used batteries in accordance with your local regulations (such as recycling). Do not dispose as household waste.
Use only the USB cable supplied to charge this battery. Do not charge fo more than 24 hours.
KRONOZ LLC is not responsible for any damage caused by improper use of the device.

REGULATORY NOTICES

USA

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTIONS

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

FCC NOTICE

This equipment complies within the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio and TV interference in residential areas. However, even during normal operation, this equipment may cause TV or radio interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one or more of the following corrective measures:

■ Reposition the receiving antenna
Increase the distance between the equipment and receiver
Connect the equipment into an outlet on a circuit different from which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help.

FCC ID: 2AA7D-ZEFT3

CANADA

INDUSTRY CANADA (IC) STATEMENT

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Declaration of conformity with regard to the EU Directive 1999/5/EC.

Kronoz LLC hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC. The complete declaration of conformity is available on request via our customer service: [e-mail]

DISPOSAL AND RECYCLING INFORMATION

After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environment.

©2016 Kronoz LLC, all rights reserved. Kronoz LLC, Avenue Louis-Casai 18, 1209 Geneva, Switzerland All brands or product names are or may be trademarks of their respective owners. Pictures and specifications are not contractual. Les marques citées sont des marques déposées par leur fabricant respectif. Photos et caractéristiques non contractuelles. Designed in Switzerland - Made in China
