Product Type	Smartwatch
Brand	MyKronoz
Model	ZeCircle 2
Dimensions (without strap)	44 mm x 44 mm x 12 mm
Weight (without strap)	50 g
Power Type	Rechargeable lithium-ion battery
Battery Capacity	300 mAh
Typical Battery Life	Up to 5 days
Display Type	1.3 inch AMOLED touchscreen
Connectivity	Bluetooth 4.0
Sensors	Accelerometer, heart rate monitor
Water Resistance	IP67 (immersion up to 1 meter for 30 minutes)
Main Functions	Notifications, activity tracking (steps, calories, distance), sleep tracking, music control, stopwatch, alarm
Compatibility	iOS 8 and later, Android 4.4 and later
Maintenance and Cleaning	Clean with a soft, dry cloth. Avoid chemicals.
Safety	Do not expose to extreme temperatures (>60°C or <-10°C). Do not puncture the battery.
Spare Parts and Repairability	Interchangeable strap (width 22 mm). Repair by authorized center.
General Information	2-year warranty. CR2032 battery for time backup (not included).

Frequently Asked Questions - ZeCircle 2 MYKRONOZ

How to pair the ZeCircle 2 with my smartphone?

Download the ZeCircle app on your smartphone. Enable Bluetooth and follow the on-screen instructions. On the watch, make sure it is in pairing mode (usually accessible from settings).

What is the battery life?

The typical battery life is 5 days with normal use (notifications, activity tracking). It may vary depending on GPS usage, brightness, and notification frequency.

Is the watch waterproof?

It has IP67 certification, meaning it is resistant to immersion up to 1 meter of water for 30 minutes. It is not suitable for diving or prolonged swimming.

How to adjust the screen brightness?

Go to Settings on the watch, then select Display. You can manually adjust brightness or enable automatic mode.

Can I change the strap?

Yes, the strap is interchangeable. Use a standard 22 mm wide strap. Remove the bars using a suitable tool or by gently pushing.

How to reset the watch?

To reset, press and hold the power button for 10 seconds until the logo appears. You can also go to watch settings: Settings > Reset.

What to do if the watch does not charge?

Check that the charging cable is properly connected to the watch and the port is clean. Try another power adapter or a computer USB port. If the problem persists, contact support.

How to activate sleep tracking?

Sleep tracking is automatic. Make sure the watch is worn on your wrist and the app is synced. Sleep data (duration, quality) is visible in the app.

Can I answer calls with the watch?

The ZeCircle 2 allows you to reject or take a call via the watch, but the conversation happens through the smartphone. You can also trigger the phone's speakerphone.

How to update the firmware?

Updates are done via the ZeCircle app. When an update is available, a notification appears. Follow the instructions to download and install the update via Bluetooth.

USER MANUAL ZeCircle 2 MYKRONOZ

ZeCircle ²

- ENGLISH -

Charging......05

Pairing 06

Wearing 08

Displays 09

Activity 10

Sleep 11

Wallet ......12

Goals & Reminders ..... 13

Notifications......14

SMS 15

Call History......15

Apps 16

Settings 17

Tech specs....18

OVERVIEW

TOUCHSCREEN

Black smartwatch with colorful app icons on display (no readable text or symbols)

Close-up of a black smartwatch with a circular display and wrist strap, showing no visible text or symbols.

CHARGING TERMINALS

WAKE THE DEVICE

Double tap the touchscreen
ZeCircle ² screen turns off when not used

EXIT A MENU

Double tap the touchscreen

MOVE BETWEEN SCREENS

Swipe left or right, up or down

i

To ensure ZeCircle ² is responding accurately to your taps, we recommend using your fingertip and not your nail.

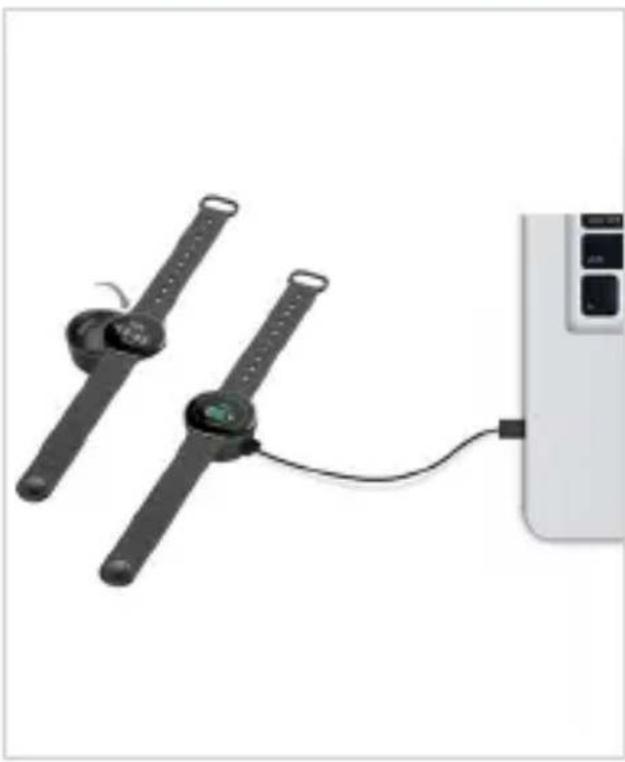

1. CHARGING

Two smartwrist wristwatches connected to a laptop via cable (no visible text or symbols)

Charge ZeCircle ² for two hours before your first use.

1. Put ZeCircle ² on the magnetic charging dock
2. Make sure the pin on the charging dock fit correctly onto the charging terminals on the back of ZeCircle ⁴
3. Plug the small end of the USB cable provided into the charging's dock USB port
4. Plug the big end of the USB cable into a power source
5. A battery indicator will fill to indicate charging is in progress. Once ZeCircle ² is charged, the battery indicator will be full

i

A full charge takes 1:30 hour. When the battery level gets low, a battery indicator will appear.

2. PAIRING

The first time you use ZeCircle ² , a SET UP message will prompt you to set up your ZeCircle ² using a mobile device.

GET ZeCircle ² APP

To set up your ZeCircle ² using your mobile device, you first need to get ZeCircle ² App. Search for ZeCircle ² App in the App store, Google Play or Windows Phone store, download and install the App on your mobile device.

System Requirements

iOS Android

iOS 8+ devices with Bluetooth 4.0 BLE iPhones 4s, 5, 5c, 5s, 6, 6 plus, 7 and newer, iPad (3 ^rd , 4 ^th and 5 ^th gen) iPad Mini, iPod touch (5 ^th gen)

Select Android 4.3 + devices that support Bluetooth 4.0 BLE

Windows Phone 8.1+

Select Windows Phone 8.1+ that support Bluetooth 4.0 BLE

Visit www.mykronoz.com to get the latest compatibility list

1. Enable Bluetooth on your mobile device
2. Open ZeCircle ² App on your mobile device. Sign up if you are a new member or Log in with your existing account. After entering your personal information, tap Set up
3. Make sure ZeCircle ² is nearby and select ZeCircle ² in the list of devices
4. You will receive a pairing request on your mobile device. Press Pair to accept it
5. Then, a pairing request will appear on your ZeCircle ² display Tap on your ZeCircle ² to accept the pairing
6. When ZeCircle ² is successfully paired, you will be notified on ZeCircle ² and on your mobile device's screen

If pairing fails, repeat the same steps. Pairing is a one-time process. If you want to pair ZeCircle ² with another account, you first need to unpair it from the current one. Open ZeCircle ² App, go to Settings > Connect ZeCircle ² > Unpair ZeCircle ² . Tap Connect ZeCircle ² to pair a new device

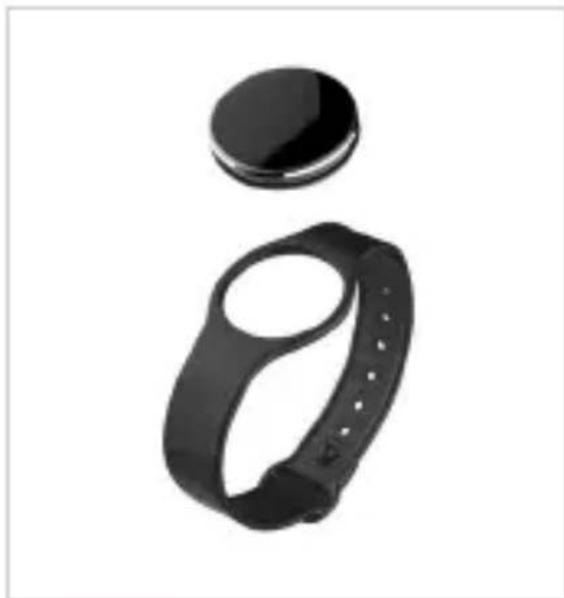

3. WEARING

Black fitness tracker with circular head and wrist strap, no visible text or symbols

ZeCircle2 is adjustable to fit different wrist sizes.

1. Pop ZeCircle ² unit into the wristband
2. Locate the vertical marking lines on the back of ZeCircle ² unit and on its wristband
3. Make sure the vertical marking lines are aligned with each other
4. Place ZeCircle ² around your wrist and put the clasp pin inside the hole
5. Press a few times to ensure the pin is fully inserted and that ZeCircle ² is securely fastened

i

To get the most accurate data, we recommend wearing ZeCircle ² on your non-dominant hand and not too loose.

4. DISPLAYS

Home page Shortcuts Pairing request Successful pairing

Disconnected Payment mode ON Incoming call Missed calls

Notifications Emails Calendar events Low battery

i

ZeCircle ² will automatically sync the time and date of your paired mobile device. You can set your preferred time and date format manually in the Settings tab of ZeCircle ² App. Make sure you keep the device charged to avoid the time being reset

5. ACTIVITY

ZeCircle ² tracks the number of steps taken, distance travelled and calories burned throughout the day. You can view your daily activity in real-time on ZeCircle ² by swiping left or right on the touchscreen.

STEPS DISTANCE

CALORIES

ACTIVE MINUTES INACTIVITY ALERT

You can also monitor your activity data and history from the Activity tab of ZeCircle ² . On the main activity screen, you can check your performance level against your daily goals. Click on any activity bar to get a detailed graph of your daily, weekly and monthly performance.

ZeCircle ² shows daily data. The activity tracker resets at midnight. To upload your latest activity data, go to the Activity tab and slide your finger down the screen.

6. SLEEP

ZeCircle ² tracks the hours slept and the quality of your sleep (light sleep, deep sleep, awake times)

START / EXIT SLEEP MODE

From the device, tap on the Sleep icon from the main menu page. To enable sleep mode from the sleep interface, press START. To exit sleep mode and switch to activity mode, press END.

PRESET SLEEP

Open ZeCircle ² App > Go to Settings > Advanced Settings > Click on Preset sleep to enter your desired bed and wake up times. By default, ZeCircle ² will track your sleep from 11pm until 7am.

i

If you forgot to activate sleep mode, you can manually add sleep logs in ZeCircle ² App. Open ZeCircle ² App, click on «...» at the top > Add sleep

7. WALLET

To start using MyKronoz Pay contactless payment service, open ZeCircle ² App and press the wallet tab. Sign up if you are a new member, choose a plan, and follow the instructions on screen to set up and top-up your wallet with the funding methods of your choice (Mastercard, Visa, Amex, PayPal).

To make fast and secure payment with your watch, press the contactless payment icon to enable payment mode, and bring your watch close to the payment terminal. Contactless Payment limits may vary depending on local regulations.

i

MyKronoz Pay works at any retailer accepting Mastercard contactless payment. MyKronoz Pay may not be available in your country yet, for more information, visit: www.mykronoz.com/mykronoz-pay/

8. GOALS

Tap the Goals tab of ZeCircle ² App to set daily goals for steps taken, distance travelled, calories burned and hours slept. On the Steps screen of your ZeCircle ² , a progress bar will show how close you are to your daily goal.

Once you hit one of your daily goal, ZeCircle ² will gently vibrate and display a Goal achieved icon

9. REMINDERS

Tap the Reminders tab of ZeCircle ² App to add daily life reminders. You can set up to 6 daily reminders, and choose the type of reminder and preferred time and day. ZeCircle ² will gently vibrate and display the corresponding reminder icon to alert you. A single tap on your ZeCircle ² can dismiss the reminder. If not dismissed, the same alert will repeat after two minutes.

10. NOTIFICATIONS

ZeCircle ² shows notifications of incoming and missed calls, SMS, email, social media activity, calendar events and anti-lost alert*. Open ZeCircle ² App, tap Settings > Notifications to select the notifications you want to receive onto your ZeCircle ² . If you wish to disable certain notifications, swipe the selection button to the left. A single tap on your ZeCircle ² can dismiss the notification. If not dismissed, the notification will reappear next time you wake up the screen.

Setting up notifications for iOS users:

• Go to "Settings" of your iOS device
  Tap "Notification Center"
  Select which type of notifications you wish to receive on ZeCircle ²
  Enable "Show in Notification Center" to receive the notification on ZeCircle ²

i

Caller ID supports latin character only. For more languages support, please visit www.mykronoz.com/support/. *Windows Phones may not support those features, please visit www.mykronoz.com/support/ for more information.

11. SMS

You can read SMS on your ZeCircle ² and reply using the pre-installed templates or emojis (Android only)

12. CALL HISTORY

Enter this menu to see the list of recent missed and incoming calls.

You can read the latest 5 SMS received and view the latest 5 missed calls.

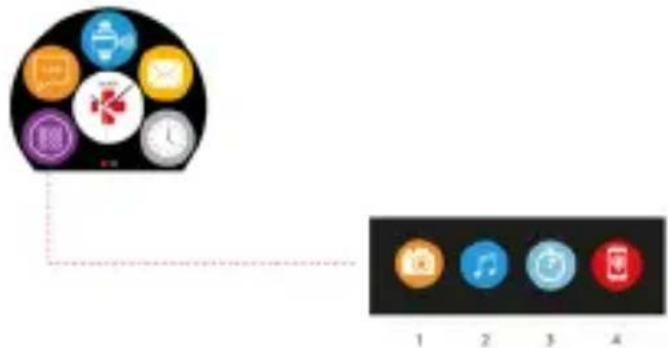

13. APPS

Several applications can be found in this menu:

(1) Camera remote: To enjoy this feature, first, make sure ZeCircle ² is connected to your smartphone via Bluetooth. Then, open ZeCircle ² mobile app, click on the Settings tab > tap Camera to launch your smartphone's camera. Enabling Camera Remote function will let you take pictures remotely from your ZeCircle ² by a single tap on the camera icon.
(2) Music control: To enjoy this feature, make sure ZeCircle is connected to your smartphone via Bluetooth. Enabling Music control will let you play / pause the current song streamed on your smartphone, choose the previous or next song.
(3) Timer: From the timer interface, press START to enable the timer, press END to stop it.
(4) Find my phone: To enjoy this feature, make sure ZeCircle is connected to your smartphone via Bluetooth. Enabling Find my phone function will make your phone ring and help you find it.

14. SETTINGS

Several applications can be found in this menu:

(1) Bluetooth
(2) Watch faces: Swipe left or right to go through the different watch faces available and tap on the one you want to select and use
(3) Vibration
(4) Brightness
(5) Activate on wrist flick
(6) Watch info
(7) Reset

15. TECH SPECS

Dimensions 254*34.5*11.2 mm

Min 142 mm

Max 195 mm

Weight 21 gr

Bluetooth 4.0 BLE

NFC

Battery type Li-ion 70mAh

Standby time up to 5 days

Charging time 1 to 2 hours

Memory 5 days of activity

Display TFT Color Touchscreen 0.96 inches/ 240*198 pixel

Sensors 3-axis accelerometer

Operating temperature -20°C to +40°C

Water resistance IP67

International Warranty 1 year

Contactless payment service powered by Mastercard
