IAN 285199 - Garden hose PARKSIDE - Free user manual and instructions
Find the device manual for free IAN 285199 PARKSIDE in PDF.
| Product Type | Compressed Air Hose Drum |
| Brand | Parkside |
| Model | IAN 285199 |
| Article Number | 5 20 01 10003 |
| Hose Length | 20 m |
| Max Working Pressure | 16 bar (at 23°C) |
| Hose Outer Diameter | 11.3 mm |
| Hose Inner Diameter | 6.3 mm |
| Wall Thickness | 2.5 mm |
| Coupling | DN 7.2 / 6 mm |
| Material | Rigid plastic casing |
| UV Resistance | Yes |
| Holding Brake | Adjustable |
| Fast Coupling | Included |
| Application | Distribution of compressed air in workshops and garages |
| Safety Features | Do not use for oxygen or other gases; keep away from children; check for damage before use |
| Maintenance | Clean hose, lubricate moving parts, check airtightness regularly |
| Guarantee | 36 months from date of purchase |
| Disposal | Recyclable materials; do not dispose as household waste |
| Storage | Dry, clean, frost-free place |
Frequently Asked Questions - IAN 285199 PARKSIDE
User questions about IAN 285199 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Garden hose in PDF format for free! Find your manual IAN 285199 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 285199 by PARKSIDE.
USER MANUAL IAN 285199 PARKSIDE
Compressed air hose drum, 20 m
GB CY
COMPRESSED AIR HOSE DRUM, 20 M
Operation and Safety Notes Translation of the original instructions
RO
TAMBUR CU FURTUN PENTRU AER COMPRIMAT, 20 M
Operation and Safety Notes
Page 4
HR
Upute za posluživanje i za Vašu sigurnost Stranica
Stranica 12
RO
We are delighted that you have decided to buy a quality product from ROWI Electronics and thank you for the trust you have placed in us and our products. The following pages contain important information which will enable you to enjoy optimum and safe use of your equipment.
We hope your new compressed air hose drum gives you much pleasure.
ROWI Electronics GmbH
Explanation of symbols
Danger
It is essential that the safety instructions marked with this symbol are observed. Disregarding them can lead to serious and far reaching damage to health as well as immense damage to property.
Important note:
This symbol indicates important information which needs to be closely followed for trouble free operation of this equipment. This is the only way that possible defects in the operation can be avoided.
Important information
You can find here information and tips which will help you get optimum use from the equipment.
These Operating Instructions have been prepared with the greatest possible care. However we reserve the right to modify these instructions and make technical changes to them at any time. Illustrations can deviate from the original.
List of contents
1. Product description 6
1.1 General 6
1.2 Technical data 6
1.3 Field of application and use for the purpose intended 6
1.4 Safety information 6
1.4.1 General safety instructions 6
1.4.2 Specific safety instructions 7
2. Operating instructions
2.1 Operation 8
2.2 Cleaning and servicing 9
3. Guarantee
3.1 Scope 9
3.2 Procedure 10
4. Disposal
9
11
1. Product description
1.1 General
Due to its 20 m hose length, the compressed air hose drum can be used for a wide range of jobs in any workshop or garage: No more tripping over loose hoses lying around - simply roll-out the desired hose length and after the job is finished effortlessly pull on the drum. It is a safe and clean piece of equipment with a very robust design and a rigid plastic casing. It is UV resistant, protects the hose from wear and tear and keeps the workplace clean and safe.
1.2 Technical data
Article Number 5 20 01 10003
Maximum working pressure 16 bar (at 23°C)
Hose diameter (OD/ID) ∅ 11.3 / 6.3 mm
Wall thickness 2.5 mm
Coupling DN 7.2 / 6 mm
Length 20 m
Table 1: Technical data
1.3 Field of application and use for the purpose intended
The compressed air hose drum is designed and constructed according to the state of the art and the recognised safety regulations. Nevertheless if it is improperly used or not used as intended there may be dangers to life and limb for the users or third parties as well as damage to the equipment itself and/or to other property.
The compressed air hose drum is designed for the distribution of compressed air and is suitable for universal use in almost all spheres of compressed air technology. This device is not suitable for the transport of oxygen or other gases.
Any other use or use outside these conditions is not use for the purpose intended. The user carries the risk. Use for the purpose intended includes the observance of the operating and installation instructions as well as the observance of the servicing conditions.
1.4 Safety information
1.4.1 General safety instructions
Observe the general safety and accident prevention regulations. In addition to the instructions in these Operating Instructions the general safety and accident prevention regulations must be observed.
Pass on these Operating Instructions to third parties. Take care third parties only use this product after they have received the necessary instructions.
Keep children away from the equipment and prevent it being used by other people. Do not leave the equipment unattended when it is ready to use. Under no circumstances allow children to get close to it. It is forbidden for children to use the product. Protect the product from unauthorised use.
Always be alert and watch what you are doing. Do not do any work on this product, if you are inattentive or are under the influence of drugs, alcohol or medication. Just a moment of inattention when using this product can lead to serious accidents and injuries.
Watch out for damage. Check the equipment before putting it into service for damage. If the equipment has defects it must definitely not be used.
Do not use pointed objects. Never insert points and/or metallic objects inside the equipment.
Do not use the equipment in a way that it was not intended to be used. Only use the equipment for the purposes intended in these Operating Instructions.
Check it regularly. The use of this device can lead to wear in certain parts. So check it regularly for any damage and defects.
Only use original spare parts. For your own safety only use accessories and additional equipment which are specifically mentioned in the Operating Instructions or are recommended by the manufacturer.
Do not use outside. Do not use the equipment in places where there is a risk of explosion, in which there are substances such as combustible liquids, gases and, in particular, areas where there is paint and dust fog.
1.4.2 Specific safety instructions
▶ Changes as a result of technical progress can be introduced by the manufacturer without prior notice and may not be included in the Operating Instructions.
▶ Check the equipment before putting it into service to see that it is complete, functions properly and is air tight.
▶ Never put a defective or non-functional piece of equipment into service. Contact the manufacturer or get the equipment checked by a qualified technician.
▶ Never stand on the equipment
▶ Hold the end of the hose when unrolling and rolling up with both hands so that the end of the hose cannot injure anyone while swinging about.
▶ Pay attention to the maximum working pressure of the hose. Only operate the hose within the given parameters (see Technical data).
▶ At very low temperatures the hose may become inflexible and stiff. This can lead to problems when rolling up.
▶ Take care when the hose is moved it is not damaged by sharp edges and objects.
▶ Never store or put the hose in a place where there is direct sunlight.
▶ Never use the hose to carry dangerous liquids (chemicals, acids, alkaline solutions, etc).
▶ Turn off the air flow before rolling up the hose.
▶ Always work cautiously and with the necessary care.
▶ Never use excessive force.
2. Operating Instructions
2.1 Operation
▶ Hold the end of the hose when unrolling and rolling up with both hands so that the end of the hose cannot injure anyone while swinging about.
▶ Pay attention to the maximum working pressure of the hose. Only operate the hose within the given parameters (see Technical data).
- Slowly unroll the desired length of hose.

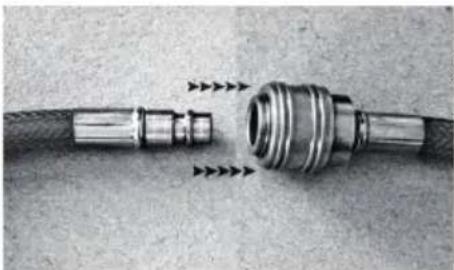

- Connect the compressed air tool by means of the fast coupling.
The holding brake for the compressed air hose drum is on the back of the device. To apply the holding brake pull the plastic holder downwards and to release the brake pull the plastic holder up again.
2.2 Cleaning and servicing
Disconnect the hose drum from the compressed air source before you begin to maintain it.
▶ If the hose is dirty, clean it before you roll it up again. Never use aggressive cleaning materials.
▶ Regularly check that the hose is airtight.
▶ Regularly lubricate the moving parts of the hose drum.
▶ Immediately change defective and damaged parts.
▶ Roll up the hose completely when not in use and store it in a dry, clean and frost free place.
3. Guarantee
3.1 Scope
ROWI Electronics grants the owner of this product a 36 month guarantee from date of purchase. During this time any material or production defects found on the equipment will be replaced free of charge by the ROWI Electronics Service Centre.
Excluded from the guarantee are problems which are not due to material or production defects, e.g.
▶ Transport damage of whatever type
▶ Defects due to improper installation
▶ Defects due to improper use
▶ Defects due to improper handling
▶ Defects due to unsuitable repairs or repairs attempted by people and/or companies not authorised by ROWI Electronics
▶ Normal wear and tear in service
▶ Cleaning of components
Adjustment to different national technical or safety relevant requirements, if the product is not used in the country for which it was designed and manufactured.
In addition we do not accept guarantee claims for equipment if the serial numbers have been distorted, changed or removed. A guarantee claim cannot be accepted if parts are installed in the equipment which were not approved by ROWI Electronics GmbH.
Claims which exceed the free repair of defects as, for example, damage replacement claims lie outside the scope of the guarantee.
3.2 Procedure
If you have problems with your operation of your ROWI Electronics products, please proceed as follows:
1. Contact
The ROWI Electronics Service Team can be reached at:
ROWI Electronics GmbH
Augartenstr. 3
Most problems can be resolved by the competent technical advice of our Service Team.
2. If examination or repair is necessary by ROWI Electronics Service Centre proceed as follows:
▶ Pack the equipment
Pack the equipment in the original packing. Take care that it is sufficiently padded and protected from impacts. Transport damage does not form part of the scope of the guarantee.
▶ Attach purchase document
It is essential that you include the purchase receipt. The service performance in relation to the guarantee can only be considered if the purchase receipt is included.
▶ Send the equipment
First speak to the ROWI Electronics Service Centre and then, if agreed, send the equipment to the above address.
4. Disposal
The packing as well as all the packing material consists of environmentally friendly, 100% recyclable materials.
Correct disposal of this product
Within the EU this symbol indicates that this product may not be disposed of as household waste. Old equipment containing valuable materials that can be recycled should be sent for recycling so that neither the environment nor the health of people is damaged by uncontrolled rubbish disposal. Please dispose of old equipment, therefore, by taking it to suitable collecting points or sending it for disposal to the place where it was purchased. It will then go to the place where it can be recycled.
Poštovani kupče,
- Polako odmatajte željenu duljinu crijeva.
- Spojite pneumatski alat preko brze spojke.
Ručna kočnica bubnja s crijevom za komprimirani zrak nalazi se na stražnjoj strani uređaja.
Da biste je zakočili, povucite plastični držač prema dolje otpuštanje kočnice plastični držač ponovno povucite prema gore.
Close-up of a metallic mechanical component with threaded ends and internal grooves, no visible text or symbolsnatural_image
Close-up of a mechanical component with a metallic rod inserted, showing internal features and arrows indicating direction (no text or symbols)ld-services@rowi-electronics.com
IAN 285199
Close-up of a metallic mechanical component with threaded ends and ribbed side, showing directional arrows (no text or symbols)natural_image
Close-up of a mechanical component with a metallic tool inserted, showing a circular hole and arrow indicators (no text or symbols visible)natural_image
Close-up of a metallic pipe fitting with multiple connectors and directional arrows indicating flow or movement (no text or symbols)natural_image
Close-up of a metallic mechanical connector with threaded ends and directional arrows indicating flow or movement (no text or symbols)natural_image
Close-up of a metallic tool interacting with a circular dark object, possibly a device or component (no visible text or symbols)natural_image
Close-up of a metallic mechanical connector with threaded ends and internal threading (no text or symbols visible)natural_image
Close-up of a metallic mechanical component with threaded ends and internal grooves, no visible text or symbolsnatural_image
Close-up of a mechanical component with a metallic rod inserted into a circular opening, showing no visible text or symbols.ld-services@rowi-electronics.com
www.rowi-electronics.com
0417_LB7_1.0
