Garden Hose Set

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a

safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is suitable as an organizer for the garden. Only for private use. Not for commercial use.

- Partsdescription

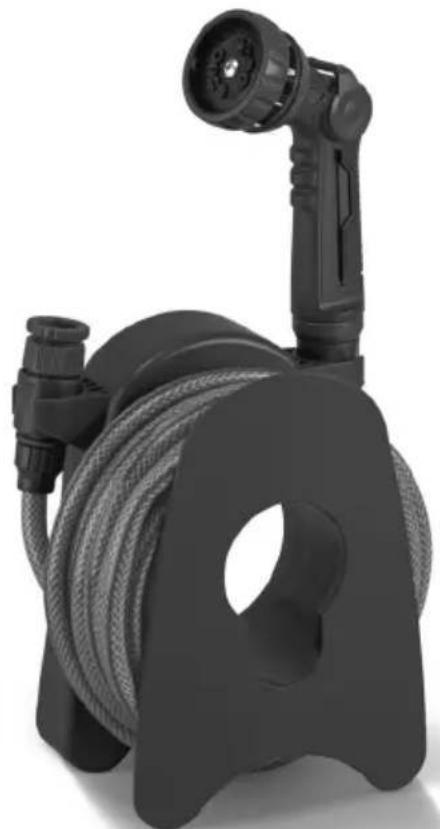

1 Spray nozzle
1a Trigger switch
1b Adjustment wheel
2 Hose connector without water stop 38 " (9.53 mm)

2a Tap connector 34 (19.05 mm)

2b Adapter 12 (12.7 mm)

3 Hose connector with water stop 38 " (9.53 mm)

4 Screw

5 Rawlplug

6 Hose

7 Hose holder

- Technicaldata

Hose:

3-ply with mesh

Weight: approx. 1 kg

Inside diameter: approx. 9 mm

Outside

diameter: approx. 13.5 mm

Length: approx. 10 m

Connector: 38 " (9.53 mm)

max. operating

pressure: 6 bar

Bursting

pressure: 18 bar

Hose holder:

Weight: approx. 0.4 kg

Dimensions: approx. 19.5 x

23.5×13.5cm

(WxHxD)

Spray nozzle:

Weight: approx. 180 g

Dimensions:approx.

21×11×6.3cm

(W x H x D)

- Scope of delivery

1 Spray nozzle
1 Hose connector without water stop 38 " (9.53 mm)
1 Hose connector with water stop 38 "(9.53 mm)
1 Tap connector 34 (19.05 mm) with adapter 12 (12.7 mm)
2 Screws
2 Rawlplugs
1 Hose
1 Hose holder
1 Instructions for assembly and use

Safety information

ATTENTION! READ ASSEMBLY- AND OPERATING INSTRUCTIONS BEFORE USE! KEEP THE ASSEMBLY AND OPERATING INSTRUCTIONS IN A SAFE PLACE!

EP OUT OF THE REACH OF CHILDREN.

THIS PRODUCT IS NOT A TOY! INJURIES MAY OTH- ERWISE OCCUR!

This hose is designed for tap water. Do not drink water from this hose. Otherwise there is a risk of injury.

Be sure water from the hose cannot return to the drinking water supply: Disconnect the hose from the tap after use, or install a back-flow preventer or pipe interrupter between the tap and hose.

- Never leave the hose unsupervised – even if the water flow is temporarily interrupted. Otherwise injuries or property damage may occur.

Do not subject the hose to frost. Otherwise property damage may occur.

■ Ensure particles of dirt do not plug the connectors or enter the

hose. The fittings may otherwise be damaged.

• Do not aim the water jet at electrical equipment, in order to e.g. avoid a short circuit.
• Do not aim the water jet at persons or animals in order to prevent injuring them.
  ■ Always close the water intake after every use.

- Assembly

You will need:

Cross-tip screwdriver (PH2)

Power drill, drill bit ∅ 6mm

Important! Please refer to the operating instructions of your power drill.

Ensure that you do not damage any electrical cables, gas or water pipes when you drill into the wall.

Before first use, check that all connections are securely connected and re-tighten them if necessary.

●Installing the hose holder

☐ Install the hose holder 7 is shown in Figure A.

☐ Use the included screws 4 and rawlplugs 5. These are only suitable when mounting to brick, concrete- or wooden walls. Please use suitable screws and rawlplugs when mounting to other materials. Consult your retailer for rawlplugs and screws suitable for the respective wall.

Note: To prevent backflow, do not mount the hose holder 7 higher than the tap, or install a backflow preventer or stop cock between the tap and hose 6. For mobile use, the spray head 1 and the hose connections can be inserted into the brackets on the left and right.

Attention: For wall installation, hang the spray head as shown in Fig. D.

Use

Connecting

- Connect the hose 6 as shown in Figure B.

• Using the adapter

☐ Rotate the tap connector2a clockwise onto the connection thread of the tap.

☐Theadapter 2b must be used for a 12 " (12.7 mm) connection thread.

☐ Rotate the adapter 2b clockwise into the tap connector 2a.

• Using the spray nozzle

Note: the spray nozzle 1 features ten different spray patterns. The flow rate is variable.

☐ Insert the spray nozzle 1 in the hose connector with water stop 3 (cf. Fig. C).

☐ Move the trigger switch 1a to the back to start water flow and for variable adjustment (cf. Fig. D).

Turn the wheel 1b to position „I”, to select or adjust the spray pattern (cf. Fig. D). You can choose between ten different settings: jet stream, shower spray, fan spray, central spray, soaker spray, vertical spray, scattered spray, mist, flat spray, cone spray.

[Non-Text]

☐ Move the trigger switch 1a forward to stop the water flow (cf. Fig. D).

Note: When removing the spray nozzle 1 with the tap on, the hose connector with water stop 3 will interrupt the water flow.

Only use this option for interrupting the water flow when connecting a different item to the hose, e.g. a water sprinkler.

ATTENTION! Only use the options for interrupting the water flow described in this chapter to stop the flow temporarily! To stop the water flow for a longer period, close the tap.

- Disassembly

☐ Unscrew the hose 6 from the connection thread of the tap and empty it completely.

☐ Then, remove the hose holder 7 from the wall.

- Cleaning and care
