USER MANUAL PLLL 16 A1 PARKSIDE
SOLDERING STATION PLLL 16 A1
GB
SOLDERING STATION
Operating instructions
CZ
PÁJECÍ STANICE
Návod k obsluze
DE
AT CH
LÖT-ARBEITSSTATION
Bedienungsanleitung
HU
FORRASZTÓ MUNKAÁLLOMÁS
Használati utasítás
SK
SPÁJKOVACIA STANICA
Návod na obsluhu
IAN 111527
GB
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
HU
Introduction....2
Intended use 2
Features 2
Package contents 2
Technical data 3
- Work area safety 3
- Electrical safety 3
- Personal safety 4
- Power tool use and care 4
- Service 5
Original accessories/auxiliary equipment 5
Appliance-specific safety instructions 5
Before first use ....5
Setting up the appliance 5
Before use....6
Switching the soldering iron on and off 6
Soldering iron stand 6
Connecting the mains adapter 6
Inserting/replacing the batteries 6
Switching the LED lamp on and off 7
Third hand 7
Soldering sponge 7
Fitting the spindle rolls 7
Soldering 8
Maintenance and cleaning 8
Disposal....9
Disposal of the appliance....9
Disposing of the batteries 9
Information regarding the conformity declaration .....9
Warranty....9
Service....10
Importer 10
GB
SOLDERING STATION PLLL 16 A1
Introduction
ulations on the purchase of yournew appliance. You have selected ahigh-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
This soldering iron is intended for electronic soldering in the hobby and do-it-yourself segments.
The magnifier lamp, with its integrated third hand and magnifying glass, makes working with the soldering iron even easier. This product is not suitable for lighting rooms in houses. In addition, the appliance has a soldering iron stand, a wire spool holder for solder, a three-stage wire assembly, and also a so-called 3rd hand as an aid during soldering work.
The product is designed to magnify the view of objects. It must be set up firmly on a suitable surface such as a table or a windowsill.
The appliance can be operated using four AA batteries (not included) or the supplied mains adapter, which is included in the delivery.
opliance is only to be used in closed spaces. Avoid contact with moisture by all means.
Use this product only as described and for the areas of applications specified. The appliance is not meant for commercial use. Any other usage is deemed improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.
Features
① Magnifier lamp
② Gooseneck for adjusting the magnifying glass
③ Third hand with crocodile clip and gooseneck
4 Soldering iron stand
5 Crocodile clip
6 Solder guide
⑦ Soldering sponge
8 Battery compartment
9 Solder coil mount
⑩ Spindle roll (∅ 19 mm)
⑪ Socket for mains adapter connector
12 On/Off switch

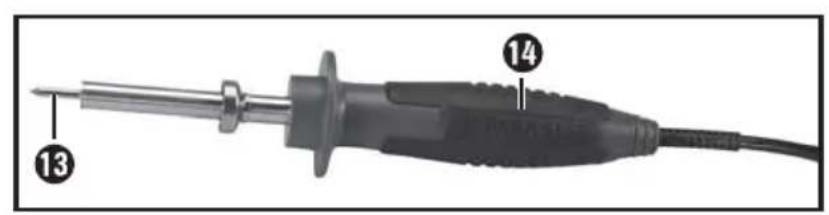

13 Soldering tip
14 Soldering iron
15 Spindle roll ( 10 mm)
16 Magnifier cover
17 Mains adapter
Package contents
1 soldering station PLLL 16 A1
1 soldering iron with soldering tip PLBS 30 A1
1 mains adaptor PLLL 16 A1-1
2 spindle rolls
1 soldering sponge
1 magnifier cover
1 operating instructions
Technical data
Soldering iron PLBS 30 A1:
Rated voltage: 230 V \~
Nominal frequency: 50 Hz
Nominal power: 30 W
LED magnifier lamp with 3rd hand PLLL 16 A1:
Power supply: 4 x 1,5 V mignon batteries
(type AA/LR6)
Illumination: 16 LEDs
Magnification: 2x, 3.5 dioptre /
4x, 11.8 dioptre
Environmental conditions: -20 to +40°C
<
(not
Mains adapter PLLL 16 A1-1:
Input voltage: 100-240 V \~50/60 Hz
Power consumption: 0.2A
Output voltage: 5 V
Output power: 3 W max
Dimensions:
Foot (L x W): 176 x 162 mm
Length of the gooseneck
(magnifying glass): 265 mm
Length of the gooseneck
(3rd hand): 250 mm
Magnifier diameter: 95 mm
Spindle holder ( x L): 10.5 x 82 mm /
19×82mm
Weight: approx. 1.1 kg
General Power Tool Safety Warnings
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tools or battery-operated (cordless) power tool.
95% Work area safety
a) Keep walk area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
GB
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
g) Always hold the power cord away from the working area of the appliance and run it to the rear away from the appliance.
h) Always pull out the plug if you leave the appliance unattended or carry out work on the appliance.
3. Personal safety
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
RISK OF BURNS! Do not touch the heated soldering tip or the molten solder. There is a risk of being burnt. Always allow the appliance to cool down completely before changing components, cleaning or checking it.
■ After work, allow the soldering iron to cool down in the air only. Do not attempt to quench it with water.
■ CAUTION! RISK OF FIRE! Use only the special multi-functional holder or another fireproof surface when putting down the soldering iron.
■ During breaks in work, the soldering iron must be placed in the multi-functional holder.
- Keep the appliance away from flammable material.
■ Never leave a switched-on appliance unsupervised.
■ CAUTION! RISK OF INJURY! Keep your hands away from the heated workpiece. The heat can be emitted through the workpiece. Therefore, use the third hand to hold small workpieces.
■ Avoid contact between the hot soldering tip and the plastic parts of the multi-functional holder. Otherwise, the appliance might be damaged.
In case of danger, remove the plug from the socket immediately.
■ CAUTION! RISK OF POISONING!
Avoid inhaling in vapours!
During work over an extended period in which hazardous vapours can be created, always ensure sufficient ventilation of the workplace. In addition, protective gloves, a face mask and work apron are recommended.
■ Avoid eating, drinking and smoking in rooms where soldering work is taking place. Otherwise, lead residues on your hands might contaminate the food or cigarettes and be absorbed into your body.
■ Always wash your hands thoroughly after soldering.
■ Do not dispose of solder waste in normal household waste! Solder waste should be disposed of with hazardous waste.
4. Power tool use and care
a) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
b) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
c) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations other from those intended could result in a hazardous situation.
5. Service
■ Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
■ Always ensure that the power plug or the power cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.
Original accessories/auxiliary equipment
■ Use only the additional equipment and accessories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
Appliance-specific safety instructions
This product is not a toy and does not belong in the hands of children.
■ Never look directly into the light source while it is in operation.
■ Do not use the magnifying glass on the lamp head to look at light sources such as LED lamps or laser beams. The optical magnification can cause damage to your eyes.
■ When not in use, cover the magnifying glass in the lamp head with the cover, otherwise there is a fire risk from concentrated sunlight.
■ Do not operate the light unsupervised.
Check the light from time to time for damage. If the lamp or the mains adapter is damaged, do not touch the appliance. First, disconnect the related power socket (e.g. with the relevant circuit breaker) and then pull the mains adapter carefully from the socket. Do not operate the appliance again; have it repaired in a specialist workshop.
■ Avoid any heavy mechanical stresses on the lamp. Do not expose the appliance to high temperatures, extreme vibrations, high humidity, dripping or splashing water.
■ Never pour liquids over the lamp. There is a severe risk of fire or fatal electrical shock. If, however, liquids do get inside the appliance, pull the plug out of the socket immediately and contact a professional.
■ Never leave the packaging material unattended. It might become a dangerous toy for children.
■ Handle the appliance with great care. It can be damaged by bumps, impacts or a fall, even from a low height.
■ Use only the mains adapter supplied with this appliance.
■ Never touch the mains adapter with wet or moist hands. There is a risk of life-threatening electric shock!
■ Do not pull on the cable to remove the plug from the socket. Touch the mains adapter always only on the housing.
Consult a professional if you are in any doubt about the operation or the safety of this product.
Before first use
Setting up the appliance
NOTICE!
▶ Do not set up the appliance near easily flammable materials (e.g. curtains, drapes, furnishing fabrics, etc.). When using the magnifier lamp ① in combination with soldering work, there is a risk of fire. Keep the entire appliance out of the reach of children. Children might knock down the appliance and be injured.
▶ Never cover the magnifier lamp ^1 while it is in operation.
▶ Never set up the appliance on an unstable surface. If the appliance falls, it could cause an injury.
◆ Remove the product from its packaging and place it on a flat and level surface.
♦ Align the magnifier lamp ^1 using the goose-neck 2 is required.
GB
NOTE
▶ If the illuminated magnifier lamp1 is not being used, place it in the maximum vertical position.
Inserting/replacing the soldering tip
CAUTION! RISK OF BURNS!
▶ Never heat the soldering iron ^14 without a soldering tip 13.
■ The soldering tip may only be removed when the appliance is switched off and the soldering tip is cooled down.
■ The soldering tip has a screw thread and can thus be removed quickly from the soldering iron.
◆ Unscrew the soldering tip anticlockwise.
♦ Screw the soldering tip in clockwise.
Before use
Switching the soldering iron on and off
Switching on:
◆ Insert the power plug into a suitable socket.
Switching off:
◆ Pull the plug from the mains power socket to turn off the unit.
Soldering iron stand
NOTE
▶ During breaks in work, the soldering iro ^14 must be placed in the soldering iron stand ^4
▶ Use only the soldering iron stand or another fireproof surface when putting down the soldering iron.
Connecting the mains adapter
NOTE
The magnifier lamp works with both the enclosed mains adapter as well as with batteries.
◆ Insert the low voltage plug of the mains adapter into the socket ⑪ on the side of the appliance.
◆ Insert the mains adapter into a mains power socket.
◆ Place the connecting cable in such a way that no one can stumble over it.
Inserting/replacing the batteries
NOTE
▶ Remove the mains adapter before inserting suitable batteries.
▶ When using the appliance out of reach of a wall outlet, it can also be operated with four AA batteries.
◆ Open the battery compartment ^8 .
◆ Remove the battery holder if it is in the battery compartment.
◆ Insert new batteries or replace the existing batteries (observe the correct polarity).
Put the battery holder back in the battery compartment &nd ensure that you observe the correct polarity.
◆ Close the battery compartment.
NOTE
▶ Do not mix old and new batteries. Always replace all batteries at the same time, as otherwise the batteries discharge each other. Always use batteries of the same type and brand.
NOTICE!
▶ Do not leave used batteries in the appliance, as even leak-protected batteries corrode and chemicals can be released, which can damage your health or destroy the appliance. Do not leave batteries lying around unattended. They might be swallowed by children or pets. Consult a doctor immediately if they were swallowed.
▶ If you do not plan to use the appliance for an extended period, remove the batteries to prevent leakages.
▶ Leaking or damaged batteries can cause skin irritations if touched. Therefore, wear suitable gloves in that case.
▶ Ensure that batteries cannot be short-circuited. Do not throw batteries into a fire.
▶ Do attempt to recharge non-rechargeable batteries. There is a risk of explosion.
Switching the LED lamp on and off
■ Switch the magnifier lamp ^1 on using the on/off switch ^2 in the base of the lamp foot.
Switching on:
◆ Set the on/off switch to "I" to turn on the magnifier lamp.
Switching off:
◆ Set the on/off switch12 to "O" to turn off the magnifier lamp 1
To protect the magnifier lamp ^1 , fit the supplied magnifier cover ^16 .
NOTE
- Avoid touching the magnifying glass with your finger nails or other sharp objects.
Third hand
CAUTION! RISK OF BURNS!
The crocodile clip 3 can get very hot during use.
♦ Flip the third hand 3 upwards.
♦ Turn the crocodile clip 5 in the desired direction.
- Clamp the workpiece between the two crocodile clips.
Soldering sponge
NOTICE!
The hot soldering tip must never come into contact with a dry soldering sponge ⑦ Otherwise, the soldering sponge can be damaged.
NOTE
The soldering sponge is used to clean the soldering tip.
▶ Dampen the soldering sponge before use.
Fitting the spindle rolls
Select the correct diameter of spindle roll onto which you want to fit the solder roll.
Place the spindle roll on the solder coil mount and guide the solder wire through one of the three holes in the solder guide
GB
GB
Soldering
Vapours can lead to headaches and fatigue if inhaled.
■ The soldering iron has a rated power output of 30 watts and is ideal for electronic solders.
- Its design makes it especially suitable for difficult-to-access and fine soldering work.
The best results are achieved with electronic solder, 1.0 or 1.5 mm diameter, 60% Sn, 40% Pb. We recommend using contact solder paste as a flux (not solder paste or soldering fluid).
- Clean the soldering tip on the moist soldering sponge 7.
After cleaning, the soldering tip must be tinned. Tin the hot soldering iron by melting the solder.
◆ Guide the soldering tip to the solder and heat it.
◆ Place the solder (with flux) between the solder joint and soldering tip to melt it.
- Keep feeding in solder until the entire solder joint is moistened.
- Then remove the soldering tip immediately to prevent overheating the molten solder.
◆ Allow the solder to harden and avoid vibrations.
NOTE
▶ The flux is either included in the solder or it is applied separately. When buying the solder ask about its use and the appropriate flux.
Maintenance and cleaning
NING! RISK OF INJURY! Always pull the plug out of the socket and let the appliance cool down before you carry out any work on the appliance.
Soldering iron:
■ Clean the appliance after completion of the work.
■ To clean the housing, use a cloth and a mild detergent if necessary.
■ Never use sharp objects, petrol, solvents or cleaning agents that can damage plastic.
■ Do not allow any liquids to get into the interior of the appliance.
LED magnifier lamp:
■ Remove loose particles with clean compressed air and then brush off the remaining deposits with a soft lens brush.
■ Clean the surface with a lens cleaning tissue or a clean, soft and lint-free cloth. To remove fingerprints and other fatty deposits, the cloth may be moistened with water or a lens-cleaning fluid.
■ Do not use any acid, alcohol or other solvents or rough, linty cloths to clean the lens. Avoid excessive cleaning and excessive pressure.
NOTE
- Avoid touching the magnifying glass with your finger nails or other sharp objects.
Disposal
Disposal of the appliance
packaging is made of environmentally friendly material and can be disposed of at your local recycling centre.
Do not dispose of power tools in the normal domestic waste!
European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
Disposing of the batteries
s should not be disposed of in the domestic waste. Every consumer is legally obliged to dispose of batteries at a collection site of his community/city district or at a retail store. This obligation is intended to ensure that batteries are disposed of in an environmentally responsible manner. Dispose of batteries only when they are fully discharged.
Information regarding the conformity declaration
This device complies with the essential requirements and other relevant provisions of the European Electromagnetic Compatibility Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC and the Ecodesign Directive 2009/125/EC as well as RoHS directive 2011/65/EU.
The complete original declaration of conformity can be obtained from the importer.
Warranty
You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.
Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.
NOTE
This warranty is valid only for material or manufacturing faults, not for damage sustained during carriage, parts subject to wear and tear or damage to fragile parts, e.g. switches.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in the case of misuse or improper handling, use of force or modifications which have not carried out by one of our authorised Service centres.
Your statutory rights are not restricted by this warranty. The warranty period is not extended in consequence of repairs carried out under the warranty. This also applies to replaced and repaired components.
Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase.
Repairs carried out after expiry of the warranty period shall be subject to charge.
GB
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 111527
Hotline availability: Monday to Friday 08:00 -
20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Tartalomjegyzék
Bevezető 12
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Obsah
Úvod 22
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Obsah
Úvod 32
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Inhaltsverzeichnis
Einleitung 42
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND / GERMANY
www.kompernass.com
Last Information Update
