Product type	WiFi Router
Brand	EZVIZ
Model	Vault Plus
Dimensions (L x W x H)	200 x 150 x 50 mm
Weight	500 g
Power supply	12 V DC, 1 A
WiFi standards	802.11 a/b/g/n/ac, dual-band 2.4 GHz and 5 GHz
Maximum speed	Up to 1200 Mbps
Ethernet ports	1 Gigabit WAN port, 4 Gigabit LAN ports
Main functions	Parental control, guest network, VPN, QoS, firewall
Wireless security	WPA2-PSK, WPA3
Maintenance and cleaning	Use a soft, dry cloth. Do not use chemicals.
Spare parts and repairability	Power adapter included. No spare parts available. Repair by an authorized center.
Operating temperature	0 °C to 40 °C
Operating humidity	10 % to 90 % (non-condensing)

Frequently Asked Questions - Vault Plus EZVIZ

How to reset the EZVIZ Vault Plus router?

To reset the router, press and hold the Reset button on the back for about 10 seconds until the LEDs flash. Factory settings will be restored.

How to configure the router for the first time?

Plug in the router, connect to the default WiFi network 'EZVIZ_XXXX', then open a browser and go to 192.168.1.1 to follow the setup wizard.

What if I forgot the admin password?

Perform a hardware reset (Reset button) to regain access. The default password is often admin or indicated on the label.

How to change the WiFi password?

Log into the admin interface, go to 'WiFi Settings', then modify the SSID and password. Save to apply.

The router does not turn on, what to do?

Check that the power adapter is properly plugged in and the outlet works. If the problem persists, contact EZVIZ customer service.

How to activate parental control?

In the admin interface, look for the 'Parental Control' tab. You can block sites, limit access times per device.

What is the WiFi range?

The typical range is about 30 meters indoors, depending on obstacles. The router uses dual-band technology to optimize coverage.

Can I use the router with a VPN?

Yes, the router supports VPN connections. Go to 'Advanced Settings' > 'VPN' to configure a VPN client.

How to update the firmware?

In the admin interface, go to 'Administration' > 'Firmware Update'. The router can check for updates online or you can upload a file from the EZVIZ website.

What do the LED indicators mean?

Solid green light: power OK. Blinking: network activity. WiFi light: connection active. See the manual for full details.

USER MANUAL Vault Plus EZVIZ

Abstract logo with four colored petal shapes (blue, green, magenta, orange) arranged in a cross pattern, no text or symbols present.

ezviz™

EN

DE

ES

FR

IT

NL

PL

RU

GR

CZ

Vault Plus

Quick Start Guide

About the Documents

The documents include instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the documents is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of EZVIZ Inc. or its subsidiaries (hereinafter referred to be "EZVIZ"). The documents cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated, EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to the documents.

Trademarks Acknowledgement

ezviz™. 📋™, and other EZVIZ's trademarks and logos are the properties of EZVIZ in various jurisdictions. Other trademarks and logos mentioned in the documents are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.

EZVIZ does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

Regulatory Information

FCC Information

FCC compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

[1] this device may not cause interference, and

[2] this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-X3C-8E] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link:

http://www.ezvizlife.com/declaration-of-conformity.

For more information, please visit www.ezvizlife.com

Need help? Contact us:

Phone:

USA/CAN: [phone]

MX: [phone]

Email:

USA/CAN/MX: [e-mail]

Other countries: [e-mail]

SAVE THIS MANUAL FOR FUTURE REFERENCE

Basic Information

EN

Box Contents

Illustration of a rectangular electronic device with a grid pattern and control knobs (no text or symbols)

Vault Plus (x1) Power Adapter (x1)

Simple geometric diagram of a rectangle with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Accessories (x1) Quick Start Guide (x1)

For models equipped with HDDs, the accessories are not included in the box contents. For models not equipped with HDDs, the accessories include screw kits, and HDD radiator.

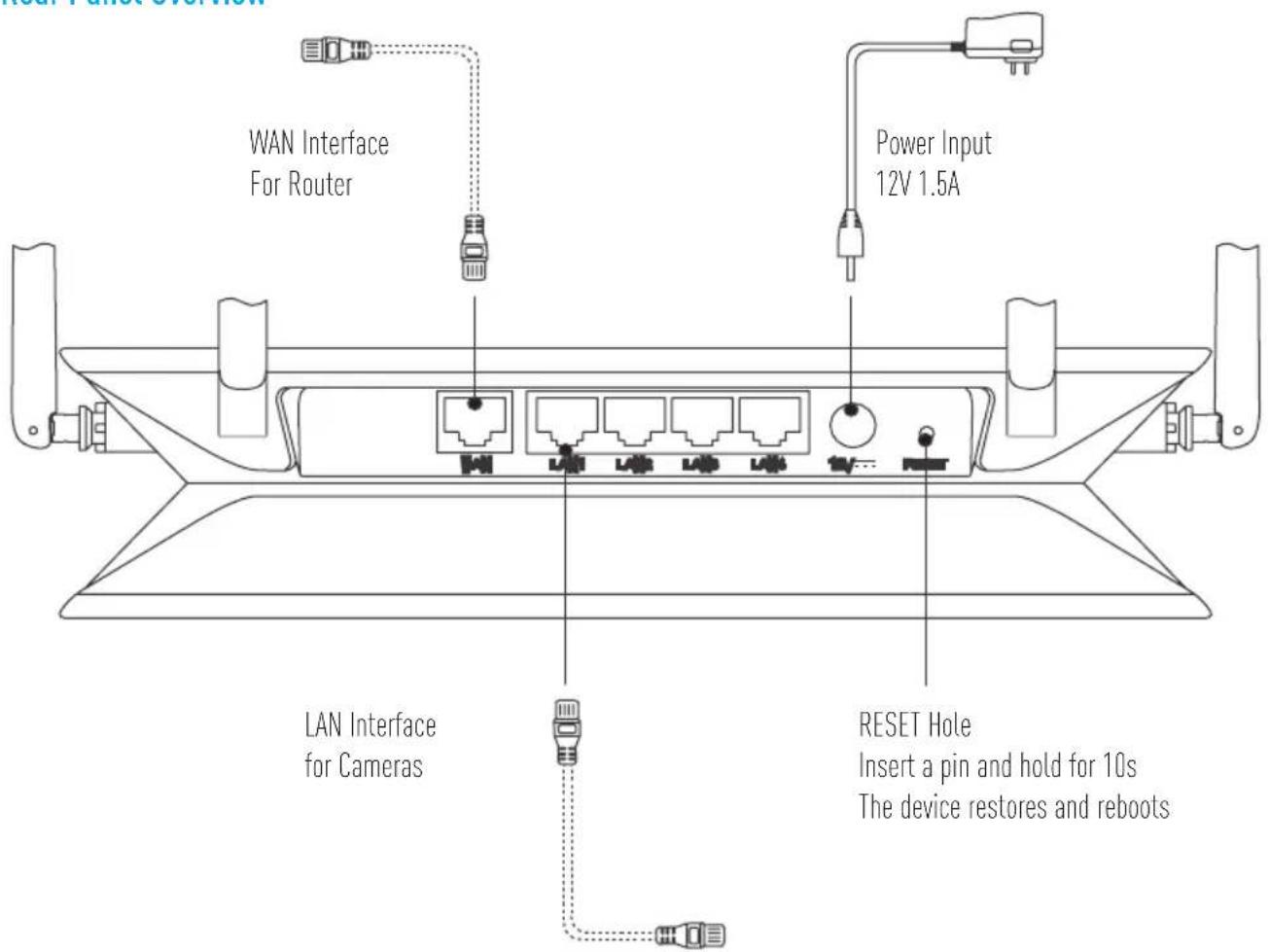

Rear Panel Overview

The cables with dotted lines above are not included.

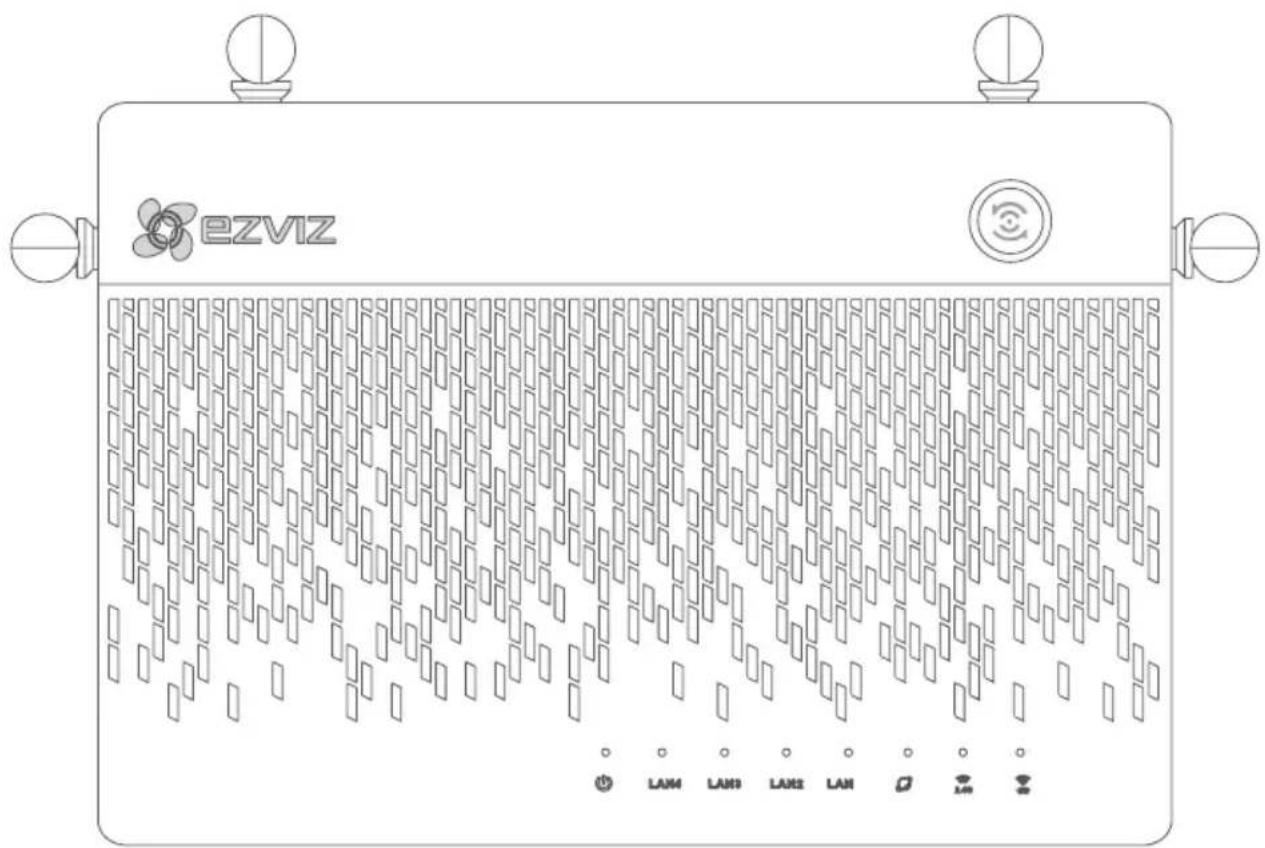

Product View

LED Indicator Status

One-Touch Access

Press the button and the system status indicator flashes. The Ezviz cameras nearby automatically connect to the Wi-Fi within two minutes. Other devices may also be connected to the Wi-Fi by pushing WPS button within the same 2 minutes. (For Android devices, you can find the WPS function in Settings > WLAN > Advanced Settings.)

System Status Indicator

Green: Device is starting up or working properly.

Blue: Network unconnected, upgrading or HDD formatting.

Red: HDD is not formatted, unidentified, or running error.

LAN Network Indicator

Steady: Device is connected to the LAN interface.

Flashing: Data is transmitting.

WAN Network Indicator

Green: Network is connected.

No Light: Network is not connected.

2.4G Wi-Fi Indicator

Green: 2.4G Wi-Fi is enabled.

No Light: 2.4G Wi-Fi is disabled.

5G Wi-Fi Indicator

Green: 5G Wi-Fi is enabled.

No Light: 5G Wi-Fi is disabled.

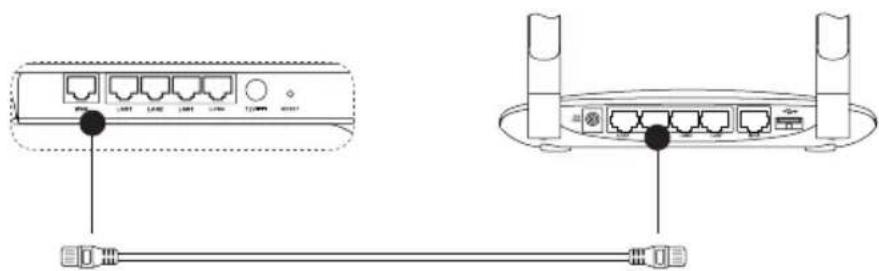

Cable Connection

1. Connect the WAN interface of Vault Plus to the LAN interface of router, see figure below. When the connection succeeds, the WAN network indicator displays green, and the system status indicator displays green.

Diagram of two network devices showing front and rear ports with Ethernet connectors (no text or labels)

1. Connect the power cable to the Vault Plus, and the Vault Plus starts up within two minutes.

If you want to install the HDD by yourself, refer to the Appendix.

Setup

Powering on Device

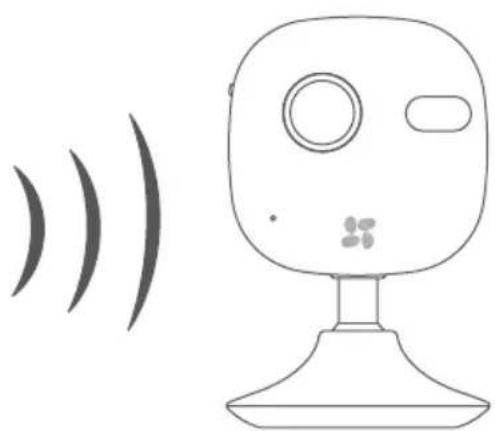

(Before You Start) The camera should be within 20' (6m) from the Vault Plus.

1. Power on the camera.

- Wait until camera status light blinks alternating Blue and Red.

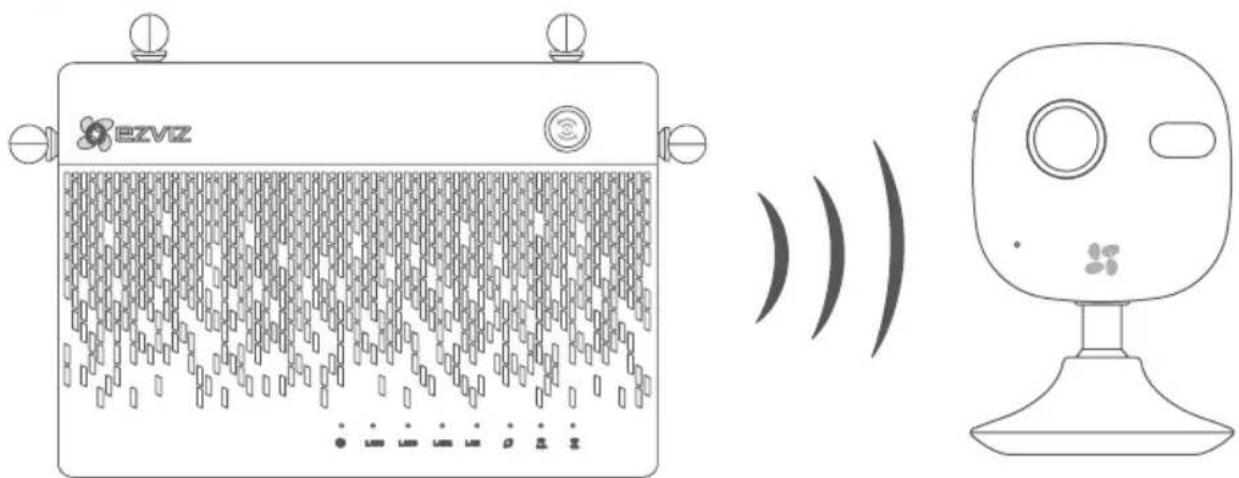

1. Press the One-Touch Access button of the Vault Plus.

- Its system status indicator light will start to flash.

- The EZVIZ camera will automatically connect to it.

(Result) When the camera status light starts to flash Blue, the connection process is complete.

i Restore the camera if it has been connected to Wi-Fi before. You can connect to the device with One-touch access. For cameras that do not support Wi-Fi, connect the camera to the LAN interface with the network cable.

Linkage

Linking to Device

1. Download the App in your Phone (For users without an existing EZVIZ account)

2. Search for "EZVIZ" in the App Store/Google Play™ in your mobile device to download and install the App.

3. Launch the App.

4. Create an EZVIZ user account.

5. Add the Vault Plus and Camera

6. Log into the EZVIZ app.

7. Click the "+" on the upper-right hand corner to go to QR code scanning interface.

• Scan the QR Code on Camera with the EZVIZ App (on device label).

• Scan the QR Code of Vault Plus with the EZVIZ App (on device label).

• Access the Vault Plus in the EZVIZ App.

Exterior view of a wireless router device (no text or symbols visible on the device body)

1. Click the "+" to add the camera.

For more advanced settings of Vault Plus, please connect the computer to the LAN interface of Vault Plus, enable computer local area connection to obtain an IP address automatically. Then open the computer web browser (Internet Explorer 8.0 and later version is recommended), and go to 192.168.7.1.

Appendix

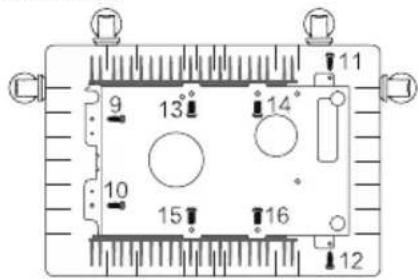

HDD Installation

1. (Optional) Remove the rubber mats.
2. Loosen four screws on the bottom of the device to take apart the base, see figure below.

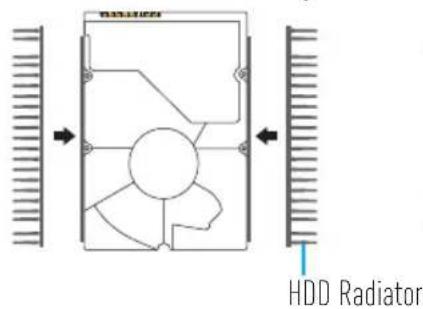

1. Stick the thermal conductive silicone pads to both sides of the HDD, and attach the HDD radiator to the silicone pads.
2. Use the four screws to secure the radiator to the HDD, see figure below.

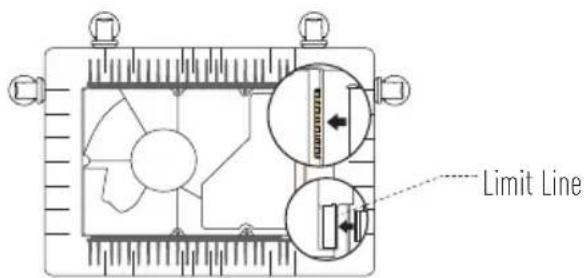

1. Connect the data cable. Make sure the limit line (white) aligns with the connector edge.

1. Install the HDD shield. See figure below.

1. Re-assemble the base of the VAULT Plus. Replace the screws and rubber mats to complete the HDD installation.

Simple line drawing of a rectangular device with four corner handles and a central rectangle (no text or symbols)

Diagram of a device with labeled ports and a grid pattern, no readable text or symbols present.

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical cable with two terminals (no text or symbols)

Diagram of two wireless network devices showing front and rear ports with Ethernet connectors (no text or labels)

Front view of a black electronic device with a grid of pins and control buttons (no readable text or symbols)

Abstract graphic of three curved black lines on white background (no text or symbols)

Line drawing of a stylized digital device with a circular head, rectangular body, and base (no text or symbols)

Exterior view of a wireless router device (no text or symbols visible on the device body)

Festplattenkühler

Simple line drawing of a rectangular device with four corner handles and a central rectangle (no text or symbols)

Información básica

Front view of a rectangular electronic device with indicator lights and a grid pattern (no readable text or symbols)

Vault Plus (x1) Adaptador de corriente (x1)

Simple geometric diagram of a rectangle with a dashed line inside, no text or symbols present.

Simple line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Diagram of two wireless router ports with labeled connectors and cables (no text or symbols present)

Front view of a wireless router with visible ports and internal circuitry (no text or symbols)

Abstract graphic of three curved black lines on white background (no text or symbols)

Line drawing of a stylized digital camera with lens, screen, and base (no text or symbols)

Exterior view of a wireless router device (no text or symbols visible on the device body)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Simple line drawing of a rectangular frame with four corner holes and a central rectangle (no text or symbols)

Informations de base

Contenu du carton

Diagram of a device with labeled ports and a grid pattern, no readable text or symbols present.

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical cable with two terminals (no text or symbols)

Diagram of two network devices showing front and rear ports with Ethernet connectors (no text or labels)

Abstract graphic of three curved black lines on white background (no text or symbols)

Line drawing of a stylized digital device with a circular head, rectangular body, and base (no text or symbols)

Exterior view of a wireless router device (no text or symbols visible on the device body)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Simple line drawing of a rectangular device with four corner handles and a central rectangle (no text or symbols)

Front view of a rectangular electronic device with a grid pattern and control knobs (no visible text or symbols)

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

IT

Diagram of two network devices showing front and rear ports with connectors and ports (no text or labels)

Diagram of a wireless router with ports and indicator lights (no text or symbols)

Line drawing of a stylized device with sound waves and a base, no text or symbols present

Exterior view of a wireless router device (no text or symbols visible on the device body)

Pure mechanical diagram showing a fan or impeller inside a housing with vertical measurement markings on both sides (no text or symbols)

Simple line drawing of a rectangular device with four corner handles and a central rectangular cutout (no text or symbols)

Basis informatie

Doosinhoud

Illustration of a rectangular electronic device with a grid pattern and control knobs (no readable text or symbols)

Vault Plus (x1) Netvoedingsadapter (x1)

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Accessoires (x1) Snelstartgids (x1)

Diagram of two network devices showing front and rear ports with Ethernet connectors (no text or labels)

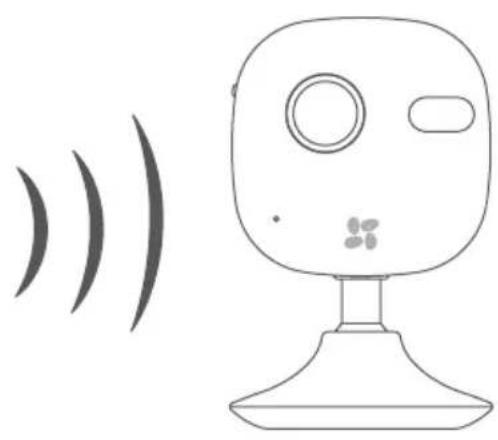

1. Schakel de camera in.

Front view of a wireless router with visible ports and control buttons (no text or symbols on the device itself)

Line drawing of a digital camera with sound waves and a base (no text or symbols)

Exterior view of a wireless router device (no text or symbols visible on the device body)

HDD-radiator

Pure technical diagram of a rectangular component with four corner holes and a central rectangle (no text or symbols)

Illustration of a rectangular electronic device with a grid pattern and control knobs (no visible text or symbols)

Vault Plus (x1) Zasilacz (x1)

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

PL

PL

Front view of a rectangular electronic device with vertical connectors and control buttons (no readable text or symbols)

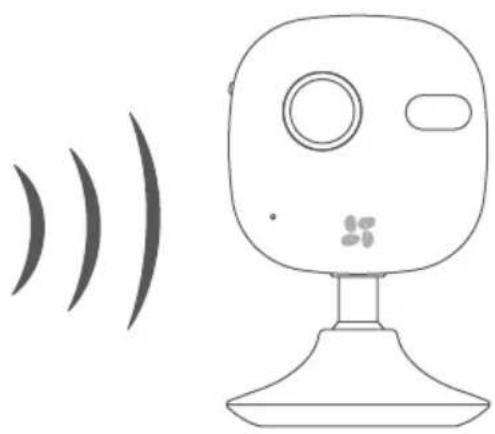

Line drawing of a digital camera with sound waves and a base (no text or symbols)

Exterior view of a wireless router device (no text or symbols visible on the device body)

1. Kliknij „+“, aby dodać kamere.

Pure diagram of a fan or impeller inside a rectangular frame with directional arrows, no text or symbols present.

Pure mechanical diagram showing a fan or impeller assembly with directional arrows, no text or symbols present.

Radiator HDD

Simple line drawing of a rectangular device with four corner holes and a central rectangle (no text or symbols)

Основная информация

Diagram of a device with labeled ports and internal components (no readable text or symbols)

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical cable with two terminal connectors (no text or symbols)

Line drawing of a wireless router with sound waves and a separate camera (no text or symbols)

RU

Exterior view of a wireless router device (no text or symbols visible on the device body)

Pure technical diagram of a fan or vent structure with measurement scales and arrows indicating direction (no text or symbols)

Pure technical line drawing of a rectangular component with mounting holes and four corner squares (no text or symbols)

βασικές πληροφορίες

Περιεχόμενα κουτιού

Front view of a rectangular electronic device with a grid pattern and control knobs (no visible text or symbols)

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Front view of a rectangular electronic device with vertical connectors and a small circular button, no visible text or symbols.

Line drawing of a digital camera with sound waves and a base (no text or symbols)

Exterior view of a wireless router device (no text or symbols visible on the device body)

Pure mechanical diagram showing a fan or impeller inside a housing with vertical measurement markings (no text or symbols)

Simple line drawing of a rectangular device with four corner handles and a central rectangular cutout (no text or symbols)

Základní informace

Obsah balení

Diagram of a device with labeled ports and a grid pattern, no readable text or symbols present.

Simple line drawing of a rectangular box with a dotted line inside, no text or symbols present.

Simple line drawing of a coiled electrical plug with two terminal blocks (no text or symbols)

Diagram of two network devices showing Ethernet ports and cables (no text or labels)

Illustration of a wireless router with signal waves and a separate camera device (no text or symbols)

CZ

Exterior view of a wireless router with three visible antennas (no text or symbols on the device body)

Pure technical diagram of a fan or vent structure with measurement scales and arrows indicating direction (no text or symbols)

Pure technical diagram of a rectangular enclosure with mounting flanges and square cutouts (no text or symbols)

LIMITED WARRANTY

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of one (1) year from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by emailing us at [e-mail].

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.

Please do not hesitate to contact your seller, or send e-mails to us [e-mail], with any questions.

COPYRIGHT ©2017 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.

BESCHRÄNKTE GARANTIE

Abstract logo with four colored petal shapes (blue, green, magenta, orange) and white interlocking circles, no text or symbols present.

ezviz
