Product Type	Deep Fryer
Brand	VOX
Model	FT5318
Temperature Control	Rotary dial, adjustable up to 190°C
Indicator Lights	Power (on/off) and Ready (temperature reached)
Lid Type	Pop-up with viewing window, spring-loaded hinge
Lid Detachable	Yes, for easy cleaning
Lid Dishwasher Safe	Yes (top rack recommended)
Frying Basket	Wire mesh with cool-touch handle
Basket Dishwasher Safe	Yes (top rack recommended)
Oil Reservoir	Non-removable, with MIN and MAX level marks
Oil Capacity	Between MIN and MAX (approx. 2.5 L)
Recommended Oil	Blended vegetable, corn, canola (rapeseed); not olive oil, margarine, lard, or drippings
Solid Fat Usage	Melt separately before adding; not recommended to melt in reservoir
Safety Features	Cool-touch handle, sturdy lid, automatic shut-off? (not specified; manual recommends unplugging after use)
Cleaning Instructions	Lid and basket dishwasher safe; wipe housing with damp cloth; do not immerse in water
Power Supply	Not specified (typical 1500-1800 W)
Usage	Household only
Frying Guide Included	Yes, with times and temperatures for various foods
Special Features	Viewing window to monitor food; basket hook for draining

Frequently Asked Questions - FT5318 VOX

How do I preheat the deep fryer?

Close the lid, plug in the unit, and set the temperature dial to your desired temperature. The ready indicator light will turn on. Wait until it cycles off to indicate the oil has reached the set temperature.

What type of oil should I use?

Use blended vegetable oil, pure corn oil, or canola (rapeseed) oil. Do not use olive oil, margarine, lard, or drippings. For solid fat, melt it first in a separate pan before adding.

Can I put the deep fryer in the dishwasher?

No, never put the main unit in the dishwasher. Only the detachable lid and frying basket can be washed on the top rack of the dishwasher.

How do I clean the deep fryer?

Ensure the fryer is unplugged and cooled for about 4 hours. Remove the lid and basket. Wash them in hot soapy water or in the dishwasher (top rack). Wipe the inside and outside of the housing with a damp cloth. Dry thoroughly before reassembling.

What is the maximum oil level?

The oil level must be between the 'MIN' and 'MAX' lines inside the oil reservoir. Do not exceed the 'MAX' line to avoid overflow.

Can I fry frozen food?

Yes, but ensure any ice crystals are removed and pat the food dry. Fill the basket no more than 1/4 full for frozen foods to prevent overflowing. Lower the basket slowly into the hot oil.

Why does the ready indicator light cycle on and off?

The ready light cycles during heating as the thermostat maintains the temperature. It will turn on when heating and off when the set temperature is reached. This is normal.

How should I store cooking oil for reuse?

After use, let the oil cool completely (about 4 hours). Filter it through a paper filter or wire strainer into a storage container. Store in a cool, dark place. Do not mix different oils or old with new. Replace oil if it foams, darkens, smells rancid, or becomes syrupy.

What should I do if the deep fryer does not turn on?

First, check that the plug is securely inserted into a working outlet. Check your fuse box or circuit breaker. If it still does not work, contact Customer Service.

Can I use solid vegetable shortening in this fryer?

It is not recommended to put solid shortening directly into the oil reservoir. If using, melt it first in a separate pan and pour it in carefully. Heat slowly at the lowest setting with the lid closed to prevent splattering.

USER MANUAL FT5318 VOX

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

FT - 5318

OPERATING INSTRUCTIONS DEEP FRYER MANUALE DELL'UTENTE FRIGGITRICE BEDIENUNGSANLEITUNG FRITTEUSE ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИФРИТЮРНИЦА UPUTSTVO ZA UPOTREBU FRITEZA MANUAL DE USUARIO FREIDORA MANUAL DO USUÁRIO FRITADEIRA ЕГХЕІРІДІО ХРНЗТН ФРІТЕΖА NAVODILA ZA UPORABO FRITEΖА UPUTE ZA UPORABU FRITEΖА UPUTSTVO ZA UPOTREBU FRITEΖА УПАТСТВА ЗА РАКУВАНЬЕ ФРИТЕΖА MANUALI I PERDORUESIT FRITEZЁ

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

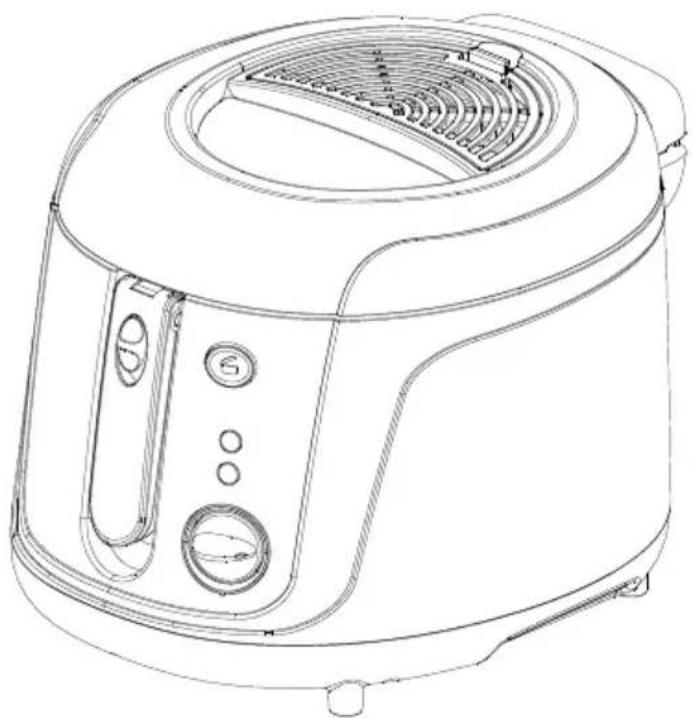

INSTRUCTION MANUAL FT - 5318

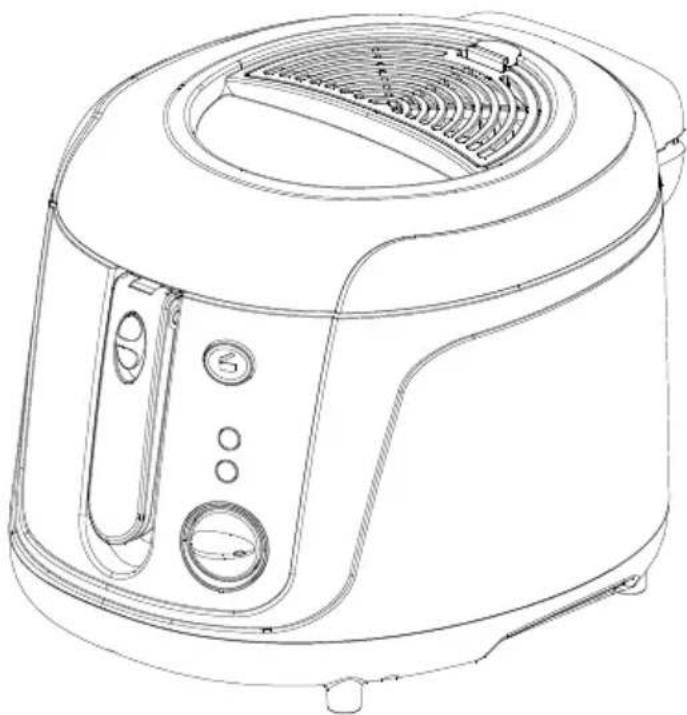

Line drawing of a modern toaster with side panels and control buttons (no text or symbols)

Read this booklet thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surface. Use handles or knobs.
3. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool down before putting on or taking off parts, and before cleaning the appliance.

6. Do not put the appliance on a soft working surface or a desktop covered with table cloth, make sure the appliance is working on a rigid surface.

7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

8. The use of attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not use this appliance when missing oil reservoir, oil and any other materials, or the oil is not enough.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. Extreme caution must be used when moving fryer containing hot oil.

13. Never connect the fryer to the electricity supply without placing oil in the oil reservoir first.

14. The oil in the oil reservoir will be still hot after it is switched off. Never attempt to move your fryer until it is completely cool down.

15. Never overfill the fryer with oil. Fill only between the minimum and maximum levels, as indicated inside the oil reservoir.

16. Do not add food with ice crystals or if it is wet to the hot oil.

17. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given in supervision or instruction concerning use of the appliances by a person responsible for their safety.

18. Children should be supervised to ensure that they do not play with the appliance.

19. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

20. On completion of frying, always raise the basket and wait a few seconds to allow steam pressure to subside.

21. Do not use appliance for other than intended use.

22. Do not use outdoors.

23. Store the appliance indoors to prevent electronic parts failure.

24. WARNING: Serious hot oil burns may result from a deep fryer being pulled off a countertop. Do not allow the power cord to hang over the edge of a counter where it may be grabbed by children or become entangled with the user.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

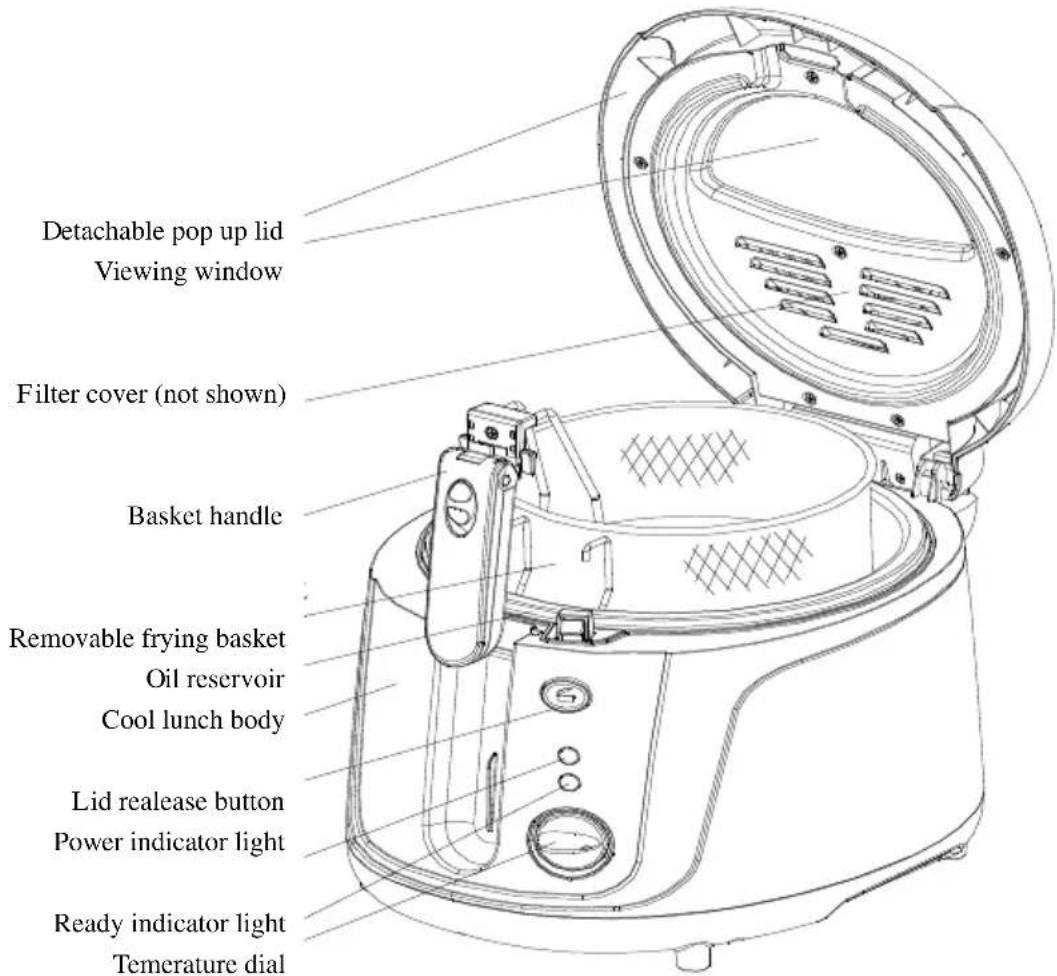

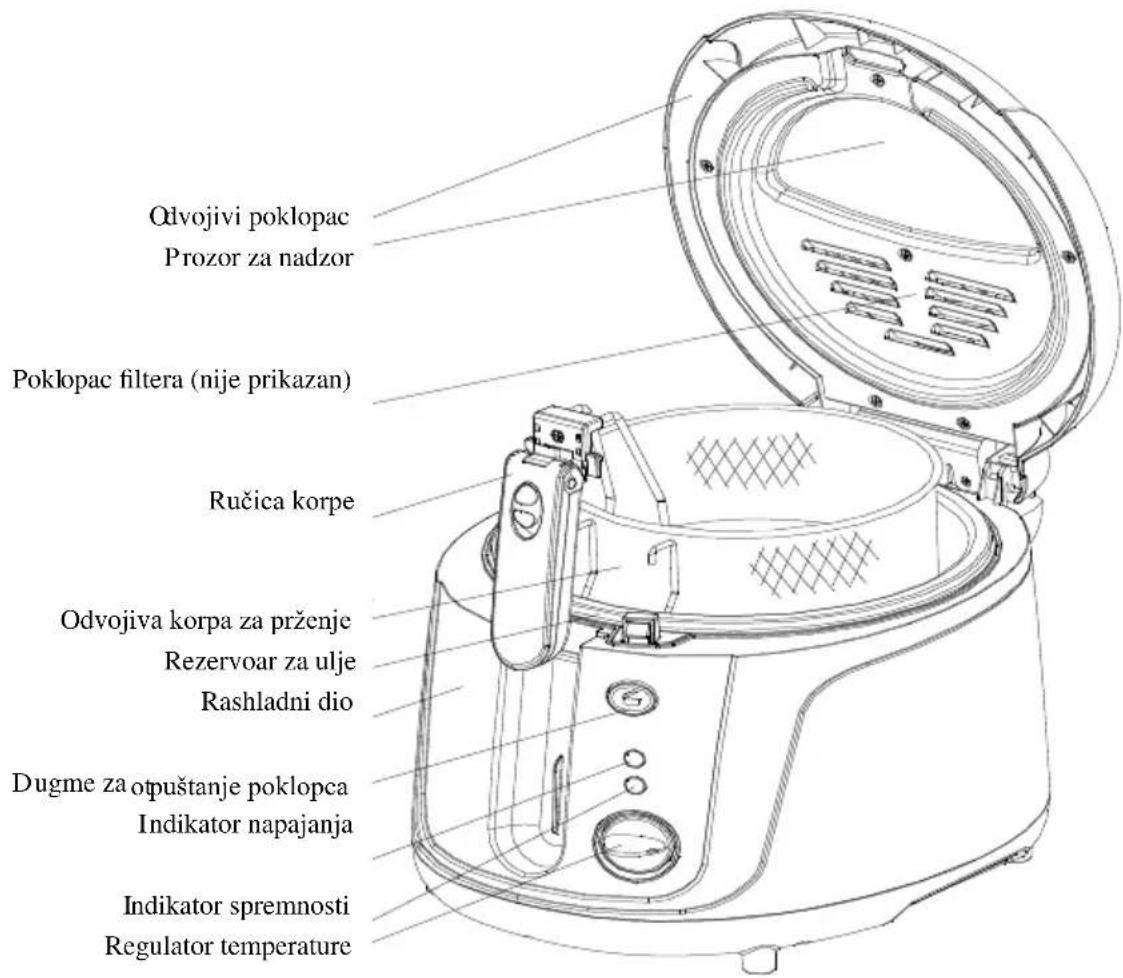

PRODUCT DESCRIPTION

Features

POWER INDICATOR LIGHT

This light illuminates when the deep fryer is on.

READY INDICATOR LIGHT

This light will cycle on and off several times during heating. it will turn off once the temperature is reached.

TEMPERATURE DIAL

Turn the temperature dial to select a temperature up to 190 °C. The temperature may be adjusted at any time.

POP-UP LID WITH VIEWING WINDOW

The lid to your deep fryer is on a spring loaded hinge and conveniently “pops” up with a touch of a button. Keep an eye on your food while it cooks by looking through the convenient viewing window.

The lid is also detachable and dishwasher safe.

WIRE FRYING BASKET

The removable wire frying basket with cool touch handle makes it safe and easy to add and remove food.

Before using

Clean before first use

1. Remove all packaging material and any stickers. Read all literature.
2. The frying basket and handle inside the appliance. Press the lid release button to open the pop-up lid.

Lift up the handle and remove the basket.

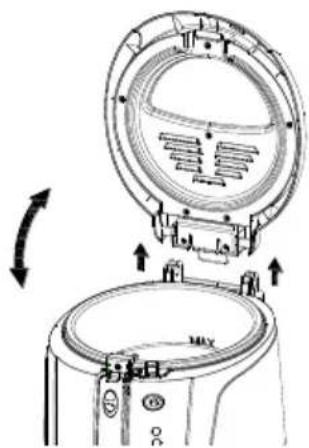

1. Tilt the lid forward and pull up to remove. (Fig.1)

2. Wash the basket handle, lid, frying basket in hot. Soapy water and wipe dry thoroughly, or you may wash the detachable lid, basket and handle in the dishwasher on the top rack.

3. Wash the inside and outside of the deep fryer with a drop of soap on a damp cloth. Rinse with a cloth thoroughly with a dry cloth or paper towel before adding oil.

WARNING: DO NOT put the deep fryer in the dishwasher.

WARNING: All components must be completely dried before filling the reservoir with oil and using.

WARNING: Special care must be taken to ensure the removable filter cover and lid are dry; otherwise steam may become dangerously trapped inside the fryer during use.

ASSEMBLING AND FILLING the Oil RESERVOIR

WARNING: Never plug the deep fryer into the electrical outlet while the oil reservoir is empty.

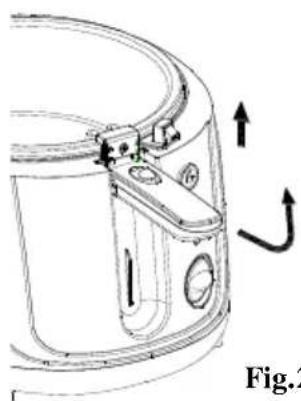

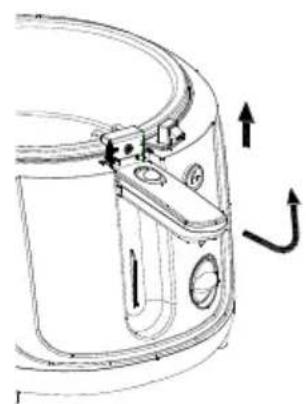

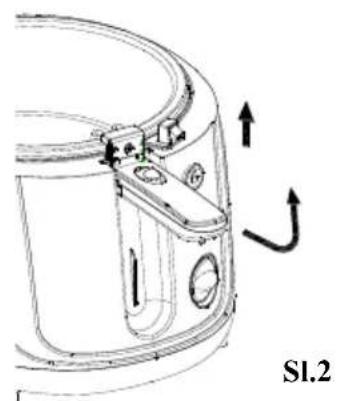

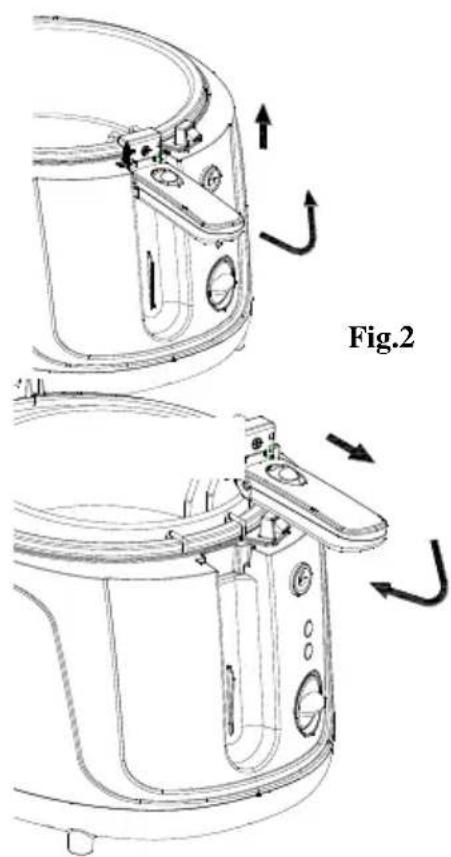

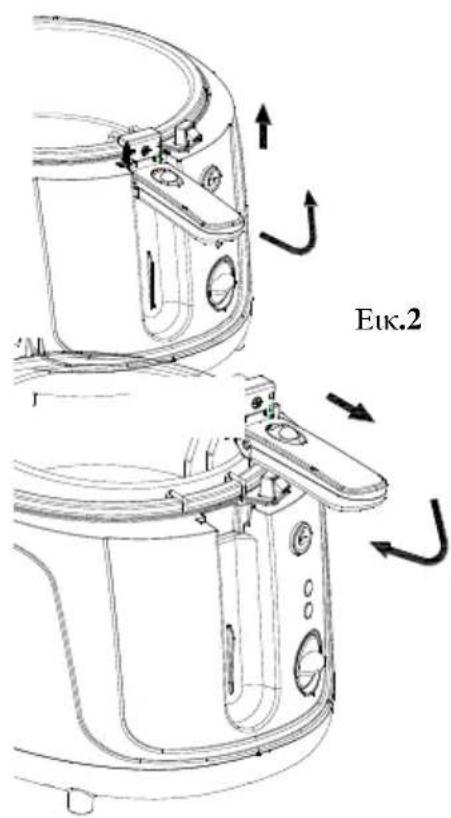

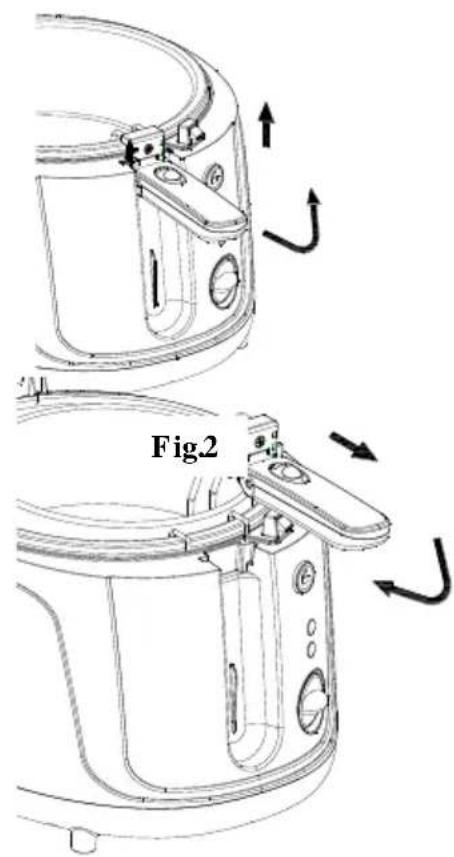

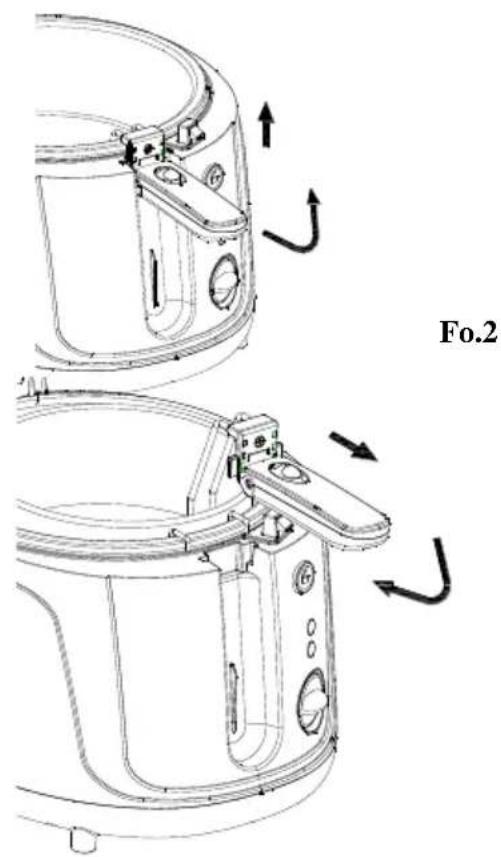

1. Lift up the handle and remove the basket.(Fig.2)

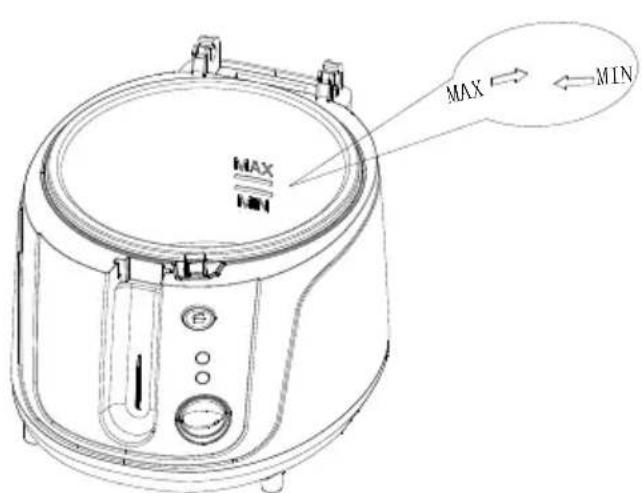

2. Pour cooking oil into the reservoir until the oil level is between the "MIN" and "MAX" lines on the inside of the oil reservoir. For best results, keep the oil close to the "MAX" level. DO NOT exceeds the "MAX" level. (Fig.3)

NOTE: Use blended vegetable oil, pure corn oil or canola (rapeseed) oil. DO NOT use olive oil, margarine, lard or drippings.

USE OF SOLID FAT

WARNING: It is NOT RECOMMENDED to put solid shortening in the oil reservoir or in the frying basket.

If using solid vegetable shortening, melt it first in a separate pan and pour the melted fat into the oil reservoir very carefully.

NOTE: Remove previously used. Curdled or hardened solid vegetable shortening from the oil reservoir and melt in a separate pan before reusing.

CAUTION: Attempting to melt solidified fat in the oil reservoir presents the risk of warm melted fat suddenly sputtering from below through the still solid top layer of fat. Use only the following procedure.

● Make sure the fat is at room temperature. If the fat is very cold, there is a greater risk of splashing.
● Carefully makes some holes in the fat with a fork.
● Make sure the lid is securely closed.
● Heat fat slowly on lowest temperature setting.

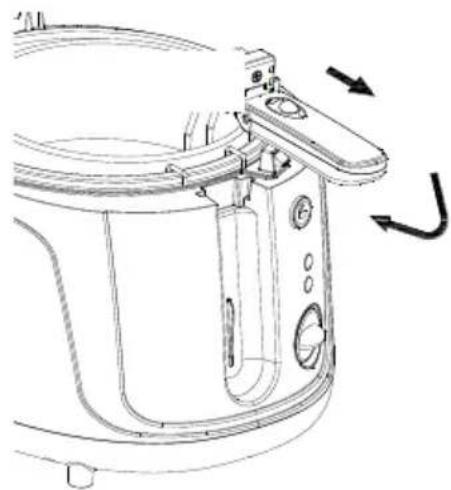

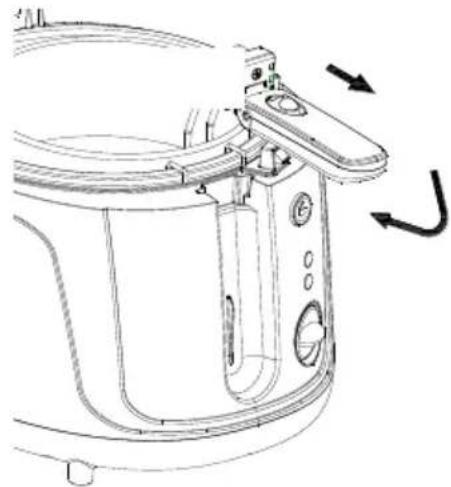

1. Insert the basket and lower the handle by sliding the button forward. close the lid (Fig.4)

Technical line drawing of a mechanical component with an open lid and internal structure, showing rotational motion (no text or symbols)

Fig.1

Technical line drawing of a device casing with internal components and directional arrows (no text or symbols)

Fig.2

Fig.3

Technical line drawing of a kitchen appliance component with arrows indicating rotation direction (no text or symbols)

Fig.4

Using you deep fryer

PREHEAT

CAUTION: DO NOT leave deep fryer unattended while in operation.

IMPORTANT: Always use the deep fryer on a flat, heat resistant surface

1. Close the lid.
2. Ensure that your hands are dry and plug the unit into the electrical out let.
3. Set the temperature dial to the desired temperature. The ready indicator light will turn on.

FILL THE FRYER BASKET

WARNING: Always use the frying basket to fry food.

WARNING: always remove and replace the frying basket carefully.

1. Press the lid release button to open the lid.
2. DO NOT fills the frying basket when it is immersed in oil. Always hold the basket by the cool touch handle.
3. Place food carefully into the frying basket. DO NOT over fill. For optimum results and shorter frying time, basket should be only half full.

NOTE: To cook evenly, pieces of food should be the same size and thickness. Thicker pieces will take longer to cook.

IMPORTANT: Make sure that the food to be fried is dry. Dab food with paper towel or a clean dish towel if necessary.

CAUTION: When frying frozen foods, be sure to clean off any ice from the food before placing it in the basket. Failure to do so may cause the fryer to overflow when food if placed in oil.

WARNING: Remove the frying basket from the deep fryer when filling as the oil will spatter and cause burns. For frozen foods, it is recommended that food fill no more than 1/4 of the basket capacity.

FRYING FOOD

CAUTION: Oil is very hot and can cause severe injury.

1. Lower the basket into the heated oil slowly and carefully. Lowering the basket too quickly can result in the oil overflowing and splashing. DO NOT drop basket into the cooking oil.

2. Close the lid to frying.

NOTE: It is normal for steam to escape through the sides of the lid while frying.

WARNING: Avoid standing too close to the deep fryer while it is cooking.

1. Use the viewing window to monitor your food. When the food is ready, step away from the unit before

opening the lid in order to allow hot steam to escape.

1. Lift the basket out of the oil and hook it on the edge of the oil reservoir to allow the food to drain for a minute.
2. Remove the food from the basket either with tongs or by pouring the food into a serving container or onto a plate covered with paper towels.
3. Repeat procedure for remaining food.
4. When you have finished using your deep fryer, turn the temperature dial counterclockwise all the way to turn the unit off.
5. Unplug the fryer from the wall outlet and allow cooling for approximately 2 hours before attempting to remove the oil or clean the fryer.

WARNING: Never use the power cord to turn the deep fryer off.

WARNING: Never use your deep fryer to boil water.

STORING OR REUSING COOKING OIL

NOTE: The oil has not to be changed after each use and can be used until it gets dark or there are bits of food in it such as batter or bread crumbs.

NOTE: It is not recommended to store or reuse oil that was used to fry food with protein, such as poultry, meat and fish. When oil is used mainly to fry potatoes and is filtered after each use it can be used 8 to 10 times but DO NOT use the same oil for more than 6 months.

IMPORTANT: Always replace the oil as soon as it starts foaming when heated or when color becomes dark, when it has a rancid smell or taste, or becomes syrupy.

1. Make sure the fryer is turned off, unplugged and has cooled for approximately 4 hours before attempting to store oil.
2. Remove the pop-up lid and frying basket.
3. Using a funnel, pour the oil from the back corner of the reservoir through a paper filter or wire strainer into a storage container.

IMPORTANT: The oil reservoir is not removable from the deep fryer.

1. To reuse this oil, pour back into the oil reservoir.

IMPORTANT: DO NOT mix different oils or new and old oil together.

Suggested Frying Guide and Tips

FOOD	COOKING TIME	TEMP.
FRENCH FRIES	6-9min	190°C
FISH FILETS	3-6min	170°C
CHICKEN FINGERS	6-9min	190°C
CHICHEN PIECES	12-20min	150°C
FRIED ZUCCHINI	3-6min	130°C
FRIED MUSHROOMS	4-6min	130°C
ONION RINGS	3-6min	130°C
DONUTS	3-6min	130°C
APPLE BEIGNETS	3-6min	130°C
SHRIMP	3-6min	130°C

SUGGESTED FRYING GUIDE

NOTE: The cooking times and temperatures above reflect only the approximate time needed to fry one basket half full. The exact times may be different depending on actual quantity, personal cooking preferences; size and thickness of pieces, etc. in general, use lower settings for delicate foods (vegetables, fish) and higher settings for frozen foods, French fries and chicken.

FRYING TIPS

For best cooking results, take note of these helpful tips:

● To avoid condensation buildup on the viewing window, rub a little cooking oil on the window.
● DO NOT mix different oils or new and old oil together.
- Replace oil regularly, in general, oil used to fry food with protein, such as poultry, meat and fish, should not be reused, when oil is used mainly to fry potatoes and is filtered after each use, it can be used 8 to 10 times but DO NOT use the same oil for more than 6 months.
● Always replace all oil as it starts foaming when heated, when color becomes dark, when it has a rancid smell or taste, or becomes syrupy.
- Make sure that the food to be fried is dry, dab food with paper towel or a clean dish towel if necessary.
- When frying frozen foods, should be the same size and thickness, thicker pieces will take longer to cook.

Cleaning and storing your fryer

CLEANING INSTRUCTION

1. Make sure the fryer is turned off, unplugged and has cooled for approximately 4 hours.
2. Remove the lid and the frying basket in hot, soapy water and wipe dry thoroughly. The

detachable lid and basket may be washed in the dishwasher on the top rack.

1. Wash the inside (if oil is being stored in a separate container) and outside of the deep fryer with a drop of soap on a damp cloth.
2. Rinse with a cloth dampened with water only.
3. Dry thoroughly with a dry or paper towel.

WARNING: DO NOT immerse the deep fryer in water. Do not put the deep fryer in the dishwasher.

WARNING: DO NOT use alcohol or cleaning solutions to clean the deep fryer.

HOW TO STORES SAFETY

1. Ensure that your deep fryer is turned off, unplugged, cooled and clean.
2. Store the basket inside the deep fryer and close the lid.
3. Store your deep fryer on a flat surface in a cool dry tipped over and won't be damaged or be hazardous to anyone or anything.

Troubleshooting guide

Troubleshooting

If your deep fryer fails to operate, follow these instructions:

1. Make sure the plug is securely plugged into the electrical outlet.
2. Make sure the electrical outlet is working, unplug the unit, check your fuse box or circuit breaker box and replace the fuse or reset the breaker as necessary, then plug the unit back in.
3. If the problem persists, contact Customer Service.

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal center.

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MANUALE DELL'UTENTE

FT - 5318

Line drawing of a modern toaster with side panels and control buttons (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

Line drawing of a modern toaster with cooling fan and side buttons (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

Line drawing of a modern toaster with side panels and control buttons (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

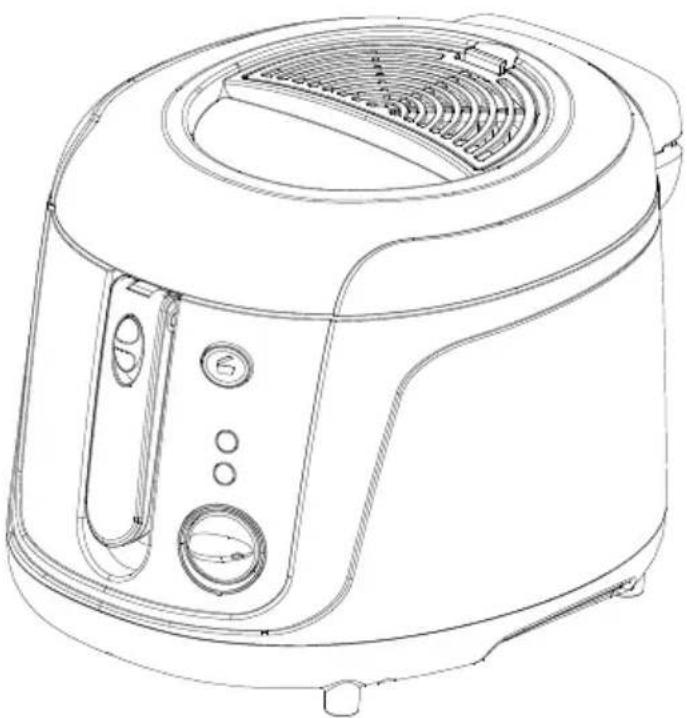

KORISNIČKO UPUTSTVO FT - 5318

Line drawing of a modern toaster with a circular top and side handles (no text or symbols)

VAŽNA BEZBEDONOSNA UPUTSTVA

Technical line drawing of a kitchen appliance component with directional arrows indicating movement (no text or symbols)

Sl.4

Korišćenje friteze

PRETHODNO ZAGREVANJE

OPREZ: NE OSTAVLJAJTE bez nadzora dok je u funkciji.

VAŽNO: Uvek koristite fritezu na ravnoj površini otpornoj na toplotu.

1. Zatvorite poklopac
2. Uverite se da su vam ruke suve i priključite uređaj u električnu utičnicu .
3. P odesite regulator temperature na željenu temperaturu. Indikator spremnosti će se uključiti.

NAPUNITE KORPU ZA PRŽENJE

UPOZORENJE: Uvek koristite korpu za prženje hrane.

Symbol of a trash bin crossed with no visible text or labels

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

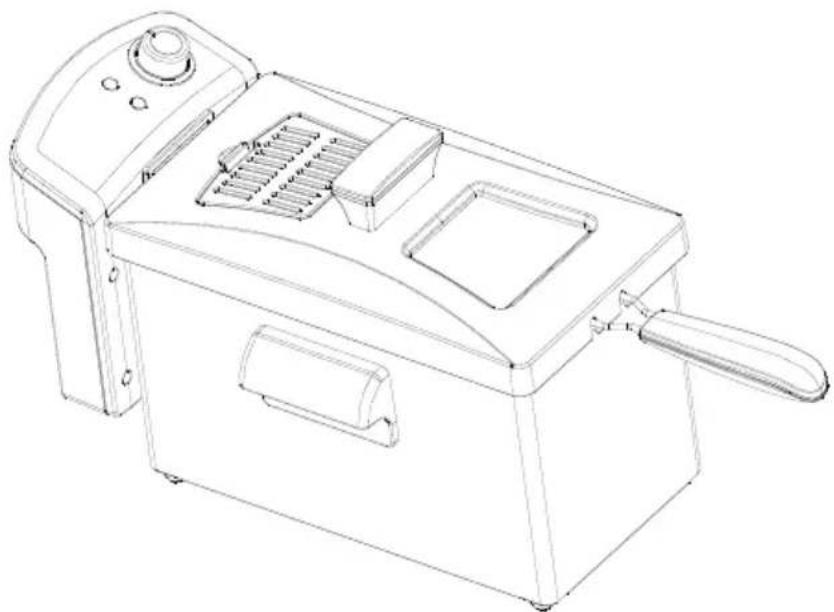

MANUAL DE INSTRUCCIONES FT- 5318

Line drawing of a kitchen grater with handle and side panel (no text or symbols)

Technical diagram of a mechanical device with an open lid and internal components, showing rotational motion arrows (no text or symbols)

Fig.1

Technical line drawing of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Fig.2

Fig.3

Technical line drawing of a kitchen mixer with directional arrows indicating motion (no text or symbols)

Fig.4

Usar la freidora

PRECALENTAR

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or numbers present)

Line drawing of a toaster oven with control buttons and ventilation grilles (no text or symbols)

Fig.3

Technical line drawing of a device component with arrows indicating motion or assembly (no text or symbols)

Fig.4

Usar sua fritadeira

PRÉ-AQUECIMENTO

Symbol of a trash bin crossed with no visible text or labels

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

Line drawing of a modern toaster with cooling fan and side buttons (no text or symbols)

Euk.3 Euk

.4

ΧΡΗΣΗ

ΠΡΟΘΕΡΜΑΝΣΗ

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

NAVODILA ZA UPORABO FT - 5318

Line drawing of a modern toaster oven with control buttons and ventilation grilles (no text or symbols)

Technical diagram of a mechanical device with an open lid and internal components, showing rotational motion (no text or symbols)

Technical line drawing of a device casing with internal components and directional arrows (no text or symbols)

Slika 3

Technical line drawing of a kitchen appliance component with arrows indicating rotation direction (no text or symbols)

Slika 4

Uporaba friteze

PREDHODNO SEGREVANJE

POZOR: NIKOLI ne puščajte friteze, da obratuje brez nadzora.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

KORISNIČKE UPUTE FT - 5318

Line drawing of a toaster oven with cooling fins and side gauges (no text or symbols)

Korištenje friteze

PRETHODNO ZAGRIJEVANJE

OPREZ: NE OSTAVLJAJTE bez nadzora dok je u funkciji.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

KORISNIČKO UPUTSTVO FT - 5318

Line drawing of a modern toaster with side panels and control buttons (no text or symbols)

VAŽNA BEZBJEDONOSNA UPUTSTVA

Prilikom korišćenja električnih uređaja, neophodno je ispratiti osnovne mjere bezbjednosti, uključujući i sljedeće:

1. Pročitajte sva uputstva.
2. Ne dodirujte vrelu površinu. Koristite drške i rukohvate.
3. Da bi se zaštitili od strujnog udara, ne potapajte kabl, utikače ili kućište u vodu ili drugu tečnost.
4. Neophodan je budan nadzor kada uređaj koriste djeca ili se koristi u blizini djece.
5. Kada se ne koristi i prije čišćenja, izvucite kabl iz napajanja. Prije bilo kakvog skidanja ili montiranja dijelova, i prije čišćenja, morate pustiti uređaj da se ohladi.
6. Ne stavljajte uređaj na meku radnu površinu ili sto pokriven stolnjakom, vodite računa da uređaj koristite na tvrdoj radnoj površini.
7. Nije dozvoljenokorišćenje uređaja ukoliko je došlo do oštećenja kabla ili utikača ili poremećaja u radu uređaja, ili je na bilo koji način uređaj oštećen. Odnesite uređaj u najbliži servis na pregled, popravku ili podešavanje.
8. Upotreba dodataka koje nije preporučio proizvođač može prouzrokovati povrede.
9. Kabl za napajanje ne smije se ostaviti da visi preko ivice stola ili radne površine, ili da dodiruje vruće površine.
10. Nemojte koristiti ovaj uređaj kada mu nedostaje rezervoar za ulje, ulje ili bilo koji drugi materijal, ili kada nema dovoljno ulja.
11. Ne stavljajte uređaj na ili blizu zagrijane gasne ili električne peći ili u zagrijanu rernu.
12. Neophodan je maksimalan oprez kada se pomjera friteza koja sadrži vrelo ulje.
13. Nikada ne povezujte fritezu sa izvorom električnog napajanja, a da prethodno ne stavite ulje u rezervoar sa uljem.
14. Ulje u rezervoaru sa uljem je još uvijek vrelo kada se uređaj isključi. Nikada ne pokušavajte da pomjerite fritezu dok se potpuno ne ohladi, podignite rezervoar za ulje koristeći drške.
15. Nikada ne prepunjujte fritezu uljem. Napunite samo izmedju maksimalnog i minimalnog nivoa kao što je navedeno unutar rezervoara sa uljem.
    16 Nemojte dodavati hranu sa kristalima leda ili hranu koja je vlažna u vrelo ulje.
16. Ovaj uređaj nije namijenjen upotrebi od strane osoba (uključujući djecu) sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, kao ni od strane osoba sa nedovoljnim iskustvom i znanjem,

osim ako im nije dodijeljen nadzor ili instrukcije koje se tiču upotrebe uređaja od strane osobe odgovorne za njihovu bezbjednost.

1. Djeca moraju biti pod nadzorom da se ne bi igrala sa uređajem.
2. Ur edaj nije namijenjen za upotrebu preko daljinskog tajmera ili odvojenog sistema daljinskog upravljanja.
3. Nakon završetka prženja, uvijek podignite korpu i sačekajte nekoliko sekundi da se smanji pritisak pare.
4. Ne koristite uređaj za bilo koju vrstu upotrebe osim one za koju je namijenjen.
5. Ne koristite uređaj napolju.
6. Čuvajte uređaj unutra da biste spriječili kvar električnih dijelova.
7. UPOZORENJE: Ozbiljne opekotine od ulja mogu nastati kada se friteza povuče sa radne površine . Vodite računa da kabl za napajanje ne visi preko ivice radne površine gdje ga mogu dohvatiti djeca ili gdje se može upetljati sa korisnikom.

OPIS PROIZVODA

Karakteristike

INDIKATOR NAPAJANJA

Symbol of a trash bin crossed with no visible text or labels

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

Line drawing of a modern toaster with side panels and control buttons (no text or symbols)

Fig.3

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols present)

Fig.4

Symbol of a trash bin crossed with no text or labels

Line drawing of a modern toaster with side panels and control buttons (no text or symbols)

Fo.3

Fo.4

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or anti-smoking (no text present)
