Product Type	Air Filter Regulator & Lubricator (Pneumatic Maintenance Unit)
Brand	Parkside
Model	PDWE 8 A2
Max. Working Pressure	8 bar
Operating Pressure Range	0.5 – 8 bar
Oil Type	Suitable Compressor Oil (e.g., SAE 10 or equivalent)
Oil Capacity	Approx. 150 ml (estimated from typical models)
Condensate Collection	Transparent tank with drain valve
Pressure Gauge	Yes (compressed air pressure gauge)
Connections	Barbed fitting (input), quick coupling (output)
Installation	Wall mountable (bracket included)
Dimensions (approx.)	200 x 150 x 100 mm
Weight (approx.)	1.5 kg
Material	Metal / Plastic
Warranty	3 years
Included Accessories	Maintenance unit with connections, wall bracket
Intended Use	Household only (not for commercial/industrial)

Frequently Asked Questions - PDWE 8 A2 PARKSIDE

What is the maximum working pressure of the Parkside PDWE 8 A2?

The maximum working pressure is 8 bar. Do not exceed this value.

How do I fill the oil mist unit?

Ensure the unit is disconnected from the compressed air supply. Press the release knob and turn the oil container to remove it. Fill with suitable compressor oil up to the max mark, then tighten the container by hand only.

How do I set the working pressure?

Pull the pressure regulator upward to unlock. Turn clockwise to increase pressure, counterclockwise to decrease. Read the pressure on the gauge, then lock by pressing the regulator down.

How often should I drain the condensate?

Drain the condensate regularly by pressing the drain valve pin at the bottom of the filter unit. Ensure the unit is depressurized before doing so.

What type of oil should I use?

Use suitable compressor oil (e.g., SAE 10 or equivalent). Do not use other lubricants as they may damage the unit.

Can I use the maintenance unit with any compressed air source?

No. It must only be connected to a pneumatic compressor. Using compressed air cylinders or other sources is forbidden due to fire/explosion risk.

Is the PDWE 8 A2 suitable for commercial use?

No. It is designed for household use only and must not be used commercially or industrially.

How do I clean the maintenance unit?

Clean the housing with a damp cloth regularly. Do not use sharp or abrasive cleaners or solvents, as they may damage plastic parts.

What is the warranty period?

The warranty period is 3 years from the date of purchase. Retain your proof of purchase to make a claim.

How do I claim warranty service?

Contact the service department via phone or email (details in the manual) with the product number (IAN) and proof of purchase. If the defect is covered, you may send the unit for repair or replacement.

USER MANUAL PDWE 8 A2 PARKSIDE

AIR FILTER REGULATOR & LUBRICATOR PDWE 8 A2

GB HU

AIR FILTER REGULATOR & LUBRICATOR

Operation and Safety Notes Translation of the original instructions

SI CZ

PNEVMATSKA VZDRŽE- VALNA ENOTA

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

HU

GB Operation and Safety Notes Page 5

Residual risk Page 6

Parts description Page 7

Technical specifications Page 7

Package contents......Page 7

Safety notes Page 7

Safety notes for using pneumatic devices....Page 8

Installation Page 9

Filling the oil mist unit....Page 10

Starting up....Page 10

Setting the working pressure Page 10

Filter unit....Page 11

Condensate drain via the drain valve Page 11

Oil mister unit....Page 11

Troubleshooting......Page 12

Cleaning and maintenance......Page 12

Warranty and service information Page 12

Warranty conditions....Page 12

Extent of warranty ...... Page 13

Processing of warranty claims....Page 13

Environmental notes and disposal information ...... Page 13

Disposal of the maintenance unit....Page 13

Table of pictograms used
	Read the operating instructions!		Observe warnings and the safety instructions!
	Note!		Dispose of the pneumatic devices and packaging environmentally compatibly!
	Use hearing protection!
	Use a dust mask! Use a goggles!
	Use protective gloves! Made of re	material.

AIR FILTER REGULATOR & LUBRICATOR PDWE 8 A2

- Introduction

Congratulations! You have purchased one of our high-quality devices. Before setup or first use, please

familiarise yourself with the product. To do so, please read through the following operating and safety instructions carefully. This tool must be set up or used only by people who have been trained to do so.

KEEP OUT OF THE REACH OF CHILDREN!

- Intendeduse

The air filter regulator & lubricator serves to oil the compressed air for pneumatic tools and at the same time filters condensation from the compressed air. Use the products only as described and only for the specific applications as stated. Keep these instruc-

tions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device was designed for household use and must not be used commercially or industrially.

- Residual risk

Even if you operate the device according to the instructions, there will always be residual risks remaining. The following risks may occur in connection with the build and execution of this pneumatic maintenance unit:

■ Danger from beating compressed air hoses.
■ Danger of falling from compressed air hoses lying around.

Reduce the residual risk by carefully using

the device as intended and observing all instruction.

- Parts description

After unpacking the product, please check that the device is in perfect condition. Do not use the product if it is defective.

1 Filter unit
2 Barbed fitting
3 Compressed air controller
4 Compressed air pressure gauge
5 Wall bracket
6 Oil refilling inlet
7 Oil gauge plug
8 Quick coupling
9 Oil mister unit
10 Release knob
11 Container for pneumatic oil, oil container
12 Drain valve
13 Condensate collection container
14 Filter insert

• Technical specifications

Max. working pressure: 8 bar

Oil: Suitable compressor oil

• Package contents

1 pneumatic air maintenance unit including connections

- Safety notes

■ Please read the operating instructions with care and observe the notes described. Familiarise yourself with the

device, its proper use and the safety notes based on these operating instructions.

The rating plate container all technical data of this pneumatic maintenance unit; please learn about the technical features of this device.

This device can be used by children 16 years and older and also by persons with reduced physical, sensory or mental capacities or a lack of experience and knowledge if they are supervised or they have been instructed with regard to the safe use of the device and they understand the dangers it presents. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

In connection with a compressor, the maintenance unit serves maintenance and care (e.g. filtering, oiling and regulation) of your pneumatic tools. The maintenance unit must only be used with a pneumatic compressor. When using the device, observe the maximum compressed air values of the connected tools and check them several times during use.

This product is only intended for private use. The maintenance unit must only be used as intended. Any further, deviating use is forbidden!

■ Consideration of the safety note sin the operating instruction and the assembly instructions are also part of intended use. The manufacturer or dealer assumes no liability for any damage caused by non-intended or wrong use.

Only accessories suitable for this product must be used. Persons who use the pneumatic maintenance unit and who may perform maintenance work are obligated to familiarise themselves with it. They also must be informed about potential dangers. The applicable accident prevention provisions must be correctly and conscientiously observed.

■ Any changes to the pneumatic maintenance unit exclude liability of the manufacturer and any connected damage.

● Safety notes for using pneumatic devices

Important!

■ Always keep the compressed air hose firmly in your hands

when releasing a connection. The lashing backlash of the compressed air hose may cause injury.

The compressed air maintenance unit must be installed before it can be safely taken into operation. A stable wall is suitable for installation (with screw connections).

We recommend only using the lubricants specified by the manufacturer.

■ Never exceed the indicated maximum pressure values of the maintenance unit.

The pneumatic maintenance unit must only be connected to a compressed air source that does not exceed the working pressure of 8 bar.

- Do not put the compressed air lines near any heat, oils, heat and sharp edges.

The maintenance unit must only be operated in connection with a pneumatic compressor. Use of other compressed air sources, such as a compressed air cylinder, is forbidden. There is a danger of fire and/or explosion.

■ Make sure that children and persons with limited physical or mental capacities are kept away from the maintenance

unit and the connected compressed air tools.

Only use genuine spare parts, liquids, paint and dust mist. For repairs. Any non-genuine spare parts may cause severe damage. These substances may influence due to very hot surfaces at the pneumatic unit.
es, liquids, paint and dust mist. These substances may inflame due to very hot surfaces at the pneumatic unit.

■ When conducting any maintenance, setting and repair work, always disconnect the maintenance unit from the compressed air supply first.

- Changes to the maintenance must not use any prepared com-unit are forbidden. pressed air (e.g. grease guns, - Use the maintenance unit only and-blasting units, tyre fillers, when it is in an impeccable etc.). condition. In doubt, use a spe- cialist's advice.

■ Have repairs only conducted by qualified specialists.

working in environments with sub- stances such as flammable gas-

Important note:

Do not use the maintenance unit in connection neumatic devices that

must not use any prepared compressed air (e.g. grease guns, sand-blasting units, tyre fillers, etc.).

- Installation

User safety

Try out the pneumatic tool used before every use.

Never use the compressed air maintenance unit with any higher operating pressure then indicated in the technical data. Before you connect your pneumatic tools to the pneumatic maintenance unit, ensure that they are properly and securely connected.

Forbidden uses

Do not use this maintenance unit in a potentially explosive environment. Avoid

Attention:

To minimise potential injury or damage, the maintenance unit must be installed on a suitable wall before first commissioning. Ensure a stable and horizontal assembly of the pneumatic maintenance unit.

Use the attachment unit to mark the wall for wall installation and for screwing on with matching connection material (see Fig. D).

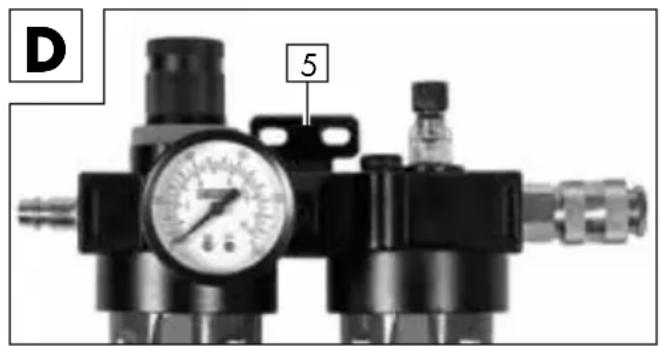

Close-up of a mechanical pressure regulator with gauges and fittings (no visible text or symbols)

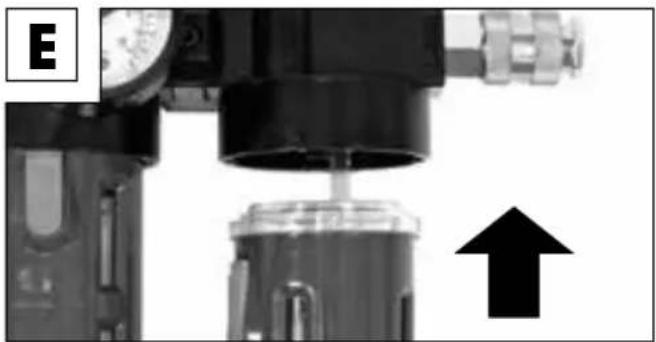

• Filling the oil mist unit

Ensure that the maintenance unit has been separated from the compressed air source before filling or releasing the container 11.

■ Remove the oil container by pressing the release knob 10 and simultaneously turning the oil container 11 (see Fig. E). Fill the oil container 11 using suitable compressor oil until the max. mark has been reached (see Fig. B).
■ Subsequently tighten the container only manually (without tools).

Close-up of a mechanical assembly with a black arrow pointing upward, no visible text or symbols

- Starting up

Ensure that the connected compressed air line is clean and oil-free in order to properly use the

compressed air maintenance unit. Further ensure that the pneumatic system is depressurised. To minimise pressure loss, it is beneficial if the compressed air lines are kept as short as possible.

■ Connect the pneumatic maintenance unit to the compressed air source
First release the lock by mpulling the pressure regular 3 upwards. (see Fig. F)
Turn counter-clockwise to set the compressed air controller 3 to the lowest possible level. The desired settings will be assumed by pushing down the compressed air controller 3.
■ Connect the compressed air supply line

at the quick coupling 8 of the tool to be connected to the right side (output) of the maintenance unit (see figure on the right). A triangle "▶" on the surface of the device indicates the flow direction of the compressed air.

Connect the compressed air supply of the compressed air source at the barbed fitting 2 on the left (input) of the maintenance unit (directly at the input, the surface has a triangle "▶", that indicates the flow direction of the compressed air).

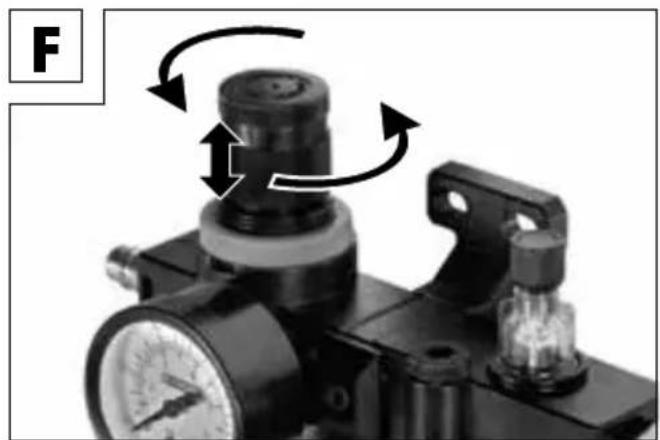

Close-up of a pressure regulator with directional arrows indicating rotational movement (no text or symbols visible)

Before commissioning of the maintenance unit, check the compressed air flow direction with the mark "▶" on the surface. If the setting is not correct, the pressure generated will not be correct.

- Setting the working pressure

After linking the maintenance unit to a compressed air source (see above), you can set the desired operating pressure with the pressure controller 3.

First release the lock by pulling the compressed air controller 3 upwards. (see Fig. F)
■ Turning counter-clockwise reduces the pressure, and turning clockwise increases the pressure.
- Read the set pressure at the pressure

gauge display 4.

■ Lock the setting by pressing the compressed air controller 3 downwards.

Note:

Ensure that the maximum possible operating pressure of the maintenance unit and the pneumatic tool is not exceeded.

- Filter unit

The filter unit 1 is linked to the pressure controller 3. The maximum working pressure is 8 bar and the operating pressure can be adjusted from 0.5 to 8 bar. The filter unit 1 is used to filter condensate and stores the condensate in the filter tank 13.

You can check the condensate fill level through the transparent sight windows (see Fig. C). The stored condensate can be drained via the drain valve 12.

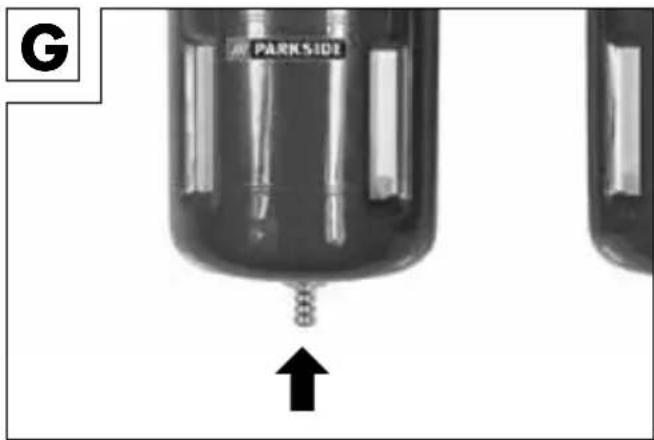

- Condensate drain via the drain valve

Ensure horizontal installation of the maintenance unit so that the condensate can be stored horizontally in the tank 13 as well. The filter unit 1 must not be used without the tank 13 installed.

Use a matching tank in order to drain the stored condensate from the tank 13. Press against the drain valve 12 from below (see Fig. G), this causes it to open and thus, the condensate flows into the container.

- Oil mister unit

The oil mister unit 9 is connected to the filter unit 1. It has the function of oiling the filtered compressed air that is transported towards the compressed air tool.

You can check the fill level of the oil tank 11 (integrated into the oil mister unit) through the transparent sight windows. Use only matching oil for this maintenance unit (see above).

Turn the oil drain screw that is installed on the sight glass clockwise ("−"), in order to reduce the required volume of oil. Turn it counter-clockwise (+") to increase the volume of oil.

The integrated sight window permits continuous overview of the filtered compressed air.

To top up oil, turn the screw down with a suitable socket wrench. Fill the tank with a matching hopper and tighten the screw again with the wrench.

- Troubleshooting

Faults Causes Solution
The lubrication is not sufficient	The oil passage screw 7 it tightened too far in direction ("−").	Increase lubrication (see above).
	The compressed air volume is too low, i.e. below the minimum fill level.	Pour more oil into the oil tank 11. Observe the maximum fill level.
The operating pressure of the compressed air is too low.	The pressure controller 3 is tightened too far (see above).	Increase the pressure (see above).

and the connections with a moist cloth at regular intervals.

- Drain the pneumatic maintenance unit's tank at regular intervals. For this, press in the metal pin 12 at the bottom and let the condensate drain (see Fig. G). Note that the pneumatic maintenance unit must be depressurised for safety.

● Warranty and service information

Warranty from Creative Marketing Consulting GmbH

Dear Customer, The warranty for this device is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

- Cleaning and maintenance

- Warranty conditions

Note:

The pneumatic maintenance unit must be regularly serviced and overhauled for proper function and for compliance with the safety requirements. Improper and wrong operation may cause failures and damage to the device.

■ Never use any sharp and/or scraping cleaning agents or solvents. They may damage the plastic parts of the pneumatic maintenance unit.
■ Make sure that no water can enter inside occurred. If the defect is covered by our warranty, we will repair and return your product the oiler.
■ Ensure that the housing and the inside of or send you a replacement. the pneumatic maintenance unit remains dust- and dirt-free. For this, regularly rub the pneumatic maintenance unit with a clean cloth. The original warranty period is not extended when a device is repair or replaced.
■ Clean the pneumatic maintenance unit
e occurred. If the defect is covered by our warranty, we will repair and return your product or send you a replacement.
The original warranty period is not extended when a device is repair or replaced.

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase. Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. To claim against this warranty, you must present the defective device and your purchase receipt within the 3-year period, and include a brief written description of the nature of the defect and the date it

• Extent of warranty

The device has been manufactured according to strict quality guidelines and meticulously examined before delivery. The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries, or parts made from glass. This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances. The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

Please follow the instructions below to ensure quick processing of your claim: Please retain your proof of purchase and quote the product number (e.g. the IAN 12345) in all correspondence. The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or bottom. In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

Note

If you visit www.lidl-service.com, you can download this manual and many other manuals, product videos and software.

How to contact us:

GB

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 304723

Please note that the following address is not a service address. Please first contact the service point given above.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

D-66386 St. Ingbert

GERMANY

● Environmental notes and disposal information

Always recycle the device, accessories and packaging in an environmentally-friendly manner.

Do not dispose of pneumatic devices in household waste! Devices that are no longer functional should be recycled wherever possible. Ask your local stockist for advice.

- Disposal of the maintenance unit

Dispose of the maintenance unit according to the provisions applicable in your country.

Environmental notes and disposal information

If the maintenance unit can no longer be used, return it to a collection point of your municipality/quarter. This ensures that it will be professionally recycled and avoids negative effects on the environment.

Close-up of a mechanical pressure regulator with gauges and fittings (no visible text or symbols)

Close-up of a mechanical assembly with a black arrow pointing upward, no visible text or symbols

- Üzembe helyezés

Close-up of a pressure regulator with directional arrows indicating rotational flow (no text or symbols)

Close-up of a mechanical pressure regulator with gauges and fittings (no visible text or symbols)

- Polnjenje enote za oljno meglico

Close-up of a mechanical press or valve assembly with a black arrow pointing upward (no visible text or symbols)

- Zagon

Close-up of a pressure regulator with directional arrows indicating rotational movement (no text or symbols)

Ime: C.M.C. Creative Marketing &

Consulting GmbH

Servis in informacije

Media-Impeks d.o.o

Spletna stran: www.cmc-creative.de

E-pošta: [e-mail]

Telefon: [phone]

Sedež: Nemčija

IAN 304723

Close-up of a mechanical pressure regulator with gauges and fittings (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing upward, no visible text or symbols

Close-up of a pressure regulator with directional arrows indicating rotational movement (no text or symbols)

C.M.C. Creative Marketing &

Close-up of a mechanical pressure regulator with gauges and fittings (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing upward, no visible text or symbols

Close-up of a pressure regulator with directional arrows indicating rotational flow (no text or symbols)

Close-up of a mechanical pressure regulator with gauges and fittings (no visible text or symbols)

Close-up of a mechanical pressure relief device with a black arrow pointing to a component (no visible text or symbols)

- Inbetriebnahme

Close-up of a pressure regulator with directional arrows indicating rotational flow (no text or symbols)

[e-mail]

[e-mail]

Telefon: [phone]
