| Product Type | Blu-ray Player |
| Brand | PIONEER |
| Model | BDP-120 |
| Supported Disc Formats | BD-Video, BD-RE/-R, DVD-Video, DVD-RW/-R, DVD+RW/+R, Audio CD, CD-RW/-R (JPEG) |
| Regional Codes | BD: B, DVD: 2 |
| Video Outputs | HDMI, Component video (Y, Pb, Pr), Composite video |
| Audio Outputs | HDMI, Optical digital audio, Analog audio (L/R) |
| Network | Ethernet (LAN) 10BASE-T/100BASE-TX |
| Special Features | KURO LINK, BD-LIVE, BONUSVIEW (Picture-in-Picture), DVD upscaling |
| Power | 230 V AC, 50/60 Hz |
| Operating Temperature | +5 °C to +35 °C |
| Operating Humidity | Less than 80% RH |
| Ventilation | Allow at least 10 cm of free space on the top, back, and sides |
| Included Accessories | Remote control, AA batteries (×2), power cord, AV cable, instruction manual, warranty card |
| Maintenance and Cleaning | Wipe with a soft, damp cloth (water only). Do not use solvents. |
| Safety | Class 1 laser product. Do not open the casing. Avoid open flames and liquids near the device. |
| General Information | For indoor household use only. Observe copyright laws. |
Frequently Asked Questions - BDP-120 PIONEER
User questions about BDP-120 PIONEER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Blu-ray player in PDF format for free! Find your manual BDP-120 - PIONEER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BDP-120 by PIONEER.
USER MANUAL BDP-120 PIONEER
Discover the benefits of registering your product online at http://www.pioneer.eu.
ADVARSELS: KLASSE 2 SYNLIG OG USYNLIG LASERSTRALING HVIS DENNE DELEPN APNES. STURK IKKE INI SLRANKE
ADVARSE: KLASSE 2 SYNLIG OG USYNLIG LASERSTRALING VED ABNING, KIG IKKE IND 1 STRALEN

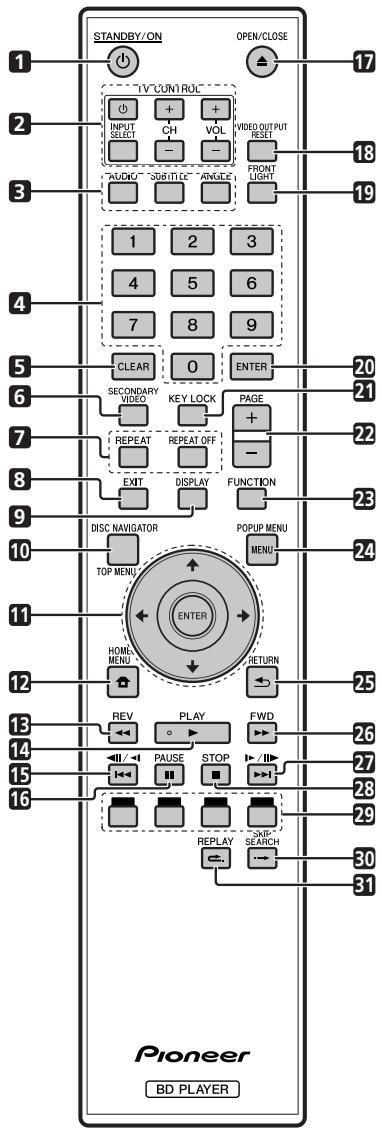

7 REPEAT (S. 30, 31), REPEAT OFF (S. 30, 31)
8 EXIT (S.20,36)
9 DISPLAY (S. 24, 31)
10 TOP MENU/DISC NAVIGATOR (S. 25, 27)
11 Cursortasten (///) , ENTER (S. 21, 36)
12 HOME MENU (S. 21, 36)
13 REV (S. 30)
14 PLAY (S. 24)
15 1/11/1 (S.27,30)
16 II PAUSE (S. 30)
17 ▲ OPEN/CLOSE (S. 24)
18VIDEO OUTPUT RESET (S.37)
19 FRONT LIGHT (S. 23)
20 ENTER (S. 21, 36)

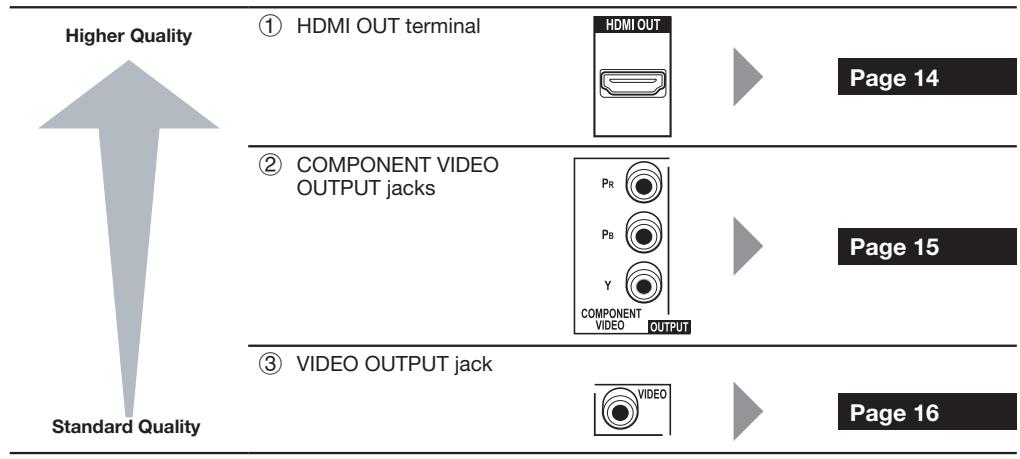

Video-Anschlüsse/Buchsen an thisem Player
