USER MANUAL Elite BDP33FD PIONEER

For future reference, record the model and serial number (located on the rear of the product) in the space provided.

Model No.: BDP-33FD/BDP-31FD

Serial No.:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user of uninsulated voltage within the unit that can cause dangerous electric shocks.

This symbol alerts the user that there are important operating and maintenance instructions in the literature accompanying this unit.

"WARNING—FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment."

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

AS THE LASER BEAM USED IN THIS UNIT IS HARMFUL TO THE EYES, DO NOT ATTEMPT TO DISASSEMBLE THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

• This Player is classified as a CLASS 1 LASER product.
- The CLASS 1 LASER PRODUCT label is located on the rear cover.
- This product contains a low power laser device. To ensure continued safety do not remove any cover or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE

Introduction

DEAR Pioneer CUSTOMER ....4

IMPORTANT SAFETY INSTRUCTIONS ....4-5

Important Notice....6

The Icons Used in This Operating Instructions ......6

Copyright 6

About Discs 7-10

Types of Discs that Can Be Used with This Player ....7

Discs that Cannot Be Used with This Player .....8

BD Video 9

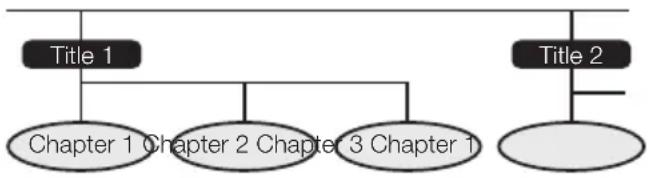

Title, Chapter and Track 9

Icons Used on DVD Video Disc Cases 9

Disc Precautions 10

About Files ......11

About Playing Audio Files 11

About Playing Image Files 11

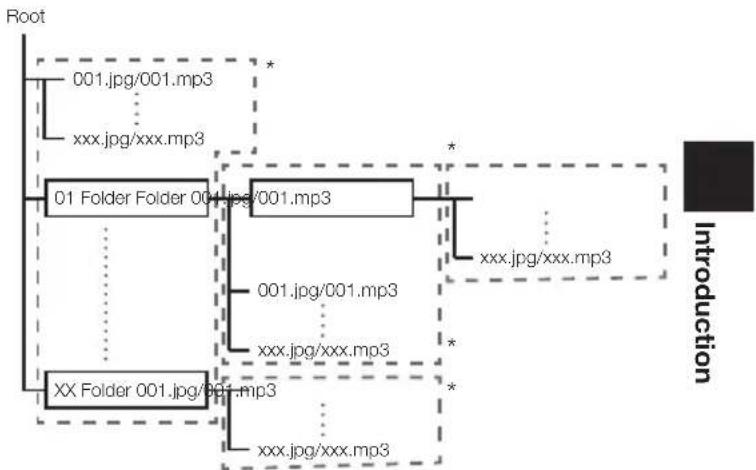

About Audio Files, Image Files and Folders .....11

Checking the Accessories ....12

Names and Functions of Parts 13-15

Main Unit (Front) 13

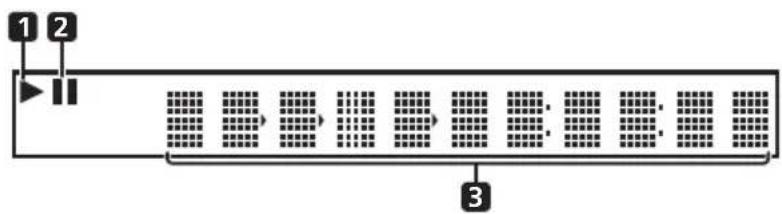

Front Panel Display 13

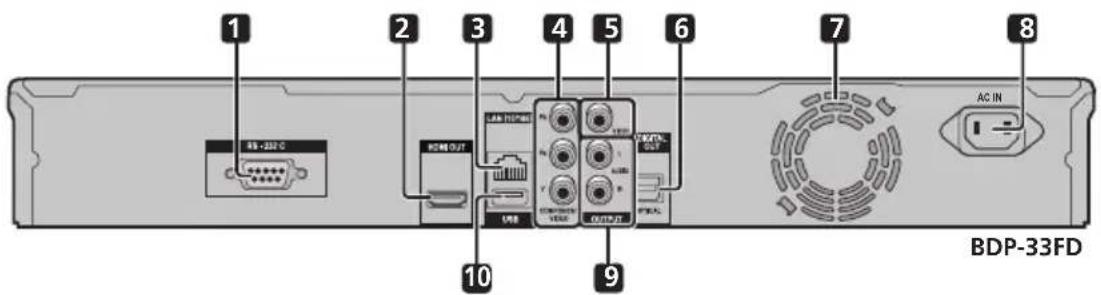

Main Unit (Rear) 14

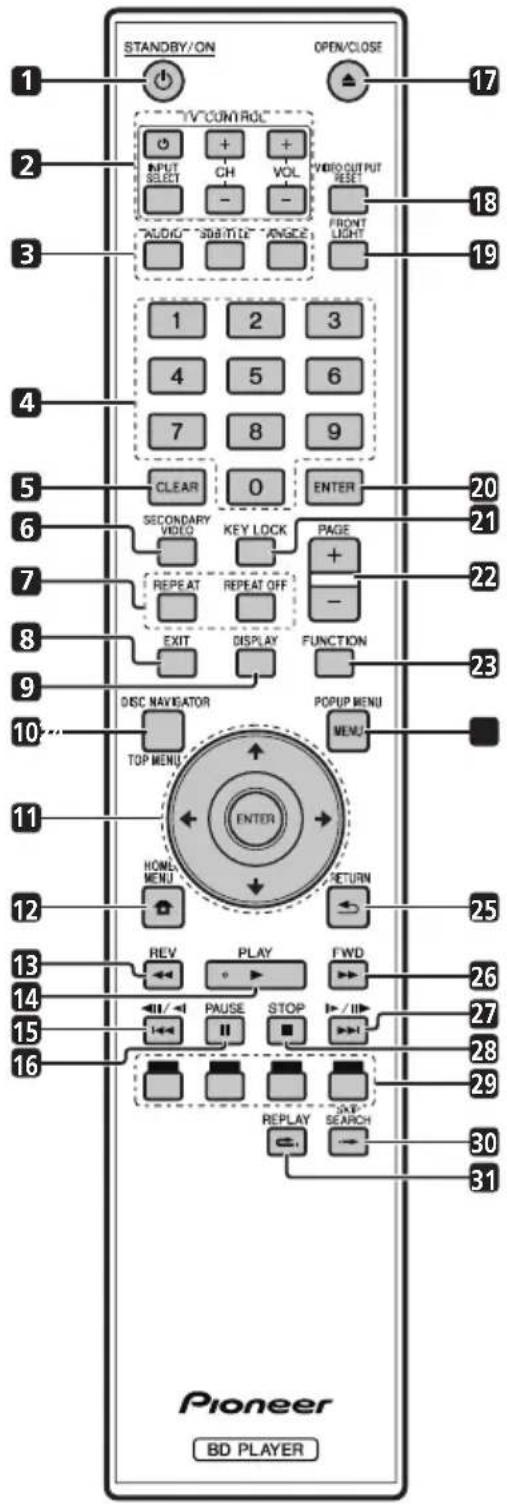

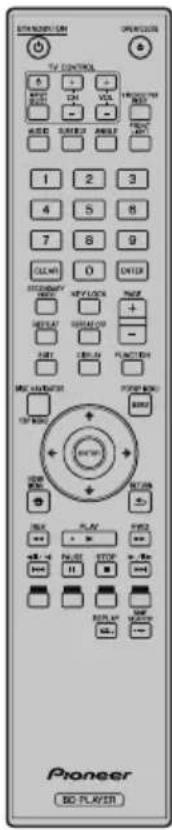

Remote Control Unit 15

Connections

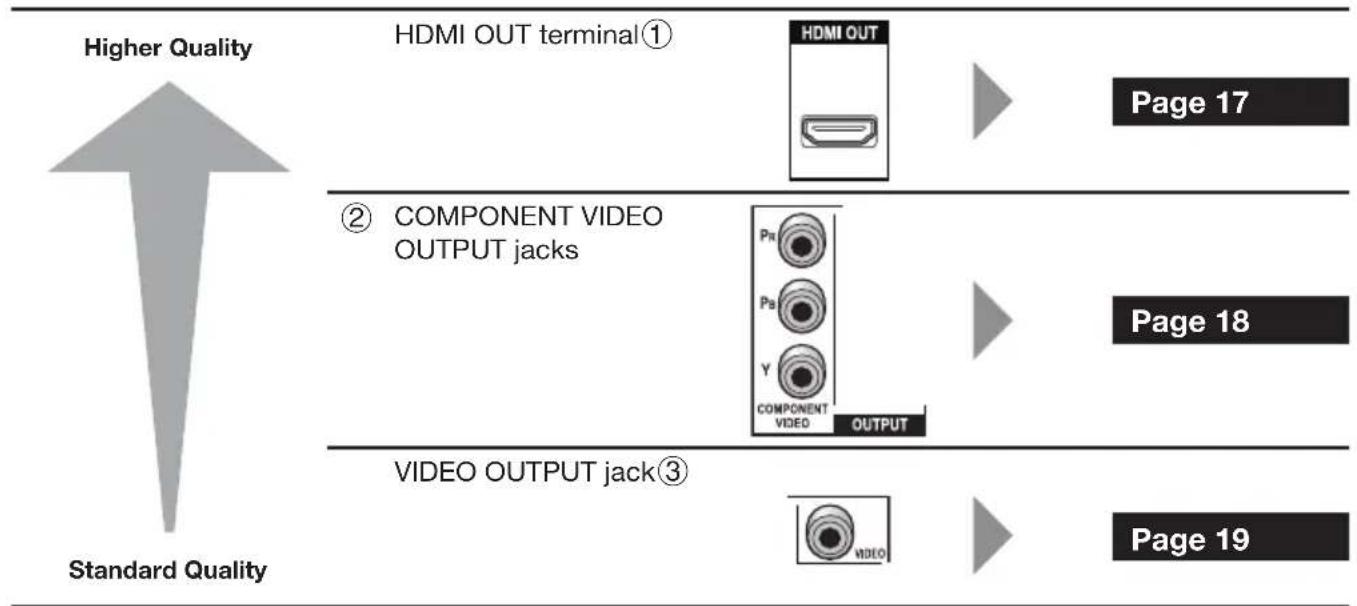

Connections....16-21

Connecting to the HDMI Terminal 17

Selecting the priority video output when connecting

HDMI and Component video 17

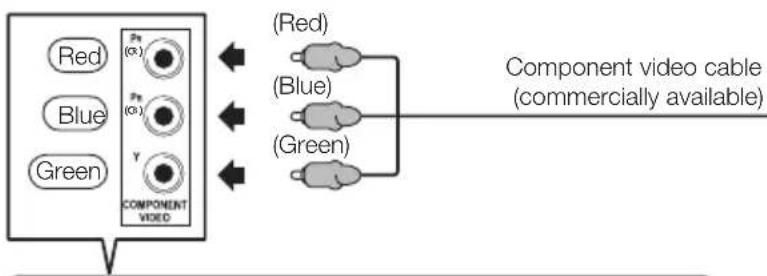

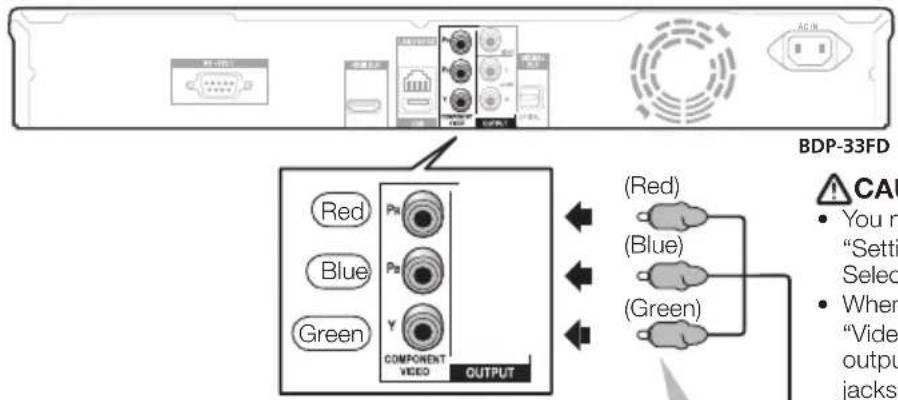

Connecting to the Component Jacks .....18

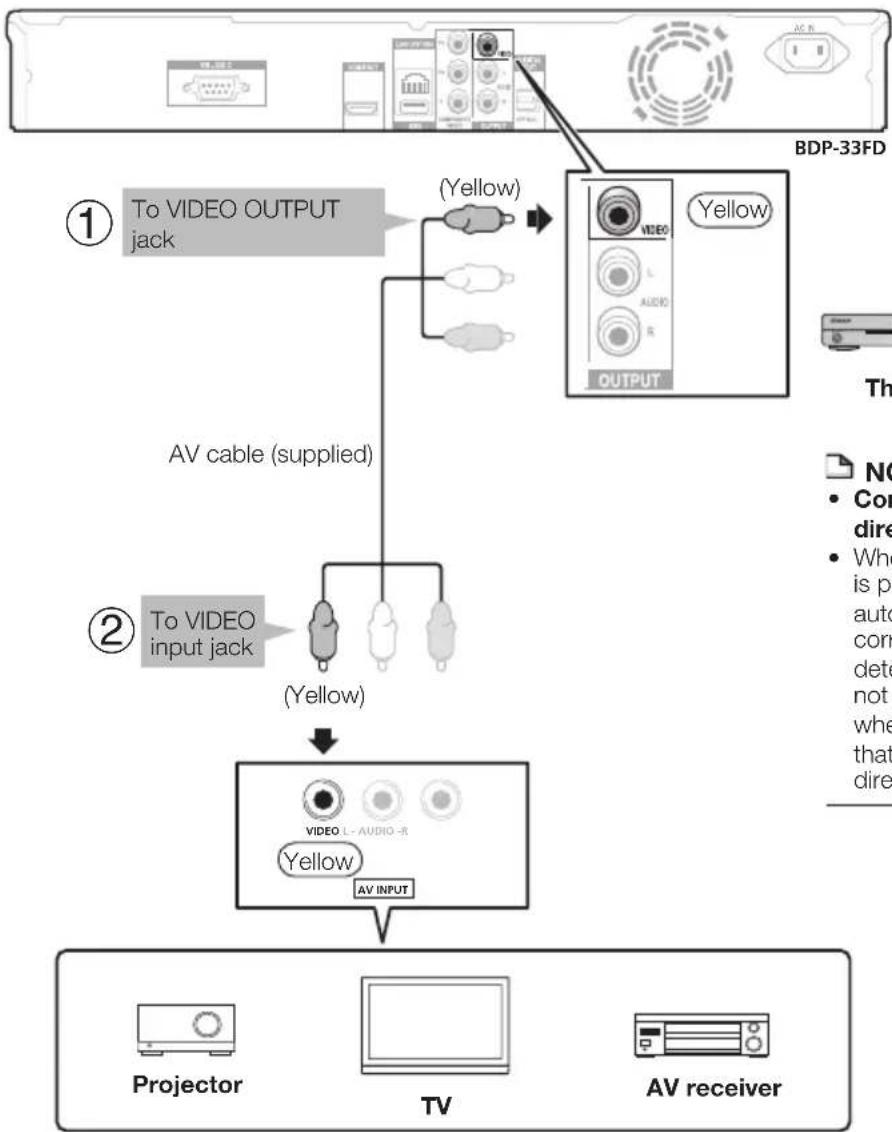

Connecting to the Video Jack 19

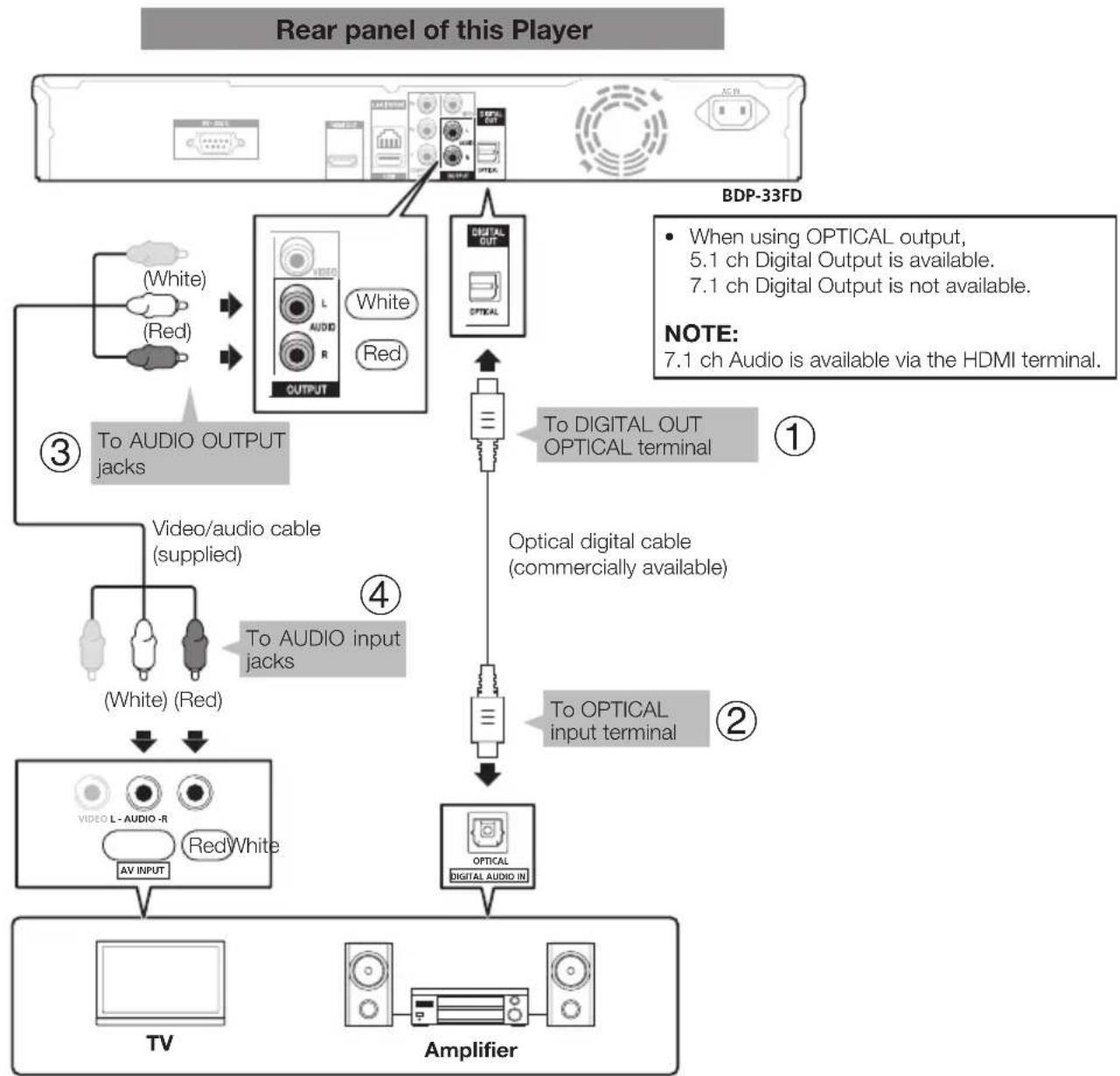

Connecting to the Digital Audio Terminal or Audio Jacks....20

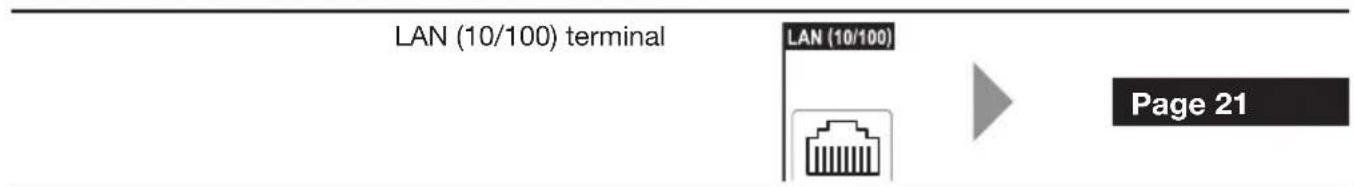

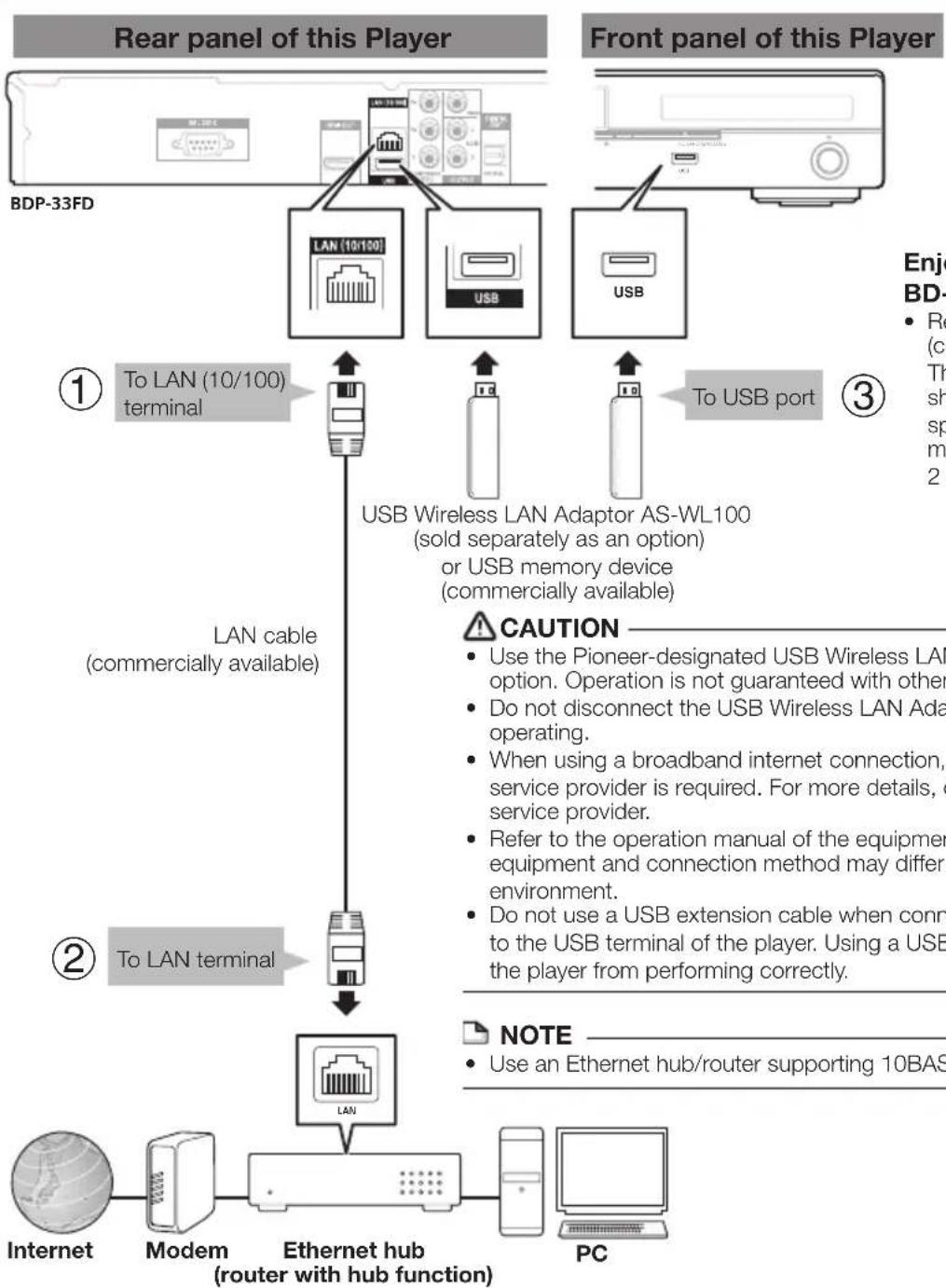

Connecting to the LAN (10/100) terminal .....21

Playback

Before Starting Playback 22-27

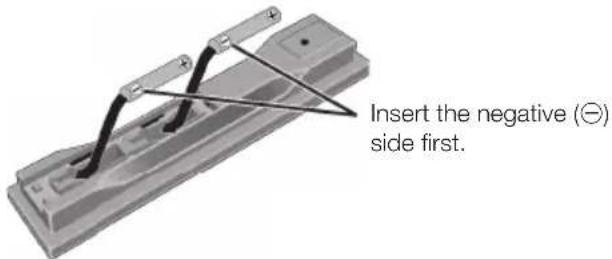

Loading the Batteries in the Remote Control .....22

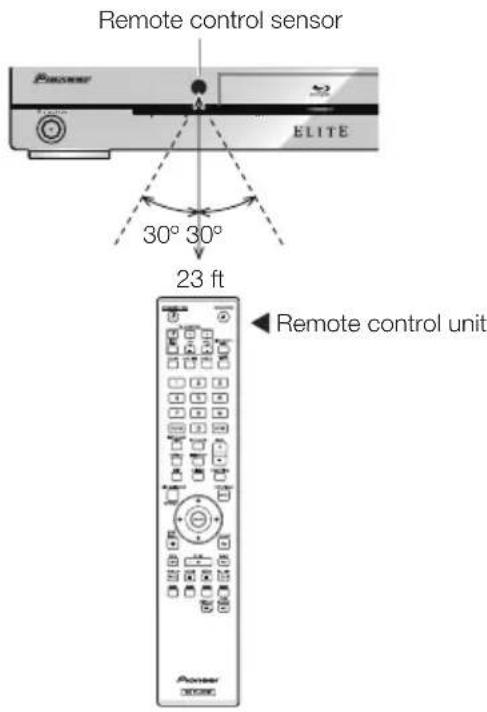

Approximate operating range of remote control ....22

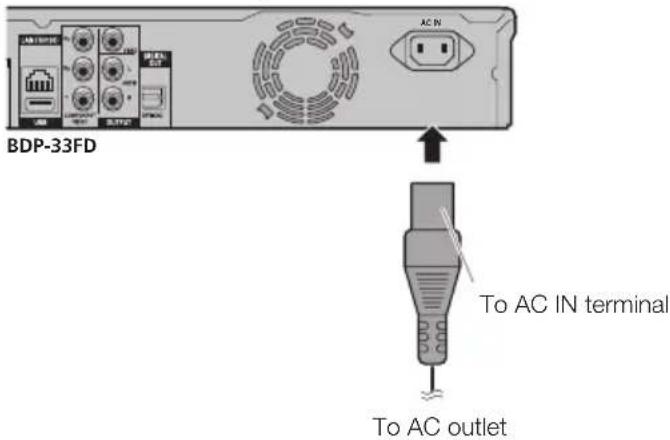

Connecting the Power Cord 22

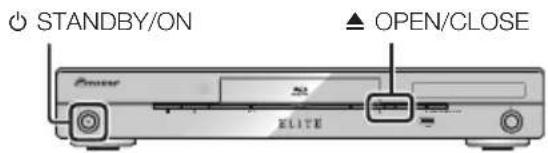

Turning the Power On 23

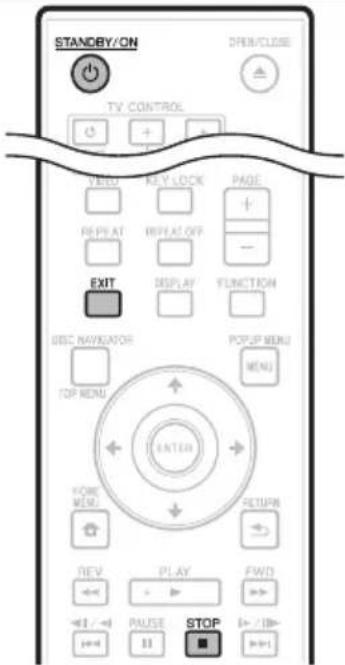

Turning the power off 23

Language Setting 23

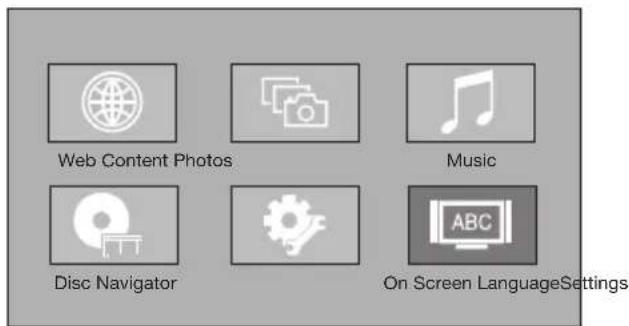

Changing the on-screen display language .....23

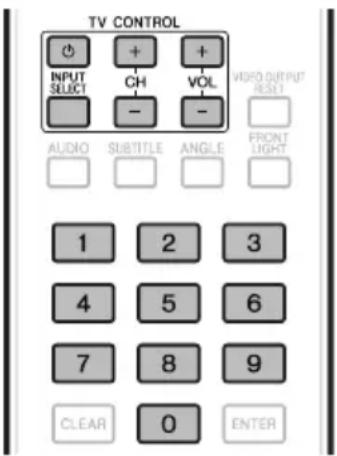

Operating the TV with the Player's Remote

Control....24

Table of Manufacturer Codes 24

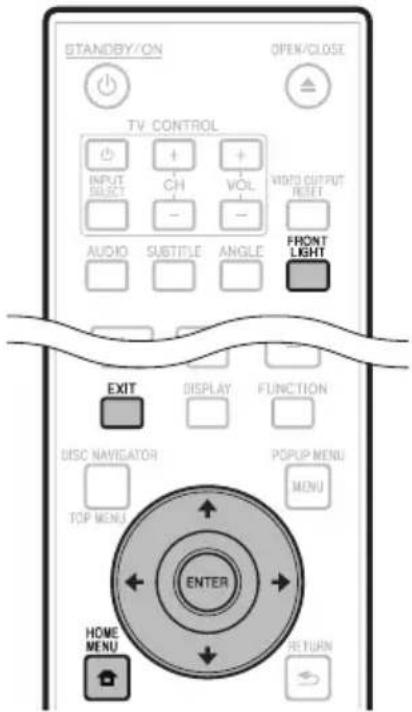

Turning Off the Front Panel Display and Indications 25

Operate using the remote control unit .....25

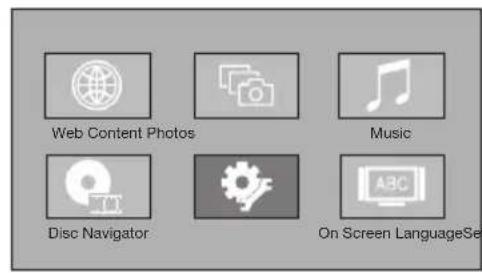

HOME MENU operation 25

About Control Function with HDMI 26

To use the control function with HDMI 26

What the control function with HDMI can do .....26

About the PQLS function 26

RSS Reader Function 27

Displaying text information ....27

Playback....28-38

Loading a Disc 28

BD/DVD Video Playback 28

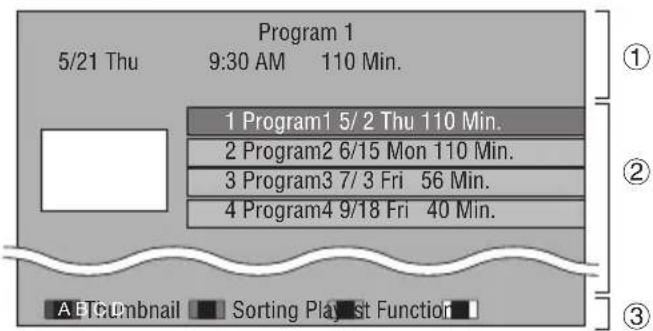

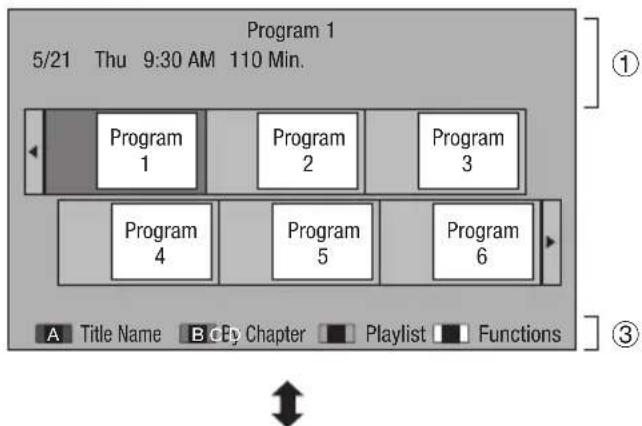

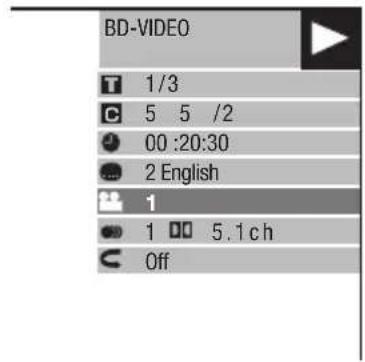

Displaying the disc information 28

Playing BD-/DVD-Video Discs from the Menu .....29

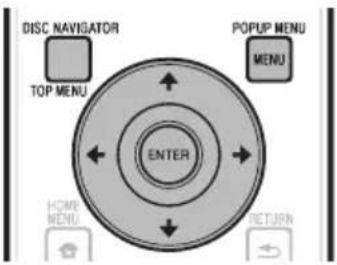

Using the top menu 29

Using the disc menu 29

Using the pop-up menu 29

Enjoying BONUSVIEW or BD-LIVE 30

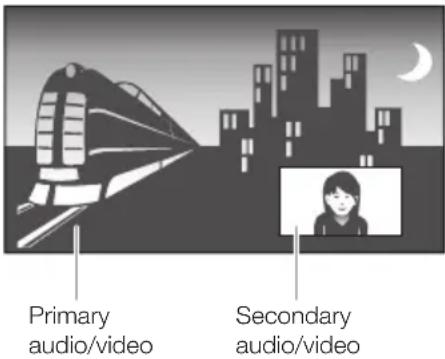

Secondary video playback 30

BD-RE/-R, DVD-RW/-R Playback ....31

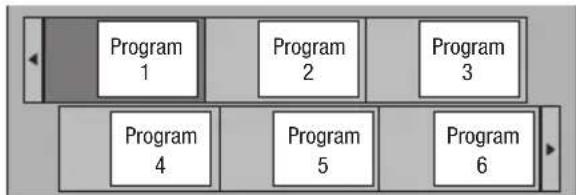

Playback by selecting a title 31

Playback by selecting a chapter 32

Sorting the titles 32

Playback by selecting a Playlist ....32

Playing back the title you stopped while being played 32

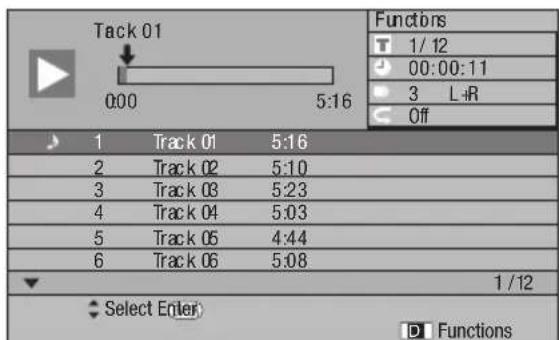

Audio CD Playback 33

Playback from the beginning 33

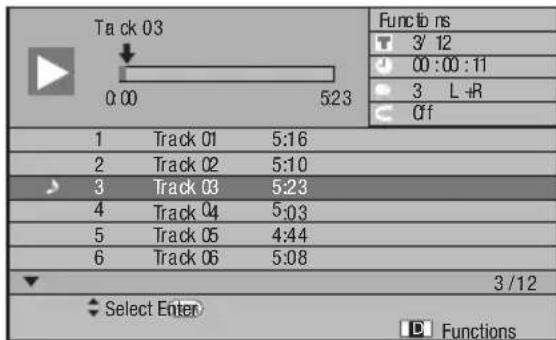

Playback by selecting a track 33

Operation procedure for the "Functions" menu .....33

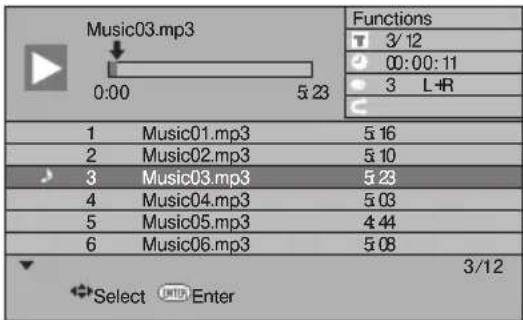

Playing Audio Files 34

Selecting and playing a different file during playback ....34

Cueing during playback 34

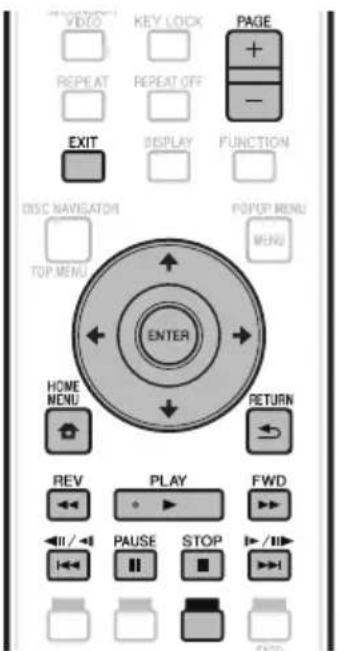

Playing JPEG files 35

Playing back Slide Show 35

Setting slide show speed/repeat playback .....36

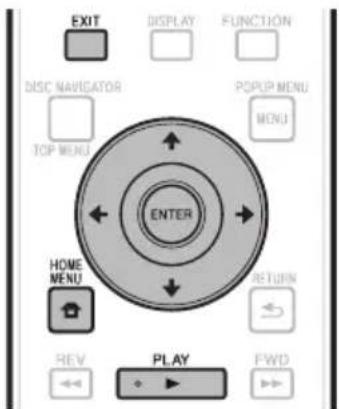

Playing YouTube Videos 36

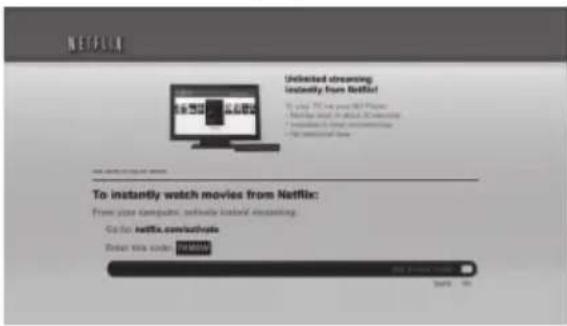

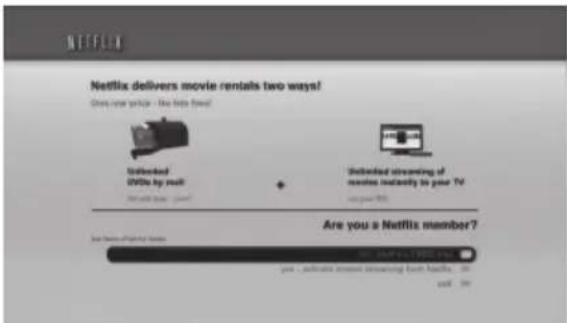

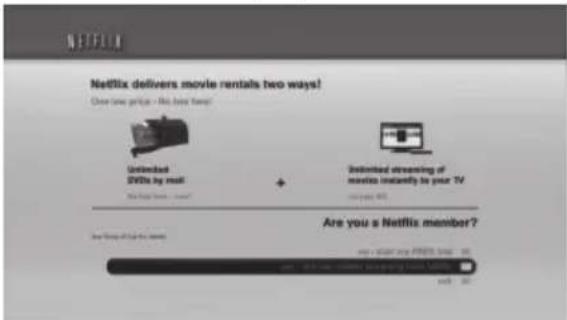

Playing Netflix Streaming Content 37

Settings for watching Netflix content on your TV ....37

Adding content to the Instant Queue 38

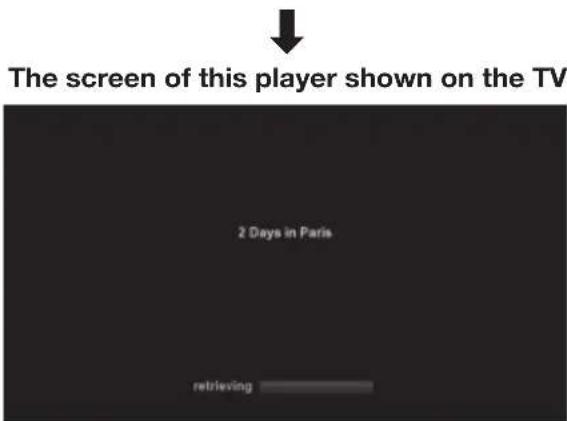

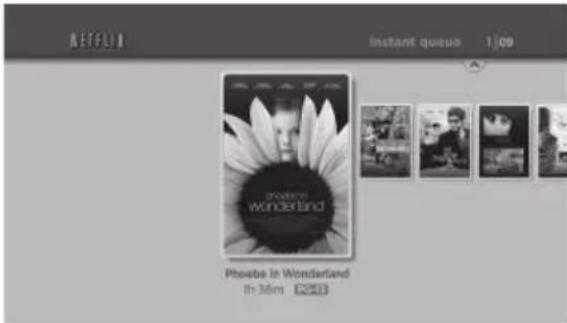

Playing back content in the Instant Queue on your TV 38

Fast Forward/Reverse 38

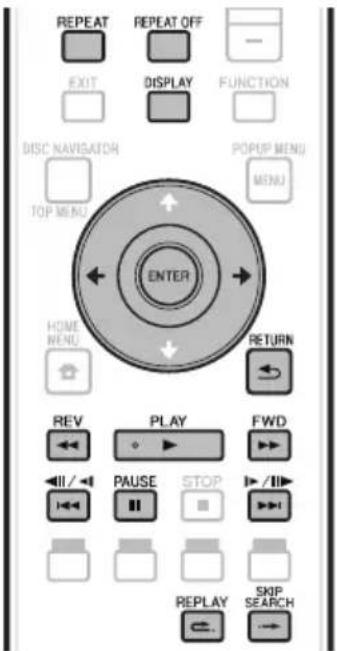

Playback Functions 39-41

Fast Forward/Reverse (Search) 39

Skipping to the Next or the Start of the Current Chapter (Track) 39

Pause....39

Frame Advance Playback 39

Slow Playback 39

Skip Search 39

Replay....39

Repeat Playback of a Title or Chapter (Repeat Playback)....39

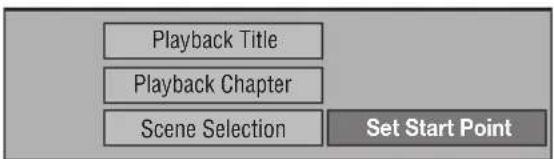

Partial Repeat Playback (Repeat Playback of a Specified Part) 40

Switching the Audio Mode 41

Switching Subtitles 41

Switching the Angle 41

Displaying the Angle Mark 41

Settings During Playback 42-43

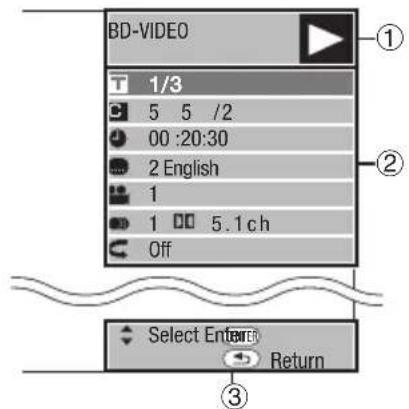

Function Control 42

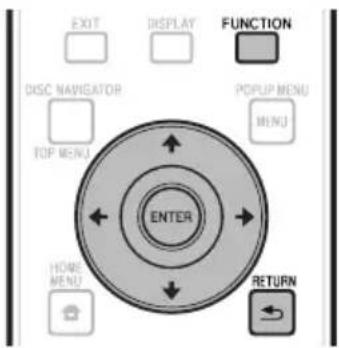

Function control operation procedure 42

Functions which can be set ....43

Settings

Settings 44-55

Common Operations 44

Basic Operation for Playback Setting 44

Audio Video Settings 45

Quick Start 46

Auto Power Off 46

Control 46

Playback Setting 47

Front Panel Display/LED 47

Version 47

System Reset 48

Communication Setup 48

Selecting the connection method 48

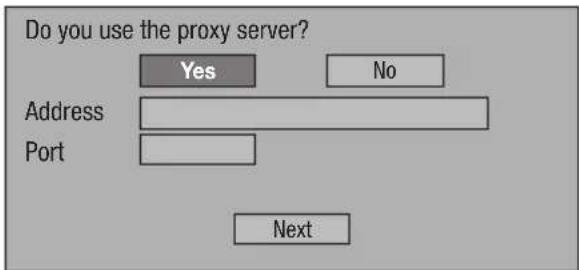

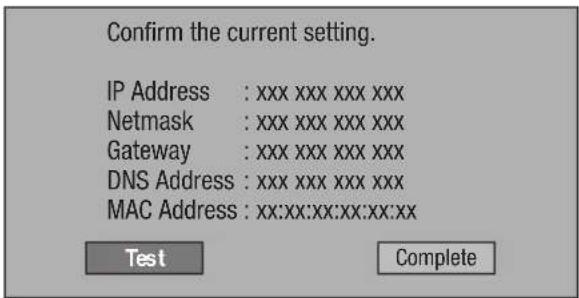

Changing the communications settings .....48

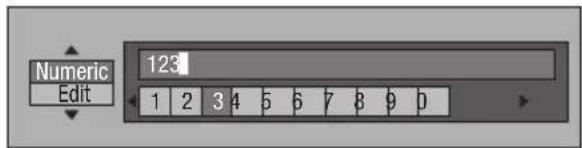

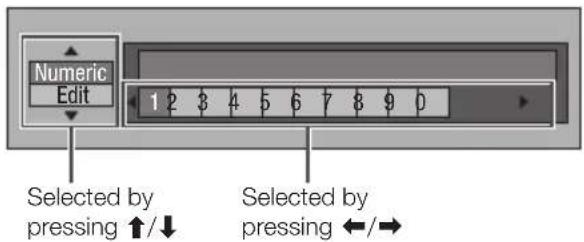

The operation procedure for inputting characters manually....50

USB Memory Management 51

Software Update 52

Updating automatically using the network .....52

Updating manually using the network 53

Updating manually using a USB memory device ....53

Appendix

Troubleshooting....56-59

To Reset this Player 59

Messages Relating to BD disc and DVD disc .....59

Glossary 60-61

Specifications 62

OSS Licenses 62

Disclaimer for Third Party Content 63

The illustrations and on-screen displays in this operating *

instructions are for explanation purposes and may vary

slightly from the actual operations.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

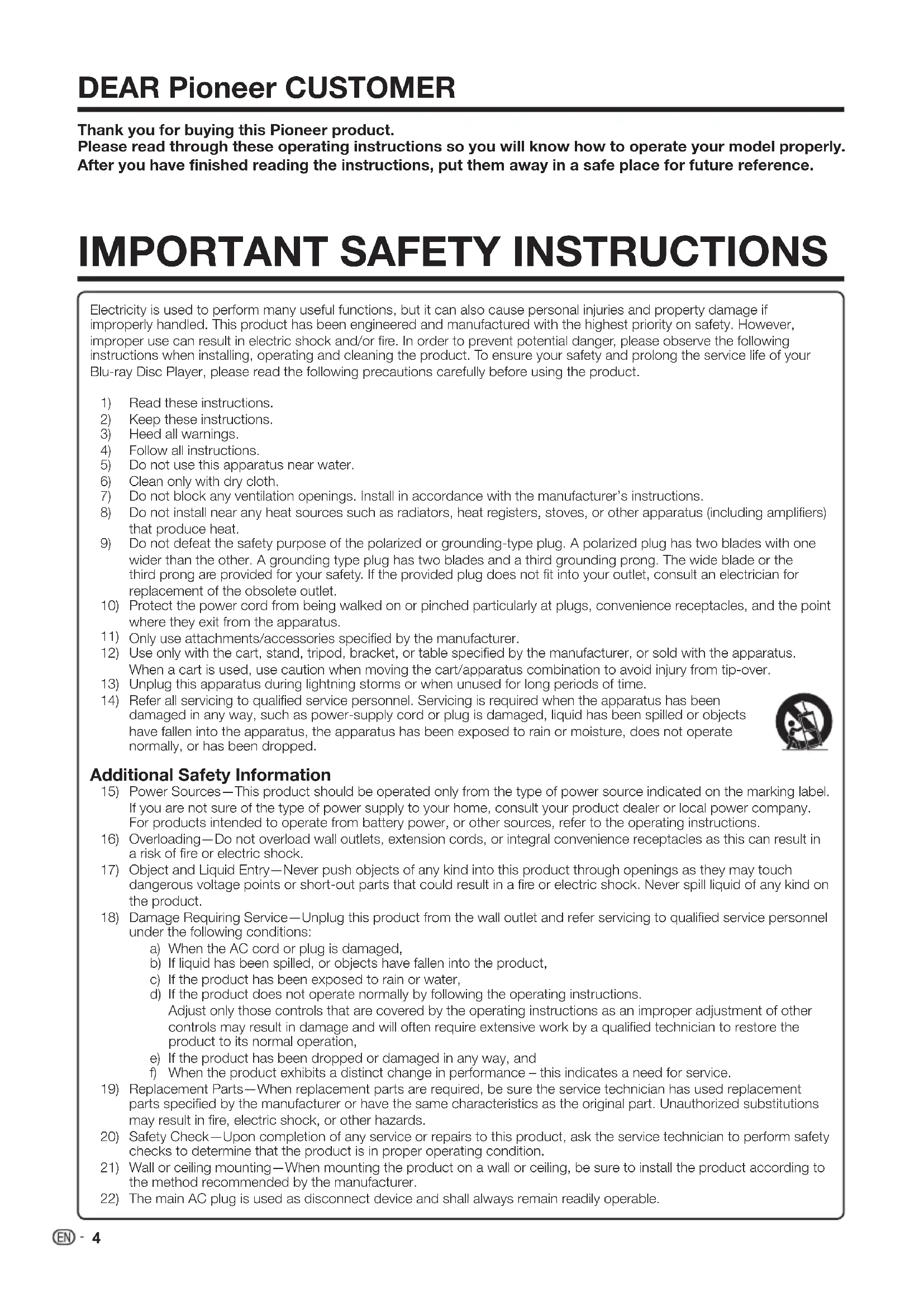

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Blu-ray Disc Player, please read the following precautions carefully before using the product.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Information

15) Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
16) Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
17) Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
18) Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance – this indicates a need for service.

e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service.

19) Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

22) The main AC plug is used as disconnect device and shall always remain readily operable.

19) Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 20) Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 21) Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. 22) The main AC plug is used as disconnect device and shall always remain readily operable.

IMPORTANT SAFETY INSTRUCTIONS

• Water and Moisture — Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
• Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.
• Selecting the location — Select a place with no direct sunlight and good ventilation.
• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
• Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
• Lightning — For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.
• To prevent fire, never place any type of candle or flames on the top or near the product.
• To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects filled with liquids, such as vases, should be placed on the product.
• To prevent fire or shock hazard, do not place the AC cord under the product or other heavy items.
• Turn off the main power and unplug the AC cord from the wall outlet before handling.
• To clean the outer cabinet, periodically wipe it with a soft cloth.
• Do not use chemicals for cleaning. It may damage the cabinet finish.

CAUTION

The Ⓧ STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a ^* _A1_En

When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

D3-4-2-3-1_B1_En

WARNING: Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.

Wash hands after handling.

D36-P5_B1_En

The Icons Used in This Operating Instructions

BD VIDEO .....Indicates the functions that can be performed for BD Video discs.

BD-RE .....Indicates the functions that can be performed for BD-RE discs.

BD-R .....Indicates the functions that can be performed for BD-R discs.

DVD VIDEO .....Indicates the functions that can be performed for DVD Video discs.

DVD-RW .....Indicates the functions that can be performed for DVD-RW discs.

DVD-R ..... Indicates the functions that can be performed for DVD-R discs.

AVCHD ...... Indicates the functions that can be performed for DVD discs in AVCHD format.

AUDIO CD ......Indicates the functions that can be performed for Audio CDs.

CD-RW ..... Indicates the functions that can be performed for CD-RW discs.

CD-R .....Indicates the functions that can be performed for CD-R discs.

USB ...... Indicates functions that can be used when playing USB memory devices.

Copyright

• Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Refer to relevant laws in your country.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.
• Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
• Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio | Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
• "Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.
• "BD-LIVE" logo is trademark of Blu-ray Disc Association.
  • DVD is a trademark of DVD Format/Logo Licensing Corporation.

HDMI

- HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

x.v.Color

- "x.v.Color" and are trademarks of Sony Corporation.

POWERED

- Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

BONUS VIEW™

- "BONUSVIEW" is trademark of Blu-ray Disc Association.

COMPATIBLE

- This label indicates playback compatibility with DVD-RW discs recorded in VR format (Video Recording format). However, for discs recorded with a record-only-once encrypted program, playback can only be achieved using a CPRM compatible device.

AVCHD™

- "AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

This product incorporates the LC Font (duplication inhibited) that has been designed by Sharp Corporation in considering the ease of viewing and reading on the display.

The "LC Font", "LC FONT" and the "LC" logo mark are trademarks of Sharp Corporation.

Also note that the product partially uses fonts other than the LC Font.

Types of Discs that Can Be Used with This Player

Use discs that conform to compatible standards as indicated by the presence of official logos on the disc label. Playback of discs not complying with these standards is not guaranteed. In addition, the image quality or sound quality is not guaranteed even if the discs can be played back.

Disc Type\Conditions for playback			Disc size Recording format	Playable contents
BD		Discs whose region code is “A” or “All Region”	12 cm	BDMV format
		Ver. 2.1, SL (single layer)/DL (dual layer)		Audio + video (movie)
		Ver. 1.1, SL (single layer)/DL (dual layer)Ver. 1.2, SL (single layer)/DL (dual layer)Ver. 1.2, LTH TYPEVer. 1.3, SL (single layer)/DL (dual layer)Ver. 1.3, LTH TYPE		BDAV format * BDMV format
DVD	DVD VIDEO *3	Discs whose region code includes “1” or “ALL”	12 cm8 cm *4	Audio + video (movie)
	DVD-RW		12 cm8 cm *4	VR formatVideo format(finalized disc)AVCHD format
				MP3 file Audio
				JPEG file Still picture
	DVD+RW, DVD+R, DVD+R DL		12 cm8 cm *4	Video format(finalized disc)AVCHD format
				MP3 file Audio
				JPEG file Still picture
CD			12 cm8 cm *4	Music CD format Audio
			12 cm8 cm *4	Music CD format MP3 file
				JPEG file Still picture

*1 BD-RE/BD-R discs containing both the BDMV and BDAV formats cannot be played.
*2 Extended play (H.264 format) discs recorded on Pioneer BD recorders can also be played.
*3 96 kHz linear PCM audio is converted into 48 kHz linear PCM audio for output.
*4 When playing a 8 cm disc, set the disc in the disc tray's 8 cm disc ring. No adapter is necessary.

NOTE

• Operation and functions of BD/DVD-Video discs may differ from the explanations in this manual. Furthermore, some functions may not be usable, at the disc manufacturer's discretion.
• “Finalize” refers to a recorder processing a recorded disc so that it will play in other players/recorders as well as this player. Only finalized discs will play back in this player. (This player does not have a function to finalize discs.)

Discs that Cannot Be Used with This Player

In the cases below, even discs that can normally be played on this Player may not play at all or may not play normally.

BD VIDEO	Discs other than those whose region code is “A (including A)” or “ALL” cannot be played.Discs on which the region code is not indicated can sometimes be played, if they are recorded in NTSC format.Discs in PAL or SECAM format
BD-REBD-R	BD-RE Ver.1.0 discs cannot be played on this Player.Cartridge type discs cannot be played.
DVD VIDEO	Discs whose region code does not include “1” or “ALL” (discs not of offi cial sales regions)Discs in PAL or SECAM formatUnauthorized discs (pirated discs)Professional-use discs
DVD-RWDVD-RDVD+RWDVD+R	Discs on which no data is recordedDiscs recorded in AVCREC formatSome discs may not be playable, depending on the recorder used for recording them.Discs that have not been fi nalizedIn some cases it may not be possible to play discs containing both music/video fi les and still pictures (JPEG fi les).Also, some discs are not playable under any circumstances.It may not be possible to play the following discs.DVD-R (VR format) discsDVD-R DL (dual layer) discsDVD+R DL (dual layer) discs
CD-RWCD-R	Discs on which no data is recordedDiscs that have not been fi nalizedMultisession discsIn some cases it may not be possible to play discs recorded in formats other than music CD, JPEG and MP3, or discscantaining both music/video fi les and still pictures (JPEG fi les).Also, some discs are not playable under any circumstances.Discs may not be playable due to the disc’s recording conditions or the conditions of the disc itself.Discs may not be playable for reasons of compatibility with this Player or due to the recorder used for recording them.
AUDIO CD	In some cases, CDs containing signals designed to protect copyrights (copy control signals) may not be playable.In some cases, discs containing both DTS and linear PCM audio may not be playable.This product is designed on the premise of playing music CDs that comply with CD (Compact Disc) standards.
Video CD	Video CDs cannot be played on this Player.
DTS CD	Some discs, such as discs containing linear PCM audio tracks in addition to other tracks, may not play normally.

Discs other than the above that cannot be played

• CDG ^*1
• Photo-CD
• CD-ROM
• CD-TEXT*1
• CD-EXTRA*1
  • SACD
  • PD
  • CDV
  • CVD
  • SVCD
• DVD-RAM
• DVD-Audio
• HD DVD
• CD-WMA
  *1 Only the audio can be played.

About discs with unusual shapes

Discs with unusual shapes (heart-shaped, hexagonal, etc.), cannot be played on this Player. Attempting to play such discs may damage the player. Do not use such discs.

BD Video

Enjoy BD-specific functions including BONUSVIEW (BD-ROM Profile 1 Version 1.1), such as picture-in-picture, and BD-LIVE (page 30).

For the BD video discs compatible with BONUSVIEW/BD-LIVE, you can enjoy additional contents by copying the data from the discs or downloading it via the internet. For instance, this function is capable of playing the original movie as the primary video while playing video commentary from the film director on a small screen as a secondary video.

NOTE

The available functions differ depending on the disc.

Title, Chapter and Track

• Blu-ray discs and DVDs are divided into "Titles" and "Chapters". If the disc has more than one movie on it, each movie would be a separate "Title". "Chapters", on the other hand, are subdivisions of titles. (See Example 1.)
• Audio CDs are divided into "Tracks". You can think of a "Track" as one tune on an Audio CD. (See Example 2.)

Example 1: Blu-ray disc or DVD

Example 2: Audio CD

Track 1 Track 2 Track 3 Track 4

Icons Used on DVD Video Disc Cases

1

2 1. English 2. Chinese DOLBY. DIGITAL 2 1. English 2. Chinese

3

16:9 LB 2 1 2 3 4 5 6

1 Audio tracks and audio formats

DVD discs can contain up to 8 separate tracks with a different language on each. The first in the list is the original track.

This section also details the audio format of each soundtrack — Dolby Digital, DTS, MPEG etc.

Dolby Digital

A sound system developed by Dolby Laboratories Inc. that gives movie theater ambience to audio output when the Player is connected to a Dolby Digital processor or amplifier.

DTS

DTS is a digital sound system developed by DTS, Inc. for use in cinemas.

Linear PCM

Linear PCM is a signal recording format used for Audio CDs and on some DVD and Blu-ray discs. The sound on Audio CDs is recorded at 44.1 kHz with 16 bits.

(Sound is recorded between 48 kHz with 16 bits and 96 kHz with 24 bits on DVD video discs and between 48 kHz with 16 bits and 192 kHz with 24 bits on BD video discs.)

2 Subtitle languages

This indicates the kind of subtitles.

3 Screen aspect ratio

Movies are shot in a variety of screen modes.

4 Camera angle

Recorded onto some DVD discs are scenes which have been simultaneously shot from up to 9 different angles (the same scene is shot from the front, from the left side, from the right side, etc.).

5 Region code

This indicates the region code (playable region code).

Disc Precautions

Be Careful of Scratches and Dust

- BD, DVD and CD discs are sensitive to dust, fingerprints and especially scratches. A scratched disc may not be able to be played back. Handle discs with care and store them in a safe place.

Proper Disc Storage

Place the disc in the center of the disc case and store the case and disc upright.
Avoid storing discs in locations subject to direct sunlight, close to heating appliances or in locations of high humidity.
Do not drop discs or subject them to strong vibrations or impacts.
Avoid storing discs in locations where there are large amounts of dust or moisture.

Handling Precautions

- If the surface is soiled, wipe gently with a soft, damp (water only) cloth. When wiping discs, always move the cloth from the center hole toward the outer edge.

• Do not use record cleaning sprays, benzene, thinner, static electricity prevention liquids or any other solvent.
• Do not touch the surface.
• Do not stick paper or adhesive labels to the disc.
• If the playing surface of a disc is soiled or scratched, the Player may decide that the disc is incompatible and eject the disc tray, or it may fail to play the disc correctly.

Cleaning the Pick Up Lens

• Never use commercially available cleaning discs. The use of these discs can damage the lens.
• Request the nearest service center approved by Pioneer to clean the lens.

Warnings about dew formation

- Condensation may form on pick up lens or disc in the following conditions:

• Immediately after a heater has been turned on.
• In a steamy or very humid room.
• When the Player is suddenly moved from a cold environment to a warm one.

When condensation forms:

- It becomes difficult for the Player to read the signals on the disc and prevents the Player from operating properly.

To remove condensation:

- Take out the disc and leave the Player with the power off until the condensation disappears. Using the Player when there is condensation may cause malfunction.

DVD-RW DVD-R CD-RW CD-R USB

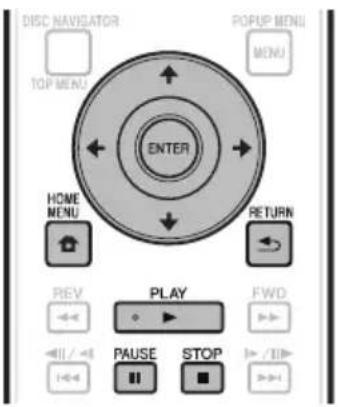

About Playing Audio Files

MP3 files can be played.

• Files recorded with the sampling frequencies below are supported.
  8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
• Only files with the extensions ".mp3" or ".MP3" can be played.
• For the sound quality, we recommend recording with a bit rate of 128 kbps or greater.
• The maximum size of files that can be played is 200 MB.
• Audio files other than MP3 files (WMA, etc.) cannot be played.
• Some MP3 files cannot be played.
• MP3 files are not played in the order in which they were recorded.
• When recording MP3 files on discs, we recommend doing so at low speed. Recording at high speed can cause noise and make the disc/file unplayable.
• Some time is required for loading when there are many folders on the disc.
• Depending on the folder structure, it may take some time to load MP3 files.
• When playing audio files, the elapsed time may not be displayed properly.

About Playing Image Files

JPEG files can be played.

• The files that can be played are as follows:
- Conforming to baseline JPEG and Exif 2.2 standards
- Extension: ".jpg" or ".JPG"
- Resolution: 32 x 32 to 7680 x 4320 pixels
- File size: 20 MB or less
- JPEG HD is supported. The images are output with a high resolution of 720p or 1080i.
- The picture may be displayed with black vertical or horizontal bands when JPEG files with a different aspect ratio are played.
- Image files other than JPEG files (TIFF, etc.) cannot be played.
• Some JPEG files cannot be played.
- Progressive JPEG files cannot be played.
- Motion JPEG files cannot be played.
- In some cases, JPEG files processed with image processing software may not be playable.
- It may not be possible to play JPEG files downloaded from the Internet or e-mail.
- Depending on the number of folders or files and their size, some JPEG files may require some time to play.
- EXIF data is not displayed.

About Audio Files, Image Files and Folders

Audio and image files can be played on this Player when the folders on the disc or USB memory device are created as described below.

Example of folder structure:

*: The number of folders and files within a single folder (including the root directory) is limited to a maximum of 256. Also, keep the number of folder layers to a maximum of 5.

NOTE

- The file and folder names displayed on this Player may differ from those displayed on a computer.

Checking the Accessories

Remote control unit		“AA/R6” size battery (×2)	AC cord
			(BDP-33FD)or(BDP-31FD)
		Video/audio cable Warranty card•	• Operating instructions(this document)

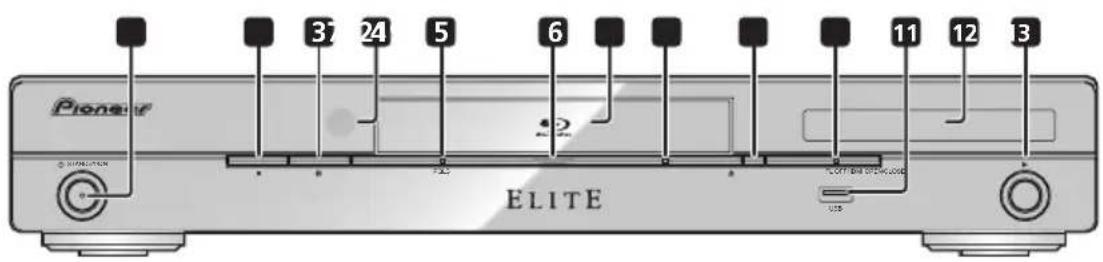

Main Unit (Front)

Pione 37 24 5 6 11 12 13 ELITE

1 ⏻ STANDBY/ON (page 23)
2 ■ (STOP) (page 28)
3 II (PAUSE) (page 39)
4 Remote control sensor (page 22)
5 PQLS indicator (page 26)
6 Blu-ray indicator Lights when the power is on.
7 Disc tray (page 28)
8 HDMI indicator (page 26)

9 ▲ OPEN/CLOSE (page 28)
10 FL OFF indicator (page 25)
11 USB port (pages 21 and 51)
12 Front panel display (See below.)
13 ▶ (PLAY) (page 28)

Front Panel Display

1 Lights during playback.
2 II Lights when in the pause mode.

3 Counter display Displays the title, chapter, track number, elapsed time, etc.

Main Unit (Rear)

1 2 3 4 5 6 7 8 SB - 232 C USB OUT LAN 107/4W USB USB USB AC IN 10 9 BDP-33FD

1 RS-232C terminal The terminal is not used.
2 HDMI OUT terminal (page 17)
3 LAN (10/100) terminal (page 21)
4 COMPONENT VIDEO OUTPUT jacks (page 18)
5 VIDEO OUTPUT jack (page 19)

6 DIGITAL OUT OPTICAL terminal (page 20)
7 Cooling fan The cooling fan operates while the power to the Player is on.
8 AC IN terminal (page 22)
9 AUDIO OUTPUT jacks (page 20)
10 USB port (pages 21 and 51)

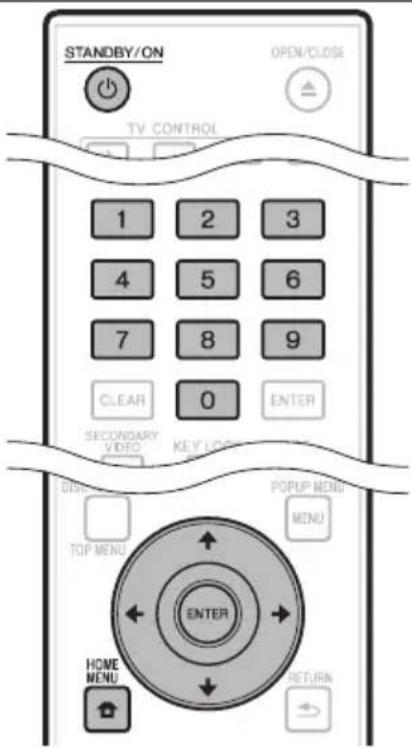

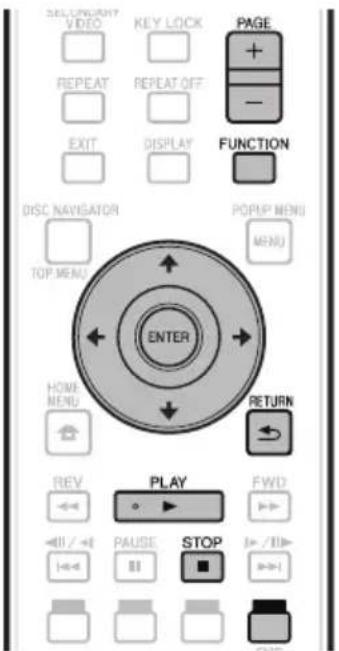

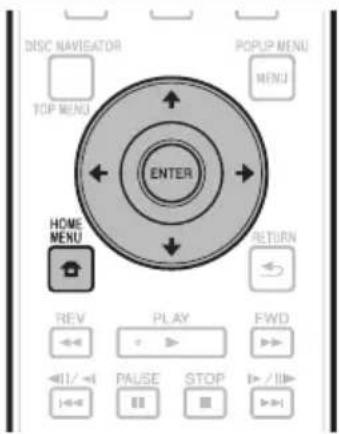

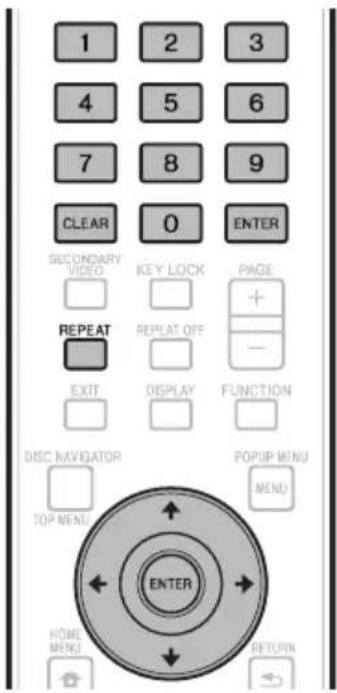

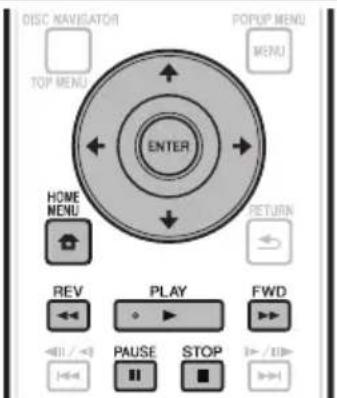

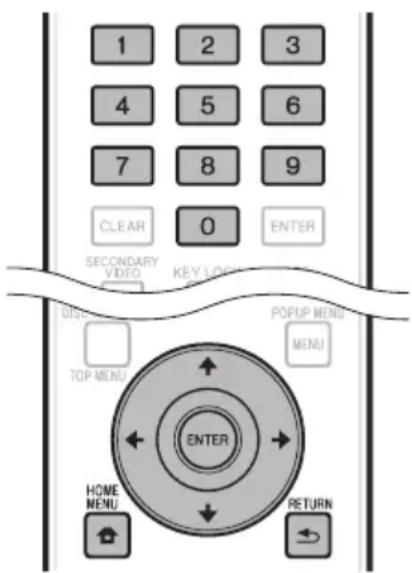

Remote Control Unit

STANDBY/ON OPEN/CLOSE 17 TV CONTROL INPUT SELECT CH VOL AUDIO SUB/TITLE ANGEE VBR OUTPUT RESET FRONT LIGHT 1 2 3 4 5 6 7 8 9 CLEAR 0 ENTER SECONDARY VIDEO KEY LOCK PAGE + - REPEAT REPEAT OFF EXIT DISPLAY FUNCTION DISC NAVISATOR TOP MENU POPUP MENU MENU ENTER HOME MENU RETURN REV PLAY FWD / // PAUSE STOP / // REPLAY SAVE SEARCH Pioneer BD PLAYER

1 ⏻ STANDBY/ON (page 23)
2 TV CONTROL buttons (page 24)
3 AUDIO (page 41), SUBTITLE (page 41), ANGLE (page 41)
4 Number buttons (page 43)
5 CLEAR (page 43)
6 SECONDARY VIDEO (page 30)
7 REPEAT (pages 39 and 40), REPEAT OFF (pages 39 and 40)
8 EXIT (page 44)
9 DISPLAY (pages 28 and 40)
10 TOP MENU/DISC NAVIGATOR (pages 29 and 31)
11 Cursor buttons (↑/↓/←/→), ENTER (pages 23 and 44)
12 HOME MENU (pages 23 and 44)
13 REV (page 39)
14 ▶ PLAY (page 28)
15 I◄◄/◄II/◄I (page 39)
16 II PAUSE (page 39)
17 ▲ OPEN/CLOSE (page 28)
18 VIDEO OUTPUT RESET (page 45)
19 FRONT LIGHT (page 25)
20 ENTER (pages 23 and 44)
21 KEY LOCK (See below.)
22 PAGE +/- (page 31)
23 FUNCTION (page 42)
24 POPUP MENU/MENU (page 29)
25 → RETURN (page 44)
26 ▶▶ FWD (page 39)
27 ▶▶▶/▶▶/▶ (page 39)
28 ■ STOP (page 28)
29 RED, GREEN, BLUE, YELLOW (page 31)
30 → SKIP SEARCH (page 39)
31 ≡ REPLAY (page 39)

Keylock function

You can set the keylock to prevent accidental operations. This function allows TVs compatible with control function with HDMI to also perform a Key Lock on the player.

Press and hold KEY LOCK for more than 5 seconds.

• Each time you perform this operation, the function is activated or deactivated.
• If you try to operate the Player while the keylock function is set, "HOLD" lights on the front panel display to indicate that the keylock function is set.

NOTE

- This remote control unit is equipped with two ENTER buttons (11 and 20 listed above).

Connections

Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.

This Player is equipped with the terminals/jacks listed below. Find the corresponding terminal/jack on your video equipment. Using the supplied cable or commercially available cables, connect the video first. Then connect the audio.

Video terminals/jacks on this Player


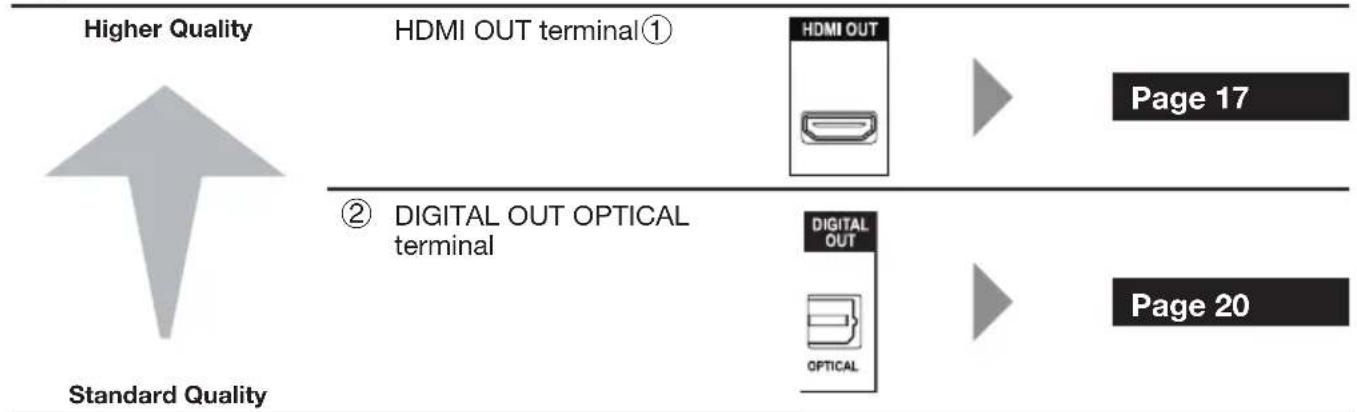

Audio terminals/jacks on this Player

Digital audio connection

Analog audio connection

Standard Quality AUDIO OUTPUT jacks L AUDIO R OUTPUT Page 20

Broadband Internet connection

LAN (10/100) terminal LAN (10/100) Page 21

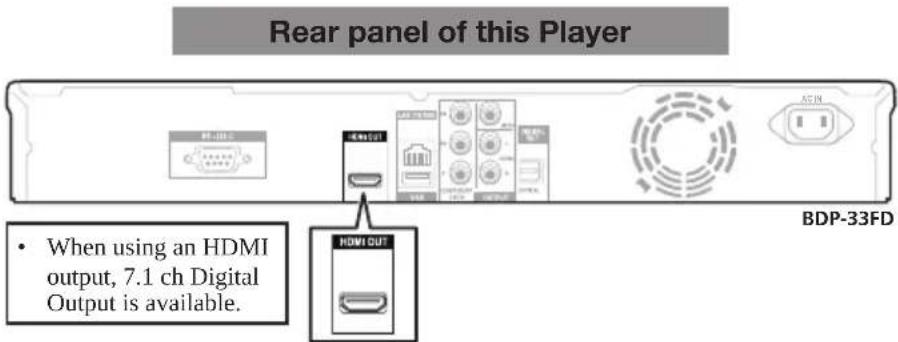

Connecting to the HDMI Terminal

• You can enjoy high quality digital picture and sound through the HDMI terminal.
  • See page 55 for information on the output of next generation audio formats.
• Use High Speed HDMI ^® Cables when using the control function with HDMI. The control function with HDMI may not operate properly if other HDMI cables are used.

STEPS

1 Be sure to turn off this Player and the equipment before making any connections.
2 Firmly connect an HDMI cable (commercially available) to the HDMI terminals (① and ②).

Rear panel of this Player • When using an HDMI output, 7.1 ch Digital Output is available. BDP-33FD

NOTE

- Audio transmitted in DTS-HD High Resolution Audio and DTS-HD Master Audio formats is output from the HDMI terminal as Bitstream. Connect an amplifier with a built-in decoder to enjoy the fine sound quality.

①
To HDMI OUT terminal

HDMI cable (commercially available)

②
To HDMI IN terminal

Selecting the priority video output when connecting HDMI and Component video

When you connect both an HDMI cable and a component cable to this player, you need to select the priority video output in "Settings" – "Audio Video Settings" – "Video Out Select". (See page 45.)

NOTE

• When you connect the player to a Pioneer TV with an HDMI cable only and the TV is turned on, the video output switches to HDMI automatically. (The above setting is unnecessary.)
• When you connect the player to a TV with an HDMI cable, "HDMI Video Out" is set to "Auto". If you don't get a stable image, select the desired resolution. When you set "HDMI Video Out" to a setting other than "Auto", you can only select resolutions that are compatible with the connected TV.
• Refer to "HDMI Video Out" on page 45 regarding the resolutions of the HDMI video output.

Equipment with an HDMI terminal

After connecting

• If desired, connect audio equipment. (Page 20)
- Load a disc and start playback. (Page 28)
• Refer to control function with HDMI. (Pages 26 and 46)

Connecting to the Component Jacks

You can enjoy accurate color reproduction and high quality images through the component jacks.

STEPS

1 Be sure to turn off this Player and the equipment before making any connections.
2 Firmly connect a component video cable (commercially available) to the component jacks (① and ②).

Rear panel of this Player

BDP-33FD CAU You n "Setti Select When "Video output jacks

① To COMPONENT VIDEO OUTPUT jacks

BDP-33FD

CAUTION

• You need to select the priority video output in "Settings" – "Audio Video Settings" – "Video Out Select". (See page 45.)
• When the priority video output is set to "HDMI" in "Video Out Select", the video resolution which is output from the COMPONENT VIDEO OUTPUT jacks is the one set in "HDMI Video Out". (See page 45.)
• When the output from the COMPONENT VIDEO OUTPUT jacks is prioritized, set the priority video to "Component".

② To COMPONENT VIDEO input jacks

Red Blue Green (Ps) (Ps) (Y) COMPONENT VIDEO (Red) (Blue) (Green) Component video cable (commercially available)

Projector

TV

AV receiver

Diagram showing a CD and a monitor with overlapping lines (no text or symbols)

This Player
VCR
TV

NOTE

• Connect the Blu-ray disc player to TV directly.
• When you record the program where copyright is protected, the copy guard function is activated automatically; the program can not be recorded correctly. Also, the playback image via VCR may deteriorate due to this function. However, this is not a malfunction. When you watch the program where copyright is protected, we recommend that the Blu-ray disc player be connected to TV directly.

Video equipment with component jacks

After connecting

Connect audio equipment or the audio terminals of the TV. (Page 20)•

Connecting to the Video Jack

You can enjoy the images through the VIDEO OUTPUT jack.

STEPS

1 Be sure to turn off this Player and the equipment before making any connections.
2 Firmly connect an AV cable (supplied) to the video jacks (① and ②).

Rear panel of this Player

This Player VCR TV

NOTE

• Connect the Blu-ray disc player to TV directly.
• When you record the program where copyright is protected, the copy guard function is activated automatically; the program can not be recorded correctly. Also, the playback image via VCR may deteriorate due to this function. However, this is not a malfunction. When you watch the program where copyright is protected, we recommend that the Blu-ray disc player be connected to TV directly.

Video equipment with a video jack

After connecting

Connect audio equipment or the audio terminals of the TV. (Page 20)•

Connecting to the Digital Audio Terminal or Audio Jacks

• You can connect audio equipment or the TV to the DIGITAL OUT OPTICAL terminal or AUDIO OUTPUT jacks.
  • See page 55 for information on the output of next generation audio formats.

STEPS

1 Be sure to turn off this Player and the equipment before making any connections.
2 Firmly connect an optical digital cable (commercially available) or AV cable (supplied) to the optical digital audio terminals or audio jacks (① and ②, or ③ and ④).

Audio equipment with a digital audio input terminal

After connecting

Load a disc and start playback. (Page 28)•

Connecting to the LAN (10/100) terminal

• You can enjoy BD-LIVE functions and YouTube videos as well as update this Player's software by connecting to the Internet.
• When using the Internet, a broadband internet connection as shown below is required.
• A separate contract with/payment to an Internet service provider is required to use the Internet.

STEPS

1 Be sure to turn off this Player and the equipment before making any connections.
2 Either securely connect a LAN cable (commercially available) to the LAN (10/100) terminal (① and ②) or insert a USB Wireless LAN Adaptor AS-WL100 (sold separately as an option) into the USB port on this Player's front or rear panel (③).

Example of a Broadband Internet Connection

After connecting

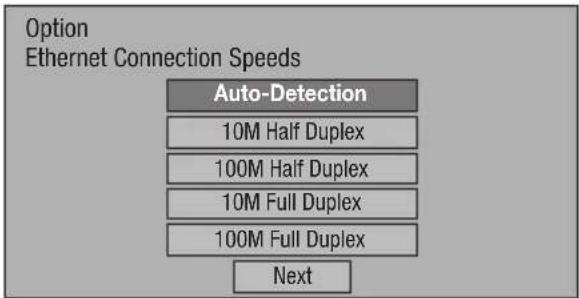

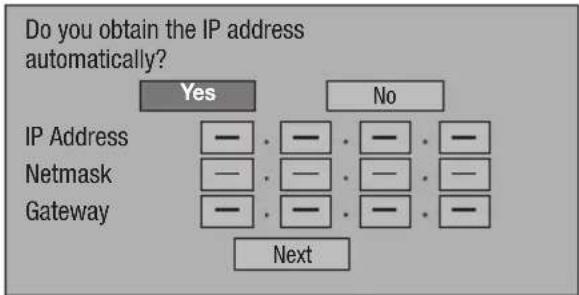

• Perform the communication setting. (Page 48)
- Load a BD-LIVE compatible disc and play back the contents. (Page 30)

Enjoying BONUSVIEW or BD-LIVE

- Requires the USB memory device (commercially available). The memory device purchased should comply with USB specification 2.0 and have minimum capacity of 1 GB, with 2 GB or more recommended.

Loading the Batteries in the Remote Control

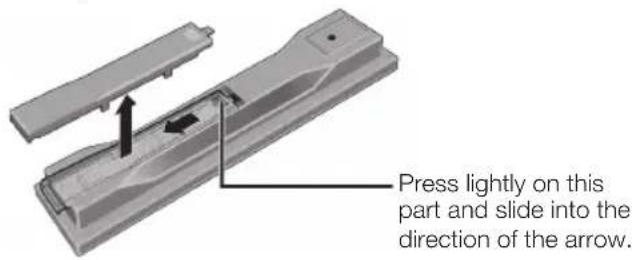

1 Open the rear cover.

Press lightly on this part and slide into the direction of the arrow.

2 Insert the batteries (AA/R6 x 2).

Insert as indicated by the ⊕/⊖ marks into the battery compartment.

Insert the negative (⊖) side first.

3 Close the rear cover.

Close securely (a click should be heard).

Mechanical assembly diagram showing a component with pins and a magnified inset view (no text or symbols)

CAUTION

• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks (⊕ and ⊖).
• Do not heat batteries, disassemble them, or throw them into flames or water.
• Batteries may have different voltages, even if they look similar. Do not use different kinds of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.
• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Approximate operating range of remote control

Remote control sensor 30° 30° 23 ft Remote control unit

Connecting the Power Cord

Only connect the power cord once all equipment connections are completed.

BDP-33FD AC IN To AC IN terminal To AC outlet

NOTE

• Place the Player close to the AC outlet, and keep the power plug within reach.
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH THE UN-INSULATED PARTS OF ANY CABLES WHILE THE AC CORD IS CONNECTED.
• If you are not going to use this Player for a long period of time, be sure to remove the AC cord from the AC outlet.

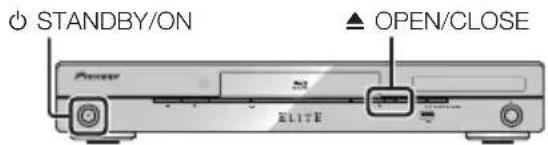

Turning the Power On

STANDBY/ON OPEN/CLOSE TV CONTROL VIEW + - REPEAT REPEAT OFF EXIT DISPLAY FUNCTION DISC NAVIGATOR TOP MENU P different FORM MENU RETURN REV PLAY FWD +/- /- PAUSE STOP II

○ STANDBY/ON

Front view of a silver electronic device labeled 'ELITE' with control knobs and a antenna (no readable text beyond branding)

Press ⏻ STANDBY/ON.

• Operate using the buttons on either the remote control or main unit.
• "POWER ON" appears on the front panel display.
• When the power is turned on with no disc loaded, the Pioneer logo screen (wallpaper) is displayed.
• When the power is turned on with the disc loaded, a menu screen may be displayed automatically, depending on the disc.

When ■ STOP or EXIT is pressed, the disc's menu screen turns off and the wallpaper is displayed.

Turning the power off

Press ⏻ STANDBY/ON again.

• Operate using the buttons on either the remote control or main unit.
• "POWER OFF" appears on the front panel display.
• If you press ⏻ STANDBY/ON again immediately after entering standby, the Player may not turn on. If this happens, wait for 10 seconds or more and then turn on the ⏻ STANDBY/ON again.

Language Setting

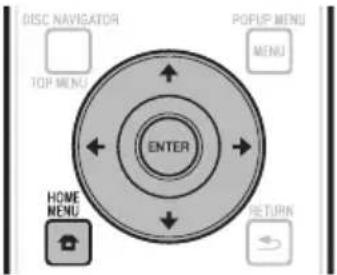

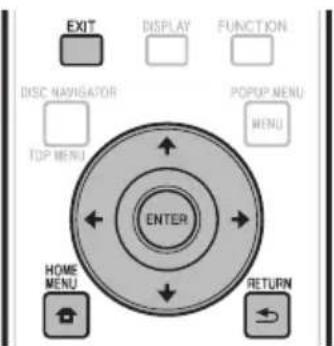

DISC NAVISATOR TOP MENU ENTER POPUP MENU MENU HOME MENU RETURN REV PLAY FWD <1/- <1> PULSE STOP >/||>

Changing the on-screen display language

1 Press the HOME MENU to display the HOME MENU.

• When the wallpaper is displayed, the HOME MENU can also be displayed by selecting the menu icon (with / then pressing ENTER.

2 Press ↑/↓/←/→ to select "On Screen Language", then press ENTER.

Web Content Photos Music Disc Navigator On Screen LanguageSettings

3 Press ↑/↓ to select the language you want to display on the screen, then press ENTER.

English Español Français

NOTE

- To select the DVD disc language, such as subtitle language, etc., see page 29.

Operating the TV with the Player's Remote Control

When the manufacturer code for your brand of TV is set on the player's remote control, the TV can be operated using the player's remote control.

CAUTION

• For some models it may not be possible to operate the TV with the player's remote control, even for TVs of brands listed on the manufacturer code list.
• The setting may be restored to the default after the batteries are replaced. If this happens, reset it.

TV CONTROL INPUT SELECT CH VOL VIDEO OUTPUT RESET AUDIO SUBTITLE ANGLE FRONT LIGHT 1 2 3 4 5 6 7 8 9 CLEAR 0 ENTER

1 Input the 2-digit manufacturer code.

- Press the number buttons (0 to 9) to input the code while pressing TV CONTROL ⏻.

NOTE

• The factory setting is 00 (PIONEER).
- If you make a mistake when inputting the code, release TV CONTROL Ⓧ then start over from the beginning.
- When there are multiple codes for a manufacturer, try inputting them in the indicated order until the TV can be operated.

2 Check that the TV can be operated.

• Operate the TV using TV CONTROL.
• Press to turn the TV's power on and off.
  INPUT SELECT – Press to switch the TV's input.
  CH +/- - Press to select the TV channel.
  VOL +/- - Press to adjust the volume.

Table of Manufacturer Codes

Manufacturer Code(s)

PIONEER 00, 31, 32, 07, 36, 42, 51

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07, 39, 41, 44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07, 36

BASIC LINE 41, 44

BAUR 31, 07, 42

BEKO 38

CONTEC 44

CROSLEY 32

CROWN 38, 44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07, 44, 56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07, 48

DIXI 07.44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

EMERSON 42

ERRES 07

FERGUSON 07, 36, 51

FINLANDIA 35, 43, 54

FINLUX 32, 07, 45, 48, 53, 54

FIRSTLINE 40, 44

FISHER 32, 35, 38, 45

FORMENTI 32, 07, 42

FRONTECH 31, 42, 46

FRONTECH/PROTECH 32

FUJITSU 48

FUNAI 40, 46, 58

GBC 32, 42

GE 00, 01, 08, 07, 10, 11, 17, 02, 28, 18

GEC 07, 34, 48

GELOSO 32, 44

GENERAL 29

GENEXXA 31, 41

GOLDSTAR 10, 23, 21, 02, 07, 50

GOODMANS 07, 39, 47, 48, 56

GORENJE 38

GPM 41

GRAETZ 31, 42

GRANADA 07, 35, 42, 43, 48

GRADIENTE 30, 57

GRANDIN 18

GRUNDIG 31, 53

HANSEATIC 07

HCM 18,44

HINARI 07, 41, 44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU 56

HYPSON 07, 18, 46

ICE 46, 47

IMPERIAL 38, 42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

BEON 07 BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 4

BUSH 07, 41, 42, 44, 47, 56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

MARK 07

MATSUI 07, 39, 40, 42, 44, 47, 48

MCMICHAEL 34

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31, 53

MITSUBISHI 09, 10, 02, 21, 31

MULTITECH 44, 49

NEC 59

NECKERMANN 31, 07

NEI 07, 42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32, 42, 52

NORDMENDE 32, 36, 51, 52

OCEANIC 31, 32, 42

ORION 32, 07, 39, 40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31, 07, 08, 42, 22

PATHO CINEMA 42

PAUSA 44

PHILCO 32, 42

PHILIPS 31, 07, 34, 56, 68

PHOENIX 32

PHONOLA 07

PROFEX 42, 44

PROTECH 07, 42, 44, 46, 49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10, 23, 21, 02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSIÓN 32, 42

REX 31, 46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39, 44, 46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07, 38, 44, 46, 69, 70

SANYO 35, 45, 48, 21, 14, 91

SBR 07.34

SCHAUB LORENZ 42

SHARP 02, 19, 27, 67, 90

SIAREM 32, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18, 41, 44

KAPSCH 31

KENDO 42

KENNEDY 32, 42

KORPEL 07

KOYODA 44

LEYCO 07, 40, 46, 48

LIESENK&TTER 07

LOEWE 07

LUXOR 32, 42, 43

M-ELECTRONIC 31, 44, 45, 54, 56, 07, 36, 51

MAGNADYNE 32, 49

MAGNAFON 49

MAGNAVOX 07, 10, 03, 12, 29

MANESTH 39, 46

MARANTZ 07

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31, 35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31, 41, 48

TASHIKO 34

TATUNG 07, 48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36, 51, 52, 63

THORN 31, 07, 42, 45, 48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32, 42, 49

UNIDEN 92

UNIVERSUM 31, 07, 38, 42, 45, 46, 54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32, 42, 49

WHITE WESTINGHOUSE 07

YOKO 07, 42, 46

ZENITH 03, 20

Turning Off the Front Panel Display and Indications

If you feel that the indicators on the Player are too bright when watching movies, you can turn them off except for the FL OFF indicator.

STANDBY/ON OPEN/CLOSE TV CONTROL INPUT SELECT CH VOL VIDEO OUTPUT RESET AUDIO SUBTITLE ANGLE FRONT LIGHT EXIT DISPLAY FUNCTION DISC NAVIGATOR POPUP MENU TOP MENU MENU ENTER HOME MENU RETURN

Operate using the remote control unit

Press FRONT LIGHT.

The front panel display and indicators turn on and off each time this is pressed. When off, only the FL OFF indicator is lit.

HOME MENU operation

1 Press HOME MENU to display the HOME MENU screen.
2 Press ↑/↓/←/→ to select "Settings", then press ENTER.
3 Press ↑/↓ to select "Front Panel Display/LED", then press ENTER.

Audio Video Settings

Quick Start

Auto Power Off

Control

Playback Setting

Communication Setup

Front Panel Display/LED

Version

USB Memory Management

Software Update

System Reset

4 Press ←/→ to select "On" or "Off", then press ENTER.

5 Press HOME MENU or EXIT to exit.

About Control Function with HDMI

The functions work when a control function with HDMI-compatible Pioneer Flat Panel TV or AV system (AV receiver or amplifier, etc.) is connected to the player using an HDMI cable.

Also refer to the operating instructions of the Flat Panel TV and AV system (AV receiver or amplifier, etc.).

To use the control function with HDMI

• The control function with HDMI operates when control function with HDMI is set to On for all devices connected with HDMI cables.
• Once connections and the settings of all the devices are finished, be sure to check that the player's picture is output to the Flat Panel TV. (Also check after changing the connected devices and reconnecting HDMI cables.) The control function with HDMI may not operate properly if the player's picture is not properly output to the Flat Panel TV.
• Use High Speed HDMI® Cables when using the control function with HDMI. The control function with HDMI may not operate properly if other HDMI cables are used.
• For some models, the control function with HDMI may be referred to as "KURO LINK" or "HDMI Control".
• The control function with HDMI does not work with devices of other brands, even if connected with an HDMI cable.

What the control function with HDMI can do

- Outputting the optimum picture quality to a Flat Panel TV compatible with the control function with HDMI.

When the control function with HDMI is enabled, video signals with the optimum picture quality for control function with HDMI are output from the player's HDMI terminal.

The HDMI indicator on the player lights.

HDMI indicator ELITE

- Operating the player with the Flat Panel TV's remote control.

Such player operations as starting and stopping playback and displaying the menus can be performed from the Flat Panel TV.

- The player's playback picture is displayed on the Flat Panel TV's screen. (Auto-select function)

The input switches automatically on the Flat Panel TV and AV system (AV receiver or amplifier, etc.) when playback is started on the player or the HOME MENU or Disc Navigator is displayed. When the input is switched, the playback picture, the HOME MENU or Disc Navigator appears on the Flat Panel TV.

- The power of the Flat Panel TV and the player turns on and off automatically.

(Simultaneous power function)

When playback on the player is started or the HOME MENU or Disc Navigator is displayed, if the Flat Panel TV's power was off, its power turns on automatically. When the Flat Panel TV's power is turned off, the player's power automatically turns off. (The power does not turn off automatically if a disc or file is playing on the player or the player's operation screen is displayed on the Flat Panel TV.)

- The player's on-screen display language switches automatically. (Unified language function)

When the language information from a connected Flat Panel TV is received, you can have the player's on-screen display language change automatically to that of the Flat Panel TV. This function is available only when playback is stopped and the menu screen is not displayed.

About the PQLS function

PQLS (Precision Quartz Lock System) is a digital audio transfer control technology using the HDMI control function. The player's output signals are controlled from the AV amplifier to achieve high sound quality playback using the amplifier's quartz oscillator. This eliminates the influence of the jitter generated during signal transfer which can adversely affect the sound quality.

• This player supports the functions below.
- The "PQLS 2ch Audio" function that is only activated when playing music CDs (CD-DAs)
- The "PQLS Multi Surround" function that is activated when playing all discs (BDs, DVDs, etc.) with linear PCM audio output
- The "PQLS Bitstream" function that is activated when playing with bitstream audio output
- The various PQLS functions are activated when a Pioneer AV amplifier supporting the PQLS functions is connected directly to the "HDMI OUT" terminal with an HDMI cable and the main unit settings are set as shown below (page 46).

Control function with HDMI: On HDMI audio output: PCM (PQLS multi-surround only)

- Also refer to the AV amplifier's operating instructions.

- See the Pioneer website for AV amplifiers supporting the PQLS function.

CAUTION

• The PQLS function may stop working when the video output resolution is switched. The PQLS function will start working again once playback is stopped then restarted.
• When the PQLS 2ch function is activated, the output from the player's VIDEO OUTPUT jacks may not have the proper colors. If this happens, connect the TV and AV amplifier's HDMI terminals or the TV and player's COMPONENT VIDEO OUTPUT jacks to view the picture.

NOTE

- The PQLS indicator on the player's front panel lights when the PQLS function is activated (page 13).

RSS Reader Function

With the RSS function, text information (news, etc.) is acquired from the Internet and scrolled on the display. To use this function, you must make network connections (page 21) and communications settings (pages 48 to 50) then make the settings below.

TOP MENU ENTER MENU HOME MENU RETURN

NOTE

• The displayed information is updated periodically, but in some cases the updating interval may not be regular.
• Depending on the player's status, it may not be possible to display text information.
• Text information is not displayed when a disc is playing or a menu screen is displayed.
• Text information may not be displayed when a disc is loading.
• Pioneer accepts no responsibility whatsoever for the text information that is displayed.
• See “Disclaimer for Third Party Content” on page 63 regarding the contents that are displayed.

Displaying text information

1 Press HOME MENU to display the HOME MENU.
2 Press ←/↑/↓/→ to select "Web Content", then press ENTER.
3 Press ←/→ to select "RSS", then press ENTER.
4 Press ↑/↓ to select "On", then press ENTER.
- If "Off" is selected, the text information is not displayed.
5 Press / to select the desired channel.
The text information for the selected channel (news, etc.) scrolls from right to left on the display.

NOTE

• To change the channel whose text information is displayed, when the wallpaper is displayed, press / to select the RSS icon, then press / to select the desired channel.
• To turn the text display off, stop playback of the disc or USB memory device, then perform the above procedure from step 1.

This section explains playback of commercially available BD-/DVD-Video discs (movies, etc.), CDs, and video or audio recorded on BD-RE/-R and DVD-RW/-R discs as well as USB memory devices.

Loading a Disc

STANDBY/ON OPEN/CLOSE TV CONTROL

STANDBY/ON OPEN/CLOSE Power ELITE

1 Press ⏻ STANDBY/ON to turn on the power.
2 Press ▲ OPEN/CLOSE to open the disc tray.
3 Load a disc on the disc tray.

- Insert the disc with the label face up.

- In case of disc recorded on both sides, face down the side to play back.

Illustration of a hand inserting a CD into a computer drive (no text or symbols visible)

4 Press ▲ OPEN/CLOSE to close the disc tray.

BD/DVD Video Playback

BD-RE BD-RBD VIDEO DVD VIDEO DVD-RW DVD-R AVCHD

This player supports DVD upscaling during DVD playback.

REV PLAY FWD /- PAUSE STOP /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /-(//) /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /+ /FW /PW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /SW /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw /Sw

1 Load a disc.

• Playback may begin automatically, depending on the disc.
• Playback begins from the first title.
• The menu may be displayed first, depending on the disc. Perform playback operation by following the directions on the screen.

2 Press ▶ PLAY if playback does not begin automatically or playback is stopped.

NOTE

The disc load time may vary depending on the disc.

To stop playback

Press ■ STOP.

Resume playback function

• When ▶ PLAY is pressed during playback, the position at which playback stopped is stored in the memory. When ▶ PLAY is pressed, playback resumes from the point at which it stopped.
• To playback from the beginning, cancel resume mode by pressing ■ STOP, then press ▶ PLAY. (This may not work depending on the type of disc. In this case, open the disc tray or enter standby.)

NOTE

- Resume playback may not function with some discs (for example BD-Video discs including BD-J applications (page 60)). To find out whether or not the disc includes BD-J applications, contact the disc's manufacturer.

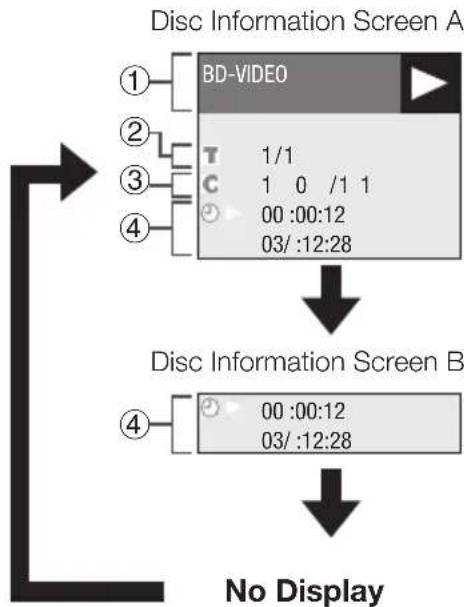

Displaying the disc information

EXIT DISPLAY FUNCTION DISC NAVICATOR POPUP MENU

Press DISPLAY during playback.

• Each time you press DISPLAY, the display switches as follows.

① Type of disc
② Title number being played/Total number of Titles
③ Chapter number being played/Total number of Chapters
④ Elapsed playback time/Total playback time for the Title

NOTE

• Disc Information Screen A disappears after about 1 minute elapses without performing any operations.
• For some commercially-released BD VIDEO discs, the total playback time display for the Chapter/Title may not appear.

Playing BD-/DVD-Video Discs from the Menu

• This section explains how to play back a BD/DVD video disc with a top menu, disc menu or pop-up menu.
• The menu names, content and operations differ from disc to disc. Operate as instructed on the disc's instructions or menu.
• The titles listed in the top menu and a disc guide (for options like subtitles and audio languages) are given in the disc menu.
• DISC NAVIGATOR/TOP MENU and POPUP MENU/MENU will not function if there is no menu on the disc.

DISC NAVISATOR TOP MENU ENTER POPUP MENU MENU HOME MENU RETURN

Using the top menu

BD VIDEO DVD VIDEO

1 Press DISC NAVIGATOR/TOP MENU.

TOP MENU 1 Jazz 2 Latin 3 Classic 4 Rock

2 Press ↑/↓/←/→ to select the title, then press ENTER.

• The selected title is played back.

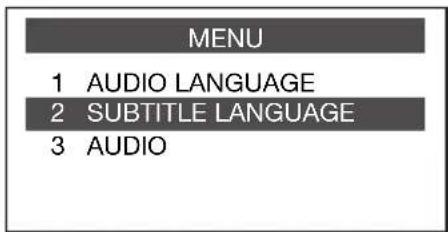

Using the disc menu

DVD VIDEO

Example: Select "SUBTITLE LANGUAGE".

1 Press DISC NAVIGATOR/TOP MENU.
2 Press ↑/↓ to select "SUBTITLE LANGUAGE", then press ENTER.
- The screen for selecting the subtitle language is displayed.

MENU 1 AUDIO LANGUAGE 2 SUBTITLE LANGUAGE 3 AUDIO

3 Press ↑/↓ to select the subtitle language, then press ENTER.
4 Press DISC NAVIGATOR/TOP MENU to exit.

Using the pop-up menu

BD VIDEO

1 Press POPUP MENU/MENU during playback.

Pop-up menu Previous page Next page

2 Press ↑/↓/←/→ to select the desired item, then press ENTER.

3 Press POPUP MENU/MENU to exit.

- The pop-up menu will automatically disappear for some discs.

Enjoying BONUSVIEW or BD-LIVE

BD VIDEO

This Player is compatible with BD-Video BONUSVIEW and BD-LIVE.

When using BD-Video discs compatible with BONUSVIEW, you can enjoy such functions as secondary video (picture in picture) and secondary audio. With BD-Video discs supporting BD-LIVE, special video images and other data can be downloaded from the Internet.

Data recorded on BD video and downloaded from BD-LIVE is stored on the USB memory device (external memory). To enjoy these functions, connect a USB memory device (minimum 1 GB capacity (2 GB or more recommended)) supporting USB 2.0 High Speed (480 Mbit/s) to the USB port (page 21) on this player.

• To recall data stored in the USB memory device, first insert the disc media that was being used at the time the data was downloaded (if a different disc is loaded, the data stored on the USB memory device cannot be played).
• If a USB memory device containing other data (previously recorded) is used, the video and audio may not play back properly.
• If the USB memory device is disconnected from this player during playback, playback of the disc will stop. Do not disconnect the USB memory device while playback is in progress.
• Some time may be required for the data to load (read/write).

CAUTION

- It may not be possible to use the BONUSVIEW and BD-LIVE functions if there is insufficient space on the USB memory device. In this case, refer to “USB Memory Management” on page 51 for erasing the Virtual Package data and the BD-LIVE data in the USB memory device.

NOTE

• Operation of USB memory devices is not guaranteed.
- Playback of BD-LIVE function data differs depending on the disc used. For details, consult the user instructions supplied with the disc.
- To enjoy the BD-LIVE function, a network connection and settings are required (pages 21 and 48).
- For conditions and restrictions regarding Internet connections using the BD-LIVE function, see the section "BD Internet Access" (page 47).
- BD-LIVE is a function that provides for automatic connection to the Internet. Discs supporting the BD-LIVE function may send ID codes identifying this player and the disc to the contents provider via the Internet.
- The unit can be set to prevent automatic connection to the Internet. For instructions on this setting, see the section "BD Internet Access" (page 47).
- When USB memory devices are connected to both the USB ports on the player's front and rear panels, the device that was connected first is used for the BONUSVIEW and BD-LIVE functions, while the device that was connected last is used for file playback and software updating.

Secondary video playback

BD-Video that includes secondary audio and video compatible with Picture in Picture can be played back with secondary audio and video simultaneously as a small video in the corner.

1 Press SECONDARY VIDEO during playback to show the 2-picture screen.

Primary audio/video Secondary audio/video

2 To remove the secondary video, press SECONDARY VIDEO again.

NOTE

• To listen to secondary audio, make sure that "Secondary Audio" is set to "On". (See page 45.)
• The secondary audio and video for Picture In Picture may automatically play back and be removed depending on the content. Also, playable areas may be restricted.

BD-RE/-R, DVD-RW/-R Playback

BD-RE BD-R

DVD-RW

DVD-R

You can play back a recorded disc.

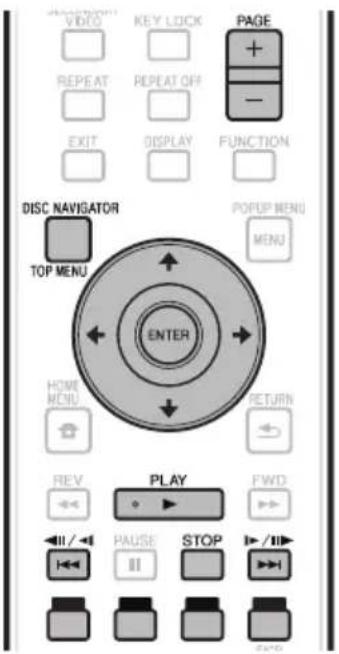

VIDEO REPEAT EXIT DISPLAY FUNCTION PAGE + - DISC NAVIGATOR TOP MENU ENTER POPUP MENU MENU HOME MENU RETURN REV PLAY FWD II / PAUSE STOP I/III/ I/IV

NOTE

- "Finalize" refers to a recorder processing a recorded disc so that it will play in other DVD players/recorders as well as this player. Only finalized DVD-RW/-R discs will play back in this player. (This player does not have a function to finalize discs.)

Playback by selecting a title

1 Load a recorded disc.

- The Disc Navigator screen is displayed.

- When loading a BD disc with usage restrictions placed by a BD recorder, the password input screen appears. Then, input your password. If you input a wrong password three times, the disc tray will open. Close the disc tray, and then input a correct password. - If the Disc Navigator screen is not displayed, press DISC NAVIGATOR/TOP MENU.

2 Press ↑/↓/←/→ to select the desired title, then press ENTER.

- When seven or more titles are displayed, switch pages by pressing PAGE +/-. The same operation can be performed by pressing I◄◄/◄◄/◄◄ or ►►I/◄►/►. - Playback of the selected title will begin. You can playback by pressing ► PLAY instead of pressing ENTER.

3 Press ■ STOP to stop playback.

NOTE

- The Disc Navigator screen also can be displayed by pressing DISC NAVIGATOR/TOP MENU when playback is stopped or by pressing ENTER after choosing "Disc Navigator" in HOME MENU when playback is stopped.

Switching the disc navigator display

- The Disc Navigator can be displayed in two types, Thumbnail and Title Name. - Each time you press RED, the screen changes between Thumbnail and Title Name.

Thumbnail

Program 1 5/21 Thu 9:30 AM 110 Min. Program 1 Program 2 Program 3 Program 4 Program 5 Program 6 A Title Name B By Chapter Playlist Functions

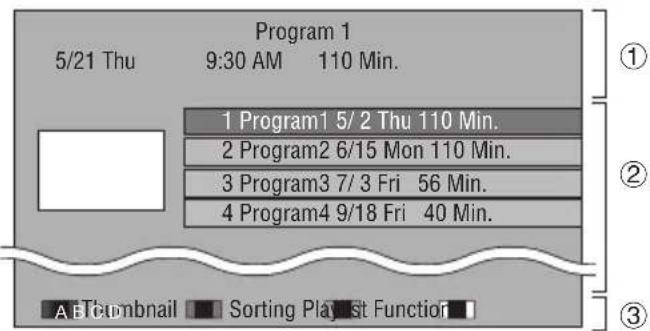

Title Name

Program 1 5/21 Thu 9:30 AM 110 Min. 1 Program1 5/2 Thu 110 Min. 2 Program2 6/15 Mon 110 Min. 3 Program3 7/3 Fri 56 Min. 4 Program4 9/18 Fri 40 Min. A BT Cdnbnail Sorting Play St Function

① Information of selected title
② Title Name
Recording Date
Recording Duration
③ Caption for RED, GREEN, BLUE, YELLOW
- When seven or more titles are displayed, switch pages by pressing PAGE +/-. The same operation can be performed by pressing I◄◄/◄◄/◄◄ or ►►I/◄►/►.

NOTE

- The recording date is the date stored for the recorded title, and depending on the device used for recording may differ from the actual date the recording (copy) was made.

Playback by selecting a chapter

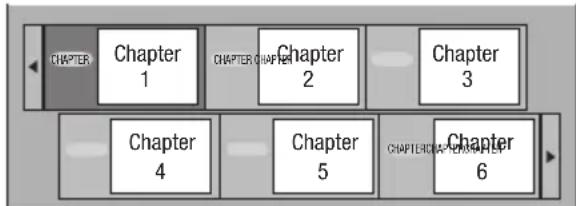

1 Press GREEN while the Thumbnail screen is displayed.

- The chapter screen is displayed.

CHAPTER 1 CHAPTER 2 Chapter 3 Chapter 4 Chapter 5 Chapter 6

• When seven or more chapters are displayed, switch pages by pressing PAGE +/-. The same operation can be performed by pressing I◄◄/◄II/◄I or ►►I/II►/I►.
• To return to the Thumbnail screen, press GREEN.

2 Press ↑/↓/←/→ to select the desired chapter, then press ENTER.

- Playback of the selected chapter will begin. You can playback by pressing ▶ PLAY instead of pressing ENTER.

3 Press ■ STOP to stop playback.

Sorting the titles

Each time you press GREEN, while the Title Name screen is displayed, the Title Name display changes between displaying the newest title first and the oldest title first.

Playback by selecting a Playlist

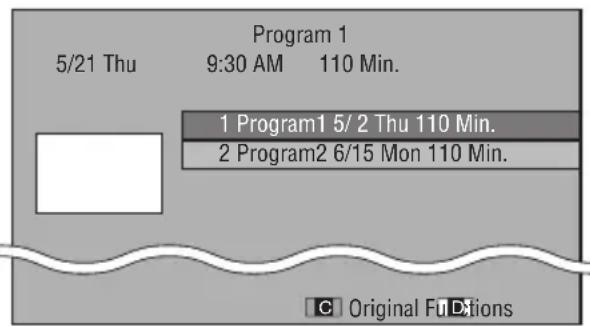

1 Press BLUE while the Thumbnail screen is displayed.

- The Playlist screen is displayed.

Program 1 5/21 Thu 9:30 AM 110 Min. 1 Program1 5/2 Thu 110 Min. 2 Program2 6/15 Mon 110 Min. Original F D tions

2 Press ↑/↓ to select the title, then press ENTER.

- Playback of the selected title will begin.

3 Press ■ STOP to stop playback.

Playing back the title you stopped while being played

1 Press YELLOW while the Disc Navigator screen is displayed.

Playback Playback this title. From Beginning From Continued

2 Select "From Beginning" or "From Continued" using ↑/↓, then press ENTER.

- Playback of the title will begin.

3 Press ■ STOP to stop playback.

Audio CD Playback

AUDIO CD

SELLINGNTY VIDEO REPEAT EXIT DISC NAVISATOR TOP MENU HOME MENU REV /- PAUSE PAGE + - REPEAT OFF DISPLAY FUNCTION POPUP MENU MENU ENTER RETURN PLAY STOP FWD /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /- /-(I) / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / %/- % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % / % = %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- % /- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- %/- #VALUE STOP

Playback from the beginning

1 Load an audio CD.

• The CD screen is displayed. (The CD screen is displayed only when a compact disc recorded in the CD-DA format is inserted.)
• Playback may begin automatically, depending on the disc.

Tack 01 0:00 5:16 Functions T 1/12 00:00:11 3 L+R Off 1 Track 01 5:16 2 Track 02 5:10 3 Track 03 5:23 4 Track 04 5:03 5 Track 05 4:44 6 Track 06 5:08 1 /12 Select Enter D Functions

2 Press ▶ PLAY if playback does not begin automatically or playback is stopped.
3 Press ■ STOP to stop playback.

Resume playback function

• When ▶ PLAY is pressed during playback, the position at which playback stopped is stored in the memory. When ▶ PLAY is pressed, playback resumes from the point at which it stopped.
• To playback from the beginning, cancel resume mode by pressing ■ STOP, then press ▶ PLAY. (This may not work depending on the type of disc. In this case, open the disc tray or enter standby.)

NOTE

Resume playback may not function depending on the disc.

Playback by selecting a track

1 Press ↑/↓ to select the track, then press ENTER during playback or when playback is stopped.

• Playback of the selected track will begin.
• When seven or more tracks are displayed, switch pages by pressing PAGE +/-

Track 03 0:00 5:23 1 Track 01 5:16 2 Track 02 5:10 3 Track 03 5:23 4 Track 04 5:03 5 Track 05 4:44 6 Track 06 5:08 Functions 3/12 Select Enter Functions

2 Press ■ STOP to stop playback.

Operation procedure for the "Functions" menu

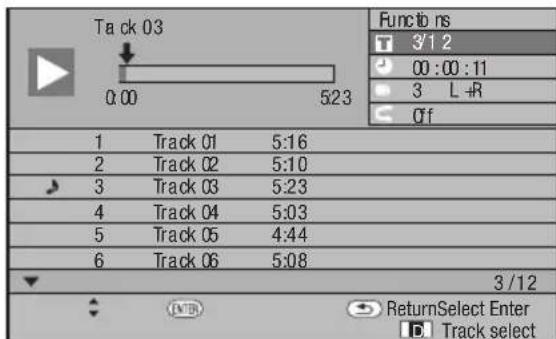

1 Press YELLOW (Functions) when the CD screen is displayed.

- The "Functions" menu is activated.

Track 03 0:00 5:23 1 Track 01 5:16 2 Track 02 5:10 3 Track 03 5:23 4 Track 04 5:03 5 Track 05 4:44 6 Track 06 5:08 3/12 ReturnSelect Enter Track select

2 Press ↑/↓ to select the desired setting, then press ENTER.

• When playback is stopped, only "Track" can be selected.
• For a description of each setting, see "Functions which can be set" (Page 43).

3 Press ↑/↓/←/→ to set, then press ENTER.

- Operations vary depending on the setting. Follow the operation instructions on the screen.

4 Press RETURN or YELLOW to exit the "Functions" menu.

NOTE

The displayed items vary depending on the disc.

Playing Audio Files

DVD-RW

DVD-R

CD-R

CD-RW

USB

DISC NAVIGATOR TOP MENU ENTER POPUP MENU MENU HOME MENU RETURN REV PLAY FWD /- PAUSE STOP /- /II

NOTE

• Do not disconnect the USB memory device while it is playing.
• For details on the audio signals that can be played, see "Types of Discs that Can Be Used with This Player" (page 7).
• When USB memory devices are connected to both the USB ports on the player's front and rear panels, only the sound recorded on the device that was connected last is played.

1 Load the disc or USB memory device on which the audio is recorded, then press HOME MENU to display the HOME MENU.
2 Press ↑/↓/←/→ to select "Music" then press ENTER.
3 Press ←/→ to select "DVD/CD" or "USB", then press ENTER.
4 Select the file or folder.

- Use ↑/↓/←/→ to select the file.

- Use ↑/↓ to select the folder, then press ENTER. The files in the folder are displayed.

5 Press ENTER to start playing the file.

- When II PAUSE is pressed during playback, playback pauses. When II PAUSE is pressed again or ▶ PLAY is pressed, playback resumes.

Music03.mp3 0:00 5 23 Functions 3/12 00:00:11 3 L-R 1 Music01.mp3 5.16 2 Music02.mp3 5.10 3 Music03.mp3 5.23 4 Music04.mp3 5.03 5 Music05.mp3 4.44 6 Music06.mp3 5.08 Select ENTER 3/12

6

Press ■ STOP to stop playback.

Selecting and playing a different file during playback

1 Press ↑/↓ to select the file.
2 Press ENTER to start playing the file.

• The selected file is played.

Cueing during playback

Press I◄◄/◄II/◄I or ►►I/II►/I►.

• When I◄◄/◄II/◄I is pressed, playback moves to the beginning of the file.
• When ▶▶▶/▶▶/▶ is pressed, playback moves to the end of the file.

NOTE

• Fast-forwarding and reversing are not possible.
  • The repeat function cannot be used.
• The function control cannot be used during playback (page 42).

Playing JPEG files

DVD-RW

DVD-R

CD-R

CD-RW

USB

VIDEO REPEAT EXIT DISC NAVISATOR TOP MENU HOME MENU ENTER KEY LOCK REPEAT OFF DISPLAY FUNCTION PAGE + - - POPUP MENU MENU RETURN REV PLAY FWD II / PAUSE STOP /III

NOTE

• Do not disconnect the USB memory device while it is playing.
• For details on the image files that can be played, see "About playing image files" (page 11).
• During "Normal play", still images are played one by one while during "Slide show", they are automatically replaced one after another.
• When USB memory devices are connected to both the USB ports on the player's front and rear panels, only the image files recorded on the device that was connected last are played.

1 Load the disc or USB memory device on which the image files are recorded, then press HOME MENU to display the HOME MENU.

2 Press ↑/↓/←/→ to select "Photo", then press ENTER.

3 Press ←/→ to select "DVD/CD" or "USB", then press ENTER.

4 Select the file or folder.

• Use ↑/↓/←/→ to select the file.
• Use ↑/↓ to select the folder, then press ENTER. The files in the folder are displayed.

5

Use ↑/↓/←/→ to select the folder whose still images are to be played, then press ENTER.

8/15

Silhouette of a cargo ship sailing on water with birds flying nearby (no text or symbols)

6

Press I◄◄/◄II/◄I or ►►I/II►/I► to replace one image with another.

• The same operation can be performed by pressing / or REV/ FWD.
• Press RETURN if you wish to return to the folder selection screen.

7

To stop the still image playback at any time, press ■ STOP.

Playing back Slide Show

1 Load the disc or USB memory device on which the image files are recorded, then press HOME MENU to display the HOME MENU.
2 Press ↑/↓/←/→ to select "Photo", then press ENTER.
3 Press ↑/↓ to select "DVD/CD" or "USB", then press ENTER.
4 Press ↑/↓/←/→ to select the folder, then press ► PLAY to play.
- A slide show of the images in the selected folder is played.
- Press II PAUSE to pause the slide show. Press ▶ PLAY to resume playback from where it stopped.
Press ■ STOP to stop the play at any time.
- Press RETURN to play a slide show of still images in another folder.

5

Setting slide show speed/repeat playback

1 Press YELLOW (Slide Show Menu) during the folder selection screen.

- The setting screen for "Slide Show Speed"/"Repeat Mode Setting" appears.

2 Press ↑/↓ to select "Slide Show Speed", then press ENTER.

Slide Show Speed Repeat Mode Setting Normal

- The slide show speed may be selected from "Fast", "Normal", "Slow1" and "Slow2".

3 Press ↑/↓ to select the desired speed, then press ENTER.

4 Press ↑/↓ to select "Repeat Mode Setting", then press ENTER.

Slide Show Speed Repeat Mode Setting Yes No

5 Press ↑/↓ to select the desired item, then press ENTER.

6 Press EXIT to exit.

Playing YouTube Videos

With this player, you can connect to the Internet and play YouTube videos (MPEG4 AVC H.264).

EXIT DISPLAY FUNCTION DISC NAVIGATOR POPUP MENU TOP MENU MENU ENTER HOME MENU RETURN REV. PLAY FWD

NOTE

- YouTube videos of the following sizes can be played.

- Standard quality (400 x 226 pixels, 200 kbps)

- Medium quality (480 x 360 pixels, 512 kbps)

– High quality (854 x 480 pixels, 900 kbps)

- HD (720p) (1280 x 720 pixels, 2 Mbps)

- HD (1080p) (1920 x 1080 pixels, 4 Mbps)

• YouTube videos for mobile phones cannot be played.
• Some YouTube videos cannot be played.
• Depending on the Internet connection environment, it may not be possible to play YouTube videos properly.
• See "Disclaimer for Third Party Content" on page 63 regarding the contents that are played.

1 Display the selection screen.

When the wallpaper is displayed, use ←/→ to select the YouTube icon, then press ENTER.

- The selection screen can also be selected by pressing HOME MENU then selecting "Home Menu" → "Web Contents" → "YouTube".

2 Press ↑/↓/←/→ to select the YouTube video, then press ENTER to play.
3 Press EXIT to stop playback of the YouTube video.

Playing Netflix Streaming Content

Please check that the most current software is loaded on this player by selecting auto update on the player menu screen (See page 52) or by visiting http://www.pioneerblu-ray.com to check for a download of the newest software version.

This function allows you to enjoy Netflix service through the Internet. Netflix is an online DVD and Blu-ray Disc rental service, offering rental-by mail and online streaming to customers.

- To enjoy this function, make a broadband internet connection to both your PC and this player (See page 21), and then set communication settings (See page 48), then perform the following operation.

NOTE

• Netflix service is not available when a proxy server is used for an internet connection.
• As the registration process takes time, we recommend setting "Auto Power Off" to "No" before starting the registration. (See page 46.)
• Video quality of the Netflix contents (SD or HD) depends on the network speed and original bit rate of the Netflix contents.
• For more information on the Netflix Instant Streaming service visit http://www.netflix.com/help/ or login to your Netflix account and click "Help" at the top of the page.
• The Netflix service cannot be used in any country except for the United States.
• Illustrations are examples and may differ from the actual Netflix screens.
• See "Disclaimer for Third Party Content" on page 63 regarding the contents that are played.
  • See page 47 to check Netflix ESN.
  • See page 48 to deactivate your Netflix information.

DISC NAVISATOR TOP MENU ENTER POPUP MENU MENU HOME MENU RETURN REV PLAY FWD <01 / 0> PAUSE STOP > / 0

Settings for watching Netflix content on your TV

1 Press HOME MENU to display the HOME MENU.

- When the Pioneer logo screen is displayed, the Home Menu can also be displayed by selecting the menu icon, then pressing ENTER.

2 Press ↑/↓/←/→ to select "Web Content", then press ► PLAY or ENTER.
3 Press ↑/↓ to select "Netflix", then press ► PLAY or ENTER.

4 Read the Disclaimer displayed on the screen. If you agree, press ↑ on the last page to select "Agree", then press ENTER. (If you do not agree, this service cannot be used.)
5 Obtain the Netflix activation code.

If you don't have a Netflix account

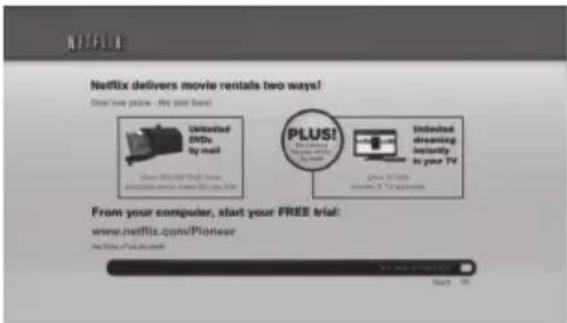

① Press ↑/↓ to select "no-start my FREE trial", then press ENTER.

The screen of this player shown on the TV

NETFLIX Netflix delivers movie rentals two ways! One year price - the help flow? Embedded DVDs by mail + Embedded streaming of movies instantly to your TV you have a free Are you a Netflix member? Get Email at http://www.100.com you .follow me move streaming last hours... 24 call: 34

② Subscribe by visiting http://www.netflix.com/Pioneer from your PC.
③ Press ↑/↓ to select "I'm now a member", then press ENTER.

The screen of this player shown on the TV

Netflix delivers movie rentals two ways! Clear: New price - At your next! Untested DVDs by mail Clear Netflix DVD free www.new.com/pioneer PLUS! Untested dreaming inacity to your TV from your computer, start your FREE trial: www.netflix.com/Pioneer http://www. Netflix.com Back On

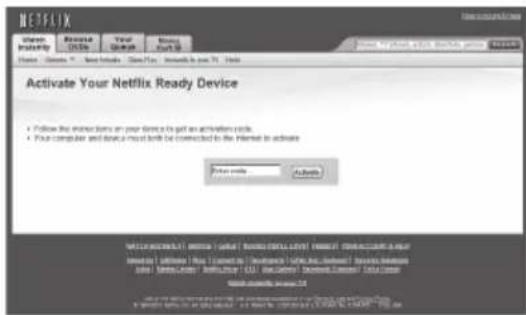

If you have a Netflix account

Press ↑/↓ to select "yes-activate instant streaming from Netflix", then press ENTER.

The screen of this player shown on the TV

Netflix delivers movie rentals two ways! One time gets - No best time? Unlimited DVDs by mail + Unlimited streaming of movies instantly by your TV any down your PDFs Are you a Netflix member?

6 You will see the following window.

• The activation code is displayed.

The screen of this player shown on the TV

NETFLIX Unselected streaming Instantly from Netflix To select PC on your M8 iPhone • Movie web in about 30 minutes • In selected PC movie • DVD content from To instantly watch movies from Netflix: From your computer, actively installed watching. Search: sxtfle.com/sxtchote Enter movie code: 100000 250000+ (non-1000) Search: 100

7 Using your PC, visit http://www.netflix.com/activate, and then enter the activation code displayed in step 6.

The screen of the PC

Netflix User Name: Netflix Ready Device Your Name: Netflix Ready Device Active Your Netflix Ready Device Follow the user from your device to get an activation code. Prior computer and/or a most birth be connected to the Internet to activate Prior code Active NATXXXXXXX NETISSUE (WHAT) NEW YORK TIMES (NEWS) BUSINESS NAME (NEWS) OFFICE THIS Program TO CHANGE YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND FROM YOUR DATA AND WHERE Microsoft Access 2004

- After a period of time, the player will be activated, and the Empty Instant Queue screen will be displayed on your TV from the player.

Adding content to the Instant Queue

8 To add a movie to the Instant Queue list of this player, select the "Add to Instant" button on Netflix "Watch Instantly" web page using your PC.

- After a period of time, the Instant Queue list registered using your PC will appear on your TV screen.

Playing back content in the Instant Queue on your TV

9 Press ←/→ to select the desired movie, then press ENTER.

- Once this function is set and the registration is completed, the next time this service is used Instant Queue list screens such as the following can be displayed directly by pressing ENTER after selecting the NETFLIX icon on the Pioneer logo screen.

The screen of this player shown on the TV

NEFFUL Instant queue 1:09 Grootin Wonderland Phoeba in Wonderland In Mim 2013

10 The movie you selected is displayed.

- To return to the step 9, press ↑. Press ↑/↓ to select "play", then press ENTER or ▶ PLAY to start playback.

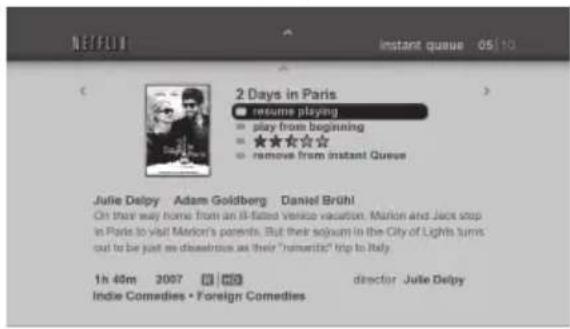

The screen of this player shown on the TV

2 Days in Paris resume playing play from beginning remove from instant Queue Julie Delpy Adam Goldberg Daniel Brühl On their way home from an ill-fasted Venice vacation, Marion and Jack stop in Paris to visit Marion's parents. But their sojoum in the City of Lights turns out to be just as dieselous as their "romerds" trip to Italy. 1h 40m 2007 1st inst queue director Julie Delpy Indie Comedies • Foreign Comedies

The screen of this player shown on the TV 2 Days in Paris retrieving

• After a period of time, playback of the movie begins.

11 To pause the playback at any time, press II PAUSE.

- Press II PAUSE or ▶ PLAY to return to playback.

12 To stop the playback or go to step 10, press ↑ or ■ STOP.

Fast Forward/Reverse

The Fast Forward/Reverse function is enabled when

◀◀ REV or ▶▶ FWD is pressed during playback.

Playback Functions

BD VIDEO BD-RBD-RE

DVD VIDEO

DVD-RW

DVD-R

AVCHD

AUDIO CD

REPEAT EXIT DISC NAVISATOR TOP MENU REPEAT OFF DISPLAY FUNCTION POPUP MENU MENU ENTER HOME MENU RETURN REV PLAY FWD II / PAUSE STOP /II/ REPLAY SNIP SEARCH

NOTE

- Some operations in the following playback functions cannot be performed depending on the specifications of the disc.

Fast Forward/Reverse (Search)

Fast Forward/Reverse functions when ◀◀ REV or ▶▶ FWD is pressed during playback.

Example: When ▶▶ FWD is pressed

• The search speed will change each time you press the button.
• It is not possible to fast-forward or reverse to adjacent titles. When the beginning or end of the title is reached, fast-forwarding/reversing is canceled and normal playback resumes.
• Subtitles are not displayed when fast-forwarding/reversing BD-/DVD-Video discs.

Skipping to the Next or the Start of the Current Chapter (Track)

Skipping (to the beginning of a chapter or track) functions when I◄◄/◄ll/◄l or ►►I/ll►/I► is pressed during playback.

Pause

Pause functions when II PAUSE is pressed during playback.

Frame Advance Playback

Frame Advance Playback functions when ▶▶▶/▶▶/▶▶ is pressed during Pause.

NOTE

• Frame advance playback is not possible with audio CDs.
- Frame Advance Playback may not function properly with discs other than DVD-RW (VR format).
- Some BD/DVD Video discs are not compatible with Frame Advance Playback.
- Frame Reverse Playback can be performed for DVD discs by pressing I/II/ during pause (Frame Reverse Playback cannot be performed for BD video discs).

Slow Playback

Slow Playback functions when I◄◄/◄II/◄I or ►►I/II►/I► is pressed for more than 2 seconds during pause.

• Press ▶ PLAY to return to normal playback.
• Slow playback onto adjacent titles is not possible. When the beginning or end of the title is reached, slow playback is canceled and normal playback resumes.

NOTE

• This doesn't work for audio CDs.
• Reverse Slow Playback cannot be performed for BD video and DVD discs in AVCHD format.

Skip Search

Playback skips 30 seconds ahead when SKIP SEARCH is pressed during playback.

Replay

Playback jumps back 10 seconds when BEPLAY is pressed during playback.

Repeat Playback of a Title or Chapter (Repeat Playback)

1 Play back the title or chapter you want to repeat.
2 Press REPEAT.
3 Press ↑/↓ to select the type of Repeat Playback.

- Playback Title: Repeats the title currently being played back.

- Playback Chapter: Repeats the chapter currently being played back.

- Scene Selection: Repeats the specified scene of title or chapter.

Playback Title Playback Chapter Scene Selection

• Press RETURN to cancel without setting the type of Repeat Playback.
• For Audio CD, you can select "Playing Disc", "Playing Track" and "Specify The Part" as Repeat Playback options.

4 Press ENTER.

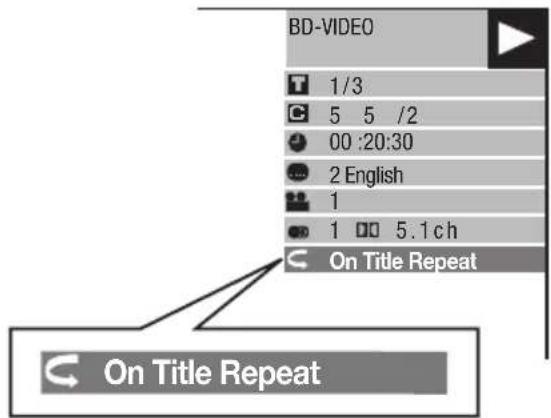

Example: Repeat playback of a title

BD-VIDEO 1/3 5 5 /2 00:20:30 2 English 1 1 5.1 ch On Title Repeat On Title Repeat

5 Press REPEAT OFF or REPEAT to return to normal playback.

Partial Repeat Playback (Repeat Playback of a Specified Part)

DVD VIDEO DVD-RW DVD-R AUDIO CD

1 Press REPEAT during playback.

2 Press ↑/↓ to select "Scene Selection", then press ENTER.

- "Set Start Point" displays.

Playback Title Playback Chapter Scene Selection Set Start Point

3 Press ENTER at the scene where you want to set the start point.

- "Set End Point" displays.

4 Press ENTER at the scene where you want to set the end point.

- You can press ▶▶ FWD to fast forward to the scene where you want to set the end point. When you reach the desired scene, simply press ▶ PLAY and then ENTER to set the end point.

- To cancel Repeat Playback, press REPEAT OFF or REPEAT.

NOTE

• Press ▶▶▶/▶▶/▶, the Repeat Playback is cancelled and the next chapter (track) being play back.
• Press I◄◄/◄◄/◄◄ once, the Repeat Playback is cancelled and the player returns to the start of current chapter (track).
• If you press I◄◄/◄◄/◄◄ again (within about 5 seconds) the player will skip to the beginning of the previous chapter (track).
• For Partial Repeat Playback, set the start and end points within the same title.
• Repeat Playback may be forbidden depending on the disc.
• During BD video, the same scene cannot be played repeatedly.
• Partial Repeat Playback may not work in multi-angle scenes.
• If you press DISPLAY, you can confirm the Repeat Playback status (except for Audio CDs).

STANDBY/ON OPEN/CLOSE TV CONTROL INPUT SELECT CH VOL WORD OUTPUT RESET AUDIO SUBTITLE ANGLE FRONT LIGHT

Switching the Audio Mode

Press AUDIO.

The displayed content differs from disc to disc.

The audio track currently being played back will be displayed.

When multiple audio tracks are recorded on the disc, the audio track switches each time AUDIO is pressed.

DVD-RW DVD-R BD-RBD-RE

The mode switches as shown below each time AUDIO is pressed.

In the event bilingual (multiplex) broadcasts are recorded:

- The display will show "MAIN", "SUB" or "MAIN SUB" When a recorded broadcast with stereo or monaural audio is played back:

- "Stereo" is displayed. (Audio cannot be switched.)

NOTE

• When you play a program recorded in stereo or monaural, and if you are listening to the Bitstream sound via the digital output jack, you cannot select the audio channel. Set "Audio Out" to "PCM" (Page 46), or if you want to change the audio channel, listen via the analog output jacks.
• Settings for audio can be changed also in Function Control Screen (Page 42).
• Some discs allow changing of the audio channel via a menu. For details, see the manual for the disc.
• The display for audio automatically disappears after 5 seconds.

Switching Subtitles

If subtitles are provided in multiple languages, you can switch between them.

Press SUBTITLE during playback.

• The display indicates the subtitle number currently being played back, and the subtitles appear.
  • Each time SUBTITLE is pressed, the subtitles change.
• “-” is displayed if a disc has no subtitles.
• You can also select "Off".

NOTE

• Settings for subtitles can be changed also in Function Control Screen (Page 42).
• Some discs allow changing of the subtitles channel via a menu. For details, see the manual for the disc.
• The display for subtitles automatically disappears after 5 seconds.

Switching the Angle

If multiple angles are recorded, you can switch between them.

1 Press ANGLE during playback.

• The display indicates the angle number currently being played back. Each time you press ANGLE, the angle switches.
• “—” is displayed if a disc is recorded with only one angle.

1

To return to the previous angle, press ANGLE to cycle through the angles until you return to the original angle.

Displaying the Angle Mark

You can change settings so that Angle Mark appears in the right bottom part of the screen when multiple angles are recorded. (The Angle Mark is displayed for BD/DVD video.) The settings can be changed in "Settings" – "Playback Setting" – "Angle Mark Display" (Page 47).

NOTE

• Settings for angles can be changed also in Function Control Screen (Page 42).
• Some discs allow changing of the angles channel via a menu. For details, see the manual for the disc.
• The display for angles automatically disappears after 5 seconds.

Function Control

This allows you to adjust various settings at once, like subtitles, audio and angle settings and the title selection for Direct Playback. The operations are the same for BD and DVD.

Function control screen

BD-VIDEO 1/3 5 5 /2 00 :20:30 2 English 1 1 5.1 ch Off Select Enters Return

① Playback status display

Shows the operation status and the disc type.

② Setting items

Selects a title (or track) or chapter for playback, or performs subtitles, audio and angle settings.

• Title/Track Number (Direct Title/Track Skip)
• Chapter Number (Direct Chapter Skip)
- Playback Elapsed Time (Direct Time Skip)
- Subtitle Language
- Angle Number
- Audio
- Repeat

③ Operation guide display

Provides help on remote control button operations.

Function control operation procedure

EXIT DISPLAY FUNCTION DISC NAVIGATOR TOP MENU POPUP MENU MENU ENTER HOME MENU RETURN

1 Press FUNCTION during playback.
- The Function Control screen is displayed on the TV.
2 Press ↑/↓ to select the desired setting, then press ENTER.
- For a description of each setting, see "Functions which can be set" (Page 43).

BD-VIDEO T 1/3 C 5 5 /2 00:20:30 2 English 1 1 00 5.1 ch Off

3 Press ↑/↓/←/→ to set, then press ENTER.

- Operations vary depending on the setting. Follow the operation instructions on the screen.

4 Press RETURN or FUNCTION to close the Function Control screen.

NOTE

• If “--” is displayed for an option like title number or subtitles, the disc has no titles or subtitles which can be selected.
• The displayed items vary depending on the disc.
• If you access the Function Control screen, it may be impossible to operate the BD/DVD video playback. In cases like this, close the Function Control screen.

Functions which can be set

Title/Track Number (Direct Title/Track Skip)

• Shows the title number being played back (or track number when playing back an audio CD). You can skip to the start of the title (or track).
• To skip to the start of a selected title (or track), press the number buttons (0 to 9) to enter the title (or track) number when this option is highlighted.

Chapter Number (Direct Chapter Skip)

• Shows the chapter number being played back. You can skip to the start of the chapter.
- To skip to the start of a selected chapter, press the number buttons (0 to 9) to enter the chapter number when this option is highlighted.

Playback Elapsed Time (Direct Time Skip)

• Shows the time elapsed from the beginning of the current disc title (or track). This lets you skip to a specific time.
• Press / to select the Hour, Minute or Second, then press / or the number buttons (0 to 9) to set the time. Press ENTER to start playback at the set time.

NOTE

• ENTER: Enters the input number.
• CLEAR: Clears the input number.

Subtitle Language

• Shows the currently selected subtitle language. If subtitles are provided in other languages, you can switch to your preferred language.

Angle Number

- Shows the currently selected angle number. If the video is recorded with multiple angles, you can switch the angle.

Audio

• Shows the currently selected type of audio. You can select the desired type of audio.

Repeat

- The current Title (or Chapter) or partial segments can be repeatedly played back. Repeat Playback is also possible with REPEAT on the remote control.

NOTE

These functions may not work with all discs.

1 2 3 4 5 6 7 8 9 CLEAR 0 ENTER SECONDARY VIDEO KEY LOCK PAGE + REPEAT REPEAT OFF - EXIT DISPLAY FUNCTION DISC NAVIDATOR POPUP MENU TOP MENU MENU ENTER HOME MENU RETURN

Common Operations

The "Menu" enables various audio/visual settings and adjustments on the functions using the remote control unit. You need to call up the OSD to perform settings for this player. The following is the explanation for the basic operations of the "Menu".

Example: Setting "Front Panel Display/LED"

Display the Menu screen

Web Content Photos Music Disc Navigator On Screen LanguageSet

Press HOME MENU to display the HOME MENU screen. Press ↑/↓/←/→ to select "Settings", then press ENTER. When the wallpaper is displayed, the home menu can also be displayed by selecting the menu icon (with ←/→ then pressing ENTER.

Select a menu item

Press ↑/↓ to select "Front Panel Display/LED", then press ENTER.

Audio Video Settings

Quick Start

Auto Power Off

Control

Playback Setting

Communication Setup

Front Panel Display/LED

Version

USB Memory Management

Software Update

System Reset

Select the next item

Press ←/→ to select the desired item, then press ENTER.

Press → RETURN to return to the previous "Menu" page.

EXIT DISPLAY FUNCTION DISC NAVIGATOR TOP MENU POPUP MENU MENU ENTER HOME MENU RETURN

Exit the Menu screen

Press HOME MENU or EXIT to exit.

Basic Operation for Playback Setting

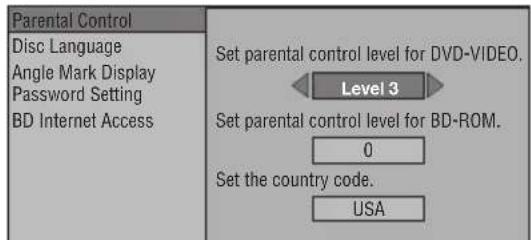

Example: Setting "Parental Control" under "Playback Setting"

1 Press HOME MENU to display the HOME MENU screen.
2 Press ↑/↓/←/→ to select "Settings", then press ENTER.
3 Press ↑/↓ to select "Playback Setting", then press ENTER.
4 Press ↑/↓ to select "Parental Control", then press ENTER.
- When you operate this Player for the first time, the password setting screen will be displayed. See "When setting the password for the first time" below.
5 Press the number buttons (0 to 9) to enter your 4-digit password.
- You cannot move to the next setting screen until you can input the correct password.

Enter 4-digit password

When setting the password for the first time

① To set the password for the first time, press ↑/↓ to select "Yes" to enter the password setting menu, then press ENTER.
② Press the number buttons (0 to 9) to enter a 4-digit number for the password, then the same 4-digit number for confirmation.
③ Press ENTER to complete the password setting procedure and move to the next setting screen.
6 Press / to select the parental control level for DVD-VIDEO, BD-ROM, and then select the country code. Press ENTER after making each selection.

Parental Control Disc Language Angle Mark Display Password Setting BD Internet Access Set parental control level for DVD-VIDEO. Level 3 Set parental control level for BD-ROM. 0 Set the country code. USA

7 Press HOME MENU or EXIT to exit.

NOTE

- Characters in bold type are the default settings at time of purchase.

Audio Video Settings

TV Aspect Ratio

You can set the screen aspect ratio of the connected TV, and adjust the video output.

If you switch your TV (i.e. because you have bought a new one) and the screen aspect ratio of the connected TV changes, you will have to change the "TV Aspect Ratio" setting.

Item

Wide 16:9: Select this when connecting to a TV with a 16:9 screen aspect ratio.

Normal 4:3: Select this when connecting to a TV with a 4:3 screen aspect ratio.

Item

Letter Box: If you connect to a TV with a screen aspect ratio of 4:3 and playback a DVD with 16:9 video, the video will be played back with black bands at the top and bottom while maintaining the 16:9 ratio.

Pan Scan: If you connect to a TV with a screen aspect ratio of 4:3 and playback a DVD with 16:9 video, the video will be played back with the left and right sides of the image cut off to display in 4:3 screen aspect ratio. (This function works if the disc is labelled for 4:3PS.)

Component Video Out

This sets the resolution of the component video output.

Some TV are not fully compatible with the Blu-ray disc player, which may cause the image distortion. In this case, press VIDEO OUTPUT RESET on the remote control for five seconds. "Component Video Out" will be reset to "480i" (factory preset value).

Item

1080i, 720p, 480p, 480i

HDMI Video Out

This sets the resolution of the HDMI video output. Some TV are not fully compatible with the Blu-ray disc player, which may cause the image distortion. In this case, press VIDEO OUTPUT RESET on the remote control for five seconds. "HDMI Video Out" will be reset to "Auto" (factory preset value).

Item

Auto, 1080p, 1080i, 720p, 480p

NOTE

- When the BD player is connected to a 1080p 24 Hz compatible TV and the "HDMI Video Out" is set to "Auto", 1080p 24 Hz will automatically be displayed when compatible discs are played back. At 1080p 24 Hz/1080p 60 Hz, there is no output from the COMPONENT VIDEO OUTPUT jacks and VIDEO OUTPUT jack.

Video Out Select

This function allows you to select the priority video output when you connect video equipment such as a TV to both the HDMI OUT terminal and the COMPONENT VIDEO OUTPUT jacks.

Item

HDMI, Component

• When the priority video output is selected, video is output from the other video terminal with the resolution of the selected video output.
• There is no output from the COMPONENT VIDEO OUTPUT jacks and VIDEO OUTPUT jack when video is output at 1080p resolution and the priority video output is selected to "HDMI".
• If the video equipment connected to each of the terminals is not compatible with the resolution of the priority video output, abnormalities in images on the screen may appear.

Secondary Audio

This toggles the clicking sound on the menu and audio with secondary video in picture in picture mode for BD-Video.

- Select "Off" when enjoying the high quality sounds of BD-Video. ("Bitstream" can be selected with "HDMI Output".)

Item

On ^*1 , Off

*1: When set to "On"
- Audio in 6.1ch or greater format will be output as 5.1ch audio.
- "HDMI Output" is set on "PCM".

Audio Out

You can set the audio output when connecting to SURROUND equipment.

1 This sets the audio output connected to SURROUND equipment.

Item

HDMI Output: Select this when you connect using HDMI OUT terminal.

Digital Output: Select this when you connect using DIGITAL OUT OPTICAL terminal.

2ch Audio Output: Select this when you do not use SURROUND sound equipment.

2 You can set the audio output mode for each output terminal.

① This sets the audio output mode for HDMI OUT terminal when selecting "HDMI Output".

NOTE

• When the secondary audio is set to "On", PCM is automatically selected as the audio output mode.
• Upon purchase, "Secondary Audio" is set to "On", so "HDMI Output" is fixed to "PCM".

Item

Bitstream:

PCM (Surround):

• Select this when connecting to HDMI equipment with a built-in decoder for DOLBY DIGITAL, etc.
• Setting to Bitstream will output each audio signal by Bitstream.
• Select this when connecting to multi-channel HDMI equipment.
• Setting to PCM (Surround) will output by LINEAR PCM by decoding audio signals recorded in each audio output mode such as DOLBY DIGITAL, DTS.

② This sets the audio output mode for DIGITAL OUT OPTICAL terminal when selecting “Digital Output”.

Item

Bitstream:

• Select this when connecting to SURROUND equipment with a built-in decoder for DOLBY DIGITAL, etc.
• Setting to Bitstream will output each audio signal by Bitstream.
• Select this when connecting to 2 channel stereo audio equipment.
• Setting to PCM will output by converting each audio signal into PCM 2 channel audio signal.

NOTE

- See page 55 for information on output of next generation audio formats.

Dynamic Range Control

This lets you adjust the range between the loudest and softest sounds (dynamic range) for playback at average volume. Use this when it is hard to hear dialog.

Item

Normal: The same audio output range is played as the original recorded audio output range.

Shift*: When Dolby Digital audio is played back, the dynamic range of the audio is adjusted so that the dialog portion can be heard easily. (If the audio sounds abnormal, set to "Normal".)

Auto: When you play back audio in the Dolby TrueHD format, the dynamic range is automatically adjusted.

*: Lower the audio volume before setting. If you do not do so, the speakers may emit a loud sound or excessive output may be applied to the speakers.

Quick Start

This turns the Quick Start function on and off.

When the Quick Start function is on:

• The startup time of the Player is reduced.
- However, the standby power consumption when the power is off will increase (about 7 W).
When the Quick Start function is off:
- The player will enter the low power consumption mode when in standby condition.

Item

Yes, No

NOTE

- When "Quick Start" is set to "Yes", the Player requires some time to turn off each time.

Auto Power Off

This sets the Player so that power is automatically shut off if playback is stopped for about 10 minutes.

Item

Yes, No

Control

This sets the Player to be controlled from the Flat Panel TV via the HDMI cable.

Item

Yes: Select this to operate this player with the remote control unit of a Flat Panel TV connected by cable. This also turns on the PQLS function.

No: Select this when you do not want to use the control function.

NOTE

- For details, refer to "About control function with HDMI" on page 26.

Playback Setting

Parental Control

This lets you set the Parental Control depending on the disc content. The available Parental Control Levels are shown below.

The 4-digit password number needs to be entered before the Parental Control Levels and the Country Code are set. The Parental Control Levels and the Country Code cannot be set if a password has not been created or the password is not entered.

DVD-Video setting items

Setting item	Description of setting
1 Discs for children	can be played. Adult and general audience discs (including R-rated discs) cannot be played.
2-3 General audience	discs (excluding R-rated discs) and discs for children can be played. Adult and restricted viewing (R-rated) discs cannot be played.
4-7 General audience	discs (including R-rated discs) and discs for children can be played. Adult discs cannot be played.
8 All discs can be	played without restriction.
Off	Parental control is turned off.

BD-Video setting items

Setting item	Description of setting
No Limit	All BD-video can be played.
0-99 year(s)	Prohibits play of BD-video with corresponding ratings recorded on them.

Item (Country code)

Sets the country code. Refer to the Country Code List (page 55) because the ratings differ according to the country.

NOTE

- Refer to "Basic Operation for Playback Setting" on page 44 for details.

Disc Language (Disc Priority Language)

This lets you select the language for subtitles, audio and menus displayed on the screen.

Item (Subtitle)

Refer to the Language List. (Page 55)

Item (Audio)

Refer to the Language List. (Page 55)

Item (Menu)

Refer to the Language List and Language Code List. (Page 55)

Angle Mark Display

This lets you turn the Angle Mark Display on or off when BD/DVD video recorded with multiple angles is played back. (The Angle Mark is displayed in the lower right screen.)

Item

Yes, No

Password Setting

This sets the password for setting or changing the Parental Control Level.

Item

Yes: Enter the 4-digit number. No

NOTE

• When you forget the password, you can reset the current password using "System Reset" under "Settings". (See page 48.)
• You can also set the new password if desired.

BD Internet Access

This allows you to set access restriction to BD-LIVE contents.

Setting item	Description of setting
Permit Allow all	BD-LIVE discs.
Limit	Allow only discs with owner certification.
Prohibit Prohibit	all BD-LIVE discs.

NOTE

• The available functions differ depending on the disc.
• Regarding playback method of BD-LIVE contents, etc., perform the operations in accordance with the instructions in the BD disc manual.
• To enjoy BD-LIVE functions, perform the broadband internet connection (page 21) and communication settings (pages 48 to 50).

Front Panel Display/LED

If you feel that the indicators on the Player are too bright when watching movies, you can turn them off except for the FL OFF indicator.

Item

On, Off

Version

When you select "Version", the system software version and Netflix ESN are displayed. Please refer to our website for information regarding the system software updates.

http://www.pioneerblu-ray.com

System Reset

You can reset all settings to the factory presets.

Item

Reset, Not Reset

Netflix Deactivate

When you select “Netflix Deactivation”, you can deactivate your Netflix information on the player by selecting “Yes”.

Communication Setup

By connecting to the Internet, you can enjoy BD-LIVE functions, YouTube videos and text information using the RSS reader function, as well as update this player's software. This section describes the procedure for making network settings. You can connect to the Internet either by using a LAN cable or by connecting a USB Wireless LAN Adaptor to one of the USB ports.

NOTE

• Check that LAN cable or USB Wireless LAN Adaptor is properly connected (page 21).
• When USB Wireless LAN Adaptors are connected to both the USB ports on the player's front and rear panels, the USB Wireless LAN Adaptor last connected is used.
• Check the following information about the wireless LAN access point beforehand:
• Type of encryption and encryption key
• SSID (network name)
• For manually performing the setting, the following information of the connected router or modem is required. Confirm the information prior to the setting.
• IP address, netmask, gateway, DNS IP address
• If specified by the provider, check the IP address and proxy server settings beforehand.

1 2 3 4 5 6 7 8 9 CLEAR 0 ENTER SECONDARY VIDEO KEY LOGO DISPLAY TOP MENU POPUP MENU MENU ENTER HOME MENU RETURN

Selecting the connection method

1 Press HOME MENU to display the HOME MENU screen.
2 Press ↑/↓/←/→ to select "Settings", then press ENTER.
3 Press ↑/↓ to select "Communication Setup", then press ENTER.
4 Press ↑/↓ to select "Cable/Wireless Select", then press ENTER.
5 Press ↑/↓ to select the connection type, then press ENTER.
- Cable: Select this to connect to the network using a LAN cable.
- Wireless: Select this to connect to the network using a USB Wireless LAN Adaptor.

Changing the communications settings

1 Press HOME MENU to display the HOME MENU screen.
2 Press ↑/↓/←/→ to select "Settings", then press ENTER.
3 Press ↑/↓ to select "Communication Setup", then press ENTER.
4 Press ↑/↓ to select the connection method you want to set, then press ENTER.
- Ethernet Setup(Cable): Change the settings for connecting to the network using a LAN cable.
- Ethernet Setup(Wireless): Change the settings for connecting to the network using a USB Wireless LAN Adaptor.
5 Press ↑/↓ to select "Change", then press ENTER.

Current Ethernet setup info.

IP Address : Auto Setup

Netmask : Auto Setup

Gateway : Auto Setup

DNS : Auto Setup

Proxy : Not Use

Change

Initialize

• For initializing the current setting, select "Initialize", then press ENTER.
• When "Ethernet Setup(Cable)" was selected at step 4, proceed to step 10.

6 Press ↑/↓ to select the access point, then press ENTER.

7 Press ↑/↓ to set the type of encryption, then press ENTER.

• When "OPEN" is selected, proceed to step 9.
• When "WEP", "WPA" or "WPA2" is selected, input the encryption key. Select "security key", then press ENTER. For instructions on inputting characters, see page 50.

8 Press ←/→ to select "Next", then press ENTER.

9 Press ENTER to test the connection.

10 For setting the IP address, press ←/→ to select "Yes" or "No", then press ENTER.

• If selecting "Yes": The IP address is automatically obtained.
• If selecting "No": The IP address, netmask, gateway and primary and secondary DNS IP addresses are manually entered using the screen for inputting characters. (See page 50.)

11 Press ←/→ to select "Next", then press ENTER.
12 For setting the proxy server, press ←/→ to select "Yes" or "No", then press ENTER.

Do you use the proxy server? Yes No Address Port Next

• If selecting "Yes": The IP address or proxy server name and port number for the proxy server specified from your internet service provider are entered using the screen for inputting characters. (See page 50.)
• If selecting "No": Go to the next step.

13 Press ↑/↓ to select "Next", then press ENTER.

- If "Ethernet Setup(Wireless)" was selected at step 4, proceed to step 17.

14 For setting the Ethernet connections speeds, press ←/→ to select "Yes" or "No", then press ENTER.

• Normally select "No", then press ENTER. Proceed to step 17
• When the Ethernet connection speeds can be set, select "Yes" then press ENTER.

15 Press ↑/↓ to select the Ethernet connection speeds, then press ENTER.

- As automatic detection is made (factory preset mode), this setting is not normally necessary. If a situation occurs in which the Ethernet connection fails, etc., change the setting and confirm if the Ethernet connection successfully works. When the connection speed is set, select "Next", then press ENTER.

Option Ethernet Connection Speeds Auto-Detection 10M Half Duplex 100M Half Duplex 10M Full Duplex 100M Full Duplex Next

16 Press ↑/↓ to select "Next", then press ENTER.
17 For testing the connection to the internet, after confirming the settings, press / to select "Test", then press ENTER.

- "Test" is available only when setting to obtain the IP address automatically. "Test" cannot be selected if the IP address has not been obtained automatically.

Confirm the current setting. IP Address : xxx xxx xxx xxx Netmask : xxx xxx xxx xxx Gateway : xxx xxx xxx xxx DNS Address : xxx xxx xxx xxx MAC Address : xx:xx:xx:xx:xx:xx Test Complete

- As a result of the test, if the internet connection fails, enter the setup values manually.

18 Press ←/→ to select "Complete", then press ENTER.

The operation procedure for inputting characters manually

Numeric characters such as IP address can be entered on the input screen using the number buttons (0 to 9) or / and ENTER on the remote control.

IP Address 123 Netmask Gateway

1 Press ENTER at the boxes in which characters are to be entered, and the input screen will appear.

Numeric Edit 1 2 3 4 5 6 7 8 9 0 Selected by pressing ↑/↓ Selected by pressing ←/→

2 Press ↑/↓ to select the desired input mode.
3 Press the number buttons (0 to 9) or ←/→ to select a number/character, then press ENTER.

4 Repeat the step 3 to display all of the desired characters/numbers in the input field.

Example: The screen for inputting numeric characters

Numeric Edit 1 2 3 4 5 6 7 8 9 0

NOTE

• Press RETURN (Del.Char.) to delete a number/character you have input.
• To change a number/character you have input, press GREEN (Left) or BLUE (Right) to select the number/character you want to change, and press RETURN (Del.Char.). Then, press to select a new number/character you want to input, and press ENTER.

5 Press YELLOW (Complete) to fix the numbers which have been input.

IP Address 123 Netmask Gateway

6 Repeat step 1 to 5 to finish inputting all the required characters.

Input character list

Numeric		1 2 3 4 5 6 7 8 9 0
Edit	Cancel Left Right Complete Del.Char
	* The same operation as RED, GREEN, BLUE, YELLOW and ➔ RETURN can be performed by selecting each of the items and pressing ENTER. “Del.Char.” stands for deleting characters.

USB Memory Management

The following instructions explain how to delete data downloaded from BD-LIVE and recorded on the USB memory device.

DISC NAVIGATOR TOP MENU ENTER POPUP MENU MENU HOME MENU RETURN

Before using the USB memory device

CAUTION:

• Do not remove the USB memory device or unplug the AC cord while the operations for "USB Memory Management" or "Software Update" are being performed.
• Do not use a USB extension cable to connect a USB memory device to one of the player's USB ports. Using a USB extension cable may prevent the player from performing correctly.

NOTE:

• Operation of USB memory devices is not guaranteed.
- The player supports USB memory devices formatted in FAT32/16. When formatting a USB memory device on your computer, do so with the settings below.
File system: FAT32
Allocation unit size: Default allocation size

1 Connect the USB memory device.

• Connect the USB memory device to the USB port on the player's front or rear panel.
• If USB memory devices are connected to both the USB ports on the player's front and rear panels, the data is only deleted on the USB memory device that was connected first.

2 Press HOME MENU to display the HOME MENU screen.

3 Press ↑/↓/←/→ to select "Settings", then press ENTER.

4 Press ↑/↓ to select "USB Memory Management", then press ENTER.

- "No USB Memory" appears when no USB memory is inserted.

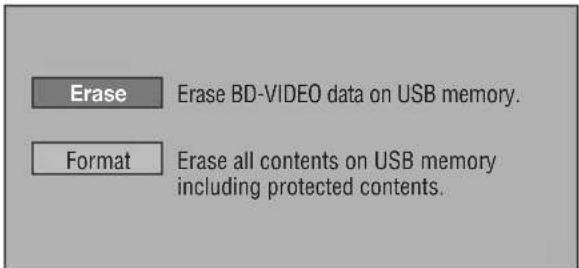

5 Press ↑/↓, select "Erase" or "Format", then press ENTER.

Erase: Deletes only BD-VIDEO data contents. Format: Deletes all contents.

- To delete only an update file after updating the software, do so on your computer.

Erase Erase BD-VIDEO data on USB memory. Format Erase all contents on USB memory including protected contents.

NOTE

- Data which has been saved to the player's internal memory (game score, etc.) will also be deleted.

6 Press ↑/↓, select "Yes", and press ENTER.

Yes No

- The deleting screen is displayed. Once deleting is completed, the screen below appears.

Complete OK

7 Press ENTER.

Software Update

The software can be updated in one of the ways described below.

• Updating automatically using the network
• Updating manually using the network
• Updating manually using a USB memory device. The settings below must be made in advance to update the software using the network.

Product information on this player is provided on the Pioneer website. Check this website for update and service information on your Blu-ray disc player.

http://www.pioneerblu-ray.com

NOTE

• Check that the LAN cable, USB Wireless LAN Adaptor or USB memory device is properly connected (page 21).
• Properly set the "Communication Setup" (page 48).
• Depending on the network connection conditions and other factors, some time may be required to download the update file.

CAUTION

• Do not disconnect the LAN cable, USB Wireless LAN Adaptor or USB memory device or unplug the power cord while the update file is being downloaded or the software is being updated.
• Do not perform other operations while the software is being updated. Also note that updating cannot be canceled once it is started.
• If you have turned off the front panel display, use FRONT LIGHT to turn it on. When updating the software with the front panel display turned off, do not unplug the power cord until the FL OFF indicator turns off.

STANDBY/ON OPEN/CLOSE TV CONTROL 1 2 3 4 5 6 7 8 9 CLEAR 0 ENTER SECONDARY VIDEO PICKER KEY LOOP DISPLAY POPUP MENU MENU TOP MENU ENTER HOME MENU RETURN

Updating automatically using the network

When the player's power is turned on, the player automatically connects to the network and updates the software when new software is available.

Setting

1 Press HOME MENU to display the HOME MENU.
2 Press ↑/↓/←/→ to select "Settings", then press ENTER.
3 Press ↑/↓ to select "Software Update", then press ENTER.
4 Press ↑/↓ to select "Auto Update Setting", then press ENTER.
5 Press ↑/↓ to select "Yes", then press ENTER.
- The player automatically connects to the network each time the power is turned on.

Updating

1 Press ⏻ STANDBY/ON to turn the power on.
- The player automatically connects to the network. "Accessing" flashes on the screen. When new software is detected, the player's current software version and the new software version are displayed.
- The automatic connection to the network is not performed if a disc is already loaded in the player.
- If the software has already been updated to the latest version, nothing is displayed on the screen.

2 Press ↑/↓ to select "Yes", then press ENTER.

- Software updating begins.

- Once software updating is completed, the updating completed screen appears.

- If software updating fails, an error message is displayed. Check that the LAN cable or USB Wireless LAN Adaptor is properly connected and check the communications settings, then update the software again.

3 Press ⏻ STANDBY/ON to turn the power off.

- The new software becomes effective the next time the power is turned on.

Updating manually using the network

Use this procedure to connect to the network manually to check whether new software is available.

1 Press HOME MENU to display the HOME MENU.
2 Press ↑/↓/←/→ to select "Settings", then press ENTER.
3 Press ↑/↓ to select "Software Update", then press ENTER.
4 Press ↑/↓ to select "Manual Update", then press ENTER.
5 Press ↑/↓ to select "Network", then press ENTER.

• “Accessing” flashes on the screen. If new software is detected, the player’s current software version and the new software version are displayed.
• If the software has already been updated to the latest version, the version is displayed.

6 Press ↑/↓ to select "Yes", then press ENTER.

• Software updating begins.
• Once software updating is completed, the updating completed screen appears.
• If software updating fails, an error message is displayed. Check that the LAN cable or USB Wireless LAN Adaptor is properly connected and check the communications settings, then update the software again.

7 Press ⏻ STANDBY/ON to turn the power off.

- The new software becomes effective the next time the power is turned on.

Updating manually using a USB memory device

Use this procedure to update the player's software from a USB memory device containing the update file connected to the USB port on the player's front or rear panel.

NOTE

• When an update file is provided on the Pioneer website, use your computer to download it onto a USB memory device. Carefully read the instructions on downloading update files provided on the Pioneer website.
• The player supports USB memory devices formatted in FAT32/16. When formatting a USB memory device on your computer, do so with the settings below. File system: FAT32
  Allocation unit size: Default allocation size
• Store the update file in the USB memory device's root directory. Do not store it within a folder.
• Do not put any files other than the update file on the USB memory device.
• Only store the most recent update file on the USB memory device.
• Do not use a USB extension cable to connect a USB memory device to the player. Using a USB extension cable may prevent the player from performing correctly.
• Remove any disc from the disc tray when updating the software.

1 Connect the USB memory device.

- Be sure to connect the USB memory device to the USB port on the player's front panel. If USB memory devices are connected to both the USB ports on the player's front and rear panels, disconnect the USB memory device on the front panel and connect it again.

2 Press HOME MENU to display the HOME MENU.
3 Press ↑/↓/←/→ to select "Settings", then press ENTER.
4 Press ↑/↓ to select "Software Update", then press ENTER.
5 Press ↑/↓ to select "Manual Update", then press ENTER.
6 Press ↑/↓ to select "USB Memory", then press ENTER.

- If no password is set, proceed to step 8.

7 Input the 4-digit password.

- Use the number buttons (0 to 9).

Enter 4-digit password

8 Press ENTER to check the data on the USB memory device.

Insert USB memory device containing the software update file.

OK

• The screen message is displayed while the USB memory device is being checked.
• The player's software version and the version of the update file stored on the USB memory device are displayed. To update the player's software, select "Start" then press ENTER.

Software update file is detected in the USB memory device. Start update?

Current Ver.: **1234567

Update Ver.: **2345678

Yes

No

- An error message is displayed if the USB memory device could not properly recognized or if no update file was found on the USB memory device. Check the file on the USB memory device, then reconnect the USB memory device properly.

Software update file is not detected in the USB memory device. Confirm that you have transferred the file to the USB memory device and retry software update. Confirm that you have inserted the USB memory device into the correct device.

OK

9 Press ENTER to update the software.

- The screen becomes dark for several seconds. Wait until the update screen appears. Do not unplug the power cord.

The picture will temporarily go dark until the software update display appears.

Wait several minutes and do not unplug the AC cord.

OK

↓

Now updating

* Do not unplug AC cord.

Update Version **2345678

10 Check on the screen that updating has been completed properly.
- If updating fails, check the file on the USB memory device, then start over from step 1.
11 Press ⏻ STANDBY/ON to turn the power off.
12 Disconnect the USB memory device.

Country/Area Code List

USA / CANADA / JAPAN / GERMANY / FRANCE / UK / ITALY / SPAIN / SWISS / SWEDEN / HOLLAND / NORWAY / DENMARK / FINLAND / BELGIUM / HONG KONG / SINGAPORE / THAILAND / MALAYSIA / INDONESIA / TAIWAN / PHILIPPINE / AUSTRALIA / RUSSIA / CHINA

Language List

English / Français / Deutsch / Italiano / Español / Japanese / Svenska / Nederlands

Language Code List

AA Afar / AB Abkhazian / AF Afrikaans / AM Ameharic / AR Arabic / AS Assamese / AY Aymara / AZ Azerbaijani / BA Bashkir / BE Byelorussian / BG Bulgarian / BH Bihari / BI Bislama / BN Bengali, Bangla / BO Tibetan / BR Breton / CA Catalan / CO Corsican / CS Czech / CY Welsh / DA Danish / DE German / DZ Bhutani / EL Greek / EN English / EO Esperanto / ES Spanish / ET Estonian / EU Basque / FA Persian / FI Finnish / FJ Fiji / FO Faroese / FR French / FY Frisian / GA Irish / GD Scots Gaelic / GL Galician / GN Guarani / GU Gujarati / HA Hausa / HI Hindi / HR Croatian / HU Hungarian / HY Armenian / IA Interlingua / IE Interlingue / IK Inupiak / IN Indonesian / IS Icelandic/ IT Italian / IW Hebrew / JA Japanese / JI Yiddish / JW Javanese / KA Georgian / KK Kazakh / KL Greenlandic / KM Cambodian / KN Kannada / KO Korean / KS Kashmiri / KU Kurdish / KY Kirghiz / LA Latin / LN Lingala / LO Laothian / LT Lithuanian / LV Latvian, Lettish / MG Malagasy / MI Maori / MK Macedonian / ML Malayalam / MN Mongolian / MO Moldavian / MR Marathi / MS Malay / MT Maltese / MY Burmese / NA Nauru / NE Nepali / NL Dutch / NO Norwegian / OC Occitan / OM Afan (Oromo) / OR Oriya / PA Panjabi / PL Polish / PS Pashto, Pushto / PT Portuguese/ QU Quechua / RM Rhaeto-Romance / RN Kirundi / RO Romanian / RU Russian / RW Kinyarwanda / SA Sanskrit / SD Sindhi / SG Sangho / SH Serbo-Croatian / SI Singhalese / SK Slovak / SL Slovenian / SM Samoan / SN Shona / SO Somali / SQ Albanian / SR Serbian / SS Siswat / ST Sesotho / SU Sundanese / SV Swedish / SW Swahili / TA Tamil / TE Telugu / TG Tajik / TH Thai / TI Tigrinya / TK Turkmen / TL Tagalog / TN Setswana / TO Tonga / TR Turkish / TS Tsonga / TT Tatar / TW Twi / UK Ukrainian / UR Urdu / UZ Uzbek / VI Vietnamese / VO Volapük / WO Wolof / XH Xhosa / YO Yoruba / ZH Chinese / ZU Zulu

About Output of Next Generation Audio Formats

Next generation audio formats	Maximum number of channels	HDMI DIGITAL OUT
		PCM Bitstream PCM Bitstream
Dolby TrueHD 7.1ch (48 kHz/96 kHz)	Hz) 7.1ch *	1	7.1ch *2/*3	2ch *4	5.1ch *1/*5
	5.1ch (192 kHz) 5.1ch *	1	5.1ch *2/*3	2ch *4	5.1ch *1/*5
Dolby Digital PLUS 7.1ch (48 kHz)	7.1ch *	1	7.1ch *2	2ch *4	5.1ch *1/*5
DTS-HD Master Audio 7.1ch (48 kHz)	Hz/96 kHz) 7.1ch *	1	7.1ch *2/*3	2ch *4	5.1ch *1/*5
	5.1ch (192 kHz) 5.1ch *	1/*6	5.1ch *2/*3	2ch *4	5.1ch *1/*5
DTS-HD High Resolution Audio 7.1ch (48 kHz/96 kHz)	7.1ch *	1	7.1ch *2	2ch *4	5.1ch *1/*5
LPCM 7.1ch (48 kHz/96 kHz)	7.1ch *	1	-2ch *	4	-
	5.1ch (192 kHz) 5.1ch *	1	-2ch *	4	-

*1 When "Secondary Audio" is set to "On", the audio is output as 48 kHz.

*2 When "Secondary Audio" is set to "On", the audio is output as LPCM.

*3 When "Video Output" is set to "Component" and "Component Output Setting" is set to "480i", only core stream is output.

*4 Down mixed

*5 Core stream only

*6 When 5.1ch (192 kHz), the audio output is downsampled to 96 kHz.

When 2ch, the audio is output as 192 kHz.

Troubleshooting

The following problems do not always suggest a defect or malfunction of this Player. Refer to the problems and lists of possible solutions below before calling for service.

Power

Problem Possible causes and solutions
The Player power cannot be turned on.	Plug the power cord securely into the power outlet. (Page 22)When the power cord is plugged into an AC outlet, press and hold Ⓧ STANDBY/ON on the Player. Then, turn on the power again.
The Player power is turned on automatically.	When “Settings” – “Control” is set to “Yes” on the player, the player’s power may turn on when the connected TV is operated. (Page 46)
The Player power is turned off automatically.	Is “Auto Power Off” set to “Yes”? When “Auto Power Off” is set to “Yes”, the power will be automatically turned off after 10 continuous minutes of inactivity (no playback). (Page 46)When “Settings” – “Control” is set to “Yes” on the player, the player’s power may turn off when the power of the connected TV is turned off. (Page 46)

Basic Operation

Problem Possible causes and solutions

The remote control does not work. Operate the remote control from within a distance of 23 ft from the remote control sensor. (Page 22)Replace the batteries. (Page 22)

Cannot operate the Player. Are you operating the Player within the specified operating temperature range?(Page 62)

Disc Playback

Problem Possible causes and solutions
The Player cannot play a disc. Take out	the disc and clean it. (Page 10)Make sure that the disc is loaded properly (aligned in disc tray and label-side up).(Page 28)Make sure that region code on the disc matches that of this Player. (Page 7)Allow any condensation in or near the Player to dry. (Page 10)The Player cannot play back video which was not recorded normally.Proper playback may be impossible due to the state of the disc recording, a scratched, warped or dirty disc, the state of the pick-up, or compatibility issues between this Player and the disc being used.When the recorded time of a disc is unusually short, playback may not be possible.BD-RE/-R discs recorded in a format other than BDMV/BDAV cannot be played back.
The disc is automatically ejected after closing the disc tray.	Make sure that the disc is loaded properly (aligned in disc tray and label-side up).(Page 28)Take out the disc and clean it. (Page 10)Make sure that region code on the disc matches that of this Player. (Page 7)Make sure that the disc is playable. (Page 7)
Video stops. Has the Player been subjected to shock or impact? Are you using it in an unstable location? The Player will stop if it senses shock or vibration.
The Player makes a snapping sound when starting playback or loading a disc.	The player may sometimes make a snapping sound when starting playback if it has not been operated in a while. These sounds are not malfunctions of the player but are normal operating conditions.


Problem Possible causes and solutions
No picture. Make sure that the cables	are connected correctly. (Pages 17 to 19)Make sure that the connected TV or the AV receiver is set to the correct input.(Pages 17 to 19)Take out the disc and clean it. (Page 10)Make sure that region code on the disc matches that of this Player. (Page 7)There is no picture from the HDMI output.- Are the settings performed correctly? Please check the settings. (Page 45)There is no picture from the component video output.- Are the settings performed correctly? Please check the settings. (Page 45)
Screen freezes and operation buttons do not work.	Press ■ STOP, then restart playback.Turn off the power and turn on the power again.If the power cannot be turned off, press and hold ⏻ STANDBY/ON on the player's front panel for at least 5 seconds to turn the power off.Is the disc damaged or dirty? Check the condition of the disc.
There is just audio with no video. Is the connection cable for video output connected properly? (Pages 17 to 19)
Picture is stretched.Picture is cut.Aspect ratio cannot be switched.	Refer to the TV's operating instructions and set the TV's aspect ratio properly.Is "TV Aspect Ratio" set to match the connected TV? Set "TV Aspect Ratio" properly. (Page 45)
Square noise (mosaic) appears on the screen.	Blocks in images may be visible in scenes with rapid movement due to the characteristics of digital image compression technology.
Picture is disturbed during playback.Picture is dark.	This player complies with analog copy protection technology of the Rovi Corporation. Depending on the TV (TV with built-in video deck, etc.), the picture may not display properly when copy-protected discs are played. This is not a malfunction.When this player and the TV are connected via a DVD recorder, video deck, etc., the analog copy protection may prevent the picture from being displayed properly. Connect the player and TV directly. (Pages 18 to 19)
Audio is not output, or images are not played back properly.	The audio may not be output or the images may not be played back properly for some discs in which copyright-protected contents are recorded.

Sound

Problem Possible causes and solutions
No sound, or sound is distorted. If the	volume of the TV or amplifier is set to minimum, turn the volume up.There is no sound during still mode, slow motion playback, fast forward and fast reverse. (Page 39)DVD audio recorded in DTS is only output from the DIGITAL OUT OPTICAL terminal. Connect a DTS compatible digital amplifier or decoder to the DIGITAL OUT OPTICAL terminal on this Player. (Page 20)Check that the audio cable is connected correctly. (Page 20)Check that the cable plugs are clean.Take out the disc and clean it. (Page 10)Audio may not be output depending on the audio recording status, such as when audio other than an audio signal or non-standard audio is recorded for the audio content of the disc.
Left and right channels of audio are reversed, or sound comes out of only one side.	Are left and right audio cables connected to the opposite terminal, or is one side disconnected? (Page 20)
Audio is not output, or images are not played back properly.	The audio may not be output or the images may not be played back properly for some discs in which copyright-protected contents are recorded.

Network

Problem Possible causes and solutions
Cannot connect to the Internet. Connect	the LAN cable securely, pressing it all the way in. (Page 21)Do not connect with a modular cable. Use a LAN cable with the LAN (10/100) terminal.Is the power for the connected equipment, such as broadband router or modem turned on?Is the broadband router and/or modem properly connected?Is the proper value(s) set in the network setting? Check “Communication Setup”. (Pages 48 to 50)
Cannot download BD-LIVE contents.	is the LAN cable connected properly? (Page 21)Is the USB memory device properly connected? Check that the USB memory device is connected to the USB port of this Player. (Page 21)Check if the BD disc supports BD-LIVE.Check the setting for “BD Internet Access”. (Page 47)

Control function with HDMI

Problem Possible causes and solutions
Control function with HDMI does not work.	Connect the HDMI cable properly. (Page 17)Use High Speed HDMI^® Cables when using the control function with HDMI. The control function with HDMI may not operate properly if other HDMI cables are used.Set “Settings” – “Control” on the player to “Yes”. (Page 46)The control function with HDMI does not work with devices of other brands, even if connected using an HDMI cable.The control function with HDMI will not work if devices that do not support the control function with HDMI or devices of other brands are connected between the control function with HDMI-compatible device and the player.It may also not work with certain Flat Panel TVs.Set control function with HDMI to On on the connected device.The control function with HDMI works when control function with HDMI is set to On for all devices connected by HDMI cable. Once connections and the settings of all the devices are finished, be sure to check that the player’s picture is output to the Flat Panel TV. (Also check after changing the connected devices and reconnecting HDMI cables.) The control function with HDMI may not operate properly if the player’s picture is not properly output to the Flat Panel TV.The control function with HDMI may not work if three or more players, including this player, are connected.Also refer to the operating instructions of the connected device.
HDMI indicator does not light. Connect to a control function with HDMI-compatible Pioneer Flat Panel TV using an HDMI cable.Set control function with HDMI to On on the Flat Panel TV.Set “Settings” – “Control” on the player to “Yes”. (Page 46)Check that the player’s picture is being output to the Flat Panel TV.

Other

Problem Possible causes and solutions
The TV operates incorrectly. Some TVs with wireless remote control capability may operate incorrectly when using the remote control of this Player. Use such TVs away from this Player.
The Player heats up during use. When using this Player, the console cabinet may heat up depending on the usage environment. This is not a malfunction.
Input of connected TV and AV system switches automatically.	When “Settings” – “Control” is set to “Yes” on the player, the input on the connected TV or AV system (AV receiver or amplifier, etc.) may switch automatically. (Page 46)
Software cannot be updated. Remove any disc from the disc tray when updating the software.
The front panel display shows “HOLD”, and operations are disabled.	KEY LOCK is in effect. (Page 15) Depress the remote control unit’s KEY LOCK for five seconds or more to cancel the KEY LOCK function.

To Reset this Player

- If the player displays the following symptoms, press and hold in Ⓧ STANDBY/ON on the player's front panel to reset the player.

• Operation buttons do not work
• Noise is output
  – Power does not turn off

When "RESET" appears on the front panel display, the player is reset and the power turns off. Turn the player's power back on.

• When the power is turned on, it may take several minutes for system checking to be completed.
• Since all settings including the language setting stored in memory are also reset when a reset has been performed, they must be set again.
• When the problem persists even after performing a reset, unplug the AC cord and plug it in again. If this does not solve the problem, contact the nearest service center approved by Pioneer.

Messages Relating to BD disc and DVD disc

The following messages appear on the TV screen in case the disc you tried to playback is not appropriate or the operation is not correct.

Error message Possible Error Suggested Solution
Cannot play. The disc cannot be played	be checked the disc, and load it correctly.• this Player.
Incompatible disc. A disc that cannot be	played is loadedin the player.• The disc is scratched or dirty.• The disc is loaded with the printed side facing down (the disc tray opens automatically).
	• Recovers if the loaded disc cannot be played because it is a non-standard disc or scratched, etc.
Cannot operate. Occurs if an operation is incorrect.		——
This USB memory is not formatted properly. Please format the memory in USB memory management.	Occurs if there is a formatting error.• Format the USB memory again.
The Connected USB Memory cannot be used. It should be compliant with USB 2.0.	• Connect if USB 2.0 High Speed (480 Mbit/s) with USB 2.0 High Speed (480 Mbit/s) is used (i.e. USB 1.0/USB 1.1).	• Mbit/s) compliant USB memory.

AVCHD (Advanced Video Codec High Definition)

The AVCHD is a high definition (HD) digital video camera recorder format recording high-definition onto certain media by using highly efficient codec technologies.

BDAV (Page 7)

BDAV (Blu-ray Disc Audio/Visual, BD-AV) refers to one of the application formats used for writable Blu-ray discs such as BD-R, BD-RE, etc. BDAV is a recording format equivalent to DVD-VR (VR mode) of the DVD specifications.

BD-J application

The BD-ROM format supports Java for interactive functions. "BD-J" offers content providers almost unlimited functionality when creating interactive BD-ROM titles.

BD-LIVE (page 30)

A variety of interactive content is available from BD-LIVE compatible Blu-ray discs via the internet.

BDMV (page 7)

BDMV (Blu-ray Disc Movie, BD-MV) refers to one of the application formats used for BD-ROM which is one of the Blu-ray Disc specifications. BDMV is a recording format equivalent to DVD-video of the DVD specification.

BD-R (page 7)

A BD-R (Blu-ray Disc Recordable) is a recordable, write-once Blu-ray Disc. Since contents can be recorded and cannot be overwritten, a BD-R can be used to archive data or for storing and distributing video material.

BD-RE (page 7)

A BD-RE (Blu-ray Disc Rewritable) is a recordable and rewritable Blu-ray Disc.

BD-ROM

BD-ROMs (Blu-ray Disc Read-Only Memory) are commercially produced discs. Other than conventional movie and video contents, these discs have enhanced features such as interactive content, menu operations using pop-up menus, selection of subtitle display, and slide shows. Although a BD-ROM may contain any form of data, most BD-ROM discs will contain movies in High Definition format for playback on Blu-ray Disc players.

Blu-ray Disc (BD) (page 7)

A disc format developed for recording/playing high-definition (HD) video (for HDTV, etc.), and for storing large amounts of data. A single layer Blu-ray Disc holds up to 25 GB, and a dual-layer Blu-ray Disc holds up to 50 GB of data.

Chapter number (pages 42, 43)

Sections of a movie or a music feature that are smaller than titles. A title is composed of several chapters. Some discs may only be comprised of a single chapter.

Copy guard

This function prevents copying. You cannot copy discs marked by the copyright holder with a signal which prevents copying.

Disc menu (page 29)

This lets you select things like the subtitle language or audio format using a menu stored on the DVD video disc.

Dolby Digital

A sound system developed by Dolby Laboratories Inc. that gives movie theater ambience to audio output when the product is connected to a Dolby Digital processor or amplifier.

Dolby Digital Plus

A sound system developed as an extension to Dolby Digital. This audio coding technology supports 7.1 multi-channel surround sound.

Dolby TrueHD

Dolby TrueHD is a lossless coding technology that supports up to 8 channels of multi-channel surround sound for the next generation optical discs. The reproduced sound is true to the original source bit-for-bit.

DTS

This is a digital sound system developed by DTS, Inc. for use in cinemas.

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is a new technology developed for the next generation high definition optical disc format.

DTS-HD Master Audio

DTS-HD Master Audio is a lossless audio compression technology developed for the next generation high definition optical disc format.

DTS-HD Master Audio | Essential

DTS-HD Master Audio | Essential is a lossless audio compression technology developed for the next generation high definition optical disc format.

DVD upscaling (page 28)

Upscaling (upconverting) refers to a function of various players and devices that enlarge the image size to fit the size of the screen of video equipments such as a TV.

DVD video (page 7)

A disc format that contains up to eight hours of moving pictures on a disc the same diameter as a CD. A single-layer single sided DVD holds up to 4.7 GB; a double layer single-sided DVD, 8.5 GB; a single layer double-sided DVD, 9.4 GB; double-layer double-sided DVD, 17 GB. The MPEG 2 format was adopted for efficient video data compression. It is a variable rate technology that encodes the data to according to the status of the video for reproducing high-quality images. Audio information is recorded in a multi-channel format such as Dolby Digital, allowing for a realistic audio presence.

DVD-R/+R (page 7)

A DVD+/-R is a recordable, write-once DVD. Since contents can be recorded and cannot be overwritten, a DVD+/-R can be used to archive data or for storing and distributing video material. The DVD+/-R has two different formats: VR format and Video format. DVDs created in Video format have the same format as a DVD video, while discs created in VR (Video Recording) format allow the contents to be programmed or edited.

DVD-RW/+RW (page 7)

A DVD+/-RW is a recordable and rewritable DVD. The re-recordable feature makes editing possible. The DVD+/-RW has two different formats: VR format and Video format. DVDs created in Video format have the same format as a DVD video, while discs created in VR (Video Recording) format allow the contents to be programmed or edited.

HDMI (page 17)

HDMI (High-Definition Multimedia Interface) is an interface that supports both video and audio on a single digital connection. The HDMI connection carries standard to high definition video signals and multi-channel audio signals to AV components such as HDMI equipped TVs, in digital form without degradation.

Interlace format

Interlace format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even numbered field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.

JPEG (pages 11, 35)

JPEG (Joint Photographic Experts Group) is a still image data compression format and is used in most of digital cameras.

Letter Box (LB 4:3) (page 45)

A screen size with black bars on the top and bottom of the image to allow viewing of wide-screen (16:9) material on a connected 4:3 TV.

Linear PCM Sound

Linear PCM is a signal recording format used for Audio CDs and on some DVD and Blu-ray discs. The sound on Audio CDs is recorded at 44.1 kHz with 16 bits. (Sound is recorded between 48 kHz with 16 bits and 96 kHz with 24 bits on DVD video discs and between 48 kHz with 16 bits and 192 kHz with 24 bits on BD video discs.)

MPEG-2

MPEG-2 (Moving Picture Experts Group phase 2) is one of the video data compression schemes, which is adopted for DVD videos and digital broadcasts worldwide. Some Blu-ray Discs also use high bitrate MPEG-2.

Multi Angle (pages 41, 42, 43)

This is a feature of DVD and BD video discs. In some discs, the same scene is shot from different angles, and these are stored in a single disc so you can enjoy playback from each angle. (This function can be enjoyed if the disc is recorded with multiple angles.)

Multi Audio

This is a feature of DVD and BD video discs. This function makes it possible to record different audio tracks for the same video, so you can enhance your enjoyment by switching the audio. (You can enjoy this function with discs recorded with multiple audio tracks.)

Pan Scan (PS 4:3) (page 45)

A screen size that cuts off the sides of the image to allow viewing of wide-screen (16:9) material on a connected 4:3 TV.

Parental control

In some digital broadcasts and BD/DVD video discs, a control level for disc viewing is set depending on the age of the viewer. With this Player, you can set the control level for viewing such broadcasts and discs.

Pop-up menu (page 29)

An enhanced menu operation available on BD video discs. The pop-up menu appears when POPUP MENU/MENU is pressed during playback, and can be operated while playback is in progress.

Progressive format

Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper.

Region code

Code identifying a geographic region of compatibility for a BD/DVD.

Resume playback (page 28)

If you stop playback while it is in progress, the Player stores the stop position in memory, and this function lets you playback from that point.

Skip (page 39)

This returns to the start of the chapter (or track) being played, or skips to the next chapter (or track).

Subtitles (pages 41, 42, 43)

These are the lines of text appearing at the bottom of the screen which translate or transcribe the dialog. They are recorded on many DVD and BD video discs.

Time number

This indicates the play time which has elapsed from the start of a disc or a title. It can be used to find a specific scene quickly. (It may not work with some discs.)

Title number

These numbers are recorded on DVD and Blu-ray discs. When a disc contains two or more movies, these movies are numbered as title 1, title 2, etc.

Top menu (page 29)

In a BD/DVD video, this is the menu for selecting things like the chapter to be played back and the subtitle language. In some DVD videos, the top menu may be called the "Title Menu".

Track number (pages 42, 43)

These numbers are assigned to the tracks which are recorded on audio CDs. They enable specific tracks to be located quickly.

x.v.Color

x.v.Color reproduces a greater range of color than before, showing almost all of the colors that the human eye can detect. (Applicable for JPEG files only with this system)

General

Power requirements AC 120 V, 60 Hz
Power consumption (Normal) 23 W
Power consumption (Standby) 0.5 W (When “Quick Start” is set to “No”)
Dimensions	BDP-33FD: Approx. 16^3/_16 × 2^14/_16 × 9 inch ( W × H × D )Approx. 420 mm × 72.5 mm × 228 mm ( W × H × D )BDP-31FD: Approx. 16^3/_16 × 2^11/_16 × 9 inch ( W × H × D )Approx. 420 mm × 68 mm × 228 mm ( W × H × D )
Weight BDP-33FD: Approx. 7 lb 5 oz (3.3 kg)BDP-31FD: Approx. 5 lb 9 oz (2.5 kg)
Operating temperature 41 °F to 95 °F (5 °C to 35 °C)
Storage temperature -4 °F to 131 °F (-20 °C to 55 °C)
Operating humidity 10 % to 80 % (no condensation)
TV systems NTSC system

Playback

Playable discs BD-ROM, BD-RE Dual Layer, BD-R Dual Layer,DVD Video, DVD-RW/-R/+RW/+R Dual Layer (Video/VR/AVCHD format),Audio CD (CD-DA), CD-RW/-R (CD-DA, MP3, JPEG file format)

Input/Output

HDMI OUT HDMI 19-pin standard connector (5 V, 250 mA)
COMPONENT VIDEO OUTPUT Output level:Y: 1 Vp-p (75 ohms)PB, PR: 0.7 Vp-p (75 ohms)Jacks: RCA jack
VIDEO OUTPUT	Output level: 1 Vp-p (75 ohms)Jack: RCA jack
DIGITAL OUT OPTICAL	Terminal: Square Optical terminal
AUDIO OUTPUT	Output level: 2 V rms (Output impedance: 1 k ohms)Jacks: RCA jack
USB	Two sets (1 front, 1 rear), USB 2.0 High Speed (480 Mbit/s) correspondence
LAN (10/100)	10BASE-T/100BASE-TX

The specifications and design of this product are subject to change without notice.

OSS Licenses

The licenses for the open source software used on this player can be found at the end of this document.

Disclaimer for Third Party Content

ACCESS TO THIRD PARTY CONTENT SERVICES, INCLUDING ALL ASSOCIATED FEATURES AND FUNCTIONALITIES, IS PROVIDED "AS IS," "AS AVAILABLE" AND AT THE USER'S OWN RISK, WITHOUT WARRANTY OF ANY KIND. PIONEER DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, IN CONNECTION WITH ACCESS TO AND USE OF CONTENT SERVICES THROUGH THIS DEVICE, INCLUDING WITHOUT LIMITATION WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT. PIONEER DOES NOT GUARANTEE, REPRESENT, OR WARRANT THAT CONTENT SERVICES WILL BE FREE FROM ERRORS, INTERRUPTION, LOSS, CORRUPTION, ATTACK, VIRUSES, INTERFERENCE, HACKING, OR OTHER SECURITY INTRUSION, AND PIONEER DISCLAIMS ANY LIABILITY IN CONNECTION WITH THE FOREGOING. PIONEER IS NOT LIABLE OR RESPONSIBLE FOR ANY LOSS OR DAMAGE ARISING FROM ACCESS TO OR USE OF CONTENT. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY PIONEER OR ITS CUSTOMER SERVICES REPRESENTATIVES WILL CREATE ANY SUCH WARRANTY.

IN NO EVENT WILL PIONEER, ITS AFFILIATES, OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES BE LIABLE IN CONNECTION WITH YOUR USE OF THIRD PARTY CONTENT SERVICES THROUGH THIS DEVICE FOR PERSONAL INJURY OR SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, INCLUDING WITHOUT LIMITATION DAMAGES FOR ATTORNEY'S FEES, LOST DATA OR LOST PROFITS, REGARDLESS OF THE THEORY OF LIABILITY AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL PIONEER'S TOTAL LIABILITY TO YOU FOR ALL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIRD PARTY CONTENT SERVICES (OTHER THAN AS MAY BE REQUIRED BY LAW IN CASES INVOLVING PERSONAL INJURY) EXCEED \$10.00. THE FOREGOING LIMITATIONS WILL APPLY EVEN IF THE ABOVE REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IF ANY APPLICABLE AUTHORITY HOLDS ANY PORTION OF THIS SECTION TO BE UNENFORCEABLE, THEN LIABILITY WILL BE LIMITED TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.

Published by Pioneer Corporation.

Copyright © 2010 Pioneer Corporation.

All rights reserved.

CHER CLIENT Pioneer 4

CONSIGNES DE SÉCURITÉ IMPORTANTES .....4-5

Informations importantes 6

Front Panel Display/LED 47

Version 47

System Reset 48

Communication Setup 48

1 2 ② 1. English 2. Chinese DOLBY. DIGITAL ② 1. English 2. Chinese 3 16:9 LB 2 1 2 3 4 5 6

Diagram showing a CD and a monitor with crossed-out lines, no text or symbols present

Mechanical assembly diagram showing a component with pins and a magnified inset view (no text or symbols)

ATTENTION

Front view of a silver electronic device labeled 'ELITE' with control knobs and a antenna (no readable text beyond branding)

PIONEER 00, 31, 32, 07, 36, 42, 51

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07, 39, 41, 44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07, 36

BASIC LINE 41, 44

BAUR 31, 07, 42

BEKO 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07, 44, 56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07, 44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

EMERSON 42

ERRES 07

FERGUSON 07, 36, 51

FINLANDIA 35, 43, 54

FINLUX 32, 07, 45, 48, 53, 54

FIRSTLINE 40, 44

FISHER 32, 35, 38, 45

FORMENTI 32, 07, 42

FRONTECH 31, 42, 46

FRONTECH/PROTECH 32

FUJITSU 48

FUNAI 40, 46, 58

GBC 32,42

GE 00, 01, 08, 07, 10, 11, 17, 02, 28, 18

GEC 07, 34, 48

GELOSO 32, 44

GENERAL 29

GENEXXA 31, 41

GOLDSTAR 10, 23, 21, 02, 07, 50

GOODMANS 07, 39, 47, 48, 56

GORENJE 38

GPM 41

GRAETZ 31, 42

GRANADA 07, 35, 42, 43, 48

GRADIENTE 30, 57

GRANDIN 18

GRUNDIG 31, 53

HANSEATIC 07, 42

HCM 18,44

HINARI 07, 41, 44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU 56

HYPSON 07, 18, 46

ICE 46, 47

IMPERIAL 38, 42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH 07, 41, 42, 44, 47, 56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

MARK 07

MATSUI 07, 39, 40, 42, 44, 47, 48

MCMICHAEL 34

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31, 53

MITSUBISHI 09, 10, 02, 21, 31

MULTITECH 44, 49

NEC 59

NECKERMANN 31, 07

NEI 07, 42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32, 42, 52

NORDMENDE 32, 36, 51, 52

OCEANIC 31, 32, 42

ORION 32, 07, 39, 40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31, 07, 08, 42, 22

PATHO CINEMA 42

PAUSA 44

PHILCO 32, 42

PHILIPS 31, 07, 34, 56, 68

PHOENIX 32

PHONOLA 07

PROFEX 42, 44

PROTECH 07, 42, 44, 46, 49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10, 23, 21, 02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32, 42

REX 31,46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 5

SAISHO 39, 44, 46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07, 38, 44, 46, 69, 70

SANYO 35, 45, 48, 21, 14, 91

SBR 07,34

SCHAUB LORENZ 42

SHARP 02, 19, 27, 67, 90

SIAREM 32, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18, 41, 44

KAPSCH 31

KENDO 42

KENNEDY 32, 42

KORPEL 07

KOYODA 44

LEYCO 07, 40, 46, 48

LIESENK&TTER 07

LOEWE 07

LUXOR 32, 42, 43

M-ELECTRONIC 31, 44, 45, 54, 56, 07, 36, 51

MAGNADYNE 32, 49

MAGNAFON 49

MAGNAVOX 07, 10, 03, 12, 29

MANESTH 39, 46

MARANTZ 07

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31, 35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31, 41, 48

TASHIKO 34

TATUNG 07, 48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36, 51, 52, 63

THORN 31, 07, 42, 45, 48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32, 42, 49

UNIDEN 92

UNIVERSUM 31, 07, 38, 42, 45, 46, 54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32, 42, 49

WHITE WESTINGHOUSE 07

YOKO 07, 42, 46

ZENITH 03, 20

Audio Video Settings

Quick Start

Auto Power Off

Control

Playback Setting

Communication Setup

Front Panel Display/LED

Version

USB Memory Management

Software Update

System Reset

STANDBY/ON OPEN/CLOSE TV CONTROL

STANDBY/ON ▲ OPEN/CLOSE Power Elite

Illustration of a hand inserting a CD into a computer drive (no text or symbols visible)

Pop-up menu Previous page Next page

Program 1 5/21 Thu 9:30 AM 110 Min. Program 1 Program 2 Program 3 Program 4 Program 5 Program 6 A Title Name B By Chapter Playlist Functions

Nom du Titre

Program 1 5/21 Thu 9:30 AM 110 Min. 1 Program1 5/2 Thu 110 Min. 2 Program2 6/15 Mon 110 Min. 3 Program3 7/3 Fri 56 Min. 4 Program4 9/18 Fri 40 Min. A E T o m b n a i l Sorting P l y s t F u n c t i o n

CHAPTER Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 Chapter 6

Program 1 5/21 Thu 9:30 AM 110 Min. 1 Program1 5/2 Thu 110 Min. 2 Program2 6/15 Mon 110 Min. Original F Ditions

Playback	Playback this title.
	From Beginning
	From Continued

8/15 P 1/77

Slide Show Speed Repeat Mode Setting Normal

Slide Show Speed Repeat Mode Setting Yes No

Netflix Netflix delivers movie rentals two ways! One new price - The later year? Unfunded DVDs by next + Unfunded streaming of movies instantly to your TV you pay 305 Are you a Netflix member? you have already been done you - allocate movies streaming from next radio - on mail: 10

Netflix Netflix delivers movie rentals two ways! One time pick: My Info Deal! Unlimited ONTS. by mail PLUS! Unlimited streaming instantly to your TV From your computer, start your FREE trial: www.netflix.com/Pioneer

NETFLIX Netflix delivers movie rentals two ways! Show new prices. No little hand? Unselected DINs by next + Unselected streaming of movies instantly by your TV you have you been Are you a Netflix member? my, about my P3500 must, see web - download content of movies from P3500 buy, add.

NETFLIX Unlimited streaming instantly from Netflix! By your TV can your WiFi video • Movies which are about 20 minutes • Investments from entertainment [1] movie of this To instantly watch movies from Netflix: From your computer, instantly instant streaming. Guru: netflx.com/schrote Enter time under 10 seconds 20 seconds off 2013 - 10

Activate Your Netflix Ready Device • Follow the update from your device to get an activation card. • Your computer and drive a most built-in connection to the Internet to activate Power cards Copyright © 2017 Microsoft Windows Microsoft Windows 2017 (www.mstgms.com) Microsoft Office 100% (http://www.mstgms.com) Microsoft Windows 2017 (http://www.mstgms.com) Microsoft Windows 2017 (http://www.mstgms.com)

NEFFLI instant queue 1:09 popoibe in Wonderland in 36m

2 Days in Paris resume playing play from beginning remove from instant Queue Julie Delpy Adam Goldberg Daniel Brühl On their way home from an ill-fated Venice vacation, Marion and Jack shop in Paris to visit Markon's parents. But their seajoum in the City of Lights Turns out to be just as dieselous as their "romants" trip to Italy. 1h 48m 2007 $ 60 director Julie Delpy Indie Comedies • Foreign Comedies

2 Days in Paris retrieving

Playback Title Playback Chapter Scene Selection Set Start Point

DVD-RW DVD-R BD-RBD-RE

Audio Video Settings

Quick Start

Auto Power Off

Control

Playback Setting

Communication Setup

Front Panel Display/LED

Version

USB Memory Management

Software Update

System Reset

Dynamic Range Control

Front Panel Display/LED

Current Ethernet setup info.

IP Address : Auto Setup

Netmask : Auto Setup

Gateway : Auto Setup

DNS : Auto Setup

Proxy : Not Use

Change

Initialize

Do you use the proxy server? Yes No Address Port Next

Option Ethernet Connection Speeds Auto-Detection 10M Half Duplex 100M Half Duplex 10M Full Duplex 100M Full Duplex Next

IP Address 123 Netmask Gateway

IP Address 123 Netmask Gateway

Erase Erase BD-VIDEO data on USB memory. Format Erase all contents on USB memory including protected contents.

REMARQUE

Complete OK

Insert USB memory device containing the software update file.

OK

Software update file is detected in the USB memory device. Start update?

Current Ver.: **1234567

Update Ver.: **2345678

Yes

No

Software update file is not detected in the USB memory device. Confirm that you have transferred the file to the USB memory device and retry software update. Confirm that you have inserted the USB memory device into the correct device.

OK

The picture will temporarily go dark until the software update display appears.

Wait several minutes and do not unplug the AC cord.

OK

↓

Now updating

* Do not unplug AC cord.

Update Version **2345678

Copyright © 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Copyright © 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

linux kernel 2.6. Copyright (C) 1991 Linus Torvalds. – Licensed under GPLv2.

bash-3.0. Copyright (C) 2005 Free Software – Foundation, Inc. Licensed under GPLv2.

libsysfs-2.1.0. Copyright (C) IBM Corp. 2003. - Licensed under GPLv2.

ncurses-5.2. Copyright 1996-2009,2010 by Thomas – E. Dickey. Licensed under GPLv2.

agg-2.5. Copyright (C) 2002-2006 Maxim – Shemanarev. Licensed under GPLv2.

BusyBox v1.00.0 multi-call binary. Copyright (C) - 1998-2009 Erik Andersen, Rob Landley, Denys

Vlasenko and others. Licensed under GPLv2.

uClibc-0.9.27. Copyright (c) 1999-2008 by Erik – Andersen. Licensed under LGPLv2.0.

fltk-1.1.9. Copyright (C) 1998-2008 by Bill Spitzak. - Licensed under LGPLv2.0.

Qt/Embedded-4.5.2. Copyright (C) 2009 Nokia – Corporation and/or its subsidiary(-ies). Licensed under LGPLv2.1.

DirectFB-0.9.25. (c) Copyright 2000-2002 – convergence integrated media GmbH. (c) Copyright 2002 convergence GmbH. Licensed under LGPLv2.1.

eairo-1.8.6. Copyright c 2006 Red Hat, Inc. Licensed under LGPLv2.1.

libiconv-1.12. Copyright (C) 1999-2003 Free

Software Foundation, Inc. Licensed under LGPLv2.1.

libusb-0.1.12. Copyright (c) 2000-2003 Johannes Erdfelt. Copyright (c) 2003 Brad Hards. Licensed under LGPLv2.1.

The licenses for the open source software used on this player are shown below. For accuracy purposes, here we have included the original texts (in English).

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit.

See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact [e-mail].

OpenSSL License

Copyright © 1998-2007 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].

5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)" THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson ([e-mail]).

Original SSLeay License

Copyright © 1995-1998 Eric Young ([e-mail]) All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

copyright notice, this list of conditions and the following disclaimer.

1. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

2. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young ([e-mail])"

The word 'cryptographic' can be left out if the rouines from the library being used are not cryptographic related :-).

1. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence (including the GNU Public Licence.)

zlib•

This software is based in part on zlib see http://www.zlib.net for information.

GNU GENERAL PUBLIC LICENSE•

Version 2, June 1991

Copyright © 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifi cations and/or translated into another language.(Hereinafter, translation is included without limitation in the term "modifi cation".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above; provided that you also meet all of these conditions:

a) You must cause the modified fi les to carry prominent notices stating that you changed the fi les and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on

the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by third parties to this License.

1. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If

you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example,

if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or

unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/ OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER

PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright ©

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright © year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-clicks or menu items - whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program 'Gnomovision' (which makes passes at compilers) written by James Hacker.

, 1 April 1989 Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC • LICENSE

Version 2.1, February 1999

Copyright © 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages

- typically libraries - of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom

to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into nonfree programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fi ts its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lessor” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library.

A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in nonfree programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by

the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifi cations and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modifi cation”.)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition fi les, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.

b) You must cause the fi les modifi ed to carry prominent notices stating that you changed the fi les and the date of any change.

c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or

distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially signifi cant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defi ned by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete

corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library.

(It is understood that the user who changes the contents of definitions fi les in the Library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it.

However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

3. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by third parties with this License.

1. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are

imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

3. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED

TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright © This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

, 1 April 1990

Ty Coon, President of Vice

That's all there is to it!

Notice on GNU General Public License\*

This product includes the following software licensed for use under the terms of GNU General Public License v2, GNU Lesser General Public License v2.1 or LGPL v2.0.

linux kernel 2.6. Copyright (C) 1991 Linus Torvalds. - Licensed under GPLv2.

bash-3.0. Copyright (C) 2005 Free Software –

Foundation, Inc. Licensed under GPLv2.

libsysfs-2.1.0. Copyright (C) IBM Corp. 2003. - Licensed under GPLv2.

ncurses-5.2. Copyright 1996-2009,2010 by Thomas - E. Dickey. Licensed under GPLv2.

agg-2.5. Copyright (C) 2002-2006 Maxim - Shemanarev. Licensed under GPLv2.

BusyBox v1.00.0 multi-call binary. Copyright (C) - 1998-2009 Erik Andersen, Rob Landley, Denys

Vlasenko and others. Licensed under GPLv2.

uClibc-0.9.27. Copyright (c) 1999-2008 by Erik – Andersen. Licensed under LGPLv2.0.

fltk-1.1.9. Copyright (C) 1998-2008 by Bill Spitzak. - Licensed under LGPLv2.0.

QI/Embedded-4.5.2. Copyright (C) 2009 Nokia – Corporation and/or its subsidiary(-ies). Licensed under LGPLv2.1.

DirectFB-0.9.25. (c) Copyright 2000-2002 – convergence integrated media GmbH. (c) Copyright 2002 convergence GmbH. Licensed under LGPLv2.1.

cairo-1.8.6. Copyright c 2006 Red Hat, Inc. Licensed under LGPLv2.1.

-ibiconv-1.12. Copyright (C) 1999-2003 Free

Software Foundation, Inc. Licensed under LGPLv2.1.

libusb-0.1.12. Copyright (c) 2000-2003 Johannes Erdfelt. Copyright (c) 2003 Brad Hards. Licensed under LGPLv2.1.

You can get corresponding open source code by contacting your local Pioneer Customer Support Center. See the GNU website (http://www.gnu.org) for details of the GNU General Public License.
