USER MANUAL Elite BDP62FD PIONEER

Register your product at:

http://www.pioneerelectronics.com (US)
http://www.pioneerelectronics.ca (Canada)

• Protect your new investment
  The details of your purchase will be on file for reference in the event of an insurance claim such as loss or theft.
• Receive free tips, updates and service bulletins on your new product
• Improve product development
  Your input helps us continue to design products that meet your needs.
  Receive a free Pioneer newsletter
  Registered customers can opt in to receive a monthly newsletter.

http://www.pioneerelectronics.ca (Canada)

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

D3-7-13-69 En

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

Cautions on 3D Viewing

If you should experience any fatigue or discomfort while viewing 3D images, stop viewing them.
Children, particularly those under 6, may be more prone to sensitivity, so guardians should watch for any signs of fatigue or discomfort.
- When viewing 3D images, rest periodically.

Extended viewing of 3D images without rest periods could cause fatigue or discomfort.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4*A1En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10cm at top, 10cm at rear, and 10cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1_EN

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*A1_EN

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*A1En

WARNING: Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.

Wash hands after handling.

D36-P5_B1_En

This product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

K057_A1_En

IMPORTANT NOTICE

THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM. RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

D36-AP9-1_A1_En

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

D8-10-2_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a A1 En

This Class B digital apparatus complies with Canadian ICES-003.

D8-10-1-3_A1_En

CAUTION

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

D8-10-3a_A1_En

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level - a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing "comfort level" adapts to higher volumes of sound, so what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can't hear what's around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

S001a_A1_En

Contents

01 Before you start

What's in the box 6

Putting the batteries in the remote control. 6

Software Update 6

About operation of this player from a mobile device

(iPod, iPhone, iPad etc.) 6

Types of discs/files that can be played. 7

Playable discs 7

Playable files 10

Part Names and Functions 12

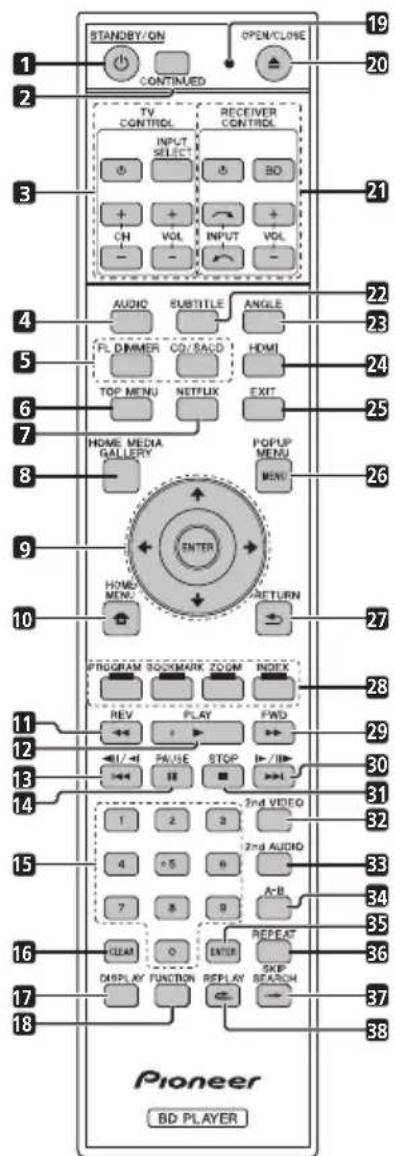

Remote Control 12

Front Panel. 14

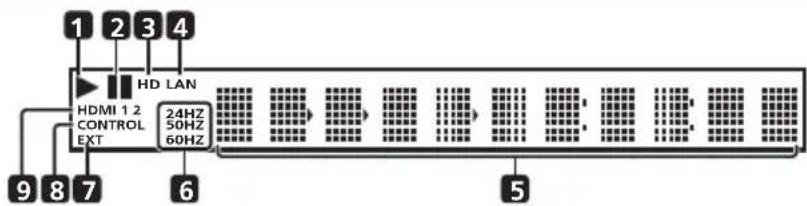

Front Panel Display. 14

Rear Panel 15

02 Connecting up

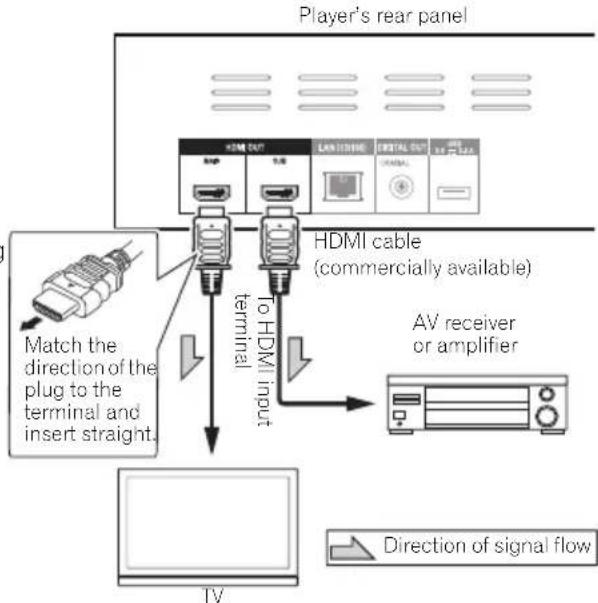

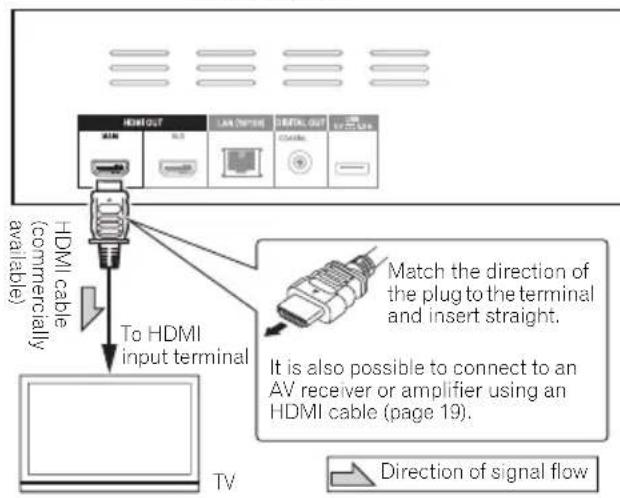

Connecting using an HDMI cable 16

About HDMI. 16

About Control Function with HDMI. 16

Connecting a TV 18

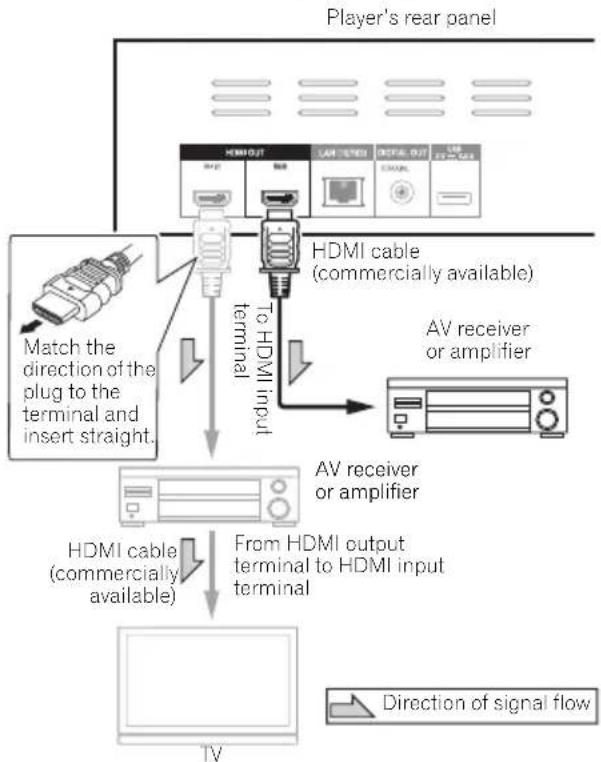

Connecting an AV receiver or amplifier 19

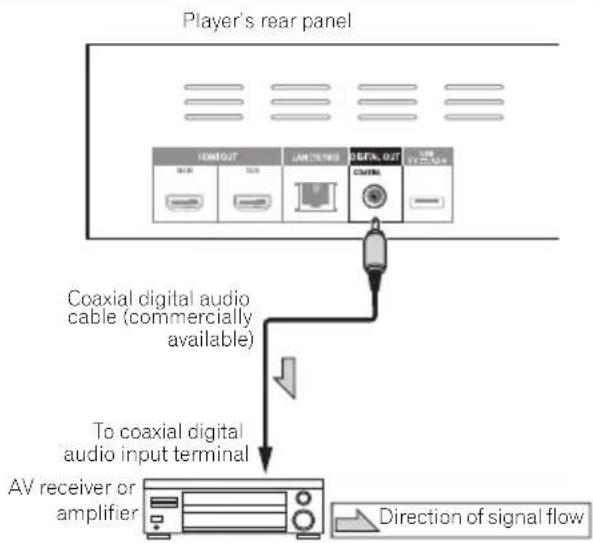

Connecting an AV receiver or amplifier using an coaxial

digital audio cable 20

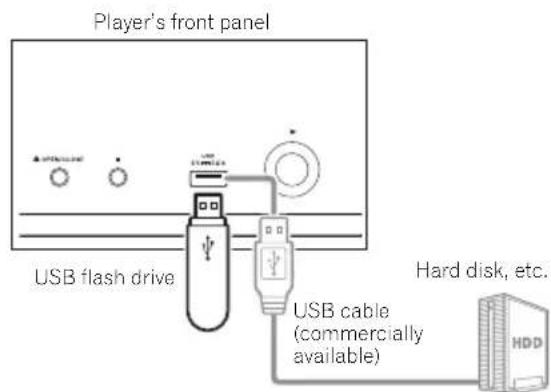

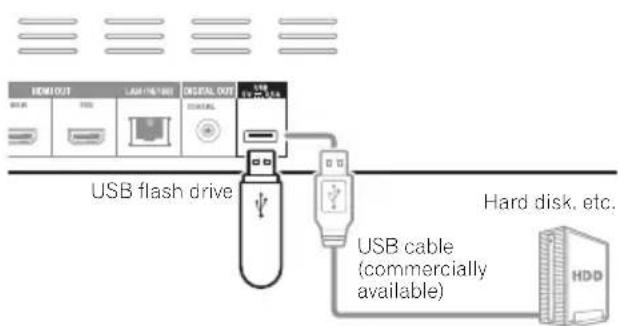

Connecting components to the USB port 20

About USB devices 20

Connecting the USB device 20

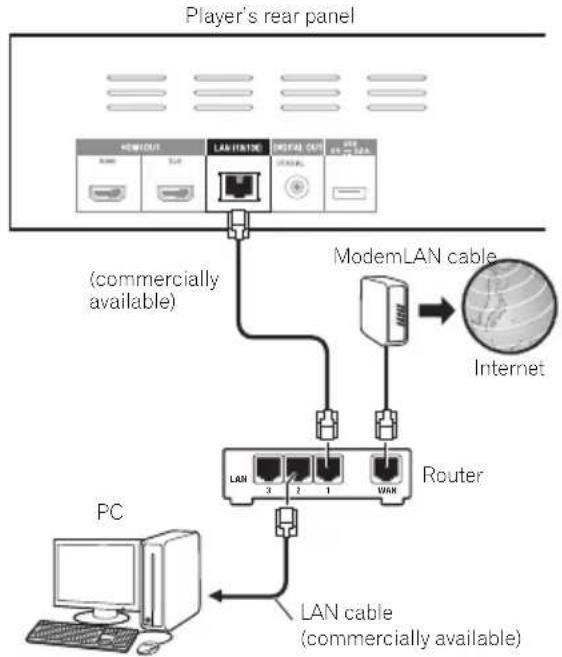

Connecting to the network through LAN interface. 21

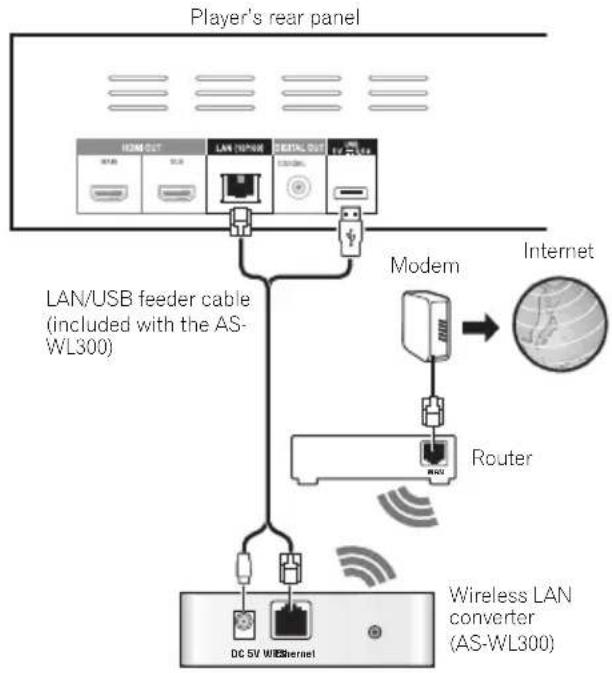

Connecting to a wireless LAN 21

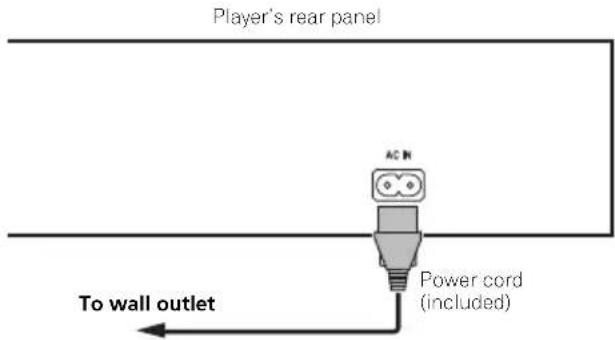

Connecting the power cord. 21

03 Getting Started

Making settings using the Setup Navigator menu . . . 22

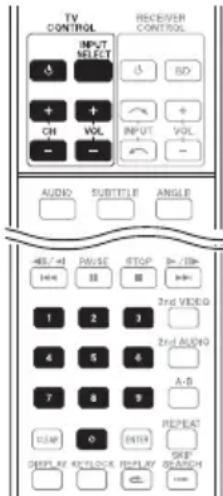

Operating the TV with the player's remote control . . . 23

TV Preset code list 23

04Playback

Playing discs or files 25

Forward and reverse scanning. 25

Playing specific chapters, tracks or files. 25

Skipping content 25

Playing in slow motion 26

Step forward and step reverse 26

Playing a specific section within a title or track repeatedly (A-B Repeat) 26

Playing repeatedly (Repeat Play) 26

Playing in the desired order (Programmed Play) 26

Making bookmarks 27

Zoom. 27

Playing photos as slideshows 27

Switching the camera angles 27

Switching the subtitles 27

Switching the audio 28

Switching the secondary audio 28

Switching the secondary video 28

Switching the CD/SACD playback area 28

Displaying the disc information. 29

Enjoying BONUSVIEW or BD-LIVE 29

Playback functions 30

Using the FUNCTION menu 31

Playing from a specific time (Time Search) 32

Playing a specific title, chapter, track or file (Search) 32

Continuing playback from a specified position (Continued Viewing Playback) 32

Playing specified range of discs, titles or chapter (track/file) in random order 32

05Playback from Home Media Gallery

About Home Media Gallery 33

About network playback 33

Playback file on the network 34

Disc/USB playback 34

Playing back image files. 35

Playing in the desired order (Playlist) 35

Adding tracks/files 35

Playing the Playlist 35

Deleting tracks/files from the Playlist 35

06 Playing the web contents

Available web contents 36

Playing the items 36

07 Advanced settings

Changing the settings 38

Operating the Initial Setup screen. 38

Software updating. 44

Restoring all the settings to the factory default settings. 45

About how digital audio formats are output 46

Language Code Table and Country/Area Code Table.. 47 Language Code Table 47

Country/Area Code Table 47

08 Additional information

Disclaimer for third party content 48

Cautions on use 48

Moving the player 48

Place of installation. 48

Turn the power off when not using the player . . . . . 49

Condensation 49

Cleaning the player 49

Caution for when the unit is installed in a rack with a glass door. 49

Cleaning the pickup lens 49

Handling discs. 49

Troubleshooting 50

Playback. 50

Control function. 53

Network 53

Others. 54

Glossary 55

Specifications. 57

Chapter 1 Before you start What's in the box

• Remote control x1
• AAA/R03 dry cell batteries × 2
  Warranty card
• Power cord
• Operating instructions (this document)

Putting the batteries in the remote control

The batteries included with the player have been provided to allow you to check product operation and may not last long. We recommend using alkaline batteries that have a longer life.

WARNING

• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Caution

• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).
• When inserting the batteries, make sure not to damage the springs on the battery's terminals. This can cause batteries to leak or overheat.
• Do not heat batteries, disassemble them, or throw them into flames or water.
• Batteries may have different voltages, even if they look similar. Do not use different kinds of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

1 Open the rear cover.

Press lightly on this part and slide into the direction of the arrow.

2 Insert the batteries (AAA/R03 x 2).

Insert as indicated by the / marks into the battery compartment.

Insert the negative () side first.

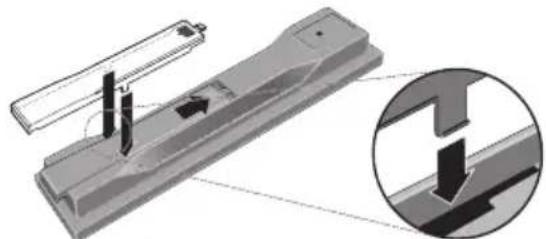

3 Close the rear cover.

Close securely (a click should be heard).

Software Update

Product information on this player is provided on the Pioneer website. Check this website for update and service information on your Blu-ray disc player.

http://www.pioneerelectronics.com

About operation of this player from a mobile device (iPod, iPhone, iPad etc.)

The player can be controlled from a mobile device by installing the special application onto the mobile device. For details, see the product information on the Pioneer website.

This special application may be changed or discontinued without notice.

Types of discs/files that can be played

Playable discs

Discs with the logo marks below indicated on the disc label, package or jacket can be played.

Caution

• Only the discs that have been finalized can be played.

Disc type Logo			Application format
			BDMV BDAV		DVD-Video	DVD-Audio	DVD VR	CD-DA DTS-CD	DATA-DISC1
BD2	BD-ROM	√	X	X	X	X	X
	BD-R	√	X	X	X	X	✓
	BD-RE	BlgrayDisc	X	X	X	X	✓
DVD	DVD-ROM	√	√	√	X	X	✓
	DVD-ROM	√	√	√	X	X	✓
	DVD AUDIO	√	√	√	X	X	✓
	DVD-R2,3,4	√5	√6	✓	X	✓	X	✓
	DVD-RW3,7	√5	√6	✓	X	✓	X	✓
	DVD+R2,3	✓	X	✓	X	X	X	X	✓
	DVD+RW3	✓	X	✓	X	X	X	X	✓
CD	CD-DA (Audio CD)8	COMPACT DISC DIGITAL AUDIO	X	X	X	X	X	✓	X
	SUPER AUDIO CD	X	X	X	X	X	X	✓	X
	CD-R3	X	X	X	X	X	X	✓	✓
	CD-RW3	X	X	X	X	X	X	✓	✓
	CD-ROM X	X	X	X	✓	✓

1. Discs on which video, image or audio files are recorded. This player does not support multisession discs or multiborder recording.
2. Including dual-layered discs.
3. Finalize them before playing them on this player.
4. DVD-R for Authoring discs (3.95 and 4.7 GB) cannot be played.
5. Including the AvCHD formula
6. Including the AVCREC format.
7. Version 1.0 DVD-RW discs cannot be played.

8. Including Video CDs.

9. "Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.

10. is a remark of DVD Format/Logo Licensing Corporation.

Discs that cannot be played

HD DVDs
DVD-RAMdiscs

It is possible that some discs other than the ones listed above may not be playable either.

Note

• Some discs cannot be played, even if one of the logo marks on the previous page is indicated.
• To play 8 cm discs, set the disc in the 8 cm disc depression in the center of the disc tray. No adapter is necessary. 8 cm BD-ROMs cannot be played.

About playback of unauthorized copies

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

Copyright 2004-2010 Verance Corporation. Cinavia is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.

About audio formats

The following audio formats are supported on this player:

Dolby TrueHD
- Dolby Digital Plus
- Dolby Digital
- DTS-HD Master Audio
- DTS-HD High Resolution Audio
- DTS Digital Surround
- MPEG audio (AAC)
- LinearPCM

To enjoy the surround sound of Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and DTS-HD High Resolution Audio, it is recommended to connect the player to an AV receiver or amplifier compatible with these audio formats using an HDMI cable. After loading a BD containing sound in one of these audio formats, select the audio format on the menu screen.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Playing BDs

• BDs (BDMV) compatible with the formats below can be played.
• Blu-ray Disc Read-Only (ROM) Format Version 2
• Blu-ray Disc Recordable (R) Format Version 2
• Blu-ray Disc Rewritable (RE) Format Version 3

This player supports BD-ROM Profile 5.

"Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of Blu-ray Disc Association.

BONUSVIEW functions such as playback of secondary video (Picture-in-Picture) and secondary audio can be used. The data used with the BONUSVIEW functions (the secondary video (Picture-in-Picture) and secondary audio data) may be stored in the storage. For details on secondary video and secondary audio playback, refer to the disc's instructions.

BONUSVIEW

"BONUSVIEW" is trademark of Blu-ray Disc Association.

BD-LIVE functions such as downloading movie trailers or additional audio and subtitle languages and playing on-line games can be enjoyed over the Internet. The data downloaded with the BD-LIVE function (trailers, etc.) is stored in the storage. Refer to the disc's instructions for details about BD-LIVE functions.

"BD-LIVE" logo is trademark of Blu-ray Disc Association.

With BD-ROMs, it is possible to use BD-J (Java) applications to create highly interactive titles, for example including games.

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

• BDs (BDAV) compatible with the formats below can be played.

• Blu-ray Disc Recordable (R) Format Version 1

• Blu-ray Disc Rewritable (RE) Format Version 2

Playing DVDs

This label indicates playback compatibility with DVD-RW discs recorded in VR format (Video Recording format). However, for discs recorded with a record-only-once encrypted program, playback can only be achieved using a CPRM compatible device.

The AVCHD is a high definition (HD) digital video camera recorder format recording high-definition onto certain media by using highly efficient codec technologies.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

About region numbers

Blu-ray Disc Player and BD-ROM or DVD-Video discs are assigned region numbers according to the region in which they are sold.

This player's region numbers are:

• BD-ROM:A
  DVD-Video:1

Discs not including these numbers cannot be played. Discs playable on this player are as shown below.

• BDs: A (including A) and ALL
  DVDs: 1 (including 1) and ALL

Playing CDs

Regarding copy protected CDs: This player is designed to conform to the specifications of the Audio CD format. This player does not support the playback or function of discs that do not conform to these specifications.

DualDisc playback

A DualDisc is a two-sided disc, one side of which contains DVD content — video, audio, etc. — while the other side contains non-DVD content such as digital audio material.

The DVD side of a DualDisc can be played on this player.

The non-DVD, audio side of the disc is not compatible with this player.

It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable.

For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer.

Playing discs created on computers or BD/DVD recorders

• It may not be possible to play discs recorded using a computer due to the application settings or computer's environment settings. Record discs in a format playable on this player. For details, contact the dealer.
  It may not be possible to play discs recorded using a computer or a BD/DVD recorder, if burn quality is not good due to characteristics of the disc, scratches, dirt on the disc, dirt on the recorder's lens, etc.

About video, audio, and image files and folders

Audio and image files can be played on this player when the folders on the disc or USB device are created as described below.

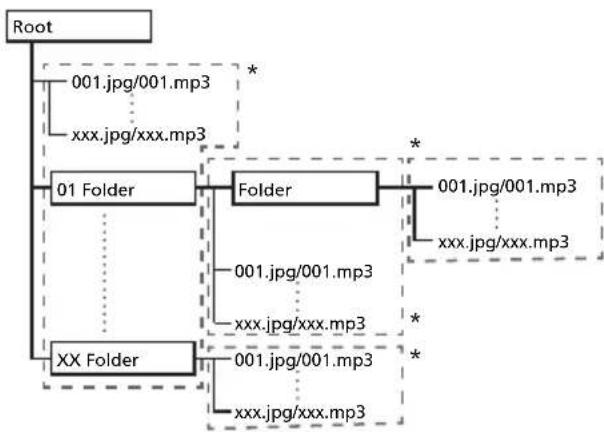

Example of folder structure:

• The number of folders and files within a single folder (including the root directory) is limited to a maximum of 256. Also, keep the number of folder layers to a maximum of 5.

Note

• The file and folder names displayed on this player may differ from those displayed on a computer.

Video, image and audio files recorded on BDs, DVDs, CDs or USB devices can be played.

Supported video file formats

DivX Plus HD

DivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content.

ABOUT DIVX VIDEO: Divx® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation.

This is an official DivX Certified device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVXVIDEO-ON-DEMAND:This DivX

Certified device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX, DivX Certified, DivX Plus TM HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Note

• This iCertified device must be registered in order to play DivX Video-on-Demand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorized for your device, the message Authorization Error will be displayed and your content will not be played. Learn more at www.divx.com/vod.

• This player's DivX VOD registration code can be checked at HOME MENU → Initial Setup → Playback → DivX(R) VOD DRM → Registration Code (page 41).

• The number of views is restricted for some DivX VOD files. When such files are played on this player, the remaining number of views is displayed. Files for which the remaining number of views has reached 0 cannot be played (This DivX rental has expired is displayed). Files for which the number of views is not restricted can be played as many times as you like (the remaining number of views is not displayed).

Table of Playable Files

Playable files(Extensions)	Playable media			File specifications
	BD-R/RE/-R DL/RE DL/-R LTH,DVD-R/RW/-R DL/+R/+RW/+R DL,CD-R/RW	USB devices1	Network
MP3(.mp3)	✓	✓	✓	Sampling frequencies: Up to 48 kHzBit rate: Up to 320 kbpsAudio type: MPEG-1 Audio Layer 3
WMA(.wma)	✓	✓	✓	Sampling frequencies: Up to 48 kHzBit rate: Up to 192 kbpsAudio type: WMA version 9
LPCM(.wav)	✓	✓	✓	Sampling frequencies: Up to 192 kHzQuantization bitrate: 16 bitChannel: 2ch
FLAC(.flac)	✓	✓	✘	Sampling frequencies: Up to 192 kHzQuantization bitrate: 16 bit, 24 bitChannel: 2ch
JPEG(.jpg/.jpeg)	✓	✓	✓	Maximum resolution: 4 000 x 3 000 pixels
DivX(.avi/.divx/.mkv)	✓	✓	✓	Supported versions: Through DivX® PLUS HDMaximum resolution:Up to 1 920 x 1 080 (DivX® PLUS HD)Up to 1 280 x 720 (MKV)
MP4(.mp4)	✓	✓	✓	Maximum resolution: Up to 1 920 x 1 080Video: MPEG4, MPEG-4 AVC (level 4.1)Audio: AAC, MP3
WMV(.wmv)	✓	✓	✓	Maximum resolution: Up to 1 280 x 720Video: WMV9, WMV9AP (VC-1)Audio: WMA
AVI(.avi)	✓	✓	✓	Maximum resolution: Up to 1 920 x 1 080Video: MPEG4Audio: MP3, AAC, AC-3
3GP(.3gp)	✓	✓	✓	Maximum resolution: Up to 1 920 x 1 080, up to 8 MbpsVideo: H.263, MPEG4, H.264Audio: MPEG-4 AAC
FLV(.fiv)	✓	✓	✓	Video: Sorenson H.263 (FLV1), On2 VP6 (FLV4),Screen video, H.264Audio: MP3, ADPCM, Linear PCM, Nellymoser,Speex, AAC, HE-AAC

1. This unit supports FAT16, FAT32 and NTFS file systems.

Note

• Depending on the file structure and server capacity, it may not be possible to play certain files, even for files indicated on the table of playable files above.
• Files protected by DRM (Digital Rights Management) cannot be played.
• AVCHD contents cannot be played via LAN.

Part Names and Functions

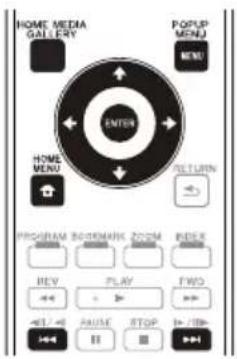

Remote Control

1 STANDBY/ON - Press to turn the power on and off.
2 CONTINUED - Use to continue playback from a specified position. (page 32)
3 TV CONTROL - (page 23)
4 AUDIO-(page 28)

5 FL DIMMER - Each time this is pressed, the brightness of the front panel display changes and/or the lighting status of the indicators on the front panel switches as shown in the table below.

Front panel display	Indicators PQLS FL OFF
Bright Lights Off
Middle Lights Off
Dark	L i
Off Off Lights

CD/SACD

For hybrid discs, press to switch between the CD and SACD layers (page 28).

6 TOP M E N U -Press to display the top menu of th ROM or DVD-Video.

7 NETFLIX - (page 36)
8 HOME MEDIA GALLERY - (page 33)
9↑/↓/←/→

Use to select items, change settings and move the cursor.

ENTER - Press to execute the selected item or enter a setting that has been changed, etc.

10 HOME MENU - (page 38)
11 REV-(page 25)
12 PLAY-(page 25)
13 - (pages 25 and 26)
14 PAUSE-(page 25)
15 Number buttons - Use these to select and play the title/chapter/track you want to view or listen to and to select items from menus.
16 CLEAR - Press to clear the numeric number, etc.
17 DISPLAY - (page 29)
18 FUNCTION - (page 31)
19 Remote control LED - Lights when a command is sent from the remote control. Flashes while the TV band code is being set.
20 ▲ OPEN/CLOSE - Press to open and close the disc tray.
21 RECEIVER CONTROL
22 SUBTITLE - (page 27)
23 ANGLE-(page 27)
24 HDMI – The HDMI Mode switches each time this is pressed (pages 17 and 39). When pressed and held for over 2 seconds, resolution of the video output from the HDMI OUT terminal switches (page 39).
25 EXIT-(page 36)

26 POP UP MENU/MENU - Press to display the

BD-ROM or DVD-Video menus.

27 RETURN - Press to return to the previous screen.

28 Color buttons - Use these to navigate BD-ROM menus.

PROGRAM-(page 26)

BOOK MARK - (page 27)

ZOOM-(page 27)

INDEX-(page 27)

29 FWD-(page 25)
30 /11/1- (pages 25 and 26)
31 STOP (page 25)
32 2ndVIDEO-(page 28)
33 2nd AUDIO - (page 28)
34 A-B (page 26)
35 ENTER - Press to execute the selected item or enter a setting that has been changed, etc.
36 REPEAT-(page 26)
37 SKIP SEARCH - Press to skip 30 seconds ahead when SKIP SEARCH is pressed during playback.
38 REPLAY - Press to jump back 10 seconds when
REPLAY is pressed during playback.

Note

• To operate an AV receiver equipped with a remote control mode setting using the RECEIVER CONTROL buttons, set the AV receiver's remote control mode to "1". For details, see the AV receiver's operating instructions.
• This remote control unit is equipped with two ENTER buttons (9 and 35 listed above).

1 STANDBY/ON - Press to turn the power on and off.
- If the power cannot be turned off (to standby), press and hold the button for over 5 seconds. The unit restarts and can now be operated.
2 FL OFF indicator - (page 12)
3 Disc tray
4 Front panel display
5 Remote control sensor - Point the remote control to this, then operate it within approximately 23 feet (7 m).

The player may have trouble capturing remote control signals if there is a fluorescent light nearby. If this happens, move the player away from the fluorescent light.

6 PQLS indicator - (page 18)
7 ▲ OPEN/CLOSE - Press to open and close the disc tray.
8 - Press to stop playback.
9 USB port - (page 20)
10 - Press to start playback.

Front Panel Display

1 This lights during playback.
2 II -This lights when pausing.
3 H D -This lights when an HDMI cable is connected and video signals are being output with a resolution of 1080/50i, 1080/50p, 720/50p, 1080/24p, 1080/60i, 1080/60p or 720/60p.
4 LAN - This lights when connected to a network.
5 Character display - Displays the title/chapter/track number, elapsed time, etc.

6 24HZ/50HZ/60HZ - The frequency of the video frame or field being output lights.
7 E X T -This lights when a USB device is connected.
8 CONTROL-This lights when the Control setting is turned on.
9 HDMI 12 - This lights when an HDMI device is connected. [1] lights when the device is connected to the HDMI OUT (MAIN) terminal, [2] lights when the device is connected to the HDMI OUT (SUB) terminal.

Rear Panel

1HDMI OUT terminal - (page 16)

4 USB port - (page 20)

2 LAN (10/100) terminal - (page 21)

5 AC IN - (page 21)

3 DIGITAL OUT (COAXIAL) terminal - (page 20)

About the HDMI terminals on the BDP-62FD

MAIN - Connect with an HDMI-compatible TV or/and AV receiver or amplifier. This is the terminal that is used mainly.
SUB - Connect with an HDMI compatible AV receiver or amplifier.

Chapter 2

Connecting up

Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.

After connecting, make the settings at the Setup

Navigator or Initial Setup menu according to the type of cable connected (page 22).

Also refer to the operating instructions for the device being connected.

Connecting using an HDMI cable

The audio and video signals can be transferred to HDMI-compatible devices as digital signals with no loss of sound or video quality.

Note

• Make the settings at the Setup Navigator menu according to the connected HDMI-compatible device (page 22). Make the HDMI Mode setting at the Initial Setup menu according to the connection of the devices to the player (pages 17 and 39).
  1080p video signals may not be output, depending on the HDMI cable being used.

About HDMI

This player incorporates the High-Definition Multimedia Interface (HDMI®) technology.

HOMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The player supports Deep Color.

The conventional players can transmit a video signal with 8 bit color depth in the YCbCr 4:4:4 or RGB format; the players supporting Deep Color can transmit a video signal with a color bit depth of greater than 8 bits per color component. Subtle color gradations can be reproduced when this player is connected to a TV that supports Deep Color.

This product is compatible with "x.v.Color" that have the capability to realize a wide-gamut color space based on the xvYCC specifications.

Playing video signals conforming to "xvYCC" standards on this player when this player is connected to an "x.v.Color"-compatible TV, etc., expands color

reproduction capabilities, allowing natural colors to be reproduced more faithfully than ever.

"X.v.Color" is a promotion name given to the products that have the capability to realize a wide-gamut color space based on the international standard specifications defined as xvYCC.

x.v.Color

" x.v.Color" and x.v.Color are trademarks of Sony Corporation.

Playable audio signals through the HDMI OUT terminal

Dolby TrueHD
- Dolby Digital Plus
- Dolby Digital
- DTS-HD Master Audio
- DTS-HD High Resolution Audio
- DTS Digital Surround
- LinearPCM

Linear PCM audio signals meeting the following conditions can be output:

• Sampling frequency: 32kHz to 192kHz
  Number of channels: Up to 8 (up to 6 for a 192kHz sampling frequency)

DSDaudio

When connected to a DVI device

• It is not possible to connect DVI devices (computer displays, for example) that are not compatible with HDCP. HDCP is a specification to protect audiovisual content across the DVI/HDMI interface.
  No audio signals are output.
• This player is designed for connection with HDMI-compatible devices. When connected to a DVI device, it may not operate properly depending on the DVI device.

About Control Function with HDMI

The functions work when a control function with HDMI-compatible Pioneer Flat Screen TV or AV system (AV receiver or amplifier, etc.) is connected to the player using an HDMI cable.

Also refer to the operating instructions for the Flat Screen TV and AV system (AV receiver or amplifier, etc.).

To use the control function with HDMI

• The control function with HDMI operates when control function with HDMI is set to On for all devices connected with HDMI cables.
• Once the connections and the settings of all the devices are finished, be sure to check that the player's picture is output to the Flat Screen TV. (Also check after changing the connected devices and reconnecting HDMI cables.) The control function with HDMI may not operate properly if the player's picture is not properly output to the Flat Screen TV.
• Use High Speed Cable when using the control function with HDMI. The control function with HDMI may not operate properly if other HDMI cables are used.
• For some models, the control function with HDMI may be referred to as "KURO LINK" or "HDMI Control".
• The control function with HDMI does not work with devices of other brands, even if this player is connected with an HDMI cable.

What the control function with HDMI can do

• Outputting the optimum picture quality to a Flat Screen TV compatible with the control function with HDMI.

When the control function with HDMI is enabled, video signals with the optimum picture quality for control function with HDMI are output from the player's HDMI terminal.

• Operating the player with the Flat Screen TV's remote control.

Such player operations as starting and stopping playback and displaying the menus can be performed from the Flat Screen TV.

• The player's playback picture is displayed on the Flat Screen TV's screen. (Auto-select function)

The input switches automatically on the Flat Screen TV and AV system (AV receiver or amplifier, etc.) when playback is started on the player or the HOME MENU is displayed. When the input is switched, the playback picture, the HOME MENU appears on the Flat Screen TV.

• The power of the Flat Screen TV and the player turns on and off automatically. (Simultaneous power function)

When playback on the player is started or the HOME MENU is displayed, if the Flat Screen TV's power was off, its power turns on automatically. When the Flat Screen TV's power is turned off, the player's power automatically turns off.

Setting the HDMI Mode

The BDP-62FD has two HDMI OUT (MAIN, SUB)

terminals. See page 15 for the details on these terminals.

The HDMI Mode needs to be selected before playback to use the control function appropriately.

To make the setting, press HOME MENU to display the Home Menu, select Initial Setup Audio Output HDMI Mode.

See the table below and set up the HDMI Mode according to your connection style.

HDMI Mode	HDMI OUT MAIN HDMI OUT SUB
	Video	Audio	Control	Video	Audio	Control
Dual √	√		√		√	√
Separate	√	×	×	×	√	√
Pure Audio	×	×	×	×	√	√

Caution

• When signals are being output simultaneously from the HDMI OUT (MAIN) and HDMI OUT (SUB) terminals, the video is output with the optimum picture quality for the TV connected to the HDMI OUT (MAIN). Depending on the combination of TVs being used, it may not be possible to output video signals from the HDMI OUT (SUB) terminal. The audio is output in an audio format that can be output from both the HDMI OUT (MAIN) and HDMI OUT (SUB) terminals.

Sound Retriever Link

About Sound Retriever Link

Sound Retriever Link is a sound quality correction control technology that automatically adjusts the compressed sound quality for the connected AV receiver using HDMI control function.

Sound Retriever Link function allows you to enjoy higher quality audio by setting the connected AV receiver's Sound Retriever function automatically.

Sound Retriever Link function on this player works exclusively with the following situations.

• When playing via a network or playing PC contents stored on a USB device.
• The Pioneer AV receiver compatible with Sound Retriever Link function is connected to this player through an HDMI cable and the player's setting is set as shown below (page 40).

Control: On

• Also refer to the instructions of the AV receiver.
  See Pioneer website about AV receivers compatible with Sound Retriever Link function.

Caution

• Connect the player directly to the Pioneer AV receiver compatible with Sound Retriever Link function. Interrupting a direct connection with an amplifier or AV converter (such as an HDMI switch) can cause malfunction.

Stream Smoother

Stream Smoother is a function that automatically improves picture quality when playing network video contents by using a built-in high picture quality circuit to reduce mosquito noise, block noise, etc.

Stream Smoother function on this player works exclusively with the following situations.

• When playing a video distribution service on a network or PC contents stored on a medium.

Note

• This function is activated even when no AV receiver is connected.

About the PQLS function

PQLS (Precision Quartz Lock System) is a digital audio transfer control technology using the HDMI control function. The player's output signals are controlled from the AV receiver to achieve high sound quality playback using the receiver's quartz oscillator. This eliminates the influence of the jitter generated during signal transfer which can adversely affect the sound quality.

• This player supports the functions below.

• The "PQLS 2ch Audio" function that is activated when playing music CDs (CD-DAs)

• The "PQLS Multi Surround" function that is activated when playing all discs (BDs, DVDs, etc.) with linear PCM audio output

• The "PQLS Bitstream" function that is activated to HDMI OUT (MAIN) terminal. See Connecting when playing with bitstream audio output an AV receiver or amplifier on page 19.

• The various PQLS functions are activated when a Pioneer AV receiver supporting the PQLS functions is connected directly to the HDMI OUT terminal with an HDMI cable and the player's settings are set as shown below (page 40).

Control: On

• Also refer to the AV receiver's operating instructions.
• See the Pioneer website for AV receivers supporting the PQLS function.

Caution

• The PQLS function may stop working when the video output resolution is switched. The PQLS function will start working again once playback is stopped then restarted.
• When the PQLS 2ch function is activated, the output from the player'sVIDEO OUTPUT jacks may not have the proper colors. If this happens, connect the TV and AV receiver's HDMI terminals to view the picture.
• Turn on the power of the AV receiver connected to the HDMI OUT terminal, then start playback of the disc.

Note

• PQLS indicator on the player's front panel display lights when the PQLS function is activated (page 14).

Connecting a TV

See Connecting an AV receiver or amplifier on page 19 to connect an AV receiver or amplifier using an HDMI cable.

Caution

• Hold the plug when connecting and disconnecting the cable.
• Placing a load on the plug could result in faulty contact and no video signals being output.

Connect a TV to the HDMI OUT (MAIN) terminal.

Player's rear panel

It is also possible to connect a TV via AV reciever or actuated to HDMI OUT (MAIN) terminal. See Connecting an AV receiver or amplifier on page 19.

Caution

• Make sure to set HDMI Mode to Dual (page 39).

Connecting an AV receiver or amplifier

Connect to an AV receiver or amplifier in order to enjoy the surround sound of Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS-HD High Resolution Audio or DTS Digital Surround. For instructions on connecting the TV and speakers to the AV receiver or amplifier, refer to the operating instructions for AV receiver or amplifier.

Caution

• Hold the plug when connecting and disconnecting the cable.
• Placing a load on the plug could result in faulty contact and no video signals being output.

Achieving better video and sound quality

When connecting one TV (or projector) and AV amplifier to the player, connect in such a way that the video and audio signals are transferred separately in order to achieve higher quality video and sound.

Caution

Make sure to set HDMI Mode to Separate (page 39).
- If the AV amplifier connected to the HDMI OUT (SUB) terminal is also connected to a TV, the TV's input may switch automatically. If this happens, turn off the control function with HDMI on the TV.

02

Connecting an AV receiver or amplifier using an coaxial digital audio cable

Connecting components to the USB port

About USB devices

The USB devices that can be connected to the player are as shown below.

• USB 2.0-compatible USB flash drive (capacity of 1 GB or greater, 2 GB or greater recommended) or HDD (capacity 2 TB or less)
• File system: FAT16, FAT32 or NTFS

Note

Devices formatted with a file system other than the above cannot be used.
- USB devices may not be recognized if they contain multiple partitions.
- Some USB devices may not operate with this player.
Operation of USB devices is not guaranteed.

Connecting the USB device

Caution

• Be sure to turn the player's power off before connecting or disconnecting USB devices.
• Use empty USB devices (on which nothing is stored).
• When using an external hard disk as the external storage device, be sure to turn on the hard disk's power before turning on the player's power.
• If the USB device is write-protected, be sure to disable the write-protection.
• When connecting the USB cable, hold onto the plug, set the plug in the proper direction for the port and insert it horizontally.
• Placing excessive loads on the plug may result in poor contact, making it impossible to write data on the USB device.
• When a USB device is connected and the player's power is turned on, do not unplug the power cord.

Player's rear panel

Note

Devices may not work if connected to the USB port via a memory card reader or USB hub.
- Use a USB cable with a length of 2 meters or less.

Connecting to the network through LAN interface

By connecting this player to the network via the LAN terminal, you can play audio files stored on the components on the network, including your computer, using HOME MEDIA GALLERY inputs.

Connect the LAN terminal on this receiver to the LAN terminal on your router (with or without the built-in DHCP server function) with a straight LAN cable (CAT 5 or higher).

Turn on the DHCP server function of your router. In case your router does not have the built-in DHCP server function, it is necessary to set up the network manually. For details, see Setting the IP address on page 42.

LAN terminal specifications

LAN terminal: Ethernet jack (10BASE-T/100BASE-TX)

Note

Refer to the operation manual of the equipment you have as the connected equipment and connection method may differ depending on your Internet environment.
- When using a broadband Internet connection, a contract with an Internet service provider is required. For more details, contact your nearest Internet service provider.

Connecting to a wireless LAN

Wireless connection to the network is possible through a wireless LAN connection. Use the separately sold AS-WL300 for connection.

Refer to the operating instructions of AS-WL300 for the setting details.

Connecting the power cord

Connect the power cord after all the connections between devices have been completed.

Getting Started

Making settings using the Setup Navigator menu

Be sure to perform these settings when using the player in the following situations.

• When you use the player for the first time.
  After Initial Setup format.
  After updating the player's software.

Caution

• Before turning on the power, check that the connections between the player and other devices are correct. Also, turn on the power of the devices connected to the player before turning on the player's power.
• When using a Pioneer Flat Screen TV or front projector compatible with the Control function, set Control to On on the connected device before turning on the player's power.

1 Turn on the TV's power and switch the input.

See the TV's operating instructions for the details of operating the TV.

2 Turn on the player's power.

Press STANDBY/ON.

Check that the Setup Navigator menu is displayed.

If the Setup Navigator menu is not displayed

Press ME MENU to display the Home Menu, select Initial Setup Setup Navigator Start, then press ENTER.

3 Start Setup Navigator.

Press ENTER.

• Setup Navigator starts.

4 Select the OSD language.

Use / to select, then press ENTER.

When a Pioneer Flat Screen TV that is compatible with Control function is connected to this player's HDMI OUT terminal, language settings are imported from the Pioneer Flat Screen TV's language settings before Setup Navigator begins.

5 Select the appropriate output resolution for the connected TV.

Use / to select, then press ENTER.

6 Select the appropriate aspect for the connected TV.

Use / to select, then press ENTER.

7 Close the Setup Navigator menu.

Press ENTER.

• Setup Navigator finishes and the setting is stored.
• Press RETURN to go back to the previous screen.

Operating the TV with the player's remote control

When the manufacturer code for your brand of TV is set on the player's remote control, the TV can be operated using the player's remote control.

Caution

• For some models it may not be possible to operate the TV with the player's remote control, even for TVs of brands listed on the manufacturer code list.
• The setting may be restored to the default after the batteries are replaced. If this happens, reset it.

1 Input the 2-digit manufacturer code.

Press the number buttons (0 to 9) to input the code while pressing TV CONTROL.

Note

• The factory default setting is 00 (PIONEER).
• If you make a mistake when inputting the code, release TV CONTROL then start over from the beginning.
• When there are multiple codes for a manufacturer, try inputting them in the indicated order until the TV can be operated.

2 Check that the TV can be operated.

Operate the TV using TV CONTROL.

• Press to turn the TV's power on and off.

INPUT SELECT - Press to switch the TV's input.

CH + / - Press to select the TV channel.

VOL + / - Press to adjust the volume.

TV Preset code list

Manufacturer Code(s)

PIONEER 00,31,32,07,36,42,51, 22
ACURA 44
ADMIRAL 31
AIWA 60
AKAI 32,35,42
AKURA 41
ALBA 07,39,41,44
AMSTRAD 42,44,47
ANITECH 44
ASA45
ASUKA41
AUDIOGONIC 07,36
BASIC LINE 41, 44
BAUR 31,07,42
BEKO 38
BEON 07
BLAUPUNKT 31
BLUE SKY 41
BLUE STAR 18
BPL 18
BRANDT36
BTC 41
BUSH 07,41,42,44,47,56
CASCADE 44
CATHAY 97
CENTURION 07
CGB 42
CIMLINE 44
CLARIVOX 07
CLATRONIC 38
CONDOR 38
CONTEC 44
CROSLEY 32
CROWN 38,44
CRYSTAL 42
CYBERTRON 41
DAEWOO 07,44,56
DAINICHI 41
DANSAI 07
DAYTON 44
DECCA 07,48
DIXI 07.44
DUMONT 53
ELIN 07
ELITE 41
ELTA 44
EMERSON 42
ERRES 07
FERGUSON 07,36,51
FINLANDIA 35,43,54
FINLUX 32,07,45,48,53,54
FIRSTLINE 40,44
FISHER 32, 35, 38, 45
FORMENTI 32,07,42
FRONTECH 31,42,46
FRONTECH/PROTECH 32
FUJITSU 48
FUNAI 40,46,58
GBC32,42
GE00,01,08,07,10,11,17,02
28,18
GEC 07,34,48
GELOSO 32,44
GENERAL 29
GENEXXA 31,41
GOLDSTAR 10,23,21,02,07,50
GOODMANS 07,39,47,48,56
GORENJE 38

GPM 41
GRAETZ 31,42
GRANADA 07,35,42,43,48
GRADIENTE 30,57
GRANDIN 18
GRUNDIG 31,53
HANSEATIC 07,42
HCM 18,44
HINARI 07,41,44
HISAWA 18
HITACHI 31,33,34,36,42,43,54
06,10,24,25,18
HUANYU 56
HYPSON 07,18,46
ICE 46,47
IMPERIAL 38,42
INDIANA 07
INGELEN 3
INTERFUNK 31, 32, 07, 42
INTERVISION 46, 49
ISUKAI 41
ITC 42
ITT 31, 32, 42
JEC 05
JVC 13,23
KAISUI 18,41,44
KAPSCH 31
KENDO 42
KENNDy 32,42
KORPEL 07
KOYODA 44
LEYCO07,40,46,48
LIESENK&TTER 07
LOEWE 07
LUXOR 32,42,43
M-ELECTRONIC 31,44,45,54,56
07.36.51
MAGNADYNE 32,49
MAGNAFON 49
MAGNAVOX 07,10,03,12,29
MANESTH 39,46
MARANTZ 07
MARK 07
MATSUI 07,39,40,42,44,47,48
MCMICHAEL 34
MEDIATOR 07
MEMOREX 44
METZ 31
MINERVA 31,53
MITSUBISHI 09,10,02,21,31
MULTITECH 44, 49
NEC 59
NECKERMANN 31,07
NEI 07,42
NIKKAI 05,07,41,46,48
NOBLIKO 49
NOKIA 32,42.52
NORDMENDE 32,36,51,52
OCEANIC 31, 32, 42
ORION 32,07,39,40
OSAKI 41,46,48
OSO 41
OSUME 48
OTTO VERSAND 31, 32, 07, 42
PALLADIUM 38
PANAMA 46
PANASONIC 31,07,08,42,22
PATHO CINEMA 42
PAUSA 44

PHILCO 32,42

PHILIPS 31,07,34,56,68

PHOENIX 32

PHONOLA 07

PROFEx 42,44

PROTECH 07,42,44,46,49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32,42

REX31,46

ROADSTAR 41,44

SABA 31,36,42,51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46,69,70

SANYO 35,45,48,21,14,91

SBR 07,34

SCHAUBLORENZ 42

SCHNEIDER 07,41,47

SEG 42,46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32,39,40,49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31,35

SONTEC 07

SONY

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40,41

THOMSON 36,51,52,63

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05,02,26,21,53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42,45

46.54

VESTEL07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Playing discs or files

This section describes the player's main operations. For the types of discs and files that can be played, see page 7. Video, image and audio files recorded on discs are played with the Home Media Gallery (page 33).

1 Press STANDBY/ON to turn on the power.

Turn the TV's power on and switch its input beforehand.

2 Press OPEN/CLOSE to open the disc tray and load the disc.

Note

• Load the disc with the printed side facing up.
• Several dozen seconds are required to read the disc. Once reading is completed, the type of disc is displayed on the player's front panel display.
• When a BD with usage restrictions set by a BD recorder is loaded, the PIN code input screen appears. In this case, input your PIN code.

3 Press PLAY to play the disc.

• To pause, press PAUSE during playback.
• To stop, press STOP during playback.

Note

• Some discs start playing automatically when the disc tray is closed.
  DVD-Video discs have parental lock features. Input the password registered in the player's settings to unlock the parental lock. For details, see page 43.

If the disc menu is displayed

For some discs, the disc menu is displayed automatically when playback starts. The contents of the disc menu and the way to operate depend on the disc.

Resuming playback from where it was stopped (resume playback function)

• When STOP is pressed during playback, the point at which the disc stopped is stored in the memory. When PLAY is pressed after that, playback resumes from that point.
• To cancel the resume playback function, press STOP while playback is stopped.

Note

The resume playback function is canceled automatically in the following cases:
- When the disc tray is opened.
- When the file list window is switched.
- When the power is turned off. (For BDs and DVDs this does not cancel the resume playback function.)
- When you want to continue playback from a position you specify to be played next time, see Continuing playback from a specified position (Continued Viewing Playback) on page 32.
The resume playback function cannot be used for some discs.

Forward and reverse scanning

During playback, press REV or FWD.
- The scanning speed switches each time the button is pressed. The speed steps depend on the disc or file (the speed is displayed on the TV screen).

To resume normal playback

Press PLAY.

Playing specific chapters, tracks or files

During playback, input the number of the chapter/track/file you want to select.

• Use the number buttons (0 to 9) to input the number, then press ENTER.
• Press CLEAR to clear the values you have input.

Skipping content

During playback, press or.

• When is pressed, the playback skips ahead to the beginning of the next chapter/track/file.
• When is pressed while a video or audio file is playing, the playback skips back to the beginning of the currently playing chapter/track/file. Press twice to skip back to the beginning of the previous chapter/ track/file.
• When 1 is pressed while an image file is playing, playback returns to the previous file.

Playing in slow motion

While playback is paused, press and hold / or / .
- The speed switches each time the button is pressed (the speed is displayed on the TV screen).
To resume normal playback
Press PLAY.

Step forward and step reverse

While playback is paused, press or
The picture moves a step forward or reverse each time the button is pressed.
To resume normal playback

Press PLAY.

Playing a specific section within a title or track repeatedly (A-B Repeat)

Use this procedure to play a specific section within a title or track repeatedly.

1 During playback, press A-B to select the starting point.
- A- is displayed on the TV screen.
2 During playback, press A-B to select the ending point.
- A-B Repeat playback starts.
To cancel A-B Repeat play

• Press A-B during the A-B Repeat play.

Note

A-B Repeat play is canceled in the following cases:

• When you search outside of the repeat range.
• When you start other Repeat Play or Random Play.
• When you have searched using the FUNCTION menu.

Playing repeatedly (Repeat Play)

Use this procedure to play the currently playing disc, title, chapter, track or file repeatedly.

During playback, press REPEAT.

Each time you press REPEAT the type of repeat modes changes as shown below.

BD

Current chapter Current title

DVD

Current chapter Current title All titles

CD/Video file/Audio file/Image file

Current track/file All tracks/All files in folder

To cancel Repeat Play

• Press REPEAT several times during Repeat Play.

Note

• Repeat Play is canceled in the following cases:
• When you search outside the repeat range.
• When you start other Repeat Play or Random Play.
• When you have searched using the FUNCTION menu.

Playing in the desired order (Programmed Play)

1 During playback, press PROGRAM.

The program screen is displayed.

2 Select the program number.

Use / to select, then press ENTER.

3 Select the title you want to play.

Use / to select, then press.

4 Select the chapter you want to play.

Use / to select, then press ENTER.

5 Press PLAY.

• Play back starts.

Editing the program

1 Select the program number you want to edit, then press ENTER.

2 Select title/chapter, then press ENTER.

Deleting the program

Select the program number you want to delete, then press CLEAR.

To delete all the programs, press RETURN.

Note

• When you use audio CDs for Programmed Play, enter the track number in step 3.
• This function does not work with BDs.

Making bookmarks

You can make bookmarks on the video currently playing and play back the scene later.

During playback, press BOOKMARK.

The bookmark is made.
Maximum number of bookmarks are 12.

Playing the bookmarked scene

1 Press and hold BOOKMARK for a few seconds.

• The list of bookmarks is displayed.

2 Select the bookmark you want to play.

Use / to select, then press ENTER.

Deleting the bookmark

Select the bookmark you want to delete, then press CLEAR.

• Bookmarks may not be allowed to make for some discs.

• Bookmarks are canceled in the following cases:

• When the player's power turned off.

• When the disc tray is opened.

Zoom

During playback, press ZOOM.

Each time you press ZOOM, the zoom level changes as shown below.

[Zoom 2x] → [Zoom 3x] → [Zoom 4x] → [Zoom 1/2]

[Zoom 1/3] [Zoom 1/4] Normal (not displayed)

Note

• This function does not work with some discs.

Playing photos as slideshows

This function plays the photos, switching them automatically.

During playback, press INDEX.

• D is play the thumbnail of image files. The maximum number is 12 at once.
• If you select one of the image and press ENTER, slideshow will start from the image you selected.

Rotating/inverting photos

When a slideshow is playing or paused, the display switches as shown below when the / / / buttons are pressed.

button: Rotates 90^ clockwise
button: Rotates 90^ counterclockwise
button: Flips horizontally
button: Flips vertically

Switching the camera angles

For BD-ROM and DVD-Video discs on which multiple angles are recorded, the angles can be switched during playback.

During playback, press ANGLE.

• The current angle and total number of recorded angles are displayed on the TV screen. To switch the angles, press ANGLE again.
• The angles can also be switched by selecting Angle from the FUNCTION menu.
• If the angles are not switched when ANGLE is pressed, switch them from the disc menu screen.

Switching the subtitles

For discs or files on which multiple subtitles are recorded, the subtitles can be switched during playback.

Caution

• The subtitles cannot be switched for discs recorded by a DVD or BD recorder. Also refer to the operating instructions for the device used for recording.

During playback, press SUBTITLE.

• The current subtitle and total number of recorded subtitles are displayed on the TV screen. To switch the subtitle, press SUBTITLE again.
• The subtitles can also be switched by selecting Subtitle from the FUNCTION menu.
• If the subtitles are not switched when SUBTITLE is pressed, switch them from the disc menu screen.

Turning the subtitles off

Press SUBTITLE several times or select Subtitle from the FUNCTION menu to switch the setting to Off.

About displaying external subtitle files while playing DivX media files

In addition to the subtitles recorded in DivX media files, this player also supports the display of external subtitle files. If a file has the same name as that of a DivX media file aside from the file extension and the extension is one of the extensions listed below, the file is treated as an external subtitle file. Note that DivX media files and external subtitle files must be located in the same folder. Only one external subtitle file can be displayed on this player. Use a computer, etc., to delete any external subtitle files you do not want to display from the disc.

Note

• Depending on the file, the external subtitles may not be displayed properly.

Switching the audio

For discs or files on which multiple audio streams/ channels are recorded, audio streams/channels can be switched during playback.

During playback, press AUDIO.

• The current audio and total number of recorded audio streams are displayed on the TV screen. To switch the audio, press AUDIO again.
  The audio can also be switched by selecting Audio from the FUNCTION menu.
• If the audio is not switched when AUDIO is pressed, switch it from the disc menu screen.

Switching the secondary audio

Use this procedure to switch the secondary audio for BD-ROMs on which secondary audio is recorded.

During playback, press 2nd AUDIO.

• The current audio and total number of recorded audio streams are displayed on the TV screen. To switch the audio, press 2nd AUDIO again.
  The secondary audio can also be switched by selecting Secondary Audio from the FUNCTION menu.
• If the second audio is not switched when 2nd AUDIO is pressed, switch it from the disc menu screen.

Turning the Secondary Audio off

Press 2nd AUDIO several times or select Secondary Audio from the FUNCTION menu to switch the setting to Off.

Switching the secondary video

Use the procedure below to switch the secondary video (Picture-in-Picture) recorded on the BD-ROM.

During playback, press 2nd VIDEO.

• The current secondary video and total number of recorded secondary video streams are displayed on the TV screen. To switch the secondary video, press 2ndVIDEO again.

Primary audio/video
Secondary audio/video

The secondary video can also be switched by selecting Secondary Video from the FUNCTION menu.
- If the second video is not switched when 2ndVIDEO is pressed, switch it from the disc menu screen.

Turning the Secondary Video off

Press 2nd VIDEO several times or select Secondary Video from the FUNCTION menu to switch the setting to Off.

Switching the CD/SACD playback area

1 Select the area you want to play.

In the stop mode, press CD/SACD. The playback area switches on the front panel display window each time the button is pressed.

[CD AREA] [SACD 2CH] [SACD MCH] (back to beginning)

• During playback, press STOP twice to cancel continuous play before selecting the playback area.

Displaying the disc information

Press DISPLAY.

The disc information appears on the TV screen. To switch off the information display, press DISPLAY again.

The information display differs between during playback and when playback is stopped.

Enjoying BONUSVIEW or BD-LIVE

This player is compatible with BD-Video BONUSVIEW and BD-LIVE.

When using BD-Video discs compatible with BONUSVIEW, you can enjoy such functions as secondary video (picture in picture) (page 28) and secondary audio (page 28). With BD-Video discs supporting BD-LIVE, special video images and other data can be downloaded from the Internet.

Data recorded on BD video and downloaded from BD-LIVE is stored on the USB flash drive (external memory). To enjoy these functions, connect a USB flash drive (minimum 1 GB capacity, 2 GB or greater recommended) supporting USB 2.0 High Speed (480 Mbit/s) to the USB port.

• When you insert or remove a USB flash drive, be sure to turn the player's power off.
• To data stored in the USB flash drive, first insert the disc media that was being used at the time the data was downloaded (if a different disc is loaded, the data stored on the USB flash drive cannot be played).
• If a USB flash drive containing other data (previously recorded) is used, the video and audio may not play back properly.
• Do not disconnect the USB flash drive while playback is in progress.
• Some time may be required for the data to load (read/write).

Caution

• It may not be possible to use the BONUSVIEW and BD-LIVE functions if there is insufficient space on the USB flash drive. In this case, refer to Erasing data that has been added to BDs and application data on page 43 for erasing the Virtual Package data and the BD-LIVE data in the USB flash drive.

Note

• O peraion of USB flash drives is not guaranteed.
• Playback of BD-LIVE function data differs depending on the disc used. For details, consult the user instructions supplied with the disc.
• To enjoy the BD-LIVE function, a network connection and settings are required (pages 21 and 42).
• BD-LIVE is a function that provides for connection to the Internet. Discs supporting the BD-LIVE function may send ID codes identifying this player and the disc to the contents provider via the Internet.

The functions that can be used differ according to the type of disc and file. In some cases, some of the functions cannot be used. Check the usable functions on the table below.

\( Function^1 \)

Disc/file type

BD-ROM

BD-R/-RE

DVD-Video

DVD-Audio

DVD-R /-RW (VR format)

AVCREC AVCHD

Video file

Image file

Audio file

Audio CD

Forward and reverse\({scanning^2}\)

\( ✓^3 \)

\( ✓^3 \)

\( ✓^3 \)

\( ✓^4 \)

\( ✓^3 \)

\( ✓^3 \)

\( ✓^3 \)

\( ✓^3 \)

X

\( ✓^4 \)

\( ✓^4 \)

Playing specific titles,chapters or tracks

✓

✓

✓

✓

✓

✓

✓

X

X

Skipping content \( ✓ \)

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

Slow motion play2,5

✓

✓

✓

X

✓

✓

✓

\( ✓^6 \)

X

X

X

Step forward and step\({reverse^2}\)

✓

✓

✓

X

✓

✓

✓

\( ✓^7 \)

X

X

X

A-B Repeat\({play^2}\)

✓

✓

✓

✓

✓

✓

✓

✓

X

✓

✓

Repeat Play \( ✓ \)

✓

✓

✓

✓

✓

✓

✓

✓

✓

Zoom \( ✓ \)

✓

X

✓

✓

✓

✓

✓

X

X

\( Angle^8 \)

✓

X

✓

✓

X

X

X

X

X

X

X

Subtitle9

✓

✓

✓

X

✓

✓

✓

✓

X

X

\( Audio^{10} \)

✓

✓

✓

✓

✓

✓

✓

✓

X

X

Secondary audio11

\( ✓^{12} \)

X

X

X

X

X

X

X

X

X

X

\( Secondary\ video^{13} \)

\( ✓^{14} \)

X

X

X

X

X

X

X

X

X

X

Disc information

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

1. Some functions may not work for some discs or files, even if indicated [✓] on the table.
2. For some discs, normal playback resumes automatically when the chapter switches.
3. No sound is produced during forward and reverse scanning.
4. Sound is produced during forward and reverse scanning.
5. No sound is output during slow motion playback.
6. It is not possible to switch the speed during reverse slow motion playback.
7. Reverse slow motion playback is not possible.
8. Reverse step playback is not possible.
9. Angle mark is displayed for scenes at which multiple angles are recorded if Angle Mark is set to On (page 41).
10. The types of recorded subtitles depend on the disc and file.
    In some cases, the subtitle may switch or the switching screen provided on the disc may be displayed immediately, without the current subtitle or the total number of subtitles recorded on the disc being displayed.
11. The types of recorded audio streams depend on the disc and file.
12. The types of recorded secondary audio streams depend on the disc and file.
13. In some cases, the secondary audio may switch or the switching screen provided on the disc may be displayed immediately, without the current secondary audio or the total number of secondary audio streams recorded on the disc being displayed.
    Secondary audio mark is displayed for scenes at which secondary audio is recorded if Secondary Audio Mark is set to On (page 41).
14. Some discs do not include secondary audio.
15. In some cases, the secondary video may switch or the switching screen provided on the disc may be displayed immediately, without the current secondary video or the total number of secondary video streams recorded on the disc being displayed.
    Secondary video mark is displayed for scenes at which secondary video is recorded if PIP Mark is set to On (page 41).
16. Some discs do not include secondary video.

Using the FUNCTION menu

Various functions can be called out according to the player's operating status.

1 Display the FUNCTION menu.

Press FUNCTION during playback.

2 Select and set the item.

Use / to select, then press ENTER.

Note

• Items that cannot be changed are displayed in gray. The items that can be selected depend on the player's status.

To change the setting of the selected item

Use / to change.

To close the FUNCTION menu

Press FUNCTION.

FUNCTION menu item list

Item Description
Video Adjust	The main unit settings' picture quality adjustment items can be selected (page 42).
Title	Display the title information for the currently playing disc and total number of titles on the disc. Also select the title you want to play. (See the following description.)
Chapter (track/file)1	Display the information for the currently playing chapter (track/file) and total number of chapters in the disc. Also select the chapter (track/file) you want to play. (See the following description.)
Time	Display the elapsed or remaining time. Also enter the time from which you want to start playback. (See the following description.)
Mode	Switch the play mode (page 32).
Audio Switch the audio.
Angle Switch the BD-ROM/DVD-Video disc's camera angle.
Subtitle Switch the subtitle language.
Code Page Switch the subtitle code page.
Secondary Video2	Switch the BD-ROM's secondary video (Picture-in-Picture).
Secondary Audio3	Switch the BD-ROM's secondary audio.
Bitrate	Display the bitrate of the audio/video/secondary video/secondary audio.
Still off	Switch off the BD-ROM's still picture.
Ins Search	Skip forward 30 seconds.
Ins Replay	Skip backward 10 seconds.
Slide Show	Switch the playback speed while playing the picture slide show.
Transition	Change the style of the slide show while playing the picture slide show.

1. One of these types of information is displayed, depending on the type of disc.
2. Secondary video mark is displayed for scenes at which secondary video is recorded if PIP Mark is set to On (page 41).
3. Secondary audio mark is displayed for scenes at which secondary audio is recorded if Secondary Audio Mark is set to On (page 41).

Note

• Selectable items depend on the type of disc.
• The types of recorded secondary audio streams depend on the disc and file.
  Some discs do not include secondary audio/ secondary video.
• In some cases, the secondary audio/secondary video may switch or the switching screen provided on the disc may be displayed immediately, without the current secondary audio/secondary video or the total number of secondary audio/secondary video streams recorded on the disc being displayed.

Playing from a specific time (Time Search)

1 Select Time.

Use / to select, then press ENTER.

2 Input the time.

Use the number buttons (0 to 9) to input the time.

To play from 45 minutes, input 0, 0, 4, 5, 0 and 0, then press ENTER.
To play from 1 hour 20 minutes, input 0, 1, 2, 0, 0 and 0, then press ENTER.
- Press CLEAR to clear the values you have input.

3 Starting playback from the specified time. Press ENTER.

Playing a specific title, chapter, track or file (Search)

1 Select Title or Chapter (track/file).

Use / to select, then press ENTER.

2 Input the Title or Chapter (track/file) number.

Use the number buttons (0 to 9) or ↑/↓ to input the number.

To search for title 32, input 3 and 2, then press ENTER.
- Press CLEAR to clear the values you have input.

3 Starting playback from the specified title, chapter or track.

Press ENTER.

Continuing playback from a specified position (Continued Viewing Playback)

This function allows you to continue playback from a position you specify to be played next time, even after turning the power off.

Setting

During playback, press CONTINUED at the position from which you want to start continued viewing playback.

The elapsed playing time at the specified position is displayed on the TV screen.

Playing

1 Press PLAY to play the title for which you have set continued viewing playback.

The continued viewing playback confirmation screen appears.

2 Use / to select Yes, then press ENTER.

Playback starts from the specified position.

Note

The continued viewing playback setting is canceled when OPEN/CLOSE is pressed.
- Continued viewing playback may not work properly with some discs.

Playing specified range of discs, titles or chapter (track/file) in random order

You can select from two types of random playback.

1 Select Mode.

Use / to select, then press ENTER.

2 Select the playing mode.

Use / to select, then press ENTER.

Random play

The specified range of discs, titles or chapter (track/file) is played in random order. The same item may be played consecutively.

Shuffle play

The specified range of discs, titles or chapter (track/file) is played in random order. Each item is played once.

Chapter 5 Playback from Home Media Gallery

About Home Media Gallery

This player's Home Media Gallery function allows you to display a list of input sources and start playback. This chapter describes setup and playback procedures required to enjoy these features. When you play the files stored on your computer or the components on the network, it is advisory that you also refer to the operation manual supplied with your network component.

The input sources that can be played from Home Media Gallery are as shown below.

BD-R/RE (BDAV format) discs
DVD-R/RW (VR format) discs
Audio CDs (CD-DA, SACD and DTS CDs)
DVD/CDs on which only data files of video, image or audio files, etc. are recorded.
- USB device
- Files on the network servers (on the PCs or components connected to the player via LAN interface.)

Note

• The Home Media Gallery allows you to play files on media servers connected on an identical Local Area Network (LAN) as the receiver.
  The following files are allowed to be played from Home Media Gallery:

• PCs running Microsoft Windows Vista or XP with Windows Media Player 11 installed

• PCs running Microsoft Windows 7 with Windows Media Player 12 installed
• DLNA-compatible digital media servers (on PCs or other components)

Files stored in a PC or DMS (Digital Media Server) as described above can be played by Digital Media Player (DMP). The player supports the use of such DMP.

Files stored in a PC or DMS (Digital Media Server) as described above can be played via command from an external Digital Media Controller (DMC). Devices controlled by this DMC to play files are called DMRs (Digital Media Renderers). This player supports this DMR function. When in the DMR mode, such operations as playing and stopping files can be performed from the external controller.

This player can play the copyright protected contents from the server, which supports DTCP-IP. (When in the DMP mode, such operations as playing and stopping files can be performed.)

• To play back audio files stored on components on the network, you must turn on the DHCP server function of your router. In case your router does not have the built-in DHCP server function, it is necessary to set up the network manually. Otherwise, you cannot play back files stored on components on the network. See page 42.

About network playback

The network playback function of this unit uses the following technologies:

Windows Media Player

See Windows Media Player 11/Windows Media Player 12 above for more on this.

DLNA

dna

CERTIFIED

DLNA CERTIFIED® Audio Player

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or a DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Content playable over a network

• Even when encoded in a compatible format, some files may not play correctly.
• Some functions may not be supported depending on the server type or version used.
• Supported file formats vary by server. As such, files not supported by your server are not displayed on this unit. For more information check with the manufacturer of your server.
  See Disclaimer for third party content on page 48 regarding the contents that are played.

About playback behavior over a network

• Playback may stall when the PC is switched off or any media files stored on it are deleted while playing content.
• If there are problems within the network environment (heavy network traffic, etc.) content may not be displayed or played properly (playback may be interrupted or stalled). For best performance, a 10BASE-T/100BASE-TX connection between the player and the PC is recommended.
• If several clients are playing simultaneously, as the case may be, playback is interrupted or stalled.
• Depending on the security software installed on a connected PC and the setting of such software, network connection may be blocked.

Pioneer is not responsible for any malfunction of the player and/or the Home Media Gallery features due to communication errors/malfunctions associated with your network connection and/or your PC, or other connected equipment. Please contact your PC manufacturer or Internet service provider.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

Microsoft, Windows, Windows Vista, Windows XP, Windows 2000, Windows Millennium Edition, Windows 98, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Playback file on the network

1 Press HOME MEDIA GALLERY to display the Home Media Gallery.

The Home Media Gallery can also be displayed by selecting Home Media Gallery from Home Menu, then pressing ENTER.

2 Select the server which contains the file you want to play.

3 Select the file you want to play.

Use / to select, then press ENTER.

To end Home Media Gallery

Press HOME MEDIA GALLERY.

Note

• If you are unable to display the servers on the Home Media Gallery screen, select DLNA Search and press ENTER.

Disc/USB playback

1 Press HOME MEDIA GALLERY to display the Home Media Gallery.

The Home Media Gallery can also be displayed by selecting Home Media Gallery from Home Menu, then pressing ENTER.

2 Select Disc or USB.

Use / to select, then press ENTER.

3 Select Photo/Music/Video/AVCHD.

Use / to select, then press ENTER.

• This step is not for the discs that have been recorded with BDAV/VR/AVCREC format.
• To play files in AVCHD format on a USB device, create a folder named "AVCHD" on the USB device, then copy the "BDMV" folder containing which the files to be played into the "AVCHD" folder.

4 Select the title/track or file you want to play.

Use / to select, then press ENTER.

Playback starts from the selected title/track or file.

• If the file you want to play is in the folder, select the folder that contains the file first.

Playing back image files

About Slideshow

A display of the files on the disc or in the folder switches automatically.

Note

• When playing an audio CD (CD-DA/SACD/DTS-CD) the Now Playing screen is displayed.
• Some BD-R/-RE discs have playback protection. To cancel the protection, input the password set for the disc.
  It may take a few seconds before playback starts. This is normal.
  It may not be possible to play some files properly.
  The number of views may be restricted.
• D e pending on the connected devices and conditions, some time may be required for playback to start and for the image to switch.

Playing in the desired order ( Playlist)

The discs that can add tracks and files to the Playlist are as shown below.

• DVDs/CDs/USB devices on which audio files are recorded

Adding tracks/files

Use this procedure to add tracks and files, and create the Playlist.

1 Press HOME MEDIA GALLERY to display the Home Media Gallery.

The Home Media Gallery can also be displayed by selecting Home Media Gallery from Home Menu, then pressing ENTER.

2 Select Disc or USB.

Load the disc beforehand.

Use / to select, then press ENTER.

3 Select the track/file to be added.

Use to select.

4 Press POP UP MENU to display the POP UP MENU menu.

5 Select Add to Playlist to add to Playlist.

Use / to select, then press ENTER.

The track or file selected in step 3 is added to the Playlist.

To add more tracks or files, repeat steps 3 to 5.

Playing the Playlist

1 Press HOME MEDIA GALLERY to display the Home Media Gallery.

The Home Media Gallery can also be displayed by selecting Home Media Gallery from Home Menu, then pressing ENTER.

2 Select Playlist.

Use / to select, then press ENTER.

3 Select the track/file to be played.

Use / to select, then press ENTER.

Playback starts from the selected track/file and continues until the end of the list is reached. Use 1 4 7 to play the previous or next track/file. The Now Playing screen is displayed.

Deleting tracks/files from the Playlist

1 Select the track/file to be deleted, then press POP UP MENU to display the POP UP MENU menu.

2 Use / to select Remove from Playlist, then press ENTER.

Playing the web contents

You can enjoy some streaming contents on the Internet with the player.

Available web contents

YouTube (MPEG4 AVC H.264)
Picasa
-Netflix
Pandora radio

Note

About YouTube

YouTube videos of the following sizes can be played.
- Standard quality (400 x 226 pixels, 200 kbps)
Medium quality (480 x 360 pixels, 512 kbps)
High quality (854 x 480 pixels, 900 kbps)
- HD (720p) (1280 x 720 pixels, 2 Mbps)
- HD (1080p) (1920 × 1080 pixels, 4 Mbps)
- This player supports the YouTube Leanback service. The YouTube Leanback service is only available in English for now.
Refer to YouTube Help at http://www.google.com/support/youtube/ for further information.
YouTube videos for mobile phones cannot be played.
- Some YouTube videos cannot be played.

About Picasa

• Picasa is available only in English. Refer to instructions at http://picasa.google.com/support/ for details.

Register your user name and password on the PC before you use Picasa Web Albums.
- When you access Picasa from this player for the first time, select the New User icon and enter your registered user name and password.

• Depending on the Internet connection environment, it may not be possible to play web contents properly.
• To access to web contents, this player requires a broadband Internet connection. A contract with an Internet provider is required for a broadband Internet connection.
  See Disclaimer for third party content on page 48 regarding the contents that are played.
• D i s c. playback and this function cannot be used at the Press Net

Playing the items

Caution

You must connect the player to the Internet beforehand. See Connecting to the network through LAN interface on page 21 for the details.

1 Display the selection screen.

The selection screen can be selected by pressing

HOME MENU then selecting Web Contents

Desired web content.

2 Select the type of web contents.

Use / to select, then press ENTER.

3 Press ↑/↓ to select the item you want to play, then press ENTER.

To stop playback, press EXIT. Playback of the video stops.

Enjoying Netflix

Netflix offers instant streaming to Netflix members with an unlimited streaming account. This function allows you to enjoy Netflix service through the Internet. For more information on Netflix visit http://www.nsflex.com/

help/ or login to your Netflix account and click "Help" at the top of the page.

Note

• Netflix is only available in the United States, Canada and the U.K.
• To check Netflix ESN, select Initial Setup Playback Netflix Information.
• To deactivate your Netflix information, select Initial Setup Playback Netflix Information Next Screen Yes.

1 Display the Netflix screen.

pressNetflix.
- Or press HOME MENU and select Web Contents → Netflix.
- Once you access Netflix, on-screen messages will guide you.

2 Read the Disclaimer displayed on the screen. If you agree, select Agree on the last page. (If you do not agree, this service cannot be used.)
3 Follow the instructions on the screen and select the desired item.
4 After starting playback, you can control playback using PLAY/PAUSE/STOP/REV/FWD.
5 Press EXIT to close the Netflix screen.

Enjoying Pandora radio

You can instantly listen to personalized radio stations, streamed over the Internet, from Pandora via this player. For questions regarding the Pandora service, please visit http://www.pandora.com/help or e-mail: [e-mail].

Note

• P a n d o r a Radio is only available in the US.
• To deactivate Pandora on your player, reset your player. (See Restoring all the settings to the factory default settings on page 45.)

1 Display the Pandora screen. Press HOME MENU, then select Web Contents Pandora.
2 Read the Disclaimer displayed on the screen. If you agree, select Agree on the last page. (If you do not agree, this service cannot be used.)
3 Follow the instructions on the screen and select the desired item.
4 Press EXIT to close the Pandora screen.

Chapter 7 Advanced settings Changing the settings

Operating the Initial Setup screen

1 When playback is stopped, display the Home Menu screen.

Press

HOME MENU

2 Select and set Initial Setup.

Use / to select, then press ENTER.

3 Select the item and change the setting.

Use / / / to select, then press ENTER.

Closing the Initial Setup screen

Press

HOME MENU or

RETURN.

Note

• The items that can be selected depend on the player's status.
• In Options, the factory default settings are indicated in bold.

Setting Options Explanation

TV Screen	16:9 Full	Select this when connecting to a wide (16:9) TV.
	16:9 Normal	Select this when connected to a wide (16:9) TV. 4:3 pictures are displayed with vertical black bars along the sides.
	4:3 Pan&Scan	Select this when connecting to a 4:3 screen TV and playing a 16:9 video. The video will be played with the left and right sides of the image cut off to display on the 4:3 screen. (This function works if the disc is labeled for 4:3PS.)
	4:3 Letterbox	Select this when connecting to a 4:3 screen TV and playing a 16:9 video. The video will be played with black bands at the top and bottom.

Video Adjust LCD Select this when connected to a liquid crystal display.

	PDP Select this when connected to a plasma TV.
	Projector	Select this when connected to a front projector of another brand.
	Professional	With this setting, video signal processing is restrained. Select this when connected to a professional monitor.
	Custom	Picture quality settings with adjusted parameters can be stored in the memory (page 42).
Stream Smoother	Auto	Improves the picture quality of network video contents.
	Off
Setting	Options	Explanation
Audio Output	Bitstream	Select this to output digital audio signals directly.
	PCM	Select this to output digital audio signals converted to 2-channel audio signals.
	Reencode	When a BD containing secondary audio and interactive audio is played, the two audio signals are mixed and converted to Dolby Digital audio or DTS audio for output.
	Off	Select this to output audio signals other than digital audio signals.
DTS Downmix	Stereo	DTS-HD Master Audio signals, DTS-HD High Resolution Audio signals or DTS Digital Surround audio signals converted to linear PCM audio signals are converted into 2-channel (stereo) signals for output.
	Lt/Rt	DTS-HD Master Audio signals, DTS-HD High Resolution Audio signals or DTS Digital Surround audio signals converted to linear PCM audio signals are converted into 2-channel signals compatible with Dolby Surround for output (when the connected AV receiver or amplifier, etc., is compatible with Dolby Pro Logic, the AV receiver or amplifier outputs the linear PCM audio signals as surround audio signals).
Downsampling	48k	Outputs audio signals that are limited to a sampling frequency below the set sampling frequency from the DIGITAL OUT terminal. Select according to the performance of the connected device.
	96k
	192k
• Sources with sampling frequencies of over 192 kHz cannot be played.• When playing copyright-protected discs or files, the signals are output with the sampling frequency limited to 48 kHz or below, regardless of this setting.
DRC (Dynamic Range Control)	Off	Select this to output audio signals without using the DRC function.
	On Select this to adjust the range between the loudest and softest sounds (dynamic range) for playback at average volume. Use this when it is hard to hear dialog or when watching movies at midnight.
	Auto	Select to switch the DRC setting On/Off automatically according to the input audio signal from the disc. This only affects Dolby TrueHD signals.
• This affects such audio signals as Dolby Digital, Dolby TrueHD, and Dolby Digital Plus.• DRC affects audio signals output from the following audio output terminals: - Linear PCM audio signals output from the DIGITAL OUT or HDMI OUT terminals • Depending on the disc, the effect may be weak.• The effect may differ depending on the speakers, the AV amplifier settings, etc.
HDMI	Dual	Video and audio are output simultaneously from the two HDMI OUT terminals. Select this when you want to output video and audio to two TV sets simultaneously.
	Separate	Select this when you want to output the video and audio separately, the video from the HDMI OUT (MAIN) terminal, the audio from the HDMI OUT (SUB) terminal.
	Pure Audio	Select this to enjoy music only with a better sound quality when devices are connected to both HDMI output terminals. With this setting, music is output from the HDMI OUT (SUB) terminal only, and video signals are only output from the HDMI OUT (MAIN) terminal when DISPLAY is pressed.
Also refer to Setting the HDMI Mode on page 17.
Color Space	RGB	Select this to output the video signals as RGB signals. Choose this if the colors seem too faint and the black seems too bright.
	YCbCr	Select this to output the video signals as YCbCr 4:4 signals.
	YCbCr 422	Select this to output the video signals as YCbCr 4:22 signals.
	Full RGB	Select this to output the video signals as RGB signals. Choose this if the colors seem too dense and all the dark colors are displayed in a uniform black.
Resolution	Auto	Select this to choose the resolution of the video signals output from the HDMI OUT terminal automatically.
	480P/576P	Output the video signals from the HDMI OUT terminal with the selected resolution.
	720P	The resolution can be changed by pressing HDMI, but Auto cannot be selected.
	1080I	The resolution switches when HDMI is pressed and held for over 2 seconds.
	1080P

Setting	Options	Explanation
HDMI	HDMI Audio Out	Bitstream	Select this to output HDMI audio signals directly.
		PCM	Select this to output HDMI audio signals converted to PCM audio signals.
		Reencode	When a BD containing secondary audio and interactive audio is played, the two audio signals are mixed and converted to Dolby Digital audio or DTS audio for output.
		Off	Select this when you do not want to output the audio signal from the HDMI output terminal.
Control	On	Select this to control the player with the remote control of the connected AV device using an HDMI cable. Also refer to page 16.
	Off	Select this when you do not want to control the player with the remote control of the connected AV device using an HDMI cable.
To use Sound Retriever Link and PQLS function (pages 17 and 18), Control must be set to On.
HDMI Deep Color	30bits	Select this when outputting the video signals with 30-bit color.
	36bits	Select this when outputting the video signals with 36-bit color.
	Off Se	lect this when outputting the video signals with normal 24-bit color.
When [30bits] or [36bits] is selected, set the color space (page 39) to a setting other than YCbCr 422.
HDMI 1080P 24Hz	On	Select this when Resolution is set to Auto or 1080P and outputting 1080p/24 video signals to a TV compatible with 1080p/24.
	Off	Select this when Resolution is set to 1080P and outputting 1080p/60 video signals to a TV compatible with 1080p/60.
HDMI 3D	Auto	With 3D discs, the disc is played with 3D images.
	Off	3D images are not played.
3D Notice	Yes	This sets whether or not to display the 3D notice when playing 3D images.
	No
Network	IP Setting	Select this to set the IP address of the player and DNS server (page 42).
	Proxy Server	Only set the proxy server if so instructed by your Internet service provider (page 42).
	Information	Displays the values of the MAC address, IP address, subnet mask, default gateway, DNS server (primary) and DNS server (secondary).
	Connection Test	Select this to test the network connection (page 43).
	Internet Connection	Enable	Select this when connecting to the Internet.
		Disable	Select this when not connecting to the Internet.
BD-Live Connection	Permitted	All discs are allowed to connect to BD-LIVE.
	Partial Permitted	Only discs whose safety has been confirmed are allowed to connect to BD-LIVE.
	Prohibited No disc is allowed to connect to BD-LIVE.
DLNA	Enable	Select this when connecting to DLNA server.
	Disable	Select this when not connecting to DLNA server.
Language	QSD	available languages	Choose a language for the on-screen displays from the listed languages.
	Audio* For some discs, it may not be possible to change to the selected language.	available languages	Choose a language from the listed languages to set the default audio language for BD-ROM and DVD-Video playback.
	If a language not recorded on the BD/DVD is set, one of the recorded languages is automatically selected for playback.
	Subtitle* For some discs, it may not be possible to change to the selected language.	available languages	Choose a language from the listed languages to set the default subtitle language for BD-ROM and DVD-Video playback.
	If a language not recorded on the BD/DVD is set, one of the recorded languages is automatically selected for playback.
	Menu* For some discs, it may not be possible to change to the selected language.	available languages	Choose a language from the listed languages to set the default language for BD-ROM and DVD-Video menus.
	If a language not recorded on the BD/DVD is set, one of the recorded languages is automatically selected for playback.
Setting	Options	Explanation
Angle Mark	On	Select this to display the angle mark on the TV screen (page 27).
	Off	Select this if you do not want to display the angle mark on the TV screen.
PIP Mark	On	Select this to display the PIP mark on the TV screen.
	Off	Select this if you do not want to display the PIP mark on the TV screen.
Secondary Audio Mark	On	Select this to display the secondary audio mark on the TV screen (page 28).
	Off	Select this if you do not want to display the secondary audio mark on the TV screen.
DivX(R) VOD DRM	Registration Code	Displays the player's registration code required to play DivX VOD files (page 10).
Netflix Information	Activate and deactivate your Netflix information. Also check your Netflix ESN.
DVD Playback	DVD AUDIO	Select this to play only the audio part on the DVD-Audio disc.
* This setting is for DVD-Audio disc playback.	DVD VIDEO	Select this to play only the video part on the DVD-Audio disc.
Internet Setting	Permitted	Web contents can be watched without entering the password.
	Partial Permitted	The password must be entered to watch web contents.
	Prohibited No web contents can be watched.
Disc Auto Playback	On	Discs are played automatically after they are loaded.
	Off	Loaded discs do not start playing automatically.
Last Memory	On	Select this to save the point at which you last stopped playback, even after the disc tray is opened or you switch to the standby mode.
	Off	Select this when you want to use only Continue Viewing Play (page 32).
PBC (Play Back Control)	On	Select this to play Video-CDs (version 2.0) compatible with PBC using the disc menu.
	Off	Select this to play Video-CDs (version 2.0) compatible with PBC without using the disc menu.
Setup Navigator	Start making the settings using the Setup Navigator menu. For details, see page 22.
Change Password	Register (change) the password for parental lock settings or for unlocking to play DVD-Videos with the parental lock feature (page 43). The default password is "0000".
Parental Control	Change the player's parental lock level (page 43).
Country Code	Change the Country/Area code (page 44).
Screen Saver	Off	The screen saver is not activated.
	1 min	The screen saver will be activated if no operation has been performed for more than one minute/two minutes/three minutes. Operating the remote control can deactivate the screen saver.
	2 min
	3 min
Auto Power Off	Off	Select this if you do not want the power to turn off automatically.
	10 min	The power will be automatically turned off if no operation has been performed for more than 10 minutes/20 minutes/30 minutes.
	20 min
	30 min
Quick Start	On	Select to shorten the required time to boot up.
	Off	Select to perform normal bootup.
Update	Disc	Select the method of software updating. (page 44)
	USB Storage
	Network
Load Default	Restore the settings to the factory default.
System Information	Check the system version number.
Disc Auto Update	On	Display the software update screen when the disc with the player's update file is loaded.
	Off	The software update screen must be displayed manually. (page 44)
BUDA	BUDA Information	Display and set up the BUDA data on the connected USB device.
	BUDA Setup

Adjusting the video

1 Select and set Display Setting Video Adjust.

Use / to select, then press ENTER.

2 Select and set Custom.

Use / to select, then press ENTER.

3 Select the item and change the setting.

Use / to select the item, then use / to change the setting. Once the setting is completed, press

RETURN to close the settings screen.

Item Description

Prog.Motion	Adjust according to the type of image (moving or still image). This is effective mainly when outputting video materials as progressive images.
Pure Cinema	This setting optimizes the operation of the progressive scanning circuit for playing film materials.
Brightness	Select this to adjust the TV screen's brightness.
Contrast	Select this to adjust the TV screen's contrast.
Hue Adjusts the balance between green and red.
Saturation	Select this to adjust the TV screen's saturation.
Detail	Adjusts the picture's contours.
YNR	Reduces noise in the luminance (Y) signal.
CNR	Reduces noise in the chroma (C) signal.
MNR	Reduces the mosquito noise (distortion along the contours of the picture generated upon MPEG compression).
BNR	Reduces the block noise (block-shaped distortion generated upon MPEG compression).

Note

• The Video Adjust settings do not affect Blu-ray 3D pictures or the pictures of the HDMI OUT (SUB) terminals.

Setting the IP address

1 Select and set Network IP setting Next Screen.

Use / to select, then press ENTER.

2 Set IP address.

Use / / / to set the IP address of the player or DNS server, then press ENTER.

• Auto Set IP Address

On - The player's IP address is obtained automatically. Select this when using a broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. This player's IP address will automatically be allocated from the DHCP server.

Off - The player's IP address must be set manually. Use the number buttons (0 to 9) to input the IP address, subnet mask and default gateway.

Note

• For information on the DHCP server function, refer to the operating instructions for the network device.
• You may need to contact your Internet service provider or network administrator when inputting the IP address manually.

Setting the proxy server

Only set the proxy server if so instructed by your Internet service provider.

1 Select and set Network Proxy Server Next Screen.

Use / to select, then press ENTER.

2 Select and set Use or Not use at Proxy Server.

Use / to change, then press .

• Use - Select this when using a proxy server.
• Not use - Select this when not using a proxy server.

If you have selected Use, proceed to step 3.

3 Select and set Server Select Method.

Use / to change, then press.

• IP Address - Input the IP address.
  Server Name - Input the server name.

4 Input IP Address or Server Name.

Use the number buttons (0 to 9) to input the number if you select IP address in step 3. Use / to move the cursor.

When Server Name is selected in step 3, use the number buttons (0 to 9) to launch the software keyboard. Now use

/ / / to select characters and items, then press ENTER to input.

5 Input Port Number.

Press , then use the number buttons (0 to 9) to input the number.

6 Press ENTER to set.

Displaying the network settings

Select and set Network Information Next Screen.

Use / to select, then press ENTER.

The MAC address, IP address, subnet mask, default gateway and DNS server (primary and secondary) settings are displayed.

When Auto Set IP Address is set to On, the values obtained automatically are displayed.

Note

• "0.0.0.0" is displayed when each IP address has not been set.

Testing the network connection

Select and set Network Connection Test Start.

Use / to select, then press ENTER.

"Network is OK." is displayed once the test is completed. If any other message is displayed, check the connections and/or settings (pages 21 and above).

Changing to other language at language setting

1 Select and set Language.

Use / to select, then press ENTER.

2 Select and set OSD, Audio, Subtitle or Menu.

Use / to select, then press ENTER.

3 Select and set the desired language.

Use / to select, then press ENTER.

Note

• If a language not recorded on the BD/DVD is set, one of the recorded languages is automatically selected and played.

Erasing data that has been added to BDs and application data

Use this procedure to erase data that has been added to BDs (data downloaded with the BD-LIVE function and data used with the BONUSVIEW function) and application data.

Caution

• Some time is required to erase the data.
• Do not unplug the power cord while data is being erased.

1 Select and set BUDA BUDA Setup.

Use / to select, then press ENTER.

2 Select and set Fmt.buda.

Press ENTER.

Registering or Changing the password

Use this procedure to register or change the code number required for the Parental Lock settings.

About default password of this unit

The default password is "0000".

• This unit might ask you to enter a password when you change the password.
• If you reset this unit, your password is simultaneously changed to the default setting.

1 Select and set Security Change Password Next Screen.

Use / to select, then press ENTER.

2 Input the password.

Use the number buttons (0 to 9) to input the number, then press ENTER to set.

Use / to move the cursor.

3 Re-input the password.

Use the number buttons (0 to 9) to input the number, then press ENTER to set.

Use / to move the cursor.

• To change the password, input the previously registered password, then input the new password.

Note

We recommend making a note of the password.
- If you have forgotten the password, reset the player to the factory default setting, then register the password again (page 45).

Changing the Parental Lock level for viewing DVDs/BD-ROMs

Some DVD-Video discs containing scenes of violence, for example, have Parental Lock levels (check the indications on the disc's jacket or elsewhere). To restrict viewing these discs, set the player's level to the level lower than the discs.

1 Select and set Security Parental Control Next Screen.

Use / to select, then press ENTER.

2 Input the password.

Use the number buttons (0 to 9) to input the number, then press ENTER to set.

Use / to move the cursor.

3 Change the level.

Use / to change, then press ENTER to set.

Note

• The level can be set to Off or between Level1 and Level8. When set to Off, viewing is not restricted.

Changing the Country/Area code

1 Select and set Security Country Code Next Screen.

Use / to select, then press ENTER.

2 Input the password.

Use the number buttons (0 to 9) to input the number, then press ENTER to set.

Use / to move the cursor.

3 Change the country/area code.

Use / to change, then press ENTER to set. Refer to page 47.

Software updating

The player's software can be updated using one of the methods shown below.

• Connecting to the Internet.
  Using a disc.
• Using a USB flash drive.

Product information on this player is provided on the Pioneer website. Check the website shown on page 6 for update and service information on your Blu-ray disc player.

Caution

• Do not perform the actions below while the software is being updated. Doing so will interrupt updating and could lead to malfunction.
• Disconnecting a USB memory device
  Unplugging the power cord
• Pressing STANDBY/ON on the main unit's front panel for over 5 seconds.
• There are two processes for software updating, downloading and updating. Both processes may take a certain period of time.
• Other operations are defeated during software updating. Furthermore, updating process cannot be canceled.
• When the front panel display is off, turn it on with FL DIMMER. When updating the player's software with the front panel display off, do not unplug the power cord until the unit turns off.

Updating connecting to the Internet

1 Connect to the Internet.

2 When playback is stopped, display the Home Menu screen.

Press HOME MENU

3 Select and set Initial Setup.

Use / to select, then press ENTER.

4 Select and set Options Update Network Start.

Use / / / to select, then press ENTER.

5 Updating starts.

Press ENTER.

• Software updating may take a certain period of time.
• When updating is completed, the unit restarts automatically.

Updating using a USB flash drive/disc

Note

• When an update file is provided on the Pioneer website, use your computer to download it onto a USB flash drive or disc. Carefully read the instructions on downloading update files provided on the Pioneer website.
• Store the update file in the root directory of the USB flash drive or disc. Do not store it within a folder.
• Do not put any files other than the update file on the USB flash drive or disc.
  To update using a disc, use a CD-R or CD-RW disc.

• This unit supports USB flash drives formatted in FAT32, FAT16 or NTFS. When formatting a USB flash drive on your computer, do so with the settings below.

• File system: FAT32

• Allocation unit size: Default allocation size

• Only store the most recent update file on the USB flash drive or disc.

• Do not use a USB extension cable to connect a USB flash drive to the player. Using a USB extension cable may prevent the player from performing correctly.

1 Plug in the USB flash drive or load the disc on which the update file is stored.

2 When playback is stopped, display the Home Menu screen.

Press HOME MENU.

3 Select and set Initial Setup.

Use / to select, then press ENTER.

4 Select and set Options Update Disc or USB Storage Start.

Use / / / to select, then press ENTER.

5 Updating starts.

Press ENTER.

• Software updating may take a certain period of time.
• When updating is completed, the unit restarts automatically.

Restoring all the settings to the factory default settings

1 Check that the player's power is turned on.
2 When playback is stopped, display the Home Menu screen.

Press HOME MENU

3 Select and set Initial Setup.
Use / to select, then press ENTER.
4 Select and set Options Load Default Next Screen.
Use / to select, then press ENTER.

5 Select and set OK.

Use / to select, then press ENTER.

Note

• After restoring all the settings to the factory default settings, use Setup Navigator to reset the player (page 22).

About how digital audio formats are output

Setting Bitstream	am PCM Re-encode
Method of conversion	Only the primary audio (the main sound for movies, etc.) is output. The secondary audio and interactive audio are not output.		The primary audio, secondary audio and interactive audio are converted into PCM audio and output simultaneously.		The primary audio, secondary audio and interactive audio are converted into PCM audio then converted again into Dolby Digital audio or DTS audio and output simultaneously.1
Output terminal(s)	HDMI OUT terminal	DIGITAL OUT terminal	HDMI OUT terminal	DIGITAL OUT terminal	HDMI OUT terminal	DIGITAL OUT terminal
Audio type

Dolby Digital Dolby Digital Dolby Digital PCM 5.1ch

	Dolby Digital Plus	Dolby Digital PCM 7.1ch		Dolby Digital Dolby Digital Dolby D
Dolby TrueHD	Dolby TrueHD	Dolby Digital	PCM 7.1ch
DTS Digital Surround	DTS Digital Surround	DTS Digital Surround	PCM 5.1ch	PCM 2 ch2
DTS-HD High Resolution Audio	DTS-HD High Resolution Audio	DTS ES 6.1 ch PCM 7.1ch		DTS 5.1ch DTS 5.1ch
DTS-HD Master Audio	DTS-HD Master Audio	DTS ES 6.1 ch PCM 7.1ch
PCM PCM 7.1ch		PCM 2 ch2	PCM 7.1ch	Dolby Digital Dolby Digital
SACD (DSD)	DSD 5.1ch3	PCM 2 ch4	PCM 5.1ch	PCM 2 ch2
DVD-Audio	PCM 5.1ch5	PCM 2 ch2, 6	PCM 5.1ch5	PCM 2 ch2, 6

1. If there is no secondary audio or interactive audio, depending on the disc the signals may be output without being re-encoded.
2. For multi-channel audio, the sound is converted into 2-channel audio for output.
3. When Resolution is set to 480I or 480P, or even when it is set to Auto, if the connected device does not support 480i/480p, the DSD audio of SACDs is output in two channels, front left and front right (page 39).
4. When HDMI Audio Out is set to Bitstream, the sound is not output (page 40).
5. When the connected device has two channels (front left and right), with DVD Audio discs prohibiting downmixing, the multi-channel audio signals are output as two channels (front left and right).
6. Digital sound is not output for discs on which downmixing is prohibited.

Note

• Depending on the disc, the number of channels may differ.
  Depending on the connected HDMI device, the HDMI output audio and number of channels may differ.
• The HDMI output audio and number of channels may differ when Resolution is set to 480l or 480P, as well as when set to Auto if the connected device only supports 480i/480p.
• Three types of audio are recorded on BD video discs.

Primary audio: The main sound.
Secondary audio: Additional sound added supplementarily, such as comments by directors, actors, etc.
- Interactive audio: Sounds such as clicks heard when operations are performed. The interactive audio differs from disc to disc.

Language Code Table and Country/Area Code Table

Language Code Table

Language name, language code, input code

Abkhazian, ab/abk, 0102

Afar,aa/aar,0101

Albanian, sq/sqi, 1917

Amharic, am/amh, 0113

Arabic, ar/ara, 0118

Armenian, hy/hye, 0825

Assamese, as/asm, 0119

Aymara, ay/aym, 0125

Azerbaijani, az/aze, 0126

Bashkir, ba/bak, 0201

Basque,eu/eus,052

Belarusian, be/bel, 0205

Bengali, bn/ben, 0214

Bihari, bh/bih, 0208

Bislama, bi/bis, 0209

Breton, br/bre, 0218

Bulgarian, bg/bul, 0207

Burmese, my/mya, 1325

Catalan. ca/cat, 0301

Central Khmer, km/khm, 1113

Chinese, zh/zho, 2608

Corsican, co/cos, 0315

Croatian, hr/hrv, 0818

Czech, cs/ces, 0319

Danish, da/dan, 0401

Dutch, nl/nld, 1412

Dzongkha, dz/dzo, 0426

English, en/eng, 0514

Esperanto, eo/epo, 0515

Estonian, et/est, 0520

Finnish, fi/fin, 0609

Fijian, fj/fij, 0610

Faroese, fo/fao, 0615

Georgian, ka/kat, 1101

German.de/deu.0405

Greek, el/ell, 0512

Guarani, gn/grn, 0

Gujarati,gu/guj,0721

Hausa, ha/hau, 0801

Hebrew, iw/heb, 0923

Hindi, hi/hin, 0809

Hungarian, hu/hun, 0821

Icelandic,is/isl,0919

Indonesian, in/ind, 0914

Interlingua, ia/ina, 0901

Interlingue, ie/ile, 0905

Inupiac,ik/ipk,0911

Irish, ga/gle, 0701

Italian, it/ita, 0920

Japanese, ja/jpn, 1001

Javanese, JW/jav, 1023

Kalaallisut,kl/kal,1112

Kannada, kn/kan, 1114

Kashmiri,ks/kas,1119

Kazakh, kk/kaz, 1111

Kinyarwanda, rw/kin, 1823

Kirghiz, ky/kir, 1125

Korean, ko/kor, 1115

Kurdish, ku/kur, 1121

Lao, lo/lao, 1215

Latin, Ja/lat, 1201

Latvian, Iv/lav, 1222

Lingala, In/lin, 1214

Lithuanian, It/lit, 1220

Macedonian, mk/mkd, 1311

Malagasy, mg/mlq, 1307

Malay, ms/msa, 1319

Malayalam, ml/mal, 1312

Maltese, mt/mt. 1320

Maori, mi/mri, 1309

Marathi, mr/mar, 1318

Mongolian. mn/mon, 1314

Moldavian, mo/mol, 1315

Nauru, na/nau, 1401

Nepali,ne/nep,1405

Norwegian, no/nor, 1415

Occitan, oc/oci, 1503

Oriya,or/ori,1518

Oromo, om/orm, 1513

Panjabi, pa/pan, 1601

Persian. fa/fas, 0601

Polish, pl/pol, 1612

Portuguese, pt/por, 1620

Pushto, ps/pus, 1619

Quechua, qu/que, 1721

Romanian, ro/ron, 1815

Romansch, rm/roh, 1813

Rundi, rn/run, 1814

Sanskrit, sa/san, 1901

Scottish Gaelic, gd/gla, 0704

Serbian, sr/srp, 1918

Serbo-Croatian, sh/---, 1908

Shona, sn/sna, 1914

Sindhi, sd/snd, 1904

Sinhalese, si/sin, 1909

Slovak, sk/slk, 1911

Slovenian. sl/sly, 1912

Somali, so/som, 1915

Sotho, Southern, st/sot, 1920

Spanish, es/spa, 0519

Sundanese. su/sun, 1921

Swahili, sw/swa, 1923

Swati,ss/ssw,1919

Swedish,sv/swe,1922

Telugu, te/tel, 2005

Thai, th/tha, 2008

Tibetan, bo/bod, 0215

Tigrinya, ti/tir, 2009

Tonga (Tonga Islands), to/ton, 2015

Tsonga, ts/tso, 2019

Tswana, tn/tsn, 2014

Turkmen, tk/tuk, 2011

Turkish, tr/tur, 2018

Twi, tw/twi, 2023

Ukrainian,uk/ukr,2111

Urdu, ur/urd, 2118

Uzbek.uz/uzb,2126

Vietnamese.vi/vie,2209

Volapuk, vo/vol, 2215

Welsh.cy/cym,0325

Western Frisian, fy/fry, 0625

Wolof, wo/wol, 2315

Xhosa.xh/xho,2408

Yiddish,ji/yid,1009

Country/Area Code Table

Country/Area name, Country/Area code, input code

Anguilla, ai, 0109

Antigua and Barbuda, ag, 0107

Argentina, ar, 0118

Armenia, am, 0113

Australia, au, 0121

Austria, at, 0120

Azerbaijan, az, 0126

Bahamas, bs, 0219

Barbados, bb, 0202

Belarus, by, 0225

Belgium, be, 0205

Belize, bz, 0226

Bermuda, bm, 0213

Brazil,br,0218

Bulgaria, bg, 0207

Canada, ca, 0301

Cayman Islands, ky, 1125

Chile, cl, 0312

China, cn, 0314

Colombia, co, 0315

Croatia, hr, 0818

Cyprus, cy, 0325

Czech Republic, cz, 0326

Denmark, dk, 0411

Dominica.dm,0413

Dominican Republic, do, 0415

Estonia, ee, 0505

Finland. fi, 0609

France,fr,0618

Georgia, ge, 0705

Germany, de, 0405

Greece, gr, 0718

Greenland, gl, 0712

Grenada, gd, 0704

Guyana, gy, 0725

Haiti,ht,0820

Hong Kong,hk,0811

Hungary. hu, 0821

Iceland, is, 0919

India, in, 0914

Indonesia, id, 0904

Ireland, ie, 0905

Israel, il, 0912

Italy, it, 0920

Jamaica, jm, 1013

Japan, jp, 1016

Kazakhstan, kz, 1126

Korea, Republic of, kr, 1118

Kyrgyzstan, kg, 1107

Latvia, IV, 1222

Liechtenstein, li, 1209

Lithuania, lt, 1220

Luxembourg, lu, 1221

Macedonia, the Former Yugoslav

Republic of, mk, 1311

Malaysia. my, 1325

Malta, mt, 1320

Mexico. mx, 1324

Moldova, Republic of, md, 1304

Monaco, mc, 1303

Montserrat, ms, 1319

Netherlands. nI, 1412

New Zealand, nz, 1426

Norway, no, 1415

Pakistan, pk, 1611

Peru, pe, 1605

Philippines,ph,1608

Poland, pl, 1612

Portugal, pt, 1620

Puerto Rico, pr, 1618

Romania, ro, 1815

Russian Federation, ru, 1821

Saint Kitts and Nevis, kn, 1114

Saint Lucia, Ic, 1203

Saint Vincent and the

Grenadines, vc, 2203

San Marino, sm, 1913

Singapore, sg, 1907

Slovakia, sk, 1911

Slovenia. si, 1909

Spain, es, 0519

Suriname, sr, 1918

Sweden,se,1905

Switzerland.ch,0308

Taiwan, Province of China. tw, 2023

Tajikistan, tj, 2010

Thailand, th, 2008

Trinidad and Tobago, tt, 2020

Tunisia, tn, 2014

Turkey, tr, 2018

Turkmenistan, tm, 2013

Turks and Caicos Islands, tc, 2003

Ukraine,ua,2101

United Kingdom,gb,0702

United States, us, 2119

Uruguay, uy, 2125

Uzbekistan, uz, 2126

Venezuela,ve,2205

Virgin Islands, British, vg, 2207

Additional information

Disclaimer for third party content

ACCESS TO THIRD PARTY CONTENT SERVICES, INCLUDING ALL ASSOCIATED FEATURES AND FUNCTIONALITIES, IS PROVIDED "AS IS," "AS AVAILABLE" AND AT THE USER'S OWN RISK, WITHOUT WARRANTY OF ANY KIND. PIONEER DISCLAIMS ALL WARRANTYES, EXPRESS OR IMPLIED, IN CONNECTION WITH ACCESS TO AND USE OF CONTENT SERVICES THROUGH THIS DEVICE, INCLUDING WITHOUT LIMITATION WARRANTYES OF MERCHANTABILITY, SATSFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT. PIONEER DOES NOT GUARANTEE, REPRESENT, OR WARRANTY THAT CONTENT SERVICES WILL BE FREE FROM ERRORS, INTERRUPTION, LOSS, CORRUCTION, ATTACK, VIRUSES, INTERFERENCE, HACKING, OR OTHER SECURITY Intrusion, AND PIONEER DISCLAIMS ANY LIABILITY IN CONNECTION WITH THE FOREGOING. PIONEER IS NOT LIABLE OR RESPONSIBLE FOR ANY LOSS OR DAMAGE Arising FROM ACCESS TO OR USE OF CONTENT. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY PIONEER OR ITS CUSTOMER SERVICES REPRESENTATIVES WILL CREATE ANY SUCH WARRANTY. IN NO EVENT WILL PIONEER, ITS AFFILIATES, OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES BE LIABLE IN CONNECTION WITH YOUR USE OF THIRD PARTY CONTENT SERVICES THROUGH THIS DEVICE FOR PERSONAL INJURY OR SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, INCLUDING WITHOUT LIMITATION DAMAGES FOR ATTORNEY'S FEES, LOST DATA OR LOST PROFITS, REGARDLESS OF THE THEORY OF LIABILITY AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL PIONEER'S TOTAL LIABILITY TO YOU FOR ALL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIRD PARTY CONTENT SERVICES (OTHER THAN AS MAY BE REQUIRED BY LAW IN CASES INVOLVING PERSONAL INJURY) EXCEED $10.00. THE FOREGOING LIMITATIONS WILL APPLY EVEN IF THE ABOVE REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IF ANY APPLICABLE AUTHORITY HOLDS ANY PORTION OF THIS SECTION TO BE UNENFORCEABLE, THEN LIABILITY WILL BE LIMITED TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.

Cautions on use

Moving the player

If you need to move this unit, first remove the disc if there's one loaded, and close the disc tray. Next, press STANDBY/ON to switch the power to standby, checking that the POWER OFF indication on the front panel display goes off. Wait at least 10 seconds. Lastly, disconnect the power cord.

Never lift or move the unit during playback—discs rotate at a high speed and may be damaged.

Place of installation

Select a stable place near the TV and AV system to which the unit is connected.

Do not place the player on top of a TV or color monitor. Keep it away from cassette decks or other components easily affected by magnetism.

Avoid the following types of places:

• Places exposed to direct sunlight
• Humid or poorly ventilated places
• Extremely hot or cold places
• Places subject to vibration
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (in kitchens, etc.)

Do not place objects on top

Do not place objects on top of the player.

Do not obstruct the ventilation holes

Do not use the player on a shaggy rug, bed, or sofa, and do not cover the player with a cloth, etc. Doing so will prevent heat dissipation and could lead to damage.

Keep away from heat

Do not place the player on top of an amplifier or other device generating heat. When installing in a rack, to avoid the heat generated by the amplifier and other devices, place it on a shelf below the amplifier whenever possible.

Turn the power off when not using the player

Depending on the conditions of the TV broadcast signals, striped patterns may appear on the screen when the TV is turned on while the player's power is turned on. This is not a malfunction with the player or TV. If this happens, turn the player's power off. In the same way, noise may be heard in the sound of a radio.

Condensation

If the player is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which the player is installed rises suddenly due to a heater, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, the player will not operate properly and playback is not possible. Let the player stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible.

Condensation can also occur in the summer if the player is exposed to the direct wind from an air-conditioner. If this happens, move the player to a different place.

Cleaning the player

Normally, wipe the player with a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a dry cloth.

Note that getting alcohol, thinner, benzene or insecticide on the player could cause the print and coating to peel off. Also, avoid leaving rubber or vinyl products in contact with the player for long periods of time, as this could damage the cabinet.

When using chemical-impregnated wipes, etc., read the wipe's cautions carefully.

Unplug the power cord from the power outlet when cleaning the player.

Caution for when the unit is installed in a rack with a glass door

Do not press the OPEN/CLOSE on the remote control to open the disc tray while the glass door is closed. The door will hamper the movement of the disc tray, and the unit could be damaged.

Cleaning the pickup lens

The player's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

Handling discs

Do not use damaged (cracked or warped) discs.

Do not scratch the disc's signal surface or let it get dirty.

Do not load more than one disc into the player at a time.

Do not glue paper or put stickers onto the disc, or use a pencil, ball-point pen or other sharp-tipped writing instrument. These could all damage the disc.

Storing discs

Always store discs in their cases, and place the cases vertically, avoiding places exposed to high temperatures or humidity, direct sunlight or extremely low temperatures.

Be sure to read the cautions included with the disc.

Cleaning discs

It may not be possible to play the disc if there are fingerprints or dust on it. In this case, using a cleaning cloth, etc., to wipe the disc gently from the center toward the outer edge. Do not use a dirty cleaning cloth.

Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.

For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.

Specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be used on this player. Never use such discs, as they will damage the player.

Condensation on discs

If the disc is moved suddenly from a cold place into a warm room (in winter, for example), water droplets (condensation) may form on the disc surface. Discs will not play properly if there is condensation on them.

Carefully wipe off the water droplets from the disc surface before using the disc.

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified even after checking the points below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

Playback

Problem Check Remedy
·Disc does not play. ·Disc tray opens automatically.	Is the disc one that is playable on this player?	Check whether the disc is one that can be played on this player (page 7).
	Is the file one that is playable on this player?	·Check whether the file is one that can be played on this player (page 10). ·Check whether or not the file is damaged.
	Is the disc scratched?	It may not be possible to play scratched discs.
	Is the disc dirty?	Clean the disc (page 49).
	Is there a piece of paper or sticker attached to the disc?	The disc may be warped and unplayable.
	Is the disc properly set in the disc tray?	·Set the disc with the printed side facing up. ·Set the disc properly in the depression in the disc tray.
	Is the region number correct?	See page 9 for the region numbers of discs that can be played on this player.
No picture is displayed or the picture is not displayed properly.	Is the video cable properly connected?	·Connect the cable properly according to the connected devices (page 16). ·Disconnect the cable (video/ audio cable or HDMI cable), then reinsert it firmly and all the way in. ·A TV or any other device which outputs video signals must be connected to the HDMI OUT (MAIN) terminal (page 18).
	Is the video cable damaged?	If the cable is damaged, replace it with a new one.
	Is the input setting on the connected TV or AV receiver or amplifier right?	Read the operating instructions for the connected components and switch to the proper input.
	Is the output video resolution properly set?	Switch the resolution at which the video and audio are output by pressing and holding HDMI for over 2 seconds.
	·Is the player connected with an HDMI cable other than a High Speed HDMI®/TM cable (with a Standard HDMI®/TM cable)? ·Are you using an HDMI cable with a built-in equalizer?	1080p or Deep Color video signals may not be output properly, depending on the HDMI cable being used or the player's settings. If you wish to output the video signals with 1080p or Deep Color, connect the TV using a High Speed HDMI®/TM cable without a built-in equalizer, then reset the player using the Setup Navigator (page 22).
	Is a DVI device connected?	The picture may not be displayed properly if a DVI device is connected.
	Is Color Space properly set?	Change the Color Space setting (page 39).
	Is the HDMI Mode set appropriately?	Set the HDMI Mode to something other than Pure Audio (page 39).
Playback stops.		·Playback may stop if the unit is subject to shocks or set in an unstable place. ·Playback may stop when a USB device is connected or disconnected during playback. Do not connect or disconnect USB devices during playback.
Picture freezes and the front panel and remote control buttons stop working.		• Press STOP to stop playback, then restart playback. • If the playback cannot be stopped, press STANDBY/ON on the player's front panel to turn off the power, then turn the power back on. • If the power cannot be turned off (to standby), reset the unit. Press and hold STANDBY/ON on the main unit's front panel for over 5 seconds. • It may not be possible to play scratched discs.
No picture is displayed or picture is not output in high definition when playing BIDs.		With some discs, it may not be possible to output the video signals from theVIDEO output terminal. In this case, connect using an HDMI cable (page 16).
• Picture is disturbed during playback. • Picture is dark.		• This player supports Rovi analog copy protection technology. With some TVs (such as with built-in video deck), the picture will not be displayed properly when the copy protected DVD title is played. This is not a malfunction. • If the player and TV are connected via a DVD recorder/video deck, etc., the picture will not be displayed properly due to analog copy protection. Connect the player and TV directly.
• Picture is stretched. • Picture is cropped. • Aspect ratio cannot be switched.	Is the TV's aspect ratio properly set?	Read the operating instructions for the TV and set the TV's aspect ratio properly.
	Is TV Screen properly set?	Set TV Screen properly (page 38).
		When video signals with a resolution of 1080/50i, 1080/50p, 720/50p, 1080/24p, 1080/60i, 1080/60p or 720/60p are being output from the HDMI OUT terminal, they may be output with an aspect ratio of 16:9 even if TV Screen is set to 4:3 Pan&Scan (page 38).
Picture is interrupted.		The picture may be interrupted when the resolution of the recorded video signal switches. Set Resolution to something other than Auto (page 39).
The subtitles cannot be switched.		The subtitles cannot be switched for discs recorded on a DVD or BD recorder.
• No sound is output. • Sound is not output properly.	Is the disc played back in slow motion? Is the disc played back in fast forward or fast reverse?	No sound is output during slow motion play and forward and reverse scanning.
	Are the audio cables properly connected?	• Connect the cable properly according to the connected devices (page 16). • Insert the cable firmly and all the way in.
	Is the audio cable damaged?	If the cable is damaged, replace it with a new one.
	Is Audio Output properly set?	Set Audio Output properly, according to the connected device (page 39).
	Are the connected components (AV receiver or amplifier, etc.) properly set?	Read the operating instructions for the connected components and check the volume, input, speaker settings, etc.
	Is HDMI Audio Out properly set?	Set HDMI Audio Out to Re-encode or PCM. (page 40).
	Is the output video resolution properly set?	Switch the setting at Resolution (page 39).
	Is a DVI device connected?	The sound will not be output from the HDMI OUT terminal if a DVI device is connected. Connect the device to a DIGITAL OUT terminal (page 20).
		For some BDs, audio signals are only output from DIGITAL OUT terminal or the HDMI OUT terminal.
	Is the HDMI Mode set appropriately?	Set the HDMI Mode properly, according to the connected device (page 39).
Multi-channel sound is not output.	Is the audio output of the connected AV receiver or amplifier, etc., properly set?	Read the operating instructions for the connected AV receiver or amplifier and check the audio output settings of the AV receiver or amplifier.
	Is multi-channel sound selected?	Use the menu screen or AUDIO to switch the disc's sound to multi-channel.

Problem Check Remedy

Noise can be heard when outputting DTS Digital Audio signals from the DIGITAL OUT terminal.	Is the connected AV receiver or amplifier compatible with DTS Digital Surround?	If an AV receiver or amplifier that is not compatible with DTS Digital Surround is connected to the DIGITAL OUT terminal, set Digital Output to PCM (page 39).
192 kHz or 96 kHz digital audio signals cannot be output from the DIGITAL OUT terminal.		• Copyright-protected audio is converted to 48 kHz or less before output. • Set Downsampling to 96KHz or 192KHz (page 39).
Secondary audio or interactive audio is not output.	Is HDMI Audio Out properly set?	When listening to the sound from an HDMI OUT terminal, set HDMI Audio Out to PCM (page 40).
	Are Digital Output properly set?	When listening to the sound from an DIGITAL OUT terminal, set Digital Output to Re-encode or PCM (page 39).
Sound is fast or slow. When an HDMI cable is connected, are audio signals being output from devices connected with cables other than HDMI cables?		When a Pioneer AV receiver or amplifier compatible with the PQLS function is connected directly to the player's HDMI OUT terminal using an HDMI cable, the PQLS function is activated when playing an audio CD (CD-DA). Because of this, the sound output from components other than the ones connected by an HDMI cable may be fast or slow. If this happens, set Control to Off (page 40).
After a disc is inserted, Loading stays displayed and playback does not start.	Are there too many files recorded on the disc?	When a disc on which files are recorded is inserted, depending on the number of files recorded on the disc, loading may take several dozen minutes.
■ is displayed in file names, etc.		The characters that cannot be displayed on this player are displayed in ■.
A message indicating low memory appears while playing a BD-ROM disc.		• Connect a USB device (page 20). • Erase the data stored on the connected USB device from BUDA Setup (page 43).

Problem Check Remedy

Control function does not work.	Is the HDMI cable properly connected?	To use the Control function, connect the Flat Screen TV and AV system (AV receiver or amplifier, etc.) to the HDMI OUT terminal (page 16).
	Is the HDMI cable you are using a High Speed HDMI®/TM Cable?	Use a High Speed HDMI®/TM Cable. The Control function may not work properly if an HDMI cable other than a High Speed HDMI®/TM Cable is used.
	Is this player connected to the TV using an HDMI cable to watch the picture?	If video signals are being output from a terminal other than the HDMI OUT terminal, the Control function does not work. Connect to the TV using an HDMI cable (page 16).
	Is the HDMI Mode set appropriately?	• When connecting a device supporting the control function to the HDMI OUT (MAIN) terminal, set the HDMI Mode to Dual. • When connecting a device supporting the control function to the HDMI OUT (SUB) terminal, set the HDMI Mode to Separate or Pure Audio (page 39).
	Is Control set to On on the player?	Set Control to On on the player (page 40).
	Does the connected device support the Control function?	• The Control function will not work with devices of other brands that do not support the Control function, even when connected using an HDMI cable. • The Control function will not work if devices that do not support the Control function are connected between the Control-compatible device and the player. • See page 16. • Even when connected to a Pioneer product compatible with the Control function, some of the functions may not work. Also refer to the operating instructions for the connected device.
	Is Control set to On on the connected device?	Set Control to On on the connected device. The Control function operates when Control is set to On for all devices connected to the HDMI OUT terminal. Once connections and settings of all the devices are finished, be sure to check that the player's picture is output to the Flat Screen TV. (Also, check after changing the connected devices and connecting and/or disconnecting HDMI cables.) If the player's picture is not being output to the Flat Screen TV, the Control function may not work properly. For details, refer to the operating instructions of the connected device.
	Are multiple players connected?	The Control function may not work if three or more players, including this player, are connected by an HDMI cable.

Network

Problem Check Remedy

·BD-LIVE function (connection to the Internet) cannot be used. ·“No valid id file found!” is displayed when I try to update the software.	Perform Connection Test (page 43). If “Networks is OK.” is displayed, check the proxy server settings (page 42). Also, there may be a problem with the Internet connection. Contact your Internet service provider.
Software updating is slow.	Depending on the Internet connection and other conditions, some time may be required to update the software.

Problem Check Remedy

A message other than "Networks is OK." is displayed when Connection Test is performed.	Is "Network is Failed." displayed?	·Check that this player and the Ethernet hub (or router with a hub functionality) are properly connected. ·If the IP address is obtained using the DHCP server function, check the setting is correct at the Information (page 40). For details on the DHCP server function, see the operating instructions for the Ethernet hub (or router with a hub functionality). ·Set the IP address manually. ·Check the operation and settings of the DHCP server function of the Ethernet hub (or router with hub functionality). For details on the DHCP server function, see the operating instructions for the Ethernet hub (or router with a hub functionality). ·If this player has been set manually, reset the IP address of this player or other components.
	Is the Ethernet hub (or router with a hub functionality) operating properly?	·Check the settings and operation the Ethernet hub (or router with a hub functionality). For details, see the operating instructions for the Ethernet hub. ·Reboot the Ethernet hub (or router with a hub functionality).

Others

Problem Check Remedy
Power does not turn on.	Is the power cord properly connected?	Plug the power cord securely into the power outlet (page 21).Unplug the power cord, wait several seconds, then plug the power cord back in.
The player's power turns off automatically.	Is Auto Power Off set to 10 min/20 min/30 min?	If Auto Power Off is set to 10 min/20 min/30 min, the player's power automatically turns off if no operation is performed for the set amount of time (page 41).
The player's power turns on automatically.	Is Control set to On?	The player's power may turn on together with the power of the TV connected to the HDMI OUT terminal. If you do not want the player's power to turn on when the TV's power is turned on, set Control to Off (page 40).
This unit cannot be operated.		Use within the specified usage temperature range (page 57).If the power cannot be turned off (to standby), reset the unit. Press and hold STANDBY/ON on the main unit's front panel for over 5 seconds.
The player cannot be operated with the remote control.	Are you operating the remote control from a point too far away from the player?	Operate from within 23 feet (7 m) of the remote control sensor.
	Are the batteries dead?	Replace the batteries (page 6).
Input of the connected TV and AV system switches automatically.	Is Control set to On?	The input of the TV and AV system (AV receiver or amplifier, etc.) connected to the HDMI OUT terminal may automatically switch to the player when playback starts on the player or the menu screen (Home Media Gallery, etc.) is displayed. If you do not want the inputs of the connected TV and AV system (AV receiver or amplifier, etc.) to switch automatically, set Control to Off (page 40).
Settings I have made have been cleared.	Have you disconnected the power cord while the player's power was on?Has there been a power failure?	Always press STANDBY/ON on the player's front panel or STANDBY/ON on the remote control and check that POWER OFF has turned off from the player's front panel display before disconnecting the power cord. Be particularly careful when the power cord is connected to the AC outlet on another device because the player turns off in conjunction with the device.

Problem Check Remedy

USB (external storage) device does not work with this player properly.

Is the USB device properly connected?

• Turn the player's power off, then turn the power back on.
• Turn the player's power off, then reconnect the external storage device (page 20).

Is the USB device connected via an extension cable?	Do not use an extension cable. The player may not work properly with it.
Is the external storage device connected to the USB port via a memory card reader or USB hub?	External storage device may not work if connected to the USB port via a memory card reader or USB hub.
Does the external storage device contain multiple partitions?	External storage devices may not be recognized if they contain multiple partitions.
	Some external storage devices may not operate.
Is the external storage device write-protected?	Turn the player's power off, then disable the write-protection.
Is the USB device's file system FAT32, FAT16 or NTFS?	USB devices formatted in the FAT32, FAT16 or NTFS file system can be used.

Turn the player's power off, then turn the power back on.

Glossary

Angle (Multi angle)

Up to 9 camera angles can be recorded simultaneously on BD-ROM or DVD-Video discs, letting you view the same scene from different angles.

AVCHD (Advanced Video Codec High Definition)

See page 9.

AVCREC

See page 7.

BDAV

Of the BD format, the Audio Visual Format Specifications for HD digital broadcast recording is referred to as BDAV on this player and in these operating instructions.

BD-J

See page 9.

BD-LIVE

See page 8.

BDMV

Of the BD format, the Audio Visual Format Specifications designed for pre-packaged high definition (HD) movie contents is referred to as BDMV on this player and in these operating instructions.

BONUSVIEW

See page 8.

Deep Color

See page 16.

Default Gateway

A default gateway is a communication device such as a router which passes data between networks. It is used to direct data to networks on which the destination gateway is not explicitly specified.

DHCP (Dynamic Host Configuration Protocol)

This protocol provides configuration parameters (IP address, etc.) for computers and other devices connected to the network.

DivX

See page 10.

DNS (Domain Name System)

This is a system for associating Internet host names with IP addresses.

Dolby Digital

Dolby Digital is an audio format to record the sound in up to 5.1 channels with a fraction of the amount of data as compared to linear PCM audio signals.

Dolby Digital Plus

Dolby Digital Plus is an audio format for high-definition media. Built on Dolby Digital, it combines the efficiency and flexibility to provide high quality multi-channel audio. With BD-ROMs, up to 7.1 channels of digital sound can be recorded.

Dolby TrueHD

Dolby TrueHD is an audio format using lossless coding. With BD-ROMs, up to 8 channels can be recorded at 96 kHz/24 bits, or up to 6 channels at 192 kHz/24 bits.

DRM

A technology for protecting copyrighted digital data. Digitized videos, images and audio retain the same quality even when they are copied or transferred repeatedly. DRM is a technology for restricting the distribution or playback of such digital data without the authorization of the copyright holder.

DSD (Direct Stream Digital)

The Digital Audio encoding system found on SACDs, that expresses the audio signals by the pulse density of one bit data.

DTS Digital Surround

DTS Digital Surround is an audio format to record 48kHz / 24 bits audio signals in 5.1 channels.

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is an audio format using lossy coding. It can record 7.1 channels at 96 kHz/24 bits.

DTS-HD Master Audio

DTS-HD Master Audio is an audio format using lossless coding. With BD-ROMs, 7.1 channels can be recorded at 96kHz / 24 bits, or 5.1 channels at 192kHz / 24 bits.

Ethernet

A standard for local area networks (LANs) used to connect multiple computers, etc. in the same location. This player supports 100BASE-TX.

Frames and fields

A frame is the unit for one of the still pictures which compose motion pictures. One frame consists of a picture of odd lines and a picture of even lines called fields in video signal with interlaced scan method (576i, 1080i, etc.).

HDMI (High-Definition Multimedia Interface)

See page 16.

Interactive audio

The audio signals recorded in the titles of BD-ROMs. They include for example the clicking sound made when the menu screen is operated.

Interlaced scan

With this method, one picture is displayed by scanning it twice. The odd lines are displayed in the first pass, the even lines are displayed in the second, to form a single picture (frame). Interlaced scan is indicated in this player and operating instructions by an "i" after the resolution value (for example, 576i).

IP address

An address that identifies a computer or other device connected to the Internet or local area network. It is represented a number in four sections.

Linear PCM

This is referred as the audio signals that are not compressed.

MAC (Media Access Control) address

A hardware identification number assigned specifically to the network device (LAN card, etc.).

MPEG (Moving Picture Experts Group)

The name of a family of standards used to encode video and audio signals in a digital compressed format. The video encoding standards include MPEG-1 Video, MPEG-2 Video, MPEG-4 Visual, MPEG-4 AVC, etc. The audio encoding standards include MPEG-1 Audio, MPEG-2 Audio, MPEG-2 AAC, etc.

Parental Lock

See page 43.

Picture-in-Picture (P-in-P)

This is a function for superimposing a sub video on the main video. Some BD-ROMs include secondary video, which can be superimposed on the primary video.

Port number

This is a sub-address provided below the IP address for simultaneously connecting to multiple parties during Internet communications.

Progressive scan

With this method, one picture is consisted of a single picture, without dividing it in two pictures. Progressive scan provides clear pictures with no flicker, in particular for still pictures that contain much text, graphics, or horizontal lines. Progressive scan is indicated in this player and operating instructions by a "p" after the resolution value (for example, 576p).

Proxy server

This is a relay server for ensuring fast access and safe communications when connecting to the Internet from an internal network.

Region number

See page 9.

Secondary audio

Some BD-ROMs include sub audio streams mixed with the main audio stream. These sub audio streams are called "secondary audio". On some discs this secondary audio is recorded as the audio for the secondary video.

Secondary video

Some BD-ROMs include sub videos superimposed on the main videos using the Picture-in-Picture function. These sub videos are called "secondary video".

Subnet mask

This is used to identify which part of the IP address corresponds to the subnet (a separately managed network). The subnet mask is expressed as '255.255.255.0'.

USB (Universal Serial Bus)

USB is the industry standard for connecting peripherals to PCs.

VC-1

A video codec developed by Microsoft and standardized by the Society of Motion Picture and Television Engineers (SMPTE). Some BDs include videos encoded in this codec.

x.v.Color

See page 16.

Specifications

Model BDP-62FD
Type	Blu-ray 3D™ PLAYER
Rated voltage	AC 110 V to 240 V
Rated frequency 50 Hz/60 Hz
Power consumption 23 W
Power consumption (standby) 0.3 W
Weight 6 lb (2.7 kg)
External dimensions (including projecting parts)	17 3/16 in. (W) x 3 9/16 in. (H) x 9 15/16 in. (D) (435 mm (W) x 90 mm (H) x 252 mm (D))
Tolerable operating temperature +41 °F to +95 °F (+5 °C to +35 °C)
Tolerable operating humidity 5 % to 85 % (no condensation)
HDMI	2 set, 19-pin: 5 V, 250 mA
Digital audio outputs Coaxial 1 set, RCA jacks
LAN	1 set, Ethernet jack (10BASE-T/100BASE-TX)
USB 2 set. Type A

Note

• The specifications and design of this product are subject to change without notice.
  This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
  Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.

A propos de Home Media Gallery. 33

http://www.pioneerelectronics.com

Type de disque Logo			Format de l'application
			BDMV BDAV	DVD-Video	DVD-Audio	DVD VR	CD-DA DTS-CD	DATA-DISC1
BD2	BD-ROM	√	X	X	X	X
	BD-R	X	X	X	X	✓
	BD-RE	BlgrayDisc	X	X	X	✓
DVD	DVD-ROM	VIDEO
		DVD-ROM	✓	✓	X	X	✓
		DVD AUDIO
	DVD-R2,3,4	DVD-R	✓5	✓6	✓	X	✓	X	✓
	DVD-RW3,7	DVD-RW	✓5	✓6	✓	X	✓	X	✓
	DVD+R2,3		✓	X	✓	X	X	X	✓
	DVD+RW3		✓	X	✓	X	X	X	✓
CD	CD-DA(CD audio)	COMPACT DISC	X	X	X	X	X	✓	X
	SUPERAUDIO CD
	CD-R3		X	X	X	X	X	✓	✓
	CD-RW3		X	X	X	X	X	✓	✓
	CD-ROM X	X	X	X	✓	✓

PIONEER 00,31,32,07,36,42,51, 22

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32,35,42

AKURA 41

ALBA07,39,41,44

AMSTRAD 42,44,47

ANITECH 44

ASA 45

ASUKA

AUDIOGONIC 07,36

BASIC LINE 41, 44

BAUR 31,07,42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC4

BUSH07,41,42,44,47,56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07,44,56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07,44

DUMONT 53

ELIN 07

ELITE 41

ELTA

EMERSON 42

ERRES 07

FERGUSON 07,36,51

FINLANDIA 35,43,54

FINLUX 32,07,45,48,53,54

FIRSTLINE 40.44

FISHER 32, 35, 38, 45

FORMENTI 32,07,42

FRONTECH 31,42,46

FRONTECH/PROTECH 32

FUJITSU 48

FUNAI 40,46,58

GBC32,42

GE00.01,08.07,10.11,17.02

28.18

GEC 07,34,48

GELOSO 32,44

GENERAL 29

GENEXXA 31.41

GOLDSTAR 10,23,21,02,07,50

GOODMANS 07,39,47,48,56

GORENJE 38

GPM 41

GRAETZ 31,42

GRANADA 07,35,42,43,48

GRADIENTE 30,57

GRANDIN 18

GRUNDIG 31,53

HANSEATIC 07,42

HCM 18,44

HINARI 07,41,44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54

06,10,24,25,18

HUANYU 56

HYPSON 07,18,46

ICE 46,47

IMPERIAL 38,42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

III 31,32,42

JEC 05

JYC 13,23

KAISUI 18,41,44

KAPSCH 31

KENDO 42

KENNEDY 32,42

KORPEL 07

KOYODA 44

LEYCO07.40.46.48

LIESENK&TTER 07

LOEWE 07

LUXOR 32,42,43

M-ELECTRONIC 31,44,45,54,56

07,36,51

MAGNADYNE 32,49

MAGNAFON 49

MAGNAVOX 07,10,03,12,29

MANESTH 39,46

MARANTZ 07

MARK 07

MATSUI 07,39,40,42,44,47,48

MCMICHAE134

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31,53

MITSUBISHI 09,10,02,21,31

MULTITECH 44,49

NEC 59

NECKERMANN 31,07

NEI 07,42

NIKKAI 05,07,41,46,48

NOBLIKO 49

NOKIA 32,42,52

NORDMENDE 32,36,51,52

OCEANIC 31, 32, 42

ORION 32,07,39,40

OSAKI 41,46,48

OSO 41

OSUME 48

OTTO VERSAND 31,32,07,42

PALLADIUM 38

PANAMA 46

PROTECH 07,42,44,46,49

QUELLE31,32,07,42,45,53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM 53

RCA01,10,15,16,17,18,61,62 09

REDIFFUSION 32,42

REX 31,46

ROADSTAR 41,44,46

SABA 31, 36, 42, 51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46,69,70

SANYO 35,45,48,21,14,91

SBR 07,34

SCHAUBLORENZ42

SCHNEIDER 07,41,47

SEG 42,46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31,35

SONTEC 07

SONY04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40,41

THOMSON 36,51,5

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05,02,26,21,53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42,45

46.54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Chapitre 4 Lecture

- Auto Set IP Address

Albanian, sq/sqi, 1917

Amharic, am/amh, 0113

Arabic, ar/ara, 0118

Armenian, hy/hye, 0825

Assamese.as/asm,0119

Aymara, ay/aym, 0125

Azerbaijani, az/aze, 0126

Bashkir, ba/bak, 0201

Basque, eu/eus, 0521

Belarusian, be/bel, 0205

Bengali, bn/ben, 0214

Bihari, bh/bih, 0208

Bislama, bi/bis, 0209

Breton, br/bre, 0218

Bulgarian, bg/bul, 0207

Burmese, my/mya, 1325

Catalan, ca/cat, 0301

Central Khmer, km/khm, 1113

Chinese, zh/zho, 2608

Corsican, co/cos, 0315

Croatian, hr/hrv, 0818

Czech, cs/ces, 0319

Danish, da/dan, 0401

Dutch, nl/nld, 1412

Dzongkha, dz/dzo, 0426

English. en/eng, 0514

Esperanto, eo/epo, 0515

Georgian, ka/kat, 1101

German, de/deu, 0405

Greek,el/ell,0512

Guarani, gn/qrn, 0714

Gujarati, gu/guj, 0721

Hausa, ha/hau, 0801

Hebrew, iw/heb, 0923

Hindi, hi/hin, 0809

Hungarian, hu/hun, 0821

Icelandic,is/isl,0919

Indonesian. in/ind, 0914

Interlingua, ia/ina, 0901

Interlingue, ie/ile, 0905

Inupiao,ik/ipk,0911

Irish, ga/gle, 0701

Italian, it/ita, 0920

Japanese.ja/jpn,1001

Javanese. jw/jav, 1023

Kalaallisut,kl/kal,1112

Kannada, kn/kan, 1114

Kashmiri, ks/kas, 1119

Kazakh. kk/kaz, 1111

Kinyarwanda, rw/kin, 1823

Kirghiz, ky/kir, 1125

Korean, ko/kor, 1115

Kurdish, ku/kur, 1121

Lao, lo/lao, 1215

Latin, la/lat, 1201

Latvian, Iv/lav, 1222

Lingala, In/lin, 1214

Lithuanian, lt/lit, 1220

Macedonian, mk/mkd, 1311

Malagasy, mg/mlq, 1307

Malay, ms/msa, 1319

Malayalam, ml/mal, 1312

Maltese, mt/mtt, 1320

Maori, mi/mri, 1309

Marathi, mr/mar, 1318

Mongolian, mn/mon, 1314

Moldavian, mo/mol, 1315

Nauru, na/nau, 1401

Nepali. ne/nep, 1405

Norwegian, no/nor, 1415

Occitan, oc/oci, 1503

Oriya,or/ori,1518

Oromo. om/orm, 1513

Panjabi, pa/pan, 1601

Persian. fa/fas, 0601

Polish, pl/pol, 1612

Portuguese, pt/por, 1620

Pushto, ps/pus, 1619

Quechua, qu/que, 1721

Romanian, ro/ron, 1815

Romansch, rm/roh, 1813

Rund, rn/run, 1814

Sanskrit, sa/san, 1901

Scottish Gaelic, gd/gla, 0704

Serbian, sr/srp, 1918

Serbo-Croatian. sh/---, 1908

Shona. sn/sna, 1914

Sindhi, sd/snd, 1904

Sinhalese, si/sin, 1909

Slovak, sk/slk, 1911

Slovenian. sl/slv, 1912

Somali, so/som, 1915

Sotho, Southern, st/sot, 1920

Spanish, es/spa, 0519

Sundanese. su/sun, 1921

Swahill, sw/swa, 1923

Swati,ss/ssw,1919

Swedish,sv/swe,1922

Tagalog, tl/tql, 2012

Tajik, tg/tgk, 2007

Tamil, ta/tam, 2001

Tatar, tt/tat, 2020

Telugu, te/te1, 2005

Thai, th/tha, 2008

Tibetan, bo/bod, 0215

Tigrinya, ti/tir, 2009

Tonga (Tonga Islands), to/ton, 2015

Tsonga, ts/tso, 2019

Tswana, tn/tns, 2014

Turkmen, tk/tuk, 2011

Turkish, tr/tur, 2018

Twi.tw/twi,2023

Ukrainian,uk/ukr,2111

Urdu, ur/urd, 2118

Uzbek. uz/uzb, 2126

Vietnamese.vivie,2209

Volapuk, vo/vol, 2215

Welsh, cy/cym, 0325

Western Frisian, fy/fry, 0625

Wolof, wo/wol, 2315

Xhosa.xh/xho.2408

Yiddish,ji/yid,1009

Taiwan, Province de Chine, tw

2023

Tadjikistan, tj, 2010

Thailande, th, 2008

Trinité-et-Tobago, tt, 2020

Tunisia, tn, 2014

Turquie, tr, 2018

Turkmenistan, tm, 2013

Iles Turques-et-Cairques, tc, 2003

Ukraine, ua, 2101

Royaume-Uni,gb,0702

Etats-Unis,us,2119

Uruguay, uy, 2125

Ouzbekistan, uz, 2126

Venezuela,ve,2205

Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd

GARANTIES DE QUALITE MARCHANDE, D'ADÉQUATION

AUNUSAGEPARTICULARETDENONVOLATIONDES

DROTS DE TIERCES PARTIES

LES AUTEURS OU DÉTENTEURS DU COPYRIGHT NE

SAURAIENT EN AUCUN CAS ETRE TENUS

RESPONSABLES DETOUTE RECLAMATION OU

DOMMAGE, QUE CE SOIT DANS LE CADRE D'UN

CONTRAT, D'UNÉ NÉGULENCE OLID'UNE ALITRE

ACTION PRE JUDICABLE, D'OLLUE A L'ELIUSATION OLL

AUX PERFORMANCES DE CE LOGICIEL

freetype

Copyright (c) 1995-2010 International Business Machines

Corporation of autos

Tous drosreserves

Le preserl document autorise lcule personnes oblerant

GARANTIES DE QUALITE MARCHANDE, D'ADEQUATION

A UNUSAGE PARTICIPER ET DE NON-VIOLATION DES

DROITS DE TIERCES PARTIES, LE OLLES DETEN

DLCOPYRIGHT MENTIONN ES DANS CET AVIS NE

SAURAIENT EN AUCUN CAS ETRE TENUS

RESPONSABLES DE TOUTE RECLAMATION OU

DOMMAGEINDIRECTOUCONSECUTIFOUDETOUT

AUTREDOMMAGELIEA LAPERTEDUTILISATIONDE

DONNÉES OU DE BENÉFICES, QUE CE SOIT DANS LE

CADRE D'UN CONTRAT, D'UNE NELGILENCE OU D'UNE

AUTRE ACTION PREJUDICABLE, DUS OU LIL'S A

LUTISATION OULAUX PERFORMANCES DE CE

LOGICEL.

Independent JPEG Group.

openssl

appoeeppeoeeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoe

A SON ADEQUATION ALUN BUT PARTICULAR

LOpenSS,PROJECTOUSSESPARTENIARESNE

POURBONT ETRE EN AUCIN CAS TENUS POUR

RESPONSABLES DES PRELIDUES DIRECTES

INDIRECTS, SPECIALLY, INCIDENTS, OPPINUNITIES

INDIRECT, SPECIAUX, INCIDENTS OR PATTERNS NOTAMMENT, MAS SANS QUE CE LANE SOTUMILATE

ANONIMENT,MASSANSQCCO CLOCENE SOFT LIMINANT DES PRELIDICES LIES AL'ACHAT DE PRODUITS OLIDE

DES PRISUCS DES ACHAT DE PRODUITS CO DE

SERVICES DE REMPLACEMENT, A ONE PERTE DUTRATICATION LINE PERTES PEGONISED ORAL

D'UTILISATION, ONE PERTE DES DONNDES OU AUX INTERPRETIONS DIATRICTES CHOLES CHOLES GUITA

INTERROPNTS D'ACTIVITE) COQUELL QUE EN SOIT LA

CAUSE ETQIEIS OIENTIES A ONE RESPONSABILIT, LINE ACTION CONTRACTS DE RESPONSABILITIES

ONE ACTION CONTRACTOELLE. DE RESPONSABILITE

DIRECTE OU EXTRA-CONTRACTUELLE (Y COMPRIS POUR

NEGLICENCE OU AUTRE), EN RELATION AVECTOU

UTILISATION DU PRESENT LOGICIEL.ET CE

INDEPENDAMMENT DU CARACTERE PREVISIBLE OU

NON DE CES PREJUDICES

Copyright (C) 1995-1998 Eric Young ([e-mail])

QUI N E DONN E AUCUNE GARANTIE, EXPLI CITE OU

IMPPLICITE, NOTAMMENT, MAIS SANS QUE CELANE SOIT

LIMITATIE,QUANTA SA QUALITE MARCHANDE OU A

SON ADEQUATION A UN BUT PARTICULAR, EN AUG

CAS L'AUTEUR OU SES PARTENAIRES NE POURRON

ETRE EN AUCUN CAS TENUS POUR RESPONSABLES

DES PREJUDICES DIRECTCS,INDIRECTS,SPCELIX

INCIDENTS OLIPRINTIES (NOTAMMENT, MAIS SANSOLIE

CELANE SOIT LIMITATIE DES PRELIDICES A

LACHAT DE PRODUITS OLDE SERVICES DE

REMAPLACEMENT A LINE PERTE D'UTILISATION LINE

PERTE DES DONNEES OU AUX INTERBRICTIONS

D'ACTIVITE) QUEILLE OU'en SOIT LA CAUSE ET QU'ILS

SOIENTLIESA LINERESPONSABILYLENEACTION

CONTRACTUELDERESPONSABILTEDIRECTOOL

EXTRA-CONTRACT,LEUE(CY COMPRISPOUR)

NÉLGENCE OU ALUTRE, EN RELATION AVEC TOUTE

UTILISATION DU PRESENT LOGICIEL, ET CE.

INDEPENDAMMENT DU CARACTERE PREVISIBLE OU

NON DE CES PREJUDICES.

• BusyBox v',17.1 multi-call binary. Copyright (C) 1998

2009 Erik Andersen, Rob Landley, Denis Vlaserkg et al.

aultres, Sous licence GPLy2.0

SquashFS Copyright: (C) 2002-2009 Phillip Loughersous licence GPL v2.0
Das U-Boot Copyright : (C) 2000-2005 Wolfang Denk, DENX Software Engineering, [e-mail]. Sous licence GPL v2.0
LIRC 0.8.5 Copyright (C) 1996 Ralph Metzler [e-mail] Copyright (C) 1998-2008 Christopher Bartelmus [e-mail] Sous licence GPL v2.0
glic2.9 Copyright (C) 1992-2006, 2007 Free Software Foundation, Inc. Sous licence LGFL v2.1.

Foundation, Inc., 51 Franklin Street, Fifth Floor, Boslon,

MA 02110-1301 USA.

Anomalie Verification Solution

Anomalie Verification Solution

Anomalie Verification Solution

Anomalie Verification Solution

DTS Digital Surround

HDMI (High-Definition Multimedia Interface)

© 2012 PIONEER CORPORATION.

To register your product, find the nearest authorized service location, to purchase replacement parts, operating instructions, or accessories, please go to one of following URLs:

© 2012 PIONEER CORPORATION.

All rights reserved.

© 2012 PIONEER CORPORATION.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B3_En

72-BDP450-USAB1
