Product type	External DVD burner
Brand	Pioneer
Model	DVR-S806
Interface	USB 2.0 or IEEE 1394a
DVD-R write speed (max)	16X (ZCLV)
DVD+R write speed (max)	16X (ZCLV)
CD-R write speed (max)	32X (ZCLV)
DVD-ROM read speed (single)	16X
CD-ROM read speed (max)	40X
Buffer memory	2 MB
Orientation	Horizontal or vertical (stand included)
Dimensions (W x H x D)	167 x 56.2 x 272.8 mm
Weight	2.1 kg
Power supply	AC adapter 100-240 V, 50/60 Hz; output +12 V/0.9 A and +5 V/1.5 A
Power consumption (DVD-ROM reading)	24 W (100 V) - 37 W (240 V)
Power consumption (standby)	8 W (100 V) - 17 W (240 V)
Operating temperature	+5°C to +35°C
Operating humidity	5% to 85% (non-condensing)
Supported disc formats	DVD-R/RW, DVD+R/RW, DVD+R dual layer, CD-R/RW, CD-ROM, etc.
Special features	Liquid crystal tilt servo mechanism, low vibration mechanism (DRA), emergency eject
Maintenance and cleaning	Unplug before cleaning; use a damp cloth, no liquid or aerosol products
Safety	Grounded plug; do not open the case; avoid water and humidity; use only the supplied adapter
Included parts and accessories	AC adapter, USB cable (1 m), IEEE 1394 cable (1.5 m) x2, vertical stands x2, user manual
General information	Class 1 laser product; complies with low voltage and electromagnetic compatibility directives

Frequently Asked Questions - DVR-S806 PIONEER

How to connect the DVR-S806 DVD burner to my computer?

Turn on the device, then the computer. Connect the supplied USB or IEEE 1394 cable between the device and the computer. Make sure to use the appropriate port (USB 2.0 recommended) and do not connect both cables simultaneously.

What types of discs can I use with this burner?

This burner supports DVD-R/RW, DVD+R/RW, DVD+R dual layer, CD-R/RW, CD-ROM, CD-DA, CD-Extra and others. For high write speeds (12x or 16x), use discs designated by Pioneer.

Can I use the DVR-S806 in vertical position?

Yes, the device can be used in horizontal or vertical orientation. To place it vertically, use the supplied vertical stands. Note that 8 cm discs cannot be read in vertical position.

What is the procedure to manually eject a disc?

If the tray does not open, turn off the computer and wait for the disc to stop completely. Insert a straightened paper clip into the emergency eject hole on the front, push firmly until the tray protrudes 5 to 10 mm, then open it manually.

How to clean the burner and discs?

Unplug the device before cleaning. Use a soft, damp cloth (no liquid or aerosol products). For discs, wipe from the inside out with a soft cloth; never use cleaners or antistatics.

What to do in case of condensation on the drive?

If the device has been moved from a cold environment to a warm room, wait 1 to 2 hours before turning it on, or gradually increase the room temperature. Condensation may disrupt reading/writing.

How to change the DVD drive region code?

The region code can be changed a total of 5 times (including the first setting). The fifth change is permanent. Be careful. Discs without a region code are playable on all drives.

What software is needed to burn DVDs?

Burning software must be installed (supplied with the device). Windows XP (Service Pack 1+) and Windows 2000 (Service Pack 3+) are required. Refer to the software manual for installation and use.

The computer does not recognize the burner, what should I do?

Check the USB/IEEE 1394 and power connections. Make sure the device is powered on before connecting. If the problem persists, try a different port or cable, and check the operating system compatibility.

What are the important safety precautions?

Never remove the cover (risk of electric shock). Use only the supplied AC adapter. Avoid water and humidity. Do not place the device on unstable surfaces. Unplug it during thunderstorms or prolonged non-use.

USER MANUAL DVR-S806 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_En-A

IMPORTANT

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

FOR USE IN THE UNITED KINGDOM.

The wires in this mains lead are coloured in accordance with the following code:

Green and Yellow : Earth

Blue : Neutral

Brown : Live

If the plug provided is unsuitable for your socket outlets, the plug must be cut off and a suitable plug fitted.

The cut-off plug should be disposed of and must not be inserted into any 13 amp socket as this can result in electric shock. The plug or adaptor or the distribution panel should be provided with 5 A fuse. As the colours of the wires in the mains lead of this appliance may not correspond with coloured markings identifying the terminals in your plug, proceed as follows;
The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol (④), or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

NOTE

After replacing or changing a fuse, the fuse cover in the plug must be replaced with a fuse cover which corresponds to the colour of the insert in the base of the plug or the word that is embossed on the base of the plug, and the appliance must not be used without a fuse cover. If lost replacement fuse covers can be obtained from your dealer. Only 5 A fuses approved by B.S.I or A.S.T.A to B.S.1362 should be used.

D3-4-2-1-2-1_En

This product complies with the Low Voltage Directive (73/23/EEC, amended by 93/68/EEC), EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/EEC). D3-4-2-1-9a_En

This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. The following caution label appears on your unit. Location: on top of the cover

CLASS 1 LASER PRODUCT LASER KLASSE 1

D3-4-2-1-8_A_En

ATTENTION

CLASS 1 LASER PRODUCT LASER KLASSE 1

D3-4-2-1-8_A_Fr

ACHTUNG

CLASS 1 LASER PRODUCT LASER KLASSE 1

D3-4-2-1-8_A_Ge

ACHTUNG

CLASS 1 LASER PRODUCT LASER KLASSE 1

D3-4-2-1-8_A_Ge

PRECAUCIÓN

CLASS 1 LASER PRODUCT LASER KLASSE 1

D3-4-2-1-8_A_Sp

LET OP

CLASS 1 LASER PRODUCT LASER KLASSE 1

D3-4-2-1-8_A_Du

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A_En

AVERTISSEMENT

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. D6-8-2-1_En

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_En

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. D8-10-2

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un-desired operation.

Product Name: DVD / CD WRITER

Model Number: DVR-S806

Responsible Party Name: PIONEER ELECTRONICS (USA) INC. Customer Support Division

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810 U.S.A.

Phone: [phone]

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

[For Canadian model]

This Class B digital apparatus complies with Canadian ICES-003.

Handling the cord on this product or cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

IMPORTANT NOTICE - RECORD THE MODEL NUMBER AND SERIAL NUMBERS OF THIS EQUIPMENT BELOW. THE NUMBERS ARE ON THE REAR.

MODEL NO. DVR-S806

SERIAL NO.

KEEP THESE NUMBERS FOR FUTURE USE.

D1-4-2-6-2_En

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. K015 En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A_En

Operating Environment

H045 En

Operating environment temperature and humidity:

+5^ - +35^ (+41^ - +95^) ; less than 85%RH (cooling vents not blocked)

Do not install in the following locations

• Location exposed to direct sunlight or strong artificial light
• Location exposed to high humidity, or poorly ventilated location

Precautions Regarding Use

■ Pioneer may not be held liable for the loss of any data or any other direct or indirect damage suffered as the result of the use or breakdown of this product. It is strongly recommended that regular backups be taken of all critical data.
■ Care must be taken not to infringe copyright restrictions under the laws of each country.

If this device is used to record copyrighted materials, approval must be obtained from the respective copyright holders. The recording of copyrighted materials without the express approval of the respective copyright holders may result in legal penalties. Pioneer disclaims any and all responsibility for any legal damages resulting from the use of this device in the unauthorized copying of copyrighted materials.

■ All names of corporations, products, and systems listed herein, even when the (TM) or (®) symbols are omitted, should be considered the registered trademarks of their respective owners.

[FOR NORTH AMERICA MODELS]

CONSULT WITH THE COMPANY SALES REPRESENTATIVE. "USE ONLY UL LISTED AND CANADIAN CERTIFIED POWER SUPPLY CORD." A POWER SUPPLY CORD TYPE SJT, 18 AWG MINIMUM, 3-WIRE GROUNDED TYPE SHALL BE USED WITH THIS EQUIPMENT.

[FOR EUROPEAN MODELS]

CONSULT WITH THE COMPANY SALES REPRESENTATIVE. "USE ONLY SAFETY LICENSED POWER SUPPLY CORD."

A CERTIFIED POWER SUPPLY CORD IS TO BE USED WITH THIS EQUIPMENT. FOR A RATED CURRENT UP TO 6 A, A TYPE NOT LIGHTER THAN H05VV-F 3G 0.75 mm ^2 OR H05VVH2-F 3G 0.75 mm ^2 SHALL BE USED.

For pluggable equipment the socket-outlet shall be installed near the equipment and shall be easily accessible.

1. READ INSTRUCTIONS – All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS – The safety and operating instructions should be retained for future reference.
3. HEED WARNING – All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS – All operating and use instructions should be followed.
5. CLEANING – Unplug this product from the wall outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

1. WATER AND MOISTURE – Do not use this product near water.
2. ACCESSORIES – Do not place this product on an unstable cart, stand, or table. The product may fall and be seriously damaged.
3. VENTILATION – Slots and openings in the cabinet and back or bottom are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. They should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed in a built-in installation unless proper ventilation is provided.
4. POWER SOURCES – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
5. PLUG – This product is equipped with a wired grounding-type plug (a plug having a third (grounding) pin). This plug will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.
6. POWER-CORD PROTECTION – When unplugging the apparatus, pull on the plug – not on the cord. Do not handle the cord on plug with wet hands. Doing so could cause an electric short or shock. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.
7. OVERLOADING – Do not overload wall outlets and extension cords as this can result in fire or electric shock.
8. OBJECT AND LIQUID ENTRY – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
9. CONDENSATION – Moisture will form in the operating section of the product and the product's performance will be impaired if the product is brought from cool surroundings into a warm room or if the room temperature rises suddenly. To prevent this, let the product stand in its new surroundings for about an hour or two before switching it on, or ensure that the room temperature rises gradually.
10. SERVICING – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
11. DAMAGE REQUIRING SERVICE – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. When the product exhibits a distinct change in performance – this indicates a need for service.

- Interface USB2.0 or IEEE 1394a

- Write Speed (* : ZCLV)

DVD-R	1X, 2X, 4X, 6X, 8X*, 12X*, 16X*
DVD-RW	1X, 2X, 4X
DVD+R	2.4X, 4X, 6X, 8X*, 12X*, 16X*
Double layered DVD+R	2.4X, 4X
DVD+RW	2.4X, 4X
CD-R	4X, 10X, 16X, 24X*, 32X*
CD-RW	4X, 10X, 16X, 20X*, 24X*

• Maximum Read Speed DVD-ROM (single) 16X
DVD-ROM (dual) 12X
DVD-R, DVD+R 12X
Double layered DVD+R 8X
DVD-RW, DVD+RW 8X
DVD-RAM 2X*
CD-ROM, CD-R 40X
CD-RW 32X

- Buffer Memory Size : 2 MBytes (Write, Read)

• LCD Tilt Servo Mechanism

• Horizontal/Vertical orientation available

- Low vibration Mechanism by DRA system

Disc Format (Read/Write)

• DVD single layer/dual layer /120 mm disc /80 mm disc
• DVD-R (In case of write, 650nm disc for General only.)

- 4X-SPEED DVD-R - 8X-SPEED DVD-R

- DVD-RW - 2X-SPEED DVD-RW

- 4X-SPEED DVD-RW

- DVD+R - 4X-SPEED DVD+R

- 8X-SPEED DVD+R - Double layered DVD+R

- DVD+RW - 4X-SPEED DVD+RW

• DVD-RAM (Version 2.0, Version 2.1) (Read only)

- CD-ROM Mode 1

- CD-ROM XA Mode2 (form 1, form2)

• Photo CD (single and multiple session)

- CD-DA - CD-Extra (CD PLUS)

- Video CD - CD Text

- CD-R

• CD-RW, High-Speed CD-RW, Ultra-Speed CD-RW

Note:

• Specific application program that support above format is needed to write.
• Supported media required for specific DVD & CD writing speeds.
• When performing DVD writing at 12x or 16x speeds, use Pioneer-designate disc media. For details, consult information available on Pioneer's website.

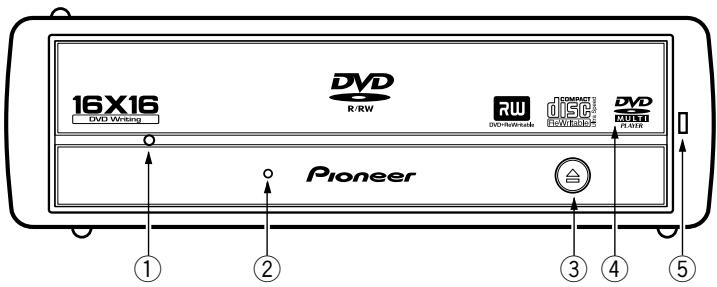

FRONT VIEW

16X16 DVD Writing DVD R/RW RW DVO-RW/Wire COMPACT DISC DVD R/WIRE Pioneer ① ② ③ ④ ⑤

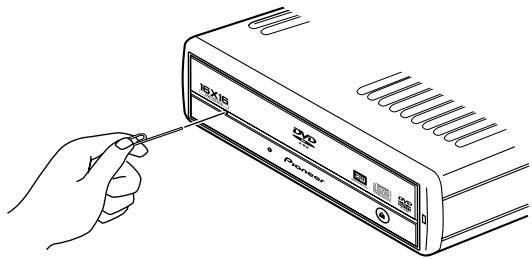

① Forced Ejection Hole

Insert a stiff rod into the hole and push to eject the tray when the tray doesn't unload by pressing the Eject button. In the normal operation, the eject button should be used to unload the tray. Make sure the power of the drive is turned off and wait more than one minute till the disc rotation is stopped when access the eject hole.

② BUSY Indicator

Operation status is indicated as follows.

During reading Lights

During writing Lights

③ Eject Button (▲)

To unload /load the disc, press the button.

④ Disc Tray

Open the loading tray by pressing the eject button, then place a CD or DVD disc into the slit with the label facing up.

Press the eject button or push the front part of tray to load the tray with the disc.

Do not attempt to pull out the disc tray forcibly.

⑤ Power Indicator

Lights when the unit is on.

DVD is a trademark of DVD Format/Logo Licensing Corporation.

Precautions on playing 8 cm (3.15") Discs

An 8 cm (3.15") disc cannot be played even an adapter is attached to the disc when the drive is upright condition.

ABOUT REGION CODES

The region code can be changed ONLY 5 times, including the 1st setting. Please be aware the 5th change will be PERMANENT, therefore, please pay attention when changing region codes.

- Region codes are part of the DVD Standard. However, Region codes on DVD discs are optional. DVD discs with no specified Region code can be played on all players.

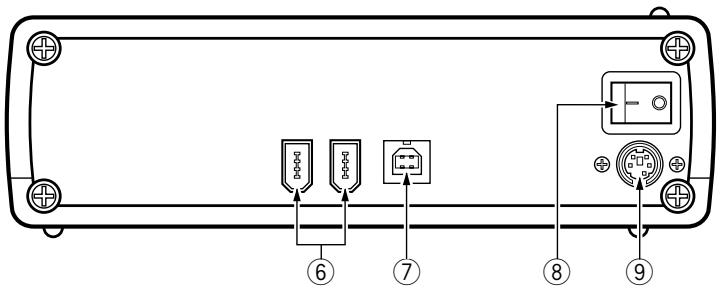

REAR VIEW

Diagram of a device rear panel with labeled ports and connection points

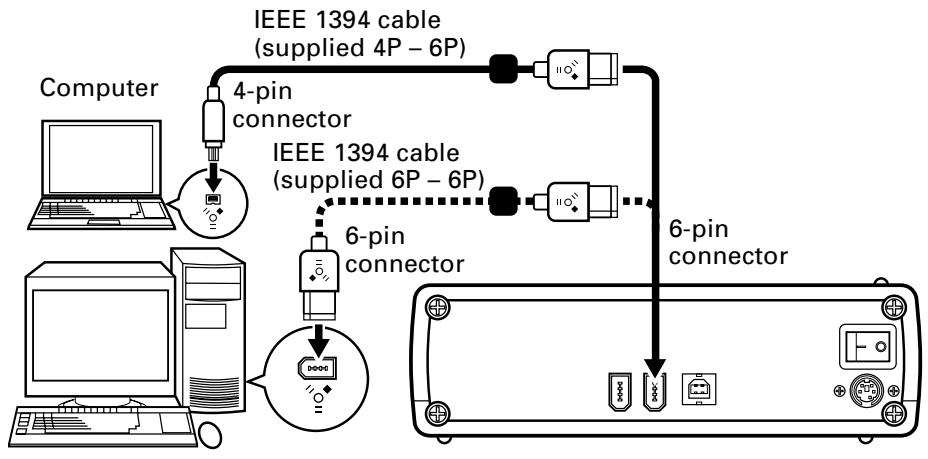

⑥ IEEE 1394 Connectors

Connects 6-pin IEEE 1394 I/O connectors.

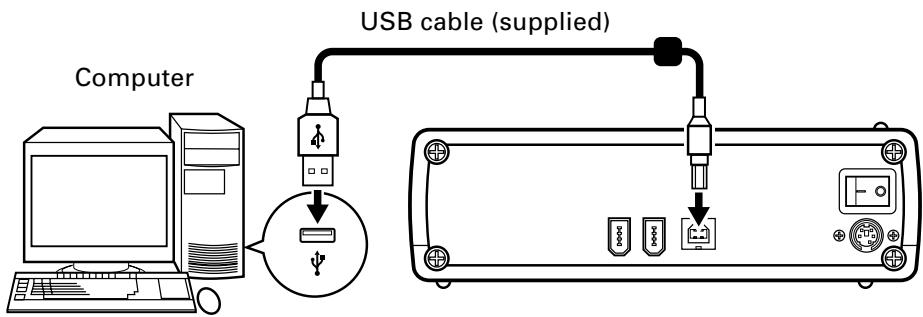

⑦ USB 2.0 connector

Connects 4-pin USB 2.0 I/O connector.

⑧ Power switch

Turns power on/off.

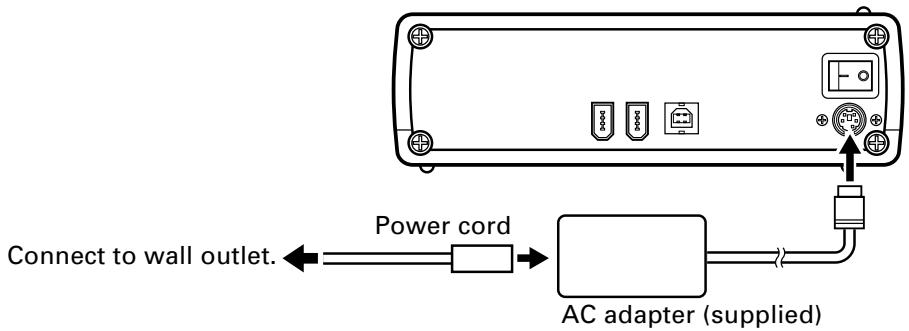

⑨ DC IN

Connects supplied AC adapter.

Use only supplied AC adapter.

Pin	Name	Pin	Name
1	+5 V	4	GND
2	+5 V	5	GND
3	+12 V

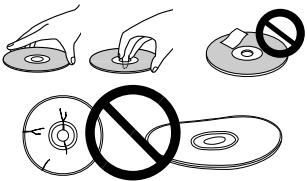

• Avoid touching or scratching the signal surface (shiny side) of the disc.
• Hold the disc by the edges or by the center hold and one edge.
• Do not affix paper or labels to the disc.
• Discard warped or cracked discs as they may cause damage to the drive.

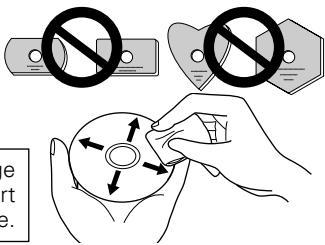

• Avoid specially shaped discs such as hearts or polygons.
• Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
• Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.

Always be sure to store your discs in proper DVD-R storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the recording side) before use.

Diagram illustrating a disassembly or no-dissipation process on a flip-flop, with hand and no symbol indicating removal or disassembly.

Diagram illustrating a hand holding a CD with prohibition symbols, accompanied by explanatory text.

Connect the unit to the supplied AC adapter and connect the USB or IEEE 1394 cable.

AC adapter connection

Connect the AC adapter plug to the DC IN connector on the rear panel of the unit and use the supplied power cord to connect the AC adapter to a wall outlet.

Do not use other than the supplied AC adapter.

Connect to wall outlet. Power cord AC adapter (supplied)

USB Cable Connection

This is a hot plug unit.

1. Turn on the unit.

2. Turn on the computer and start up Windows.

3. Connect the USB connector on the rear of the unit to the computer using the supplied USB cable.

- Purchase a USB 2.0 board for computers without such a port. (Although connection to a USB 1.1 port is possible, the unit will then not yield specified optimum performance.)

Turn on the unit before connecting it to the computer.

Be sure not to disconnect it during data transfers.

Computer USB cable (supplied)

Note: Do not connect the unit using both the IEEE 1394 cable and the USB cable.

IEEE 1394 cable connection

This is a hot plug unit.

1. Turn on the unit.

2. Turn on the computer and start up Windows.

3. Connect the IEEE 1394 connector on the rear of the unit to the computer using the supplied IEEE 1394 cable.

● Purchase an IEEE 1394 board for computers without such a port.
- Use the supplied 4P-6P cable for computers with a 4-pin IEEE 1394 port and the 6P-6P cable for computers with a 6-pin IEEE 1394 port.
- The unit is provided with two IEEE 1394 ports to enable daisy chaining. Connect to one of the two ports.

Turn on the unit before connecting it to the computer.

Be sure not to disconnect it during data transfers.

Note: Do not connect the unit using both the IEEE 1394 cable and the USB cable.

When Using Windows XP:

Please install "Service Pack vers. 1 or later" (available from Windows Update http://windowsupdate.microsoft.com) before connecting this product.

When Using Windows 2000:

Please install "Service Pack vers. 3 or later" (available from Windows Update http://windowsupdate.microsoft.com) before connecting this product.

The computer writes DVD-R/RW discs when the supplied software has been installed. (The DVD-R/RW writer will not work if the computer or operating system does not support the software.)

■ Starting DVD-R/RW writing

1. Turn on the unit.
2. Turn on the computer.
3. Press the Eject button to open the disc tray.
4. Place the disc in the tray label side up.
5. Press the Eject button to close the disc tray.
6. Start the program.

■ Ending DVD-R/RW writing

1. Quit the program
2. Press the Eject button to open the disc tray.
3. Remove the disc.
4. Press the Eject button to close the disc tray.
5. Shut down the computer.
6. Turn off the unit.

For details on how to install the software and write or play discs, see the supplied software manual or Help function.

Manual ejection of discs

Use the manual eject hole to remove discs in the following situations.

• Do as follows if the unit malfunctions and pressing the Eject button fails to open the disc tray.
• Shut down the computer and make sure that the disc stops spinning.
• Insert a straightened paper clip or wire into the manual eject hole and press firmly.
• When the disc tray protrudes by 5 to 10 mm, take hold of the tray, open it and remove the disc.

Line drawing of a hand inserting a cable into a device labeled 'Pioneer', showing ports and wiring (no text beyond labels)

Notes:

• Do not force the disc tray open when the disc is still spinning to prevent injury and damage to the unit.
• Do not place objects within an area less than 12 cm away from the front panel.

What may at first seem like a malfunction may only be a simple operation error. Check the list below before doing anything else.

If the problem still persists, contact your dealer or the local Pioneer Service Station.

Contact the software manufacturer for software problems.

■ The computer or software does not recognize the unit.

- The IEEE 1394 cable or power connector is not correctly plugged in.

→ Check cable connection.

● The operating system does not support the unit.

→ Use an operating system that supports the unit. (See page 16 for a list of supported operating systems.)

[DVD-R/RW and CD-R/RW Discs]

■ Data cannot be recorded/errors occur during recording

• Check whether the discs used are the recommended type.
• Check whether there is enough free space on the disc.
• Check whether the required software is installed.
• Check whether the operating environment satisfies software requirements.
  ● DVD-R discs can be recorded only at their designated recording speeds.
  → Check whether the disc supports the specified recording speeds.
• Check whether the disc has been finalized (to prevent further recording).
• Check whether the disc is inserted with the label side up and the recording side facing down.
• Check whether the disc is dirty or damaged.

■ Failure to read recorded discs

• Check whether used disc is the recommended type.
• Check whether the disc is inserted with the label side up.
• Check whether the disc is an unrecorded disc.
• Check whether the disc is dirty or damaged.
• Check whether the required software is installed.
• Check whether the unit is on a level surface.
• Condensation may have occurred on the optical components. Turn off the unit and wait awhile before trying again.

* For details on how to record discs, see the Help function or the instruction manual supplied with the software.

[Setting]

This drive is Horizontal and Vertical Use.

- Use the supplied stand to place the unit in vertical position.

[Interface]

USB 2.0 or IEEE 1394a

[Disc Size]

- 12 cm (4.72") / 8 cm (3.15")*

* 8 cm (3.15") discs cannot be used at upright position.

[Data Transfer Rate]

Data Read (Sustained)

DVD

Max. 22.16 MBytes/sec.

CD

Max. 6.14 MBytes/sec.

(17.1 - 40X CAV Mode over 16 block transfer)

Data Write (Sustained)

DVD

Ave. 22.16 MBytes/sec. (16X DVD-R)

CD

Ave. 4.92 MBytes/sec. (32X CD-R)

- The data transfer rate may not be output due to disc conditions (scratches, etc.).

[Access Time/ Seek Time]

Access time (Random average)

	DVD-ROM 140 ms	CD-ROM 130 ms
Seek time (Random average)	DVD-ROM 120 ms	CD-ROM 100 ms

[Power Supply]

AC adapter (supplied): +12 V DC / 0.9 A, +5 V DC / 1.5 A

[AC Adapter]

Power source:	100 – 240 V AC, 50 / 60 Hz
Rated output:	+12 V DC / 2 A, +5 V DC / 2 A

[Power Consumption]

When playing DVD-ROM:	24 W (100 V) – 37 W (240 V)
Idle:	8 W (100 V) – 17 W (240 V)

[Other]

Supported operating systems:	Windows 2000, Windows XP
Dimensions	167 (W) x 56.2 (H) x 272.8 (D) mm
(including front panel)	6-9/16 (W) x 2-7/32 (H) x 10-3/4 (D) in.
Weight	2.1 kg (4.63 lb)
Operation temperature	+5°C to +35°C (41°F to 95°F)
Operation humidity	5% to 85% (no condensation)
Storage temperature	-40°C to +60°C (-40°F to 140°F)
Storage humidity	5% to 90% (no condensation)

[Accessories]

AC adapter:	1
USB cable (1.0 m):	1
IEEE 1394 cable (1.5 m):	2
Vertical stand:	2

Operating instructions (this manual): 1

NOTE:

- Specifications and design subject to possible modifications without notice, due to improvements.

Diagram of a device rear panel with labeled ports and connectors, showing numbered connection points.

Illustration showing disassembly of a CD or DVD disc with prohibition symbols and labeled parts

Line drawing of a hand inserting a screwdriver into a CD-ROM drive (no text or symbols)

Remarques:

Publication de Pioneer Corporation.

© 2004 Pioneer Corporation.

16X16 DVD Writing DVD R/RW RW DWD-R/WinJaze COMPACT 0158 DWD Pioneer DWD R/WinJaze ① ② ③ ④ ⑤

Diagram of a device rear panel with labeled ports and connection points

⑥ IEEE 1394-Anschlüsse

Diagram illustrating the use of a disassembly or disassembly process with prohibition symbols and labeled components

Line drawing of a hand inserting a cable into a CD-ROM drive (no text or symbols)

Hinweise:

Diagram of a device rear panel with labeled ports and connectors, showing numbered connection points.

Illustration showing various disassembled components with prohibition symbols, including disc, pad, and ring parts.

Line drawing of a hand inserting a screwdriver into a CD-ROM drive (no text or symbols visible)

Note:

Max. 22,16 Mbyte/sec.

CD

16X16 DVD Writing DVD R/RW RW DVO/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WR/WM Pioneer ① ② ③ ④ ⑤

Diagram of a device rear panel with labeled ports and connectors, showing numbered connection points.

⑥ Conectores IEEE 1394

Illustration showing disassembly of flip-flops into a CD or DVD, with no text labels and symbols indicating disassembly.

Line drawing of a hand inserting a screwdriver into a device labeled '16X16' (no text or symbols on the device itself)

Notas:

Copyright © 2004 Pioneer Corporation.

Diagram of a device rear panel with labeled ports and connection points, showing internal components and connections.

Illustration showing various disassembled components with prohibition symbols, including clamps, disc, and parts with arrows indicating movement.

Line drawing of a hand inserting a screwdriver into a device labeled 'Pioneer' (no text or symbols beyond branding)

Opmerkingen:

Copyright © 2004 Pioneer Corporation.

AFTER-SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor from where you purchased the product for its after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below:

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES at the addresses listed below for repair without advance contact, for these companies are not repair locations.

AMERICA

PIONEER ELECTRONICS (USA) INC.

CUSTOMER SUPPORT DIVISION

P.O. BOX 1760, LONG BEACH, CA 90801-1760, U.S.A.

EUROPE

PIONEER EUROPE NV

EUROPEAN SERVICE DIVISION

HAVEN 1087, KEETBERGLAAN 1, B-9120 MELSELE, BELGIUM

ASEAN

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

SERVICE DEPARTMENT

253, ALEXANDRA ROAD #04-01 SINGAPORE 159936

JAPAN AND OTHERS

PIONEER CORPORATION (HEAD OFFICE)

CUSTOMER SUPPORT CENTER

Published by Pioneer Corporation.

Copyright © 2004 Pioneer Corporation.

All rights reserved.

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC.

Multimedia and Mass Storage Division:

2265 East 220th Street, Long Beach, CA 90810, U.S.A. TEL:800-444-OPTI (6784)

Customer Support Division:

1925 East Dominguez St. Long Beach, CA 90810, U.S.A. TEL: [phone]

PIONEER EUROPE NV

Multimedia Division:

PIONEER House, Hollybush Hill STOKE POGES, SLOUGH SL2 4QP U.K. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

Industrial Products Department:

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL:[phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]
