Product Type	Range hood (chimney)
Brand	AEG
Model	DIK8190HG
Control Type	Touch sensor
Motor Speeds	4 (1, 2, 3, maximum) plus boost
Boost Duration	5 minutes
Breeze Mode	Yes (low speed, 60-minute auto-off)
Hob2Hood Function	Yes (automatic speed control via hob)
Filter Notification	Yes (grease filter cleaning alert, charcoal filter replacement alert)
Lighting Type	LED
Lighting Replacement	By technician only
Grease Filter	Washable (dishwasher safe, low temperature)
Charcoal Filter	Replaceable, non-washable, every 4–6 months
Minimum Installation Height	65 cm above hob surface
Electrical Connection	Requires qualified electrician, must match rating plate
Exhaust Type	Ducted (or recirculation with charcoal filter)
Intended Use	Domestic above hobs, cookers, and similar cooking devices

Frequently Asked Questions - DIK8190HG AEG

What is the minimum installation height for the AEG DIK8190HG range hood?

The minimum distance between the hob surface and the lower part of the hood is at least 65 cm, unless otherwise specified in the installation instructions.

How do I clean the grease filters?

The grease filters can be washed in a dishwasher set to a low temperature and short cycle. Alternatively, clean with a sponge and non-abrasive detergent. Clean monthly to prevent fire risk.

How often should the charcoal filter be replaced?

The charcoal filter should be replaced approximately every 4 to 6 months of operation, or more frequently with heavy usage. It is not washable.

Can I replace the LED lamp myself?

No, the LED lamp should only be replaced by a qualified technician. Contact the Authorised Service Centre.

What is the boost function?

The boost function sets the motor to maximum speed for 5 minutes, then returns to the previous speed setting.

What is the Breeze mode?

Breeze mode runs the hood at the lowest speed and turns off automatically after 60 minutes. It is used to refresh air after cooking.

How does the Hob2Hood function work?

The Hob2Hood function automatically connects the hood with a compatible hob via infrared signals. The fan speed adjusts based on the temperature of the hottest cookware. Refer to the hob manual for activation.

Why is the filter notification flashing?

If the filter icon is on solid white for 30 seconds, it indicates the grease filter needs cleaning. If it flashes white for 30 seconds, it indicates the charcoal filter needs replacement or cleaning.

What should I do if the hood does not turn on?

Check that the appliance is connected to the power supply and the fuse is not blown. If the fuse blows repeatedly, contact a qualified electrician.

Is the range hood suitable for use over a gas hob?

Yes, the appliance is intended for use above hobs, cookers, and similar cooking devices, including gas hobs. Ensure proper ventilation and compliance with local regulations.

USER MANUAL DIK8190HG AEG

Simple line drawing of a chimney with three dots on the base (no text or symbols)

DIK8190HG DIK6180HG

Diagram of a multi-tiered platform with upward arrows indicating movement or force, no text or symbols present.

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows indicating direction (no text or symbols)

Diagram of a multi-level mechanical or structural assembly with upward arrows indicating force or movement (no text or symbols present)

Diagram of a grid-patterned panel with two downward arrows indicating direction (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Diagram of a multi-tiered storage or mounting structure with vertical supports and upward arrows indicating force or movement (no text or symbols)

Diagram of a grid-patterned panel with two black arrows indicating direction, no text or symbols present

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION...... 55
2. SAFETY INSTRUCTIONS.... 58
3. INSTALLATION....59
4. PRODUCT DESCRIPTION....59
5. DAILY USE....60
6. CARE AND CLEANING.... 61
7. TROUBLESHOOTING....63
8. ENVIRONMENTAL CONCERNS....63

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.

- WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use adhesives to fix the appliance.

- The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.

- The discharge of air must comply with local authorities regulations.

- Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

- Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not flambé under the appliance.

• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• If the symbol ( ) not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.

• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

- This appliance is for cooking purpose only. Do not use the appliance for other purpose.

• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately:

These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

4. PRODUCT DESCRIPTION

4.1 Control panel overview

Function Description

On / Off Turns the hood on and off.

Function Description
2	First speed The motor switches to first speed level.
3	Second speed The motor switches to second speed level.
4	Third speed The motor switches to third speed level.
5	Maximum speed The motor switches to maximum speed level.
6	Speed boost The motor switches to maximum speed level. After 5 minutes the appliance returns to previous setting.
7	Breeze The hood operates on the lowest speed. After 60 minutes the appliance turns off.
8	Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.
9	Hob ^2 Hood Indicator of the function to control hood from hob.
10	Lamp Turns the lights on and off.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to the table below.

Y1	While heating up food, cooking with covered pots.
Y2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
Y3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
and	While boiling and frying big quantities of food without a lid, big humidity.
	Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and deactivated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. Touch the symbols for 1 second to activate the functions.

To operate the hood:

1. Turn on the appliance by pressing the symbol.

You can now activate the functions.

1. To activate the function touch the symbol.

i

The hoods light works independently to other hood functions. To illuminate the cooking surface touch the light symbol

To change the light intensity touch I hold the symbol again.

To turn off the appliance press the Ⓛ symbol again.

5.2 Hob ^2 Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

i

For more information how to use the function refer to the hob user manual.

5.3 Activating Maximum Motor Speed

When you press the button, the Maximum Motor Speed starts to operate for 6 minutes. After that time, the appliance returns to its previous speed settings.

i

When the function is turned on, additional touch on the button does not have any effects.

5.4 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on (white) for 30 seconds if the grease filter must be cleaned. The filter indicator flashes (white) for 30 seconds if the charcoal filter must be replaced or cleaned.

i

Refer to cleaning the grease filter in care and cleaning chapter.

i

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To activate or deactivate function:

1. Switch on the control panel.
2. Make sure that the icons are turned off.
3. To activate function touch for 3 seconds.

If the function is activated, the filter icon flashes (white) five times.

1. To deactivate function touch 🎨 for 3 seconds.

If the function is deactivated, the filter icon flashes (white) three times.

To reset the function touch for 3 seconds.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.

Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.

Grease filters can be washed in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

6.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

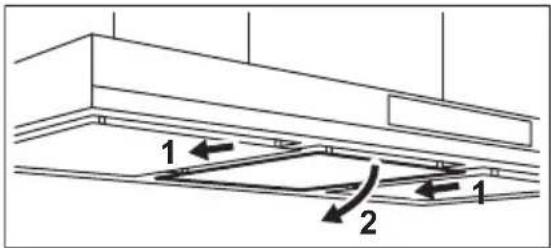

1. Hold the panel on the sides and push it back.

1. Slightly tilt the front of the filter downwards, then pull.

Be careful! Filter is protected by chain upon accidental collapse. Dismount the chains before cleaning the filters.

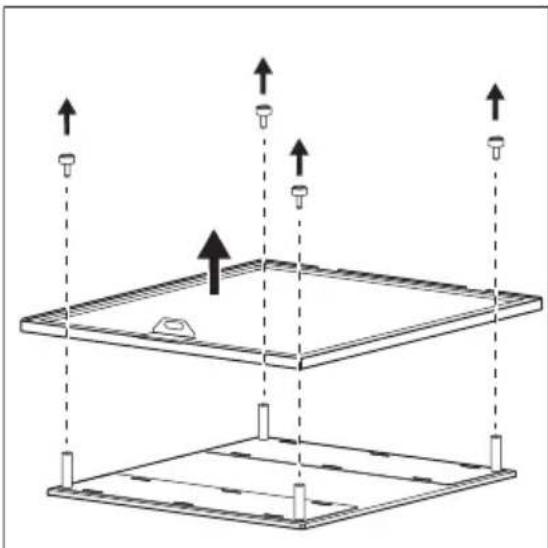

1. Disassemble the filter by removing the screws on top of the filter.

Diagram of a multi-tiered storage or mounting structure with vertical supports and upward arrows indicating direction (no text or symbols)

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.

6.3 Replacing the charcoal filter

WARNING!

The charcoal filter is non-washable!

To replace the filter:

1. Remove the grease filters from the appliance.

Refer to "Cleaning the grease filter" in this chapter.

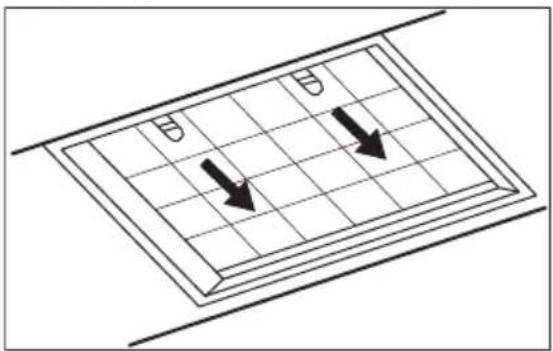

2. Pull the tabs towards the bottom part of the filter.

Diagram of a solar panel with two arrows indicating direction, no text or symbols present

1. Slightly tilt the front of the filter downwards, then pull.
2. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy
You cannot activate the appliance. The appliance is not connected to a power supply or it is connected incorrectly.		Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp. Refer to the "Care and Cleaning" chapter.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Change the speed of the motor.
The filter alarm indicator is on.	The filter alarm is on. The grease filter must be cleaned or the charcoal filter must be replaced or cleaned.	Refer to the filter notification in "Daily use" chapter.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Diagram of a multi-tiered platform with upward arrows indicating movement or force, no text or symbols present.

Diagram of a grid-patterned panel with two black arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

1. Kallutage filtri esiosa kergelt allapoole, seejärel tömmake.
2. Uue filtri paigaldamiseks teostage toiming vastupidises järjekorras.

1. ⚠TURVALLISUUSTIEDOT

Diagram of a multi-tiered storage or rack system with upward and downward arrows indicating movement (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

5. SVAKODNEVNA UPORABA

5.1 Uporaba nape

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

1. Očistite filtre pomoću spužve s neabrazivnim deterdžentima ili u perilici posuđa.

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

1. Lagano nagnite prednji dio filtra prema dolje, a zatim ga povucite.
2. Da biste instalirali novi filtar, izvršite iste korake obrnutim redoslijedom. U svakom slučaju, potrebno je zamijeniti filtre najmanje svaka četiri mjeseca.

6.4 Zamjena žarulje

Ovaj uređaj opremljen je LED žaruljom. Ovaj dio može zamijeniti samo tehničar. U slučaju bilo kakve neispravnosti, pogledajte "Servis" u poglavlju "Sigurnosne upute".

7. RJEŠAVANJE PROBLEMA

UPOZORENJE!

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a multi-tiered platform with upward arrows indicating movement or force, no text or symbols present.

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

1. Nedaudz sasveriet filtra priekšpusi uz leju, tad pavelciet.

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a multi-tiered storage or mounting structure with vertical supports and upward arrows indicating direction (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows indicating direction (no text or symbols)

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

7. PROBLEEMOPLOSSING

WAARSCHUWING!

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

10 Lâmpada Liga e desliga as luzes.

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two black arrows indicating direction, no text or symbols present

Diagram of a multi-level structure with vertical supports and upward arrows indicating force or movement (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

1. Rahlo nagnite sprednji del filtra navzdol, nato povlecite.

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned structure with two downward arrows, no text or symbols present

4. PËRSHKRIM I PRODUKTIT

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two black arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a solar panel with two downward arrows indicating direction, no text or symbols present

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows indicating direction (no text or symbols)

Diagram of a multi-tiered platform with vertical supports and upward arrows indicating movement or force (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a multi-tiered storage or mounting structure with vertical supports and upward arrows indicating movement (no text or symbols)

Diagram of a grid-patterned panel with two downward arrows, no text or symbols present

Diagram of a grid-patterned panel with two downward arrows indicating direction (no text or symbols)

Diagram of a multi-level mechanical or structural assembly with upward and downward arrows indicating force or movement (no text or symbols present)
