ZSM2102X - Grill Zelmer - Free user manual and instructions

Product Type	Sandwich Maker (Grill)
Brand	Zelmer
Model	ZSM2102X
Dimensions (approx.)	250 x 200 x 100 mm
Weight (approx.)	1.3 kg
Power Supply	AC 220-240V, 50/60 Hz, 800 W (typical)
Class	I (requires grounding)
Heating Plates	Non-stick Teflon coating, divided into 4 triangular spaces
Indicator Lights	Orange (power on), Green (ready to toast)
Capacity	One or two slices of bread at a time
Main Functions	Toasting sandwiches with fillings; quick preparation; automatic temperature maintenance
Safety Features	Class I earth connection; auto shut-off not mentioned; thermal cut-off not specified; do not immerse in water; cool-touch handle (not specified but assumed)
Cleaning and Maintenance	Wipe with damp cloth; remove crumbs after each use; do not use abrasive cleaners; washable parts? Only external cleaning recommended
Spare Parts and Repairability	Power cord replaceable by qualified personnel; no other spare parts mentioned; service by authorized facility
General Information	Household use only; not for commercial use; manual available in multiple languages

Frequently Asked Questions - ZSM2102X Zelmer

How do I use the sandwich maker for the first time?

Before first use, remove packaging, check voltage, clean surfaces with a damp cloth, then turn it on for about 15 minutes without food to burn off manufacturing residues. Let it cool completely before use.

What do the orange and green indicator lights mean?

The orange light indicates the appliance is connected to the power supply. The green light turns on when the plates are ready for toasting. It will cycle on/off to maintain temperature.

Can I use metal utensils to remove sandwiches?

No, use wooden or plastic utensils to avoid damaging the non-stick coating. Metal objects like knives or forks can scratch the plates.

Is the sandwich maker safe for children to use?

Children aged 8 and above can use it under supervision. Children under 8 should be kept away from the appliance and its cord. Do not allow children to clean or maintain it without supervision.

How do I clean the sandwich maker?

Unplug and allow to cool completely. Wipe the exterior and heating plates with a soft damp cloth, then dry. Remove crumbs with a paper towel. Do not immerse in water or use abrasive cleaners.

What type of bread is recommended?

Use slices of toasting bread about 1 cm thick. Butter or apply fat on the outer sides for better browning.

Why does the sandwich maker emit a smell when first used?

A slight burning smell is normal during the first use as the heating elements burn off manufacturing residues. It should disappear after a few uses.

Can I prepare other foods besides sandwiches?

The manual specifically describes sandwich preparation. Using it for other foods may not be recommended and could damage the plates or cause uneven cooking.

What should I do if the power cord is damaged?

Stop using immediately. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

How should I store the sandwich maker?

Keep it in a dry place. Wrap the cord loosely around the cord storage area (if available). Ensure it is clean and cool before storing.

USER MANUAL ZSM2102X Zelmer

Black and white photo of a Zelmer Neerro grater with visible branding and control buttons (no text-heavy elements)

PLF INSTRUKCJA UŻYTKOWANIA OPIEKACZ DO KANAPEK 2-4
CZ NÁVOD K POUŽITÍ SENDVIČOVAČ 5–7
SK NÁVOD NA OBSLUHU SENDVIČOVAČ 8–10
HU HASZNÁLATI UTASÍTÁS SZENDVICSSÜTÖ 11–13
RO INSTRUCTIUNI DE UTILIZARE PRÄJITOR PENTRU SANDVIŞURI 14–16

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ САНДВИЧ-ТОСТЕР 17–19
BG ИНСТРУКЦИЯ ЗА УПОТРЕБА УРЕД ЗА САНДВИЧИ 20–22
UA ІНСТРУКЦІЯ З КОРИСТУВАННЯ ТОСТЕР ДЛЯ БУТЕРБРОДІВ 23–25
EN USER MANUAL SANDWICH MAKER 26–28

PL

Szanowni Klienci!

Black plastic grater with internal compartments and labeled parts (no text or symbols visible)

Black plastic kitchen appliance with internal compartments and labeled parts (no text or symbols visible)

Obsluha a provoz opékače topinek

PŘED PRVNÍM POUŽITÍM OPÉKAČE:

Black plastic grater with internal blades and labeled parts (no text or symbols on body)

Black plastic griddle with internal compartments and labeled parts (no text or symbols visible)

Black plastic grater with internal compartments and labeled parts (no text or symbols visible)

Black plastic grater with internal compartments and labeled parts (no text or symbols visible)

Black plastic kitchen grater with internal compartments and labeled parts (no text or symbols visible)

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Safety precautions

Read this entire manual carefully before using the appliance.

DANGER! / WARNING!

Health hazard

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

• Always use the appliance on a dry and stable work surface.

- Do not use the appliance if the power cord is damaged or the sandwich maker case is visibly damaged.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance can be repaired by qualified staff only. Incorrectly performed repair may cause serious

hazard to the user. In case of any defects, it is advised to return the appliance to an authorised service facility.

- Do not touch hot surfaces. Handle with care as the appliance may generate hot steam when operating. Risk of burns!

• Never immerse the sandwich maker (or any part of it), supply cord and/or plug in water or any other liquid to avoid the risk of electric shock.
• When not in use and/or before cleaning, unplug the appliance from the socket and allow it to cool down.
• Do not cover the sandwich maker with or put into it packaging made of metal foil or other materials, as it involves a risk of electric shock or fire.
• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch

the surface marked with the symbol.

CAUTION!

Not observance can result in damage to possessions

dry

The appliance must be plugged only to an alternating current socket with power corresponding to the power stated on the name plate of the appliance.

Never unplug or move the appliance by pulling the supply cord.

Do not drag the supply cord over sharp edges. Do not let it bend.

Never let the supply cord hang over sharp edges of a table or worktop. Do not let it touch hot surfaces or be knotted.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Never leave the appliance unattended when in use as bread may burn.

It is best to remove toasted bread with wooden, dull-edged utensils. Metallic objects such as knives, forks, etc. may damage cooking plates.

Never place the appliance on or near gas or electric cookers or in places where it might touch a hot oven or microwave.
Never cover the appliance when it is hot or connected to the mains supply.

SUGGESTION 1 Information on the product and suggestions for its use

The sandwich maker is a class I appliance equipped with a connecting cord with a protective conductor and a plug with an earth pin.
The appliance is intended solely for household use, indoors.

Technical data

The toaster is I class appliance, it requires grounding. The technical parameters are given on the data plate of the product.

Characteristics of the appliance

A maker enables a quick preparation of warm es with filling. One or two slices of toasting bread can be toasted at a time. The heating plates of the sandwich maker are divided into four triangular spaces and are covered with a teflon coating which prevents the sandwiches toasted from adhering to the heating plate. Connecting metal elements with parts made of plastics creates an interesting exterior of the sandwich maker. There are two control lights on the sandwich maker which signal as follows:

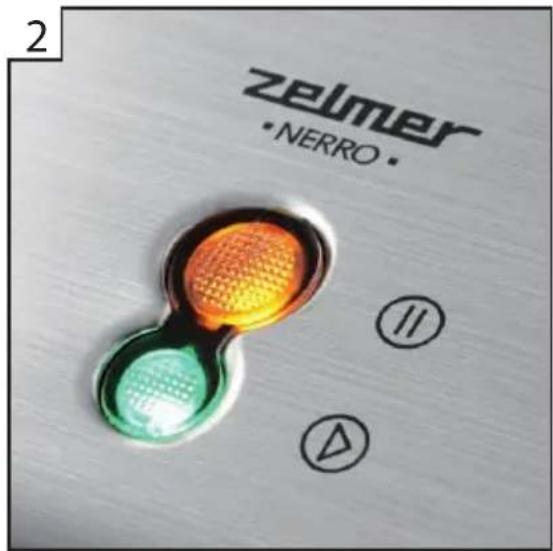

• orange - connection to the power supply,
• green - ready to toast.

Construction of sandwich maker

1 Green colour lamp
2 Orange colour lamp
3 Upper body
4 Lower body
5 Catch

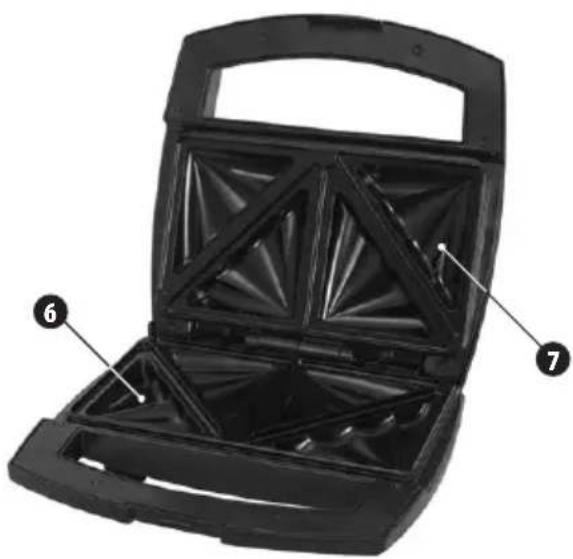

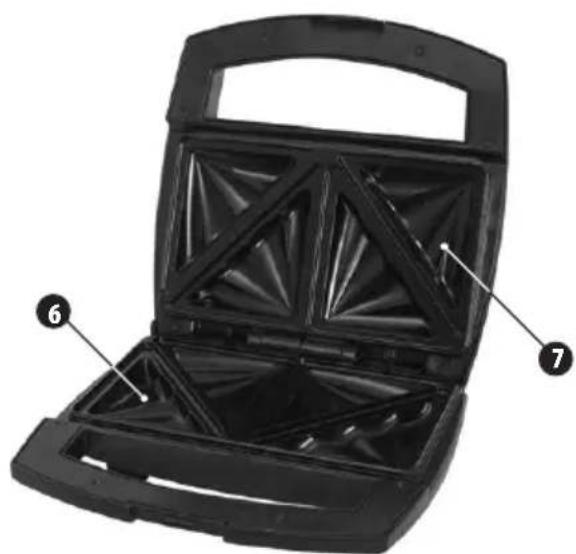

6 Lower heating plate
7 Upper heating plate

Black plastic grater with internal compartments and labeled parts (no text or symbols visible)

Operation and functioning of the sandwich maker

BEFORE FIRST USE OF SANDWICH MAKER:

Remove from the pack.

Check whether the voltage indicated on the device corresponds to the voltage on the power supply network.
Clean the device, wiping its external and internal surfaces with a damp cloth or paper towel.

When you turn on and use the grill for the first time, as far as heating up the heating elements may be a slight "smell of burning". This is not a threat or evidence of malfunction of the product. The smell should disappear after several use.

Turn it on for about 15 minutes to remove any leavings from the manufacturing process. Then turn off the sandwich maker and allow to cool completely.

DURING FURTHER USE OF SANDWICH MAKER:

Put it on a dry, flat surface near an AC outlet.
Insert the plug into an AC outlet (the two indicator lights - orange and green - will turn on).
Wait until the green light goes out (it takes about 3-4 minutes), which means that the heating plates have reached the temperature that allows for roasting.

Since then, the green indicator light will turn on and off - this means that sandwich maker maintains a proper temperature of grill cooking.

SANDWICH PREPARATION:

Open the sandwich maker.

Place a slice of toasted bread, with a thickness of about 1 cm, buttered side or another fat, on the bottom plate of sandwich maker.

Apply the add-ons onto a lying piece.

Cover the add-ons with another slice of bread, buttered side up, then carefully close the sandwich maker. If you have difficulty closing the sandwich maker, remove excess of fillings. Sandwich maker cannot be closed with difficulty, as this may damage it.

After a few minutes (baking time depends on the type of recipe you apply to prepare sandwiches and the user's preferences), open the sandwich maker and carefully remove the toasted sandwich.

eating sandwiches immediately after cooking, be careful not to get burnt, as sandwiches, filling or add-ons may be hot.

Cleaning and maintenance of sandwich maker

Sandwich maker does not require special maintenance.

Keep and store the sandwich maker clean, as it has contact with food.

Before cleaning the sandwich maker, remove the plug from the socket and wait for completely cool down of the device.

First, wipe the sandwich maker with a soft damp cloth, then wipe it dry with a soft, clean cloth.

Do not use cleaners that may scratch or damage external surfaces and a protective layer of the heating plates.

After each use of sandwich maker, remove from heating plates the accumulated crumbs and leftovers, and with a paper towel, wipe the surface of grill inserts to absorb and collect the fat accumulated during cooking.

Ecology – Environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Notes

Notes

Notes

Close-up of a white electric vacuum cleaner with red circular sensor and control buttons, emitting blue light (no visible text or symbols)

Close-up of a black metal component with a coiled base and flange, no visible text or symbols

Hand using a yellow sponge to clean or store contents in a car (no visible text or symbols)

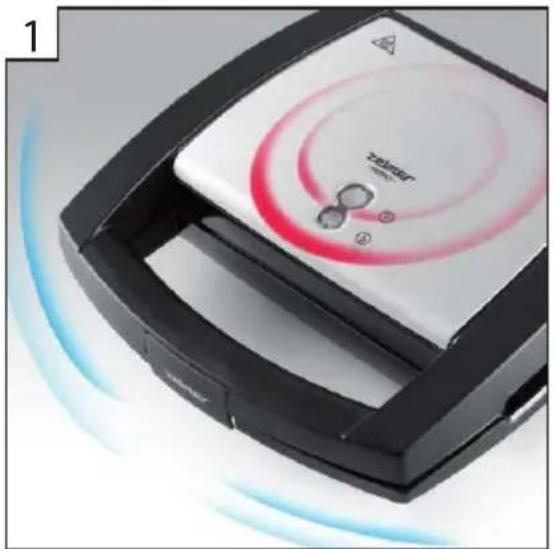

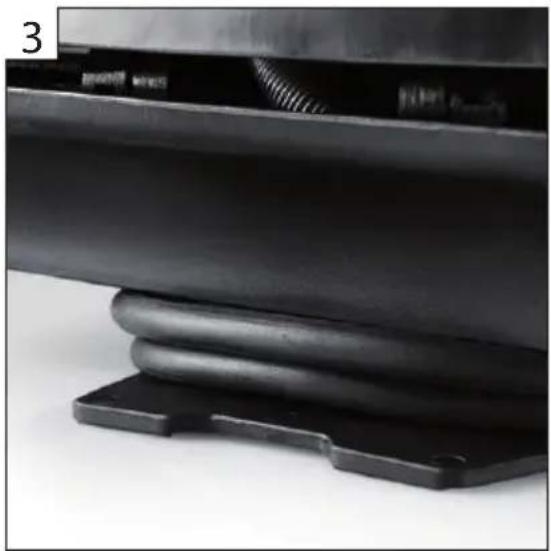

PL 1. Nienagrzewający się uchwyt 2. Wskaźnik gotowości do pracy 3. Schowek na przewód 4. Łatwe czyszczenie płytek z powłoką nieprzywierającą
CZ 1. Termoizolační madlo 2. Ukazatel připravenosti k práci 3. Prostor pro kabel 4. Snadné čištěni s nepřilnavým povrchem
SK 1. Nezohrievajúci sa držiak 2. Ukazovatel' pripravenosti k práci 3. úložný priestor na napájací kábel 4. L'ahké čistenie vďaka nepřilňnavému povrchu

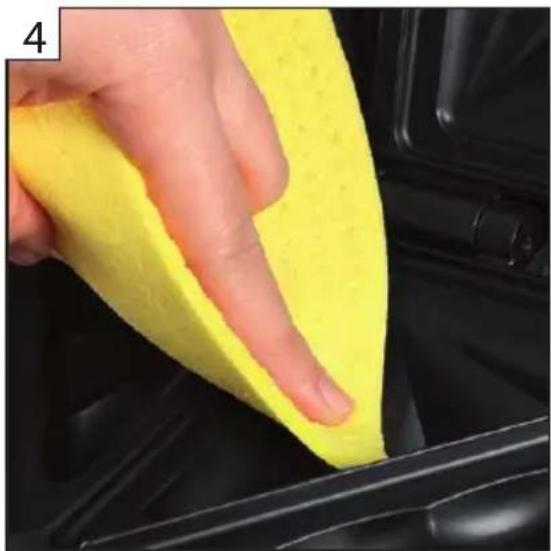

HU 1. Höszigetelt fogantyú 2. Használatra kész kijelző 3. Kábeltartó 4. A tapadásmentes lapok könnyü tisztítása
Ro 1. Mânerul nu se încălzește 2. Indicator pentru faza gata de funcționare 3. Locaș pentru cordonul de alimentare 4. Curățarea simplă a plăcilor antiadezive
