L3RAD12E - Radio Logik - Free user manual and instructions

Product Type	FM/AM Radio
Model	L3RAD12E
Brand	Logik
Frequency Range (AM)	540 – 1600 kHz
Frequency Range (FM)	88 – 108 MHz
Power Supply	AC 230 V ~ 50 Hz
Net Weight	1.7 kg
Dimensions (W x D x H)	245 mm x 130 mm x 125 mm
Audio Input	3.5 mm AUX IN socket
Earphone Jack	3.5 mm PHONES socket
Speaker Output	Built-in dual speakers
Controls	Volume, Tuning, Function selector (AUX/FM/AM), Power switch
Indicators	Power indicator (front)
Antenna	FM telescopic aerial (external)
Reception	FM and AM with adjustable tuning
Operating Environment	Indoor use, avoid moisture and heat sources
Safety Features	Auto-off by mains plug removal, ventilation vents
Accessories Included	Main unit, instruction manual
Cleaning	Wipe with slightly moist lint-free cloth; avoid alcohol/ammonia
Repairability	No user-serviceable parts; contact qualified personnel

Frequently Asked Questions - L3RAD12E Logik

How do I turn on/off the Logik L3RAD12E radio?

Switch the POWER ON/OFF switch at the rear to ON to turn on, and to OFF to turn off. For complete disconnection, unplug the mains plug from the socket.

How do I select AM, FM, or AUX mode?

Turn the FUNCTION Selector to switch between AUX, FM, and AM modes.

Why is there no sound from the speakers?

Check if the volume control is turned up. Also ensure the FUNCTION Selector is not set to AUX without an external device connected, as AUX mode mutes the radio.

How can I improve FM reception?

Fully unwind the FM aerial wire and extend it. Move the unit away from electrical appliances like motors or transformers that may cause interference.

How can I improve AM reception?

Rotate or reposition the whole unit horizontally until you find the best orientation for AM reception.

Can I connect my smartphone or MP3 player?

Yes, use a 3.5mm stereo audio cable (not included) to connect your device to the AUX IN socket on the front bottom left of the unit. Then select AUX mode.

How do I use earphones with this radio?

Turn down the volume before inserting earphones into the PHONES socket on the rear. Then slowly increase volume to a comfortable level. The built-in speakers will automatically mute.

What should I do if the sound is distorted?

The volume may be too high. Turn the VOLUME control down to reduce distortion.

How to clean the unit safely?

Unplug the unit first. Wipe the case with a slightly moist, lint-free cloth. Do not use alcohol, ammonia-based cleaners, or spray aerosols near the unit.

What are the main safety precautions for this radio?

Place on a flat stable surface away from heat sources and moisture. Ensure proper ventilation (at least 5cm clearance). Do not insert objects into openings. Unplug during storms or long absences.

USER MANUAL L3RAD12E Logik

Exterior view of a modern LOGIK portable radio with two speakers and control knobs (no visible text or symbols on the device body)

Gradient gray background with no text, symbols, or identifiable objects

Contents

GB

Unpacking....5

Product Overview....6

Front View 6

Rear View....6

Connection....7

Mains Power 7

Using Earphones ....7

Playing music from an Audio Device ....7

Basic Operation 8

Powering ON/OFF....8

Selecting Modes 8

Adjusting the Volume 8

Radio Operation 8

For Better Reception 8

AUX IN....8

Maintenance....9

Hints and Tips....9

Specifications....9

Safety Warnings....40

Thank you for purchasing your new Logik FM/AM Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit x 1 Instruction Manual x 1

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Front View

1. Speakers
2. VOLUME Control
3. FUNCTION Selector
4. TUNING Control
5. POWER Indicator

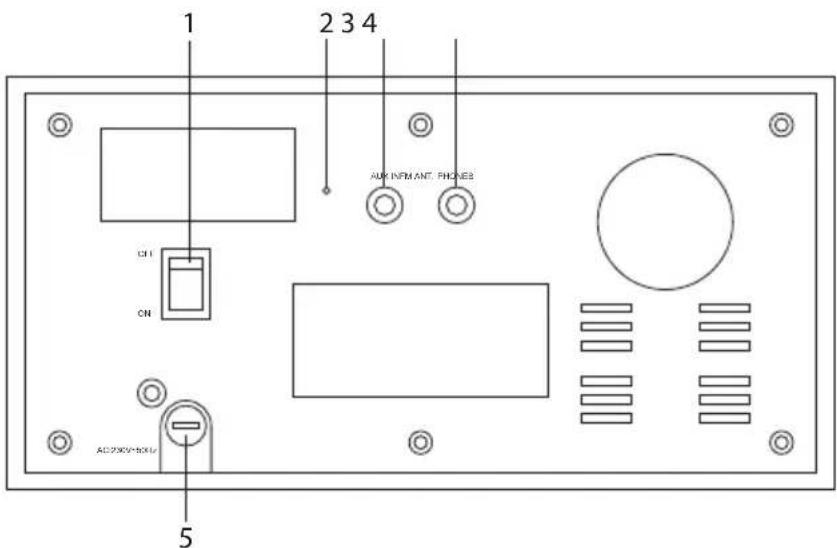

Rear View

1. POWER ON/OFF Switch
2. PHONES Socket
3. FM Aerial
4. Mains Cable
5. AUX IN Socket

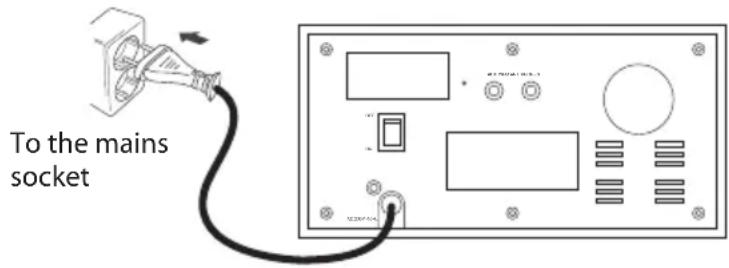

Mains Power

• This unit is designed to operate with an AC \~230V 50Hz power supply.
• Unwind the mains cable to its full length. Connect the mains plug to the mains socket. Make sure the mains plug is firmly inserted into the mains socket. The unit is now connected and ready to use.
  • To switch the unit off completely, withdraw the mains plug from the mains socket.

GB

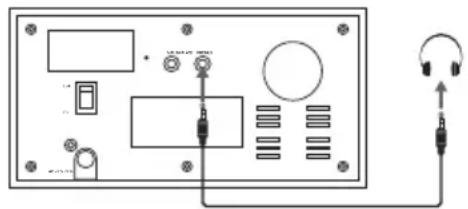

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically muted.

Back panel diagram showing electronic components and connections (no text or labels)

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

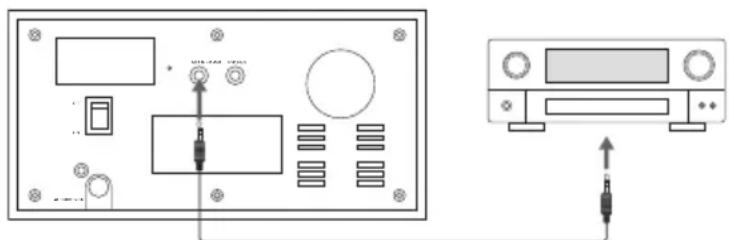

Playing music from an Audio Device

The AUX IN socket is located on the bottom left on the front of the unit. Use a 3.5mm stereo audio cable (not included) to connect to the audio device through the AUX IN socket.

Diagram of a device rear panel with ports and connectors, connected to a monitor (no text or symbols visible)

3.5mm Stereo Audio Cable (Not included)

Powering ON/OFF

When you first connect the unit to the mains socket.

• Switch the POWER ON/OFF switch at the rear of the unit to ON position to turn on the unit.
• Switch the POWER ON/OFF switch at the rear of the unit to OFF position to turn the unit off.
• Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

Selecting Modes

Turn the FUNCTION Selector to switch between AUX, FM and AM modes.

Adjusting the Volume

Turn the VOLUME control to adjust the volume.

Radio Operation

1. Turn the FUNCTION selector to AM or FM mode.
2. Turn the TUNING control to tune to a station.
3. Adjust the VOLUME control to the desired level.

For Better Reception

FM - Fully unwind the FM aerial. Extend the FM aerial and place it in the position that sounds best.

AM - Reposition the unit to get better AM reception.

AUX IN

1. Before connecting to the mains socket, use a 3.5mm stereo audio cable (not included) to connect to the audio device through the AUX IN socket.
2. Connect the mains cable to the mains socket and switch the POWER ON/OFF switch at the rear of the unit to the ON position.
3. Turn the FUNCTION selector to AUX IN mode.
4. Turn the VOLUME control on the unit to adjust the sound level.
5. In AUX IN mode, you may operate your audio device directly for playback features.

Cleaning the Unit

Ensure to unplug the unit from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

Hints and Tips

Problem Solution

No Sound • Adjust the volume control, it may not be turned up.

Sound is distorted • Volume is too high. Adjust the volume control.

Poor FM reception • Make sure FM aerial wire is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).

Poor AM reception • Rotate the unit horizontally until orientation with best reception is found.

Specifications

Model L3RAD12E
Frequency Range AM: 540 – 1600 KHzFM: 88 – 108 MHz
Mains Supply AC 230V ~50Hz
Net Weight 1.7kg
Dimensions 245mm(W) x 130mm(D) x 125mm(H)

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte en ny Logik FM/AM Radio.

Dersom noe mangler, eller er skadet, ta kontakt med Partmaster (kun i Storbritannia).

Tlf.: 0844 800 3456 for assistance.

Sett forfra

1. Høyttalere
2. VOLUM-kontroll
3. FUNKSJONS-velger
4. S∅KER-kontroll
5. POWER-indikator

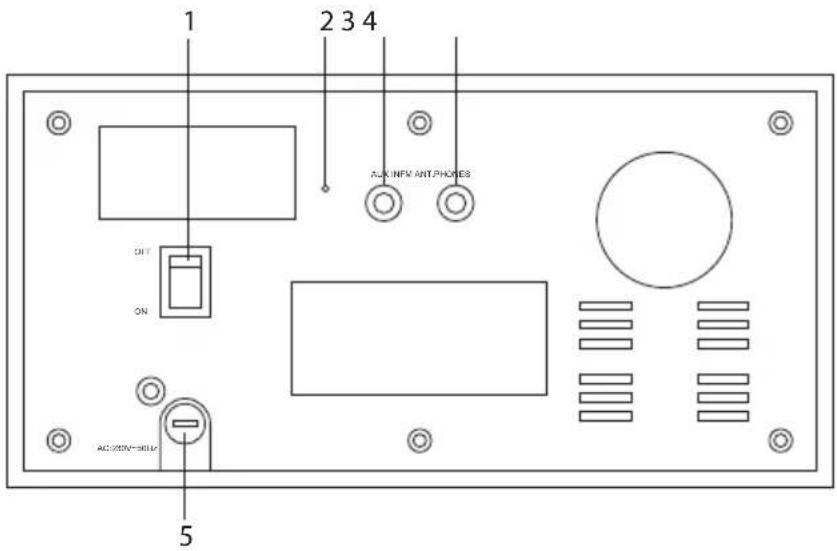

Sett bakfra

1. POWER ON/OFF-bryteren

2. PHONES-inngang

3. FM-antenne

4. Strømkabel

5. AUX-inngang

Hovedstrøm

Back panel with electronic components and earphones connected by a cable (no text or symbols visible)

Back panel diagram showing electronic components and connections (no text or labels)

Back panel diagram showing electronic components and connections (no text or labels)

Back panel diagram showing electronic components and connections (no text or labels)

DK

Diagram of a device rear panel with ports and connectors, connected to a monitor (no text or symbols visible)

Back panel with electronic components and earphones connected by a cable (no text or symbols visible)

SK

Back panel with electronic components and connections, no visible text or symbols

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

- Please inspect the unit for damage after unpacking.

- Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.

Temperature

- Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.

- Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

• Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
  • If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Cable

- Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Supervision

• Children should be supervised to ensure that they do not play with the unit.

- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

SE
