L44DAB10 - Radio Logik - Free user manual and instructions

Product Type	DAB/DAB+ Radio
Brand	Logik
Model	L44DAB10
Dimensions (W x H x D)	Approx. 200 x 120 x 80 mm
Weight	Approx. 0.6 kg
Power Supply	AC 230V ~ 50Hz or 4 x AA batteries (not included)
Frequency Range	DAB: 174-240 MHz; FM: 87.5-108 MHz
Preset Stations	20 DAB and 20 FM presets
Display	LCD backlit display
Alarm	Dual alarm with snooze function
Sleep Timer	Yes, adjustable
Audio Output	Built-in speaker (mono) and 3.5mm headphone jack
Additional Features	Info button for station details, volume control, manual/auto tuning
Maintenance	Clean with a soft dry cloth. Do not use liquids or abrasive cleaners.
Safety Precautions	Do not expose to rain or moisture. Keep away from heat sources. Use only specified power supply.
Spare Parts and Repairability	Contact Logik customer service for spare parts. Device is not user-serviceable; refer to a qualified technician.
General Information	DAB/DAB+ radio with FM tuner, designed for home use. Easy to set up and operate.

Frequently Asked Questions - L44DAB10 Logik

How do I set the alarm on the Logik L44DAB10?

Press and hold the Alarm button until the display flashes. Use the Tuning knob to set the hour, press to confirm, then set minutes. Select alarm source (buzzer or radio) and adjust volume. Press Alarm again to save.

Can I use batteries as backup?

Yes, the radio can operate on 4 x AA alkaline batteries (not included). When using AC power, batteries are not consumed.

How do I store a DAB radio station as a preset?

Tune to the desired station, then press and hold one of the Preset buttons (1-20) until you hear a beep. The preset number will appear on the display.

What should I do if the radio loses DAB reception?

Check if the antenna is fully extended. Try moving the radio to a different location, closer to a window. Perform an auto scan by pressing and holding the Scan button.

How do I switch between DAB and FM modes?

Press the Band button repeatedly to toggle between DAB and FM. The current band is shown on the display.

The display is dim. Can I adjust the brightness?

Yes, press the Info button repeatedly until you see 'Brightness'. Use the Tuning knob to adjust the level to your preference.

How do I set the sleep timer?

Press the Sleep button repeatedly to cycle through timer options (15, 30, 45, 60, 90, 120 minutes, or Off). The radio will turn off automatically after the set time.

What does the 'Info' button display?

In DAB mode, pressing Info cycles through station information such as multiplex name, signal strength, bitrate, and time. In FM mode, it shows RDS data like station name or song title if available.

Can I connect headphones?

Yes, the radio has a 3.5mm headphone jack on the side. Inserting headphones will mute the built-in speaker automatically.

How do I perform a factory reset?

Turn off the radio. Press and hold the Menu button while turning it on. Use the tuning knob to select 'Factory Reset' and press to confirm. This erases all presets and settings.

USER MANUAL L44DAB10 Logik

Battery Life (Approx. Hours) 6

Knowing When to Replace the Batteries 6

Switching on Your Unit for the First Time 7

Basic Operation 8

Powering ON/OFF 8

Selecting Modes 8

Adjusting Volume 8

DAB Operation....8

Memory....8

Storing Stations....8

Recalling a Stored Station....9

DAB Display Modes 9

Software Version....10

Auto Scan Modes 10

Secondary Services....10

Manual Tuning....10

System Reset....11

FM Operation....12

Switching from DAB to FM Mode....12

Auto Scan....12

Manual Scan....12

Storing Stations....12

Recalling a Stored Station....12

Select Sensitivity in FM....12

FM Display Modes....13

Software Version....14

System Reset....14

Using Earphones....14

Maintenance....15

Hints and Tips 15

Specification 15

Safety Warnings....16

Thank you for purchasing your new Logik DAB Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a portable radio with antenna and control panel (no text or symbols)

Main Unit

Simple line drawing of a cable and plug with a terminal outlet (no text or symbols)

Mains Adapter
P.N.: UKAD87006-500

Instruction Manual
P.N.: L44DAB10-002

If items are missing or damaged, please contact Partmaster (UK only).

Tel: [phone] for assistance.

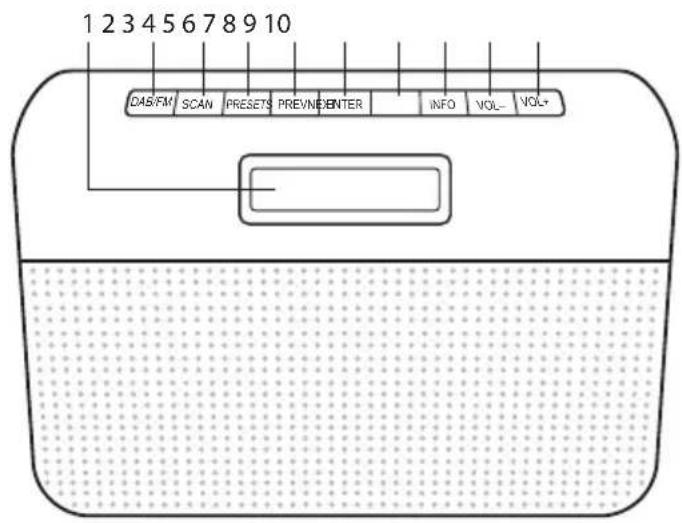

Front View

1. LCD Display
2. DAB/FM Button
3. SCAN Button
4. PRESETS Button
5. PREV Button
6. ENTER Button
7. NEXT Button
8. INFO Button
9. VOL- Button
10. VOL+ Button
11. Telescopic Aerial

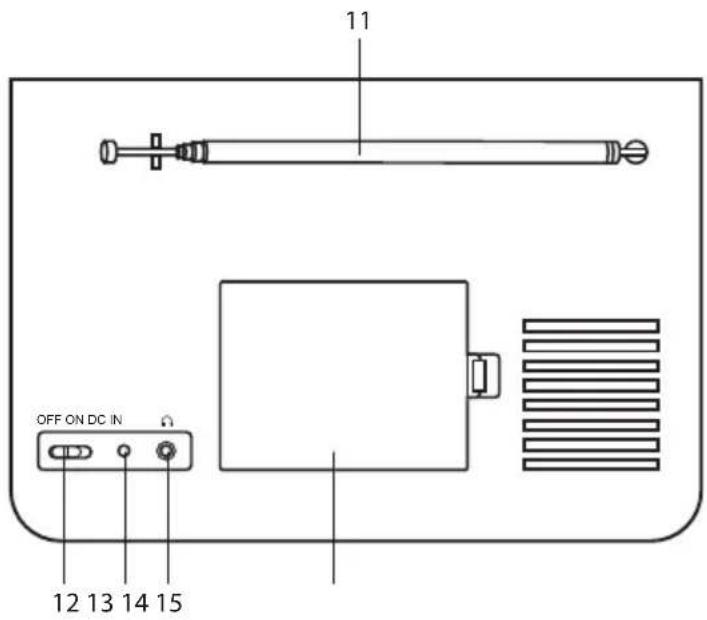

Rear View

1. ON/OFF Switch
2. DC IN Socket
3. Earphones Socket
4. Battery compartment

Mains Power

Connect the mains adapter (included) to the DC IN socket and the mains socket.

Diagram showing a power plug connected to an electronic device via cable, with no visible text or symbols.

Battery Power

Insert 4 AA batteries (not included) correctly by following the polarity (+ or −) indications in the battery compartment.

Battery Life (Approx. Hours)

Battery Type DAB FM
Alkaline (Size AA) 5 6

Knowing When to Replace the Batteries

• When the batteries lose power, the sound becomes weak and distorted.
• When the batteries are completely exhausted, "appears in the display and the power is turned off.
• When "b" appears, replace all the batteries with new ones. After the batteries have been replaced, switch the ON/OFF switch to the "OFF" position to turn the unit off.

Always switch the unit off after use to conserve the battery life.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and −) indications in the battery compartment.
  • Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.
• If you are not going to use the unit for a long time, remove the batteries to avoid damage from battery leakage and corrosion.
• Do not take more than 1 minutes to replace the batteries, otherwise the clock, any lists of receivable broadcasts for DAB scan, preset favourite services and all settings will be initialized. Should that happen, set the functions again.
• If the batteries are replaced while the power is on, the unit may revert to the factory setting.
• Due to the short battery life span of some alkaline batteries. It is recommended to use rechargeable batteries. You will need to purchase a charger to charge the rechargeable batteries. This saves cost and is more environmentally friendly.

Switching on Your Unit for the First Time

1. Switch the ON/OFF switch at the back of the unit to "ON" position to turn the unit on. For initial use, the unit will automatically enter the DAB mode and start the auto tune quick scan for DAB stations.
2. During scanning, the display will show a slide bar that indicates the progress of the scan, and the amount of radio stations that have been found so far. Once the scan has finished, the unit will select the first alphanumeric station.

The name of the found group of DAB radio stations will be displayed in the bottom half of the display.

Powering ON/OFF

After connecting the mains adapter to the unit and the mains socket switch the ON/OFF switch at the back of the unit to the "ON" position to switch the unit on.

• Switch the ON/OFF switch to the "OFF" position to turn the unit off.
• Disconnect the power cable of the mains adapter from the mains socket if you want to switch the unit off completely.

Selecting Modes

Press the DAB/FM button repeatedly to switch between modes (DAB or FM).

Adjusting Volume

Press the Vol+ or Vol- button to increase/decrease the volume.

DAB Operation

To listen to the tuned stations press either the PREV / NEXT buttons. Each time you press the PREV / NEXT buttons, you will skip to the previous or next stored station. The unit will display the station name.

Memory

When you power up the unit again, the unit plays the same mode and station (DAB or FM) as the last operation.

Storing Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save, press and hold the PRESETS button.
2. Press the PREV or NEXT button to select your desired preset station number.
3. Press the ENTER button to confirm the selection.
4. The station will be stored and the display will show "Preset # stored".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESETS button.
2. Press the PREV or NEXT button to select your desired preset station number.
3. Press the ENTER button to confirm the selection.
4. If you choose a preset that hasn't been allocated a station, "Preset empty #" will be displayed.

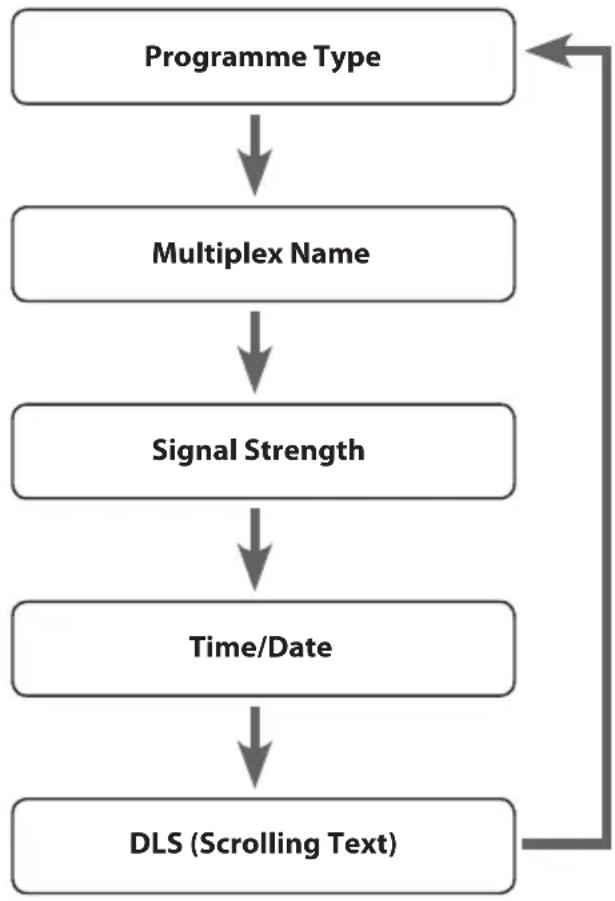

DAB Display Modes

Every time you press the INFO button, the display will cycle through the following display modes: Programme Type, Multiple Name, Signal Strength, Time/Date, DLS (Scrolling Text).

The information is displayed on the lower segment of the display.

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical".

Multiplex Name

A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information.

DLS (Dynamic Label Segment)

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc.

Software Version

1. Press and hold the INFO button for 2 seconds and then release it to view the software version of this unit.
2. The software version will automatically disappear after 5 seconds.

Auto Scan Modes

There are two types of scans, one is Quick scan and the other is Full scan.

- Quick scan:

Searches the stations between channels 10A and 12D. To activate the quick scan press the SCAN button.

• Full scan:

Searches all DAB channels in the UK DAB Band III. Press and hold the SCAN button for 2 seconds.

Secondary Services

You may see a “>” symbol after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. e.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

To select the secondary station, press the NEXT button when the “>” appears in the display before the station name. When the secondary service ends, the unit will automatically switch back to the primary station.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press and hold the ENTER button, the display will now show Manual tune.
2. Press the PREV / NEXT buttons to cycle through the DAB channels, which are numbered from 5A to 13F.
3. After your desired channel number is selected, press the ENTER button to enter the current multiplex, the top line will now display the first station in the multiplex.
4. Press the PREV / NEXT buttons to see what stations are present in the found multiplex.
5. Once you have reached the last station in the found multiplex, it will revert back to the first station again. If you wish to exit the Manual Tuning mode, just press the ENTER button.

System Reset

There may be times when you need to reset your unit back to the factory settings. If you experience reception problems you may want to reset and try again. If you move the unit to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available.

To do the system reset, press and hold the DAB/FM button. Then press the ENTER button to start the system reset. The unit will then start the Quick Scan for DAB channels immediately.

After the system reset, all the tuned stations, DAB & FM preset stations and alarm settings will be erased.

Switching from DAB to FM Mode

In order to switch the unit from DAB to FM mode, press the DAB/FM button once. The display shows "Switching to FM".

On the top line of the display is the current frequency. On the bottom of the display,

will show since no channel is tuned in and no RDS (radio data system) data is available.

Auto Scan

To search for an FM station, you need to press and then release the SCAN button. This will start scanning up the frequency band. To scan down the frequency band, press and hold the SCAN button. Once a station has been found, the scanning will stop automatically.

If no station is found, then the tuning will stop once it has cycled through the entire FM band (87.5-108MHz).

Manual Scan

To search FM stations manually, simply press the PREV or NEXT button repeatedly until your desired frequency is reached.

Storing Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save, then press and hold the PRESETS button.
2. Press the PREV or NEXT button to select your desired preset station number.
3. Press the ENTER button to confirm the selection.
4. The station will be stored and the display will then show "Preset # stored".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESETS button.
2. Press the PREV or NEXT button to select your desired preset station number.
3. Press the ENTER button to confirm the selection.
4. If you choose a preset that hasn't been allocated a station, the display will show "Preset empty #".

Select Sensitivity in FM

1. Press and hold the ENTER button for 2 seconds.
2. Show 1-10 level, press the PREV or NEXT button to select the sensitivity manually.

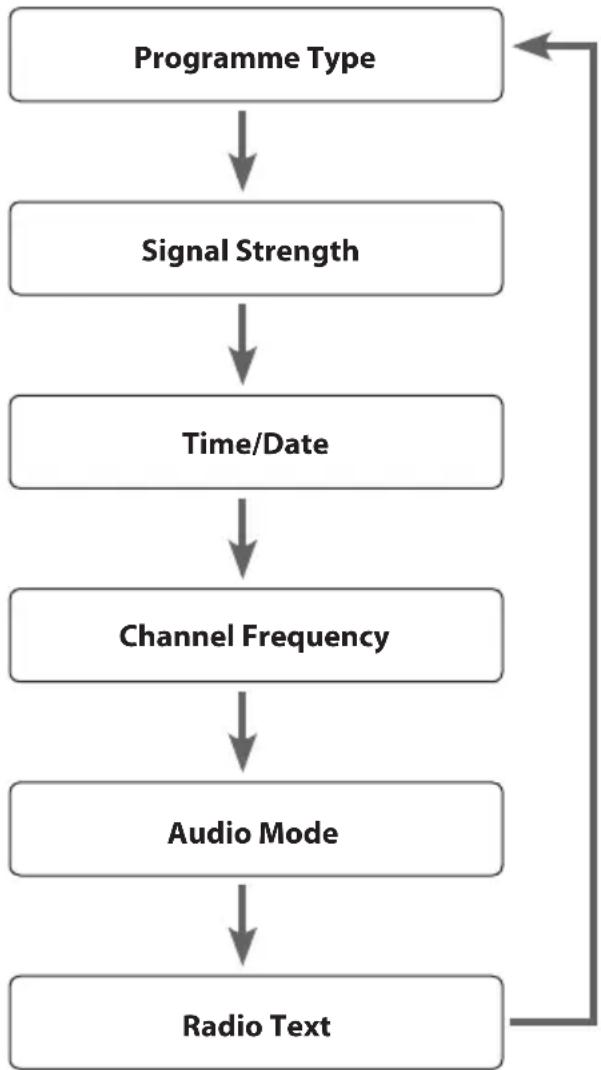

FM Display Modes

Every time you press the INFO button, the display will cycle through the following display modes: Programme Type, Signal Strength, Time/Date, Channel Frequency, Audio Mode, Radio Text.

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical".

Signal Strength

The slide bar indicates how strong the signal is, the stronger the signal, the longer the bar will be.

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information. In the unlikely event that the broadcaster does not transmit any clock information; the display will show .

Channel Frequency

This shows the frequency of the current station e.g. 89.80MHz.

Audio Mode

When in FM mode, the display will show if the station being received is in mono or stereo. The receiver will automatically switch between Stereo and Mono mode. You can however override this function, so that you can manually switch between Stereo and Mono mode, which is helpful if you're listening to a poor FM signal.

To switch between mono and stereo, press the ENTER button once, you will see on the display "Auto" or "Mono". To toggle between each mode just press the ENTER button again.

Radio Text

As with DAB, the broadcaster can include a scrolling text that displays information about the current program. If Radio text information is not available, then the display with show .

Software Version

1. Press and hold the INFO button for 2 seconds and then release it to view the software version of this unit.
2. Press the INFO button again to display the Program Identification code (PI code).
3. The software version will automatically disappear after 5 seconds.

System Reset

There may be times when you need to reset your unit back to the factory settings. If you experience reception problems you may want to reset and try again. If you move the unit to another part of the country and pick up the local and national stations in that area, your previously tuned channels may no longer be available.

To do the system reset, press and hold the DAB/FM button. Then press the ENTER button to start the system reset. The unit will then start the Quick Scan for DAB channels immediately.

After the system reset, all the tuned stations, DAB & FM preset stations and alarm settings will be erased.

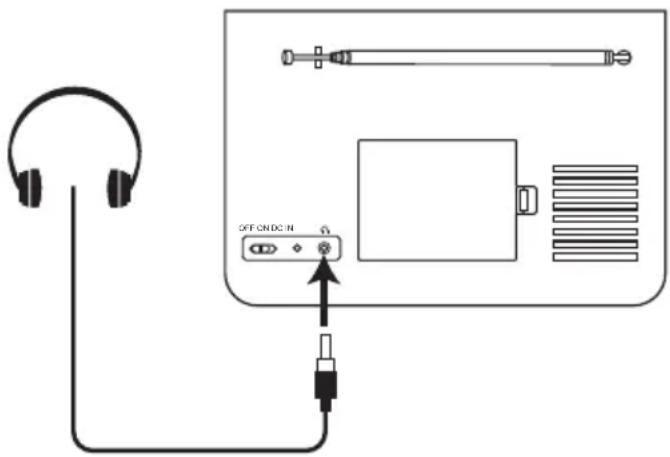

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically disabled.

Avoid listening to sound at excessive levels which could be harmful to your ears. The prolonged listening at full volume can damage the ears of the user.

Ensure to unplug the unit from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

Hints and Tips

Problem Cause / Solution
No Sound Adjust the volume control, it may not be turned up.
Static Sound Signal reception is too low. Adjust the aerial or move the unit to a stronger signal location.
Sound is distorted Volume is too high. Adjust the volume control.
Desired station not found	Weak signal. Use the Manual Tune function.
The display shows “Not available”	No DAB coverage in your area or poor reception. Adjust the position of the aerial.
	Poor reception. Adjust the position of the aerial.
The display is blank This	may occur if the broadcaster changes the label of a service or removes a label. The unit will try to retune or perform a scan.

Specification

Mains Supply Mains adapter	pter Input 100-240V ~ 50/60 HzMains adapter Output DC 6V 0.5A
	DC battery 4 x AA batteries (not included)
Output Power 1 x 1.6W
Radio Frequency Range	FM87.5 – 108 MHzDAB Band III 174.928 – 239.200 MHz

Features and specifications are subject to change without prior notice.

• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Do not expose the battery to direct sunlight or sources of excessive heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Mains Adapter UKAD87006-500

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door

the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

Gradient background transitioning from white to dark gray, no text or symbols present

Gradient background transitioning from white to dark gray, no text or symbols present
