Product Type	DAB/DAB+/FM Radio
Brand	Logik
Model	LHDR15
Dimensions (W x H x D)	180 x 120 x 70 mm
Weight	0.8 kg
Power Supply	3 x AA batteries (1.5V) or AC adapter 5V/1A (not included)
Power Consumption	3 W max
Radio Bands	DAB/DAB+ and FM
Frequency Range	DAB: 174-240 MHz; FM: 87.5-108 MHz
Presets	20 (10 DAB, 10 FM)
Display	LCD with blue backlight
Audio Output	3.5 mm headphone jack
Speaker	3 W mono
Controls	Rotary volume knob, mode button, preset buttons, navigation keys
Sleep Timer	Yes, adjustable up to 90 minutes
Alarm	Dual alarm with snooze function
Clock	Auto-synchronized via DAB signal or manual set
Battery Life	Approximately 20 hours (alkaline batteries)
Material	ABS plastic
Color	Black
Warranty	1 year
Care & Cleaning	Wipe with a soft, dry cloth. Do not use solvents or abrasive cleaners.
Safety	Keep away from water and moisture. Do not open the device. Use only specified batteries or adapter.
Spare Parts & Repairability	Spare parts are not available for user repair. Contact Logik support for service.

Frequently Asked Questions - LHDR15 Logik

How do I set the alarm?

Press the Alarm button repeatedly to select alarm 1 or 2. Use the Volume dial to set the hour and press to confirm, then set minutes similarly. Choose the source (DAB or FM) and days (once, daily, weekdays, weekend). Press Alarm again to save.

How do I scan for DAB stations?

Press the Mode button to select DAB mode. Press and hold the Scan button or navigate to 'Full scan' in the menu. The radio will automatically search for all available DAB stations and store them.

How do I reset the radio?

To reset to factory settings, turn off the radio. Press and hold the Preset 1 button while turning the radio on. Continue holding until 'Reset' appears on the display. Release the button to confirm.

Does the LHDR15 have Bluetooth?

No, the Logik LHDR15 is a DAB/FM radio only. It does not include Bluetooth connectivity. You can use the headphone jack to connect external speakers or headphones.

What batteries does it use and how long do they last?

The radio requires 3 x AA batteries (1.5V, not included). Battery life is approximately 20 hours with alkaline batteries. Alternatively, you can use an AC adapter (5V/1A, not included).

Can I use headphones with this radio?

Yes, the radio has a 3.5 mm headphone jack on the right side. Inserting headphones will mute the built-in speaker. Use standard headphones or earphones.

How do I set the clock manually?

If the clock is not set automatically via DAB, press the Menu button, navigate to 'Time/Date' using the dial, and press to enter. Adjust hour and minute with the dial, pressing to confirm each.

Why is there no sound from the radio?

Check that the volume is turned up. Ensure headphones are not plugged in (if using speaker). For battery operation, verify batteries are fresh and correctly inserted. If using mains, check the adapter connection. If still no sound, try a

What is the warranty period?

The Logik LHDR15 comes with a 1-year warranty against manufacturing defects. Keep your purchase receipt as proof of purchase. For warranty claims, contact the retailer where you bought the radio.

How should I clean the radio?

Use a soft, dry cloth to wipe the exterior. Do not use water, cleaning solvents, or abrasive materials. For the display, gently wipe with a microfiber cloth. Avoid getting moisture into vents or controls.

USER MANUAL LHDR15 Logik

Contents

Safety Warnings....4

Unpacking......6

Product Overview....7

Front View....7

Rear View 8

Power Source 9

Battery Power 9

Knowing When to Replace the Batteries....9

Mains Power 10

Connections 10

Connecting to the Earphones Socket....10

Basic Operation 11

Powering ON/OFF....11

Selecting Modes....11

Adjusting the Volume....11

DAB Menu Overview 11

Setting the Clock Automatically....12

Setting the Clock and Date Manually....12

Changing the Time Format 12

Changing the Date Format....12

Setting the Alarm (Mains Operation Only)....13

Activating/Deactivating the Alarm Function 14

Turning the Alarm Off When it Sounds....14

Snooze Function (Mains Operation Only)....14

Sleep Function....14

System Reset 15

Display Backlight....15

DAB Operation....16

Secondary Services 16

DAB Auto Scan....16

Manual Tuning 17

Storing Stations....17

Recalling a Stored Station....17

DAB Display Modes....18

FM Operation....19

Switching between DAB and FM Mode....19

Auto Scan....19

Manual Scan 19

FM Menu Overview....19

Scan Settings....20

Storing Stations....20

Recalling a Stored Station....20

FM Display Modes 21

Maintenance 22

Hints and Tips ......22

Specification 23

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

is equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

\~ AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.

—DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

DAB Radio

Line drawing of a cordless cable and a plug with a power outlet (no text or symbols)

Mains Adapter

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

* All images are for reference only; please refer to your individual unit for actual item.

Product Overview

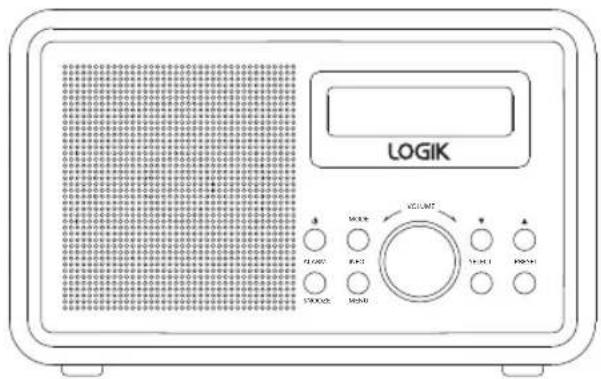

Front View

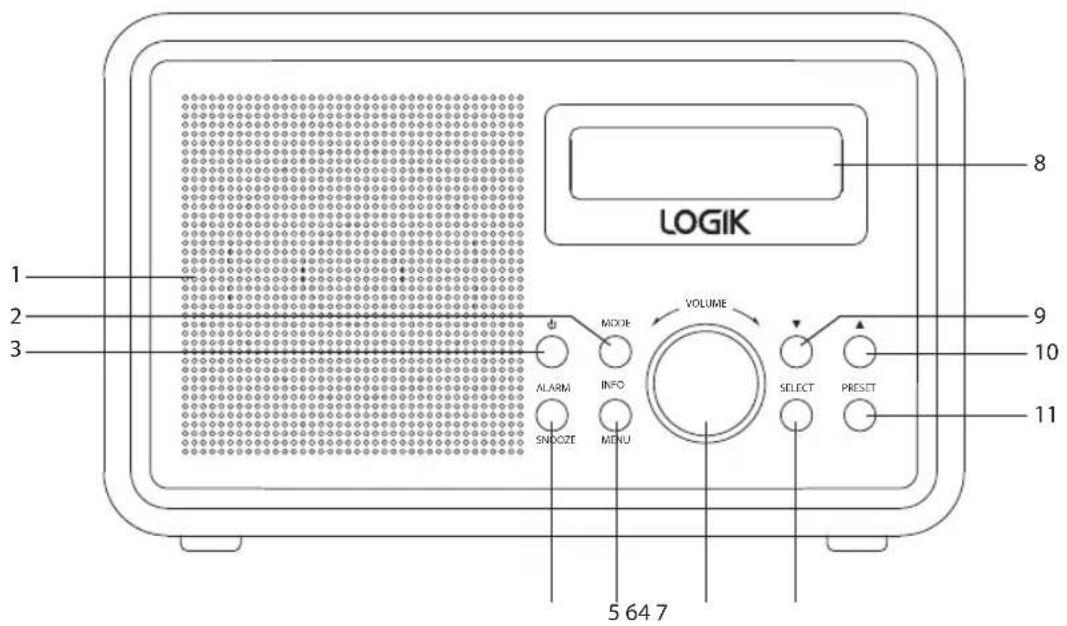

1. Speaker
2. MODE Button
3. STANDBY Button

4. ALARM/SNOOZE Button

5. INFO/MENU Button

6. VOLUME Control
7. SELECT Button

8. LCD Display

9. Button

10. ▲button
11. PRESET Button

Rear View

Rear View

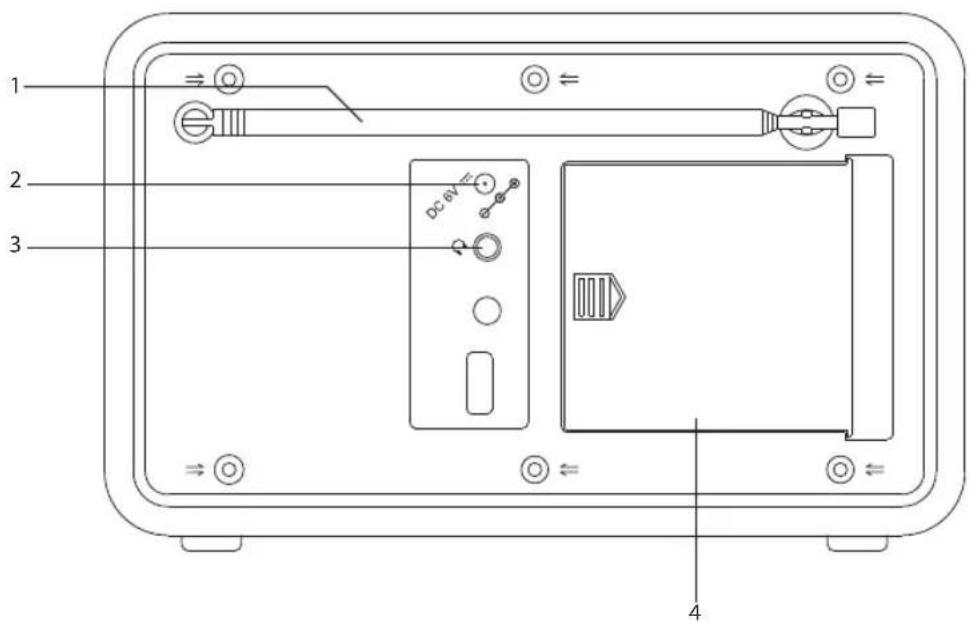

1. DAB/FM Aerial
2. DC 6V -Mains Adapter Socket
3. Earphones Socket
4. Battery Compartment Door

Power Source

Your unit can be battery powered or mains powered, we recommend for prolonged use to use the mains power.

Battery Power

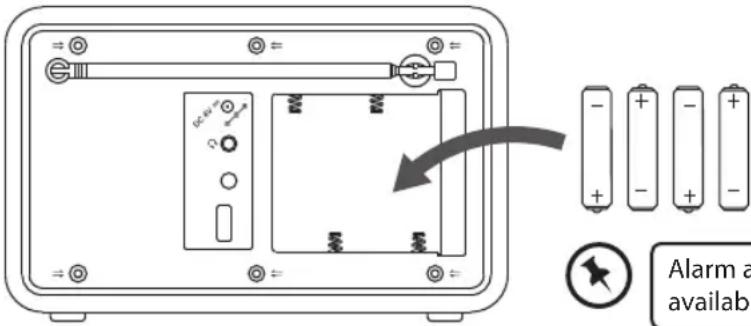

Insert 4 x 1.5V AA battery (not included) into the battery compartment located at the rear of the unit.

Battery Life (Approximate Hours) volume set to 50%

	DAB FM
Battery TypeAlkaline (Size AA)	17 17

Using your radio at high volume will reduce your battery life.

The display will show "Battery Low" when the battery power is at low level.

Knowing When to Replace the Batteries

• When the batteries lose power, the sound becomes weak and distorted.
• When the batteries are completely exhausted, the power is turned off.

Always switch the unit off after use to conserve the battery life.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and −) indications in the battery compartment.
  • Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.
• If you are not going to use the unit for a long time, remove the batteries to avoid damage from battery leakage and corrosion.
• Due to the short battery life span of some alkaline batteries. It is recommended to use rechargeable batteries. You will need to purchase a charger to charge the rechargeable batteries. This saves cost and is more environmentally friendly.

Mains Power

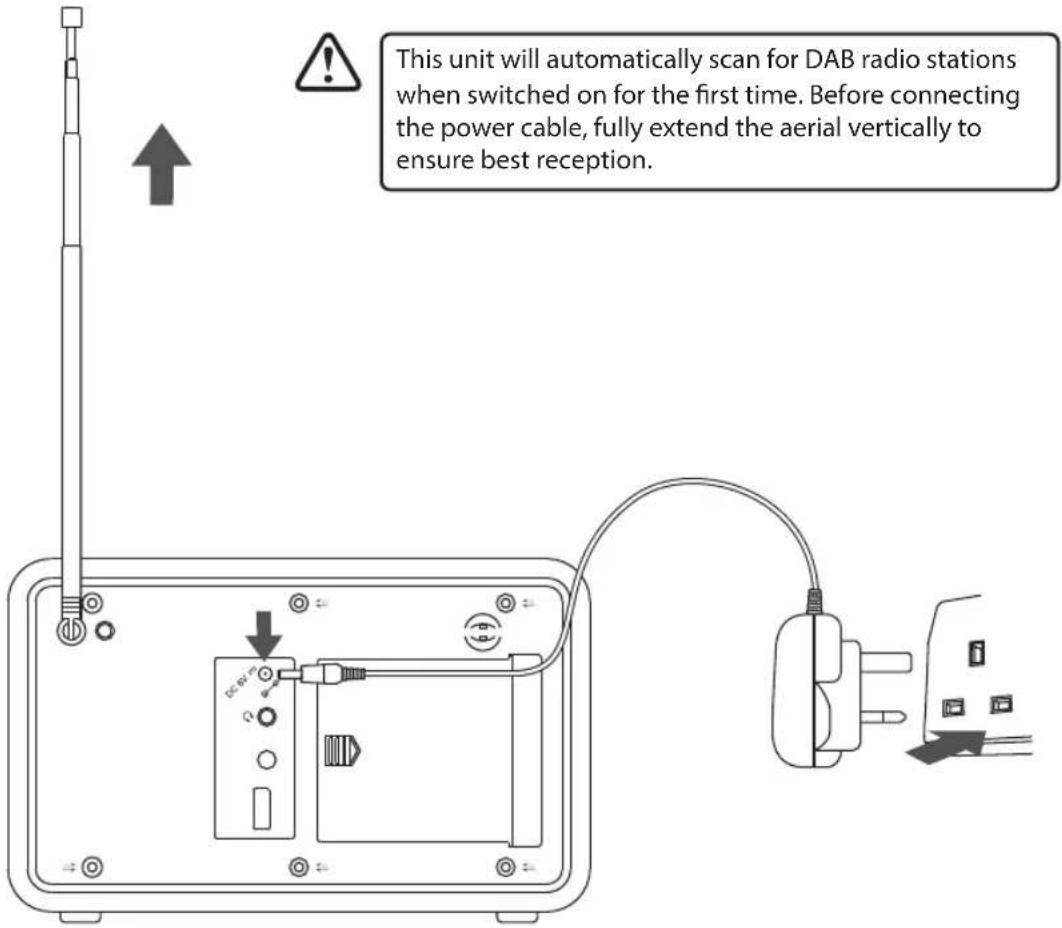

Before using, connect the supplied power cable to the mains cable socket at the rear of the unit and to the mains socket.

Connections

Connecting to the Earphones Socket

1. Connect earphones (3.5mm stereo mini plug) to the earphones socket.
2. Always set the volume level to minimum then slowly increase the volume to obtain the desired volume level.
3. When the earphones are connected, the speaker will automatically mute.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Basic Operation

Powering ON/OFF

• When you first switch the unit on it will be in STANDBY mode. Press the ⏻ STANDBY button to switch it on. The first time the unit is switched on it will scan for available radio stations.
• Press the ⏻ STANDBY button again to switch the unit back to standby mode.
  • To switch the unit off completely, disconnect the mains plug from the mains socket.

Selecting Modes

Press the MODE button to switch between DAB and FM mode.

Adjusting the Volume

Adjust the volume to the desired level by turning the VOLUME control.

If the volume level is too high, it will be set to the default level after it is switched on again.

DAB Menu Overview

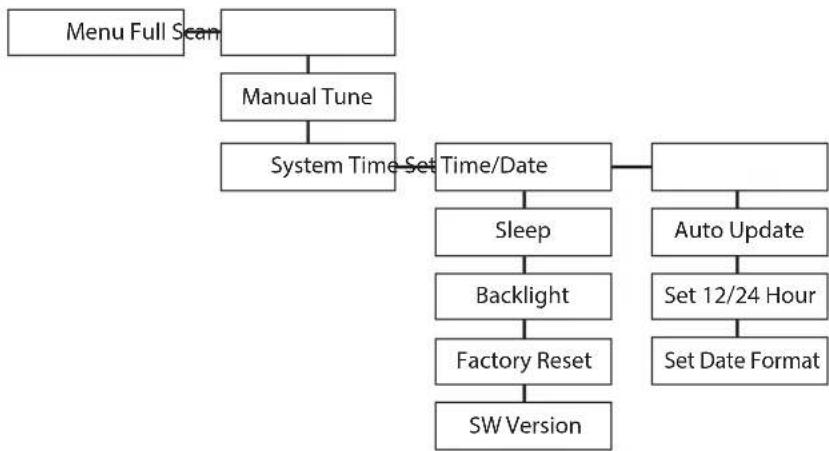

Below is a map of the menu structure of the unit to help you see how to navigate through the menus.

1. Press and hold the INFO/MENU button to enter the menu.
2. Use the or button to scroll through the options.
3. Press the SELECT button to select an item in the menu.

Setting the Clock Automatically

The clock on this unit can automatically synchronize with the time transmitted by either DAB or some FM radio stations, so there is no need to set it manually.

In order for the clock to synchronise to the current local time you may have to leave it on one DAB station for a short period of time. Manual clock setting is not required.

1. Press and hold the INFO/MENU button to enter the menu.
2. Select "System" - "Time" - "Auto Update". Choose "Update From DAB", "Update From FM" or "Update From Any".
3. Press SELECT to confirm your selection.

Setting the Clock and Date Manually

You can manually set the time and date if you wish. Make sure you have set AUTO UPDATE to 'NO UPDATE'. If you don't do this the unit will automatically find the correct time from a radio station and change the time you have set.

1. Press and hold the INFO/MENU button to enter the menu.
2. Select "System" - "Time" - "Set Time/Date". Set the time and date using the ▼ and ▲ buttons.
3. Press SELECT to confirm your selection.

Changing the Time Format

You can set the time format to either a 12 hour clock or a 24 hour clock.

1. Press and hold the INFO/MENU button to enter the menu.
2. Select "System" - "Time" - "Set 12/24 Hour". Then choose either "Set 12 Hour" or "Set 24 Hour" using the ▼ and buttons.
3. Press SELECT to confirm your selection.

Changing the Date Format

The way the date is displayed can be changed depending way you prefer. You can choose "DD-MM-YYYY" or "MM-DD-YYYY".

1. Press and hold the INFO/MENU button to enter the menu.
2. Select "System" - "Time" - "Set Date Format". Then choose the date format using the ▼ and ▲ buttons.
3. Press SELECT to confirm your selection.

Setting the Alarm (Mains Operation Only)

Make sure you have preset FM and DAB stations before setting the Alarm.

1. The unit has two alarms. Press the ALARM/SNOOZE button to set alarm 1 or alarm 2. The display will show "Alarm # Setup".

2. Press the SELECT button, then use the ▼ and ▲ buttons to set the hour. Press SELECT to confirm.

3. The minute digits will flash. Use the ▼nd ▲ buttons to set the minutes. Press SELECT button to confirm.

4. If the time format is set to 12 hour clock choose AM or PM. Use the ▼ and buttons to set, then press SELECT to confirm.

5. Use the ▼nd buttons to select the alarm duration (120/90/60/45/30/15 minutes). Press SELECT to confirm.

6. Use the ▼ and buttons to select the type of alarm (Buzzer/FM/DAB). Press SELECT to confirm.

7. If you have chosen FM or DAB, use the ▼ and ▲ buttons to select the last listened to radio station or a preset radio station. Press the SELECT button to confirm.

8. Use the ▼nd buttons to select the day(s) the alarm is set for (daily/weekdays/weekends/once). Press SELECT to confirm.

9. Use the ▼nd buttons to select the alarm wake up volume level. Press SELECT to confirm.

10. Use the ▼ and buttons to select alarm on or off. Press SELECT to confirm.

11. When set, the alarm icon and number will appear on the display in Standby mode.

Alarm 1 Wizard On time 306330

Alarm 1 Wizard Source DAB

10:37:12 41 20-4-2018

The alarm source will automatically switch to Buzzer if the DAB signal is weak.

Activating/Deactivating the Alarm Function

These changes must be made with the unit in standby mode.

1. To activate or deactivate the alarm function, press the ALARM/SNOOZE button, then press the ▼ or ▲ buttons to select "Alarm On" or "Alarm Off".
2. Press the SELECT button to confirm.

If you have activated the alarm function and the wake-up mode is DAB or FM, make sure that the volume is at a sufficient level for you to hear.

Turning the Alarm Off When it Sounds

- When the alarm sounds press the ⏻ STANDBY button to switch the alarm off.

Snooze Function (Mains Operation Only)

When the alarm has been triggered, press the ALARM/SNOOZE button to temporarily switch off the alarm. Press the ALARM/SNOOZE button to select a time 5 - 10 - 15 - 30 minutes. The display will show "Zz" to indicate that snooze is on and the display will show the minutes remaining before the alarm sounds.

10:37:12 2z Snooze 9:44

If one alarm goes off while the other is in snooze mode, snooze mode will be cancelled.

Sleep Function

This function allows you to program the unit to switch off by itself after a set period of time.

1. Press and hold the INFO/MENU button to enter the menu.
2. Press the ▼ or ▲ button until "System" shows on the display.
3. Press SELECT to confirm.
4. Press the ▼r button until "Sleep" shows on the display.
5. Press SELECT to confirm.
6. Press the ▼ or ▲ button to select from Sleep off/10/20/30/60/70/80/90 minutes.
7. Press SELECT to confirm.
8. When the sleep timer is zero, the unit will switch to STANDBY mode.

System Reset

There may be times when you need to reset your unit back to the factory settings, especially if you have moved house or if you experience reception problems.

If you move to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available.

1. Press and hold the INFO/MENU button to enter the menu.
2. Press the ▼ or ▲ button until "System" shows on the display.
3. Press SELECT to confirm.
4. Press the ▼ or ▲ button until "Factory Reset" shows on the display.
5. Press SELECT to confirm
6. Press the ▲ button to select "Yes".
7. Press the SELECT button to confirm. "Restarting..." shows on the display. After the reset is complete, the unit will go to standby mode.
8. Press the ⏻ STANDBY button again to turn the unit on, the unit will then start scanning for DAB channels immediately.
   System
   Factory Reset? No

• After the system reset, all the tuned stations, DAB and FM preset stations and alarm settings will be erased.
- If battery power is used, the unit will proceed an auto scan for DAB radio stations after reset.

Display Backlight

In mains power mode there are three backlight levels to choose from.

1. Press and hold the INFO/MENU button to enter the menu.
2. Press the ▼ or ▲ button until "System" shows on the display.
3. Press SELECT to confirm.
4. Press the ▼ or button until "Backlight" shows on the display.
5. Press SELECT to confirm.
6. Press the ▼ or ▲ button to select "Low", "Medium" or "High".
7. Press SELECT to confirm.
   There are no backlight settings in battery mode.

DAB Operation

Ensure that you fully extend the aerial vertically before switching the unit on. When the unit is connected to the mains power and then switched on from standby for the first time, or you have just performed a factory reset the unit will automatically enter into the DAB mode and perform auto scan function.

During the scan the display will show "Scanning ..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far.

Once the scan has finished, the unit will select the first alphanumerically found station.

To scroll through the found stations, press the ▼or □button and then press the SELECT button to listen to the selected station.

Secondary Services

You may see a “<<” symbol after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. e.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

Press the ▼ or ▲ button to select your desired station, and then press the SELECT button to confirm.

DAB Auto Scan

The auto scan will search for the entire DAB Band III channels. After the scan has finished, the first alphanumerically found station will be automatically selected.

1. Press and hold the INFO/MENU button to enter the menu.
2. Press the ▼ or ▲ button to select "Full scan".
3. Press SELECT to confirm. The display will show "Scanning ..." and a progressing slide bar.
4. All the stations found will be stored automatically. To scroll through these stations, press the ▼ or ▲ button and then press the SELECT button to listen to the selected station.

Manual Tuning

As well as the auto scan function, you can manually tune the radio. This can help if you know your radio has missed stations. You will need to know which multiplex the missing radio station is in.

1. Press and hold the INFO/MENU button to enter the menu.
2. Use the ▼r button to select "Manual tune".
3. Press the SELECT button to confirm the selection.
4. Use the ▼r button to cycle through the multiplex list, which are numbered from 5A to 13F.
5. Press the SELECT button to confirm.
6. Press the INFO/MENU button twice to exit from the manual tune and listen to the tuned station.

DAB ()

Manual tune <5D 180.064MHz>

Storing Stations

You can store up to 10 DAB stations to the memory. This will enable you to access your favourite stations quickly and easily and also enables you to choose one of the stations to switch on when you set an alarm.

1. To store a preset, you must first be listening to the station that you would like to save.
2. Press and hold the PRESET button. "Preset Store" will show on the display.
3. Use the ▼nd buttons to select your desired preset station number and then press the SELECT button to confirm.
4. The station will be stored and the screen will then show "Preset # Stored".
   Preset Store <1: (Empty) >

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESET button.
2. Press the ▼ or button to select your desired preset station number.
3. Press the SELECT button to confirm the selection.
4. If you choose a preset that hasn't been allocated a station, "Preset Empty" will be displayed.

DAB Display Modes

Every time you press the INFO/MENU button, the lower segment of the display will cycle through the following display modes:

DLS (Dynamic Label Segment)

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc.

Signal Strength

The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical". If the information is not available, the display will show ""

Multiplex Name

A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

Channel Number/Frequency

The number and frequency of the present station will be displayed.

Signal Error

This shows the quality of the signal reception, with 0 being the best quality reception.

Audio Bit Rate

The display will show the digital audio bit rate being received.

Power Status

The display will show the power source being used. If the power source is battery it will show the battery capacity.

Time

The broadcaster (radio station) provides clock information automatically so there's no need to manually set this information.

Date

The broadcaster (radio station) provides date information automatically so there's no need to manually set this information.

FM Operation

Switching between DAB and FM Mode

Press the MODE button to switch between DAB and FM mode.

Auto Scan

Ensure that you fully extend the aerial vertically before starting the auto scan. To automatically search for the next FM station, press the SELECT button to start the auto scan. The display will show "Scanning ...". Once a station has been found, the scanning will stop automatically.

If no station is found, select "All stations" in Scan setting (p.20).

Manual Scan

To search for FM stations manually, press the ▼ or buttons. Each press of the ▼ ▲ buttons will change the frequency by 0.05 MHz. Press and hold the ▼ or buttons to automatically search for the next available radio station.

FM Menu Overview

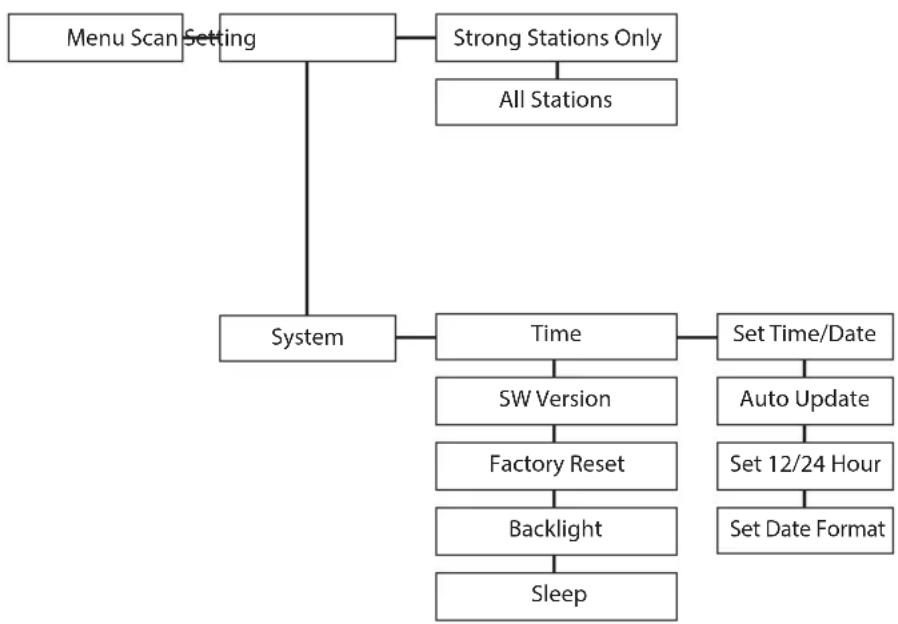

Below is a map of the menu structure of your radio to help you see how to navigate through the menus.

1. Press and hold the INFO/MENU button to enter the menu.
2. Use the or button to scroll through the options.
3. Press the SELECT button to select an item in the menu.

Scan Settings

You can set your radio to tune in just the strongest stations or all stations.

1. Press and hold the INFO/MENU button to enter the menu.
2. Use the or button to select "Scan Setting".
3. Press SELECT to confirm.
4. Use the ▼ or ▲ button to choose "All stations" or "Strong stations only".
5. Press SELECT to confirm your selection.

After "All stations" is selected, if you cannot search the stations by auto scan, use manual tune to search your desired station.

Storing Stations

You can store up to 10 FM stations to the memory. This will enable you to access your favourite stations quickly and easily.

Preset Store <1: (Empty) >

1. To store a preset, you must first be listening to the station that you would like to save.
2. Press and hold the PRESET button. "Preset Store" will show on the display.
3. Use the ▼nd buttons to select your desired preset station number and then press the SELECT button to confirm.
4. The station will be stored and the screen will then show "Preset # Stored".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESET button.
2. Press the ▼ button to select your desired preset station number.
3. Press the SELECT button to confirm the selection.
4. If you choose a preset that hasn't been allocated a station, "Preset Empty" will be displayed.

FM Display Modes

Every time you press the INFO/MENU button, the lower segment of the display will cycle through the following display modes:

Radio Text

As with FM, the broadcaster can include a scrolling text that displays information about the current program. If Radio text information is not available, then the display will show .

Programme Type

This describes the "Style" or "genre" of music that is being broadcast e.g. "Rock" or "Classical".

Programme Name/Frequency

This displays the station name or frequency of the current station.

Audio Info

This shows whether the current station is broadcasting in mono.

Power Status

The display will show the power source being used. If the power source is battery it will show the battery capacity.

Time

The broadcaster (Radio station) provides clock information automatically so there's no need to manually set this information.

Date

The broadcaster (Radio station) provides date information automatically so there's no need to manually set this information.

Maintenance

Ensure to unplug the unit from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

Hints and Tips

Problem Solution
No Sound Adjust the volume	control, it may not be turned up.
Static Sound Signal reception	too low. Adjust the aerial or move the unit to a stronger signal location.
Sound is distorted Volume is	too high. Adjust the volume control.
Desired station not found	Weak signal. Use theManual Tunefunction.
The display shows"SERVICE N/A"	No DAB coverage in your area or poor reception. Adjust the position of the aerial.
	Poor reception. Adjust the position of the aerial.
The display is blank This may occur if the broadcaster changes the label of a service or removes a label. The unit will try to retune or perform a scan.

Specification

Main Unit

Model LHDR15
Batteries 1.5 V x 4, AA size
Output Power 2 W
Radio Frequency Range FM87.5 – 108 MHzDAB 174 – 240 MHz
Dimension 190 (L) x 125 (W) x 120 (H) mm
Weight 0.75 kg

Mains Adapter (Use only provided adapter)

Model DYS605-060100W-5
Manufacturer Dongguan Dongsong Electronic Co., Ltd.
Input 100-240 V ~ 50/60 Hz,	0.2A MAX
Output 6.0V 1.0A	---

Features and specifications are subject to change without prior notice.

Team Knowhow

Help with all life's kit*

For general information about appliances, and handy hints and tips check out Kit Guides at teamknowhow.com or call 0344 5611234.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 561 1234.

Partmaster co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment.

To preserve our environment, dispose of used batteries

according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK

IB-LHDR15-180712V4
