USER MANUAL ZCP1000W Zelmer

/ citrus juice squeezer

zelmer

Clear glass juice grater with orange juice being processed, no visible text or symbols on the device itself.

PLF INSTRUKCJA UŻYTKOWANIA WYCISKARKA DO CYTRUSÓW 4–6
CZ NÁVOD K POUŽITÍ LIS NA CITRUSY 7–9
SK NÁVOD NA OBSLUHU ODŠTAVOVAČ CITRUSOVÝCH PLODOV 10–12
HU HASZNÁLATI UTASÍTÁS CITRUSPRÉS 13–15
RO INSTRUCTIUNI DE UTILIZARE STORCĂTOR DE CITRICE 16–18

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ СОКОВЫЖИМАЛКА ДЛЯ ЦИТРУСОВЫХ 19–21
BG ИНСТРУКЦИЯ ЗА УПОТРЕБА СОКОИЗСТИСКВАЧКА ЗА ЦИТРУСОВИ ПЛОДОВЕ 22–24
UA ІНСТРУКЦІЯ З ВИКОРИСТАННЯ СОКОВИЖИМАЛКА ДЛЯ ЦИТРУСОВИХ 25–27
EN USER MANUAL CITRUS JUICE SQUEEZER 28-30

ZCP1000W

WYCISKARKA

DO CYTRUSÓW

соковыжималка

для цитрусовых

/ citrus juice squeezer

zelmer

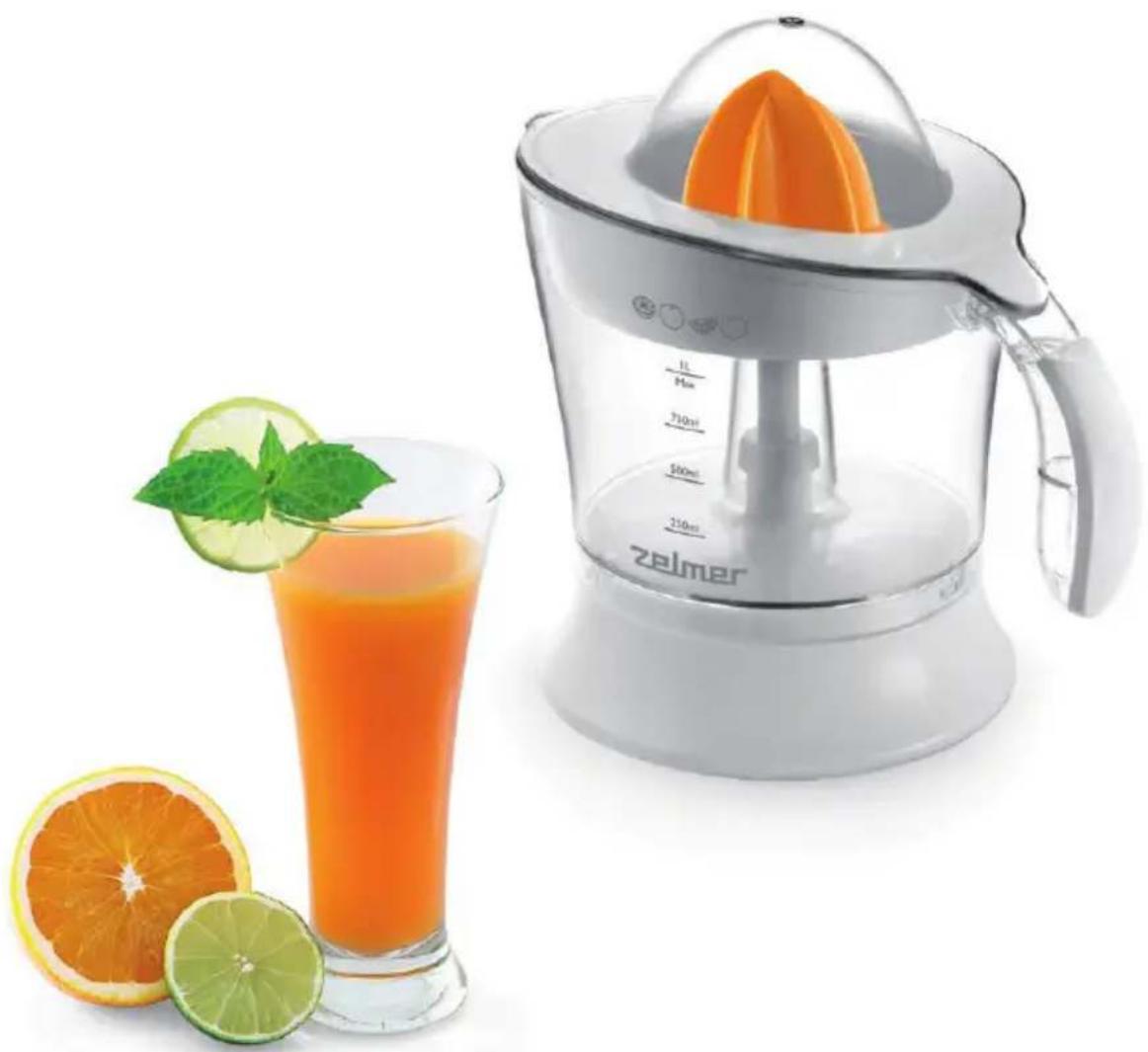

A simple and fast way to get your daily dose of vitamins.

Product photo of a Elcropper and a tall orange juice with mint garnish next to a glass of lime and orange slices (no text or symbols visible)

A

Diagram of a dome-shaped object with an arrow pointing to it, next to a blue box (no text or symbols)

White bowl with a small container on top, labeled with number 3 (no text or symbols on the bowl itself)

B

Person pouring an orange liquid into a white grainer (no text or symbols visible)

Hand pouring liquid into a measuring cup with an orange wedge (no text or symbols visible)

Hand pouring an orange liquid into a white bowl over a clear measuring cup (no text or symbols visible)

[Figure]

Close-up of hands using a clear stand mixer to handle a white cup, with an inset showing the interior components (no text or symbols visible)

C

Person using a blender to adjust or install a small electronic device, with a magnified inset showing the device's internal structure (no text or symbols visible)

[Figure]

Person pouring liquid from a lid into a clear container (no text or symbols visible)

Hand pouring orange juice into a blender (no text or symbols visible)

D

Person slicing an orange on a white plate (no text or symbols visible)

Hand holding a small electrical outlet connected to a blender with an orange lid (no text or symbols visible)

[Non-Text]

Hand pouring orange liquid into a white mixing bowl (no text or symbols visible)

E

[Non-Text]

Hand pouring orange juice from a container into a glass (no text or symbols visible)

Hand pouring orange juice from a glass stand into a container (no text or symbols visible)

Close-up of hands holding a white ceramic pot with a lid and a small container, no visible text or symbols

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Appliance features

Taste fresh juices whenever you like.

CP1000 is an appliance designed for squeezing the juice out of citrus fruits. Thanks to Zelmer citrus press you will easily prepare orange, lemon or grapefruit juice which is fresh and full of vitamins.

All parts having contact with processed products are made of food grade materials.

Safety precautions

Before starting to use the appliance you should become familiar with the whole content of this user manual.

DANGER! / WARNING! Health hazard

- Do not plug the appliance when your hands are wet.

- Do not operate the appliance when the power cord is damaged or the housing shows visible damage.

- If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

- The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

- Turn the appliance off and unplug it before replacing accessories or approaching movable parts.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or clearing.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Take special care when operating the appliance in the presence of children.
- Do not leave the plugged-in appliance unattended.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.

CAUTION!

Not observance can result in damage to possessions

Do not carry the appliance while in use.
Do not disconnect the plug from the socket by pulling the power cord.
Do not disconnect the plug from the socket when the appliance is in use.
Connect the appliance to the mains socket (alternating current only) with the voltage conforming to that given on the rating plate of the appliance.
Do not expose the appliance to temperatures above 60°C.

Do not place the appliance on a wet surface.

Do not immerse the appliance power base in water and do not wash it under running water.

Always place the appliance on a stable, even and flat surface; the power cord may not hang over the edge of the surface on which the appliance is placed.

The appliance is designed for use only in households located up to 2000 m above sea level.

SUGGESTION 1 Informat

Information on the product and suggestions for its use

The appliance is intended for domestic use. In case of using it for commercial purposes the warranty conditions will change.

Unplug the appliance after you finish using it.

Do not use abrasive cleaning agents in the form of emulsions, creams, pastes, etc. for cleaning the appliance housing. They may remove graphical symbols, such as scales, markings, warning signs, etc.

Technical data

The technical parameters are given on the rating plate of the product.

Maximum time of non-stop operation: 15 seconds.

An interval between repeated operation: 15 seconds, 35 minutes – after 10 cycles.

Noise level (LWA): <80 dB(A).

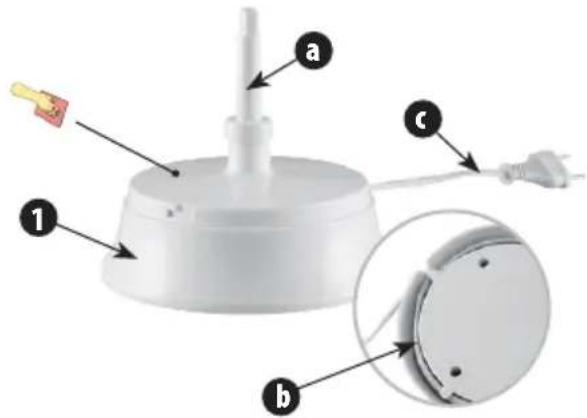

Appliance structure

1 Juicer power base

a Drive shaft

b Power cord storage compartment

Power cord

2 Bowl

3 Strainer

4 Cone

5 Cover

Preparing the juicer for operation (disassembly)

Before the first use, disassemble the juicer and wash all the parts having contact with the processed product.

① Place the juicer near a mains socket on a hard, clean and dry surface.

② Remove the cover (5).

③ Remove the strainer (3) and the cone (4).

④ Unlock and remove the bowl (2), by turning it counterclockwise.

Thoroughly wash the parts (except the motor unit) in warm water with dishwashing liquid. After drying them completely, start to assemble the cleaned elements.

For washing, use water at the temperature not exceeding max. 60°C.

Preparing the juicer for operation (assembly)

① Place the bowl (2) on the motor unit (1). Then rotate the bowl clockwise with respect to the motor unit.

② Put strainer (3) inside so that it is correctly seated on the bowl (2).

③ Replace the cone (4) on the strainer (3).

Starting and operating the juicer

① Prepare the fruit, cutting them in half.

② Insert the power cord plug of the juicer into the mains socket.

③ Put the fruit flesh down on the cone (4) and gently press to activate cone rotation and squeeze out juice.

To squeeze the juice out fully, the appliance rotates the cone in the opposite direction each time it is activated. Each time you press the fruit, the cone will rotate in the opposite direction.

Exercise care while pressing the fruit onto the rotating cone and pay special attention to fingers.

After finishing the juicing operation

① Take out the power cord plug from the mains socket.

② Unlock and remove the bowl (2) from the motor unit, and then pour the juice into another container.

③ To store the juice in the bowl (2) cover it with a lid (5) and put in the refrigerator.

Start to disassemble the juicer (see section "Preparing the juicer for operation").

④ Assemble clean and dry elements. Put away the cord.

Cleaning and maintenance

Clean the juicer thoroughly after each use in order to prevent the juice residue from drying up.

Clean the power base with a wet cloth sprinkled with washing-up liquid.

In case of water or juice getting inside the power base, unplug the juicer and have it checked at the service centre.

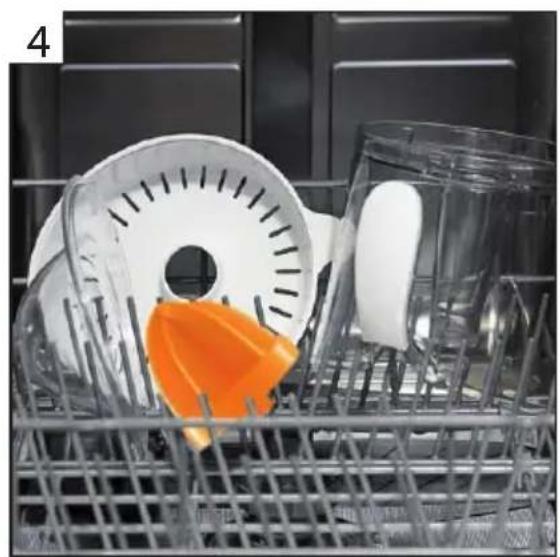

Wash appliance components such as bowl, strainer, cone in warm water with an addition of dishwashing liquid.

After washing them up, dry all the parts thoroughly.

Assemble the juicer (see the section „Preparing the juicer for operation”).

What to do when ...

The juicer does not work:

1. Check to make sure that the juicer is connected to the electric outlet.
2. Check to make sure that the juicer is properly assembled as described in this user manual.
3. Have the juicer checked at the service centre.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose the appliance with the municipal waste!

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Close-up of a glass juicer with orange juice being cut by a red and green apple-shaped lid (no text or symbols)

Close-up of a white plastic object with curved surfaces and a small hole, no visible text or symbols

Close-up of a kitchen appliance basket with plastic filter and orange bulb (no text or symbols visible)

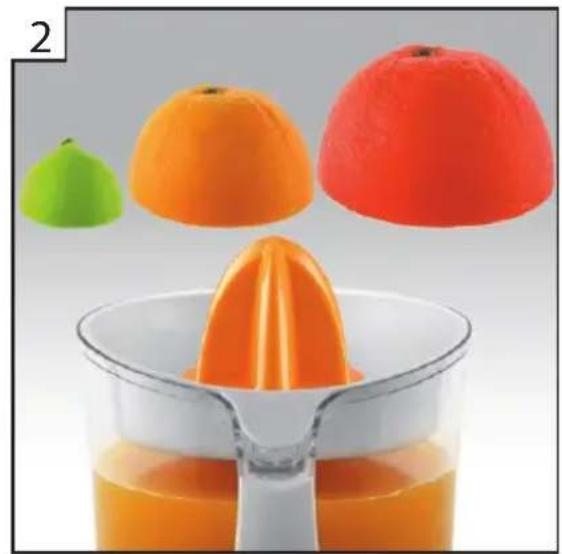

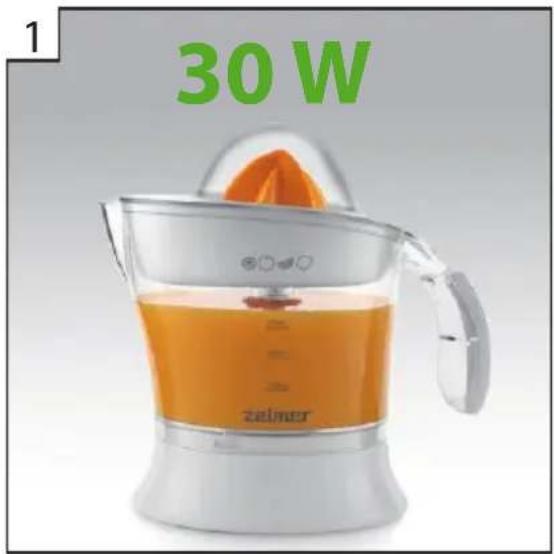

PL 1. Moc 30 W 2. Uniwersalny stożek do małych i dużych owoców 3. Schowek na przewód 4. Możliwość mycia w zmywarce
CZ 1. Výkon 30 W 2. Univerzální lisovací kužel pro malé a velké ovoce 3. Schránka na kabel 4. Možnost mytí v myčce

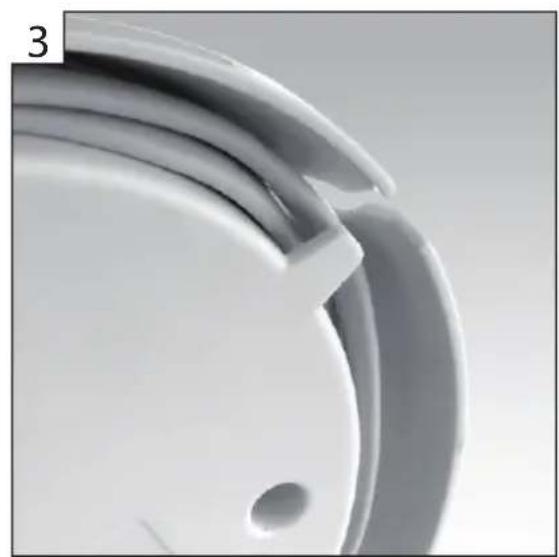

SK 1. Výkon 30 W 2. Univerzálny hrot na malé a na veľké plody 3. Úložný priestor na kábel 4. Umývateľný v umývačke riadu
HU 1. Teljesítménye 30 W 2. Univerzális kúp kis és nagy méretű gyümölcsökhöz 3. Tápkábel tároló 4. Mosogatógépben tisztítható
RO 1. Putere 30 W 2. Pâlnie universală pentru fructe mici și mari 3. Compartiment pentru cablul de alimentare cu curent electric 4. Posibilitatea de spălare îm mașina de spălat vase
