USER MANUAL ZN-8080 Concept

White iron iron with floral pattern base, no visible text or symbols on the device itself

ZN8080

CZ SK PL RUHU

LVEN DE RO

PODĚKOVÁNÍ

White cylindrical object with a label 'A' pointing to its surface (no other text or symbols visible)

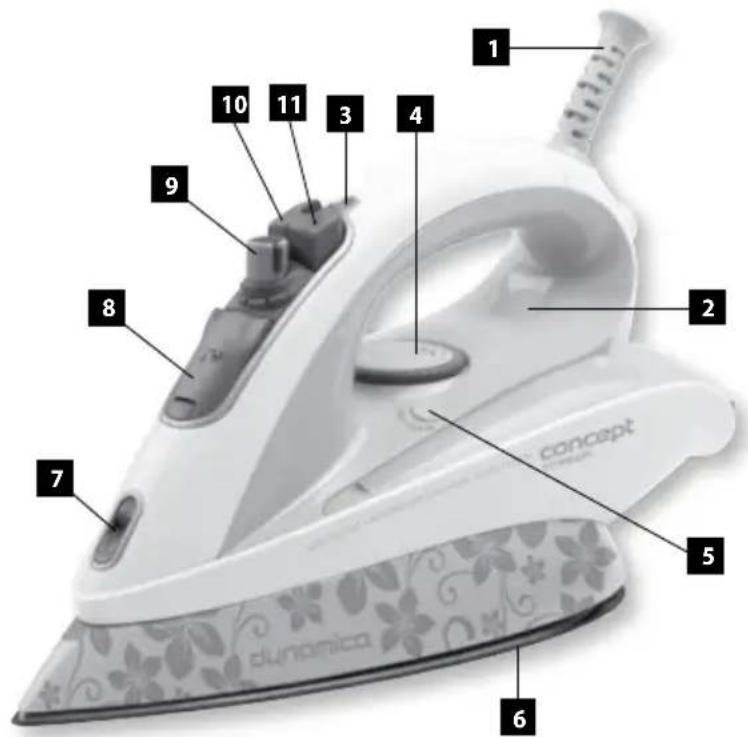

1 2 3 4 5 6 7 8 9 10 11 concept dunomica

Příslušenství

A Nádobka na vodu

NÁVOD K OBSLUZE

Close-up of a mechanical component with an arrow pointing to a detail (no visible text or symbols)

Obr. 2

Close-up of a mechanical component with a black arrow pointing to a circular feature on a white surface (no text or symbols visible)

Obr. 3

Parní šok

Close-up of a kitchen appliance with a circular button and directional arrow (no text or symbols)

Obr. 4

SKLADOVÁNÍ

White cylindrical object with a labeled arrow pointing to its side (no text or symbols on the object itself)

1 2 3 4 5 6 7 8 9 10 11 concept dynamica

Príslušenstvo

A Nádobka na vodu

NÁVOD NA OBSLUHU

Close-up of a mechanical component with an arrow pointing to a detail (no visible text or symbols)

Obr. 2

Close-up of a kitchen fan dial with an arrow pointing to the center (no text or symbols visible)

Obr. 4

SKLADOVÁNÍ

White plastic cup with a label pointing to its side (no text or symbols on the cup itself)

INSTRUKCJA OBSŁUGI

Close-up of a mechanical component with a black arrow pointing to a cylindrical part (no visible text or symbols)

Rys. 1

Close-up of a white electronic device with a black arrow pointing to a component (no visible text or symbols)

Rys. 2

Close-up of a mechanical component with a black arrow pointing to a circular feature, no visible text or symbols.

Rys. 3

Wyrzut pary

Close-up of a kitchen appliance with a circular control knob and directional arrow (no text or symbols visible)

Rys. 4

Przechowywanie

White cylindrical object with a labeled arrow pointing to its side (no text or symbols on the object itself)

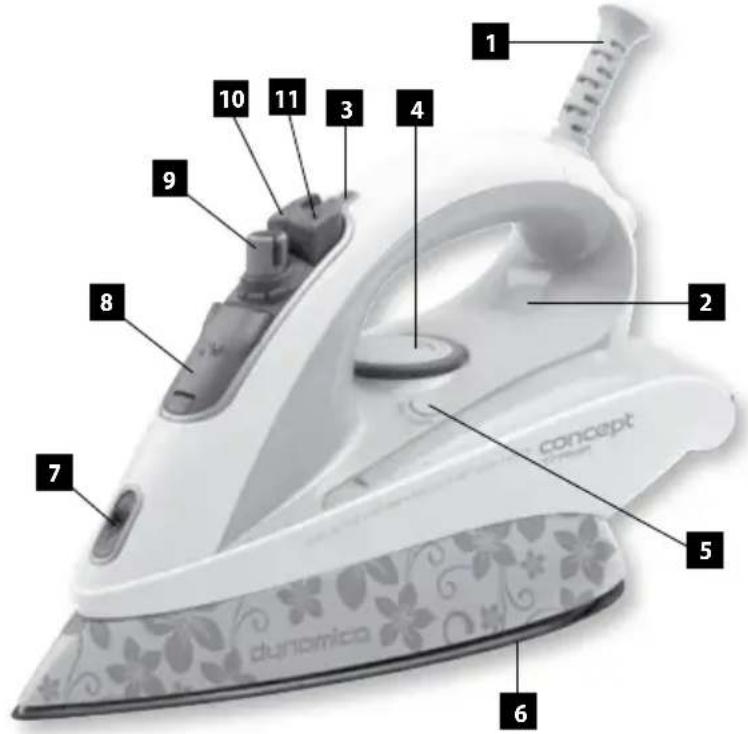

1 2 3 4 5 6 7 8 9 10 11 concept dunomico

Tartozékok

A vizes pohár

HASZNÁLATI UTASÍTÁS

Close-up of a white electronic device with a black arrow pointing to a component (no visible text or symbols)

1. ábra

Close-up of a kitchen fan dial with an arrow pointing to the center (no text or symbols visible)

1. ábra

Tárolás

White plastic cup with a label pointing to its side (no text or symbols on the cup itself)

1 2 3 4 5 6 7 8 9 10 11 concept dynamica

White plastic cup with label 'A' pointing to its side (no other text or symbols visible)

1 2 3 4 5 6 7 8 9 10 11 concept dynamica

EKSPLUATĀCIJAS NORĀDĪJUMI

Close-up of a kitchen fan dial with an arrow pointing to the interior (no text or symbols visible)

Att. 4

GLABĀŠANA

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220-240 V	~ 50/60 Hz
Power input 2000	-2400 W

IMPORTANT SAFETY PRECAUTIONS:

• Use the unit only as described in this operating manual.
- Remove all the packaging and marketing materials from the unit before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate. Use grounded wall outlets only.
- The unit reaches high temperatures during operation and remains hot for some time after being turned off. Do not touch the hot surfaces. Use the handles and buttons. There is a risk of being burned.
- Do not leave the unit unattended while it is turned on or even only plugged into the wall outlet.
• Unplug the unit from the wall outlet when not in use.
- When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.
- Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
- Person with limited movement capacities, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling shall use the product only under the supervision of a responsible, aware person.
• Take extra care when using the unit near children.
- Don't let anyone use the unit as a toy.
• Use only accessories recommended by the manufacturer.
- Never use an appliance with a damaged power cord or plug. Contact an authorized service center immediately to have defective components repaired or replaced.
- Keep the vacuum cleaner away from heat sources such as radiators, ovens, and so on. Do not expose the product to direct sunlight or moisture.
• Do not touch the unit with wet or damp hands.
• The unit is suitable for domestic use only. It is not designed for commercial operation.
- Do not immerse the power cord, plug, or appliance into water or any other liquid.
- Check the appliance and power cord for damage regularly. Do not switch on a damaged unit.
• Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool before cleaning and after use.
• Unplug the unit from the power source before filling the water tank.
• The filling hole cannot be open during operation.
- When connecting and unplugging the unit, set the temperature regulator to the minimum.
• The unit must be used and stored on a stable surface.
• Make sure the ground on which the stand is placed is stable, when putting the unit on the stand.
- Do not use the unit if it has been dropped, if there is any visible damage, or if it does not seal.
• Do not repair the appliance yourself. Contact an authorized service center.
• Prevent any contact of the power cord with hot surfaces.
• High temperature during operation can cause burns.
• Make sure the power cord does not overhang the working area, and that children cannot reach it.
- Store the unit in a vertical standing position. Let the unit cool down before storing it. Do not touch the hot surfaces.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.

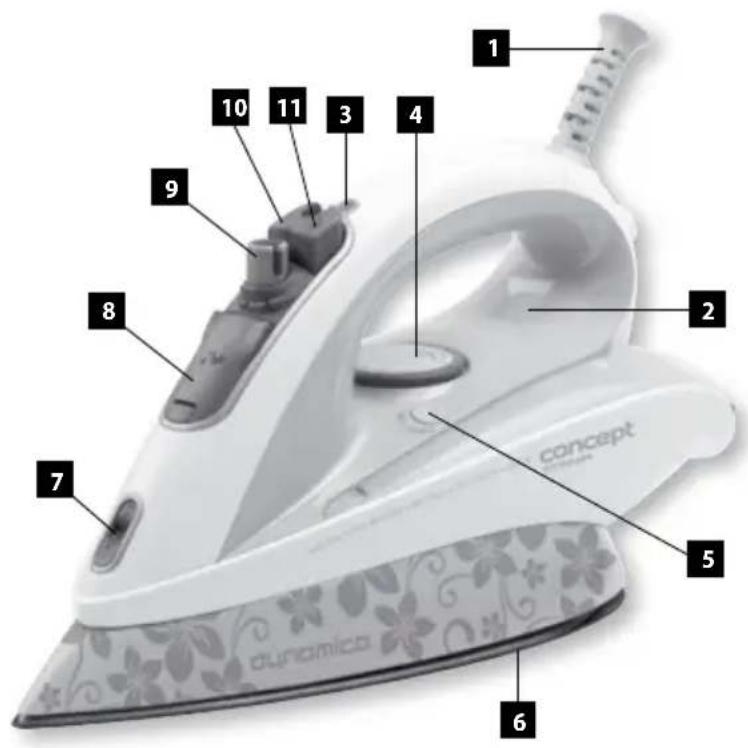

PRODUCT DESCRIPTION

1. Supply cable joint
2. Operating light
3. Heating indicator
4. Temperature control knob
5. Self-clean button
6. Ironing surface
7. Spray nozzle
8. Filling hole with cover
9. Steam volume regulator
10. Spray button
11. Steam button

Accessories A Water tank

White cylindrical object with a label 'A' pointing to its surface (no other text or symbols visible)

1 2 3 4 5 6 7 8 9 10 11 concept dunomico

OPERATING INSTRUCTIONS

Do not leave the unit unattended if it is connected to the power source.

Remove all the stickers and packaging from the ironing surface before the first use. Before the first ironing, try the unit on a piece of old fabric to make sure the ironing surface and water tank are perfectly clean. Heat the surface temperature, and press the steam button several times to clean the steaming holes in the ironing surface.

The unit may emit a slight odour during the first use. This smell will vanish after a short time.

FILLING WITH WATER

1. Unplug the unit from the power socket.
2. Set the steam volume regulator to „0“ (off) (Fig. 1).
3. Open the filling hole cover and fill the tank with water (Fig. 2). Use tap or distilled water. In the case of earthy water we recommend combining tap water with distilled water. Don't fill the tank with any liquid other than water. Do not put any

up to maximum

Fig. 1

Close-up of a white electronic device with a black arrow pointing to a component (no visible text or symbols)

Fig. 2

additions in the water. There is a risk of damage to the unit. The capacity of the

tank is approximately 300 ml. Do not exceed the maximum marked water level.

1. Close the filling hole cover.

Spraying

Push the spray button; water is released through the spray nozzle. You will need a sufficient volume of water in the tank to activate this function.

Steam ironing:

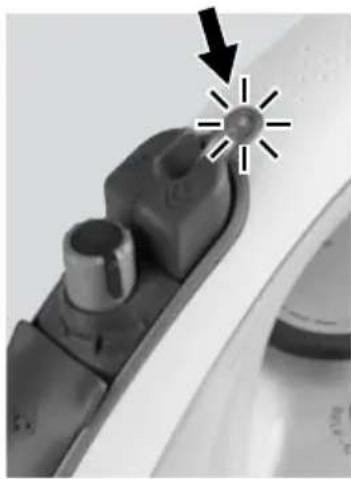

1. For steam ironing, set the steam volume regulator to the minimum, and the temperature controller to „...”, “...” or „MAX“ according to the material.
2. After the heating indicator goes off, set the steam volume regulator to the required position, the steam will start to release, and you may begin ironing. (Fig. 3).

Close-up of a mechanical component with a highlighted circular feature and an arrow pointing to it (no text or symbols visible)

Fig. 3

Steam shock

Turn the temperature controller to the position „...“, „...“ or „MAX“, and push the steam button – the ironing surface will emit steam. Wait for a couple of seconds before you push it again.

You may use this function for ironing in a vertical position to smoothen folds on hanging clothes or curtains. Hold the unit several centimetres from the fabric to prevent damage to soft materials. For greater effect of the steam shock set the steam volume regulator to the „0“ position (OFF).

Never iron any clothing on the body!

Ironing

1. If you want to use the spray or steam function, fill the tank with water (see Filling with Water).
2. Insert the plug into the mains outlet. The operation indicator light is illuminated.
3. Set the temperature controller to the value that corresponds to the material to be ironed (according to the international textile codes). The heating indicator will be illuminated.

Note: Iron fabrics that require a lower temperature first, then those at higher temperatures. Most fabrics are marked according to international codes – see the table below.

Note: The colour of operating light indicates approximate temperature of the ironing surface as follows:

MIN - • - blue
• - • • - yellow
• • - • • • - orange
• • • - MAX - red

1. Wait until the heating indicator light stops shining. Only then has the ironing surface reached the right temperature. The ironing surface will be heated during ironing. The heating indicator will turn on and off.

2. After use, set the temperature controller to the minimum, unplug the unit from the power source, and let it cool down. Then pour the remaining water out of the tank.

Anti-dripping function (ANTI-DRIP)

This unit is equipped with a function that prevents water from dripping, i.e. it will automatically stop steaming if the temperature is too low and water could be dripping from the ironing surface. Activation and de-activation of this function can be accompanied by a clapping sound from the inside. This is not a defect.

Limescale sedimentation preventive function (ANTI-CALC)

This function is based on the filtration of materials from the water used. It softens the water used, which reduces the sedimentation of limescale in the steam chamber.

Self-clean function

This function allows the cleaning of minor sediment from the steam chamber. Use it once every two weeks.

1. Fill the tank with water (see Filling with Water).
2. Insert the plug into the mains outlet.
3. Set the temperature control to the maximum.
4. Wait until the heating indicator light stops shining.
5. Hold the unit horizontally over a sink or wide water vessel.
6. Push and hold the Self-clean button. Water will pour out of the steam holes in the ironing surface, which will rinse minor sediment from the steam chamber and steaming holes.
7. Repeat the procedure if necessary.

Automatic SHUT OFF function

This safety feature allows automatic shutoff if the unit is left on a horizontal ironing surface for 30 seconds without moving, or for 8 minutes in the vertical position without moving.

In these cases the unit will shut off automatically, and the operating light will start blinking. The unit will turn on automatically when moved.

Note: This function is just a safety measure. For normal shutoff, set the temperature controller to the minimum, and unplug the unit from the power source.

Close-up of a metallic appliance with a circular button and an arrow pointing upward (no visible text or symbols)

Fig. 4

STORAGE

Pour the remaining water out of the tank. Keep the cooled unit in a vertical and stable position in a safe and dry place, out of the reach of children

CLEANING AND MAINTENANCE

Unplug the unit from the power source.

Remnants of fabric fibers may be stuck to the ironing surface. Remove them with a soft cloth soaked in water and vinegar. Then wipe the surface using a dry cloth.

Do not use any abrasives or steel wool to clean the ironing surface. Keep the ironing surface smooth; prevent it from coming into contact with hard metal objects. Make sure the ironing surface is not scratched or damaged.

Clean the body with a wet cloth. Do not use aggressive substances for cleaning, such as solvents or abrasives!

Do not pour vinegar or other limescale removers in the water tank. To clean the steam holes, use a wet cloth, and remove lumps and dust from the internal parts of the holes.

Do not immerse the power cord, plug, or appliance into water or any other liquid.

REPAIR & MAINTENANCE

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.
