Product Type	Iron
Brand	Concept
Model	ZN-8009
Power Supply	AC 220-240 V, 50-60 Hz
Power Consumption	2000-2400 W
Soleplate Material	Ceramic
Water Tank Capacity	300 ml
Steam Output (Continuous)	Up to 40 g/min
Steam Shot	Yes, up to 150 g/min
Spray Function	Yes
Anti-Drip System	Yes
Self-Clean Function	Yes
Auto Shut-Off	Yes, after 8 minutes of inactivity
Cord Length	1.9 m
Weight	1.5 kg
Dimensions (L x W x H)	30 x 15 x 20 cm
Maintenance	Descale regularly using vinegar solution
Safety	Automatic shut-off, heat-resistant handle
Spare Parts	Available through Concept customer service

Frequently Asked Questions - ZN-8009 Concept

How do I descale my Concept ZN-8009 iron?

Mix equal parts of vinegar and water, fill the tank, set the iron to steam mode, and let it steam for a few minutes. Then empty and rinse with clean water.

What should I do if the iron does not heat up?

Check that the power cord is securely plugged in and the temperature dial is set to a fabric setting. If it still doesn't heat, contact Concept support.

Can I use tap water in the iron?

Yes, but in hard water areas, it's recommended to use distilled or demineralized water to reduce scale buildup.

How do I clean the soleplate?

Allow the iron to cool, then wipe the soleplate with a damp cloth. For stubborn residues, use a mixture of baking soda and water.

What does the self-clean function do?

The self-clean function flushes out mineral deposits from the steam chamber. Fill the tank, set to max steam, and press the self-clean button.

Why is water leaking from the iron?

This may happen if the iron is not hot enough for steam, or the anti-drip system is malfunctioning. Ensure the temperature is set correctly and the tank is not overfilled.

How do I use the steam shot feature?

Press the steam shot button firmly while ironing to release a powerful burst of steam for stubborn wrinkles. Ensure the iron is on a high heat setting.

What is the auto shut-off feature?

The iron automatically turns off if left unattended for 8 minutes in an upright position or 30 seconds horizontally, enhancing safety.

Where can I find spare parts for my Concept ZN-8009?

Contact Concept customer service or visit the official Concept website to order spare parts such as soleplates, cords, and water tanks.

How do I store the iron properly?

Empty the water tank, allow the iron to cool completely, and store it upright on its heel. Wrap the cord loosely and avoid placing heavy items on top.

USER MANUAL ZN-8009 Concept

White plastic container with pointed tip and label 'A' pointing to its side (no text or symbols on the container itself)

POPIS FUNKCÍ

Close-up of a white electronic device with a black arrow pointing to a button (no visible text or symbols)

Obr. 1

Parní šok:

White plastic container with pointed tip and label 'A' pointing to its side (no text or symbols on the container itself)

NÁVOD NA OBSLUHU

White plastic bottle with pointed tip and labeled point A (no text or symbols on body)

INSTRUKCJA OBSŁUGI

Close-up of a white mechanical component with a black arrow pointing to a small circular feature (no text or symbols visible)

Ryc. 1

Spryskiwanie

Illustration of an iron (£) with a faucet symbol above and a crossed-out X mark, indicating no text or symbols present.

SERWIS

White plastic container with pointed tip and label 'A' pointing to its side (no text or symbols on the container itself)

HASZNÁLATI UTASÍTÁS

White plastic bottle with pointed tip and labeled point A (no text or symbols on body)

White plastic container with pointed tip and label 'A' pointing to its side (no text or symbols on the container itself)

EKSPLUATĀCIJAS NORĀDĪJUMI

Close-up of a white mechanical component with a black arrow pointing to a circular feature (no text or symbols visible)

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Model ZN 8007 ZN 8009
Power input 1800 W 2200 W
Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz
Stainless-steel ironing surface •	•
SELF-CLEAN	•	•
ANTI-DRIP	•	•
ANTI-CALC	•	•
AUTO SHUT-OFF	–	•

IMPORTANT SAFETY PRECAUTIONS:

• Use the unit only as described in this operating manual.
- Remove all the packaging and marketing materials from the unit before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate. Use grounded wall outlets only.
- The unit reaches high temperatures during operation and remains hot for some time after being turned off. Do not touch the hot surfaces. Use the handles and buttons. There is a risk of being burned.
- Do not leave the unit unattended while it is turned on or even only plugged into the wall outlet.
- Unplug the unit from the wall outlet when not in use.
- When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.
• Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
- Person with limited movement capacities, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling shall use the product only under the supervision of a responsible, aware person.
• Take extra care when using the unit near children.
- Don't let anyone use the unit as a toy.
• Use only accessories recommended by the manufacturer.
- Never use an appliance with a damaged power cord or plug. Contact an authorized service center immediately to have defective components repaired or replaced.
- Keep the vacuum cleaner away from heat sources such as radiators, ovens, and so on. Do not expose the product to direct sunlight or moisture.
• Do not touch the unit with wet or damp hands.
• The unit is suitable for domestic use only. It is not designed for commercial operation.
- Do not immerse the power cord, plug, or appliance into water or any other liquid.
- Check the appliance and power cord for damage regularly. Do not switch on a damaged unit.
- Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool before cleaning and after use.

• Unplug the unit from the power source before filling the water tank.
• The filling hole cannot be open during operation.
- When connecting and unplugging the unit, set the temperature regulator to the minimum.
• The unit must be used and stored on a stable surface.
• Make sure the ground on which the stand is placed is stable, when putting the unit on the stand.
- Do not use the unit if it has been dropped, if there is any visible damage, or if it does not seal.
- Do not repair the appliance yourself. Contact an authorized service center.
• Prevent any contact of the power cord with hot surfaces.
• High temperature during operation can cause burns.
• Make sure the power cord does not overhang the working area, and that children cannot reach it.
- Store the unit in a vertical standing position. Let the unit cool down before storing it. Do not touch the hot surfaces.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervisory concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.

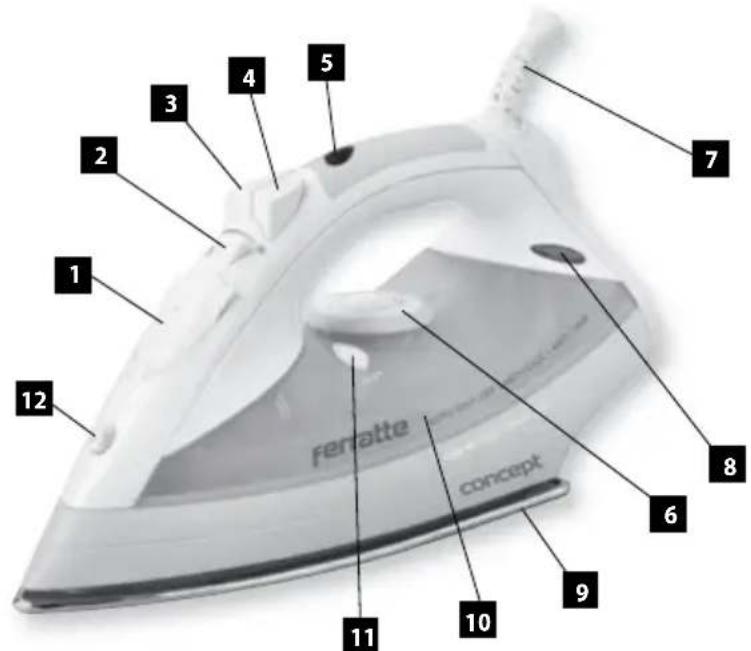

PRODUCT DESCRIPTION

1. Filling hole cover
2. Steam volume regulator
3. Spray button
4. Steam button
5. Automatic OFF indicator (ZN8009)
6. Temperature controller
7. Supply cable joint
8. Heating indicator
9. Ironing surface
10. Water tank
11. Self-clean button
12. Spray nozzle

Accessories

A Water tank

White plastic bottle with pointed tip and label 'A' pointing to its side (no text or symbols on bottle itself)

OPERATING INSTRUCTIONS

Do not leave the unit unattended if it is connected to the power source.

Remove all the stickers and packaging from the ironing surface before the first use.

Before the first ironing, try the unit on a piece of old fabric to make sure the ironing surface and water tank are perfectly clean.

The unit may emit a slight odor during the first use. This smell will vanish after a short time.

Filling with water

1. Unplug the unit from the power source.

2. Set the temperature controller to the minimum.

3. Open the filling hole cover (Fig. 1) and fill the tank with water. Use only distilled or boiled water. Don't fill the tank with a liquid other than water. Do not put any additions in the water. There is a risk of damage to the unit. The capacity of the tank is about 350 ml . Do not exceed the maximum marked water level.

4. Close the filling hole cover.

Spraying

Push the spray button; water is released through the spray nozzle. You will need a sufficient volume of water in the tank to activate this function.

Close-up of a white electronic device with a black arrow pointing to a button (no visible text or symbols)

Fig. 1

Steam ironing

1. For steam ironing set the steam volume regulator to the minimum, and the temperature controller according to the material „...“, „...“ or „MAX“

2. After the heating indicator goes off, set the steam volume regulator to the required position, the steam will start to release, and you may begin ironing.

Steam shock

Turn the temperature controller to the position „...“ or „MAX“, and push the steam button – the ironing surface will emit steam. Wait for a couple of seconds before the next push.

You may use this function for ironing in a vertical position to smoothen folds on hanging clothes or curtains. Hold the unit several centimeters from the fabric to prevent damage to soft materials.

Never iron any clothing on the body!

Ironing

1. If you want to use the spray or steam function, fill the tank with water (see Filling with Water).

2. Set the temperature controller to the minimum.

3. Insert the plug into the mains outlet.

4. Set the temperature controller to the value that corresponds to the material to be ironed (according to the international textile codes). The heating indicator will be illuminated.

Note: Iron fabrics that require a lower temperature first, then those at higher temperatures. Most fabrics are marked according to international codes – see the table below.

Note:The symbol on the tag means: “This fabric must not be ironed!”
Tag with ironing info Fabric type Temperature setting Steam setting
	Synthetic Polypropylene Polyurethane Polyamide Polyester Viscose	MIN.	DRYSSTEAM(MAX steam)
	Silk Wool
	Cotton	MAX.
	Linen

1. Wait until the heating indicator stops shining. Only then has the ironing surface reached the right temperature. The ironing surface will be heated during ironing. The heating indicator will turn on and off.
2. After use, set the temperature controller to the minimum, unplug the unit from the power source, and let it cool down. Then pour the remaining water out of the tank.

Anti-dripping function (ANTI-DRIP)

This unit is equipped with a function that prevents water from dripping, i.e. it will automatically stop steaming if the temperature is too low and water could be dripping from the ironing surface.

Limescale sedimentation preventive function (ANTI-CALC)

This function is based on the filtration of materials from the water used. It softens the used water, which reduces the sedimentation of limescale in the steam chamber.

Self-clean function

This function allows cleaning small sediments from the steam chamber. Use it once very two weeks.

1. Fill the tank with water (see Filling with Water).
2. Insert the plug into the mains outlet.
3. Set the temperature control to the maximum.
4. Wait until the heating indicator light stops shining.
5. Hold the unit horizontally over a sink or wide water vessel.
6. Push and hold the Self-clean button. Water will pour from the steam holes in the ironing surface, which will rinse out small sediments from the steam chamber.

Automatic SHUT OFF function - available on model ZN 8009 only

This safety feature allows automatic shut off if the unit is left on a horizontal ironing surface for 30 seconds without moving, or for 8 minutes in the vertical position without moving.

In these cases the unit will shut off automatically, short beep will be heard, and the automatic shut off indicator will start blinking.

Note: This function is just a safety measure. For normal use, set the temperature controller to the minimum, and unplug the unit from the power source.

STORAGE

Keep the cooled unit in a vertical and stable position in a safe and dry place, out of the reach of children.

CLEANING AND MAINTENANCE

Unplug the unit from the power source.

Remnants of fabric fi bers may be stuck to the ironing surface. Remove them with a soft cloth soaked in water and vinegar. Then wipe the surface using a dry cloth.

Do not use any abrasives or steel wool to clean the ironing surface. Keep the ironing surface smooth; prevent it from coming into contact with hard metal objects. Make sure the ironing surface is not scratched or damaged.

Clean the body with a wet cloth. Do not use aggressive substances for cleaning, such as solvents or abrasives!

Do not pour vinegar or other limescale removers in the water tank. To clean the steam holes, use a wet cloth, and remove lumps and dust from the internal parts of the holes.

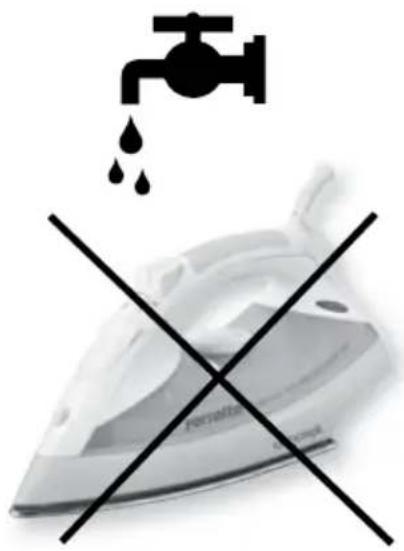

Do not immerse the power cord, plug, or appliance into water or any other liquid.

Illustration of an iron (£) with a faucet symbol above and a crossed-out black cross, indicating no text or symbols present.

REPAIR & MAINTENANCE

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment

and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.
