USER MANUAL 3PL01 ENERGIZER

Energizer® POWERTOOLS

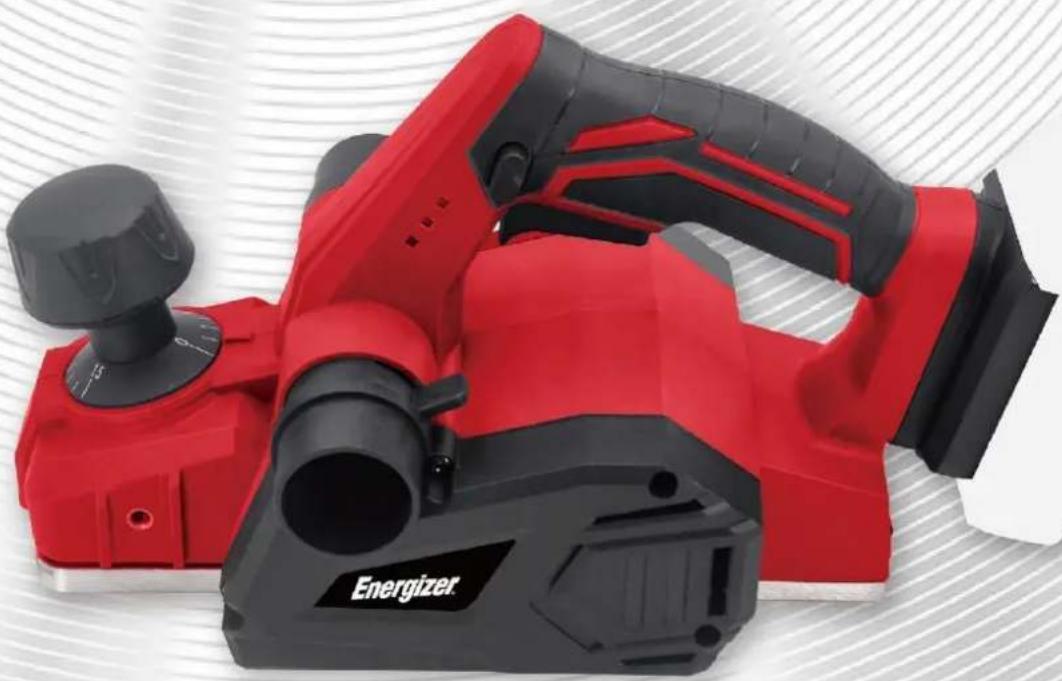

Red and black Energizer tool with handle and control knob (no visible text or symbols on device body)

TM

FR ATTENTION: Lisez les instructions avant d'utiliser le produit.
EN CAUTION: Read the instructions before using the product.
ES PRECAUCIÓN: Lea las instrucciones antes de usar el producto.
BG ВНИМАНИЕ: Прочетете инструкциите преди да използвате продукта.
CS UPOZORNĚNÍ: Před použitím výrobku si přečtěte pokyny.
DA FORSIGTIG: Læs instruktionerne, før du bruger produktet.
DE ACHTUNG: Lesen Sie die Anweisungen, bevor Sie das Produkt verwenden.
EL ΠΡΟΣΟΧΗ: Διαβάστε τις οδηγίες πριν χρησιμοποιήσετε το προϊόν.
ET ETTEVAATUST: Enne toote kasutamist lugege juhiseid.
FI HUOMIO: Lue ohjeet ennen tuotteen käyttöä.
HR OPREZ: Pročitajte upute prije upotrebe proizvoda.
HU VIGYÁZAT: A termék használata előtt olvassa el az utasításokat.
IT ATTENZIONE: leggere le istruzioni prima di utilizzare il prodotto.
LT ATSARGIAI: Prieš naudodami gamini, perskaitykite instrukcijas.
LV UZMANIBU: Pirms produkta lietošanas izlasiet instrukcijas.
NL LET OP: Lees de instructies voordat u het product gebruikt.
NO FORSIKTIG: Les instruksjonene før du bruker produktet.
PL UWAGA: Przeczytaj instrukcję przed użyciem produktu.
PT ATENÇÃO: Leia as instruções antes de utilizar o produto.
RO ATENTIE: Citiți instrucțiunile înainte de a utiliza produsul.
SK POZOR: Pred použitím produktu si prečítajte pokyny.
SL POZOR: Pred uporabo izdelka preberite navodila.
SE WARNING: Läs instruktionerna innan du använder produkten.

Scan to see warranty details on: ENERGIZERMOBILE.COM

http://www.energizeyourdevice.com

1. CONSIGNES DE SÉCURITÉ

INFORMATIONS GÉNÉRALES SUR LA SÉCURITÉ DES OUTILS ÉLECTRIQUES

Technical diagram of a mechanical assembly with numbered parts labeled 8, 9, 10, 11, and 12.

- Place the front shoe on the edge of work to be planed.

REPLACEMENT DES LAMES

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and ructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

3) Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

- Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

- Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

- Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

- If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

- Do not wear loose clothing or jewelry or longhair. Loose clothes, jewelry, or long hair can be drawn into air vents.

- Do not use on a ladder or unstable support. Stable footing on a solid surface enables better control of the power tool in unexpected situations.

4) Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
  NOTE : The temperature 130 °C can be replaced by the temperature 265 °F.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.

SPECIAL SAFETY INSTRUCTIONS FOR P L A N E R

IMPORTANT! Use of any accessories or attachments other than those supplied or amended in these operating instructions can mean the risk of injury.

• Wait for the cutter to stop before setting the tool down. An exposed rotating cutter may engage the surface leading to possible loss of control and serious injury.
• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against the body leaves it unstable and may lead to loss of control.
• Hold the power tool by insulated gripping surfaces only.
• Know your power tool. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this powertool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
• Always wear eye protection with side shields marked to comply. Following this rule will reduce the risk of serious personal injury.
• Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.
• Protect your hearing. Wear hearing protection during extended periods of operation. Following this rule will reduce the risk of serious personal injury.
• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.
• Do not place battery tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
• Do not charge battery tool in a damp or wet location. Do not use, store, or charge battery packs or products in locations where the temperature is less than 50^ For more than 100^ F. Do not store outside or in vehicles.
• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If
• liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
• Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan them these instructions also

SYMBOLS

	Conforms to relevant safety standards.
	To reduce the risk of injury, the user must read and understand this manual before using this product.
	Wear ear protectors. Exposure to noise can cause hearing loss.
	Wear eye protection.Wear respiratory protection.
	Do not dispose of old appliances with domestic rubbish.
	Recycling.

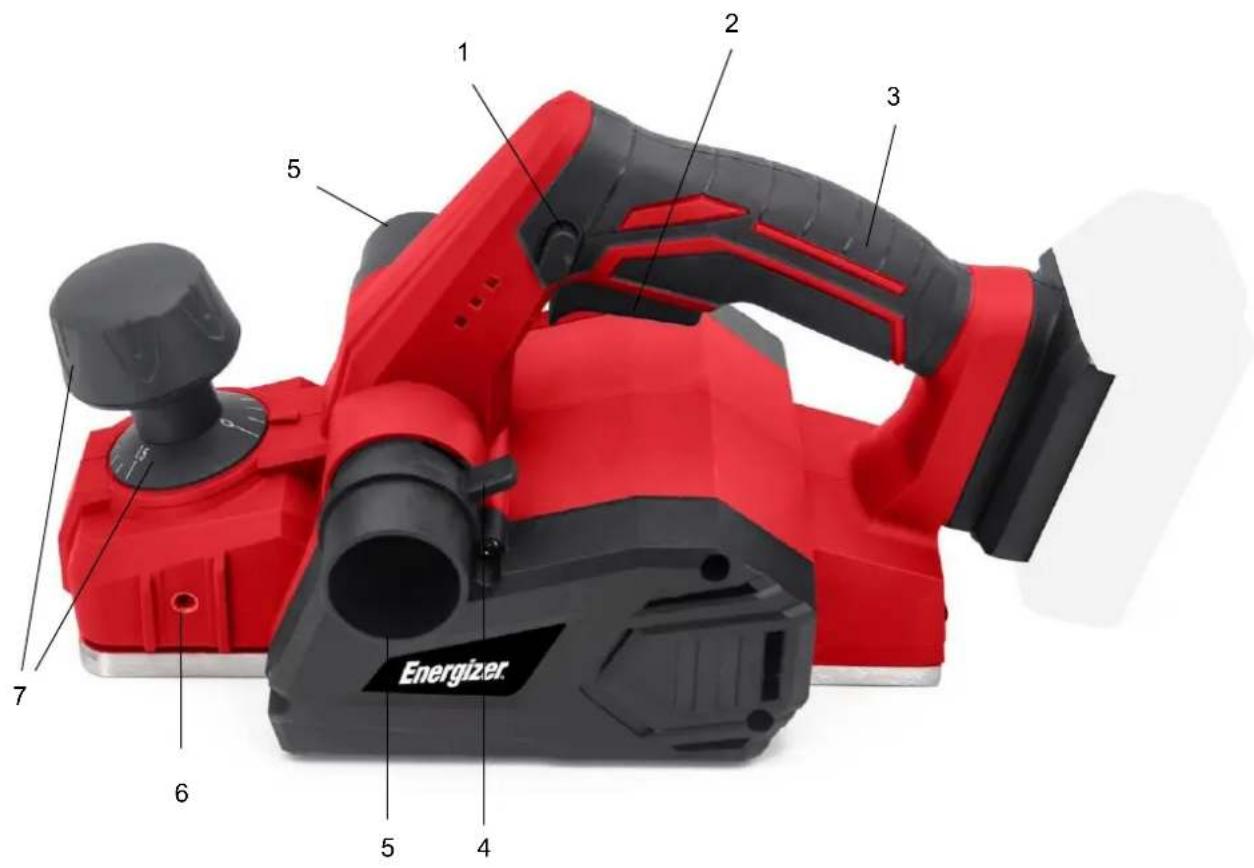

3. YOUR PRODUCT

1 2 3 5 7 6 5 4 Energizer.

1. Lock-off button
2. On/off button
3. Handle
4. Adjusting the chip outlet side
   5 Chip ejection / suction connection
   6: Rebate guide fixing screws
5. Rotary knob for planing depth adjustment
6. Groove
7. Base soles
8. Removal wedge
9. Blade holder
10. Blade

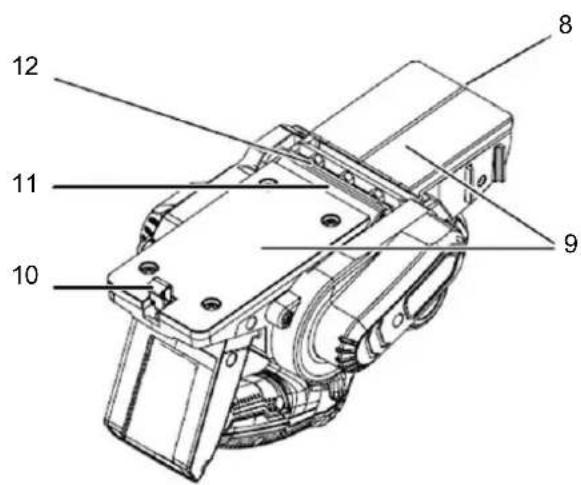

Technical diagram of a mechanical assembly with numbered parts labeled 8, 9, 10, 11, and 12.

CAUTION: Battery is not included.

4. TECHNICAL DETAILS

Voltage	20V
No load speed	16 000 rpm
Max planing width	82 mm
Max planing depth	1.5 mm
Max rabating depth	9 mm
Soft grip handle	Yes
Battery type (no included)	Energizer 3BP2 / 3BP420V d.c. 2.0Ah / Lithium-ion20V d.c. 4.0Ah / Lithium-ion
Charger type (no included)	Energizer 3CH1Input 220-240V~ 50-60Hz,Output 2.2A
Charge time	1H for 2.0Ah battery
Included Accessories	x1 guide ruler, x1 depth ruler, x1 wrench, x1 hex key, x2 screw, x1 dust adaptor

WARNING!

Wear hearing protection.

5. USE

ATTACHING THE DUST BAG

• Remove the battery pack.
• Slide the collar of the dust bag onto the exhaust port.
  NOTE: To remove the dust bag, pull it straight out of the exhaust port.
  The dust bag fills quickly. Empty it often to prevent damage to the product

ATTACHING THE PLANER TO A VACUUM

The chip collection system of the planer has a port for inserting a vacuum hose.

• Remove the battery pack.
• Remove the dust bag.
• Attach a vacuum hose to the left or right chip exhaust.
• Set exhaust direction lever to the selected exhaust port.
• Connect the vacuum to a power supply.
• Turn vacuum on before starting cut.

WARNING: When the tool is not connected to vacuum, always reinstall the dust bag back onto the tool.

Failure to do so could cause dust or foreign objects to be thrown into your face or eyes, which could result in possible serious injury

INSTALLING/REMOVING BATTERY PACK

• Lock the switch trigger.
• Insert the battery pack into the product.
• Make sure the latches on each side of the battery pack snap into place and the battery pack is secured in the product before beginning operation.
• Depress the latches to remove the battery pack.

For complete charging instructions, see the operator's manuals for your battery pack and charger

STARTING/STOPPING THE PLANER

• To start the planer: Push the lock-off button from either side, and then depress the switch trigger.
• To stop the planer: Release the switch trigger.

KICKSTAND

The planer has been equipped with an automatic pivoting kickstand that will prevent the blades from contacting the workbench when not in use. As you begin the planing operation, the kickstand will automatically retract as it passes over the edge of the workpiece. When setting the planer down on the workbench, the kickstand will automatically pivot down to prevent the blade from making any contact.

WARNING: Make sure the kickstand operates freely at all times and that the area surrounding the kickstand is clear of debris. Failure to do so could result in serious personal injury.

PLANING DEPTH

When you begin planing a rough piece of material, the planer will only remove the high spots at first. Successive passes will remove more and more material. By removing no more than 1/64 in. with each pass, you will achieve the smoothest finish, even from the roughest workpiece.

Always begin by making test cuts in scrap wood to make sure that the planer is removing the desired amount of wood.

To set the planing depth:

• Remove the battery pack.
• Turn the depth adjustment knob clockwise to set the desired depth of cut. The maximum depth of cut is 1/16 in.

NOTE:

• Use only detented depth settings. Attempting cuts with the depth of cut settings between the detented positions can result in uneven cuts.
• To protect the blades during storage, transporting, etc., turn the depth adjustment knob counterclockwise top on the depth of cut scale to park the blade.

WARNING: Always clamp the workpiece securely before making a cut. Work moving during a cut could result in loss of control of the planer and cause serious injury.

Clamp the work securely.

• Be sure the material to be planed is free of nails, staples, or screws.
• Support the work so that the operation is on your side.

NOTICE: Planing too fast results in a poor finish and increases chip build-up in the chip exhaust. Chip build-up restricts airflow and can cause motor overheating.

WARNING: Do not attempt to clear a blocked chip exhaust until the blades stop and you have disconnected the product from the power source. Failure to heed this warning can result in serious personal injury.

PLANING

• Clamp the work securely.
• Adjust the planing depth. Refer to Planing Depth earlier in this manual.
• Hold the depth adjustment knob with one hand and the handle with your other hand.

WARNING: Always use two hands on the tool for any operation; this assures that you maintain control and avoid risk of serious personal injury. Always properly support and clamp the work so that both hands are free to control the planer. Never operate the tool overhead or inverted from the proper operating position; serious personal injury may result.

• Place the front shoe on the edge of work to be planed.
  NOTE: Make sure the blades are not touching the work.

• Apply pressure to the depth adjustment knob so that the front shoe is completely flat on the work.

• Start the planer and let the motor reach maximum speed.
• Hold the planer firmly and push it forward into the work, using a slow, steady motion.
• Plane slowly and empty the dust bag often.
• Apply downward pressure toward the rear handle as you reach the end of the planed cut. This helps keep the rear section of the planer base in contact with the work and prevents the front of the planer from gouging the cut.

WARNING: Be careful to avoid hitting nails or staples during planing operation; this action could nick, crack, or damage blades.

NOTE: We suggest that you always keep an extra set of blades on hand. As soon as the blades in the planer show signs of becoming dull, replace them. The blades are reversible and can be reversed until both sides become dull

CHAMFERING

The planer is designed with a chamfering groove in the front shoe to chamfer corners of boards. Before making a cut on good lumber, practice cutting on scrap lumber to determine the amount to be removed.

• Clamp the work securely.
• Hold the depth adjustment knob with one hand and the handle with your other hand.
• Place the chamfering groove on the surface to be cut.
• Start the planer and let the motor reach maximum speed.
• Hold the planer firmly and push it forward into the work, using a slow, steady motion.
• Apply downward pressure to keep the planer flat at the beginning and the end of the work surface.

PLANING EDGES AND MAKING RABBET CUTS

The planer comes with an adjustable edge guide for precision edge planing and rabbit cutting. Attach the edge guide to either side of the planer for planing edges and attach the edge guide to the left side for making rabbit cuts.

ATTACHING THE EDGE GUIDE FOR PLANING EDGES

• Remove the battery pack.
• Attach the bracket to the desired side of the planer and tighten the knob bolt securely.
• Attach the edge guide to the bracket using the knob nut and the carriage head bolt.
• Tighten the knob nut securely.

PLANING EDGES

Follow the directions in the Planing section earlier in this manual. Hold the edge guide firmly against the edge of the work surface.

ATTACHING THE EDGE GUIDE FOR MAKING RABBET CUTS

• Remove the battery pack.
• Attach the bracket to the left side of the planer and tighten the knob bolt securely.
• Attach the edge guide loosely to the bracket using the knob nut and the carriage head bolt (do not tighten).
• Adjust the edge guide to the desired width for the rabbet cut.
• Tighten the knob nut securely.

TO MAKE RABBET CUTS

Follow the instructions in the planing section earlier in this manual. Place the edge guide firmly against the edge of the work surface. The depth of the rabbit is determined by the depth of the cut and the number of passes made along the work surface.

The maximum rebate depth is 1.2 mm and must be cut in passes of 1.5 mm or less to achieve the desired depth. The width of the rabbit can be adjusted by moving the edge guide.

WARNING:

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

Always wear eye protection with side shields marked to comply. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

6. OPERATION

Warning!

Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

Always wear eye protection with side shields marked to comply. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this tool for the purposes listed below:

- Planing the edge of a wooden door or shelf

- Planing the edge of a piece of lumber

- Making rabbit cuts in wood

• Chamfering sharp edges of lumber

ADJUSTING THE EXHAUST DIRECTION

WARNING: Collected dust from planing surface coatings such as polyurethanes, linseed oil, etc., can self-ignite in the planer dust bag or elsewhere and cause fire. To reduce the risk of fire, always empty the dust bag frequently while planing. NEVER store or leave a planer without total lyemptying its dust bag. Also follow the coating manufacturer's recommendations.

Change the direction of the exhaust to either the right or left to control the direction of debris when working in confined areas.

To adjust the exhaust direction and dust bag:

- Remove the battery pack.

- To adjust exhaust to the right: Move the exhaust direction lever so the arrow points right (the handle will point left). Install the dust bag on the right exhaust port.

- To adjust exhaust to the left: Move the exhaust direction lever so the arrow points left (the handle will point right). Install the dust bag on the left exhaust port.

NOTE: Check that the dust bag is attached to the same port selected by the exhaust direction lever

7. MAINTENANCE

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc. Consequently, we do not recommend using this tool for extended work on these types of materials. However, if you do work with any of these materials, it is extremely important to clean the tool using compressed air.

LUBRICATION

All of the bearings in this tool are lubricated with a sufficient amount of high-grade lubricant for the life of the unit under normal operating conditions. Therefore, no further lubrication is required.

CLEANING THE EXHAUST PORT ANDEMTYING THE DUST BAG

After using the planer for an extended period of time or when planing wet or green lumber, chips may build-up in the exhaust port and require cleaning. Chip build-up restricts airflow and causes the motor to overheat. Clean the exhaust port and empty the dust bag regularly.

• Remove the battery pack.
• Remove the dust bag from the exhaust port.
• Clean the chip or dust build-up from the exhaust port oft he planer with a small piece of wood. Do not use your hands or fingers.
  • Empty all debris from the dust bag and ensure that the collar is free of debris.
• Replace the dust bag

REPLACING BLADES

The planer blades are reversible. When one edge becomes dull, the blade can be reversed so that the other side can be used.

Always replace or reverse blades in pairs. Do not attempt to sharpen blades. If the blades in the planer show signs of becoming dull, chipped, or damaged in any way, replace them.

When replacing the blades, use recommended replacement blade only.

WARNING: Always wear heavy leather gloves and use caution when loosening blade screws and handling and/or changing blades. Blades are sharp and can cause serous personal Injury.

• Remove the battery pack.
• Secure the planer in an upside-down position.
• Loosen the three screws securing the blade on the blade holder by turning counterclockwise with the provided blade wrench.

NOTE: Do not over-loosen the screws. If screws are too loose, alignment of the new blade will not be accurate.

NOTE: Before removing the old blades, take notice of the direction of cut as well as how the tapered edge of the old blades are oriented. The tapered edge of the new blades must be in the same orientation as the original blades, with the tapered edge on the same side as the screw heads and the flat edge facing the cutter block.

• Depress the spring-loaded blade guard.
• Push the blade holder out of the cutter block assembly using the tip of a screwdriver.
• Remove the old blade from the blade holder by sliding the blade out using the tip of a screwdriver.
  NOTE: If blade cannot be easily pushed out of blade holder after loosening blade securing screws, use a block of wood to break the blade loose from the blade holder with a short sharp blow. Then push the blade with a screwdriver to remove. If necessary, tap the block of wood sharply with a small hammer to break the blade loose.
• Clean any sawdust or wood chips from around the blade area.
• Slide the new blade into the slot of the blade holder.
• Use a screwdriver to push the blade into the blade holder until it is centered into position.
• Depress the spring-loaded blade guard.
• Insert the blade holder into the cutter block assembly.
• Retighten the three blade securing screws using the blade wrench.
• Repeat the above procedure to change the other blade.

8.. DISPOSAL

Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.

1. ИНСТРУКЦИИ ЗА БЕЗОПАСНОСТ

Technical diagram of a mechanical assembly with numbered components labeled 8, 9, 10, and 11.

1 2 3 5 7 6 5 4 Energizer.

Technical diagram of a mechanical assembly with numbered components labeled 8, 9, 10, and 11.

Technical diagram of a mechanical assembly with numbered parts labeled 8, 9, 10, 11, and 12.

Technical diagram of a mechanical assembly with numbered parts labeled 8, 9, 10, 11, and 12.

Technical diagram of a mechanical assembly with numbered parts labeled 8, 9, 10, 11, and 12.

Technical diagram of a mechanical assembly with numbered components labeled 8, 9, 10, and 11.

Energizer® POWERTOOLS

©2025 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Avenir Telecom. All other brand names are trademarks of their respective owners. Neither Avenir Telecom nor Energizer Brands is affiliated with the respective owners of their trademarks.

Customer service: [e-mail]
