Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 21

Safety Instructions 22

Device Description 25

Ice-cream preparation 27

Operation 30

Recipes 32

Cleaning and Maintenance 35

Troubleshooting 36

Disposal Considerations 37

Manufacturer & Importer (UK) 37

TECHNICAL DATA

Item number 10046686
Power supply 220-240 V, 50 Hz
Power consumption 100 W
Protection class I
Capacity 1 litre
Dimensions (LxWxH) 355 x 260 x 227.5 mm
Package dimensions (LxWxH) 403 x 305 x 264 mm
Netto weight 6.92 kg
Brutto weight 7.75 kg

SAFETY INSTRUCTIONS

- In order to avoid harm caused by misuse, please read the instruction manual carefully before using this product and use this product strictly in accordance with the purpose stated in the instruction manual.

- Place the device on a level surface.

- Use the device indoors only.

- Unplug the device from the power outlet when not in use.

- Never immerse the power cord and plug in water or other liquids.

- Only use accessories that are expressly recommended by the manufacturer for this device.

- Do not place the device directly under an electrical outlet.

- Do not let the power cord hang from the work surface so that children cannot pull on it.

- Do not overfill the unit, otherwise short circuits and electric shocks may occur.

- Make sure that the lid is always closed during operation.

- Do not pull the plug out of the outlet by the cord, but hold it by hand when unplugging.

- Use this device only for its intended purpose. We accept no liability for damage caused by disregarding the instructions and improper use. Only use the device in the household.

- Do not connect the device to a timer or remote-controlled socket.

- Do not immerse the device in water.

- The use of an extension cord is not recommended, as it may overheat and become a risk of fire.

- If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service centre, or a similarly qualified person.

- Follow local regulations for disposal of equipment containing flammable gas.

- Do not store highly flammable or explosive substances in the device.

- Do not overturn the appliance. If the machine is overturned, leave it to stand for 2 hours before switching it on.

- If the Ice Maker is brought in from outside in winter, allow it to warm up to room temperature for a few hours before switching it on.

- Dispose of the appliance only at an authorised waste disposal facility. Do not expose to flame.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person being responsible for their safety.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children between the ages of 3 and 8 are not allowed to load and unload refrigeration equipment.

- Keep the appliance 8 cm away from other objects to ensure good heat dissipation.

- Do not use the appliance near flames, hotplates or stoves.

- Do not switch on the appliance frequently (at least every 5 minutes) to avoid

damaging the compressor.

• Do not insert metal sheets or other electrical objects into the appliance to avoid fire and short circuits.
• When removing the ice-cream, do not hit the drum or the edge of the drum to avoid damaging the drum.
• Do not switch on the power supply until the drum or mixer blade has been properly installed.

- The initial temperature of the ingredients is 25 ± 5^ C . Do not put the ingredients in the freezer to pre-freeze, as it will easily block the blender blade before the ice-cream is in good condition.

- Do not remove the blender blade while the machine is operating.

- Do not use outdoors.

- Never clean with abrasive cleaners or hard objects.

- This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments and catering and similar non-retail applications.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• The refrigeration system contains a high-pressure refrigerant. Do not damage the refrigeration system.
• The maintenance of the refrigeration system shall be done by professionals.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Unplug the ice maker before cleaning or making any repairs or servicing.
• Do not clean the ice maker with flammable liquids, as this could cause a fire or explosion.
• Refrigerant and insulation blowing gas are flammable.

WARNING

Fire hazard due to improper disposal! Please observe the local regulations for the disposal of appliances containing flammable refrigerants and gases.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• If the door is left open for a long time, the temperature in the compartments of the appliance may rise significantly.
• Clean food contact surfaces and accessible drainage systems regularly.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

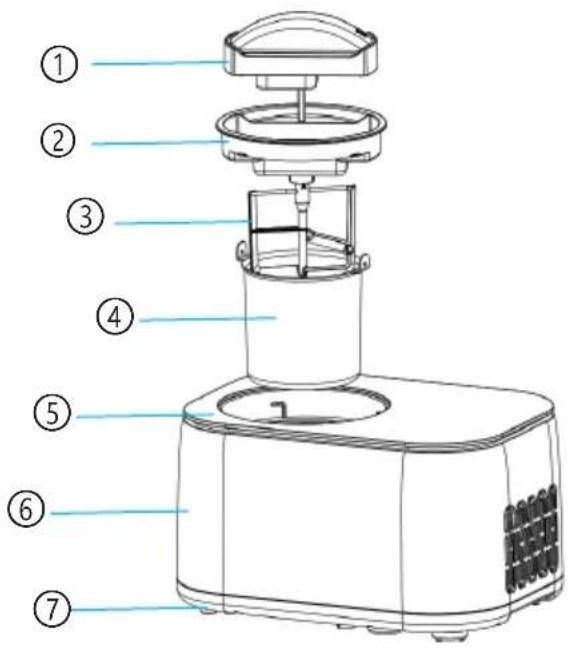

DEVICE DESCRIPTION

Labeled diagram of a kitchen appliance with numbered parts for identification

1 Motor 5 Panel glass
2 Transparent lid 6 Housing
3 Mixing blade 7 Base
4 Loading bowl

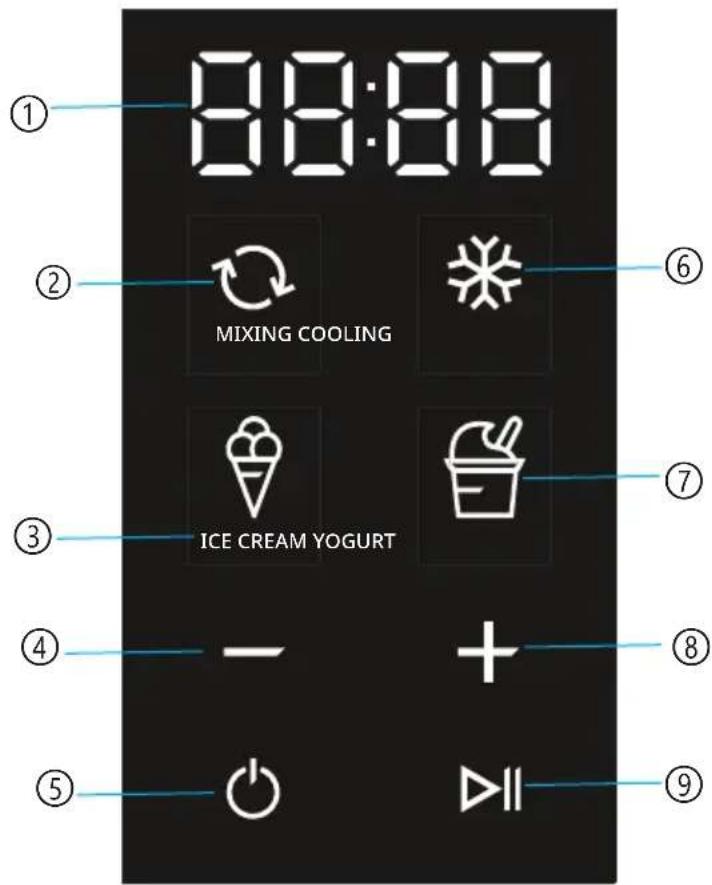

Control panel

88:88 MIXING COOLING ICE CREAM YOGURT

1 Time 6 Single refrigeration mode
2 Single mixing mode 7 Yoghurt mode
3 Ice cream mode 8 Time increase
4 Time decrease 9 Start/ Pause
5 Power button

Attachments

Mixing blade 1 User

manual 1

ICE-CREAM PREPARATION

Note: Prior to use, please ensure that all parts that will come into contact with the ice cream are thoroughly cleaned, including the cooling bowl, loading bowl, mixing blade, transparent lid, and so forth. Before cleaning, please ensure that the power cord plug is disconnected from the outlet. When making ice cream, please ensure that the machine is placed on a flat, level surface to ensure optimal compressor performance.

Step 1

The prepared recipe ingredients should be poured into the loading bowl and mixed thoroughly to ensure a uniform consistency.

Simple line drawing of a bucket being dropped from a cylindrical object (no text or symbols)

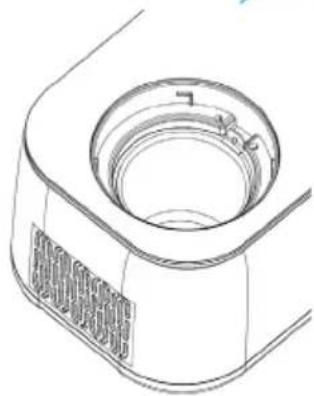

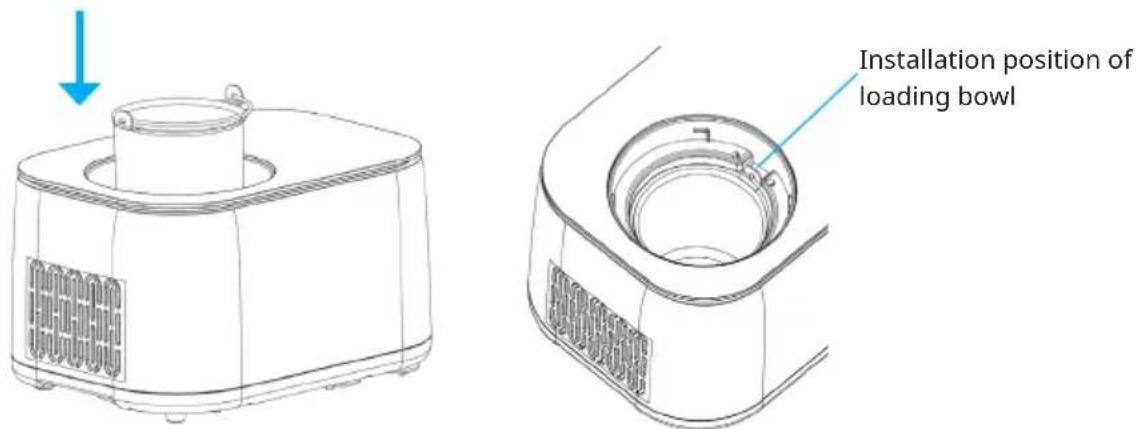

Step 2

Place the loading bowl into the ice cream machine, ensuring that both ends of the loading bowl handle are aligned with the groove of the upper cover.

Installation position of loading bowl

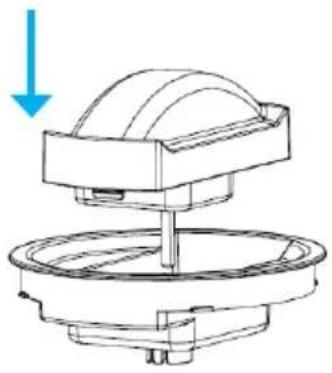

Step 3

Install the transparent lid and motor components.

Technical line drawing of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

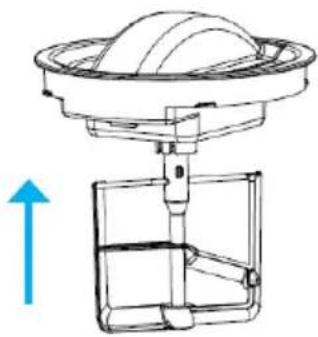

Step 4

Install the mixing blade, transparent lid and motor components.

Diagram of a mechanical device with a dome-shaped top and a rectangular base, showing internal components and an upward arrow (no text or symbols)

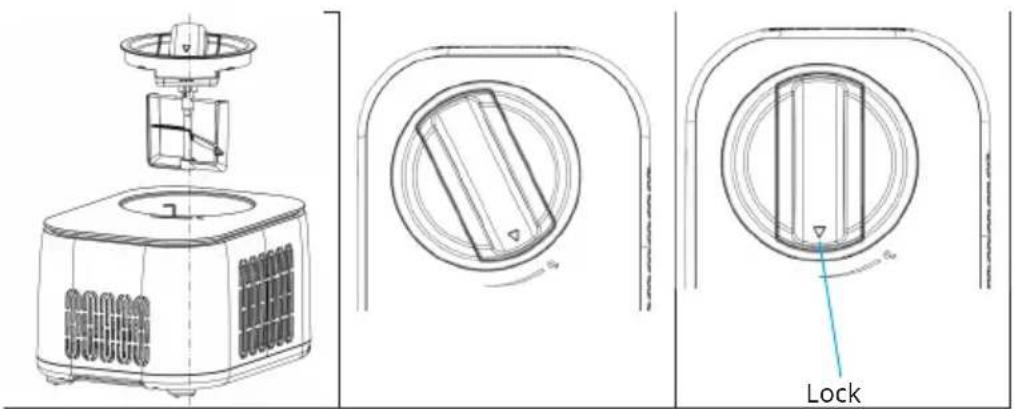

Step 5

Place the components installed in Step 4 into the ice cream machine. Ensure that the centre of the convex hull of the loading bowl and the motor components of the mixing fan blade are in the same straight line. Lock the components clockwise and check that the triangle mark on the components rotates to the "LOCK" mark.

Technical diagram of a microwave oven with labeled parts including lock mechanism and internal structure

Step 6

Connect the power supply, select the ice cream mode, and set the working time.

6:00 ICE CREAM - +

Step 7

Once the ice cream production process is complete, the machine will emit 10 short beeps and enter an insulation state.

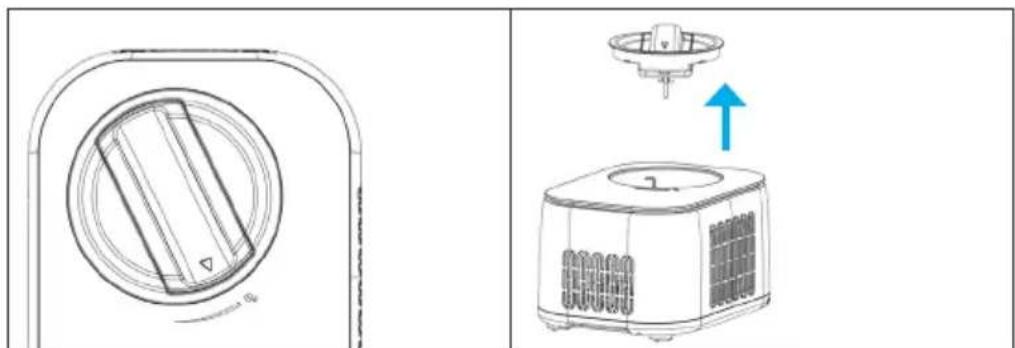

Step 8

To remove the transparent lid and motor components, turn them anticlockwise. During this process, you may hear a slight friction sound, which is normal. Once the triangle mark is aligned with the unlocking mark, carefully remove the components and loading bowl.

Technical line drawings of a circular device with internal structure and a mounted fan component (no text or symbols)

OPERATION

Please connect the power supply and plug the power cord into a suitable socket. The socket must be the same shape and voltage as indicated.

Touch control functions

Single mixing mode

Upon reaching the set time or hardness value, a 10-beep sound will indicate that the mixing process is complete.

Single refrigeration mode

Select the single refrigeration mode, set the desired working time, and then press the START button to activate the compressor and cooling fan, thereby achieving the refrigeration function. Upon completion, a 10-beep sound will indicate that the refrigeration process is finished.

Ice cream mode

To enter the ice cream mode, simply select this option, set the desired working time, and press the START button. The compressor, mixing motor and cooling fan will commence operation to facilitate the production of ice cream. Once the allotted time or hardness has been reached, a series of 10 short beeps will indicate that the ice cream is ready for consumption. In the event of no operation, the insulation function will automatically engage (displaying COOL), and 10 short beeps will sound once the insulation is complete.

Yogurt mode

Please select the Yogurt mode and set the desired working time, which must be between four and 24 hours. To begin the yogurt-making process, please press the START button. Once the allotted time has elapsed, a series of ten beeps will indicate that the process is complete. Once the aforementioned steps have been completed, the device will automatically enter single refrigeration and insulation mode (displaying COOL). In the absence of further instructions, the unit will remain in the insulation state (and will not automatically shut down).

Keep cool function

The ice cream maker features an ice cream keep cool function. To prevent any inconvenience, we kindly request that you do not leave the ice cream production process or consume the ice cream immediately after production. Leaving the ice cream in a warm environment for an extended period can cause it to melt. We have incorporated a new feature into the machine's design: when the ice cream is produced but no one is operating it, the machine will activate the cooling function at regular intervals to maintain the fresh taste and texture of the ice cream. The insulation time is one hour, and a series of ten short beeps will indicate when the process is complete. The machine will then automatically power down.

Motor self-protection function

The motor is equipped with an overcurrent protection function. Should the ice cream reach the pre-set hardness level, the process will automatically cease.

Compressor self-protection function

Once the machine has been switched from ice cream mode or single refrigeration mode to shutdown mode, a three-minute protection period will commence upon returning to ice cream mode or single refrigeration mode. However, if the power cord is unplugged and plugged back in, the machine will restart by default. In this instance, selecting ice cream mode or single refrigeration mode will not result in a delay.

Controlling the volume of ingredients

To avoid overflow and waste, make sure that the ingredients do not exceed 60% of the capacity of the removable bowl (ice cream expands during moulding).

RECIPES

Basic ice cream

Prepare according to the following formula. Once the mixture is evenly mixed, it can be made into ice cream within 60 minutes.

Ingredients

200 g of cream

120 g powdered milk

180 g of water

Basic yoghurt

Prepare according to the following formula. Once the ingredients have been evenly mixed, the yoghurt can be made within 6 hours.

Ingredients

600 ml fresh or pure milk

50 ml chilled plain yoghurt

Note: The time it takes to make yoghurt depends on the temperature and the amount of chilled plain yoghurt. The more "chilled pure yoghurt", the shorter the finished product time and vice versa. Fermentation temperature range: 37-45 °C, the temperature is too low and the finished product time is long, on the contrary, the finished product time is short.

Vanilla ice cream

Ingredients

226 g whole milk

106 g granulated sugar

167 g heavy cream, well chilled

1–2 teaspoons pure vanilla extract, to taste

In a medium bowl, using a hand mixer or electric whisk, whisk together the milk and granulated sugar until the sugar is dissolved, about 1–2 minutes on low speed. Stir in heavy cream and vanilla to taste. Switch on the machine, pour the mixture through the ingredient spout into the freezer bowl and freeze until thickened, about 50–60 minutes.

Chocolate base ice cream

Ingredients

160 g whole milk

76 g granulated sugar

160 g semi- sweet chocolate (your favourite), broken into 1.2 cm pieces

160 g heavy cream, well chilled

0.6 tsp pure vanilla extract

Heat the whole milk until just bubbling (this can be done on the stove or in the microwave). In a blender or food processor with the metal blade, pulse the sugar with the chocolate until the chocolate is very finely chopped. Add the hot milk and process until well blended and smooth. Pour into a medium bowl and allow the chocolate mixture to cool completely. Stir in the cream and vanilla to taste. It is best to chill the mixture in the fridge for about 15 minutes before using.

Switch on the machine, pour the mixture into the removable bowl through the ingredient spout and mix until thick, about 30–40 minutes.

Fresh Strawberry Ice Cream

Ingredients

167 g fresh ripe strawberries, hulled and sliced

35 g freshly squeezed lemon juice

76 g granulated sugar

160 g whole milk

160 g heavy cream

0.6 tsp pure vanilla extract

In a small bowl, toss the strawberries with the lemon juice and 76g granulated sugar, stir gently and leave to soak in the juice for 2 hours.

In a medium bowl, using a hand mixer or whisk, whisk together the milk and granulated sugar until the sugar is dissolved.

Stir in the heavy cream and any accumulated strawberry and vanilla juices. Turn on the machine, pour the mixture into the removable bowl through the ingredient spout and allow to thicken for about 30–40 minutes. Add the sliced strawberries during the last 5 minutes of freezing.

Fresh Lemon Sorbet

Ingredients

235 g granulated sugar

280 g pure water

80 g freshly squeezed lemon juice

0.5 tbsp finely grated lemon zest

Place the granulated sugar and water in a medium saucepan and bring to the boil over a medium heat. Reduce the heat to low and simmer without stirring until the sugar dissolves, about 3-5 minutes. Allow to cool completely. This is called simple syrup and can be made in large quantities to have on hand for making fresh lemon sorbet. Keep in the fridge until ready to use.

When cool, add the lemon juice and zest and stir to combine. Switch on the machine, pour the lemon mixture through the ingredient spout into the freezer bowl and blend until thickened, about 50–60 minutes.

Chocolate frozen yoghurt

Ingredients

160 g whole milk

180 g dark or semi- sweet chocolate, chopped

268 g low fat vanilla yoghurt

33 g granulated sugar

Place the milk and chocolate in a blender or food processor with the metal blade and blend for 15 seconds until well blended and smooth. Add the yoghurt and sugar and process until smooth, about 15 seconds. Turn on the machine, pour the mixture through the ingredient spout into the removable bowl and mix until thickened, about 50–60 minutes.

CLEANING AND MAINTENANCE

WARNING

The plug must be removed before cleaning to avoid electric shock.

• Remove the mixing knife and wipe with a damp cloth.
• Remove the removable bowl and clean it with a damp soft cloth.
• Wipe the transparent lid and refill lid with a damp cloth.
• Do not pour water on the power cord, plug or ventilation, or immerse the machine in water or any other liquid.
• Allow to dry thoroughly with a dry cloth, then return the unit to its original position.

TROUBLESHOOTING

Problem Possible Cause	Solution
It is difficult to remove the loading bowl after the ice cream has been made	There are drops of water between the cooling bowl and the loading bowl that are not wiped off, resulting in freezing	Wait 3-8 minutes before removing the loading bowl
The transparent cover is lifted up to the mixing bowl and it does not stay in place	The mixing bowl is not in place, check the alignment of the convex body at the bottom	Put the mixing bowl in place and turn the transparent cover in place
The mixing bowl cannot be placed in the cooling bowl	Deformation due to improper use of the mixing bowl	Buy a new mixing bowl
When starting to make ice cream, the mixing blade is badly scratched or jammed	Deformation caused by improper use of the mixing bowl	Purchase a new mixing bowl

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Datos técnicos 39

Labeled diagram of a kitchen appliance with numbered parts for identification

88:88 MIXING COOLING ICE CREAM YOGURT

Simple line drawing of a bucket with a drop arrow, no text or symbols present

Paso 2

Line drawing of a kitchen appliance with a side panel and lid (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Paso 3

Technical line drawing of a mechanical assembly with a downward arrow indicating force or direction (no text or symbols present)

Paso 4

Diagram of a mechanical device with a dome top and internal structure, showing a blue upward arrow (no text or symbols)

Paso 5

Technical line drawing of a circular device with internal blades and a top-mounted fan, showing internal structure and airflow direction (no text or symbols)

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 57

Labeled diagram of a kitchen appliance with numbered parts for identification

88:88 MIXING COOLING ICE CREAM YOGURT

Simple line drawing of a bucket and a cylinder with an arrow indicating direction (no text or symbols)

Étape 2

Technical line drawings of a two-part appliance, one showing front and side views with ventilation grilles (no text or symbols)

Étape 3

Technical line drawing of a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Étape 4

Diagram of a mechanical device with a dome-shaped top and a rectangular base, showing internal components and an upward arrow (no text or symbols)

Étape 5

Technical line drawings of a microwave oven and its internal structure, showing front and side views with no text or symbols.

FONCTIONNEMENT

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 75

Labeled diagram of a kitchen appliance with numbered parts for identification

88:88 MIXING COOLING ICE CREAM YOGURT

Simple line drawing of a bucket with a drop arrow, no text or symbols present

2° passaggio

Line drawing of a kitchen appliance with a side panel and lid (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

3° passaggio

Technical line drawing of a mechanical assembly with a downward arrow indicating force or direction (no text or symbols present)

4° passaggio

Diagram of a mechanical device with a dome-shaped top and a rectangular base, showing internal components and an upward arrow (no text or symbols)

5° passaggio

Technical line drawings of a microwave oven and its internal structure, showing front and side views with no text or symbols.

MESSA IN FUNZIONE

Symbol of a trash bin with crossed lines and a rectangular block below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
