Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 19

Safety Instructions 20

Product Overview 23

Instructions for use 26

Cleaning and Maintenance 30

Troubleshooting 32

Disposal Considerations 33

Manufacturer & Importer (UK) 33

TECHNICAL DATA

Article number 10046192
Climate Type SN/N/ST
Safety Level I
Power supply 220-240 V - 50/60 Hz
Rated current 0.85 A
Rated power 130 W
Refrigerant R290/ 28g
Vesicant C	_5H_12
Insulation EPS
Net Weight 13.7 kg
Gross Weight 15.2kg
Housing shell Stainless steel
Product size 464x277x480 mm
Type of ice Bullet ice
Output ice per cycle 12 pcs.

SAFETY INSTRUCTIONS

• In order to avoid harm caused by misuse, please read the instruction manual carefully before using this product and use this product strictly in accordance with the purpose stated in the instruction manual.
• Place the device on a level surface.
• Use the device indoors only.
• Unplug the device from the power outlet when not in use.
• Never immerse the power cord and plug in water or other liquids.
• Only use accessories that are expressly recommended by the manufacturer for this device.
• Do not place the device directly under an electrical outlet.
• Do not let the power cord hang from the work surface so that children cannot pull on it.
• Do not overfill the unit, otherwise short circuits and electric shocks may occur.
• Make sure that the lid is always closed during operation.
• Do not pull the plug out of the outlet by the cord, but hold it by hand when unplugging.
• Use this device only for its intended purpose. We accept no liability for damage caused by disregarding the instructions and improper use. Only use the device in the household.
• Do not connect the device to a timer or remote-controlled socket.
• Do not immerse the device in water.
• The use of an extension cord is not recommended, as it may overheat and become a risk of fire.
• If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service centre, or a similarly qualified person.
• Follow local regulations for disposal of equipment containing flammable gas.
• Do not store highly flammable or explosive substances in the device.
• Never touch the evaporator surface by hand when the ice maker is working. It may cause frostbite to your skin.
• Do not overturn the Ice Maker. If the machine is overturned, leave it to stand for 2 hours before switching it on.
• If the Ice Maker is brought in from outside in winter, allow it to warm up to room temperature for a few hours before switching it on.
• Dispose of the appliance only at an authorised waste disposal facility. Do not expose to flame.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person being responsible for their safety.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children between the ages of 3 and 8 are not allowed to load and unload refrigeration equipment.

- This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

This appliance contains the refrigerant propane (R290), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Fire hazard due to improper disposal! Please observe the local regulations for the disposal of appliances containing flammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• The refrigeration system contains a high-pressure refrigerant. Do not damage the refrigeration system.
• The maintenance of the refrigeration system shall be done by professionals.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Unplug the ice maker before cleaning or making any repairs or servicing.
• Do not clean the ice maker with flammable liquids, as this could cause a fire or explosion.
• Refrigerant and insulation blowing gas are flammable.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• Fill the device with potable water only.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

PRODUCT OVERVIEW

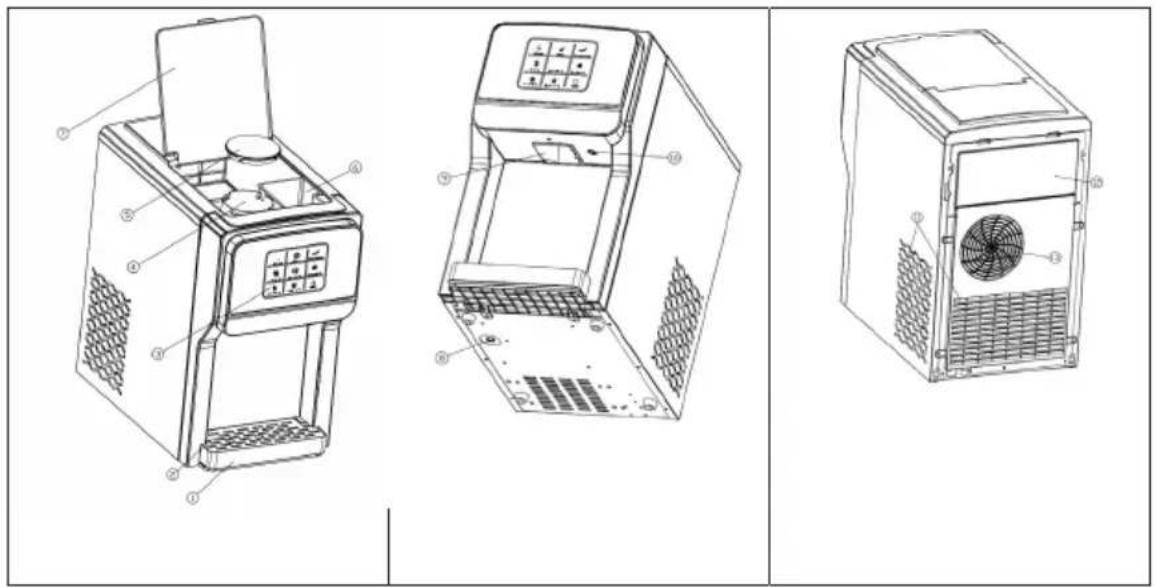

Appliance

Technical diagram of a three-part device with labeled parts, showing front, side, and top views.

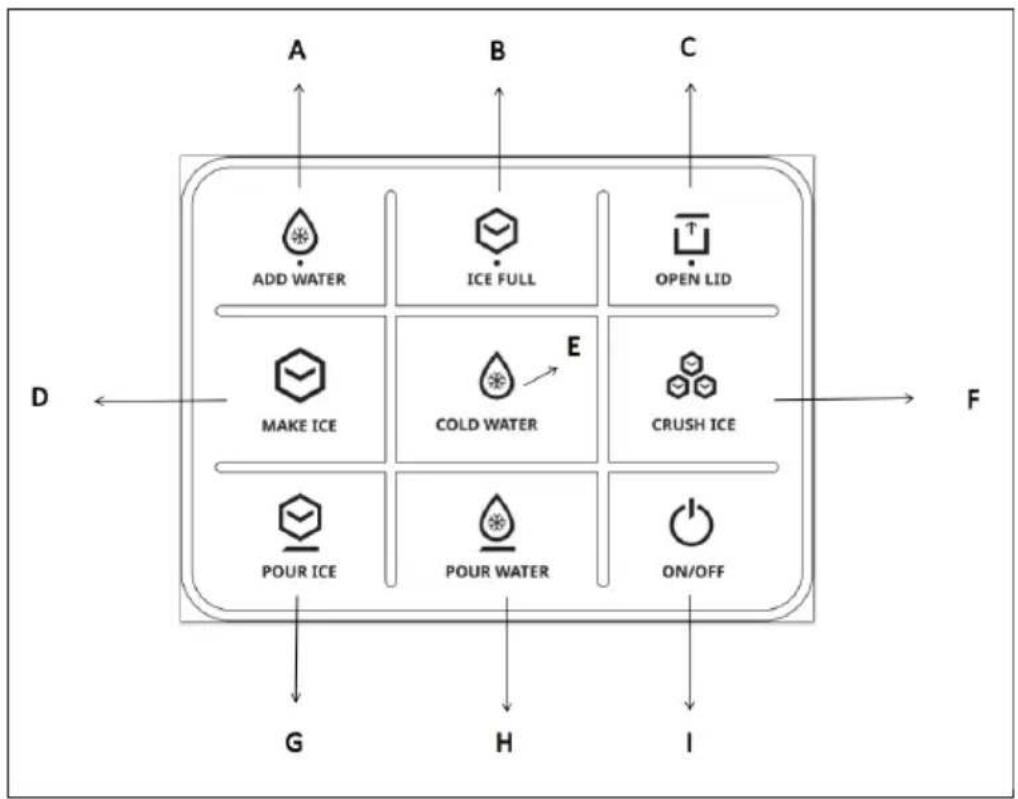

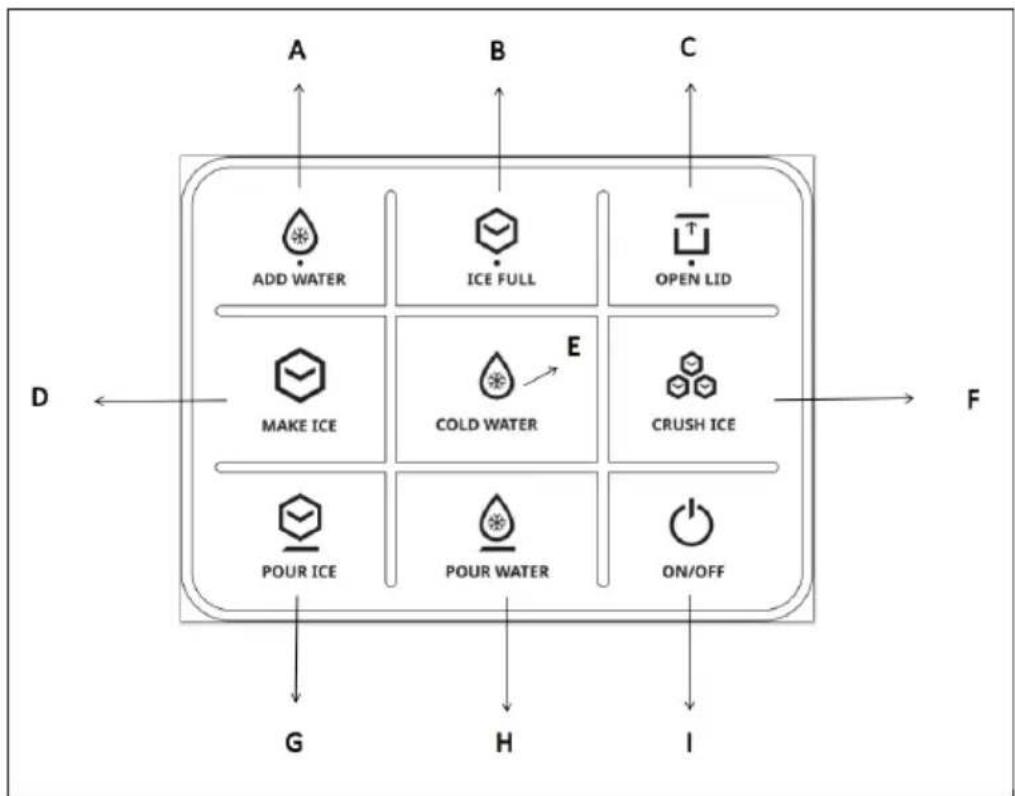

Control panel

1 Water box

2 Water box cover

3 Operation panel

4 Crushed ice box: This box should be filled with ice before crushing

5 Crushed ice box lid: The lid must be closed after filling with ice

6 Manual water addition box: If there is no external water source, you can manually pour water into the water addition box until the water level does not drop

7 Flip cover: The ice crushing function cannot be used until the top flip cover is closed

8 Lower water tank drain plug: When cleaning the machine's reservoir and cold water tank, pull out the drain plug at the bottom of the machine, drain the water and replace the drain plug after draining

9 Pour ice: Ice outlet / crushed ice outlet

10 Pour water: Water outlet

11 Air inlet: The distance between the air inlet and obstacles must be greater than 10 cm

12 Rear panel

13 Air outlet: The distance between the air outlet and any obstructions must be greater than 15 cm in order to ensure proper ventilation of the unit

A ADD WATER: Add water indicator

B ICE FULL: Ice full indicator

C ICE WATER: Press to start making ice water

D MAKE ICE: Press to start making ice

E COLD WATER: Press to start making cold water

F CRUSH ICE: Press to start crushing ice

G Pour Ice: Press to dispense ice cubes

H Pour water: Press to dispense water

I ON/OFF: Press to switch the appliance on/off

Icon overview

Icon Meaning Icon	lit Icon is blinking
OPEN LID	Open lid The upper	lid is open
CRUSH ICE	Crush ice The machine is crushing ice
MAKE ICE	Make ice The machine is making ice	1. Ice-making is off2, "Make ice" function is waiting to start
COLD WATER	Make cold water The machine is making cold water	1. Ice-water-making is off2. "Make ice water" function is waiting to start
ON/OFF	On/Off The machine is powered on	The machine is powered off
ADD WATER	Add water The water storage tank is short of water; refill water
ICE FULL	Ice full The ice storage is full of ice and the ice making machine has stopped making ice

INSTRUCTIONS FOR USE

1. Remove all internal and external packaging to check for missing hoses and tap adapters. If any of the accessories are missing, contact the customer service department.
2. The machine's power socket must be securely grounded and supplied by a separate plug.
3. Place the machine in a well ventilated place with a relatively low ambient temperature and position it horizontally. The distance between the air outlet and the obstacle must be more than 15 cm, and the distance between the two sides and the obstacle must be not less than 10 cm.
4. If the machine has been turned upside down during transport and handling, it is recommended to let the machine stand for more than 2 hours before turning it on.
5. It is strongly recommended that the entire machine is thoroughly cleaned before use. Please follow the cleaning instructions in "Cleaning and Maintenance" to clean the machine.

machine.

WARNING

When adding water to refill the machine, please add potable water, preferably pure water from a barrel or bottle. The quality of the water directly affects the clarity of the ice cubes and the life of the

1. Add water

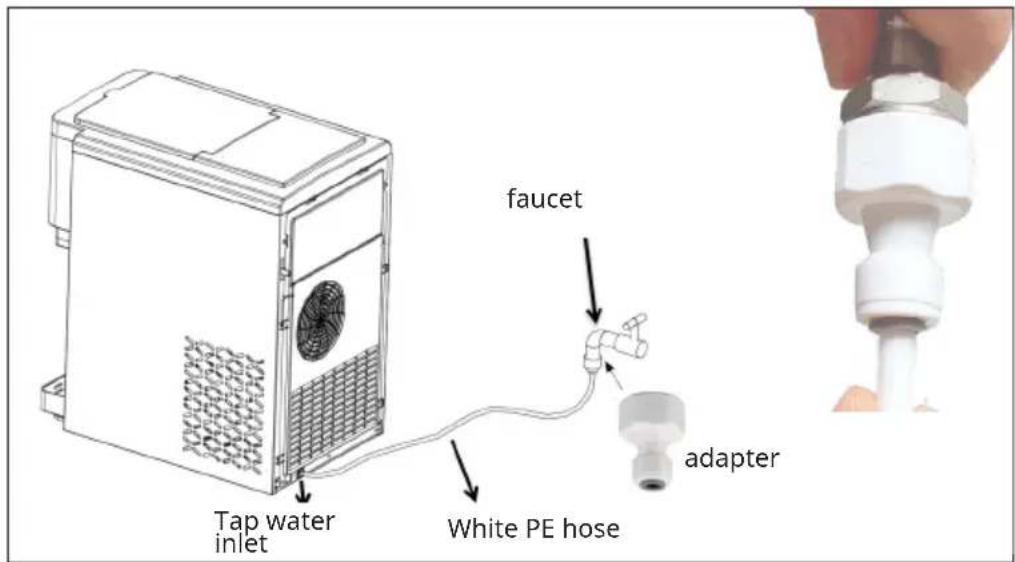

Automatically adding water(External water source)

Step 1: Connect one side (20mm) of the adapter to the tap.

Step 2: Connect one end of the white PE hose to the other end ( 6.5 mm) of the adapter.

Step 3: Connect the other end of the white PE hose to the Tap Water Inlet.

Tap water inlet faucet White PE hose adapter

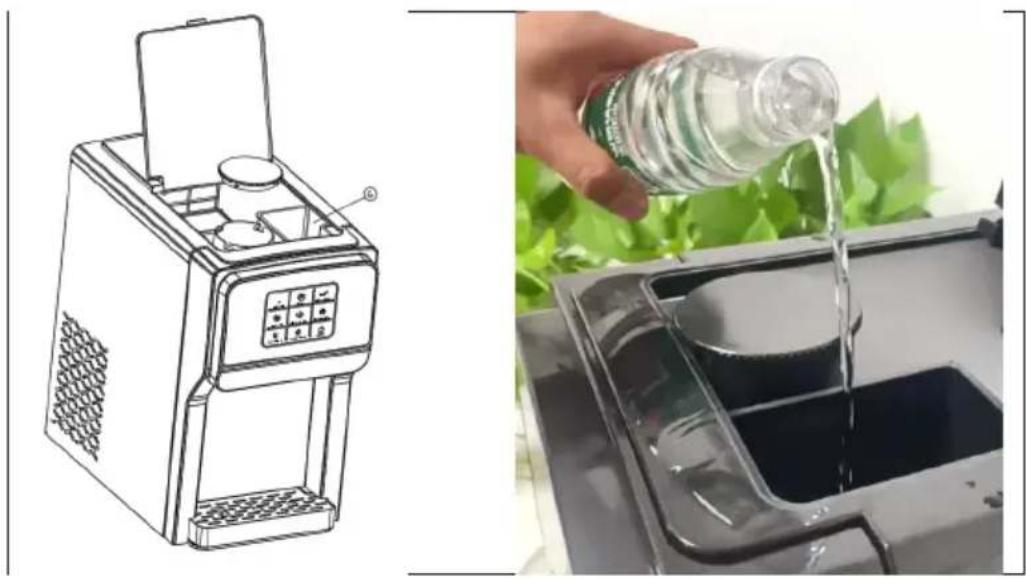

Adding water manually

Open the upper flap of the machine and pour drinking water into ⑥ "manual water addition box" until the water level does not drop any more.

Caution: Drinking water with high acidity and alkalinity will corrode the frozen column.

Illustration showing a food machine and a hand pouring liquid into a container (no text or symbols)

2. Make Ice

• Connect the machine and press the ON/OFF button on the control panel lightly. The machine will start to detect the water level and will request to be filled with water. Press the "MAKE ICE" button to start making ice. The "MAKE ICE" light remains on during the ice making process. One ice making cycle takes approximately 9 minutes and can produce 12 bullet shaped ice cubes. The ice making time will vary depending on the ambient temperature, the higher the temperature, the longer the ice making time. During ice making, the "MAKE ICE" icon will always be lit.
• If you first touch the "COLD WATER" button and then touch the "MAKE ICE" button, the "MAKE ICE" icon will keep flashing. It indicates that the "Making Ice" function will be performed after the Make Ice Water function is finished. "MAKE ICE" is waiting to start.
• If the "ICE FULL" icon is always lit, the machine will stop making ice. However, it will continue to make ice after the ice cubes have been removed from the ice tray.
• If the "ADD WATER" icon is always lit, the machine is low on water and needs to be refilled. The machine will automatically start working once it has replenished the water.
• In the process of making ice, touch the "MAKE ICE" button to stop making ice.

3. Make cold ice water

• Plug in the machine and lightly press the ON/OFF button on the control panel. Then the machine will start to detect the water level and request to be filled with water. Touch the "COLD WATER" button, the machine detects the temperature of water, when the temperature is reach the set temperature to start, the "COLD WATER" keeps lit and the machine starts making ice water, otherwise "COLD WATER" keeps flashing and waiting to start. In the process of ice water making, the temperature of water reach the setting temperature to stop ice water making, the "COLD WATER" icon keeps flashing.
• If you first touch the "MAKE ICE" button and then the "COLD WATER" button, the "COLD WATER" icon will continue to flash. It indicates that the "Making Ice Water" function will continue after the "Making Ice" function is finished. "Make cold ice water" is waiting to start.
• In the process of making cold ice water, touch the "COLD WATER" button to stop making ice water.

4. Crush ice

• Open the flip cover and remove the crushed ice tray cover. Manually add ice cubes to the "crushed Ice box", close the "crushed ice box cover" and flip it tightly, then press the "CRUSH ICE" button to crush the ice. The ice cubes are automatically dispensed and ejected from the Crushed Ice dispenser.
• In the process of crushing ice, press the "CRUSH ICE" button from the ice crusher.

5. Dispense ice cubes/ ice water

• Gently press the "POUR ICE" button, the impeller in the ice bin will begin to rotate and the ice cubes will begin to fall from the "POUR ICE" position. Press the "POUR ICE" button again and the impeller will stop rotating, ending the ice dispensing process. For optimal ice dispensing, make sure there are enough ice cubes in the ice tray and a cup ready to be filled with ice cubes.
• Gently press the "POUR WATER" button, water will flow from the "POUR WATER" position. Press the "POUR WATER" button again to stop the ice water coming out.

Note: If you press the "POUR WATER" button without first operating the "MAKE ICE" or "COLD WATER" buttons, the water that comes out will not be ice water. The "POUR WATER" function is automatically deactivated if it is used for more than 10 seconds.

Important information

• Check the cleanliness of the water tank and ice bin. Please clean and change the water regularly.
• The temperature of the added water directly affects the ice production. The lower the water temperature, the greater the ice production.
• The lower the ambient temperature where the machine is placed, the greater the ice production.
• The quality of the water used will affect the life of the machine's water pump. It is best to use softened water, pure water or drinking distilled water. Some abnormal noises during the operation of the water pump are caused by impurities in the water. This is a normal phenomenon and does not affect the use of the machine.

CLEANING AND MAINTENANCE

• Unpack the unit.
• Use a neutral detergent, warm water and a soft cloth to scrub and clean the water tank, crushed ice tray, crushed ice tray cover and silicone hose.
• The machine cabinet can be cleaned with the machine switched off. It is best to wipe with a dry cloth.
• You can also add water to make ice for 1–2 cycles, then throw away all ice cubes and water.
  • After cleaning, replace the drain plug at the bottom of the machine.
• If the machine has not been used for a long time, drain the water in the water tank.

Note: When the machine has been used for a long time, please clean the inside of the machine according to the following instructions.

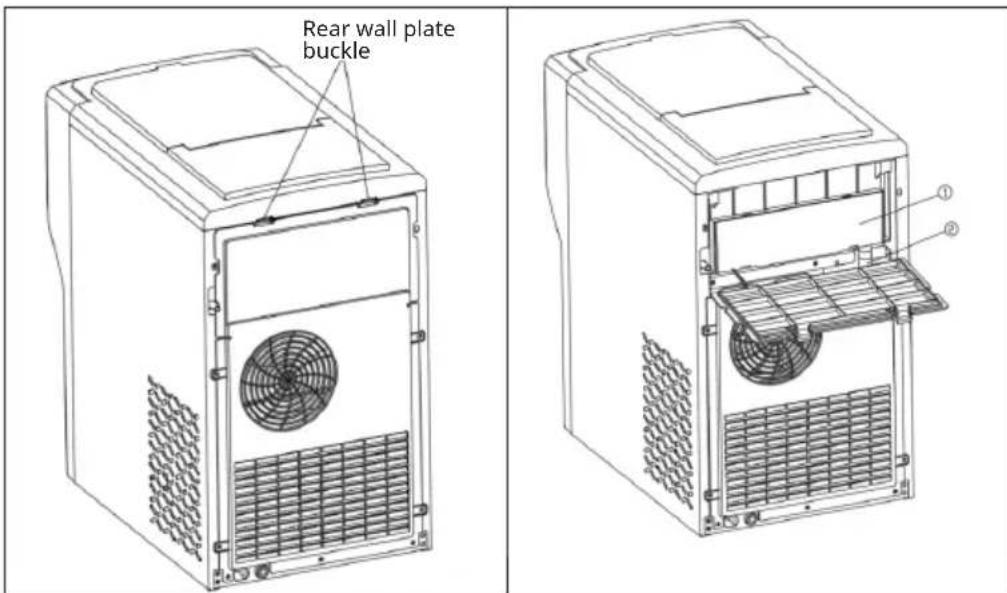

Opening the rear panel

Rear wall plate buckle ① ②

1. Disconnect the power plug, place the machine on a level surface, press the two "Rear panel buckles" on the back of the machine and open the rear panel downwards.
2. Pull out the ② "Silicone Drain Tube" first. Pull out the ① "Ice and water box".
3. Use cleaning tools to clean the Ice Maker Water Box and Silicone Hose.

Note: After cleaning, all parts must be returned to their original positions.

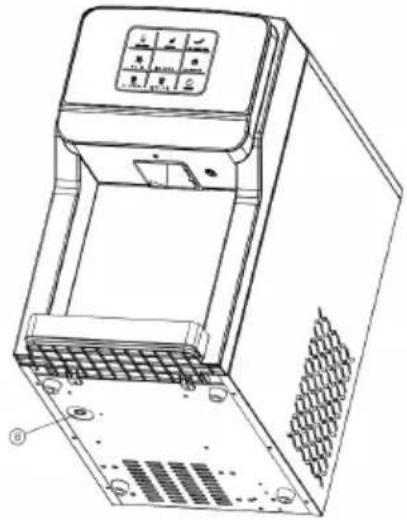

Drainage operation

There is a drain plug ⑥ at the bottom of the machine.

Place the machine on a stable surface and remove the drain plug.

Drain the water from the machine immediately.

Line drawing of a device with internal components and mounting holes (no text or symbols)

TROUBLESHOOTING

Problem Possible Cause Solution
"Add water" indicator light always on	Lack of water in the water tank	Manually refill water tank.
	The level switch float in the cold water tank is stuck and will not rise.	Clean the cold water tank and level switch.
Ice cubes are too thin Ambient temperature too high		Move the machine to a cooler location
		Poor ventilation The distance between the back, left and right sides of the machine and the obstacle is greater than 15cm
Ice too thick Ambient temperature too low		Move the machine to a warmer place
The ice cycle is normal, but no ice is produced	The ambient temperature is too high or the water temperature in the water tank is too high.	Move to a location where the ambient temperature is less than 32°C and add cold water
	Refrigerant leak Requires professional repair
	Refrigerant pipe blocked requires professional repair
The machine does not produce cold water	Lack of water in the water tank	Check the water pressure of the inlet channel and the smoothness of the channel
The machine does not produce ice	The ice making time is too short and there is no ice or less ice in the fridge	One ice-making cycle takes approximately 9 minutes. A few more ice-making cycles will make it normal.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Datos técnicos 35

Technical line drawings of three different household appliances with numbered components and labeled parts

Panel de control

Illustration showing a food machine and a hand pouring liquid into a container (no text or symbols)

2. Producir hielo

Technical line drawing of a device with labeled components (no text or symbols present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 51

Technical line drawings of three different household appliances with numbered components and labeled parts

Panneau de commande

Illustration showing a food machine and a hand pouring liquid into a container (no text or symbols)

Technical line drawing of a device with labeled components (no readable text or symbols)

IDENTIFICATION ET RÉSOLUTION DES PROBLÈMES

Symbol of a trash bin with crossed lines and a rectangular block below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 67

Technical line drawings of three different household appliances with numbered components and labeled parts

Illustration showing a small kitchen appliance and a hand pouring liquid into a plastic bottle over a container (no text or symbols)

Technical line drawing of a device with labeled components (no readable text or symbols)

Symbol of a trash bin with crossed lines and a rectangular block below (no text or labels)

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
