USER MANUAL William II PRESIDENT

Line drawing of a portable electronic device with control buttons and display screen (no text or symbols)

PRESIDENT POWER ① ②

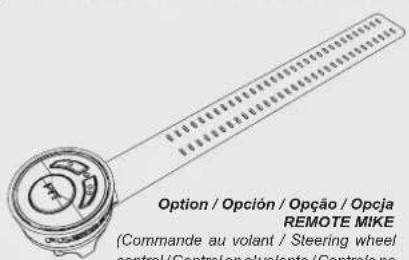

Option / Opción / Opção / Opcja REMOTE MIKE (Commande au volant / Steering wheel control / Controlen el volante / Controlo no

Your PRESIDENT WILLIAM II at a glance

SIMPLIFIED DECLARATION OF CONFORMITY

GENERAL WARRANTY CONDITIONS

FREQUENCY TABLES

NORMS - F

36

42

42

43

44

44

44

45

46

61\~63

65

SPIS TREŚCI

INSTALACJA 48

WŁĄCZANIE FUNKCJI URZĄDZENIA 50

MENU 54

ŁADOWANIE WILLIAM II 56

Six identical line drawings of a car viewed from top and side, showing different angles and orientations (no text or symbols)

LOBE DE RAYONNEMENT

3) CONNEXION DE L'ALIMENTATION

9) PTT (Push To Talk)

Remote Ble repairing

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee

E Echo L Lima S Sierra Z Zulu

F Foxtrott M Mike T Tango

G Golf N November U Uniform

LANGUAGE TECHNIQUE

AM : Amplitude Modulation (modulation d'amplitude)

CH : Channel (canal)

CQ : Appel général

CW : Continuous waves (morse)

https://president-electronics.com/DC/TXPR194

CONDITIONS GÉNÉRALES DE GARANTIE

Six identical line drawings of a car viewed from top and side views, showing different angles and orientations (no text or symbols)

LÓBULO DE RADIACIÓN

9) PTT (Push To Talk)

Remote Ble repairing

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu

F Foxtrott

M Mike

T Tango

G Golf

N November

U Uniform

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio) ! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORM TRANSCEIVER!

See MENU - FREQ BAND on page 43 and the Configuration table on page 64.

Never connect a standard microphone to jack (11), as it may damage the CB radio. Any damage caused by improper use will not be covered under warranty.

Never connect the dongle to another CB radio, as it may cause damage. Any damage caused by improper use will not be covered by the warranty.

In an effort to reduce electronic waste and in compliance with current regulations, this device comes with a USB-C to USB-A cable but without a power adapter. You can use a compatible charger you already own or purchase one separately if needed.

The guarantee of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT WILLIAM II is a new step in personal communication and is the surest choice for the most demanding professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT WILLIAM II.

A) INSTALLATION

1) BEFORE CHOOSING THE LOCATION.

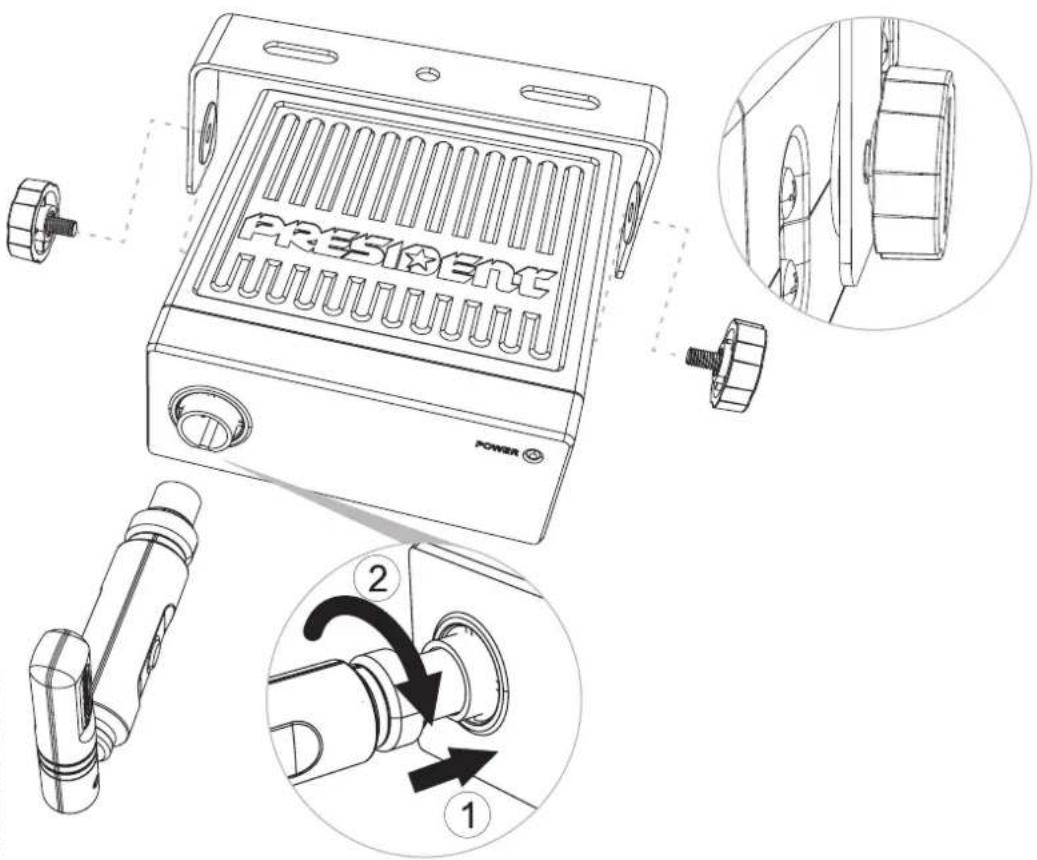

a) Please connect the dongle to the main unit «BLACK BOX». To do this, insert plug 13 into socket 11, then screw it in to secure the connection.

Never connect a standard microphone to jack (11), as this may damage the device. Any damage caused by improper use will not be covered by the warranty.

See Diagram on page 2

2) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) Your unit consists of a wireless microphone and a control box (with the connected dongle).
Select the most appropriate location to ensure easy access and optimal operation of your mobile CB unit.
b) You should choose the most appropriate setting from a simple and practical point of view.
c) Your CB radio should not interfere with the driver or the passengers.
d) Remember to provide passage and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

e) To install your equipment, use the supplied cradle (1) and provided self-tapping screws (2) (drilling diameter 3.2 mm). Take care not to damage the vehicle's electrical system while drilling the dash board.
f) Do not forget to insert the rubber joints (3) between the CB and its support as these have a chock-absorbing effect which permits gentle orientation and tightening of the set.
g) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.
- Note: Your mobile CB radio, equipped with a Bluetooth dongle, can be installed in the trunk, under the seat, etc. You can connect an external speaker for better audio quality (EXT.SP connector located on the rear panel (C). For installation assistance, consult your nearest dealer.

If your PRESIDENT WILLIAM II CB radio is connected directly to your vehicle's battery, be sure to turn it off after use to prevent excessive battery discharge. See § POWER ON/OFF on page 8

2) ANTENNA INSTALLATION

a) Choosing your antenna

• For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.
• Must be fixed on the vehicle choosing a place with a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § 5 page 35, ADJUSTMENT OF SWR).
• For an antenna which must be fixed by drilling, you will need a

b) Mobile antenna

good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.

• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

c) Fixed antenna

- A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should ask for professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio of the range.

3) POWER CONNECTION

Your PRESIDENT WILLIAM II is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with direct current of 12 or 24 volts (A). Nowadays, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult

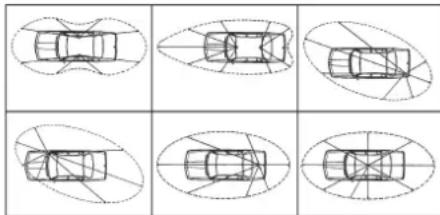

Six identical diagrams of a car with top-down views, each showing a 3D perspective with dashed and solid outlines (no text or symbols)

OUTPUT RADIUS PATTERN

your dealer.

a) Check that the battery is of 12 or 24 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.

c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.
e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse by one of a different value.

Towards starter Connected to chassis

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the «push-to-talk» switch on the microphone)

a) Check the antenna connections,
b) Turning on the device: Press the power button (1) on the microphone,
c) Set the Squelch SQ- (6) to the minimum level,
d) Adjust the volume to a comfortable level,
e) Go to Channel 20 using the UP/DN keys (2).

5) ADJUSTMENT OF SWR (Standing wave ratio)

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

* Adjustment with external SWR-meter (e.g. TOS-1 PRESIDENT)
a) To connect the SWR meter
- Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA-2C).

b) To adjust the SWR meter

• Set the CB on channel 20 in FM.
• Put the switch on the SWR-meter to position FWD (calibration).
• Press the «push-to-talk» switch on the microphone to transmit.
• Bring the index needle to ▼ by using the calibration key.
• Change the switch to position REF (reading of the SWR level). The reading on the Meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m.

Your CB is now ready for use.

a) To turn on your CB radio, press the power button (1). "POWER ON" will be announced at startup. The display will briefly show the current frequency band (see § F - FREQUENCY BAND SELECTION, page 41). "CONNECTED" will be announced when the microphone connects to the main unit.
b) To increase or decrease the volume, use the + or - buttons (4)
c) To turn off your CB radio, press and hold the power button (1). "POWER OFF" will be announced before shutdown.

2) CHANNEL SELECTOR \~ SCAN

These buttons allow you to scroll up or down through the channels. A beep sounds with each channel change if the Key Beep function is enabled (see Key Beep function, page13.)

SCAN

Press and hold the UP or DN button (2) to activate the SCAN function. «SC» will flash on the display. Scanning stops as soon as an active channel is detected. While in SCANNING mode, press the UP/DN buttons (2) on the microphone to change the scanning direction. Press the PTT (9) to exit the SCAN function. See § SKIP, page 9.

3) DISPLAY

The WILLIAM II features a color display, allowing you to view all functions at a glance.

The BARGRAPH shows the reception level and the output power level.

VOLUME CONTROL

Press the + and - buttons (4) to increase or decrease the volume.

Allows you to set/confirm certain functions and access additional features. This button has no effect when used alone.

EMG (long press)

Priority channels are automatically selected by pressing the F button (5): First press: Priority Channel 1 is selected. Second press: Priority Channel 2 is selected. Third press: Returns to the initial channel. The «EMG1» or «EMG2» symbol appears on the display when a priority channel is active. The default priority channels are 9/AM (1) and 19/AM (2).

PRIORITY CHANNELS SETTING (short press + long press)

The priority channel can be assigned to any channel in AM or FM mode.

To set a new priority channel:

- Short press the F key (5), then press and hold the same key. This screen will appear:

PRIORITY CH.
1	MODE AM
	CHANNEL 9
2	MODE AM
	CHANNEL 19

• Use the SQ+/SQ- keys (6) to modify the selected parameter value..
• Press the F key (5) to confirm and move to the next parameter.

LOCK (long press AM/FM + F keys)

Press and hold the AM/FM (6) and F (5) keys simultaneously to activate/deactivate the LOCK function. When the function is active, «1» will appear on the display.

SKIP (Long press only when the SCAN function is activated)

This function allows to skip a channel found by the SCAN function. When scanning stops on an undesirable channel, press and hold the F key (5) for 1 second to save this channel in the SCAN SKIP memory. A beep will sound, and the channel will no longer be scanned. The channel appears in red when stored in the SCAN SKIP memory.

If you wish to remove the channel from the SCAN SKIP memory refer to the SCAN SKIP menu on page 40.

See the SCAN section above.

Refer to the RESET menu on page 42.

6) SQUELCH \~ ASC (Automatic Squelch Control)

Suppresses undesirable background noises when there is no communication. Squelch does not affect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

MANUAL SQUELCH

Press the SQ+ / SQ- keys (6) to increase or decrease the SQUELCH value until the background noise completely disappears. This setting must be done precisely, as at its maximum value, only the strongest signals can be heard. (Possible SQ range from 0 to SQ 28).

ASC: AUTOMATIC SQUELCH CONTROL

Worldwide patent, a PRESIDENT exclusivity

Press and hold the SQ+ and SQ- keys (6) simultaneously. 📁 appears. No repetitive manual adjustment is needed, and there is continuous optimization between sensitivity and listening comfort when ASC is active. It can be disabled by pressing the SQ+ or SQ- keys (6). In this case, the squelch adjustment becomes manual again. 🌐 disappears from the display.

7) AM/FM \~ VOX \~ VOX SET \~ LOCK \~ MENU

AM/FM (short press)

This key allows to select the modulation mode (AM or FM). Your modulation mode has to correspond to the one of your correspondent. Corresponding mode is displayed on the LCD.

• Amplitude Modulation / AM: communication on a field with relief and obstacles at middle distance (the most used).
• Frequency Modulation / FM: for nearby communications on a flat open field.

In U configuration ONLY: press MODE key (6) to alternate the frequency band between ENG and CEPT. "UK" appears in the display when the ENG band is selected. "UK" disappears from the display when CEPT is selected (see table at page 61).

VOX (long press)

The VOX function allows transmitting by speaking into the original microphone (or in the optional vox microphone) without pressing the PTT switch (9). An optional vox microphone can be connected to the rear panel of the transceiver VOX plug (D) disables the original microphone.

Long press the AM/FM key (7) in order to activate the VOX function. «VOX» appears on the display. A new press on the AM/FM (7) key disables the function, «VOX» disappears.

VOX SET (long press after F key)

1. Press the F key (5). 'F' will appear on the display.
2. Press and hold the AM/FM key (7) to enter the VOX ADJUSTMENT mode.

/ VOX SETTING
SENSITIVITY	5
ANTI-VOX	AF
DELAY TIME	1
Microphone:WIRELESS

Four parameters allow to adjust the VOX: Sensitivity / Anti-Vox / Timing / Microphone..

1. Use the SQ+ / SQ- keys (6) to modify the value of the selected parameter.
2. Press the F key (5) to confirm and move to the next parameter.
3. If no key is pressed for 10 seconds, the device will automatically exit the VOX ADJUSTMENT mode without saving.
4. Sensitivity : allows the adjustment of the microphone (original one or optional vox) for an optimum transmission quality. Adjustable level from L1 (high level) to L9 (low level). Default value: L5.
5. Anti-Vox : allows disabling the transmission generated by the surrounding noise. The level is adjustable. AF (according the squelch level) and from RD (without anti-vox) to R9 (high level). Default value: AF.
6. Delay time : allows avoiding the sudden cut of the transmission by adding a delay at the end of the message. The level is adjustable from t 1 (short delay) to t 9 (long delay). Default value: t 1 .
7. Microphone: allows to select the microphone. "WIRELESS" for the microphone of the microphone. "MAIN BOARD" for the optional VOX (D) of the BLACK BOX. The default value is "WIRELESS"

VOX SETTING doesn't activate automatically the VOX function.

LOCK (long press AM/FM + F keys)

See LOCK page 37

MENU (short press after F key)

A short press on the AM/FM key (7) after F allows access to the MENU (see section on page 40).

8) NRC \~ NRC SET

NB (short press)

NRC : This switchable filter enhances both reception and transmission modes.

A short press on the NRC key (8) activates/deactivates the NRC filter. If the KEY BEEP function is enabled, an error beep will sound when NRC RX and NRC TX are set to OFF.

NRC appears on the display:

In green: NRC RX value from 1 to 5 / NRC TX OFF In red: NRC RX OFF / NRC TX value from 1 to 5 In orange: NRC RX and NRC TX value from 1 to 5

NRC SETTING (long press after F)

The NRC filter can be set independently for transmission (TX) and reception (RX).

• Press the F key (5). 'F' will appear on the display.
• Press and hold the NRC key (7) to enter the NRC ADJUSTMENT mode..

1. Use the SQ+ / SQ- keys (6) to modify the value of the selected parameter.
2. Press the F key (5) to confirm and move to the next parameter.
3. If no key is pressed for 10 seconds, the device will automatically exit the NRC ADJUSTMENT mode without saving.

The default values for the NRC filter are OFF for both transmission and reception.

9) PTT (Push To Talk)

Transmit key, press to speak. Release to receive a message.

TOT (Time Out Timer)

If the PTT key (9) is pressed for more than 3 minutes, the display will blink, and the transmission will end.

A beep will sound until the PTT key (9) is released..

10) USB CHARGING SOCKET

The USB Type-C port (10) allows you to charge the microphone.

See section on CHARGING THE WILLIAM II on page 42

It is located on the front of the BLACK BOX.

• Connect connector 13 to connector 11
• Screw to securely fasten the assembly.

Never connect the dongle to another CB radio, as it may cause damage. Any damage caused by improper use will not be covered by the warranty.

12) P (Pairing)

The WILLIAM II is supplied with the microphone already paired with the Black Box base.

If a new pairing is necessary:

1. Press and hold the P key (12) for 5 seconds.
   The LED blinks red and green.
2. On the microphone, press the F key (5).
   The letter 'F' appears on the display
3. Short press the On/Off key (1) to activate PAIRING mode.

A message appears depending on the connection status.

/ PAIRING

Please press and hold the F button to pair

Unconnect

/ PAIRING

Please press and hold the F button to re pair

Connected

Pairing starts automatically or, if necessary, press and hold the F key.

LED states:

• Red/green blinking: in pairing mode
• Fixed red: transmitting
• Fixed green: receiving a signal
• Green flash every 5 seconds: Bluetooth connection active

14) STATUS LED

This LED indicates the status of your CB WILLIAM II. LED states:

• Red blinking: CB is in standby
• Fixed red: CB is transmitting
• Fixed green: Receiving a signal
• Green flash every 5 seconds: CB is operating.

A) DC-POWER TERMINAL (13.2 V / 26.4 V)
B) ANTENNA CONNECTOR (SO-239)
C) EXTERNAL SPEAKER JACK (8 Ω, ∅ 3.5 mm)
E) OPTIONAL VOX MIKE (∅ 2.5 mm)

C) MENU

The order of the 9 menus is as described in this manual. However, the menu displayed when entering the MENUS will be the last menu modified by the user.

Regardless of the menu, the procedure is the same: Press the F key (5). 'F' will appear on the display. Short press the AM/FM key (7).

1. Use the SQ+ or SQ- keys (6) to select the function to setup.
2. Press the F key (5) to confirm. The function settings screen will appear.
3. Use the SQ+ or SQ- keys (6) to modify the parameter value.
4. Press the F key (5) again to confirm. a) Return to step 3 to setup another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
5. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

1) SCAN SKIP

This function allows you to store/delete in the SCAN SKIP memory.

1. Select the channel.
2. Press the F key (5). 'F' will appear on the display.

3. Short press the AM/FM key (7) to access the MENUS.

4. Use the SQ+ or SQ- keys (6) to select the SCAN SKIP menu.

5. Press the F key (5) to confirm. The function settings screen will appear.
6. Use the SQ+ or SQ- keys (6) to modify the parameter value.
7. Press the F key (5) again to confirm. a) Return to step 1 to setup another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
8. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.
   ON: Saves the channel in the SCAN SKIP memory. When a channel is saved, it is displayed in red.
   OFF: Deletes the channel from the SCAN SKIP memory.

2) BACKLIGHT

This function allows to customize the backlight color of the keyboard.

1. Press the F key (5). 'F' will appear on the display.
2. Short press the AM/FM key (7) to access the MENUS.
3. Use the SQ+ or SQ- keys (6) to select the BACKLIGHT menu.
4. Press the F key (5) to confirm. The function settings screen will appear.
5. Use the SQ+ or SQ- keys (6) to modify the parameter value. (orange / green / blue / cyan / purple / yellow / white / off)
6. Press the F key (5) again to confirm. a) Return to step 1 to configure another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
7. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

The default color is: Orange.

3) KEY BEEP

When the function is active, a beep sounds when a key is pressed, when changing channels, etc. 'BP' will appear on the display.

1. Press the F key (5). 'F' will appear on the display.
2. Short press the AM/FM key (7) to access the MENUS.

3. Use the SQ+ or SQ- keys (6) to select the KEY BEEP menu.

4. Press the F key (5) to confirm. The function settings screen will appear.

5. Use the SQ+ or SQ- keys (6) to modify the parameter value.
6. Press the F key (5) again to confirm. a) Return to step 1 to configure another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
7. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

The default value is: ON.

4) ROGER BEEP

The ROGER BEEP sounds when the PTT switch (9) of the microphone is released in order to let your correspondent speak. Historically as CB is a "simplex" communication mode, it is not possible to speak and listen at the same time (as it is the case with a telephone). Once the conversation was over, he was saying "Roger" in order to prevent his correspondent that it was his turn to talk. The word "Roger" has been replaced by a significant beep. That is where the name "Roger beep" comes from.

1. Press the F key (5). 'F' will appear on the display.
2. Short press the AM/FM key (7) to access the MENUS.
3. Use the SQ+ or SQ- keys (6) to select the ROGER BEEP menu.
4. Press the F key (5) to confirm. The function settings screen will appear.
5. Use the SQ+ or SQ- keys (6) to modify the parameter value.
6. Press the F key (5) again to confirm. a) Return to step 1 to configure another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
7. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

The default value is: OFF

- When the function is active, « ♪» appears on the display.

Note: The ROGER BEEP is also heard through the speaker if the KEY BEEP function is activated. If the KEY BEEP function is not activated, only the other party can hear the ROGER BEEP.

(Configuration: EU; PL; d; EC; U; In)

The frequency bands have to be chosen according to the country of use. Don't use any other configuration. Some countries need a user's licence. See table page 64.

1. Press the F key (5). 'F' will appear on the display.
2. Short press the AM/FM key (7) to access the MENUS.
3. Use the SQ+ or SQ- keys (6) to select the FREQ BAND menu.
4. Press the F key (5) to confirm. The function settings screen will appear.
5. Use the SQ+ or SQ- keys (6) to modify the parameter value.
6. Press the F key (5) again to confirm. a) Return to step 1 to configure another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
7. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

See the configurations/frequency bands table at pages 61 to 63.

6) SPEAKER

• This menu allows you to select where you want to listen to the modulation. You can choose between WIRELESS / BOTH SPEAKER / MAIN BOARD.
• Press the F key (5). 'F' will appear on the display.
• Short press the AM/FM key (7) to access the MENUS.
• Use the SQ+ or SQ- keys (6) to select the SPEAKER menu.
• Press the F key (5) to confirm. The function settings screen will appear.
• Use the SQ+ or SQ- keys (6) to modify the parameter value.
• Press the F key (5) again to confirm. a) Return to step 1 to configure another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
• If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

WIRELESS: The modulation is heard through the microphone's speaker.

BOTH SPEAKER: The modulation is heared through both the microphone's speaker and the EXT. SP. (C) output of the Black Box MAIN BOARD: The modulation is heared through the EXT. SP. (C) output of the Black Box.

The default value is: WIRELESS

7) ECO MODE

- This function helps to save your battery. The device switches to standby mode, with the LCD backlight/keyboard turned off, etc.

1. Press the F key (5). 'F' will appear on the display.
2. Short press the AM/FM key (7) to access the MENUS.
3. Use the SQ+ or SQ- keys (6) to select the ECO MODE menu.
4. Press the F key (5) to confirm. The function settings screen will appear.
5. Use the SQ+ or SQ- keys (6) to modify the parameter value.
6. Press the F key (5) again to confirm. a) Return to step 1 to configure another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.
7. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

The default value is: ON

8) ANL MODE

- This function allows you to enable/disable the ANL filter. ANL - Automatic Noise Limiter: This filter allows the reduction of background noises and some reception interferences. In AM mode only.

9) RESET

- This function allows to clear the SCAN SKIP memory or restore all factory settings.

1. Press the F key (5). 'F' will appear on the display.
2. Short press the AM/FM key (7) to access the MENUS.
3. Use the SQ+ or SQ- keys (6) to select the RESET menu.
4. Press the F key (5) to confirm. The function settings screen will appear.

5. Use the SQ+ or SQ- keys (6) to modify the parameter value.

6. Press the F key (5) again to confirm. a) Return to step 1 to configure another function, or b) Press the PTT key (9) to exit the MENUS. 'F' will disappear from the display.

7. If no key is pressed, the device will exit the MENUS after 10 seconds. 'F' will disappear from the display.

D) CHARGING THE WILLIAM II

See USB CHARGING PORT section on page 39

You can use your WILLIAM II even while charging.

In an effort to reduce electronic waste and in compliance with current regulations, this device comes with a USB-C to USB-A cable but without a power adapter. You can use a compatible charger you already own or purchase one separately if needed.

: Indicates the different battery charge levels.

☐: The battery is nearly empty and needs to be recharged immediately. This symbol appears in flashing red. A double beep is emitted every 2 minutes.

☐ : Indicates that the device is charging.

≥ : The battery is flashing blue. The power supply voltage of the «Black Box» is too low.

E) PAIRING THE PTT OF THE REMOTE MIKE (Option)

Never plug the wired microphone of the REMOTE MIKE into this port (11), as it may damage the device.

Any damage resulting from improper use will not be covered by the warranty..

To pair a REMOTE MIKE (steering wheel control, not supplied) with your WILLIAM

II device, follow these detailed steps:

1. Put the REMOTE MIKE (steering wheel control) into pairing mode.
2. Refer to the REMOTE MIKE manual to know how to activate the pairing mode. Typically, this involves holding down a specific button on the control for a few seconds.
3. Put the WILLIAM II into pairing mode.
4. Press both the UP and DN (2) buttons on the microphone (WILLIAM II) simultaneously for 5 seconds. The WILLIAM II screen will display a message indicating it is in pairing mode.

Remote Ble repairing

1. Wait for the two devices to pair. Once both devices are in pairing mode, they should connect automatically. The two devices are now paired.

F) TECHNICAL CHARACTERISTICS

1) GENERAL

• Channels : 40
• Modulation modes : AM/FM
• Frequency ranges : from 26.965 MHz to 27.405 MHz
• Antenna impedance : 50 ohms
• Power supply : 13.2 V / 26.4 V

- Dimensions (in mm) : 115 (L) x 140 (W) x 45 (H) (Black box)

58 (L) x 40 (W) x 100 (H) (microphone)

• Weight
• Accessories supplied
• Filter

: \~600g(Blackbox)/\~130g(microphone)

2) TRANSMISSION

• Frequency allowance
• Carrier power
• Transmission interference
• Audio response
• Emitted power in the adj. channel
• Microphone sensitivity
• Maximum drain
• Modul. signal distortion

3) RECEPTION

• Maxi. sensitivity at 20 dB sinad
• Frequency response
• Adjacent chan. selectivity
• Maximum audio power
• Squelch sensitivity
• Frequency image rejection rate
• Intermediate frequency rejection rate
• Drain
  0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM 300 Hz to 3 kHz
  : 60 dB
  2.5 W
  minimum 0.2 μV - 120 dBm maximum 1 mV - 47 dBm
  : 60 dB
  : 70 dB
  210 \~ 620 mA (13.2 V) 110 \~ 310 mA (24.6 V)

G) TROUBLE SHOOTING

1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the dongle is properly plugged in.
• Check that the programmed configuration is the correct one (see table page 64).

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the squelch level is properly adjusted.
• Check that the programmed configuration is the correct one (see table page 64).
• Check that the volume is set to a comfortable listening level.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• You are using the same modulation mode than your correspondent.

3) YOUR CB WILL NOT LIGHT UP

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

• You can perform a reset.
• Press and hold the NRC (8), SQ+ (6), and VOLUME+ (4) buttons simultaneously.
• The device will restart.

H) HOW TO TRANSMIT OR RECEIVE A MESSAGE

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27).

Press the «push-to-talk» switch (11) and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

I) GLOSSARY

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliet	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrot	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TECHNICAL VOCABULARY

AM :	Amplitude Modulation
CB :	Citizen's Band
CH :	Channel
CW :	Continuous Wave
DX :	Long Distance Liaison
DW :	Dual Watch
FM :	Frequency Modulation
GMT :	Greenwich Meantime
HF :	High Frequency
LF :	Low Frequency
LSB :	Lower Side Band
RX :	Receiver
SSB :	Single Side Band
SWR :	Standing Wave Ratio
SWL :	Short Wave Listening
SW :	Short Wave
TX :	CB Transceiver
UHF :	Ultra High Frequency

USB : Upper Side Band

VHF : Very High Frequency

CB LANGUAGE

Advertising : Flashing lights of police car

Back off : Slow down

Base station : A CB set in fixed location

Bear : Policeman

Bear bite : Speeding fine

Bear cage : Police station

Big slab : Motorway

Big 10-4 : Absolutely

Bleeding : Signal from an adjacent channel interfering with the transmission

Blocking the channel : Pressing the PTT switch without talking

Blue boys : Police

Break : Used to ask permission to join a

conversation

Breaker : A CBer wishing to join a channel

Clean and green : Clear of police

Cleaner channel : Channel with less interference

Coming in loud and proud : Good reception

Doughnut : Tyre

Down and gone : Turning CB off

Down one : Go to a lower channel

Do you copy? : Understand?

DX : Long distance

Eighty eights : Love and kisses

Eye ball : CBers meeting together

Good buddy : Fellow CBer

Hammer : Accelerator

Handle

Harvey wall banger

How am I hitting you?

Keying the mike

Kojac with a kodak

Land line : Telephone

Lunch box

Man with a gun : Police radar

Mayday : SOS

Meat wagon : Ambulance

Midnight shopper

Modulation	: Conversation
Negative copy	: No reply
Over your shoulder	: Right behind you
Part your hair	: Behave yourself - police ahead
Pull your hammer back	: Slow down
Rat race	: Congested traffic
Rubberbander	: New CBer
Sail boat fuel	: Wind
Smokey dozing	: Parked police car
Smokey with a camera	: Police radar
Spaghetti bowl	: Interchange
Stinger : Antenna
Turkey	: Dumb CBer
Up one	: Go up one channel
Wall to wall	: All over/everywhere
What am I putting to you?	: Please give me an S-meter reading

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Groupe President Electronics, declares that the radio equipment :

Brand: PRESIDENT

Type: TXPR194

Commercial Name: WILLIAM II

is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://president-electronics.com/DC/TXPR194

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labour in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

• To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.
• Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.
• Any repair under warranty will be free and the return delivery costs will be borne by our company.
• A purchase proof must be necessarily included with the device to be repaired.
• The dates listed on the warranty certificate and proof of purchase must match.
• Do not proceed with the installation of the device without reading the user manual.
• No spare part will be sent nor exchanged by our services under warranty.
  The warranty is only valid in the country of purchase.

Exclusions (are not covered):

• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...).
• The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

- Check the power supply of your device and the quality of the fuse.

• Check that the antenna, the microphone are correctly connected.
• Check that the squelch level is properly adjusted; the programmed configuration is the correct one...
• In case the device is not under warranty, the repair and return of the device will be charged.
• All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.
• In case of real malfunction, please contact your dealer first; they will decide action to be taken.
• In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

Technical Manager

and

Quality Manager

Date of the purchase:

Type: CB Radio WILLIAM II

Serial Number:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

OSTRZEŻENIE!

Six identical diagrams showing a car viewed from different angles, with no text or symbols present.

9) PTT (Push To Talk)

H Hotel
1 India
J Juliett
K Kilo
L Lima
M Mike
N November

Oscar
P Papa
Q Quebec
R Romeo
s Sierra
T Tango
U Uniform

V Victor
W Whiskey
X X-ray
Y Yankee
Z Zulu

TERMINOLOGIA TECHNICZNA

https://president-electronics.com/DC/TXPR194

OGÓLNE WARUNKI GWARANCJI

FREQUENCY TABLE for d

Note: In U configuration: In order to select the frequency band ENG, press several times F key (5) until "UK" appears in the display. In order to select the CEPT frequency band, press several times F key (5) until "UK" disappears from the display (see table at page 65).

Countries in which there are particular restrictions (Licence ^1 / Register ^2 )

Printing errors reserved.

Information in this user manual are subject to change without prior notice.

EN: Did you lose your manual? Download available at.

president-electronics.com/download

Groupe

PRESIDENT

ELECTRONICS

SIEGE SOCIAL/HEAD OFFICE - FRANCE

Route de Sète - BP 100 - 34540 BALARUC

Site Internet : http://www.president-electronics.com

E-mail : [e-mail]

2347/06-25 v1.05
