USER MANUAL Johnson II VOX PRESIDENT

Your PRESIDENT JOHNSON II VOX 12/24 V at a glance

Twój PRESIDENT JOHNSON II VOX 12/24 V

SOMMAIRE

INSTALLATION 5

UTILISATION 7

FONCTIONS À L'ALLUMAGE DU POSTE 10

CARACTÉRISTIQUES TECHNIQUES 11

GUIDE DE DÉPANNAGE 11

COMMENT ÉMETTRE/RECEVOIR UN MESSAGE 12

GLOSSAIRE 12

DÉCLARATION DE CONFORMITÉ EU SIMPLIFIÉ 13

GARANTIE 14

TABLEAUX DES FRÉQUENCES 48 - 50

TABLEAU DES NORMES EUROPÉENNES 52

Français

SUMARIO

INSTALACIÓN 16

UTILIZACIÓN 18

SIMPLIFIED EU DECLARATION OF CONFORMITY 35

GENERAL WARRANTY CONDITIONS 36

FREQUENCY TABLES 48 \~ 50

EUROPEAN NORMS 52

English

SPIS TREŚCI

INSTALACJA 38

JAK KORZYSTAĆ Z CB RADIA 40

FUNKCJE WŁĄCZAJĄCE SIĘ NA URZĄDZENIU 43

CHARAKTERYSTYKA TECHNICZNA 43

ROZWIAZYWANIE PROBLEMÓW 44

JAK PRZESŁAĆ LUB ODEBRAĆ WIADOMOŚĆ 44

SŁOWNICZEK 44

UPROSZCZONA DEKLARACJA ZGODNOŚCI UE 45

ZOBOWIAZANIA GWARANTA 46

TABELE CZESTOTLIWOŚCI 48 \~ 50

NORMY - F 52

Español

Polski

ATTENTION!

Six identical line drawings of a car viewed from top and side, showing different angles and orientations (no text or symbols)

LOBE DE RAYONNEMENT

3) CONNEXION DE L'ALIMENTATION

1) MARCHE/ARRÊT - VOLUME

MEM (pression longue)

HI-CUT (pression longue)

VOX SET (pression longue)

CH : Channel (canal)

CQ : Appel général

CW : Continuous waves (morse)

SW : Short waves (ondes courtes)

FB : Fine business (bon, excellent)

https://president-electronics.com/DC/TXPR667.

CONDITIONS GÉNÉRALES DE GARANTIE

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TERMINOS DEL ARGOT CEBEISTA

https://president-electronics.com/DC/TXPR667.

CONDICIONES GENERALES DE GARANTÍA

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See function "F" on page 32 and the Configuration table on page 52.

The guarantee of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT JOHNSON II VOX 12/24 V is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT JOHNSON II VOX 12/24 V.

A) INSTALLATION

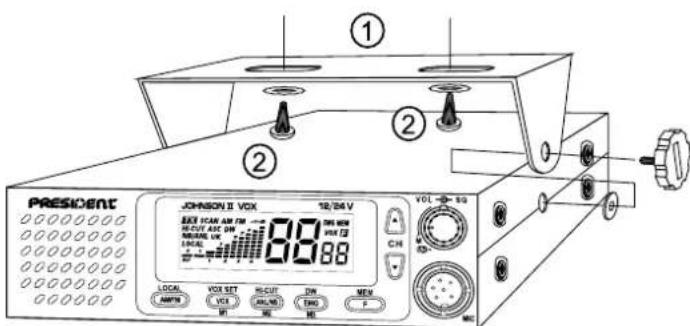

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose the most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

PRESIDENT JOHNSON II VOX 12/24 V LED VCM AB TM DCUT ASC DN MODEL UK LOCAL VOL SET OFF DCUT DN MIN MIN MIN CH VOL 50 ① ②

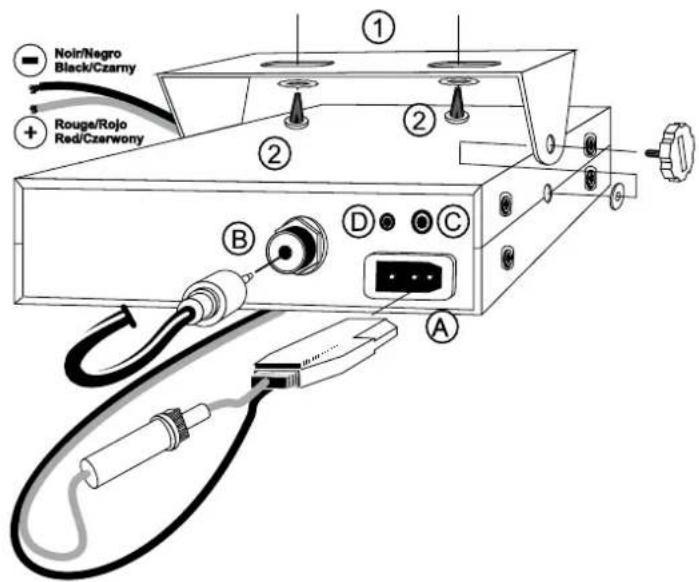

MOUNTING DIAGRAM

Noir/Negro Black/Czarny Rouge/Rojo Red/Czerwony ① ② ③ ④ A B C D

d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2 mm). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.

2) ANTENNA INSTALLATION

a) Choosing your antenna

- For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § 5, Adjustment of SWR).
• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

c) Fixed antenna

- A fixed antenna should be installed in as clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

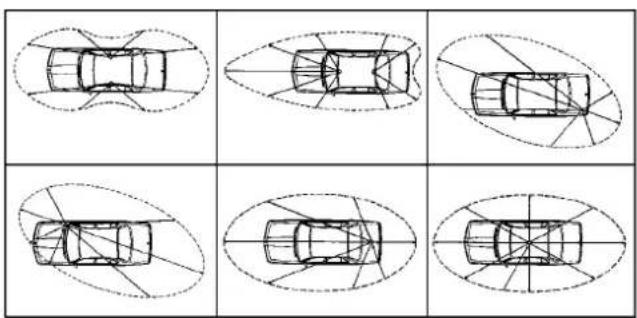

Six identical line drawings of a car viewed from top and side angles, showing different top-down views with dashed outlines (no text or symbols)

MOUNTING DIAGRAM

3) POWER CONNECTION

Your PRESIDENT JOHNSON II VOX 12/24 V is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 or 24 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

a) Check that the battery is of 12 or 24 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and

the black (-) wire to the negative terminal of the battery.

e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse (2 A) by one of a different value.

Towards starter Connected to chassis

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the "push-to-talk" switch on the microphone)

a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the volume knob VOL (1) clockwise.
d) Turn the squelch knob SQ (2) to minimum (M position). Adjust the volume to a comfortable level.
e) Go to Channel 20 using either the UP/DN (4).

5) ADJUSTMENT OF SWR (Standing wave ratio)

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

\* Using an external SWR meter (e.g. SWR 1)

a) To connect the SWR meter :
- Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA 2C).
b) To adjust the SWR meter:
- Set the CB to channel 20.
- Put the switch on the SWR meter to position FWD.
- Press the «push-to-talk» switch on the microphone to transmit.
- Bring the index needle to ▼ by using the calibration key.
- Change the switch to position REF (reading of the SWR level). The reading on the V.U. meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
- It will be necessary to re-callibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m.

Your CB is now ready for use.

a) To turn the set on, turn the knob VOL (1) clockwise.
b) To increase the sound level, turn the same knob further clockwise.

2) ASC (Automatic Squelch Control)/SQUELCH

Suppresses undesirable back-ground noises when there is no communication. Squelch does not effect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: Automatic Squelch Control

Worldwide patent, a PRESIDENT exclusivity

Turn the squelch knob SQ (2) counterclockwise to ASC position. «ASC» appears on the display. No repetitive manual adjustment and a permanent improvement in listening comfort when this function is active. It can be disconnected by turning the knob clockwise. In this case the manual squelch control becomes active again. «ASC» disappears.

b) Manual squelch

Turn the squelch knob clockwise to the exact point where all background noise disappears. This adjustment should be done with precision as, if set to maximum, (i.e. fully clockwise) only the strongest signals will be received.

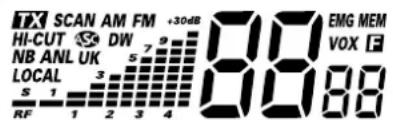

3) DISPLAY

Multi-functions LCD display (backlight). It allows visualizing all functions:

TX SCAN AM FM HI-CUT DW NB ANL UK LOCAL RF 1 2 3 4 5 6 7 8 +30dB EMG MEM VOX F

TX Shows transmission

SCAN Scan function activated

AM AM mode selected

FM FM mode selected

HI-CUT HI-CUT filter activated

ASC Automatic Squelch Control activated

DW Dual Watch activated

NB NB filter activated

ANL ANL filter activated (only In AM mode)

LOCAL Automatic adjustment of RF GAIN activated

UK Shows the England configuration (see table on page 48)

EMG Priority channel (emergency) 19 or 9 activated

MEM Memory function (input data, recall or delete) activated

VOX VOX function activated

F Function key activated (selection of the frequency bands)

88 Shows the channel number

BB Shows the selected configuration

4) CHANNEL SELECTOR: ▲ and ▼ keys on front panel and «UP» and «DN» on the microphone \~ SCAN

CHANNEL SELECTOR (short press)

These keys allow to change the channel (up/down). A beep sounds each time you change the channel if the KEY BEEP function is activated (see § KEY BEEP page 32)

SCAN (very long press)

Channel Scan

Press and hold down one of the ▲/▼ key on the front panel or UP or DN on the microphone (4) for ± 5 seconds, or until a beep sounds (see § KEY BEEP page 32), to activate the SCAN function. «SCAN» is displayed. The scanning stops as soon as there is a busy channel. The scanning starts automatically 3 seconds after the transmission stops and no key is pressed during 3 seconds. The scanning restarts also in upward direction with the ▲ key on the front panel or UP on the microphone, or in a downward direction with the ▼ key of the font panel or DN on the microphone.

Memory Scan

a) Short press MEM (5) during the channel scanning. «MEM» is displayed. The transceiver scans the memories (M1, M2, M3) and channel 9 and 19.
b) Short press MEM (5) again during memory scanning to go back to channel scan. "SCAN" is displayed, "MEM" disappears.
Press PTT (11) switch or EMG (6) key to exit the SCAN function. "SCAN" disappears on the display.

3 channels can be memorized with following parameters: AM (except for EC configuration) or FM; LOCAL; NB/ANL; HICUT (and CEPT/ENG in the U configuration)

To memorize:

• Long press on MEM (5), «MEM» blinks.
• Press during 1 s on M1 (8), M2 (7) or M3 (6). «MEM» is displayed continuously. The channel has been memorized.

To recall a memory:

• Long press on MEM (5), «MEM» blinks.
• Short press on M1 (8), M2 (7) or M3 (6).
• «MEM» is displayed continuously. The memorized channel is active.

To delete a memory:

• Turn off the transceiver.
• Keep key M1, M2 or M3 pressed and switch on the transceiver.
• The selected memory is deleted.

6) EMG \~ DW \~ M3

EMG (short press)

Channel 9 and 19 are automatically selected by pressing this key. A first press activates channel 9. A second press activates channel 19. «EMG» appears on the display when a priority channel is active. A new press returns to the previous channel and «EMG» disappears.

DW (long press)

A longer press (1s) allows to activate the Dual Watch function. This function allows to survey between channel 9 or 19 and the selected channel. A first long press activates the DW function between channel 9 and the busy channel. A new long press activates the function between channel 19 and the busy channel. «DW» is displayed. The number of the selected channel and channel 9 or 19 appear alternately on the display. The «EMG» icon is also displayed at the same time as channel 9 or 19. The selected channel can be modified during the dual watch. The function can also be disabled by pushing the PTT (11) switch, the EMG (6) key or running the SCAN function.

M3 (see § MEM on page 30)

NB/ANL (short press)

ANL: Automatic Noise Limiter / NB: Noise Blanker. These filters allow to reduce the background noise and some receiving interferences. Each short press turns in a loop: 1. ANL on / NB off • 2. ANL off / NB on • 3. ANL and NB on • 4. ANL and NB off. When a filter is active its "ANL" or "NB" icon is displayed.

In FM mode, only NB on and NB off. ANL is not displayed.

HI-CUT (long press)

Hi-Cut: Suppression of high frequency interferences. To use according to the receiving conditions. A short pressure activates the HI-CUT filter and «HI-CUT» appears on the display. A new push disables the function and «HI-CUT» disappears.

M2 (see § MEM on page 30)

8) VOX \~ VOX SET \~ M1

VOX (short press)

The VOX function allows transmitting by speaking into the original microphone (or in the optional vox microphone) without pressing the PTT switch (11). The use of an optional vox microphone connected to the rear panel of the transceiver (D) disables the original microphone. Press the VOX key (8) in order to activate the VOX function. "VOX" appears on the display. Press again the VOX key (8) to disable the function. "VOX" disappears.

VOX SET (long press)

1. Long press the VOX SET key (8) to enter the VOX SETTING. "VOX" blinks, the current setting and its value appear on the display. Three parameters allow to adjust the VOX: Sensitivity L / Anti-vox level R / Vox delay time E.

2a. Use the ▲/▼ key on the front panel or the UP/DN key (4) on the microphone to modify the current parameter then, press the VOX key (8) to select the next parameter or....

2b. Press first the VOX key (8) to select another parameter and then use the ▲/▼ key on the front panel or the UP/DN key (4) on the microphone

to modify the current parameter.

1. When all adjustments are done, long press the VOX SET key (8) to store and exit. If the KEY BEEP function is activated, a long beep sounds to confirm the success of the operation (see § KEY BEEP page 31).

2. If no key is pressed for 10 seconds, the unit automatically exits the function VOX SETTING without saving.

3. Sensitivity L: allows the adjustment of the microphone (original one or optional vox) for an optimum transmission quality. Adjustable level from 1 (high level) to 9 (low level). Default value: 1.

4. Anti-Vox R: allows disabling the transmission generated by the surrounding noise. The level is adjustable. RF (according the squelch level) and from 0 (without anti-vox) to 9 (low level). Default value: RF.
5. Delay time : allows avoiding the sudden cut of the transmission by adding a delay at the end of speaking. The level is adjustable from 1 (short delay) to 9 (long delay). Default value: 5.

VOX SETTING doesn't activate the VOX function.

M1 (see § MEM on page 30)

9) AM/FM \~ LOCAL

AM/FM (short press)

This switch allows to select the modulation mode AM or FM.

Your modulation mode must correspond with the one of the person you are speaking to.

AM/ Amplitude Modulation is for communications in areas where there are obstacles and over medium distances.

FM/ Frequency Modulation is for nearby communications in flat, open areas.

AM/FM 2 ^nd function (only in U configuration)

Allows to alternate the frequency bands CEPT and ENG in the U configuration. When the ENG frequency band is selected, «UK» is displayed.

LOCAL (long press)

This feature allows a better listening through close contact. When your partner is close, press this button to avoid distortion.«LOCAL» is displayed.

10) 6-PIN MICROPHONE PLUG

This plug is situated on the front panel, thereby making it easier to set the equipment into the dashboard. See the cabling diagram on page 51.

11) PTT (push to talk)

Press this knob to transmit a message and release to listen to an incoming communication.

TOT (Time Out Timer)

If the PTT key (11) is pressed for more than 5 minutes, CHANNEL and TX start blinking, the transmission ends.

A) DC-POWER TERMINAL (13.2 V / 24 V)
B) ANTENNA CONNECTOR (SO-239)
C) EXTERNAL SPEAKER JACK (8 Ω, ∅ 3.5 mm)
D) OPTIONAL MICROPHONE VOX JACK (8 Ω, ∅ 2.5 mm)

C) FUNCTIONS TURNING ON THE UNIT

4 additional functions are available when the station is switched on. ROGER BEEP, KEY BEEP, COLOR of the display and the SELECTION OF THE FREQUENCY BAND. The procedure is always the same: turn off your radio if it is on; hold down the indicated key while turning on your radio again.
1) ROGER BEEP (▲ or UP)
The Roger Beep sounds when the PTT switch (11) on the microphone is released In order to let your correspondent speak. Historically as transceiver is a "simplex" communication mode, it is not possible to speak and to listen at the same time (as it is the case with a telephone). Once someone had finished talking, he said "Roger" In order to prevent his correspondent that it was his turn to talk. The word "Roger" has been replaced by a significant beep. There comes "Roger beep" from.
1. Turn on the unit while pressing the front panel key ▲ or the microphone UP key (4). r-9 and the current status of the function, On or OF, appear

on the display.

1. Repeat step 1 until the display shows the desired state.

A beep sounds when you press a key, change the channel, etc.

1. Turn on the unit while pressing the front panel key ▼ or the microphone DN key (4). bP and the current status of the function, □n or □F, appear on the display.
2. Repeat step 1 until the display shows the desired state.

3) COLOR (AM/FM)

Allows you to change the display color of the LCD screen.

1. Turn on the unit while pressing the AM/FM key (9). The symbol (Gr, Gr or B) corresponding to the current color flashes on the display.
2. Use the ▲/▼ keys on the front panel or UP and DN on the microphone to select the desired color.

1. Long press the AM/FM key (9) to validate the selected color.

4) F - FREQUENCY BAND SELECTION

The frequency bands must be chosen according to the country where you are going to operate. Do not use another configuration. Some countries require user's licence.

See the table on page 53.

How to proceed:

• Switch off the transceiver
• Turn on the power while pressing the F (5) key. «F» and the letter corresponding to the configuration are blinking.
• In order to change the configuration, use the ▲/▼ keys on the front panel or UP and DN on the microphone.
• When the configuration is selected, press on the F (5) key during 1 s. «F» and the letter corresponding to the configuration are continuously displayed. At this stage, confirm the selection by switching off then switching on again the transceiver.

See tables on page 48 \~ 52.

• Channels : 40
• Modulation modes : AM/FM
• Frequency ranges : from 26.965 MHz to 27.405 MHz
• Antenna impedance : 50 ohms
• Power supply : 13.2 V / 24 V
• Dimensions (in mm) : 170 (W) x 150 (D) x 52 (H)
• Weight : 1 kg
• Accessories supplied : microphone UP/DOWN with support, mounting cradle, screws and fused power cord.
• Frequency allowance
  : +/- 300 Hz
• Carrier power
  : 4 W AM / 4 W FM
• Transmission interference
  : inferior to 4 nW (- 54 dBm)
• Audio response
  : 300 Hz to 3 KHz in AM/FM
• Emitted power in the adjacent channel
  : inferior to 20 μW
• Microphone sensitivity
  : 3.0 mV
• Drain
  : 2 A (with modulation)
• Modulated signal distortion
  1.8%

2) TRANSMISSION

3) RECEPTION

• Maxi. sensitivity at 20 dB sinad
  : 0.5 μV - 113 dBm (AM/FM)
• Frequency response
  : 300 Hz to 3 kHz in AM/FM
• Adjacent channel selectivity
  : 60 dB
• Maximum audio power
  : 3 W
• Squelch sensitivity
  : minimum 0.2 μV - 120 dBm
  maximum 1 mV - 47 dBm
• Frequency image rejection rate
  : 60 dB
• Intermediate frequency rejection rate
  : 70 dB
• Drain
  : 400 mA nominal / 1000 mA maximum

E) TROUBLE SHOOTING

1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.
• Check that the programmed configuration is the correct one (see p. 52).

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the Local function is not activated
• Check that the squelch level is properly adjusted.
• Check that the programmed configuration is the correct one (see p. 52).
• Check that the volume is set to a comfortable listening level.
• Check that the microphone is properly plugged in.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.

3) YOUR CB WILL NOT LIGHT UP

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

F) HOW TO TRANSMIT OR RECEIVE A MESSAGE

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27).

Choose your mode (AM/FM) which must be the same as that of your correspondent.

Press the «push-to-talk» switch and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply.

You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

G) GLOSSARY

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Jullett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TECHNICAL VOCABULARY

AM	: Amplitude Modulation
CB	: Citizen's Band
CH	: Channel
CW	: Continuous Wave
DX	: Long Distance Liaison
DW	: Dual Watch
FM	: Frequency Modulation
GMT	: Greenwich Meantime
HF	: High Frequency
LF	: Low Frequency
LSB	: Lower Side Band
RX	: Receiver
SSB	: Single Side Band
SWR	: Standing Wave Ratio
SWL	: Short Wave Listening
SW	: Short Wave
TX	: CB Transceiver
UHF	: Ultra High Frequency

USB : Upper Side Band

VHF : Very High Frequency

CB LANGUAGE

Advertising	: Flashing lights of police car
Back off	: Slow down
Basement	: Channel 1
Base station	: A CB set in fixed location
Bear	: Policeman
Bear bite	: Speeding fine
Bear cage	: Police station
Big slab	: Motorway
Big 10-4	: Absolutely
Bleeding	: Signal from an adjacent channel interfering with the transmission
Blocking the channel	: Pressing the PTT switch without talking
Blue boys	: Police
Break	: Used to ask permission to join a conversation
Breaker	: A CBer wishing to join a channel
Clean and green : Clear of police
Cleaner channel	: Channel with less interference
Coming in loud and proud	: Good reception
Doughnut	: Tyre
Down and gone : Turning CB off
Down one	: Go to a lower channel
Do you copy?	: Understand?
DX	: Long distance
Eighty eights	: Love and kisses
Eye ball	: CBers meeting together
Good buddy	: Fellow CBer
Hammer	: Accelerator
Handle	: CBer's nickname
Harvey wall banger : Dangerous driver
How am I hitting you?	: How are you receiving me?
Keying the mike	: Pressing the PTT switch without talking
Kojac with a kodak	: Police radar
Land line	: Telephone
Lunch box	: CB set
Man with a gun	: Police radar
Mayday	: SOS
Meat wagon	: Ambulance
Midnight shopper	: Thief

Modulation : Conversation

Negative copy : No reply

Over your shoulder : Right behind you

Part your hair : Behave yourself - police ahead

Pull your hammer back : Slow down

Rat race : Congested traffic

Rubberbander : New CBer

Sail boat fuel : Wind

Smokey dozing : Parked police car

Smokey with a camera : Police radar

Spaghetti bowl : Interchange

Stinger : Antenna

Turkey : Dumb CBer

Up one : Go up one channel

Wall to wall : All over/everywhere

What am I putting to you? : Please give me an S-meter reading

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Groupe President Electronics, declares that the radio equipment :

Brand: PRESIDENT

Type: TXPR667

Commercial Name: JOHNSON II VOX 12/24 V

is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://president-electronics.com/DC/TXPR667.

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labour in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

• To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.
- Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.
- Any repair under warranty will be free and the return delivery costs will be borne by our company.
- A purchase proof must be necessarily included with the device to be repaired.
- The dates listed on the warranty certificate and proof of purchase must match.
- Do not proceed with the installation of the device without reading the user manual.
- No spare part will be sent nor exchanged by our services under warranty.
The warranty is only valid in the country of purchase.

Exclusions (are not covered):

• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...)
• The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

• Check the power supply of your device and the quality of the fuse.
• Check that the antenna, the microphone.... are correctly connected.
• Check that the squelch level is properly adjusted; the programmed configuration is the correct one...
• In case the device is not under warranty, the repair and return of the device will be charged.
• All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.

- In case of real malfunction, please contact your dealer first; they will decide action to be taken. - In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

Technical Manager and Quality Manager

Date of the purchase:

Type: CB Radio JOHNSON II VOX 12/24 V

Serial Number:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

UWAGA!

Six identical diagrams showing a car viewed from different angles, with no text or symbols present.

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

https://president-electronics.com/DC/TXPR667.

ZOBOWIAZANIA GWARANTA

FREQUENCY TABLE for In

TABELA CZESTOTLIWOŚCI DLA In

N° du canal Fréquences N° du canal FréquencesN° Canal Frecuencia Channel Frequency Channel FrequencyKanal Częstotliwość Kanal Czestotliwość
1	26,960 MHz	21	27,210 MHz
2	26,970 MHz	22	27,220 MHz
3	26,980 MHz	23	27,250 MHz
4	27,000 MHz	24	27,230 MHz
5	27,010 MHz	25	27,240 MHz
6	27,020 MHz	26	27,260 MHz
7	27,030 MHz	27	27,270 MHz
8	27,050 MHz	28	27,280 MHz
9	27,060 MHz	29	27,290 MHz
10	27,070 MHz	30	27,300 MHz
11	27,080 MHz	31	27,310 MHz
12	27,100 MHz	32	27,320 MHz
13	27,110 MHz	33	27,330 MHz
14	27,120 MHz	34	27,340 MHz
15	27,130 MHz	35	27,350 MHz
16	27,150 MHz	36	27,360 MHz
17	27,160 MHz	37	27,370 MHz
18	27,170 MHz	38	27,380 MHz
19	27,180 MHz	39	27,390 MHz
20	27,200 MHz	40	27,400 MHz

N° du canal Fréquences N° du canal FréquencesN° Canal Frecuencia N° Canal FrecuenciaChannel Frequency Channel FrequencyKanal Częstotliwość Kanal Częstotliwość
1	26,965 MHz	2	27,2	15 MHz
2	26,975 MHz		22	27,225 MHz
3	26,985 MHz		23	27,255 MHz
4	27,005 MHz		24	27,235 MHz
5	27,015 MHz		25	27,245 MHz
6	27,025 MHz		26	27,265 MHz
7	27,035 MHz		27	27,275 MHz
8	27,055 MHz
9	27,065 MHz
10	27,075 MHz
11	27,085 MHz
12	27,105 MHz
13	27,115 MHz
14	27,125 MHz
15	27,135 MHz
16	27,155 MHz
17	27,165 MHz
18	27,175 MHz
19	27,185 MHz
20	27,205 MHz

Note: In U configuration: press the AM/FM key (8) in order to select the frequency band ENG or CEPT. "UK" icon appears while ENG mode. "UK" icon disappears while CEPT mode (see table at page 48).

The frequency band and the transmission power of your transceiver must correspond with the configuration authorized in the country where it is used.

Countries in which there are particular restrictions (Licence ^1 / Register ^2 )

PRE514ENT
