USER MANUAL WE 2 CHICCO

Line drawing of a stroller with adjustable seat and front panel (no text or symbols)

chicco®

Line drawing of a children's stroller with wheels and handle (no text or symbols)

Line drawing of a bicycle's seatbelt mechanism with a red circle highlighting the handle area (no text or symbols present)

1B

Illustration of a hand using a tool to adjust a car wheel rim (no text or symbols present)

Illustration of a car wheel with a red arrow indicating motion direction (no text or symbols)

Illustration of a person using a carton to lift a vehicle, with no text or symbols present.

3A

4

4A

5 B A C

Line drawing of a hand adjusting a seatbelt buckle (no text or symbols)

Line drawing of a hand holding a tool near a vehicle's seat (no text or symbols)

Line drawing of a hand using a tool to adjust or install a vehicle seatbelt (no text or symbols visible)

Illustration of a person's foot and ankle being adjusted for a specific point, with a red arrow indicating the location (no text or symbols present)

7A

Illustration of a baby stroller with a hand holding the seat, showing body positioning and rotation (no text or symbols)

Line drawing of a child's stroller with a hand adjusting the seat (no text or symbols)

Line drawing of a baby stroller with wheels and a canopy cover (no text or symbols)

Line drawing of a mechanical assembly with a red curved line indicating a step or motion (no text or symbols present)

9A

9B

9C 9C 9C

9D

Illustration of a person using a tool to lift a car, with a red dot marking the head (no text or symbols present)

10A

11A

Line drawing of a car seatbelt with hand adjusting seat (no text or symbols)

11C

11D

11E

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a sewing machine with a red circular mark highlighting the handle (no text or symbols)

12B

12C

13A

13B

14 a b

Line drawing of a baby stroller with a red circular label showing '14A' (no text or symbols on the device itself)

Line drawing of a baby stroller with a red circular mark on the left (no text or symbols)

Line drawing of hands using a device to adjust or install a seatbelt (no text or symbols present)

Line drawing of a hand holding a cup over a car, with a red dot and circular motion indicators (no text or symbols)

Technical line drawing of a stroller with wheels and internal components, no text or symbols present

IT ISTRUZIONI D'USO

IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFE-RIMENTO.

ATTENZIONE: PRIMA DELL'USO RI-MUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.

AVVERTENZE

EN INSTRUCTIONS FOR USE IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

WARNINGS

- WARNING: Never leave the child unattended.

- WARNING: Ensure that all the locking devices are engaged before use.

- WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.

- WARNING: Do not let the child play with this product.

- WARNING: Always use the restraint system.

- The use of the crotch strap and safety harness is necessary to guarantee the safety of your child. Always use the safety harness together with the crotch strap.

- WARNING: Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- WARNING: This product is not suitable for running or skating.

- The vehicle is suitable for children up to 22 kg or 4 years, or whichever limit is reached first.

- The backrest should be used in its most reclined position for children from birth to 6 months of age.

- Only CHICCO KORY / FIRST-SEAT RECLINE car seats (with the appropriate adaptors) can be attached to the CHICCO WE 2 stroller.

• The brake must always be engaged when positioning or removing your child from the stroller.

- Use the brake every time you stop.

- Never leave the stroller on a sloped surface, with a child on board, even when the brakes are on.

- Do not overload the storage basket. Maximum weight 5 kg.

- Any weight attached to the handles and/or backrest and/or on the sides of the stroller may effect the stability of the stroller.

- Do not transport more than one child at a time.

- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.

- Do not use this product if any part is broken, torn or missing.

• This configuration should not be used as a replacement for a cot or bed. Should your child need to sleep, then they should be placed in a suitable pram body, cot or bed.

- Before assembling, ensure that the product and its components have not been damaged during transportation. In this case, do not use and keep out of reach of children.

- During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child.

• Make sure that the person using the stroller knows how to operate it in the safest way.
- This product must only be used by an adult.
- The product must only be assembled by an adult.
- To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects.
- Never use the stroller on staircases or escalators: you could suddenly lose control of it.
• Always pay attention when going up and down steps or pavements.
- If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sun light may cause the colour of the materials and fabric to fade.
- Prevent the stroller from coming into contact with salt water. It may cause rusting.
- Do not use the stroller on the beach.
- When not in use, the stroller should be kept out of reach of children.

TIPS FOR CLEANING AND MAINTENANCE

This product requires periodical maintenance. Cleaning and maintenance should only be carried out by an adult.

CLEANING

The seat of the stroller can be removed (please see the section FITTING AND REMOVING THE STROLLER LINING). Clean the fabric using a wet terrycloth and neutral soap. Periodically wipe the plastic parts clean with a soft damp cloth. To prevent the formation of rust, always dry metal parts if they have come into contact with water. The washing symbols and relative meanings are indicated below:

Hand wash

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

MAINTENANCE

If necessary, lubricate the moving parts with dry silicone lubricant. Regularly check the condition of the wheels and clean o all dust and sand. To avoid friction that may compromise the correct functioning of the stroller, make sure all plastic parts that run along the metal tubes are clean of dust, dirt and sand. Keep the stroller in a dry place.

GENERAL INSTRUCTIONS

OPENING THE STROLLER AND FIRST ASSEMBLY

WARNING: When opening the stroller, make sure that your child or other children are at a safety distance.

WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

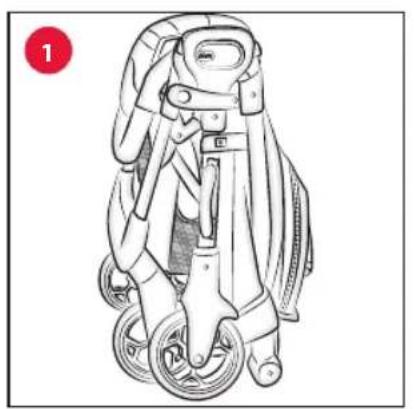

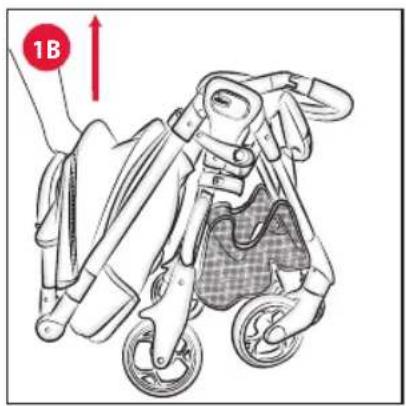

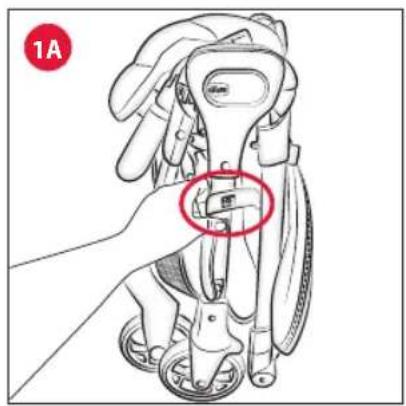

1. The stroller arrives in a folded state (Fig.1). To open it, first, release the locking latch (Fig.1A). Then, push the front section of the stroller forward while lifting the handlebar simultaneously until you hear a "click," indicating it is fully opened (Fig.1B).

WARNING: Before use, ensure that the stroller is locked in the open position, checking that the mechanism is effectively locked.

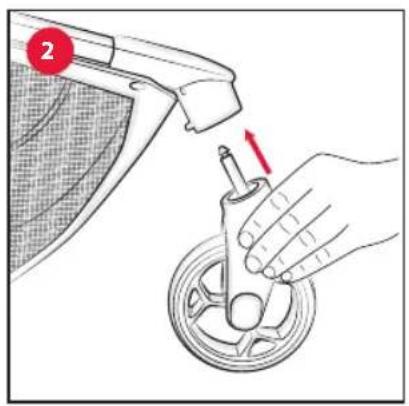

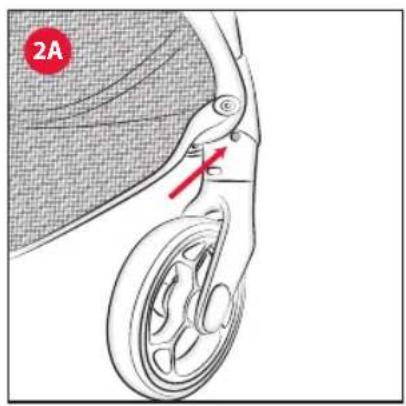

1. Assemble the front wheels by inserting the pin of the wheel into the appropriate hole until it locks in place (Fig. 2). To remove them, press the metal pin behind each wheel (Fig. 2A).

WARNING: Before use, ensure that the wheels have locked correctly.

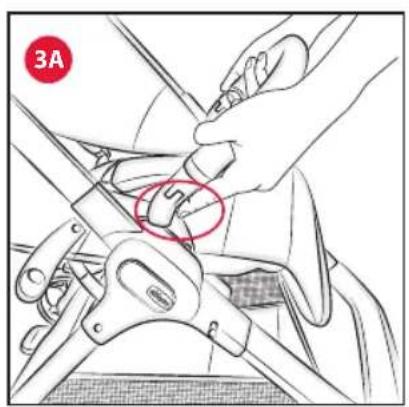

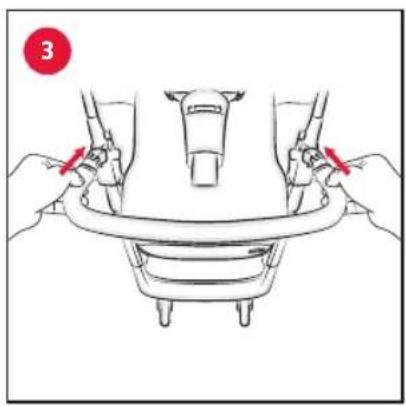

1. Install the bumper bar by inserting it into the appropriate slots located on the joints of the stroller (Fig. 3). Should you need to remove it, press the buttons on both sides (Fig. 3A).

WARNING: Never use the bumper bar to lift the product with your child sitting in it.

CARRY-ALL BASKET

The storage basket is already installed and cannot be removed.

HOW TO USE THE SAFETY HARNESS

This stroller has a ve-point safety harness featuring two shoulder straps, two adjustment holes, a waist strap and a crotch strap with buckle.

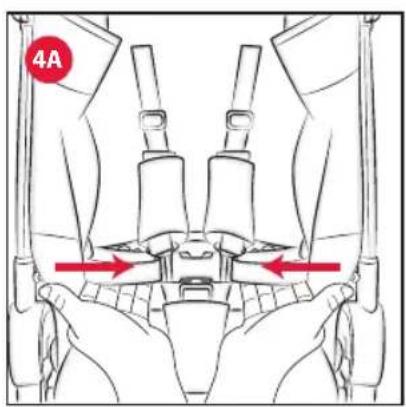

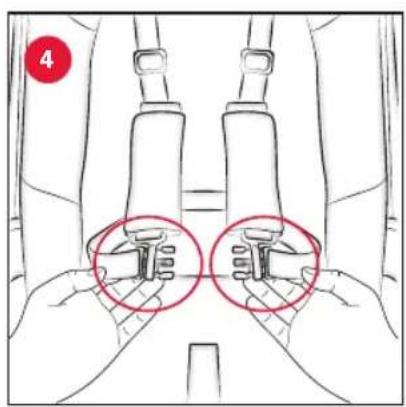

1. WARNING: To use it with children from birth to approx. 6 months of age, you must use the shoulder straps, first threading them through the two adjusting holes (Fig. 4), and threading the waist strap through the vertical holes (Fig. 4A). The height of the shoulder straps can be adjusted by using the different slots found on the backrest.

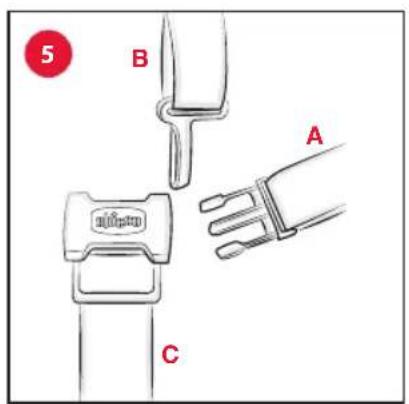

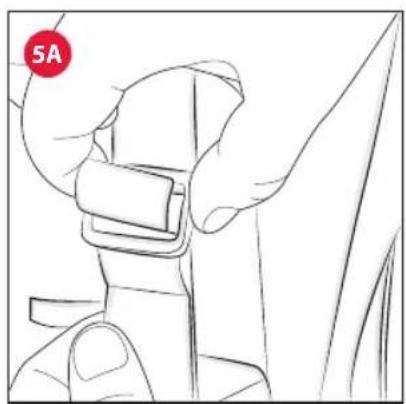

2. After laying the child in the stroller, fasten the straps (Fig. 5) by passing first the two forks (A) inside the shoulder strap buckle (B) and then inside the crotch strap buckle (C); adjust the height of the shoulder straps so that they correctly put your child's shoulders (Fig. 5A). Always make sure that the straps are fastened correctly. To unfasten the strap, press and pull the side clips.

WARNING: To guarantee the safety of your child, the safety harness must be fastened at all times. To make sure the harness straps are tted correctly, place your child inside the stroller and pull the ends of the straps rmly.

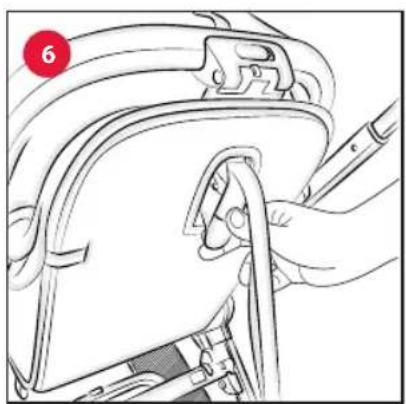

Paris The backrest can be adjusted to different positions.

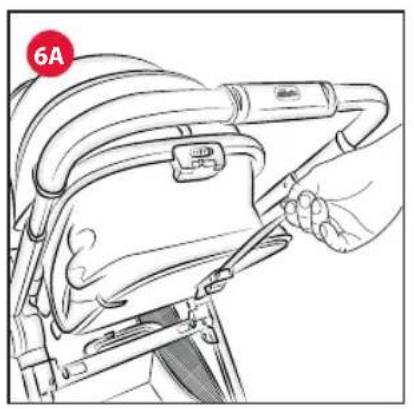

1. To lower the backrest use the rear adjustment system by pushing on the button and pulling the backrest down to the desired position (Fig. 6). On the other hand, to lift the backrest, pull the strap upwards (Fig. 6A).

WARNING: The child's weight can make these operations more difficult.

REAR BRAKES

The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels by using the support tube.

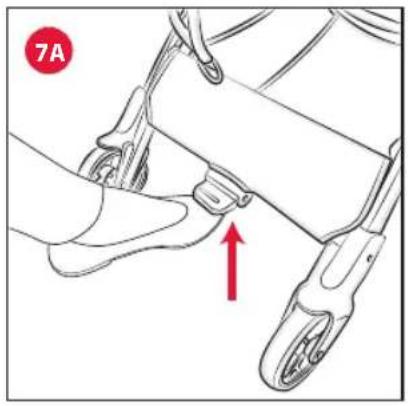

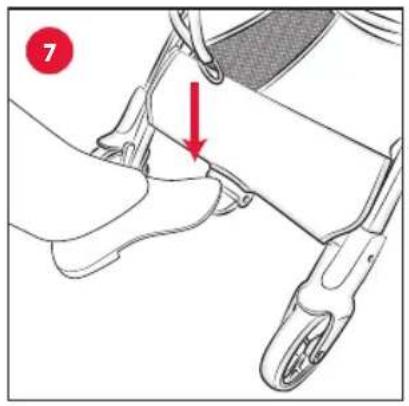

1. To activate the brakes, press down on the pedal located centrally (Fig. 7). To release the brakes, press the pedal in the opposite di-

rection (Fig. 7A).

SUN CANOPY

The canopy is already installed on the stroller.

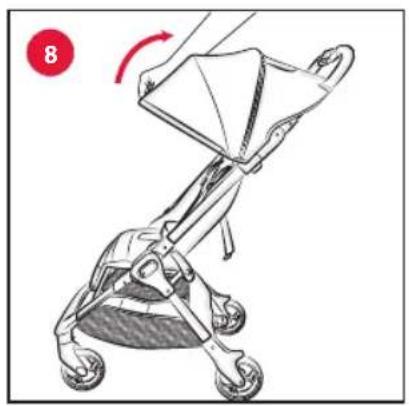

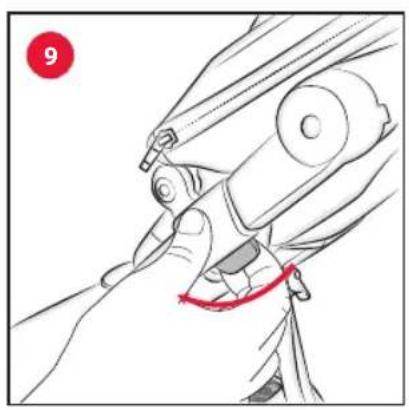

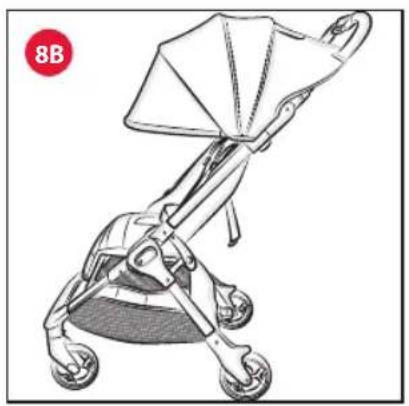

1. To open and adjust the canopy use the front arch (Fig. 8). The hood can be extended by opening the zipper (Fig. 8A-8B). The canopy features a mesh window.

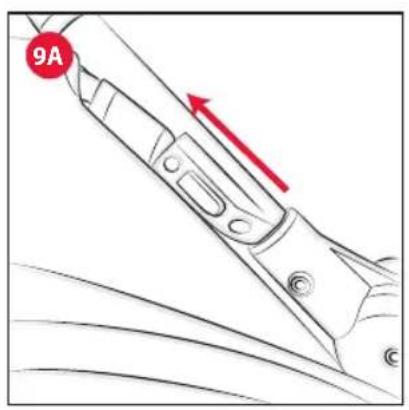

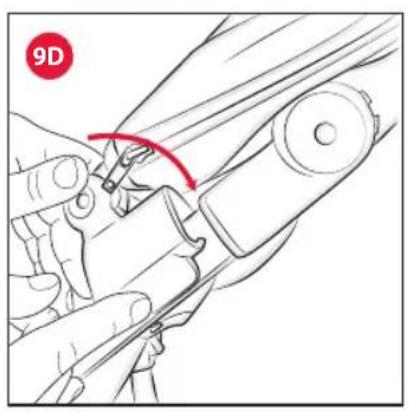

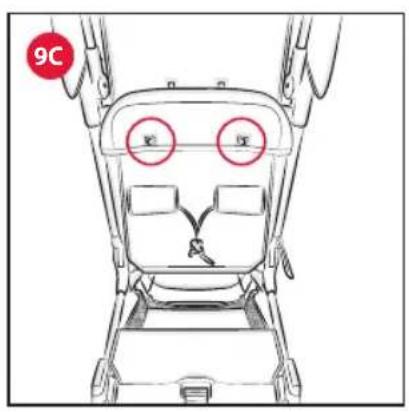

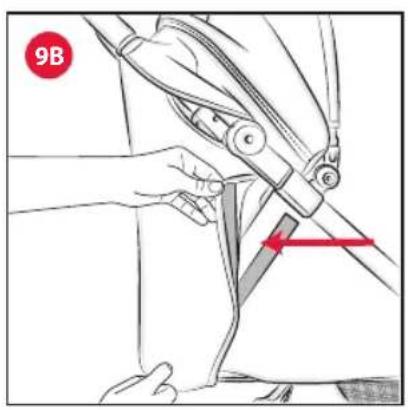

2. Should you need to remove the hood from the stroller, remove the fastening clip from the tube (Fig. 9), release the rear arch from the plastic pins and pull it out (Fig. 9A). Complete the operations by removing the Velcro on both sides (Fig. 9B) and the two buttons on the back (Fig. 9C). To mount the hood again, carry out the operations described above in the opposite order, positioning the fastening clip close to the handle joint (Fig. 9D).

ADJUSTABLE LEGREST

The legrest can be used in 2 positions.

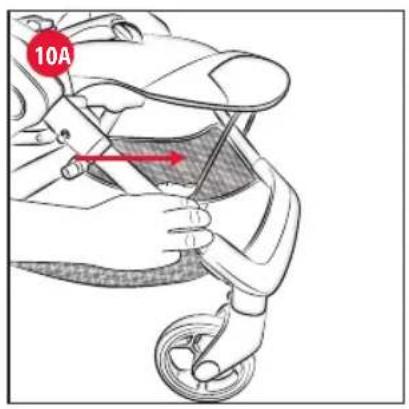

1. To use the leg rest in a horizontal position, move the metal support forward (Fig. 10-10A). To lower it, return the support to its original position.

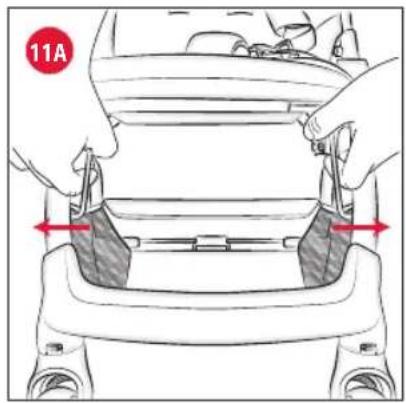

FITTING AND REMOVING THE STROLLER LINING 11. REMOVING THE SEAT LINING

Remove the hood as described in paragraphs 8-9.

Remove the bumper bar.

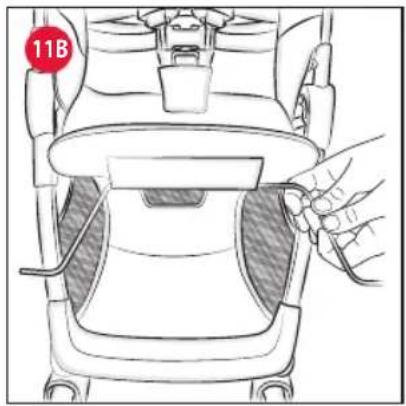

Release the legrest adjustment rod from the front tubes and remove the rod from the fabric pocket. (Fig. 11A and Fig.11B)

WARNING: Keep out of the reach of children.

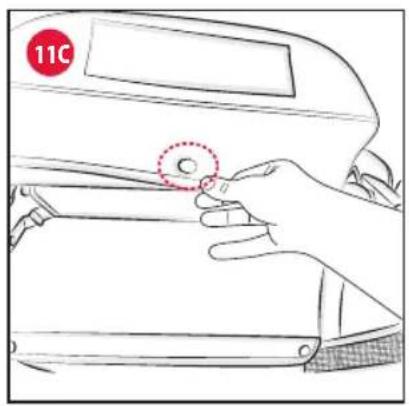

Release the snap button located beneath the seat. (Fig. 11C)

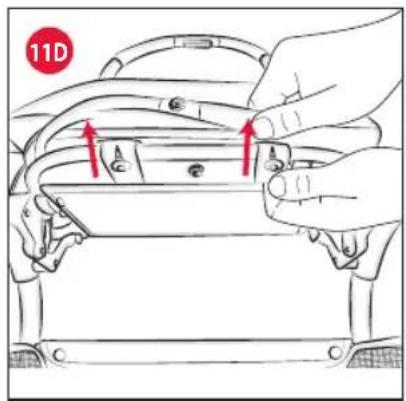

Remove the fabric buttonholes from the plastic pins. (Fig. 11D) Repeat the same operation with the buttonholes on the bottom of the backrest. (Figure 11E)

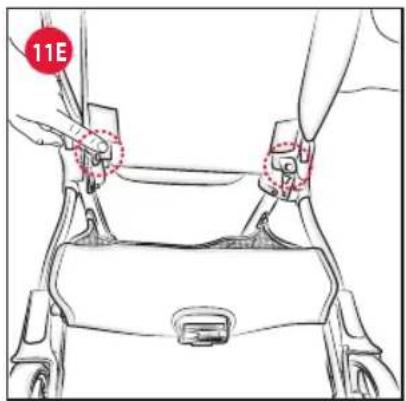

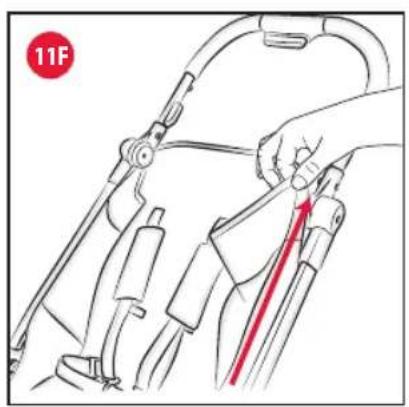

Remove the two fabric fins from the rails on the two lateral tubes. (Fig. 11F)

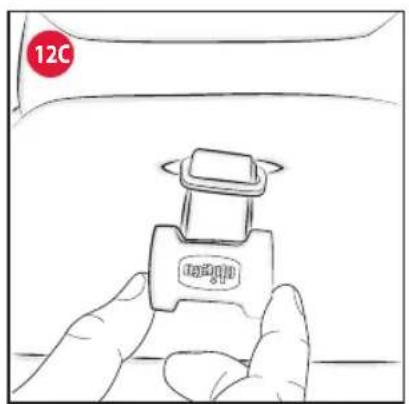

12. REMOVING THE BACKREST

Remove the padding of the crotch strap if present.

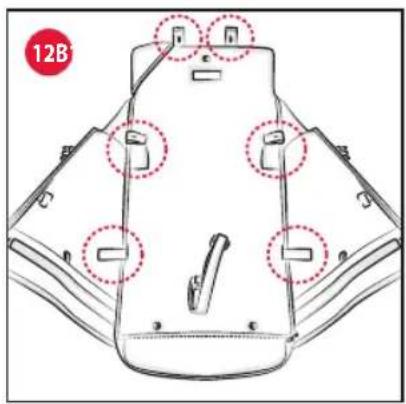

Remove the backrest adjustment strap from the two rings on the side flaps of the fabric. (Fig. 12A)

Open the zip on the upper end of the backrest and pull out the plastic panel, taking care to correctly remove the six straps on the side and lower part of the fabric and the crotch strap. (Fig. 12B and Fig. 12C)

13. FITTING THE BACKREST PANEL IN THE FABRIC AGAIN

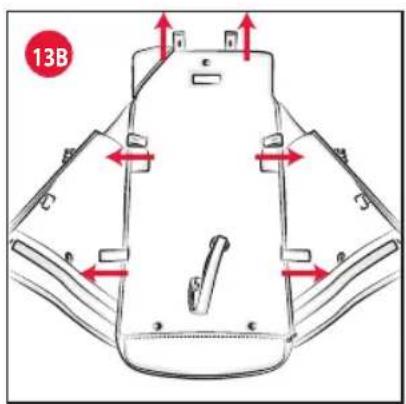

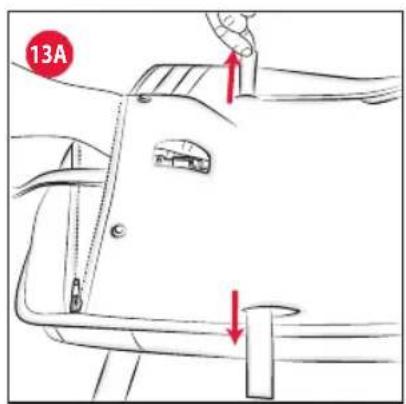

Fit the plastic panel completely into the fabric pocket also helping yourself from the inside and pull out the straps fastened to the plastic panel through the fabric slots. (Fig. 13A and Fig.13B)

Close the zip at the top of the backrest.

Pull the crotch strap out of the relevant fabric slot on the seat. (Figure 12C)

Fit the fabric lining back on the stroller by repeating the steps indicated in the paragraph "removing the seat lining" in the opposite order.

WARNING: When unfolding and folding this product, make sure that your child or other children are at a safe distance.

WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

WARNING: Before closing the stroller, ensure that the storage basket is empty.

The stroller has a closing device that can be used with one hand.

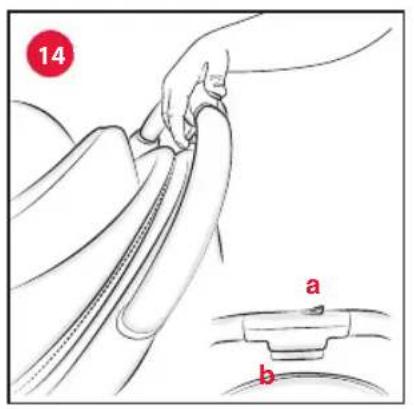

1. To fold the stroller, press the button "A" behind the handle while pressing the button "B" (Fig. 14); push down on the handle and the stroller will close automatically. The stroller will lock itself in the closed position. When closed, the stroller stands on its own (Fig. 14A-14B).

ACCESSORIES

WARNING: The accessories described below may not be included in some product versions. Carefully read the instructions for the accessories that came with the model you have purchased.

SHOULDER STRAPS AND CROTCH STRAPS

The stroller is fitted with padded shoulder straps and a soft crotch strap to ensure the safety and comfort of your child.

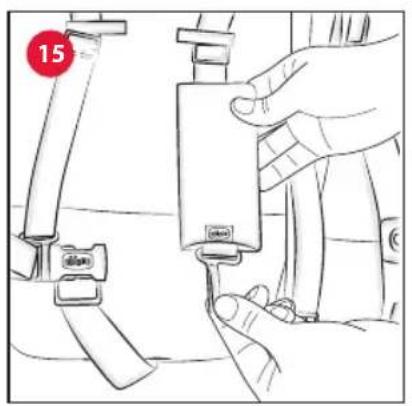

1. For assembly, insert the shoulder straps in the buckles (Fig. 15) and the crotch strap in the relevant padding (Fig. 15A). Attach the shoulder straps to the belts using the internal Velcro fasteners.

WARNING: Adjust the waist belt if necessary by pressing on the buckles.

WARNING: To guarantee the safety of your child, the safety harness must always be fastened.

RAIN COVER

1. To fit the rain cover, fasten the Velcro straps around the stroller's frame, in the positions shown in fig. 16 (the steps must be repeated on both sides of the stroller). When you have finished using the rain cover, allow it to dry properly if it is wet.

WARNING: The rain cover cannot be used on the stroller without the hood being extended, as it may cause suffocation.

WARNING: When the rain cover is fitted on the stroller, never leave it exposed to direct sunlight with your child inside, as the temperature will rise considerably.

The following elements, which can be purchased separately, can be fit on the CHICCO WE 2 stroller:

• FIRST-SEAT RECLINE car seat

• KORY car seat

All car seats for use on the stroller require the special adaptors sold separately.

WARNING: FOR THE ASSEMBLY AND/OR USE OF THE ITEMS LISTED ABOVE, REFER TO THE RELEVANT MANUALS.

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.
