USER MANUAL KORY Essential i-Size CHICCO

Illustration of a baby car seat with adjustable straps and seatbelt (no text or symbols)

ECE R 129/03, 40-80 cm.

40-60 cm 61-80 cm

IT KORY ESSENTIAL i-SIZE (40-80 cm) 32
EN KORY ESSENTIAL i-SIZE (40-80 cm) 38
FR KORY ESSENTIAL i-SIZE (40-80 cm) 44
DE KORY ESSENTIAL i-SIZE (40-80 cm) 50
ES KORY ESSENTIAL i-SIZE (40-80 cm) 57
PT KORY ESSENTIAL i-SIZE (40-80 cm) 63
CZ KORY ESSENTIAL i-SIZE (40-80 cm) 70
PL KORY ESSENTIAL i-SIZE (40-80 cm) 76
NL KORY ESSENTIAL i-SIZE (40-80 cm) 83
EL KORY ESSENTIAL i-SIZE (40-80 cm) 89
TR KORY ESSENTIAL i-SIZE (40-80 cm) 96
HR KORY ESSENTIAL i-SIZE (40-80 cm) 102

SL KORY ESSENTIAL i-SIZE (40-80 cm) 108
SK KORY ESSENTIAL i-SIZE (40-80 cm) 114
HU KORY ESSENTIAL i-SIZE (40-80 cm) 120
RO KORY ESSENTIAL i-SIZE (40-80 cm) 126
BG KORY ESSENTIAL i-SIZE (40-80 cm) 133
UK KORY ESSENTIAL i-SIZE (40-80 cm) 140
RU KORY ESSENTIAL i-SIZE (40-80 cm) 147
BR KORY ESSENTIAL i-SIZE (40-80 cm) 154
SV KORY ESSENTIAL i-SIZE (40-80 cm) 162
AR KORY ESSENTIAL i-SIZE (40-80 cm) 168

2 A B C D E F G H N I J K L M

3

A B C D E F G

H J H K I J I L

3D diagram of two mechanical components with a red arrow labeled 'M' pointing to one (no text or symbols beyond the label)

40-80 cm /Max 13kg

Illustration showing two steps of a hand operating a mechanical device, labeled 1 and 2 with red arrows indicating movement.

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

Illustration of a car seatbelt buckle being adjusted for a hand, with a red arrow indicating the motion direction (no text or symbols present)

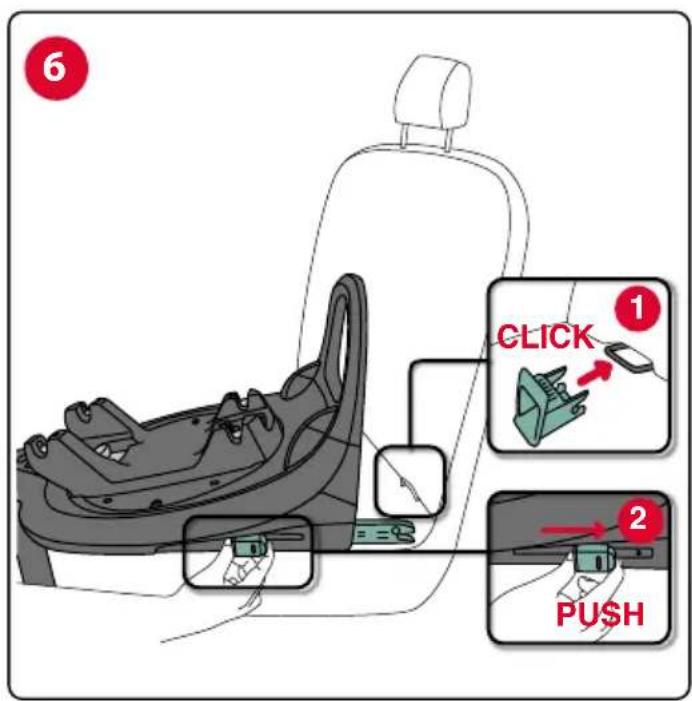

6 1 CLICK 2 PUSH

40-80 cm /Max 13kg

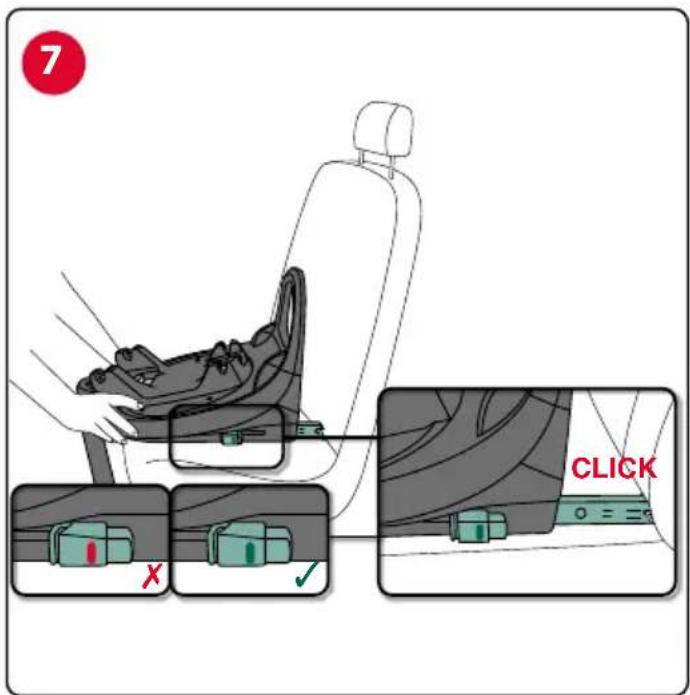

7 CLICK X

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

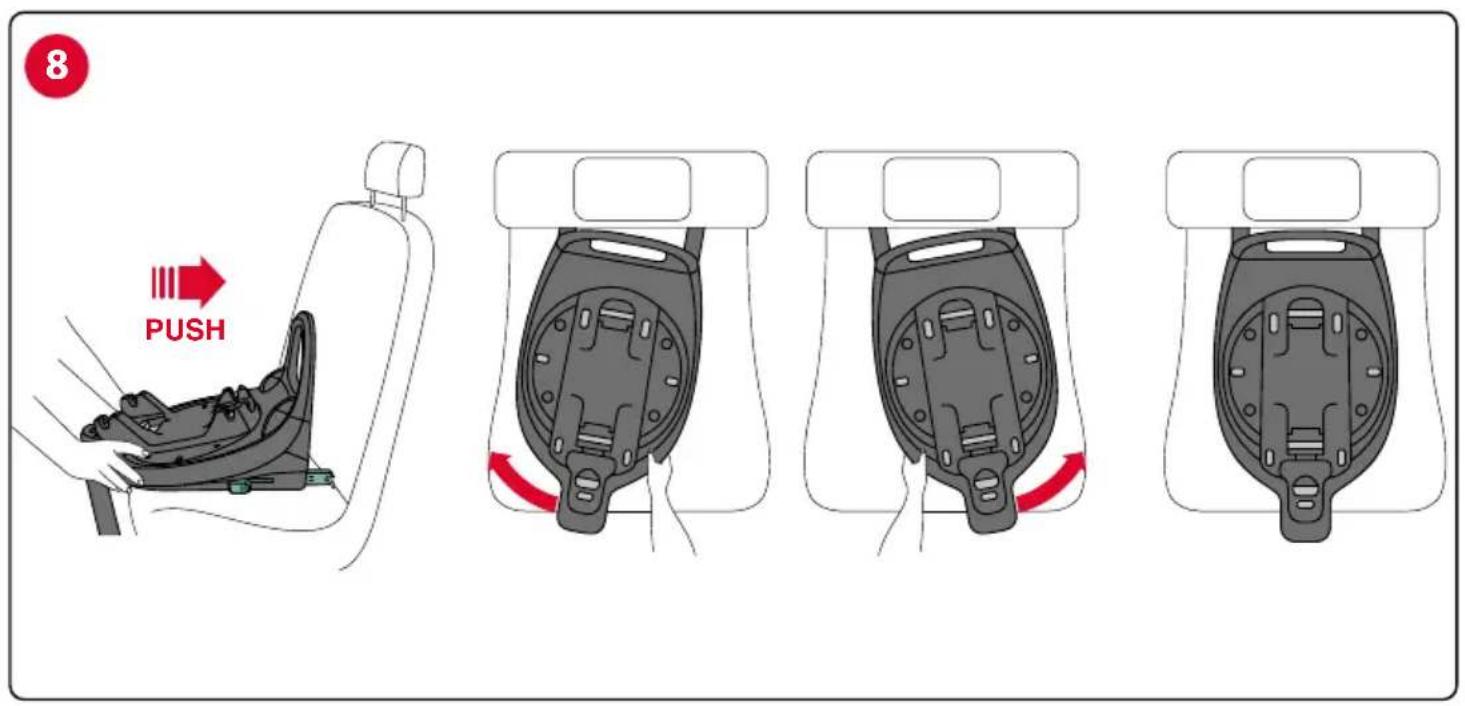

8 PUSH

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

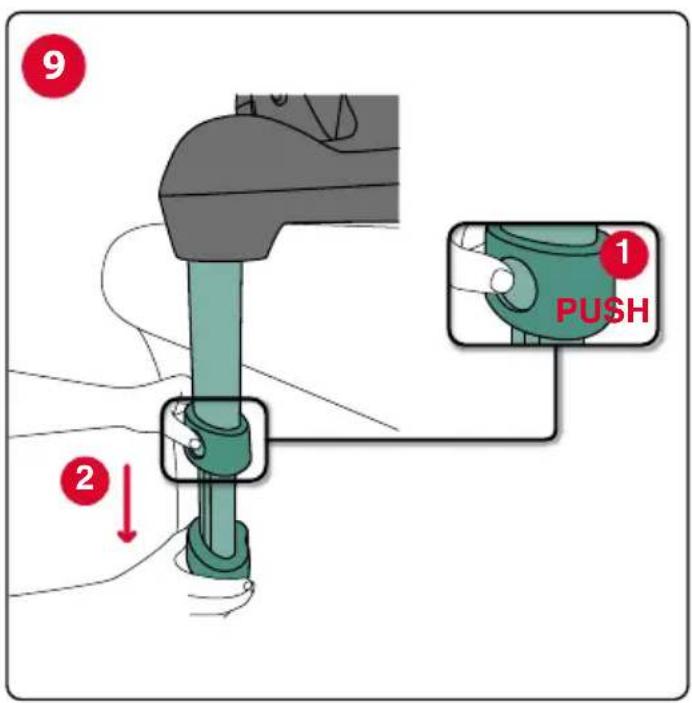

9 2 1 PUSH

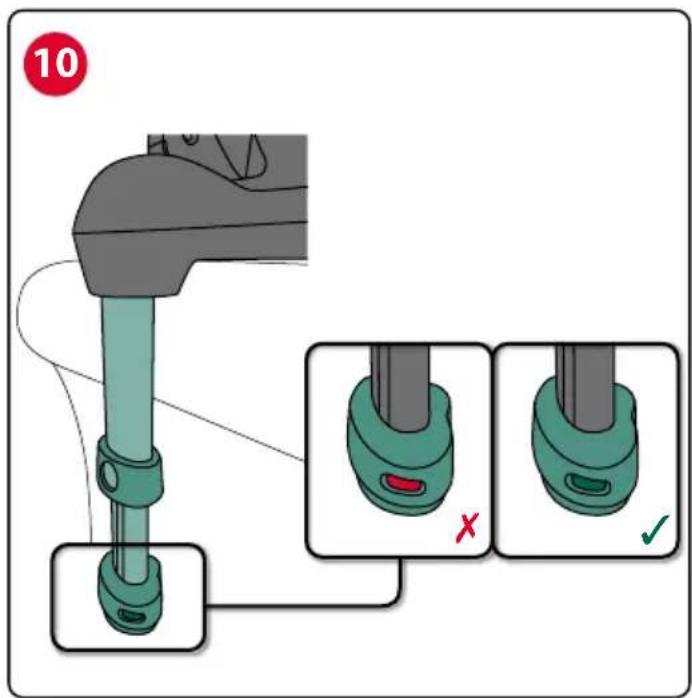

10 X ✓

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

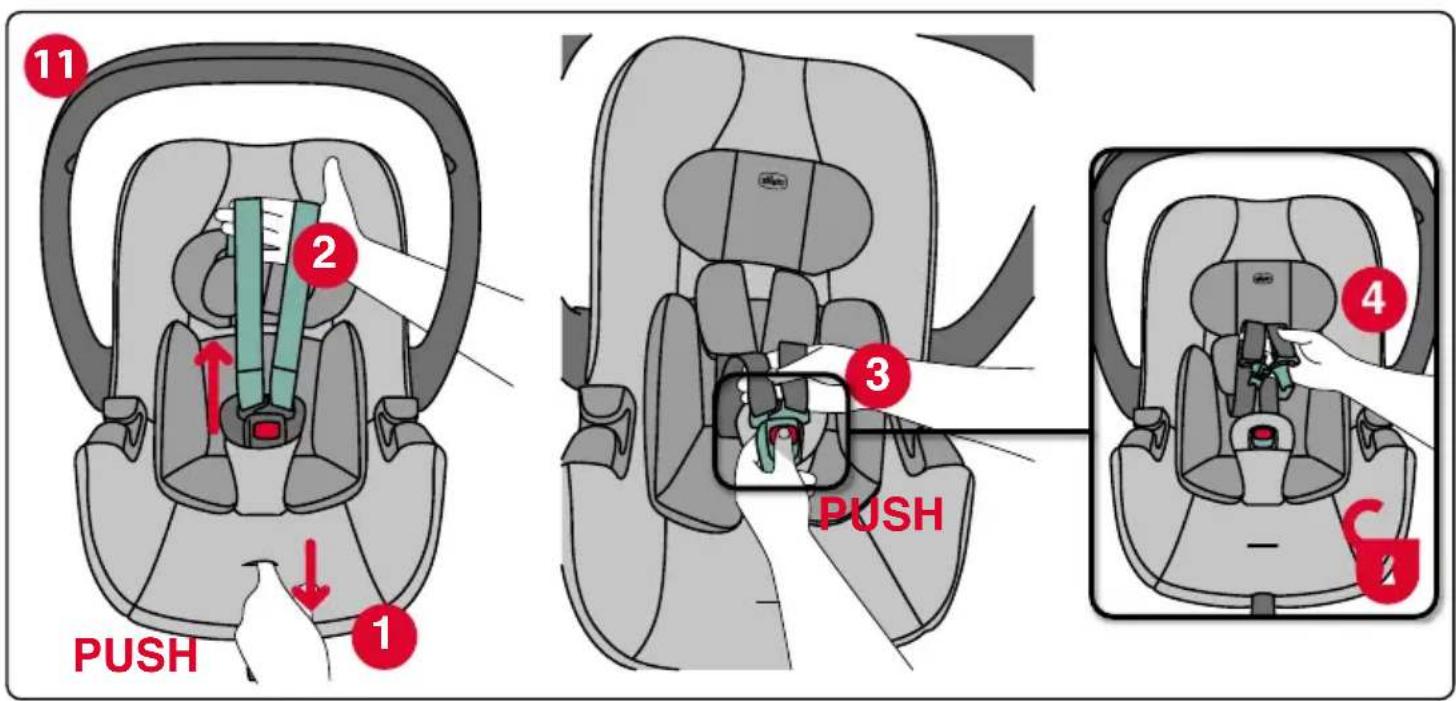

1 2 11 PUSH 3 PUSH 4 C

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

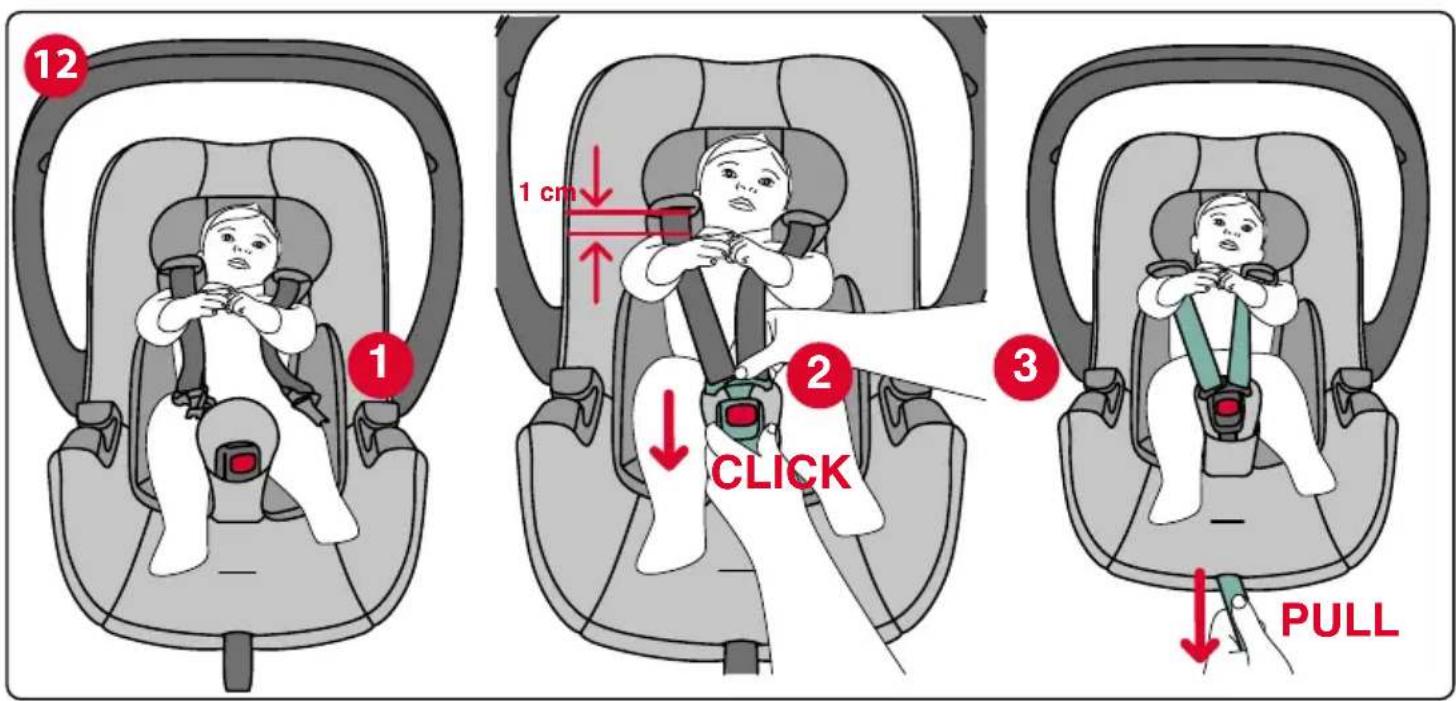

12 1 cm 2 CLICK 3 PULL

40-80 cm /Max 13kg

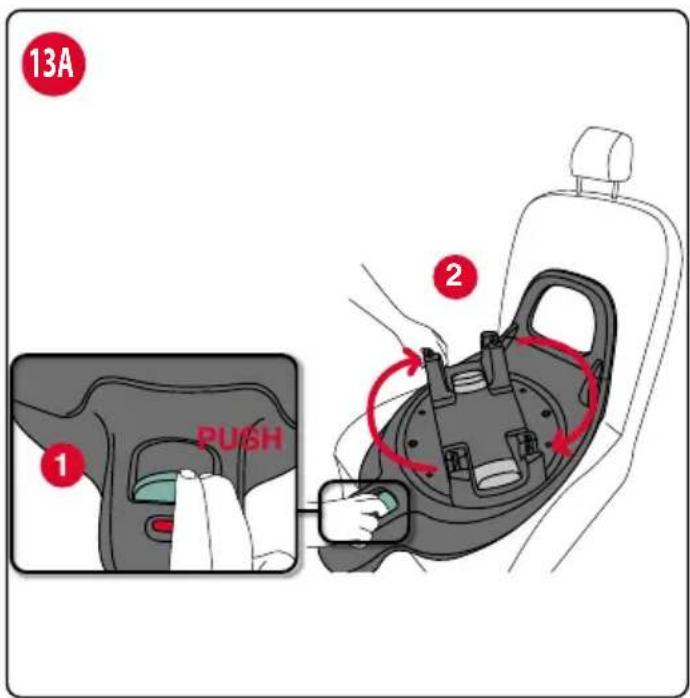

13A ① PUSH ②

40-80 cm /Max 13kg

13A

Top-down view of a gray mechanical component with a red central feature and a red X mark (no text or symbols)

Simple line drawing of a car head with a green indicator button and a green checkmark (no text or symbols)

Interior view of a car seat with internal components and a numbered marker (3), no text or symbols present.

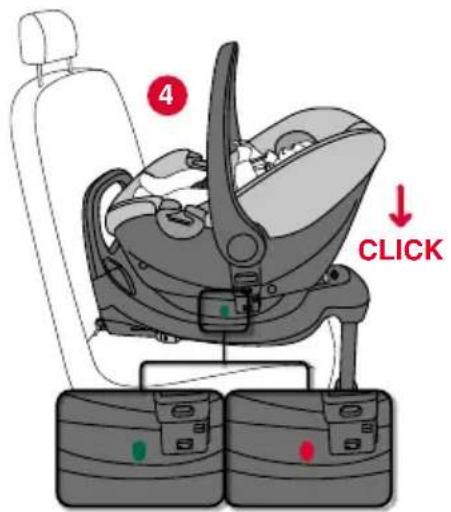

④ CLICK

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

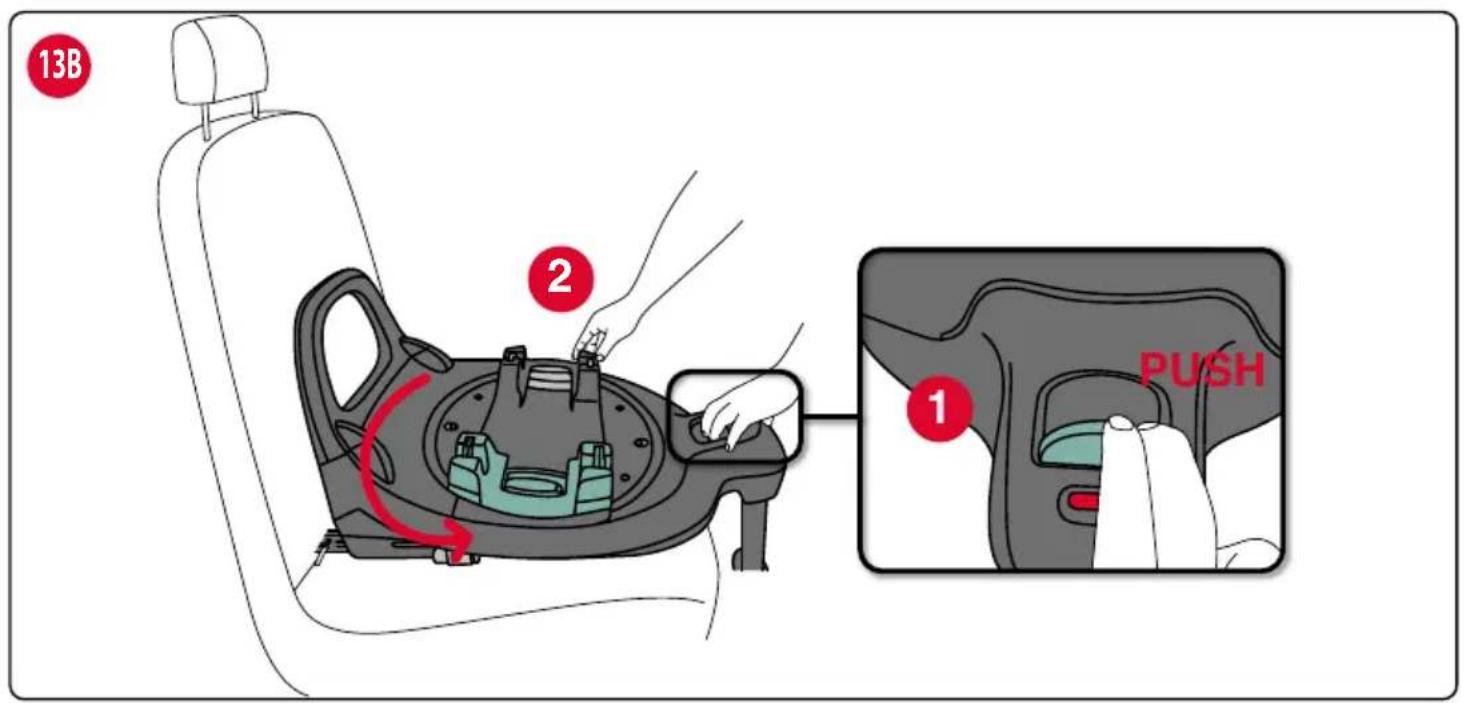

13B 2 1 PUSH

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

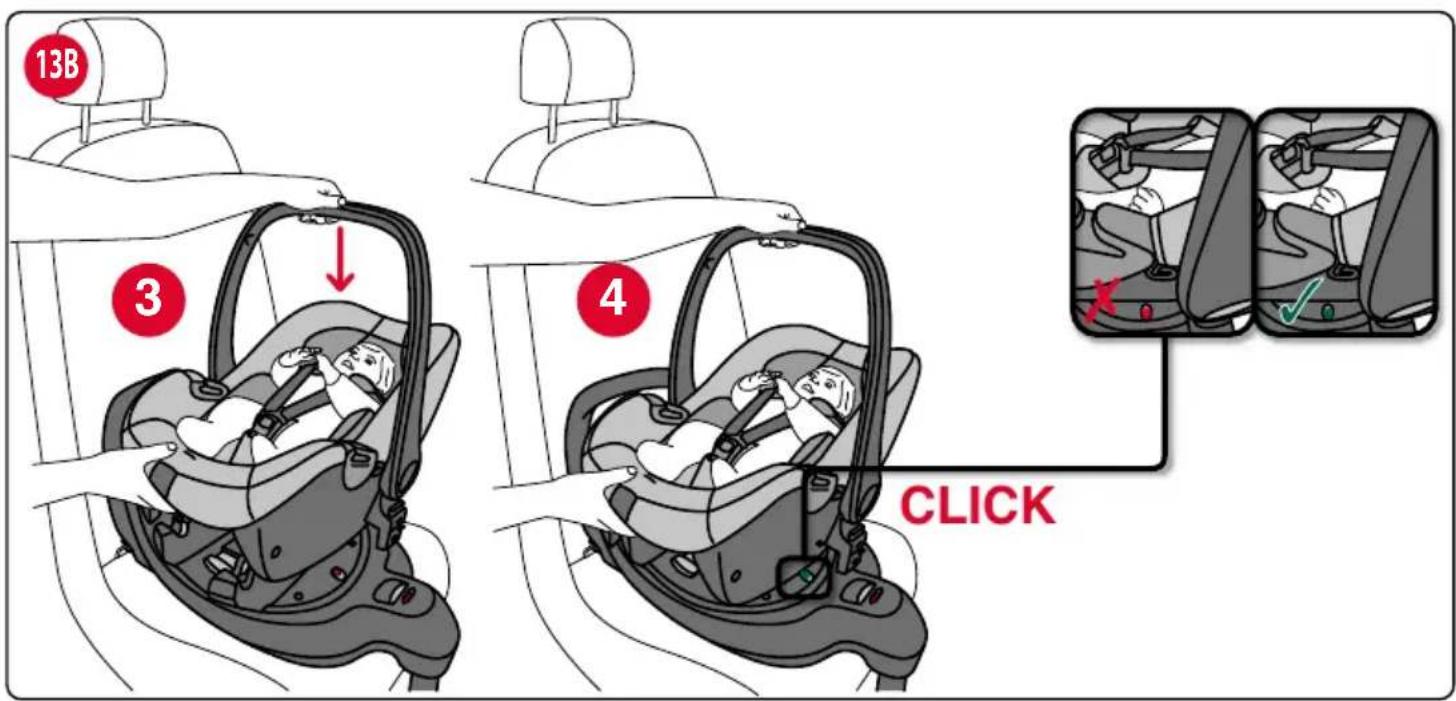

13B 3 4 CLICK

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

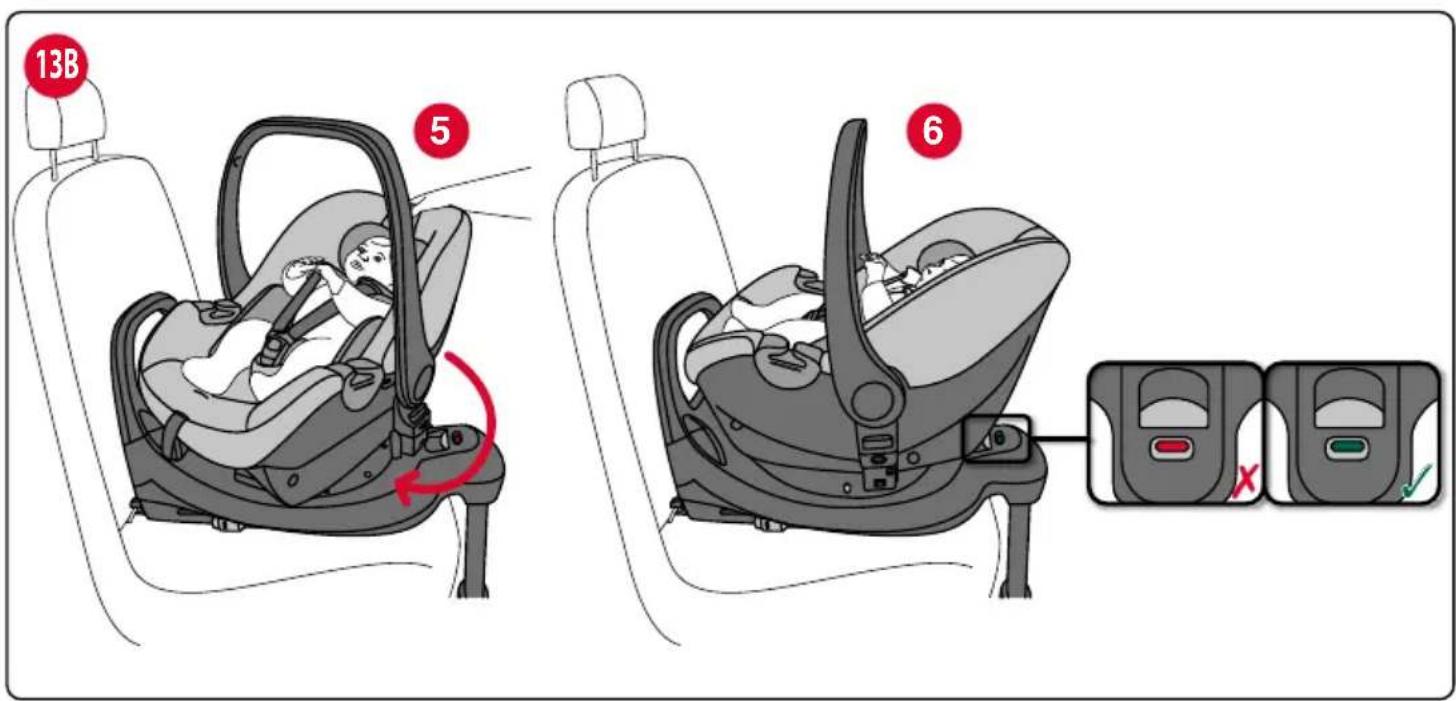

13B 5 6 X

ISOFIX SUPPORT LEG

40-80 cm /Max 13kg

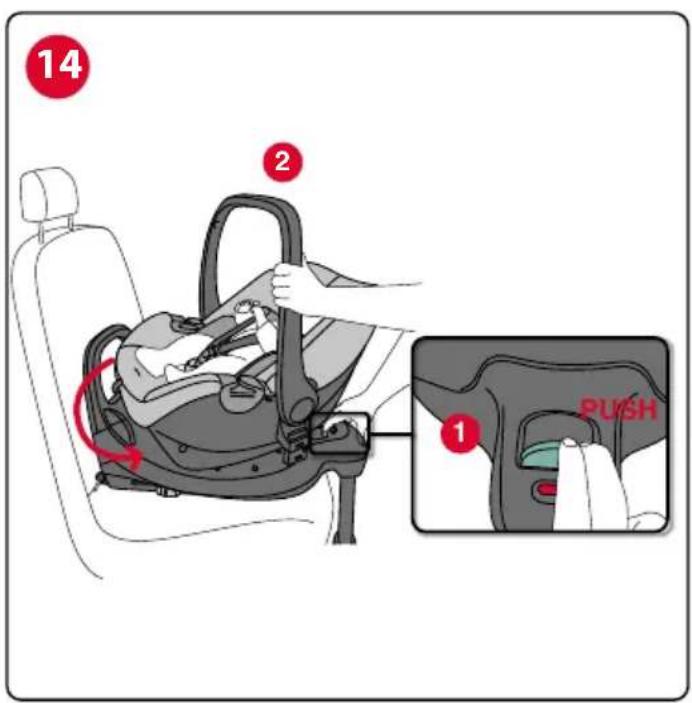

14 2 1 PUSH

2 PULL 1

Three symbolic icons: a smiling face, an eye with a curved line, and a person holding a tool (no text or symbols)

40-80 cm /Max 13kg

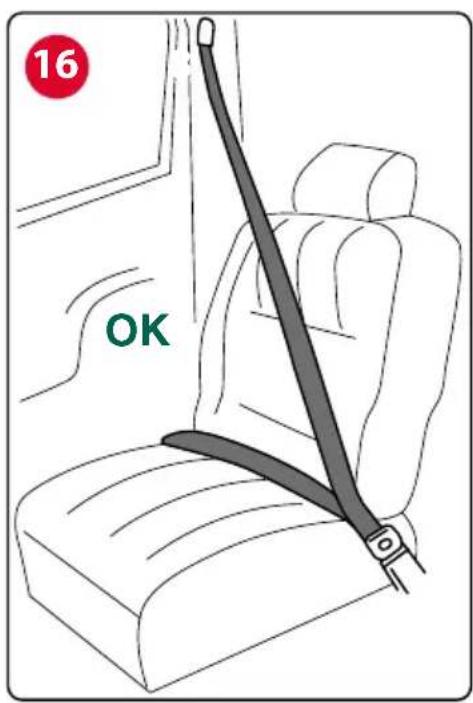

16 OK

NO!

OK! OK! NO! NO!

Three simple icons: a smiling face, a stylized eye with a black pupil, and a person sitting on a seesaw (no text or symbols)

40-80 cm /Max 13kg

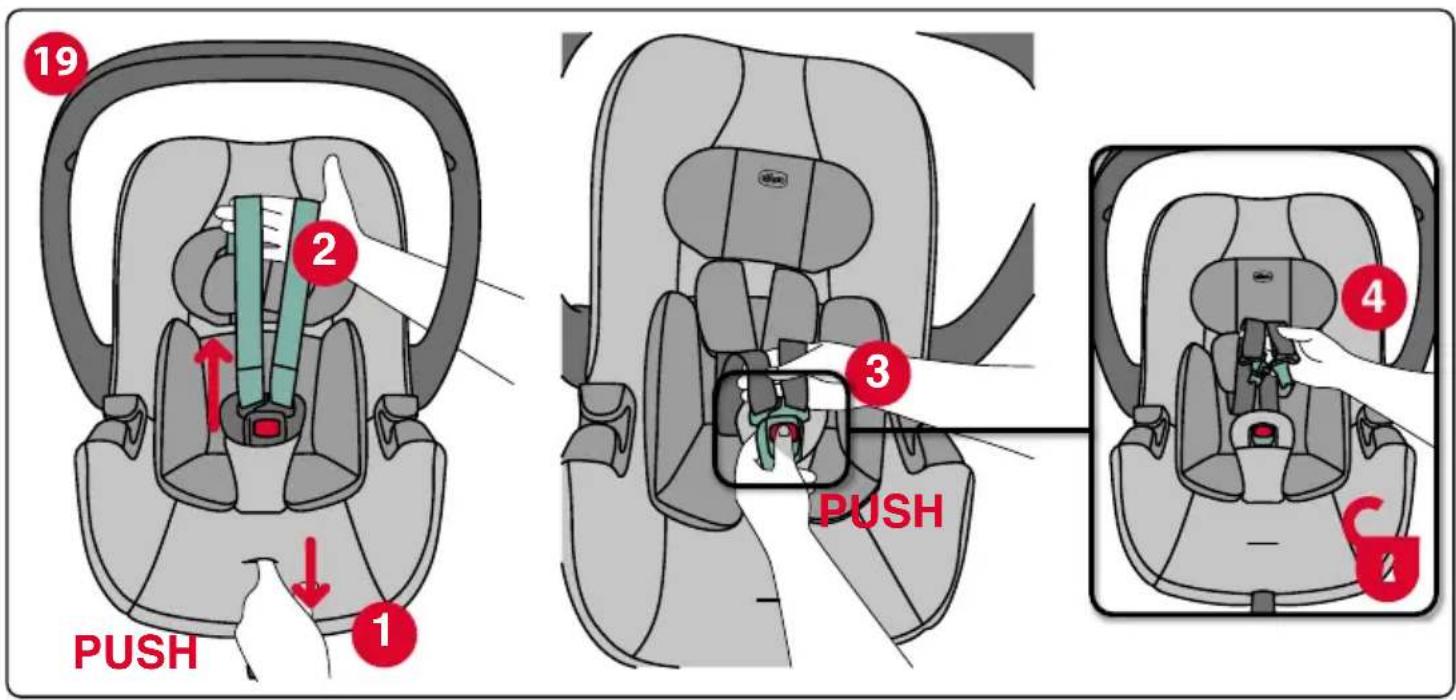

19 2 1 PUSH 3 PUSH 4

Three simple icons: a smiling face, a circular eye with stripes, and a person holding a tool (no text or symbols)

40-80 cm /Max 13kg

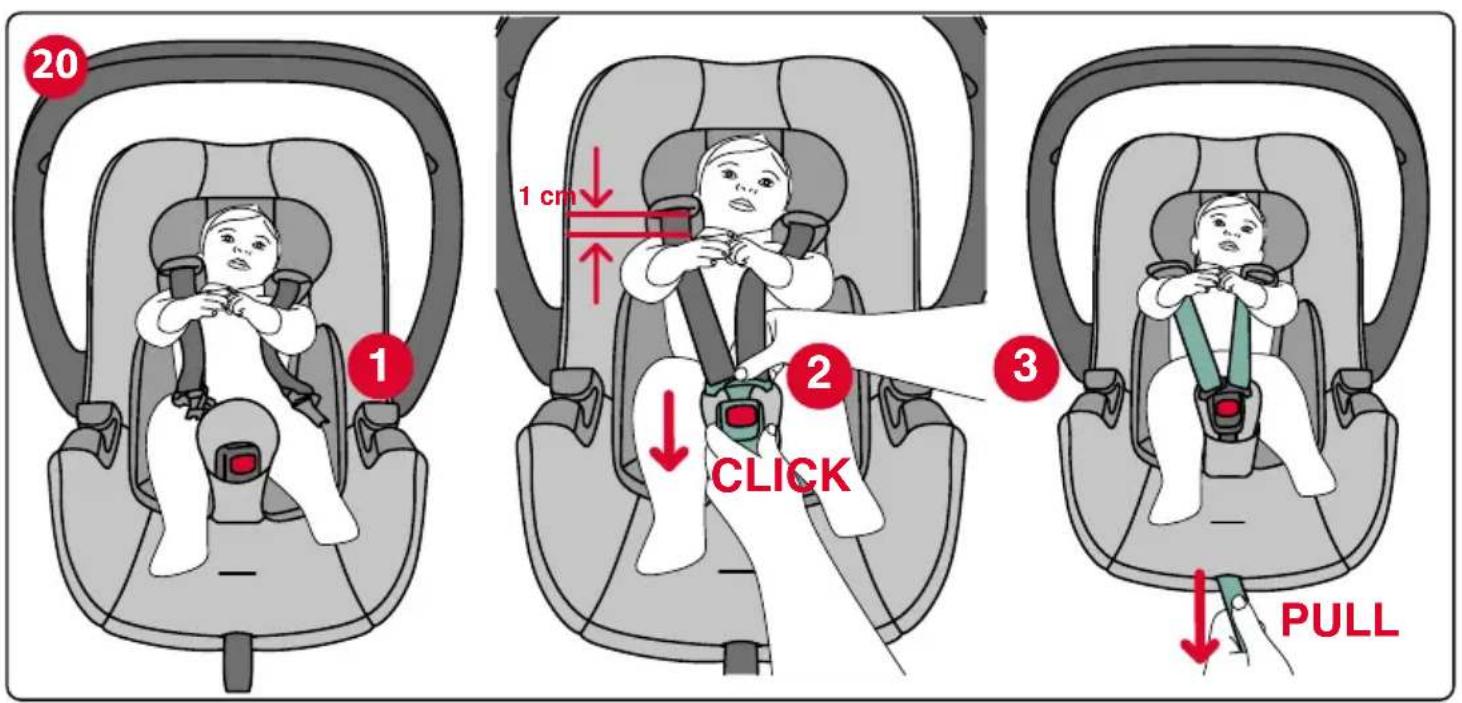

20 1 cm 2 CLICK 3 PULL

Three black-and-white icons: a smiling face, a circular eye with radial lines, and a seated figure with a diagonal stripe (no text or symbols)

40-80 cm /Max 13kg

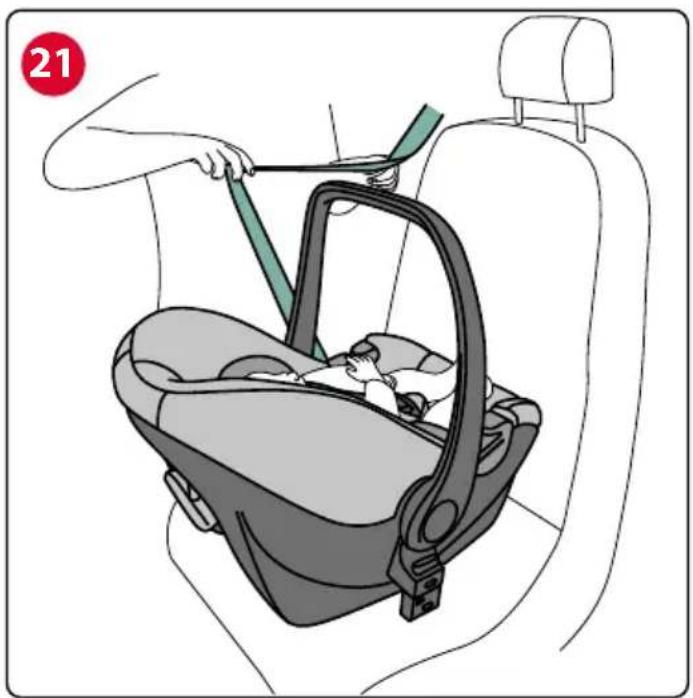

Interior view of a car seatbelt with a person adjusting the seatbelt (no text or symbols visible)

Three black-and-white icons: a smiling face, a circular eye with a needle, and a stylized human figure holding a crossbar (no text or symbols)

40-80 cm /Max 13kg

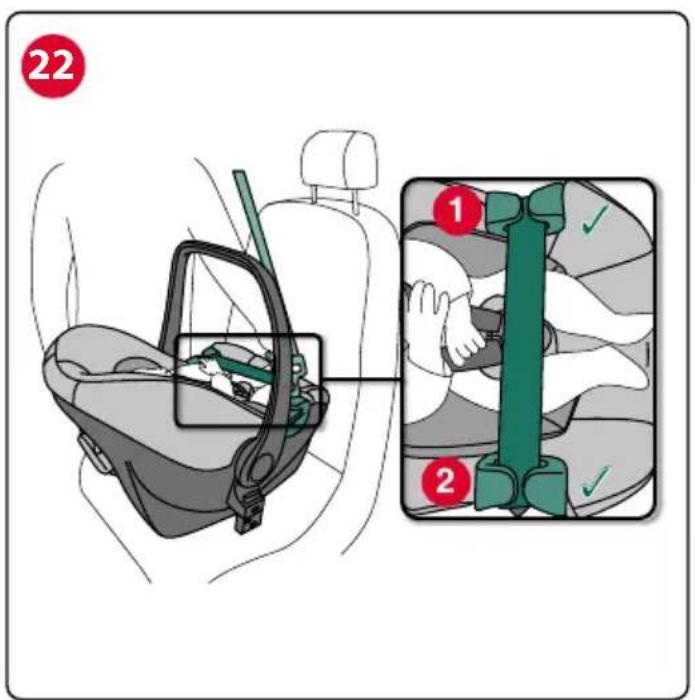

22 1 2

CLICK

Three black-and-white icons: a smiling face, a stylized eye with a ring, and a person holding a tool (no text or symbols)

40-80 cm /Max 13kg

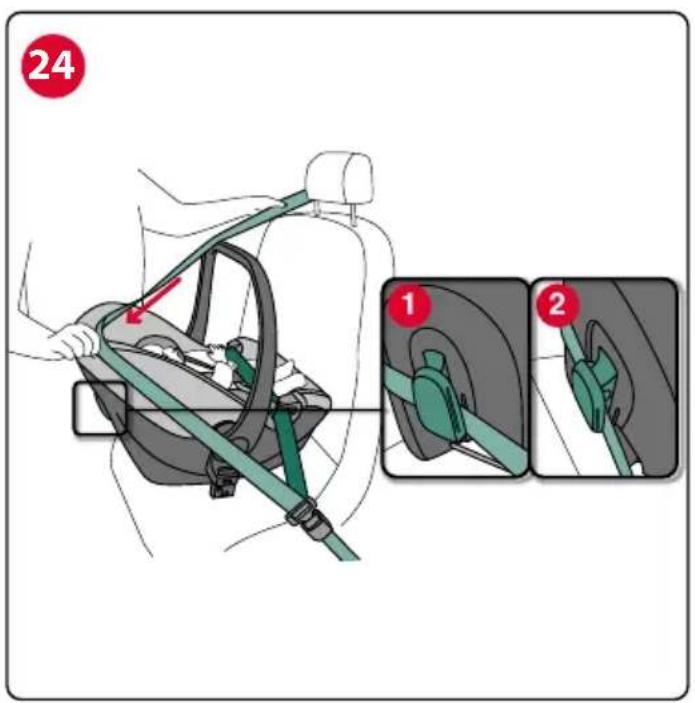

24 1 2

Illustration of a car seatbelt device with a red arrow indicating the seatbelt attachment (no text or symbols present)

Three simple icons: a smiling face, a circular eye with eyelashes, and a person holding a tool (no text or symbols)

40-80 cm /Max 13kg

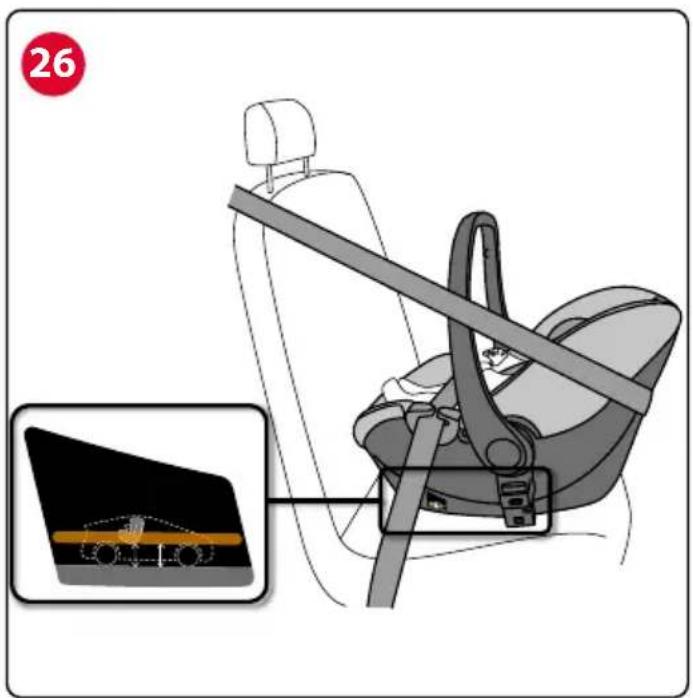

26

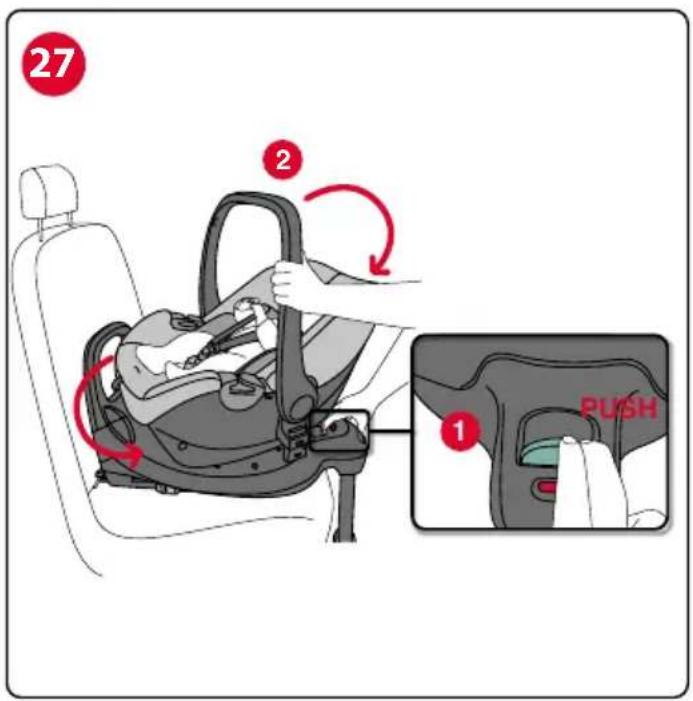

27 ② ① PUSH

28 A B C

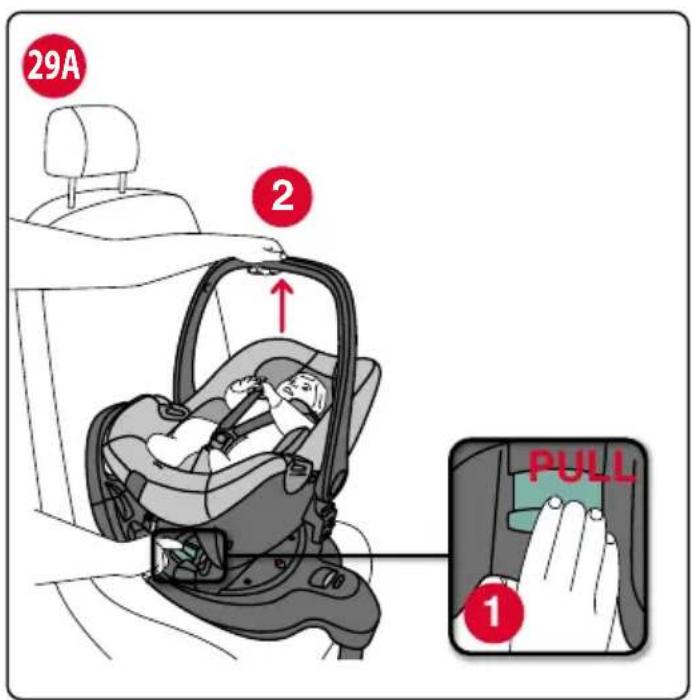

29A 2 PULL 1

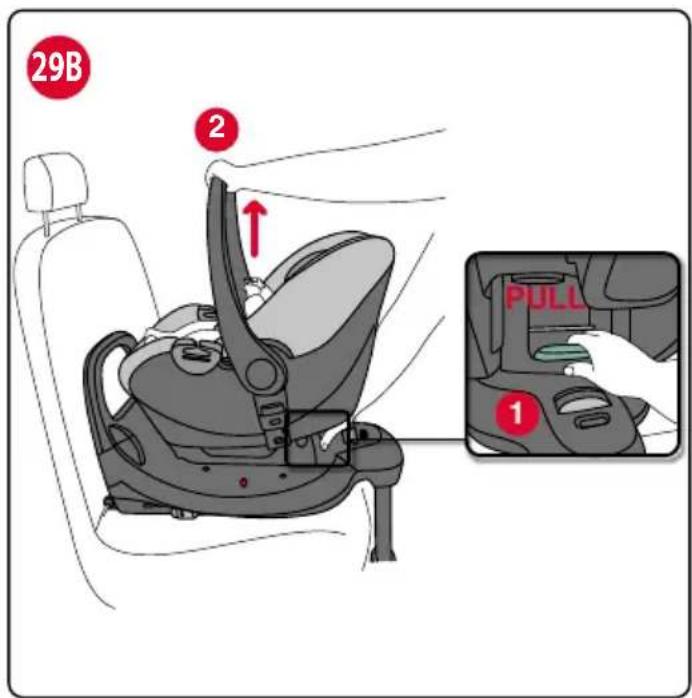

29B 2 PULL 1

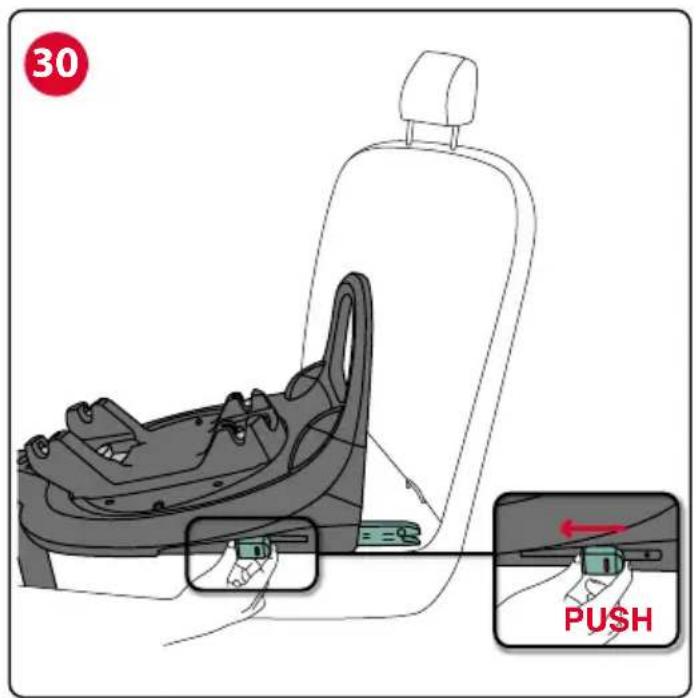

30 PUSH

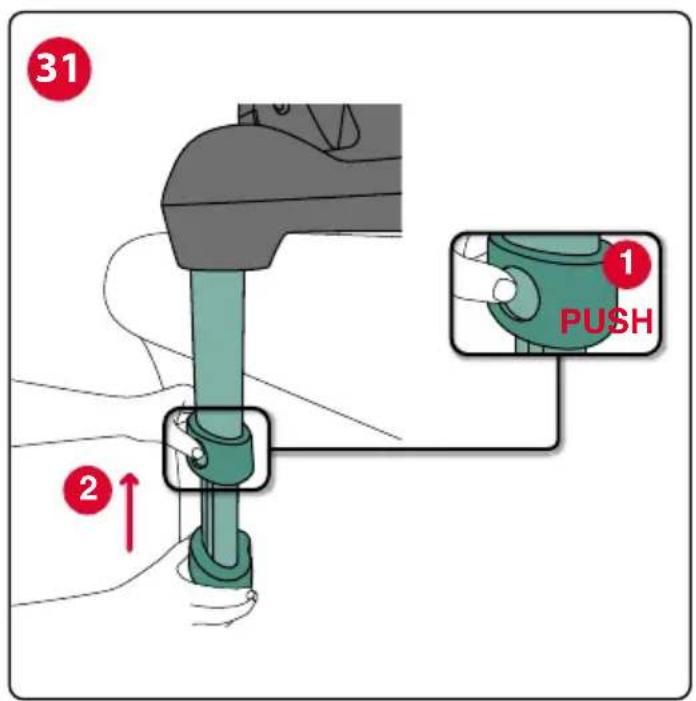

31 1 PUSH 2 ↑

KORY ESSENTIAL i-SIZE (40-80 cm)

This car seat is type approved in accordance with ECE R 129/03 for the transport of children:

• Whose height is between 40 and 80~cm (Max. 13kg ): Integral Universal ISOFIX "i-Size"/ Universal Belted (Fig.1);
  • Age: from birth to approximately 15 months;
• Rear-facing only.

INSTRUCTIONS FOR USE

IN ORDER TO AVOID RISKS WHEN USING THE PRODUCT READ THE ENTIRE INSTRUCTION BOOKLET CAREFULLY BEFORE INSTALLING THE CAR SEAT AND STORE THE BOOKLET FOR FUTURE REFERENCE.

WARNINGS

• Before use, remove and dispose of all plastic bags and packaging materials and keep them out of reach of children. Please dispose of these items as sorted waste in accordance with applicable laws.
• Do not insert your fingers inside the mechanisms.
• WARNING: To avoid strangling hazards, always check that the elastic bands of the hood are properly fastened to the handle both before and during use
• Every country has different safety laws and regulations for the transportation of children in cars, contacting the local authorities for more information is therefore advisable.

• Prevent anybody from using the product without reading the instructions. Store this manual for future reference.
  • Make sure that all passengers in the vehicle know how to release the child from the child car seat in case of an emergency.

• If you need to carry out any adjustment on the child car seat or on your child when travelling, stop the vehicle in a safe place.

• In the first few months after birth, children may have difficulty breathing in a seated position. Avoid leaving children to sleep on the seat until they can lift their heads themselves.
• Premature babies born before the 37th week of pregnancy can be at risk if placed in a child car seat. These babies might incur breathing problems when sitting in a child car seat. We therefore recommend you contact your doctor or the hospital staff, before leaving the hospital. They can recommend the most suitable type of child car seat based on your child's situation.
• Periodically check that the child has not opened the safety buckle on the child car seat and that he/she is not playing with any part pertaining to it.
• Do not let children play with car seat components or parts.
• When the child car seat is not in use, it should be left secured to the car's seat, or stowed in the car's boot with the seat inclination adjuster handle completely inserted into the lower part of the child car seat. In fact, an unsecured car seat may pose a hazard to the passengers in the event of an accident or sudden braking.
• Any adjustments made to the car seat should only be carried out by an adult.
• The risk of serious injuries to your child increases, not only in the case of accidents, but also in other circumstances (sudden braking, etc.) if these instructions are not followed carefully.
• No car seat can guarantee your child's total safety in the event of an accident, but the use of this product reduces the risk of serious injuries or death when installed correctly.
• Always use the child car seat, fitted correctly, including for short journeys. Your child's safety will be compromised if you do not follow the above mentioned rule. In particular, make sure that the child car seat belt is properly tensioned, free of knots and in a proper position.
• Ensure that all the car passengers fasten their safety harnesses for their own safety and because, during the journey, they may injure

EN

the child in the event of an accident or sudden braking of the car.

- Make sure that the vehicle seats (foldable, tiltable or rotating) are well secured.

- After an accident, even if minor, the child car seat must be replaced because it may have suffered damages, although these damages may not be visible to the naked eye.

- Do not use second-hand child car seats: they may have suffered damages not visible at the naked eye, but such to compromise the product's safety.

- Do not use a car seat if it has been damaged, deformed or excessively worn out, or if any parts are missing, as the original safety features may have been compromised.

- Do not remove the labels and logos from the product.

- The seat fabric must only be replaced with another approved by the manufacturer as it forms an integral part of the child car seat. To ensure the safety of the child car seat, never use it without its fabric cover.

• The child car seat must be replaced should the harness be cut or frayed.

- This product must not be modified in any way unless the modification has been approved by the manufacturer. Do not install accessories, spare parts or components which are not supplied and approved by the manufacturer and intended for the child car seat.

- Do not use anything – pillows, blankets, etc. – to distance the child car seat from the vehicle seat or to distance the child from the child car seat: in case of accident, the child car seat may not work properly.

• Make sure that no objects are positioned between the child car seat and the vehicle seat or between the child car seat and the car door.

- Do not transport loose, unsecured objects or baggage on the back shelf of the vehicle: they may injure the passengers in the event of an accident or sudden braking.

- Never leave your child unattended in the car, it can be dangerous!

- Do not carry more than one child at a time in the car seat.

- Avoid giving food to your child while travelling, especially lollies, ice lollies or other foods on sticks. they may injure your child in case of accident or sudden braking.

- Stop frequently during long trips: children tire easily whilst using the child car seat and need to move around. It is recommended that children get in and out of the child car seat from the curbside.

- If the vehicle has been left in the sun, check that the different parts of the child car seat are not too hot: otherwise, let them cool off before accommodating your child, in order to prevent burns.

- DO NOT use the product for more than 5 years. After this period, alterations of the materials (e.g., due to exposure to sunlight) may reduce or compromise the product's effectiveness.

- Artsana declines any liability for the improper use of the product or any other use other than that specified in these instructions.

LIST OF COMPONENTS

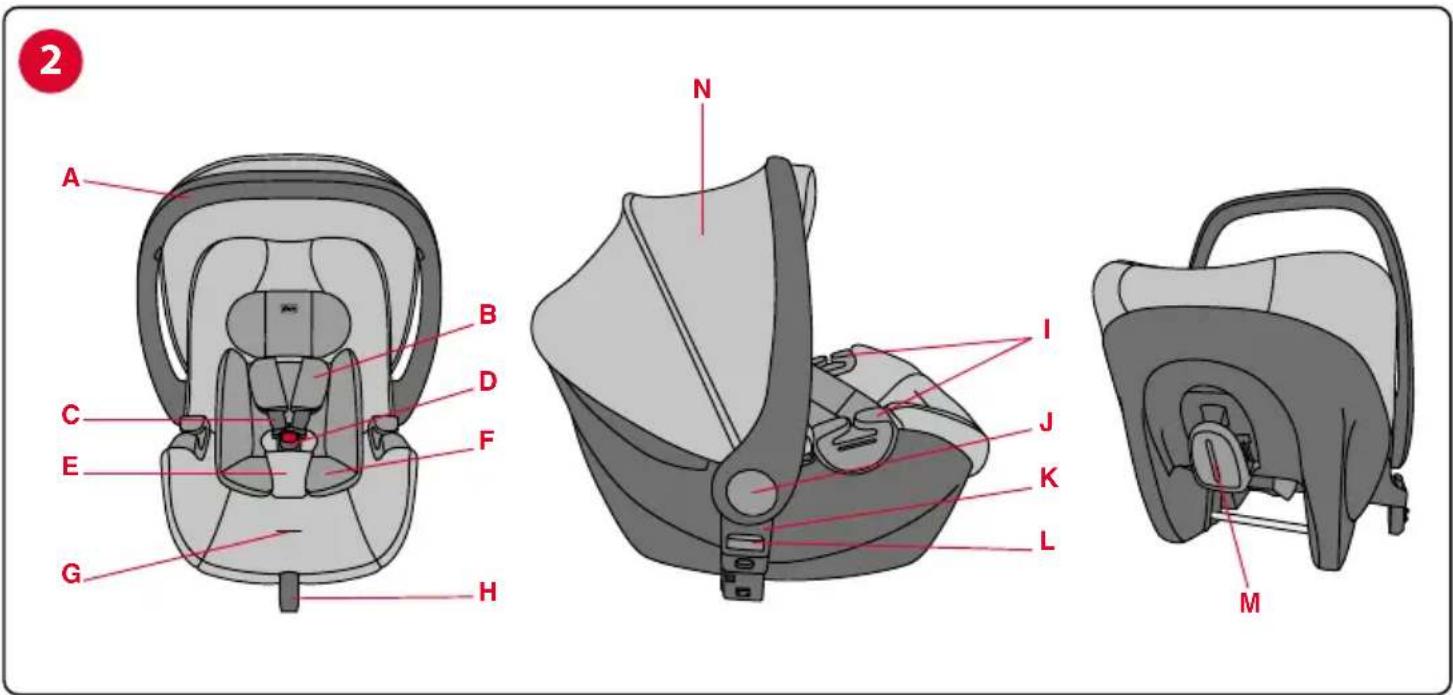

Car seat (Fig. 2)

A. Carry Handle

B. Shoulder straps

C. Car seat harness

D. Buckle

E. Padded crotch strap

F. Reducer cushion

G. Belt adjustment button

H. Harness Adjustment Strap

I. Abdominal harness guide

J. Handle adjustment buttons

K. Fast-In attachments

L. Stroller release buttons

M. Diagonal belt guide

N. Canopy

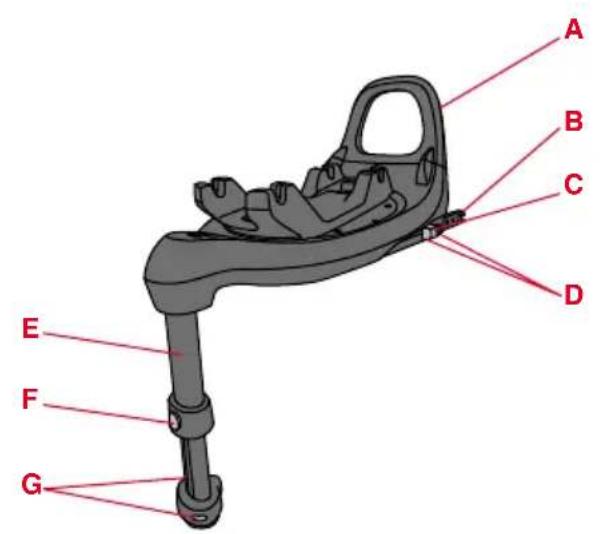

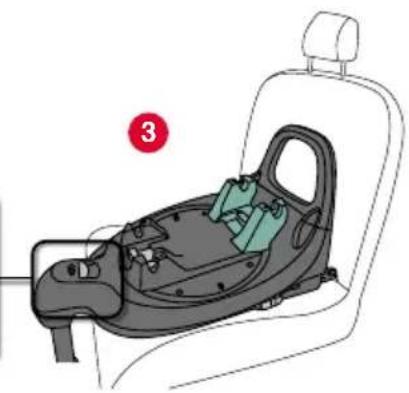

Base (Fig. 3)

A. Rebound bar

B. Isofix connectors

C. Isofix attachment indicators

D. Isofix connector buttons

E. Support Leg

F. Support leg height adjustment button

G. Leg support correct installation indicator

H. Car seat release levers

I. Car seat attachment sites

J. Indicators for correct attachment of car seat to base

K. 360° Seat rotation button

L. Correct position for travel indicator

M. Isofix guide

CORRECT POSITION IN THE VEHICLE

40-80 cm

The Kory Essential car seat can be installed in two different ways: with the Full 360 i-Size base and without the Full 360 i-Size base, using just the vehicle seat belts. The Full 360 i-Size base can be purchased separately as an accessory.

- Configuration with the base

This is an advanced i-Size child restraint system, type approved pursuant to

ECE R129 for use on vehicle seats compatible with the i-Size system in accordance with the indications provided by the vehicle manufacturer in the instruction manual for the vehicle. If in doubt, consult either the enhanced child restraint equipment manufacturer or the retailer. If the vehicle does not have an i-Size seat check the vehicle compatibility list, available via the QR code on the product installation label and at the end of this manual.

- Configuration without the base

This is an advanced i-Size child restraint system, type approved pursuant to ECE R129 for use on vehicle seats compatible with the i-Size system in accordance with the indications provided by the vehicle manufacturer in the instruction manual for the vehicle. If in doubt, consult either the enhanced child restraint equipment manufacturer or the retailer.

INSTALLATION

40-80 cm (rear-facing)

Built-in harness system + Full 360 i-Size base with Support Leg OR Built-in harness system + vehicle seat belts

1. 40-80 cm (Max 13 kg) "Integral Universal ISOFIX "i-Size" - installation with Full 360 i-Size base with Support Leg rear-facing (see illustrations from number 4 to 13B)

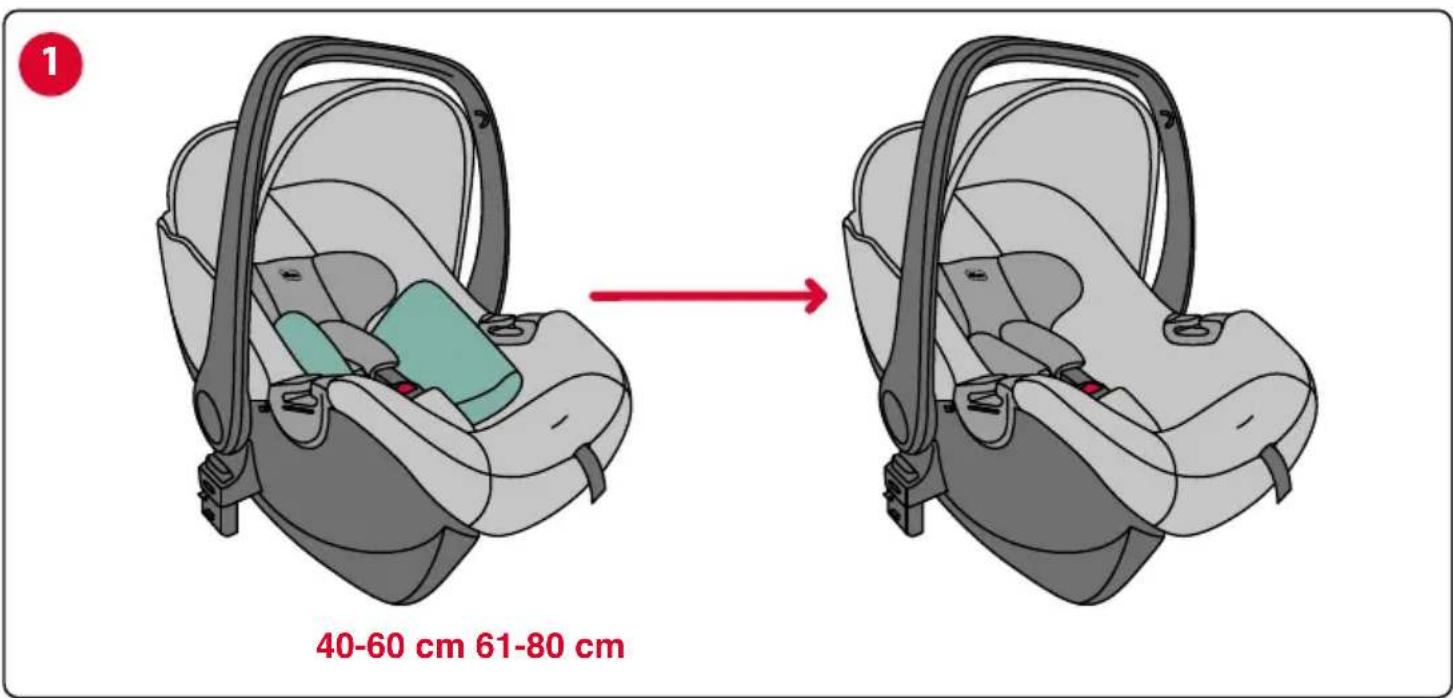

The reducer cushion must be used from 40 cm to 60 cm.

Reducer cushion

From 40 cm to 60 cm

>60 cm

FOCUS AREAS

a) Do not install the child car seat on seats where the airbag is activated. The car seat can only be installed on the front passenger seat if the front airbag is deactivated: check with the car manufacturer or see the owner's manual for instructions on how to deactivate the airbag. It is always recommended to slide the vehicle seat as far back as possible depending on whether passengers are travelling in the back seat or not. Never use this child car seat on vehicle seats facing the sides or opposite to the direction of the driver's seat (Fig. 18). According to accident statistics, a vehicle's rear seat is generally safer than the front seat: therefore, we suggest to install the car seat on the rear seat of the vehicle.
b) The car seat must only be installed rear-facing.
c) Only install on vehicle seats equipped with the Isofix System.
d) The child must not weigh more than 13 kg.
e) During installation with the Isofix system, the vehicle safety harness must not be fastened behind the car seat, as this would engage the inflatable portion of the safety harness.
f) Use of the reducer cushion (included) is mandatory up to 60 cm. Starting from 61 cm the reducer cushion is no longer necessary.

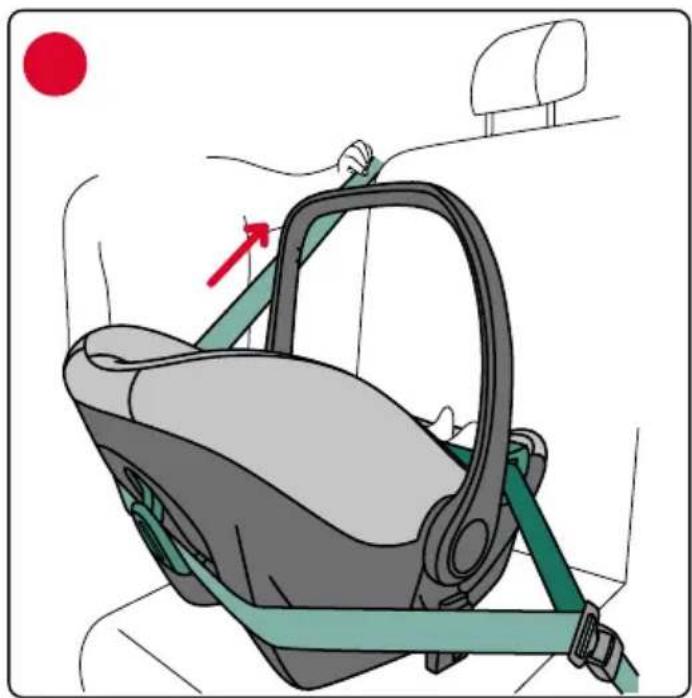

2. 40-80 cm (Max 13 kg) "Universal Belted" - installation with 3-point vehicle belt rear-facing (see illustrations from numbers 16 to 26)

The reducer cushion must be used from 40 cm to 60 cm.

Reducer cushion

From 40 cm to 60 cm
>60 cm

FOCUS AREAS

a) Do not install the child car seat on seats where the airbag is activated. The car seat can only be installed on the front passenger seat if the front airbag is deactivated: check with the car manufacturer or see the owner's manual for instructions on how to deactivate the airbag. It is always recommended to slide the vehicle seat as far back as possible depending on whether passengers are travelling in the back seat or not. Never use this child car seat on vehicle seats facing the sides or opposite to the direction of the driver's seat (Fig. 18). According to accident statistics, a vehicle's rear seat is generally safer than the front seat: therefore, we suggest to install the car seat on the rear seat of the vehicle.
b) The car seat must only be installed rear-facing.
c) The child must not weigh more than 13 kg.
d) Use of the reducer cushion (included) is mandatory up to 60 cm. Starting from 61 cm the reducer cushion is no longer necessary.
e) The vehicle seat must be equipped with a 3-point safety harness, whether static or with a retractor, approved according to UN/ECE Regulation no. 16 or other equivalent standards (Fig. 16).

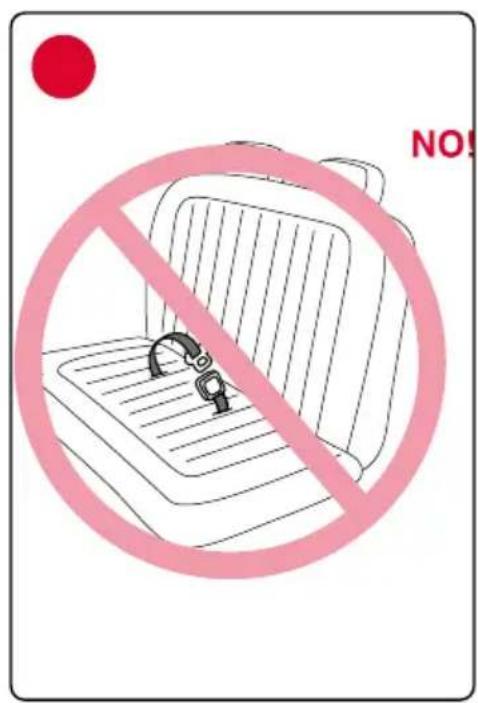

f) Never fit the child car seat to a vehicle seat that is only equipped

with a 2-point safety belt (Fig. 17).

g) If used in a vehicle equipped with rear vehicle seat belts with integrated air bags (inflatable seat belts), the interplay between the inflatable portion of the seat belt and this child restraint system could cause serious injury or death. When using the car seat in vehicles equipped with rear vehicle seat belt with integrated air bags (inflatable seat belts), follow the car manufacturer's instruction manual.

POSITIONS OF THE HANDLE

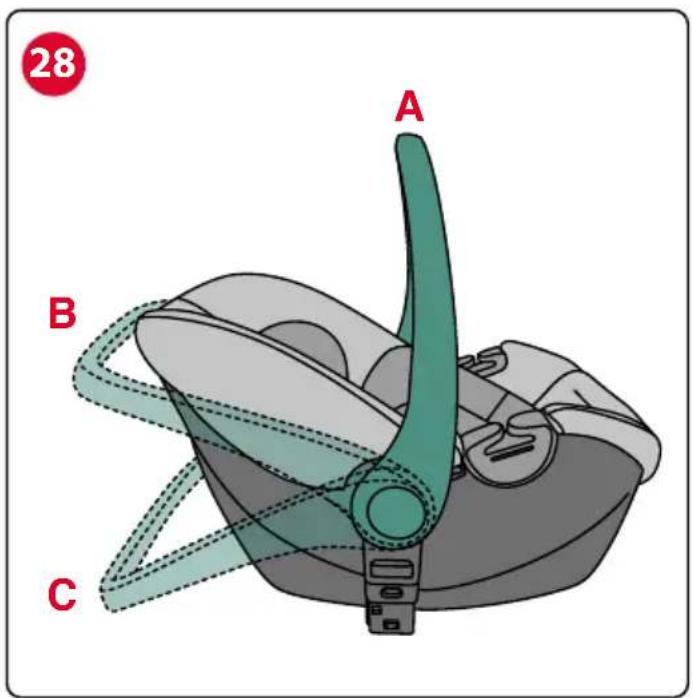

The car seat handle can be adjusted to 3 positions (Fig. 28).

A. Position for transportation in the car with the base and without the base and for carrying by hand.
B. Reclined cradle mode position, or for fastening to an appropriate Chicco stroller.
C. Fixed reclined cradle position. To adjust the position, press both buttons (J) on the handle bar together and rotate it to the desired position until you hear it click into place.

USE AS A RECLINED CRADLE IMPORTANT! READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

WARNING

• Never leave the child unattended.
• Stop using the product when the child starts trying to sit up.
• Never use this product on an elevated surface (e.g. a table).
  • Always use the restraint system.

• This car seat is not designed for long periods of sleep. This child car seat is not a replacement for a bed or crib. If children need to sleep, they should be moved to a bed or a cot.

• Do not use the car seat if any parts are broken or missing.

• Do not use accessories or replacement parts other than those approved by Artsana.
• Before carrying the car seat, always move the carry handle to position A (vertical).
• When the car seat is not used in a car, it can be used as a reclined cradle.
• Do not use the seat if the baby is able to sit up independently.

HOW TO CLEAN THE FABRIC COVER

The child car seat's fabric cover can be removed and washed by hand or in a washing machine at 30^ C, while the reducer cushion can only be washed by hand. Please refer to the cleaning instructions on the fabric label which illustrates the following washing symbols:

Wash by hand

Machine washable at 30°C.

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

Never use abrasive detergents or solvents. Do not dry the fabric cover within a dryer, let it dry without squeezing it.

The fabric cover must only be replaced with another cover approved by the manufacturer, since it is an integral part of the child car seat and, therefore, one of its safety elements.

WARNING! To ensure the safety of the child car seat, never use it without its fabric cover.

To remove the fabric cover follow the instructions below:

Cover

• Unfasten the car seat harnesses;
• Remove the shoulder straps by means of the slots on the backrest;
• Remove the headrest cushion;
• Detach the elastic bands located under the sitting area of the car seat;
• Pull the cover off.

HOW TO CLEAN THE PLASTIC AND METAL PARTS

Clean the plastic and coated metal parts with a damp cloth only. Never use abrasive detergents or solvents.

The moving parts of the child car seat must not be lubricated.

CHECKING THE CONDITION OF THE COMPONENTS

It is recommended to regularly check the condition of the following components to make sure they are not damaged or worn:

• Fabric cover: check that the padding does not come out from the seams. Check the condition of the seams: they must always be intact and undamaged.
• Harness straps: check that the fabric lining is not frayed and that the thickness of the harness strap is not worn out in the parts corresponding to the adjustment strap, crotch strap, shoulders and harness adjustment plate.
• Plastic parts: check that the plastic parts are not worn out, damaged or faded.

STORING THE PRODUCT

When it is not fitted in the car, it is recommended to store the child car seat in a dry place, away from sources of heat and to protect it from dust, humidity and direct sunlight.

DISPOSING OF THE PRODUCT

When the child car seat no longer complies with the original safety standards, stop using it and dispose of it at an appropriate collection point. Always dispose of the child car seat following the guidance and regulations set out in the country of use.

WARRANTY

The product is guaranteed against any lack of conformity under normal use as specified in the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.

KORY ESSENTIAL i-SIZE (40-80 cm)

E. Support Leg (Jambe de force)

CONSERVATION DU PRODUIT

ÉLIMINATION DU PRODUIT

BODY, KTERÝM JE TŘEBA VĚNOVAT POZORNOST

BODY, KTERÝM JE TŘEBA VĚNOVAT POZORNOST

ELIMINAREA PRODUSULUI

FÖRVARING AV PRODUKTEN

ARTSANA GERMANY GMBH

Borsigstrasse 1-3

28923 Alcorcon (Madrid)-Spain

902117093

www.CHICCO.es

ARTSANA PORTUGAL S.A.

ARTSANA POLAND Sp.z o.o.

Ul. Połczyńska 31 A

01-377 Warszawa

[phone]

www.CHICCO.pl

ООО «Артсана Рус»

Dec V. Ruben Dario 1015

Colonia Lomas De Providencia 44647

Guadalajara, Jalisco-Mexico

01800 702 8983

www.CHICCO.com.mx

ARTSANA ARGENTINA S.A.

Av. Santa Rita 2731 Piso 1 Of 5,

1609 Boulogne, Buenos Aires.

Argentina.

Phone: [phone]

www.CHICCO.com.ar

ARTSANA INDIA PRIVATE LIMITED,

7Th Floor, Tower B, Paras Twin Towers,

Golf Course Road, Sector 54

Gurgaon - 122002 - Haryana, India

(+91)(124)(4964500)

www.CHICCO.in

ARTSANA S.p.A

22070 Grandate (CO) - Italy

Tel. [phone]

Fax [phone]

www.CHICCO.com

NOTE

QR code image containing encoded data, no visible human-readable text
