IT ISTRUZIONI D'USO
IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO.
ATTENZIONE: PRIMA DELL'USO RI-MUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.
AVVERTENZE
EN INSTRUCTIONS FOR USE IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.
WARNINGS
- WARNING: Never leave the child unattended.
- WARNING: Ensure that all the locking devices are engaged before use.
- WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
- WARNING: Do not let the child play with this product.
- WARNING: Always use the restraint system.
• Using the crotch strap and safety harness is crucial to guarantee the safety of the child.
• Always use the safety harness together with the crotch strap.
- WARNING: This product is not suitable for running or skating.
- The vehicle is suitable for children up to 22 kg or 4 years, or whichever limit is reached first.
- The backrest should be used in its most reclined position for children from birth to 6 months of age.
• The brake must always be engaged
when positioning or removing your child.
- Use the brake every time you stop.
- Never leave the stroller on a sloped surface, with a child on board, even when the brakes are on.
- Do not overload the storage basket. Maximum weight 5 kg.
- Any weight attached to the handles and/or backrest and/or on the sides of the stroller may effect the stability of the stroller.
- Do not transport more than one child at a time.
- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.
- Do not use this product if any part is broken, torn or missing.
- Before assembling, ensure that the product and its components have not been damaged during transportation. In this case, do not use and keep out of reach of children.
- During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child.
• Make sure that the person using the stroller knows how to operate it in the safest way.
• This product must only be used by an adult.
• The product must only be assembled by an adult.
• To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects.
- Never use the stroller on staircases or escalators: you could suddenly
lose control of it.
• Always pay attention when going up and down steps or pavements.
- If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.
- Prevent the stroller from coming into contact with salt water. It may cause rusting.
- Do not use the stroller on the beach.
- When not in use, the stroller should be kept out of reach of children.
TIPS FOR CLEANING AND MAINTENANCE
This product requires periodical maintenance. Cleaning and maintenance should only be carried out by an adult.
CLEANING
Clean the fabric parts using a wet terrycloth and neutral soap. Periodically wipe the plastic parts clean with a soft damp cloth. To prevent the formation of rust, always dry metal parts if they have come into contact with water. The washing symbols and relative meanings are indicated below:
Do not wash with water
Do not bleach
Do not tumble dry
Do not iron
Do not dry clean
MAINTENANCE
If necessary, lubricate moving parts with dry silicone lubricant. Regularly check the condition of the wheels and clean off all dust and sand. To avoid friction that may compromise the correct functioning of the stroller, make sure all plastic parts that run along the metal tubes are clean of dust, dirt and sand. Keep the stroller in a dry place.
GENERAL INSTRUCTIONS
OPENING THE STROLLER AND FIRST ASSEMBLY
WARNING: When opening the stroller, make sure that your child or other children are at a safety distance.
WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

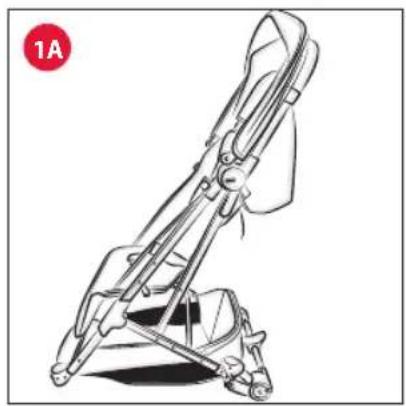

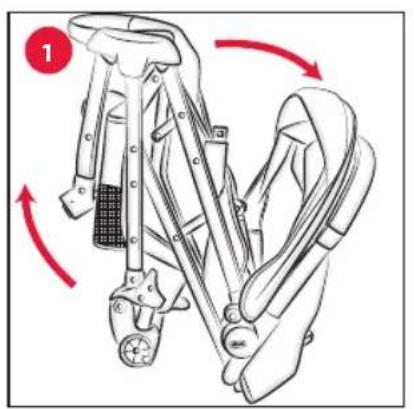

- Take hold of the handle and front leg (Fig. 1) and open until you hear a locking click (Fig. 1A).

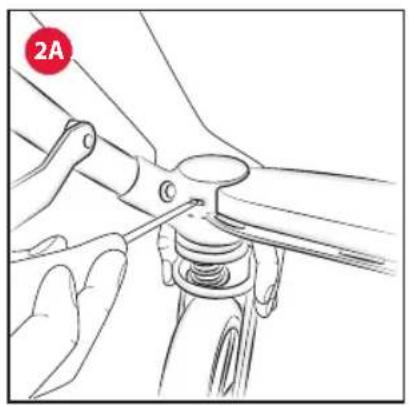

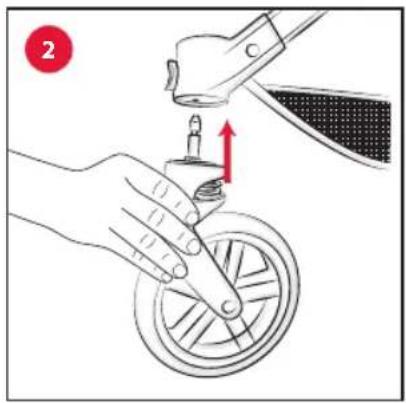

- Assemble the front wheels by inserting the metal pin in the appropriate location (Fig. 2) until you hear a click. To remove the front wheels use a pointed object to press the button shown and pull down (Fig. 2A). The front wheels have a swivel feature: act on
the lever (Fig. 2B) to change the set-up. When the lever is raised the wheels swivel freely; to lock the wheels push down on the lever as illustrated.

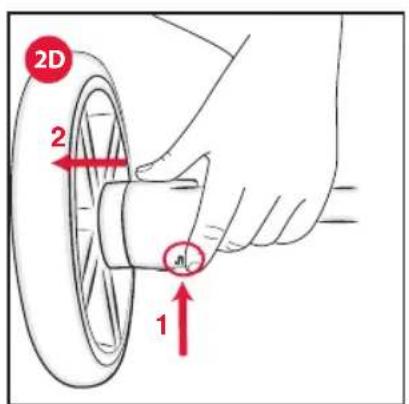

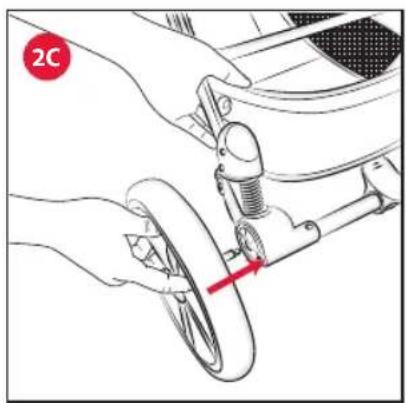

WARNING: All wheels must always be locked or released together. Fasten the rear wheels inserting the pin of the wheel into the appropriate hole located on the rear tube, until it locks in place (Fig. 2C). To remove them, use the button located on each wheel and pull outwards (Fig. 2D).
WARNING: Before use, ensure that the wheels have locked correctly.
WARNING: Before use, ensure that the stroller is locked in the open position, checking that the mechanism is effectively locked.

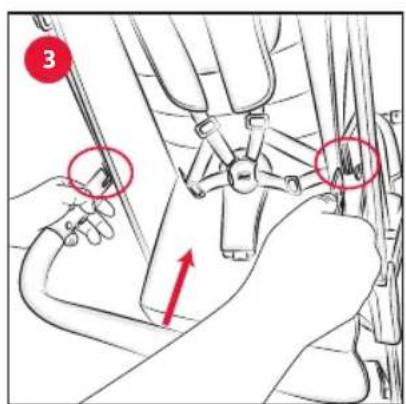

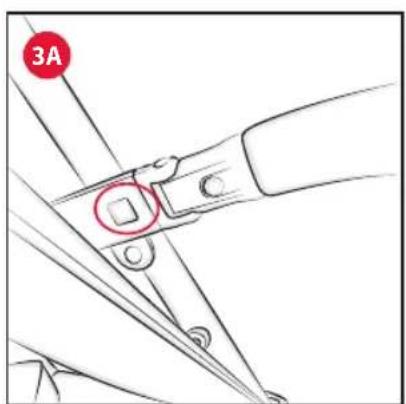

- Install the bumper bar by inserting it into the slots provided (Fig. 3). Should you need to remove it, press the buttons on both sides and pull outwards (Fig. 3A).
WARNING: Never use the bumper bar to lift the product with your child sitting in it.
CARRY-ALL BASKET
The storage basket is already installed. Should removal be necessary, follow the steps provided below.

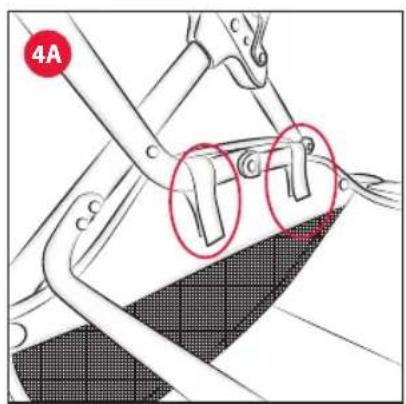

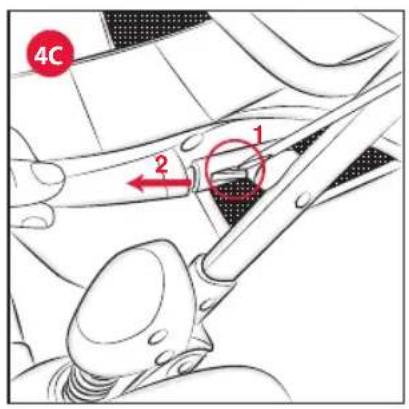

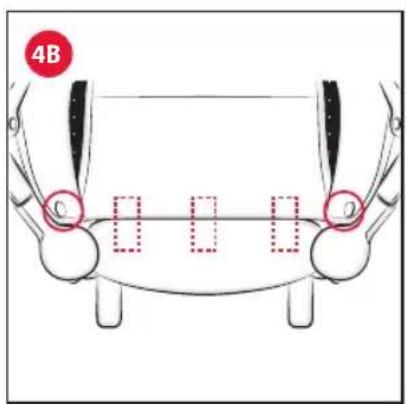

- The storage basket is attached to the frame at several points. Unfasten the two snap buttons located on the rear of the basket (Fig. 4); detach the two Velcro strips on each side (Fig. 4A). Unfasten the 2 snap buttons in the front area and detach the three Velcro straps under the footrest (Fig. 4B). To complete the operation, remove the rear metal rod by using a pointed object to act on the plastic component shown and simultaneously pulling the rod outwards (Fig. 4C).

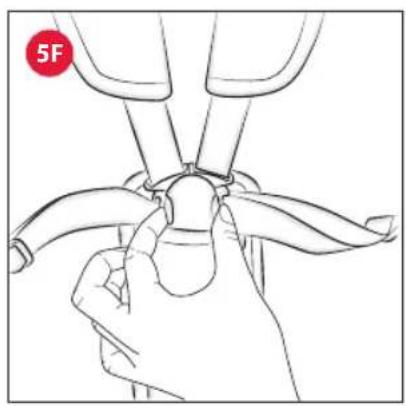

HOW TO USE THE SAFETY HARNESS

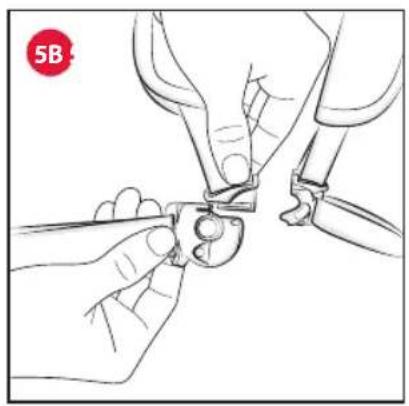

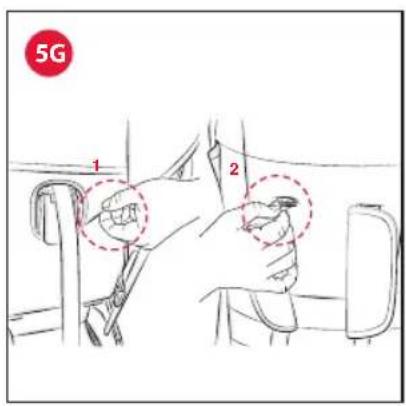

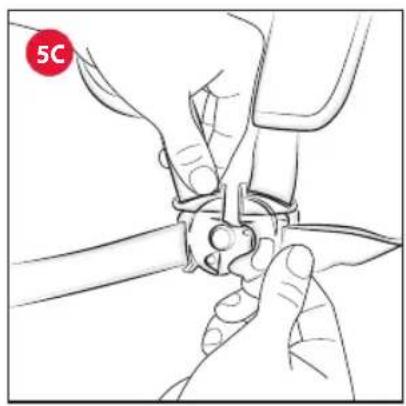

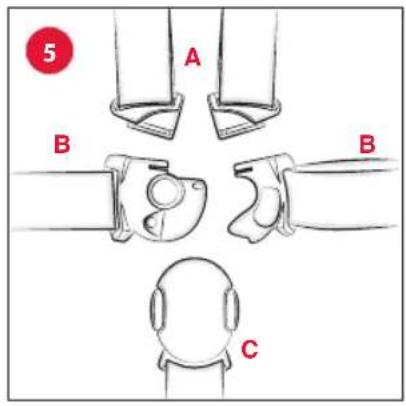

The stroller comes with a five-point safety harness which consists in two shoulder straps, a waist strap and a crotch strap with a buckle. The buckle included has a magnetic closure (Fig. 5).

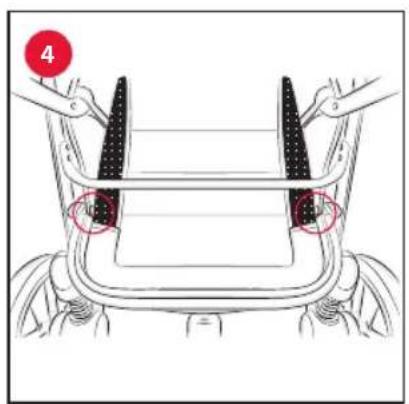

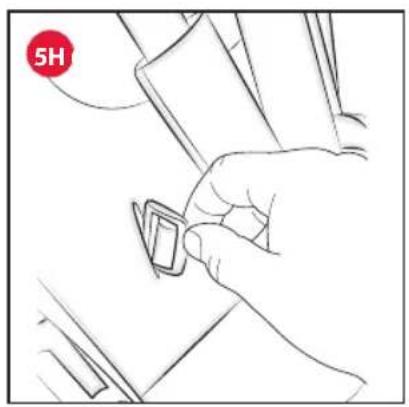

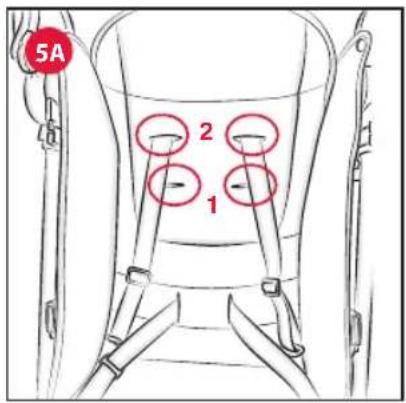

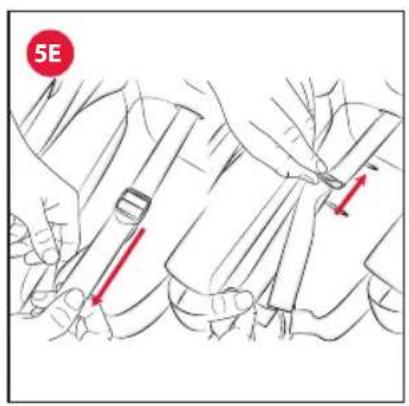

On the backrest there are two pairs of slots for adapting the height of the shoulder straps to the size of the child (Fig. 5A). After placing the baby in the stroller, fasten the safety belts by inserting the shoulder strap component (A) into the appropriate housing on the component (B) of the waist strap (Fig. 5B). This operation must be carried out for both safety belts. Then join the two components together until they engage correctly (Fig. 5C) and complete the belt fastening with the belt buckle (C) by joining it to the two previously assembled components (Fig. 5D). The belts have a magnetic buckle that clicks once it has been secured. Finally, adjust the shoulder straps so that they fit snugly against the child's shoulders (Fig. 5E). To unfasten the safety belts, press the two side buttons on the crotch strap and remove it from the connector (Fig. 5F).
WARNING: For use with children from birth to about 6 months the shoulder straps must be inserted in the lowest slots (Fig. 5A - no. 1); the length of the straps may need to be reduced so that they fit the size of the child. To change the position of the safety harnesses on the backrest, turn the buckle at the back and pass it through the slot until it is completely removed (Fig. 5G). Complete the operation by inserting the retaining buckle into the chosen slot, passing it through the backrest. After this, pull firmly to check the correct positioning of the belts. The padded shoulder straps can also be adjusted (point 6). If the lap belts are removed, they can be reassembled by passing the plastic buckles through the slots on the backrest (diag. 5H) until fully engaged at the back. Pull firmly to check correct installation.
WARNING: Always make sure that the straps are fastened correctly. WARNING: To guarantee the safety of your child, the safety harness must be fastened at all times. To make sure the harness straps are fitted correctly, place your child inside the stroller and pull the ends of the straps firmly.
KIT COMFORT
- The Comfort Kit comprises 2 padded shoulder straps and a padded crotch strap (Fig. 6). The shoulder straps are tied together by a ribbon with a snap fastener.
The backrest can be adjusted to different positions.

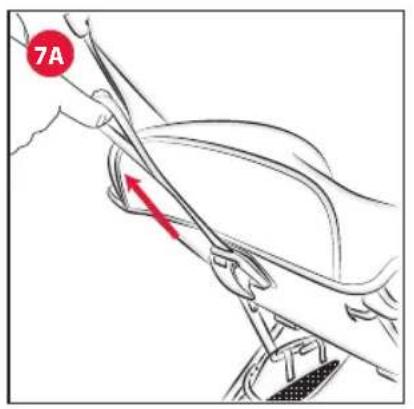

- To recline the backrest, use the rear adjustment system by pulling the button and lowering the backrest (Fig. 7) until the desired position is reached. On the other hand, to lift the backrest, pull the strap upwards (Fig. 7A).
WARNING: The child's weight can make these operations more difficult.
REAR BRAKES
The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels by using the support tube.

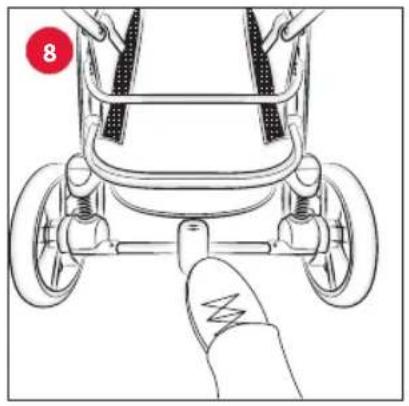

- To activate the brakes on the stroller, press down on the central pedal (Fig. 8). To release the brakes, press the pedal in the opposite direction.
SHOCK ABSORBERS

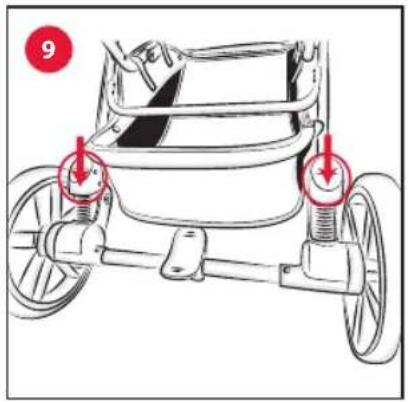

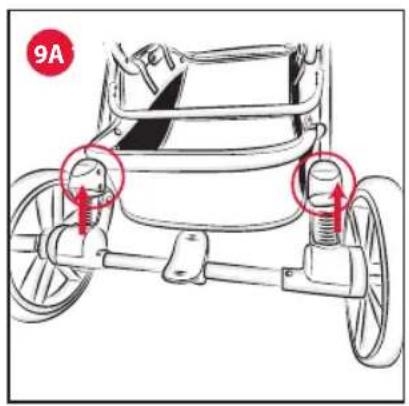

The pushchair is equipped with rear and front shock absorbers. The rear shock absorbers are adjustable in 2 modes. For rough terrain use the shock absorbers in soft mode by pressing down on the adjustment lever (Fig. 9). For a stiffer set-up, lift the adjustment lever (Fig. 9A). Both shock absorbers must be adjusted to the same position.
SUN CANOPY
The canopy is already installed on the stroller.

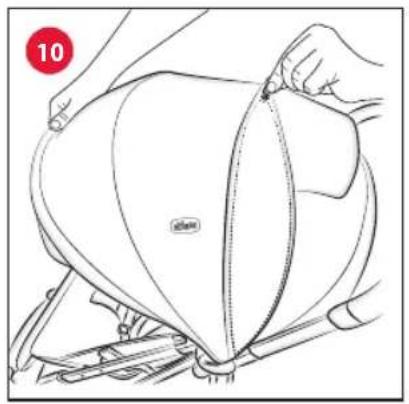

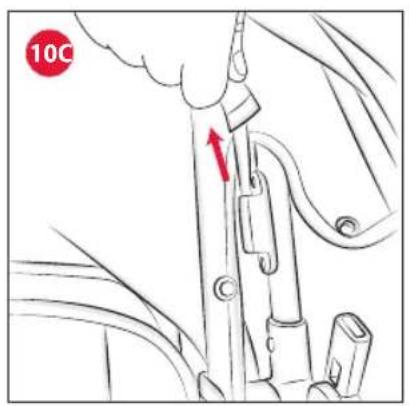

- To open and adjust the canopy use the front arch. The canopy can be extended by opening the zipper (Fig. 10). By lifting the fabric flap in the upper part of the hood, it is possible to access the mesh section, in order to watch your child. If you want to remove the hood from the pushchair, open the snap fasteners on both sides (Fig. 10A), use a pointed object to lift the plastic component while simultaneously pulling upwards on the arch (Fig. 10B). Finally, pull towards the metal tube (Fig. 10C) and release the other attachment points at the rear of the hood.
ADJUSTABLE LEGREST
The legrest can be used in 2 positions.
- To use the legrest in the horizontal position simply push it upwards. To lower the legrest use the button located under the legrest (Fig. 11).
WARNING: When unfolding and folding this product, make sure that your child or other children are at a safe distance. Make sure that during these operations the moving parts of the stroller do not come into contact with your child. Before closing the stroller, ensure that the storage basket is empty. The stroller has a closing device that can be used with one hand.

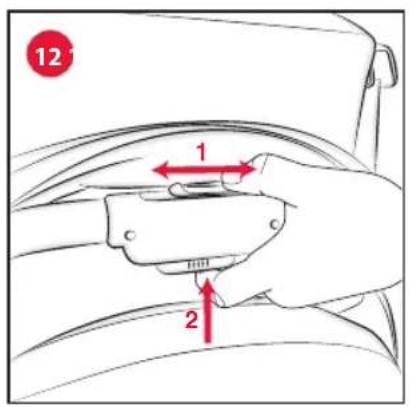

- To close the stroller, push switch "A" to the left or right and simultaneously press button "B" (Fig. 12), then push down on the handle until the stroller closes completely (Fig. 12A-B). When closed, the stroller stands on its own. To increase the compactness of the product when closed, the bumper sleeve can be removed.
ACCESSORIES
WARNING: The accessories described below may not be included in some product versions. Carefully read the instructions for the accessories that came with the model you have purchased.
RAIN COVER

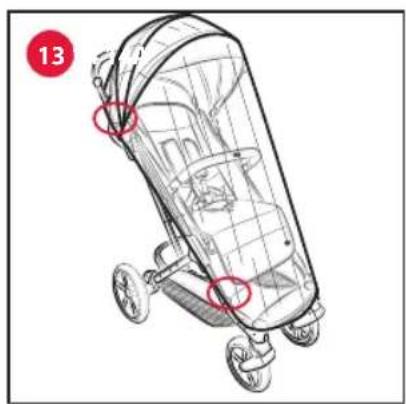

- To fit the rain cover, fasten the straps around the stroller's frame in the positions shown in Fig. 13 (steps to be repeated on both sides of the stroller).
When you have finished using the rain cover, allow it to dry properly if it is wet.
WARNING: The rain cover cannot be used on the stroller without the hood being extended, as it may cause suffocation.
WARNING: When the rain cover is fitted on the stroller, never leave it exposed to direct sunlight with your child inside, as the temperature will rise considerably.
LEG COVER

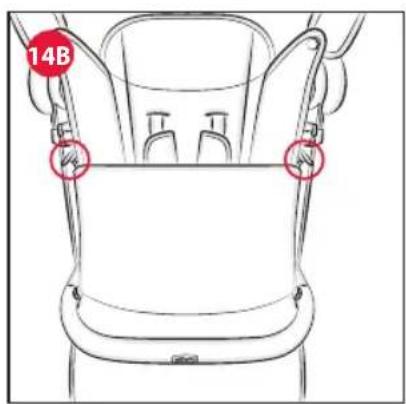

- To fit the leg cover, insert the leg rest in the leg cover compart-
mentand fasten it to the side tubes with the respective button-holes and buttons (Fig. 14). The leg cover can be folded over the bumper bar and secured with the buttonholes (Fig. 14A), or the upper part of the leg cover can be passed under the bumper bar and fastened in the higher position by inserting the buttons in the buttonholes present on the sides of the backrest (Fig. 14B).
WARRANTY
The product is guaranteed against any lack of conformity under normal use as specified in the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.
