USER MANUAL AZE430 SCHEPPACH

Line drawing of a manual chain-linking tool with a long blade and handle (no text or symbols)

https://www.scheppach.com/de/service scheppach

AZE430

DE Elektro-Universalsäge | Originalbetriebsanleitung.... 4
GB Electric reciprocating saw | Translation of the original operating instructions.... 16
FR Scie alternative électrique | Traduction du mode d'emploi original 25
IT Sega elettronica universale | Traduzione delle istruzioni per l'uso originali.... 35
NL Elektrische reciprozaag | Vertaling van de originele gebruiksaanwijzing 45
ES Sierra eléctrica universal | Traducción del manual de instrucciones original .... 55
PT Serra universal elétrica | Tradução do manual de operação original 65

1

1 2 3 4 5 6 5b

2

2 11

Line drawing of a mechanical clamp or bracket with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Technical diagram showing a mechanical assembly with directional arrows indicating movement (no text or symbols present)

Diagram showing a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Diagram showing a mechanical device with directional arrows indicating movement or force (no text or symbols present)

8 6 7

6a 6

Mechanical assembly diagram showing a component with numbered label '6' and rotation arrow (no readable text or symbols)

9 7 4a

4a 4a

10 5a 5 4a 4 4b

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Hinweis:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service scheppach

1 Introduction ...... 16
2 Proper use.... 17
3 Product description (Fig. 1-10).... 17
4 Scope of delivery (Fig. 1) 17
5 Unpacking 17
6 Technical data.... 18
7 Safety instructions.... 18
8 Before commissioning.... 20
9 Operation 21
10 Working instructions.... 21
11 Electrical connection 21
12 Cleaning and maintenance 22
13 Storage and transport 23
14 Repair and ordering spare parts 23
15 Disposal and recycling 23
16 Troubleshooting 24
17 EU Declaration of Conformity.... 24

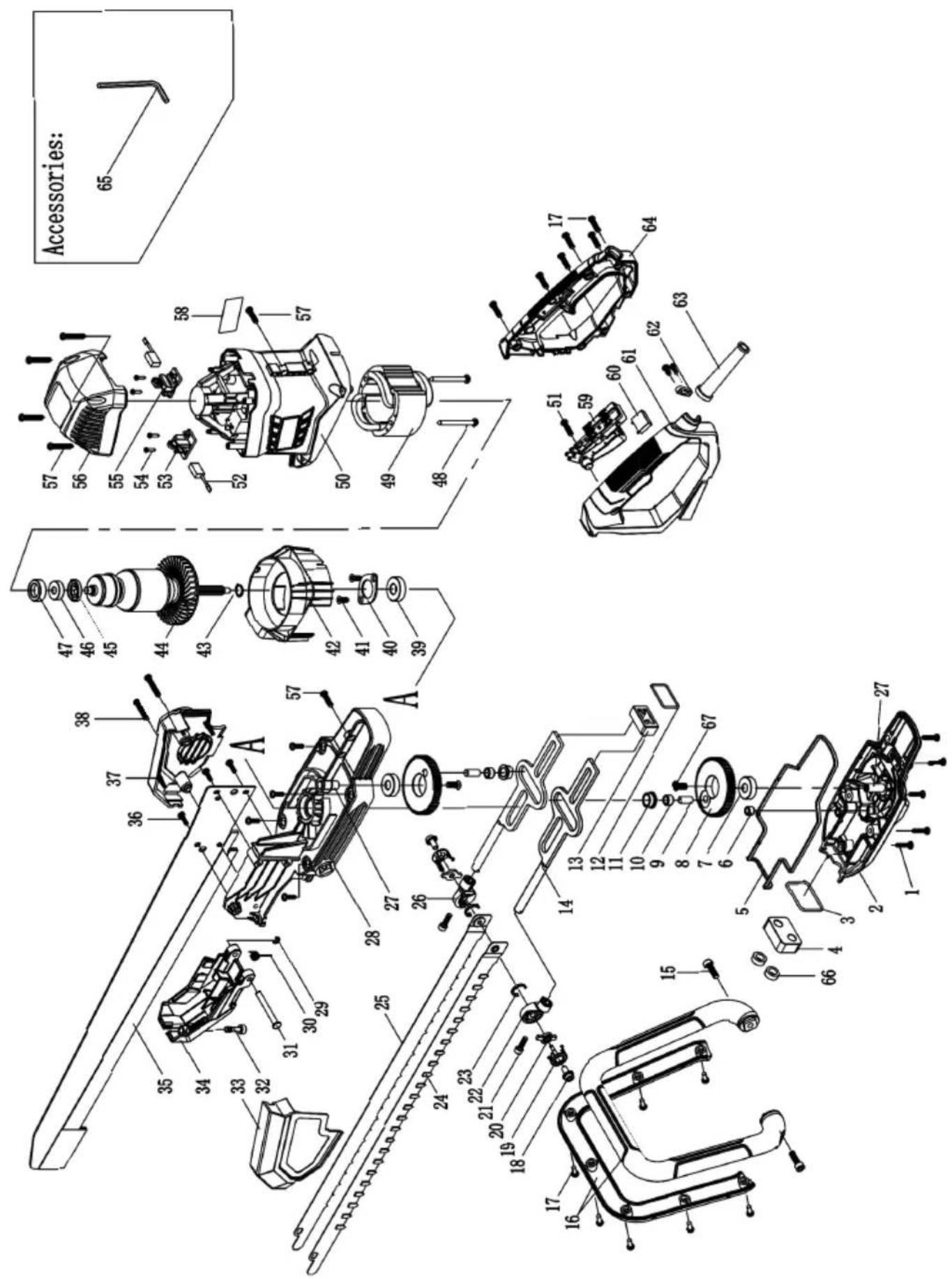

18 Exploded view 75

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Before commissioning, read and observe the operating manual and safety instructions!
	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.
	Wear safety goggles.
	Wear hearing protection.
	Wear safety gloves!
	Wear sturdy footwear!
	If dust builds up, wear respiratory protection!

Do not expose the product to rain. The product may only be stationed, stored and operated in dry ambient conditions.

AC motor.

Power consumption.

Protection class II (double insulation).

Weight kg.

The product complies with the applicable European directives.

The product complies with the applicable Serbian directives.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failures of the electrical system due to failure to observe the national electrical requirements and regulations.

Note:

The operating manual is part of the product and contain important information for safe, proper and economical operation. Please also observe the applicable national regulations. Read all operating and safety instructions carefully before use and only use the product as described. Keep the manual and pass it on when you give the product to someone else.

2 Proper use

Depending on the saw blade used, the electric reciprocating saw is designed for straight cuts in clay bricks, aerated concrete, wood, plastic and insulation materials. The product is not intended for any other types of application.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Do not make any changes to the product. Safety may be compromised as a result. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

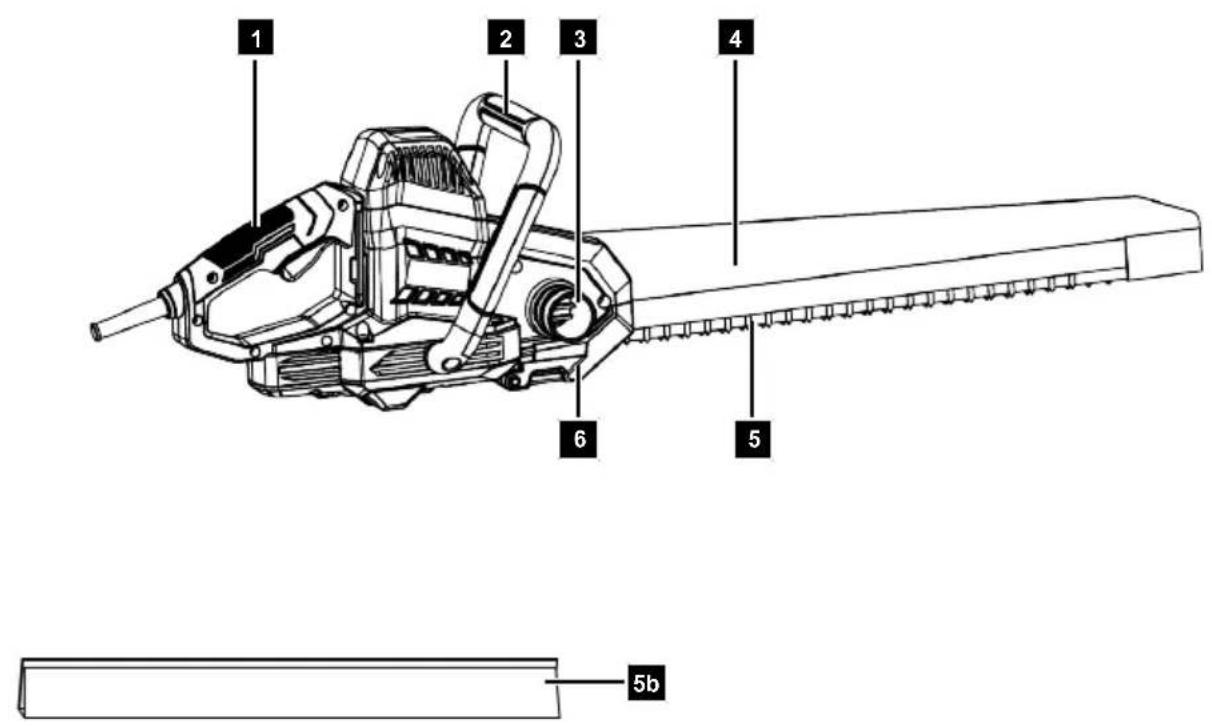

3 Product description (Fig. 1-10)

1. Rear handle
   1a. On/off switch
   1b. Switch lock

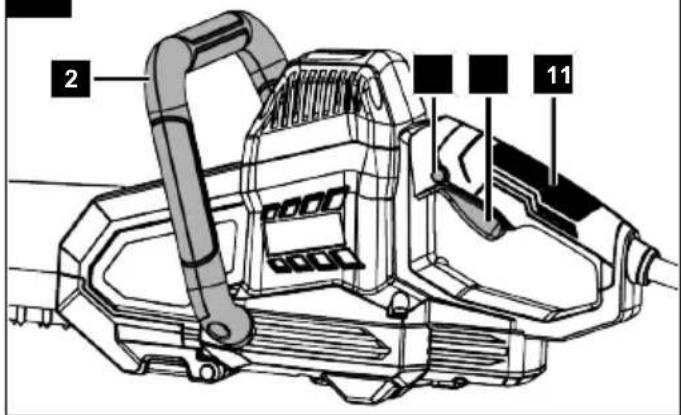

2. Front handle
3. Suction connection

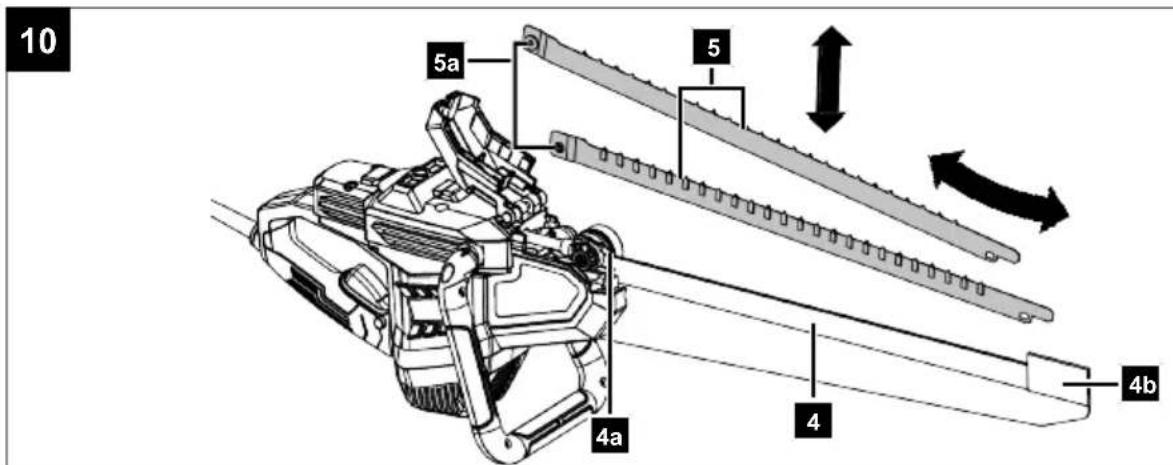

4. Guide bar (guide rail)
   4a. Screw
   4b. Front saw blade guide
5. Saw blade
   5a. Hole
   5b. Saw blade guard

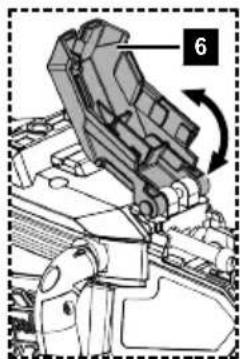

6. Gearing cover

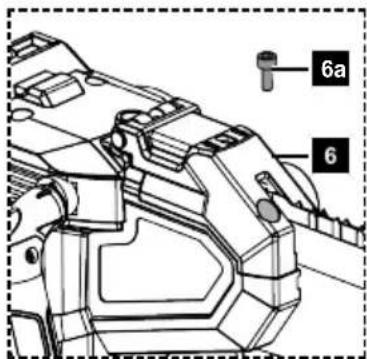

   6a. Screw
7. Allen key, 5 mm

4 Scope of delivery (Fig. 1)

Item QuantityDesignation

5b. 1 x Saw blade guard

1. 1 x Allen key, 5 mm

1 x Electric reciprocating saw

1 x Operating manual

5 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

6 Technical data

Rated voltage 230-240V~ / 50-60 Hz

Power 1500 W

Motor speed (max.) 2850 min -1

Cutting length* 430 mm

Lift 40 mm

Cable length 2.0 m

Weight approx. 6.3 kg

Subject to technical changes!

*The actual cutting length may be less than the specified cutting length.

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

Noise data

Sound pressure level L_pA	94.4 dB
Measurement uncertainty K_pA	3 dB
Sound power level L_wA	102.4 dB
Measurement uncertainty K_wA	3 dB

Vibration parameters (hand/arm vibration)

Vibration ah
Front handle
Cut in sheet steel	5.617 m/s2
Cut in wooden beams	4.385 m/s2
Rear handle
Cut in sheet steel	6.592 m/s2
Cut in wooden beams	5.541 m/s2
Measurement uncertainty K 1.5 m/s	2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7 Safety instructions

General power tool safety warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use electric tools, insertion tools, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Only have your power tool repaired by qualified specialists and only with original spare parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for reciprocating saws

a) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
b) Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.
c) Never switch on the product when the saw blade is jammed in the workpiece or is touching the material.
d) Keep hands away from all moving parts. Never place your hands near the cutting area.
e) Take extra care when working overhead and pay particular attention to overhead power lines that may not be visible. Identify the fall path of branches and debris as early as possible.

Additional safety instructions

a) If you wish to restart a saw that is inserted in a workpiece, centre the saw blade in the sawing gap and check that the saw teeth are not hooked in the workpiece. If the saw blade is hooked in, it can move out of the workpiece or cause kick-back when the saw is restarted.
b) Apply particular caution when sawing in existing walls or other areas that are not visible. The plunging saw blade can jam in concealed objects during sawing and result in kickback.
c) Use clamps to support the workpiece whenever possible. If supporting the workpiece by hand, you must always keep your hand at least 100 mm from either side of the saw blade. Do not use this saw to cut pieces that are too small to be securely clamped or held by hand. If your hand is placed too close to the saw blade, there is an increased risk of injury from blade contact.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Keep your hands away from the working area when the product is in operation.
• Damage to hearing if the stipulated hearing protection is not worn.
• Damage to the lungs if the stipulated respiratory protection is not worn.
• Risk of injury from tools thrown away due to improper holding or guiding.
• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Avoid accidental start-up of the product: when inserting the plug into the socket, do not press the on/off switch.
• Before performing setting or maintenance work, release the on/off switch and pull out the mains plug.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

8 Before commissioning

WARNING

Danger of injury!

Do not insert the mains plug into the socket until you are ready to use the product.

WARNING

Always remove the mains plug before carrying out adjustments on the product.

WARNING

Tool attachments may be sharp and become hot during use. Always wear protective gloves when handling the tool attachments.

WARNING

Always make sure that the tool attachment is fitted correctly!

CAUTION

Unsuitable extension cables could be dangerous. There is a risk of persons being injured due to electric shock.

General information

• Proceed with caution. Familiarise yourself with the application and possible restrictions, but also with the specific potential dangers.
• Before connecting of the product, make certain that the data on the type plate matches with the mains power data.
• Only use undamaged saw blades that are in perfect condition. Saw blades that are bent, blunt or damaged in any other way can break.
• Make sure that a suitable saw blade for the material to be cut is selected.
• Do not overload the product.
• Inadequately informed operators can endanger themselves and others through improper use. The operator is responsible for the safety of third parties.
• Check the product regularly for damage.
• Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the electric tool.
• Do not use the product if the switch cannot be switched on and off. Damaged switches must be replaced by our service centre.
• Ensure that the product is always in good condition and has been properly lubricated.
  • Always pull out the mains plug, before changing the tool attachment.
• Prior to commissioning, all covers and safety devices must be mounted correctly. Damaged or illegible stickers must be replaced.

8.1 Connecting external dust extraction unit (Fig. 1)

ATTENTION

The dust extraction system must be suitable for the material to be processed.

Use a special extraction device to extract particularly harmful or carcinogenic dusts.

1. Connect the suction hose of the external dust extraction unit* to the extraction connection (3).
2. Switch on the external dust extraction unit*.
   * = not included in the scope of delivery!

9 Operation

WARNING

Danger of injury!

Do not insert the mains plug into the socket until you are ready to use the product.

• Always hold the product tight with both hands during work. Make sure that you have a secure footing.

Before switching on, make sure that the product does not touch any objects.

9.1 Switching the product on/off (Fig. 1, 2)

Switching on

1. Remove the saw blade guard (5b) before switching on.
2. Before pressing the on/off switch, make sure that the saw blade is correctly fitted, and that moving parts run smoothly.
3. Insert the mains plug into a properly fused mains socket.
4. Press the switch lock (1b) and hold it in position.
5. To switch on the product, push the on/off switch (1a).

Note:

After the product has started, you can release the switch-on interlock again.

Continuous operation is not possible.

Switching off

1. To switch it off, simply release the on/off switch (1a).
2. Do not brake the insert tool after switching off by applying counter-pressure from the side. The insert tool can be damaged, break or cause a kickback.

10 Working instructions

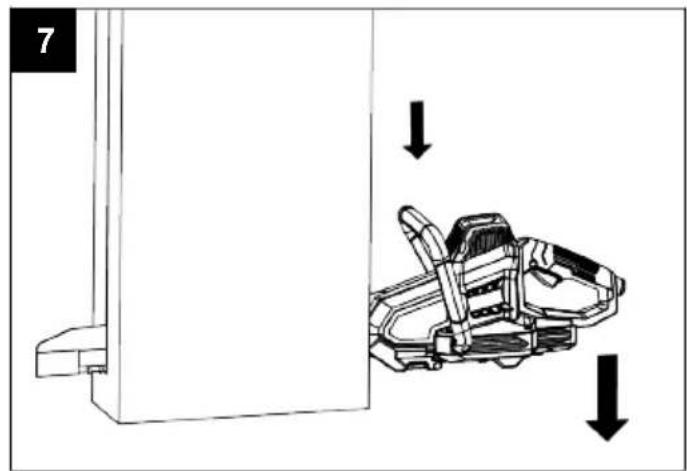

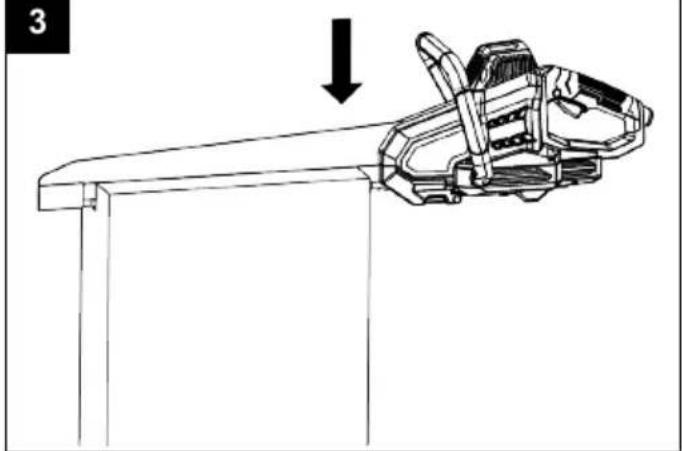

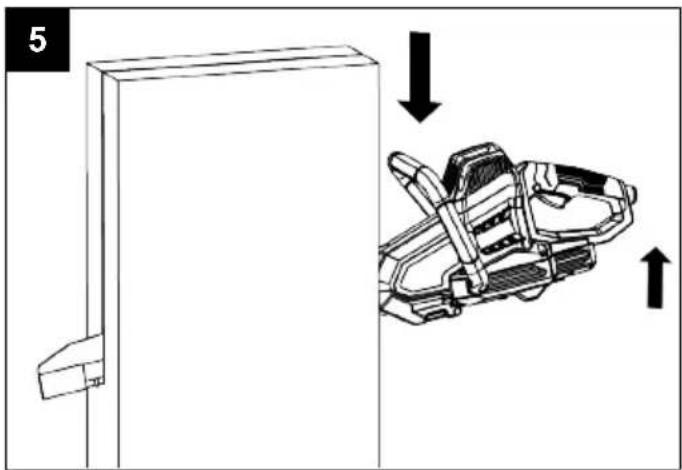

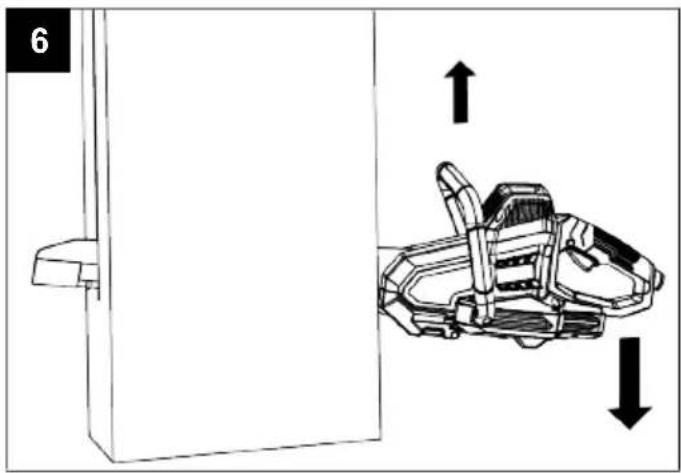

10.1 Sawing (Fig. 3-7)

ATTENTION

Blunt blades overload the product! Do not use the product if the cutters are faulty or heavily worn.

ATTENTION

The product is designed exclusively for continuous, straight cuts. Plunging it directly into the material can lead to malfunctions or injuries!

1. Hold the product firmly with both hands on the handle (1) and additional handle (2).
2. Avoid making contact with the rail tip of the guide rail.

3. Align the blade (4) with the saw line so that the saw blades (5) plunge into the workpiece parallel to the surface.

4. Move the product up and down with a rocking motion and allow the saw blades (5) to cut evenly down through the material.

5. Do not exert excessive pressure on the product. Let the product do the work.
6. Saw the material with a steady feed.

11 Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

11.1 Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

11.2 Damaged electrical connection cables

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors,
• Kinks where the connection cable has been improperly fastened or routed,
• Places where the connection cables have been cut due to being driven over,
  • Insulation damage due to being ripped out of the wall socket,
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the same designation "H05VV-F".

The printing of the type designation on the connection cable is mandatory.

Safety information for replacing damaged or defective mains connection cables

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

11.3 AC motor

Connections and repair work on the electrical equipment may only be carried out by electricians.

• Before commissioning, ensure that the mains voltage matches with the operating voltage on the type plate.
• Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

12 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
  – Pull out the mains plug.
• Allow the product to cool.

12.1 Cleaning

WARNING

Do not spray the product with water or clean it under running water. There is a danger of electric shock and the product could be damaged.

Use only cleaning agents that are suitable for use with the product.

Water entering the housing can cause engine damages. In addition, the jet of a high-pressure cleaner can damage parts of the product.

• Clean the product with a cloth, hand brush, etc.
• Do not immerse the product in water or other liquids and do not spray it with a high-pressure cleaner.
• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it off with compressed air at low pressure. We recommend that you clean the product directly after every use.
  Take care of tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tool's operation. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained tools.

Tool required:

• Rag/cloth*
• Hand brush*
• Slotted-head screwdriver*

* = may not be included in the scope of delivery!

1. Clean the saw blades (5) and the guide rail (4) thoroughly. Use a slotted screwdriver to remove any dirt from the groove of the guide rail (4).

12.2 Maintenance

WARNING

Carry out a visual and functional check/maintenance regularly/daily and before commissioning to ensure that the product is in good operating condition.

• Incorrect maintenance, use of non-conforming replacement parts, or removal or modification of safety equipment may lead to severe property or personal damages.
• If this work cannot be carried out by the user themselves, see a specialist dealer.

All protective and safety equipment must be reassembled immediately after repair and maintenance work is completed.

Maintain the product carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the product's operation. Have damaged parts repaired before using the product.

• Use a high quality light machine oil to lubricate the moving parts.
• Ensure that all nuts, pins and screws are securely tightened so that the product is in a safe working condition.

Tool required:

- Allen key, 5 mm (7)

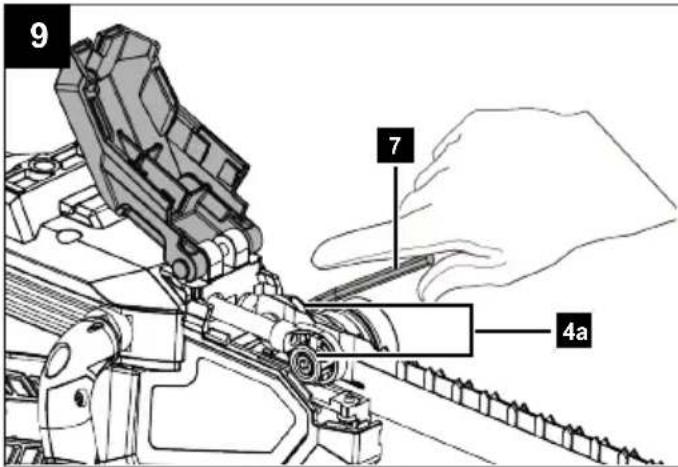

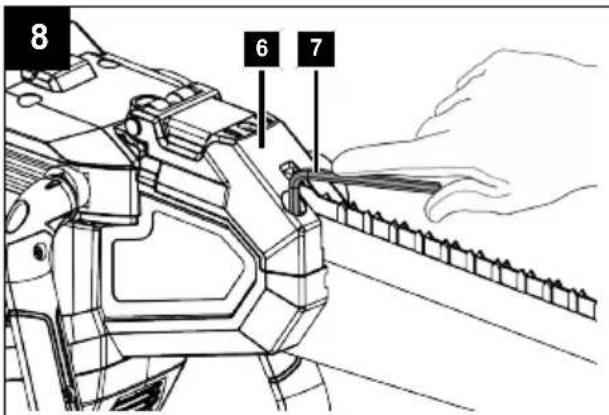

12.2.1 Removing the saw blades (5) (Fig. 8-10)

1. Place the product on a flat, level surface with the underside facing upwards.
2. Remove the screw (6a) from the gear cover (6) using the Allen key 5 mm (7).
3. Open the transmission cover (6).
4. Loosen the screw (4a) on one side until it clears the hole (5a) and the saw blade (5) can be moved upwards.
5. Pull the saw blade (5) backwards out of the front saw blade guide (4b).
6. Repeat the process on the other side.

12.2.2 Fitting the saw blades (5) (Fig. 8-10)

1. Place the product on a flat, level surface with the underside facing upwards.
2. If necessary, open the transmission cover (6) as described in 12.2.1.
3. Insert a saw blade (5) with the front, non-offset end first into the guide slot and then into the front saw blade guide. Ensure that the bend with the hole (5a) is facing outwards at the rear end.
4. Position the saw blade so that the hole (5a) and the screw (4a) are aligned.
5. Tighten the screw (4a) through the hole (5a) and secure the saw blade (5).
6. Repeat the process on the other side.

7. Press the transmission cover (6) down until it clicks into place.

8. Insert the screw (6a) and tighten it with the Allen key 5 mm (7).

12.2.3 Lubricating the saw blades (5) (Fig. 10)

Regular lubrication is essential to prevent damage, premature wear and product failure.

1. Remove the saw blades (5) as described in 12.2.1.
2. Lubricate the running surfaces of the saw blades (5) using high-grade machine oil.
3. Refit the saw blades (5) as described in 12.2.2.

13 Storage and transport

WARNING

Danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the engine before carrying out any cleaning or maintenance work.
• Allow the engine to cool down.
  – Pull out the mains plug.

- Clean and check the product for damage.

13.1 Storage

Preparation for storage

1. Clean and check the product for damage.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5°C and 30°C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

13.2 Transport

• To transport the product, disconnect the it from the power supply and set it up in the new position you want to use it in.
• Allow the product to cool.
• Protect the product from impacts, shocks and severe vibrations, e.g. during vehicular transport.
• Secure the product to prevent it slipping and toppling.

14 Repair and ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

14.1 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*:

• Carbon brushes
• Saw blade
• Guide rail

* = may not be included in the scope of delivery!

14.2 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Special saw blade:
HM aerated concrete 78 teeth Article no.: 7901811601
HM brick 48 teeth Article no.: 7901811602
HSS wood Article no.: 7901811603
HSS insulation material Article no. 7901811604

15 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the disposal of electrical and electronic equipment

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

16 Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy

The product cannot be started. Mains plug not connected to the mains.	Insert the mains plug into a mains socket.
	No mains voltage.House fuse responds.	Check sockets, mains connection cable, cable, mains plug, repair by qualified electrician if necessary.Check the house fuse.
	On/off switch is defective. Please contact our service department.
	Carbon brushes worn out.
	The engine is defective.
Poor cutting performance. Saw blades fitted incorrectly. Fit the saw blades correctly.
Product runs sluggishly, heats up, smoke develops during sawing, rail discolours.	Saw blades are blunt.	Replace the saw blades.
	Saw blade guide soiled.	Remove the saw blades and clean the saw blade guide
	Insufficient lubrication	Remove the saw blades and oil the saw blade guide

17 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand:

SCHEPPACH

Art. designation:

Electric reciprocating saw AZE430

Art. no.

5901824901

EU directives:

2014/30/EU, 2006/42/EG, 2011/65/EU*,

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 62841-1:2015/A11:2022;

EN 62841-2-11:2016/A1:2020;

EN IEC 55014-1:2021;

EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019/A2:2024;

EN 61000-3-3:2013/A2:2021;

EN ISO 12100:2010;

Documentation authorised representative:

Georg Kohler

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Remarque :

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Indice

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Indicazione:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Inhoudsopgave

Günzburger Straße 69

D-89335 Ichenhausen

Aanwijzing:

10.1 Zagen (afb. 3-7)

LET OP

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Índice

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Índice

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Accessories: 65 57 58 57 56 55 54 53 52 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 66 67 60 61 62 63 64

Garantie DE

Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.

Garantie FR
