HD-2470 - Hair Straightener TRISTAR - Free user manual and instructions

USER MANUAL HD-2470 TRISTAR

Product photo of a pink hair dryer with various hairbent and power tools (no text or symbols visible)

AirstylerHD-2470

EN User manual 3
NL Gebruikshandleiding 10
FR Mode d'emploi 16
DE Benutzerhandbuch 24
ES Manual del usuario 32
PT Manual do utilizador 39

IT Manuale d'uso 46
sv Bruksanvisning 53
PL Instrukcja obsługi 59
cs Uživatelská příručka 66
SK Používatel'ská príručka 73

A

1 2 3 4 5 6 7 8 9 10 11 12 13

User manual

Airstyler

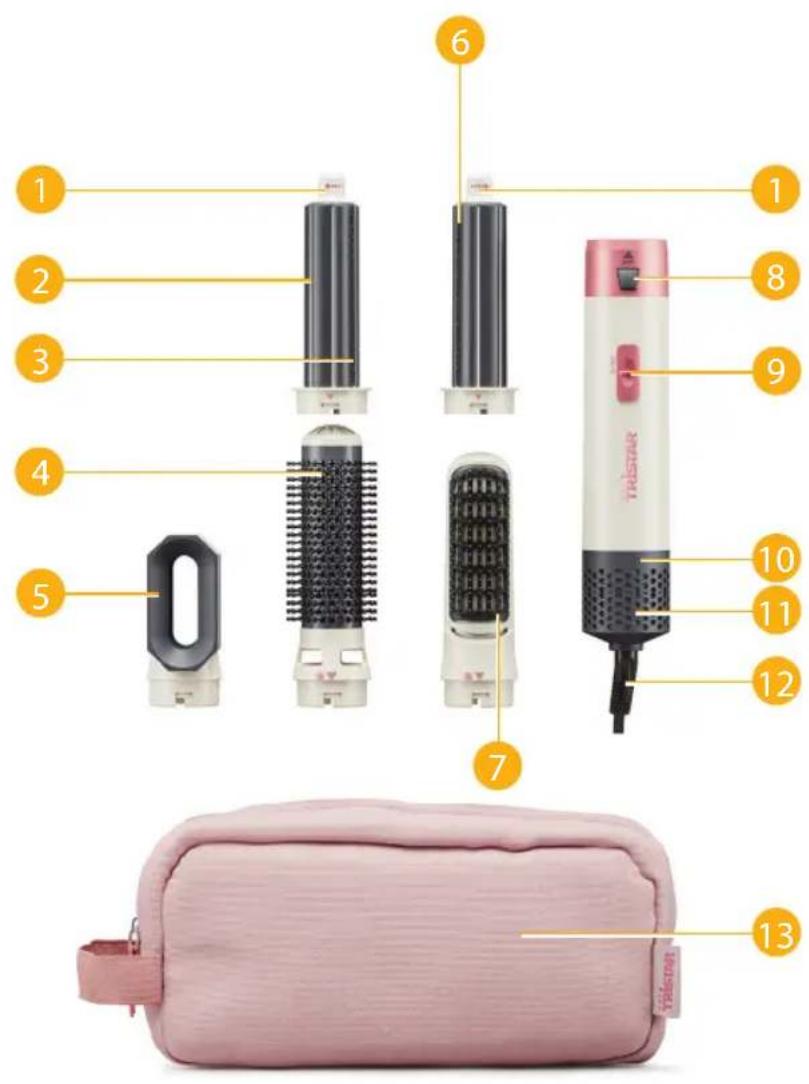

Main parts (see image A)

1 Curl direction indicators
2 30mm left automatic curling barrel
3 Air outlet
4 Round brush

5 Pre-styling blow dry nozzle
6 30mm right automatic curling barrel
7 Smooth paddle brush
8 Attachment release button

9 Power & Heat control switch
10 Air filter cover
11 Air inlet
12 Hanging loop
13 Storage bag

SAFETY

Safety symbols

Symbol Description

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

Safety precautions

WARNING

Safety hazard due to unintended use:

• Do not use the appliance with wet hands, in a damp environment or on wet surfaces. Do not immerse the appliance in water or other liquids.
• Only use the appliance as described in this user manual.
• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• Never make any adjustments to the appliance. Adjustments may affect safety, warranty and proper operation.
• Do not bring the appliance in contact with artificial hair.
• Do not spray aerosol products when the hair dryer is operation.
• Do not use other attachments than which supplied.
• Do not cover the air inlet and the air outer openings while the appliance is operating.
• If however, the airflow is inadvertently obstructed during use, the built-in thermal safety cut-off will automatically switch off the appliance. The hair dryer will switch on again automatically after cooling down for a few minutes.

- Keep hair away from the immediate vicinity of inlet opening to prevent from being drawn in.

Electric shock hazard due to short-circuiting:

• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• Never use the appliance if there are visible signs of damage or defects to the appliance or power cable. Always replace a damaged or defective appliance or power cable immediately or contact customer service.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Never replace the power cable yourself. Always let the manufacturer, its service agent or a similarly qualified person replace the power cable.
• Never lift the appliance by the power cable. Lifting the appliance by the power cable may damage the power cable. Only lift the appliance by holding the base.
• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.
• Always check if the voltage stated on the type plate of your appliance matches your mains voltage before use.
• Never insert any objects into the air vent openings.

Fire hazard due to overheating:

• Always fully unwind the mains cable and the extension cable.

- Never leave the appliance unattended when in use. Only use the appliance under supervision. Switch off the appliance and remove the power cable from the power outlet when you leave the room.

- Never use the appliance with a programmer, timer, separate remote control system or any other device that switches the appliance on automatically.

• Never place the appliance directly underneath a power outlet. The appliance may become hot during use. Always keep the back of the appliance clear of any objects.
• Never place the appliance near a heat source.

Fire hazard due to short-circuiting:

• Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the appliance if the appliance has been dropped.
• Never connect any other appliance with high power consumption to the same group.

Choking hazard due to plastic packaging:

- Never let children play with the packaging material. Always keep the packaging material out of the reach of children.

CAUTION

Burning hazard due to heat:

• Children should be supervised to ensure that they do not play with the appliance.
• Never touch the hot surfaces during or shortly after use. The hot surfaces may be subject to residual heat. Let the appliance cool down completely before handling the appliance.

Tripping hazard due to loose cables:

• Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it.
• To protect against fire, electric shook, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

NOTICE

Risk of damaging the appliance:

• Only use the appliance with the provided accessories or accessories recommended by Princess.
• Never place the appliance near the edge of a countertop during use. Vibrations may occur during use which may cause the appliance to move. Always place the appliance on a stable, flat, heat, and moisture resistant surface.

About this document

This user manual contains all the information for correct, safe, and efficient use of the appliance.

Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

General symbols

Symbol Description
	This product complies with conformity requirements of the applicable European regulations or directives.
	The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.
	Applicable in France:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	Applicable in Italy:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.
[X322]	Protection class 2: the fitting is double insulated and does not require earthing.

APPLIANCE DESCRIPTION

About this appliance

By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.

Intended use

This appliance is intended for indoor use only.

This appliance is intended exclusively for domestic, non-commercial use.

This appliance is intended to be used in household and similar applications such as:

• by clients in hotels, motels, and other residential type environments;
• farmhouses;
• bed and breakfast type environments.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

Do not use the hair dryer for any other purposes than those described in this instruction manual.

The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Appliance name Airstyler
Article number HD-2470
Power supply	220-240V~ 50-60Hz
Power consumption in use 800-1000W
Power consumption in Off mode N/A
Power consumption in Standby mode N/A
Time needed for item to reach Standby mode N/A

BEFORE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Clean before use the appliance with a damp cloth.
• During first use there could be some smoke and a burning smell. This happens because the appliance is new. It will disappear after a few minutes. This does not mean there is a malfunction and it will not cause one.

Changing and removing the styling attachments

• To fit the attachment onto the body of the appliance, insert the attachment onto the body by lining up ● on the attachment and ▲ on the unlock button on the body.
• Turn the attachment clockwise until you hear a click and the arrows align.
  • To remove the attachment, press on the unlocking button A8 ▲ and turn the attachment anticlockwise.

7User manual

USE

Features

• The appliance has two heat and speed settings: High and Low.
- You can change the styling attachments A24567 to create different looks. Always allow the appliance to cool down before changing attachments.

Speed and Heat Settings

• "3" – High speed and high heat
• "2" – Low speed and low heat
• "1" – Cool air flow
• "0" - Off

How to Use

1. Check that the voltage on the appliance matches your local power supply.
2. Wash your hair and towel-dry it thoroughly.
3. Plug the power cord into a wall socket.
4. Turn on the appliance using the Power Switch A9 and select the desired heat setting.
5. For a cool air flow, turn the switch to "1".
6. Cool air helps set your hairstyle and make it last longer.
7. After styling, turn the switch A9 to "0" and unplug the appliance.

Changing Attachments

• To attach: Align the guides on the attachment and the main unit. Press them together and gently rotate clockwise until you hear a click.
  • To remove: Press the Unlocking Button A on the sides of the unit and pull the attachment off.
• Curling Barrel: Use this attachment A _2 6 tocreatecurl.

Styling Attachments Blow Brush

Ideal for creating smooth side waves.

1. The brush A⑦ includes a Tension Comb for better grip and control.

2. To use, place the hair firmly into the brush and style as desired.

3. The brush A7 includes a Tension Comb for better grip and control.

4. To use, place the hair firmly into the brush and style as desired.

Roller Brush

Perfect for adding volume and curls.

1. Wrap sections of hair around the round brush A4.
2. To release the curl, press the release button A8 above the power switch A9.
3. Important: Do not comb your hair immediately after curling. Allow the curls to cool first for better hold.

Caution

• Never wrap the power cord around the appliance, as this may cause damage.
• Regularly check the power cord and the appliance for any visible damage.

CLEANING AND MAINTENANCE

• Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.
• Do not rinse with water
• Regularly check the appliance for possible damage.
• Clean the outside of the appliance with a soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.
• Remove the hairs from the curling attachment using a soft brush. Clean the curling attachment under running water. Thoroughly dry the curling attachment with a clean, dry cloth.
• Do not use direct heat to dry the appliance

STORAGE

• Put the appliance and the accessories in the original packaging or storage bag.
• Store the appliance with the accessories in a dry and frost-free place, out of the reach of children.

DISPOSAL

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

For spare parts and more information about the appliance, please visit www.tristar.eu.
