USER MANUAL TC-LD 40 R EINHELL

GB Original operating instructions Laser distance meter

F Instructions d'origine Telemetre laser

Technical line drawing of a vertical rectangular structure with a labeled dimension line (5), no readable text or symbols present.

2

Pure technical line drawing of a vertical structural component without any text, numbers, or symbols

5 a 5

Technical line drawing of a device front panel and its internal structure (no text or symbols)

-2-
3

4 OFF A Min/Max B

4

Simple line drawing of a rectangular object with a dashed diagonal line extending from its base, placed in a 3D corner (no text or symbols)

6 1. 2. 1. 2.

7 2.1. 3. 3. 2. 1.

8

8a min

8b max

Simple icon of an open book inside a black circle, no text or symbols present

D

Gefahr!

Leistung Laser: ....../< 1 mW

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 9)

1. Danger! - Read the operating instructions to reduce the risk of injury.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Special information about the laser

Caution: Laser radiation Do not look into the beam Laser class 2

• Never look directly into the laser path.
- Never direct the laser beam at reflecting surfaces or persons or animals. Even a low output laser beam can inflict injury on the eye.
- Caution: It is vital to follow the work procedures described in these instructions. Using the equipment in any other way may result in

hazardous exposure to laser radiation.

• Never open the laser module.
- It is prohibited to carry out any modifications to the laser to increase its power.
- The manufacturer cannot accept any liability for damage due to non-observance of the safety information.

Safety information on the batteries

Use of the batteries

• Inserting the batteries when the laser is switched on can cause accidents.
• If the equipment is not used correctly, the batteries may leak. Avoid contact with the battery fluid. If you come into contact with battery fluid, clean the affected body part with running water. If you get battery fluid in your eyes, seek immediate medical assistance.
• Escaped battery fluid can cause skin irritation and acid burns.
• Never expose the batteries to excess heat such as sunshine, fire or similar.
  • Never recharge batteries that are not suitable for recharging. There is a risk of explosion!
• Keep batteries away from children, do not short circuit batteries or disassemble.
• Seek a doctor's advice immediately if a battery is swallowed.
• If necessary, clean the contacts on the battery and equipment before inserting the batteries.
• Ensure that you insert the batteries the right way round.
• Remove flat batteries immediately from the equipment. There is an increased risk of leakage.
  • Always change all batteries in one go.
• Insert only batteries of the same type, do not use different types of batteries or used and new batteries together.
  • Make sure that the equipment is switched off after use.
• Remove the batteries if the equipment is not used over a longer period.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. Sensor
2. Laser
3. Display
4. Keypad
5. Battery compartment cover

GB

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Laser distance meter
Bag
• Original operating instructions

3. Proper use

The laser is designed for measuring distances, areas and volumes.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Range: 0.05 - 40m
Accuracy: +/- 3 mm / 40 m
Power supply: 2 x 1.5V; type AAA (LR03)
Laser class: 2
Laser wavelength: 630-640 nm
Laser output: ....../< 1 mW

5. Before using the equipment

Inserting/changing batteries (Fig. 2)

• Switch off the equipment.
• Remove the battery compartment cover (6) by pressing in the fastener (a) and flipping up the battery compartment cover.
• Insert the batteries, ensuring that you fit them the right way round.
• Fit the battery compartment cover back on, making sure that the fastener snaps into place.

6. Operation

Important!

The measuring distance and measuring accuracy can be affected by ambient conditions such as sunlight or poor reflection and this can have an adverse effect on the measurement result.

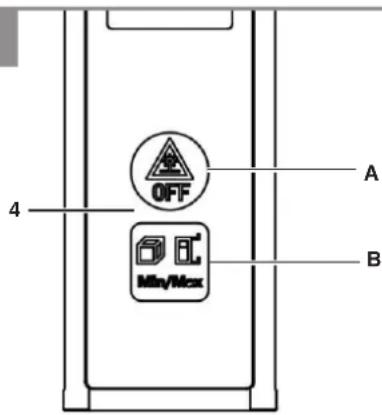

6.1 Description of the function buttons (Fig. 3)

A ON/OFF/Measuring button
B Measurement options button / Selection of the reference point for distance measurement

6.2 Switching the laser on/off

• To switch on the laser, press the ON / OFF / Measuring button (A).
• To switch off the laser, press the ON / OFF / Measuring button (A) and keep it pressed for about 1 second.

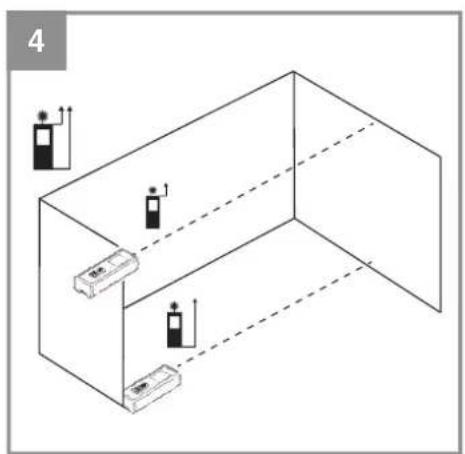

6.3 Setting the reference point (Fig. 3 - 4)

Measurements can be performed from two different reference points on the equipment. To do so, press button B and keep it pressed until the reference point changes. This is how you select the reference point you require.

GB

• Front edge reference point (see Fig. 4)
• Rear edge reference point (see Fig. 4)

6.4 Using the measurement functions

Note:

The laser beam switches off automatically after completion of each measurement. Press the ON/Measuring button.

6.4.1 Function: "Measure single distance"

"No symbol" (Fig. 5)

Procedure:

• Press button A once:
  Switch on the equipment
• Press button B for longer if necessary: Select the reference point on the equipment
• Press button A once: Switch on the laser
• Align the laser
• Press button A once: Measure → The result is displayed at the bottom in m

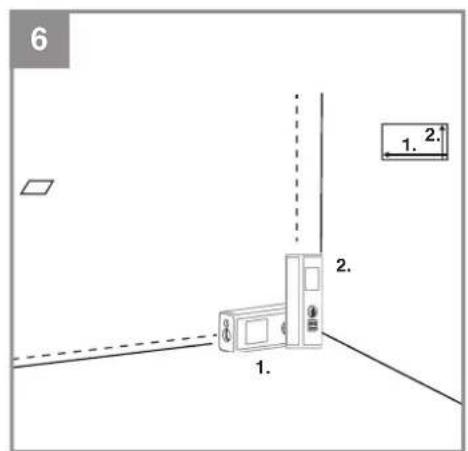

6.4.2 Function: "Measure areas"

"Symbol □" (Fig. 6)

Procedure:

• Press button A once:
  Switch on the equipment
  • Press button B once: Select function
• Press button B for longer if necessary:
• Select the reference point on the equipment
  • Press button A once: Switch on the laser
• Align the laser
  • Press button A once: Measure the area length
  • Press button A once: Switch on the laser
• Align the laser
• Press button A once: Measure the area width
  → The result is displayed at the bottom in m^2

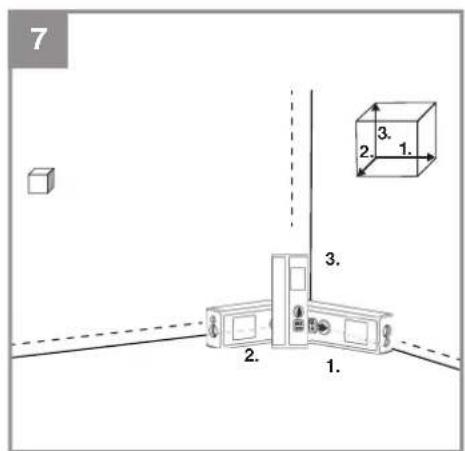

6.4.3 Function: "Measure volume"

"Symbol (Fig. 7)

Procedure:

• Press button A once:
  Switch on the equipment
  • Press button B twice: Select function
• Press button B for longer if necessary: Select the reference point on the equipment
• Press button A once: Switch on the laser
• Align the laser

• Press button A once: Measure the room length

• Press button A once: Switch on the laser

• Align the laser
  • Press button A once: Measure the room width
• Press button A once: Switch on the laser
• Align the laser
• Press button A once: Measure the room height
  → The result is displayed at the bottom in m^3

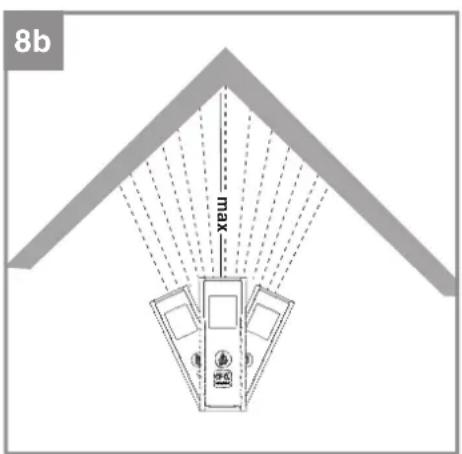

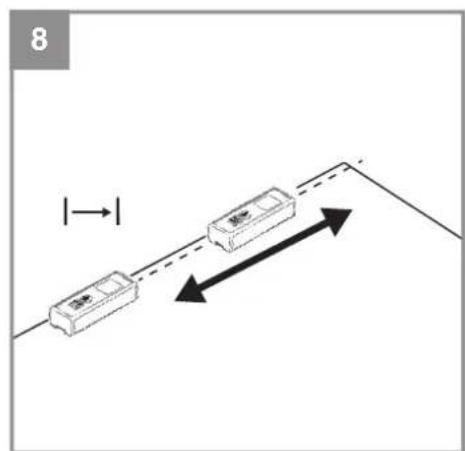

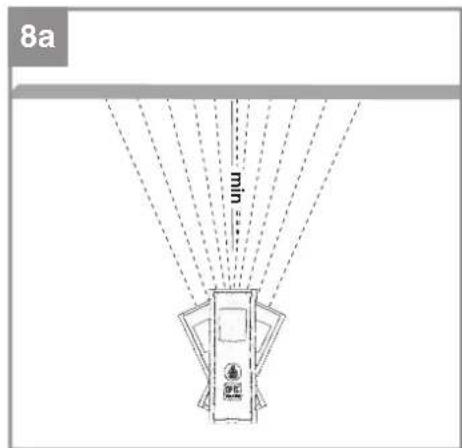

6.4.4 Function: "Measure continuous distance (min/max)"

"Symbol|→|"(Fig. 8 / 8a / 8b)

Procedure:

• Press button A once: Switch on the equipment
• Press button B three times: Select function
• Press button B for longer if necessary: Select reference point
  → The highest measurement result so far is displayed at the top in m
  → The lowest measurement result so far is displayed in the center in m.
  → The current measurement result is displayed at the bottom in real time

7. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

7.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

GB

7.3 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com

Tip! For good results we recommend high-quality accessories from !kwb www.kwb.eu [e-mail]

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

9. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

GB

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes.
