Product type	Laser rangefinder
Brand	Einhell
Model	TC-LD 30 R
Category	Laser rangefinder
Power supply	2 x 1.5V AAA batteries (LR03)
Battery type	AAA
Number of batteries	2
Laser class	2
Laser wavelength	630-640 nm
Measuring functions	Distance, area, volume, continuous measurement (tracking)
Reference point	Front or rear edge (selectable)
Display	Digital screen
Buttons	Measure/on/off, option selection
Power on	Short press on the measure button
Automatic power off	Yes, after measurement
Cleaning	Damp cloth, no solvents
Storage	Dark, dry place, 5-30 °C
Spare parts	Available at www.Einhell-Service.com
Recommended accessories	kwb (www.kwb.eu)
Safety	Class 2 laser - do not stare into beam

Frequently Asked Questions - TC-LD 30 R EINHELL

How to turn the rangefinder on and off?

To turn on, briefly press the A button (measure/on/off). To turn off, hold this button down for about 1 second.

How to measure a simple distance?

Turn on the device, select the reference point (front or rear edge) if necessary, then press the A button to activate the laser. Aim at the target and press the A button again to take the measurement. The result is displayed in meters.

How to calculate the area of a room?

Press the B button once to select the area function (symbol □). First measure the length by pressing the A button, then the width in the same way. The area is displayed in m².

How to calculate the volume of a room?

Press the B button twice to select the volume function (symbol »). Measure successively the length, width and height by pressing the A button each time. The volume is displayed in m³.

What is the continuous measurement function (tracking)?

Press the B button three times to activate continuous measurement (symbol | → |). The current measurement result is displayed in real time, with the minimum and maximum values shown simultaneously.

How to change the batteries?

Turn off the device. Open the battery compartment cover by pressing the lock inward and flipping it upward. Insert two AAA (LR03) batteries observing polarity. Close the cover until it clicks.

What type of batteries to use?

Use two AAA (LR03) 1.5V batteries. Always replace all batteries at the same time and use batteries of the same type.

How to clean the rangefinder?

Clean the device with a damp cloth and a little mild soap. Do not use aggressive cleaning agents. Make sure no water enters the interior.

How to select the reference point (front or rear edge)?

Hold the B button until the reference point changes. You can choose between the front edge (measurement from the front of the device) or the rear edge (measurement from the back).

What to do if the laser does not turn on?

First check that the batteries are correctly inserted and in good condition. If the problem persists, contact Einhell customer service via www.Einhell-Service.com.

USER MANUAL TC-LD 30 R EINHELL

GB Original operating instructions Laser distance meter

F Instructions d'origine Telemetre laser

Danger!

Laser power: ....../< 1 mW

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 9)

1. Danger! - Read the operating instructions to reduce the risk of injury.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Special information about the laser

Caution: Laser radiation. Do not look into the beam. Laser class 2.

• Never look directly into the laser path. Never direct the laser beam at reflecting surfaces or persons or animals. Even a low output laser beam can inflict injury on the eye. Caution: It is vital to follow the work procedures described in these instructions. Using the equipment in any other way may result in

hazardous exposure to laser radiation.

• Never open the laser module. It is prohibited to carry out any modifications to the laser to increase its power. The manufacturer cannot accept any liability for damage due to non-observance of the safety information.

Safety information on the batteries

Use of the batteries

• Inserting the batteries when the laser is switched on can cause accidents.
• If the equipment is not used correctly, the batteries may leak. Avoid contact with the battery fluid. If you come into contact with battery fluid, clean the affected body part with running water. If you get battery fluid in your eyes, seek immediate medical assistance.
• Escaped battery fluid can cause skin irritation and acid burns.
• Never expose the batteries to excess heat such as sunshine, fire or similar. Never recharge batteries that are not suitable for recharging. There is a risk of explosion!
• Keep batteries away from children, do not short circuit batteries or disassemble.
• Seek a doctor's advice immediately if a battery is swallowed.
• If necessary, clean the contacts on the battery and equipment before inserting the batteries.
• Ensure that you insert the batteries the right way round.
• Remove flat batteries immediately from the equipment. There is an increased risk of leakage. Always change all batteries in one go.
• Insert only batteries of the same type, do not use different types of batteries or used and new batteries together. Make sure that the equipment is switched off after use.
• Remove the batteries if the equipment is not used over a longer period.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. Sensor
2. Laser
3. Display
4. Keypad
5. Battery compartment cover

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Laser distance meter • Original operating instructions

3. Proper use

The laser is designed for measuring distances, areas and volumes.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Range: 0.05 - 30 m Accuracy: +/- 3 mm / 10 m Power supply: 2 x 1.5V; type AAA (LR03) Laser class: 2 Laser wavelength: 630-640 nm Laser output: ....../< 1 mW

5. Before using the equipment

Inserting/changing batteries (Fig. 2)

• Switch off the equipment.
• Remove the battery compartment cover (6) by pressing in the fastener (a) and flipping up the battery compartment cover.
• Insert the batteries, ensuring that you fit them the right way round.
• Fit the battery compartment cover back on, making sure that the fastener snaps into place.

6. Operation

Important!

The measuring distance and measuring accuracy can be affected by ambient conditions such as sunlight or poor reflection and this can have an adverse effect on the measurement result.

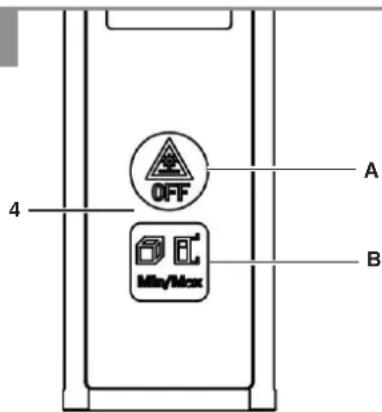

6.1 Description of the function buttons (Fig. 3)

A ON/OFF/Measuring button B Measurement options button / Selection of the reference point for distance measurement

6.2 Switching the laser on/off

• To switch on the laser, press the ON / OFF / Measuring button (A).
• To switch off the laser, press the ON / OFF / Measuring button (A) and keep it pressed for about 1 second.

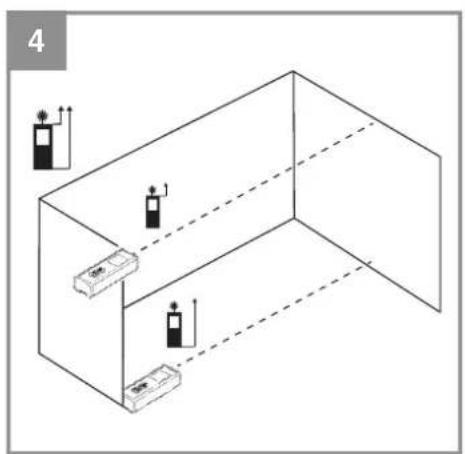

6.3 Setting the reference point (Fig. 3 - 4)

Measurements can be performed from two different reference points on the equipment. To do so, press button B and keep it pressed until the reference point changes. This is how you select the reference point you require.

• Front edge reference point (see Fig. 4) • Rear edge reference point (see Fig. 4)

6.4 Using the measurement functions

Note:

The laser beam switches off automatically after completion of each measurement. Press the ON/Measuring button.

6.4.1 Function: "Measure single distance"

"No symbol" (Fig. 5)

Procedure:

• Press button A once: Switch on the equipment
• Press button B for longer if necessary: Select the reference point on the equipment
• Press button A once: Switch on the laser
• Align the laser
• Press button A once: Measure → The result is displayed at the bottom in m

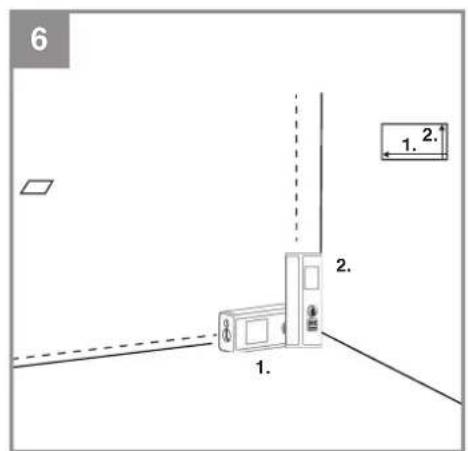

6.4.2 Function: "Measure areas"

"Symbol □" (Fig. 6)

Procedure:

• Press button A once: Switch on the equipment • Press button B once: Select function
• Press button B for longer if necessary:
• Select the reference point on the equipment • Press button A once: Switch on the laser
• Align the laser • Press button A once: Measure the area length • Press button A once: Switch on the laser
• Align the laser • Press button A once: Measure the area width → The result is displayed at the bottom in m²

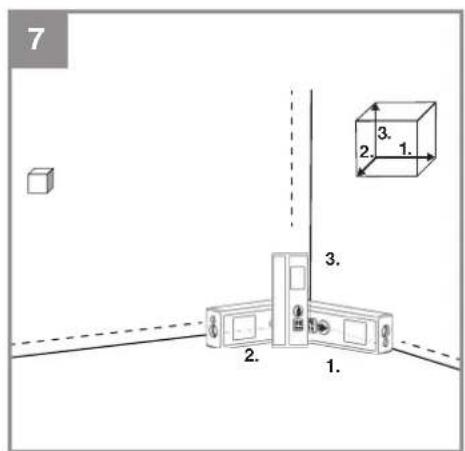

6.4.3 Function: "Measure volume"

"Symbol (Fig. 7)

Procedure:

• Press button A once: Switch on the equipment • Press button B twice: Select function
• Press button B for longer if necessary: Select the reference point on the equipment
• Press button A once: Switch on the laser
• Align the laser
• Press button A once: Measure the room length
• Press button A once: Switch on the laser
• Align the laser • Press button A once: Measure the room width • Press button A once: Switch on the laser
• Align the laser
• Press button A once: Measure the room height → The result is displayed at the bottom in m³

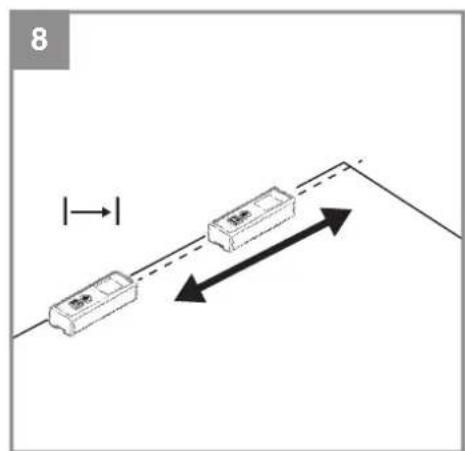

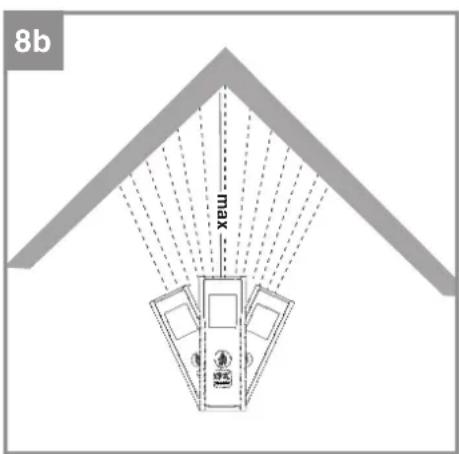

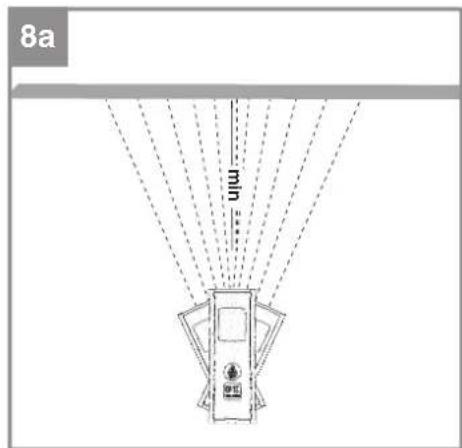

6.4.4 Function: "Measure continuous distance (min/max)"

"Symbol | (Fig. 8 / 8a / 8b)

Procedure:

• Press button A once: Switch on the equipment
• Press button B three times: Select function
• Press button B for longer if necessary: Select reference point → The highest measurement result so far is displayed at the top in m → The lowest measurement result so far is displayed in the center in m. → The current measurement result is displayed at the bottom in real time

7. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

7.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit • Article number of the unit • ID number of the unit
• Spare part number of the required spare part. For our latest prices and information please go to www.Einhell-Service.com

Tip! For good results we recommend high-quality accessories from kwb! www.kwb.eu [e-mail]

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

9. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes.

F

Danger!

Laser power: ....../< 1 mW

Laser wavelength: 630-640 nm

Laser power: ....../< 1 mW

Subject to change without notice

Archive-File/Record: NAPR024471

Documents registrar: Georg Riedel

Wiesenweg 22, D-94405 Landau/Isar

1 SN Laser distance meter - Tämlämte a laser - Misatore laser di distenza - OKN Laser-aktansilamater - S Lasertranslameter - CZ Laser-dialamater - SK Lasersky dialamer - NL Lasera-standameter - E Telemector laser - FIN Laser-trisysmirtan - SLO Laserski meritas ralteje - HLA-talov-soligdamer - PO Aperat de mästa distance cu laser - GR Metrjärn - smottartom je, da Ude 2 P Telenoro o laser - NR/NGI Laserski impred raltejea - RS Laser merat eistapima - PL Laserski dinstancionin- kameritekrial griepor - TR Laser Motre - PUS Laserski dinstancionin- kalur i preop - EE Laser kaugusimittel - CL Laser simers - MT Laserski distens musculus - SG Lasere nameritektr na pačstomie - OKN Laserski dialu-mör - MX Laserski nelerat na pačstomie

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Laser Measuring Tool TC-LD 30 R (Einhell)

UK legislation

□ Simple Pressure Vessels (Safety) Regulation □ Electrical Equipment (Safety) Regulation □ Radio Equipment Regulation □ Personal Protective Equipment Regulation □ The Ecodesign for Energy-Related Products and Energy Information Regulation X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation □ Noise Emission in the Environment by Equipment for use Outdoors Regulation ☒ Electromagnetic Compatibility Regulation □ Measuring Instruments Regulation □ Pressure Equipment (Safety) Regulation [Non-Text] Information Regulation ces in Electrical and Electronic Equipment Regulation e Outdoors Regulation

Annex V

Annex VI

Noise: measured LWA = dB (A); guaranteed LWA = dB (A) P = kW; L/∅ = cm UK Approved Body: P = kW; L/∅ = cm UK Approved Body:

□ Supply of Machinery (Safety) Regulation

□ Annex IV

UK Approved Body:

UKTE Certificate No.:

□ Supply of Machinery (Safety) Regulation

□ Annex IV

UK Approved Body:

UKTE Certificate No.:

Standards: BS EN 60825-1; BS EN 61326-1

Wirral, 2024.10.02

Tom Chambers, Managing Director Einhell UK Ltd.

Archive-File/Record: NAPR024471

Article Number: 22.700.77 I.-No.: 21013

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Documents registrar: Georg Riedel

EH 03/2025 (01)
