IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.

3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial, or industrial environments.
6. Do not use without dust bin and/or filters in place.
7. Do not operate the Appliance in an area where there are lit candles or fragile objects.
8. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
9. Do not operate the Appliance in a room where an infant or child is sleeping.

10. Do not use and store in extremely hot or cold environments (below -5^/23^ or above 40^/104^ ). Please charge the robot in temperature above 0^/32^ and below 40^/104^ .

11. Do not use Appliance on wet surfaces or surfaces with standing water.

12. Do not allow the Appliance to pick up large objects like stones, large pieces of paper, or any item that may clog the Appliance.
13. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
14. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
15. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
16. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
17. Turn OFF the power switch before cleaning or maintaining the Appliance.
18. The lithium battery type suitable for CH2497F is Max. 4 cells, max. nominal voltage DC 14.4V, rated capacity 5,800mAh. The battery must be

removed and discarded according to local laws and regulations before disposal of the Appliance.
19. Please dispose of used batteries according to local laws and regulations.
20. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
21. The Appliance must be used in accordance with the directions in this Instruction Manual. Ecovacs Home Service Robotics cannot be held liable or responsible for any damages or injuries caused by improper use.
22. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.
23. Please make sure your power supply source voltage matches the power voltage marked on the OMNI Station.
24. Use only the original rechargeable battery and OMNI Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.
25. Take care not to damage the power cord. Do not pull on or carry the Appliance or OMNI Station by the power cord, use the power cord

as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

1. Do not use the OMNI Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.
2. Do not use with a damaged power cord or receptacle. Do not use the Appliance or OMNI Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid hazards.
3. The plug must be removed from the receptacle before cleaning or maintaining the OMNI Station.
4. Remove the Appliance from the OMNI Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
5. When not using the OMNI Station for a long period of time, please unplug it.
6. If the robot will not be used for a long time,

power OFF the robot for storage and unplug the OMNI Station.

1. WARNING-Add clean water into the clean tank only.
2. WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH2497F provided with the Appliance.

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Device Update

Typically, some devices are updated bi-monthly, but not always so specific.

Some devices, especially those that went on sale more than three years ago, will only be updated if a critical vulnerability is found and fixed.

To check the current software version and enable automatic updates, go to Settings > Robot Advanced Settings > About Your Robot > Update in the app.

The current version is displayed there; tap Update to enter the page and select Automatic Update to enable it.

	Caution: hot surface
	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current
	Before charging, read the instructions.
[WHHT]	Polarity of the charging port
	Time-lag miniature fuse-link

The remote surveillance is for the absolute private use of non-public, private owned places for the pure self-protection and single control intended only. Please be aware of the local data protection based legal obligations in case of use. No surveillance of public places, especially with clandestine intent and/or on the part of the employer without justified reasons. Such not justified use is in the risk and responsibility of the user only.

European Union Compliance Statement Information on Disposal for Users of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste.

For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

To return your used device, please use the return and collection systems or contact the retailer where the product was purchased, which is free of charge, please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Information on Disposal for Users of used batteries

This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point, which is free of charge.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. there are separate collection systems for used batteries and accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ecovacs Home Service Robotics Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

Radio Equipment Directive

Ecovacs Home Service Robotics Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

Europe Authorised Representative:

Ecovacs Home Service Robotics Co., Ltd. hereby declares that the product comply with the essential requirements and other relevant provisions of the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863, the Radio Equipment Directive 2014/53/EU. The declaration of conformity can be viewed at the following address:

https://www.ecovacs.com/global/compliance

PACKAGE COMPONENTS

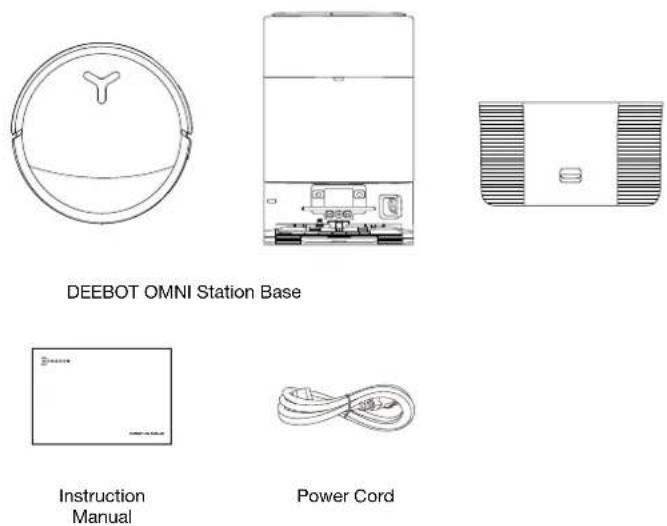

1 Package Contents

* Figures in this manual are for reference only and may differ from the appliance. Product design and specifications are subject to changes without notice.

② Product Diagram

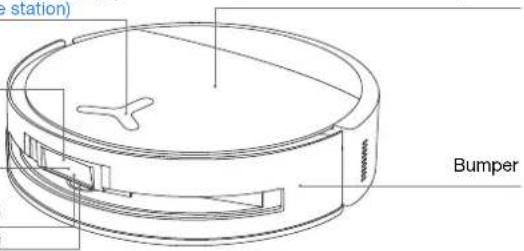

1. DEEBOT Front View

Buttons on the DEEBOT:

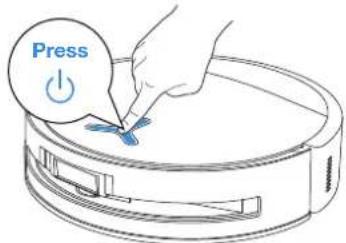

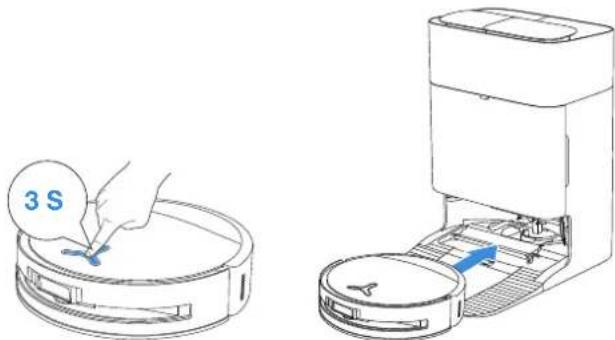

Press: Toggle Start/Pause/Continue Short Press for 3 s: Return to Station Double Tap: Release/Retract Mop (DEEBOT not in the station)

Obstacle Avoidance Module

Al Camera

Supplementary Light (select models only)

Navigation Module

station) Bumper

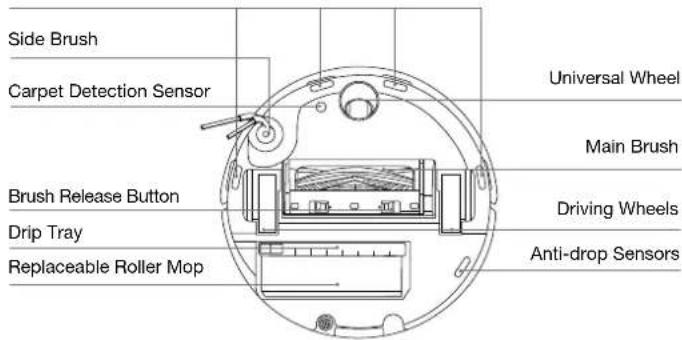

1. DEEBOT Bottom View

Anti-drop Sensors

Side Brush Carpet Detection Sensor Brush Release Button Drip Tray Replaceable Roller Mop Universal Wheel Main Brush Driving Wheels Anti-drop Sensors

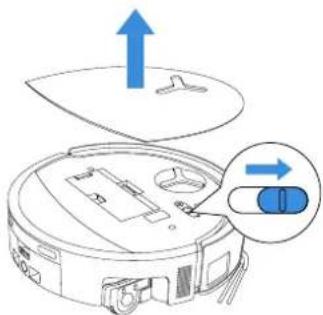

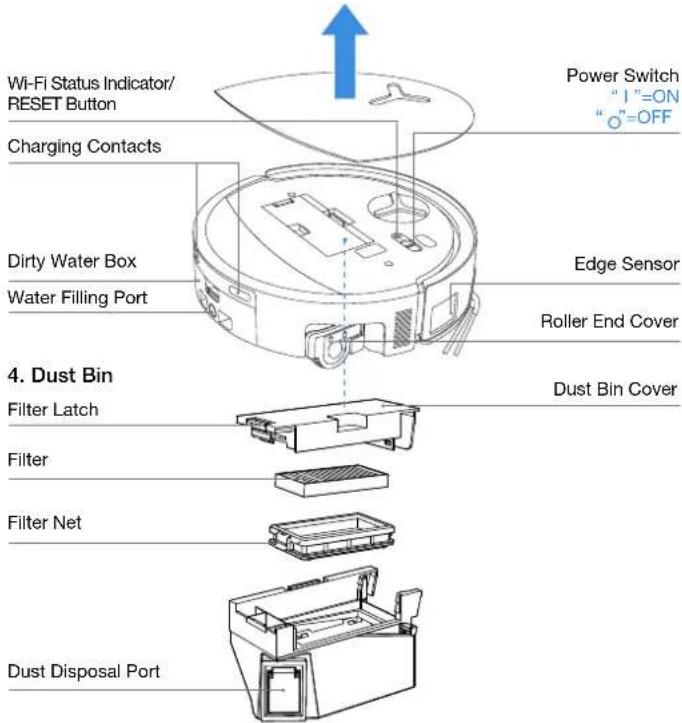

3. Inside DEEBOT (Under the Top Cover)

RESET Button

Network Setup: Press the RESET Button and follow the voice prompt to set up the network.

Restore default settings: Press the RESET button and hold for 5 s. After you hear the voice prompt, the startup music will play, and DEEBOT will be restored to the default settings. Reset will clear the existing map and cleaning settings. Please use with caution.

Wi-Fi Status Indicator/ RESET Button Charging Contacts Dirty Water Box Water Filling Port Power Switch " I "=ON " ○"=OFF Edge Sensor Roller End Cover 4. Dust Bin Filter Latch Filter Filter Net Dust Disposal Port Dust Bin Cover

|10EN

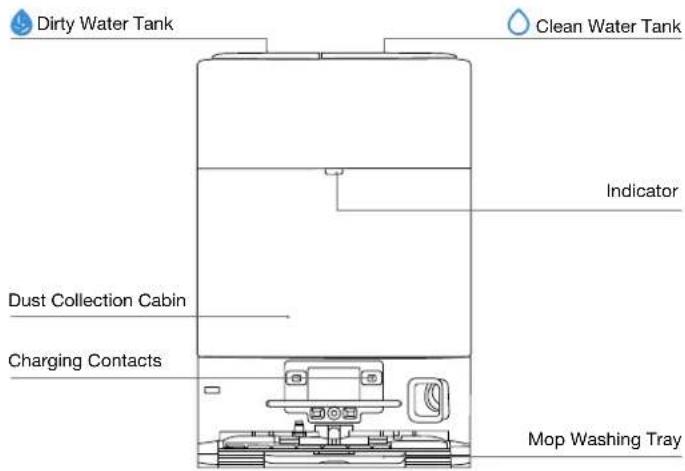

1. OMNI Station


Dirty Water Tank Clean Water Tank Indicator Dust Collection Cabin Charging Contacts Mop Washing Tray

Note:

- Flashing Red: Please check the ECOVACS HOME App for the reason. - If DEEBOT fails to charge, please wipe charging contacts with a clean and dry cloth.

1. Dust Bag


Dust Bag Handle

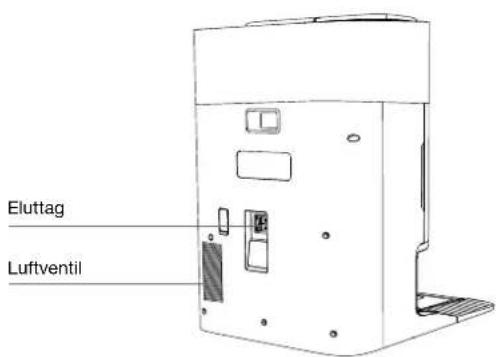

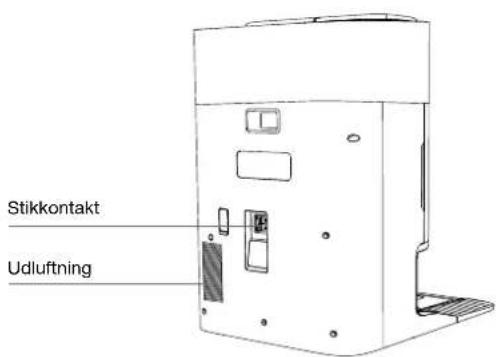

7. OMNI Station (Back)

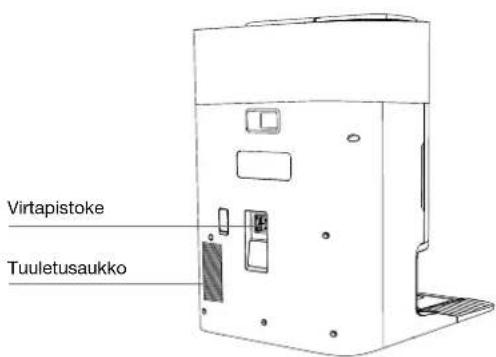

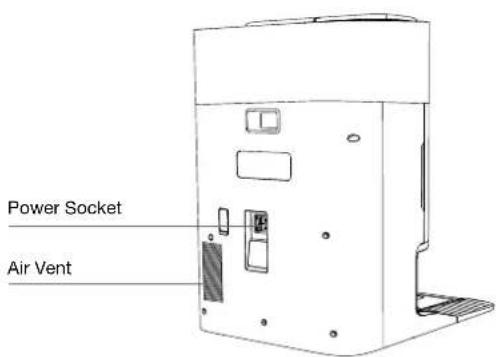

Power Socket Air Vent

1. Indicator Light

Indicator Light Effect State
DEEBOT	Breathing White Charging
	Solid White Fully Charged/Running
	Solid Red Low Battery
	Flashing Red Malfunction
Station	Solid White Standby/Running
	Flashing Red Malfunction
	Goes Out	Power Outage/Deep Sleep Mode

1. Sensors Overview

Name Functional Description
Navigation Module	Laser Ranging is applied to measure the distance between DEEBOT and surrounding objects based on the time difference of reflection, allowing the module to map against the objects around while DEEBOT is moving. The detection range is 10 m.
Obstacle Avoidance Module	Infrared Ranging and similar triangles are applied to measure the distance between the surrounding objects and DEEBOT. When the sensor detects an object nearby, DEEBOT will automatically take a turn to avoid bumping into the object. The detection range is 0.3 m.
Anti-drop Sensors	With Infrared Ranging, the distance between the DEEBOT's bottom and the ground is detected by the infrared sensors at the bottom, DEEBOT will not move forward when there are stairs in front (such as when the height of the white surface is 55 mm or more, or the height of the black surface is 30 mm or more) and the identified height exceeds the preset one, realizing the anti-drop feature.
Carpet Detection Sensor	The sensor emits 300 kHz ultrasound, whose energy will be absorbed by the carpet, causing the echoed energy to be lower than the threshold. DEEBOT thereby detects the carpet's presence. In the ECOVACS laboratory, more than 50 types of carpets available on the market are identified.
Anti-collision Sensor	With the principle of the Optocoupler Switch, DEEBOT will avoid obstacles when they are about to collide.
Edge Sensor	With Infrared Ranging, the edge sensor detects the distance between the DEEBOT and objects on the side. When there is a wall or obstacles on the right, the DEEBOT performs edge cleaning to avoid missing any spots and prevent collisions.
AI Camera	Use AI cameras to collect images of the surrounding environment. Realize video recording. Through interaction with MIC, remote video call can be realized(For some models).

INITIAL SETUP AND USE

1 Notes before Cleaning

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Tide up the Area to be Cleaned

For the maximum cleaning area possible, put furniture, such as tables, chairs, and pedestal fans, in their proper place and put away low-lying items, such as weight scales, before using DEEBOT.

Isometric line drawing of a balcony with railing and a circular base, no text or symbols present

Prevent DEEBOT from Falling

Place a physical barrier at the edge of a drop, such as staircases and steps, to stop DEEBOT from falling over the edge.

Pure geometric lines forming a cross shape without any text, numbers, or symbols

Open Doors and Help DEEBOT Explore

Open all room doors to help DEEBOT fully explore your house during the first use.

Simple line drawing of a sofa with furniture and window, no text or symbols present

Provide Sufficient Lighting

Ensure all cleaning areas are well-lit to support DEEBOT's AI camera in accurately avoiding obstacles such as shoes, socks, and cords.

Remove objects, including cables, clothes, and slippers, from the floor to improve cleaning efficiency.

Before using the product on a carpet with tasseled edges, please fold the tassels under the carpet.

Please do not stand in narrow spaces, such as hallways, to avoid blocking the navigation module.

Ensure the clarity of the DEEBOT's vision and avoid scratching or smudging the AI camera lens with fingerprints or oily stains. Use a clean, soft cloth to wipe the camera, instead of cleaning agents, detergents, or sprays.

Quick Start

Remove all protective materials before using.

1. Installation

The sound of "click" indicates proper installation.

Click

2. Assemble and Place the Station

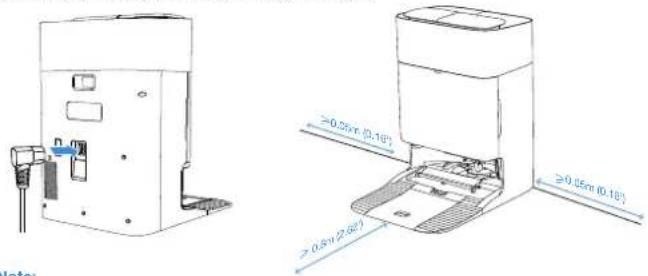

Place the OMNI station against the wall on a flat, hard surface. Do not place items within 0.05 m on either side and 0.8 m in front.

≥0.25m (0.10°) ≥0.65m (0.10°) ≥0.5+(2.6°) Note:

Note:

• If there are reflective objects such as mirrors and reflective skirting lines near the station, the bottom 14 cm of such objects should be covered.
• Do not place the station under direct sunlight or in high-temperature environments.
• Place the station in a location with a strong WI-FI signal for better user experience.
• Do not use the appliance on wet surfaces or surfaces with standing water.
• Do not wipe DEEBOT and the station with a damp cloth or use any liquid.

Download the ECOVACS HOME APP

To enjoy all available features, it is recommended that you control your DEEBOT via the ECOVACS HOME App.

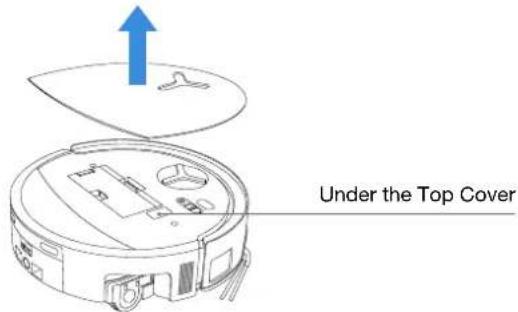

Scan the QR code under the top cover to download the App.

Under the Top Cover

Or search "ECOVACS HOME" on the App Store or Google Play to download the App.

Download on the App Store Get it on Google Play ECOVACS HOME

Note: Follow the instructions on the App to complete the registration, login, and connection.

4 Connect DEEBOT with APP

Via Bluetooth: Turn on DEEBOT and your mobile phone Bluetooth. Allow the App to obtain mobile phone Bluetooth permission. Tap to scan the QR Code on DEEBOT or tap ☐ or Add in the App to find the nearby DEEBOT.

Via Wi-Fi: You can also choose to connect DEEBOT with the App through other methods according to the prompts on the App's page.

Note: Please connect via Bluetooth for a better experience.

Wi-Fi Network Requirements:

• You are using a 2.4 GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as that of your primary network.
• Please enable the WPA2 on your router.

Wi-Fi Indicator Light

	Slow Flashing White Disconnected from Wi-Fi
	Fast Flashing White Connecting
	Solid White Connected to Wi-Fi

Please be aware that intelligent features such as remote startup, 2D/3D map display and control settings, and personalized cleaning (depending on the Appliance) require the ECOVACS HOME App, which is constantly updated. You need to agree to our Privacy Policy and User Agreement so that we can process some of your essential and necessary information before you can use certain features of the ECOVACS HOME App to control the Appliance. If you disagree with our Privacy Policy and User Agreement, such features will be unavailable. However, you can still use the basic features of this appliance for manual operation.

Network Interface Information

Name Description
Infrared interface	The infrared interface is turned off by default, and it is activated when the robot is in the charging station. When the DEEBOT is in the charging station, it will communicate with the charging station through the infrared interface.
Bluetooth	Enable Bluetooth to connect the robot to the network during the network setup process. Bluetooth uses the GAP1800, GATT 1801, 8888 service for configuration and data interaction securely.
WI-FI*	Facilitate data transfer between the app and the robot, enabling control of the robot through the app.
ECOVACS HOME App	ECOVACS products offer smart functions such as network setup, mapping, and cleaning mode selection (specific to each product). To utilize these features, users need to download and use the official ECOVACS Home App.

* The DEEBOT series robotic vacuums are designed for domestic cleaning scenarios. A home Wi-Fi network is required for operation, and anti-DDOS protection needs to be configured by users through route settings.

⑤ Power on and Charge DEEBOT

Turn on the power switch under DEEBOT's cover ("I" = ON, "O=OFF"), and place DEEBOT in front of the station that is connected to the power supply, then move DEEBOT back to the station.

Diagram showing the installation of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Note:

• DEEBOT cannot charge when it is powered off.
• After cleaning, it is recommended to keep DEEBOT powered on and charging to ensure it is ready for the next cleaning session.
• Please start cleaning from the station. Do not move the station while cleaning.

⑥ Fill the Clean Water Tank

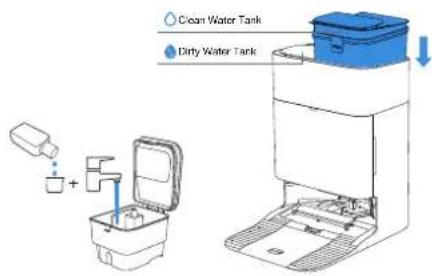

Fill the clean water tank with clean water. Add an appropriate amount of cleaning solution with a 1:200 dilution ratio using the bottle cap. Secure the tank cover, shake gently to mix, and use.

Clean Water Tank Dirty Water Tank

Note:

• When the clean water tank is full (approximately 4L), add one cap of cleaning solution (approximately 20ml).
• Do not add hot water, as it may cause deformation of the water tank.
• If there are any residual water stains on the outside of the water tank, please wipe them off with a soft dry cloth before placing it back for use.
• Do not add any non-ECOVACS official cleaning solutions, as they may cause damage to the product.
• Any water stains inside the water tank are left over from factory testing. Please use with confidence.

7 Operate DEEBOT

1. Start Mapping

When creating a map for the first time, please follow DEEBOT to help with some minor issues.

For example, DEEBOT may get stuck under furniture. Please refer to the following solutions:

① Raise the low-sitting furniture if possible;

② Cover the bottom of the furniture.

2. Start Cleaning

- DEEBOT's water tank is automatically refilled through the station. Manual refilling is not needed.

- When mopping, DEEBOT will recognize floor types and is able to lift roller mop automatically when encountering carpets. Please do not use DEEBOT on shaggy rugs or carpets with fibres longer than 10 mm. It is recommended to fold up the shaggy rugs with fibres longer than 10 mm during the cleaning process, please set a virtual boundary in the ECOVACS HOME App.

Please ensure that DEEBOT is in the station and is fully charged before cleaning for the first time. Tap 🔊 on DEEBOT to start. You can also use the ECOVACS HOME App to start.

3. Pause

Tap on DEEBOT to pause it while it is working. You can also use the ECOVACS HOME App to pause DEEBOT.

4. Wake Up

After pausing for a while, all indicator lights on DEEBOT will go out. To wake up DEEBOT, briefly press the button, or use the ECOVACS HOME app.

Press +

|16EN

5. Back to Station

Use the ECOVACS HOME App to recall DEEBOT, or press and hold the button on DEEBOT for 3 s, to allow DEEBOT to dock for charging.

3 S

6. Deep Sleep Mode

DEEBOT will enter deep sleep mode if it stays outside the station for about 10 h to protect the battery. Please switch OFF and ON to wake DEEBOT up. If unresponsive, place DEEBOT on the dock to charge.

Diagram of a robotic vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

REGULAR MAINTENANCE

Maintenance Frequency

To keep DEEBOT running at peak performance, perform maintenance and replace parts at the following frequencies:

DEEBOT Part	Maintenance Frequency	Replacement Frequency
Washable Roller Mop / Every 1-2 months
Dirty Water Box Every week /
Drip Tray Every week /
Dust Bag / When App prompts
Side Brush Every 2 weeks Every 3-6 months
MainBrush Every week Every 6-12 months
Filter Every week Every 3-6 months
Universal WheelAnti-drop SensorsEdge SensorBumperCharging Contacts on DEEBOTCharging Contacts on OMNI StationNavigation ModuleObstacle Avoidance ModuleAl Camera	Approx every month	/
Clean Water Tank Every 3 months /
Dirty Water Tank Every month	/
Dust Collection Cabin	Every month	/
Body and Bottom of the Station	Every month	/
Mop Washing Tray	Every 5 months /

Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com

DEEBOT Maintenance

① Maintain Dust Bin and Filter

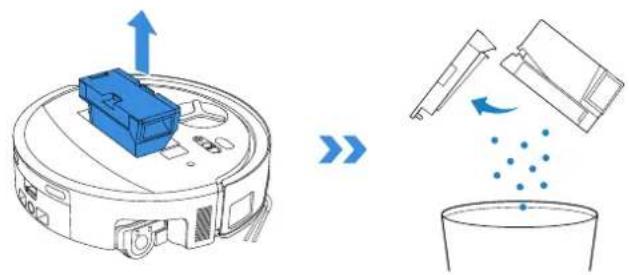

1. Remove the dust bin and then empty it.

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and cleaning steps.

1. Open the filter net and remove the filter.


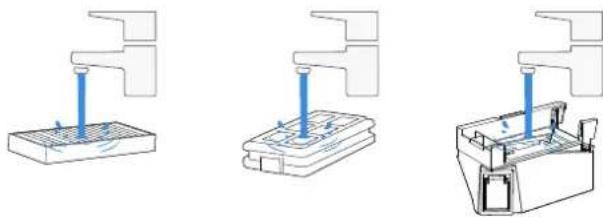

1. Rinse the dust bin and filter with water and shake off the water droplets.

Three technical line drawings showing a mechanical assembly with blue rods inserted into a base, no text or symbols present.

Note:

• Please rinse the filter with water as shown.

• Do not use fingers or a brush to clean the filter.

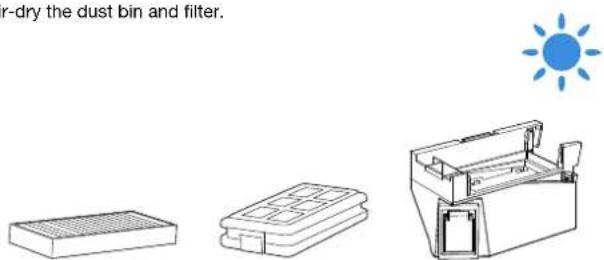

• Air-dry the dust bin and filter.

r-dry the dust bin and filter.

Note: Completely dry the dust bin components before use.

② Maintain Main Brush and Side Brush

Clean the Main Brush

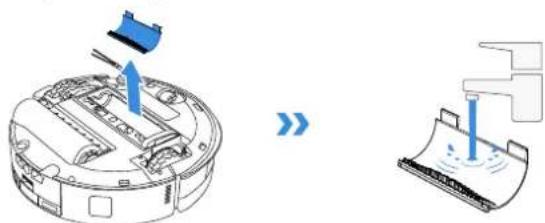

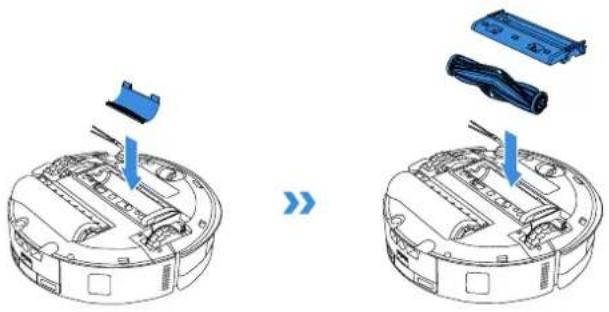

1. Remove the cover from the main brush.

Note: Before turning DEEBOT upside down, please empty any remaining water from the dirty water tank and drip tray.

no tray.

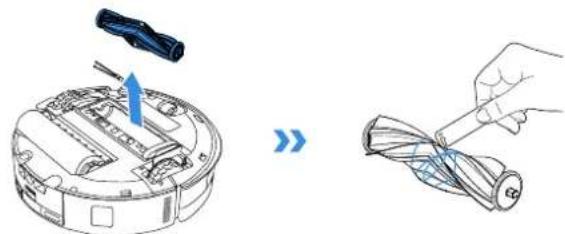

1. Remove and clean the main brush.

Illustration showing a robotic device with a tool and a close-up of its cable being inserted (no text or symbols present)

1. Remove, clean and dry the brush comb.

Diagram showing a robotic device with blue components and a close-up of its internal structure (no text or symbols)

1. Install the brush comb, main brush and the cover.

Diagram showing two views of a robotic device with blue components and arrows indicating assembly (no text or symbols)

Clean the Side Brush

Remove the side brush using a screwdriver and clean it.

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a specific part (no text or symbols present)

③ Maintain Roller Mop

Clean the Roller Mop

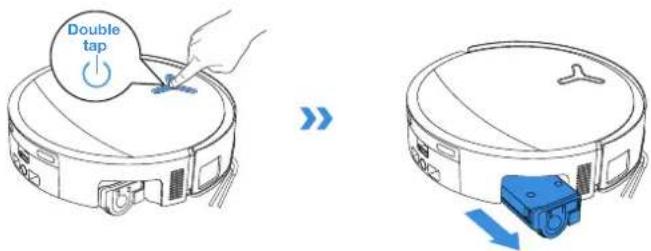

1. Double tap button to release the roller mop component.

Double tap

Note: Do not pull the roller forcefully while it is retracted, as this may damage the roller mop component.

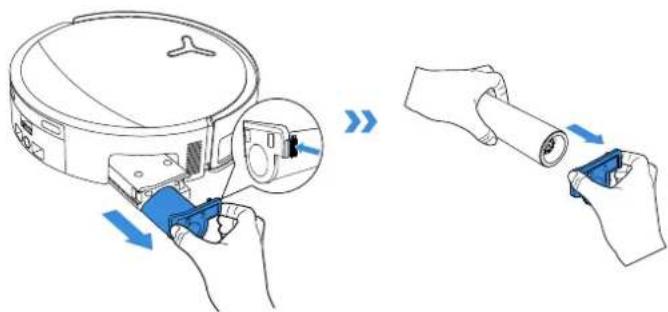

1. Press the lateral unlock button to remove the roller.

Diagram illustrating a robotic device being processed with blue tool, showing step-by-step assembly and component alignment.

1. Clean the roller mop.

Line drawing of a hand holding a small mechanical component with a flame, no text or symbols present

Illustration of a hand using a tool to draw a rolled-up sheet (no text or symbols)

1. Clean inside the roller.

Line drawing of a hand installing or adjusting components on a circular device (no text or symbols visible)

》

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Note: Do not wash DEEBOT with water.

1. Push the roller mop into the roller end cover and double tap the ⏻ button to retract.

Illustration of a robotic vacuum cleaner with a blue tool inserted, showing mechanical components and airflow direction (no text or symbols)

》

Double Click

|20EN

4 Maintain Drip Tray

1. Remove the drip tray.

Technical line drawing of a mechanical component with no visible text or symbols

Note: A small amount of residual water may leak out when flipping DEEBOT if it's not in drying mode.

1. Remove and clean drip tray components.

Diagram of a blue pen-like object on a rectangular base with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Please install the drip tray filter components as shown in the illustration.

Diagram of a blue test tube being tilted upward, with a blue arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

⑤ Maintain Dirty Water Box

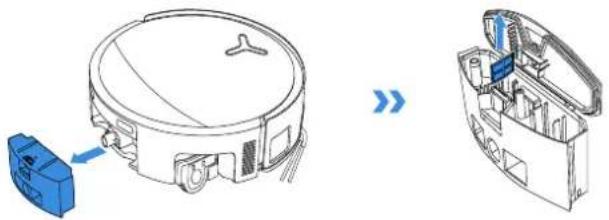

1. Remove the dirty water box and the filter net.

Technical line drawing of a device with blue components and an open rear view showing internal components (no text or symbols)

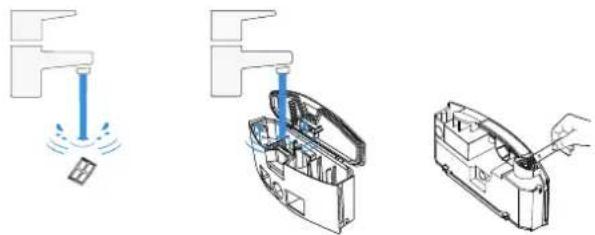

1. Clean the filter net, box, and sewage outlet.

Diagram illustrating three steps of a device operation: sensor, battery pack, and battery casing with hand placement.

1. Reinstall the filter, press securely, and then reattach the dirty water box cover.

Diagram showing a robotic vacuum cleaner connected to a blue sensor module (no text or symbols present)

Press the dirty water box cover firmly in the guided direction until its plane is completely flush with the upper edge of the box to ensure a tight seal.

⑥ Maintain Other Components

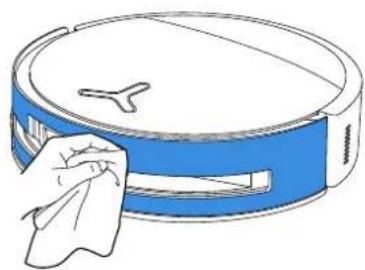

Clean the Obstacle Avoidance Module Lens

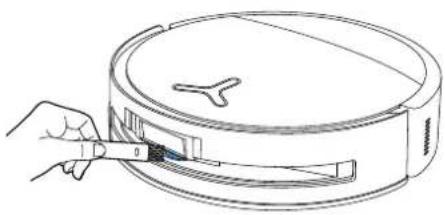

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

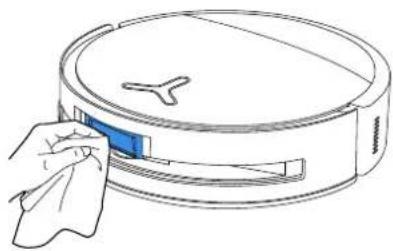

Clean the Bumper

Illustration of a hand cleaning a blue circular object with a cloth (no text or symbols)

Clean the Navigation Module

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols present)

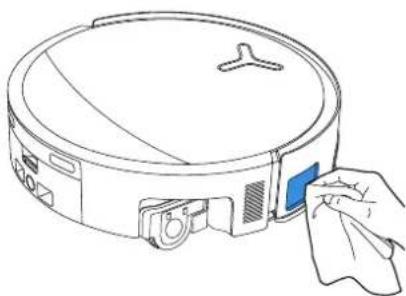

Clean Charging Contacts

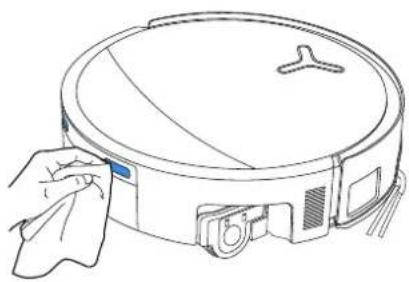

Line drawing of a robotic vacuum cleaner with a cloth partially visible, no text or symbols present

Line drawing of a robotic vacuum cleaner with a hand inserting a sample into it (no text or symbols)

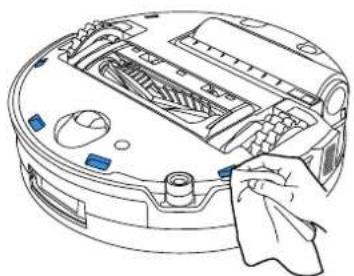

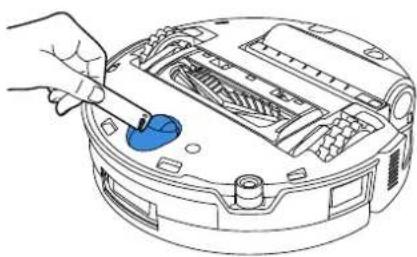

Clean the Anti-drop Sensors

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Clean the Universal Wheel

Line drawing of a robotic vacuum cleaner with a hand inserting a blue tool (no text or symbols)

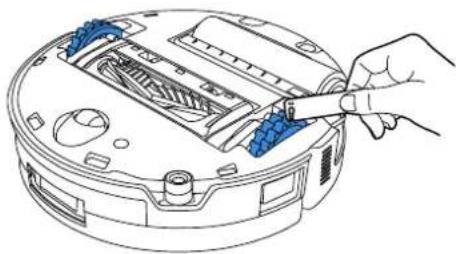

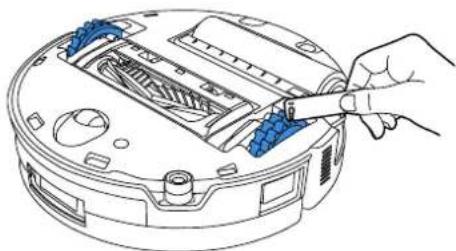

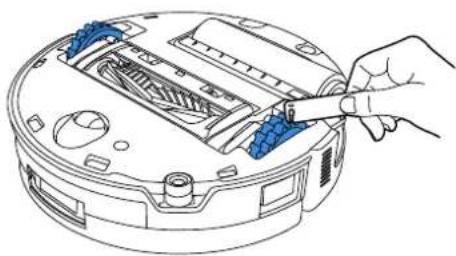

Clean the Driving Wheels

Line drawing of a robotic vacuum cleaner with blue components being inserted (no text or symbols)

Note:

• Note: Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com.
• Wipe the components with a clean, dry cloth. Never use a wet cloth. Do not use cleaning sprays or detergents.

Station Maintenance

① Maintain Dust Bag

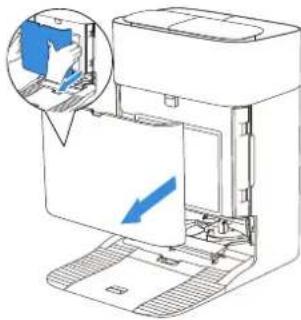

1. Remove dust collection cabin cover.

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

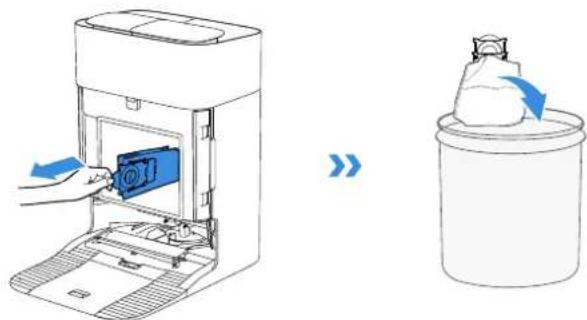

1. Remove the disposable dust bag in the direction of the arrow and discard it.

Diagram showing a hand inserting a device into a machine and finally adding a plastic bag to a container (no text or symbols present)

Note: Hold the Handle to lift out the dust bag, which can effectively prevent dust leakage.

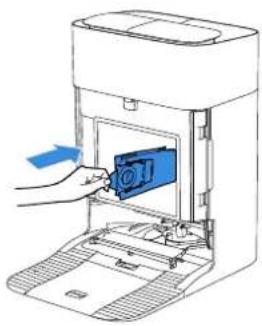

1. Clean the dust collection cabin with a dry cloth and install a new dust bag.

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

1. Insert the top latch of the dust collection cabin cover into the slot, and then press downward to ensure a proper seal.

Diagram of a printer or scanner with an open lid and internal structure, showing no text or symbols.

② Maintain Mop Washing Tray

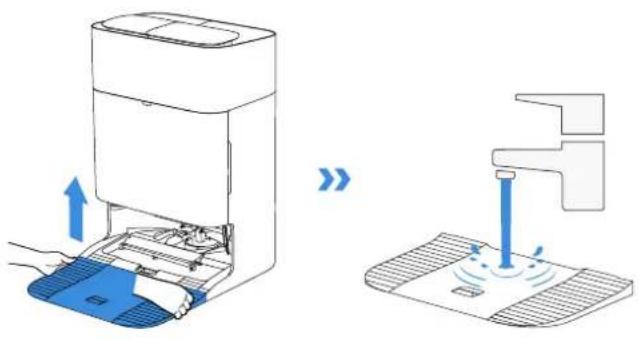

1. Remove and clean the station base.

Diagram showing a device being inserted into a rack with blue arrows indicating motion, and a close-up of the rack with a handle (no text or symbols present)

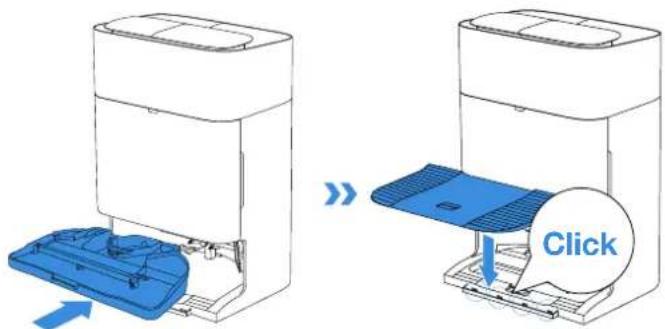

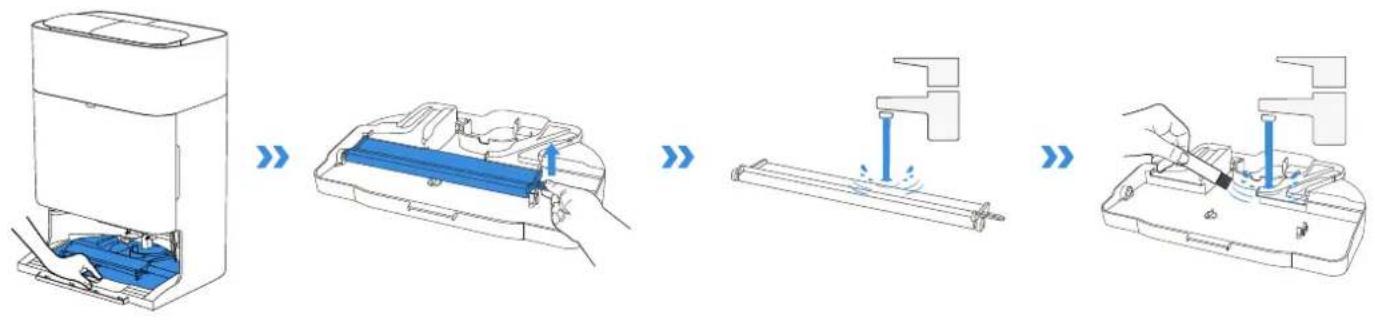

1. Remove and clean the mop washing tray and the soaking tray.

1. Install the soaking tray.

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

1. Install the mop washing tray and base.

Click

Note: Please install the tray and base properly to prevent malfunction.

Storage

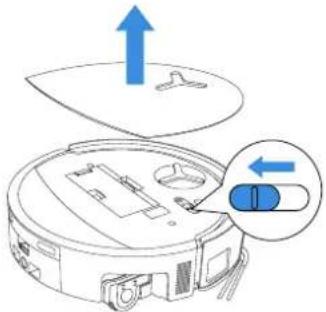

Please fully charge and switch OFF DEEBOT before storage. Please recharge it every 1.5 months to prevent the battery from over-discharging.

Diagram showing a robotic vacuum cleaner with blue arrows indicating upward and downward motion, highlighting internal components.

Please note that DEEBOT cannot charge when powered OFF.

Note:

- After DEEBOT finishes its cleaning task, it is recommended not to power it off but to keep it charging, to better prepare for the next cleaning session.

- If the battery is over-discharged or not used for a long time, DEEBOT may not be charged. Please contact ECOVACS for help. Do not disassemble the battery by yourself.

- If you do not use the product for a long time, keep the dirty water box, water tanks empty and the mop dry.

TROUBLESHOOTING

For the following possible issue, refer to the corresponding solutions.

No.	Malfunction Possible Cause Solution
1	DEEBOT is not able to connect to the ECOVACS HOME App.	Incorrect Wi-Fi username or password entered. Enter the	correct Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal. Try to stay as close to the router as possible.
		DEEBOT is not in the configuration state.	Press the Reset button to connect DEEBOT to your phone by Bluetooth. If it fails, please reconnect via the ECOVACS HOME App.
		There is no home Wi-Fi on the Wi-Fi list.	1.Check if the Wi-Fi name contains special characters. Please do not use special characters like ! @#& ¥%/.2.Do not use a 5 GHz network.
		An incorrect App is installed. Please download and install	the ECOVACS HOME App.
2	Unable to create the furniture map in the App.	Moving DEEBOT when cleaning might cause the map to be lost.	During cleaning, do not move DEEBOT.
		Auto cleaning is not finished.	Make sure DEEBOT automatically returns to the OMNI Station after cleaning.
		Multi-floor mode was not enabled when the second map was created.	Please enable multi-floor mode in the App.
3	The side brush drops out of place during use.	The side brush is not properly installed.	When installing the side brush with a screwdriver, ensure the screw is tightened securely.
4	No signal found. Unable to return to the station.	The OMNI Station is incorrectly placed.	Place the station properly according to the instructions in the [Power on and Charge DEEBOT] section.
		The OMNI Station is out of power or has been moved.	Check whether the OMNI Station is connected to the power supply. Do not move the OMNI Station.
		DEEBOT does not start cleaning from the OMNI Station.	It is recommended that DEEBOT start cleaning from the OMNI Station.
		The docking route is blocked. For example, the door is closed to the room where the OMNI Station is placed.	Keep the charging route clear.
5	DEEBOT returns to the OMNI Station before it has finished cleaning.	The room is so large that DEEBOT needs to return to recharge.	Please enable auto-resume. For more details, please follow the App instructions.
		In highly complex home layouts, cleaning efficiency may decrease, possibly resulting in incomplete cleaning.	Simplify your home layout.
6	DEEBOT is unable to charge.	DEEBOT is not switched ON. Switch ON DEEBOT.
		DEEBOT's charging contacts are not connected to the OMNI station's charging contacts.	Make sure that DEEBOT's charging contacts have connected to the station's charging contacts and flashes. Check whether DEEBOT's and OMNI station's charging contacts are dirty. Please clean these parts according to the instructions in the [REGULAR MAINTENANCE] section.
		The OMNI Station is not connected to the power supply.	1. Make sure the OMNI station is connected to power supply.2. Once the power is connected, ensure that the motor startup sound can be heard.
		The base has not been installed in place. Refer to the	[Quick Start] section for correct installation.
7	DEEBOT is very loud during cleaning.	The main brush/side brush is tangled, or the dust bin/ filter is blocked.	It is recommended to clean the main brush, side brush, dust bin, roller mop, filter, etc., regularly.
		DEEBOT is in Strong Suction Mode or Max Suction Power Mode.	Switch to Standard Mode.
8	DEEBOT gets stuck while working and stops.	DEEBOT is tangled with objects on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If its attempts fail, manually remove the obstacles and restart.
		DEEBOT might be stuck under furniture with an entrance of similar height.	Please raise the furniture, set a physical barrier, or set a virtual boundary via the ECOVACS HOME App.
		DEEBOT is stuck in a narrow area.	Tidy up your home, set a physical barrier, or set a virtual boundary via the ECOVACS HOME App.
No.	Malfunction Possible Cause Solution
9	During cleaning, DEEBOT may encounter issues like a disorderly route, biased movement, repeated cleaning over the same spots, and missing small areas. (If there is a large area that has not been cleaned temporarily, DEEBOT will automatically clean the missed area. Sometimes DEEBOT will re-enter a cleaned room, which may not be repeated cleaning, but DEEBOT finds any missed area.)	Objects such as wires and slippers placed on the ground block DEEBOT.	Before cleaning, please tidy up scattered wires, slippers, and other objects on the ground as much as possible. If there is any area missed during cleaning, DEEBOT will correct it automatically. Please refrain from interfering (such as moving DEEBOT or blocking its route).
		The driving wheels may slip on the ground when DEEBOT climbs steps, thresholds, and door bars, which can affect its judgment of the entire home environment.	It is recommended to close the door of the affected area and clean it separately. After cleaning, DEEBOT will return to its starting location.
		On freshly waxed or polished floors, as well as smooth tiles, there may be less friction between the driving wheels and the floor.	Please wait for the wax to dry before cleaning.
		Due to variations in home layouts, some areas cannot be entered by DEEBOT.	Tidy up your home to ensure that DEEBOT can enter the areas to be cleaned.
10 Delay in remote control.		The Wi-Fi signal is poor, causing the video loading to be slow.	Use DEEBOT in areas with a good Wi-Fi signal.
11	After returning to the OMNI station, DEEBOT does not empty its dust bin.	The Auto-Empty function has not been turned on in the ECOVACS HOME App.	Turn on the Auto-Empty function in the ECOVACS HOME App.
		Manually moving DEEBOT back to the station will not trigger the Auto-Empty function.	It is recommended to allow DEEBOT to return to the OMNI Station on its own. Please do not manually move it.
		In Do Not Disturb mode, DEEBOT will not empty the dust after returning to the OMNI Station.	Turn off Do Not Disturb in the ECOVACS HOME App or manually start dust-emptying.
		The station detects a decrease in empty efficiency.	Replace the dust bag according to the [REGULAR MAINTENANCE] section and close the dust collection cabin. If the dust bag is not full when prompted by the App, you can put it back again.
		Check if the dust bin is full and causes a blockage.	Clean the dust bin according to the [REGULAR MAINTENANCE] section.
		If the above possible causes have been ruled out, components of the station may be abnormal.	Please contact customer service for assistance.
12	Auto-Empty unsuccessful.	The station detects a decrease in empty efficiency.	Replace the dust bag according to the [REGULAR MAINTENANCE] section and close the dust collection cabin. If the dust bag is not full when prompted by the App, you can put it back again.
		The outlet of the dust bin is blocked by foreign objects.	Remove the dust bin and clear the foreign objects on the outlet.
13	The inner side of the dust collection cabin is dirty.	Fine particles pass through the dust bag and accumulate on the inner side of the dust collection cabin.	Clean the inner side of the dust collection cabin.
		The dust bag is broken. Check and replace the dust bag.
		The dust bag is not properly installed. Please install the dust bag properly.
		The dust collection cabin cover is not closed. Please check if the dust collection cabin cover is closed properly.
14	Dust leakage occurs while DEEBOT is working.	The outlet of the dust bin is blocked by foreign objects.	Remove the dust bin and clear the foreign objects on the outlet.
15	The roller mop does not rotate.	The roller mop is not correctly installed.	Install the roller mop properly according to the [REGULAR MAINTENANCE] section.
		The roller mop is blocked by foreign objects.	Clean and install the roller mop properly according to the [REGULAR MAINTENANCE] section.
16No.	The driving wheel is stuck.Malfunction Possible Cause Solution	The driving wheel is entangled or stuck due to foreign objects.	Rotate and press the driving wheel to check for any wrapping or obstruction by foreign objects. If any foreign objects are found, please clean them promptly. If this issue persists, please contact customer service for assistance.
17	The mop washing tray is full of water and cannot be emptied. A voice prompt reports the mop washing tray malfunction.	The dirty water tank is not properly installed. Tap down on	the dirty water tank to ensure it is properly installed.
		The sealing plugs in the dirty water tank are not installed properly.	Make sure that the two sealing plugs are properly installed.
		The mop washing tray is not properly installed. Check and	ensure the mop washing tray is properly installed.
		The mop washing tray base gets dirty. Detach and wash	the mop washing tray base with water.
		Check if the floating ball gets stuck when there is no water in the mop washing tray base.	Take out the mop washing tray to put the floating ball back in place.
		The OMNI Station cannot drain water normally.	Place DEEBOT in the station. After ensuring it's charging, double tap ⏻.If the issue persists, please contact customer service for assistance.
		The suction port of the mop washing tray is blocked by foreign objects.	Ensure that there is no foreign object in the suction port of the mop washing tray.
		The voice alert persists after all the above solutions are tried.	Power off and on the station. If this issue persists, please contact customer service for assistance.
18	Dirty water box malfunction or frequent auto-wash.	The dirty water box is overly laden with dust.	Remove and empty the dirty water box, and then rinse it and reinstall. If this issue persists, please contact customer service for assistance.
		The drip tray is overly laden with dust.	Remove and empty the drip tray, and then rinse it and reinstall. If this issue persists, please contact customer service for assistance.

TECHNICAL SPECIFICATIONS

Model DEX62
Rated Input 20V	--- 2A
Charging Time About 3.5 h
Station Model CH2497F
Rated Input 220-240V	~ 50-60Hz
Rated Output 20V	--- 2A
Rated Input Current (Charging)	0.5A
Power(Emptying) 650W
Power (Hot Water Washing Mop)	1650W
Frequency Bands 2400-2483.5 MHz
Networked Standby Power Less than 2.00 W

Output power of the wireless module is less than 100 mW.
Based on product requirements (functionality and user experience), our products use a non-ultra-low power appliance architecture, so there is no off mode and no standby mode. After the machine is fully charged, it will enter the network standby mode within 20 minutes. Networked standby mode power is 1.9 W
Note: Technical and design specifications may be changed for continuous product improvement.
Explore more accessories at https://www.ecovacs.com.

Get the full version of the user guide

Please use the mobile camera to scan the QR code and obtain the user guide.

Line drawing of a robotic vacuum cleaner with airflow direction indicated by an upward arrow (no text or symbols)

Please use the mobile camera to scan the QR code and obtain the user guide.

https://www.ecovacs.com/global/compliance

LIEFERUMFANG

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Line drawing of a balcony with railing and a circular object below (no text or symbols)

Abstract geometric pattern with intersecting lines and curved shapes (no text or symbols)

Simple line drawing of a sofa with a forklift and blue arrows indicating direction (no text or symbols)

Line drawing of a mechanical device with a blue lever and mounting bracket (no text or symbols)

≥0.05m (0.18") ≥0.05m (0.18) ≥0.05m (2.6°)

Hinweis:

Diagram showing the installation of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Hinweis:

Diagram of a robotic vacuum cleaner with blue arrows indicating movement or assembly, showing internal components and directional arrows.

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and disposal.

Three technical diagrams showing a container with blue rods inserted into it, and two views of the container with arrows indicating flow or movement (no text or symbols present)

Hinweis:

Illustration showing a robotic device being processed with a tool, and a close-up of the cable being handled (no text or symbols present)

Diagram showing a robotic device with blue arrows indicating movement, alongside a close-up of its internal components (no text or symbols)

Diagram showing two views of a robotic device with blue components and connectors, no text or symbols present

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a specific part (no text or symbols present)

③ Wischrolle warten

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing hand positioning and assembly steps.

Line drawing of a hand holding a small mechanical component with a flame, no text or symbols present

Illustration of a hand using a tool to draw a rolled-up sheet (no text or symbols)

Line drawing of a robotic device with a hand adjusting internal components (no text or symbols)

》

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Illustration of a robotic vacuum cleaner with a blue tool inserted, showing mechanical components and airflow direction (no text or symbols)

》

Doppel- klick

Technical line drawing of a mechanical device with internal components (no text or symbols)

Illustration of a blue pen or tool with an upward arrow, resting on a rectangular base (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram of a blue tool being inserted into a rectangular block, with an arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a device with a blue component and an open rear panel (no text or symbols)

Diagram illustrating three steps of a mechanical or electrical device operation: sensor, switch, and battery pack.

Diagram showing a device with internal components and a blue component connected to a circular housing (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Illustration of a hand cleaning a blue cylindrical object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a cloth, no text or symbols present

Reinige den Kantensensor

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand inserting a blue component (no text or symbols)

Line drawing of a robotic vacuum cleaner with blue components and a hand adjusting the part (no text or symbols)

Hinweis:

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

Diagram showing a hand inserting a device into a machine and finally adding a bag to a container (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

Diagram of a printer or scanner device with an open lid and internal structure, showing no text or symbols.

Diagram showing a device being opened into a machine while being placed on a surface with a faucet (no text or symbols present)

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

Diagram of a robotic vacuum cleaner with an upward arrow indicating motion (no text or symbols present)

https://www.ecovacs.com/global/compliance

CONTENU DU COLIS

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Simple line drawing of a balcony with railing and a circular object below (no text or symbols)

Abstract geometric pattern with intersecting lines and shapes (no text or symbols)

Simple line drawing of a sofa with a forklift and window, no text or symbols present

≥0.25m (0.18') ≥0.55m (0.18') ≥0.5m ≥0.62' Remarque :

Remarque :

Diagram showing two views of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Remarque :

Diagram of a robotic vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

MAINTENANCE RÉGULIÈRE

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and disposal.

Three technical diagrams showing mechanical assembly steps with blue rods and arrows indicating motion (no text or symbols)

Remarque :

Diagram showing a device with a blue component being inserted into a circular housing, with an inset image of the component being zoomed.

Illustration showing a robotic device with a tool and a close-up of its cable being inserted (no text or symbols present)

Diagram showing a robotic device with blue arrows indicating movement, alongside a close-up of its internal components (no text or symbols)

Diagram showing two views of a robotic device with blue components and arrows indicating assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a specific part (no text or symbols present)

Double pression

Diagram illustrating the process of installing a component via a tool, showing step-by-step assembly and disassembly.

Two-step diagram showing a hand installing or removing a device into a circular housing, with no visible text or symbols.

Double- clic

Two technical diagrams showing a blue tool interacting with a mechanical component, one with upward motion and the other with a force arrow (no text or symbols)

Technical illustration showing a blue mechanical component being processed by an assembly machine (no text or symbols present)

Technical line drawing of a device housing with internal components and a blue component, showing no text or symbols.

Three-step diagram showing a device with blue tubing, a mechanical device with open lid, and a final container with handle (no text or symbols)

Technical line drawing showing a device with internal components and a close-up of its blue component (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Illustration of a hand cleaning a blue circular object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with a cloth, no text or symbols present

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand inserting a blue component (no text or symbols)

Line drawing of a robotic vacuum cleaner with blue components being inserted (no text or symbols)

Remarque :

Diagram of a printer with an open lid and paper feed, showing internal components and a magnified inset (no text or symbols)

Diagram showing a device being placed into a container with a bag, alongside its side view (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted into a paper holder (no text or symbols visible)

Diagram of a printer or scanner device with an open lid and internal structure, showing no text or symbols.

Diagram showing a device being opened into a buffer with a water tap, illustrating the process (no text or symbols present)

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

Diagram showing two views of a device with blue components and a labeled 'Clic' button, indicating a process or operation.

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

Diagram of a robotic vacuum cleaner with airflow direction indicated by an upward arrow (no text or symbols)

https://www.ecovacs.com/global/compliance

Technical line drawing of a mechanical component with concentric circles and mounting brackets (no text or symbols)

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Isometric line drawing of a balcony with railing and circular base (no text or symbols)

Pure geometric lines forming a cross shape without any text, numbers, or symbols

Simple line drawing of a sofa with a forklift and window, no text or symbols present

Line drawing of a mechanical device with a blue handle and mounting bracket (no text or symbols)

≥0.5m (0.18) ≥0.5m (0.18) ≥0.5m (2.62)

Nota:

Diagram showing the installation of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Nota:

Diagram of a robotic vacuum cleaner with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and cleaning steps.

Three technical diagrams showing mechanical components with blue rods and arrows, no text or symbols present

Nota:

Illustration of three electronic devices under a sun, no text or symbols present

Diagram of a robotic device with a blue component and an inset showing internal components (no text or symbols)

Illustration showing a robotic device with a tool and a close-up of its cable being inserted (no text or symbols present)

Diagram showing a robotic device with blue components and a close-up of its internal structure (no text or symbols)

Diagram showing two views of a robotic device with blue components and connectors, no text or symbols present

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a specific part (no text or symbols present)

Diagram illustrating a robotic device being adjusted for a scroll, with blue arrows indicating the process and magnified detail view.

Line drawing of a hand holding a small mechanical component with a flame, no text or symbols present

Illustration of a hand using a tool to draw a rolled-up sheet (no text or symbols)

Line drawing of a hand installing or adjusting components on a circular device (no text or symbols visible)

》

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Diagram of a robotic vacuum cleaner with a blue tool inserted, showing mechanical components and airflow direction (no text or symbols)

》

Dopplo clic

Technical line drawing of a mechanical assembly with blue components and a magnified inset (no text or symbols)

Illustration of a blue pen inserted into a rectangular block with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a blue tool being inserted into a rectangular container, with an arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with blue component, showing internal components and assembly (no text or symbols)

Diagram illustrating three steps of a device installation: sensor, internal box, and final packaging.

Technical line drawing of a robotic vacuum cleaner with internal components and a close-up view (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Pulire il paracolpi

Illustration of a hand cleaning a blue circular object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a cloth partially visible, no text or symbols present

Line drawing of a robotic vacuum cleaner with a hand inserting a sample into it (no text or symbols)

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Pulire la ruota universale

Line drawing of a robotic vacuum cleaner with a hand inserting a blue tool (no text or symbols)

Pulire le ruote motrici

Line drawing of a robotic vacuum cleaner with blue components being inserted (no text or symbols)

Nota:

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

Diagram showing a hand inserting a device into a cleaning machine and finally onto a cylindrical container (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

Diagram of a printer or scanner with an open lid and internal structure, showing no text or symbols.

Diagram showing a device being inserted into a base with a water level sensor, and its side view with a water level sensor (no text or symbols present)

Line drawing of a hand holding a blue rectangular object inside a device casing (no text or symbols)

Diagram showing two 3D printer-like devices with blue plastic parts and a Clic label, illustrating a process or assembly.

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a robotic vacuum cleaner with an upward arrow indicating motion (no text or symbols)

https://www.ecovacs.com/global/compliance

PAKETKOMPONENTER

Technical line drawing of a mechanical component with concentric circles and mounting brackets (no text or symbols)

1. OMNI-stationen (baksidan)


Eluttag Luftventil

1. Indikatorlampa

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Diagram of a bathroom with railing and toilet, showing a blue checkmark overlay (no text or symbols)

Abstract geometric pattern with intersecting lines and curved shapes (no text or symbols)

Simple line drawing of a sofa with a forklift and window, no text or symbols present

Line drawing of a mechanical device with no visible text or symbols

≥0.05m (0.16") ≥0.05m (0.16) ≥0.05m (2.02)

Observera:

Diagram showing the installation of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Observera:

Diagram of a robotic vacuum cleaner with blue arrows indicating upward and downward motion, showing internal components and component placement.

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and disposal steps.

Three technical diagrams showing mechanical assembly with blue rods and mounting brackets (no text or symbols)

Observera:

Diagram of a robotic device with a blue component inserted into a circular housing, showing internal components and directional arrows (no text or symbols)

Illustration showing a robotic device being processed with a tool, alongside a close-up of the cable being handled (no text or symbols present)

Diagram showing a robotic device with blue components and a close-up of its internal structure (no text or symbols)

Diagram showing two views of a robotic device with blue components and cable connectors (no text or symbols)

Rengöra sidoborsten

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a specific part (no text or symbols present)

Illustration showing a robotic device being adjusted for a cable or pipe component, with no text or symbols present.

1. Rengör rullmoppen.

Line drawing of a hand using a tool to adjust or install a component (no text or symbols present)

Illustration of a hand using a tool to draw a rolled-up sheet (no text or symbols)

Line drawing of a hand installing or adjusting internal components of an electronic device (no text or symbols visible)

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Illustration of a robotic vacuum cleaner with blue adjustment arrow (no text or symbols)

》

Dubbel- tryck

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a blue pen-like object inserted into a rectangular base, with an upward arrow indicating direction (no text or symbols)

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Diagram of a blue test tube being tilted upward, with a blue arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with blue component and close-up view (no text or symbols)

Diagram illustrating three steps of a device installation: remote control, internal storage, and final packaging.

Technical illustration of a robotic vacuum cleaner with internal components and a close-up view (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Rengör stötfångaren

Illustration of a hand cleaning a blue cylindrical object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with a cloth, no text or symbols present

Rengör kantsensorn

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Rengör trappsensorerna

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand inserting a blue tool (no text or symbols)

Rengör drivhjulen

Line drawing of a robotic vacuum cleaner with blue components being inserted (no text or symbols)

Observera:

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

Diagram showing a hand inserting a device into a washing machine and finally onto a cylindrical container (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

Diagram showing a device being inserted into a base with a water level sensor, and its side view with a water level sensor (no text or symbols present)

Diagram illustrating four steps of a device cleaning or assembly process, showing step-by-step installation and reassembly.

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a robotic vacuum cleaner with airflow direction indicated by an upward arrow (no text or symbols)

https://www.ecovacs.com/global/compliance

PAKKENS INNHOLD

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Isometric line drawing of a balcony with railing and a circular object below (no text or symbols)

Abstract geometric pattern with intersecting lines and shapes (no text or symbols)

Simple line drawing of a sofa with a forklift and window, no text or symbols present

≥0.25m (0.18°) ≥0.65m (0.18°)

Merk:

Diagram showing two views of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Merk:

Tank for rent vann Tank for skittent vann

Merk:

• Når rentvannstanken er full (ca. 4 liter), tilsetter du en kork med rengjøringsmiddel (ca. 20 ml).
• Ikke tilsett varmt vann, siden dette kan føre til at vanntanken deformeres.
• Hvis det er vannflekker på utsiden av vanntanken, kan de tørkes av med en myk, tørr klut før du setter den tilbake for bruk.
• Ikke tilsett andre rengjøringslösninger enn de offisielle ECOVACS-lösningene, da dette kan forårsake skade på produktet.
• Eventuelle vannflekker inne i vanntanken er rester etter tester på fabrikken. Du trenger ikke bekymre deg for dette.

7 Betjene DEEBOT

1. Start kartlegging

Diagram showing a robotic vacuum cleaner with labeled parts and directional arrows indicating movement or assembly.

REGELMESSIG VEDLIKEHOLD

Vedlikeholdshyppighet

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and disposal.

Three technical line drawings showing a mechanical assembly with blue rods inserted into a housing (no text or symbols)

Merk:

Diagram showing a device with a blue tool inserted into a circular housing, with an inset close-up highlighting the component.

Illustration showing a robotic device with a tool and a close-up of its cable being inserted (no text or symbols present)

Diagram showing a robotic device with blue arrows indicating movement or assembly, alongside a schematic of its internal components (no text or symbols present)

Diagram showing two views of a robotic device with blue components and connectors, no text or symbols present

Rengjør sidebørsten

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a specific part (no text or symbols present)

Illustration showing a robotic vacuum cleaner being adjusted to a cylindrical device, with blue arrows indicating motion (no text or symbols present)

Line drawing of a hand holding a small mechanical component with a blue smoke or flame (no text or symbols)

Illustration of a hand using a tool to cut a rolled-up sheet (no text or symbols)

Line drawing of a hand installing or adjusting components on a circular device (no text or symbols visible)

》

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Merk: Ikke vask DEEBOT med vann.

Illustration of a robotic vacuum cleaner with a blue tool inserted, showing mechanical components and airflow direction (no text or symbols)

》

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Illustration of a blue pen-like object on a wooden base with an upward arrow indicating motion (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Illustration of a blue pen-like object being lowered into a rectangular base, with a downward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with blue component and close-up view (no text or symbols)

Diagram illustrating three steps of a device installation: sensor, battery pack, and final packaging.

Diagram showing a robotic vacuum cleaner with internal components and a blue sensor module connected to the right (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Illustration of a hand cleaning a blue cylindrical object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with a cloth cleaning the air (no text or symbols)

Rengjør kantsensoren

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Rengjør anti-fallsensorene

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand inserting a blue tool (no text or symbols)

Line drawing of a robotic vacuum cleaner with blue components and a hand adjusting the part (no text or symbols)

Merk:

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

1. Ta ut engangsstøvposen i pilens retning, og kast den.

Diagram showing a hand inserting a device into a cleaning machine and finally pouring liquid into a container (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

Diagram showing a device being inserted into a base with a water level sensor, and its side view with a water level sensor (no text or symbols present)

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

Diagram showing a robotic vacuum cleaner with blue arrows indicating upward and downward motion, highlighting internal components.

Diagram of a robotic vacuum cleaner with an upward arrow indicating motion (no text or symbols present)

Bruk mobilkameraet til å skanne QR-koden og hente brukerveiledningen.

VIGTIGE SIKKERHEDSINSTRUKTIONER VIGTIGE SIKKERHEDSINSTRUKTIONER

https://www.ecovacs.com/global/compliance

PAKKENS INDHOLD

7. OMNI-station (bagside)

Stikkontakt Udluftning

8. Indikatorlys

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Simple line drawing of a balcony with railing and a circular object below (no text or symbols)

Undgå, at DEEBOT falder ned

Abstract geometric pattern with intersecting lines and shapes (no text or symbols)

Simple line drawing of a sofa with a forklift and window, no text or symbols present

Diagram showing the installation of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Bemaerk:

Diagram of a robotic vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

REGELMAESSIG VEDLIGEHOLDELSE

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and cleaning steps.

Three technical line drawings showing a mechanical assembly with blue rods inserted into a base, no text or symbols present.

Bemaerk:

Diagram of a device with a blue tool inserted into a circular housing, showing internal components and a magnified inset (no text or symbols)

Illustration showing a robotic device with a tool and a close-up of its cable being inserted (no text or symbols present)

Diagram showing a robotic device with blue components and a close-up of its internal structure (no text or symbols)

Diagram showing two views of a robotic device with blue components and arrows indicating assembly (no text or symbols)

Rengør sidebørsten

Technical line drawing of a circular device with internal components and a blue arrow indicating a specific component (no text or symbols present)

Diagram illustrating the step-by-step installation of a vacuum cleaner's internal components, showing hand positioning and assembly.

1. Rengør rullemoppen.

Line drawing of a hand holding a small mechanical component with a flame, no text or symbols present

Illustration of a hand using a tool to cut a rolled-up sheet (no text or symbols)

Line drawing of a hand installing or adjusting internal components of an electronic device (no text or symbols visible)

》

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Illustration of a robotic vacuum cleaner with blue adjustment arrow (no text or symbols)

》

Dob beitklik

4 Vedligehold drypbakke

1. Tag drypbakken af.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Illustration of a blue pen or tool with an upward arrow, resting on a rectangular base (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. Installer drypbakkens filterkomponenter som vist på illustrationen.

Diagram of a blue test tube being inserted into a rectangular container, with a downward arrow indicating force (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

⑤Vedligehold snavsevandsboks

Technical line drawing of a robotic vacuum cleaner with blue component and close-up view (no text or symbols)

Diagram illustrating three steps of a device installation: sensor, open case, and closed case with hand placement.

Diagram showing a device with open lid and blue internal components connected to a circular device with cable (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Rengør støddæmperen

Illustration of a hand cleaning a blue circular object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a cloth, no text or symbols present

Rengør kantsensoren

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand adjusting the component (no text or symbols)

Rengør kørehjulene

Line drawing of a robotic vacuum cleaner with blue components and a hand adjusting the part (no text or symbols)

Bemaerk:

Diagram of a printer or printer with an open lid and paper tray, showing internal components and a magnified inset of the printer's cover (no text or symbols present)

Diagram showing a hand inserting a device into a machine and finally pouring liquid into a container (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

② Vedligehold moppens vaskebakke

Diagram showing a device being inserted into a base with a water level sensor, and its side view with a water level sensor (no text or symbols present)

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

Diagram showing a robotic vacuum cleaner with blue arrows indicating upward and downward motion, highlighting internal components.

Diagram of a robotic vacuum cleaner with airflow direction indicated by an upward arrow (no text or symbols)

https://www.ecovacs.com/global/compliance

PAKKAUKSEN SISÄLTÖ

Technical diagram of a circular mechanical component with labeled parts and cross-sectional views

Puskuri

Technical line drawing of a mechanical component with no visible text or symbols

1. OMNI-asema (takana)


Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Isometric line drawing of a balcony with railing and a circular object below (no text or symbols)

Abstract geometric pattern with intersecting lines and shapes (no text or symbols)

Simple line drawing of a sofa with a forklift and window, no text or symbols present

Napsahdus

Line drawing of a mechanical device with no visible text or symbols

≥0.35m (0.18") ≥0.35m (0.18) ≥0.35m (0.2)

Huomautus:

Diagram showing the installation of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Huomautus:

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

MÄÄRÄAIKAISHUOLTO

Huoltoväli

Diagram showing a robotic vacuum cleaner next to a container with particles, illustrating the process (no text or symbols present)

Simple line drawing of a sun-draped machine with no text or symbols

Diagram of a device with a blue tool inserted into a circular housing, showing internal components and a magnified inset (no text or symbols)

Diagram of a robotic vacuum cleaner with a blue arrow indicating the component (no text or symbols present)

Diagram of a robotic arm with a blue tool inserted, showing internal components and a blue arrow indicating direction (no text or symbols present)

Diagram showing two views of a robotic device with blue components and arrows indicating assembly or operation (no text or symbols present)

Puhdista sivuharja.

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a component (no text or symbols present)

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing hand positioning and assembly steps.

Line drawing of a hand holding a small mechanical component with a flame, no text or symbols present

Illustration of a hand using a tool to cut a rolled-up sheet (no text or symbols)

Line drawing of a hand installing or adjusting internal components of an electronic device (no text or symbols visible)

》

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Illustration of a hand using a blue tool to press down a circular device (no text or symbols visible)

》

Kaksois- napsautus

4 Huolla vesikaukalo

1. Irrota vesikaukalo.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Illustration of a blue pen inserted into a rectangular base with an upward arrow indicating force (no text or symbols)

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Diagram of a blue tool with a downward arrow, placed on a rectangular base (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical illustration of a robotic vacuum cleaner with blue component and close-up view (no text or symbols)

Diagram illustrating three steps of a device installation: sensor, open box, and closed container with tool.

Diagram showing a device with internal components and a blue component connected to a circular device (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Puhdista puskuri

Illustration of a hand cleaning a blue circular object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a cloth cleaning the air (no text or symbols)

Puhdista reuna-anturi

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Puhdista yleispyörä

Line drawing of a robotic vacuum cleaner with a hand inserting a blue tool (no text or symbols)

Puhdista vetopyörät

Line drawing of a robotic vacuum cleaner with blue components being inserted (no text or symbols)

Huomautus:

Diagram of a printer or printer with an open lid and internal structure, showing no text or symbols.

Diagram showing a hand inserting a device into a cleaning machine and finally pouring liquid into a container (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

Diagram of a printer or printer with an open door and blue arrow indicating a loading or movement (no text or symbols present)

Diagram showing a device being opened into a machine while being placed on a surface with a water tap (no text or symbols present)

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

Napsahdus

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a robotic vacuum cleaner with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and mounting brackets (no text or symbols)

Güç Prizi Hava Menfezi

1. Gösterge Işığı

Simple line drawing of a desk with a checkmark and a stand, no text or symbols present

Simple line drawing of a balcony with railing and a circular base, no text or symbols present

Pure geometric lines forming a cross shape without any text, numbers, or symbols

Simple line drawing of a sofa with a forklift and window, no text or symbols present

≥0.55m (0.18°) ≥0.55m (0.16°) >0.5m (2.62°) Not:

Not:

Diagram showing two views of a robotic vacuum cleaner with labeled parts and directional arrows indicating assembly or operation.

Not:

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

DÜZENLİ BAKIM

Bakım Sıklığı

Diagram illustrating the process of a robotic vacuum cleaner with airflow and particle dispersion, showing component placement and disposal.

Three technical line drawings showing a mechanical assembly with blue rods inserted into a base, no text or symbols present.

Not:

Diagram of a device with a blue tool inserted into a circular housing, showing internal components and a magnified inset (no text or symbols)

Illustration showing a robotic device with a tool and a close-up of its cable being inserted (no text or symbols present)

Diagram showing a robotic device with blue arrows indicating movement or assembly, alongside a close-up of its internal structure (no text or symbols)

Diagram showing two views of a robotic device with blue components and arrows indicating assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and a blue arrow indicating a specific part (no text or symbols present)

Diagram illustrating the process of installing a component via a tool, showing step-by-step assembly and change.

Line drawing of a hand holding a small mechanical component with a flame, no text or symbols present

Illustration of a hand using a tool to draw a rolled-up sheet of paper with blue ink lines (no text or symbols)

Line drawing of a hand installing or adjusting internal components of an electronic device (no text or symbols visible)

》

Illustration of a hand cleaning a blue plastic component inside a circular device (no text or symbols visible)

Illustration of a robotic vacuum cleaner with a blue tool inserted, showing mechanical components and airflow direction (no text or symbols)

》

Gift Teklama

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram of a blue pen inserted into a rectangular base with an upward arrow indicating force or direction (no text or symbols)

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Diagram of a blue tool being inserted into a rectangular block, with an arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a device with blue components and an open rear view showing internal structure (no text or symbols)

Diagram illustrating three steps of a device installation: battery charging, internal storage with circuit breakers, and final packaging.

Technical illustration of a robotic vacuum cleaner with internal components and a blue sensor module (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning the air (no text or symbols)

Tamponu Temizleyin

Illustration of a hand cleaning a blue circular object with a cloth (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a cloth, no text or symbols present

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Line drawing of a robotic vacuum cleaner with handle and control panel (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand inserting a blue tool (no text or symbols)

Line drawing of a robotic vacuum cleaner with blue components and a hand adjusting the part (no text or symbols)

Not:

Diagram of a printer or printer with an open lid and paper tray, showing internal components and a magnified inset (no text or symbols)

Diagram showing a hand inserting a blue component into a machine and finally adding a white container (no text or symbols present)

Diagram of a printer's internal structure showing a blue component being inserted, with no visible text or symbols.

Diagram of a printer or scanner with an open lid and internal structure, showing no text or symbols.

Diagram showing a device being opened into a buffer with blue liquid, and then placed on a surface with a water tap (no text or symbols present)

Line drawing of a hand holding a blue cylindrical object inside a device casing (no text or symbols)

Diagram showing two views of a device with blue components and a circular label 'Tik' indicating a specific component.

Diagram showing a robotic device with labeled parts and directional arrows indicating movement or assembly.

Diagram of a robotic vacuum cleaner with airflow direction indicated by an upward arrow (no text or symbols)

No.518 Songwei Road, Wusongjiang Industry Park, Guoxiang Street,

Wuzhong District, Suzhou, Jiangsu, China.

451-2515-1803
