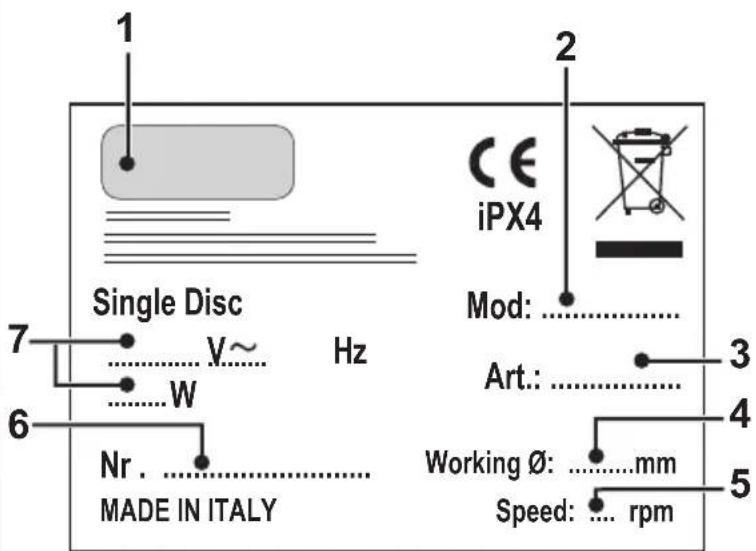

The machine identification data and “CE” marking are located on the plate on the machine body.

It is advisable to note the machine model and serial number on the table on the next page.

FR

DONNÉES D'IDENTIFICATION

Line drawing of a manual lawn mower with attached ladder and wheels (no text or symbols)

1 2 Single Disc V~ Hz Mod: ...... Art.: ...... 6 Nr. ...... MADE IN ITALY Working Ø: ....mm Speed: .... rpm 3 4 5

	1 2 3 4 5 6 7
IT	Produttore	Modello	Codice articolo	∅ di lavoro	Velocità di rotazione	N° Matricola	Caratteristiche elettriche
EN	Manufacturer	Model	Article code	Working ∅	Rotation speed	Serial number	Electrical characteristics
FR	Producteur	Modèle	Code de l'article	∅ de travail	Vitesse de rotation	N° de Matricule	Caractéristiques électriques
DE Hersteller Modell			Artikelnummer	∅ Arbeit	Drehgeschwindigkeit	Matrikel-Nr. Elektrische Eigenschaften
ES	Fabricante	Modelo	Código del artículo	∅ de trabajo	Velocidad de rotación	N° de Matrícula	Características eléctricas
PT	Fabricante	Modelo	Código do artigo	∅ de trabalho	Velocidade de rotação	N° de Série	Características elétricas
NL	Producent	Model	Artikelcode	∅ bewerking	Rotatiesnelheid	Serienummer	Elektrische eigenschappen
NO	Produsent	Modell	Artikkelkode	Driftsdiameter	Roteringshastighet	Matrikkelnummer	Elektriske egenskaper
DK	Fabrikant	Model	Artikelkode	Arbejdsdiameter	Omdrejningshastighed	Matrikelnr.	El-specifikationer
SV	Tillverkare	Modell	Artikelkod	Arbetsdiameter	Rotationshastighet	Serienummer	Elektriska egenskaper
PL	Producent	Model	Kod artykułu	∅ pracy	Prędkość obrotów	Nr seryjny	Charakterystyka elektryczna
CS	Výrobce	Model	Kód výrobku	Pracovní ∅	Rychlost rotace	Výrobní č.	Elektrické v lastnosti
SK	Výrobca	Model	Kód výrobku	Pracovný ∅	Rýchlost' rotácie	Výrobné č.	Elektrické vlastnosti
TR	Üretici	Model	Ürün kodu	Çalışma çapı	Seri No	Dönüş hızı	Elektriksel özellikler
HU	Gyártó	Modell	Cikkszám	munka ∅	Forgási sebesség	Törzskönyvi szám	Elektromos sajátosságok
RO	Producător	Model	Cod articol	∅ disc de lucru	Viteză de rotație	N° Matricolă	Caracteristici electrice
EL	Κατασκευαστής	Μοντέλο	Κωδικός προϊόντος	Διάμετρος εργασίας	Ταχύτητα περιστροφής	Σειριακός αριθμός	Ηλεκτρικά характерistiκά
RU	Изготовитель	Модель	Код изделия	Рабочий ∅	Скорость вращения	N° Паспорта	Электрические характеристики
HR	Proizvođač	Model	Kod proizvoda	∅ rada	Brzina vrtnje	Serijski br.	Električne karakteristike
SR	Proizvođač	Model	Šifra proizvoda	∅ rada	Brzina rotacije	Serijski broj	Električne karakteristike
FI	Tuottaja	Tyyppi	Tuotenumero	∅ työ	Pyörimisnopeus	Tuotenumero	Sähköiset ominaisuudet
AR	جهة الانتاج	الطراز	كود السلعة	قطر العمل	سرгеة الدوران	الرقم المسلسل	المواصفات الكهربائية

Fig. 11 20 18 19

Fig. 12 21 18 22

Fig. 13 24 26 23 20 23 20 18

Fig. 14 27 26

Fig. 15 31 29 28 30 33

Fig. 18 36 37

Fig. 16 28 32 30

Fig. 17 34

1 2 3

34 35 34 34

Fig. 19 38 37 39

Fig. 21

52 42 41 49 43 42 44

53 54

Fig. 20

40 51 45 47 50

55 41 48 46 45 46

Fig. 22 56

Fig. 23 57 57

Fig. 24 58

59 60

Mechanical device diagram showing a motor with cable and spring mechanism, labeled Fig. 25 (no text or symbols on the device itself)

Technical illustration of a cleaning or cleaning machine with visible wiring and a blade (no text or symbols)

ITALIANO....ITALIANO -1 (Istruzioni originali)
EN English ......ENGLISH -1 (Translation of original instructions)
FR Français ...... FRANÇAIS -1 (Traduction des instructions d'origine)
DEutsch....DEUTSCH -1 (Übersetzung der Originalanleitung)
ES Español....ESPAÑOL -1 (Traducción de las instrucciones originales)
PT Português....PORTUGUÊS -1 (Tradução das instruções originais)
NL Nederlands......NEDERLANDS -1 (Vertalinig van de originele instructies)
CS Česky....ČESKY -1 (Překlad originálního návodu)
RU Русский.... РУССКИЙ -1 (Перевод оригинальной инструкции)
PL Polski....POLSKI -1 (Tłumaczenie z oryginalnej instrukcji obsługi)
AR العربية 1 (ترجمة التعليمات الأصلية)

Gentile cliente,

Thank you for choosing one of our cleaning products.

The floor polisher you have purchased has been designed to satisfy users in terms of ease of use and reliability.

We are aware that, in order to remain so over time, a good product requires continuous updates aimed at satisfying the expectations of those who use it daily. To this end, we hope that you will be not only a satisfied customer but also a partner who does not hesitate to let us know your views and ideas resulting from personal experience on a day-to-day basis.

Contents

1.1 - TECHNICAL CHARACTERISTICS......EN-3
1.2 - INTRODUCTION......EN-3
1.3 - INTENDED MACHINE USE...... EN-3
1.4 - NON-INTENDED MACHINE USE ...... EN-3
2.1 - UNPACKING......EN-4
2.2 - COMPONENT ASSEMBLY ......EN-4
2.2.a - Assembling the cable reel supports ......EN-4
2.2.b - Pad assembly......EN-4
2.2.c - Electric spray accessory assembly ......EN-4
2.2.d - Filling the tank ......EN-4
2.2.e - Paper dust collection filter assembly ...... EN-4
2.2.f - Electrical Connection......EN-5
3.1 KNOWLEDGE OF THE MACHINE......EN-5
4.1 HANDLE TILT ADJUSTMENT......EN-5
5.1 GUIDE HANDLE......EN-6
6.1 OPERATION ......EN-6
6.1.a - Checks to be performed before use......EN-6
6.1.b - Starting up the machine ......EN-6
6.1.c - Pad pressure adjustment ......EN-6
6.1.d - Using the machine......EN-7
6.1.e - End of use and shutdown ......EN-7
6.1.f - Transport ......EN-7
6.1.g - Positioning the machine after use......EN-7
7.1 MAINTENANCE AND CLEANING ......EN-8
7.1.a - Cleaning the machine......EN-8
7.1.b - Cleaning the spray accessory nozzle (Optional) ......EN-8
7.1.c - Pad replacement......EN-8
PROBLEMS - CAUSES - SOLUTIONS......EN-9

1.1 TECHNICAL CHARACTERISTICS

SB/C 150 U13 U16
Voltage 220 - 240 V
Frequency 50Hz 60 Hz
Motor power 1300W	1600W
Working width 505 mm - 20 inch.
Rotation speed 1500 rpm 1800 rpm
Weight without accessories	44 Kg
Electrical cable length	15 m
Sound level < 70 db (A)
Vibration level < 2.5
Working pressure 0÷5 Kg (adjustable)
Transmission type direct
Maximum dimensions	1130x790x330H mm
Minimum dimensions	855x790x485H mm

1.2 INTRODUCTION

DANGER:

Before using the appliance, read the accompanying “SINGLE DISC SAFETY WARNINGS” booklet carefully.

This manual forms an integral part of the machine itself. It must therefore be kept in a safe place where it is accessible to all users (operators and maintenance personnel) throughout the life of the machine until it is scrapped.

1.3 - INTENDED USE OF THE MACHINE

WARNING:

This machine is for indoor use only.

DANGER:

Any other use releases the manufacturer from liability for harm to persons and/or property and invalidates any warranty condition.

This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

The machine has been designed and built: for polishing floors that have been cleaned and vacuumed beforehand (i.e. parquet, marble, ceramic, linoleum etc.).

1.4 - NON-INTENDED USE OF THE MACHINE

WARNING:

The machine is not intended for outdoor use.

DANGER:

• do not polish uneven floors;
• do not use on cement floors;
• do not use on dirty floors;
• do not use diesel/petrol or corrosive detergents to polish floors;
• do not polish if corrosive, flammable and/or explosive liquids, even if diluted, are present.

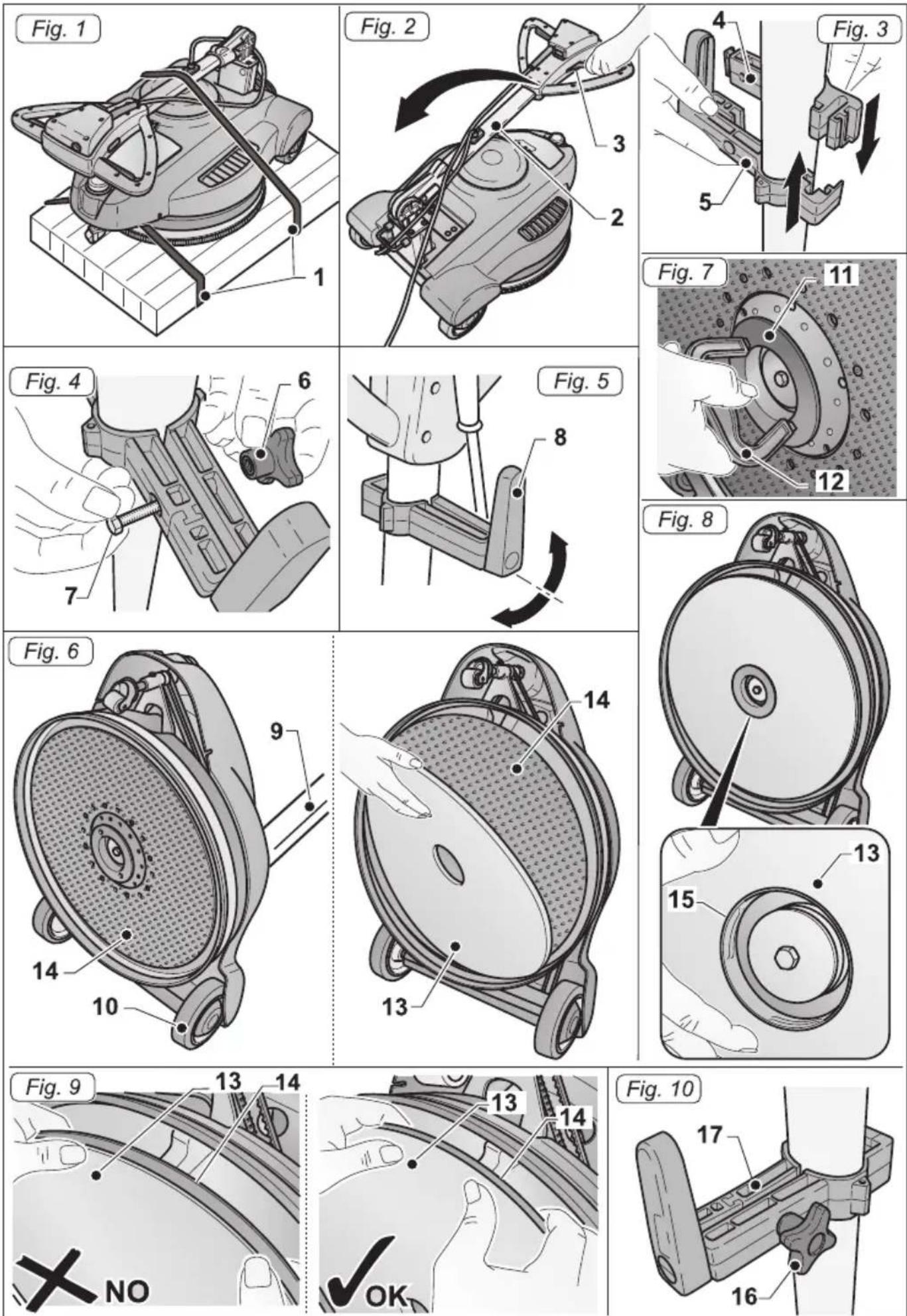

2.1 UNPACKING (Figs. 1-2)

Upon delivery of the machine, remove its external packaging and cut the straps (1) (Fig. 1) and lift up the handle (2) by pulling on the release handle (3) (Fig. 2).

2.2 COMPONENT ASSEMBLY

2.2.a - Assembling the cable reel supports (Figs. 3/5)

The reel supports supplied must be mounted directly on the handle shaft:

• Fit the short coupling (4) into the long coupling (5) (Fig. 3).
• Tighten the knob (6) on the screw (7), keeping the latter to the right (Fig. 4).
• The hook (8) of the support can be rotated depending on usage (Fig. 5).

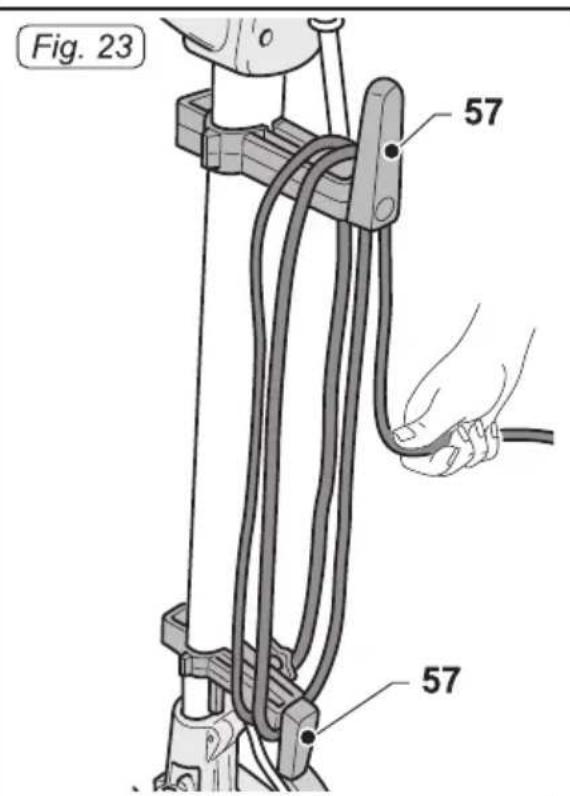

• Place one support on the top of the handle and a second support on the bottom.

2.2.b - Pad assembly (Figs. 6/9)

• Tilt the machine, pivoting, with the handle straight (9), with your feet on the wheels (10) and place it on the handle (Fig. 6).
• Unscrew the ring nut (11) using the handle (12) supplied (Fig. 7).
• Mount the pad (13) on the pad holder (14) (Fig. 9).
• Centre the pad (13) with the central guide (15) on the pad holder (14) and make sure the outer perimeter of the pad (13) corresponds with the outer perimeter of the pad holder (14) and then lock it on the pad holder's teeth pressing down with your fingers (Figs. 8-9).
• Use the pad for high-speed polishing (Gorilla or Cream Colour).

WARNING:

Use only pads supplied by the manufacturer for the specific machine model. Using other types of pads can compromise the safety of the machine.

2.2.c - Electrical spray accessory assembly (Optional) (Figs. 10/16)

• Loosen the knob (16) of the handle's upper support (17) (Fig. 10).

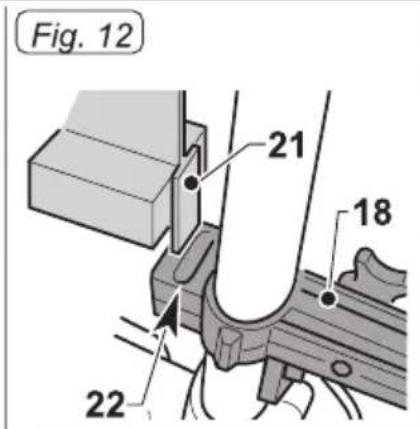

• Make sure that the lower support (18) rests on the plate (19) located on the handle rod (Fig. 11).

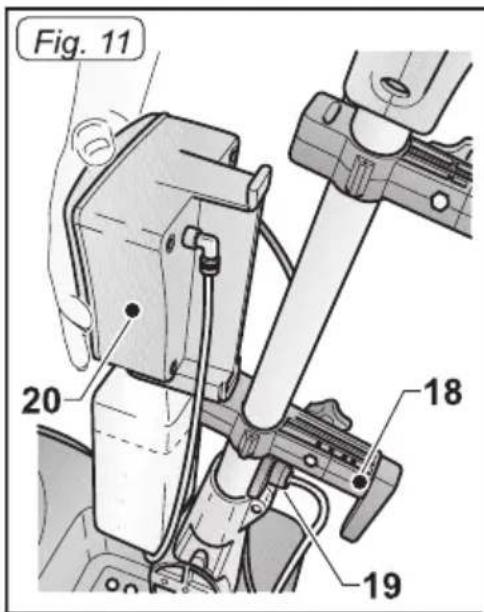

• Place the accessory (20) on the lower support (18), taking care to align the coupling tab (21) with its housing (22) (Fig. 12).

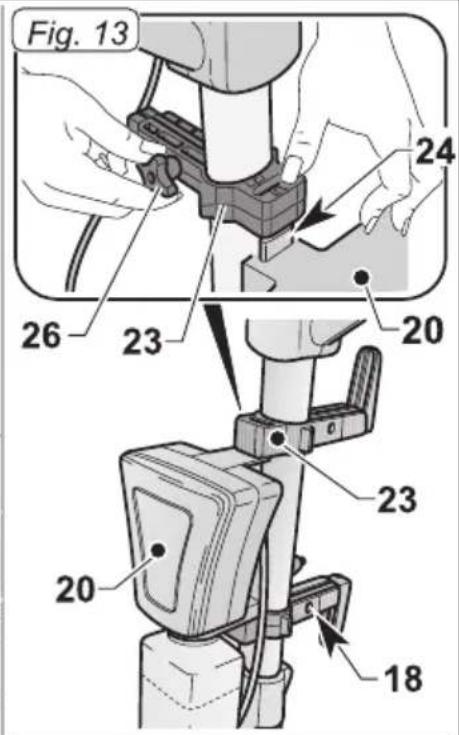

• Lower the upper coupling (23) and attach it to the coupling tab (24) on the top of the accessory (20) (Fig. 13).
• Tighten the knob (26) of the handle's upper support (23) (Fig. 13).

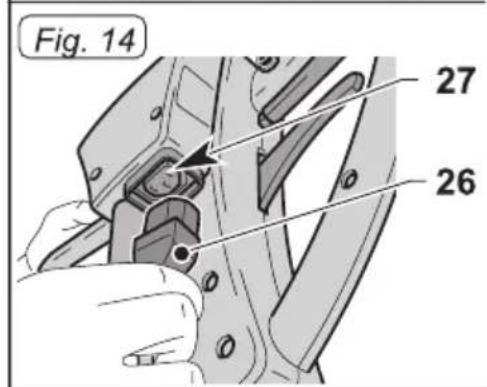

• Connect the power supply (26) to the auxiliary socket (27) (Fig. 14).

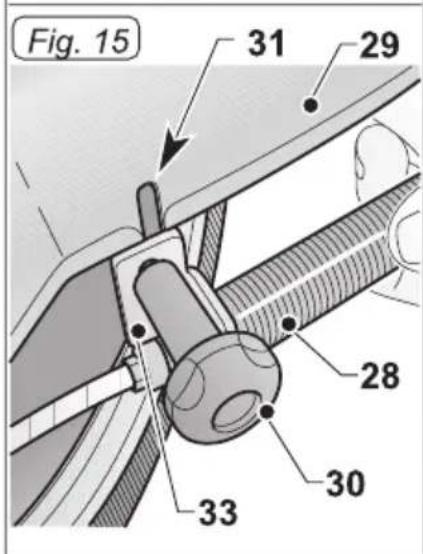

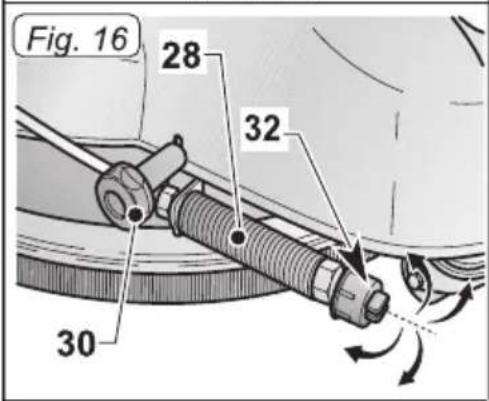

• Fit the nozzle (28) on the right part of the machine, inserting the plate (33) inside the casing (29) and the knob screw in the dedicated (30) housing (31), then tighten the knob (30) (Fig. 15).
• Make sure the nozzle (32) is in the horizontal position. The spray angle is 120 degrees, the nozzle position may be adjusted depending on specific requirements (Fig. 16).

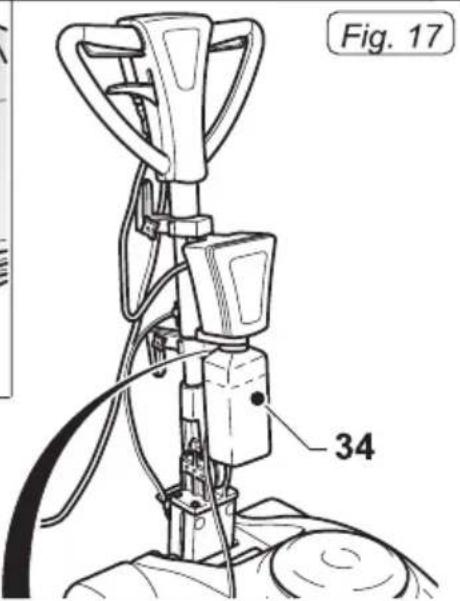

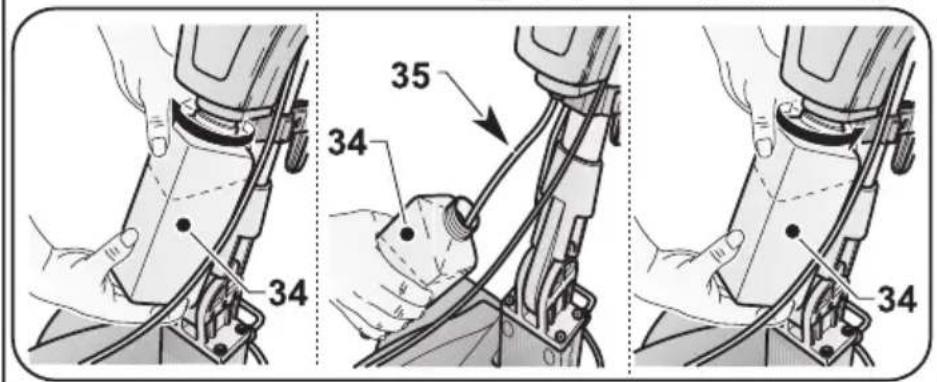

2.2.d - Filling the tank (Fig. 17)

• Unscrew the tank (34) and remove it.
• Fill it with water and polishing wax.
  For dosing, refer to the instructions provided by the manufacturer of the polishing wax.
• Insert the suction tube (35) into the tank (34) and fully tighten.

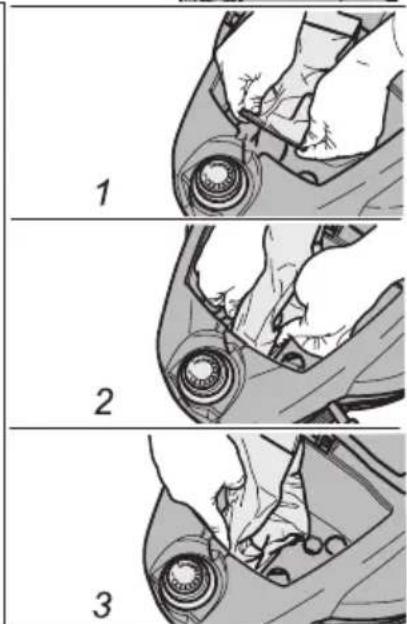

2.2.e - Paper dust collection bag assembly (Figs. 18/19)

The machine is delivered with the bag already mounted.

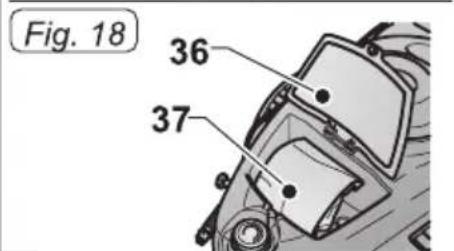

- Lift the lid (36) and check that the bag (37) is correctly positioned (Fig. 18).

• If the bag is not present, to mount it, after having lifted the door (36), insert the suction tube (39) in the bag's (37) hole (38) (Fig. 18-19).
• Close the lid (36) which is held in position with a magnet (Fig 18).

2.2.f - Electrical connection

- Connect the machine power cable to a mains socket whose characteristics correspond to those shown on the machine's technical data plate.

WARNING:

• Make sure the mains electrical system has a circuit breaker and has been earthed.
• Unwind the power cable completely before turning on the appliance.
• Use an extension cord only if in perfect condition and make sure the diameter is appropriate for the power of the appliance.
• Never allow the power cable to slide over sharp edges and do not crush it.
• The socket should be easily accessible.
• Make sure the electrical cable is not damaged.

3.1 KNOWLEDGE OF THE MACHINE (Figs. 20-21)

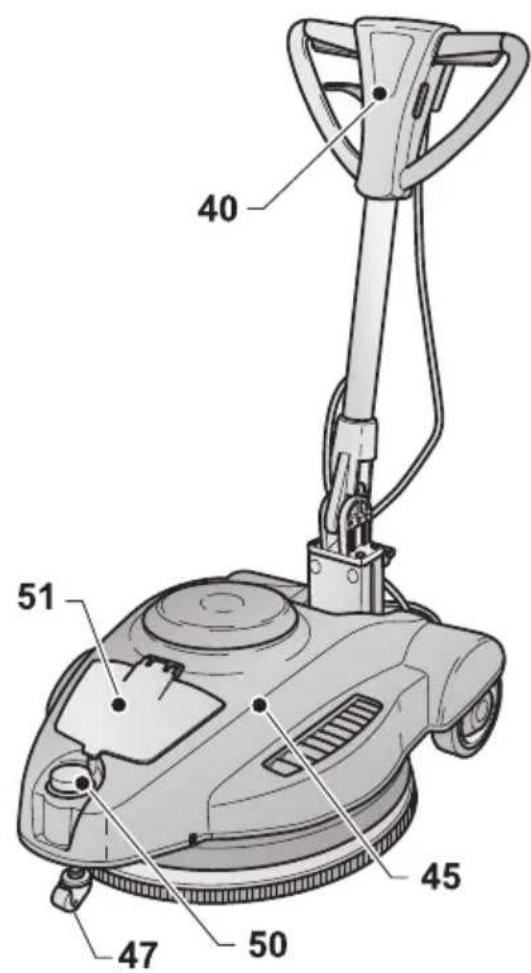

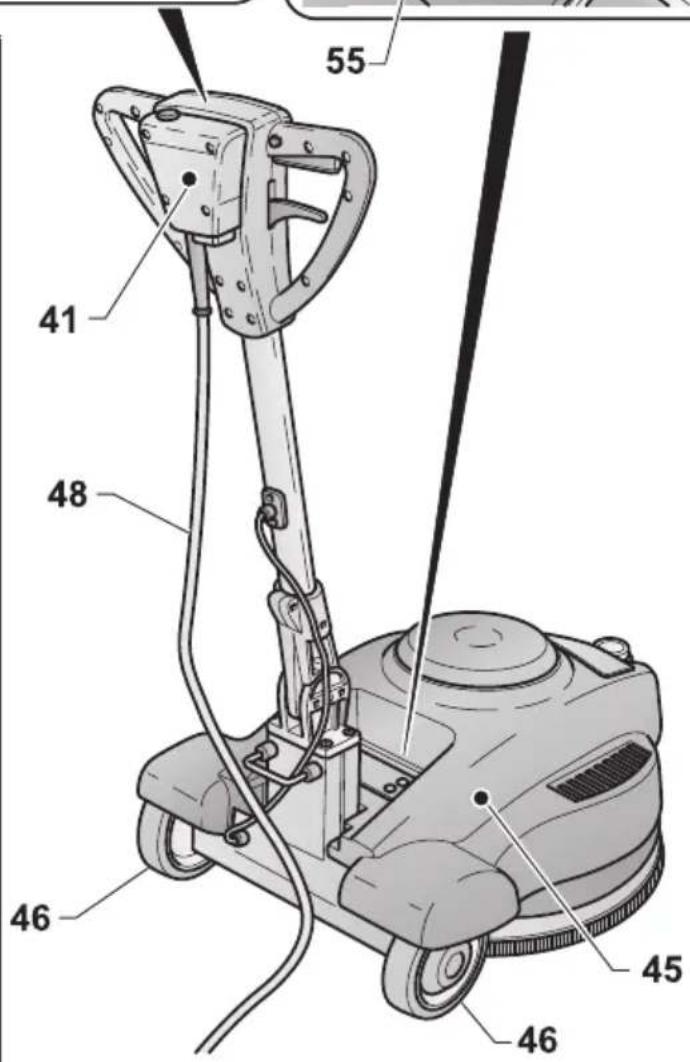

50) Pad pressure adjustment knob
51) Bag access flap
52) Polishing wax spray start button

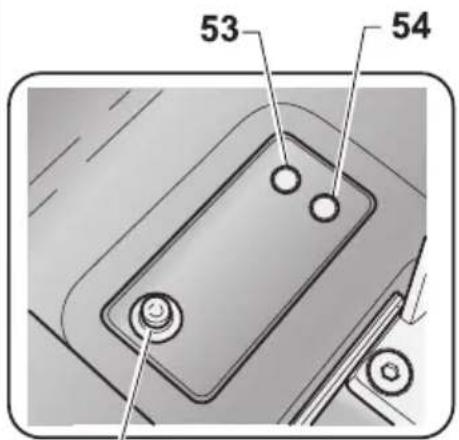

53) Red LED: when it lights up and stays lit, there is an excessive pad pressure on the floor.
(Risk of floor overheating with consequent floor burning)
54) Green LED: when lit the pad pressure on the floor is correct.
55) Motor thermal relay: enabled blocking motor operation when the machine operates with a excessive load.
To reset the thermal relay wait a few minutes for the motor to cool and then press the small button to activate the monitor.

4.1 HANDLE TILT ADJUSTMENT (Figs. 20-21)

WARNING:

The handle position must be adjusted while the appliance is at a standstill.

- Pulling the lever (43) the handle position can be adjusted (40); when the lever is released, the handle is positioned and locked in the closest position required.

NOTE:

Adjust the handle to a comfortable position, depending on your height, in order to easily push the machine in straight paths.

Never start the machine without having tilted the handle correctly.

5.1 GUIDE HANDLE (Fig. 21)

1) Pad rotation lever release button (44)

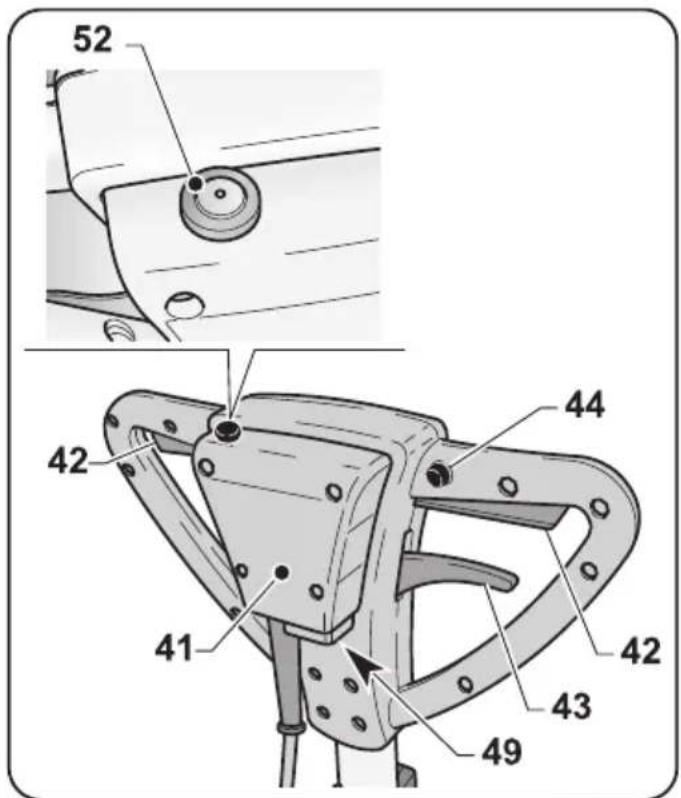

Press the button (44) to release the pad rotation start levers (42).

2) Pad rotation start levers (42)

Pulling the pad rotation levers (42) enables pad rotation.

When the levers (42) are released, pad rotation stops and the machine stops automatically.

The levers (42) should be kept pulled to achieve continuous machine operation.

3) Polishing liquid spray button (52)

When the button is pressed and held down, the polishing liquid spray is activated; if the button is released, the spray stops.

NOTE:

The spray works even when the pad is not rotating.

6.1 OPERATION

6.1.a - Checks to be performed before use

• If the electrical spray accessory is mounted (optional), check that it contains enough polishing liquid for the working phase and that the nozzle is properly connected and adjusted.
• Check the condition of the pad. If worn, replace it.
• Check that the appliance, particularly the mains cable, is not damaged in any way that might compromise correct machine operation or the operator's safety.

6.1.b - Starting the machine (Fig. 21)

WARNING:

Do not start the machine if it is tilted.

Do not start the machine if the pad is not correctly mounted.

NOTE:

The machine will not start if the handle shaft is upright.

DANGER:

Ensure your hands are dry before using the appliance.

• Pull the lever up (43) and lower the handle until it reaches the height desired.
• Press the button (44) to release the pad rotation start levers (42).
• Pulling the levers (42) starts the machine.
• When both levers (42) are released, the machine stops.

WARNING:

Never wrap the power cable around the neck or body of the machine.

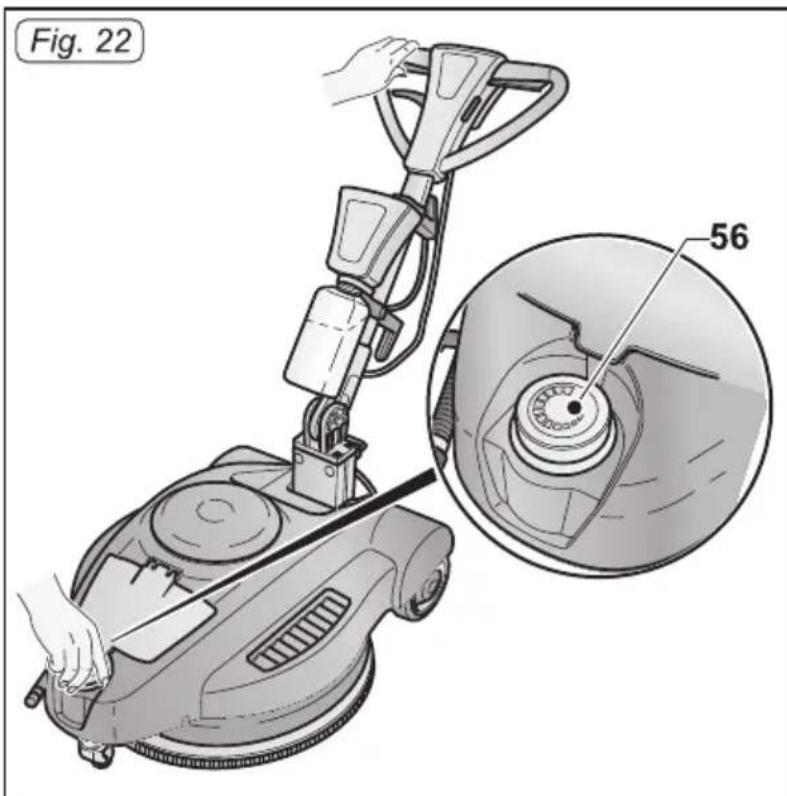

6.1.c - Pad pressure adjustment (Fig. 22)

• Turn the handwheel (56) counter clockwise as far as possible (the pad is lifted up).
• Start brush rotation, the green led lights up.
• With your left hand keep the lever pressed down and with your right hand, turn the handwheel clockwise, until the red lied lights up, then turn it counter clockwise until the green led lights up.
• Correct operation is when the red and green leds alternate.
• By turning the handwheel (56) clockwise the machine is lowered by increasing pressure on the pad. If the handwheel (56) is turned counter

clockwise, the machine is lifted, decreasing pressure on the pad.

WARNING:

If during operation the red led lights up and remains lit (not flashing), you must decrease pressure on the pad using the handwheel: do not use the machine if the red light is constant as the floor may be damaged.

6.1.d - Using the machine (Fig. 21)

• After starting the machine, begin polishing operations by keeping the levers (42) pressed, thus keeping the machine running and brush rotation active.
• The machine operates on straight line paths: it is therefore appropriate to treat a surface, starting from the perimeter zones while leaving the central areas for last. Polish by walking in a forward straight line up to where the cable length or room size permits, and then return polishing a parallel strip, making sure not to leave any spaces unpolished.

DANGER:

During operation, avoid passing over the power cable with the machine: this could cause serious damage and dangerous situations!

• The machine is also equipped with a passive aspiration system, designed to convey the fine dust generated during polishing to a convenient disposable paper filter, in front of the same.
• Use of the Spray accessory (optional) with a suitable chemical product will allow for removing any marks on the wax.

NOTE:

Using the machine in a fixed position with the pad rotation enabled for a prolonged period of time can cause damage to the floor.

NOTE:

When the levers (42) are released, pad rotation stops and the machine turns off

6.1.e – End of use and shutdown (Fig. 21 and 23).

• Release the levers (42) to stop pad rotation and turn off the machine (Fig. 21).
• Put the handle in an upright position.
• Remove the tank (Optional), empty the solution and clean the nozzle as indicated in the maintenance paragraph.

WARNING:

Do not leave the machine stopped if the pad is mounted and not raised in order to prevent them from being damaged.

• Unplug the power cable from the socket and wrap it around the cable reel supports.
• Roll up the cable on the supports (57) (Fig. 23).

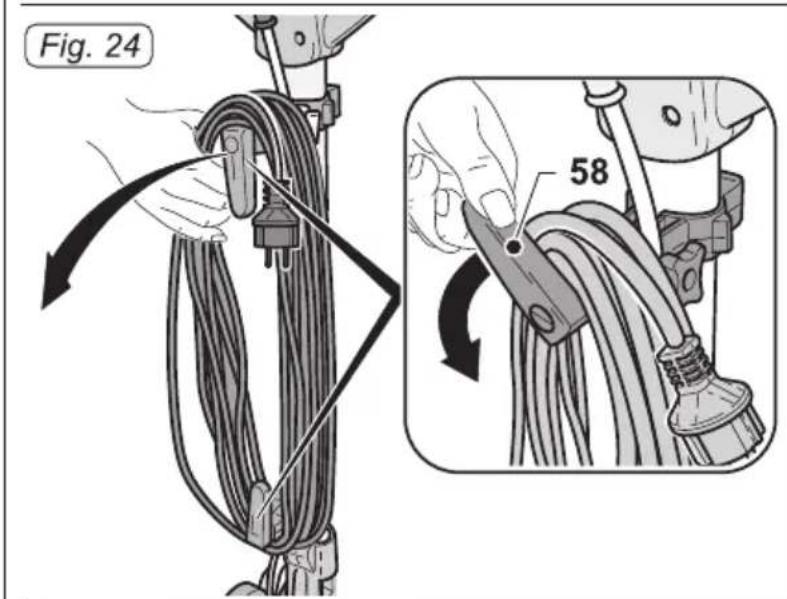

• To remove the cable from the supports, turn the hooks (58) inward and remove the cable without necessarily unwinding it (Fig. 24).

6.1.f - Transport

Making sure that the mains plug is disconnected and the handle is in an upright position, lift the machine body by turning the handle downwards.

The machine can then be transported on the wheels.

6.1.g - Positioning the machine after use (Fig. 22 and 25).

After machine use, it can be stored in two ways:

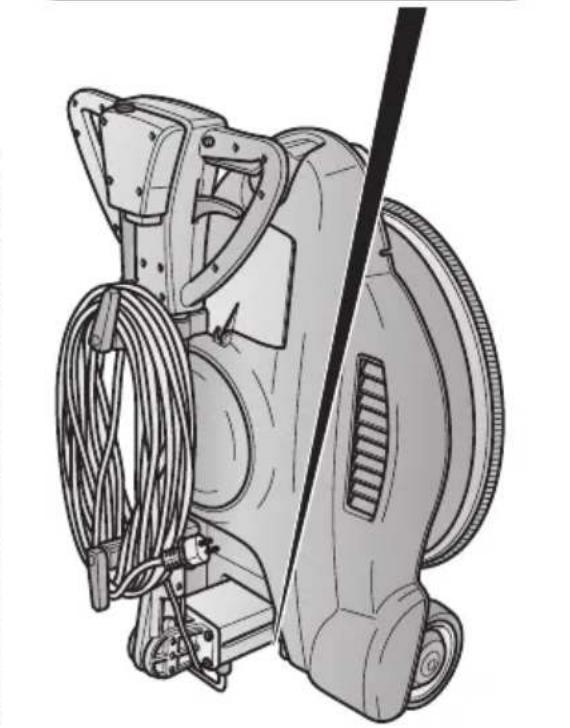

Upright position with pad resting on ground (Fig. 22)

Place the handle in the upright position and then turn the handwheel (56) counter clockwise as far as it will go in order to lift the pad off the ground.

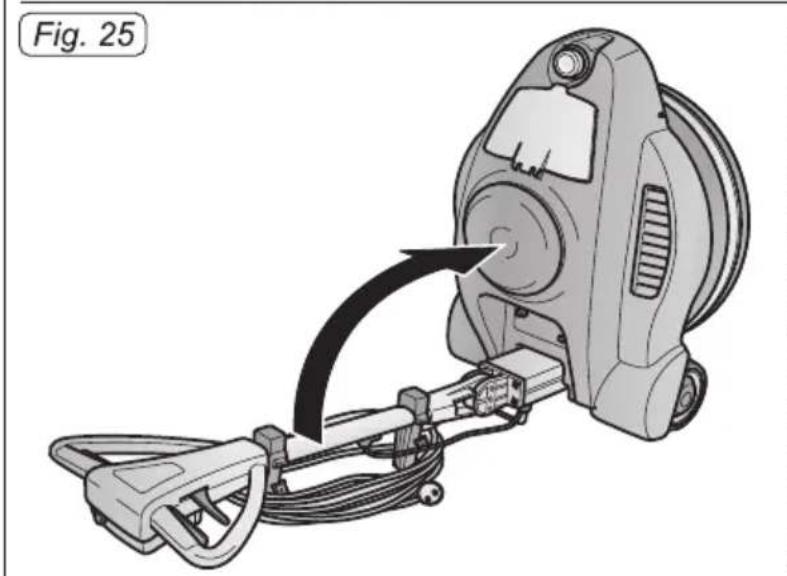

Upside down position (Fig. 25)

Load the machine on the handle as if you were to replace the pad.

Fully raise the handle.

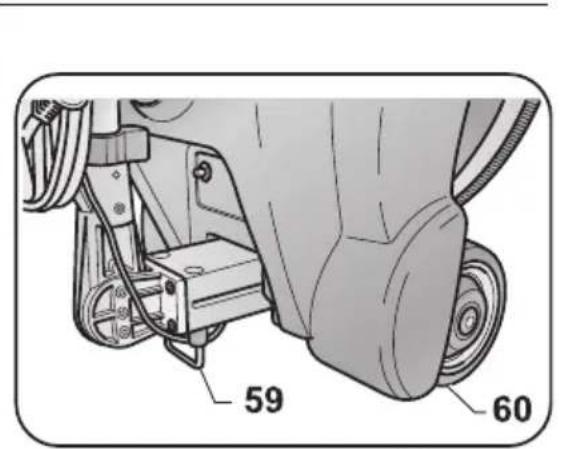

The machine remains in a stable position, resting on the wheels (60) and the support (59).

7.1 MAINTENANCE AND CLEANING

WARNING:

For information and warnings relating to maintenance or cleaning, follow what is described in the “Safety warnings for single disc” manual, accompanying this document.

OPERATIONS TO BE CARRIED OUT DAILY

7.1.a - Cleaning the machine

Clean the machine with a damp cloth and then wipe it with a clean, dry cloth to prevent the formation of scale due to the effect of chemicals.

WARNING:

Do not use solvents, acids or corrosive substances for cleaning the machine. If the pad is dirty, wash it at a maximum temperature of 60^ .

7.1.b - Cleaning the nozzle of the spray accessory (Optional) (Figs. 21 and 17).

WARNING:

Once you have finished polishing, you must drain and clean the water tank to prevent deposits or scaling and you must clean the nozzle.

- Remove the tank (34) (Fig. 17), empty the solution, rinse it and refill it with water.

- Position yourself with the machine near a discharge drain and press the button (52) (Fig. 21) until the tank is empty.

OPERATIONS TO BE CARRIED OUT WHEN NECESSARY

7.1.c - Pad replacement

The pad must be replaced when it is worn and its thickness is less than 10 mm; see the "Pad Assembly" paragraph for replacement instructions.

WARNING:

Use a pad with a 20" diameter 505 mm Type UHS.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
Although the lever release button and brush rotation levers are pressed at the same time, the machine does not start.	The appliance is unplugged.	Plug the appliance in.
The pad holder does not rotate.	The brush/pad holder rota-tion lever is not pressed.Presence of foreign bodies.	Press the lever.Remove any foreign bodies stuck in the appliance.
Polishing liquid is not re-leased.	The tank is empty.Button not pressed.	Fill the tank.Press the button.
Insufficient floor polishing. Pad or chemical product not suitable.Pad worn.	Use a pad or chemical prod-uct that is appropriate to the type of floor to be polished.Replace the pad.
The machine operates erratically or vibrates heavily.	Check that the pad is perfectly centred in the pad holder.Pad not suited to floor type.	Replace the pad, centring it correctly in the pad holder.Use a pad suited to the floor surface.
The machine turns off unex-pectedly during operation.	Motor thermal protection activation.	Restore the reset button until it "Clicks" and make sure to work in the correct range.

Très cher client,

PROBLÈMES - CAUSES - REMÈDES.... FR-9

1.1 CARACTÉRISTIQUES TECHNIQUES

PROBLÈMES - CAUSES - REMÈDES

PROBLEMAS - CAUSAS - SOLUÇÕES....PT-9

1.1 CARACTERÍSTICAS TÉCNICAS

PROBLEMAS - CAUSAS - SOLUÇÕES

1.3 - PRAWIDŁOWE UŻYCIE MASZYNY

OSTRZEŻENIE:

ب Competitive Counsel.

Zriello cleaning machines ITALIAN MANUFACTURING INDUSTRY

ghibli.com

CE
