USER MANUAL YT-85930 Yato
PL DE RU UA LT LV CZ SK HU RO ES FR IT NL GR
- power switch
- battery socket
- water connector
- lance socket
- lance lock button
- lance
- nozzle
- water hose
- detergent container
DE
Read the operating instruction
Wear protective goggles
Schutzbrille tragen
Wear hearing protectors
Gehörschutz tragen
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU
PRODUCT CHARACTERISTICS
The battery-powered pressure washer is a device for cleaning with pressure water jet and also a detergent. The pressure washer can be widely used in a household or at the workshop, thanks to the battery and water suction function. Proper, reliable and safe operation of the product depends on appropriate use, that is why you should:
Read and keep the entire manual before the first use of the product.
The supplier shall not be held liable for any damage or injury resulting from improper use of the tool, failure to observe the safety regulations and recommendations of this manual. Use of the tool for purposes other than those for which it was intended shall cause the loss of the user's rights to a warranty and under statutory warranty.
ACCESSORIES
The product is supplied with a flexible hose for water supply and a detergent container. The accessories do not include the battery and a charging station.
TECHNICAL DATA
| Parameter Unit Value | ||
| Catalogue No. YT-85930 | ||
| Battery voltage [V DC] 18 | ||
| Rated current [A] 10 | ||
| Discharge pressure [MPa / bar] 2.3/23 | ||
| Max. inlet pressure [MPa / bar] 0.5/5 | ||
| Max. lifting height | [m] | 1.2 |
| Protection rating | IPX0 | |
| Insulation class | III | |
| Weight | [kg] | 1 |
| Battery type | Li-Ion |
GENERAL INSTRUCTIONS FOR USE
Do not leave the device unattended when it is connected to a power supply.
It is forbidden to repair, disassemble or modify the device on one's own. All repairs must be carried out by an authorised service centre.
The device is not to be used by children. The product is not intended for use by people with impaired physical or mental abilities, or by people without experience in or understanding of the operation of the product, unless they will be supervised or instructed related to the safe use of the product, in a manner ensuring that the risks involved are understood. Children should not play with the product. Children left unattended should not be allowed to perform the cleaning and maintenance of the equipment.
Keep the device out of reach of children, if it is powered or cooling down.
Do not use the device if it has been dropped, if there are visible signs of damage or if it is leaking.
Recommendations for connecting the device to the electrical power supply
The device can only be powered by the batteries listed in this manual. It is forbidden to use batteries of other types than these specified in the manual. It is forbidden to modify the battery socket or the battery to make them fit. Before installing the battery, make sure that the battery and socket are not damaged or contaminated. If necessary, clean the battery and socket. Replace damaged battery with a new one which is free of damage.
EN
Recommendations for connecting the device to the water supply
The device may only be used with clean, fresh water. Do not use mechanically or chemically contaminated water.
Do not use liquids other than clean, fresh water, in particular alcohol, solvents, acids as well as aqueous solutions of substances. Do not use the device for spraying plants with substances other than water.
Do not exceed the maximum water inlet pressure. When performing water suction with the device, do not exceed the maximum suction height.
Do not allow water flow through the device to stop. Otherwise, this could lead to its overheating and damage.
If there are any leaks of the hose supplying water to the device, stop using it and replace the hose with a new one, free of defects.
When using detergents, use only those that are intended for use in pressure washers. Do not use kitchen detergents. Do not use corrosive or abrasive detergents.
Place the detergent only in the container intended for this purpose. Do not dilute the detergent in water intended for supplying the device.
Instructions for use
Do not point the water jet at equipment containing electrical components, such as the inside of the ovens.
Never point the water jet towards yourself, other people or animals.
The product is intended for indoor use only. Do not expose the product to any precipitation or moisture. If water and moisture enter the product, the risk of an electric shock is significantly increased. Do not immerse the product in water or any other liquid.
The device may only be used at temperatures above 0^ C.
After each use, disconnect the battery from the device. Always disconnect the device from the power supply, if it is left unattended, and before putting it away, disassembling, or cleaning.
Disconnect the battery from the device, before installing, removing, or adjusting any of the product accessories.
Make sure that the selected accessory has been installed correctly, before starting the product.
Do not overload the product. The temperature of the housing must not exceed 60^ C. Overloading the product will accelerate its wear and tear, lead to its damaging, and increase the risk of an electrocution.
The product must be kept under supervision at all times during operation.
Improper use
Do not use the pressure washer for the following purposes: spraying hot water (above 50^ C); cleaning electrical equipment; as a pump; spraying flammable liquids; spraying liquids other than water. Do not use the device to spray sea water.
WARNING! Danger of explosion - Do not spray flammable liquids.
Do not spray toxic, corrosive or hazardous liquids.
EN
Do not use the washer for extinguishing fire. A high-pressure water jet can move the fire source before extinguishing it. The water vapour produced by contact between water and fire is very hot and can cause severe burns.
DEVICE OPERATION
Preparing for operation

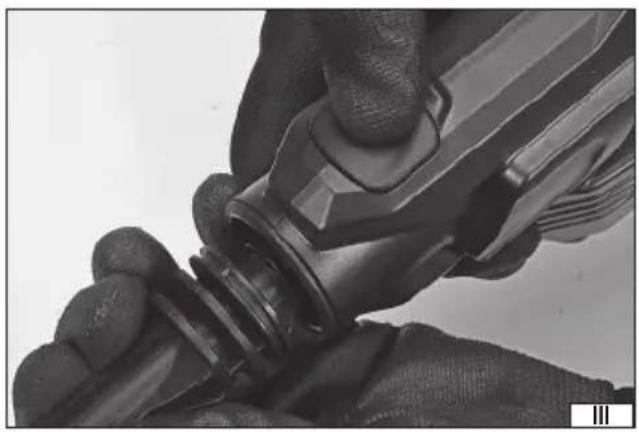

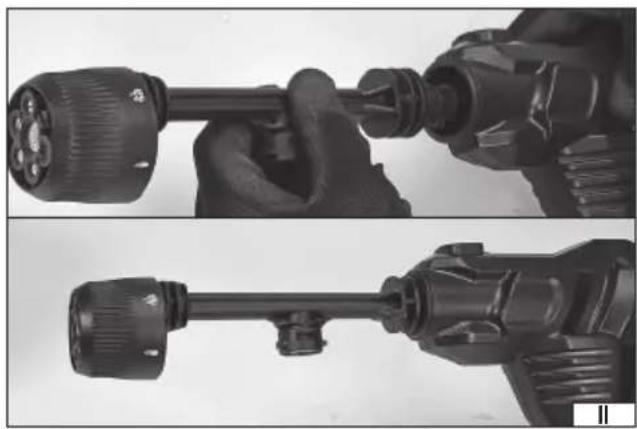

First, attach the lance to the handle. The mounting socket of the handle and lance has special lugs, which make it possible to install them only in one correct way. Push the lance into the socket in the handle until the latch mechanism (II) engages. A correctly installed lance cannot be disassembled except by pressing and holding the lock button and then ejecting the lance from the housing socket (III).

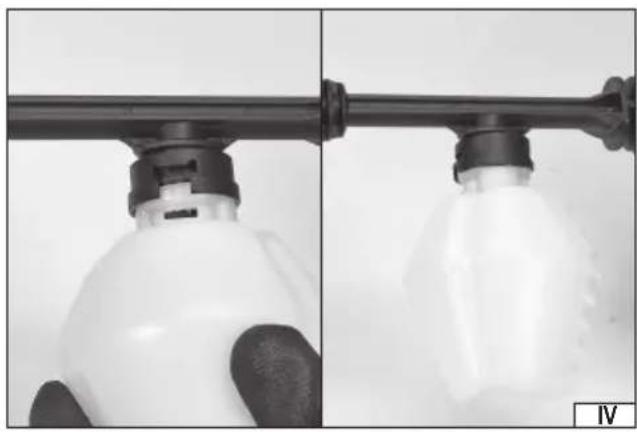

Attach the detergent container to the socket in the lance. Slide the container into the socket and turn to lock its position (IV). By turning the ring of the container socket, you can choose whether the detergent from the container is to be sucked in or not. Fill the container with detergent so as to leave a free space of approx. 1cm between the detergent surface and the top of the container.

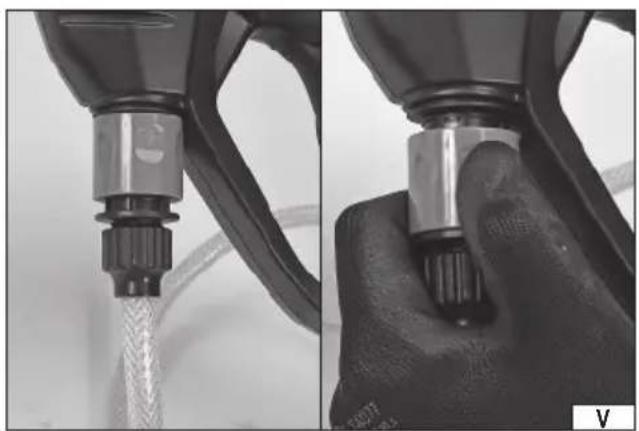

Connect the hose supplying the washer with water. The device is equipped with a standard garden quick connector. Slide the hose plug onto the socket in the washer until you hear the latch mechanism (V) engage. A correctly installed hose cannot be disassembled except by pulling the hose plug ring, which leads to unlocking the latch mechanism.
At the other end of the hose, there is a filter basket attached. Do not disassemble it, as it protects against sucking dirt together with water.
Caution! If the pressure washer is to be supplied with a pressure water source, it is required to use another hose (not included in the washer accessories). One end of this hose has to be equipped with a standard plug which fits the universal garden quick connector, and the other end, with a connector allowing for a tight connection with a water source.
Only the following 18 V Li-Ion YATO batteries can be used to power the tool: YT-82842, YT-82843, YT-82844 and YT-82845, which can only be charged with YATO YT-82848 or YT-82849 chargers. It is forbidden to use other batteries with a different rated voltage and not matching the tool battery socket. It is forbidden to modify the socket or battery to make them fit.
Slide the charged battery into the guides of the battery socket so that the battery latch holds it in place (VI). Check whether the battery does not slide out of the tool socket by itself.
Working with the washer
To turn on the washer, press and hold the power switch. Wait until the washer sucks the water and the water jet comes out of the nozzle.
The washer is turned off by releasing the power switch. The water jet coming out of the nozzle may fade gradually.

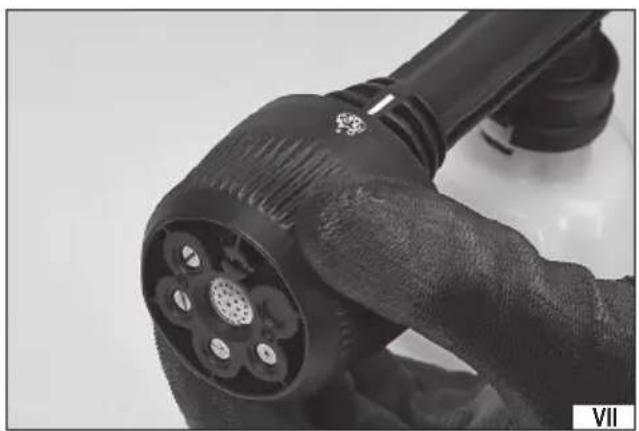

The nozzle is equipped with a rotating ring, which allows for selecting the type of water jet coming out of the nozzle. The graphic symbols on the ring should be opposite the marker on the lance (VII). The ring is equipped with a ratchet mechanism that makes it easy to set it in the selected position. It is recommended to test all lance settings before starting work. To do this, point the nozzle outlet at a safe place, e.g. in a bucket.
The high-pressure water jet is dangerous. Before starting to clean surfaces, make sure that they can be cleaned with a high-pressure water jet.
Never point the water jet at electrical equipment.
Increasing the distance between the nozzle outlet and the cleaned surface reduces the pressure of the water jet on the surface. Never apply the nozzle outlet to the cleaned surface, it is recommended to maintain a distance of at least 30~cm between the nozzle outlet and the cleaned surface.
If not necessary, keep moving the water jet and do not aim it at one place. This will reduce the risk of damage to the cleaned surface by prolonged exposure to high-pressure water jets.
If a detergent is used, use a preparation designed for pressure washers. Read and observe the information provided with the preparation. This applies in particular to dilution and use. Do not use corrosive preparations.
After use, disconnect the battery from the washer, and the washer from the water source. Point the nozzle outlet at a safe place and press the power switch. This will release the pressure of the water accumulated inside the washer. Then proceed with the maintenance of the device.
MAINTENANCE, TRANSPORT AND STORAGE
Clean the washer's housing with a damp cloth, then dry or leave to dry. Clean the ventilation openings with a soft brush or a soft brush with plastic bristles, or with a compressed air stream with the pressure not exceeding 0.3MPa . The water inlet is equipped
EN
with a strainer, which must be cleaned under running water. It is forbidden to use the washer without the strainer installed in the water inlet. Deformation or reduction of the efficiency of the outlet jet can be caused by a dirty nozzle outlet. Clean the nozzle inlet with a needle. Be careful when cleaning so as not to damage the nozzle. If the cleaning has no effect, hand over the washer to an authorised service centre. Do not disassemble any of the parts of the washer by yourself.
Remove water from the inside of the washer before storage. This will prevent contamination of the washer by organic material which may be present in the water, and damage to the washer if exposed to temperatures below 0 °C . After using the washer and disconnecting the water supply hose, run the washer for 5 seconds. This will remove as much water as possible from the inside of the washer pump. Do not run the washer for more than 5 seconds, as this will damage the washer pump.
Store the washer in dry, dark places and ensure good ventilation. Do not store the washer at temperatures below 0^ C. The place of storage should protect the device from access by unauthorised persons, especially children.
Store and transport the washer with disassembled battery.
It is advisable to disconnect the lance before transport over longer distances and then cover the water inlet and outlet.
