USER MANUAL Vroom i-Size Foppapedretti

Exterior view of a gray and black car comfort seat with green accents (no text or symbols visible)

Icon depicting a person sitting in a car seat, enclosed in a square frame (no text or symbols)

ECE R129-03

EN CAR SEAT - Assembly instructions

EN. IMPORTANT! READ THE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE

FR. IMPORTANT! LIRE ATTENTIVEMENT ET CONSERVER SOIGNEUSEMENT A PORTEE DE MAIN POUR UNE UTILISATION ULTERIEURE

Two yellow plastic clips with cutouts, labeled '1' in top-left corner (no other text or symbols)

2

3

4 CLICK

5 a

6 a

7 a b c CLICK

CLICK

Illustration of a white ergonomic device with a green handle and a red arrow pointing to it, labeled '8' (no text or symbols on the device itself)

Line drawing of a car seat with a small appliance on top, no text or symbols present

10 a

11 a

12 CLICK

Safety warning symbol for a car seatbelt, indicating no number of seats allowed

CLICK

13

1415

Illustration of a car comfort seat with blue cushion and black buttons (no text or symbols)

Simple 3D diagram of a rectangular grid structure on a light blue base, with no text or symbols

17

1819 A A

Illustration of a blue and black car seat with a red arrow indicating clockwise motion (no text or symbols)

Avvertenze PAG 08

Diagram of a car with multiple driver seats and checkmarks indicating status or failure, including red 'X' marks for incorrect cases.

Line drawing of a car seat with a green logo on the seat (no text or symbols)

Diagram showing a green checkmark on a vehicle seatbelt, with a checkmark symbol and partial view of the seat.

Diagram showing a crosshair device with red X marks and a diagonal line crossing it, indicating no intersection or violation.

Illustration of a blue, textured object with serrated edges and a labeled arrow pointing to a numbered point (7), no text or symbols present.

Warnings PAG 20
Use in the vehicle PAG 24
Components PAG 26
Installing with 3-point seat belt together with ISOFIX connectors PAG 27
Installing with 3-point seat belt PAG 27
Chest belt guide installation PAG 28
Adjusting the chest belt PAG 28
Drinking holder PAG 28
Remove the cover PAG 28
Re-fitting the cover PAG 23
Cleaning and maintenance PAG 29
Formal guarantee PAG 30

WARNINGS

NOTICE: This restraint system for children has been approved under the R129 standard for use by children from 125 to 150 cm tall. Do not leave the child unattended in the vehicle. Read all instructions carefully otherwise the child's safety may be compromised. Incorrect installation of the child restraint system may have serious consequences for the child. In case of incorrect installation, the manufacturer is in no way responsible.

WARNINGS: IMPORTANT NOTICE

1. This is an advanced restraint system for children classified as an "i-Size" booster seat. It is approved under the R129 standard for use in vehicles on seats "compatible with i-Size systems", as indicated in the car manual by the vehicle manufacturer. If in doubt, contact the manufacturer of the child restraint system or the retailer.
2. Vroom i-Size should be installed in the direction of travel with FIX anchorage in a vehicle equipped with ISOFIX anchor points, with a three-point seat belt approved under UN/ECE R16 or similar.
3. If the vehicle is not equipped with ISOFIX anchorage, Vroom i-Size can be installed in the direction of travel with a three-point seat belt, approved under UN/ECE R16 or similar.
4. Vroom i-Size is approved for children from 125 to 150 cm tall, in the direction of travel.

WARNINGS NOTICE! REMOVE AND DISPOSE OF ANY PLASTIC BAGS AND PACKAGING BEFORE USE AND KEEP OUT OF THE REACH OF CHILDREN.

This restraint system complies with ECE R129/03, approved for children from 125 to 150 cm, in the direction of travel.

• Never leave your child unattended in the car.
• WARNING: NEVER leave your child unattended – your child's safety is your responsibility.
• WARNING: Adult assembly required. Do not use this product without reading the instructions.
• Read the instructions carefully before use and store them in the special compartment for reuse in future.
• Failure to follow the car seat installation instructions carefully could pose a risk to your baby.

- WARNING: The child car seat must be fitted in accordance with the manufacturer's instructions. Incorrect installation could be dangerous.

- WARNING: Always ensure that new or occasional users [e.g. grandparents] have read the instructions or been taught the correct installation by someone who has read and understood the instructions.

- WARNING: Always keep this instruction manual with the child car seat, or in the vehicle in which you are carrying the child car seat. Some models of child car seat have a pocket to store the instructions.

WARNINGS

• Always keep this manual to hand, storing it with the product.
- Should there be any queries regarding the installation and correct use of the car seat, contact the manufacturer of the child restraint device.

BEFORE STARTING

• WARNING: Do not fit the child car seat in a rearward facing position
• WARNING: Before installing the child car seat ensure that the passenger seat you are using is locked in the upright position.
• WARNING: Do not use the child car seat in the home - it has only been designed to be used in the car.
• WARNING: Do not leave loose/unsecured objects on the back seat of your car or the parcel shelf. They may be dangerous to your child if you are forced to brake suddenly.

WHEN USING THE CHILD CAR SEAT

• WARNING: Make sure that the child car seat is placed somewhere so that rigid items and plastic parts do not become trapped in doors or movable seat units when the seat is in everyday use.
• WARNING: Always use the vehicle's door child safety lock system, if one is available, to make it impossible for the child to open the car doors from inside.
• WARNING: Allow the child a break during long car journeys and make sure they don't get out of the car seat unaided and without supervision.
• Do not leave your child unsupervised in a child restraint device.
• The car seat must only be installed on the passenger seats
• WARNING: The child car seat must be fitted securely to the passenger seat. Ensure that it is not loose or wobbly after you have fitted it. If it is loose, refit it.
• WARNING: Ensure that the child car seat is secured to the car seat at all times even when not in use.
• Attach the car seat using FIX connectors or a seat belt even when not in use.
• Do not use the child restraint device without the cover.
• WARNING: The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.
• WARNING: Stop the car at regular intervals to check that the child car seat is in the correct position and that both the car seatbelt AND the child car seat harness (if required) are still fastened and latched.
• WARNING: In the event of an emergency it is important to be able to release the child quickly (as defined by British Standards). This means that seat buckle cannot be fully tamper proof and you should actively discourage your child from playing with or using the buckle.
• WARNING: Do not place anything under the child car seat (e.g. a towel or cushion) as this could affect the performance of the seat in an accident.
• Do not use cushions, blankets or similar to raise the car seat or the child: the car seat may not function correctly in case of an accident.

WARNINGS

• WARNING: Avoid winter clothing bundling Bulky clothing can lead to incorrect harness tightening. In an accident, the child can slip right out of the extra padding - and thus out of the seat. Let the car warm up or cool down prior to placing your child in there if possible. If your child is cold, place a blanket over the top of the harness..
• WARNING: Make sure to properly secure any loose objects, such as luggage or books, in your car as they may cause injuries in the event of an accident.
• Do not leave unsecured luggage on the parcel shelf: in the event of an accident this could cause serious harm to passengers.
• It is danger to make any alterations or additions to the device without the approval of the Type Approval Authority, and is also danger not following closely the installation instructions
• Do not make changes or additions to the car seat without approval from the manufacturer.
• Do not install accessories, spare parts or components on this car seat that have not been supplied or approved by the manufacturer.
• Every country has different safety laws and regulations for the transport of children by car. It is recommended to contact the local authorities for more information.
• Do not remove stickers and labels from the seat cover as this may damage the cover.
• The product is intended for use as a car seat only and is not for use at home.
• The FOPPAPEDRETTI company declines all responsibility for improper use of the product and for any use that does not comply with these instructions.
• Do not let other children play with components and parts of the car seat.
• Do not carry more than one child in the seat at a time.
• Ensure that vehicle seats (folding or rotating) are properly secured.
• WARNING! When adjusting the seat (the headrest or backrest), make sure that the moving parts of the car seat do not come into contact with your child's body.
• CHECK YOUR VEHICLE'S INSTRUCTION MANUAL TO ENSURE THAT ISOFIX B2 SAFETY SEATS FOR CHILDREN ARE SUITABLE FOR YOUR VEHICLE.
• USE THE FIX PLASTIC GUIDES PROVIDED WHEN NECESSARY. FOPPAPEDRETTI CANNOT BE HELD LIABLE FOR DAMAGES OR MARKS ON VEHICLE SEAT UPHOLSTERY.

SEAT BELT

• WARNING: NEVER use any load bearing contact points other than those described in these instructions or marked on the child car seat.
• Any straps holding the restraint to the vehicle should be tight; restraining the child should be adjusted to the child's body, and should not be twisted. It is important to ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
• WARNING: Make sure that ALL the passengers in your vehicle have their seatbelts fastened, as unrestrained people can be very dangerous to the child in an accident.
• Set a good example yuorself and always wear your seat belt.

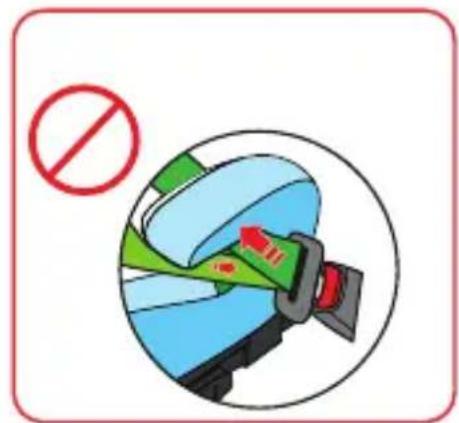

• WARNING: NEVER use a seatbelt routing scheme that differs from these instructions.

WARNINGS

• WARNING: The lap and diagonal seatbelt must be used at all times when your child is in the child car seat.
• WARNING: Make sure that there are no twists in the seatbelt.
• WARNING: Do not place luggage on the parcel shelf without securing it: in the event of an accident it could cause serious damage to passengers.
• Tell your child that he/she should be never play with the belt buckle. Check periodically that the child cannot open the seat belt buckle or manipulate the seat or parts of the seat.

SUNLIGHT/HOT DAYS

• WARNING: Do not leave your child in the child car seat while parked in direct sunlight or on a hot day.
• WARNING: Do not subject the child car seat to prolonged direct sunlight as this may be dangerous for your child (the metal and plastic fittings could become hot) and may cause the fabric to fade. You can reduce this problem by covering the child car seat with a sheet when not in use.

SECOND HAND OR DAMAGED CHILD CAR SEATS AND SEATBELTS

- WARNING: Never buy a second hand child car seat. It may have unseen damage.

- WARNING: The manufacturer only guarantees this product when the original owner uses it.

- WARNING: You MUST replace the child car seat and your vehicles seatbelts if they become badly worn or amazed.

- WARNING: You MUST replace the child car seat if it is involved in an accident it may have unseen damage and may not protect your child as well as it should. At the very least send the child car seat to your retailer for inspection, together with the accident report. The product may have internal damage that is not visible which could compromise the child's safety.

USE IN THE VEHICLE

LIMITATIONS AND REQUIREMENTS FOR USE OF THE CAR SEAT AND THE VEHICLE SEAT

CAR SEAT	GROUP INSTALLATION METHODS
VROOM i-Size	125 cm/150 cm 3-point Seat Belt
VROOM i-Size	125 cm/150 cm ISOFIX + 3-point Seat Belt

IMPORTANT NOTICE

This is an advanced restraint system for children classified as an "i-Size" booster seat. It is approved under the R129 standard for use in vehicles on seats "compatible within i-Size systems", as indicated in the car manual by the vehicle manufacturer. If in doubt, contact the manufacturer of the child restraint system or the retailer.

This restraint system for children is classified for "i-Size & Specific Vehicle" use and is suitable for installation on the seats in the positions indicated.

WARNING! The following limitations and requirements for use relating to the car seat and the vehicle seat must be strictly followed, otherwise safety is not guaranteed. The child must be from 125 to 150 cm tall.

The child seat is approved for 2 different methods of installations:

A. With vehicle's 3-point safety belt.
B. With vehicle's 3-point safety belt in combination with ISOFIX connectors locking into vehicle's ISOFIX lower anchorages.

It is recommended to use the car seat with FIX connectors if the vehicle is equipped with ISOFIX anchorage.

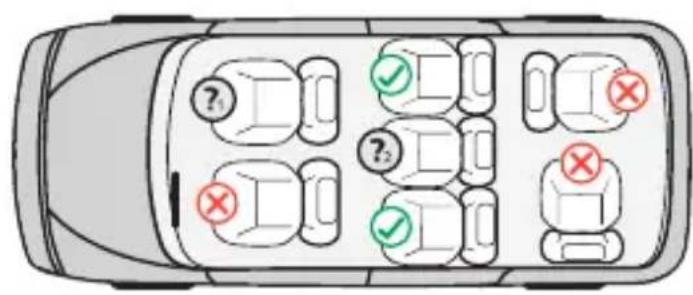

Diagram of a car with multiple driver positions and checkmarks indicating failure or rejection status

Permitted installation

Unpermitted installation

Do not fit the car seat to the front seat with the airbag enabled

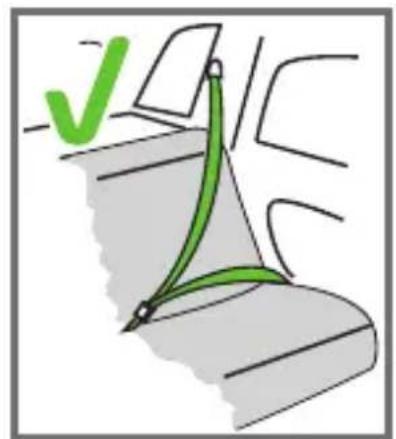

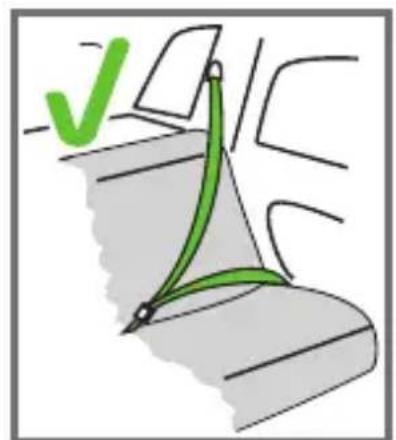

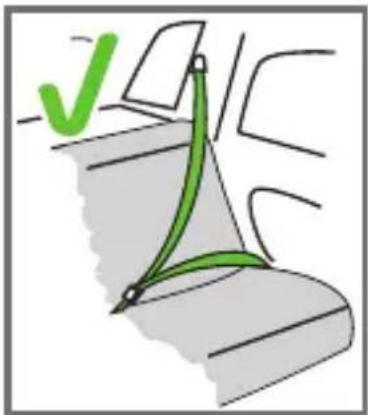

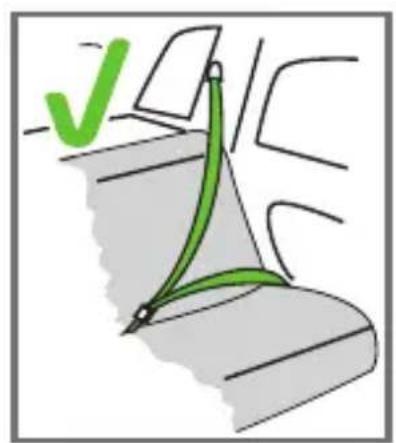

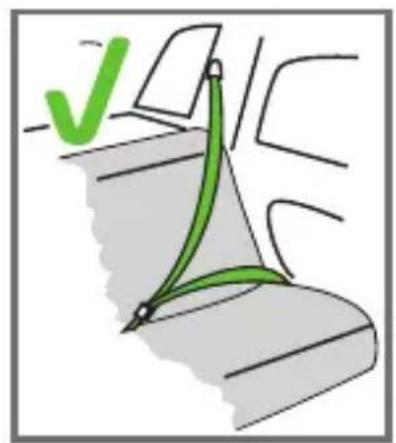

Installation permitted if the car seat is equipped with three-point seat belt

USE IN THE VEHICLE

IMPORTANT:

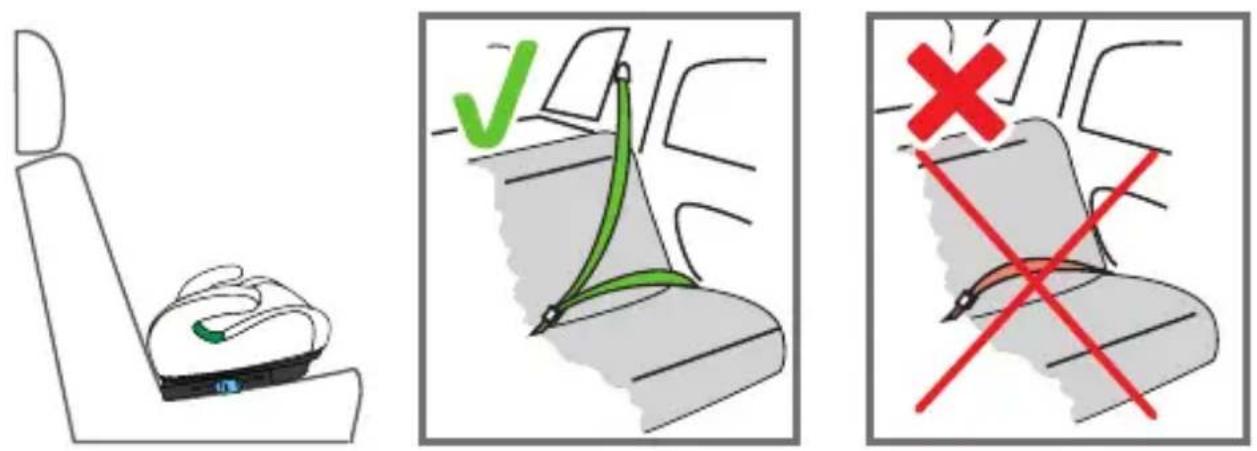

1. Only use the car seat in the direction of travel. Positioning the car seat on the front passenger seat is not recommended.
2. This car seat can only be installed if the suitable vehicles are equipped with 3-point safety belts, approved according to UN/ECE R16 or other equivalent standards.

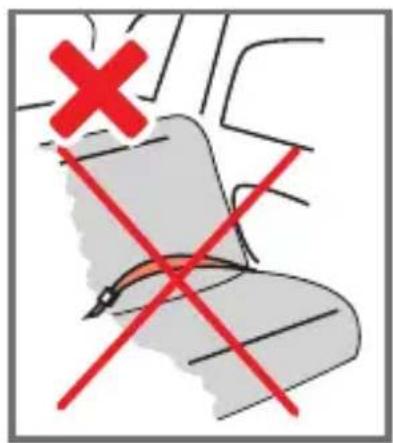

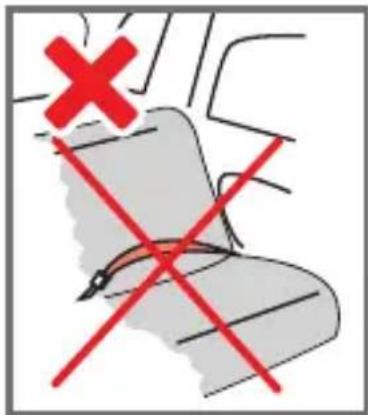

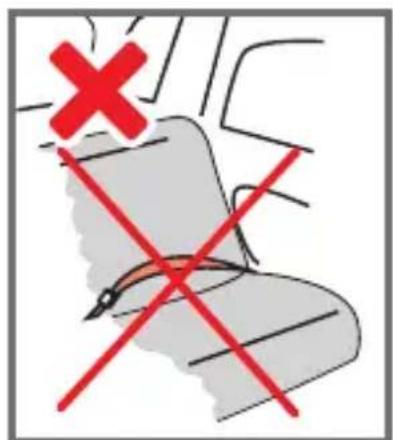

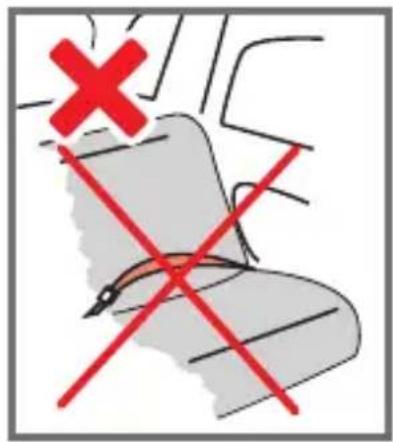

3. Do not use with a two-point safety belt under any circumstances.

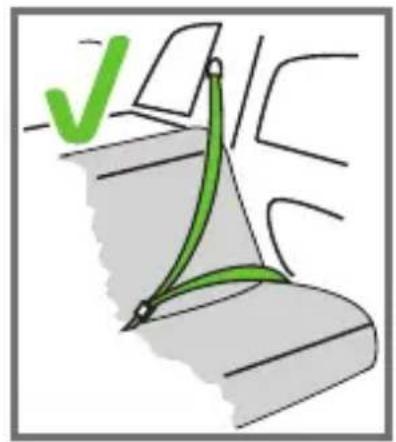

Ensure that you have correctly attached the vehicle's three-point safety belt. Check that both FIX connectors are properly attached to the anchorage points. Both Smart Fix indicators are green.

WARNING! When used in vehicles equipped with rear seat belts with integrated airbags (inflatable belts), follow the car manufacturer's instruction manual.

• Never use this seat on side-facing seats or in the opposite direction of travel.
• WARNING! It is recommended to install the car seat on the rear seats because, based on accident statistics, they are considered safer. It is recommended to place the car seat in the centre rear seat if equipped with a three-point safety belt.
• If the car seat is positioned on the front seat, for greater safety, it is recommended to move the vehicle seat back as far as possible, if feasible with the presence of other passengers in the rear seat and to adjust the backrest to the most upright position. If the car is equipped with a seat belt height adjuster, fix this at the lowest position. Ensure that the seat belt adjuster is in the rear position (or most aligned) with the vehicle seat backrest.
• Do not install the car seat on the front seat if equipped with an active front AIRBAG. In the case of installation on any seat protected by an airbag, always refer to the car instruction manual.

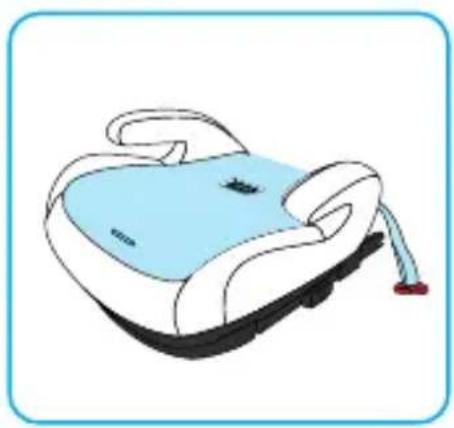

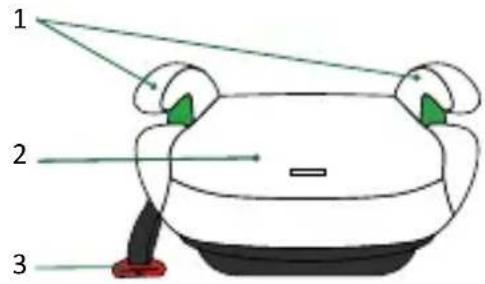

COMPONENTS

1 2 3

4 5

Simple line drawing of a blue object with serrated edges and a labeled arrow (7), no text or symbols present.

1. Armrests
2. Body + cover
3. Belt guide
4. ISOFIX connector release button
5. ISOFIX connector (x2)
6. Guides for fitting ISOFIX connectors
7. Drinking holder

USE IN THE VEHICLE

Mode A - INSTALLING WITH 3-POINT SEAT BELT TOGETHER WITH ISOFIX CONNECTORS

Please read the instructions on the use of child restraint systems described in your vehicle owner's manual. Find the ISOFIX anchorage points in the vehicle seat.

TIPS: the ISOFIX anchorage points are located between the surface and the backrest of the vehicle seat.

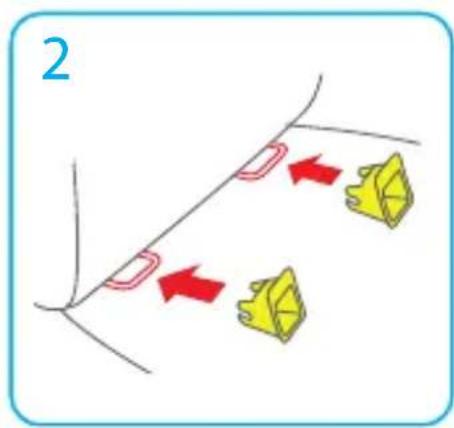

Fig. 1, 2 Insert the two ISOFIX guides into their relative ISOFIX anchoring points. The FIX guides facilitate the attachment of the ISOFIX connectors preventing damage to the seat upholstery

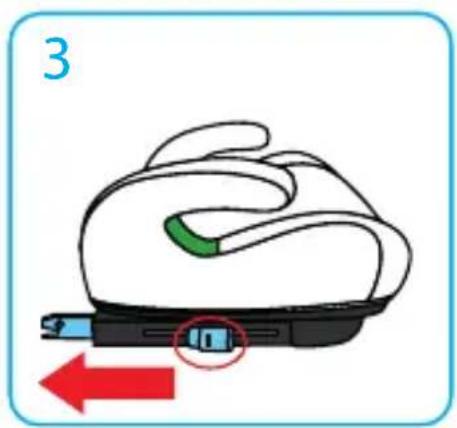

Fig. 3 Press lever (1) and at the same time fully extend the ISOFIX (2) connectors. Release the lever.

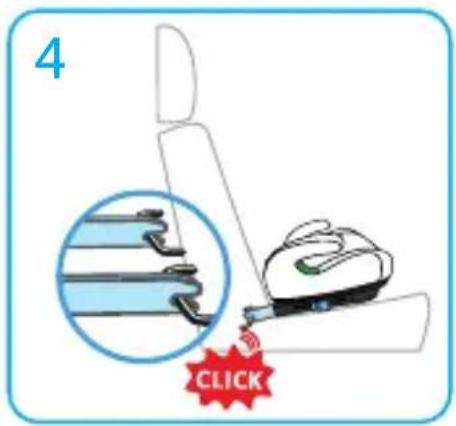

Fig. 4 Position the seat facing towards the direction of travel on the passenger seat. Align the ISOFIX attachments with the anchoring points fitted to the vehicle seat and press until you hear a "click". Ensure that both brackets are correctly fastened.

Ensure that the indicator of the locking device on both brackets is green, indicating that they are correctly fastened. Check that both brackets are correctly fastened.

Push the car seat against the backrest of the passenger seat.

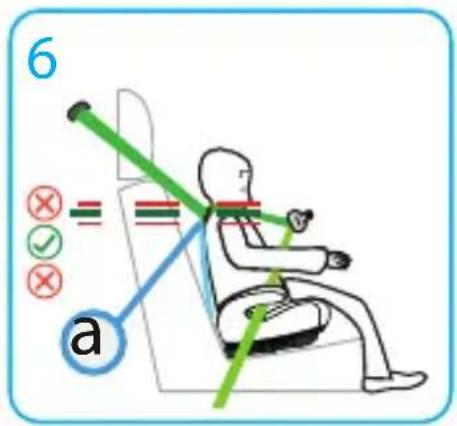

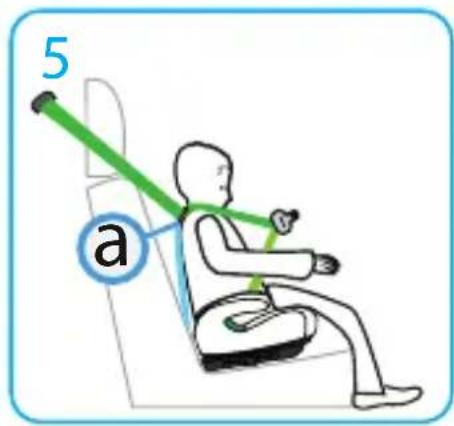

Fig. 5, 6 Place the child in the car seat and adjust the strap, aligning hook 'A' of the chest strap guide with the child's shoulders.

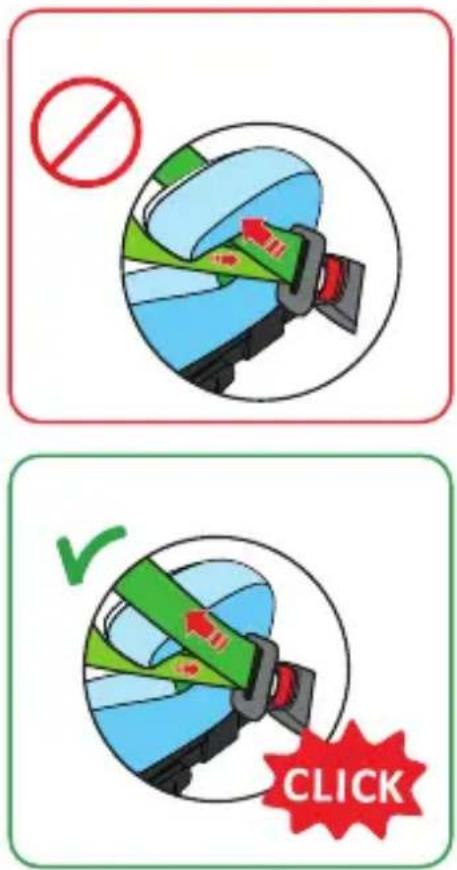

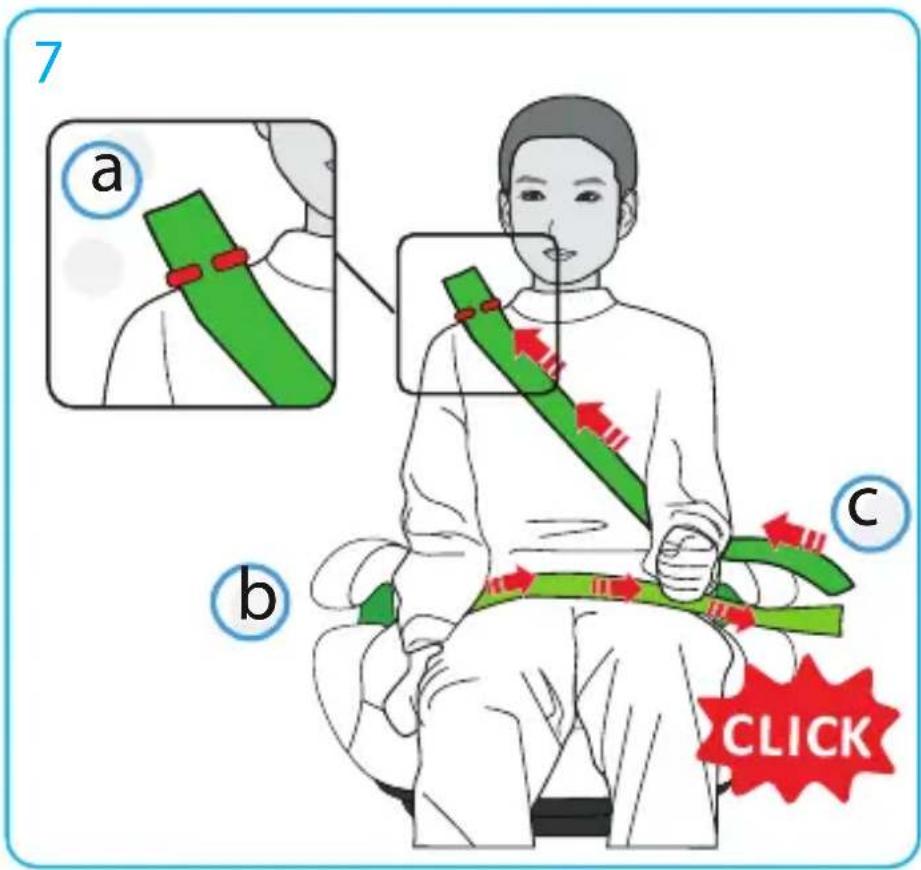

Fig. 7 Secure the child with the 3-point seat belt supplied with the car, passing the diagonal belt of the vehicle through the A-shaped 'chest belt guide' hook and the lap belt of the vehicle through belt guide loops (B) and (C).

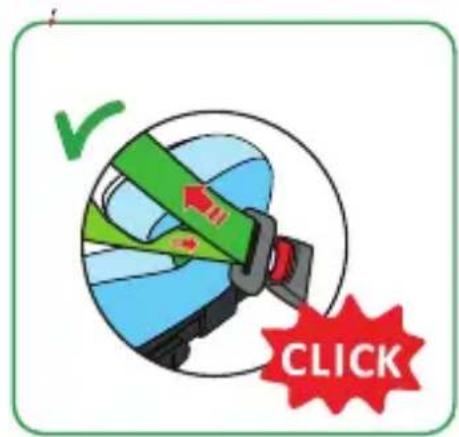

Clip the buckle, a "click" will indicate that it is correctly fastened.

Tighten the belt as shown in the figure 7.

ATTENTION! Make sure that you have positioned the lap belt as low as possible on the child's pelvis, and that it has been inserted in the belt guides of the lap seat belt and that you have correctly attached the buckle.

The chest strap must pass through hook A, the 'chest strap guide'.

Mode B - INSTALLING WITH 3-POINT SEAT BELT

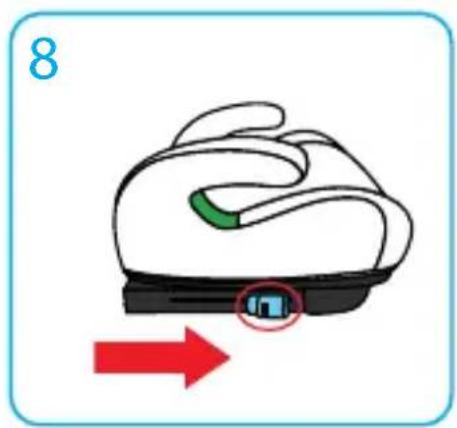

Fig. 8 Check that both ISOFIX connectors are in the original position (innermost). If not, press and hold the ISOFIX adjustment lever and simultaneously push the ISOFIX connector arms back into the base of the car seat (Booster).

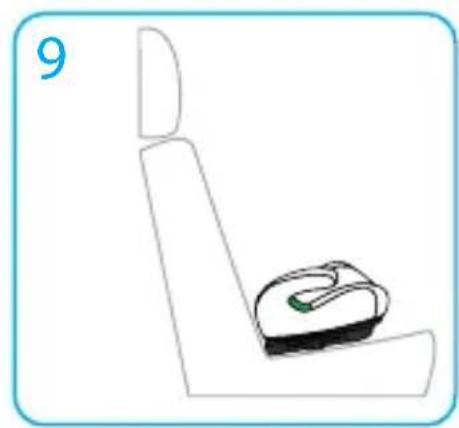

Fig. 9 Position the seat facing towards the direction of travel on the passenger seat. Push the car seat against the backrest of the passenger seat.

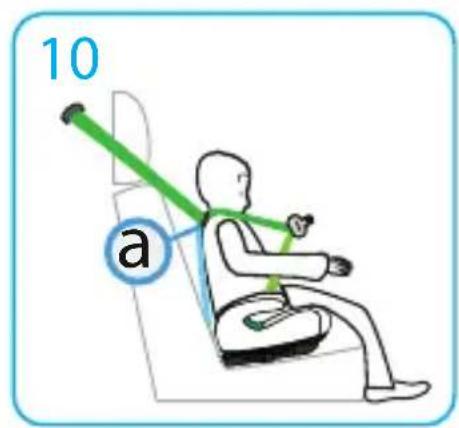

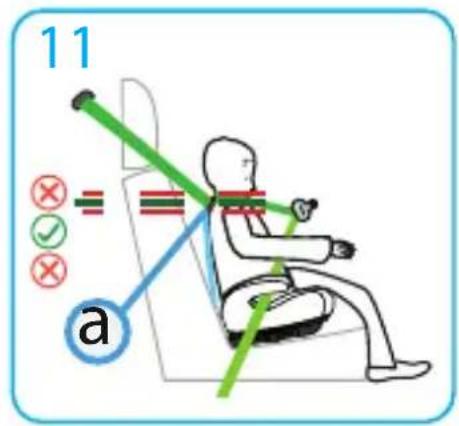

Fig.10, 11 Place the child in the car seat and adjust the strap, aligning hook 'A' of the chest strap guide with the child's shoulders.

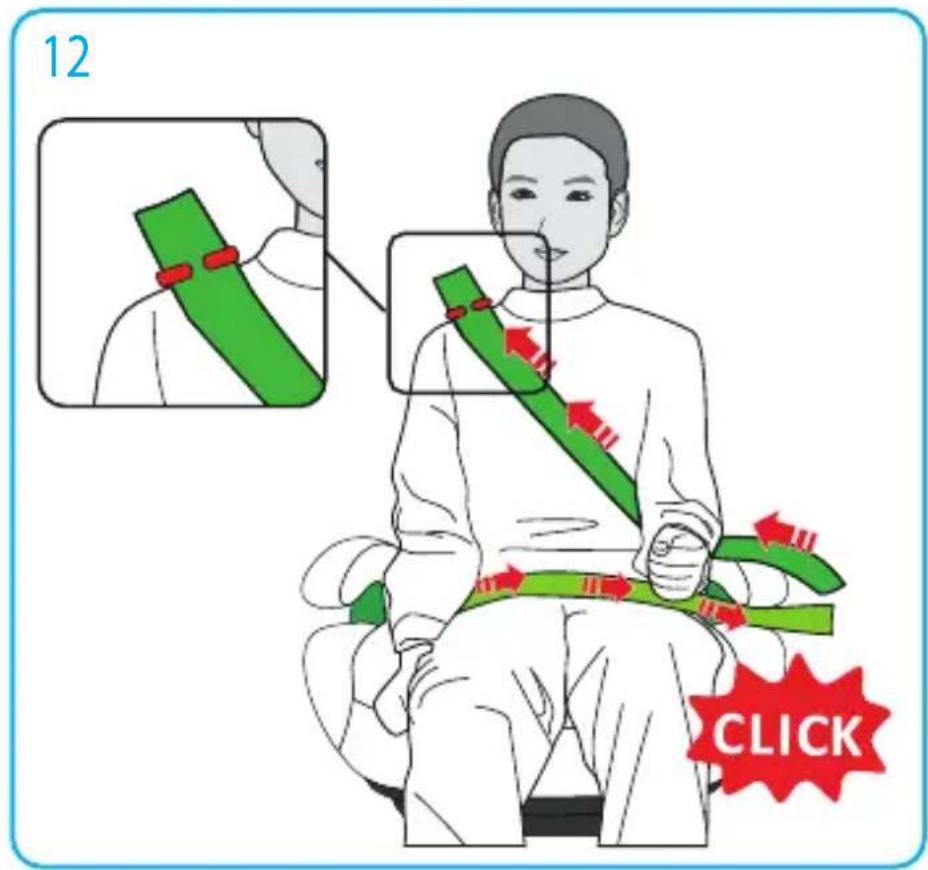

Fig.12 Secure the child with the 3-point seat belt supplied with the car, passing the diagonal belt of the vehicle through the A-shaped 'chest belt guide' hook and the lap belt of the vehicle through belt guide loops (B) and (C).

USE IN THE VEHICLE

Clip the buckle, a "click" will indicate that it is correctly fastened.

Tighten the belt as shown in the figure 12.

ATTENTION! Make sure that you have positioned the lap belt as low as possible on the child's pelvis, and that it has been inserted in the belt guides of the lap seat belt and that you have correctly attached the buckle.

The chest strap must pass through hook A, the 'chest strap guide'.

CHEST BELT GUIDE INSTALLATION

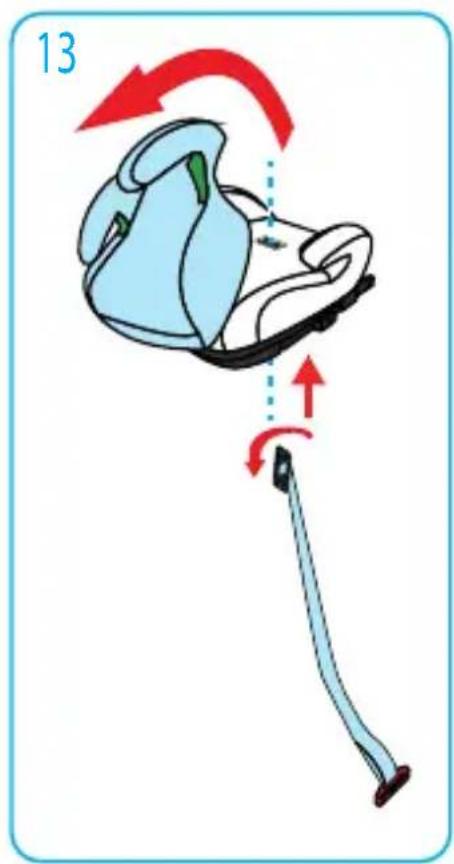

Fig. 13 Remove the cover and insert the metal ring from the bottom of the car seat, as shown in the figure.

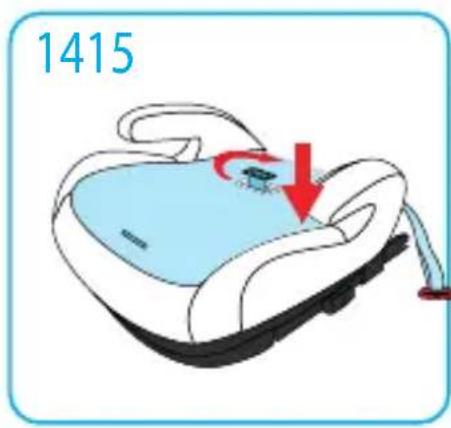

Fig. 14, 15, 16 Fold the ring horizontally and pull down the chest belt guide strap, locking the metal ring in its seat.

ADJUSTING THE CHEST BELT

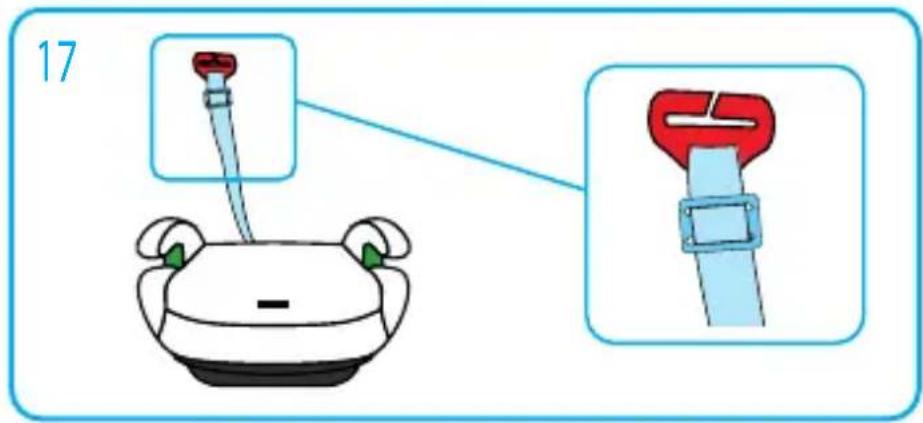

Fig. 17 Move the adjustment ring to align the belt guide with the child's shoulders.

DRINKING HOLDER

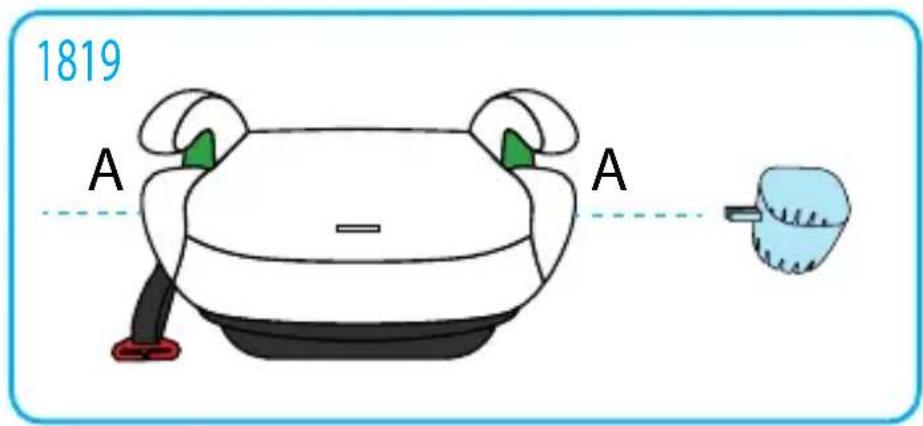

Fig. 18 Insert the drink holder into slot A (right or left side) as shown in the picture.

REMOVE THE COVER

• Slide the cover off each side to remove it.

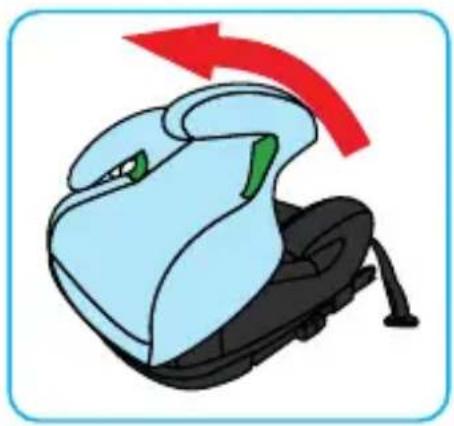

• Lift the fabric lining off the car seat (fig. 19).

RE-FITTING THE COVER

Proceed in reverse order to put on te cover.

CLEANING AND MAINTENANCE

Maintenance

• Regularly check the adjustment and locking devices and ensure that the car seat is correctly adjusted according to the age of the child.
• In the event of an accident, the car seat must be substituted, as there may be micro fissures which are not visible to the naked eye.
  • DO NOT place heavy objects on top of it.
  • Always store the child car seat in a dry environment.
• DO NOT store the child car seat near a direct heat source such as a radiator.

Washing instructions

Never use solvents, chemical detergents or lubricants on any part of the car seat.

Covers

• The seat cover is easily removable and should be handwashed with a pH neutral soap and cold water.
• Do not press, iron, dry clean, tumble dry or wring the covers.
• Do not use solvents, caustic or abrasive cleaning materials.
• If the seat covers need to be replaced, use only a cover provided by the manufacturer.
• They are the only ones that are guaranteed to have been safety tested and designed to fit this seat. The child seat must not be used without the seat cover.

Plastic/Metal Parts

• Wipe clean using a mild soap and warm water.
• You must not remove, dismantle or alter any part of the seat shell.
• You must not oil or lubricate any part of the seat shell.

The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A.

FORMAL GUARANTEE

Foppa Pedretti S.p.A. the head office of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer. This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer's rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product.

To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer's address, the date of purchase of the Product with the Retailer's stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above.

The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.

EXCLUSIONS TO THE FORMAL GUARANTEE.

The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure.

In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manua I or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot: "Check your baby constantly. Make sure that the sheets and blankets do not cover the baby's head...").

Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.

Diagram of a car with multiple driver seats and checkmarks indicating status or failure, including red 'X' marks for incorrect cases.

Line drawing of a car seat with a green logo on the seat (no text or symbols)

Diagram showing a green checkmark on a vehicle roof with a blue checkmark indicating the direction of movement.

Diagram showing a cross symbol with red X and two red diagonal lines intersecting, possibly indicating a warning or rejection scenario.

Simple line drawing of a blue object with serrated edges and a labeled arrow (7), no text or symbols present.

EXCLUSIONS DE LA GARANTIE CONVENTIONNELLE.

Diagram of a car with multiple driver seats and checkmarks indicating status or failure, including red 'X' marks for incorrect cases.

Illustration of a blue, textured object with serrated edges and a labeled arrow pointing to a numbered point (7), no text or symbols present.

Diagram of a car with multiple vehicle compartments and checkmarks indicating status or failure points

Simple line drawing of a blue object resembling a stylized face or mask with a handle, no text or symbols present.

Diagram of a car with multiple driver seats and checkmarks indicating status or failure, including red 'X' marks for incorrect decisions.

Line drawing of a car seat with a green logo on the seat (no text or symbols)

Diagram showing a green checkmark and a blue checkmark on a mechanical component with labeled parts and arrows indicating motion or force.

Diagram showing a crosshair device with red X marks and a diagonal line crossing it, indicating a threshold or selection.

Simple line drawing of a blue object with serrated edges and a labeled arrow (7), no text or symbols present.

Diagram of a car with multiple driver seats and checkmarks indicating status or failure, showing question marks and red/green checkmarks.

Line drawing of a car seat with a green logo on the seat (no text or symbols)

Diagram of a car interior with green guide lines and a checkmark (no text or symbols)

Diagram showing a cross symbol with red X and black X lines intersecting, indicating a crossed-out or blocked operation.

Illustration of a blue, textured object with serrated edges and a labeled arrow pointing to a numbered point (7), no text or symbols present.

Diagram of a car with multiple vehicle compartments and checkmarks indicating status or failure points

Line drawing of a car seat with a green logo on the seat (no text or symbols)

Diagram showing a green checkmark and a blue checkmark on a mechanical component with labeled parts and arrows indicating motion or force.

Diagram showing a crosshair device with red X marks and a diagonal line crossing it, indicating a threshold or selection.

Simple line drawing of a blue object with serrated edges and a labeled arrow (7), no text or symbols present.

Diagram of a car with multiple driver positions and checkmarks indicating failure or rejection status

Montimi lejohet

Montimi nuk lejohet

Line drawing of a car seat with a green logo on the seat (no text or symbols)

Diagram showing a green checkmark and a blue checkmark on a mechanical component with arrows indicating motion or force.

Diagram showing a crosshair symbol with red X and X lines crossed over a shaded chair, indicating a threshold or exclusion point.

Illustration of a blue, textured object with serrated edges and a labeled arrow pointing to a numbered point (7), no text or symbols present.

Diagram of a car with multiple vehicle windows and checkmarks indicating status or failure, labeled with question marks and red/green checkmarks.

التركيب المسموح به

تركيب غير مسموح به

Line drawing of a car seat with a green logo on the seat (no text or symbols)

Diagram of a car seatbelt with green rope routing (no text or symbols)

Diagram showing a cross symbol with red X and diagonal lines, possibly indicating a warning or rejection point.

Simple line drawing of a blue object resembling a container with fins and a handle, labeled with the number 7 (no text or symbols beyond the label)

(i-Size booster seat from 125 to 150 cm)

Simple black-and-white icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

ECE R129-03

IT	LISTA AUTOVETTURE
EN	VEHICLE LIST
FR	LISTE DES VOITURES
DE	FAHRZEUGLISTE
ES	LISTA AUTOMÓVILES
PT	LISTA DE VEÍCULOS
EL	ΚΑΤΑΛΟΓΟΣ ΑΥΤΟΚΙΝΗΤΩΝ
RU	СПИСОК АВТОТРАНСПОРТНЫХ СРЕДСТВ
SQ	LISTA E MAKINAVE

قائمة المركبات

AR

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Cars approved for the Vroom i-Size car seat, provided the car is equipped with the ISOFIX system.

• Vroom i-Size is a universal child restraint device. It is approved under the R129 regulation for use in all vehicle positions marked with the i-Size logo.

• Refer to the list of vehicles if the vehicle equipped with Isofix car positions that are not i-Size: the Vroom i-Size car seat is also suitable for attachment in the seating positions of the cars listed below, provided that the approved ISOFIX points are present and available. The seating positions in other cars may also be suitable to accommodate this child restraint device, however we have not yet tested these cars in conjunction with the Vroom i-Size. If in doubt, consult either the enhanced child restraint system manufacturer or the retailer.

• The ISOFIX anchoring points on the passenger seat (position 1) are normally available as an option, therefore, this may or may not be the case for this position, depending on the model. Installation on the rear passenger seat of the car may limit the space for the passenger in the front seat.

• Always check the compatibility of the "Vroom i-Size" car seat with your car to verify that the available space is adequate.
• Please note that this list undergoes ongoing revision procedures, with changes and additions of vehicles accordingly.
• The up to date list can be consulted on our web site: www. foppapedretti.it

Warning: Do NOT use on a passenger seat fitted with an activated front airbag.

INFORMATION

Please consult with the vehicle manufacturer regarding access to ISOFIX points.

WARNING: before purchasing, consult the vehicle Use and Maintenance Guide to ensure the ISOFIX anchor is present, as this could be an optional.

7 4 6 3 5 2 1

Simple icon of a person sitting in a chair inside a rectangular frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a chair, no text or symbols present

Icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Icon depicting a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
X3	2004	2 4	2 4
X6	2008	2 4	2 4
X6 FL	2012	2 4	2 4
HINI MINI cooper	1994-1997	2 4	2 4
HINI MINI cooper cabrio	2006	2 4	2 4
HINI MINI club man	2007	2 4	2 4
HINI MINI 2nd gen.	2006	2 4	2 4

Cadillac

CTS

2007

2 4

2 4

Chevrolet

Aveo	2006	2 4	2 4
Aveo hatchback	2011	2 4	2 4
Captiva	2006-2011	2 4	2 4
Matiz	2005	2 4 2 4
Captiva FL	2011	2 4	2 4
Captiva FL2	2013	2 4	2 4
Cruze	2009	2 4	2 4
Cruze SW	2012	2 4	2 4
Epica	2006-2010	2 4	2 4
Malibu	2012	2 4	2 4
Orlando	2011	2 4	2 4
Spark	2010-2013	2 4	2 4
Spark FL	2013	2 4	2 4
TRAX	2010-2013	2 4	2 4
Volt	2011	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX

Chrysler

300	2004	2 4	2 4
300 C	2008	2 4	2 4
Donge calibre	2006	2 4	2 4
Donge journey	2008	2 4	2 4
Donge nitro	2006	2 3 4	2 4
Donge eam(1500)	2006-2008	2 4	2 4
Jeep cherokee	2002	2 4	2 4
Jeep grand ch.	2005	2 4	2 4
PT Cruiser	2000	2 4	2 3 4
Sebring cabrio	2007	2 4	2 4

Citroen

C-Crosser	2007-2013	2 4	2 4
C1	2005	2 4 2 4
C1	2014	2 4 2 4
C3	2009	2 4 2 4
C4	2010	2 4 2 4
C5	2008	2 4 2 4
C5 Tourer	2008	2 4 2 4
C3 Picasso	2008	2 4 2 4
Berlingo	2008	2 4 2 4
C4 Picasso	2006	2 4 2 4
C4 Picasso	2013	2 4 2 4
Grand C4 Picasso	2013	2 4 2 4
C3 FL	2013	2 4	2 4
C3 FL 5 door	2005-2009	2 4	2 4
C4	2004-2010	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
C4 3 door	2004-2010	2 4	2 4
C4 Aircross	2012	2 4	2 4
C5 FL	2010-2012	2 4	2 4
C5 Tourer FL	2010	2 4	2 4
C6	2005-2012	2 4	2 4
Ds3 Cabrio	2013	2 4	2 4
Ds3	2010	2 4	2 4
Ds4	2011	2 4	2 4
Ds5	2012	2 4	2 4

Dacia

Logan	2013	2 4	2 4
Dokker	2012	2 3 4	2 4
Duster	2010	2 4	2 4
Duster FL	2014	2 4	2 4
Lodgy	2012	2 3 4	2 4
Lodgy MCV	2013	2 4	2 4
Lodgy MCV FL	2009-2013	2 4	2 4
Sandero	2008	2 4	2 4
Sandero II	2012	2 4	2 4
Sandero StepWay	2013	2 4	2 4

Daihatsu

Cuore	2007	2 4	2 4
Materia	2006	2 4	2 4
Sirion	2005-2012	2 4	2 4
Terios	2005	2 4	2 4
Trevis	2005	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
3	2009	2 4 2 4
4	2011	2 4 2 4
5	2011	2 4 2 4

FIAT

500	2007	2 4 2 4
500L	2012	2 4	2 4
500L Living	2013	2 4	2 4
500X	2014	2 4 2 4
Bravo	2007	2 4	2 4
Croma II	2005-2008	2 4	2 4
Croma II FL	2008-2010	2 4	2 4
Doblo	2009	2 4	2 4
Grande Punto	2006	2 4	2 4
Idea	2003	2 4	2 4
Panda	2012	2 4	2 4
Punto 3door FL2	2012	2 4	2 4
Punto Evo	2010-2011	2 4	2 4
Tipo	2015	2 4 2 4
Tipo 5 porte	2016	2 4 2 4
Tipo station wagon	2016	2 4 2 4
Freemont	2011	2 4 2 4
Qubo	2008	2 4	2 4

Ford

B-max	2012	2 4	2 4
EcoSport	2014	2 4	2 4
Focus hatchback	2011	2 4	2 4
Mondeo FL	2010	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Mondeo Turnier	2007-2010	2 4	2 4
Mondeo Turnier FL	2010	2 4	2 4
S-Max FL	2010	2 3 4 2 3 4
Tourneo Connect	2009-10.2009	2 4 2 4
Ka	2008	2 4	2 4
Fiesta	2008	2 4 2 4
Focus	2004	2 4 2 4
Focus Wagon	2004	2 4 2 4
Focus Wagon	2011	2 4 2 4
Mondeo	2007	2 4 2 4
C-max	2003	2 4 2 4
C-max	2010	2 4 2 4
C-max 7	2010	2 4 2 4
S-max	2006	2 4 2 4
S-max	2015	2 4 2 4
Galaxy	2015	2 4 2 4
Ecosport	2013	2 4 2 4
Kuga	2008	2 4 2 4
Kuga	2012	2 4 2 4
Edge	2016	2 4 2 4
Tourneo Custom	2012	2 3	2 3
Transit Kombi	2013	2 3	2 3

Honda

Accord(5 doors)	2003	2 4	2 4
Accord tourer	2002-2008	2 4	2 4
Accord	2008	2 4	2 4
City	2009	2 4	2 4
Civic	2012	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
CR-V	2012	2 3 4	2 4
FR-V	2004	2 4	2 4
Insight	2009	2 4	2 4
Jazz	2015	2 4	2 4

Hyundai

Grand Santa Fe 6-seater	2013	2 3 4	2 4
Grand Santa Fe 7-seater	2010	2 4	2 4
H1-Travel	2008	2 4	2 4
i10	2013	2 3 4	2 4
i10FL	2011	2 4	2 4
	2014i20	2 4	2 4
i20FL3door	2012	2 4	2 4
i20FL5door	2012	2 4	2 4
i30	2013	2 4	2 4
i30 cw	2012	2 4	2 4
	2012i30 Wagon	2 4	2 4
i40	2011	2 4	2 4
i40 cw	2011	2 4	2 4
	2011i40 Wagon	2 4	2 4
	2014Genesis	2 4	2 4
	2015Tucson	2 4	2 4
ix20	2010	2 4	2 4
ix35	2009	2 4	2 4
ix35 FL	2013	2 4	2 4
Santa Fe	2012	2 4	2 4

Jaguar

2014XE

2 4

2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
XF	2008	2 4	2 4
	2015XF	2 4	2 4
XF FL	2011	2 4	2 4
XJ	2009	2 4	2 4

Jeep

Compass FL	2013	2 4	2 4
	2014Renegade	2 4	2 4
Grand cherokee	2010	2 3 4	2 4
Grand cherokee FL	2013	2 4	2 4

Kia

Cee'd	2012	2 4	2 4
Cee'd FL	2000	2 4	2 4
Cee'd sw	2007	2 4	2 4
Cee'd Sportswagon	2012	2 4	2 4
Optima	2012-2013.11	2 4	2 4
Optima FL	2013	2 4	2 4
Optima hybrid	2013-2014	2 4	2 4
Pro Cee'd FL	2011-2013	2 4	2 4
Pro Cee'd GT	2013	2 4	2 4
Sorento	2015	2 4	2 4
Sorento FL	2012	2 4	2 4
Soul	2014	2 4	2 4
Soul FL	2011	2 4	2 4
Picanto	2011	2 4	2 4
Rio	2011	2 4	2 4
Venga	2010	2 4	2 4
Carens	2013	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Sportage	2010	2 4	2 4
Sportage	2016	2 4	2 4
Sportage FL	2014	2 4	2 4

Lancia

Delta	2008-2011	2 4	2 4
Delta FL	2011	2 4	2 4
Flavia Cabrio	2012	2 4	2 4
Thema	2011	2 4	2 4
Voyager	2011	2 4	2 4
Ypsilon	2011	2 4	2 4
Ypsilon 4seater	2011	2 4	2 4
Ypsilon 5seater	2011	2 4	2 4

Land Rover

Discovery FL	2011	2 4	2 4
Discovery Sport	2014	2 4	2 4
Freelander	2006-2011	2 4	2 4
Freelander2 FL	2011	2 4	2 4
Freelander2 FL2	2013	2 4	2 4
Range Rover	2012	2 4	2 4
Range Rover Evoque	2011	2 4	2 4
Range Rover Sport	2012	2 4	2 4
Range Rover Sport	2013	2 4	2 4

Mazda

20142	2 4	2 4
20126 Wagon	2 4	2 4
2015CX-3	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2012CX-5	2 4	2 4
3 (BL)	2009-2011	2 4	2 4
3 (BM)	2013	2 4	2 4
3 FL (BL)	2011	2 4	2 4
3 saloon	2013	2 4	2 4
3 saloon FL2	2011-2013	2 4	2 4
5	2010	2 4	2 4
5 FL	2013	2 4	2 4
6 estate	2013	2 4	2 4
6 estate FL	2010	2 4	2 4
6 Hatchback FL	2010	2 4	2 4
6 saloon	2013	2 4	2 4
CX-5	2012	2 4	2 4
CX-7	2007-2009	2 4	2 4
CX-7 FL	2009	2 4	2 4

Mercedes

	2004A	2 4	2 4
	2013C	2 4	2 4
	2014C SW	2 4	2 4
	2016E	2 4	2 4
	2016E SW	2 4	2 4
A(176)	2012	2 4	2 4
B(246)	2011	2 4	2 4
C(204)	2007	2 4	2 4
C(205)	2014	2 4	2 4
C Coup FL (204)	2011	2 4	2 4
C FL(204)	2011	2 4	2 4
C model T (204)	2007-2011	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
C model T FL (204)	2011	2 4	2 4
GLA	2013	2 4	2 4
GL (164G)	2006	2 4	2 4
GLA (245G)	2014	2 4	2 4
GLK (X 204)	2008	2 4	2 4
GLK FL	2012	2 4	2 4
ML	2005-2011	2 4	2 4
R	2010	2 4	2 4
CLS	2010	2 4	2 4
E (212)	2009	2 4	2 4
E Cabrio (207)	2010	2 4	2 4
E Coupe (207)	2009	2 4	2 4
E FL	2013	2 4	2 4
E model T (212)	2009	2 4	2 4
E model T FL (212)	2013	2 4	2 4
G FL	2012	2 4	2 4
	2013CLA	2 4	2 4
	2015CLA Shooting Brake		2 4
	2013CLS Shooting Brake		2 4
	2013S	2 4	2 4
	2015GLC	2 4	2 4
	2015GLE	2 4	2 4
	2015GLS	2 4	2 4

Mini

2013Mini	2 4	2 4
2014Mini 5 Doors	2 4	2 4
2015Mini Clubman	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2010Mini Countryman	4	2 4

Mitsubishi

ASX	2010	2 4	2 4
ASX FL	2012	2 4	2 4
Outlander	2012	2 4	2 4
Outlander	2006	2 4	2 4
Outlander PHEV	2013	2 4	2 4
	2013Space Star	2 4	2 4

Nissan

Juke	2010	2 4	2 4
Leaf	2011	2 4	2 4
Micra	2010	2 4	2 4
Micra FL	2013	2 4	2 4
Note	2013	2 4	2 4
Pixo	2009	2 4	2 4
	2014Pulsar	2 4	2 4
	2006Qashqai	2 4	2 4
	2013Qashqai	2 4	2 4
	2014X Trail	2 4	2 4

Opel/Vauxhall

Adam	2012	2 4	2 4
Agila	2008	2 4	2 4
Ampera	2011	2 4	2 4
Antara FL	2010	2 4	2 4
Astra H Caravan FL	2007-2010	2 4	2 4
Astra	2009	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Astra	2015	2 4	2 4
Astra Sports Tourer	2009	2 4	2 4
Astra Sports Tourer	2015	2 4	2 4
Astra J	2009	2 4	2 4
Astra J GTC	2012	2 4	2 4
Astra J sedan	2012	2 4	2 4
Astra J Sports Tourer	2010	2 4	2 4
Cascada	2013	2 4	2 4
Insignia	2008	2 4	2 4
Insignia	2008Sport Tourer	2 4	2 4
Insignia 5door FL I	2011	2 4	2 4
Insignia 5door FL II	2013	2 4	2 4
Insignia Country Tourer FL II	2009	2 4	2 4
Insignia FL I	2011	2 4	2 4
Insignia FL II	2013	2 4	2 4
Insignia Sports Tourer FL I	2011	2 4	2 4
Insignia Sports Tourer FL II	2013	2 4	2 4
Meriva	2010	2 4	2 4
Meriva B	2010	2 4	2 4
Meriva B FL	2014	2 4	2 4
	2010Zafira	2 4	2 4
Zafira C Tourer	2012	2 4	2 4
	2012Mokka	2 4	2 4
	2006Antara	2 4	2 4

Peugeot

2014108 24 24

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2007308	2 4	2 4
	2013308	2 4	2 4
	2007308 SW	2 4	2 4
308 SW	2014	2 4	2 4
207	2006-2009	2 4	2 4
2008	2013	2 4	2 4
207 CC	2007	2 4	2 4
207 SW	2006-2009	2 4	2 4
207 SW FL	2009-2013	2 4	2 4
208 3 doors	2012	2 4	2 4
208 5 doors	2012	2 4	2 4
4007	2007	2 4	2 4
	2010508	2 4	2 4
508 RXH sw	2012	2 4	2 4
508 sw	2011	2 4	2 4
3008	2016	2 4	2 4
4008	2012	2 4	2 4
5008	2009	2 4	2 4
5008 FL	2014	2 4	2 4
	2008Partner Tepee2	4	2 4
Expert tepee	2007-2012	2 4	2 4
Expert tepee FL 8seater	2012	2 4	2 4
Expert tepee FL 9seater	2012	2 4	2 4
RCZ	2010	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Porsche
Cayenne	2009	2 4	Airbag off
Cayenne II	2010	2 4	Airbag off
Cayenne II Turbo S	2013	2 4	Airbag off
Macan	2013	2 4	Airbag off
Panamera	2010	2 4	Airbag off
Panamera 4	2009-2013	2 4	Airbag off
Panamera Executive FL	2013	2 4	Airbag off
Renault
Captur	2013	2 4	2 4
Clio	2005	2 4	2 4
Clio 3door	2009-2012	2 4	2 4
Clio 5door	2009	2 4	2 4
	2013Clio Sporter	2 4	2 4
Clio Grandtour	2008	2 4	2 4
Clio Grandtour FL	2008-2013	2 4	2 4
Clio 4	2012	2 4	2 4
Clio 4 Grandtour	2013	2 4	2 4
Clio 4 RS	2013	2 4	2 4
	2008Megane Sporter	2 4	2 4
	2015Megane Sporter	2 4	2 4
	2015Espacer	2 4	2 4
	2015Kadjar	2 4	2 4
Espace 4	2006-2010	2 4	2 4
Espace 4 FL	2010-2012	2 4	2 4
Fluence	2010	2 4	2 4
Grand Espace 4 FL4	2012	2 4	2 4
Grand Modus	2008-2012	2 4	2 4
Grand Scenic	2009-2013	2 4	2 4
Grand Scenic FL	2012-2013	2 4	2 4
Kangoo	2008-2012	2 4	Airbag off
Kangoo FL	2013	2 4	2 4
Laguna 3 FL	2010	2 4	2 4
Laguna 3 Grandtour	2008-2010	2 4	2 4
Laguna 3 Grandrout FL	2010	2 4	2 4
Megane 2 CC	2006-2010	2 4	2 4
Megane 3 5door	2008-2012	2 4	2 4
Megane 3 CC	2010	2 4	2 4
Megane 3 Coupe	2006-2009	2 4	2 4
Megane 3 Coupe FL	2012	2 4	2 4
Megane 3 FL	2014	2 4	2 4
Megane 3 FL Grandtour	2014	2 4	2 4
Modus	2005	2 4	Airbag off
Scenic 3	2009	2 4	2 4
Scenic 3 FL	2012	2 4	2 4
Scenic XMOD	2013	2 4	2 4
Twingo	2014	2 4	2 4
Twingo 2	2007-2012	2 4	Airbag off
Twingo 2 FL	2012	2 4	Airbag off
Twingo 2 FL seatbench	2012	2 4	Airbag off
ZOE	2013	2 4	2 4
SEAT
Alhambra	2010	2 3 4 5 7	2 3 4 5 7
	2016Ateca	2 4	2 4
Leon	2012	2 4	2 4
Leon SC	2013	2 4	2 4
Leon ST	2013	2 4	2 4
Mii	2012	2 4	2 4
Mii 3door	2012	2 4	2 4
Mii 5door	2012	2 4	2 4
Skoda
Octavia 3	2013	2 4	Airbag off
Octavia 3 Combi	2013	2 4	Airbag off
Superb	2015	2 4	Airbag off
Superb Wagon	2015	2 4	Airbag off
Superb Combi FL	2013	2 4	Airbag off
Super FL	2013	2 4	Airbag off
	2014Fabia	2 4	2 4
Fabia Wagon	2015	2 4	2 4
	2013Rapid Spaceback		2 4
	2007Roomster	2 4	2 4
Yeti	2009	2 4	2 4
Yeti FL2	2013	2 4	Airbag off
Smart
ForTwo	2014	1	Airbag off
ForTwo 2 FL	2010	1	Airbag off
Subaru
Forester	2013	2 4	2 4
Forester (SH)	2008-2013	2 4	2 4
Forester (SJ)	2013	2 4	2 4
Impre WRX STI	2008	2 4	2 4
Suzuki
Alto	2008	2 4	2 4
Grand Vitara 5door FL	2013	2 4	2 4
Jimny FL	2012	2 4	2 4
	2014Celerio	2 4	2 4
	2010Swift	2 4	2 4
	2016Baleno	2 4	2 4
	2013S-Cross	2 4	2 4
	2015Vitara	2 4	2 4
Kizashi	2010	2 4	2 4
Splash	2008-2012	2 4	2 4
Splash FL	2012	2 4	2 4
Sx4	2010	2 4	2 4
Sx4 S-Cross	2013	2 4	2 4
Tesla
Model S	2013-2014	2 4	2 4
Model S FL	2014	2 4	2 4
Toyota
Auris	2012	2 4	2 4
Auris Touring Sports	2013	2 4	2 4
Auris 5door	2013	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Land Cruiser FL2	2014	2 4	2 4
Prius	2016	2 4	2 4
Prius+	2012	2 4	2 4
Yaris	2011	2 4	2 4
Corolla verso	2004	2 4	2 4
	2014Aygo	2 4	2 4
	2009Verso	2 4	2 4
	2013Rav4	2 4	2 4
	2003Lanc Cruiser	2 4	2 4

Volvo

C70 FL	2009-2013	2 4	2 4
S60	2010	2 4	2 4
S80 FL2	2013	2 4	2 4
V40	2012	2 4	2 4
V40 Cross Country	2013	2 4	2 4
V50	2011-2012	2 4	2 4
V60	2010	2 4	2 4
V60 FL	2013	2 4	2 4
V70	2007-2011	2 4	2 4
V70 FL	2011-2013	2 4	2 4
	2008Xc60	2 4	2 4
Xc60 FL	2013	2 4	2 4
Xc70	2007-2011	2 4	2 4
Xc 70 FL	2011-2013	2 4	2 4
Xc 90	2014	2 4	2 4
Xc90 FL	2011	2 4	2 4

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

VW
Amarok	2010	2 4	2 4
Beetle	2011	2 4	2 4
Beetle Cabrio	2012	2 4	2 4
CC	2012	2 4	2 4
E-UP	2013	2 4	2 4
Eos FL	2010	2 4	2 4
Golf 6	2008	2 4	2 4
Golf 6 Cabrio	2011	2 4	2 4
Golf 6 plus	2009	2 4	2 4
Golf 6 R	2009	2 4	2 4
Golf 7	2012	2 4	2 4
Golf GTI	2013	2 4	2 4
Golf 7 Sportsvan	2014	2 4	2 4
Golf 7 Variant	2013	2 4	2 4
Jetta 6	2011	2 4	2 4
Jetta Hybrid	2013	2 4	2 4
Passat B6	2005-2010	2 4	2 4
Passat B6 Variant	2005-2010	2 4	2 4
Passat B7	2010	2 4	2 4
Passat B7 Alltrack	2012	2 4	2 4
Passat B7 Variant	2010	2 4	2 4
Passat CC	2008-2012	2 4	2 4
Phaeton FL 2	2010	2 4	2 4
Polo 5	2009-2014	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Polo 5 Crosspolo	2010	2 4	2 4
Scirocco	2008	2 4	2 4
Sharan 2	2010	2 4	2 4
T5	2009	2 4	2 4
Tiguan	2007-2011	2 4	2 4
Tiguan FL	2011	2 4	2 4
Touareg 2	2010	2 4	2 4
Up 3door	2011	2 4	2 4
Up 5door	2012	2 4	2 4
Passat	2013	2 4	2 4
Passat Variant	2004	2 4	2 4
	2004Caddy	2 4	2 4
Touran	2003	2 4	2 4
Touran	2015	2 4	2 4

Importato da:
