USER MANUAL Spritz i-Size Foppapedretti

Car seat Spritz i-Size

40-85cm/Mass ≤ 13kg

Type LM407

Line drawing of a baby car seat with straps and seats (no text or symbols)

IT	SEGGIOLINO AUTO - Istruzioni di montaggio
EN	CAR SEAT - Assembly instructions
FR	SIÈGE-AUTO - Notice d’utilisation
DE	AUTOSITZ - Montageanweisungen
ES	SILLA DE COCHE - Manual de instrucciones
PT	CADEIRA AUTO - Manual de instruções
EL	ΠΑΙΔΙΚΟ ΚΑΘΙΣΜΑ ΑΥΤΟΚΙΝΗΤΟΥ - Οδηγιεσ χρησησ
SQ	NDENJËSE PËR BEBE - Udhëzime montimi

م Expected Hyper Pressure - Explains the Internet

AR

ECE R129-03

IT. IMPORTANTE! LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO

EN. IMPORTANT! READ THE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE

FR. IMPORTANT! LIRE ATTENTIVEMENT ET CONSERVER SOIGNEUSEMENT A PORTEE DE MAIN POUR UNE UTILISATION ULTERIEURE

Illustration of two hands adjusting a seatbelt with red arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a seatbelt with a red arrow indicating the down adjustment (no text or symbols present)

2.3

Diagram of a car's internal components with red arrows indicating movement or force, showing no text or symbols.

Line drawing of a car seat with a hand holding a clip, showing seat positioning and a red downward arrow (no text or symbols)

56

Diagram showing a device's internal structure with a magnified inset highlighting a hand holding a small object, labeled with arrows and numbered parts.

Diagram of a car seatbelt with red directional arrows indicating movement or force (no text or symbols)

8 9 Taur Iron Taur Iron High

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present

Line drawing of a mechanical device with a handle and lever (no text or symbols)

Line drawing of a baby car seat with no text or symbols

Line drawing of a bucket with handle and spout (no text or symbols)

Line drawing of a baby car seat with handle and seatbelt (no text or symbols)

10

Line drawing of a car seat with front seats and seatbelt (no text or symbols)

12 40-60 cm 61-85 cm

Line drawing of a baby in a baby bathtub with goggles (no text or symbols)

14 ###

Illustration of a hand adjusting a car seatbelt with a red arrow indicating motion (no text or symbols)

Illustration of a hand using a green tool to lift a car seatbelt, with a red arrow indicating the motion direction (no text or symbols present)

17

Diagram illustrating car seatbelt usage with labeled parts and directional arrows

Diagram illustrating correct and incorrect ways to switch a green cable or cable, with checkmark and cross symbols indicating action points.

0 1 belt slot

19

③ CLICK

Diagram showing two scenarios of foot safety with check and cross icons indicating compliance or rejection status

Illustration of a car seatbelt with green belt and red directional arrows indicating motion (no text or symbols)

21

Line drawing of a bucket with a handle and arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to adjust a car wheel (no text or symbols present)

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby car seat with a plus sign, showing front and side views (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple line drawing of a boat hull with orange hull and red hull, no text or symbols present

Diagram illustrating the internal structure of a baby car seat, showing top-down and side-view views with a red arrow indicating the process.

Car seat components PAG 26

Use - warning PAG 27

Checks before use PAG 31

Installation in the vehicle PAG 32

Placing your child in the car seat PAG 34

Using the buckle PAG 34

Adjusting the seat belt (harness) PAG 34

To adjust the headrest and straps PAG 34

Adjust the handle PAG 35

To protect your child PAG 35

Fitting your car seat into the car PAG 36

Adjust canopy PAG 37

Maintenance - cleaning PAG 39

Formal guarantee PAG 40

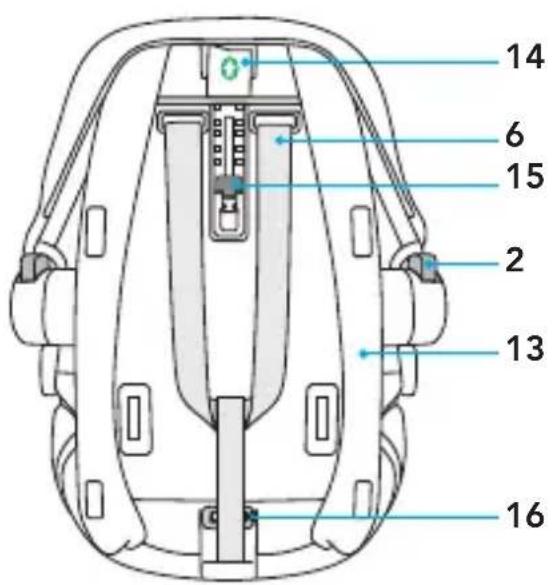

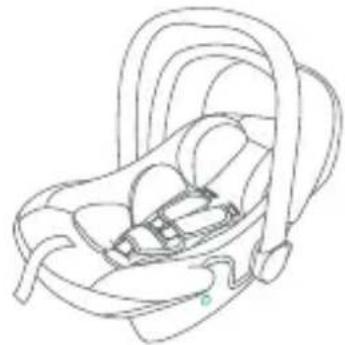

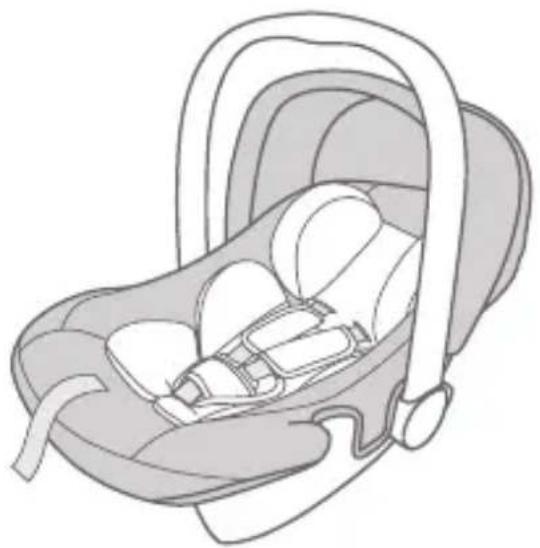

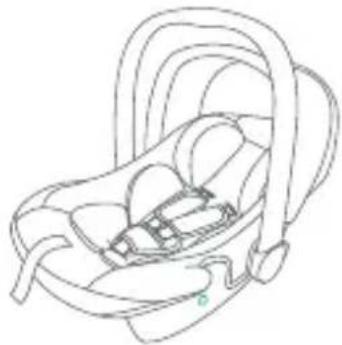

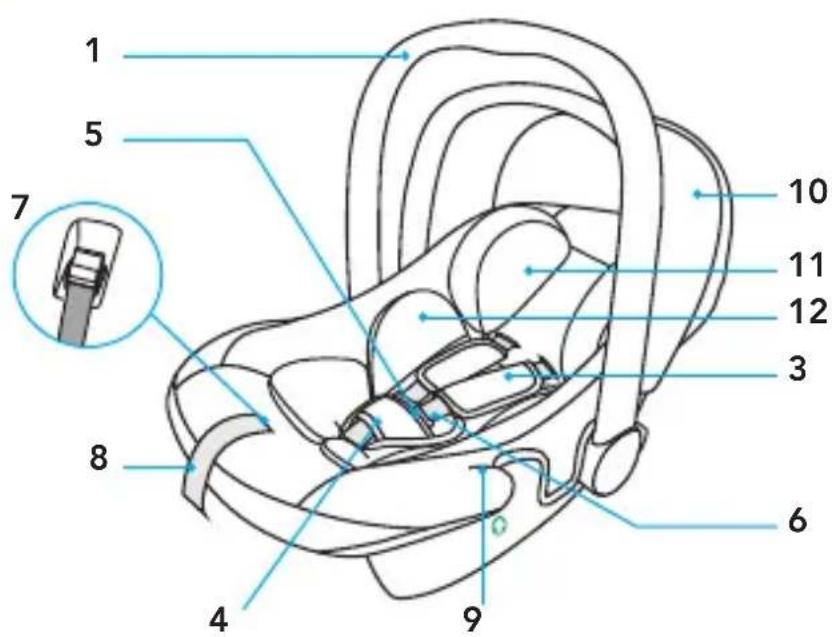

CAR SEAT COMPONENTS

1 5 7 8 4 9 6 3 12 11 10

14 6 15 2 13 16

1. Handle
2. Handle release
3. Shoulder pads
4. Buckle crotch pad
5. Buckle
6. Harness
7. Adjuster button

8. Adjuster strap

9. Lap belt guide

10. Canopy
11. Had support
12. Infant pad
13. Shell
14. Shoulder belt guide
15. "Adjusting headrest" lever
16. Metal ring

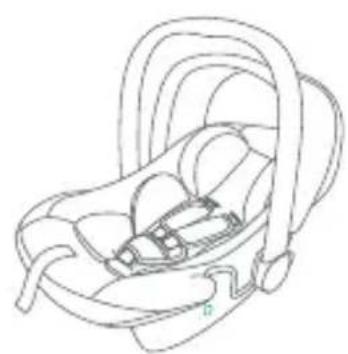

CATEGORIES OF USE

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby car seat with two views: one showing front view and one showing side view, both without any text or symbols.

CAR SEAT"Car seat Spritz i-Size"	CAR SEAT"Car seat Spritz i-Size" with base "X i-Size"
The "Car seat Spritz i-Size" car seat is fixed in the car with the 3-point seat belt.	The "Car seat Spritz i-Size" car seat is attached to the "X i-Size" and fixed to the passenger seat with the ISOFIX connectors.Consult the "X i-Size" base instruction manual for correct installation in the car.

Warning

1. This is an "i-Size" child restraint device approved in accordance with regulation no. 129 to be used on the passenger seats of "i-Size-compatible" vehicles, as indicated by vehicle manufacturers in the vehicle user manual.

2. If in doubt, contact the manufacturer of the child restraint device, or the retailer.

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

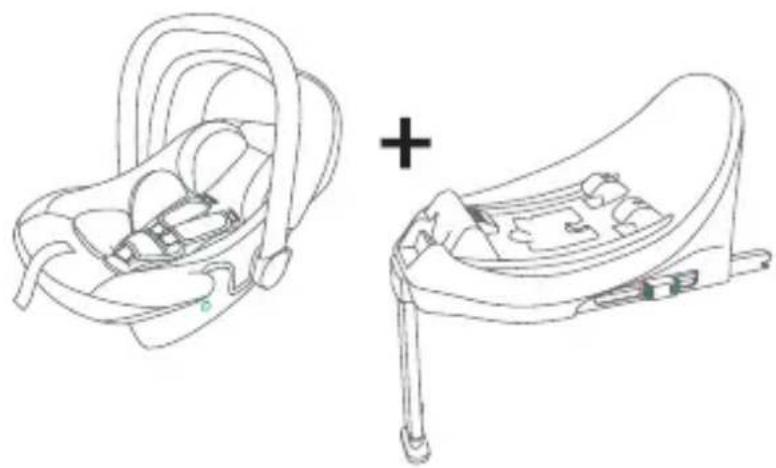

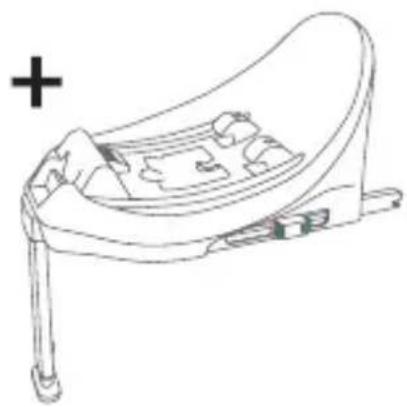

IMPORTANT: the "Car seat Spritz i-Size" car seat, together with the "X i-Size" Base, is an i-Size restraint system approved according to the ECE R129 Regulation, for children between 40 and 85cm in height with a maximum weight of 13kg .

WARNINGS

IMPORTANT

Please read all instructions in this manual and in the vehicle owner's manual related to child safety seats carefully and understand them. Install and use the child safety seat as described in the instruction manual. Failure to do this could result in serious injury or death of your child. These operating instructions must be kept in the specific compartment in the car seat during the period of use for future reference.

IMPORTANTE

• Because of potential medical issues inherent in low birth weight and premature infants, always have a trained professional doctor, or hospital staff member assess the suitability of the child restraint prior to leaving the hospital or using the child restraint.
• WARNING! Install the "Car seat Spritz i-Size" car seat in the REAR-FACING POSITION ONLY.

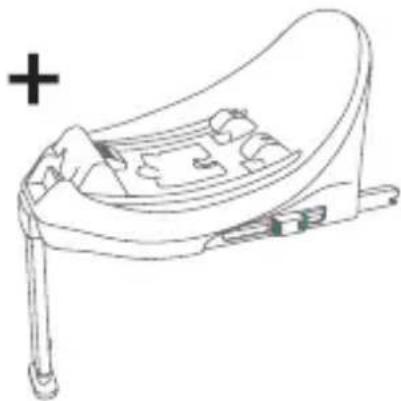

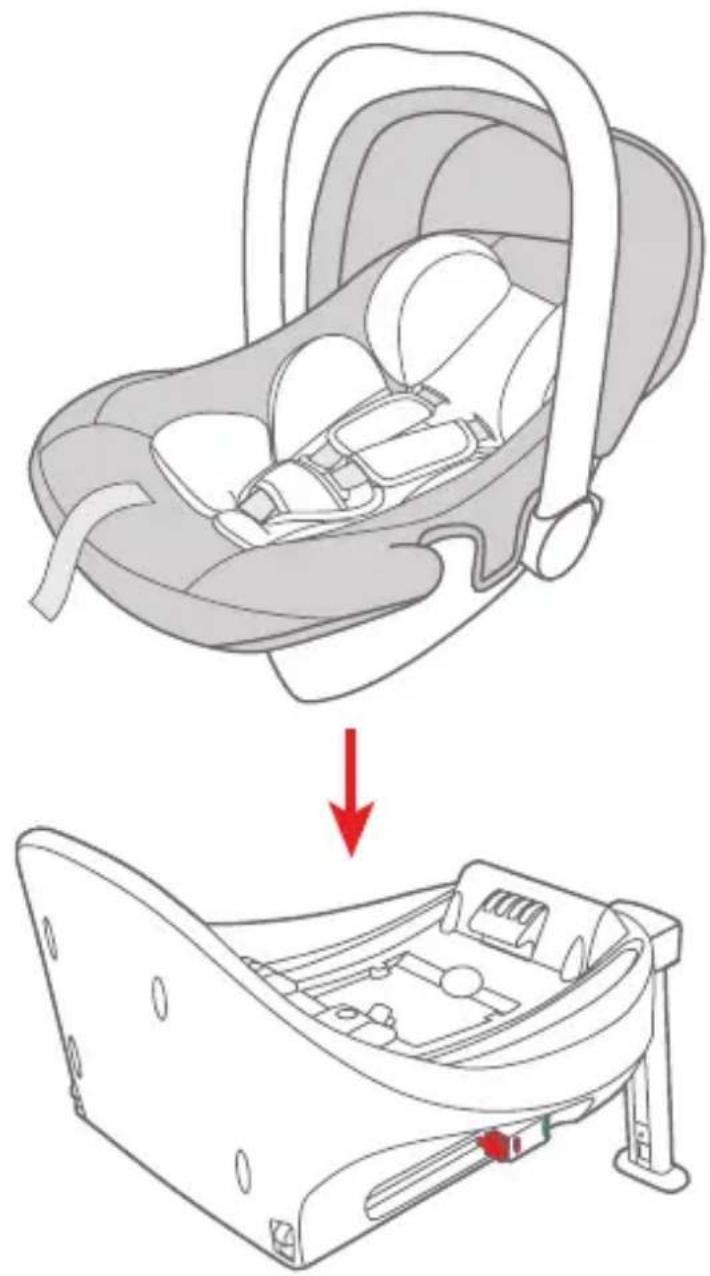

• The “Car seat Spritz i-Size” car seat can be installed on the “X i-Size” base in i-Size compatible passenger seats, as indicated by the manufacturer in the vehicle manual.
• If the vehicle used does not have an i-Size-compatible passenger seat, the installation is approved on ISOFIX passenger seats in the vehicles indicated in the attached Vehicle List, also available on the website www.foppapedretti.it.
• The “Car seat Spritz i-Size” car seat alone can also be installed with the 3-point static or retractor seat belt alone, approved according to regulation UN/ ECE 16 or other equivalent standards.
• Before proceeding with the purchase, check that the car seat is compatible with your car. If in doubt, consult the manufacturer of the car seat or the dealer.

WARNINGS

• Use the child safety seat only on the vehicle seats that face forward. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.
• After an accident, the car seat may no longer meet the safety requirements because of the damage sustained, even if this is not immediately visible. It is therefore recommended that you replace it. Only the manufacturer can ensure that it complies with the safety requirements, provided it is an original product.
• Make sure that luggage or other objects inside the vehicle are secured, to reduce the risk of injury in the event of an accident.
• The rigid and plastic components on the child restraint must be positioned and secured so as not to get trapped between the passenger seats or in a car door during daily use of the product.
• DO NOT remove any labels on the child safety seat. Important information is contained on the labels.
• DO NOT use a child safety seat with damaged or missing parts.
• DO NOT use damaged or frayed harness straps or vehicle belt.
• DO NOT modify or attempt to modify the child safety seat in any way.
• DO NOT take apart or attempt to take apart this child safety seat except as instructed in this manual.
• DO NOT use a child safety seat that has been in a crash. A crash can cause damage to the child safety seat that you cannot see.
• DO NOT replace the child seat cover or harness with any other than the ones we recommend as these parts are integral to the child safety seat's performance.
• DO NOT use a second-hand child seat or child seat whose history you do not know.
• MAKE sure that the child safety seat does not become trapped by folding or moveable passenger seat or in the door of your car.
• DO NOT USE in any configuration not shown in the instructions.
• NEVER use this child safety seat with 2 point vehicle belts.
• DO NOT use belt routing methods not shown in these instructions.
• DO NOT allow children to play with or adjust the child safety seat.
  • Always check the tightness of the restraint and the harness before each use.
• DO NOT use this child safety seat in a passenger seat with an active airbag unless the vehicle manufacturer confirms that it is safe.
• This child restraint should be securely belted in the vehicle even when not in use. In a crash or sudden stop, an unsecured child safety seat may injure other occupants.

WARNINGS

• Make sure to properly secure any loose objects, such as luggage or books, in your car as they may cause injuries in the event of an accident.
• NEVER leave your child unattended in a car even for a short time.
• NEVER take your child out of the child safety seat when the vehicle is moving.
• NEVER use this child safety seat without the car seat cover.
• HOT! Cover the child safety seat when left in direct sunlight. Parts of a child safety seat may become too hot for the child's skin. Always check surfaces before placing a child in the child seat.
• DO NOT use any load bearing contact points other than those described in the instructions and marked in the child restraint.
• The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle to become trapped by a movable seat or in a door of the vehicle.
• We recommended that any straps holding the restraint to the vehicle should be tight, that any straps restraining the child should be adjusted to the child's body, and that straps should not be twisted.
• IMPORTANT! Please ensure that any lap strap is worn low down, so that the pelvis is firmly engaged.
• NEVER use this child restraint with any other base except ones that the manufacturer permits.
• ALWAYS make sure all vehicle belts and harness straps are not twisted before each use.
• NEVER leave the child in the child seat when the harness straps are loose or undone.
• DO NOT leave your child in this child restraint for an extended period of time.
• ALWAYS install the child safety seat in a rear-facing position.
• NEVER install the child safety seat forward-facing.
• DO NOT use alternative routings not shown in these instructions.
• MAKE SURE all folding passenger seats are property latched.
• ALL occupants of the vehicle should be correctly restrained. Unrestrained passengers may be thrown into other passengers and cause serious injury or death in a crash.
• ALWAYS MAKE SURE the handle is properly locked in the upright carrying position before carrying a child in the child seat.
• NEVER place the car seat or infant carrier near the edge of an elevated surface or on a soft such as a seat cushion or mattress. The car seat or infant carrier could fall off these surfaces and cause serious injury or death.
• NEVER use the child safety seat with a shopping cart.

CHECKS BEFORE USE

Inspect:

• child restraint free of damage.

Verify Child within Size Range:

• weight between 0-13kg.

Install Child Restraint Rearward-facing in Safe Location in Vehicle:

• vehicle seats that face front of vehicle only;
  • handle locked in specified position;
  • child facing rear of vehicle;
  • position with NO active AIRBAG;
  • 3 point (shoulder/lap) belt used;
• seat belt not twisted;
• belt path followed;
• tight against vehicle seat.

Secure Child Properly in Child Restraint:

• correct shoulder strap height;
- harness not twisted;
- harness low across hips;
- harness secure and tight.

INSTALLATION IN THE VEHICLE

USE IN THE CAR

AIRBAG

DO NOT USE THE CAR SEAT PLACED ON A PASSENGER SEAT FITTED WITH AN AIRBAG.

Danger! If the airbag explodes it may hit the seat, and cause serious injury to the child, if not death.

Follow the instructions in the vehicle owner's manual for the use of child seats.

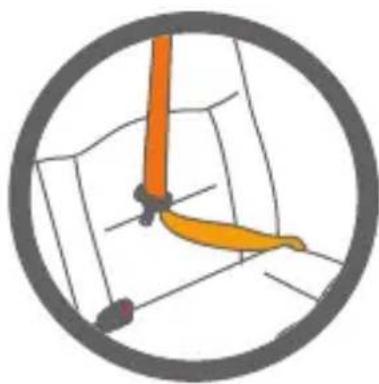

NEVER use a 2-point seat belt to fix the child's car seat to the passenger seat. Use only 3-point seat belts.

Simple line drawing of a boat hull with orange hull and red hull, no text or symbols present

Comply with the regulations in force in your own country. NEVER use a 2-point seat belt to fix this child's car seat to the passenger seat.

Only suitable for use in vehicles equipped with 3-point static or retractor seat belts, approved according to regulation UN/ECE 16 or other equivalent standards.

Never use this car seat on a front passenger seat fitted with an active front AIRBAG.

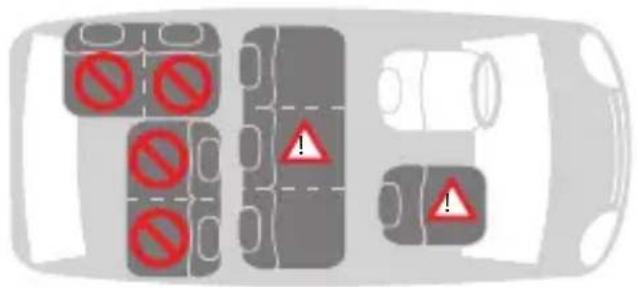

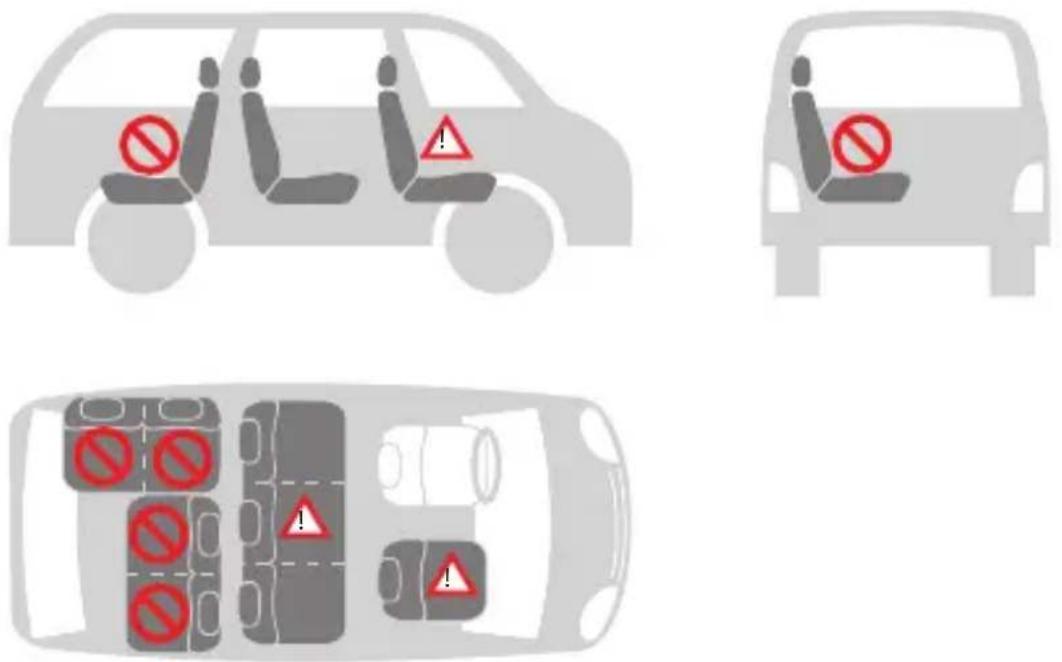

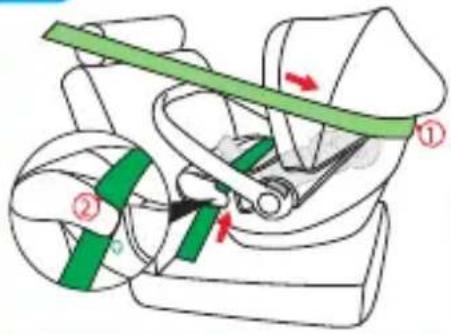

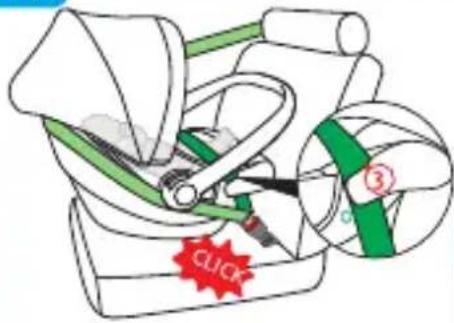

WITH 3-POINT CAR SEAT BELT

You can install the car seat as follows:

in the direction of travel no
in the opposite direction to the direction of travel	yes
with a 2-point belt	no 1)
with a 3-point belt	yes 2)
on the front passenger seat	yes 3)
on the side rear seat	yes
on the central rear seat	no 4)

1) The use of a 2-point belt increases the risk of injury to the child in the

event of an accident.

2) The seat belt must be approved to ECE R 16 or to other equivalent standards.
3) Do not use on a front passenger seat fitted with an active front airbag.
4) It may be used if the central seat of the vehicle is equipped with a 3-point belt.

USING THE CAR SEAT

PLACING YOUR CHILD IN THE CAR SEAT

USING THE BUCKLE

To release the buckle (fig. 1): Press the red button on the buckle to release the shoulder straps and move them to the side.

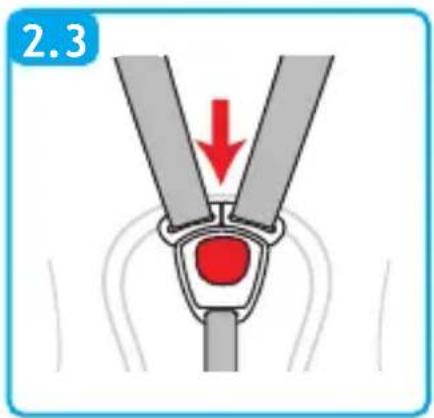

To attach the buckle (fig. 2.1, fig. 2.2, fig. 2.3): Join together the two ends/ tabs of the straps to form a single connector.

Insert the connector into the central buckle until you hear a click.

Make sure that the straps are not twisted.

Adjust the chest protectors to the

centre of the child's shoulders.

ADJUSTING THE SEAT BELT (HARNESS)

Loosening the straps (fig 3): Press the adjuster button on the front center of the seat, and pull on both shoulder straps to loosen the harness.

Tightening the harness (fig. 4): Pull the harness adjustment strap so as to tighten it properly against the body of the child. The harness is correctly tightened when the gap between the harness and the child is no greater than the thickness of your finger.

IMPORTANT! Pull the end of the adjuster strap outwards, not upwards or downwards. During transport (especially when not in the car), the adjuster strap must be placed in the belt compartment.

Ensuring that your child is properly secured with the harness.

To ensure the safety of your child, check that.....

• The straps are adjusted correctly at the height of the child's shoulders.
  • The straps are not twisted.
• The tabs are properly engaged in the harness buckle.
• The straps are properly tightened, as the gap between the harness and the child must not be greater than the thickness of your finger.

TO ADJUST THE HEADREST AND STRAPS

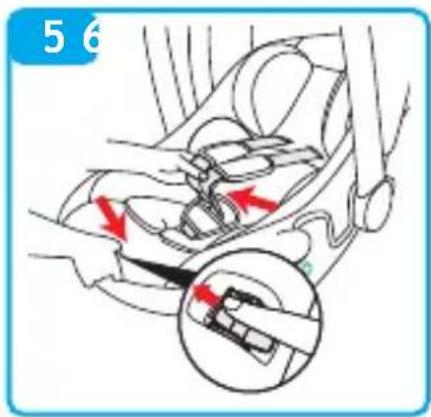

Loosening the straps (fig 5): Press the adjuster button on the front center of the seat, and pull on both shoulder straps to loosen the harness.

To adjust the headrest and straps (fig.6. fig.7): Pull the harness adjustment lever upwards and at the same time slide the adjuster upwards or downwards until the chest straps are at the correct height.

Release the adjustment lever to lock the adjuster in the new position.

USING THE CAR SEAT

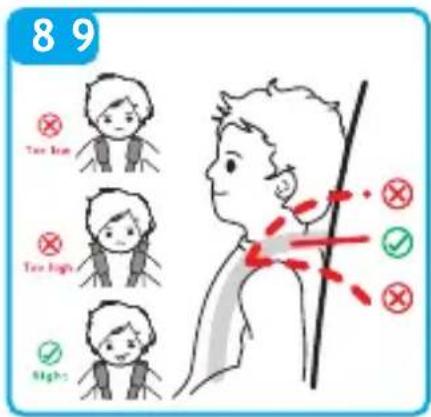

Make sure that the chest straps are properly locked and in the correct position. Make sure the shoulder straps are positioned just above the child's shoulders and that there is a 1 finger (1cm) gap. (fig. 8).

A properly-adjusted headrest ensures the optimal position for the child sitting in the car seat.

ADJUST THE HANDLE (fig. 9)

A. Fixed reclined cradle position

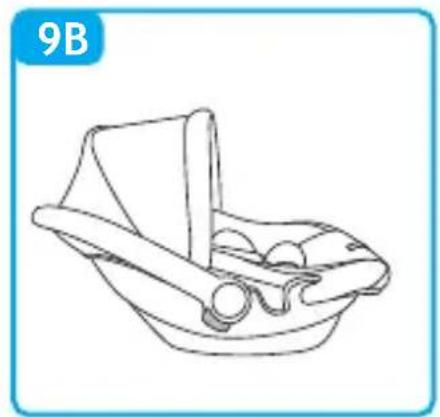

B. For use in the car and for transport
C. For placing the child in the seat
D. For use as a bouncer with rocking movement locked.

To adjust, squeeze handle release buttons on both sides, then rotate the handle. The handle will lock into position.

WARNING:

Always make sure the handle is securely locked in the upright carrying position before carrying.

You should hear a click when the handle button is engaged and handle is locked into the upright carrying position.

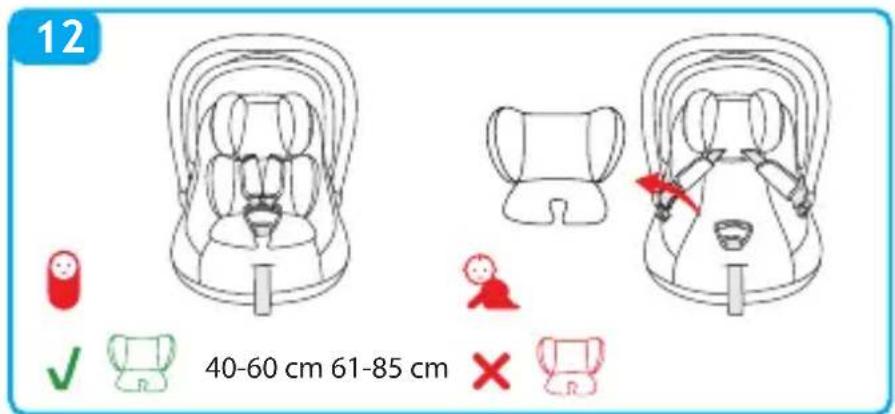

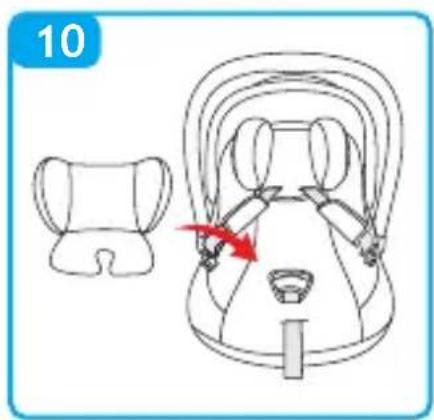

TO PROTECT YOUR CHILD (fig.10, fig. 11, fig. 12)

The reducer gives your child greater support during the first months.

The reducer is used to ensure greater comfort to young children.

The complete reducer must be used until the child reaches 60 cm.

• Always secure the child with the belt when placed in the car seat
- Never leave the child unattended in the child seat when placed on high-up surfaces (such as tables, etc.).
- Make sure that the end of the belt does not get caught in moving parts (such as automatic doors, escalators, etc.).
- WARNING! The plastic parts of the car seat can heat up in the sun, causing burns to the child. Protect the car seat from excessive heat, for example, by using a light covering.
- The car seat has only one installation position in the car, leaving the child always semi-reclined.
- Take regular breaks when travelling on long journeys. Your child can get tired very easily. Avoid leaving the child in the car seat for too long.

USING THE CAR SEAT

FITTING YOUR CAR SEAT INTO THE CAR

This car seat can only be fitted into the passenger seat of a car with a lap and diagonal seat belt and no AIR BAG.

Place child's bottom on the seat and the child's back flat against the back of the child restraint (fig.13).

This will increase the child's comfort and allow the harness to properly secure the child.

Slide shoulder straps over the child's shoulders.

Make sure that the straps are at the same height and positioned just above the child's shoulders.

Securing the child with the harness, to attach the buckle: (fig.14) see paragraph "Using the buckle".

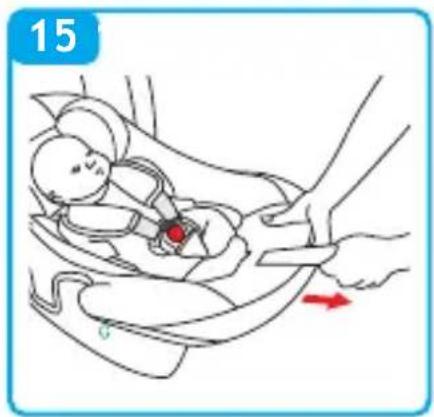

Tightening the harness (fig. 15): see paragraph "Adjusting the seat belt (harness)".

To secure the car seat in the vehicle with the 3-point seat belt, proceed as follows:

Your child seat can only be installed rearward facing using a lap and diagonal seat belt in the front or rear passenger seat of the car (fig 16).

Pass the diagonal seat belt (the chest belt) of the car around the backrest of the car seat, passing through the diagonal belt guide (1) (fig. 17, fig 18).

Pass the horizontal seat belt (the lap belt) of the car through both belt guides (2) and fasten the buckle (3) (fig. 17, fig. 19).

If the vehicle's seat belt is too short, adjust its height to the lowest position.

If it is still too short, try another passenger seat.

Place the diagonal belt in the diagonal seat belt guide at the back of the seat (fig. 18).

Take out all the slack in the seat belt, ensuring that there are no twists or kinks in the seat belt (fig. 20).

USING THE CAR SEAT

WARNING:

• DO NOT route the vehicle belt using any other path when using the child seat. For assistant contact our Customer Service team.
• DO NOT use 2 point vehicle belt to install this child seat.
• ONLY install the child restraint rear-facing on forward-facing vehicle seats.
• Make sure the child is properly secured in the child restraint, and the child restraint is tightly installed in the vehicle.

Check that the car seat has been installed correctly in the vehicle

ADJUST CANOPY

The sun canopy is easily adjustable (fig. 21).

It enables your child to rest peacefully and gives protection from the sun's rays.

OPTIONAL

Optional "X i-Size" base, sold separately

Diagram illustrating the internal structure and change of a baby car seat, showing top-down view and red arrow indicating reduction.

MAINTENANCE - Cleaning

The upholstery and seat belts can be cleaned using a clean cloth, warm water and soap.

The plastic parts can be cleaned with mild soap and warm water.

Do not use harsh detergents such as solvents.

The car seat must not be used without the lining.

REMOVING THE CANOPY (fig. 22)

Removing the lining

Press the red release button and unhook the harness.

Remove the shoulder straps from the small seat, cover and chassis in plastic, by pulling each shoulder strap, including buckle, through its corresponding slot.

Do not remove the shoulder straps from the loop of the harness adjuster strap.

Remove the belt following the instructions in the "How to remove the harness buckle" paragraph and remove the buckle from the cover.

Pull out the cover from shell front.

To put the lining back on, follow the reverse procedure.

IMPORTANT! Make sure that it is correctly assembled, check that none of the belts are twisted.

How to remove the harness buckle

• Unclip the buckle (press the red release button).
• Loosen the belts on the harness.
• Locate the metal ring attached to the belt under the child restraint.
• Rotate the metal ring and remove it through the shell and the padding.

How to replace the harness buckle

• Insert the metal ring and the crotch strap through the padding and the shell.
• The metal ring, fastened to the belt, must come out from the shell.
• Pull the centre buckle to check that the crotch strap is correctly secured.

How to remove the harness

• Unclip the harness buckle (press the red button).
• Unclip the shoulder straps from the belt-tightening device, located on the rear of the backrest.
• Pull both belts through the shell and the lining and remove the chest protectors.
• Locate the metal ring attached to the belt under the child restraint.
• Rotate the metal ring and remove it through the shell and the padding.

The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A.

FORMAL GUARANTEE

Foppa Pedretti S.p.A. the head office of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer. This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer's rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product.

To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer's address, the date of purchase of the Product with the Retailer's stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above.

The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.

EXCLUSIONS TO THE FORMAL GUARANTEE.

The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure.

In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings contained in the manual or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot: "Check your baby constantly. Make sure that the sheets and blankets do not cover the baby's head...").

Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.

Line drawing of a baby car seat with no text or symbols

Line drawing of a baby car seat with no text or symbols

Line drawing of a baby seat with a plus sign, no text or symbols present

Simple icon of a person sitting in a chair with a magnifying glass (no text or symbols)

Diagram of a mechanical component with orange and yellow parts, enclosed in a circular frame (no text or symbols)

Illustration of a baby car seat with internal compartments and a red arrow indicating a location or change (no text or symbols present)

ENTRETIEN

Nettoyage

EXCLUSIONS DE LA GARANTIE CONVENTIONNELLE.

"Car seat Spritz i-Size"

Diagram of a mechanical component inside a circular frame, showing orange and yellow parts (no text or symbols)

Illustration of a baby car seat with internal compartments and a highlighted lower portion showing internal components (no text or symbols)

INSTANDHALTUNG

Reinigung

Line drawing of a baby car seat with no text or symbols

Line drawing of a baby car seat with two views: one showing front and back seats, the other showing side view (no text or symbols)

Icon depicting a person sitting in a chair inside a square frame (no text or symbols)

Diagram of a mechanical component with orange and gray parts, enclosed in a circular frame (no text or symbols)

Illustration of a baby car seat with internal compartments and a red arrow indicating a location or change (no text or symbols present)

MANTENIMIENTO

Limpieza

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby car seat with no text or symbols

Line drawing of a baby seat with a plus sign, no text or symbols present

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Diagram of a mechanical component with orange and yellow parts, enclosed in a circular frame (no text or symbols)

Diagram illustrating the internal structure and change of a baby car seat, showing top-down view and red arrow indicating reduction.

MANUTENÇÃO

Limpeza

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby car seat with a plus sign indicating replacement (no text or symbols present)

Simple icon of a person sitting in a chair with a magnifying glass (no text or symbols)

Diagram of a boat navigating a circular container with an orange hull (no text or symbols)

Illustration of a baby car seat with a red arrow indicating the change from inside to outside (no text or symbols present)

ΣΥΝΤΗΡΗΣΗ

Καθαρισμός

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby car seat with adjustable straps and seatbelt (no text or symbols)

Line drawing of a baby seat with a plus sign, no text or symbols present

Icon depicting a person sitting in a car seat, enclosed in a square frame (no text or symbols)

Diagram of a boat navigating a circular container with an orange hull (no text or symbols)

RREGULLIMI I STREHËS

Illustration of a baby car seat with internal compartments and a red arrow indicating a location or change (no text or symbols present)

MIRËMBAJTJAOPTIONAL

MIRËMBAJTJA - Pastrimi

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby seat with a plus sign, no text or symbols present

Icon depicting a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

i-Size : م Expected_SXiaries "م Expected_SXiaries" مع قاعدة "Spritz i-Size" : م Expected_SXiaries م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiaries : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_SXiarius : م Expected_

Diagram of a mechanical component with orange blades and a central shaft, enclosed in a circular frame (no text or symbols)

Diagram showing car safety symbols: no sign, warning triangle, and warning sign inside a vehicle

Front view of a car with a red prohibition symbol on the seat (no text or numbers present)

Diagram showing traffic warning symbols on vehicles, including no signs and warning triangles

Illustration of a baby car seat with internal compartments and a red arrow indicating a location or change (no text or symbols present)

التنظيف والصيانة

الصيانة - التنظيف
