Inhaltsverzeichnis:

Seite:

Günzburger Straße 69

89335 Ichenhausen / Germany

VEREHRTER KUNDE,

Technical diagram of a mechanical device with labeled parts and a close-up view showing internal components.

Table of contents: Page:

1. Introduction 24
2. Device description 24
3. Scope of delivery 24
4. Intended use 25
5. Important information 25
6. Technical data 28
7. Before starting the equipment 28
8. Attachment and operation 28
9. Working instructions 30
10. Maintenance 32
11. Storage 34
12. Disposal and recycling 34
13. Troubleshooting 35
14. Declaration of conformity 119
15. Warranty certificate 120

Explanation of the symbols on the equipment

	GB	Read the instruction manual.		GB	Protect the tool from getting wet.Risk of electrical shock.
	GB	Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance.		GB	Warning! Risk of injury!Do not let your hands or feet come in contact with the blades when the motor is running..
	GB	Warning! Keep all children, by-standers and helpers 15 meters away from the brush cutter!		GB	Caution, no saw blades or multi-part metal cutting tools!
	GB	Wear protective helmet, ear and eye protection.		GB	Wear robust footwear when using the device!Wear protective gloves when using the device!
	GB	Warning! Risk of injury!Never put your hands close to the blades. Never touch the blades when turning the tool on or using it.		GB	Warning of falling objects
	GB	Warning! Beware of thrown objects hit by cutting attachments.Never use without properly mounted blade guard.		GB	The product complies with the applicable European directives and an evaluation method of conformity for this directives was done.
	GB	protection class II		GB	Electric shock can cause fatal injury. Keep a distance of at least 10 m from power cables.
	GB	Grass trimmerCutting diameter ∅ 430 mmSpeed max. 9000 min ^-1		GB	Hedge trimmerCutting lenght max. 400 mmSpeed: max. 1400 min ^-1
	GB	Brush cutterCutting diameter ∅ 255 mmSpeed max. 8500 min ^-1		GB	Pole sawCutting lenght max. 254 mmCutting speed:max. 10 m/s
	GB	Guaranteed sound power		GB	Switch off and unplug the device before cleaning or performing maintenance on it.

1. Introduction

MANUFACTURER:

scheppach

Günzburger Straße 69

89335 Ichenhausen / Germany

DEAR CUSTOMER,

We hope your new tool brings you much enjoyment and success.

NOTE:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
• Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

WE RECOMMEND:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

2. Layout (Fig. 1)

1. Motor drive unit

2. Pole saw

3. Hedge trimmer

4. Power scythe

5. Grastrimmer

6. Front handle

7. Safety switch

8. Start switch

9. -

10. -

11.-

1. Automatic oil pump

2. Saw chain

3. Chain saw blade

4. Cutting unit

5. Adjustment lever

6. Cutting blade

7. Protection shield (power scythe + grassrimme

8. -

9. Open-ended spanner (8 mm / 10 mm)

10. Allen key (size 4)

11. Allen key (size 5)

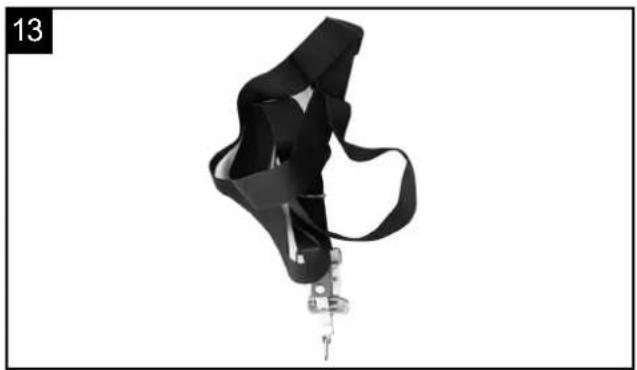

12. Belt

3. Scope of delivery

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are present.
• Inspect the equipment and accessories for transport damage. In case of complaints the supplier is to be informed immediately. Complaints received at a later date will not be acknowledged.
• If possible, keep the packaging until the end of the guarantee period.
• Read the operating instructions to make yourself familiar with the device prior to using it. After that, please dispose of it in an environmentally friendly way.
• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.
• Specify our part numbers as well as the type and year of construction of the device in your orders.

⚠️ Important!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Fig. 1 + 2

• Motor drive unit
• Pole saw
• Hedge trimmer

• Power scythe

• Grastrimmer

• Open-ended spanner (8 mm / 10 mm) (20)
• Allen key (size 4) (21)
• Allen key (size 5) (22)
• Belt (23)
• Front handle
• 4 screws M5 x 35
• Cover
• 4 nuts M5

4. Intended use

The brush cutter (using the cutting blade) is designed for cutting young trees, strong weeds and undergrowth.

The power trimmer (using the line spool with cutting line) is designed for cutting lawns, grassed areas and small weeds.

The hedge trimmer is suitable for cutting hedges, bushes and shrubs.

The pole-mounted powered pruner is designed for lopping off tree branches. It is not suitable for extensive sawing work, felling trees or sawing any materials other than wood.

The operating instructions as supplied by the manufacturer must be obeyed to ensure that the equipment is used properly. Any use which is not expressly permitted in the manual may result in damage to the equipment and place the user in serious danger. Be sure to observe the restrictions in the safety instructions.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

Important. Due to the high risk of bodily injury to the user, the power scythe must not be used to carry out the following work: to clean dirt and debris off walkways, or to chop up tree or hedge clippings.

The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Non-permitted users:

People who are not familiar with the operating manual, children under the age of 16 and people under the influence of alcohol, drugs and medication, as well as those who are tired or ill.

5. Important information

⚠️ CAUTION: Read all safety regulations and instructions. Any failures made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

The term “electric tool” used in the safety instructions refers to electric tools operated from the mains power supply (with a power cable) and to battery operated electric tools (without a power cable).

Electrical safety

- The connector plug from this electric tool must fit into the socket. The plug should never be altered in any way. Never use adapter plugs together with earthed electric tools. Unaltered plugs and correct sockets reduce the risk of an electric shock.

• Avoid bodily contact with earthed surfaces such as pipes, heating, ovens and fridges. The risk of electric shock is increased if your body is earthed.
• Keep the tool out of the rain and away from moisture. The ingress of water into an electric tool increases the risk of an electric shock.

- Do not use the cable to carry the electric tool, to hang it up or to pull it out of the socket. Keep the cable away from heat, oil, sharp edges and moving parts of the appliance. Damaged or entangled cables increase the risk of an electric shock.

• If you are working outdoors with an electric tool, only use extension cables which are designed specifically for this purpose. Using specially designed outdoor extension cables, the risk of electric shock is reduced.

• If operation of the electric tool in a damp environment can not be avoided, use a earthleakage circuit-breaker. The earth-leakage circuit-breaker reduces the risk of an electric shock.

• Keep cables clear of where you are cutting.

• Before you use the hedge trimmer, examine the power cable for signs of damage and aging.
• Use the hedge trimmer only when the power cable is in good working order.
• Do not remove the power plug from the socketoutlet by pulling on the cable. Never carry the tool by its cable. Take care not to damage the cable in any way.

• Protect cables from heat, caustic fluids and sharp edges. Replace damaged cables immediately.

• If the blades become jammed, e.g. due to thick branches or the like, switch off and unplug the hedge trimmer immediately. Only then are you to remove the cause of the obstruction.

• Use only cables and connectors approved for outdoor use:

• power cable HO7RN-F 2x1.0 with integral two-plug plug;

• extension cable HO7RN-F 3G1.5 with rainwater- protected earthing-pin plug and earthing-contact coupling.

- The use of a leakage-current or earth-leakage circuit-breaker is recommended for operating electric tools. Ask your electrician!

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

Safety instructions

During transport of equipment

– During transport, always turn off the motor.

- Never carry or transport the power tool with running cutting tools.

- Only ever carry the power tool in work posture:

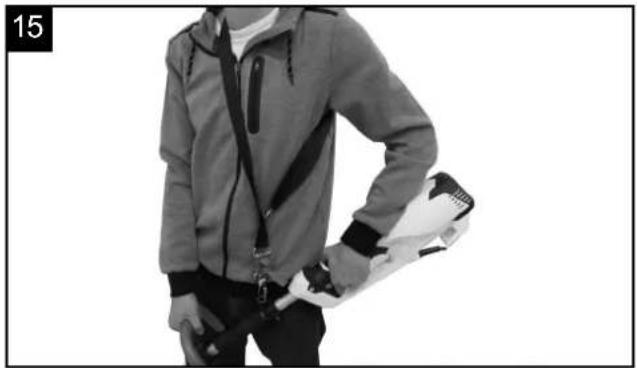

- Power tool on your back, left hand on the front handle and right hand on the operating lever (also applies to left-handed people), with the cutting tools lowered towards the ground.

- Make sure that no persons or animals are close to the working area (minimum distance of 15m ).

Grass being cut and thrown up may contain foreign objects such as stones. You are responsible for the safety in your working area, and you are liable for damages to persons or property.

- It is not permitted to either start or use the brush cutter in the vicinity of persons or animals.

- Do not use the tool when you are tired or distracted, or your ability to react is impaired when you are under the influence of alcohol or medication. Inattentiveness may cause serious injuries.

- Use approved safety goggles. Use approved ear protection. Use high-quality safety gloves.

- Use high-quality skid-proof protective shoes with safety steel caps. Never operate the tool wearing sandals, or when barefoot.

- Always wear an approved safety helmet for working in a forest.

- Do not wear wide clothing or jewelry. Wear long trousers to protect your legs. Wear safety helmet for long hair. Loose clothing, jewelry, and long hair can get caught in the moving parts. Wear suitable and durable tight working clothes.

- Keep body parts and clothing away from the cutting tool when you start the engine, or keep it running.

- Make sure you are standing in a stable and secure position during work. Avoid moving backwards with the tool due to risk of stumbling.

- Avoid any unnatural posture.

- When the cutting blade has been operate for long hours, it may cause a circulatory disorder due to vibration (Raynaud's disease). In this case, it is impossible to specify any length of operation, because it may differ from person to person. The following factors can have an influence on this phenomenon: Circulatory disorders in the hands of the operator, low outdoor temperatures, long hours of operation.

Therefore, it is recommended to wear warm protective gloves, and to take breaks at regular intervals.

- Always adopt a stable and safe working posture with secure footing.

- Regularly change your working position to prevent getting tired.

- While cutting on a slope, always stand below the cutting tool.

- Always make sure no objects or other debris is collecting in the trimmer head, in the protective hood, or in the engine.

- Always switch off the tool before you put it down.

- Do not use any wire, or anything similar in the line spool.

- Only work during daylight, or when the area is illuminated well using lighting.

- Subject the tool to a visual inspection before each use.

- Check, if all screws and connecting parts are tightened.

- Always use both hands to hold the tool.

- Check the tool, and its components and guards for damages, or wear and tear before each use, and have it repaired, if necessary. Never make the devices for protection and safety inoperable. Do not use the tool, when damages or signs of wear become apparent.

- Keep the tools clean and fully functional to ensure better and safer work.

- Always maintain a safe distance between the tool and your body during work.

- Always switch off the tool when work will be interrupted or the location will be changed; wait until the cutting tools have completely stopped, and turn off the engine.

- Never leave the tool without supervision at the place of work. Store the tool at a safe place when work will be interrupted.

- Persons operating the machine must not be distracted, or one may lose control over the tool.

- Never use the tool during rain, in a humid or wet environment, and do not store it outdoors.

- Should the tool become wet, wait until it is completely dry before you use it again.

- Avoid contact with metal objects, stones etc.

- Before starting work, it is recommended to check the objects to be cut for possible foreign objects and to remove them. When despite of this you encounter a foreign object during cutting, switch off the tool and remove this object.

- If the tool is jammed by a foreign object (stones, piles of grass), switch it off, and remove the object using a blunt item. Never use your fingers to remove jammed foreign objects, because this may cause serious injuries.

- Always keep the running tool away from your body.

- Attention: the cutting tool still runs for some time after the tool is switched off!

- Do not overload the engine, and do not use it for work the tool is not designed for.

- Always make sure the ventilation openings are free of dirt.

- Store the tool out of the reach of children.

- Store the tool at a safe and dry location.

- Check the engine for damages after impact, or other damages.

- Keep body parts and pieces of clothing away from the trimmer head when you start the engine, or keep it running.

- Always keep in mind that especially during trimming of lawn edges, gravel enclosures, and similar locations stone and dirt can be hurled away from the cutting line.

- Never cross roads or paths when the tool is switched on.

- Never cut against hard objects such as stone, etc. This way you avoid injuries, and damages to the tool.

- When using metal cutting tools, there is a basic risk of kickback if the tool meets a fixed obstruction (stones, trees, branches etc.). In this event, the tool is whipped back in the opposite direction of rotation.

- Never use the tool without the guards attached.

– Never use your hands to stop the cutting device.

– Always wait until it stops on its own.

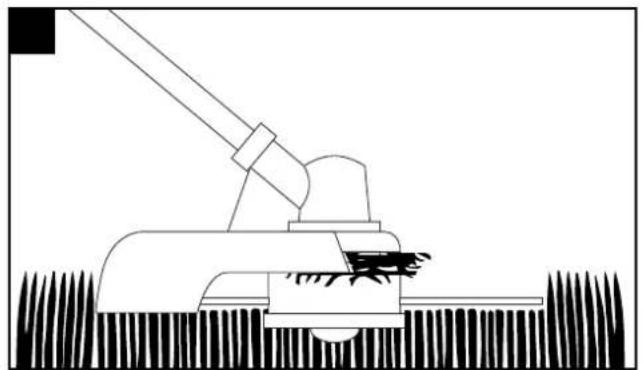

- Hold and guide the trimmer head as close to the ground as possible.

- Only cut grass growing on the ground. Do not cut grass in cracks in walls, growing or on rocks, etc.

- Always make sure no objects, or other debris is collecting in the trimmer head, in the protective hood, or in the engine.

- Only use the tool, when the guard is attached.

- Always switch off the tool, before you put it down.

- Keep in mind that there is risk of injuries in the area of the cutting device intended to cut off the line.

- CAUTION: The cutting tool continues rotating for a few seconds after the engine is turned off.

- Put the tool down only after the cutting tool has completely stopped and the motor is turned off.

- When the cutting tool is damaged, it must be replaced at once.

- Always use the original line only. Never use a metal wire instead of the nylon line.

- Tool and cutting tools must be properly inspected and serviced periodically. Damages must be repaired by a service center.

- Only use accessories recommended by the manufacturer. See Maintenance/Accessories

- Never use metal multi-piece cutting blades, cutting tools with spinning chains or flail blades.

- Have your tool serviced only by qualified personnel and by use of original spare parts only. This ensures that the tool will work safely in the future.

Residual risks

- There will always be residual risks, even if you use this equipment according to instructions. The following hazards can occur in connection with the construction and design of this tool.

- Health hazards resulting from swinging of hand and arm if the equipment is used for an extended period and if it is not operated or maintained properly.

- Injuries and material damage caused by ejection of tool attachments which are unexpectedly thrown from the equipment because of sudden damage, wear and tear or improper attachment.

• Warning! This tool generates an electromagnetic field during operation. Under certain circumstances, this field can affect active or passive medical implants. In order to reduce the risk of severe or fatal injuries, we recommend that people with medical implants consult their doctor and the manufacturer of the medical implant before operating the machine.
• Always start the cut with the saw chain running. Make the cut in such a way that the saw does not get jammed in the wood.
• Use the gripping spikes for every cut as the starting point and always start the cut with the saw chain running. Make the cut in such a way that the saw does not get jammed in the wood.
• Pay particular attention to branches under tension.
• Always pull the tool out of the wood when the saw chain is running.
• Never work with the tool above shoulder height or with only one hand.
• Always stand away from the falling direction. Position yourself on a slope above the tree to be felled.
• Always stand sideways when carrying out sawing work on a tree which is located on a slope, never work from above or below.
• Always look out for the falling direction of the parts which are cut off.
• Never start the cut with the bar tip and never cut with the bar tip.
• Risk of kickback! There is always a risk of kickback when the bar tip touches the wood or other objects. This makes the chainsaw uncontrollable and it may be thrown towards the operator with great force.
• Do not use the tool as a lever to move objects.
• Always use the chain guard during transport and storage.
• Secure the tool during transport in order to prevent damage or injury.
• Warning!

Keep passers-by away from running equipment but never work by yourself.

• Keep within earshot of others in case you need help.
• Stop the engine immediately when someone approaches you.
• Make sure that the saw chain does not come in contact with foreign objects such as stones, fences, nails and similar. These objects could be ejected and injure the operator or passers-by or damage the saw chain.
• National specifications may restrict the use of the pole saw.
• Do not use the machine within 10 metres of a position from which it can reach high-voltage cables.

Before working on the tool itself (e.g. transport, set-up, retooling, cleaning and maintenance), disconnect plug!

Always attach the transport guard straight away.

6. Technical data

MF1200-4E

Technical data
Cutting data grass trimmer
Cutting circle diameter of line mm	430
Cutting line diameter mm	2 x 2.0
Cutting line length m	4
Maximum speed grass trimmer min ^-1	6000
Cutting data brush cutter
Cutting circle diameter of blade mm	255
Cutter balde thickness mm	1.4
Teeth quantity	3
Maximum speed brush cutter min ^-1	7100
Cutting data hedge trimmer
Cutting circle diameter mm	24
Angle adjustment°	+90°/0°/-75° (165°)
Cutting length mm	400
Max. cutting speed max. min ^-1	1500
Cutting data pole saw
Guide bar legnth mm	305
Cutting length mm	254
Guide bar typ	Oregon 100SDEA318
chain pitch	3/8"
Saw chain type	91PJ040X
Chain link thickness "	1.27
Oil tank capacity cm ^3	125
Power unit
Motor V / Hz	220-240 V ~ 50 Hz
Engine output W	1200

Subject to technical changes!

Information concerning noise emission measured according to relevant standards:

Sound pressure L_pA = 94 dB(A)

Sound power L_WA = 108 dB(A)

Uncertainty K_PA = 3 dB(A)

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Grass trimmer vibration A_hv = 9.8 m/s^2

Brush cutter vibration A_nv = 9,8 m/s^2

Hedge trimmer vibration A_nv = 17,3 m/s^2

Pole saw vibration A_hv = 13,2 m/s^2

Uncertainty K_PA = 1,5 m/s^2

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.

In these operating instructions we have marked the places that have to do with your safety with this sign: △

7. Before starting the equipment

Each time before use, check the following:

• That the equipment is in perfect condition and that the safety devices and cutting devices are complete.
• That all screws are securely fastened.
• That all moving parts move smoothly.

8. Attachment and operation

ASSEMBLY

When assembling this machine, please follow the instructions for assembly printed.

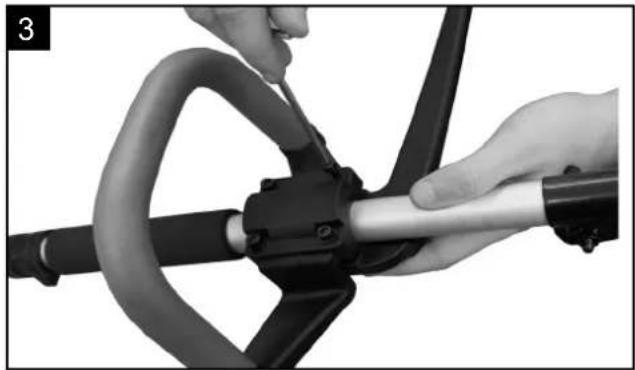

1 Assemble the handle on the machine. Fig. 2-3

• Install the front handle as shown on the image 2.
- Make sure that you align the pin with the hole. Tighten the screws only loosely before you have the most comfortable working position set to the risers. The front handle should be aligned as in pictures 2+3 shown, then tighten the screws.

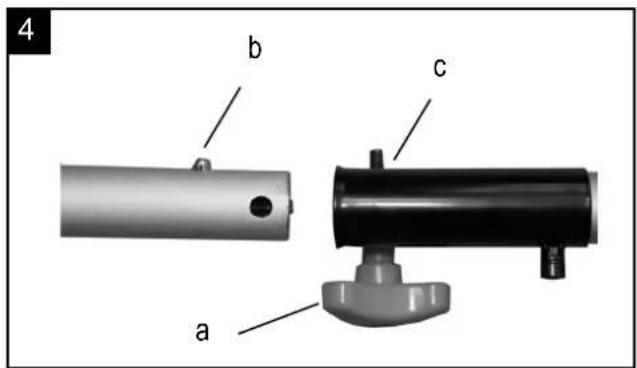

1. Mounting the shaft. Fig. 4

2. Open the handle (a)

3. Push the shaft into the holder. Make sure that the metal ball (b) is alignment with the hole (c) and furthermore locks.

4. After this process please fix the shaft by turning the handle (a).

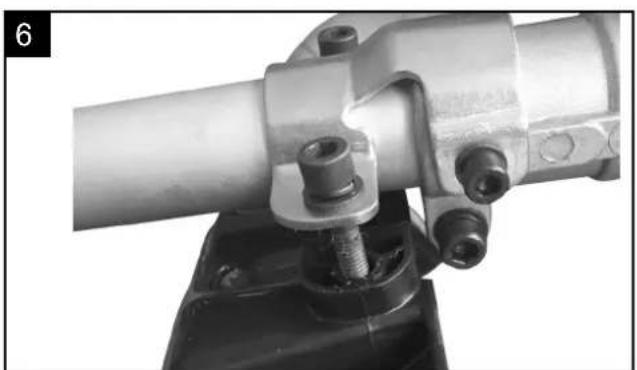

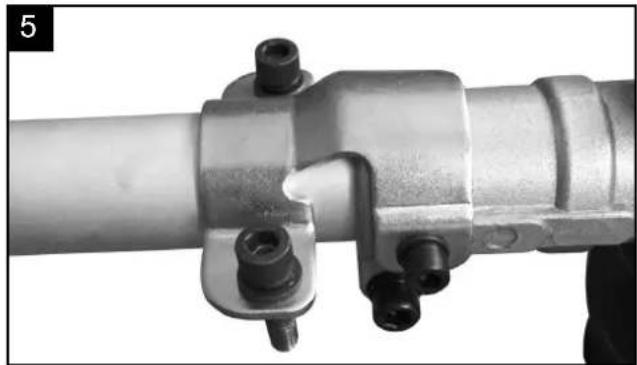

5. Assemble the safe guard. Fig. 5-7

6. Fix the safe guard with hex key and wrench enclosed as standard accessories for tightening the nuts enough. Please see the below pictures showing.
   ⚠ Warning! Never use the machine without the guard assembled!

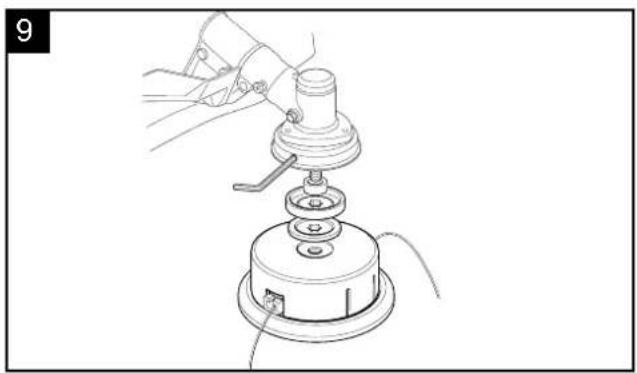

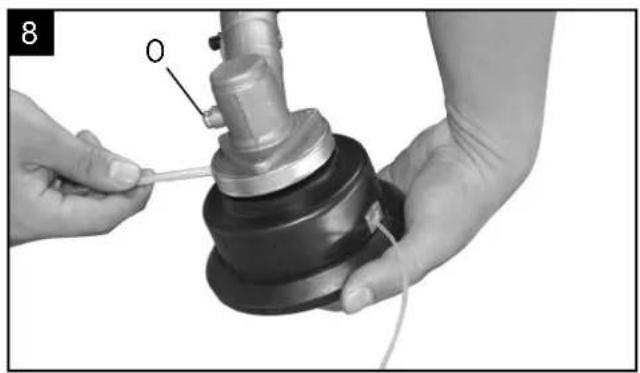

7. Assemble and disassemble the cutting head grass trimmer / nylon cutting head. Fig. 8-9
8. Release the nut.

Line up the two holes of flange and shield, use one screw driver to hold the flange as below and turn the socket wrench clockwise, the nut will be released.

• Fit the Nylon cutting head.

Remove another shield after release the nut. Still hold the flange, take the Nylon cutting head on the shaft and rotate counter-clockwise, the Nylon cutting head is fitted. Fig. 19

- Release the Nylon cutting head.

Use screw driver to hold flange and then rotate the Nylon cutting head clockwise, it will be replaced.

Brush cutter / Cutter blade

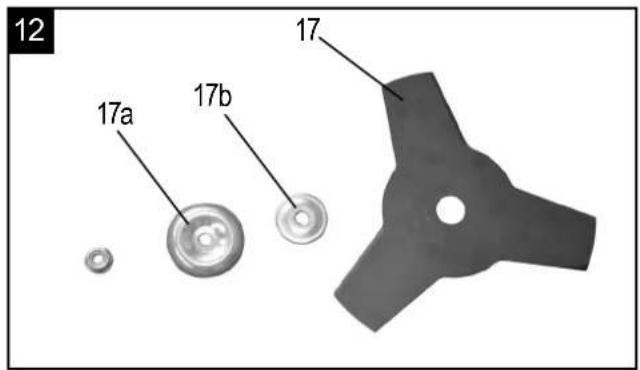

• Fit the blade. Fig. 10-12

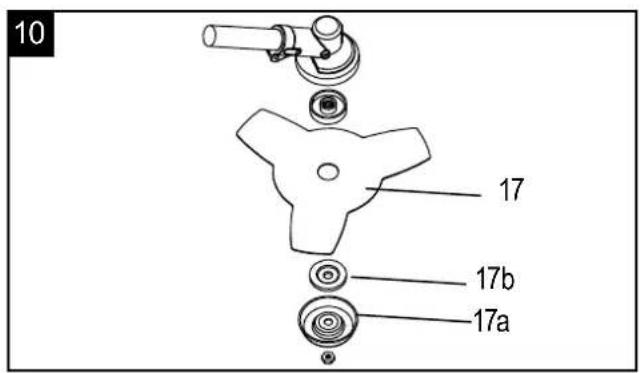

Take the outer flange off after release the nut, then put the blade (17), outer flange (17b), shield (17a) and nut according to priority as below picture. Note the blade rotation direction needs be same as below picture.

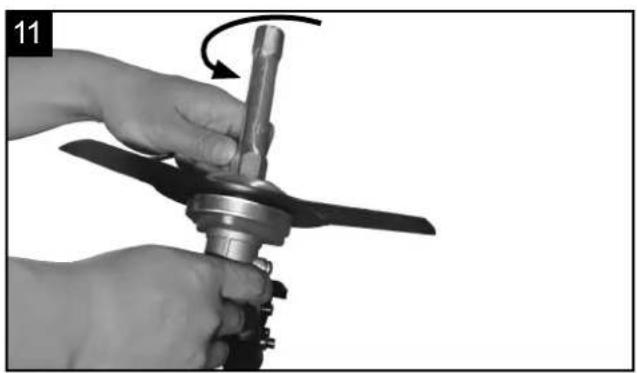

Use screw driver to hold flange and tighten nut counter-clockwise, ensure the nut is tightened enough.

- Release blade. Use screw driver to hold flange and release nut, the blade can be took off.

⚠ Warning!

Please make sure the cutting head has been assembled correctly before use!

OPERATION

When working with the equipment as grass trimmer and brush cutter, the appropriate plastic guard hood for cutting blade mode or cutting line mode must be fitted to prevent objects being thrown out by the equipment. The integrated blade (A) in the cutting line guard hood automatically cuts the line to the optimum length. Fig. 17

5. Fit the belt. Fig. 13-16

• The Combined grass trimmer, pole saw, brush cutter must be used with the strap.
  • Balance the machine when the tool is switched off.
• Wear the shoulder strap.

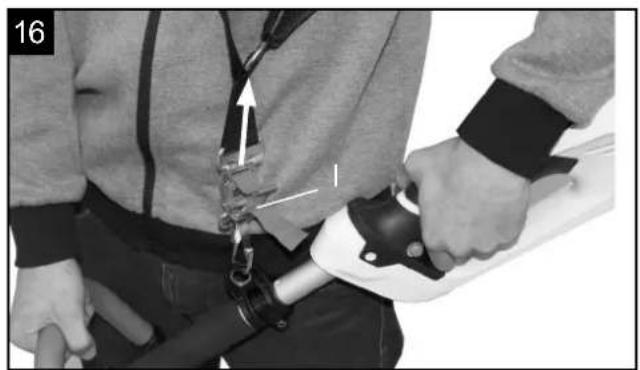

• Adjust the strap length so that the snap hook (k) is about a hand's breadth below the right hip. Hang the multi-function tool on the karabiner
• Hang the brush cutter on a hook.
• Hang the machine.
• When standing in a normal working posture, the blade should touch the ground during normal working position.
• Thereby, it is important that the petrol brush cutter is always well balanced.

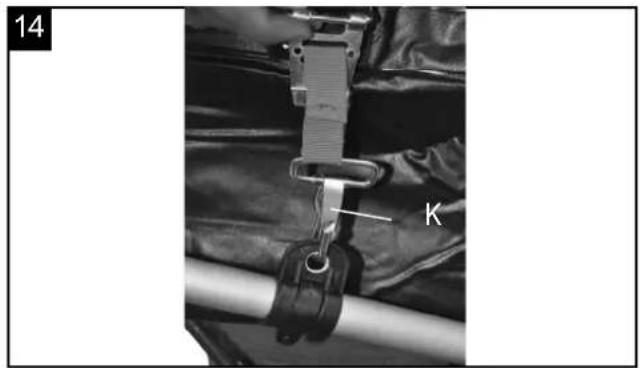

• For operation, hook the brush cutter into the snap hook (k) of the carrying strap while the engine is running.
• ATTENTION! In an emergency, the safety latch (I) can be pulled from the harness. The machine then detaches immediately from the carrying strap (9) and falls to the ground.

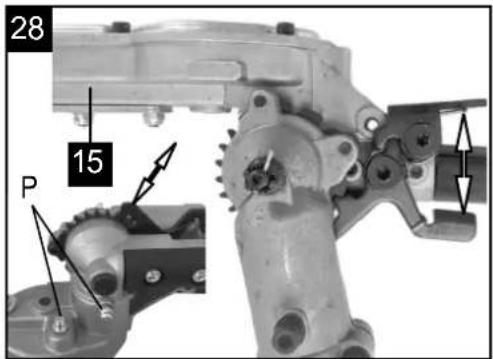

6. Mounting the hedge trimmer Fig. 27-29

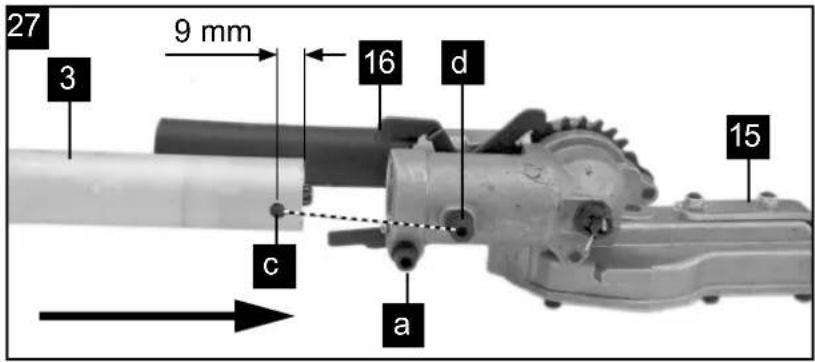

• Remove the screw (d), align the holes (c) so that they are flush and screw the screw (d) back in.
• Place the hedge trimmer (15) precisely as shown in Figure 27 on the connecting rod (3).
• Tighten with screw (a).
• Adjust the slope by unlocking the lock (Fig. 29)

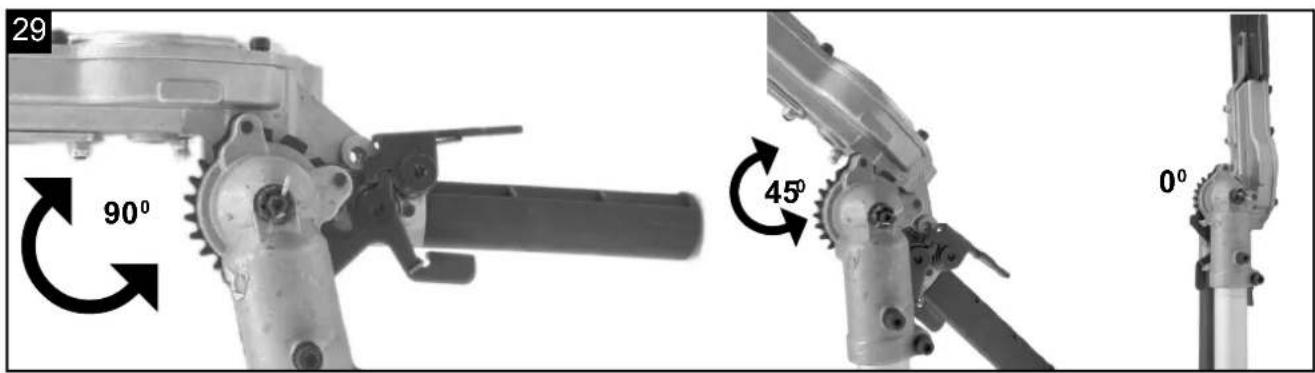

• The hedge trimmer can be tilted from 0^ to 90^ (Fig.29).

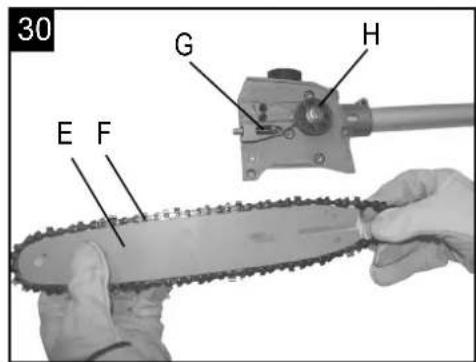

7. Fitting the cutter bar and the chaine (Fig. 30-32)

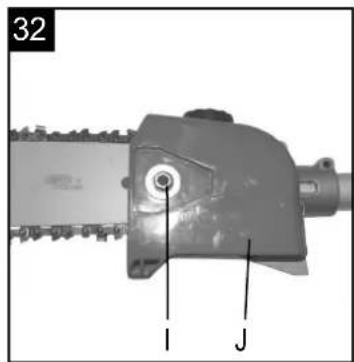

• Remove the chain wheel cover (Fig. 32/ Item J) by undoing the fastening nut (Item I). Lay the chain (Item F) as shown into the groove which runs around the cutter bar (Item E).

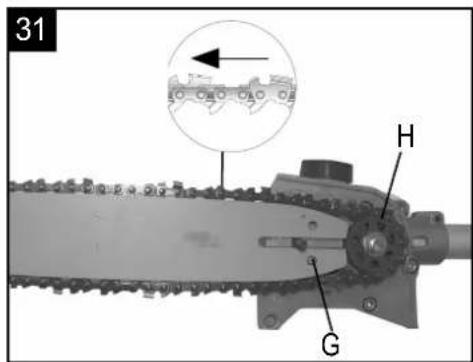

• Note the alignment of the chain teeth (Fig. 31). Insert the cutter bar as shown in Fig. 31 into the mount at the gear unit.
• Place the chain round the chain wheel (Item H). Make sure that the teeth of the chain engage securely in the chain wheel.

The cutter bar must be hooked into the chain tensioning bolt (Item G).

• Fit the chain wheel cover

Important! Do not fully tighten the fastening screw until after you have adjusted the chain tension (see section 7.1).

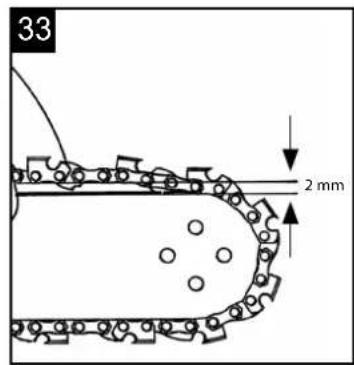

7.1 Tensioning the chain (Fig. 33-35)

• Undo the fastening screw (Item I) of the chain wheel cover by a few turns (Fig. 32).
• Adjust the chain tension with the chain tensioning screw (Fig. 34/ Item K). Turning the screw clockwise increases the chain tension, turning it counterclockwise decreases the chain tension. The chain is correctly tensioned if it can be raised by around 2 mm in the middle of the cutter bar (Fig. 33).

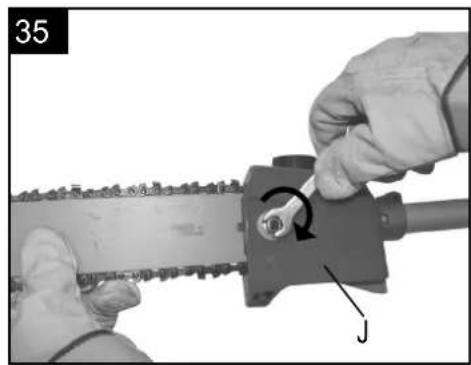

• Tighten the fixing screw of the chain wheel cover (Fig. 35).
• Important! All the chain links must lie properly in the guide groove of the cutter bar.

Notes on tensioning the chain:

The chain must be properly tensioned to ensure safe operation. When the saw chain can be raised by around 2 mm in the middle of the cutter bar, you know that the chain tension is ideal.

During cutting, the temperature of the chain rises and its length changes. It is important therefore to check the chain tension at least every 10 minutes and to adjust it again as required. This applies in particular to new saw chains.

When you have fi nished working, slacken the chain again as it will shorten when it cools down. This will help to prevent damage to the chain.

8. Start on the unit

Do not start the unit until it has been completely assembled.

⚠ Danger of injury!

Remove the appropriate transportation protection and inspect the unit in good working condition. Never use a damaged, poorly adjusted or serviced or not completely and securely assembled device.

Check before use!

• Check the safe condition of the device:
• Check the device for visual defects.
• Check that all parts of the device have been securely fitted.
• Check that all safety devices are in proper condition.

Note: Do not start the motor in tall grass.

⚠ Attention: When the engine has been switched off, the cutting unit continues running for several seconds therefore do not touch the cutting unit until it has come to a standstill!

9. Working instructions

Working with brush cutter / grass trimmer

• When you work with the brush cutter for the first time, familiarize yourself with the operation and control of the cutting blade without running engine.
• The design of the brush cutter allows for operation only at the right side of the user's body.
• Keep the brush cutter firmly with both hands on the handles.
  • Always make sure that the cutting tool continues to rotate briefly after the throttle has been released.
• Always so that the cutting tool no longer turns in a proper engine idle not press down the throttle.
• Always work with high speed so you have the best cutting results.
• Caution: Always be extra careful when working in difficult terrain and slopes. Cut tall grass gradually so as not to overload the unit.
  • Always wear safety glasses and hearing protection and a safety helmet.

Mowing with grass trimmer

• Use the plastic line cassette for a clean cut also at uneven edges, fencing posts, and trees.
• Carefully advance the trimming line to an obstacle, and use the tip of the line to cut around the obstacle. When the trimming line comes into contact with stones, trees, and walls, the line wears out or breaks off ahead of time.

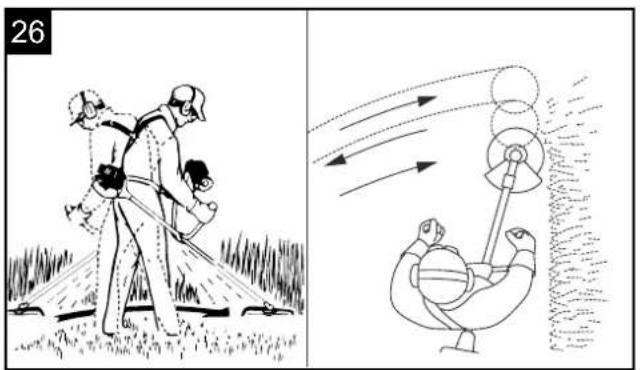

• Swing the cutting blade like a normal scythe horizontally from right to left and back again. You define the cutting height depending on how high you are holding the tool.
• Never replace the nylon line with a metal wire. RISK OF INJURIES

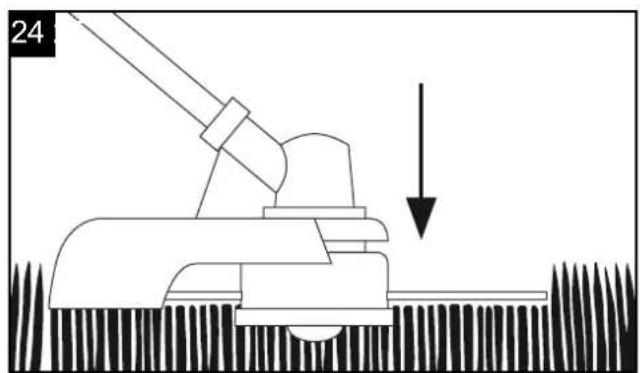

Automatic thread trimming (Fig. 24)

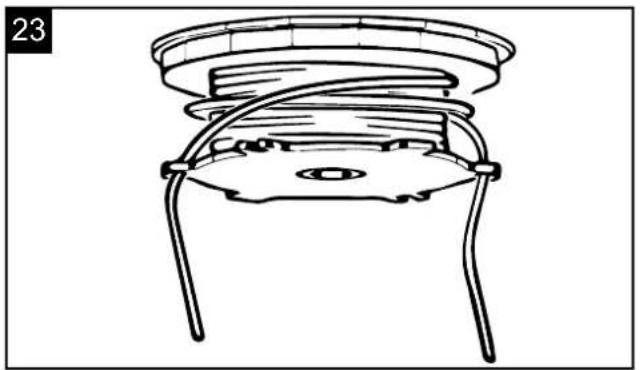

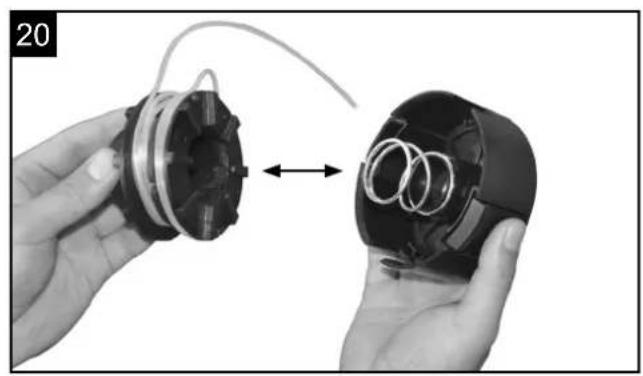

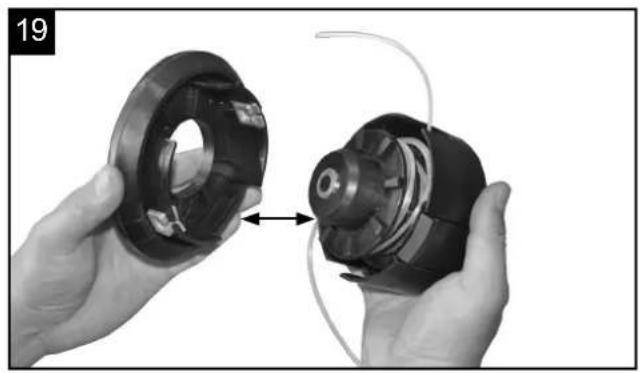

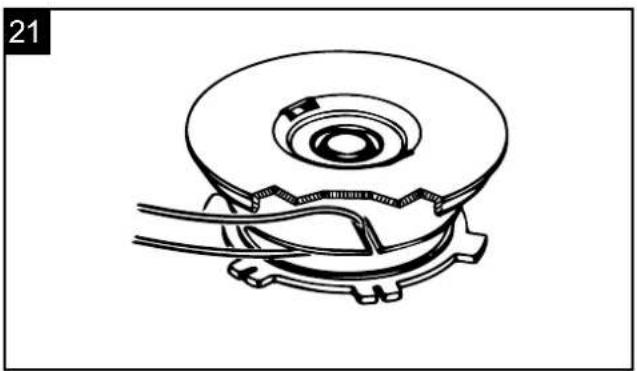

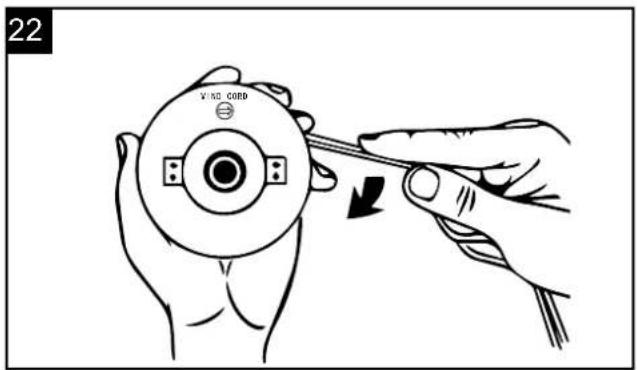

The cutting blade is delivered with a filled line cassette. This line will wear out during work. To feed new line, forcefully press the head of the line cassette onto the ground while the engine is running at working speed. The line is automatically fed due to centrifugal force. The knife at the line guard will shorten the trimming line to the correct length. Run the trim line approach cautiously to an obstacle and cut with the tip of the line around the obstacle.

Mowing with brush cutter and hedge trimmer

Use the cutting blade to comb through brushwood, rank growth, young tree populations (trunk diameter of maximum 2 cm), and high grass.

• The maximal diameter to cut depends on the wood's type, age, moisture and hardness.
• Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.
• While using metal cutting tools, there is generally a risk of recoil, when the tool hits a solid obstacle (stones, trees, branches, etc.). Thereby, the tool is hurled backwards against the rotating direction.

• Cut the hedge in trapezium shape.

• Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.

• Trim in several passes if you have to cut down a large portion of the hedge.
• To cut rank growth and brushwood, you "immerse" the cutting blade from the top.

Best time for hedge trimming:

• Leaved hedge: June and October
• Conifer hedge: April and August
- Quickly growing hedge: from May and then every 6 weeks

Pay attention to breeding birds in the hedge. If so, put off hedge trimming or leave this area out.

Angle adjustment

By swivelling the cutter head, the hedge trimmer can be adjusted to the working conditions from +90° to -75°. Fig. 29.

• Warning! Adjust the angle only when the motor has been turned off.
• Push both levers down and put the cutter head in the required position. Fig. 29
• Release both levers until they click into place in the notch.
• Before use, check that the adjustment levers have clicked into place properly. Fig. 29

Oil the blades and the angle adjustment each time before starting work, with environmentally friendly lubricant.

Regularly oil the blades during working hours as well. Warning! Oil the tool only when the motor has been turned off.

CAUTION: Be especially careful, when using this working technique, because the further away the cutting tool is from the ground, the higher is the risk that objects to be cut and particles will be hurled sideways.

CAUTION: Incorrect use and misuse can damage the bush cutter and cause severe injuries because of pieces hurled away.

To minimize the risk of accidents by use of the cutting blade, take note of following points:

• Never cut shrubbery or wood whose diameter is larger than 2 cm.
• Avoid contact with metal bodies, stones, etc.
• Periodically check the cutting blade for damages. Never continue to use a damaged cutting blade.
• When the cutting blade becomes apparently blunt, it must be sharpened according to instructions. When the cutting blade is apparently out of balance, it must be replaced.

Working with pole saw

Oiling of the chain and bar

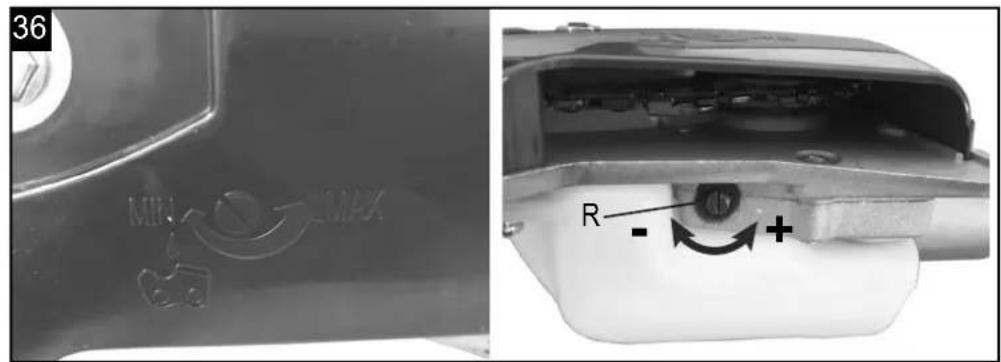

It is recommended to use commercial chain oil.

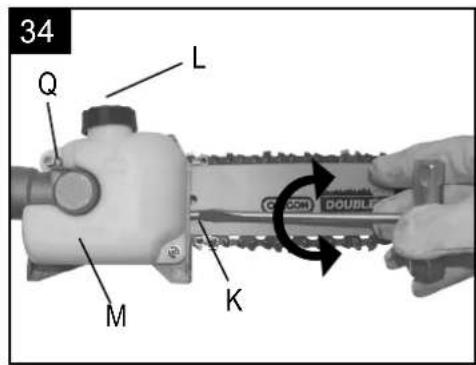

Remove the oil tank cap. (Fig.34 / L)

Fill the chain oil tank (Fig.34 / M) to 80% with chain oil.

Close Oil tank cap (Fig.34 / L)

Oil Supply Control

Always make sure that the automatic oil system is working properly. Always ensure the oil tank is full. During sawing work, the guide and the chain must always be sufficiently oiled to reduce friction with the chain bar.

The chain bar and the chain must never be without oil. If you operate the chain dry or with too little oil, the cutting performance will decrease, the service life of the chain bar will reduce, the chain will become blunt quickly and the guide will wear rapidly owing to overheating. You can detect a lack of oil from smoke development or the guide changing colour.

To check the chain lubrication keep the chain on a piece of paper and give full throttle for a few seconds.

On the paper the quantity of oil can be checked. The saw chain must always throw off a little oil. After a few seconds, a slight oil trace must be visible.

Make sure that there is always enough oil in the tank because chain lubrication is always on.

Automatic chain lubrication - Settings possible! Fine adjustment, Fig. 36

You can reduce or increase the quantity of oil using the screw (R).

Clockwise - oil quantity is reduced (-)

Anti-clockwise - oil quantity is increased (+)

Precautions for Saw procedure

Never stand under the branch you want to saw. Use special caution when working with branches under tension and splintering wood. Possible risk of injury caused by falling branches and catapulting pieces of wood. In general, it is recommended to set the pruning saw at an angle of 60^ to the road.

Keep both hands well with the device during the cutting process and pay you up to an equilibrium position and a good level.

• Never try to use your tool with one hand. The loss of control of your tool can cause serious injury or death. Never work on a ladder, a tree branch or other unstable surfaces.
• Never cut with the upper edge or the tip of the cutter bar.
• Make sure that the chain tension is always correctly adjusted.
• Practice for guiding the device slight pressure, but you do not overload the motor.

Clear the work area before cutting interfering branches and undergrowth. Then you create a retreat area, far from the spot where the cut branches fall on, and remove any obstacles there. Keep the work area clean, remove the cut branches immediately. Pay attention to your point, wind direction and the possible direction of fall of the branches. Be prepared that fallen branches can strike back.

Place all other tools and equipment at a safe distance from the branches to be cut, but not in the retreat area.

Always observe the condition of the tree.

Look for rot and decay in the roots and branches. If they are rotten inside, they can break off and fall down unexpectedly during cutting.

You could also attend by fractured and dead branches out, which is solved by the shake and fall on you. For very thick or heavy branches you first make a small incision below the branch before you work from the top down to avoid chipping.

Basic cutting technique

Heavy branches break off easily when sawing. They tear long strips of bark away from the trunk, which damages the tree sustainably. The following section technique can significantly reduce this risk:

• Saw the first branch about 10 cm from the trunk.
• Put in about 15 cm from the base of the top of a further section.
• Saw until the branch breaks. The risk of injury on the trunk is no.
• Finally, remove with a clean cut from the top of the trunk along the remaining.
• Thus, the damage to the tree are kept as low as possible, we recommend the interface additionally to seal with grafting wax.

Hazards by reactive forces

Reactive forces occur during operation of the saw chain. The forces which are applied to the wood are against the operator. They occur when the moving chain comes into contact with a fixed object such as a branch or is pinched. These forces can lead to a loss of control and injury.

Understanding the origin of these forces can help you to avoid the scare and the loss of control. This saw is designed to make the return effects are not as noticeable as with traditional chainsaws.

Always still keep a firm grip and a good level to maintain control of the tool in doubt.

The most common effects are:

• setback
• recoil,
• retreat

Kickback

The setback can occur when the moving saw chain meets at the upper quarter of the guide rail on a solid object or is pinched.

The cutting force exerted on the chain from the saw, a rotational force in the opposite direction to the chain travel. This leads to an upward movement of the guide rail.

Avoid kickback

The best protection is to avoid situations that lead to setbacks.

1. Keep the position of the upper guide rail always in mind.
2. Leave this place never come into contact with an object. Cut anything with it. Be especially careful near wire fences and cutting small, hard knots, in which the chain can easily pinch.
3. Cut only one branch at a time.

Withdrawal

The withdrawal occurs when the chain on the underside of the bar suddenly stuck because it is jammed or encounters a foreign object in the wood. The chain then pulls the saw forward. The withdrawal often happens when the chain is not running at full speed when in contact with the wood.

Avoid withdrawal

Be aware of the forces and situations that can lead to jamming of the chain on the underside of the bar.

Always start with running at full speed chain to cut.

Recoil

The recoil occurs when the chain on top of rail suddenly stuck because it is jammed or encounters a foreign object in the wood. The chain can jerkily hold the saw against the operator. Rebounds happen often if the top rail is used for cutting.

Avoid recoil

Be aware of the forces and situations that can lead to jamming of the chain on top of rail.

Do not cut more than one branch at a time.

Do not tilt the rail to the side when you pull them out of a cutting gap, since the chain could get caught otherwise.

10. Maintenance

NJURY WARNING!

Before working on the device, disconnect the mains cable from the socket.

Always wear protective gloves when working on or around cutting tools.

For non-use, transport or storage always attach the transport guard to all cutting tools. Fig. 1 (14a, 15a, 17c)

1. Do not spray the unit with water. It damages the engine.
2. Clean the unit with a cloth, hand brush, etc.
3. Use a moist piece of cloth to clean the plastic parts. Do not use any cleaning agents, solvents, or sharp objects.
4. During the course of work, wet grass and weed wraps around the drive shaft below the cutting guard for technical reasons. Remove this, otherwise the engine will overheat because of too much friction.

Regular checks

Keep in mind that following specifications relate to normal usage. Owing to circumstances (longer periods of daily work, severe dust exposure, etc.), the specified intervals will become correspondingly shorter.

• Before starting work, after impact or dropping: Check the cutting tools for secure seating, general visual check for cracks and damage.
  Immediately replace damaged or blunt cutting tools, even in the event of minor hairline cracks. Sharpen cutting tools (also when required).

• Weekly inspection: Lubrication of gear (also, if necessary).

- If necessary: Retighten accessible fastening screws and nuts. You will avoid excessive wear and tear and damages of the tool, when you follow the instructions in this manual.

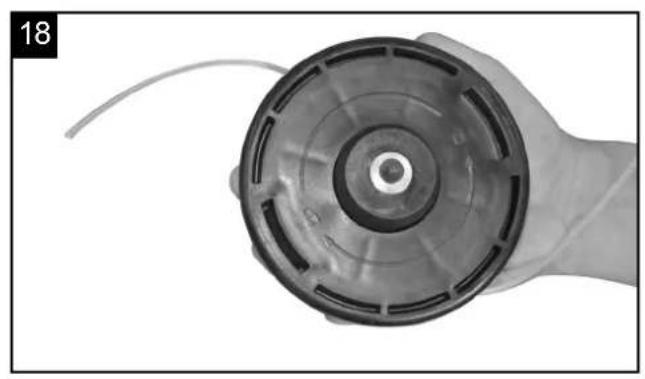

Replacing the line spool/cutting line Fig. 18-23

1. Pull off the line guard cap from the line spool (5) by forcefully pressing between the retaining plates.
2. Remove the spool with line remaining and the compression spring.
3. Remove the used up spool.
4. Take the new line spool and pull out 10 cm at both lines each.
5. Now, place the line spool (5) on the tapered spring, and guide both lines each through the round metal lugs at the line spool housing.
6. Then place the spool cover on the new line spool (5). Turn it so that the plates of the spool cover are pushed with the springs in the line spool housing.
7. Now, press the spool cover together with the line spool, until it engages in the line spool housing.

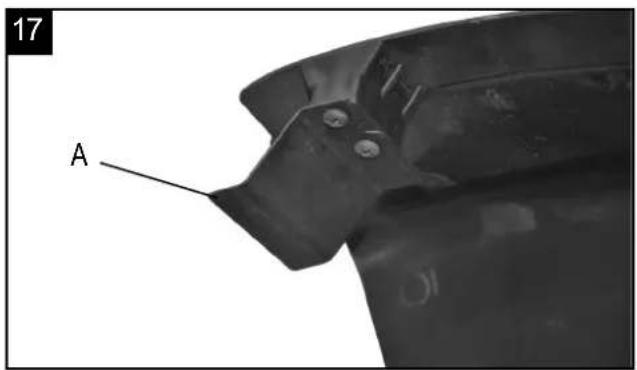

8. The knife (A) in the protective hood (18) shortens the trimming line to the correct length, when the engine starts again.

Grinding the safety hood blade

The safety hood blade can become blunt over time.

• When you notice this, undo the screw holding the safety hood blade on the safety hood.
• Clamp the blade in a vise.
• Sharpen the blade with a flat file and make sure that the angle of the cutting edge is not altered in the process ( 25^ ). File in one direction only.

Replacing and resharpening the cutting blade at the end of the mowing season always resharpen the cutting blade or, if required, replace the cutting blade with a new one.

Unbalanced blades will cause the brush cutter to vibrate violently-risk of accident!

Lubricate angle transmission

Lubricate with lithium-based grease. Remove the screw and put in the grease, turning the shaft manually until grease emerges, then replace the screw.

Attention! Fill only a small amount of grease. Do not overfill.

Care of the guide rail

Turn the rail around every time you have the chain sharpened or replaced. This will avoid a one-sided wear of the rail, especially at the top and bottom.

Regularly clean

1 = the opening for the oil supply
2 = the oil passage
3 = the raceway groove of the rail

Technical diagram of a mechanical device with labeled parts and cross-sectional view

Servicing and sharpening of saw chain

The correct sharpened chain

Working effectively with the chainsaw is only possible if the chain is in good condition and sharp. This also reduces the risk of kickback. The chain can be re-sharpened by any dealer. Do not attempt to sharpen the chain yourself unless you have the necessary special tools and experience. A properly sharpened chain goes way through the wood and it requires very little pressure. Do not work with a dull or damaged chain. It increases physical exertion, increase the vibrations and leads to unsatisfactory results and higher wear.

• Clean the chain.
• Check it.
• Replace damaged or worn parts with matching spare parts they are in the shape and size of the original parts as necessary.
• Sharpening a chain should be performed only by experienced users! Notice. Below the angle and dimensions If the chain is not properly sharpened or the depth is too small, there is a higher risk of reversion effects and resulting injuries! The chain cannot be fixed on the guide rail. It is therefore best to remove the chain from the rail and then sharpen.
• Select the appropriate tools for the chain pitch sharpening tool. See “Specifications” for the allowed chain pitches.

The chain pitch (for example 3/8 " ) is highlighted in the depth of each blade. Use only special files for chainsaws! Other files have the wrong shape and the wrong cut. Select the file according to the diameter of your chain pitch. Make sure to observe the following angle when sharpening the chain diameter.

A B

A = filing angle

B = the angle of the side plate

The angle must also be maintained for all knives.

For irregular angles, the chain is run irregularly, wear quickly and break down prematurely.

Since these requirements can only be met with sufficient and regular exercise:

• A File Holder must be used when sharpening the saw chain by hand. The correct filing angle marked on it.
• Hold the file horizontally (at a right angle to the guide rail) and file according to the angle mark on the file holder. Support the file holder on the top plate and depth gauge.
• File down. The knife is always from the inside to the outside
• The file sharpens only in forward motion. Lift it off in the backward motion.
• Do not touch the dynamic links with the file.
• Turn the file regularly continue to avoid a onesided wear.
• Remove to remove a piece of hard wood, bones raw edges.

All knives must have the same length, otherwise they will also vary. As a result, the chain is irregular and it increases the risk of going broke.

Check the hedge trimmer for obvious faults such as:

• loose attachments
• worn or damaged components
  – bent, broken or damaged cutting tools
  – correctly attached and working covers and safety devices
• wear, in particular, cutting tool play

Immediately replace damaged or blunt cutting tools, even in the event of minor damage.

Oiling the gears

Oil the gears every 10 to 20 operating hours.

1 Position the grease gun at the lubricating nipples (10).
2 Insert some grease.

Oil the cutting tools and the angle adjustment with environmentally friendly lubricant.

The user is responsible for all damages caused by non-compliance with instructions in this manual. This also applies to non-authorized modifications of the tool, use of non-authorized spare parts, accessories, working tools, unrelated and not intended use, secondary damages due to use of faulty components.

Wear Parts

Even when used in the intended way, some components are subject to normal wear. They have to be replaced depending on the kind of duration of usage.

These parts include, among others, the cutting tool and the retaining disk.

⚠ Warning!

Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty.

Important hint in case of sending the equipment to a service station:

Due to security reasons please see to it that the equipment is sent back free of oil and gas!

Ordering replacement parts

Please quote the following data when ordering replacement

parts:

• Type of machine
  • Article number of the machine

Replacement parts / accessories:

For the cutting equipment listed here, you can always use the safety guards provided with the unit.

Grass trimmer/brush cutter:

Spool with ∅ 450 7910700701

Blade with 3 teeth ∅ 255 x 1.4 7910700702

Transport guard for blade 3 teeth 3904801065

Blade with 4 teeth ∅ 255 x 1.4 7910700705

Transport guard for blade 4 teeth 3904801066

Blade with 8 teeth ∅ 255 x 1.4 7910700711

Transport guard for blade 8 teeth 3904801066

Safety shield for grass trimmer 3904801023

Pole pruner:

Saw chain Oregon 91PJ040X 7910700704

Guide rail Oregon 100SDEA318 3904801037

Transport guard for chain 3904801039

Hedge trimmer:

Blade for hedge trimmer 400 mm 7910700703

Transport guard for blade 3904801043

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Carbon brush, line spool, cutting blade, saw chain, guide rail

* Not necessarily included in the scope of delivery!

11. Storage

Cleaning

• Keep handles free of oil, so you always have a secure hold.
• Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid.

⚠️ Important!

- Never immerse the equipment in water or other liquids in order to clean it.

Storage

Note: Store the equipment in a dry place and far away from possible ignition sources such as an oven, a gas-fi red hot water boiler, a gas-fi red dryer, etc.

Transport

Always attach the transport guard to all cutting tools. Fig. 1 (14a, 15a, 17a)

In order to prevent damage and injury, secure the tool against tipping over and sliding when transporting it in

vehicles.

12. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

13. Troubleshooting

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause	Remedy
Machine does not start	· Supply voltage not on · On/Off switch faulty · Worn carbon brushes · Motor faulty · Power cable damaged	· Check the socket or the electricity supply; if required, arrange repair by an authorised electrician. · Contact the service centre · Contact the service centre · Contact the service centre · Check the extension lead and have it replaced, if required.
Machine works with interruptions	· Power cable damaged · Internal connections are loose · On/Off switch faulty	· Check the extension lead and have it replaced, if required. · Contact the service centre · Contact the service centre
Poor cutting quality	· Blades are blunt.	· Have the blades sharpened or the knife bar replaced.
Motor is running but the gears are not engaging	· The power unit is jammed by a thick branch or other objects.	· Turn the hedge trimmer off immediately, disconnect the electricity supply and remove the blockage.
Pole saw does not saw, it plucks or vibrates.	· Chain tension too high. · Chain blunt. · Chain attached incorrectly. · Chain worn.	· Check and reset chain tension. · Have the chain sharpened or replace it. · Re-attach the chain. · Replace the chain.

Table des matières: Page:

Günzburger Straße 69

89335 Ichenhausen / Germany

CHER CLIENT,

Technical diagram of a mechanical device with labeled parts and cross-sectional view

Günzburger Straße 69

D-89335 Ichenhausen

Gentile Cliente,

Technical diagram of a mechanical device with labeled parts 1, 2, and 3, showing internal components and alignment indicators.

Günzburger Straße 69

D-89335 Ichenhausen

GEACHTE KLANT,

Technical diagram of a mechanical device with labeled parts 1, 2, and 3, showing internal components and alignment indicators.

Transportbeveiliging mesblad 4-tands

3904801066

Mesblad 8-tands ∅ 255x1,4 7910700711

Transportbeveiliging mesblad 8-tands

3904801066

Transportbeveiliging mesblad 400mm

3904801043

Service-informatie

Günzburger Straße 69

89335 Ichenhausen

Germany

Estimado cliente,

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Günzburger Straße 69

D-89335 Ichenhausen

SZANOWNY KLIENCIE,

Technical diagram of a mechanical device with labeled parts and cross-sectional view

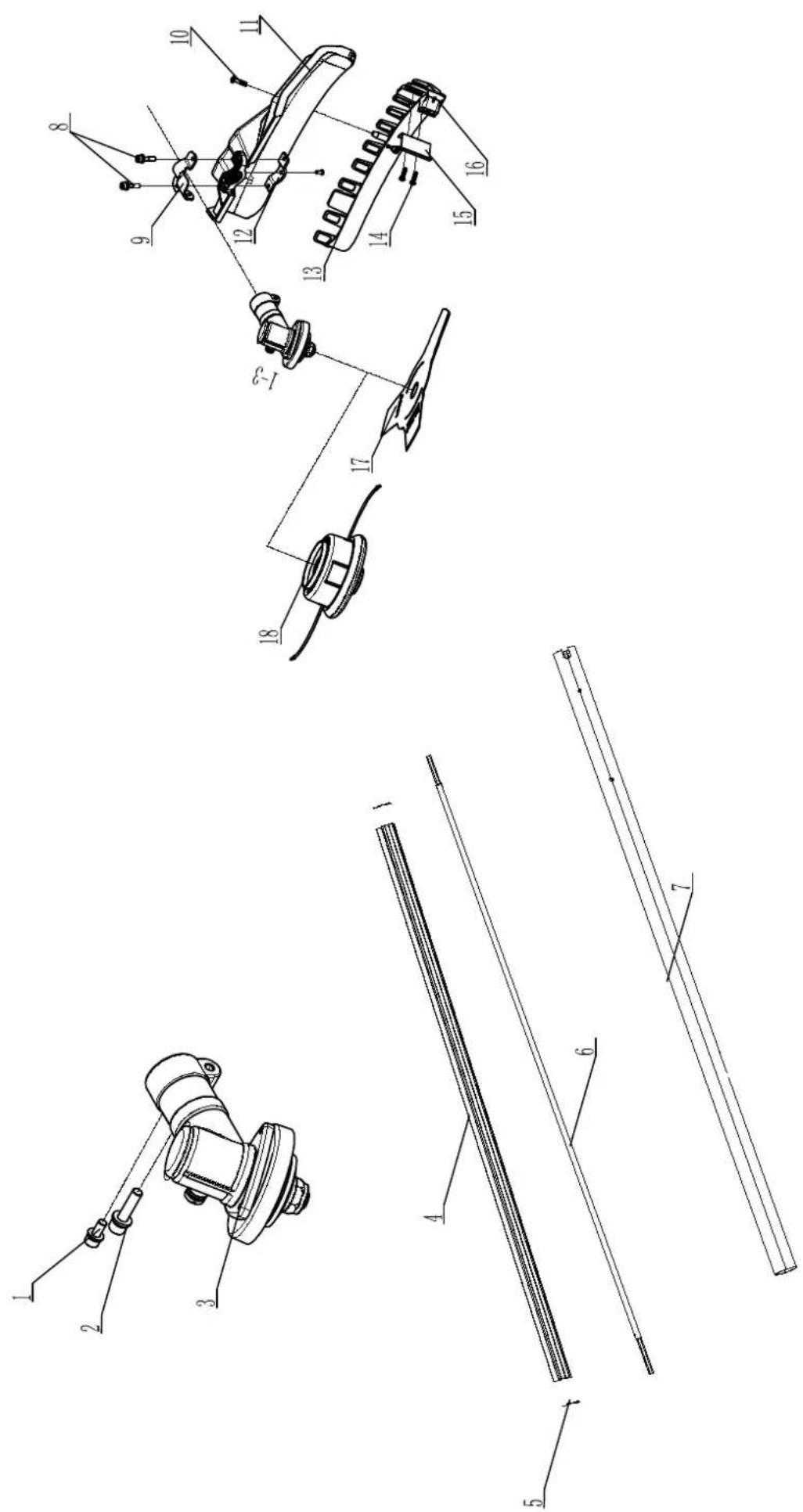

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

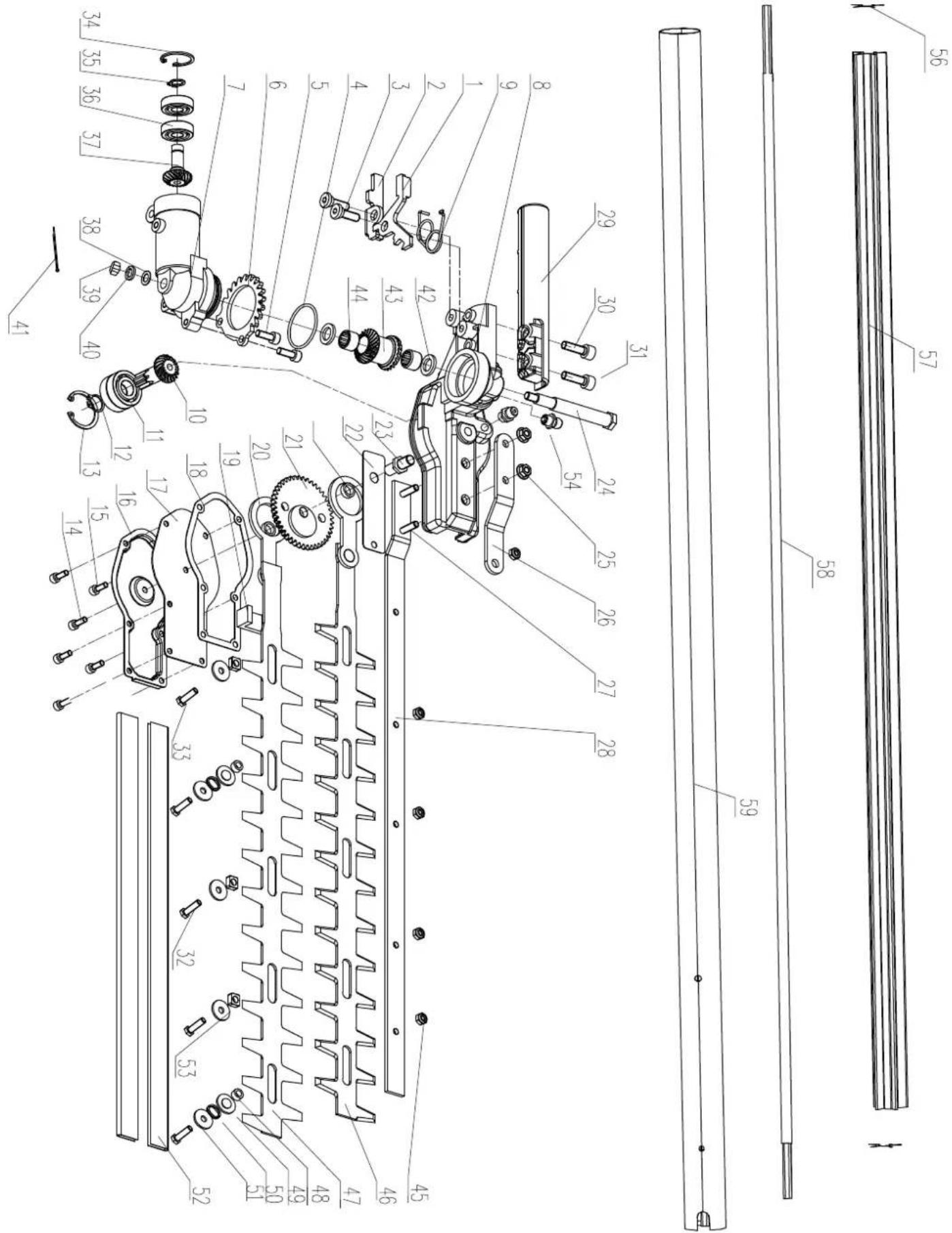

B

C

Technical schematic diagram of a mechanical assembly with numbered components and dimension annotations

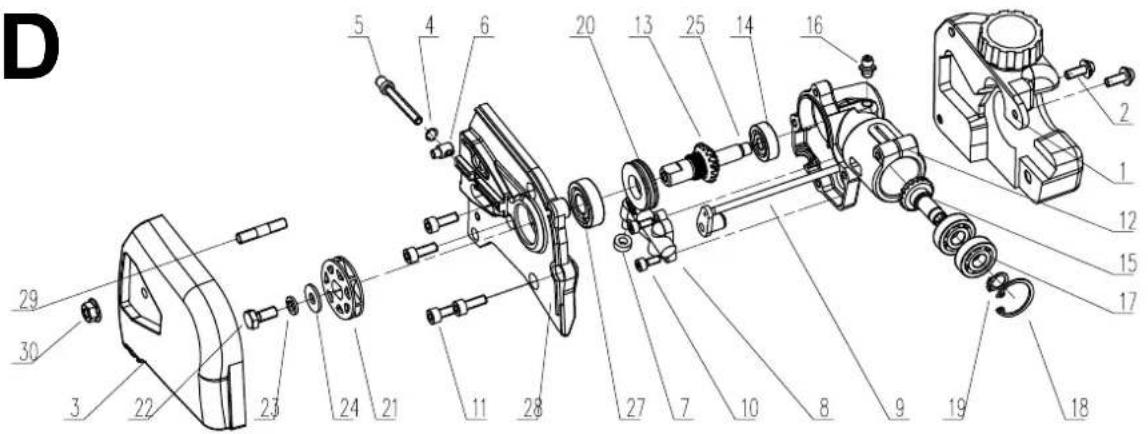

D

D 29 30 3 22 23 5 4 6 20 13 25 14 16 27 7 10 8 9 19 18 1 12 15 17

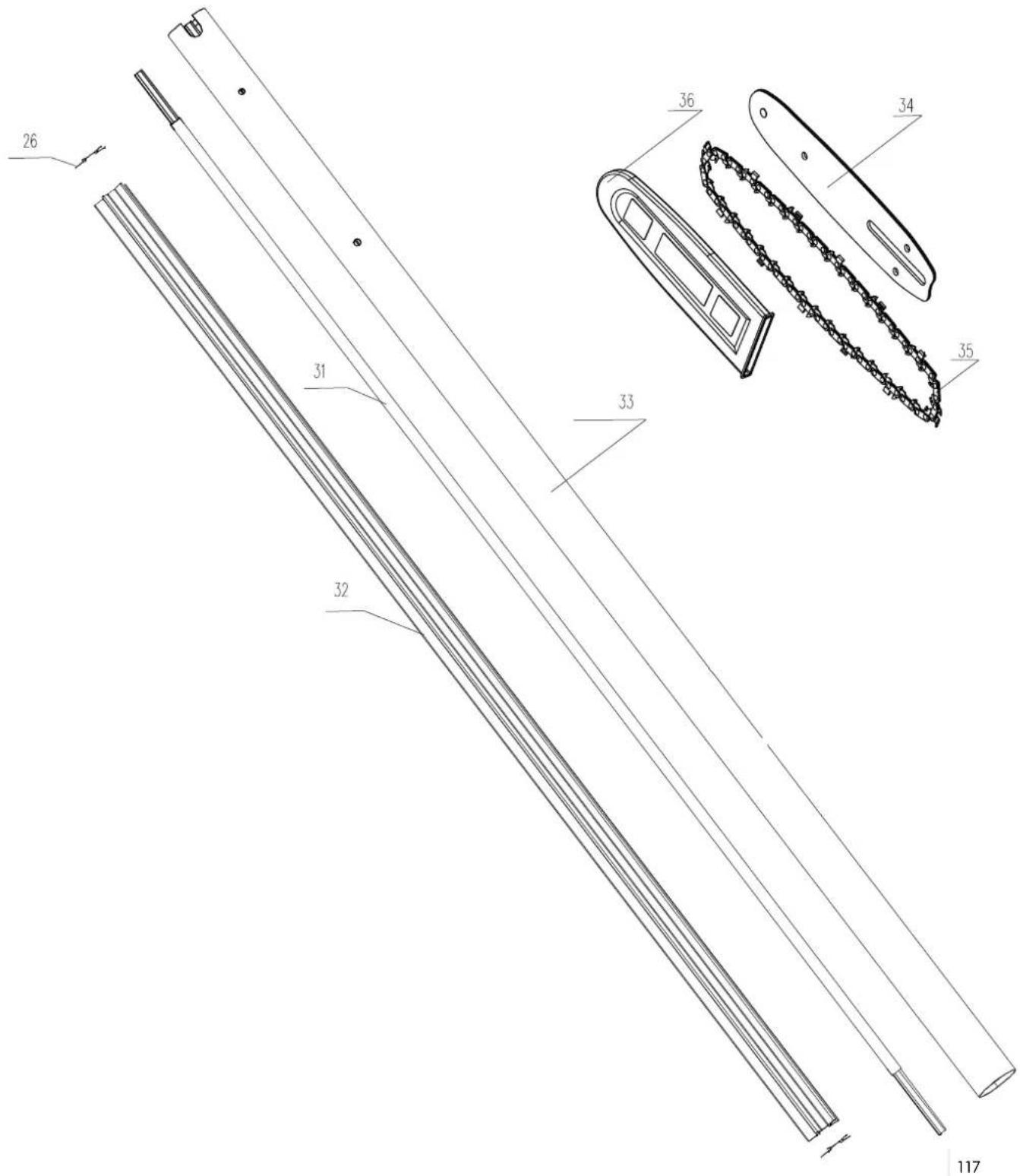

Technical diagram of a mechanical assembly with labeled parts, including rods, chains, and a housing.

89/686/EC_96/58/EC
X 2006/42/EC
	Annex IVNotified Body:Notified Body No.:Reg. No.:
X 2000/14/EC_2005/88/EC
	Annex V
X	Annex VINoise: measured L_WA = 94 dB(A); guaranteed L_WA = 108 dB(A)Notified Body: SGS-CSTC Standards Technical Services Co., Ltd.Notified Body No.: SHES170600576111
2004/26/EC
type-approval number

Standard references: EN ISO 10517 : 2009+A:2013; EN ISO 11806-1:2011 ; EN ISO 11680-1:2011; EN 60335-1:2012 + A11: 2014; EN 50636-2-91: 2014; EN 62233: 2008; EN 60745-1: 2009 + A11: 2010

Subject to change without notice

Documents registar: Stefan Hartinger

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufac-

tured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded. The saw blade is a consumable item and explicitly excluded from any warranty.

Garantie FR
