MFB4-40Li SE

DE	4 in 1 Akku-MultifunktionsgerätOriginal-Anleitung	08 - 27
GB	4 in 1 Cordless-Multi garden toolTranslation from the original instruction manual	28 - 44
FR	4 en 1 Kit Outil de jardinage multifonction à batterieTraduction des instructions d'origine	45 - 64

Exploded view diagram of a hairless tool with numbered parts for identification

Mechanical component assembly showing a black lever, plastic housing, and four screws (no text or symbols visible)

Close-up of hands adjusting a black bicycle seatbelt with metal bands (no text or symbols visible)

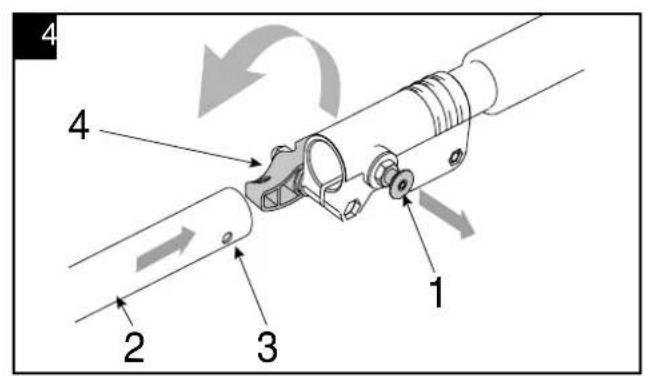

4 1 2 3

Close-up of mechanical components with no visible text or symbols

Close-up of a hand using a tool to adjust or install a tire component on a dark fabric surface (no text or symbols visible)

Close-up of a mechanical component with a metallic rod inserted into a black curved base (no visible text or symbols)

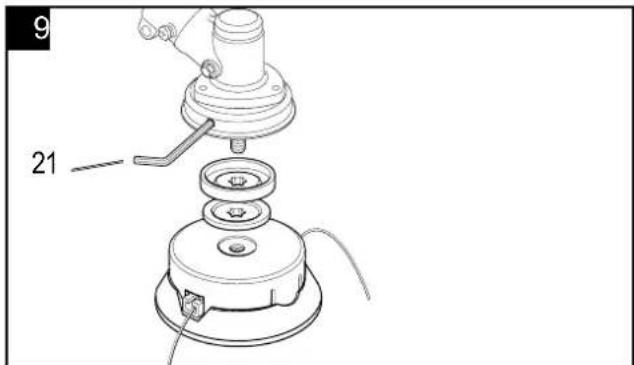

O 21

9 21

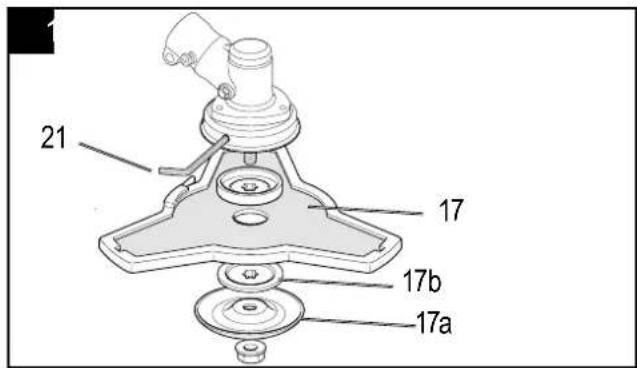

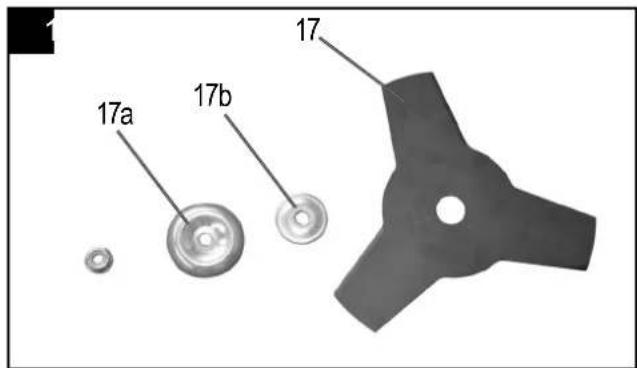

21 17 17b 17a

20

17a 17b 17

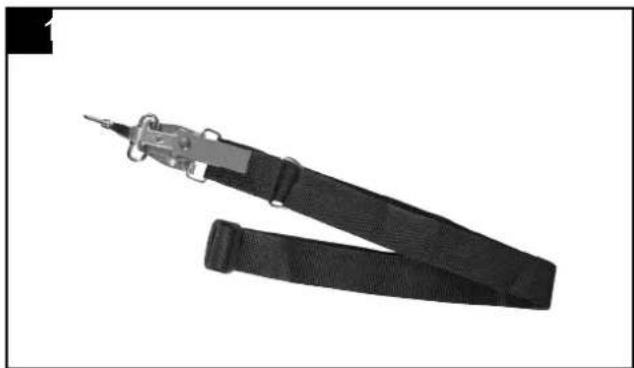

Black mechanical strap with metal clasp and attached bracket (no text or symbols visible)

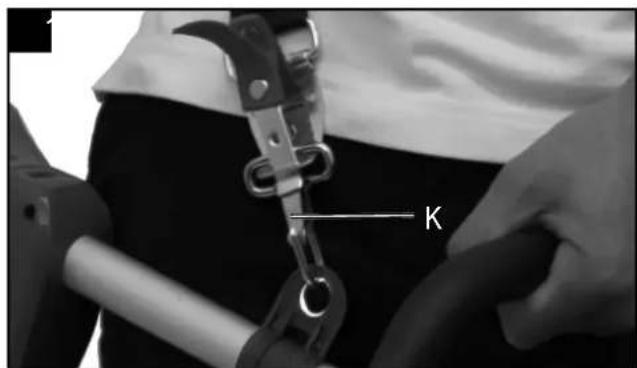

Close-up of a person's lower body with a metal clamp and labeled 'K' (no other text or symbols visible)

Person wearing a white shirt and black pants, holding a walking stick and a backpack (no visible text or symbols)

Person holding a balance scale with a wrist strap, no visible text or symbols

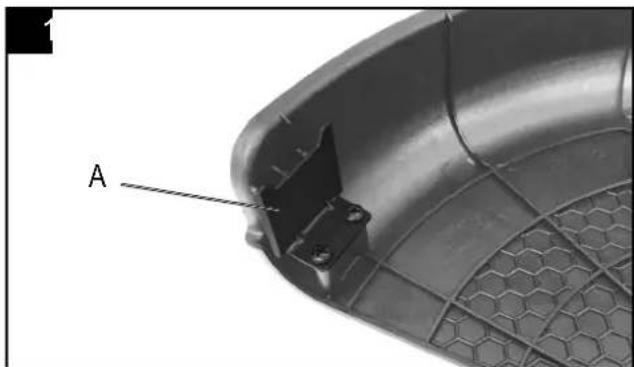

Close-up of a mechanical component with labeled section A, showing internal structure and mesh pattern (no text or symbols beyond label)

Illustration of two hands holding a circular device with arrows indicating direction (no text or symbols)

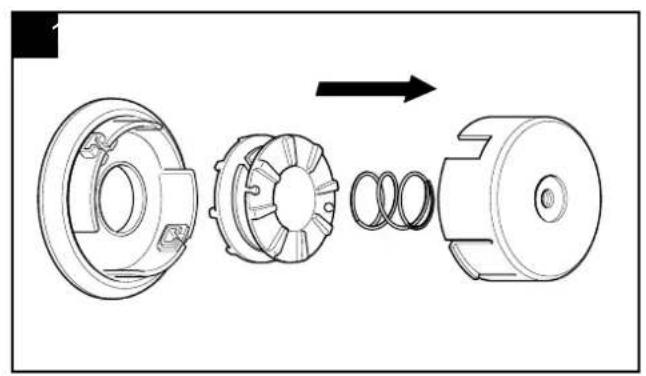

Exploded view diagram of a mechanical assembly showing three stages: housing, fan blade, and motor (no text or labels)

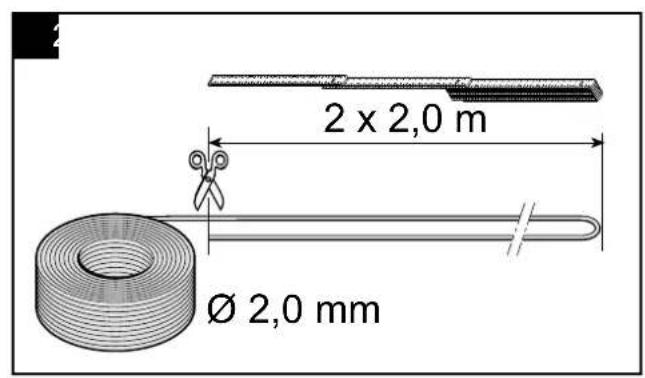

2 x 2,0 m Ø 2,0 mm

Diagram illustrating the process of rotating a fan with directional arrows and a hand holding a knob.

Mechanical assembly diagram showing two stages of a mechanical device with springs and housing (no text or labels)

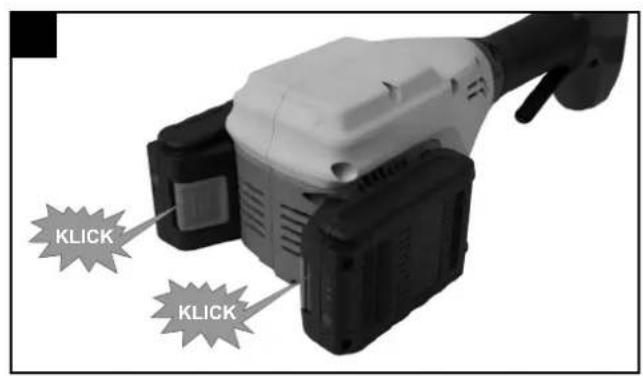

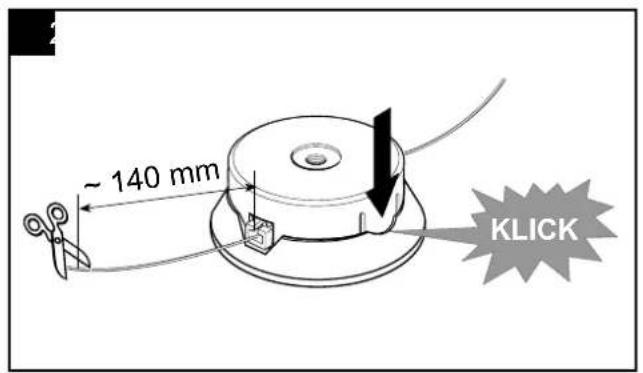

~ 140 mm KLICK

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

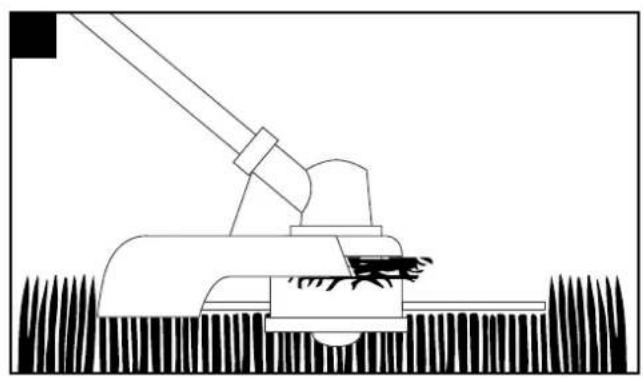

Line drawing of a mechanical tool interacting with a textured surface (no text or symbols)

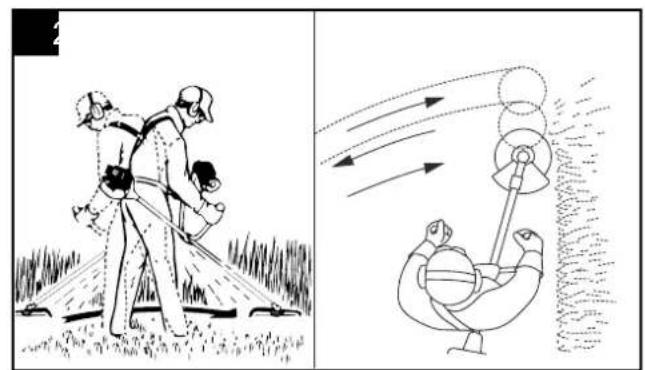

Two-panel illustration showing a person in safety gear operating equipment near a vehicle, and a person using a pulley system to lift or rotate (no text or symbols)

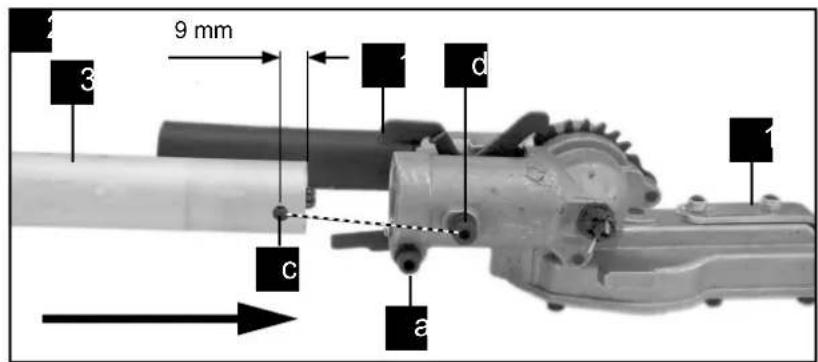

9 mm 3 d c a

20 P

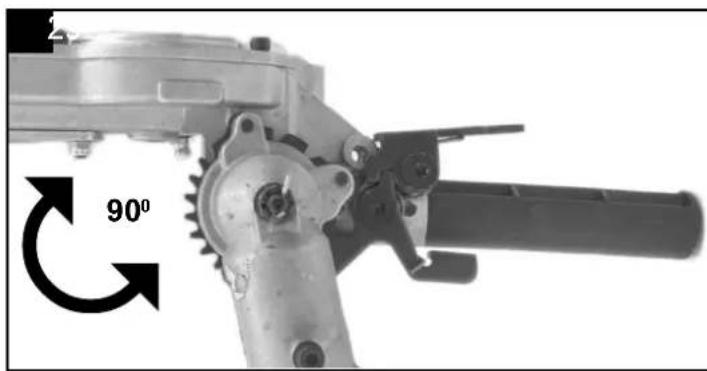

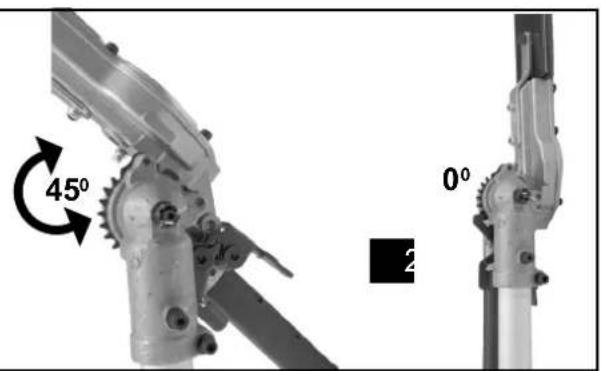

Mechanical assembly with angular annotation '90°' indicating rotational motion (no text or symbols beyond the label)

45° 0°

E F G H

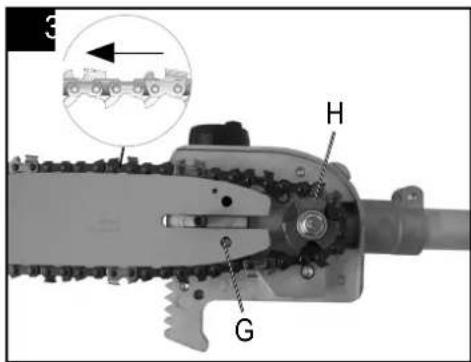

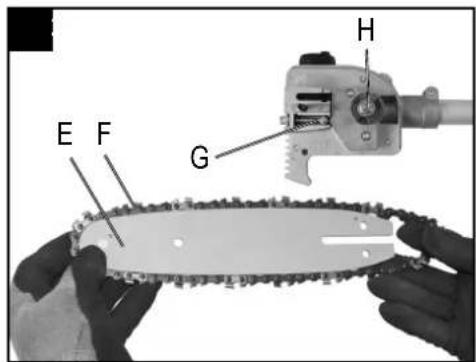

Technical diagram of a chain-linking tool with labeled parts H and G, showing mechanical assembly and component details.

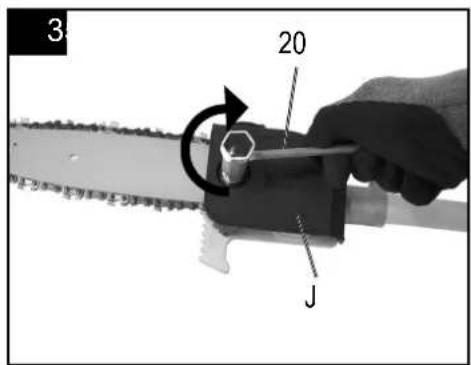

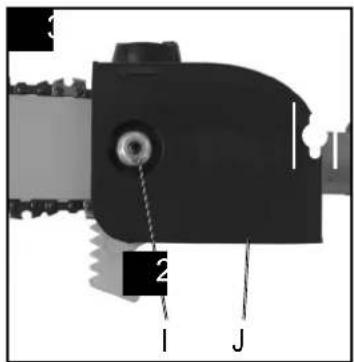

Technical diagram of a mechanical component with labeled parts I and J

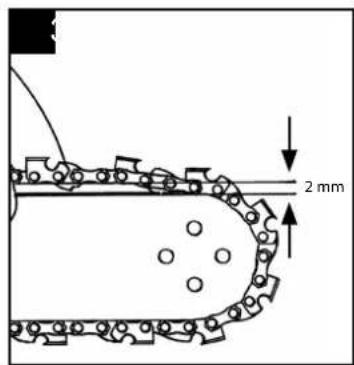

2 mm

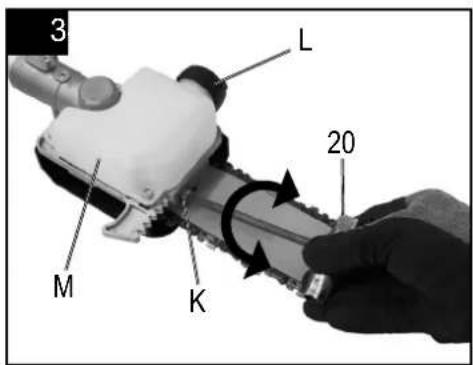

3 L 20 M K

3 20 J

Close-up of hands using a power tool to interact with a mechanical device (no visible text or symbols)

Close-up of a hand holding a white and black power tool, with no visible text or symbols

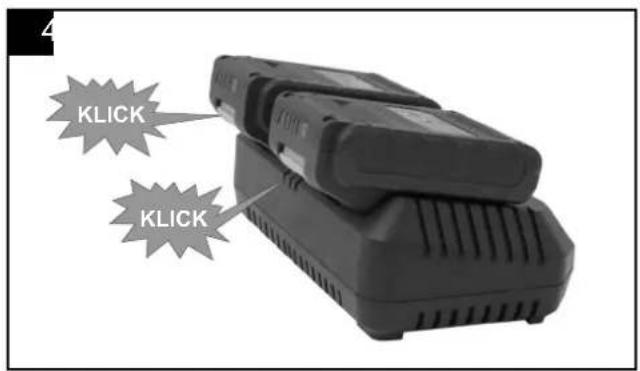

Klick Klick

Close-up of a black and white electric shaver with directional arrows indicating motion (no text or symbols)

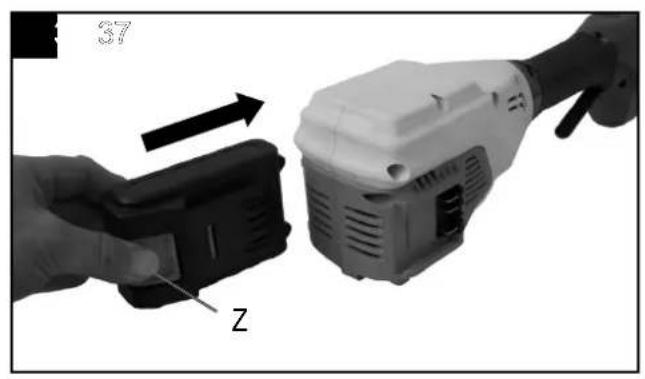

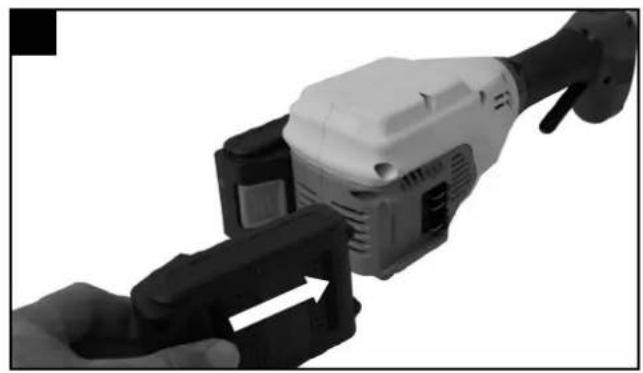

Hand holding a device next to a battery pack, with an arrow indicating the process (no text or symbols visible)

Klick Klick

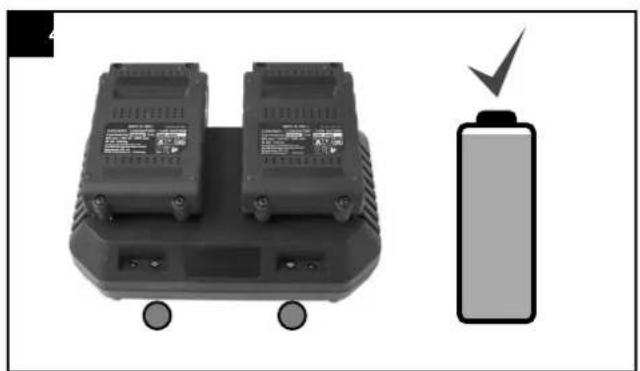

Two black battery units with circular buttons and a battery icon showing upward arrow (no text or symbols on main components)

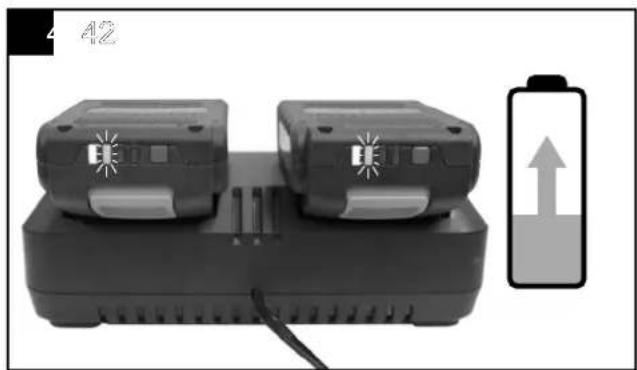

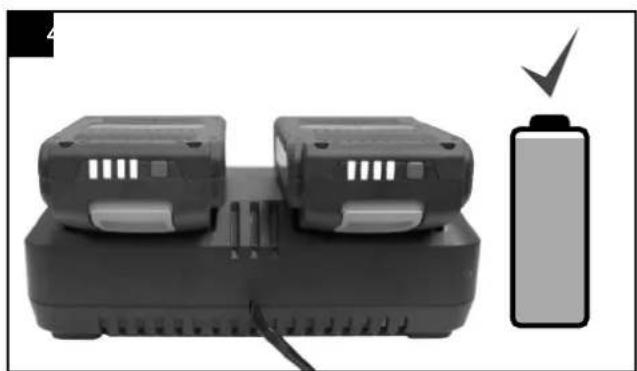

Two electronic devices with LED indicators placed on a base, next to a battery icon showing upward arrow (no text or symbols on devices)

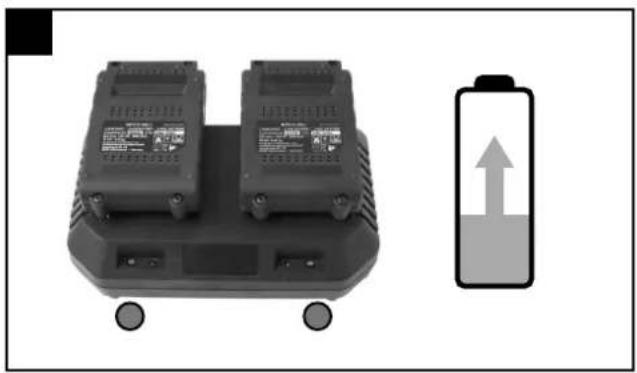

Two battery charging units with a battery icon and a downward arrow indicating charging direction (no text or symbols on the devices themselves)

Black-and-white photo of a battery pack with two charging units and a battery on top, showing a downward arrow indicating battery drop (no text or symbols)

Günzburger Straße 69

89335 Ichenhausen / Germany

VEREHRTER KUNDE,

Technical diagram of a mechanical device with labeled parts and cross-sectional view

Explanation of the symbols on the equipment

Symbols are used in this manual to draw your △ attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	△ Caution - Read the operating instructions to reduce the risk of inquiry!
	Observe all safety instructions before use
	Always remove the rechargeable battery pack from the electrical tool before performing maintenance and service work!
	Wear protective helmet, ear and eye protection.
	Wear robust footwear when using the device!Wear protective gloves when using the device!
	DProtect the tool from getting wet.Risk of electrical shock.
	△ Warning! Keep all children, bystanders and helpers 15 meters away from the brush cutter!
	△ Warning! Beware of thrown objects hit by cutting attachments. Never use without properly mount-ed blade guard.
	△ Caution kickback!
	△ Caution, no saw blades or multi-part metal cutting tools!
	△ Warning! Risk of injury!Do not let your hands or feet come in contact with the blades when the motor is running.
	Electric shock can cause fatal injury. Keep a distance of at least 10 m from power cables.
	Guaranteed sound power for pole saw and hedge trimmer
	Guaranteed sound power for grass trimmer and brus hcutter
	Grass trimmerCutting diameter ∅ 380 mm / Speed max. 5500 min ^-1
	Brush cutterCutting diameter ∅ 255 mm / Speed max. 5500 min ^-1
	Pole sawCutting lenght max. 203 mm / Cutting speed: max. 9 m/s
	Hedge trimmerCutting lenght max. 395 mm / Speed: max.1200 min ^-1
	The product complies with the applicable European directives and an evaluation method of conformity for this directives was done.
	Protect the battery from water and moisture.
	Protect the battery from heat and fire.
	Protect the battery from temperatures above 45 °C.
	Protection class II (double insulated)
	Use only in closed rooms!
	Do not dispose of batteries with your domestic waste.
	Chainsaw oil
	Prescribed running direction of the saw chain
	Direction of rotation of grass trimmer and brush cutter

Table of contents: Page:

1. Introduction......31
2. Layout (Fig. 1)....31
3. Scope of delivery.... 31
4. Intended use....32
5. Important information 32
6. Technical data 36
7. Before starting the equipment 37
8. Attachment and operation 37
9. Working instructions.... 39
10. Maintenance....41
11. Storage....43
12. Troubleshooting 44
13. Disposal and recycling 44

1. Introduction

MANUFACTURER:

scheppach

Günzburger Straße 69

89335 Ichenhausen / Germany

DEAR CUSTOMER,

We hope your new tool brings you much enjoyment and success.

NOTE:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
• Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

WE RECOMMEND:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

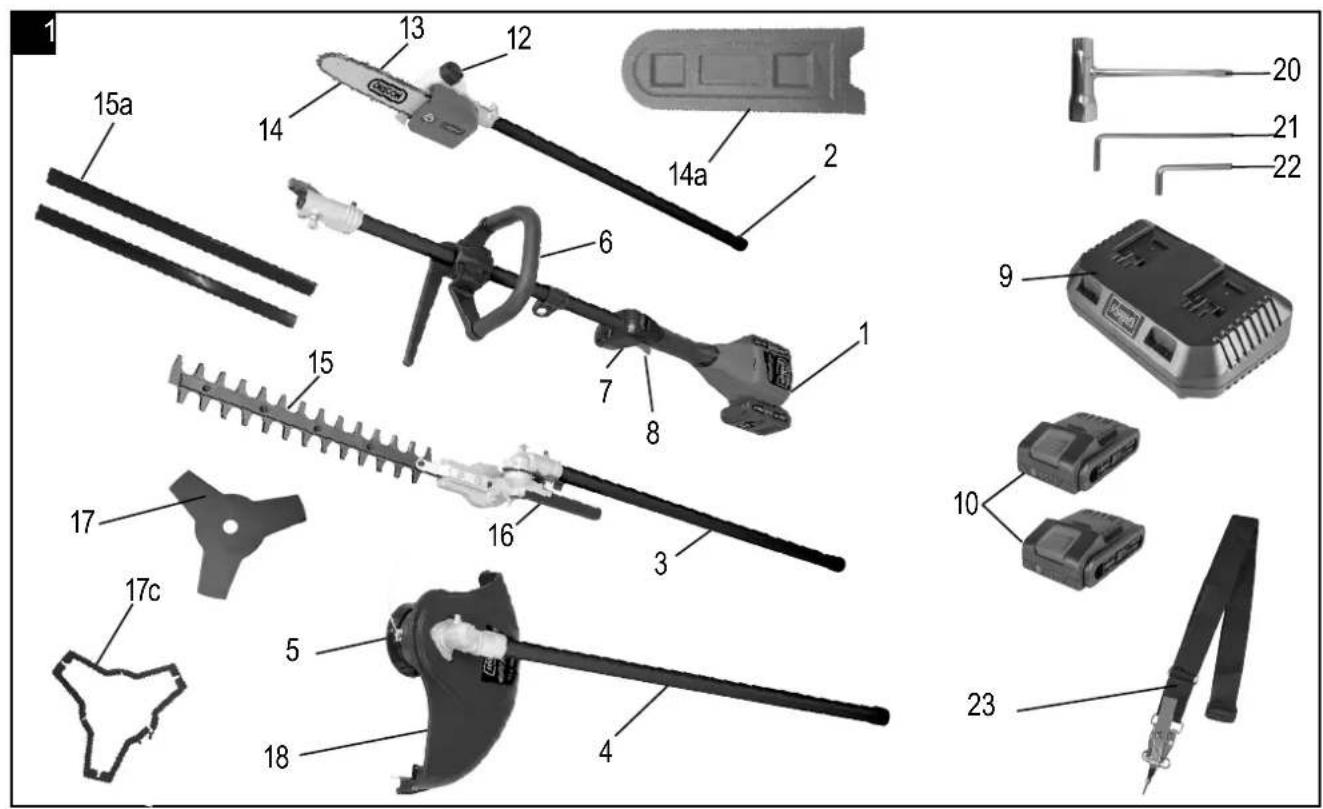

2. Layout (Fig. 1)

1. Motor drive unit
2. Pole saw
3. Hedge trimmer
4. Power scythe
5. Grastrimmer
6. Front handle
7. Safety switch
8. Start switch
9. Charger
10. Battery pack 2x
    11.-
11. Automatic oil pump
12. Saw chain
13. Chain saw blade
14. Cutting unit
15. Adjustment lever
16. Cutting blade

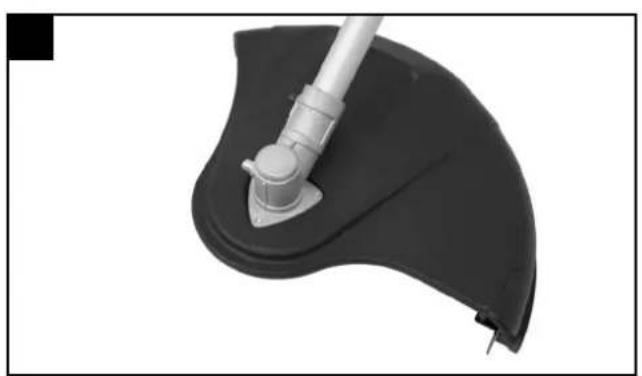

17. Protection shield (power scythe + grassrimme
    19.-
18. Hexagon wrench, size 19/13
19. Allen key (size 4)
20. Allen key (size 5)
21. Belt

3. Scope of delivery

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are present.
• Inspect the equipment and accessories for transport damage. In case of complaints the supplier is to be informed immediately. Complaints received at a later date will not be acknowledged.
• If possible, keep the packaging until the end of the guarantee period.
• Read the operating instructions to make yourself familiar with the device prior to using it. After that, please dispose of it in an environmentally friendly way.
• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.
• Specify our part numbers as well as the type and year of construction of the device in your orders.

⚠️ Important!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

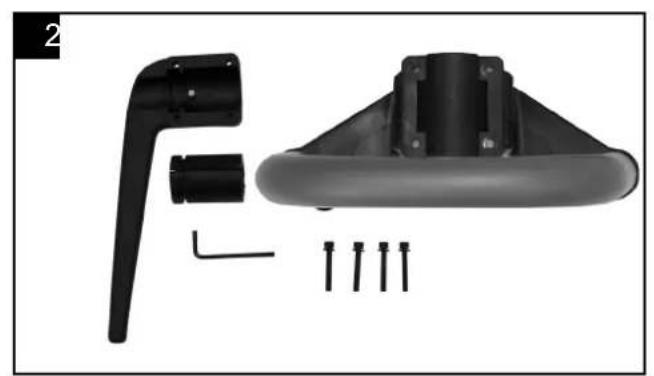

Fig. 1 + 2

• Motor drive unit
• Pole saw
• Hedge trimmer
• Power scythe
• Grastrimmer
  • Hexagon wrench, size 19/13 (20)
• Allen key (size 4) (21)
• Allen key (size 5) (22)
• Belt (23)
• Front handle
• 4 screws M5 x 35
• Cover
• 4 nuts M5

4. Intended use

The brush cutter (using the cutting blade) is designed for cutting young trees, strong weeds and undergrowth.

The power trimmer (using the line spool with cutting line) is designed for cutting lawns, grassed areas and small weeds.

The hedge trimmer is suitable for cutting hedges, bushes and shrubs.

The pole-mounted powered pruner is designed for lopping off tree branches. It is not suitable for extensive sawing work, felling trees or sawing any materials other than wood.

The operating instructions as supplied by the manufacturer must be obeyed to ensure that the equipment is used properly. Any use which is not expressly permitted in the manual may result in damage to the equipment and place the user in serious danger. Be sure to observe the restrictions in the safety instructions.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

Important. Due to the high risk of bodily injury to the user, the power scythe must not be used to carry out the following work: to clean dirt and debris off walkways, or to chop up tree or hedge clippings.

The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Non-permitted users:

People who are not familiar with the operating manual, children under the age of 16 and people under the influence of alcohol, drugs and medication, as well as those who are tired or ill.

5. Important information

⚠ WARNING! Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distraction can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Safety notices for Li-Ion batteries

• Do not open the battery. Risk of short-circuiting!
• Protect the battery from heat, e.g. from constant sun exposure, and from fire, water and humidity. Risk of explosion.
• Protect the battery from heat, e.g. from constant sun exposure, and from fire, water and humidity. Risk of explosion.
• When the battery has been damaged or it is being used inappropriately, fumes can be released. Let fresh air in and consult a doctor if the fumes cause you any problems. The fumes can irritate the respiratory tract.
• Only use original batteries with the voltage specified on the rating plate of your power tool. If other batteries are used, e.g. imitations, reconditioned batteries or products from third party manufacturers, there is a risk of personal injury as well as property damage based on exploding batteries.
• The battery voltage must correspond with the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.
• The battery voltage must correspond with the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.

• Charge the batteries only in chargers that have been recommended by the manufacturer. There is a risk of fire if a charger for a particular type of battery is used for another type of battery.

• The battery can be damaged by sharp objects such as a nail or screwdriver or by external application of force. The battery may short-circuit and start burning, smoking, exploding or overheating.

• Observe the operating manual and the safety instructions enclosed with the rechargeable battery or charging unit.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

⚠️ Risk of fire! Risk of explosion!

Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground.

Never charge the battery in an environment with acids and easily flammable materials.

Protect the battery against heat and fire.

Battery to be used at the ambient temperatures between 10^ C and +40^ C only.

Never put the battery on heaters and do not expose it to strong sunlight for a long time. After being subject to heavy load, let the battery cool down first.

Short circuit - do not bridge the accumulator contacts with metal parts.

The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.

Danger!

Remove the battery pack before doing any cleaning and maintenance work.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety regulations during transport of equipment

• During transport, always turn off the motor.
• Never carry or transport the power tool with running cutting tools
• Only ever carry the power tool in work posture:
• Power tool on your back, left hand on the front handle and right hand on the operating lever (also applies to left-handed people), with the cutting tools lowered towards the ground.

Safety notices for the line trimmer

- National specifications may restrict the use of the device.

• Warning! Remove stones, pieces of wood and other objects from the working area.
• Ensure that bystanders are not injured by ejected debris.
• Keep bystanders at a distance.
• Find safe footing, operate the device with both hands and turn it on.
• Guide the device gently through the area of the lawn and try not to cut too much in one sweep.
• If possible, do not use on wet grass.
• Do not use the device in the rain or leave it in the rain.
• Do not use the battery-powered trimmer if the cover is damaged.
• Before turning on the device, do not put hands or feet in the area of the rotating parts.
  • Always have the battery-powered trimmer switched off during transport to and from the working area.
• Do not use the battery-powered trimmer when children or pets are in close proximity.
• Do not use the battery-powered trimmer barefoot or wearing sandals. Wear sturdy shoes and long trousers.
• Always keep the ventilation slots free from grass or other debris.
• The user is responsible for accidents or injuries to other people.
• After finishing the work, turn off the device and remove the battery.
• Do not use the charger if it is damaged.
• Use the device only with batteries and chargers intended for it. Using other components can lead to fire.
• Do not use metal wire or any type of plastic-coated metal wire in the thread coil. This could seriously injure the user. The blade on the guard plate shortens the thread to the permissible length.
• Only use the lawn trimmer in daylight or with good artificial lighting.
• Before starting up the lawn trimmer and after any impacts or collisions, check it for signs of wear or damage and have it repaired as necessary.
• Never use spare or accessory parts that are not intended or recommended by the manufacturer.
• Take care to avoid injury on any equipment that serves to trim the thread length. After drawing out a new thread, always hold the machine in its normal working position before switching it on.
• Never use the lawn trimmer if protective equipment is damaged or missing.

Safety regulations for pole saws

• National specifications may restrict the use of the device.

• Do not use the tool when you are tired or distracted, or your ability to react is impaired when you are under the influence of alcohol or medication. Inattentiveness may cause serious injuries.

• Make sure that no persons or animals are close to the working area (minimum distance of 15 m).

• Grass being cut and thrown up may contain foreign objects such as stones. You are responsible for the safety in your working area, and you are liable for damages to persons or property.
  • Always wear safety glasses and hearing protection.
• Use high-quality safety gloves.
• Use high-quality skid-proof protective shoes with safety steel caps. Never operate the tool wearing sandals, or when barefoot.
• Always wear an approved safety helmet for working in a forest.
• Do not wear wide clothing or jewelry. Wear long trousers to protect your legs. Wear safety helmet for long hair. Loose clothing, jewelry, and long hair can get caught in the moving parts. Wear suitable and durable tight working clothes.
• Keep body parts and clothing away from the cutting tool when you start the engine, or keep it running.
  • Always adopt a stable and safe working posture with secure footing.
• Regularly change your working position to prevent getting tired.
• Das Gerät darf nur im Freien in Betrieb genommen werden.
  • Always stand away from the falling direction. Position yourself on a slope above the tree to be felled.
• Only work during daylight, or when the area is illuminated well using lighting.
• Subject the tool to a visual inspection before each use.
  • Always use both hands to hold the tool.
• Do not use the machine within 10 metres of a position from which it can reach high-voltage cables.
• Check the tool, and its components and guards for damages, or wear and tear before each use, and have it repaired, if necessary. Never make the devices for protection and safety inoperable. Do not use the tool, when damages or signs of wear become apparent.
• When the cutting tool is damaged, it must be replaced at once.
• If the blades become jammed, e.g. due to thick branches or the like, switch off and unplug the hedge trimmer immediately. Only then are you to remove the cause of the obstruction.
• Before starting work, it is recommended to check the objects to be cut for possible foreign objects and to remove them. When despite of this you encounter a foreign object during cutting, switch off the tool and remove this object.
• While using metal cutting tools, there is generally a risk of recoil, when the tool hits a solid obstacle (stones, trees, branches, etc.). Thereby, the tool is hurled backwards against the rotating direction.

Safety regulations for hedge trimmers

- National specifications may restrict the use of the device.

• Do not use the machine within 10 metres of a position from which it can reach high-voltage cables.
• Make sure you keep all parts of your body away from the blades. Never attempt to remove the cuttings with the blades running or to hold material you wish to cut. Always switch off the equipment before attempting to remove any jammed cuttings. A single moment of carelessness when using the hedge trimmer can result in serious injuries.
• Carry the hedge trimmer by its handle and make sure the blades have stopped. Always fit the protective cover when transporting the hedge trimmer or putting it into storage. Careful handling of the equipment reduces the likelihood of injury by the blades.
• Hold the electric tool by the insulated handles, because the blade may come into contact with the tool's own mains lead. Contact between the blade and a live cable can also make the metal parts of the equipment live and will cause an electric shock.
• Keep the cable out of the cutting zone. During operation the cable may be covered by hedges and cut through by accident.
• Please read this safety information and the directions for use carefully and be sure to follow the instructions to the letter.
• The hedge trimmer can cause serious injuries! Read the directions for use carefully in order to acquaint yourself with the correct way to handle, set up, service, start and put down the machine. Familiarize yourself with all the machine's control elements and its proper use.
  • Always handle the hedge trimmer with both hands.
• When working with the hedge trimmer, wear sturdy shoes and make sure of your footing.
• Never work with the hedge trimmer in the rain or on wet hedges and never leave the hedge trimmer outdoors. The hedge trimmer must not be used if it is wet.
• We recommend that you wear safety goggles and ear-muffs when working with the hedge trimmer.
• Wear suitable working clothes such as rubber gloves and non-slip shoes. Do not wear loose garments. Keep long hair in a hairnet.
• Avoid abnormal postures and make sure of your footing, particularly when working on ladders and steps.
• Be sure to hold the hedge trimmer well away from your body when it is switched on.
• Make sure there are no other persons or animals within your working area (radius of swing).
• Carry the hedge trimmer only by its guide handle.
• Keep cables clear of where you are cutting.
• Before you use the hedge trimmer, examine the power cable for signs of damage and aging.

• Use the hedge trimmer only when the power cable is in good working order.

• Do not remove the power plug from the socket outlet by pulling on the cable. Never carry the tool by its cable. Take care not to damage the cable in any way.

• Protect cables from heat, caustic fluids and sharp edges. Replace damaged cables immediately.
• If the blades become jammed, e.g. due to thick branches or the like, switch off and unplug the hedge trimmer immediately. Only then are you to remove the cause of the obstruction.
• Keep the hedge trimmer in a dry place out of children's reach.
• During transportation and storage of the hedge trimmer, keep the blades covered at all times with the special guard.
• Take care not to overload the hedge trimmer and do not use it on jobs for which it is not intended, i.e. you are allowed to use the hedge trimmer only to cut hedges, shrubs and perennials.
• The hedge trimmer requires regular inspection and maintenance. Always replace damaged blades in pairs. If the hedge trimmer suffers any damage from impact (falling on hard ground etc.), have it checked immediately by a specialist.
• Look after your hedge trimmer carefully. Keep it clean and sharp to ensure efficient and safe cutting. Follow the maintenance and cleaning instructions.
• The German Farmers Union, for example, prohibits the use of electric hedge trimmers by persons aged 17 or less. Persons aged 16 and above may only use electric hedge trimmers if supervised by an adult.
• Do not use the hedge trimmer with a damaged or excessively worn cutting system.
• Check your surroundings and take note of any potential dangers which you may not be able hear due to the machine's noise.
• Never try to work with an incomplete machine or a machine with unapproved modifications.
• It is advisable not to use the hedge trimmer when other persons, and particularly children, are nearby.
  • Children are not allowed to use the hedge trimmer.
• The machine may exceed 85 db (A) at the workplace. The operator will require noise protection measures and ear muffs if this is the case.
• Always ensure that all the handles and safety equipment is fitted when the hedge trimmer is in use.
• Examine the hedge for any concealed objects, e.g. wire, before you start your work.
• This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

6. Technical data

MFB4-40Li SE
Technical data
Cutting data grass trimmer
Cutting circle diameter of line mm	380
Cutting line diameter mm	2 x 2.0
Cutting line length m	4
Maximum speed grass trimmer min ^-1	5500
Cutting data brush cutter
Cutting circle diameter of blade mm	255
Cutter balde thickness mm	1.4
Teeth quantity	3
Maximum speed brush cutter min ^-1	5500
Cutting data hedge trimmer
Cutting circle diameter mm	24
Angle adjustment °	+90°/0°/-75° (165°)
Cutting length mm	395
Max. cutting speed max. min ^-1	1200
Cutting data pole saw
Guide bar legnth mm	240
Cutting length mm	203
Guide bar typ	Oregon 080SDEA318
chain pitch	3/8"
Saw chain type	91P033X
Chain link thickness "	1.27
Oil tank capacity cm ^3	180
Power unit
Motor V DC	36V (max. 40V)
Battery V DC	18V (max.20V)
Battery
Battery Typ	Lithium-Ionen
capacity	2,0 Ah / 36Wh
Charger
Input voltage V / Hz	220-240V AC 50/60 Hz
Charging voltage v DC	20V DC
Charging current A	2,0 A
Charging time (depending on charge state)	60 min
Operating temperature	0-40 °C
Protection class	II

Subject to technical changes!

Information concerning noise emission measured according to relevant standards:

Sound pressure Grass trimmer L_pA = 84 dB(A)

Sound power Grass trimmer L_WA=96 dB(A)

Uncertainty K_PA = 1.2 dB(A)

Sound pressure Brush cutter L_pA = 81.2 dB(A)

Sound power Brush cutter L_WA=96 dB(A)

Uncertainty K_PA = 3 dB(A)

Sound pressure Hedge trimmer L_pA = 88.2 dB(A)

Sound power Hedge trimmer L_WA = 104 dB(A)

Uncertainty K_PA = 3 dB(A)

Sound pressure Pole saw L_pA = 86,8 dB(A)

Sound power Pole saw L_WA = 104 dB(A)

Uncertainty K_PA = 3 dB(A)

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Grass trimmer vibration A_bv = 3,6 / 4,0 m/s^2

Brush cutter vibration A_bv = 3,7 / 3,5 m/s^2

Hedge trimmer vibration A_bv = 4,3 / 4,0 ~m / s^2

Pole saw vibration A_bv = 4,0 / 3,7 m/s^2

Uncertainty K_PA = 1,5 m/s^2

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.

In these operating instructions we have marked the places that have to do with your safety with this sign: △

7. Before starting the equipment

⚠ Caution! Do not fit the battery until the equipment has been fully assembled and all the settings have been actuated. Always wear protective gloves when working on the equipment to protect yourself against injury.

Each time before use, check the following:

• That the equipment is in perfect condition and that the safety devices and cutting devices are complete.
• That all screws are securely fastened.
• That all moving parts move smoothly.

8. Attachment and operation

ASSEMBLY

When assembling this machine, please follow the instructions for assembly printed.

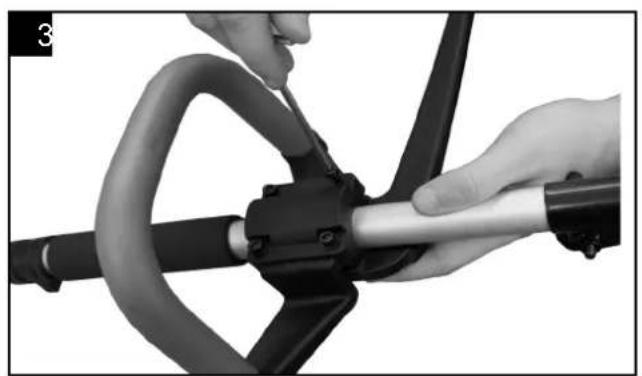

1 Assemble the handle on the machine. Fig. 2-3
- Install the front handle as shown on the image 2.
- Make sure that you align the pin with the hole. Tighten the screws only loosely before you have the most comfortable working position set to the risers.

The front handle should be aligned as in pictures 2+3 shown, then tighten the screws.

1. Mounting the shaft. Fig. 4

2. Open the handle (a)

3. Push the shaft into the holder. Make sure that the metal ball (b) is alignment with the hole (c) and furthermore locks.

4. After this process please fix the shaft by turning the handle (a).

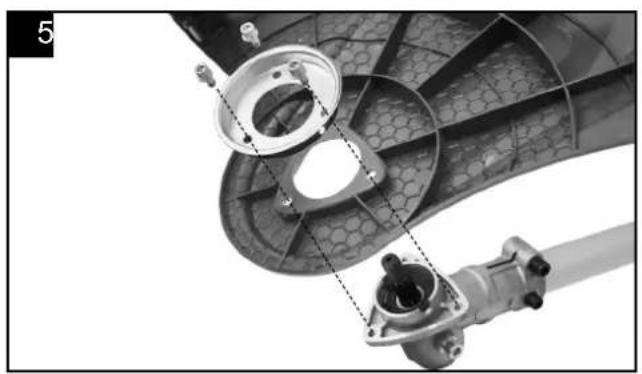

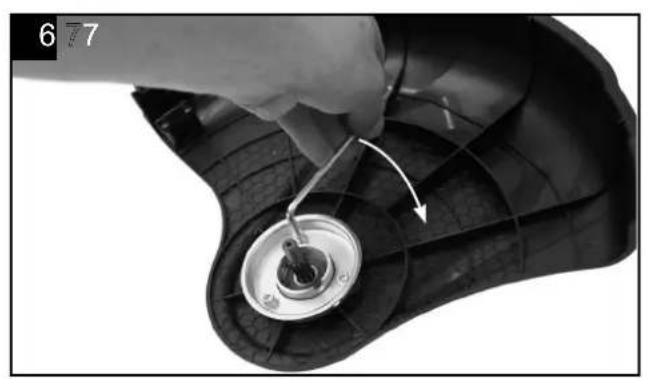

5. Assemble the safe guard. Fig. 5-7

- Fix the safe guard with hex key and wrench enclosed as standard accessories for tightening the nuts enough. Please see the below pictures showing.

⚠ Warning! Never use the machine without the guard assembled!

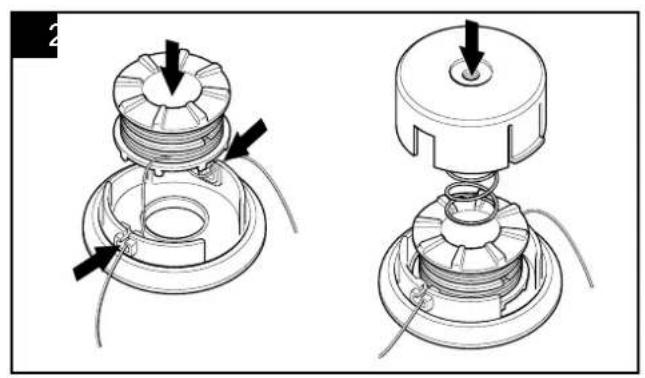

1. Assemble and disassemble the cutting head grass trimmer / nylon cutting head. Fig. 8-9

2. Release the nut. Line up the two holes of flange and shield, use one screw driver to hold the flange as below and turn the socket wrench clockwise, the nut will be released.
   • Fit the Nylon cutting head.

Remove another shield after release the nut. Still hold the flange, take the Nylon cutting head on the shaft and rotate counter-clockwise, the Nylon cutting head is fitted. Fig. 19
- Release the Nylon cutting head.

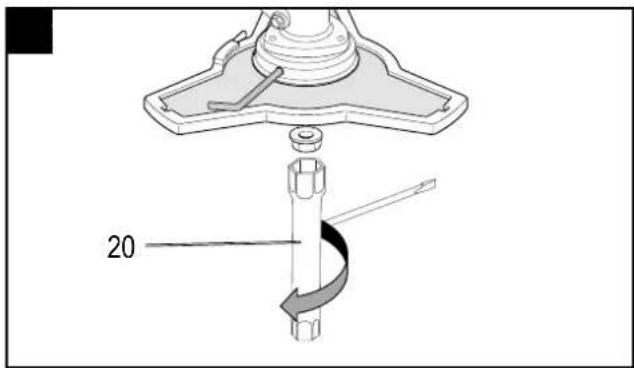

Use screw driver to hold flange and then rotate the Nylon cutting head clockwise, it will be replaced.

Brush cutter / Cutter blade

• Fit the blade. Fig. 10-12
Take the outer flange off after release the nut, then put the blade (17), outer flange (17b), shield (17a) and nut according to priority as below picture. Note the blade rotation direction needs be same as below picture. Use screw driver to hold flange and tighten nut counter-clockwise, ensure the nut is tightened enough.
- Release blade. Use screw driver to hold flange and release nut, the blade can be took off.

⚠ Warning!

Please make sure the cutting head has been assembled correctly before use!

OPERATION

When working with the equipment as grass trimmer and brush cutter, the appropriate plastic guard hood for cutting blade mode or cutting line mode must be fitted to prevent objects being thrown out by the equipment.

The integrated blade (A) in the cutting line guard hood automatically cuts the line to the optimum length. Fig. 17

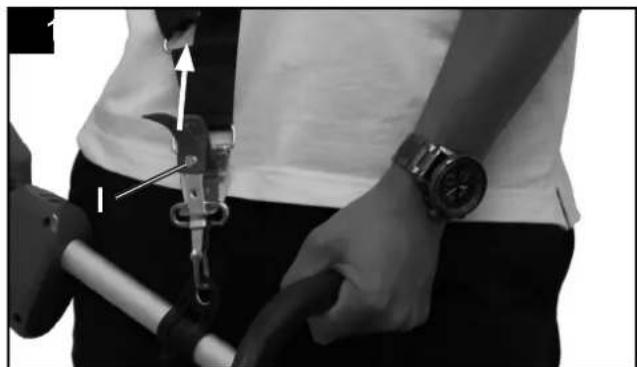

5. Fit the belt. Fig. 13-16

• The Combined grass trimmer, pole saw, brush cutter must be used with the strap.
  • Balance the machine when the tool is switched off.
• Wear the shoulder strap.
• Adjust the strap length so that the snap hook (k) is about a hand's breadth below the right hip. Hang the multi-function tool on the karabiner
• Hang the brush cutter on a hook.
• Hang the machine.
• When standing in a normal working posture, the blade should touch the ground during normal working position.

• Thereby, it is important that the petrol brush cutter is always well balanced.

• For operation, hook the brush cutter into the snap hook (k) of the carrying strap while the engine is running.
  △ ATTENTION! In an emergency, the safety latch (1) can be pulled from the harness. The machine then detaches immediately from the carrying strap (9) and falls to the ground.

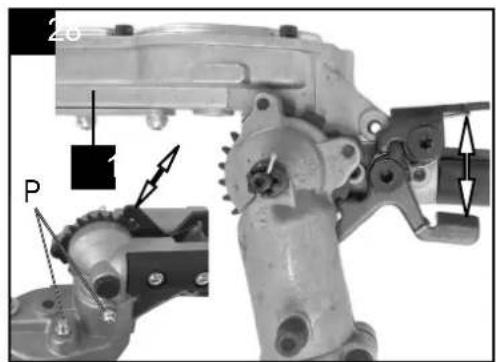

6. Mounting the hedge trimmer Fig. 27-29

• Remove the screw (d), align the holes (c) so that they are flush and screw the screw (d) back in.
• Place the hedge trimmer (15) precisely as shown in Figure 27 on the connecting rod (3).
• Tighten with screw (a).
• Adjust the slope by unlocking the lock (Fig. 29)
• The hedge trimmer can be tilted from 0^ to 90^ (Fig.29).

7. Fitting the cutter bar and the chaine (Fig. 30-32)

• Remove the chain wheel cover (Fig. 32/ Item J) by undoing the fastening nut (Item I). Lay the chain (Item F) as shown into the groove which runs around the cutter bar (Item E).
• Note the alignment of the chain teeth (Fig. 31). Insert the cutter bar as shown in Fig. 31 into the mount at the gear unit.
• Place the chain round the chain wheel (Item H). Make sure that the teeth of the chain engage securely in the chain wheel.
  The cutter bar must be hooked into the chain tensioning bolt (Item G).
  • Fit the chain wheel cover
  ⚠ Important! Do not fully tighten the fastening screw until after you have adjusted the chain tension (see section 7.1).

7.1 Tensioning the chain (Fig. 33-35)

• Undo the fastening screw (Item I) of the chain wheel cover by a few turns (Fig. 32).
• Adjust the chain tension with the chain tensioning screw (Fig. 34/ Item K). Turning the screw clockwise increases the chain tension, turning it counterclockwise decreases the chain tension.
• The chain is correctly tensioned if it can be raised by around 2 mm in the middle of the cutter bar (Fig. 33).
• Tighten the fixing screw of the chain wheel cover (Fig. 35).
  ⚠️ Important! All the chain links must lie properly in the guide groove of the cutter bar.

Notes on tensioning the chain:

The chain must be properly tensioned to ensure safe operation. When the saw chain can be raised by around 2 mm in the middle of the cutter bar, you know that the chain tension is ideal.

During cutting, the temperature of the chain rises and its length changes.

It is important therefore to check the chain tension at least every 10 minutes and to adjust it again as required. This applies in particular to new saw chains. When you have finished working, slacken the chain again as it will shorten when it cools down. This will help to prevent damage to the chain.

8. Start on the unit

Do not start the unit until it has been completely assembled.

⚠ Danger of injury!

Remove the appropriate transportation protection and inspect the unit in good working condition. Never use a damaged, poorly adjusted or serviced or not completely and securely assembled device.

Check before use!

• Check the safe condition of the device:
• Check the device for visual defects.
• Check that all parts of the device have been securely fitted.
• Check that all safety devices are in proper condition.

Note: Do not start the motor in tall grass.

⚠ Attention: When the engine has been switched off, the cutting unit continues running for several seconds therefore do not touch the cutting unit until it has come to a standstill!

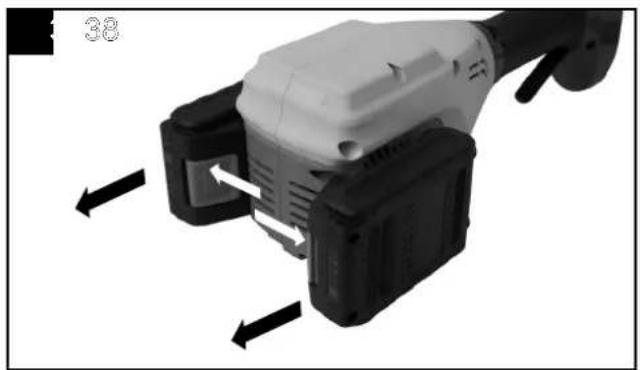

9. Fitting the battery (Fig. 36-38)

Press the side pushlock button (26) of the battery pack and push the battery pack into the mount provided. When the battery pack is positioned as in Fig. 37, make sure that the pushlock button latches in place! To remove the battery pack, proceed in reverse order. Fig. 39

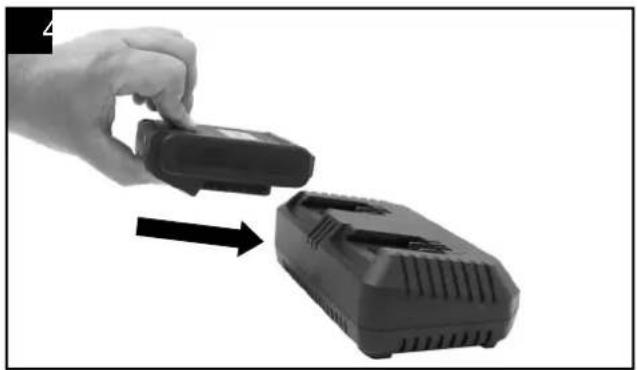

10. Charging the battery (Fig. 40-45)

By pressing the red button on the battery, status can be read based on the green lights.

1. Take the battery pack out of the equipment.

2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger into the mains socket outlet. Insert the battery into the charger. Green flashing of light on the charger indicates that the battery is in charging mode.

3. Depending on the battery charge status lights either

1, 2 or 3 green lights on the battery.

1 green light: battery 1/3 charged

2 green light: Battery 2/3 charged

3 green LED: Battery is fully charged

The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
• whether there is good contact at the charging contacts.

If the battery pack still fails to charge, send

• the charging unit
  • and the battery pack

to our customer service center.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops. Never fully discharge the battery pack. This will cause it to develop a defect.

9. Working instructions

Working with brush cutter / grass trimmer

• When you work with the brush cutter for the first time, familiarize yourself with the operation and control of the cutting blade without running engine.
• The design of the brush cutter allows for operation only at the right side of the user's body.
• Keep the brush cutter firmly with both hands on the handles.
• Always make sure that the cutting tool continues to rotate briefly after the throttle has been released.
  • Always so that the cutting tool no longer turns in a proper engine idle not press down the throttle.
• Always work with high speed so you have the best cutting results.

⚠ Caution: Always be extra careful when working in difficult terrain and slopes. Cut tall grass gradually so as not to overload the unit.

• Always wear safety glasses and hearing protection and a safety helmet.

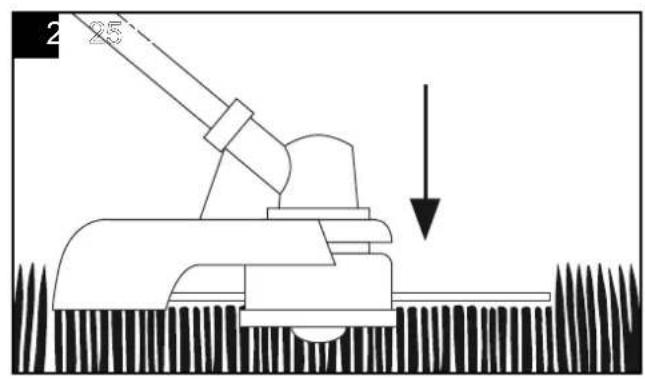

Mowing with grass trimmer

• Use the plastic line cassette for a clean cut also at uneven edges, fencing posts, and trees.
• Carefully advance the trimming line to an obstacle, and use the tip of the line to cut around the obstacle. When the trimming line comes into contact with stones, trees, and walls, the line wears out or breaks off ahead of time.
• Swing the cutting blade like a normal scythe horizontally from right to left and back again. You define the cutting height depending on how high you are holding the tool.
• Never replace the nylon line with a metal wire. RISK OF INJURIES

Automatic thread trimming (Fig. 24)

The cutting blade is delivered with a filled line cassette. This line will wear out during work. To feed new line, forcefully press the head of the line cassette onto the ground while the engine is running at working speed. The line is automatically fed due to centrifugal force.

The knife at the line guard will shorten the trimming line to the correct length. Run the trim line approach cautiously to an obstacle and cut with the tip of the line around the obstacle.

Mowing with brush cutter and hedge trimmer

Use the cutting blade to comb through brushwood, rank growth, young tree populations (trunk diameter of maximum 2 cm), and high grass.

• The maximal diameter to cut depends on the wood's type, age, moisture and hardness.
• Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.
• While using metal cutting tools, there is generally a risk of recoil, when the tool hits a solid obstacle (stones, trees, branches, etc.). Thereby, the tool is hurled backwards against the rotating direction.
• Cut the hedge in trapezium shape.
• Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.
• Trim in several passes if you have to cut down a large portion of the hedge.
• To cut rank growth and brushwood, you "immerse" the cutting blade from the top.

Best time for hedge trimming:

• Leaved hedge: June and October
• Conifer hedge: April and August
- Quickly growing hedge: from May and then every 6 weeks Pay attention to breeding birds in the hedge. If so, put off hedge trimming or leave this area out.

Angle adjustment

By swivelling the cutter head, the hedge trimmer can be adjusted to the working conditions from +90° to -75°. Fig. 29.

• Warning! Adjust the angle only when the motor has been turned off.
• Push both levers down and put the cutter head in the required position. Fig. 29
• Release both levers until they click into place in the notch.
• Before use, check that the adjustment levers have clicked into place properly. Fig. 29

Oil the blades and the angle adjustment each time before starting work, with environmentally friendly lubricant.

Regularly oil the blades during working hours as well. Warning! Oil the tool only when the motor has been turned off.

⚠️ CAUTION: Be especially careful, when using this working technique, because the further away the cutting tool is from the ground, the higher is the risk that objects to be cut and particles will be hurled sideways.

⚠ CAUTION: Incorrect use and misuse can damage the bush cutter and cause severe injuries because of pieces hurled away.

To minimize the risk of accidents by use of the cutting blade, take note of following points:

• Never cut shrubbery or wood whose diameter is larger than 2 cm.
• Avoid contact with metal bodies, stones, etc.
• Periodically check the cutting blade for damages. Never continue to use a damaged cutting blade.
• When the cutting blade becomes apparently blunt, it must be sharpened according to instructions. When the cutting blade is apparently out of balance, it must be replaced.

Working with pole saw

Oiling of the chain and bar

It is recommended to use commercial chain oil.

Remove the oil tank cap. (Fig.34 / L)

Fill the chain oil tank (Fig.34 / M) to 80% with chain oil.

Close Oil tank cap (Fig.34 / L)

Oil Supply Control

Always make sure that the automatic oil system is working properly. Always ensure the oil tank is full.

During sawing work, the guide and the chain must always be sufficiently oiled to reduce friction with the chain bar.

The chain bar and the chain must never be without oil. If you operate the chain dry or with too little oil, the cutting performance will decrease, the service life of the chain bar will reduce, the chain will become blunt quickly and the guide will wear rapidly owing to overheating. You can detect a lack of oil from smoke development or the guide changing colour.

To check the chain lubrication keep the chain on a piece of paper and give full throttle for a few seconds. On the paper the quantity of oil can be checked. The saw chain must always throw off a little oil. After a few seconds, a slight oil trace must be visible.

Make sure that there is always enough oil in the tank because chain lubrication is always on.

Precautions for Saw procedure

Never stand under the branch you want to saw. Use special caution when working with branches under tension and splintering wood. Possible risk of injury caused by falling branches and catapulting pieces of wood. In general, it is recommended to set the pruning saw at an angle of 60^ to the road.

Keep both hands well with the device during the cutting process and pay you up to an equilibrium position and a good level.

• Never try to use your tool with one hand. The loss of control of your tool can cause serious injury or death. Never work on a ladder, a tree branch or other unstable surfaces.
• Never cut with the upper edge or the tip of the cutter bar.
• Make sure that the chain tension is always correctly adjusted.
• Practice for guiding the device slight pressure, but you do not overload the motor.

Clear the work area before cutting interfering branches and undergrowth. Then you create a retreat area, far from the spot where the cut branches fall on, and remove any obstacles there. Keep the work area clean, remove the cut branches immediately. Pay attention to your point, wind direction and the possible direction of fall of the branches. Be prepared that fallen branches can strike back.

Place all other tools and equipment at a safe distance from the branches to be cut, but not in the retreat area.

Always observe the condition of the tree.

Look for rot and decay in the roots and branches. If they are rotten inside, they can break off and fall down unexpectedly during cutting.

You could also attend by fractured and dead branches out, which is solved by the shake and fall on you. For very thick or heavy branches you first make a small incision below the branch before you work from the top down to avoid chipping.

Basic cutting technique

Heavy branches break off easily when sawing. They tear long strips of bark away from the trunk, which damages the tree sustainably. The following section technique can significantly reduce this risk:

• Saw the first branch about 10 cm from the trunk.
• Put in about 15 cm from the base of the top of a further section.
• Saw until the branch breaks. The risk of injury on the trunk is no.
• Finally, remove with a clean cut from the top of the trunk along the remaining.
• Thus, the damage to the tree are kept as low as possible, we recommend the interface additionally to seal with grafting wax.

Hazards by reactive forces

Reactive forces occur during operation of the saw chain. The forces which are applied to the wood are against the operator. They occur when the moving chain comes into contact with a fixed object such as a branch or is pinched. These forces can lead to a loss of control and injury.

Understanding the origin of these forces can help you to avoid the scare and the loss of control. This saw is designed to make the return effects are not as noticeable as with traditional chainsaws.

Always still keep a firm grip and a good level to maintain control of the tool in doubt.

The most common effects are:

• setback
• recoil,
• retreat

Kickback

The setback can occur when the moving saw chain meets at the upper quarter of the guide rail on a solid object or is pinched.

The cutting force exerted on the chain from the saw, a rotational force in the opposite direction to the chain travel. This leads to an upward movement of the guide rail.

Avoid kickback

The best protection is to avoid situations that lead to setbacks.

1. Keep the position of the upper guide rail always in mind.
2. Leave this place never come into contact with an object. Cut anything with it. Be especially careful near wire fences and cutting small, hard knots, in which the chain can easily pinch.
3. Cut only one branch at a time.

Withdrawal

The withdrawal occurs when the chain on the underside of the bar suddenly stuck because it is jammed or encounters a foreign object in the wood. The chain then pulls the saw forward. The withdrawal often happens when the chain is not running at full speed when in contact with the wood.

Avoid withdrawal

Be aware of the forces and situations that can lead to jamming of the chain on the underside of the bar.

Always start with running at full speed chain to cut.

Recoil

The recoil occurs when the chain on top of rail suddenly stuck because it is jammed or encounters a foreign object in the wood. The chain can jerkily hold the saw against the operator. Rebounds happen often if the top rail is used for cutting.

Avoid recoil

Be aware of the forces and situations that can lead to jamming of the chain on top of rail.

Do not cut more than one branch at a time.

Do not tilt the rail to the side when you pull them out of a cutting gap, since the chain could get caught otherwise.

10. Maintenance

INJURY WARNING!

Before working on the device, disconnect the mains cable from the socket.

Always wear protective gloves when working on or around cutting tools.

For non-use, transport or storage always attach the transport guard to all cutting tools. Fig. 1 (14a, 15a, 17c)

1. Do not spray the unit with water. It damages the engine.
2. Clean the unit with a cloth, hand brush, etc.
3. Use a moist piece of cloth to clean the plastic parts. Do not use any cleaning agents, solvents, or sharp objects.
4. During the course of work, wet grass and weed wraps around the drive shaft below the cutting guard for technical reasons. Remove this, otherwise the engine will overheat because of too much friction.

Regular checks

Keep in mind that following specifications relate to normal usage. Owing to circumstances (longer periods of daily work, severe dust exposure, etc.), the specified intervals will become correspondingly shorter.

• Before starting work, after impact or dropping: Check the cutting tools for secure seating, general visual check for cracks and damage.
  Immediately replace damaged or blunt cutting tools, even in the event of minor hairline cracks. Sharpen cutting tools (also when required).

- Weekly inspection: Lubrication of gear (also, if necessary).

- If necessary: Retighten accessible fastening screws and nuts. You will avoid excessive wear and tear and damages of the tool, when you follow the instructions in this manual.

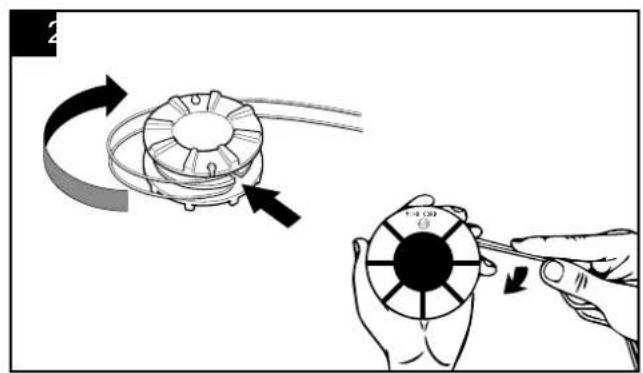

Replacing the line spool/cutting line Fig. 18-23

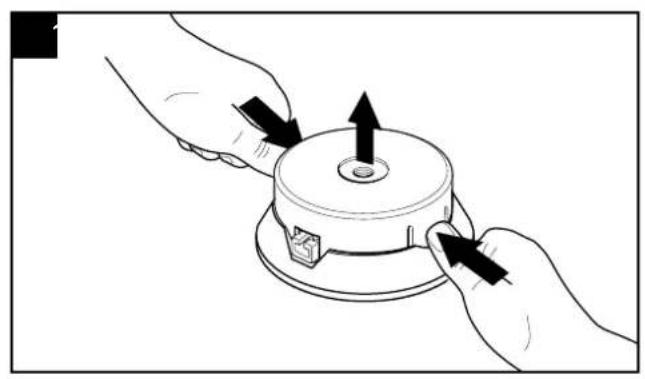

1. Pull off the line guard cap from the line spool (5) by forcefully pressing between the retaining plates.
2. Remove the spool with line remaining and the compression spring.
3. Remove the used up spool.
4. Take the new line spool and pull out 10 cm at both lines each.
5. Now, place the line spool (5) on the tapered spring, and guide both lines each through the round metal lugs at the line spool housing.
6. Then place the spool cover on the new line spool (5). Turn it so that the plates of the spool cover are pushed with the springs in the line spool housing.

7. Now, press the spool cover together with the line spool, until it engages in the line spool housing.

8. The knife (A) in the protective hood (18) shortens the trimming line to the correct length, when the engine starts again.

Grinding the safety hood blade

The safety hood blade can become blunt over time.

• When you notice this, undo the screw holding the safety hood blade on the safety hood.
• Clamp the blade in a vise.
• Sharpen the blade with a flat file and make sure that the angle of the cutting edge is not altered in the process ( 25^ ). File in one direction only.

Replacing and resharpening the cutting blade at the end of the mowing season always resharpen the cutting blade or, if required, replace the cutting blade with a new one.

Unbalanced blades will cause the brush cutter to vibrate violently-risk of accident!

Lubricate angle transmission

Lubricate with lithium-based grease. Remove the screw and put in the grease, turning the shaft manually until grease emerges, then replace the screw.

⚠ Attention! Fill only a small amount of grease. Do not overfill.

Care of the guide rail

Turn the rail around every time you have the chain sharpened or replaced. This will avoid a one-sided wear of the rail, especially at the top and bottom.

Regularly clean

1 = the opening for the oil supply
2 = the oil passage
3 = the raceway groove of the rail

Technical diagram of a mechanical device with labeled parts and cross-sectional view

Servicing and sharpening of saw chain

The correct sharpened chain

Working effectively with the chainsaw is only possible if the chain is in good condition and

sharp. This also reduces the risk of kickback. The chain can be re-sharpened by any dealer. Do not attempt to sharpen the chain yourself unless you have the necessary special tools and experience. A properly sharpened chain goes way through the wood and it requires very little pressure. Do not work with a dull or damaged chain. It increases physical exertion, increase the vibrations and leads to unsatisfactory results and higher wear.

• Clean the chain.

• Check it.

• Replace damaged or worn parts with matching spare parts they are in the shape and size of the original parts as necessary.

• Sharpening a chain should be performed only by experienced users! Notice. Below the angle and dimensions If the chain is not properly sharpened or the depth is too small, there is a higher risk of reversion effects and resulting injuries! The chain cannot be fixed on the guide rail. It is therefore best to remove the chain from the rail and then sharpen.
• Select the appropriate tools for the chain pitch sharpening tool. See "Specifications" for the allowed chain pitches.

The chain pitch (for example 3/8 " ) is highlighted in the depth of each blade. Use only special files for chainsaws! Other files have the wrong shape and the wrong cut. Select the file according to the diameter of your chain pitch. Make sure to observe the following angle when sharpening the chain diameter.

A B

A = filing angle
B = the angle of the side plate

The angle must also be maintained for all knives.

For irregular angles, the chain is run irregularly, wear quickly and break down prematurely.

Since these requirements can only be met with sufficient and regular exercise:

• A File Holder must be used when sharpening the saw chain by hand. The correct filing angle marked on it.

• Hold the file horizontally (at a right angle to the guide rail) and file according to the angle mark on the file holder. Support the file holder on the top plate and depth gauge.

• File down. The knife is always from the inside to the outside

• The file sharpens only in forward motion. Lift it off in the backward motion.
• Do not touch the dynamic links with the file.
• Turn the file regularly continue to avoid a onesided wear.
• Remove to remove a piece of hard wood, bones raw edges.

All knives must have the same length, otherwise they will also vary. As a result, the chain is irregular and it increases the risk of going broke.

Check the hedge trimmer for obvious faults such as:

• loose attachments
• worn or damaged components
  – bent, broken or damaged cutting tools
  – correctly attached and working covers and safety devices
• wear, in particular, cutting tool play

Immediately replace damaged or blunt cutting tools, even in the event of minor damage.

The user is responsible for all damages caused by non-compliance with instructions in this manual. This also applies to non-authorized modifications of the tool, use of non-authorized spare parts, accessories, working tools, unrelated and not intended use, secondary damages due to use of faulty components.

Wear Parts

Even when used in the intended way, some components are subject to normal wear. They have to be replaced depending on the kind of duration of usage. These parts include, among others, the cutting tool and the retaining disk.

⚠ Warning!

Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty.

Important hint in case of sending the equipment to a service station:

Due to security reasons please see to it that the equipment is sent back free of oil and gas!

Ordering replacement parts

Please quote the following data when ordering replacement

parts:

• Type of machine
  • Article number of the machine

Replacement parts / accessories:

For the cutting equipment listed here, you can always use the safety guards provided with the unit.

Grass trimmer/brush cutter:

Spool with ∅ 380 7910700719

Blade with 3 teeth ∅ 255 x 1.4 7910700702

Transport guard for blade 3 teeth 3904801065

Blade with 4 teeth ∅ 255 x 1.4 7910700705

Transport guard for blade 4 teeth 3904801066

Blade with 8 teeth ∅ 255 x 1.4 7910700711

Transport guard for blade 8 teeth 3904801066

Pole pruner:

Saw chain Oregon 91P033X 7910100715

Guide rail Oregon 080SDEA318 7912400701

Transport guard for chain 3904801039

Hedge trimmer:

Blade for hedge trimmer 395 mm 7910700720

Transport guard for blade 3904801043

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Carbon brush, line spool, cutting blade, saw chain, guide rail

* Not necessarily included in the scope of delivery!

11. Storage

Cleaning

• Keep handles free of oil, so you always have a secure hold.
• Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid.

⚠️ Important!

- Never immerse the equipment in water or other liquids in order to clean it.

Storage

Note: Store the equipment in a dry place and far away from possible ignition sources such as an oven, a gas-fi red hot water boiler, a gas-fi red dryer, etc.

Transport

Always attach the transport guard to all cutting tools. Fig. 1 (14a, 15a, 17a)

In order to prevent damage and injury, secure the tool against tipping over and sliding when transporting it in vehicles.

12. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to po-

tentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Batteries and rechargeable batteries do not belong in the household waste!

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

- Remove the batteries from the laser before disposing of the machine and the batteries.

13. Troubleshooting

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
Machine does not start	Battery emptyBattery is not correctly insertedOn/Off switch faultyWorn carbon brushesMotor faulty	Charge batteryRemove battery and insert againContact the service centreContact the service centreContact the service centre
Machine works with interruptions	Power cable damagedInternal connections are looseOn/Off switch faulty	Check the extension lead and have it replaced, if required.Contact the service centreContact the service centre
Poor cutting quality	Blades are blunt.	Have the blades sharpened or the knife bar replaced.
Motor is running but the gears are not engaging	The power unit is jammed by a thick branch or other objects.	Turn the hedge trimmer off immediately, disconnect the electricity supply and remove the blockage.
Pole saw does not saw, it plucks or vibrates.	Chain tension too high.Chain blunt.Chain attached incorrectly.Chain worn.	Check and reset chain tension.Have the chain sharpened or replace it.Re-attach the chain.Replace the chain.

Günzburger Straße 69

89335 Ichenhausen / Germany

CHER CLIENT,

$$ L _ {D A} = 8 8, 2 \mathrm{dB(A)} $$

$$ L _ {p A} = 8 6, 8 \mathrm{dB(A)} $$

Technical diagram of a mechanical device with labeled parts and cross-sectional view

Technical diagram of a cleaning or mechanical assembly with numbered components for identification

CE - Declaration of Conformity

X 2000/14/EC_2005/88/EC

Noise: measured L_WA = 101,3 dB(A); guaranteed L_WA = 104 dB(A) P = xx KW; L/∅ = cm

X Annex V

Annex VI Notified Bo

2016/1628/EC

Emission. No:

Standard references:

EN 60745-1:2009+A11:2010; EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019;

EN 50636-2-91:2014; EN ISO 11680-1:2011; EN ISO 10517:2019; EN ISO 11806-1:2011;

EN55014-1:2017; EN55014-2:2015

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registar: Stefan Hartinger

Günzburger Str. 69, D-89335 Ichenhausen

CE - Declaration of Conformity

2006/42/EC
	Annex IVNotified Body:Notified Body No.:Certificate No.:

2000/14/EC_2005/88/EC
Noise: measured L_W = dB(A); guaranteed L_W = dB(A)P = xx KW; L/∅ = cm
X	Annex V
	Annex VINotified Body:

2016/1628/EC

Emission. No:

Standard references:

EN 60335-2-29:2004+A2:2010+A112018; EN 60335-1:2012+A11:2014+A13:2017; EN 62233:2008;

EN 55014-1:2017; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

the or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
