WINKELSCHLEIFER/ANGLE GRINDER/MEULEUSE D'ANGLE PWS 230 F5

DE AT CH

WINKELSCHLEIFER

Bedienungsanleitung

Translation of the original instructions

FR BE

MEULEUSE D'ANGLE

Mode d'emploi

GB/IE User manual Page 25

Technical line drawing of a mechanical component with gears and housing (no text or symbols)

H

1 2 3 4 15 DE

Warnings and symbols used Page 26

Introduction Page 27

Intended use....Page 27
Scope of delivery....Page 27
Description of parts ...... Page 27
Technical data Page 27

Safety instructions.... Page 28

General power tool safety warnings....Page 28
Safety instructions for all applications.... Page 30

Permissible accessories Page 33

Storage and handling of the recommended accessory tools....Page 34

Working procedures Page 34

Use....Page 35

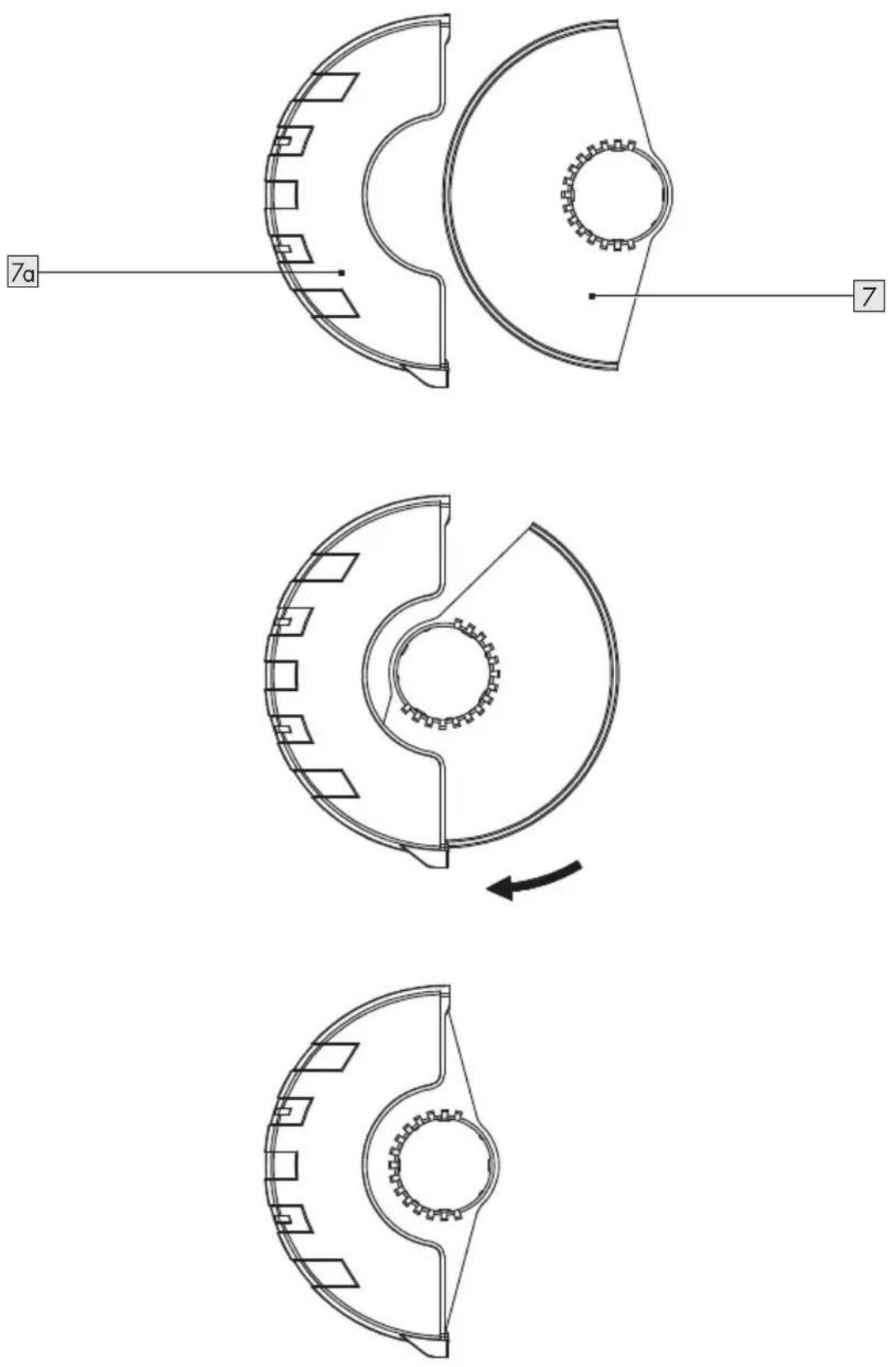

Mounting/adjusting the grinding guard....Page 35
Mounting the cutting guard attachment.... Page 36
Removing the cutting guard attachment.... Page 36
Fitting the additional handle....Page 36

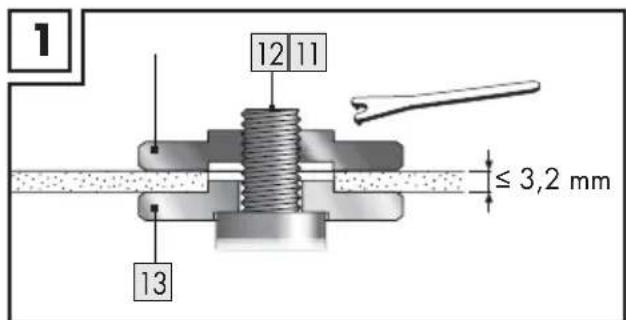

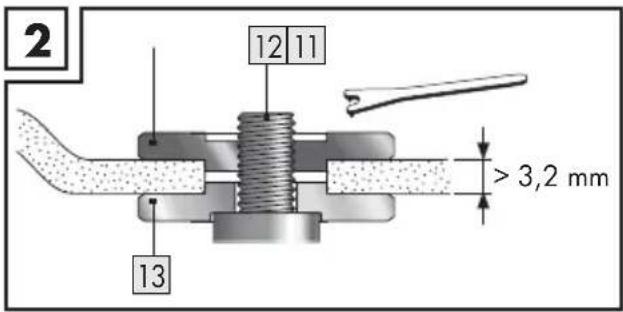

Fitting/changing the grinding/cutting disc....Page 36
Switching on and off Page 37
Turning the handpiece....Page 38

Maintenance and cleaning Page 38

Disposal Page 38

Warranty Page 39

Warranty claim procedure....Page 39

Service Page 39

EU declaration of conformity....Page 40

Warnings and symbols usedThe following warnings are used in the user manual and on the packaging:
	DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.		Alternating current/voltagev
			Revolutions per minute
	WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.		Protection class II
			Use in dry indoor rooms only.
	CAUTION! This symbol with the signal word "Caution" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.		Wear hearing protection!
			Wear eye protection!
	NOTE: This symbol with the signal word "Note" provides additional useful information.		Read the user manual.
	Risk of electric shock!
no	No load speed		Protect the product from moisture.
	Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.		Always operate with two hands.
			Do not use the guard for cut-off operations.
[6AB3]	Safety information Instructions for use		CE mark indicates conformity with relevant EU directives applicable for this product.

ANGLE GRINDER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for the cutting and grinding of metal materials, concrete and tiles without the use of water. Any other usage of or modification to the product is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. The product is not intended for commercial use.

- Scope of delivery

1 Angle grinder PWS 230 F5
1 Additional handle
1 2-in-1 protective guard
1 Two-hole mounting spanner
1 User manual

• Description of parts

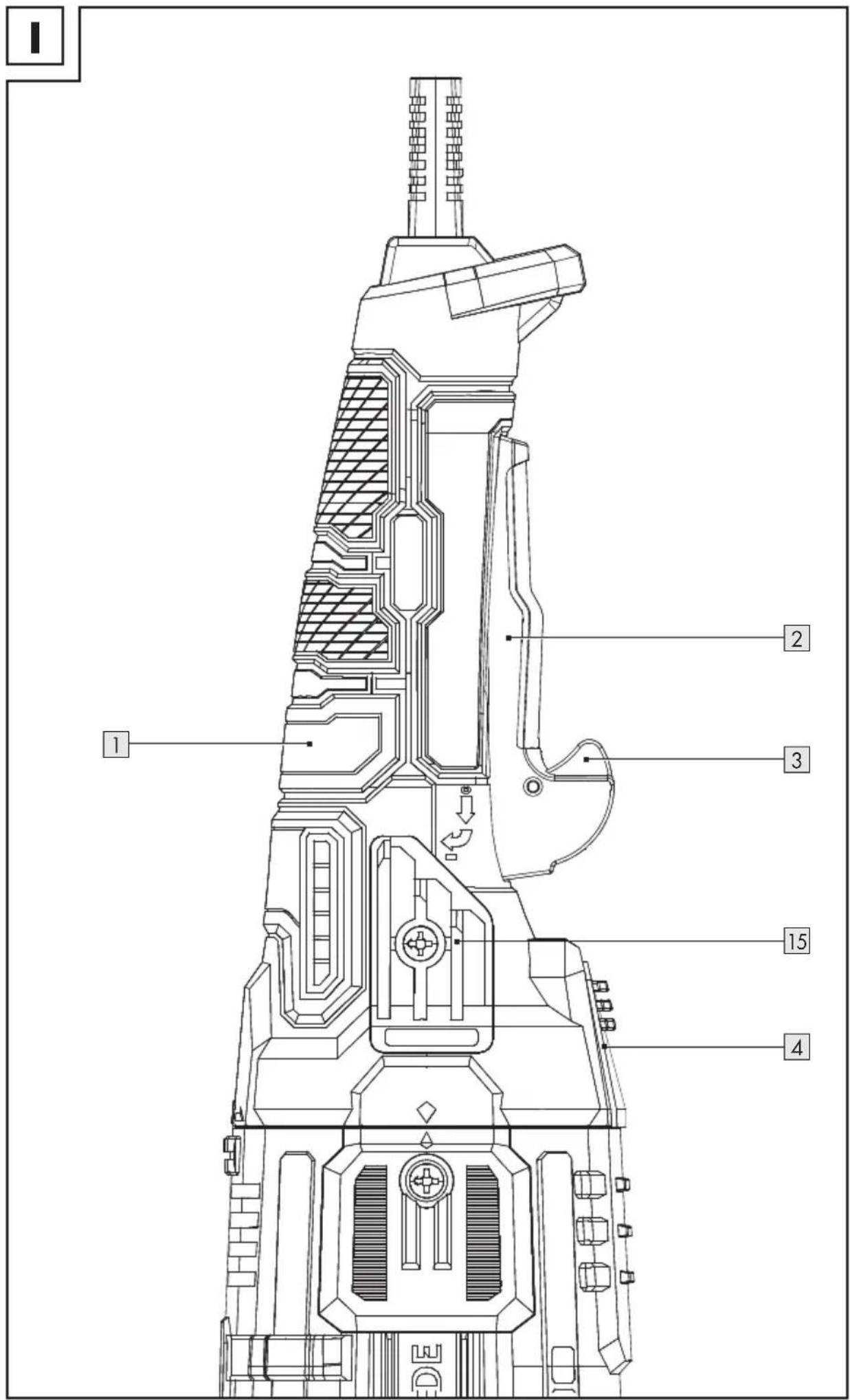

Fig. A, H

1 Rotatable handpiece
2 ON/OFF switch
3 Trigger lock
4 Adjustment button for handpiece
5 Cover for carbon brushes
6 Additional handle
7 Grinding guard
7a Cutting guard attachment
8 Spindle locking button
9 Screw thread (3x) for the additional handle
10 Lever

Fig. D, E, I

11 Locking flange
12 Attachment spindle
13 Backing flange
14 Two-hole mounting spanner
15 Dust filter

- Technical data

Rated voltage: 230 V~,	50 Hz
Rated power consumption: 2,000 W
Rated speed: n	^6,500 min^-1
Disc width: 230 mm
Thread size: M14
Protection class:	II/☐(double insulation)

Noise and vibration data

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Noise emission value

Sound pressure level L_PA : 98	0 dB
Uncertainty K: 3 dB
Sound power level L_WA : 106	0 dB
Uncertainty K: 3 dB

WARNING!

Wear hearing protection!

Total vibration value

Surface grinding A_h, AG :	7.8 m/s ^2
Uncertainty K:	1.5 m/s ^2

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the product can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.
Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the product is switched off and when it is running idle in addition to the trigger time).
Grinding thin sheets of metal or other easily vibrating structures with a large surface can result in a total noise emission much higher (up to 15 dB) than the declared noise emission values. Such workpieces should as far as possible be prevented from emitting sound by suitable measures such as the application of heavy flexible damping mats. The increased noise emission is also to be considered for both the risk assessment of noise exposure and selecting adequate hearing protection.

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, only use an extension cable suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

● Safety instructions for all applications

Special safety instructions for grinding and abrasive cutting-off operations

1) This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
2) Operations such as sanding, wire brushing, hole cutting and polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
3) Do not convert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury.
4) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because you can attach the accessories to your power tool does not guarantee they are safe to use.
5) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

6) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
7) The dimensions of the accessory mounting must fit the dimensions of the mounting hardware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
8) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
9) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

10) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
11) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
12) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
13) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
14) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
15) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
16) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
17) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

1) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

2) Never place your hand near the rotating accessory. Accessory may kickback over your hand.

3) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

4) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

5) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Cutting-Off Operations

1) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

2) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

3) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

4) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

5) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.

6) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

7) When using dual purpose wheels always use the correct guard for the application being performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury.

Additional Safety Warnings Specific for Abrasive Cutting-Off Operations

1) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
2) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
3) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

● Permissible accessories

	Max. diameter (mm)	Max. thickness (mm)	Thread size	Speed ( min^-1 )	Circum-ferential speed (m/s)	Tool
Cutting disc	230 3 M	14 6,500 80				Two-hole mounting spanner
Grinding disc	230 6 M	14 6,500 80				Two-hole mounting spanner

4) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
5) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
6) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
7) Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.
4) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
5) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
6) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
7) Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.

● Storage and handling of the recommended accessory tools

• Grinding tools are to be treated with care and transported carefully.
• Grinding tools should be stored in such a way that they are not exposed to mechanical damage or environmental influences (e.g. moisture).

● Working procedures

NOTE

Grinding tools should only be used for the recommended applications. Otherwise, they can break, be damaged or cause injuries.

• When using a Type A (cut-off) wheel guard for facial grinding, the wheel guard may interfere with the workpiece causing poor control;
• When using a Type B (grinding) wheel guard for cutting-off operations with bonded abrasive wheels, there is an increased risk of exposure to emitted sparks and particles, as well as exposure to wheel fragments in the event of wheel burst;
• When using a Type A (cut-off) and Type B (grinding) wheel guard for cutting-off and facial operations in concrete or masonry, there is an increased risk of exposure to dust and loss of control resulting in kickback.

Grinding

Never use cutting discs for grinding!

■ Move the angle grinder with moderate pressure back and forth over the workpiece.
For soft material, move the grinding disc at a shallow angle over the workpiece; for hard material at a slightly steeper angle.

Abrasive cutting

Never use grinding discs for cutting!

Use only tested fibre-reinforced cutting or grinding discs that are approved for a circumferential speed of not less than 80 m/s.

CAUTION!

The grinder continues running after being turned off. Do not try to brake it by applying lateral counterpressure.
- Secure the workpiece! Use clamps/a vice to hold the workpiece firmly in place. This is much safer than simply holding it in your hand.
■ Always switch off the product before putting it away and wait for the product to come to a complete standstill.
■ Release the ON/OFF switch immediately in the event of a power failure or when the plug is pulled out. Move it into the OFF position. This prevents an uncontrolled restart.
■ Use the product only for dry cutting or grinding.
The additional handle 6 must be mounted on the product for all work.
■ Materials containing asbestos may not be processed. Asbestos is a known carcinogen.

DANGER!

Always guide the product through the workpiece in reverse rotation. In the opposite direction there is a risk of a kickback. The product can be pushed out of the cut.

■ Always switch the product on before applying it to the workpiece. After completing the task, lift the product from the workpiece and then switch it off.
■ Always hold the product firmly with two hands while working.

Ensure that your stance is secure and stable.

For an optimum grinding effect, move the product evenly at an angle of 30^ to 40^ (between grinding disc and workpiece) back-wards and forwards.
When working on angled surfaces, do not exert great force on the workpiece. If the rotational speed drops significantly, you must reduce the pressure exerted to allow safe and effective working. If the product suddenly brakes completely or jams, it must be switched off immediately.
- Cutting: Work at a moderate feed rate and do not tilt the cutting disc.
Grinding and cutting discs become very hot – let them cool down completely before touching them.
■ Never use the product for purposes other than the ones for which it was designed.
■ Always make sure that the product is turned off before plugging it into the power socket.
In case of danger, remove the plug from the power socket immediately. Ensure that the product and the power socket are easily and quickly accessible in the event of an emergency.
Always remove the plug from the power socket during work breaks, when adjusting the product and when it is no longer in use. The product must be kept clean, dry and free of oil and grease at all times.
■ Remain alert at all times! Always pay attention to what you are doing and act with common sense.

Do not use the product if you are distracted or feeling unwell.

WARNING!

Wear safety glasses and a dust mask!

Use

- Mounting/adjusting the grinding guard

WARNING! RISK OF INJURY!

Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

RISK OF INJURY!

Always use the angle grinder with the grinding guard 7. The grinding guard should be fitted securely. Set it so that the highest possible degree of safety is achieved, i.e. the smallest possible part of the grinding disc or cutting disc is open to the operator. The grinding guard is designed to protect the operator from fragments and accidental contact with the grinding tool.
Make sure that the grinding guard is fitted at least at the same angle as the additional handle 6 (see Fig. C). Otherwise, you could cut injure yourself on the grinding disc or cutting disc.

1. Put the grinding guard 7 in the position shown (see Fig. G). The grinding guard can only be put on or removed in this position. Turn the grinding guard until it clicks into place for the first time.

2. Press the lever 10 and turn the grinding guard into the required position (working position) until it clicks into place.

3. Check if the grinding guard is securely locked in place. The lever must be engaged and the grinding guard should not be able to rotate.

- Mounting the cutting guard attachment

WARNING! RISK OF INJURY!

Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

NOTE

For cut-off grinding, fit the cutting guard attachment 7a to the grinding guard 7.

1. Remove the grinding/cutting disc if applicable.
2. Align the teeth on the edge of the cutting guard attachment with the grinding guard (see Fig. H).
3. Turn the cutting guard attachment 7a in clockwise direction until the lock on the guard for cutting clicks into place (see Fig. H).
4. Check if the cutting guard attachment is firmly seated.

- Removing the cutting guard attachment

WARNING! RISK OF INJURY!

Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

1. Remove the grinding/cutting disc if applicable.
2. Press the lock on the cutting guard attachment 7a outwards. Turn the guard for cutting counter-clockwise (see Fig. H).

● Fitting the additional handle

CAUTION!

For safety reasons, this product may only be used with the additional handle 6. Failure to do this can lead to serious injury. The additional handle can be screwed onto the left or the right depending on the job at hand.

☐ Depending on the method of working, tighten the handle on to the handle thread on the left/right/top of the product.

● Fitting/changing the grinding/cutting disc

WARNING! RISK OF INJURY!

Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

Always wear protective gloves when changing grinding disc or cutting disc. The grinding or cutting disc is very hot after use. Allow the grinding or cutting disc to cool down completely before touching them.
Pay attention to the dimensions of the grinding disc or cutting disc. The diameter of the disc bore must fit the mounting flange without any play. Do not use a reducer or adapter.
- Check the grinding disc or cutting disc. It should not be damaged or damp, and it should have no cracks. Otherwise, it could break during use and cause injuries.

NOTE

▶ Use only discs which are free of dirt.

Use only grinding discs whose permissible speed rating is at least as high as that on the type plate on the power tool. Use only discs who have not passed the expiry date.

CAUTION! RISK OF INJURY!

Press the spindle locking button 8 only when the attachment spindle 12 is at a complete standstill.

1. Press the spindle locking button 8 to lock the spindle.
2. Undo the locking flange 11 using the two-hole mounting spanner 14 (see Fig. E).
3. Fitting flat grinding/cutting disc: Place the grinding/cutting disc with the label side towards the product on the backing flange 13.
4. Fitting depressed centre grinding/cutting disc: Place the grinding/cutting disc with the recessed side towards the locking flange.

With thin grinding/cutting discs (see Fig. 1)

☐ The collar of the locking flange 11 faces upwards so that a thin grinding disc can be fitted safely.

1 12 11 ≤ 3,2 mm 13

1. Press the spindle locking button 8 to lock the spindle.
2. Tighten the locking flange 11 using the two-hole mounting spanner 14.

With thick grinding discs (see Fig. 2)

☐ The collar of the locking flange [11] faces downwards so that a thick grinding disk can be fitted securely onto the mounting spindle [12] .

2 12 11 >3,2 mm 13

1. Lock the mounting spindle 12.
2. Tighten the locking flange 11 in a clockwise direction using the two-hole mounting spanner 14.

NOTE

If the disc does not turn smoothly or vibrates after the change, the disc must be replaced immediately.

For safety's sake run the product at maximum speed for 60 seconds after every disc change. Be aware of unusual noises and sparks.
☐ Check whether all the fastening elements are correctly fitted.
☐ Make sure that the arrow showing the direction of rotation (if any) on the cutting or grinding discs (including diamond cutting discs) and the direction of rotation of the product (arrow showing the direction of rotation on the product) match.

- Switching on and off

Check the inserted tool before use. It must be properly installed, may not be damaged or damp, should have no cracks and turn freely. Carry out a 60 second test run. Do not use non-circular or vibrating tools. Be aware of unusual noises and sparks. Check whether all the fastening elements are correctly installed.

NOTE

Always switch on the angle grinder before making contact with the material, then apply it to the workpiece.

Switching on

1. Push and hold the trigger lock 3 towards the mounting spindle (see Fig. F).
2. Press down the ON/OFF switch 2 towards the handpiece 1 (see Fig. F).

Switching off

☐ Release the ON/OFF switch 2.

● Turning the handpiece

WARNING! RISK OF INJURY!

Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

☐ The handpiece 1 can be turned by 90^ to the right or left (see Fig. B).
☐ This allows the ON/OFF switch 2 to be moved to the most suitable position depending on the working conditions.

1. Press the adjustment button for handpiece 4 and turn the rotatable handpiece 1 until the arrows are aligned (see Fig. I).

2. Allow the rotatable handpiece to click into place.

● Maintenance and cleaning

WARNING! RISK OF INJURY!

Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

NOTE

Replacement parts not listed (such as carbon brushes) can be ordered via our service hotline.

Do not use any sharp objects to clean the product. Never permit liquids to enter inside the product. Otherwise the product could be damaged.

The carbon brushes should only be replaced by the service centre or an authorised specialist workshop. Apart from this, the product is maintenance-free.

Replacement of the plug or the supply cord shall always be carried out by the manufacturer of the tool or his service organization.

□ Clean the product regularly, preferably immediately after completion of the work.
□ Clean the housing with a dry cloth. Do not use petrol, solvents or cleaners which can attack the plastic.
☐ A vacuum cleaner is required for thorough cleaning of the product.
□ Ventilation openings must never be obstructed.
☐ Remove any sanding dust stuck to the product with a brush.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

FR +

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 445907_2307) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

EU declaration of conformity

EU DECLARATION OF CONFORMITY (445907\_2307)

IAN: 445907_2307

Product identification:

"PARKSIDE" Angle Grinder

Model Number: HG10793

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015/A11:2022

EN IEC 62841-2-3:2021/A11:2021

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm 27.09.2023

Place

Date

ppa. Stefan Haensel

Authorised Signatory Authorised Signatory

Directive 2006/42/CE

Directive 2014/30/UE

Directive 2006/42/CE

EN 62841-1:2015/A11:2022

EN IEC 62841-2-3:2021/A11:2021

Directive 2014/30/UE

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 62841-2-3:2021/A11:2021

Směrnice 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 62841-2-3:2021/A11:2021

Directiva 2014/30/UE

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021
