CHIP & DUST EXTRACTOR

Operating and Safety Instructions. Translation of Original Operating Manual.

FR BE CH

ASPIRATEUR À SCIURE

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

DE AT CH

Technical diagram of a spray gun with numbered parts labeled for identification.

Technical diagram showing 12 labeled mechanical or industrial components with numbered labels and schematic symbols.

3 5 10 5a b 5b 6c 5d 4 12 5 12a

5 3 4 12a 5 9

6 1 2 3 13 11

7 3 7 6 7 8

1. Explanation of the symbols on the product....2
2. Explanation of the signal words in the operating manual....2
3. Introduction....3
4. Description of the product ....3
5. Scope of delivery....3
6. Proper use....4
7. Safety instructions....4
8. Technical data....6
9. Unpacking 6
10. Assembly / Before commissioning....7
11. Start up 7
12. Electrical connection....8
13. Cleaning 8
14. Storage 8
15. Maintenance....8
16. Repair & ordering spare parts....9
17. Disposal and recycling 9
18. Troubleshooting.... 10
19. Warranty certificate.... 11
20. Exploded view....83
21. Declaration of conformity....84

1. Explanation of the symbols on the product

	Before commissioning, read and observe the operating manual and safety instructions!		The product complies with the applicable European directives.
	Wear hearing protection. Excessive noise can result in a loss of hearing.		Protection class II
	Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!

2. Explanation of the signal words in the operating manual

DANGER	Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
ATTENTION	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.
NOTE	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

3. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the device or caused by the device arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed

Note:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you to familiarise yourself with your product and to use it for its intended purpose.

The operating manual includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The product may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such products must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

4. Description of the product

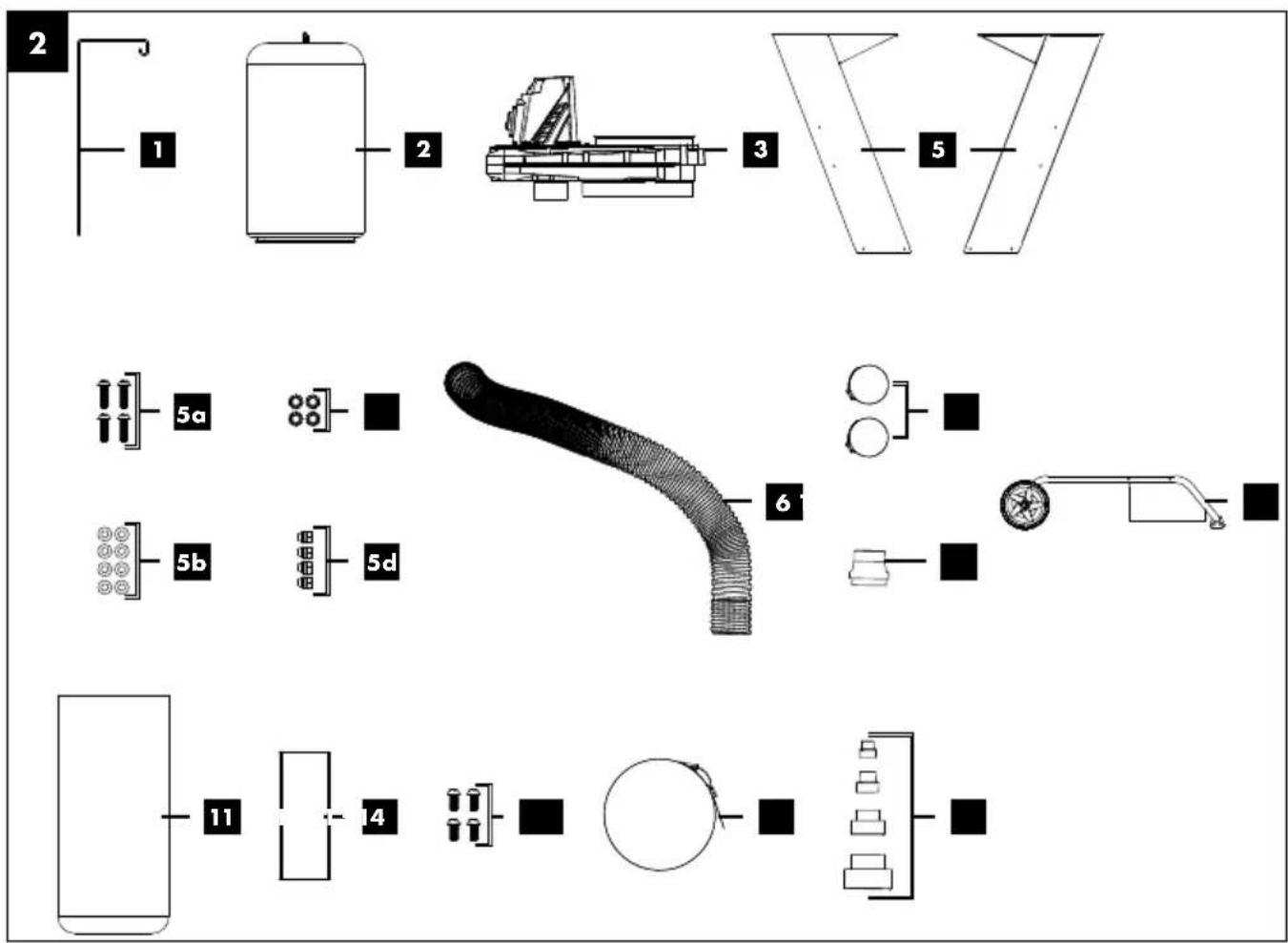

1. Retaining rod
2. Filter bag
3. Motor unit
4. On/off switch
5. Side panel right/left
   5a. Fillister head screw M5x30
   5b. Washer
   5c. Ratchet washers
   5d. Cap nut
6. Suction hose
7. Hose clamp
8. Hose coupling
9. Wheel
10. Machine stand
11. Dust bag
12. Intermediate plate
    12a. Fillister head screw M5x16
13. Clamp fitting
14. Adapter set

5. Scope of delivery

Item	Quantity	Designation
1	1x	Retaining rod
2	1x	Filter bag
3	1x	Motor unit
5	2x	Side panel right/left
5a	4x	Fillister head screw M5x30
5b	8x	Washer
5c	4x	Ratchet washer
5d	4x	Cap nut
6	1x	Suction hose
7	2x	Hose clamp
8	1x	Hose coupling
10	1x	Machine stand
11	1x	Dust bag
12	1x	Intermediate plate
12a	12x	Fillister head screw M5x16
13	1x	Clamp fitting
14	1x	Adapter set (4-piece)
		Operating manual

6. Proper use

The suction system is used for extracting chips which are produced when working with wood or wood-like materials. It is suitable for the extraction of milling, planing and wood shavings (not dust) such as those on cutters, circular table saws and planing machines.

Do not suck up any foreign bodies such as screws, nails, pieces of plastic or wood.

ATTENTION! This product is not suitable for picking up dust that is hazardous to health. In particular, the suctioning of inflammable or ignitable vapours, liquids, dusts, ash or chips (gases, fuel, cleaning agent, paint residue, hydrogen, carbon dust, magnesium dust, grain dust, stone dust, hot ash, cigarette butts, etc.) is strictly prohibited!

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

The manufacturer is not liable for damage caused by an improper use or incorrect operation of this device.

7. Safety instructions

General power tool safety warnings

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to observe safety information and instructions can result in electric shock, fire and/or serious injuries.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Keep the workplace free of wood debris and parts lying around.
• Switch off the motor and pull out the mains plug when leaving the work station.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
• When using a cable drum, unwind the cable completely.
• Check the cable of the product regularly and have it replaced by a recognised specialist when damaged.
• If an extension cable is required, make sure that its cross-section is sufficient for the current consumption of the device. Minimum cross-section 1.5 mm ^2 .
• Check extension cable cables regularly and replace them when damaged.

- Do not use the cable for purposes for which it is not intended!

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.
• Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Make sure the switch is in the off-position before connecting to the power supply, picking up or carrying the electric tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or screwdriver before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power socket before making any adjustments to the device, changing tool inserts or putting the power tool away. Such precautionary measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

• Only have your electric tool repaired by qualified specialists and only with original spare parts. . This will ensure that the safety of the power tool is maintained.
• Damaged protective devices and parts must be repaired properly or replaced by a recognised specialist workshop.

Safety instructions for the use of dust extraction system

- Static charging

• Do not insert objects into the suction opening and keep these free of deposits which could affect the suction performance.

- The entire extraction system is constructed from non-electrically conducting components.

• Do not replace plastic parts with metallic parts. In particular, the suction hose must not have any metal spirals.
• If the suction hose is attached to electrically conducting parts (e.g. metallic suction hood or -tube), they must be earthed to dissipate any electrostatic energy that may occur.

- This product is not suitable for picking up dust that is hazardous to health. In particular, the suctioning of inflammable or ignitable vapours, liquids, dusts, ash or chips (gases, fuel, cleaning agent, paint residue, hydrogen, carbon dust, magnesium dust, grain dust, stone dust, hot ash, cigarette butts, etc.) is strictly prohibited!

• Avoid physical contact with earthed parts.
• Suction hoses used must be made of a flame resistant material and be anti-static.
  • This product is intended for dry use only.
  • This product is intended for indoor use only.

• This product may only be stored indoors.
- Do not use in the vicinity of combustible fluids or gases.
- The safety, operating and maintenance information of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Risk to health from wood dust or wood chippings. Wearing personal protective equipment such as protective goggles and dust masks is mandatory.
• Dust inhalation may occur when closing and changing the dust collection bag. A failure to observe the disposal notes in the operating instructions (e.g. regarding the use of dust masks P2) may result in dust inhalation.
• Risk to health due to noise. The permissible noise level is exceeded during operations. It is essential that personal protective equipment, such as hearing protection, is worn.
• Hazard due to electrical power with the use of improper electrical connection cables.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "safety instructions" and the "Proper use" are observed along with the whole of the operating instructions.

⚠ WARNING! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

1. Technical data

Electric motor 220 - 240 V	~ 50Hz
Motor speed 2900 rpm
Rated input S1 550 W
Extraction port connection ∅ 100 mm
Hose length 2 m

Max. suction flow 850 m^3/h
Max. negative pressure 900 Pa
Filter surface ca. 1.2 m^2
Dust bag volume 65 l
Protection class	II
Weight	14.8 kg

Subject to technical changes!

Noise and vibration

⚠ Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

Information about noise level measured in accordance with EN ISO 3744

Noise data

Sound power level L_WA	96 dB
Sound pressure level L_pA	79 dB

9. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices.
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

ATTENTION!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

10. Assembly / Before commissioning

ATTENTION!

Always make sure the product is fully assembled before commissioning!

Tool required:

Open-ended spanner, size 8 mm*

Phillips screwdriver*

* Not included in the scope of delivery!

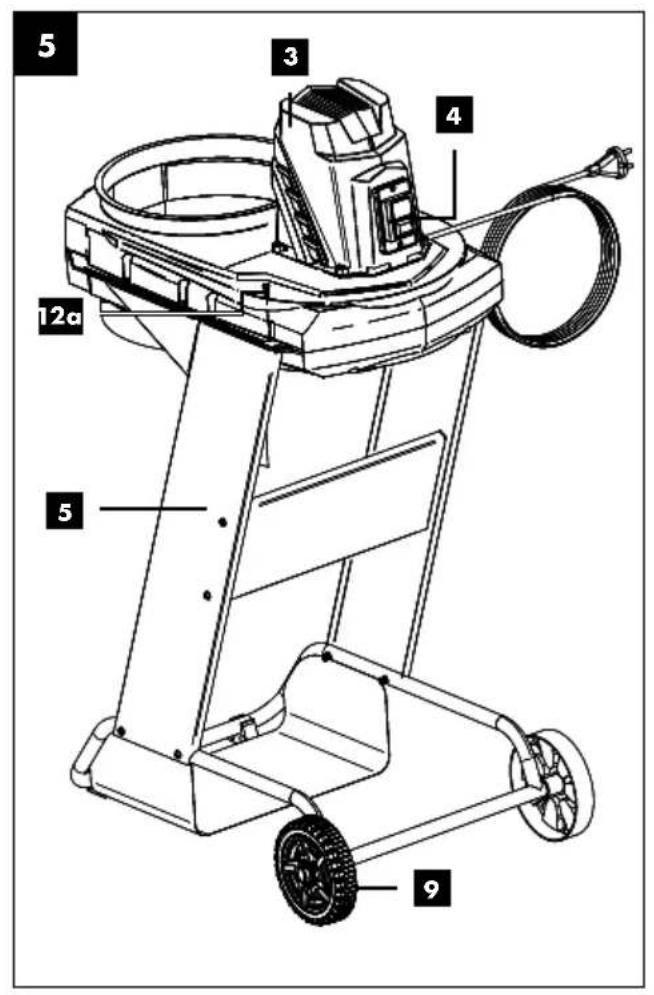

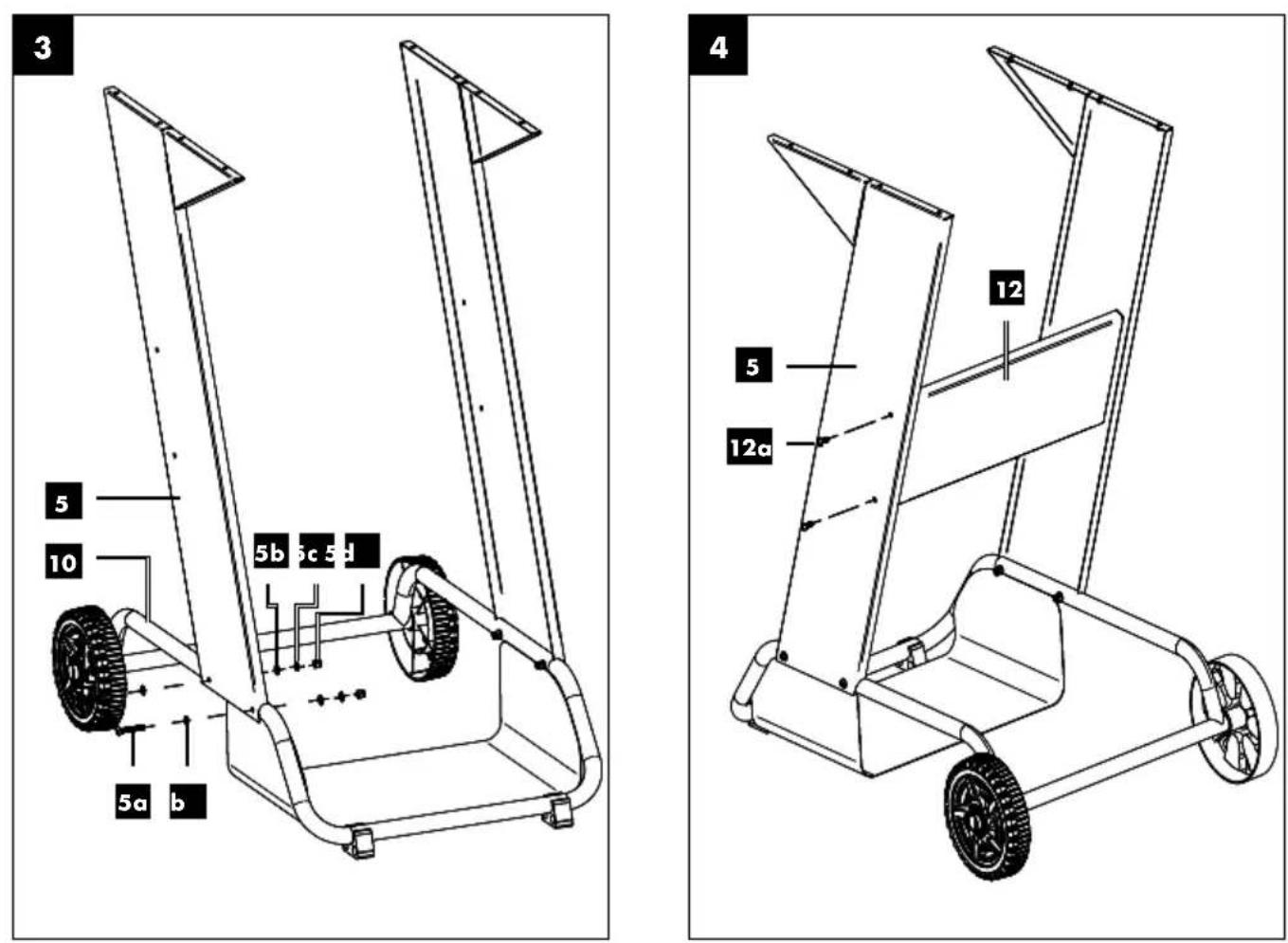

10.1 Assembling the machine stand (10) (Fig. 3 - 5)

1. Position the side panel right/left (5) on the machine stand (10) as shown in figure 3. Fix the side panel right/left (5) in position with the two M5x30 fillister head screws (5a), two washers (5b), two ratchet washers (5c) and two cap nuts (5d).
2. Now fit the intermediate plate (12) using a total of four fillister head screws (12a) between the side panel right/left (5) (Fig. 4).
3. Position the motor unit (3) over the side panel right/left (5) and ensure that the fitting holes are aligned. The ON/OFF switch (4) must face towards the wheels (9).
4. Fix the motor unit (3) in place with a total of eight M5x16 fillister head screws (12a) (Fig. 5).

10.2 Fitting the dust bag (11) (Fig. 6)

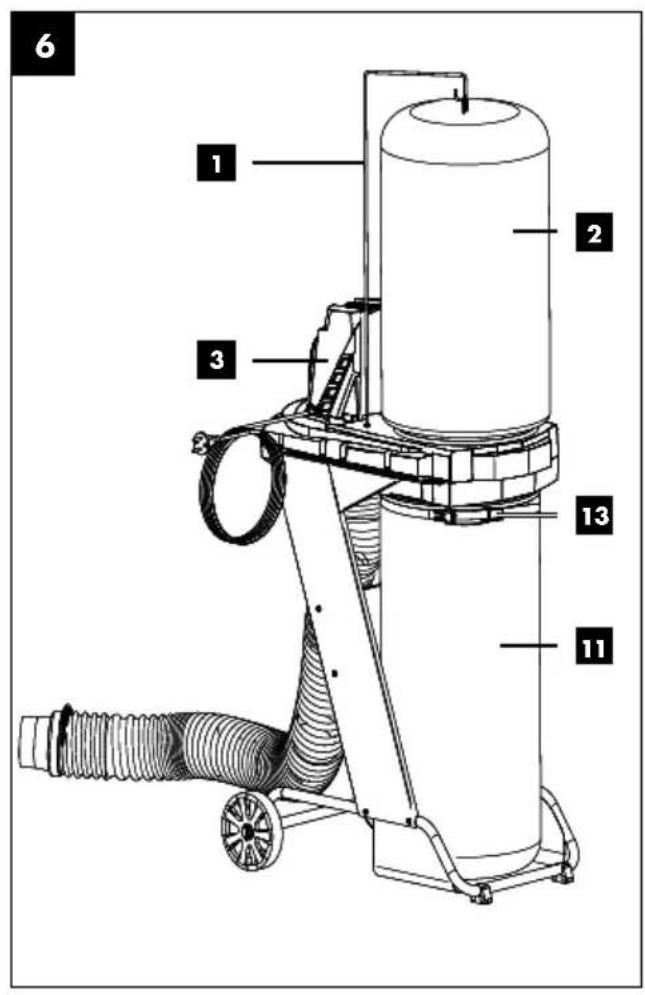

1. Attach the dust bag (11) to the lower air outlet using the clamp fitting (13).

10.3 Fitting the filter bag (2) (Fig. 6)

1. Insert the retaining rod (1) into the housing of the motor unit (3) and hook in the filter bag (2).
2. Put the filter bag (2) over the top air outlet on the motor unit (3).

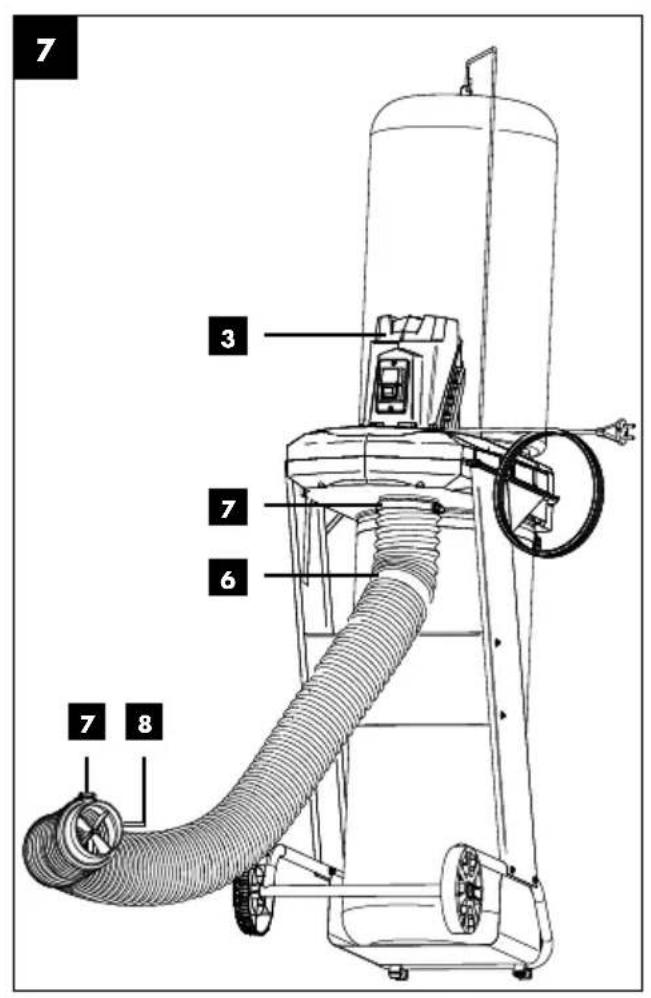

10.4 Installing the suction hose (6) (Fig. 7)

1. Slide a hose clamp (7) over the suction hose (6).
2. Attach the suction hose (6) to the nozzle on the housing of the motor unit (3) and fix it in place with a hose clamp (7).
3. Fix the hose coupling (8) is place with the second hose clamp (7) on the other end of the suction hose (6).

10.5 Connection to a woodworking machine

Note: Only use the original hose coupling (8) or the four-part adapter set provided.

1. First check whether the hose coupling is suitable for the diameter of the woodworking machine connection.

2. Make sure that the woodworking machine is switched off and disconnected from the mains.

3. Slide the suction hose (6) of the hose coupling (8) over the connection on the woodworking machine.
4. Attach the hose coupling (8) securely to the woodworking machine connection.
5. Ensure that all connections are tight and secure.

11. Start up

ATTENTION!

Always make sure the product is fully assembled before commissioning!

Checks before commissioning:

• Check whether the suction hose is connected tight to the dust extraction system and the suction adapter of the woodworking machine.
• Check whether the dust bag and the filter bag are attached correctly.
• Before connecting of the product, make certain that the data on the type plate matches with the mains power data.
• The product is suitable for use in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
• Do not install the product in a damp or wet room.

11.1 Switching on/off (4) (Fig. 1)

Switching on:

1. Press the "I" switch to switch on the product. Note: Only switch the woodworking machine on when the fan propeller of the dust extraction system has reached its maximum speed.

Switching off

1. Press the "O" switch to switch off the product. Note: Allow the dust extraction system to run for at least 10 seconds after switching the woodworking machine off.

Note:

In the event of long, daily use of your woodworking machine, an automatic switch-on system for the dust extraction system is advantageous. This causes the dust extraction system to switch on and off with a time delay as soon as the woodworking machine is switched on or off. You can obtain this automatic switch-on system from the manufacturer in (chapter 16.1 "Ordering spare parts").

11.2 Emptying the dust bag (11) (Fig. 1)

Danger of injury!

Danger due to wood dust

The inhalation of wood dust is hazardous to health! Always wear a dust protection mask when emptying the dust bag. When disposing of the dust waste, ensure that it is disposed of in an environmentally friendly manner!

1. Switch the product off at least 10 minutes before emptying the dust bag (11) so that the dust particles can settle.
2. Then disconnect the product from the power supply.
3. Empty the dust bag (11) if it is 60-70% full.

12. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
  • Cracks due to the insulation ageing.
  Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high starting current (from 3000 watts)!

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

13. Cleaning

Attention!

Disconnect the mains plug before carrying out any cleaning work.

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it off with compressed air at low pressure. We recommend that you clean the product directly after every use.
• Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.
• Make sure that no water can penetrate the interior of the product.

14. Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature lies between 5 and 30 °C. Store the product in its original packaging.

Cover the product to protect it from dust or moisture. Store the operating manual with the product.

Risk of damage!

If the product is not stored properly, the engine can be damaged.

• Store the product protected against dirt, dust and moisture.
• Store the product in its original packaging.
  • Cover the product to protect it from dust or moisture.
• Store the operating manual with the product.

15. Maintenance

Attention!

Disconnect the mains plug before carrying out any maintenance work.

Check all safety devices after maintenance or cleaning work and put them back into operation.

The product is maintenance-free. Always carry out the following checks before every restart.

• Check the filter bag regularly for damage. Replace damaged filter bags.
• Check all screw connections. Retighten loosened screw connections.
• Check the suction hose for damage. Replace damaged suction hoses.

16. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the motor
• Machine data - type plate
• Engine data - type plate

16.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Filter bag - Article no.: 5906307014

Dust bag - Article no.: 7906300707

Suction hose - Article no.: 5906306012

Automatic switch-on system 230V - Article no.: 79104010

16.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Filter bag

* may not be included in the scope of delivery!

17. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards).

• LIDL offers you return options directly in the shops and markets. Return and disposal are free of charge.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
• For additional take-back conditions of the manufacturers and distributors, please contact the respective customer service.

- In the case of delivery of a new electrical device by the manufacturer to a private household, the latter may arrange for the free collection of the old electrical device upon request from the end-user. Get in contact with the manufacturer's customer service.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

18. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Product does not start	On/off switch defective Repair by	an authorised service centre
	Engine defective Repair by an authorised service centre
Dust escaping	Loose or clogged connections Check connections and rectify the blockage if necessary
	Dust bag defective or fitted incorrectly	Replace the dust bag or refit it correctly
Reduced power	Suction opening blocked	Check the hose on the suction opening for blockages.

19. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
- Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

• The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
• In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Service-Hotline (GB):

00800 4003 4003

Service-Email (GB):

[e-mail]

Service Address (GB):

Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate, Pontypridd CF375SW

Service-Hotline (IE):

00800 4003 4003

Service-Email (IE):

[e-mail]

Service Address (IE):

LetMeRepair

1 Langlands Court / Kelvin South Business Park

East Kilbride G75 0YB

Service-Hotline (NI)

00800 4003 4003

Service-Email (NI):

[e-mail]

Service Address (NI):

Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate, Pontypridd CF375SW

Service-Hotline (CY):

00800 4003 4003

[e-mail]

Service Address (CY):

GEORGE C SOLOMONIDES & SON LTD

PO.BOX 56236 / 169, LEONTIOS A'

GR - 3305 LIMASSOL/CYPRUS

At www.lidl-service.com you can download this and many more manuals, product videos plus installation software.

The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operating manual by entering the article number (IAN) 438522_2304.

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Gabelschlüssel SW 8 mm*

[e-mail]

Service-Adresse (DE):

Scheppach GmbH

Günzburger Str. 69

DE - 89335 Ichenhausen

Service-Adresse (AT):

Gausch Hubert

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Service-hotline (BE):

00800 4003 4003

E-mailadres (BE):

[e-mail]

Serviceadres (BE):

Service Center Bruyninckx

Guldendelle 30

BE - 1930 Zventem (Nossegem)

Service-Hotline (CH):

00800 4003 4003

Service-Email (CH):

[e-mail]

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Service-hotline (BE):

00800 4003 4003

E-mailadres / Email du service (NL):

[e-mail]

E-mailadres (BE):

[e-mail]

Serviceadres / Adresse du service (NL):

TeleMarCom European Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Serviceadres (BE):

Service Center Bruyninckx

Guldendelle 30

BE - 1930 Zventem (Nossegem)

PDF ONLINE www.lidl-service.com

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Klucz widlasty SW 8 mm*

Technical diagram of a mechanical device with numbered components for identification

EU Declaration of Conformity Translation of the original EU Declaration of Conformity

Standard references:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject to change without notice

Documents registrar: Tobias Ihle

Günzburger Str. 69, D-89335 Ichenhausen

FR ©

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FSC www.fsc.org MIX Papier aus ver- antwortungsvollen Quellen FSC® C167024 FSC FSC www.fsc.org MIX Paper from responsible sources ® C167024 FSC www.fsc.org MIXTE Papier lssu de sources responsables FSC® C167024

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Estado de las informaciones ·
