BODENVENTILATOR/FLOORFAN/VENTILATEUR THV 30 A1

DE AT CH

BODENVENTILATOR

Operation and safety notes

NL BE

VLOERVENTILATOR

GB/IE Operation and safety notes Page 14

Warnings and symbols used....Page 15

Introduction......Page 15

Intended use....Page 15

Scope of delivery....Page 15

Description of parts....Page 16

Technical data......Page 16

Safety instructions......Page 16

Before use......Page 19

Operation Page 19

Turning the product on/off, fan speed adjustment....Page 19

Cleaning and care....Page 19

Storage Page 20

Disposal Page 20

Warranty Page 20

Warranty claim procedure....Page 20

Service Page 21

Warnings and symbols usedThe following warnings are used in the user manual, short manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Watt (effective power)
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Protection class I(protective grounding)
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Only use the product in dry indoor rooms.
	NOTE: This symbol in combination with “Note” provides additional useful information.		CE mark indicates conformity with relevant EU directives applicable for this product.
	Alternating current/voltage	[Sawl]	Safety informationInstructions for use
	Hertz (mains frequency)

Floor fan

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for use as a floor fan, for the purpose of indoor air circulation. Any use

other than that described or any product modification is prohibited and will result in damage. The manufacturer assumes no liability for damages due to improper use. This product is not intended for commercial use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1 Fan unit
1 Short manual

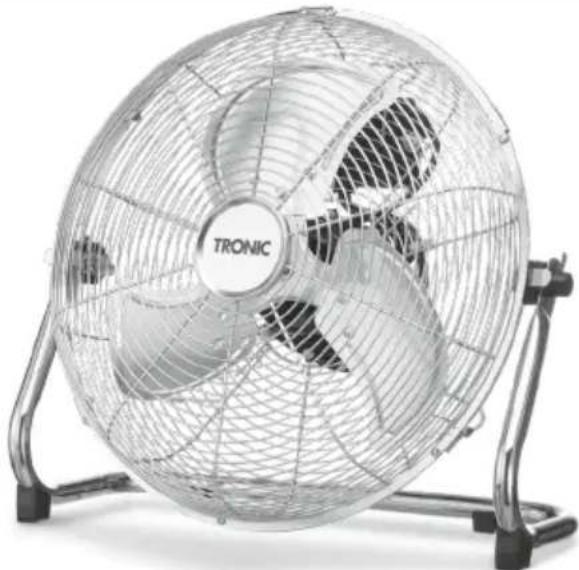

• Description of parts (Fig. A and B)

1 Front grille
2 Fan blades
3 Base bracket

4 Handle
5 ON/OFF & speed rotary switch
6 Rear grille

- Technical data

Input voltage: 220-240V \~, 50Hz

Power consumption: 55 W

Description Symbol	Value Unit
Maximum fan flow rate F	58.51 m		^3 /min
Fan power input P 51.5	W
Service value SV 1.14 (m			^3 /min)/W
Standby power consumption	P_SB	-	W
Off power consumption	P_OFF	0	W
Fan sound power level	L_WA	58.45 dB(A)
Maximum air velocity	C	2.62 meter/sec
Measurement standard for service value	EN IEC 60879:2019
Contact details for obtaining more information	OWIM GmbH & Co. KGStiftsbergstraße 174167 NeckarsulmGERMANYwww.owim.com

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

WARNING! RISK OF

ELECTRIC SHOCK! Do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.

WARNING! RISK OF

ELECTRIC SHOCK! Do not attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

WARNING! RISK OF

ELECTRIC SHOCK! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

WARNING! RISK OF

INJURY! Avoid contact with moving parts. Wait until all

components have completely stopped before touching them.

WARNING! RISK OF

INJURY! Switch the product off and disconnect it from the power supply before cleaning work and when not in use.

WARNING! Misuse may

lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.

■ Cleaning and user maintenance shall not be made by children without supervision.

■ Ensure the rated voltage shown on the rating label corresponds with the voltage of the power supply.

Do not operate any product with a damaged power cord or plug, when the product malfunctions

or has been damaged in any manner.

Only use the product in dry indoor rooms.
- Do not operate the product with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.
- Do not insert fingers or foreign objects in any opening of the product and do not obstruct the air vents.
- Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames and ensure that nobody can pull on or trip over it unintentionally.
If the power cord should overheat, stop using the product

and disconnect the product from the electrical outlet.

• Do not pull the power plug out of the electrical outlet by the power cord. Do not wrap the power cord around the product.
  ■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.
  For safety reasons, it is recommended not to remove the safety grille/guard. However, if you need to remove it, ensure that the product is switched off from the mains supply before removing the safety grille/guard.
  ■ Never use the product without the safety grille or with a damaged safety grille.
  Place the product on a firm, level and stable surface to prevent overturning during operation.
• Keep the product at least 10 cm away from any objects (curtains, walls, etc.).
  During use, keep hands, hair, clothing and utensils away from the safety grille to avoid injuries and damage of the product.
• Never try to move the product while it is operating. Always switch the product off before moving it.

■ Always turn the product off before disconnecting it from the power supply.
■ Unplug the product before cleaning, assembly, and when not in use for long time. Wipe with a dry and soft cloth.
- Let the product dry completely before connecting it to the power supply and before storage. Allow the product to cool down completely before storage.
■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.

- Before use

Remove the packaging completely. Check if all parts are complete.

Operation

- Keep a clearance of at least 10 cm around the product.

This product is not suitable for use in a cupboard or outdoors.

Place the product on a flat and stable surface.

☐ Connect the power plug to a socket-outlet.

- Turning the product on/off, fan speed adjustment

☐ Switch on the product and select your desired fan speed by rotating the ON/OFF & speed rotary switch 5 to position 1, 2 or 3.

☐ Switch off the product by rotating the ON/OFF & speed rotary switch 5 to position 0.

Position Function
0	Off
1	Minimum speed
2	Medium speed
3	Maximum speed

Adjusting the tilt position

The product's tilt level can be adjusted vertically by hand. For this purpose, use the handle 4 on the back of the product.

- Cleaning and care

☐ Switch off the product by rotating the ON/OFF & speed rotary switch 5 to position 0.
- Disconnect the power plug from the socket-outlet.

WARNING! RISK OF ELECTRIC SHOCK!

Do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.

Cleaning the product

☐ Clean the housing with a slightly moistened cloth.
- Do not allow any water or other liquids to enter the product's interior.

Cleaning the grilles 1, 6

Remove dust collections on the grille, 6 with a brush (not supplied).
☐ if the grilles 1, 6 with a slightly moistened cloth.
☐ For stubborn soiling, use a mild detergent on the cloth.
- Do not use abrasives, harsh cleaning solutions or hard brushes for cleaning.

NOTE: The grilles 1, 6 act as safety guards to protect the user from touching the fan blades 2.

☐ Let all parts dry after cleaning.

Storage

■ Store the product in a dry, secure location away from children.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations

(a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life

and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 478287_2410) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE
