POWER BANK WITH COMPRESSOR UPK 10 H5 POWERBANK MIT KOMPRESSOR UPK 10 H5 BATTERIE EXTERNE POWERBANK AVEC COMPRESSEUR UPK 10 H5

GB IE NI CY MT

POWER BANK WITH COMPRESSOR

Operation and Safety Notes

Translation of the original instructions

FR BE CH

BATTERIE EXTERNE POWERBANK AVEC COMPRESSEUR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE/NI/CY/MT Operation and Safety Notes Page 5

E BAR KPA Kg/cm³ PSI 8.88 6 14

Table of pictograms used....Page 5

Introduction Page 6

Intended use Page 6

Scope of delivery....Page 7

Equipment Page 7

Technical Specifications....Page 8

Safety instructions ......Page 9

Specific safety instructions....Page 12

Check the charge level of the power bank with compressor ......Page 13

Charging the power bank with compressor....Page 14

Charging mobile phones and tablets......Page 14

Using the integrated compressor....Page 14

Switching the light on....Page 16

Using the jumpstart feature....Page 17

FAQ......Page 18

Troubleshooting Page 18

Cleaning......Page 18

Storage Page 19

Information about recycling and disposal......Page 19

EC Declaration of Conformity......Page 20

Warranty and service information......Page 21

Warranty conditions....Page 21

Warranty period and statutory claims for defects....Page 21

Extent of warranty....Page 21

Processing of warranty claims ......Page 22

Service Page 22

● Table of pictograms used
	Read the operating instructions! Use hi protection!
	The device is only suitable for indoor operation.		Warning: Risk of electric shock!Danger to life!
	Observe warnings and safety instructions!		Caution! Explosion hazard!
	The LED bulb is not suitable for domestic room lighting.		Don’t throw away – recycle!
	The LED bulb is suitable for extreme temperatures down to -21°C.		Dispose of the device and packaging in an environmentally friendly manner!
	Appliance class III		Packaging material made from corrugated paper
	Please note		Guaranteed sound power level of 95 decibels
	Warning: Compressor system can start without warning.		You are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited.
	On/Off switch Protect from rain!
	Made from recycled material		Attention! Hot surface!
	DC voltage in volt Power switch for LE
	On/Off button for the compressor		Menu button "M"

POWER BANK WITH COMPRESSOR UPK 10 H5

- Introduction

Congratulations! You have purchased one of our high-quality products. Please familiarise yourself with the product before using it for the first time. To do this, please read through the following operating and safety instructions carefully.

KEEP OUT OF THE REACH OF CHILDREN!

jumpstart feature is only for petrol engines with a max. capacity of 3.5 litres and diesel engines with a max. capacity of 2.2 litres.

- Intended use

This power bank with compressor serves as additional support for 12 V vehicle battery systems during starting problems in diesel and petrol vehicles, which is caused by weak, empty or faulty starter batteries.

However, the power bank with compressor cannot replace the vehicle battery. If no more than 400 A are needed for starting (max. peak current), the power bank lets the user single-handedly start the vehicle when necessary, without additional help from a third party. The power bank with compressor is also fitted with two USB ports. This means that mobile phones, satnavs or other USB-enabled devices can also be charged if needed. The integrated compressor is designed to generate pressure in tyres (e.g. car and bicycle tyres), balls and other small-scale inflatable items. Do not use the compressor to inflate articles with a large volume, since it can overheat rapidly in the absence of back pressure. This power bank with compressor is not designed for continuous operation to generate pressure for more than 7 minutes at a time. The maximum adjustable pressure is 3.5 bar. This product is only intended for standard use.

PLEASE NOTE: The pressure gauge is not trade-approved.

Any other use may cause damage to the device and expose the user to a risk of serious injury. The manufacturer is not liable for any injury or damage resulting from improper use or incorrect operation. This power bank with compressor is not suitable for commercial use. Commercial use will void the guarantee.

The device has been developed for consumer use and is not suitable for use in a commercial or industrial environment. The product must only be started up initially by people who have been trained to do so. Please retain the operating instructions properly and ensure that you hand over all documentation when passing the product onto someone else.

The LED bulb is not suitable for domestic room lighting.

The LED bulb is suitable for extreme temperatures down to -21°C.

- Scope of delivery

1 power bank with compressor
1 set of operating instructions

Accessories:

1 jump lead
1 USB cable
3 valve adapters
1 compressed air hose

Equipment

After unpacking the product, please check that all of the package contents are present and that the power bank with compressor is in perfect condition. Do not use the device if it is defective.

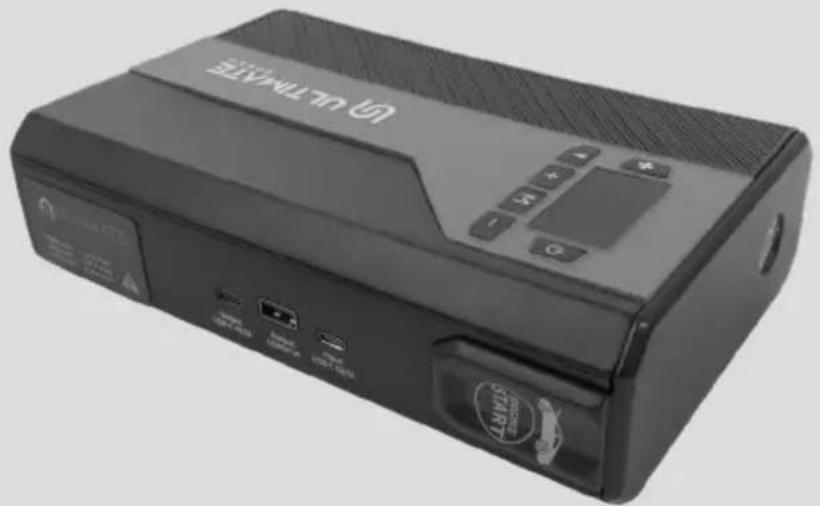

1	Power bank with compressor
2	On/Off button for the compressor
3	Power switch for LED light
4	“+” button
5	LED light
6	Digital pressure gauge with air pressure display (not trade-approved) and battery display
7	Power switch for the power bank
8	Menu button “M”
9	Car jumpstart outlet
10	“-” button
11	Charging port 5 V ≠2-A (USB-C)
12	USB port 5 V ≠1-A (USB-A)
13	USB port 5 V ≠2-A (USB-C)
14	Bars for battery level
15	Storage compartment for the valve adapters
16	Hose connection
17	Compressed air hose
18	Jump lead
19	Green Start LED
20	Red Error LED
21	Valve adapter for balls
22	Valve adapter for inflatable items
23	Valve adapter for inflatable items
24	USB cable

PLEASE NOTE: The use of the term 'product' or 'device' in the following text refers to the power bank with compressor named in these operating instructions.

• Technical Specifications

The four individual cells used to construct the rechargeable battery pack are connected in series to produce a total voltage of 4 × 3.2 V ≈ 12 V and a capacity of 3500 mAh. The battery output produced in this way is the same as the output from a rechargeable battery pack with a total capacity of 14000 mAh at 3.2 V.

Model: UPK 10 H5
Battery type:	Lithium Iron Phosphate rechargeable battery pack (F8043126)
Battery, chemical system: Lithium Iron Phosphate (LiFePO4)
Battery capacity: 14000 mAh, 3.2 V , 44.8 WhCharge cycles: 2000	——
Charging time: up to 8 hours (at 2A)
Peak current: 400 A
Starting current: 200 A
Operating temperature for power bank: 0 °C - 45 °C
Operating temperature for LED: -21 °C - 45 °C
Temperature at which the power bank can be charged:	0 °C - 35 °C
Voltage: 12 V	---
Input voltage (charging port USB-C): 5 V 2 A	---
Output voltage (USB port): 5 V /1 A USB-A | 5 V /2	A USB-C ===
Capacity: 8400 mAh/5 V
Current draw compressor unit: max. 10 A
Maximum adjustable pressure:	3.5 bar
Continuous operation:	max. 7 min*
Air flow rate:	22 l/min
Engine power:	90 W
Guaranteed sound power level ( L_WA ): 95 dB(A)
Measured sound power level ( L_WA ):	91.6 dB(A)
Measuring uncertainty ( K_WA ):	2.55 dB(A)
Sound pressure level ( L_PA ):	84.2 dB(A)
Measuring uncertainty ( K_PA ):	3 dB(A)

PLEASE NOTE: The noise emission values were determined in accordance with EN ISO 3744:1995.

* Continuous operation: do not operate the integrated compressor continuously for longer than 7 minutes. Following this, include a rest period of 15 minutes.

Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim.

- Safety instructions

PLEASE READ THROUGH THE OPERATING INSTRUCTIONS CAREFULLY BEFORE USE. THESE FORM PART OF THE PRODUCT AND MUST BE AVAILABLE AT ALL TIMES!

This section covers the basic safety instructions applicable when working with the device.

Personal safety:

This device may be used by children aged 8 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision.

Children must be supervised to ensure that they do not play with the device.

Keep the device away from people – especially children – and household pets.

Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device.

During operation, never point the device at yourself or other individuals, and keep the device well way from your ears and eyes. There is a risk of injury!

Do not leave the device unsupervised while running. Comply with the filling instructions for the inflatable item. The inflatable item could burst and cause serious injuries. Switch the compressor off before reaching the maximum permissible pressure.

Keep the device in a dry location and out of the reach of children.

This helps prevent device damage and possible personal injuries that could result from it:

Working with the device:

Do not use the device while driving the vehicle.

Before setup or first use, check the device for any damage and do not use unless in perfect working order.

Do not expose the device to rain or wet weather. Do not let the device come into contact with water. Do not immerse the device in water. There is a risk of electric shock!

Keep all openings of the device free during operation. Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!

In hot weather, do not leave the device in the car. This could permanently damage the device.

■ The device will become warm during use. There is a risk of burn injuries from touching the hot surfaces.

■ Take care to ensure that sand, dust and other small foreign objects cannot enter the air inlet or air outlet openings.

- Do not operate the device near to flammable liquids or gases. Do not use the device to draw in hot fumes. Failure to comply risks causing a fire or explosion!

- Switch the device off and remove the mains plug from the socket in the following cases:

• if you are not using the device;
• if you are leaving the device unsupervised;
• if you are doing cleaning work;
• if the connection cable is damaged;

- if foreign objects have got into the device or you notice unusual noises.

■ Only use the accessories supplied and recommended by the manufacturer.

- Do not dismantle or modify the power bank with compressor. This device must only be repaired by a maintenance technician.

- Do not use the device in areas with a risk of explosion, e.g. near flammable liquids, gases or powders.

- Do not expose the device to any source of heat.

• Do not store in places where the temperature can exceed 45 °C.
  ■ Only charge in an ambient temperature between 0 °C and 35 °C.
  ■ Only use the USB cab delivered with the device.

CAUTION: How to avoid accidents and injuries resulting from electric shock:

Electrical safety:

- Do not use the device if the switch cannot be switched on and off. Arrange for damaged switches to be replaced.

- Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges.

If the cable is damaged, unplug the plug immediately from the socket.

- Do not short-circuit the two crocodile clips. This can lead to a hazardous situation!

Rechargeable battery packs:

CAUTION! EXPLOSION HAZARD!

• Do not open or short-circuit the power bank with compressor. This could cause the device to overheat, ignite or explode.
• Do not expose the power bank with compressor to high temperatures. The battery could explode.
• Check the power bank with compressor regularly to confirm it is not leaking. Leaking or damaged batteries may cause burns if they come into contact with skin. In this situation, always wear suitable safety gloves! Carefully wipe up the liquid with a cloth and avoid contact with skin and eyes. In the event of contact with skin or eyes, rinse immediately with clean water and seek medical attention.

- Specific safety instructions

We recommend charging the power bank with compression once a month.

A slightly higher temperature during charging is absolutely normal and not a malfunction. However, we do recommend leaving the power bank with compressor 1 to rest for 15 minutes before using.

- Protect the power bank with compressor from moisture and high temperatures, including fires.

■ Store the power bank with compressor in a dry place and protect the device from moisture and corrosion.

If you notice the power bank with compressors is leaking, producing an unusual odour or looking deformed in any way, stop using the device immediately and contact the manufacturer.

- Do not drop the power bank with compressor while it is being used.

The power bank with compressors is designed for use with car tyres. It is not designed for use with large tyres like tractor or truck tyres.

PLEASE NOTE: The digital pressure gauge with air pressure and battery display 6 of the power bank with compressor 1 is not trade-approved. After pumping up inflatable items where the wrong pressure could be dangerous (e.g. car tyres after a breakdown), always check the pressure at a service point with a trade-approved device. Check the pressure of the inflatable item there.

During inflation, high temperatures can be produced at the air outlet. There is a risk of burn injuries!

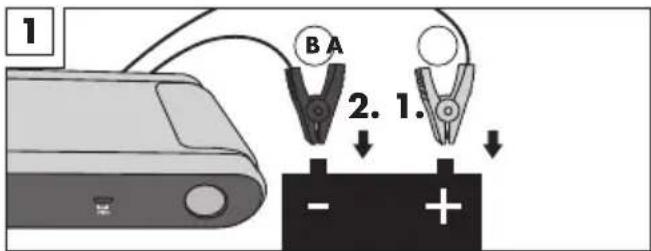

- When using the jump lead ensure that the plug is securely plugged into the car jumpstart outlet 8.

- When using the jumpstart, make sure that at least 3 bars are illuminated on the battery level indicator 14.

If just one bar is flashing on the battery level indicator during the starting process, charge the power bank with compressor 1.

If the vehicle does not start after the 3rd – 5th start attempt, stop the start process and check the other causes that may be preventing the vehicle from starting.

• Using the device

PLEASENOTE: After switching on the power bank with compressor 1 with the power bank switch 7, the device switches off automatically after approximately 20 seconds if the compressor is not started or if no consumables are connected.

- Check the charge level of the power bank with compressor

■ Switch on the power bank with compressor by using the switch for the power bank 7.

- When charging, the bars on the battery level indicator will flash.

The number of permanently lit bars on the battery charge level indicator 14 shows the charge level of the power bank with compressor 1.

If the device is fully charged, all four bars will be permanently lit on the battery level indicator 14

Bars for the battery level indicator Battery charge level
1 flashes 0%
1 permanently lit 25%
2 permanently lit 50%
3 permanently lit 75%
4 permanently lit 100%

● Charging the power bank with compressor

Connect the USB co2 with the 5 V = 72 A charging port (USB-C) 11 and an appropriate USB-A socket or an appropriate USB network adapter (working output voltage U_out,max 5 V).

PLEASE NOTE: USB AC adapter not included in the scope of delivery.

PLEASE NOTE: An undervoltage protection circuit is installed in the power bank with compressor 1 to protect the device from damage. This prevents a deep discharge of the power bank with compressor 1 and automatically switches the device off once the rechargeable battery pack is fully discharged. In this case, only one of the four bars on the battery level indicator 14 will flash. No more energy can be obtained and the compressor function will be deactivated. Please recharge the power bank with compressor 1.

PLEASE NOTE: For safety reasons the device cannot be charged if a battery cell is defective or deeply discharged. The digital pressure gauge with battery display 6 then shows "Err". In this case, please contact our service point.

- Charging mobile phones and tablets

■ Press the power switch for the power bankonce.

■ Connect a suitable USB charging cable to the USB port (5 V /1 A) 12 or the USB port (5 V /2 A) 13 and then plug it into your mobile phone or tablet.

■ The charging process starts automatically.

PLEASE NOTE: You cannot charge USB devices (e.g. mobile phone, tablet) while the power bank with compressor itself 1 is being charged.

• Using the integrated compressor

Screw the compressed air h103 on to the hose connection 16 of the power bank with compressor 1 (see Fig. C).

Place the device on a level and non-flammable surface. Do not operate the device in a dusty environment. This is a fire risk and the device could be damaged.

PLEASE NOTE: Depending on the inflatable item, you can either use the compressed air hose directly or use it together with the valve adapters 21, 22 and 23 supplied in the scope of delivery.

Connecting the compressed air hose without a valve adapter

- Screw the free end of the compressed air has directly on to the connection valve of the inflatable item.

Connecting the compressed air hose with a valve adapter

The valve adapts 21 and 23 are located in the storage compartment for the valve adapters 15 (see Fig. B).

First screw the required valve adapter 26 or 23 to the free end of the compressed air hose 17.

Then insert the valve adapter 24 or 22 or 23 into the connection valve of the inflatable item (if necessary remove the valve cap of the inflatable item).

Removing the compressed air hose

■ Connecting without the valve adapts 22 or 23: Unscrew the compressed connection hose 17 off the valve of the inflatable item.

■ Connecting with the valve adapters 21, 22 or 23: First, pull the valve adapter off the connecting valve on the inflatable item. Unscrew the valve adapter 21, 22 or 23 off the compressed air hose 17 (if necessary, reattach the valve cap on to the inflatable item).

PLEASE NOTE: When disconnecting the compressed air hose 17, air can escape from the valve of the inflatable item. Ensure that you remove the compressed air hose 17 as quickly as possible.

Pressure-Preselect function

■ Switch on the power bank with compressor by using the switch for the power bank 7.

■ Connect the compressed air hase of the power bank with compressor 1 to the inflatable item which you want to inflate. To do so, please proceed as described in the previous section.

Use the "M" menu button to select the desired unit of pressure. The units available are bar ("bar"), kilopascal ("KPa"), kilogram per square centimetre ("KG/CM ^2 ") and pound per square inch ("PSI") (see Fig. E).

Use the "+" button and the "-" button 10 to select the desired pressure. To speed up the selection, you can keep the respective button pressed down. Pressure settings between 0.3 bar and 3.5 bar are possible in 0.05 bar steps (see Fig. E).

PLEASE NOTE: While preselecting the pressure, the digital pressure gauge with the air pressure and battery display will flash 6. If a button is not pressed for at least 10 seconds, the display will display the ACTUAL value of the pressure. The pressure which has been set remains stored.

Switch on the integrated compressor by pressing the On/Off button for the compressor 2 once.

■ The compressor will start and pump up the inflatable item.

- You can switch off the compressor at any time by pressing the On/Off button for the compressor 2 once more.

- Otherwise, the compressor will switch off automatically once the inflatable item has reached the pre-set pressure.

■ Disconnect the inflatable item from the compressed air hoveas described in the previous section.

At the end of work, screw the compressed air h08eback off the hose connection 16 of the power bank with compressor 1.

ATTENTION: The hose connection ^16 of the power bank with compressor ^1 heats up during operation. Make sure that you do not come into contact with the hose connection ^16 during operation to avoid suffering burns. At the end of work, wait for at least 10 minutes before you unscrew the compressed air hose ^17 back off the hose connection ^16 of the power bank with compressor ^1 .

PLEASE NOTE: After switching on the power bank with compressor 1 with the power bank switch 7, the device switches off automatically after approximately 20 seconds if the compressor is not started or if no consumables are connected.

PLEASE NOTE: The digital pressure gauge with air pressure and battery display 6 of the power bank with compressor 1 is not trade-approved. Therefore, if inflatable items have been pumped up, in which incorrect pressure can be dangerous (e.g. car tyres), find a specialist unit with a trade-approved device and check the pressure of the inflatable item.

Tips for use

The device is not intended for continuous operation. The device was designed to create air pressure – not an air flow. Please do not use the device for more than 7 minutes at a time on items with a large volume, to avoid overheating and damage to the device. Then let the device cool down for at least 15 minutes. We recommend first filling a large-volume item with air, in order to then generate the required pressure with the device. Do not use the device for more than 7 minutes at a time without stopping. Then let the device cool down for at least 15 minutes.

Air pressure testing with the power bank with compressor

PLEASE NOTE: The digital pressure gauge with air pressure and battery display 6 of the power bank with compressor 1 is not trade-approved.

- Switch on the power bank with compressor by using the switch for the power bank 7. - Connect the inflatable item to the compressed air hose of the power bank with compressor 1, whose pressure you want to check. To do so, please proceed as described in the section "Connecting the compressed air hose with a valve adapter" or "Connecting the compressed air hose without a valve adapter".

Use the "M" menu button to select the desired unit of pressure. The units available are bar ("bar"), kilopascal ("KPa"), kilogram per square centimetre ("KG/CM2") and pound per square inch ("PSI") (see Fig. E).

The digital pressure gauge with air pressure and battery display shows the pressure of the connected inflatable item in the preset unit.

- Disconnect the inflatable item from the compressed air hose of the power bank with compressor 1. To do so, please proceed as described in the section "Removing the compressed air hose".

PLEASE NOTE: When disconnecting the compressed air hose 17, air can escape from the valve of the inflatable item. Ensure that you remove the compressed air hose 17 as quickly as possible.

Safety fuse

If the device becomes overloaded or malfunctions, the safety fuse triggers to protect the device.

Never use a fuse with a higher release current strength. There is a risk of fire!

Attention: To protect people and property, an overheat protection circuit has been installed for the rechargeable battery pack in the power bank with compressor 1. This prevents an overheating of the rechargeable battery pack installed in the device and automatically switches off the power bank with compressor 1 if the battery temperature is too high. If this happens, allow the device to cool down prior to re-commissioning it.

- Switching the light on

Lighting mode

■ To switch the LED lighton, press the power switch 3 for the LED light.
Press the power switch for the LED light three times to switch the LED light 5 off again.

Flash mode

To switch the LED light on in flash or SOS mode, press the power switch 3 for the LED light. The LED light 5 will then be permanently lit.

- Briefly press the power switch for the LED light once again and the LED light 5 will switch to flash mode.

- Briefly press the power switch for the LED light once again and the LED light 5 will switch to SOS mode. There will be 3 short flashes, 3 long flashes and another 3 short flashes.

- Briefly press the power switch for the LED light once again to switch off the LED light 5.

CAUTION! Do not look directly at the LED light 5 as this can damage your eyes.

PLEASE NOTE: It is not possible to turn on the light while the power bank with compressor 1 is charging.

• Using the jumpstart feature

When using the jumpstart, make sure that at least 3 bars are permanently illuminated on the battery level indicator 14.

1 B A 2. 1. - +

Step LEDs Meaning / Error Solution
1. Connect the jump lead 18 of the power bank with compressor 1 to the car jumpstart outlet 9 of the power bank with compressor 1.	Red Error LED 20 is continuously lit on the jump lead 18.	The voltage determined in the power bank with compressor 1 is not enough to start the car.	Charge the power bank with compressor 1.
	The green Start LED 19 and the red Error LED 20 flash alternately.	Power bank with compressor 1 ready.	Carry on to step 2...
2. First connect the red clamp (A) to the positive pole of the vehicle battery and then connect the black battery clamp (B) to the negative pole (see Fig. 1).	The red Error LED 20 lights up continuously, a short alarm signal sounds.	The temperature is too high, possibly due to several jump start attempts.	Disconnect the black battery clamp (B) first and then the red battery clamp (A) from the battery poles. Start again from step 1.
	The red Error LED 20 lights up continuously, an alarm signal sounds continuously.	Battery clips (A) and (B) are the wrong way round.A short circuit has occurred or the battery is leaking.
	The red Error LED 20 lights up continuously, an alarm signal sounds continuously, followed by two short alarm signals.
	The green Start LED 19 and the red Error LED 20 flash alternately. After 1–2 seconds only the green LED 19 lights up.	The connection is correct. Carry	on with step 3...
3. Starting up the vehicle.

■ ATTENTION: As soon as the vehicle starts, remove the jump lead 18 from the power bank with compressor 1 within 30 seconds and firstly disconnect the black battery clip (B) and then the red clip (A) from the battery poles. Otherwise, it could result in dangerous situations! ■ Leave the vehicle engine running.

- FAQ

Q: Question

A: Answer

Q: How long does it take to fully charge a mobile phone with the device?

A: With a rechargeable battery capacity of 3500 mAh: Approx. 3–4 hours if connected to the USB output 5V /1A 12 . Approx. 2–3 hours if connected to the USB output 5V /2A 13 . Please note that if the device is switched on, it will continually use battery power while actually charging and this can extend the charging time.

Q: How long does the power bank with compressor 1 hold a full charge?

A: 3–6 months. However, we recommend recharging the rechargeable battery pack monthly.

Q: How is the power bank with compressor 1 switched off?

A: After switching on the power bank with compressor ^1 with the power bank switch ^7 , the power bank with compressor switches off automatically after approximately 20 seconds if the compressor is not started or if no consumables are connected. It is not possible to switch the device off manually.

- Troubleshooting

● = problem
● = cause
○ = remedy

The power bank with compressor ^1 is not fully charged, even though all 4 bars on the battery level indicator ^14 are permanently lit.

• It is 60% charged after a long period out of use or in storage.
  ○ Recharge the power bank with compressor ^1 as described in the section "Charging the power bank with compressor".

Power bank does not respond when power bank switch7 is pressed.
- Deep discharge protection active on the power bank with compressor ^1 .
○ Recharge the power bank with compressor ^1 .
One bar on the battery level indicator ^14 is flashing, however the power bank with compressor 1 cannot be used.
- Deep discharge protection active on the power bank with compressor ^1 .
○ Recharge the power bank with compressor ^1 .

- Cleaning

ATTENTION: The device must not come into contact with water or be placed in water. There is a risk of injury due to electric shock if moisture enters the device.

• Do not use cleaners or solvents. These could damage the device beyond repair.
• Keep the housing and device accessories clean.
  ■ Use a damp cloth or a soft brush to clean the device and the accessories.

- Storage

- Keep the device in a dry location and out of the reach of children.

■ To avoid damage, take care to ensure that the compressed air hose 17 does not become kinked.

■ Store the valve adapters 21s 22 and 23 in the storage compartment for the valve adapters 15.

● Information about recycling and disposal

DO NOT DISPOSE OF ELECTRICAL TOOLS IN HOUSEHOLD WASTE! DON'T THROW AWAY - RECYCLE!

According to European Directive 2012/19/EU, used electrical devices must be collected separately for environmentally compatible recycling or recovery. The symbol of the crossed out dustbin means that this device must not be disposed of in household waste at the end of its service life. The device must be handed in at established collection points, recycling centres or waste management depots.

The disposal of defective devices which you have sent in will be carried out free of charge. In addition, distributors of electrical and electronic equipment as well as food distributors are obliged to accept returned waste. Lidl provides you with return options directly in its branches and shops. Return and disposal is free of charge for you. When buying a new device you have the right to return an equivalent old device at no charge. In addition you have the option, regardless of whether you are buying a new device, to hand in (up to three) old devices at no charge, as long as the device is no larger than 25 cm in any dimension. Before returning the device please delete all personal information.

Before returning, please remove batteries or rechargeable battery packs which are not enclosed by the old device, as well as bulbs, which can be removed without destroying the product and take these to a separate collection point.

Instructions for safe removal of batteries or rechargeable battery packs:

WARNING!

The rechargeable battery pack may only be removed by qualified personnel!

RISK OF PERSONAL INJURY THROUGH ELECTRIC SHOCK!

■ Ensure that the battery is completely discharged.
The battery can be removed, once the two halves of the device have been separated from one another. These are held together by commercial screws.
- Carefully remove the battery or the rechargeable battery pack.
■ The battery or rechargeable battery pack and device can now be disposed of separately.

Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

Take used batteries to a waste management company in your city or community or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment.

Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.

• EC Declaration of Conformity

We,

C. M. C. GmbH Holding

Responsible for documentation:

Joachim Bettinger

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

hereby take sole responsibility for declaring that the product

Power bank with compressor

IAN: 467095_2404

Art. no.: 2786

Year of manufacture: 2025/09

Model: UPK 10 H5

meets the basic safety requirements as specified in the European Directives

Electromagnetic Compatibility:

(2014/30/EU)

Machinery Directive:

(2006/42/EU)

RoHS Directive:

(2011/65/EU)+(2015/863/EU)

Outdoor directive:

(2000/14/EG)

Annexe III engine power: 90 W

Guaranteed sound power level L_WA : 95 dB(A)

Measured sound power level L_WA : 91.6 dB(A)

and the amendments to these Directives.

The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This conformity assessment is based on the following harmonised standards:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021

EN 62233:2008

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009

EN 50498:2010

EN 60068-2-1:2007

EN 62471:2008

EN 1012-1:2010

EN 62841-1:2015

St. Ingbert, 01 May 2024 C.M.C. GmbH Holding Katharina-Loth Straße 15 66386 St.Ingbert Tel. [phone] Fax [phone]

pp Joachim Bettinger – Quality Assurance –

• Warranty and service information

Warranty from C. M. C. GmbH Holding

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

• Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred.

If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

- Warranty period and statutory claims for defects

The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.

• Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below.

Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.

The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device.

In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

PLEASE NOTE:

You can download this handbook and many more, as well as product videos and software at www.lidl-service.com. With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your operating instructions by entering the article number (IAN) 467095.

PDF ONLINE www.lidl-service.com

Service

How to contact us:

GB, IE, NI, CY, MT

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 467095\_2404

Please note that the following address is not a service address. Please first contact the service point given above.

Address:

C. M. C. GmbH Holding

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

● = Problem
= Ursache
○ = Behebung

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 55015:2019+A11:2020 EN 61547:2009 EN 50498:2010 EN 60068-2-1:2007 EN 62471:2008 EN 1012-1:2010 EN 62841-1:2015

[e-mail]

[e-mail]

Telefon: [phone]

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EAN 55032: 2015+A11:2020+A1:2020

EAN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009

EN 50498:2010

EN 60068-2-1:2007

EN 62471:2008

EN 1012-1:2010

EN 62841-1:2015

APPARAAT EN MOET OP ELK MOMENT BESCHIKBAAR ZIJN!

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009

EN 50498:2010

EN 60068-2-1:2007

EN 62471:2008

EN 1012-1:2010

EN 62841-1:2015

St. Ingbert, 1-5-2024

C.M.C. GmbH Holding Katharina-Lohn-Straße 15 66386 St.Ingbert Tel. [phone] Fax [phone]

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020 EN 61547:2009 EN 50498:2010 EN 60068-2-1:2007 EN 62471:2008 EN 1012-1:2010 EN 62841-1:2015

St. Ingbert, 1.5.2024

C.M.C. GmbH Holding Katharina-Löth-Straße 15 66386 St.Ingbert Tel. [phone] Fax [phone]

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009

EN 50498:2010

EN 60068-2-1:2007

EN 62471:2008

EN 1012-1:2010

EN 62841-1:2015

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009

EN 50498:2010

EN 60068-2-1:2007

EN 62471:2008

EN 1012-1:2010

EN 62841-1:2015

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009

EN 50498:2010

EN 60068-2-1:2007

EN 62471:2008

EN 1012-1:2010

EN 62841-1:2015

St. Ingbert, 01/05/2024

C.M.C. GmbH Holding Katharina-Loth Straße 15 66386 St.Ingbert Tel. [phone] Fax [phone]

P.o. Joachim Bettinger

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

IAN 55032: 2015+A11:2020+A1:2020

IAN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009 EN 50498:2010 EN 60068-2-1:2007 EN 62471:2008 EN 1012-1:2010 EN 62841-1:2015

St. Ingbert, 01-05-2024 C.M.C. GmbH Holding Katharina-Loth Straße 15 66386 St.Ingbert Tel. [phone] Fax [phone]

e.b. Joachim Bettinger - Kvalitetsstyring -

- Oplysninger om garanti og serviceafvikling

Garanti fra C. M. C. GmbH Holding

Kære kunde,

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 55015:2019+A11:2020

EN 61547:2009

EN 50498:2010

EN 60068-2-1:2007

EN 62471:2008

EN 1012-1:2010

EN 62841-1:2015

St. Ingbert, 01/05/24

C.M.C. GmbH Holding

Katharina-Joth Straße 15 66386 St.Ingbert

Tel.[phone]

Fax [phone]

p.p. Joachim Bettinger

Nome: Riku Service snc

Indirizzo Internet: www.riku-service.com

E-Mail: [e-mail]

Telefono: 0039 (0) 4711430103

Sede: Germania

IAN 467095\_2404

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 55032: 2015+A11:2020+A1:2020

EN 55035: 2017+A11:2020 EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 55015:2019+A11:2020 EN 61547:2009 EN 50498:2010 EN 60068-2-1:2007 EN 62471:2008 EN 1012-1:2010 EN 62841-1:2015

St. Ingbert, 2024.05.01. C.M.C. GmbH Holding Katharina Louis Straße 15 66386 St.Ingbert Tel. [phone] Fax [phone] megb. Joachim Bettinger - minőségbiztosítás -
