USER MANUAL USOP 50 A1 ULTIMATE SPEED

Exterior view of a Ultimate Speed electric motor with attached clamp and cord (no text or symbols visible on the device body)

PDF ONLINE www.lidl-service.com

OIL PUMP WITH PUMP NOZZLE USOP 50 A1 ÖLPUMPE MIT ZAPFPISTOLE USOP 50 A1 POMPE À HUILE AVEC PISTOLET DE DISTRIBUTION USOP 50 A1

GB IE NI CY MT

OIL PUMP WITH PUMP NOZZLE

Operation and Safety Notes

Translation of the original instructions

FR BE CH

POMPE À HUILE AVEC PISTOLET DE DISTRIBUTION

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE/NI/CY/MT Operation and Safety Notes Page 5

Product diagram showing labeled parts of a spray gun with numbered parts for identification.

C 9 1 8

D 13 12

Close-up of hands adjusting a black cable with a plug, showing mechanical components and directional arrows (no text or symbols)

Close-up of a black electric vehicle fuel nozzle with attached plug (no visible text or symbols)

Table of pictograms used....Page 5

Introduction Page 6

Intended use Page 6

Scope of delivery.... Page 6

Equipment Page 7

Technical Specifications Page 7

Safety instructions ...... Page 8

Specific safety instructions Page 10

Using the device....Page 12

Install and secure....Page 12

Fitting the accessories....Page 12

Preparation and the pumping process Page 12

Troubleshooting Page 13

Cleaning Page 14

Storage Page 14

Information about recycling and disposal......Page 14

Original EC Declaration of Conformity Page 15

Warranty and service information......Page 16

Warranty conditions.... Page 16

Warranty period and statutory claims for defects....Page 16

Extent of warranty....Page 16

Processing of warranty claims Page 16

Service......Page 17

Table of pictograms used
	Read the operating instructions! Wear eye protection!
	Wear protective gloves!		Warning: Risk of electric shock!Danger to life!
	Observe warnings and safety instructions!		Do not expose the device to rain!
	Use respiratory protection! Don’t throw away – recycle!
	Direct current		Dispose of the device and packaging in an environmentally friendly manner!
	Appliance class IIIMade from recycled material.	IPX4	Protection class; protected against water splashesYou are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited.
	Please note Attention! Hot surface!
	The device is only suitable for indoor operation.

Oil Pump with Pump Nozzle USOP 50 A1

- Introduction

Congratulations! You have purchased one of our high-quality products. Please familiarise yourself with the product before using it for the first time. To do this, please read through the

following operating and safety instructions carefully.

KEEP OUT OF THE REACH OF CHILDREN!

Intendeduse

The oil pump is designed exclusively for transferring and pumping engine oil, diesel and heating oil. The pumped liquid must not contain any impurities, which could settle in the pump and cause damage. The oil pump is not intended to pump water, aggressive chemicals (e.g. acids, alkalis, etc.), highly flammable liquids (e.g. petrol, alcohol, etc.) and liquids which contain abrasive material (e.g. sand). This device is not designed for continuous operation or to be used for longer than 30 minutes at a time. Use the product only as described and only for the specific applications as stated. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs from the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use. Commercial use will void the warranty. The product must only be started up initially by people who have been trained to do so.

- Scope of delivery

1 oil pump
1 set of operating instructions
3 hose clamps
1 suction hose 1.2 m
1 drain hose 2 m
1 coarse suction filter
1 pump nozzle

Equipment

PLEASE NOTE: After unpacking the product, please check that all of the package contents are present and that the oil pump is in perfect condition. Do not use the device if it is defective.

1	Oil pump
2	On/Off switch: “0” means “OFF”; “1” means “ON”
3	Cable with red connecting clamp
4	Cable with black connecting clamp
5	Handle
6	Mounting holes for fixed installation
7	Hose clamps
8	Suction hose 1.2 m
9	Drain hose 2 m
10	Coarse suction filter

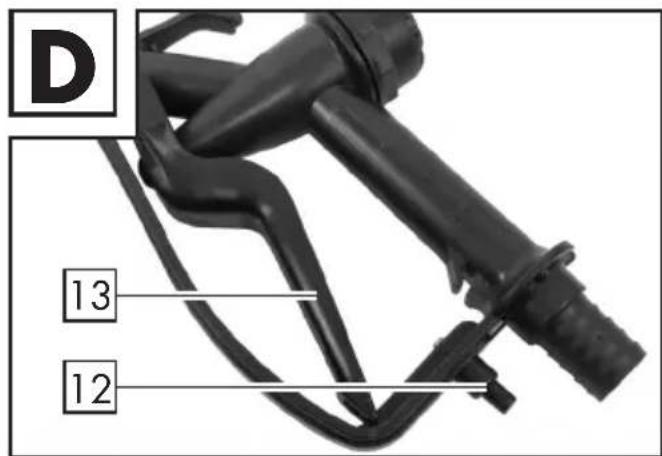

11	Pump nozzle
12	Latch mechanism
13	Handle

PLEASE NOTE: The use of the term 'product' or 'device' in the following text refers to the oil pump described in these operating instructions.

• Technical Specifications

Model: USOP 50 A1
Operating temperature: 5-40°C
Nominal power: 160 W
Input voltage: 12 V	---
Protection class: IPX4
Continuous operation: max. 30 min*
Diesel/heating oil flow rate: max. 50 l/min
Engine oil flow rate**: max. 50 l/min at 60 °C oil	temperature
**SAE 0W-16 engine oil: max. 50 l/min at 60 °C	oil temperature
**SAE 10W-40 engine oil: max. 35 l/min at 60 °C	oil temperature
Pumping head: max. 3.2 m
Emission of airborne noise: 61 dB(A)

* Continuous operation: Do not operate the device continuously for longer than 30 minutes. Following this, there must be a rest period of 15 minutes.

Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim.

- Safety instructions

PLEASE READ THROUGH THE OPERATING INSTRUCTIONS CAREFULLY BEFORE USE. THESE FORM PART OF THE PRODUCT AND MUST BE AVAILABLE AT ALL TIMES!

KEEP OUT OF THE REACH OF CHILDREN!

This section covers the basic safety regulations applicable when working with the device.

Personal safety:

This device must not be used by children. Cleaning and day-to-day maintenance must not be performed by children.
■ Devices may be used by individuals with reduced physical, sensory or mental capacities or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the associated dangers.
■ Children must be supervised to ensure that they do not play with the device.
- Keep the device away from people – especially children – and household pets.
■ Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device.
■ During operation, never point the device at yourself or other individuals, and keep the device well way from your ears and eyes. There is a risk of injury!
- Do not leave the device unsupervised while running. Comply with the fi lling instructions for the vehicle/tank.
- Keep the device in a dry location and out of the reach of children.
■ Do not leave the device outside when it is frosty.

This helps prevent device damage and possible personal injuries that could result from it:

Risk of electric shock!

■ Only connect the device to a 12 V car battery. Connecting to a 24 V voltage can damage the device.
- When connecting the device make sure that the connecting clamps are connected to the correct poles of the battery.

■ Only use the connection cable delivered with the product.

Only use original accessories.

- You must not open or repair the device housing. In this case safety is no longer assured and the warranty is no longer valid.

■ The device is only suitable for use indoors.

Before using the device each time, check it for any damage and do not use unless in perfect working order.

- Do not expose the device to rain or wet weather. Do not let the device come into contact with water. Do not immerse the device in water. There is a risk of electric shock!

General safety instructions

- Keep all openings of the device free during operation.

Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!

In hot weather, do not leave the device in a car. This could permanently damage the device.

■ The device becomes warm during use. There is a risk of burn injuries from touching the hot surfaces.

- Do not use the device near to highly flammable liquids or gases. Failure to comply risks causing a fire or explosion!

■ Switch the device off and disconnect the device from the voltage supply:

-if you are not using the device;

-if you are leaving the device unsupervised;

-if you are doing cleaning work;

-if the connection cable is damaged;

- if foreign objects have got into the device or you notice unusual noises.

- Do not disassemble or modify the device. This device must only be repaired by a maintenance technician.

- Do not use the device in areas with a risk of explosion, e.g. near flammable liquids, gases or powders.

■ Do not expose the device to any source of heat.

- Do not store in places where the temperature can exceed 60 °C.

■ Only use in an ambient temperature between 5 °C and 40 °C.

Electrical safety:

- Do not use the device if the switch cannot be switched on and off. Arrange for damaged switches to be replaced.

- Do not carry the device by the cable. Do not use the cable to disconnect the pole clamps from the battery. Protect the cable from heat, oil and sharp edges.

If the cable is damaged, disconnect the pole clamps from the battery immediately. Do not short-circuit the clamps and/or the connection cable.

- When handling vehicle batteries observe the instructions from the battery and vehicle manufacturer.

- Specific safety instructions

■ Always fix the hoses and pump nozzle with hose clamps, in order to prevent any possibly leaks.

■ Wear personal protective equipment such as safety goggles, gloves and a dust mask. We recommend the use of solvent-resistant gloves. The use of personal protective equipment reduces the risk of injury.

■ Diesel, heating oil and engine oil can be hazardous to health. Avoid direct contact with the skin and inhaling vapours or droplets.

ATTENTION: Take particular care when you are working with vehicle batteries. Battery acid can leak and cause severe burns. If battery acid should come into contact with the skin or eyes, rinse the areas with plenty of water and seek medical advice at once.

• Only connect the device to the car battery when the engine is switched off! There is a risk of injury through moving parts!
  ■ The device must always be accessible so that the device can be quickly disconnected from the battery in case of emergency.
  ■ The connection cable can get warm under high loading.
  If your vehicle is parked on a sloping surface, then full drainage of the oil is not possible in some circumstances. Make sure that the handbrake is on.

ATTENTION: Do not use the device when the engine is switched on or hot. Do not start the engine of the vehicle during the pumping process. Do not use the device continuously for more than 30 minutes, to avoid overheating. FIRE HAZARD!

ATTENTION: No not operate the device near open flames or flammable gases. Do not smoke when the device is running. Make sure there is good ventilation in the working area.

FIRE HAZARD!

ATTENTION: Do not pump oil which has a temperature of more than 60 °C. FIRE HAZARD!

ATTENTION: Do not use the device to drain highly flammable liquids, water, water-based solutions, food stuffs, paints, varnishes or other chemicals.

FIRE HAZARD!

• Do not let the device run dry. This could damage the device.
  ■ Always open the pump nozzle first, before you switch the device on. Make sure that the pump is switched off immediately after you have closed the pump nozzle. Otherwise, the device can be damaged.
  ■ Only collect the drained oil in authorised containers.
  Do not mix different types of oil in the same container.
  ■ Disconnect the device from the battery immediately after operation.

ATTENTION: Operating the device over longer periods of time can fully discharge the car battery.

• Keep the device and waste oil in a dry location and out of the reach of children.
• Dispose of the waste oil and used cloths properly (see “Information about recycling and disposal”). To protect the environment, do not let oil soak into the ground or run into the drains.
  If the power cable for this device becomes damaged, ensure that the cable is replaced by the manufacturer, a customer service technician or other qualified person to avoid any possible hazards.
  In order to avoid damage, after a maximum of 30 minutes continuous operation, allow the device to cool down for at least 15 minutes.
  ■ Protect the oil pump from moisture and high temperatures, including fires.
  ■ Store the device in a dry place and protect the device from moisture and corrosion.
  ■ Do not drop the device while it is being used.
  ■ A slightly higher operating temperature is absolutely normal and not a malfunction.
  ■ When used for a long period of time, the device may become noticeably warm. There is a risk of burn injuries!
  ■ Do not use the device near hot surfaces.
• Do not position the device in areas which are exposed to direct sunlight. Otherwise it could overheat and be damaged beyond repair.
  ■ Do not operate the device in a vehicle.
• Do not cover the device while it is switched on. FIRE HAZARD!

■ When using the device always be careful and use your common sense during operation. Never leave the device unattended when it is being used. One moment of inattention can lead to serious injuries or damage to the device and/or the vehicle.

• Using the device

Take all parts from the packaging and check whether the device or parts show any damage. If this is the case, do not use the device. Contact the manufacturer via the indicated service address. Remove all protective films and other transport packaging. Check that the delivery is complete.

• Install and secure

• Place the product on a level and non-flammable surface.
• Do not cover over the device.

- Do not operate the device in a dusty environment. This is a fire risk and the device could be damaged.

The device should be positioned on a flat, even surface. Make sure that there is at least 5 cm free space around the device for air circulation.

There ☐holes ☐ in the base of the oil pump so that you can mount it securely. Using suitable screws (not included in the scope of delivery) you can mount the device securely. When doing this make sure you maintain the space for air circulation as stated above. If you are unsure, contact an appropriate tradesman.

• Fitting the accessories

■ Unwind the hoses and cables completely.

PLEASE NOTE: For any further assembly, note the pump direction of the device. The liquid will be ped in the direction of the arrow.

$$ \begin{array}{l} \text { Inlet } = \text {"IN"} \ \text { Outlet } = \text {"OUT"} \end{array} $$

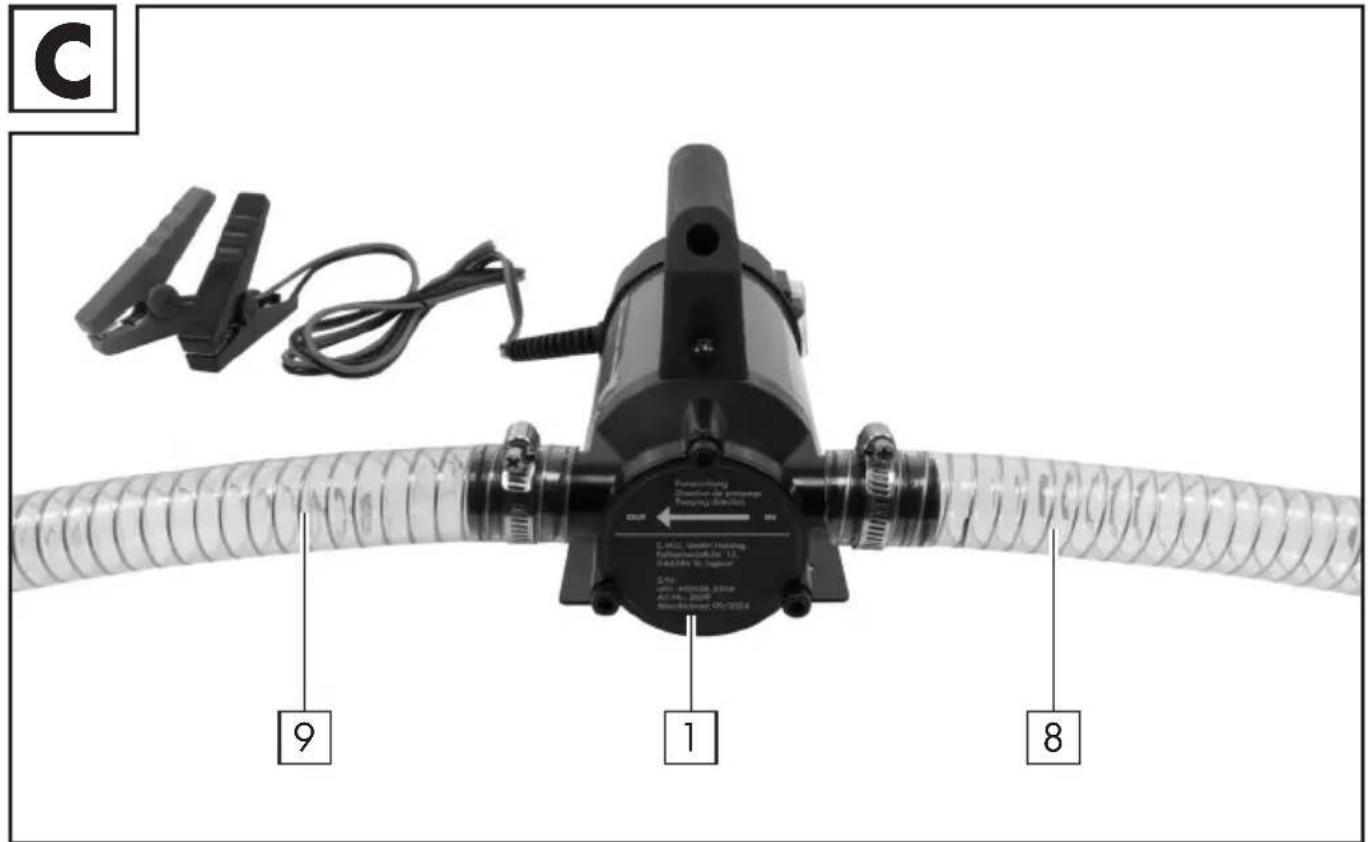

- Guide a hose clamp over the end of the suction hose (1.2 m) 8. Push the end of the suction hose over the corresponding inlet of the pump "IN". Now fix the hose using the hose clamp. To do this use a Phillips screwdriver.

■ Proceed in the same way to connect the drain hose (2 m) with the outlet of the pump "OUT".

To protect the pump, we recommend putting the coarse suction filter 10 on the open end of the suction hose 8, in case the oil which is being drained contains impurities.

• You can use the pump nozzle supplied for simplified transfer of liquids.
  To do this first guide a hose clamp over the open end of the drain hose (2 m) 9. Now connect the pump nozzle 11 with the open end of the drain hose 9 and fix it in place using a hose clamp.

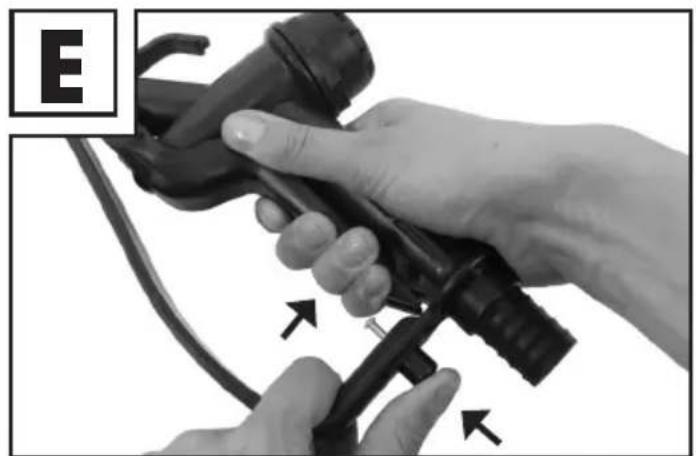

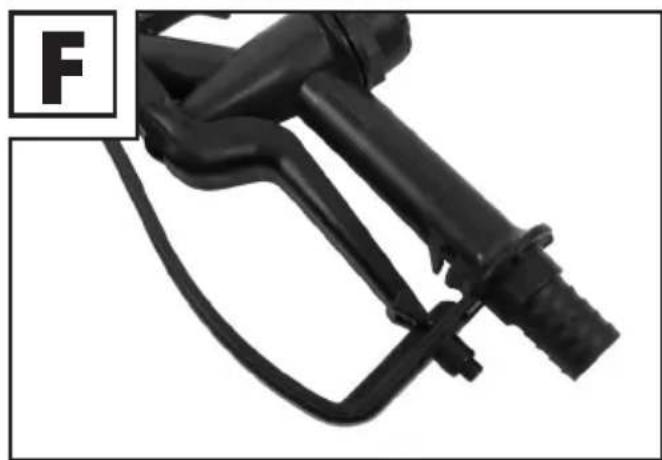

• Lock the pump nozzle in the open position: Push the handle 13 right to the back, push and hold the latch mechanism 12 and then let go of the handle (Fig. F-H). The pump nozzle is now locked in the open position. Push the handle briefly to the back to release the latch mechanism.

● Preparation and the pumping process

PLEASE NOTE: When pumping diesel oil into a vehicle tank, observe the instructions from the cle manufacturer. The pump is not intended to drain diesel out of a vehicle tank. This can damage vehicle. Never use the pump to pump petrol.

PLEASE NOTE: When draining heating oil the suction hose 8 must not touch the sump (sludge from the impurities in the oil which have collected) in the bottom of the tank. The pump is not designed for draining the sump, even when using the coarse suction filter 10.

PLEASE NOTE: The product is not designed to carry out an oil change on a car. Due to the low volume of the oil tank of a car and the high pumping capacity, clean transfer of the oil would not be possible and could damage the vehicle.

- Guide the suction hose carefully to the bottom of the tank out of which you want to pump the liquid. - Guide the drain hose into the tank to be filled.

■ Make sure that all tanks/containers as well as the oil pump are positioned firmly and securely.

PLEASE NOTE: Before connecting the oil pump to a vehicle battery, make sure that the On/Off switch of the device is in the "0" (OFF) position.

■ Connect the connecting clamp for the positive pole (red) with the positive pole (+) of the vehicle battery.

- Connect the connecting clamp for the negative pole (black) with the negative pole (-) of the vehicle battery.

- When using the pump nozzle always open the pump nozzle first, before you switch the device on ("open" position see Fig. F.). Make sure that the pump is switched off immediately after you have closed the pump nozzle. Otherwise, the device can be damaged.

- Set the On/Off switch to the "1" position, to switch the device on. The pumping process will start.

ATTENTION: Make sure that no diesel or heating oil is spilling over or spraying out due to the high pump capacity of the oil pump out of a tank/container which is too small or almost full!

In order to stop the pumping process, set the On/Off switch to the "0" position.

■ To clean the device, pump a little clean oil after each use.

Now remove the connecting clamp for the negative pole (black) from the negative pole (-) of the vehicle battery.

■ Then remove the connecting clamp for the positive pole (red) from the positive pol (+) of the vehicle battery.

PLEASE NOTE: In order to avoid damage to the device, after each use allow it to cool down for at least 15 minutes.

ATTENTION: Waste oil must be disposed of in accordance with the current regulations for waste oil disposal.

- Troubleshooting

● = problem
● = cause
= remedy

No response when the On/Off switch ^2 is pressed.
- There is no power supply to the device.
○ Make sure that the connecting clamps are properly connected with the respective poles of the vehicle battery.

- Cleaning

ATTENTION: The device must not come into contact with water or be placed in water. There is a risk of injury due to electric shock if moisture enters the device.

• Do not use cleaners or solvents. These could damage the device beyond repair.
• Keep the housing and device accessories clean.
  ■ Use a damp cloth or a soft brush to clean the device and the accessories.
  ■ After each use, pump a little clean oil to clean the device.
  If oil leaks, soak it up with a cloth or paper towel.

- Storage

• Keep the device in a dry location and out of the reach of children.
  ■ To avoid damage, take care to ensure that the hoses and cables have not become kinked.
  ■ Make sure you only store diesel/oil in containers which are suitable for this purpose.

● Information about recycling and disposal

DO NOT DISPOSE OF ELECTRICAL TOOLS IN HOUSEHOLD WASTE! DON'T THROW AWAY - RECYCLE!

According to European Directive 2012/19/EU, used electrical devices must be collected separately for environmentally compatible recycling or recovery. The symbol of the crossed out dustbin means that this device must not be disposed of in household waste at the end of its service life. The device must be handed in at established collection points, recycling centres or waste management depots. The disposal of defective devices which you have sent in will be carried out free of charge. In addition, distributors of electrical and electronic equipment as well as food distributors are obliged to accept returned waste. Lidl provides you with return options directly in its branches and shops. Return and disposal is free of charge for you. When buying a new device you have the right to return an equivalent old device at no charge. In addition you have the option, regardless of whether you are buying a new device, to hand in (up to three) old devices at no charge, as long as the device is no larger than 25 cm in any dimension. Before returning the device please delete all personal information. Before returning, please remove batteries or rechargeable battery packs which are not enclosed by the old device, as well as bulbs, which can be removed without destroying the product and take these to a separate collection point.

Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

Take used batteries to a waste management company in your city or community or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment.

Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.

Never allow clean or old oil (or diesel) to soak into the ground or run into the sewer system. This is illegal! Collect old oil in a suitable container in order to protect the environment. Dispose of it at your local collection point, petrol station or oil dealer.

● Original EC Declaration of Conformity

We,

C. M. C. GmbH Holding

Responsible for documentation:

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

hereby take sole responsibility for declaring that the product

Oil Pump with Pump Nozzle

IAN: 450038_2304

Art. no.: 2609

Year of manufacture: 2024/09

Model: USOP 50 A1

meets the basic safety requirements as specified in the European Directives

Electromagnetic Compatibility:

(2014/30/EU)

RoHS Directive:

(2011/65/EU)

Machinery Directive:

(2006/42/EC)

and the amendments to these Directives.

The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This conformity assessment is based on the following harmonised standards:

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 60335-2-41:2021/A11:2021

EN 60335-1:2012/A15:2021

EN 62233:2008

EN 50498:2010

EN IEC 63000:2018

St. Ingbert, 01 September 2023

C.M.C. GmbH Holding Katharina-Loth-Straße 15 66386 St.Ingbert Tel. [phone] Fax [phone]

Dr. Christian Weyler

- Quality Assurance -

- Warranty and service information

Warranty from C. M. C. GmbH Holding

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

- Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt.

This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred.

If the defect is covered by our warranty, we will repair and return your product or send you a replacement

The original warranty period is not extended when a device is repair or replaced.

- Warranty period and statutory claims for defects

The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.

• Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained.

For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below.

Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.

The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device.

In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

PLEASE NOTE: You can download this handbook and many more, as well as product videos and vare at www.lidl-service.com.

PDF ONLINE www.lidl-service.com

With this QR code you can

gain immediate access

to the Lidl Service page

(www.lidl-service.com) and

you can open your operating

instructions by entering the article

number (IAN) 450038.

- Service

How to contact us:

GB, IE, NI, CY, MT

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 450038\_2304

Please note that the following address is not a service address. Please first contact the service point given above.

Address:

C. M. C. GmbH Holding

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

Ordering spare parts:

● = Problem
= Ursache
○ = Behebung

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

DEUTSCHLAND

Dr. Christian Weyler

[e-mail]

[e-mail]

Telefon: [phone]

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

ALLEMAGNE

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

DUITSLAND

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

NĚMECKO

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

NIEMCY

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

NEMECKO

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str., 15

66386 St. Ingbert

ALEMANIA

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

TYSKLAND

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANIA

Dr. Christian Weyler

Nome: Riku Service snc

Indirizzo Internet: www.riku-service.com

E-Mail: [e-mail]

Telefono: 0039 (0) 4711430103

Sede: Germania

IAN 450038\_2304

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

NÉMETORSZÁG
