USER MANUAL SRAT 4 A1 SILVERCREST

PDF ONLINE www.lidl-service.com SILVERCREST®

ELECTRIC CLEANING BRUSH / ELEKTRISCHE REINIGUNGS BÜRSTE / BROSSE DE NETTOYAGE ÉLECTRIQUE SRAT 4 A1

GB IE

ELECTRIC CLEANING BRUSH

Operating instructions

FR BE

BROSSE DE NETTOYAGE ÉLECTRIQUE

Mode d'emploi

CZ

ELEKTRICKÝ ČISTÍCÍ KARTÁČ

Návod k obsluze

SK

ELEKTRICKÁ ČISTIACA KEFKA

Návod na obsluhu

DK

ELEKTRISK RENG∅RINGSB∅RSTE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Warnings and symbols used....2

Safety information....3

Package contents and transport inspection .... 4

Appliance description 4

Before use....5

Charging the internal battery 5

Using the accessories 5

Operation and use 7

Cleaning and maintenance 8

Storage 8

Technical details....8

Ordering replacement parts 8

Disposal 8

Disposal of the appliance....9

Disposal of the packaging 9

KompernassHandelsGmbHwarranty....9

Service....10

Importer 10

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product.

The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Proper use

The appliance is intended exclusively for removing dirt indoors in domestic households. Do not use the appliance for personal or animal care. It is not intended for use in commercial or industrial areas.

Claims of any kind for damage resulting from misuse, incompetent repairs, unauthorised modification or the use of unauthorised replacement parts will not be accepted. The risk is borne solely by the user.

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

	DANGER! A warning with this symbol and the signal word "DANGER" indicates an imminently hazardous situation that will result in death or serious injury if not avoided.
	WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation that could result in death or serious injury if not avoided.
	CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation that could result in a minor or moderate injury if not avoided.
	ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation that could result in property damage if not avoided.
	Note: A note identifies additional information that facilitates the use of the appliance.
	DC current/voltage
	Removable power supply
	Read the instructions.

Safety information

⚠ WARNING! RISK OF INJURY!

■ Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.

■ Never use the appliance if the cable, plug or housing are damaged.

■ If the charging cable or the connections of the appliance are damaged, have them replaced by the manufacturer, its customer service or a similarly qualified person in order to avoid hazards.

■ Use only accessories recommended by the manufacturer.

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ Never immerse the appliance in water or other liquids.

■ Never open the appliance. Have all repairs and replacement work done by the Service Centre or a qualified electrician.

- Keep hair, loose clothing and all other parts of the body away from moving parts of the appliance during operation.

■ Use this appliance only as described in this instruction manual. Never use it for other purposes. There is a risk of injury if the appliance is misused.

■ Switch off the appliance before cleaning it or switching accessories.

! ATTENTION! PROPERTY DAMAGE!

■ Ensure that the charging cable is not stretched tightly or kinked.
■ Do not expose the appliance to direct sunlight or high temperatures. Otherwise, it can overheat and be irreparably damaged.
■ The appliance may heat up while it is charging. Place the appliance in a well-ventilated location during the charging process and do not cover it.

■ Switch the appliance off immediately and disconnect any connected cables from the appliance if you hear any unusual noises, smell fumes or notice any smoke. Have the appliance checked by a qualified specialist before using it again.

■ The product is equipped or supplied with a lithium-ion battery. Do not throw the rechargeable battery into a fire and do not subject it to high temperatures. There is a risk of an explosion!

■ The battery in this appliance cannot be replaced.

Package contents and transport inspection

◆ Remove all parts of the appliance and the operating instructions from the packaging.
◆ Remove all packaging materials and any films and labels.

The package contents include the following components (see fold-out page for illustrations):

• Hand element
• Flat brush head
• Domed brush head
• Conical brush head
• Pad holder with Velcro
• Cleaning pad
• Extension rod
• USB charging cable (USB-A to USB-C)
• Operating instructions (not shown)

i Note

▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the customer service hotline (see section Service).

Appliance description (See fold-out page for illustrations)

① Battery charge indicator
② On/Off switch①
③ Hand element
4 USB-C port
⑤ Screw opening
6 Extension rod
⑦ Screw caps
8 Cleaning pad

9 USB charging cable (USB-A to USB-C)
10 Pad holder with Velcro
⑪ Conical brush head
⑫ Domed brush head
13 Flat brush head
14 Attachment holder

Before use

Charging the internal battery

ATTENTION!

▶ Due to the high current consumption, the appliance must be charged using a USB mains adapter (not supplied). Do not charge the appliance from the USB port of a PC or notebook.

For charging the appliance use only protection class II power supply approved for use with household products (output voltage/SELV output 5 V, max. 2 A).

▶ Use only the supplied USB charging cable ⑨ to charge the appliance.
▶ Disconnect the USB charging cable ⑨ when charging is complete.

i Note

▶ The battery must be fully charged before using the appliance.
▶ When the battery is fully charged, the appliance can be operated for up to 90 minutes.

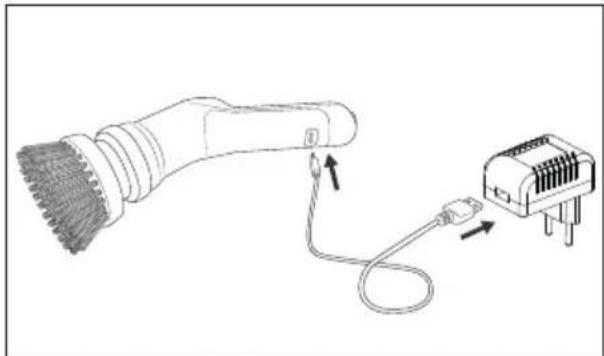

1) Connect the USB-A plug on the USB charging cable ⑨ to a USB power supply (see fig. 1). Insert the plug of the USB power supply into a mains power socket.

2) Connect the USB-C plug of the USB charging cable ⑨ to the USB-C socket ④ on the appliance (see fig. 1). The battery charge indicator ① lights up red and the charging process begins.

Diagram of a hairdryer connected to a small electronic component with ports and wires (no text or symbols)

Fig. 1

3) The battery charge indicator ① lights up green as soon as the battery is charged.
4) Disconnect the USB charging cable ⑨ from the USB-C socket ④ on the appliance.

Using the accessories

DANGER!

▶ Change the attachments (brush head 11/12/13 or pad holder 10 with cleaning pad 8) only when the appliance is switched off.

The appliance comes with three brush heads 11/12/13 and one pad holder 10 with cleaning pad 8. Depending on your needs, select the suitable brush head 11/12/13 or the cleaning pad 8:

Flat brush head

Use the flat brush head Ⓔ for cleaning large, flat areas, like floors and walls.

Domed brush head

Use the domed brush head 12 for cleaning corners, joints, washbasins and showers/bathtubs.

Conical brush head

Use the conical brush head ⑪ to clean uneven surfaces, like washbasins, taps and hard-to-reach places such as crevices, corners and joints.

Cleaning pad

Use the cleaning pad ⑧ to clean pots, pans or hobs with caked on, hard-to-remove dirt.

Fitting/removing attachments

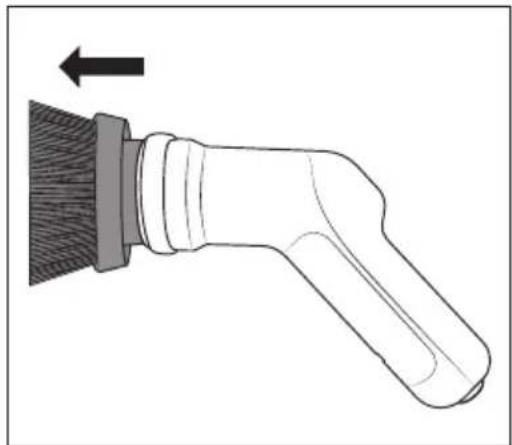

♦ Push the selected attachment (brush head 11/12/13 or pad holder 10 with cleaning pad 8) onto the attachment holder 14 until it clicks into place (see fig. 2).

Please make sure that the two catches on the underside of the attachment slide into the appropriate recesses on the attachment holder 14.

Diagram of a hand tool emitting powder from a nozzle, with an arrow indicating direction (no text or symbols present)

Fig. 2

To remove an attachment, pull it from the attachment holder 14 with a small amount of force (see fig. 3).

Diagram of a hand tool with a brush and textured grip, showing a left-pointing arrow (no text or symbols)

Fig. 3

Fitting/removing the cleaning pad

The cleaning pad ⑧ is fastened to the pad holder ⑩. This is provided with Velcro to make fitting and removal of the cleaning pad ⑧ quick and easy.

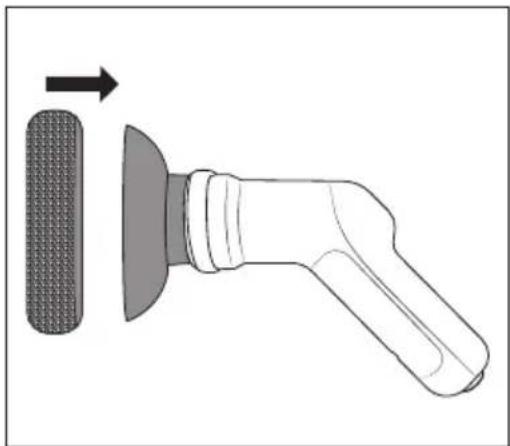

Press the cleaning pad 8 firmly onto the pad holder 10. Make sure that the cleaning pad 8 is firmly attached and centred on the pad holder 10 (see fig. 4).

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Fig. 4

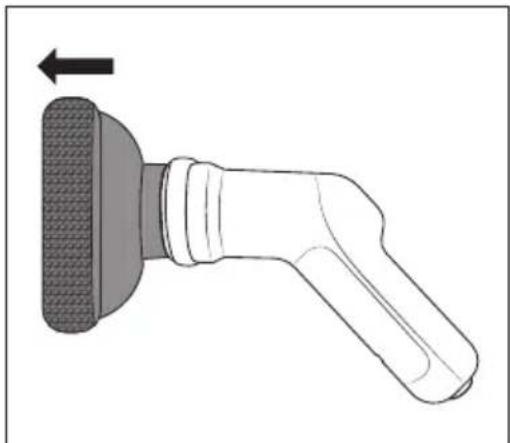

To remove the cleaning pad ⑧, lift one side a little and then pull it off the pad holder ⑩ (see fig. 5).

Diagram of a hand tool with a textured grip and directional arrow (no text or symbols)

Fig. 5

Clean the pad holder 10 after use and before attaching the cleaning pad 8 again.

Fitting and removing the extension rod

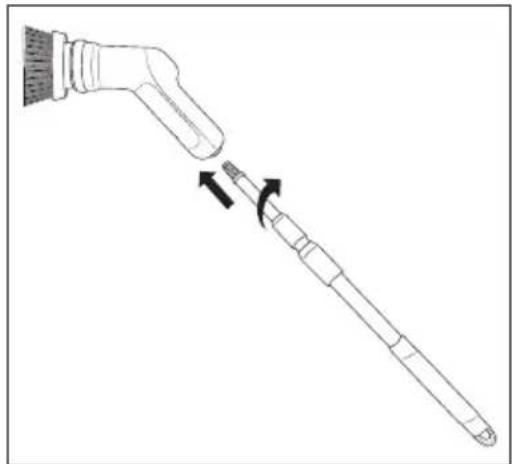

Insert the screw thread of the extension rod ⑥ into the screw opening ⑤ on the hand element ③. Turn the extension rod ⑥ clockwise to screw it firmly into the hand element ③ (see fig. 6).

Diagram of a hairbrush with a lever and handle, showing a curved arrow indicating rotation (no text or symbols present)

Fig. 6

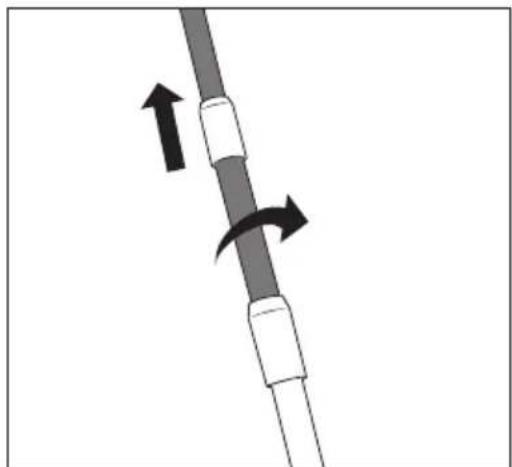

To release the extension rod 6, turn it clockwise at one or both (one after the other) screw caps 7. Then pull out the extension rod 6 to the desired length (see fig. 7). Turn the extension rod 6 anti-clockwise to tighten it again.

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

Fig. 7

Operation and use

! ATTENTION!

▶ Do not use abrasive cleaning agents. They could irreparably damage the surface you are cleaning.

The hard bristles of the brush heads 11/12/13 and the cleaning pad 8 can scratch or damage sensitive surfaces such as glass, vehicle paintwork, stainless steel, copper, wood, etc. Test the brush heads 11/12/13 and the cleaning pad 8 before use on an inconspicuous part of the area you want to clean.

i Note

▶ Use the appliance with water. For more difficult stains use a mild cleaning detergent. Apply the detergent directly onto the brush head ⑪/⑫/⑬ or the cleaning pad ⑧ and/or on the area you are cleaning before switching on the appliance.

▶ After every use, clean the hand element ③ and the used attachments as explained in the section Cleaning and maintenance.

If the brush head ⑪/⑫/⑬ becomes clogged, the appliance will switch off automatically.

◆ Hold the appliance tightly over the area to be cleaned.

Switch on the appliance by pressing the On/Off switch 12.

Move the brush head 11/12/13 or the cleaning pad 8 over the area you are cleaning while applying a light pressure. Apply more water and/or cleaning detergent, as needed, to the area to be cleaned.

Once you have finished using the appliance, press the On/Off switch ① ② again to switch it off.

Cleaning and maintenance

WARNING!

not immerse the hand unit ③ in water in order to clean it.

! ATTENTION!

▶ Do not clean the appliance with solvents, alcohol or abrasive cleaning agents. These could damage the plastic surfaces of the appliance.

Clean the hand unit ③ with a moistened cloth. For stubborn dirt, add a little mild detergent to the cloth.

◆ Wash the attachments under running water and with some mild detergent. Rinse off the attachments afterwards with fresh water.

Allow the hand element ③ and the attachments to dry completely before using them again or storing them.

Storage

◆ Store the appliance and the accessories in a clean, dry location out of direct sunlight.

Technical details

Input voltage/ current	5 V = 2 A max. (via the USB-C port)
USB port USB-C
Integrated battery (lithium ion)	4 V = 2, 2200 mAh
Protection class	III / ◇ (protection through low voltage)
Protection type	IPX5 (Protection against water jets from any direction)
Operating time with full battery charge	Approx. 90 minutes

Ordering replacement parts

You can order replacement parts for this product on the internet at www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Scan this QR code with your smartphone or tablet. You can use this QR code to navigate directly to our website www.kompernass.com

where you can view and order the available spare parts for this appliance.

i Note

▶ If you have problems with your online order, you can contact our customer service centre by phone or e-mail (see section Service).

▶ Please always quote the article number (e.g. 489984_2501) when ordering. You can find it on the title page of these operating instructions.

▶ Please note that online ordering of replacement parts is not possible for all countries.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recycla-

ble. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

The integrated rechargeable battery in this appliance cannot be removed for disposal.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

KompernassHandels GmbHwarranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 489984_2501 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 489984_2501.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 489984_2501

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 12

Diagram of a handheld device connected to an electrical terminal (no text or symbols present)

Abb. 1

Diagram of a brush tool emitting powder from a brush tip, with an arrow indicating direction (no text or symbols present)

Abb. 2

Diagram of a hand tool with a brush and arrow indicating direction (no text or symbols)

Abb. 3

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Abb. 4

Diagram of a hand tool with a textured grip and directional arrow (no text or symbols)

Abb. 5

Diagram of a mechanical tool with a lever and shaft, showing motion direction (no text or symbols)

Abb. 6

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

Abb. 7

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Sommaire

Introduction 22

Diagram of a hairdryer connected to an electrical terminal with plug (no text or symbols)

Fig. 1

Diagram of a hand tool emitting powder from a brush (no text or symbols)

Fig. 2

Diagram of a hand tool with a lever and handle, showing mechanical components (no text or symbols)

Fig. 3

Fixer/retirer le pad de nettoyage

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Fig. 4

Diagram of a push tool with a textured grip and directional arrow (no text or symbols)

Fig. 5

Diagram of a hairdryer tool with a lever and handle, showing motion direction (no text or symbols)

Fig. 6

Diagram of a cable or pipe with two opposing arrows indicating rotational motion (no text or symbols)

Fig. 7

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 34

⚠ WAARSCHUWING! LETSELGEVAAR!

Diagram of a handheld electric shaver connected to a terminal block via cable (no text or symbols)

Afb. 1

Diagram of a tool emitting powder from a nozzle, showing mechanical components and directional arrow (no text or symbols)

Afb. 2

Diagram of a tool with a brush and lever, showing a brush tip and handle (no text or symbols)

Afb. 3

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Afb. 4

Diagram of a handheld tool with a textured grip and directional arrow (no text or symbols)

Afb. 5

Line drawing of a handheld device with a lever and handle, showing motion arrows (no text or symbols)

Afb. 6

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

Afb. 7

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod 44

! POZOR! HMOTNÉ ŠKODY!

Diagram of a handheld electric shaver connected to a terminal block via cable (no text or symbols)

Obr. 1

Diagram of a hand tool emitting powder from a nozzle, with an arrow indicating direction (no text or symbols present)

Obr. 2

Diagram of a tool with a brush and lever, showing a left-hand rule (no text or symbols present)

Obr. 3

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Obr. 4

Diagram of a hand tool with a textured grip and directional arrow (no text or symbols)

Obr. 5

Diagram of a hairbrush with a lever and handle, showing motion direction (no text or symbols)

Obr. 6

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

Obr. 7

Obsluha a provoz

! POZOR!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

Wstep....54

Diagram of a handheld device connected to an electrical terminal block (no text or symbols present)

Rys. 1

Diagram of a hand tool emitting powder from a nozzle, with an arrow indicating direction (no text or symbols present)

Rys. 2

Diagram of a hand tool with a brush and lever, showing a left-hand rule (no text or symbols present)

Rys. 3

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Rys. 4

Diagram of a handheld tool with a textured grip and directional arrow (no text or symbols)

Rys. 5

Line drawing of a hairbrush with a lever and handle, showing motion direction (no text or symbols)

Rys. 6

Diagram showing two curved arrows indicating rotational motion between two connected pipes (no text or symbols)

Rys. 7

Działanie i obsługa

! UWAGA!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod 64

Diagram of a handheld electric shaver connected to a terminal block via cable (no text or symbols)

Obr. 1

Diagram of a hand tool emitting powder from a brush (no text or symbols)

Obr. 2

Diagram of a tool with a brush and handle, showing a left-hand rule (no text or symbols present)

Obr. 3

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Obr. 4

Diagram of a hand tool with a textured grip and directional arrow (no text or symbols)

Obr. 5

Diagram of a hand tool with a curved arrow indicating rotation or movement (no text or symbols present)

Obr. 6

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

Obr. 7

Obsluha a prevádzka

! POZOR!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción 74

Uso previsto 74

Diagram of a handheld electric shaver connected to a terminal block via cable (no text or symbols)

Fig. 1

Diagram of a hand tool emitting powder from a brush (no text or symbols)

Fig. 2

Diagram of a hand tool with a brush and arrow indicating direction (no text or symbols)

Fig. 3

Diagram of a handheld tool with a textured grip and directional arrow (no text or symbols)

Fig. 4

Diagram of a hand tool with a textured grip and directional arrow (no text or symbols)

Fig. 5

Diagram of a hairdryer tool with a curved arrow indicating rotation or adjustment (no text or symbols present)

Fig. 6

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

Fig. 7

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning 84

Diagram of a handheld electric shaver connected to a small electronic device (no text or symbols present)

Fig. 1

Diagram of a hand tool emitting powder from a nozzle, with an arrow indicating direction (no text or symbols present)

Fig. 2

Diagram of a tool with a brush and lever, showing a left-hand rule (no text or symbols present)

Fig. 3

Diagram of a handheld tool with a textured grip and directional arrow (no text or symbols)

Fig. 4

Diagram of a handheld tool with a textured grip and directional arrow (no text or symbols)

Fig. 5

Diagram of a hairdryer tool with a curved arrow indicating rotation or adjustment (no text or symbols present)

Fig. 6

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

Fig. 7

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....94

Uso conforme....94

Diagram of a handheld electric shaver connected to a terminal block via cable (no text or symbols)

Fig. 1

Diagram of a hand tool emitting powder from a brush (no text or symbols)

Fig. 2

Diagram of a hand tool with a brush and arrow indicating direction (no text or symbols)

Fig. 3

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

Fig. 4

Diagram of a hand tool with a textured grip and directional arrow (no text or symbols)

Fig. 5

Diagram of a hairbrush with a lever and handle, showing motion direction (no text or symbols)

Fig. 6

Diagram of a cable or pipe with two opposing arrows indicating rotational motion (no text or symbols)

Fig. 7

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 104

Diagram of a handheld electric shaver connected to a terminal block via cable (no text or symbols)

1. ábra

Diagram of a hand tool emitting powder from a brush (no text or symbols)

1. ábra

Diagram of a hand tool with a brush and arrow indicating direction (no text or symbols)

1. ábra

Diagram of a hand tool with a textured grip and directional arrow, no text or symbols present

1. ábra

Diagram of a hand tool with a textured grip and directional arrow (no text or symbols)

1. ábra

Diagram of a hairdryer tool with a curved arrow indicating rotation or adjustment (no text or symbols present)

1. ábra

Diagram of a mechanical or electrical component with two curved arrows indicating rotational motion (no text or symbols)

1. ábra

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

FR © Document Recycle Bin

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
