USER MANUAL SRB 6 B1 SILVERCREST

Operating instructions

FR BE

BROSSE DE NETTOYAGE ÉLECTRIQUE

Mode d'emploi

CZ

ELEKTRICKY CISTÍCİ KARTÁC

Návod k obsluze

SK

ELEKTRICKÁČISTIACA KEFKA

Návod na obsluhu

DK

ELEKTRISK RENGØRINGSBØRSTE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Information about these operating instructions 2

Intended use 2

Safety information 2

Safety instructions for handling batteries 3

Checking package and contents upon delivery 4

Appliance description 5

Before use 5

Inserting/replacing batteries 5

Attachment assembly 6

Operation and control 7

Cleaning and maintenance 8

Storage 8

Ordering spare parts 9

Technical specifications 9

Disposal 9

Disposal of the appliance 10

Disposal of the packaging 10

Disposal of batteries 10

Kompernass Handels GmbH warranty. 11

Service 12

Importer 12

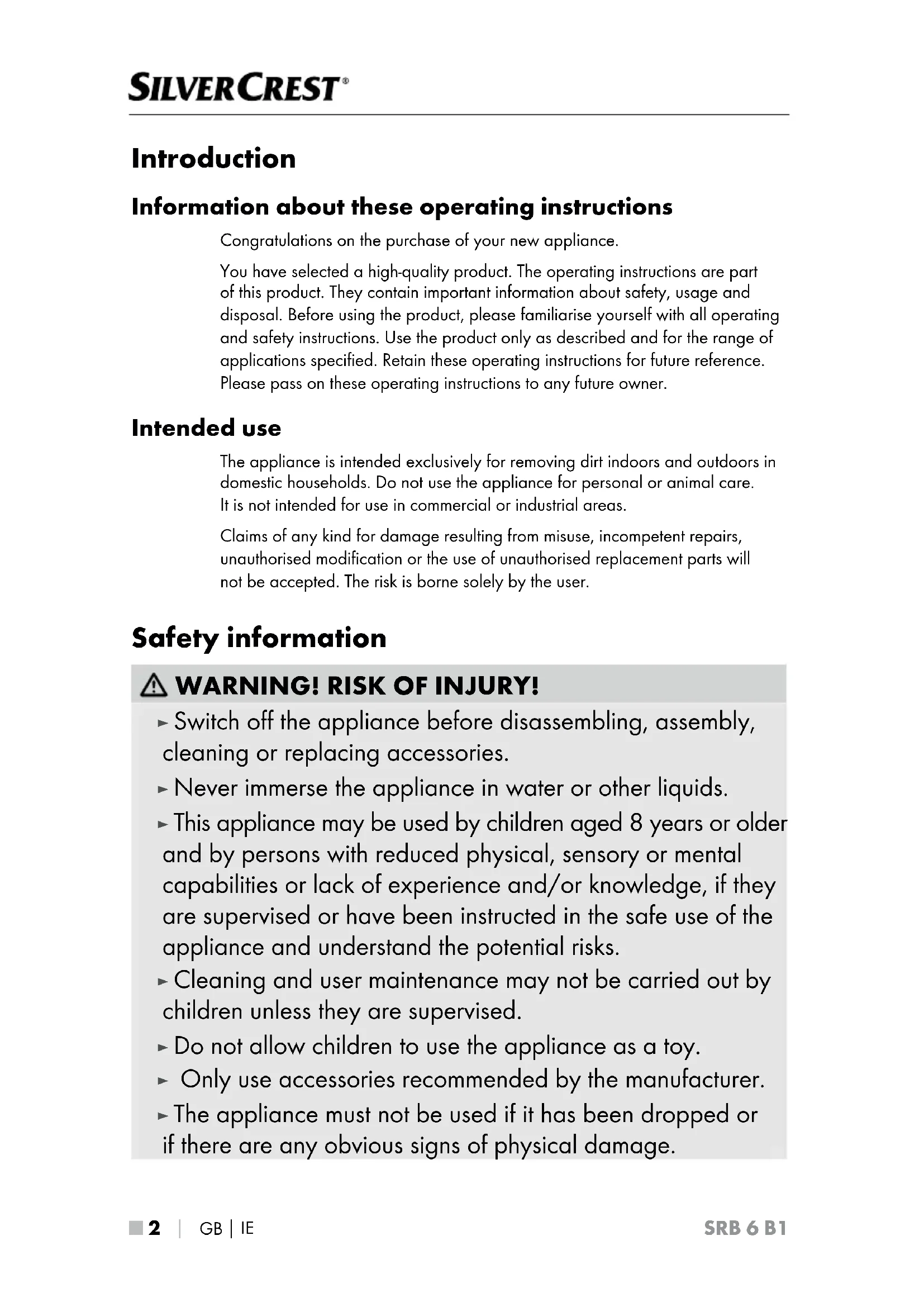

Introduction

Information about these operating instructions

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Retain these operating instructions for future reference. Please pass on these operating instructions to any future owner.

Intended use

The appliance is intended exclusively for removing dirt indoors and outdoors in domestic households. Do not use the appliance for personal or animal care. It is not intended for use in commercial or industrial areas.

Claims of any kind for damage resulting from misuse, incompetent repairs, unauthorised modification or the use of unauthorised replacement parts will not be accepted. The risk is borne solely by the user.

Safety information

WARNING! RISK OF INJURY!

• Switch off the appliance before disassembling, assembly, cleaning or replacing accessories.
  Never immerse the appliance in water or other liquids.
  This appliance may be used by children aged 8 years or older and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and understand the potential risks.
• Cleaning and user maintenance may not be carried out by children unless they are supervised.
  Do not allow children to use the appliance as a toy.
• Only use accessories recommended by the manufacturer.
  The appliance must not be used if it has been dropped or if there are any obvious signs of physical damage.

WARNING! RISK OF INJURY!

• Keep hair, loose clothing and all other parts of the body away from moving parts of the appliance during operation.
• Use this appliance only as described in this instruction manual. Never use it for other purposes. There is a risk of injury following misuse of the appliance.

Safety instructions for handling batteries

WARNING!

Mishandling batteries can cause fires, explosions, leakages of dangerous chemicals or other hazards!

batteries out of the reach of children.

Make sure that no one can swallow the batteries.
If a battery is swallowed, seek medical assistance immediately.
Always use the stated battery type.

ver try to recharge non-rechargeable batteries.

• Remove rechargeable batteries from the appliance before recharging them.

notthrow batteries into a fire or water.

• Never expose batteries to high temperatures or direct sunlight.

open or deform batteries.

not short-circuit the terminals.

• Remove depleted batteries from the appliance and dispose of them safely.

use different types of batteries together or mix new batteries with used batteries.

WARNING!

ensure that the batteries are installed in the appliance with the correctly aligned polarity.

• Remove the batteries if you do not intend to use the appliance for an extended period.
• Check the condition of the batteries at regular intervals. Leaking batteries can cause injuries as well as damage to the appliance.
  Always use protective gloves when handling leaking batteries! Clean the battery and appliance contacts and the battery compartment with a dry cloth. Do not let the chemicals get into contact with your skin and mucous membranes, especially your eyes. In case of contact with chemicals, wash the affected area with plenty of water and immediately seek medical attention.

Checking package and contents upon delivery

Remove all parts of the appliance and the operating instructions from the packaging.
Remove all packaging materials and any films and labels.

The package contents include the following components:

Electric cleaning brush
Brush attachment, large
Brush attachment, small
- Brush attachment for crevices
- Scrubbing sponge attachment
- 4 × 1.5 ~V Mignon AA batteries
- Operating instructions

NOTE

Check the package for completeness and for signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the customer service hotline (see Service section).

Appliance description

(See fold-out page for illustrations)

1 Hand unit
On/Off switch
Battery holder
4 Battery compartment cap
5 Batteries
6 Scrubbing sponge attachment (with pad)
Brush attachment for crevices
Brush attachment, small
Brush attachment, large
10 Attachment holder

Before use

Inserting/replacing batteries

CAUTION - DAMAGE TO APPLIANCE!

Pay attention to the polarity indicated 5 on the battery compartment 3 when you are inserting the batteries!.
Always use type Mignon AA, LR6 batterie5.

Always use batteries 5 of the same type.

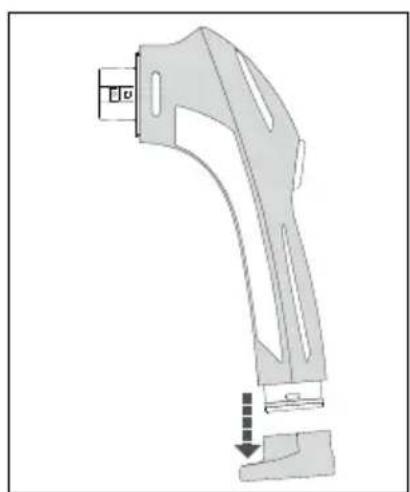

1. Turn the battery compartment cap 4 so that the symbol points to the arrow and pull the battery compartment cap 4 off the hand unit 1 (see fig. 1).

Fig. 1 Fig. 2

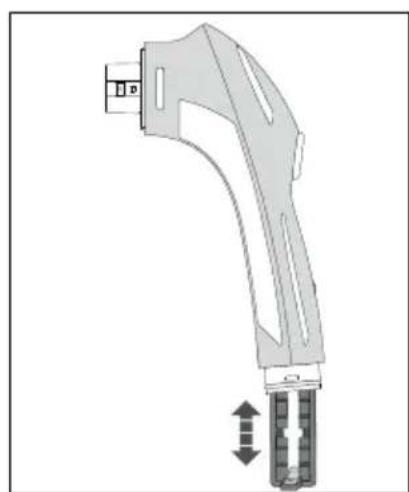

1. Remove the battery holder 3 from the hand unit 1 by pulling it out from the hand unit 1 (see Fig. 2).

2. Remove the old batteries (if there are any) from the battery holder 3.

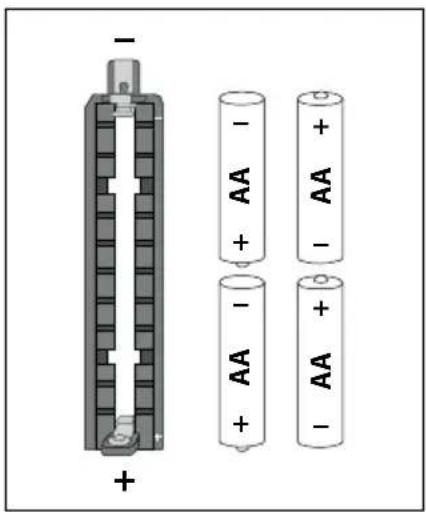

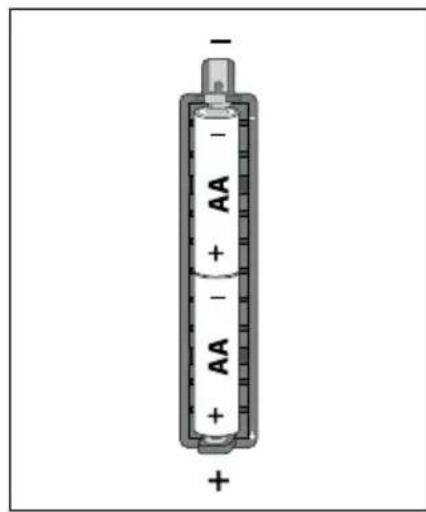

3. Insert new batteries 5 as shown in the polarity diagram in the battery holder 3 (see Fig. 3 and 4).

Fig. 3 Fig. 4

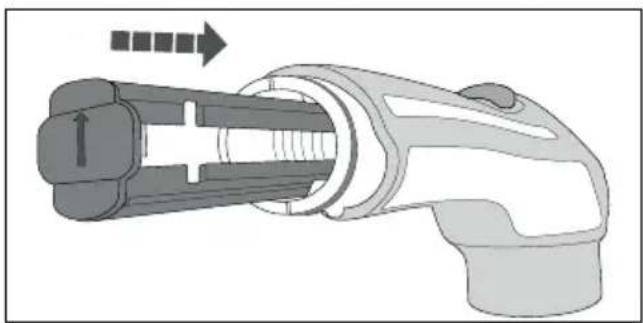

1. Slide the battery holder 3 back into the hand unit 1. Make sure that the arrow on the battery holder 3 is facing towards the top side of the appliance (see Fig. 5).

Fig. 5

1. Place the battery compartment cap 4 back on the hand unit 1 and turn it closed so that the symbol 0 points to the arrow

Attachment assembly

WARNING - RISK OF INJURY!

• Only change the attachments 9 / 8 / 7 / 6 when the appliance is switched off.

There are four different attachments 已 / 已 / 己 available to choose from. Choose the most suitable attachment 已 / 已 / 己 according to the task:

Large brush attachment

The large brush attachment is ideal for cleaning large flat areas, such as floors and walls.

Small brush attachment

The small brush attachment 8 is ideal for cleaning uneven surface areas, such as wash basins, taps and fittings, etc.

Brush attachment for crevices

The brush attachment for crevices ⑦ is ideal for cleaning hard-to-reach spots such as gaps, corners and joints.

Scrubbing sponge attachment

The scrubbing sponge attachment 6 is ideal for cleaning pots as well as cooker and hob surfaces.

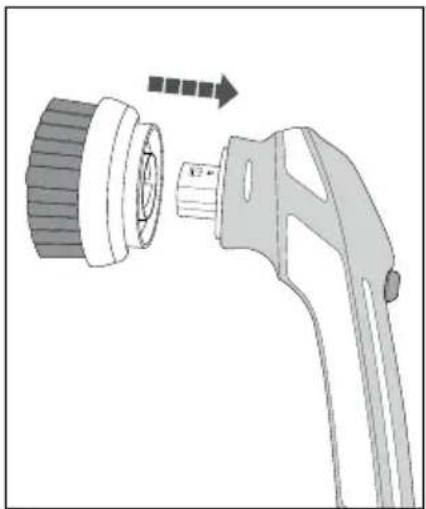

Slide the selected attachment 9 / 8 / 7 / 6 onto the attachment holder 10 until it clicks into place. Please make sure that both indents on the attachment holder 10 slide into the appropriate recesses on the attachment 9 / 8 / 7 / 6 (see Fig. 6).

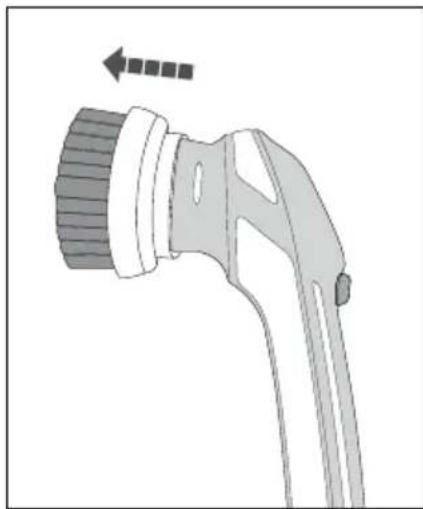

To remove an attachment 9 / 8 / 7 / 6 pull it from the attachment holder with a small amount of force (see fig. 7).

Fig. 6 Fig. 7

Operation and control

CAUTION - DAMAGE TO APPLIANCE!

• Do not use abrasive cleaning agents. They could irreparably damage the surface you are cleaning.
  The hard bristles and the scrubbing sponge pad of the attachments 9 / 8 / 7 / 6 can scratch or damage sensitive surfaces such as glass, vehicle paintwork, stainless steel, copper, wood, etc. First test the attachments 9 / 8 / 7 / 6 on an inconspicuous spot of the area to be cleaned.

NOTE

• Use the appliance with water; for more difficult stains use a mild cleaning detergent. Apply the detergent directly onto the attachment 9 / 8 / 7 / 6 and/or on the area to be cleaned before switching on the appliance.
  After every use clean the appliance and the used attachments 9 / 8 / 7 / 6 as explained in the section Cleaning and maintenance.

Hold the appliance tightly over the area to be cleaned.
Switch on the appliance by pressing the On/Off switch(1) 2.
Move the attachment 9 / 8 / 7 / 6 with light pressure over the area to be cleaned. Apply more water and/or cleaning detergent, as needed, to the area to be cleaned.
Once you have finished using the appliance, press the On/Off switch again to switch it off.

Cleaning and maintenance

RISK OF ELECTRIC SHOCK

Do not immerse the hand unit 1 in water in order to clean it.

CAUTION - DAMAGE TO APPLIANCE!

• Do not clean the appliance with solvents, alcohol or abrasive cleaning agents. These could damage the plastic surfaces of the appliance.
  Clean the hand unit with a moistened cloth. For stubborn dirt, add some mild detergent to the cloth.
  Wash the attachments 9 / 8 / 7 / 6 under running water and with some mild detergent. Then rinse out the attachments 9 / 8 / 7 / 6 with clean water.
  Allow the hand unit 1 and the attachments 9 / 8 / 7 / 6 to dry completely before using them again or storing them.

Storage

Remove the batteries from the hand unit ① (see section Inserting/replacing batteries).
Store the appliance in a clean, dry location away from direct sunlight.

Ordering spare parts

You can order replacement parts for this product on the internet at www.kompernass.com.

Scan this QR code with your smartphone or tablet. You can use this QR code to go directly to our website www.kompernass.com to view and order the available replacement parts for this appliance.

NOTE

Always quote the article number (IAN) 452768_2310 in your order.
- Please note that online ordering of replacement parts is not possible in all countries.
If you have problems with your online order, you can contact our customer service centre by phone or email (see section Service).

Technical specifications

Power supply 4 x 1.5 V (DC)	---
Battery type 1.5 V type Mignon	AA, LR6
Protection class	III/ (protection through low voltage)
Protection type	IPX7 (Protection against temporary immersion in water)

Disposal

Applies only to France:

FR

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially

set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispos of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Disposal of batteries

Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/ rechargeable batteries may contain toxic heavy metals.

The heavy metals contained are identified by letters below the symbol:

Cd = cadmium, Hg = mercury, Pb = lead.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point.

Only return batteries that are fully discharged.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 452768_2310 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 452768_2310.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN452768_2310

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
