USER MANUAL Goldie Jogger Klarfit

QR code image containing encoded data, no visible human-readable text

INHALT

Manufacturer & Importer (UK) 3

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

Labeled photo of a bicycle scooter with numbered parts including rear seats, front wheel, and back cover

Step-by-step photo showing car seat installation procedure with red arrows indicating steps from opening to closing.

Three-panel photo sequence showing car interior and exterior views of a vehicle, with no visible text or symbols.

Step-by-step instructions for installing a bicycle tire using red-handled clips and wrenches (no text or symbols visible)

Close-up of a bicycle tire being installed, showing the wheel rim and cable (no text or symbols visible)

Sequence of four-step assembly showing a device being inserted into a plastic housing, with red arrows indicating the process (no text or symbols present)

Three-panel image showing a car exterior, a small red flag on the side, and a modern Klarit vehicle with a red flag on the side (no visible text or symbols)

Black mechanical device with attached tool and pair of shoes on a plain surface (no text or symbols visible)

Close-up of a bicycle wheel assembly with visible gears and a hand adjusting the gear (no text or symbols)

Close-up of hands operating a bicycle wheel assembly with visible mechanical components and wiring (no text or symbols)

Close-up of a bicycle's chain and suspension system with a white arrow pointing to a component (no text or symbols visible)

Close-up of a bicycle wheel with visible mechanical components and a hand adjusting the cable (no text or symbols)

Close-up of a bicycle's seatbelt and chain attachment mechanism (no text or symbols visible)

Sequence of black-and-white images showing a mechanical assembly with clips and tools, no visible text or symbols

Step-by-step photo showing a car interior installation with labeled parts A and B, including cable fastening and safety adjustment.

Sequence of six photos showing a hand operating a bicycle seat frame with a key and cable, demonstrating adjustment and repair (no text or symbols present)

Exterior view of a KLARFIT electric vehicle with wheels and handle (no signage or text on body)

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Manufacturer & Importer (UK) 15

Safety Instructions 16

Parts in Package 17

Assembly 18

Hitching the Trailer on the Bicycle 21

Loading and unloading pets 23

Jogger Function 23

TECHNICAL DATA

Item number 10045147, 10045148
Permissible load 40 kg
Recommended maximum speed 16 km/h

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

• The trailer is intended to carry pet only. No human passengers!
  • Maximum load: 40 kg.
• Always ride with the rear door closed. When riding, you pet should always be secured with the safety leash adjusted to the correct length.
  • Maximum speed: 16km/hour.
  • Always wear a helmet when riding.
• Carefully check the bolts, nuts and safety pins. Make sure that all these parts are properly tightened or locked.
• Be aware that riding with the trailer increases your braking distance and may affect your ability to control the bicycle. Thoroughly practise in a safe area until you become familiar with it.
• Only use factory-supplied wheels, with the tires inflated to 30-35 P.S.I. Check pressure before each use.
• Do not make any alterations to the trailer or hitch, which could result in injury or death.

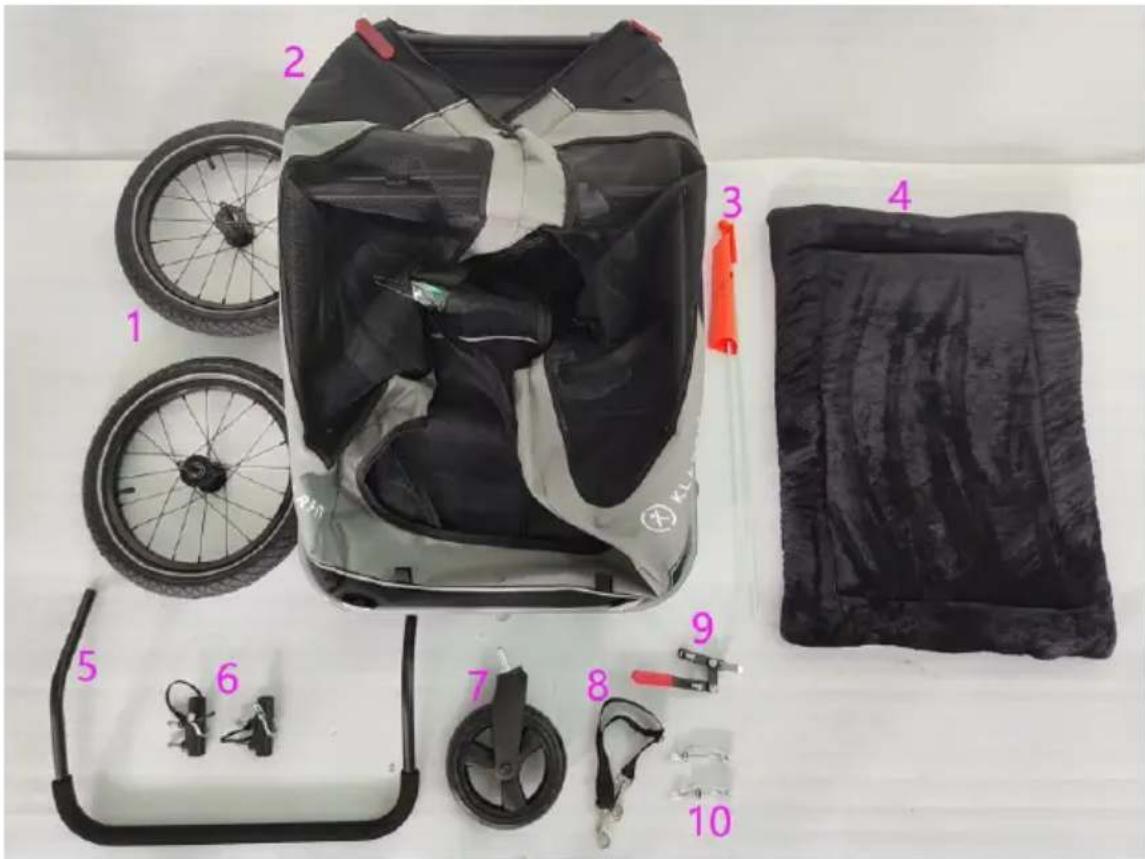

PARTS IN PACKAGE

Labeled photo of a bicycle scooter interior with numbered parts including wheel rim, seat cover, and safety belt

# Name Quantity
1 Rear Wheel 2
2 Trailer Body 1
3 Safety Flag 1
4 Mat 1
5 Push Bar 1
6 Push Bar Mount Bracket 2
7 Front Wheel 1
8 Safety Leash 1
9 Parking Brake 1
10 Quick Release 2

ASSEMBLY

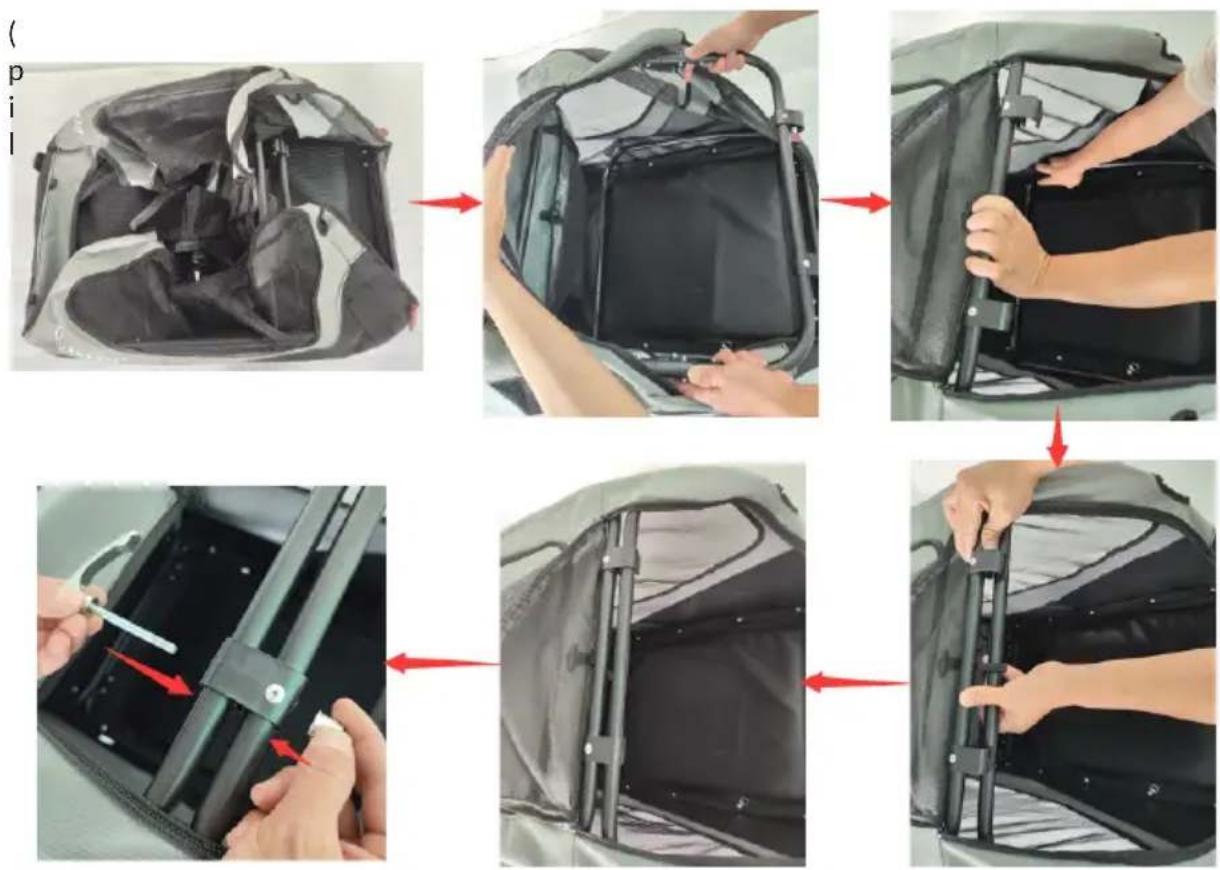

1. Unfolding the trailer body

(1). Take the Trailer body out from the carton, unfold the frame folding mechanism (Remark: press the button on it and push inward to fold it up), assemble the frame as per following images and steps. Use the quick release lock the frame tube, please make sure the frame locked safety.

Step-by-step photo showing car seat assembly and mounting process, with Chinese labels indicating steps from pre-assembly to final installation.

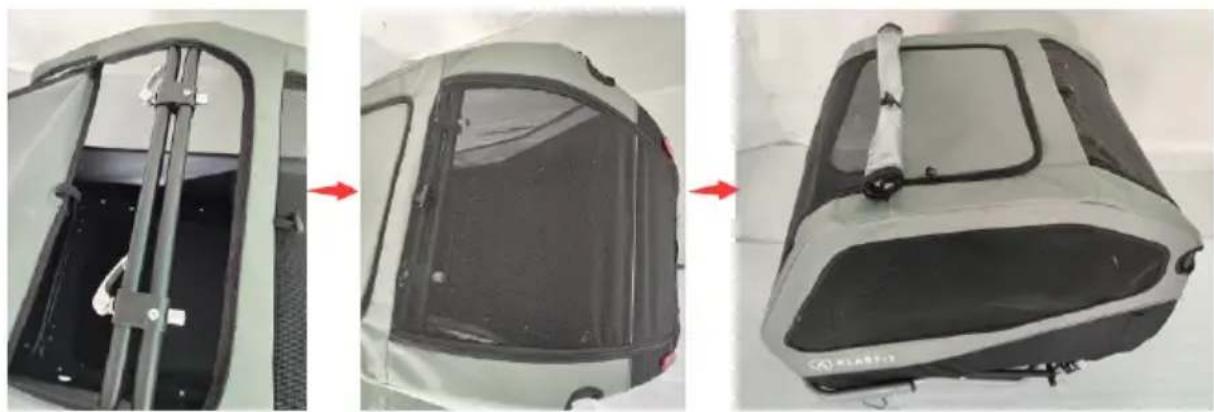

(2). Use the quick release lock both side tightly and then pull up the zipper.

Three-panel photo sequence showing a car interior with structural components, before and after assembly, and a final assembled vehicle (no visible text or symbols)

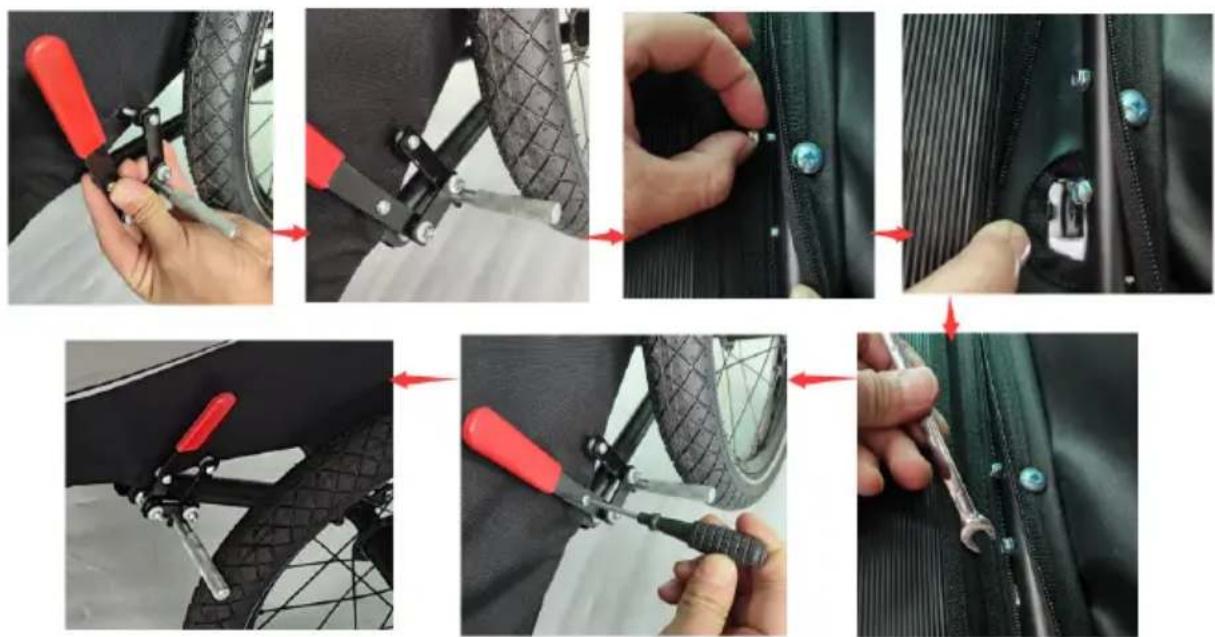

2. Parking Brake assembly

Open the zipper under the side wall inside, put the screw into the mount hole, put the nut on the screw inside, use the open end wrench (8mm) or socket wrench (8mm) and screwdriver to mount the parking brake on both sides as per following images and steps, make sure the parking brake mounted tightly.

Step-by-step instructions for using a tool to adjust bicycle wheel components (no text or symbols visible)

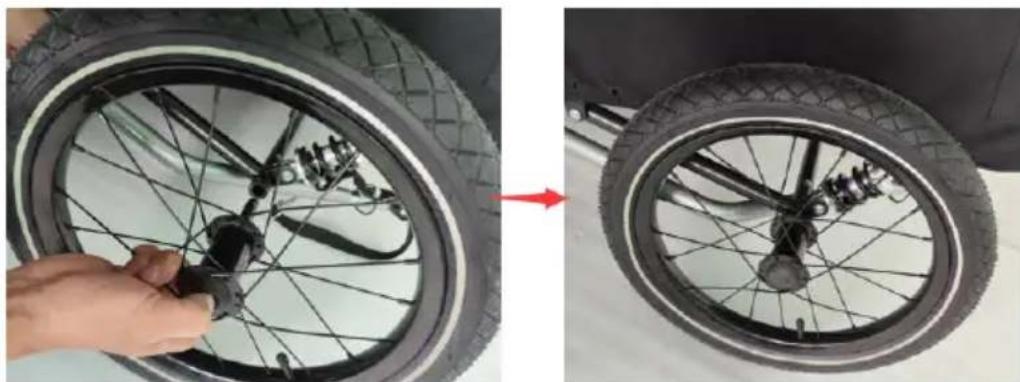

3. Wheels assembly

Press the axle center button and insert the axle into the frame tube simultaneously, make sure the wheel mounted safety.

Remark: press the button and do the opposite step to remove the wheel.

Close-up of a bicycle tire being installed, showing the wheel rim and cable (no text or symbols visible)

4. Install the Tow Bar

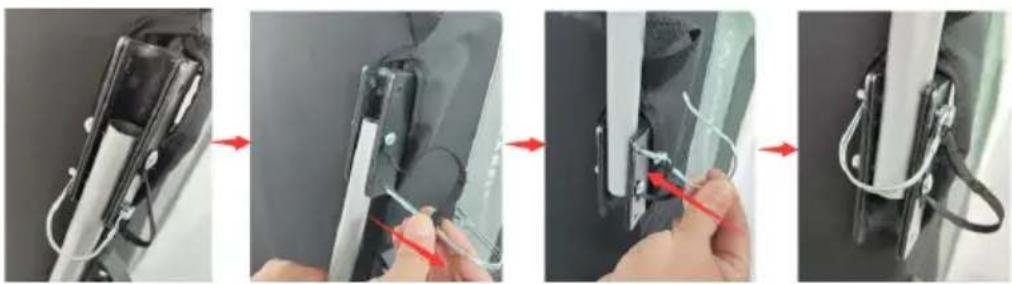

Lift the trailer up. Remove safety pin from back hole in two bar mount. Swivel the tow bar 180o. lock the tow bar into place by re-inserting the safety pin.

WARNING! Danger of serious injury or death

The tow bar safety pin must be locked into place before using the trailer. A tow bar that has not secured properly could loose during travel, resulting in serious injury or death.

Sequence of four photos showing a hand holding a small electronic device with wires, connected by red arrows (no text or symbols visible)

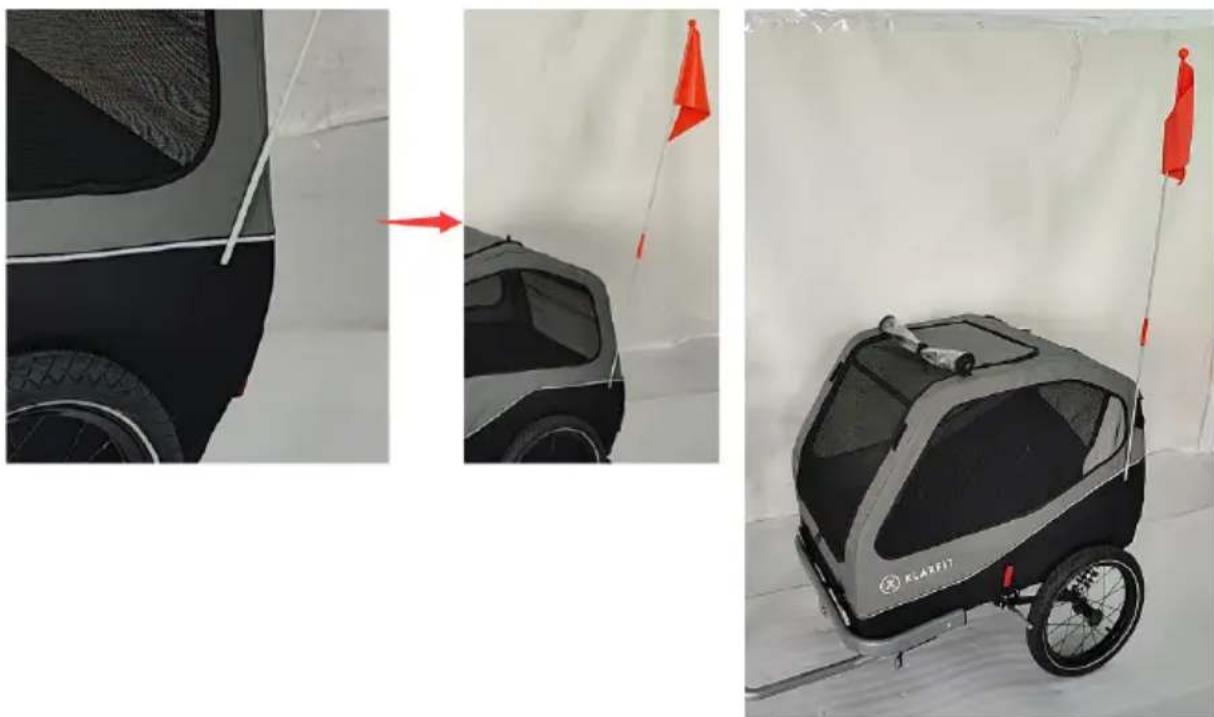

5. Attaching the Safety Flag

Insert the flag pole into the flag pocket on the left rear corner of the side panel. Always use the safety flag. It's an essential safety device, which can help make you more visible to motorists and other cyclists.

Three-panel image showing a Klarit autonomous delivery vehicle with red flags on the side, before and after assembly (no text or symbols visible)

HITCHING THE TRAILER ON THE BICYCLE

NOTE: The universal hitch is only suitable for bicycle with full axle or/and with quick release axle.

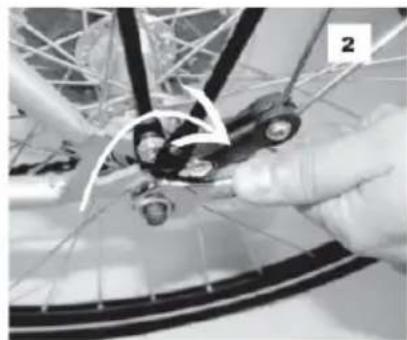

1. Bicycles with Full Axle

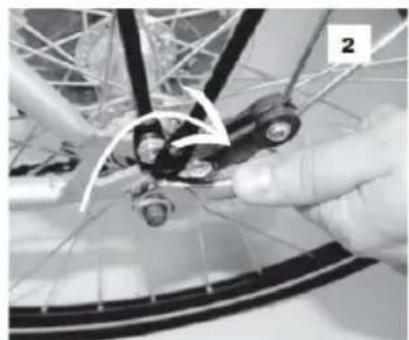

Remove the left hand axle nut from the bicycle. Any spacers or washers can generally be retained. Put the hitch on the axle and re-attach the nut.

WARNING!

Danger of serious injury or death

• The axle nut must be tightened on the axle thread by at least 5 full turns, so that adequate clamping force is ensured. A thread which is too short can result in accidental loosening of the rear wheel and therefore cause serious injury or death.

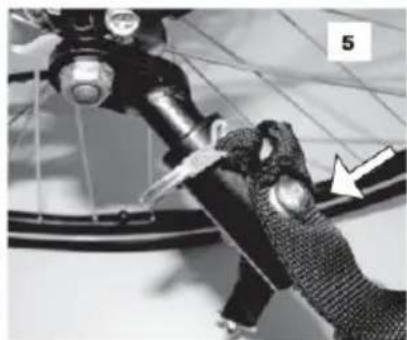

• Wrap the safety strap around the chain stay and fasten it to the tow bar D-ring with the snap hook.

WARNING!

Danger of serious injury or death

Hitch and safety strap must be properly installed. Inspect the hitch and tow bar frequently for any damage or loose fasteners. Damaged or improperly installed can result in serious injury or death.

Black mechanical accessories including a strap, handle, and boot on a plain surface (no text or symbols visible)

Close-up of a bicycle wheel assembly with visible gears and blades, no text or symbols present

Close-up of hands assembling a bicycle wheel assembly with a tool (no visible text or symbols)

Close-up of a bicycle's front wheel and chain, showing mechanical components and a white arrow indicating a specific part (no text or symbols present)

Close-up of a bicycle wheel assembly with visible rope and mechanical components (no text or symbols)

Close-up of a bicycle chain strap mechanism with metal clamps and suspension components (no text or symbols visible)

2. Bicycles with Quick Release Axle

Remove the quick release from the bike and guide it through the hitch along with the quick release axle. Push the quick release through the wheel hollow axle again, screw the nut and clamp the quick release with the correct pressure.

In order to ensure that the hub is clamped sufficiently in the hollow axle, the quick release lever must begin gripping as it moves from the open to the middle position, and approaching the closed position you should clearly feel resistance as you tighten. If it is too easy or too difficult to move the quick release lever, tighten or loosen the quick release nut on the other side of the hub.

WARNING!

Danger of serious injury or death

• The axle nut must be tightened on the axle thread by at least 5 full turns, so that adequate clamping force is ensured. A thread which is too short can result in accidental loosening of the rear wheel and therefore cause serious injury or death.
• Wrap the safety strap around the chain stay and fasten it to the tow bar D-ring with the snap hook.

WARNING!

Danger of serious injury or death

Hitch and safety strap must be properly installed. Inspect the hitch and tow bar frequently for any damage or loose fasteners. Damaged or improperly installed can result in serious injury or death.

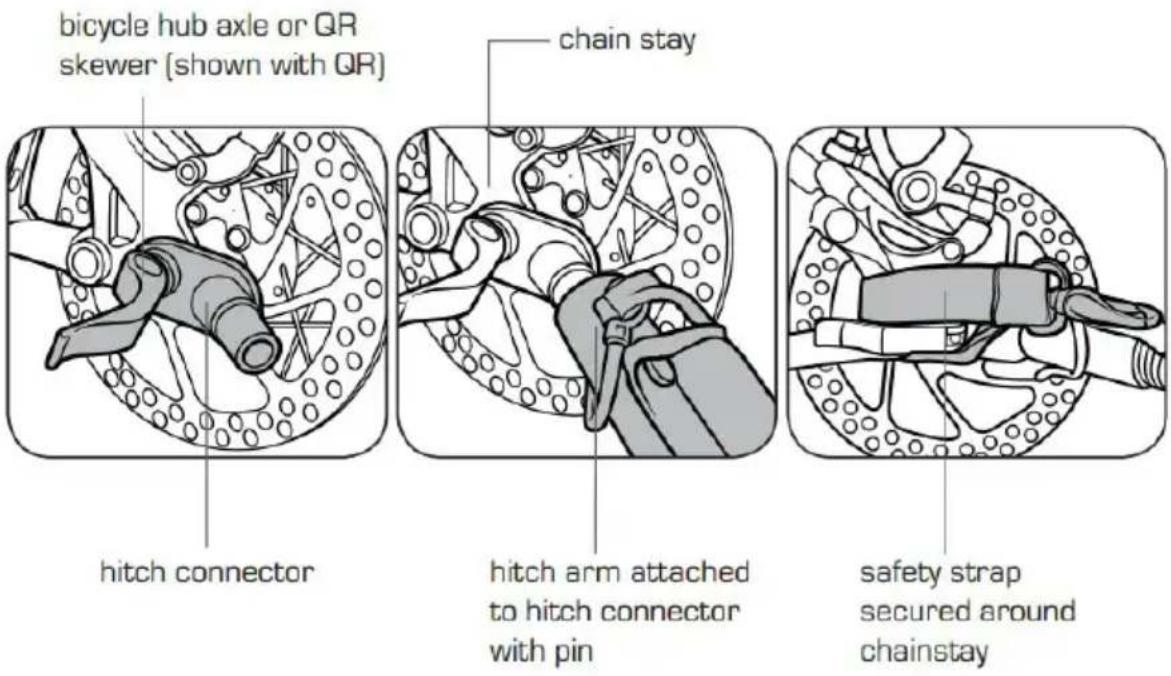

bicycle hub axle or QR skewer (shown with QR) chain stay hitch connector hitch arm attached to hitch connector with pin safety strap secured around chainstay

LOADING AND UNLOADING PETS

Load and unload pet only through the rear door, with the front door closed and the trailer attached to the bicycle. Put the mat inside the trailer(if needed),with the pet inside the trailer, snap one end of the safety leash (included) to the pet's collar and the other end to the D-ring located inside the trailer. Adjust the length of the leash so that the pet cannot exit through the front window when it is open. Always close the rear door while riding.

JOGGER FUNCTION

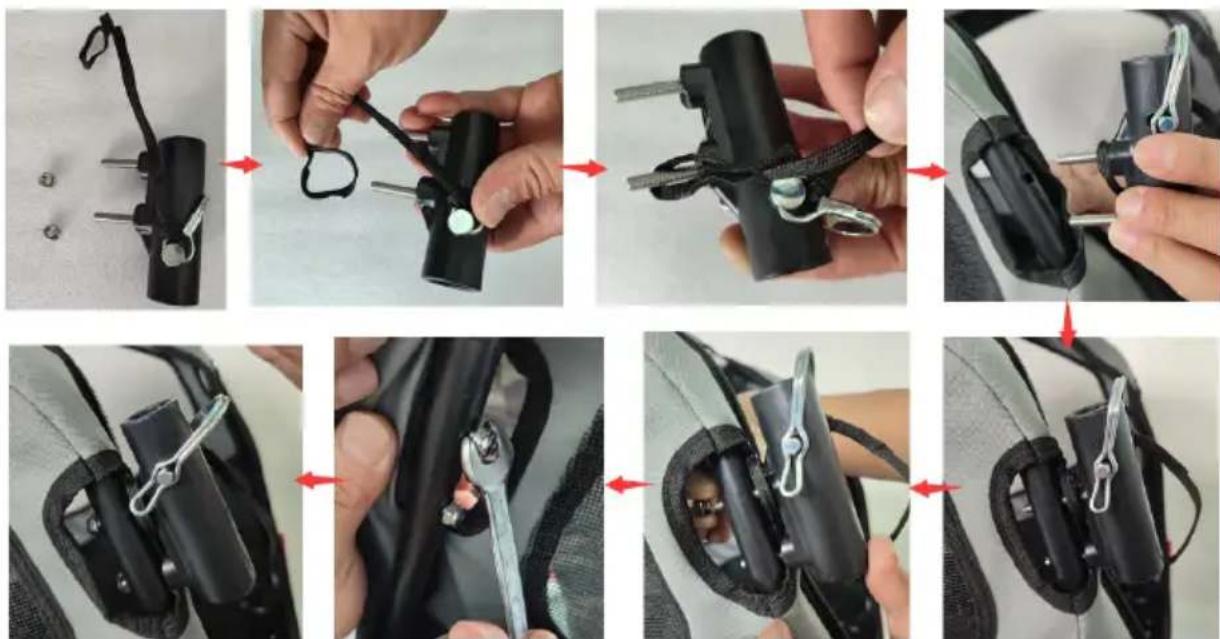

1. Push Bar Assembly

(1) According to following images and steps, please put the safety tie ring into the bracket screw, so this could avoid safety pin lost, put the screw into the frame tube mount hole and use the open end wrench (10 mm) tight the nut on the screw. Make sure the bracket mounted safety and tight.

Sequence of black-and-white images showing a mechanical assembly with clips and tools, no visible text or symbols

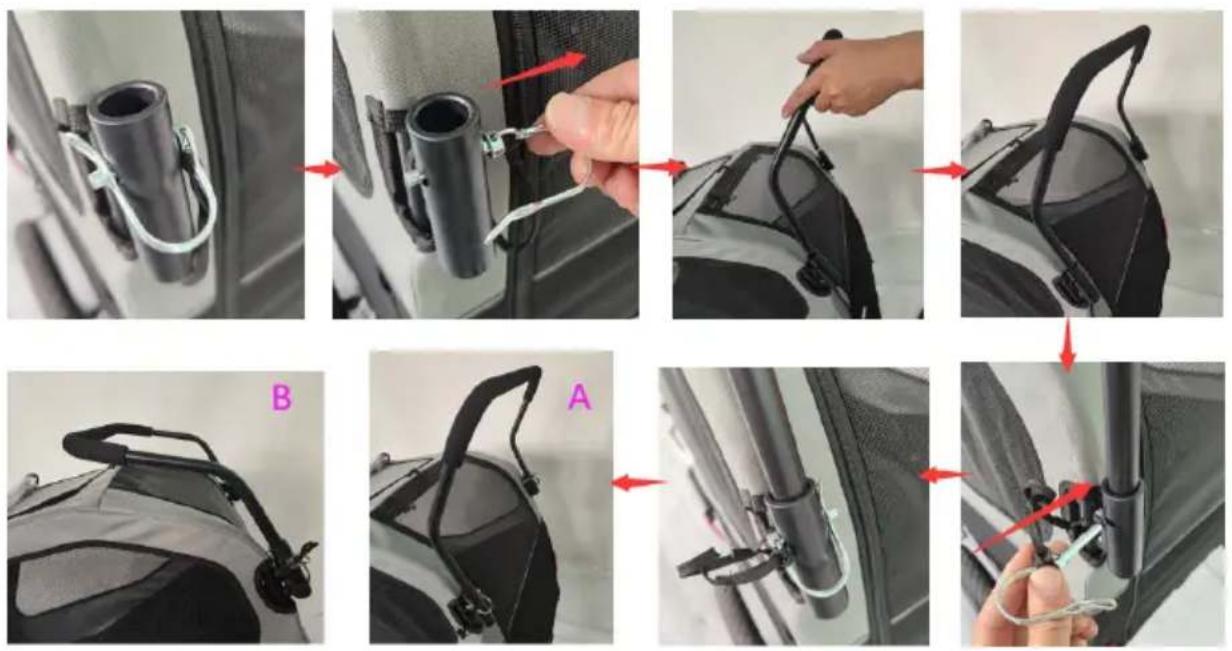

(2). Release the safety pin from the bracket first. Then insert the push bar into bracket and lock the safety pin on both sides, please make sure the safety pin locked.

Remark: push bar could mounted like position A or B.

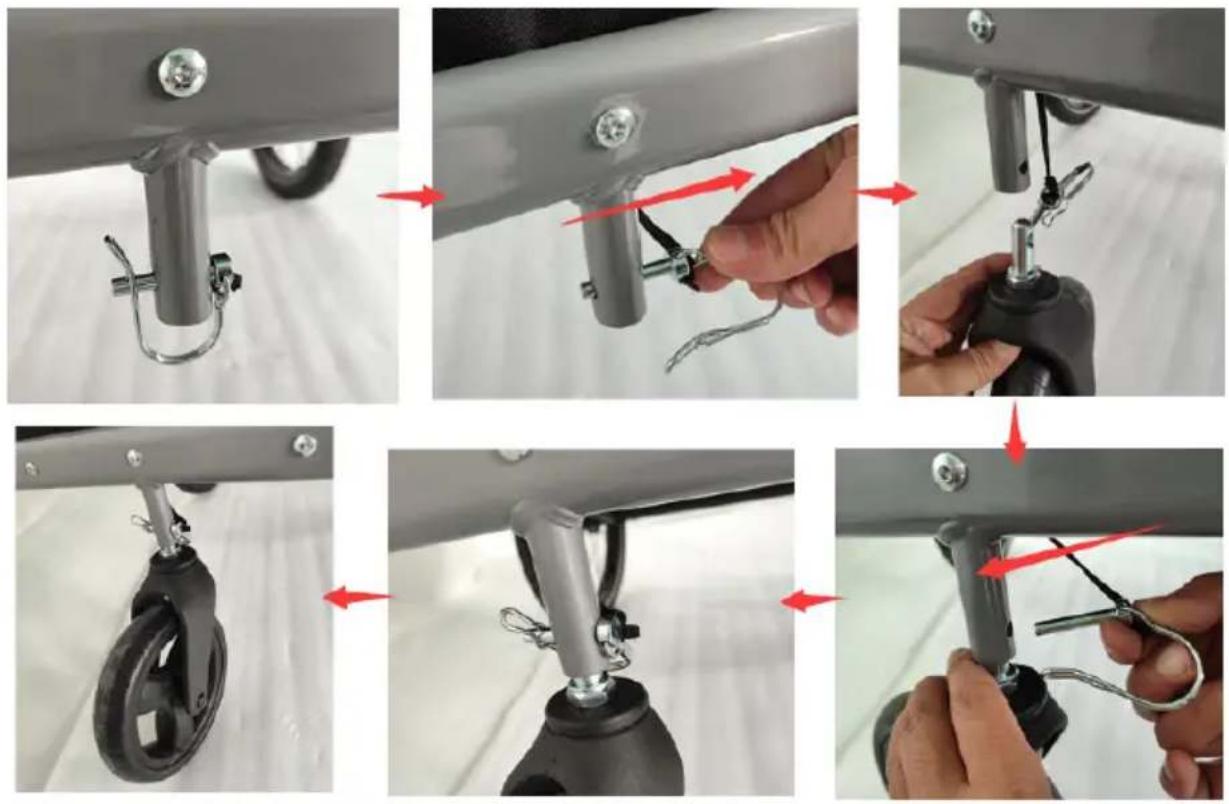

(3) Release the safety pin from the front wheel bracket, insert the front wheel axle into the bracket tube and then lock it by safety pin, please make sure the safety pin locked safety.

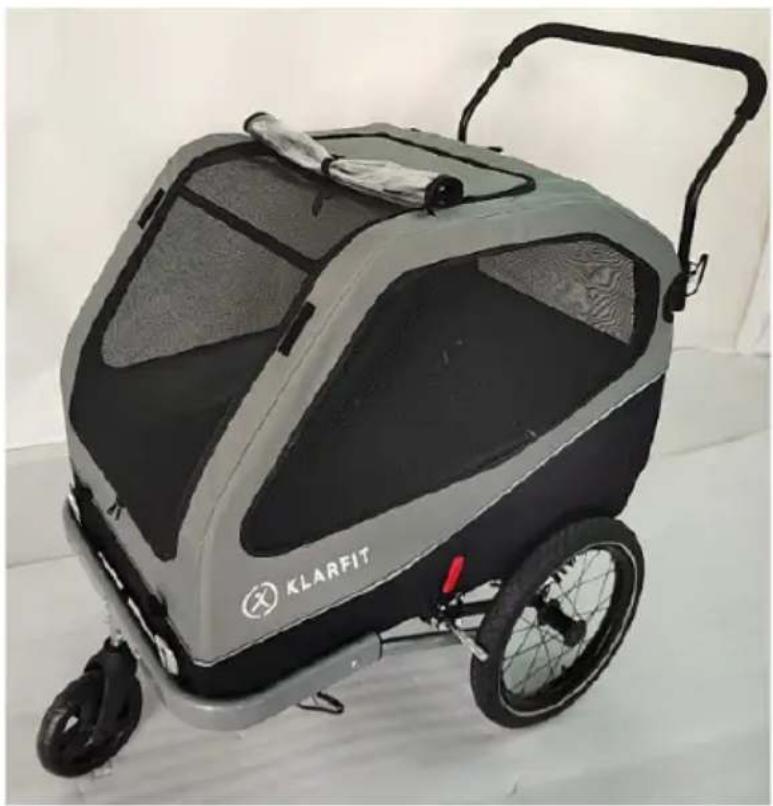

Exterior view of a KLARFIT electric vehicle with wheels and handle (no signage or text on body)

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

CONSIGNES DE SÉCURITÉ

Labeled photo of a bicycle scooter with numbered parts including rear seats, front wheel, and back cover

Step-by-step photo showing a car's back panel being adjusted for cleaning, with red arrows indicating the process.

Three-panel photo sequence showing car interior and exterior views of a smart vehicle (no text or symbols visible)

Step-by-step instructions for using a tool to adjust bicycle wheel rim, showing step-by-step assembly and repair (no text or symbols visible)

Close-up of a bicycle tire being installed, showing the wheel rim and cable assembly (no text or symbols visible)

Sequence of four-step diagram showing a hand holding a small object with red arrows indicating motion, no text or symbols present.

Three-panel image showing a car interior, a small red flag on the wall, and a delivery vehicle with a 'KLAITI' logo (no text or symbols on the main objects)

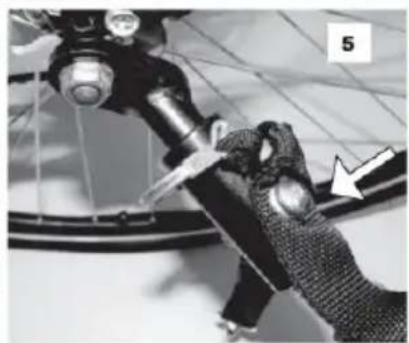

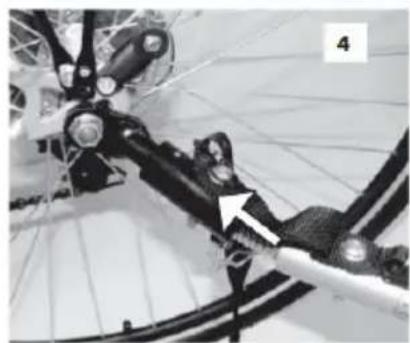

ATTELAGE DE LA REMORQUE AU VÉLO

Black mechanical components including a knuckle, hose, and boot on a plain surface (no text or symbols visible)

Close-up of a bicycle wheel assembly with a hand adjusting the components (no visible text or symbols)

Close-up of a bicycle's wheel and gear assembly being adjusted, with no visible text or symbols

Close-up of a bicycle's front wheel and chain, showing mechanical components and a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a bicycle wheel with visible mechanical components and a hand adjusting the shaft (no text or symbols)

Close-up of a bicycle's seatbelt and chain strap mechanism (no text or symbols visible)

Sequence of black-and-white images showing a mechanical assembly with clips and tools, no visible text or symbols

Exterior view of a KLARFIT electric vehicle with wheels and handle (no signage or text on body)

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Manufacturer & Importer (UK) 39

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

AVVERTENZE DI SICUREZZA

Labeled photo of a bicycle scooter with numbered parts including rear seats, front wheel, and back cover

Three-panel photo sequence showing car interior and exterior views of a modern electric vehicle (no text or symbols visible)

Step-by-step instructions for using a tool to adjust bicycle wheel rim, showing step-by-step assembly and repair (no text or symbols visible)

Close-up of a bicycle tire being installed, showing the wheel rim and cable assembly (no text or symbols visible)

Sequence of four-step assembly steps showing a device being inserted into a plastic housing, with red arrows indicating the process (no text or symbols present)

Three-panel image showing a black and gray car with a red flag on the side, before and after assembly, and a small robotic vehicle labeled 'KLAREIT' on the side (no text or symbols on the vehicle itself)

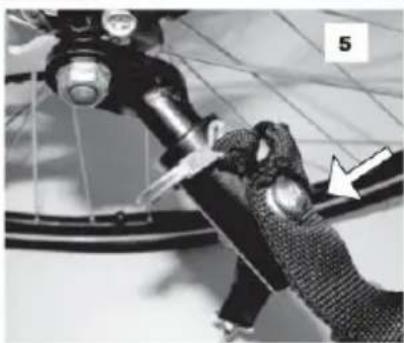

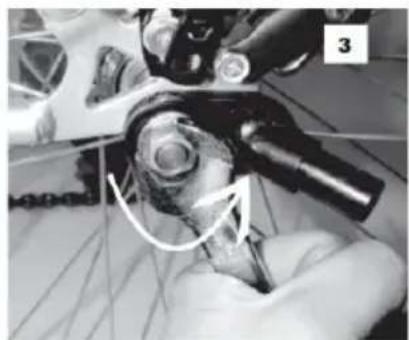

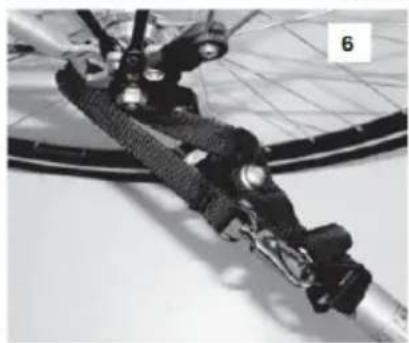

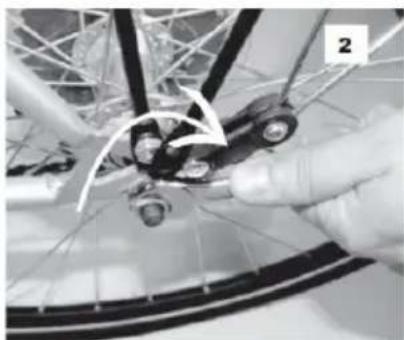

COLLEGAMENTO DEL RIMORCHIO ALLA BICICLETTA

Black mechanical components including a pair of shoes, a tool, and a curved pipe on a plain surface (no text or symbols visible)

Close-up of a bicycle wheel assembly with a hand adjusting the wheel rim (no visible text or symbols)

Close-up of hands operating a bicycle wheel assembly with a tool, no visible text or symbols

Close-up of a bicycle's chain and suspension system with a white arrow pointing to a component (no text or symbols visible)

Close-up of a bicycle's wheel and rope assembly, showing mechanical components and a hand holding a strap (no text or symbols visible)

Close-up of a bicycle's seatbelt and chain strap mechanism (no text or symbols visible)

Sequence of black-and-white images showing a mechanical assembly with clips and tools, no visible text or symbols

Step-by-step photo showing a car interior installation with labeled parts A and B, including cable fastening and safety adjustment.

Sequence of six photos showing a hand operating a bicycle seat frame with metal hardware and a wheel, no text or symbols present.

Exterior view of a KLARFIT electric vehicle with wheels and handle (no signage or text on body)

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Fabricante & importador (UK) 51

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

Labeled photo of a bicycle scooter interior with numbered parts including rear seats, front wheel, and back cover

Three-panel photo sequence showing a car interior with structural components, before and after assembly, and a final assembled vehicle (no visible text or symbols)

Step-by-step instructions for using a tool to adjust bicycle wheel rim, showing step-by-step assembly and repair (no text or symbols visible)

Close-up of a bicycle tire being installed, showing the wheel rim and cable assembly (no text or symbols visible)

Sequence of four-step assembly showing a device being inserted into a plastic housing, with red arrows indicating the process (no text or symbols present)

Three-panel image showing a black and gray car interior, with red flags on the right side of a white wall; no visible text or symbols.

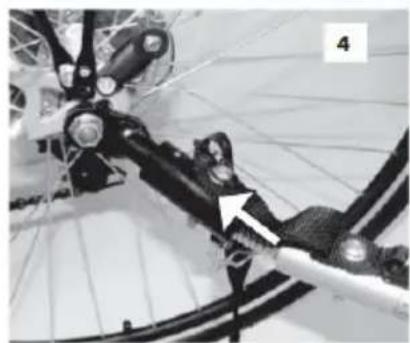

ACOPLAR EL REMOLQUE A LA BICICLETA

Black mechanical device with attached tubing and a small foot, lying on a plain surface (no text or symbols visible)

Close-up of a hand assembling a bicycle wheel component with visible gears and hub (no text or symbols)

Close-up of a bicycle's wheel and gear assembly being adjusted, with no visible text or symbols

Close-up of a bicycle's front wheel and chain, showing mechanical components and a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a bicycle wheel with a finger and rope mechanism, no visible text or symbols

Close-up of a bicycle's seatbelt and chain strap mechanism (no text or symbols visible)

Sequence of black-and-white images showing a mechanical assembly with clips and tools, no visible text or symbols

Exterior view of a KLARFIT electric vehicle with wheels and handle (no signage or text on body)
