USER MANUAL Companion Travel Klarfit
A wooden cart loaded with a large blue bag, connected by a gray cable and black straps (no text or symbols visible)LIEFERUMFANG
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Dear Customer,
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
Safety Instructions 10
Product Overview 10
Scope of Delivery 11
Assembly 12
Bike Attachment 13
Important Notes on Fastening and Use 14
TECHNICAL DATA
| Item number 10034493, 10040028, 10040095, 10040096 |
| Dimensions (assembled) 127 x 62 x 40 cm |
| Dimensions trailer 63 x 42 cm |
| Weight trailer 7.55 kg |
| Maximum loading weight 40 kg |
| Maximum tire pressure 1.70 - 2.00 Bar (25 - 30 PSI) |
| Optional accessories A bag is not included with all items. In addition to the supplied accessories, matching bags can be purchased under article number 10034494 (blue/black) and 10034495 (grey/black). |
SAFETY INSTRUCTIONS
- The trailer should not be loaded with more than 40 kg.
- The trailer must not be used to carry persons.
- Do not make any technical modifications to the equipment. This may result in road hazards and void the manufacturer's warranty.
- Do not use the trailer on stony, uneven terrain or in dangerous traffic situations.
- The towing bicycle must be in perfect condition. The brakes should work perfectly. A trailer (and load) will increase your braking distance.

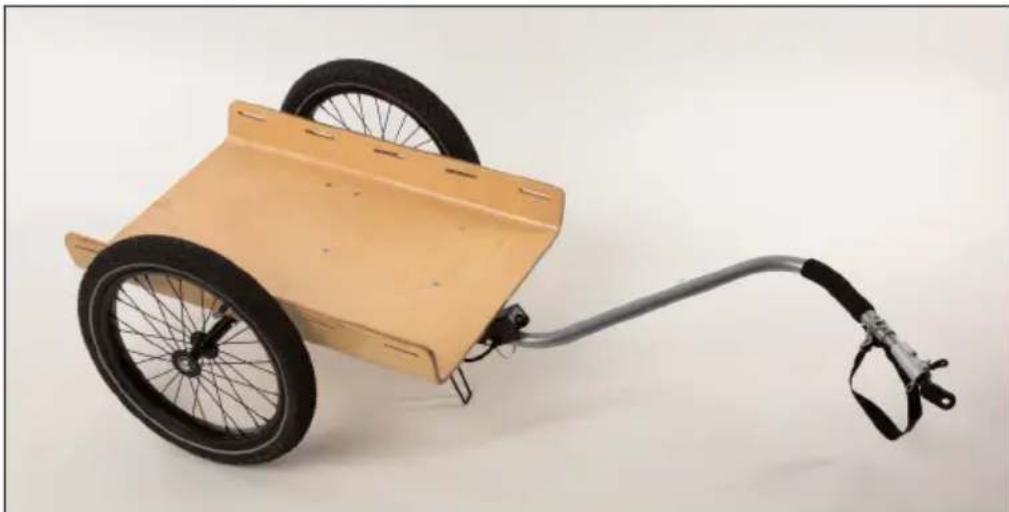

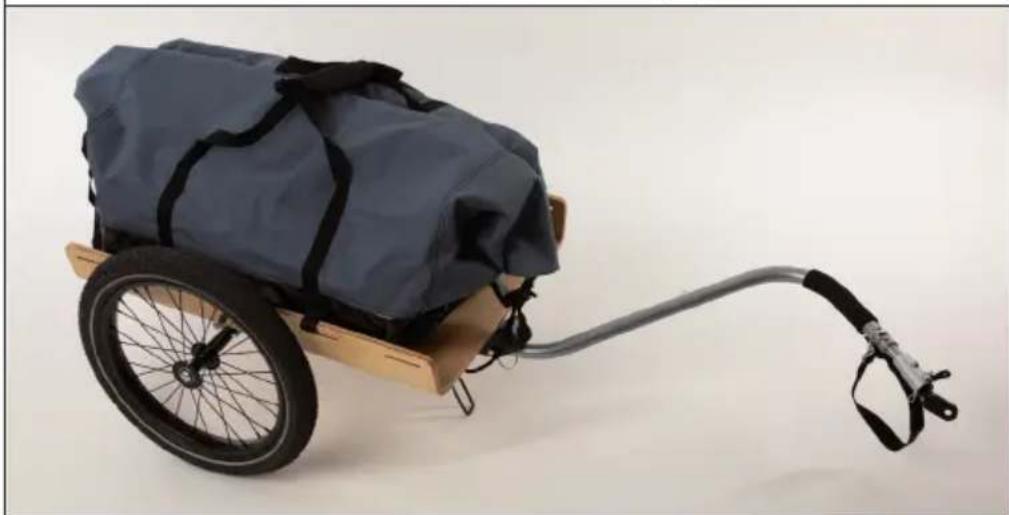

PRODUCT OVERVIEW


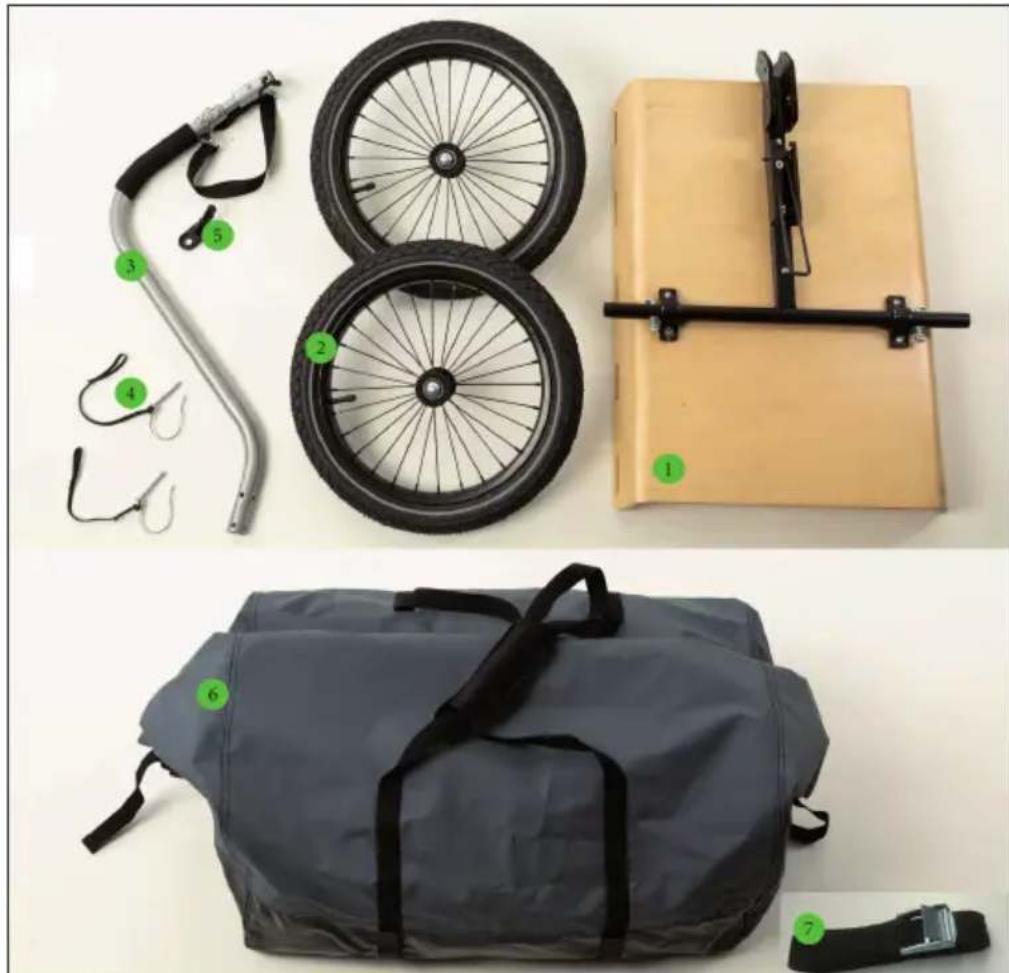

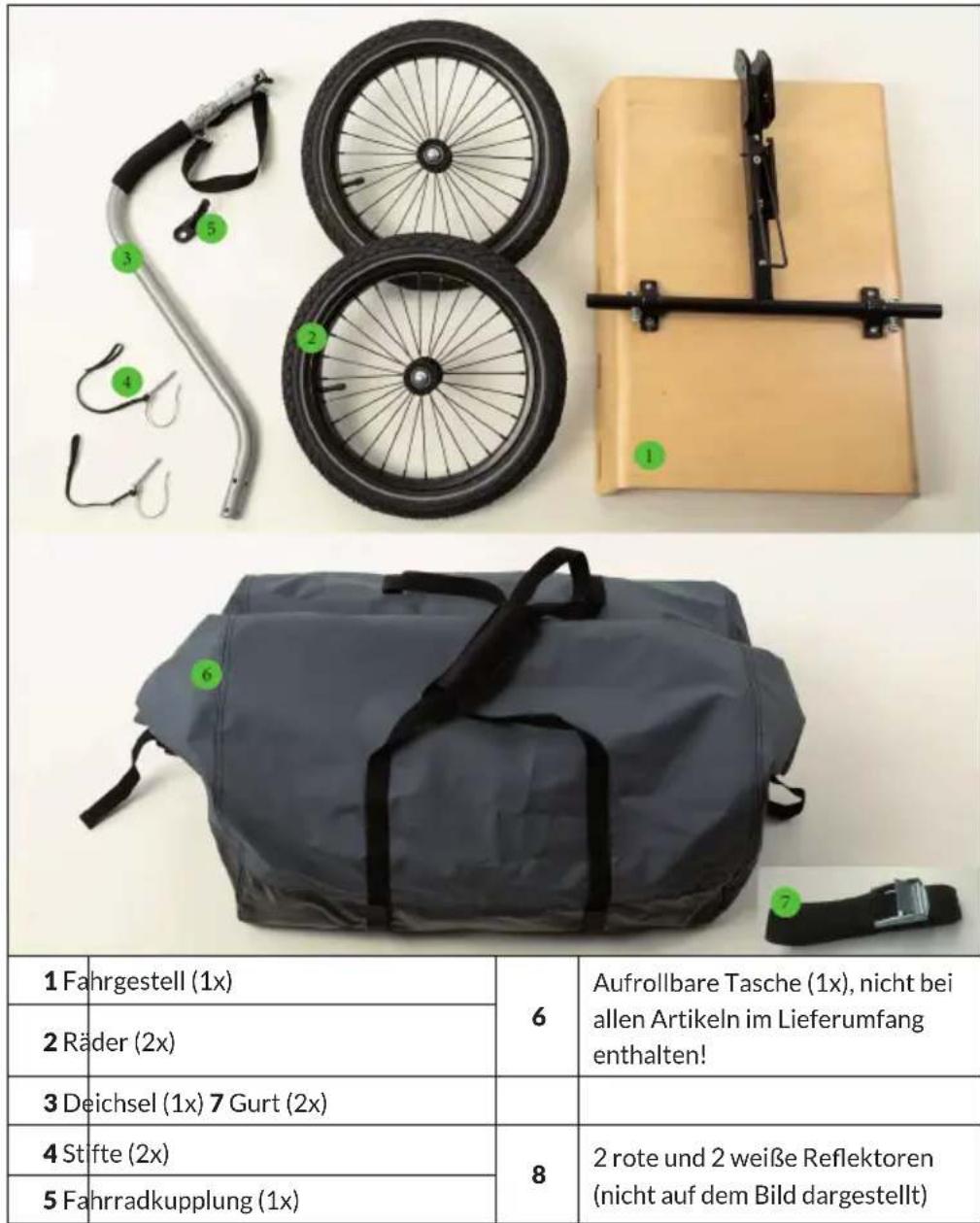

Wooden cart with a dark blue cargo bag attached, connected by a metal rod (no text or symbols visible)SCOPE OF DELIVERY
| 1 Chassis (1x) | 6 | Rolltop bag (1x), not included with all items! |
| 2 Wheels (2x) | ||
| 3 Drawbar (1x) 7 Belt (2x) | ||
| 4 Pins (2x) | 8 | 2 red and 2 white reflectors (not shown in the picture) |
| 5 Trailer hitch (1x) |
EN

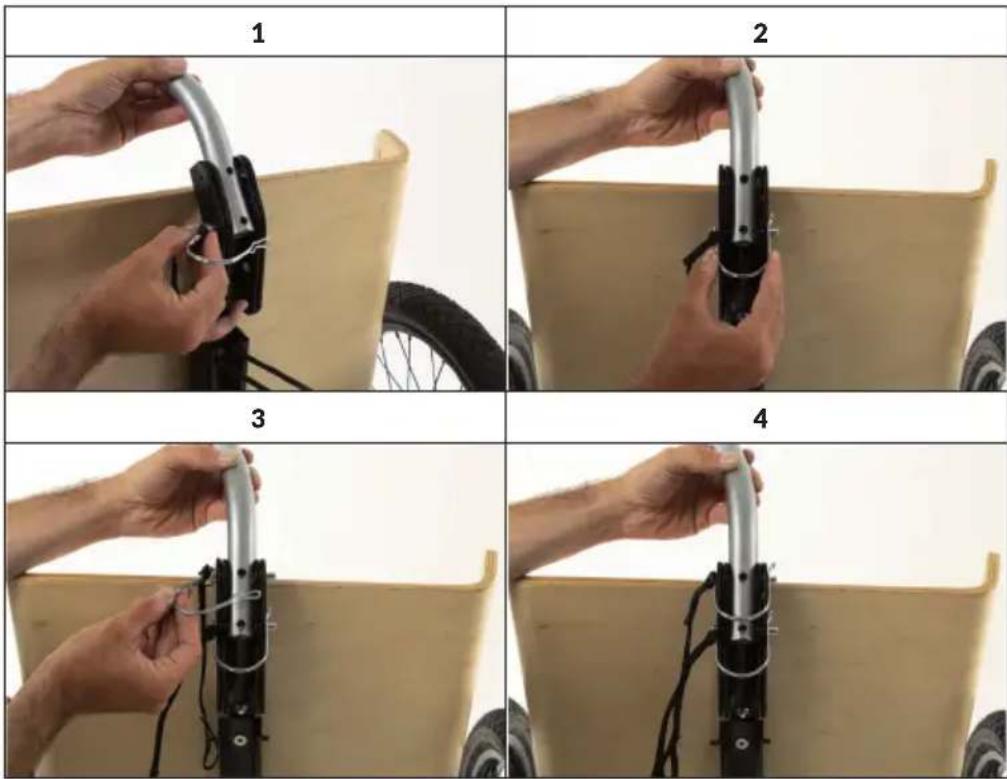

ASSEMBLY
(a) Remove the protective caps from the axle ends.
(b) Slide the wheels onto the axles. You will hear a snap sound.
(c) Insert the drawbar into the connector on the chassis and rotate it to the desired position:
- Hand trolley mode: the drawbar points upwards at 90^ .
- Bicycle trailer mode: The drawbar points at an angle of 45^ to the side.
(d) Insert the two locking pins through the holes to secure the drawbar to the chassis. Use spring clips to secure the connection.


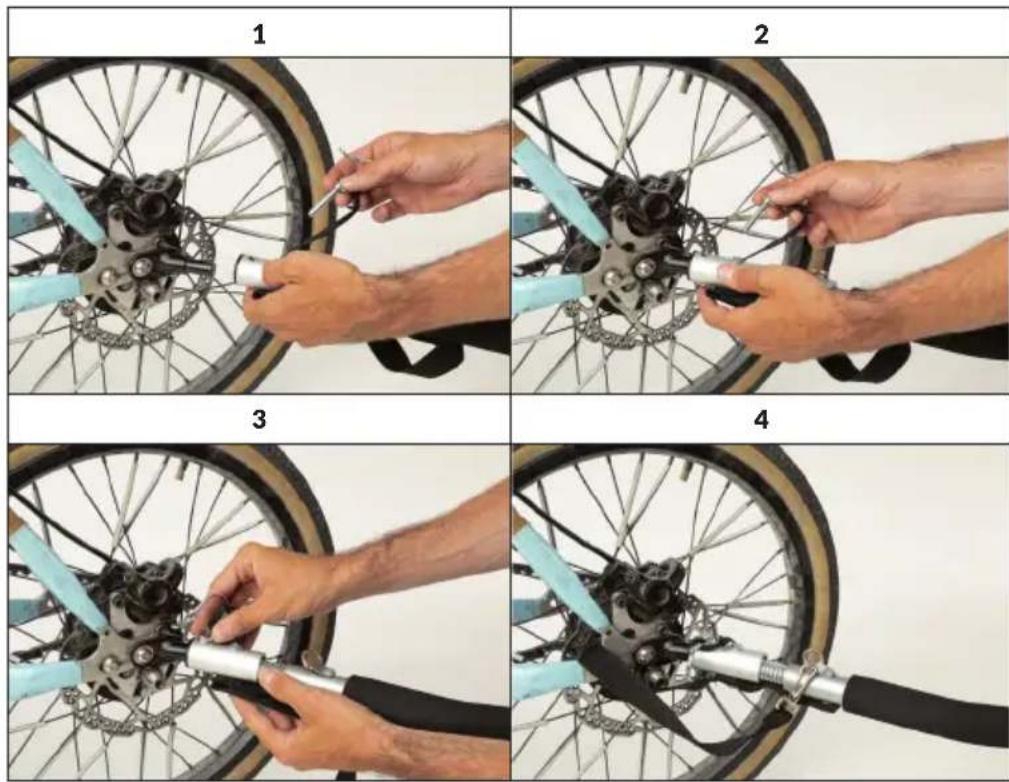

1 2 3 4BIKE ATTACHMENT
(a) Pull the trailer hitch out of the drawbar and mount it on the rear axle of the bicycle:
- For axles with quick release: Remove the entire axle, push the axle through the trailer hitch and reattach the axle with the quick release.
- For axles that are fastened with nuts: Unscrew the nut and washer. Slide the trailer hitch onto the axle and retighten the washer and nut.
(b) Attach the drawbar to the trailer hitch and secure the drawbar with the locking pin.
(c) Once the drawbar is attached, pull safety belt through the rear end chain stay on the bicycle and hook it into the bracket on the drawbar.
IMPORTANT NOTES ON FASTENING AND USE
Note: The connection between bicycle and trailer is the most important step in the assembly process. Make sure that the trailer is securely attached to the bicycle. If the trailer hitch cannot be securely attached or tightened to your bicycle, do not use it. Contact your bicycle dealer for help with correct installation.
- Check the condition of the bicycle and trailer before each use.
• Always ride defensively. During use, observe local traffic regulations. - If you have a trailer, you will need additional stopping distance.
- Practice your trailer before use until you are familiar with it.
- Make sure that your load is secured before driving. Do not exceed the maximum load weight.
- Make sure that you use a suitable bicycle. If in doubt, consult your local bicycle dealer or manufacturer.
• After assembly and before riding, check that the hitch is fully engaged. - Check the tyre pressure regularly. Make sure that the tyre pressure is always between 1.70 - 2.00 bar (25 - 30 PSI).
- If possible, use the trailer only on slippery roads. Avoid kerbs, potholes or uneven surfaces.
- If you drive downhill or around a bend, you must drive slower.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
